Search Results (7)

This article presents the results of research into the causes of the wear of the piston pin mounted in piston bosses by means of a hinge joint and in the connecting rod small end by means of the thermocompression bond. Changes in geometry and in the pin-top surface structure, which are caused by the mutual influence of the mating surfaces in variable lubrication conditions, are presented. The progress of scuffing as a result of insufficient lubrication of the mating elements or oil film breaking is demonstrated. The state of destruction was confirmed by the results of surface roughness measurements showing the formation of build-ups. The loss of the thermocompression bond surface, caused by the penetration of sintered engine oil fractions containing biofuel additive components and spent engine oil improver packages, was noted. The progressing forms of wear are the cause of engine failures due to the pin movement towards the cylinder wall, and due to boss breakage in the piston. Full article

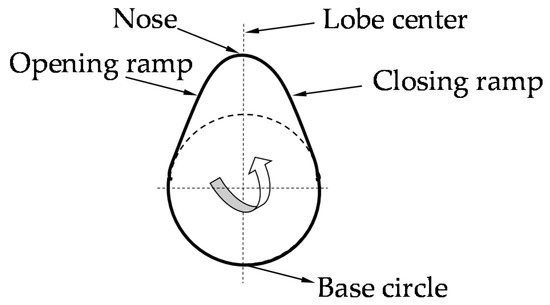

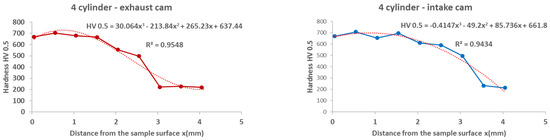

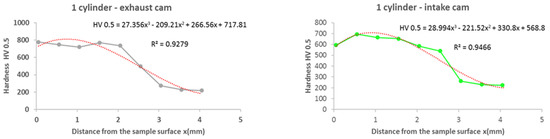

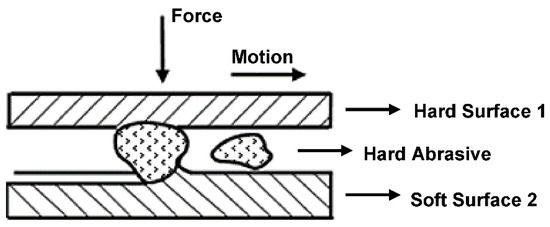

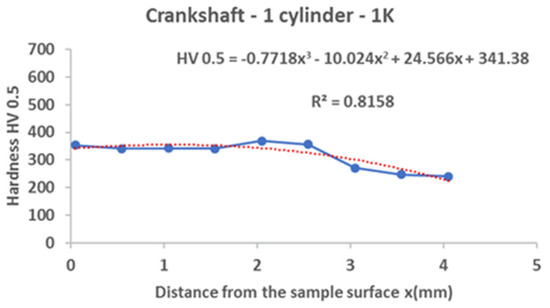

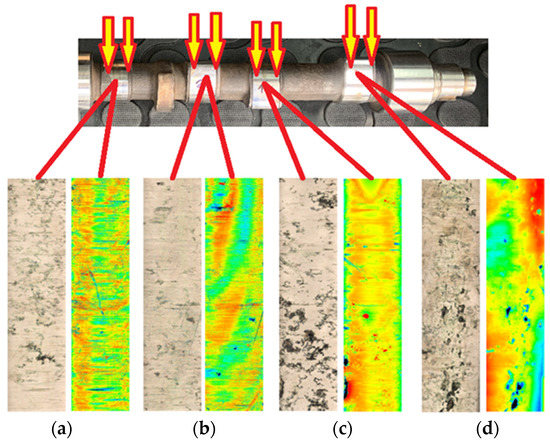

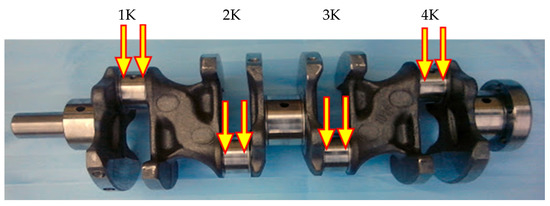

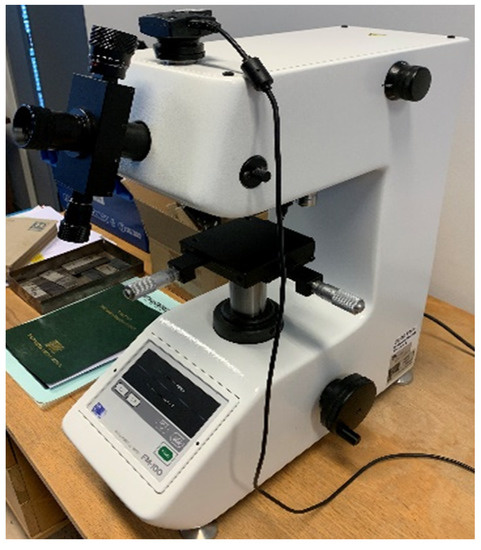

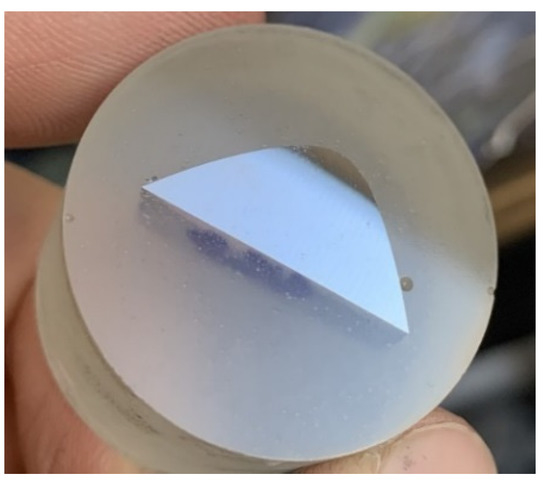

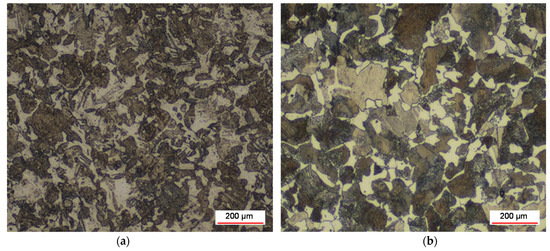

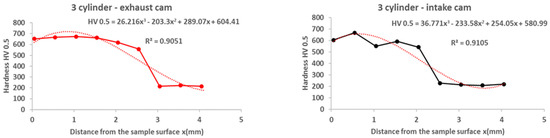

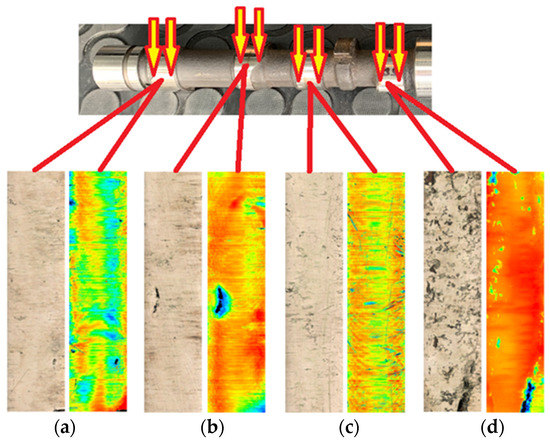

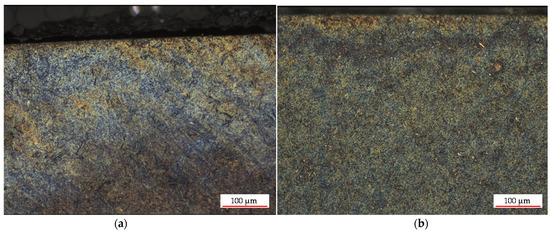

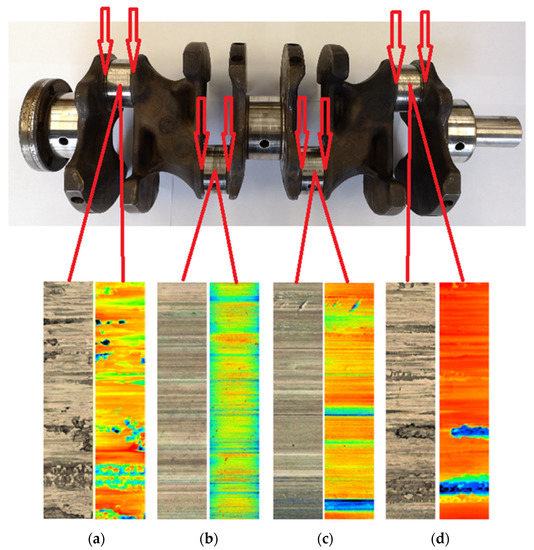

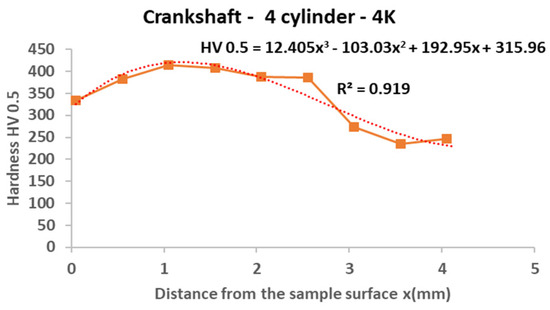

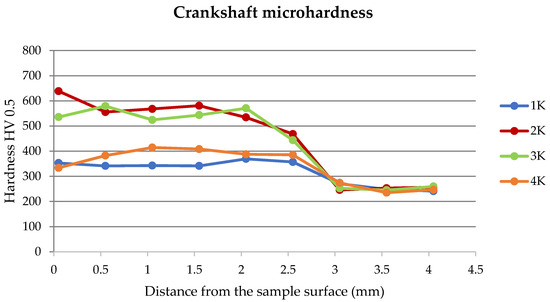

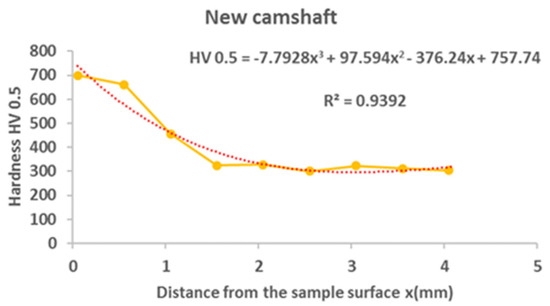

The present paper analyzes the damage of surfaces at spots of frictional contact, namely, the friction nodes on a camshaft and the connecting rod pins of a crankshaft. The resulting wear of the monitored friction nodes reduces the technical life of the machines, which can lead to the decommissioning of the machine. Wear was assessed by measuring roughness and microhardness and by observing the microstructures of the materials. The results of the experiments show that the rotating parts displayed visible wear on the cams, as well as on the connecting rod pins. The experiments revealed that wear was caused by the heating of the material to a high temperature during the operation of the machine and that there was a gradual cooling and tempering of the material, which led to a reduction in the microhardness of the monitored object. Lower microhardness values can be a cause of greater wear of the monitored objects. When comparing the microhardness of the used and the new camshaft, the hardened layer of the new camshaft from secondary production has a significantly smaller thickness compared to worn cams, which leads to the finding of a different material quality compared to the original parts from primary production. This fact indicates that the wear of a new camshaft as a spare part can contribute to the shortening of the technical life of friction nodes. Full article

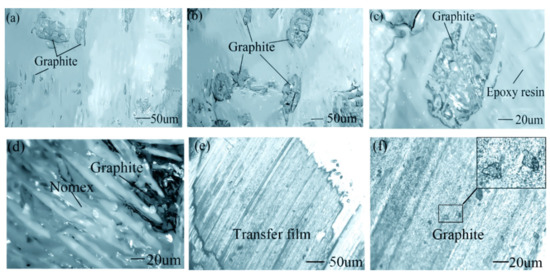

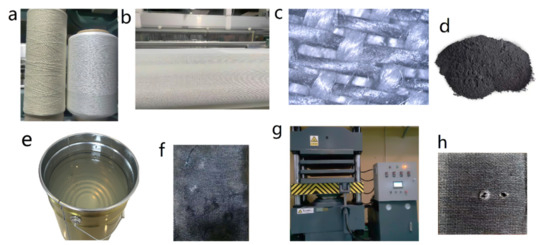

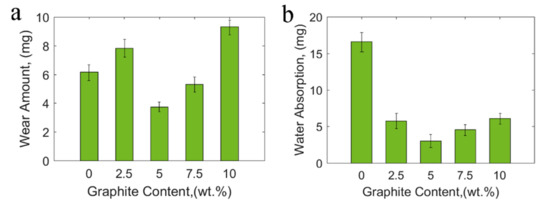

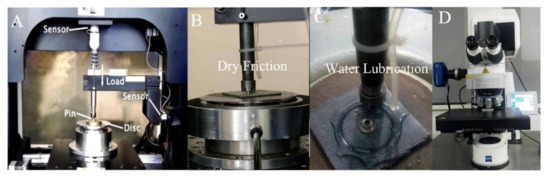

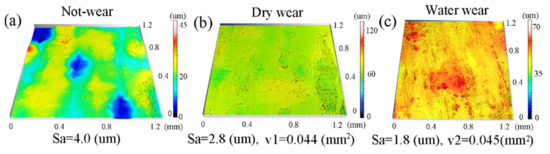

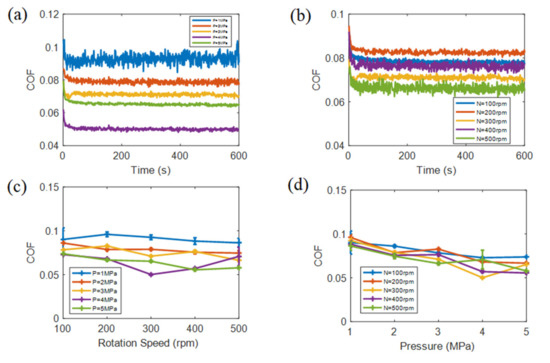

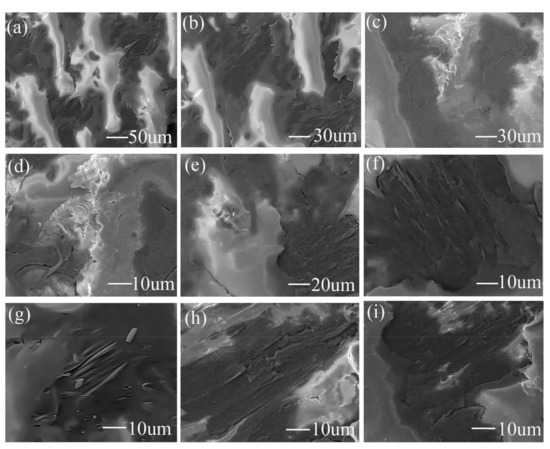

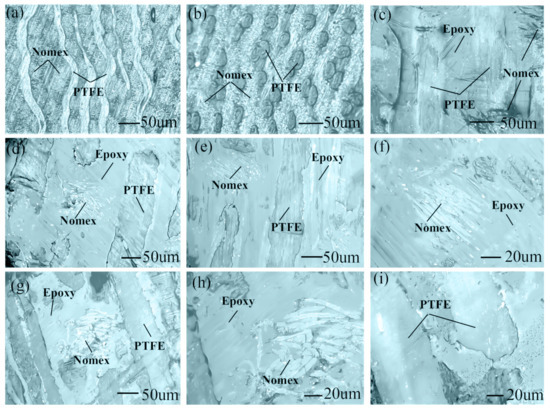

This paper studied a hybrid polytetrafluoroethylene (PTFE)/Nomex fabric composite with lower friction coefficient (COF) and high underwater wear resistance. A pin-on-disk tribometer was used to test tribological properties under different applied loads and rotation speeds. The wear surface, transfer film and cross-section were analyzed by scanning electron microscope (SEM) and optical microscope. The results showed enhanced underwater tribological properties because of excellent self-lubricating properties of PTFE fibers and a good lubricating effect and load-carrying capacity of graphite fillers. Improved underwater mechanical strength was connected to the high strength of epoxy resin and high bonding force between Nomex and epoxy resin. Full article

Two complementary approaches should be used for the full characterisation of friction pair components. The first approach consists of stereometric studies of machined as well as worn surface topography of the friction components with multiple measurement methods used. The second approach, tribometric studies, enables the tribological characteristics of the friction pair. This work presents the complete characterisation of polymeric pin and ceramic plate friction pair components based on studies with the use of three research instruments: an interference microscope, a scanning electron microscope and a tribological tester. The results of the studies showed that the same treatment conditions used for different but similar ceramic materials did not provide exactly the same characteristics of both the machined and worn surface topography. Moreover, the results showed that the material properties and machined surface topography of the ceramic component significantly affected the friction coefficient and linear wear as well as the wear intensity of the polymeric component. Connecting the two approaches, stereometric studies and tribometric studies, allowed for a better identification of the wear mechanism of the polymeric pin (i.e., abrasion, fatigue and adhesion wear) and the kind of wear products (polymeric material). Full article

Pin connections are commonly used in many engineering fields, and continuous operation may cause severe wear on the pins and may lead to their eventual fracture, if undetected. However, a reliable nonintrusive real-time method to monitor the wear of pin connections is yet to be developed. In this paper, acoustic emission (AE)-based parametric analysis methods, including the logarithm of the cumulative energy (LAE), the logarithm of the slope of cumulative energy (LSCE), the b-value method, the Ib-value method, and the fast Fourier transformation (FFT), were developed to quantify the wear degree of pin connections. The b-value method offers a criterion to quickly judge whether severe wear occurs on a pin connection. To assist the research, an experimental apparatus to accelerate wear test of pin connections was designed and fabricated. The AE sensor, mounted on the test apparatus in a nondestructive manner, is capable of real-time monitoring. The micrographs of the wear of pins, and the surface roughness of pins, verified that the values of the max LAE and the max LSCE became larger as the wear degree of pin connections increased, which means different values of the max LAE and the max LSCE can reflect different wear degree of pin connections. Meanwhile, the results of the micrographs and surface roughness confirmed that the b-value is an effective method to identify severe wear, and the value “1” can be used as a criterion to detect severe damage in different structures. Furthermore, the results of spectrum analysis in the low frequency range showed that the wear frequency was concentrated in the range of 0.01 to 0.02 MHz for the pin connection. This study demonstrated that these methods, developed based on acoustic emission technique, can be utilized in quantifying the wear degree of pin connections in a nondestructive way. Full article

Pin connections are one of the most important connecting forms and they have been widely used in engineering fields. In its service, pin connections are subject to wear, and it will be beneficial if the health condition of pin connections can be monitored in real time. In this paper, an acoustic emission (AE)-based method was developed to monitor wear degree of low rotational speed pin connections in real time in a nondestructive way. Most pin connections are operated at low rotational speed. To facilitate the research, an experimental apparatus to accelerate the wear test of low rotational speed pin connections was designed and fabricated. The piezoceramic AE sensor was mounted on the test apparatus in a nondestructive way, and it was capable of real-time monitoring. Accelerated wear tests of low rotational speed pin connections were conducted. To verify the results of the AE technique, a VHX-600E digital (from Keyence, Osaka, Japan) microscope was applied to observe the micrographs of the tested pins. The experimental results show that AE activity existed throughout the entire wear process, and it was the most prominent in the serious wear phase. The wear degree of the pin connections can be reflected qualitatively by the signal strength and the accumulative signal strength of the AE signals. In addition, two different wear forms can be distinguished by comparing the signal strength values of all specimens. Micrographs of all specimens confirm these results, and determine that the two wear forms include adhesive wear and abrasive wear. Furthermore, AE results demonstrated that adhesive wear is the main mode of wear for the low rotational speed pin connections, and the signal strength of the adhesive wear is around 190 times larger than that of abrasive wear. This feasibility study demonstrated that the developed acoustic emission technique can be utilized in the wear monitoring of pin connections in real time in a nondestructive way. Full article

Usually, some severe efforts are required to obtain tribological parameters like Archard’s wear depth parameter k_d. Complex tribological experiments have to be performed and analyzed. The paper features an approach where such parameters are extracted from effective interaction potentials in combination with more physical-oriented measurements, such as Nanoindentation and physical scratch. Thereby, the effective potentials are built up and fed from such tests. By using effective material potentials one can derive critical loading situations leading to failure (decomposition strength) for any contact situation. A subsequent connection of these decomposition or failure states with the corresponding stress or strain distributions allows the development of rather comprehensive tribological parameter models, applicable in wear and fatigue simulations, as demonstrated in this work. From this, a new relatively general wear model has been developed on the basis of the effective indenter concept by using the extended Hertzian approach for a great variety of loading situations. The models do not only allow to analyze certain tribological experiments, such as the well known pin-on disk test or the more recently developed nano-fretting test, but also to forward simulate such tests and even give hints for structured optimization or result in better component life-time prediction. The work will show how the procedure has to be applied in general and a small selection of practical examples will be presented. Full article
