Search Results (6)

V-bearing molten iron was obtained by adding Na₂CO₃ in the smelting process of vanadium titanomagnetite at low temperature. Two forms of V-rich carbides ((Fe,V)₃C, VC) were detected in the V-bearing pig iron products. Once the smelting temperature was above 1300 °C, most of the V in the raw ore was reduced into molten iron. Owning to the high content of V, the unsteady (Fe,V)₃C solid solution decomposed along with the precipitation of graphite and VC during the solidification process. The presence of VC cluster and VC precursor in (Fe,V)₃C was detected by transmission electron microscopy, which confirmed the possibility of this transition process at the atomic perspective. The transformation dramatically affected the compositions and properties of V-bearing pig iron and had important guiding significance for the actual production process. Full article

The iron and steel industry is a major CO₂ emitter and an important subject for the implementation of carbon emission reduction goals and tasks. Due to the complex ore composition and low iron grade, vanadium–bearing titanomagnetite smelting in a blast furnace consumes more coke and emits more carbon than in an ordinary blast furnace. Injecting hydrogen–rich gas into blast furnace can not only partially replace coke, but also reduce the carbon emission. Based on the whole furnace and zonal energy and mass balance of blast furnace, the operation window of the blast furnace smelting vanadium–bearing titanomagnetite is established in this study on the premise that the thermal state of the blast furnace is basically unchanged (raceway adiabatic flame temperature and top gas temperature). The effects of different injection amounts of hydrogen–rich gases (shale gas, coke oven gas, and hydrogen) on raceway adiabatic flame temperature and top gas temperature, and the influence of blast temperature and preheating temperature of hydrogen–rich gases on operation window are calculated and analyzed. This study provides a certain theoretical reference for the follow–up practice of hydrogen–rich smelting of vanadium–bearing titanomagnetite in blast furnace. Full article

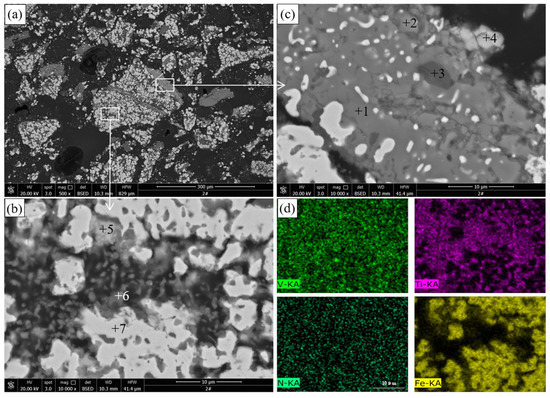

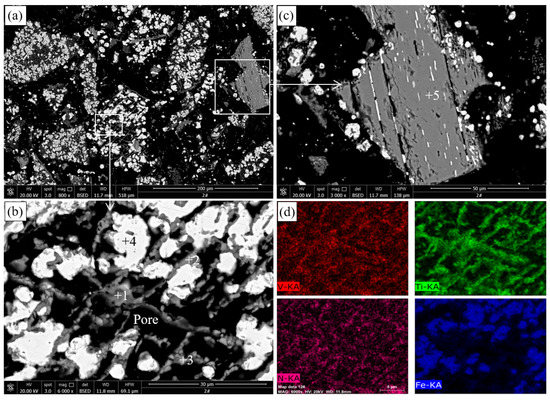

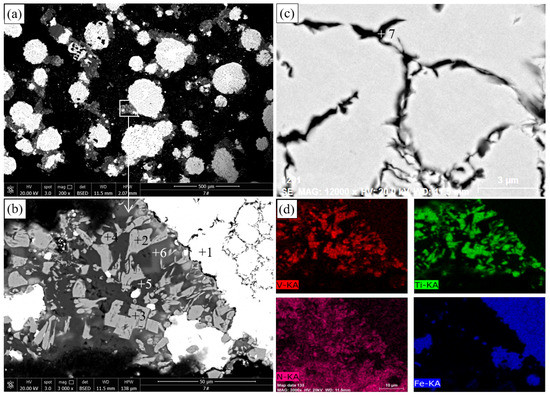

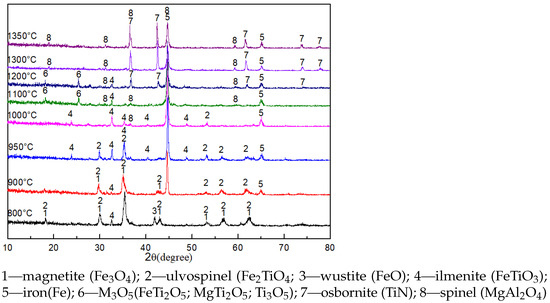

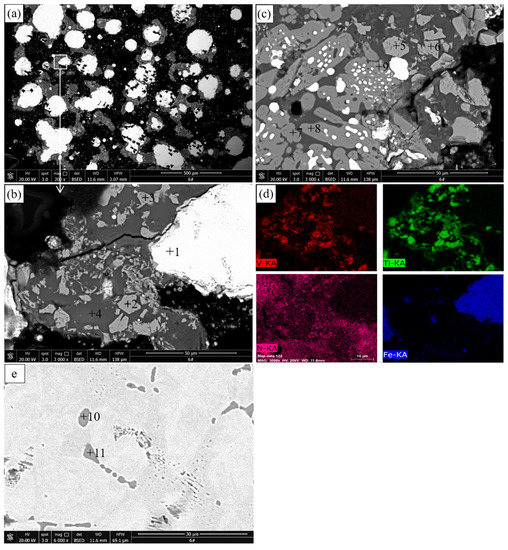

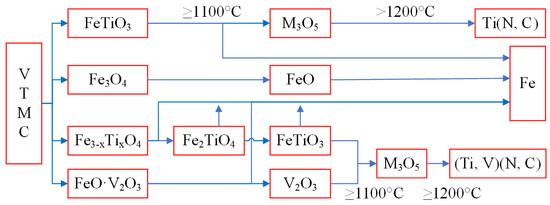

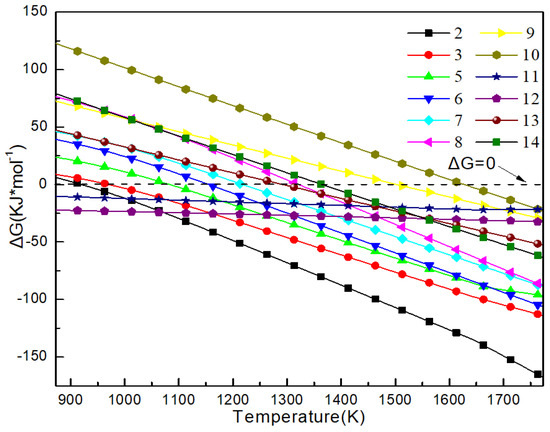

In this study, the carbothermic reduction and nitridation mechanism of vanadium-bearing titanomagnetite concentrate are investigated in terms of phase transformation, microstructure transformation, and thermodynamic analyses. The differences in the reaction behavior of titanomagnetite and ilmenite in vanadium-bearing titanomagnetite concentrate, as well as the distribution characteristic of V in the roasted products, are emphatically studied. It is observed that the reaction sequences of titanomagnetite and ilmenite transformations into nitride are as follows: Fe${}_{3-x}$Ti${}_x$O${}_4$→Fe${}_2$TiO${}_4$→FeTiO${}_3$→M${}_3$O${}_5$→(Ti, V)(N, C); FeTiO${}_3$→M${}_3$O${}_5$→Ti(N, C). The reduction of M${}_3$O${}_5$ to TiN is the rate-limiting step of the entire reaction, and metal iron is an important medium for transferring C for the reduction of M${}_3$O${}_5$. Titanomagnetite is faster to convert into nitride than ilmenite is, and the reasons for this are discussed in detail. During the entire roasting process, V mainly coexists with Ti and seems to facilitate the conversion of titanium oxides into (Ti, V)(N, C). Full article

Titanomagnetite from Fe-Ti-V ores of the Lanjiahuoshan deposit, Panzhihua layered intrusion, Southwest China, was investigated at the nanoscale. The objectives were to establish the composition of exsolution phases and their mutual relationships in order to evaluate the sequence of exsolution among oxide phases, and assess mechanisms of ore formation during magma emplacement. At the micron-scale, titanomagnetite shows crosscutting sets of exsolutions with ilmenite and Al-Mg-Fe-spinel (pleonaste), as well as overprint, both in terms of phase re-equilibration and remobilization of trace elements. Most complex textures were found in titanomagnetite surrounded by ilmenite and this was selected for high-angle annular dark field scanning transmission electron microscopy (HAADF STEM) imaging and STEM energy-dispersive X-ray spectrometry (EDS) spot analysis and mapping on a thin foil prepared in situ on a focused ion beam scanning electron microscope platform. Titanomagnetite revealed two sequential sets of exsolutions, {111} crosscutting {100}, which are associated with changes in phase speciation and trace element distribution patterns. Qandilite is the dominant spinel phase inside titanomagnetite; magnesioferrite is also identified. In contrast, Fe-poor, Al-rich, Mg-bearing spinel is present within ilmenite outside the grain. Vanadium enrichment in newly-formed magnetite lamellae is clear evidence for trace element remobilization. This V-rich magnetite shows epitaxial relationships with ilmenite at the contact with titanomagnetite. Two-fold super-structuring in ilmenite is evidence for non-redox re-equilibration between titanomagnetite and ilmenite, supporting published experimental data. In contrast, the transformation of cubic Ti-rich spinel into rhombohedral ilmenite imaged at the nanoscale represents the “oxy-exsolution” model of titanomagnetite–ilmenite re-equilibration via formation of a transient ulvöspinel species. Nanoscale disorder is encountered as vacancy layers in Ti-rich spinel, and lower symmetry in the Fe-poor, Al-Mg phase, suggesting that slow cooling rates can preserve small-scale phase equilibration. The cooling history of titanomagnetite ore can be reconstructed as three distinct stages, concordant with published models for the magma plumbing system: equilibrium crystallization of Al-rich, Mg-bearing titanomagnetite from cumulus melts at ~55 km, with initial exsolutions occurring above 800 °C at moderate fO₂ conditions (Stage 1); crosscutting {111} exsolutions resulting in formation of qandilite, attributable to temperature increase due to emplacement of another batch of melt affecting the interstitial cumulus during uplift. Formation of 2-fold superstructure ilmenite + V-rich magnetite exsolution pairs representing non-redox equilibration indicates resetting of the cooling path at this stage (Stage 2); and ilmenite formation from pre-existing Ti-rich spinel and ulvöspinel, illustrative of redox-driven cooling paths at <10 km (Stage 3). HAADF STEM provides direct imaging of atomic arrangements, allowing recognition of processes not recognizable at the micron-scale, and can thus be used to constrain exsolution models during ore formation. Full article

With a view to satisfying the requirements of environmental protest and efficient usage of resources, a novel process for efficiently extracting vanadium (V), titanium (Ti), and iron (Fe) from vanadium-bearing titanomagnetite concentrate was developed. In the new process, vanadium is pre-extracted by additive-free roasting under the air atmosphere and alkaline leaching technologies. In this paper, transformation of vanadium-bearing titanomagnetite concentrate in the roasting is investigated based on thermodynamic analyses and experimental discussion. Thermodynamic analyses show that oxidation of V(III) into V(V) would happen in the roasting experiment over the range of 327–1327 °C and vanadium-iron spinel phase (FeV₂O₄) can be oxidized more easily than magnetite (Fe₃O₄) when the temperature is higher than 861 °C. Experimental results show that some compounds (V₂O₅, Fe₂Al₄Si₅O₁₈, and Fe₂SiO₄) with low melting temperature were obtained by solid reactions at low temperature and melted as a binding phase at elevated temperature. Liquids were generated due to some chemical reactions or phase transformation reaction (Fe₂V₂O₄(s) → Fe₂O₃(s) + liquid) at elevated temperature. Main phases of Fe₂O₃ and Fe₂TiO₅ are connected and sintered with the binding phases of the compounds with low melting temperature or the mixtures with low liquidus temperature. In addition, higher roasting temperature leads to higher vanadium leaching efficiency over the range of 800–1200 °C. However, over-burning would happen at 1250 °C, some of vanadium oxide was wrapped by silicate network, and the conversion of V(III) into V(V) was prevented from occurring. Therefore, the vanadium leaching efficiency decreased from 59.1% (T_roa. = 1200 °C) to 57% (T_roa. = 1250 °C). Full article

The effects of basicity and MgO content on reduction behavior and separation of iron and slag during smelting vanadium titanomagnetite by electric furnace were investigated. The reduction behaviors affect the separation of iron and slag in the direct reduction-electric furnace process. The recovery rates of Fe, V, and Ti grades in iron were analyzed to determine the effects of basicity and MgO content on the reduction of iron oxides, vanadium oxides, and titanium oxides. The chemical compositions of vanadium-bearing iron and main phases of titanium slag were detected by XRF and XRD, respectively. The results show that the higher level of basicity is beneficial to the reduction ofiron oxides and vanadium oxides, and titanium content dropped in molten iron with the increasing basicity. As the content of MgO increased, the recovery rate of Fe increased slightly but the recovery rate of V increased considerably. The grades of Ti in molten iron were at a low level without significant change when MgO content was below 11%, but increased as MgO content increased to 12.75%. The optimum conditions for smelting vanadium titanomagnetite were about 11.38% content of MgO and quaternary basicity was about 1.10. The product, vanadium-bearing iron, can be applied in the converter steelmaking process, and titanium slag containing 50.34% TiO₂ can be used by the acid leaching method. Full article
