Search Results (10)

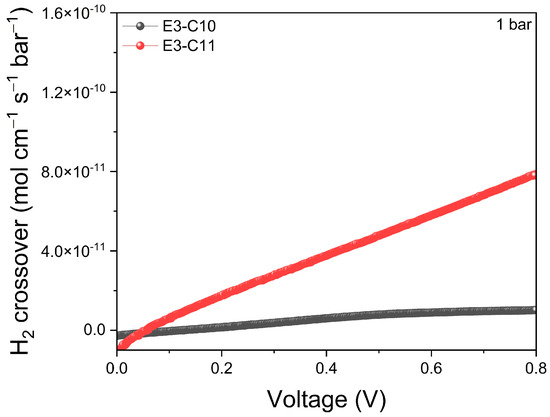

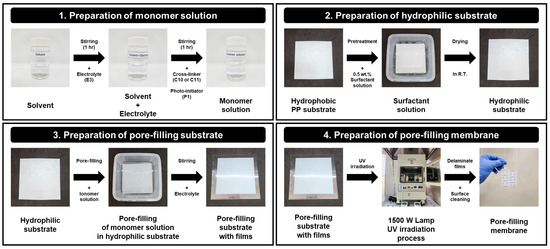

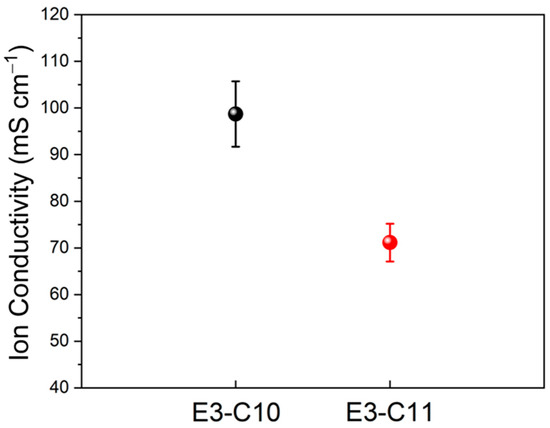

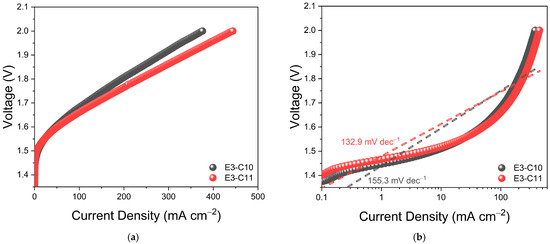

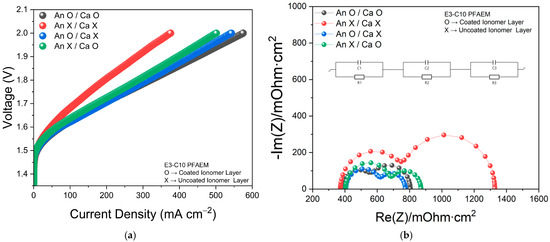

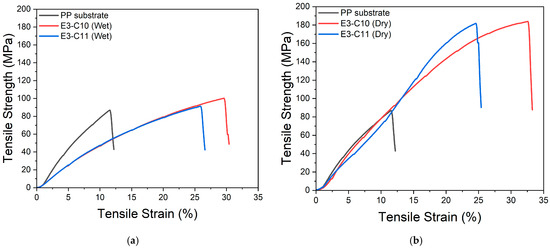

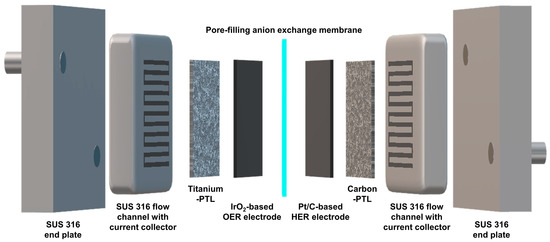

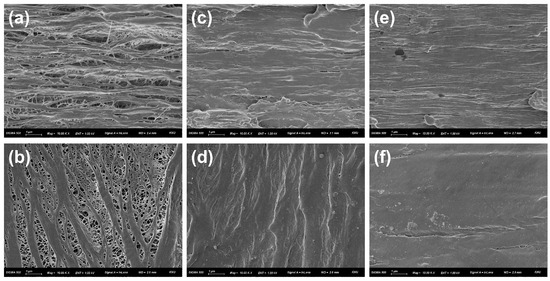

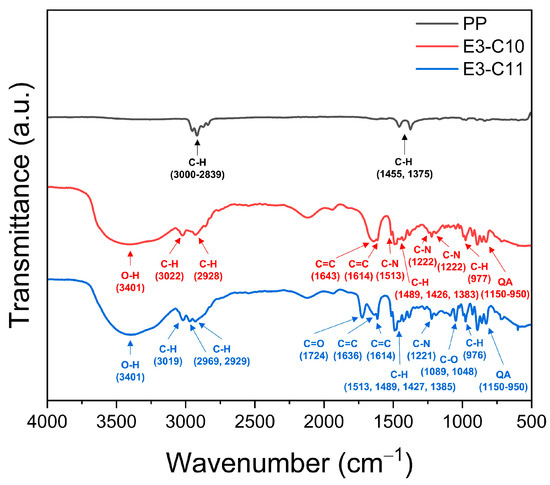

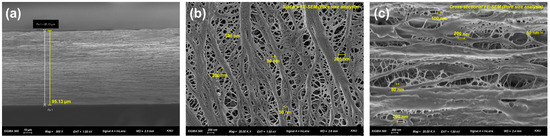

This study investigates the development of pore-filling anion-exchange membranes (PFAEMs) for water-electrolysis applications. Ionomers using two different cross-linking monomers, namely hydrophilic C10 and hydrophobic C11, along with a common electrolyte monomer, E3, were compared in terms of through-plane ion conductivity, hydrogen permeability, mechanical and chemical stability, I-V polarization, and water-electrolysis durability. The results revealed that the E3-C10 PFAEM exhibited 40% higher OH⁻ conductivity (98.7 ± 7.0 mS cm⁻¹) than the E3-C11 PFAEM with a similar ion-exchange capacity. This improvement was attributed to improved separation of hydrophobic and hydrophilic domains, creating well-connected ion channels by the hydrophilic C10. Alkaline stability tests demonstrated that the E3-C10 retained higher ion conductivity compared to E3-C11, due to the absence of ether linkages and increased resistance to nucleophilic attack. During water-electrolysis operations, the E3-C10 PFAEMs showed 10% better durability and 87% lower hydrogen permeability, confirming their suitability for anion-exchange-membrane water electrolysis (AEMWE). Despite the higher ion conductivity of the E3-C10 PFAEM, performance was limited by interfacial resistance. It is suggested that ionomer-coated electrodes could further enhance AEMWE performance by leveraging the higher ion conductivity of the E3-C10. Overall, this study provides valuable guidance on strategies for utilizing pore-filling membranes in water electrolysis. Full article

The through-plane gas permeability and morphology of PEFC gas diffusion media (GDM) is investigated for different microporous layer (MPL) ink homogenisation techniques (bath sonication and magnetic stirring) for low- (Vulcan XC-72R) and high (Ketjenblack EC-300J)-surface-area carbon powders. The MPL composition is held constant at 80 wt.% carbon powder and 20 wt.% PTFE for a carbon loading of 1.0 mg cm⁻². The MPL ink homogenisation time is held constant at two hours for both techniques and increased by one hour for bath sonication to compare with previous investigations. The results show that the through-plane gas permeability of the GDM is approximately doubled using magnetic stirring when compared with bath sonication for MPLs composed of Vulcan XC-72R, with a negligible change in surface morphology between the structures produced from either homogenisation technique. The variation in through-plane gas permeability is almost negligible for MPLs composed of Ketjenblack EC-300J compared with Vulcan XC-72R; however, MPL surface morphology changes considerably with bath sonication, producing smoother, less cracked surfaces compared to the large cracks produced via magnetic stirring for a large-surface-area carbon powder. An MPL ink sonication time of three hours results in a percentage reduction in through-plane gas permeability from the GDL substrate permeability by ~72% for Ketjenblack EC-300J compared to ~47% for two hours. Full article

Porous materials can be characterized by well-trained neural networks. In this study, fibrous paper-type gas diffusion layers were trained with artificial data created by a stochastic geometry model. The features of the data were calculated by means of transport simulations using the Lattice–Boltzmann method based on stochastic micro-structures. A convolutional neural network was developed that can predict the permeability and tortuosity of the material, through-plane and in-plane. The characteristics of real data, both uncompressed and compressed, were predicted. The data were represented by reconstructed images of different sizes and image resolutions. Image artifacts are also a source of potential errors in the prediction. The Kozeny–Carman trend was used to evaluate the prediction of permeability and tortuosity of compressed real data. Using this method, it was possible to decide if the predictions on compressed data were appropriate. Full article

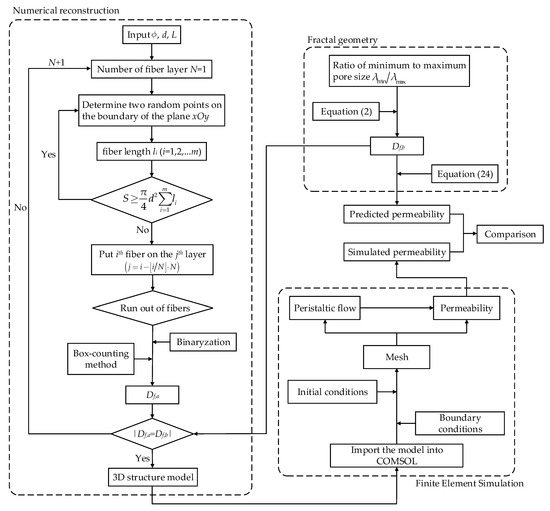

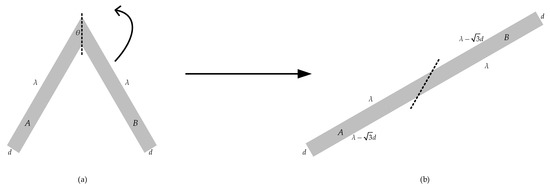

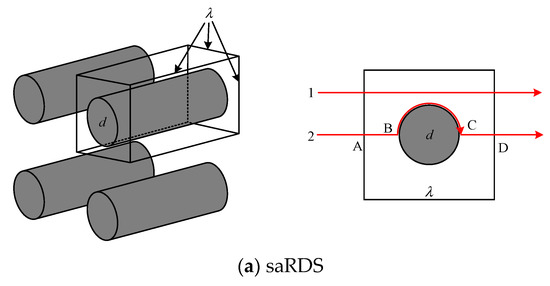

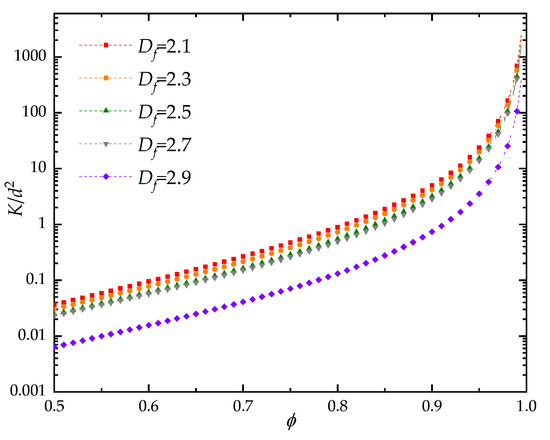

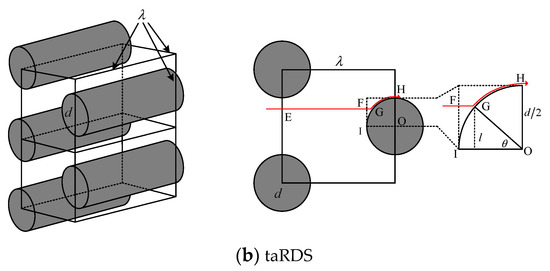

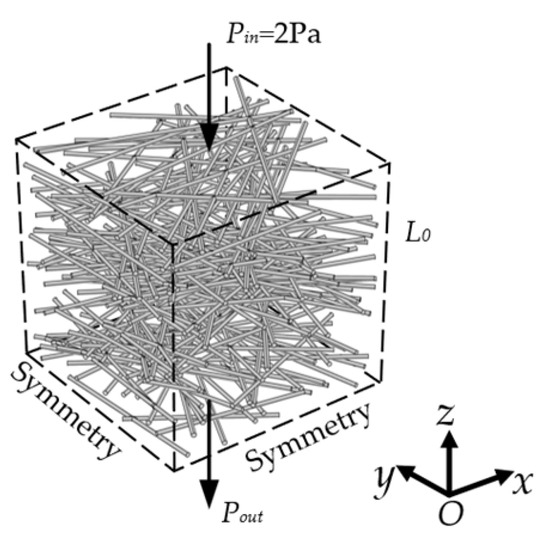

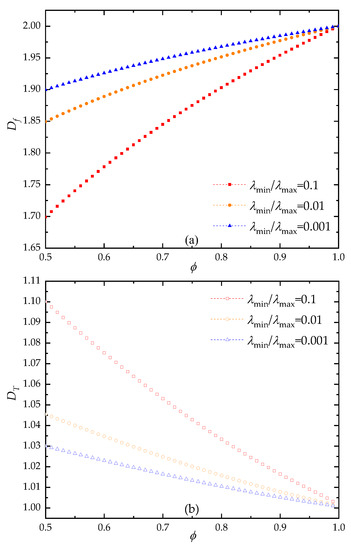

The through-plane permeability is of great importance for understanding the transport phenomenon in anisotropic fibrous porous material. In this paper, a novel pore-scale model based on the equilateral triangle representative unit cell (RUC) and capillary bundle model is developed for the fluid flow through the anisotropic fibrous porous material according to fractal theory, and the effective through-plane permeability is presented accordingly. The digital structures of the fibrous porous material are generated by a fractal stochastic method (FSM), and the single-phase fluid flow through the 3D-reconstructed model is simulated by using the finite element method (FEM). It was found that the effective through-plane permeability depends on the fiber column size, porosity, and fractal dimensions for pore and tortuosity. The results show that the predicted through-plane permeability by the present fractal model indicates good agreement with numerical results and available experimental data as well as empirical formulas. The dimensionless through-plane permeability is positively correlated with the porosity and negatively correlated with the fractal dimensions for pore and tortuosity at certain porosity. Full article

Bipolar plates represent a crucial component of the PEM fuel cell stack. Polymer–carbon composites are recognized as state-of-the-art materials for bipolar plate manufacturing, but their use involves a compromise between electrical and heat conductivity, mechanical strength and costs. Thus, all key parameters must be considered when selecting a suitable plate satisfying the demands of the desired application. However, data relevant to commercial materials for such selection are scarce in the open literature. To address this issue, 13 commercially available polymer–carbon composites are characterised in terms of the following parameters: through-plane conductivity, hydrogen permeability, mechanical strength, water uptake, density, water contact angle and chemical stability. None of the materials tested reached the DOE target for electrical conductivity, while five of the materials met the target for flexural strength. The overall best-performing material showed a conductivity value of 50.4 S·cm⁻¹ and flexural strength of 40.1 MPa. The data collected provide important supporting information in selecting the materials most suitable for the desired application. In addition, the key parameters determined for each bipolar plate supply important input parameters for the mathematical modelling of fuel cells. Full article

Bionanocomposite materials have been designed as a promising route to enhance biopolymer properties, especially for food packaging application. The present study reports the preparation of bionanocomposite films of alginate with different loadings of pure reduced graphene oxide (rGO) or of mixed zinc oxide-rGO (ZnO-rGO) fillers by solvent casting. Sepiolite is used to make compatible rGO with the hydrophilic matrix. The addition of fillers to alginate matrix maintains the low water solubility promoted by the calcium chloride treatment, and, additionally, they demonstrate a weaker mechanical properties, and a slight increase in water vapor permeability and wettability. Due to the properties of ZnO-rGO, the alginate bionanocomposites show an increase of electrical conductivity with the increase of filler content. While the highest electrical conductivity (0.1 S/m) is achieved by the in-plane measurement, it is in the through-plane measurement the remarkable enhancement of almost 30 times greater than the alginate film. With 50% of ZnO-rGO filler, the bionanocomposites present the highest antioxidant and antibacterial activities. The combination of electrical conductivity with bioactive properties makes these films promising not only to extend food shelf-life but also to allow packaged food sterilization at low temperature. Full article

By analyzing the three-dimensional digital model of a real carbon paper gas diffusion layer (GDL) reconstructed by X-ray computed tomography (CT), it was found that fibers are not distributed at any angle but within a certain range. The fiber orientation can be represented by fiber pitch (i.e., the angle between a single fiber and the in-plane direction). The effect of fiber orientation on stochastic reconstruction and transport properties (permeability) was investigated in this paper to find which fiber pitch range can achieve a better GDL on fluid flow. First, the actual fiber pitch was measured by analyzing SGL-24BA images obtained by X-ray CT. Also, seven different ranges of fiber pitch were randomly chosen to reconstruct GDL. Then, the permeability of these digital models was calculated using the Lattice Bolzmann Method (LBM) and discussed to obtain the fiber pitch range of the optimal permeability. The results show that the mean fiber pitch of SGL-24BA is 2.40° and the individual values are all less than 6°, also, the permeability of the through-plane direction increases gradually as the range of fiber pitch increases, which can be used for the structural design of carbon paper GDL. Full article

Accurate, patient-specific measurement of arterial input functions (AIF) may improve model-based analysis of vascular permeability. This study investigated factors affecting AIF measurements from magnetic resonance imaging (MRI) magnitude (AIFMAGN) and phase (AIFPHA) signals, and compared them against computed tomography (CT) (AIFCT), under controlled conditions relevant to clinical protocols using a multimodality flow phantom. The flow phantom was applied at flip angles of 20° and 30°, flow rates (3–7.5 mL/s), and peak bolus concentrations (0.5–10 mM), for in-plane and through-plane flow. Spatial 3D-FLASH signal and variable flip angle T1 profiles were measured to investigate in-flow and radiofrequency-related biases, and magnitude- and phase-derived Gd-DTPA concentrations were compared. MRI AIF performance was tested against AIFCT via Pearson correlation analysis. AIFMAGN was sensitive to imaging orientation, spatial location, flip angle, and flow rate, and it grossly underestimated AIFCT peak concentrations. Conversion to Gd-DTPA concentration using T1 taken at the same orientation and flow rate as the dynamic contrast-enhanced acquisition improved AIFMAGN accuracy; yet, AIFMAGN metrics remained variable and significantly reduced from AIFCT at concentrations above 2.5 mM. AIFPHA performed equivalently within 1 mM to AIFCT across all tested conditions. AIFPHA, but not AIFMAGN, reported equivalent measurements to AIFCT across the range of tested conditions. AIFPHA showed superior robustness. Full article

One of the major sources of lost capacity in all-vanadium redox flow batteries (VRFBs) is the undesired transport (usually called crossover) of water and vanadium ions through the ion-exchange membrane. In this work, an experimental assessment of the impact of ion-exchange membrane properties on vanadium ion crossover and capacity decay of VRFBs has been performed. Two types of cationic membranes (non-reinforced and reinforced) with three equivalent weights of 800, 950 and 1100 g·mol⁻¹ were investigated via a series of in situ performance and capacity decay tests along with ex situ vanadium crossover measurement and membrane characterization. For non-reinforced membranes, increasing the equivalent weight (EW) from 950 to 1100 g·mol⁻¹ decreases the V(IV) permeability by ~30%, but increases the area-specific resistance (ASR) by ~16%. This increase in ASR and decrease in V(IV) permeability was accompanied by increased through-plane membrane swelling. Comparing the non-reinforced with reinforced membranes, membrane reinforcement increases ASR, but V(IV) permeability decreases. It was also shown that there exists a monotonic correlation between the discharge capacity decay over long-term cycling and V(IV) permeability values. Thus, V(IV) permeability is considered a representative diagnostic for assessing the overall performance of a particular ion-exchange membrane with respect to capacity fade in a VRFB. Full article

This work aims to clarify the effect of magnetic graphene oxide (GO) reorientation in a polymer matrix on the ionic conduction and methanol barrier properties of nanocomposite membrane electrolytes. Magnetic iron oxide (Fe₃O₄) nanoparticles were prepared and dispersed on GO nanosheets (GO-Fe₃O₄). The magnetic GO-Fe₃O₄ was imbedded into a quaternized polyvinyl alcohol (QPVA) matrix and crosslinked (CL-) with glutaraldehyde (GA) to obtain a polymeric nanocomposite. A magnetic field was applied in the through-plane direction during the drying and film formation steps. The CL-QPVA/GO-Fe₃O₄ nanocomposite membranes were doped with an alkali to obtain hydroxide-conducting electrolytes for direct methanol alkaline fuel cell (DMAFC) applications. The magnetic field-reoriented CL-QPVA/GO-Fe₃O₄ electrolyte demonstrated higher conductivity and lower methanol permeability than the unoriented CL-QPVA/GO-Fe₃O₄ membrane or the CL-QPVA film. The reoriented CL-QPVA/GO-Fe₃O₄ nanocomposite was used as the electrolyte in a DMAFC and resulted in a maximum power density of 55.4 mW·cm⁻² at 60 °C, which is 73.7% higher than that of the composite without the magnetic field treatment (31.9 mW·cm⁻²). In contrast, the DMAFC using the CL-QPVA electrolyte generated only 22.4 mW·cm⁻². This research proved the surprising benefits of magnetic-field-assisted orientation of GO-Fe₃O₄ in facilitating the ion conduction of a polymeric electrolyte. Full article
