The Applicability of Machine Learning Methods to the Characterization of Fibrous Gas Diffusion Layers

Abstract

Porous materials can be characterized by well-trained neural networks. In this study, fibrous paper-type gas diffusion layers were trained with artificial data created by a stochastic geometry model. The features of the data were calculated by means of transport simulations using the Lattice–Boltzmann method based on stochastic micro-structures. A convolutional neural network was developed that can predict the permeability and tortuosity of the material, through-plane and in-plane. The characteristics of real data, both uncompressed and compressed, were predicted. The data were represented by reconstructed images of different sizes and image resolutions. Image artifacts are also a source of potential errors in the prediction. The Kozeny–Carman trend was used to evaluate the prediction of permeability and tortuosity of compressed real data. Using this method, it was possible to decide if the predictions on compressed data were appropriate.

1. Introduction

Gas diffusion layers (GDLs) are porous transport layers that are used in fuel cells to allow the transport of fluids from the flow channels to the membrane. This requires good gas permeability in the through-plane (TP) direction. For transport under the ribs of a flow field, a good permeability in the in-plane (IP) direction is also desired. Ye et al. [1] investigated the effect of GDL compression on the bypass of gases below the ribs of the flow field. A critical review of mesoscale modeling in electrochemical devices was presented by Ryan and Mukherjee [2]. Holzer et al. [3] evaluated the permeability of dry GDLs and several other properties of the micro-structure. The porosity and shape of the pores was investigated by Zenyuk et al. [4]. They used X-ray tomography for the analysis of structural properties of a GDL under compression. Meanwhile, Bao et al. [5] reconstructed fiber-based GDLs, calculated the impact of compression on the micro-structure by means of the finite element method (FEM), and then analyzed the compressed GDL using computational fluid dynamics (CFD). The relevance of compression on the properties of GDLs was shown by Bosomoiu et al. [6], who investigated the micro-structure of paper-type GDLs via X-ray tomography. They analyzed GDLs under ribs and under the channels of a flow field, and also analyzed them in fresh and aged states. Permeability and tortuosity were some of the features addressed in their studies. Mukherjee et al. [7] measured the TP and IP permeability of GDLs, with and without polytetrafluorethylene (PTFE), and with and without micro-porous layer (MPL). In order to reduce costs, GDLs from novel materials were developed by Leonard et al. [8]. Zhang et al. [9] analyzed GDL properties using Lattice–Boltzmann (LB) simulations based on reconstructed micro-structures. Extending to smaller scales and beyond permeability, Yin et al. [10] developed LB-based methods to obtain further characteristics of porous materials even in nanoscale regions. They identified the relevance of several mechanism on the gas transport in porous materials. Artificial intelligence (AI) enters the picture when machine learning (ML) or the deep learning (DL) methods are applied in the field of electrochemical research. Ding et al. [11] recently presented an overview of the application of ML in the field of fuel cell research, in particular for polymer electrolyte fuel cells (PEFCs). However, the use of AI methods is still growing and is beyond of the scope of this extensive review article. In previous investigations, the suitability of convolutional neural networks (CNNs) was demonstrated by Froning et al. [12] for the prediction of the TP permeability of paper-type GDLs. The data were previously generated via LB simulations. In a similar manner, a CNN was developed by Cawte and Bazylak [13], predicting the permeability of fibrous GDLs. In their study, they used the pore network modeling (PNM) method to generate their data. The accuracy of predicting the permeabilities of porous media using CNNs in the context of LB simulations was shown by Wang et al. [14]. In turn, the relevance of investigations in the GDL micro-structure was pointed out by Pan et al. [15], who summarized the mechanics, techniques, and modeling approaches for GDL degradation. Using similar ML methods, Jafarizadeh et al. [16] coupled their ML application with CFD and applied it to a variety of metal foams. Santos et al. [17] investigated the impact of the number of hidden layers in a CNN on the accuracy of the prediction of permeability and velocity in sphere-based porous materials, e.g., sandstone. The data were generated using LB simulations. Yeh et al. [18] presented a CNN in the field of signal processing that is robust against noise added to datasets for prediction. The performance prediction of PEFCs by a neural network (NN) was coupled to flow channel optimization by Li et al. [19]. Applied to X-ray tomography, Shum et al. [20] used ML algorithms for the water segmentation in GDLs of PEFCs. For high-temperature PEFCs, Zhu et al. utilized an NN to predict performance for a variety of parameters [21], achieving a percentage accuracy compared to numerical methods. Buchaniec et al. [22] investigated the accuracy of gray-box models and applied this technique to the triple-phase boundaries (TPBs) in the micro-structure of a solid oxide fuel cell (SOFC) anode. Meanwhile, Yasuda et al. [23] presented a data-driven framework for the characterization of porous materials, coupling ML methods with genetic algorithms. The permeability was in the focus of their recent studies. In the field of geoscience, ML and DL methods are well-established. Arigbe et al. [24] used DL for the prediction of relative permeability in real time. However, there are also pitfalls in the use of AI. As reported by Hurtz [25], an AI program that declassified world-class Go players was recently defeated by an amateur Go player, underlining the fact that any AI code is bounded by the scope of its training data.

Although the training and classical validation was performed on artificial data, real data from image sources can suffer from image errors, which are caused by several factors. In Section 2, methods, both AI-related and physics-based, are briefly summarized. Furthermore, several groups of image data are introduced. The preparation of the data for the training process and the subsequent prediction are described in Section 3. The validation in Section 4 addresses not only the validation of the artificial geometry data but also aspects that occurred in real data obtained from image sources. The results are presented in Section 5. After discussing them in Section 6, the work is summarized in Section 7.

Previous work [12] was extended in order to apply its previously developed CNN to real image data. The previously developed CNN [12] is able to predict the TP permeability of artificial GDL structures—uncompressed and compressed (Section 4). Reconstructed images from real GDLs, however, can suffer from image artifacts as discussed in Section 5. This work analyzes the ability to predict the characteristics of real micro-structures using a CNN that was trained on artificial ones, and how to decide about the consistency.

2. Methods and Data

Fibrous GDLs of the Toray type are characterized with the ML method, in particular using a CNN presented by Froning et al. [12], as shown in Section 2.1 and Section 2.2. The image data of the micro-structure are labeled by post-processing LB simulations, as is briefly described in Section 2.3. Subsequently, Section 2.4 and Section 2.5 provide an overview on the data in the study. Finally, Section 2.6 introduces the physical interpretation of the results predicted by the CNN.

2.1. An Overview on the Machine Learning Model

As outlined in Section 2.2, a CNN was developed in order to predict characteristics of porous structures, namely the permeability and tortuosity. The geometry of the structures is specified using black/white (BW) images. The CNN was trained using the same micro-structures as published earlier [26]. Each data point was given by 65 images, having dimensions of 512 × 512. The resolution of them was $1.5\mu \mathrm{m}/\mathrm{px}$. Section 2.4 summarizes the details.

Finally, the ML model was applied to real micro-structures introduced in Section 2.5. These data have different sizes and image resolutions than the training data. Furthermore, imaging errors are present that were not contained in the training data.

The high-performance computer CLAIX at RWTH Aachen University was used for the training phase. Each of the graphic nodes of this system has two graphics processing units (GPUs) of the kind ‘Tesla V100 SXM2 32 GB’.

2.2. Convolutional Neural Network Model

The Python-based framework TensorFlow [27] was used to implement a CNN for the prediction of the characteristics of a GDL with its fiber-based micro-structure. Its architecture, as in previous work [12], is illustrated in Figure 1. The red-shaped layers are also analyzed in detail. The first layer, marked as ‘0/Input’, contains the input micro-structure of 512 × 512 × 65 dimensions. The parameters of the convolution layers were chosen to reduce the flat shape of the 3D filters to a more regular one, from 512 × 512 × 65 on the input layer, down to, e.g., 8 × 8 × 8 in the eighth layer. Layer ‘1/Convolution’ is the first hidden layer of the CNN. The structure shrank in both the x and y directions. The layer ‘3/Convolution’ also shrank in two dimensions. The third dimension was not reduced because of its flat 3D shape. The architecture shown in Figure 1 was already used earlier [12] to predict the TP permeability of Toray GDL. The same architecture—predicting one feature out of a stack of images—was trained separately to four features, namely TP permeability, TP tortuosity, IP permeability, and IP tortuosity. All of these the features were simulated earlier by means of the LB method [26].

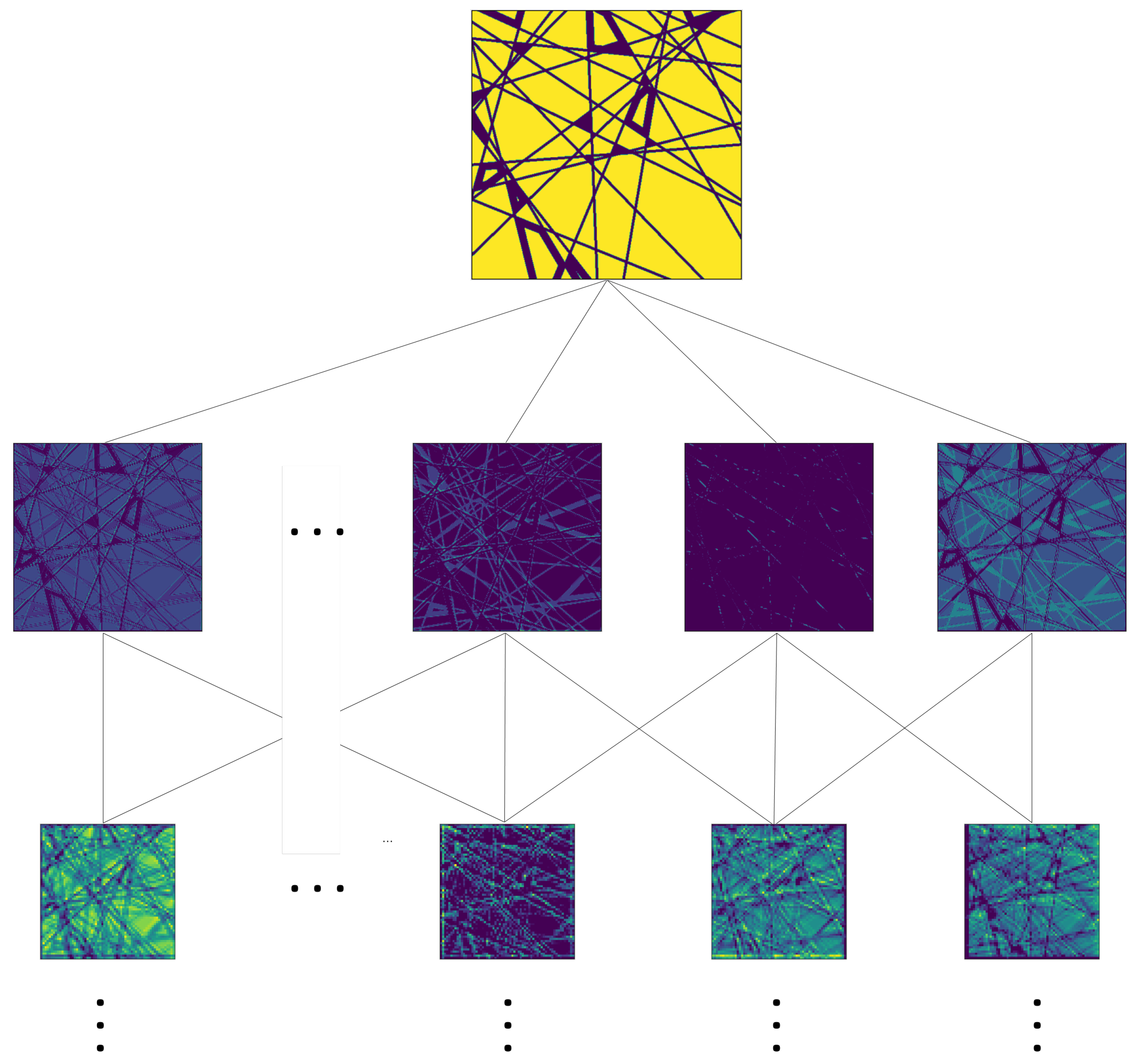

The architecture of the presented CNN is a series of Conv3D refinements, similar to that used by Santos et al. [17]. While Santos et al. worked with cubic samples, our basic images have a flat shape. This led to some of our Conv3D refinements being refined only in two dimensions instead of three.

2.3. Lattice–Boltzmann Simulations

Material characteristics have been previously obtained from fiber-based GDLs using the technique of LB simulations [26,28,29]. The micro-structure of a porous GDL is specified by a stack of BW images. Using a stochastic geometry model, several representations of a paper-type GDL were constructed, being analyzed by Froning et al. [26,28]. This work employs this method to obtain the permeability and tortuosity of Toray GDL given by a stack of images, both TP and IP. Because of the layer-wise construction of the fibers in the plane, the IP characteristics only needed to be determined for one direction. Another kind of GDL, represented by a stochastic model and also as a reconstruction of real data, was investigated by Froning et al. [29].

Transport simulations of gas flow through the porous micro-structure were calculated in a domain defined by a series of BW images. A small free space buffer was added upstream and downstream of the porous media to allow for physically meaningful boundary conditions. As was described in more detail in Froning et al. [26], a velocity boundary was applied at the input and a constant pressure condition at the output. Wall boundary conditions were specified at the other four sides of the simulation domain. As before, the permeability was calculated from the resulting flow field using Darcy’s law.

$$\kappa =-\frac{q·\mu }{\nabla P}$$

(1)

In Equation (1), the permeability $\kappa$ is a function of the flux q, the dynamic viscosity $\mu$, and the pressure drop $\nabla P$. The tortuosity $\tau$ was calculated by Equation (2).

$$\tau =\frac{〈\left|v\right|〉}{〈v_x〉}$$

(2)

This is the simplest variant of a set of equations presented by Koponen et al. [30] for the estimation of the flow-based tortuosity in porous structures. The tortuosity was calculated as the ratio between the average values of the absolute velocity and of the x component. The transport simulations were run on JURECA [31].

2.4. Basic Data

The training data for the ML model are referred to as basic data in this section. Each data point consists of a stack of images constructed by a geometry model developed by Thiedmann et al. [32] and Wang et al. [33]. They developed a fiber model of the micro-structure of Toray 090 GDL. Their studies are based on the stochastic analysis of real fibers. In order to achieve the porosity of the real material, they added binder material, again using a stochastic approach. The binder model of Thiedmann et al. [32] is represented by a width $b_r$ of binder covering parts of the fibers [32]. Figure 2 illustrates this approach in selected images.

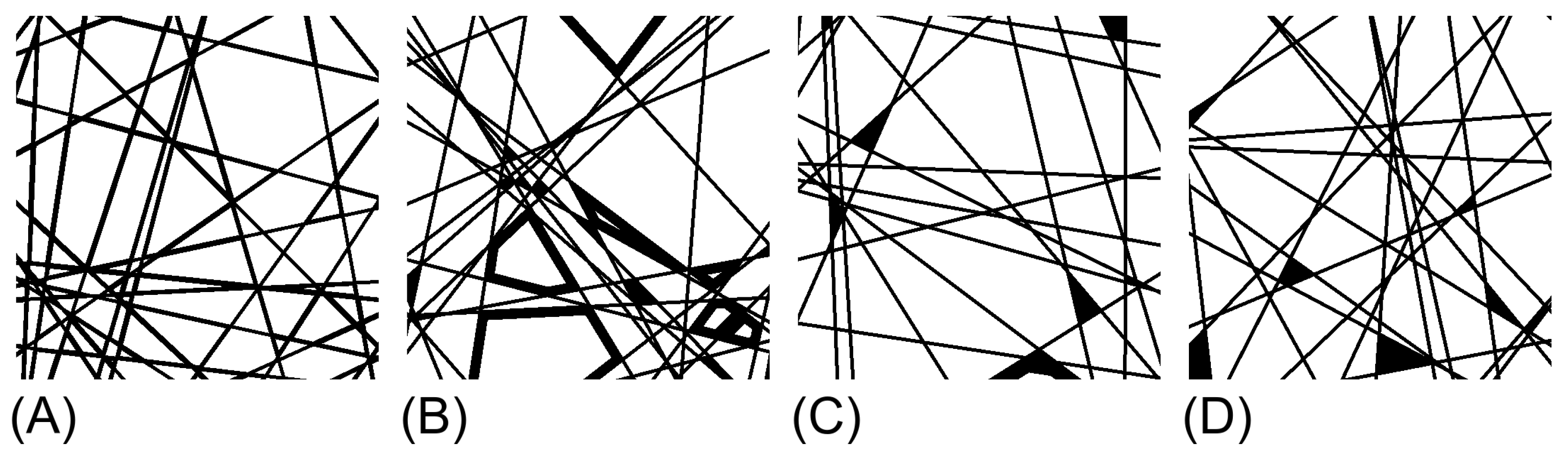

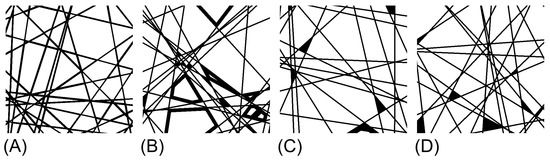

The representation of a GDL section by images of size 130 × 512 × 512 was shown to be the stochastic equivalent to real data, validated using X-ray tomographs from the BESSY synchrotron in Berlin [32]. The underlying image resolution is $1.5\mu \mathrm{m}/\mathrm{px}$, leading to a GDL section of $768\mu \mathrm{m}$ by $768\mu \mathrm{m}$ with a thickness of $195\mu \mathrm{m}$. The data in Figure 2A–D were published by Froning et al. [26], both uncompressed and compressed. The total number of available data points is given by

• the number of the realizations of the fiber geometry: 25;
• the number of parameters used for different binder distributions: 4;
• the number of compression levels, where six steps from 0% (uncompressed) to 50%—in steps of 10%—were used.

The compression levels were chosen according to the particular way of representing the artificial structures by five identical image layers by Froning et al. [26]. A compression step of 10% was implemented by merging two images of adjacent fiber layers, taking every second fiber layer interface. This procedure was repeated five times. In this way, a total number of $25·4·6=600$ geometries could be available. It was already stated by Froning et al. [26] that not all of the LB simulations did converge. This was especially the case for the higher compressed micro-structures. From this reason, only 541 data points were available for training.

Based on Thiedmann et al. [32], the underlying fibers were also the subject of a high-accuracy LB simulation by Lintermann and Schröder [34]. They used periodic boundary conditions and a circular cross-section of the fibers, whereas in this work, wall boundary conditions were used, with coarser mesh based on a quadratic cross-section of the fibers. The reason was to obtain a better comparison with real data from X-ray tomography [32,33].

2.5. Real Data

The ML model was applied to real data from different sources.

R1

One image series of Toray GDL was reconstructed from the BESSY synchrotron, the image source from which the GDL model of Thiedmann et al. [32] was validated. Two images are depicted in Figure 3.

R2

Two image series were obtained from a Nano CT Zeiss Xradia Versa 420 at the IEK-14 at the Forschungszentrum Jülich, allowing a minimal voxel size of $0.5\mu \mathrm{m}$. Hoppe [35] investigated Toray TGP-H-060 GDL, one series with labels (Figure 4), and

R3

one without (Figure 5).

In 2011, series R1 was obtained from the BESSY synchrotron for validation of the Thiedmann geometry model [32]. The gray level images were segmented into binary BW images, but their quality was not sufficient for LB simulations. Figure 3 shows 2 of the 200 images of dimensions 1250 × 1250. The images have a resolution of $1.5\mu \mathrm{m}/\mathrm{px}$. That defines a square section with a side length of 1.875 mm. The porosity of the image stack—calculated by counting pixels—is 0.782.

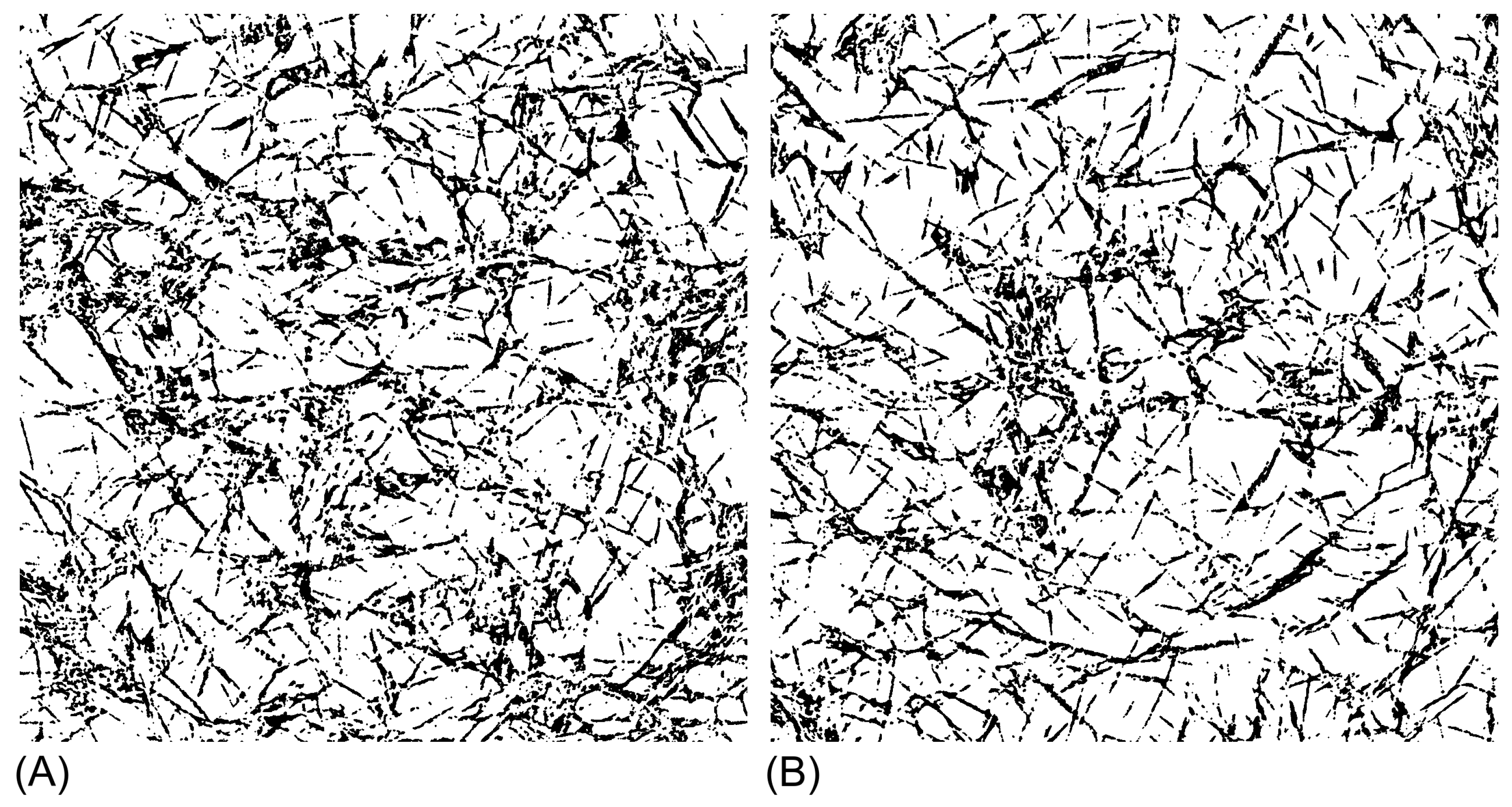

Figure 3. X-ray synchrotron images of dimensions 1250 × 1250 from Toray 090 material; (A) image no. 56 of 200; (B) image no. 163 of 200.

Figure 3. X-ray synchrotron images of dimensions 1250 × 1250 from Toray 090 material; (A) image no. 56 of 200; (B) image no. 163 of 200.

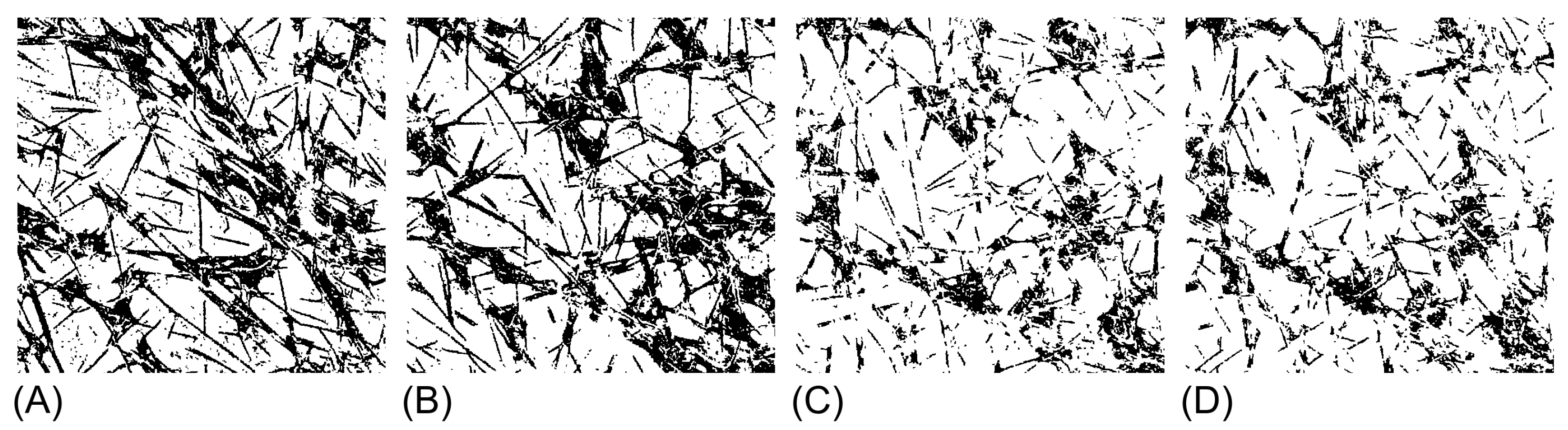

Figure 4. Images from real Toray data under a flow field with 1.0 mm channel width, series R2: (A) 6% compression, image No. 5 of 40; (B) 6% compression, image No. 20 of 40; (C) 6% compression, image No. 24 of 40; (D) 6% compression, image No. 26 of 40.

Figure 4. Images from real Toray data under a flow field with 1.0 mm channel width, series R2: (A) 6% compression, image No. 5 of 40; (B) 6% compression, image No. 20 of 40; (C) 6% compression, image No. 24 of 40; (D) 6% compression, image No. 26 of 40.

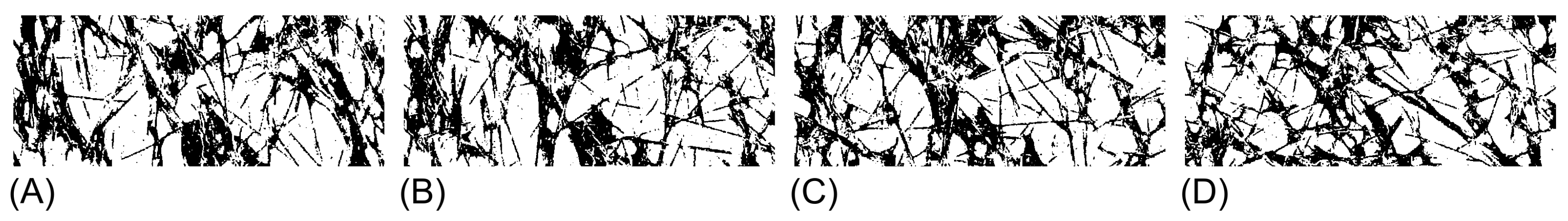

Figure 5. Images from real Toray data under a flow field with 0.8 mm channel width, series R3: (A) 7% compression, image No. 1 of 40; (B) 7% compression, image No. 2 of 40; (C) 7% compression, image No. 13 of 40; (D) 7% compression, image No. 18 of 40.

Figure 5. Images from real Toray data under a flow field with 0.8 mm channel width, series R3: (A) 7% compression, image No. 1 of 40; (B) 7% compression, image No. 2 of 40; (C) 7% compression, image No. 13 of 40; (D) 7% compression, image No. 18 of 40.

The resolution of the images in Figure 3 is the same as in the training data, but the images are larger and are more than 130. This led to the opportunity to randomly select a number of 3D sections of dimensions 130 × 512 × 512 out of the image stack of 200 × 1250 × 1250. The resulting permeabilities (TP and IP) predicted by the CNN show a statistical variation, changing with the position of the 3D subset.

The difference between Toray 060 and 090 is only the thickness; according to the data sheet, Toray 060 has a thickness of $190\mu \mathrm{m}$, whereas Toray 090 has a thickness of $280\mu \mathrm{m}$. Hoppe [35] experimentally analyzed the micro-structure of GDLs of different types, one of them being Toray GDL under compression. Figure 6A displays schematically the membrane electrode assembly (MEA) with a GDL on both sides in the experimental setup of a compression device. The images of the R2 and R3 series were obtained from a Nano CT Zeiss Xradia Versa 420. Figure 6B shows an example.

GDLs were mechanically compressed by different levels of compression. Series R2 was from the channel side of a punch with a 1.0 mm slit, representing the 1.0 mm channel of a flow field. Series R3 was from the block side, i.e., the flat punch vis-à-vis a punch with a 0.8 mm slit. The images of both the R2 and R3 series spanned a region from one rib across the channel to the other rib in the scheme of Figure 6A. Hoppe [35] observed that the entire MEA deformed under compression, and therefore affected both GDLs. The GDL on the channel side also intruded into the channel.

The gray level images were segmented to black/white (BW) ones in order to provide binary micro-structures for the LB simulations as introduced by Froning et al. [26]. The BW images in Figure 4 and Figure 5 display similar segmentation artifacts as those from the X-ray synchrotron in Figure 3. BW images of series R2 and R3 could only be created in thin slices—no more than 40 images per sample—due to the low quality of the images. Because this is too small for robust LB simulations [26], the image packs were stacked one above the other until at least 120 images were achieved. Regarding the transport simulations, an unrealistic periodicity was introduced into the micro-structure. Care must be taken at these inner breaking faces, as they can possibly cause unpredictable side effects. The dimensions of the image series are summarized in

Table 1. Dimensions of the images series R1, R2, and R3.

Series	No.	Comp. %	No. of Images	Dimensions
R1	1	0	200	1250 × 1250
R2	1	6	40	694 × 670
	2	8	22	671 × 688
	3	11	27	697 × 661
	4	13	40	684 × 673
	5	16	22	682 × 682
	6	18	40	673 × 687
	7	19	21	685 × 680
	8	21	40	688 × 677
	9	24	40	670 × 685
	10	29	40	670 × 685
R3	1	7	40	760 × 310
	2	10	40	760 × 310
	3	11	40	760 × 310
	4	14	40	760 × 310
	5	18	40	760 × 310
	6	19	40	760 × 310
	7	24	40	760 × 310
	8	28	40	760 × 310
	9	30	40	760 × 310
	10	31	40	760 × 310

.

2.6. Evaluation of the Predictions

In particular, the predictions of the real data from Section 2.5 are interpreted according to established relationships known in the characterization of porous material.

Based on the work of Tomadakis and Robertson [36], the Kozeny–Carman trend was already successfully used by Froning et al. [26] in the description of porous material.

$$\kappa =\frac{\epsilon }{K_c}{\left(\frac{V_p}{S_p}\right)}^2$$

(3)

With the Kozeny–Carman Equation (3), the permeability $\kappa$ of a porous material is related to morphological characteristics of the micro-structure, namely the total volume $V_p$ and the inner surface of the solid structure $S_p$. $K_c$ is the Kozeny constant, representing the shape of the micro-structure. Furthermore, it is known that the product of the permeability $\kappa$ and tortuosity $\tau$ is related to the fraction of the total volume and the inner surface:

$$\kappa ·\tau \sim \epsilon ·{\left(\frac{V_p}{S_p}\right)}^2$$

(4)

as long as the shape of the micro-structure does not change under compression. That allows a Kozeny–Carman (KC) trend to be defined.

$${\left.\kappa ·\tau \right|}_{x\%}={\left.\kappa ·\tau \right|}_{\mathrm{ref}}·\epsilon {\left.{\left(\frac{V_p}{S_p}\right)}^2\right|}_{x\%}/\epsilon {\left.{\left(\frac{V_p}{S_p}\right)}^2\right|}_{\mathrm{ref}}$$

(5)

The subscript ‘$\mathrm{ref}$’ in Equation (5) denotes a reference value of compression. In [26], a value of 0% was used. With this relationship, the consistency of $\kappa ·\tau$, calculated for compressed material ($x\%$), can be justified. The training data (from [26]) consist of ensembles of 25 stochastic micro-structures for each pair of binder type and compression level. When the Kozeny–Carman trend (Equation (5)) was applied to the LB simulations, the trend was applied with ‘$\mathrm{ref}$’ being the average values of 25 realizations of $0\%$ compression for each binder type.

3. Data Preparation

3.1. Domain Size Normalization

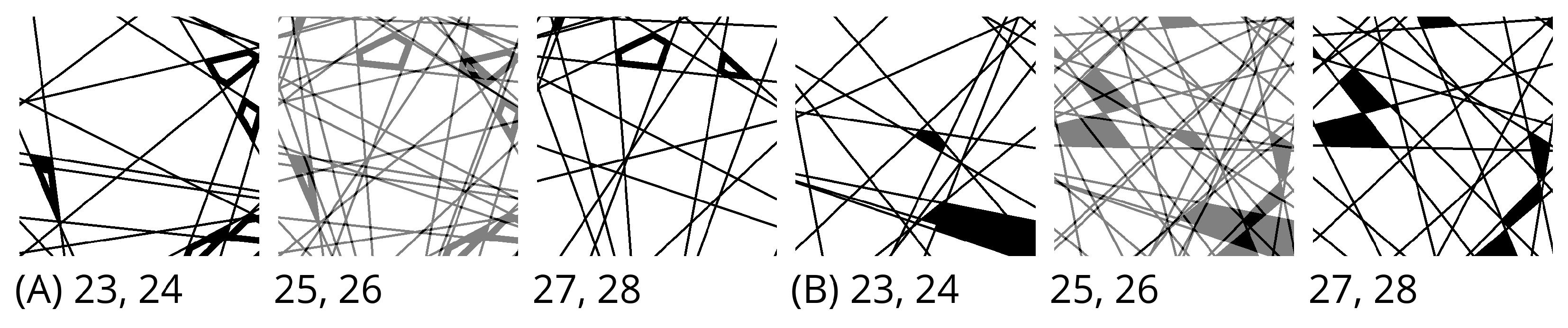

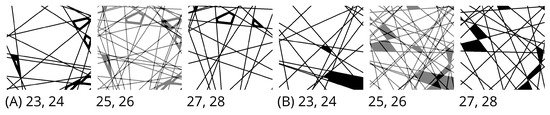

The training data from previous investigations [26] were also used in this study. The micro-structures are represented by series of images of the dimensions 512 × 512 each. The number of images is related to the amount of compression. They range from 65 in the case of 50% compression up to 130 for uncompressed micro-structures. Because a fixed size is needed for the CNN, the data must be transformed to this domain size. Based on the given data, the target size was chosen to be 65 × 512 × 512. For each fiber layer, the geometry model defines five BW images in the uncompressed state [26], all of them being identical. Compressing the images from 130 to 65 creates gray level images in which there are intermediate gray levels where different images are merged by the compression routine. Figure 7 illustrates intermediate gray levels on image triples after compression, exemplifying two image series. The labels in Figure 2B,D and Figure 7A,B correspond to each other.

3.2. Real Data

The image stack R1 has images larger than those of the training dataset. The image resolution of both the training data and the R1 series is the same: $1.5\mu \mathrm{m}/\mathrm{px}$. For the prediction, 50 sections of dimensions 130 × 512 × 512 at random positions were cut out of the image stack of 200 × 1250 × 1250. Random positions were chosen to avoid any systematic influence. As a consequence, a set of 50 geometries were available for the prediction.

The real data of series R2 and R3 introduced in Section 2.5 have images with a resolution of $1.797\mu \mathrm{m}/\mathrm{px}$, whereas the CNN was trained with image resolutions of $1.5\mu \mathrm{m}/\mathrm{px}$. In a first step, the images were re-scaled with a correction step in the x and y directions, which was easily accomplished with the tools of ImageMagick [37]. In the z direction, this re-scaling must be overlaid with the compression algorithm introduced in Section 3.1. The R2 series has images larger than 512 × 512. For the prediction, a section of 512 × 512 was cut out of each of the R2 images. The images of R3 are smaller than 512 pixels in the y direction, even after re-scaling. The images are first doubled, introducing a break in the center of the images, and then a 512 × 512 section was cut out, like in R2.

4. Validation

As in previous work [12], the data were validated using five-fold cross-validation. Fold no. 4 was selected for presenting detailed results.

The CNN was trained using 244 iterations with different labels, all of them from fold no. 4:

(A)

permeability ${\kappa }_{TP}/{\mu \mathrm{m}}^2$;

(B)

tortuosity $10·{\tau }_{TP}$;

(C)

permeability ${\kappa }_{IP}/{\mu \mathrm{m}}^2$;

(D)

tortuosity $10·{\tau }_{IP}$.

It was necessary to train the tortuosity features with $10·\tau$ instead of $\tau$. Five folds were trained, each of them randomly splitting the data into training and test data in the ratio of 80:20. The development of the MSE during the training of fold no. 4 is displayed in Figure 8.

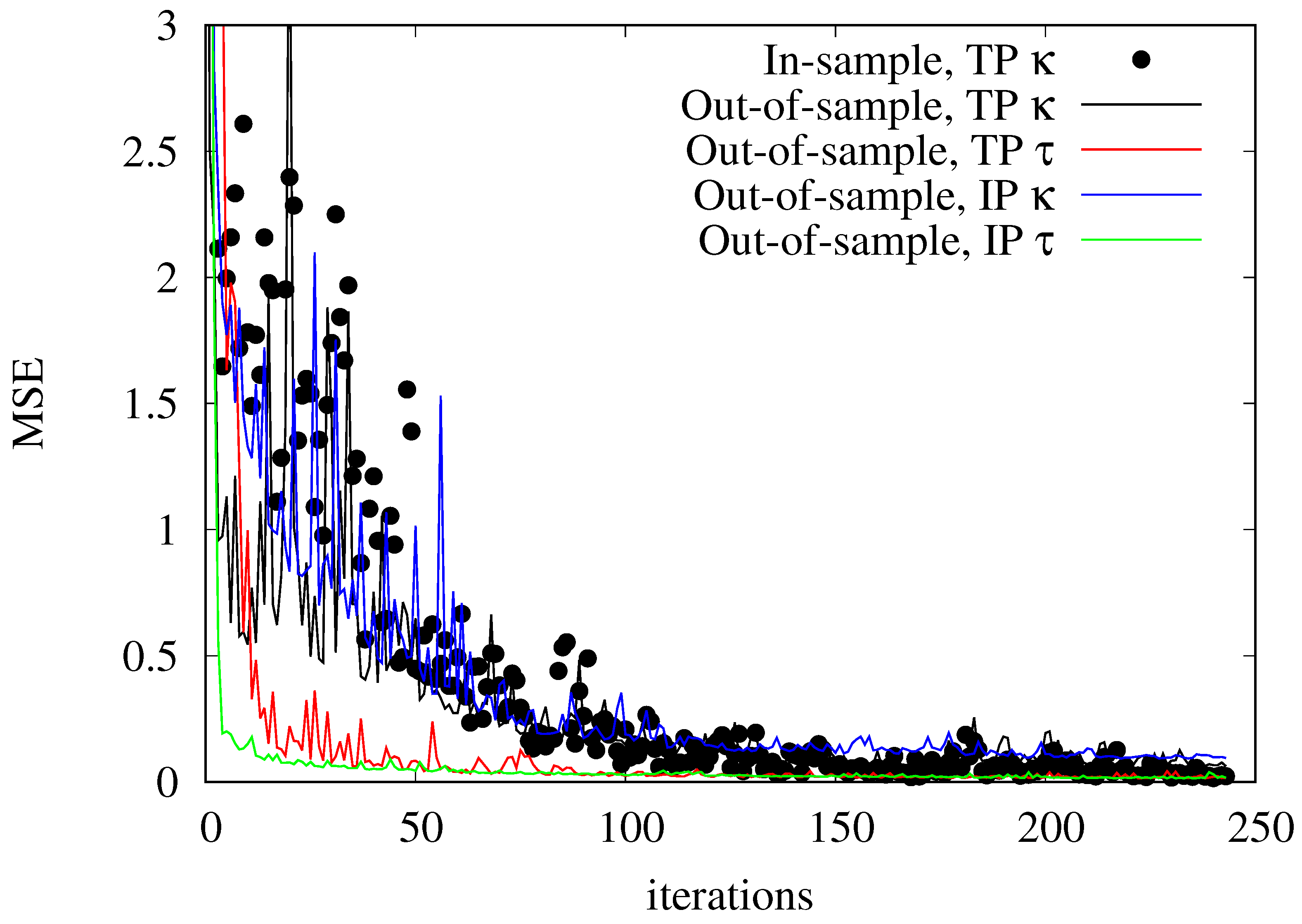

The training history does not appear suspicious, but an overfitting effect was observed in the IP tortuosity of the real material, series R3, where ${\tau }_{IP}<1$ was predicted. The training was re-run with only 122 iterations, and was then used for the prediction of results. This is also discussed in detail in Section 5.

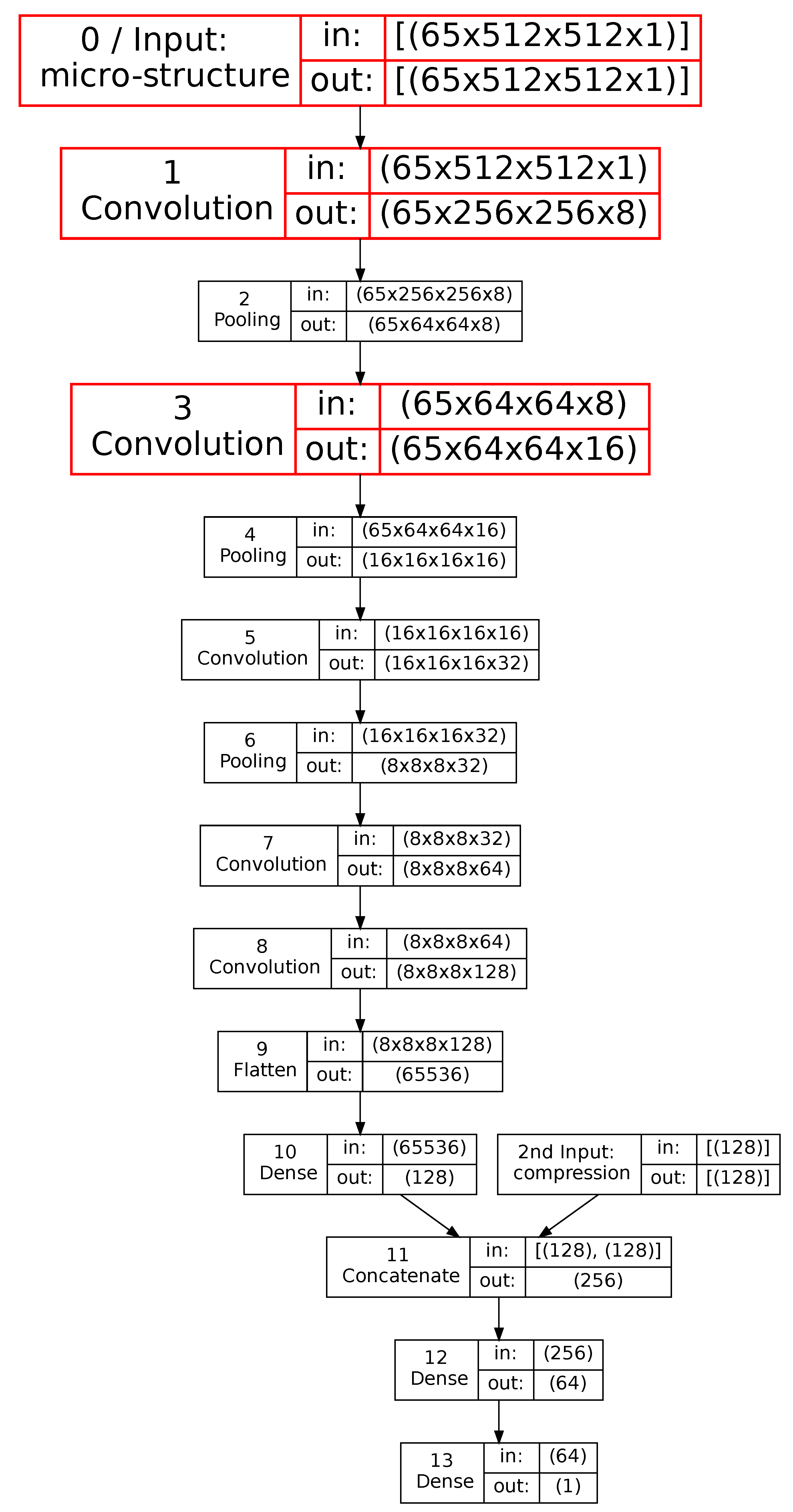

The three layers that were marked in red shapes in Figure 1 are visualized in Figure 9, as suggested by Nguyen et al. [38]. The data in each layer are three-dimensional. For visualization, only the first image of the image stack is shown. Figure 9 displays the first image of the input data. Convolution layers, together with succeeding filters, help to detect features of the input data. Typically, on top of the network, local features are detected, whereas deeper in the network, more complex features are learned [39]. The convolution creates smaller image stacks but several channels, eight in the case of the layer ‘1/Convolution’ and 16 in the case of the layer ‘3/Convolution’. In the diagram, only four of each are displayed. The subsequent layers show the result of the convolution steps that creates gray level images, although the visualization in Figure 9 displays different colors. The gray level images become blurred as the size is reduced. The hidden layers of the CNN represent parameters of the fitting procedure during the training. In the prediction, they show a kind of shadow of the input data. With increasing depth in the network, the shadows become increasingly blurred, mimicking more complex features of the micro-structure.

5. Results

The CNN was trained separately with permeability $\kappa$ and tortuosity $10·\tau$ to achieve models to predict permeability and tortuosity. A training with $\tau$ was not successful, which demonstrates the dependency of the method from the absolute range of the characteristics. The accuracy of the predicted permeability and tortuosity is shown in Figure 10. The diagrams contain the values of the uncompressed data of fold no. 4. The predictions were obtained using separated CNN weights for permeability and tortuosity, TP and IP.

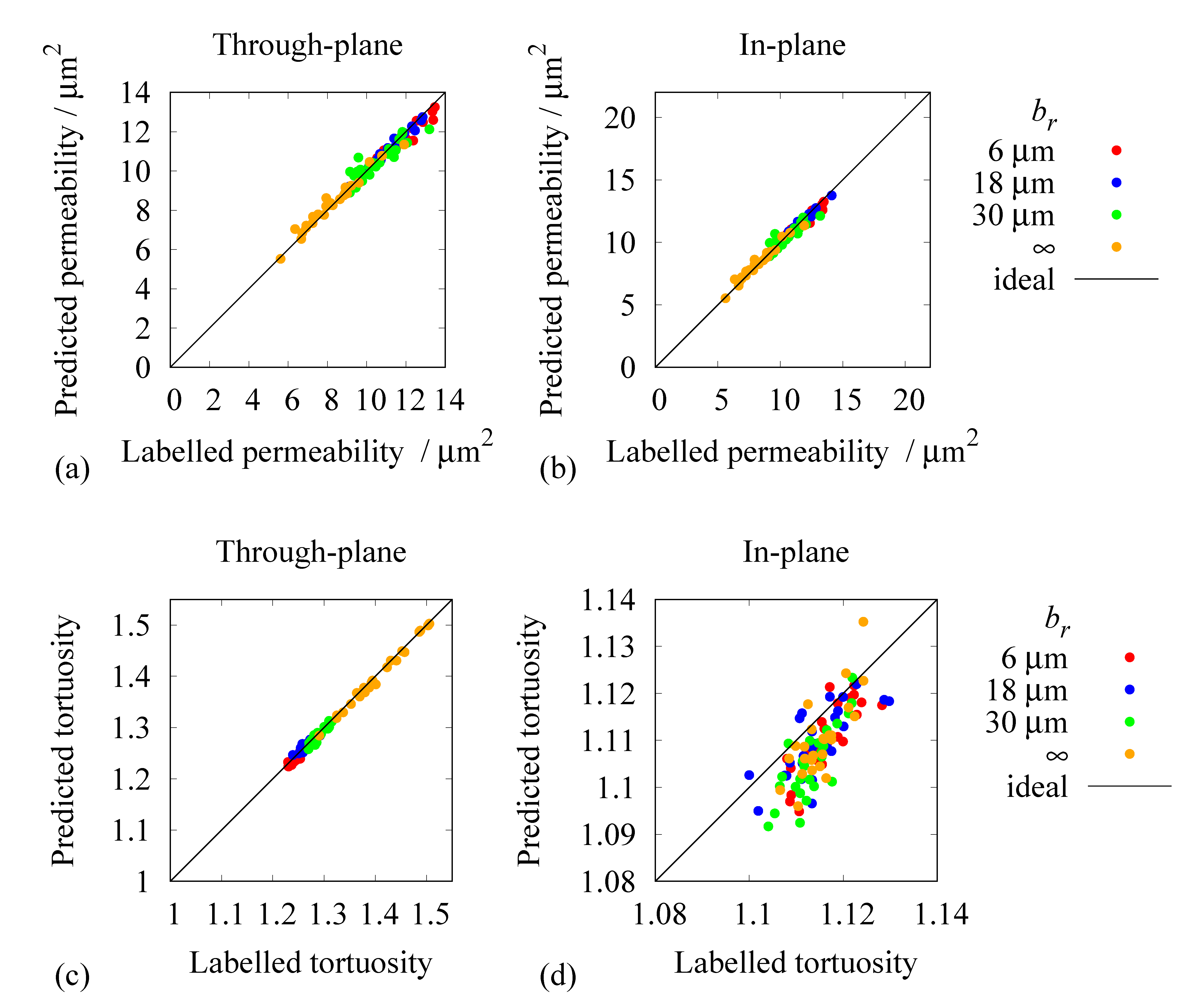

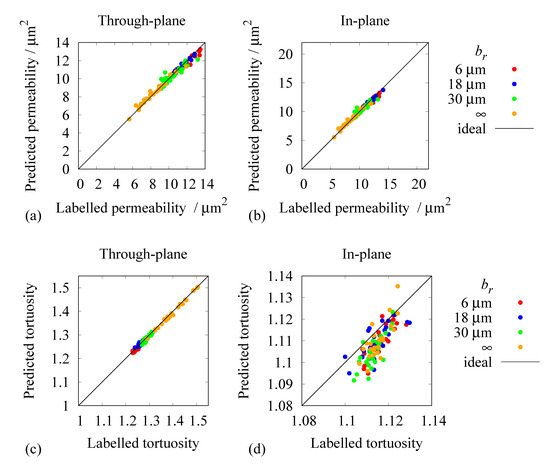

The symbols in Figure 10a–c are close to the ideal line, representing a good agreement between the predicted data and labeled data. The effect of the binder type on the permeability and TP tortuosity, which was not explicitly trained, is represented by the predicted values; the information is inherent in the trained data. The scale of Figure 10d is different from Figure 10b, because the IP tortuosity varies in a closer range than the TP tortuosity. This is in agreement with the original data calculated by LB simulations by Froning et al. [26].

The real data of Toray GDL consist of 50 sub-regions randomly cut out of the image stack of series R1, and two series R2 and R3 taken from a channel/rib assembly. The predicted data for the cut-outs of series R1 are summarized in

Table 2. Tortuosity and permeability of 50 sub-sections of real data of series R1, predicted by the CNN, were trained with fold no. 4. The physical units of the variance are the square of the units in the column headers. The lower section shows the characteristics of the training data.

	TP			IP
	$\mathbf{\kappa }$	$\mathbf{\tau }$	$\mathbf{\kappa }·\mathbf{\tau }$	$\mathbf{\kappa }$	$\mathbf{\tau }$	$\mathbf{\kappa }·\mathbf{\tau }$
	$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$		$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$	$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$		$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$
min	8.89	1.17	11.73	17.44	1.07	19.23
max	11.94	1.36	15.18	19.82	1.14	22.02
average	10.54	1.27	13.43	18.83	1.10	20.80
median	10.54	1.28		18.85	1.10
std. deviation $\sigma$	0.62	0.038	0.75	0.56	0.014	0.69
variance ${\sigma }^2$	0.38	$1.5\times {10}^{-3}$		0.32	$1.9\times {10}^{-4}$
var. coeff.	$5.9\times {10}^{-2}$	$3.0\times {10}^{-2}$	$5.58\times {10}^{-2}$	$3.0\times {10}^{-2}$	$1.3\times {10}^{-2}$	$3.3\times {10}^{-2}$
average (B) in [26]	11.18	1.27		17.98	1.11
average (C) in [26]	10.51	1.29		17.81	1.11
favored:	C	B		B	B, C

. The product of the permeability $\kappa$ and tortuosity $\tau$ will be used later in this section in comparison with series R2 and R3.

In Table 2, the min/max values of the product $\kappa ·\tau$ are different from the product of the separate min/max values of $\kappa$ and $\tau$, because low values for the tortuosity typically correspond to high values for the permeability and vice versa. The average values in Table 2 are close to the medians for all features. This confirms the absence of skewness in the distributions that could occur in the systematic selection of the positions from where the sub-sections were cut out of the R1 image stack. The average values of the predicted TP and IP permeabilities and tortuosities are compared with the previously published [26] values, separated according to the inherent binder model as introduced in Figure 2. The predicted values best fit to the published values of binder models B and C, representing binder widths of $18\mu \mathrm{m}$ and $30\mu \mathrm{m}$. The statistical spread can be expressed by the dimensionless variation coefficient $V=\sigma /\overline{x}$, $\sigma$ being the standard deviation and $\overline{x}$ the average value. The variation coefficient of the permeability (TP and IP) is smaller than that of the training data as published in [26]. The variation coefficient of the predicted tortuosities is close to that of the predicted permeabilities. Within the training data, it was somewhat smaller.

The binder widths in variants A and D were extreme values in the original development of the underlying binder model by Thiedmann et al. [40]. Manual measurements of the binder width in the BW images as shown in Figure 3 are hardly representative because of significant imaging errors. These imaging errors also inhibited a successful LB simulation of this micro-structure.

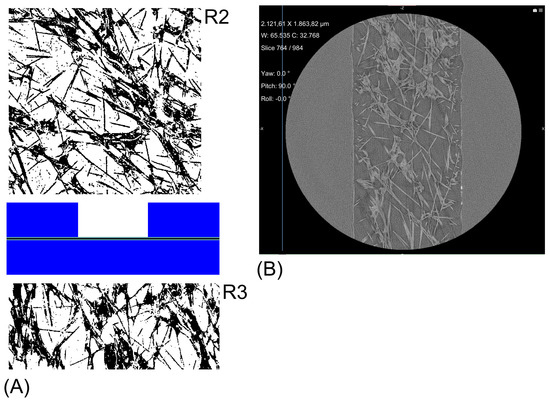

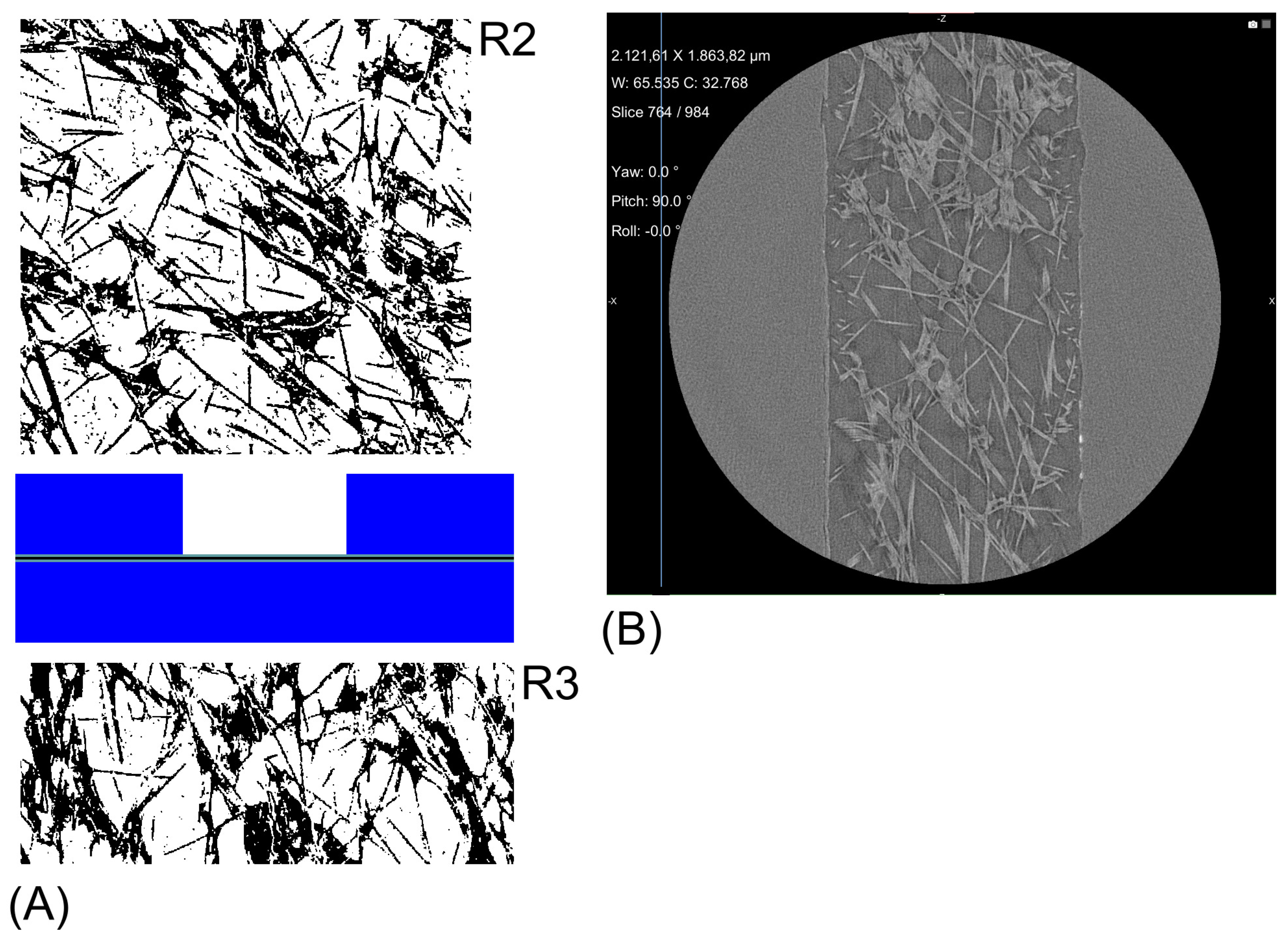

In series R2, the GDL was embedded in an assembly with a 1.0 mm channel width and a 0.8 mm channel width in series R3. The resolution of the images—$1.797\mu \mathrm{m}/\mathrm{px}$—was adapted to the resolution of the training data in the pre-processing step ($1.5\mu \mathrm{m}/\mathrm{px}$).

Table 3. The tortuosity and permeability of real data, predicted by the CNN, trained with fold no. 4. The series are annotated according to Section 2.5.

Series	No.	Comp.	Porosity	${\mathit{V}}_{\mathit{p}}/{\mathit{S}}_{\mathit{p}}$	TP				IP
					${\mathbf{\tau }}_{\mathbf{LB}}$	${\mathbf{\tau }}_{\mathbf{ML}}$	${\mathbf{\kappa }}_{\mathbf{LB}}$	${\mathbf{\kappa }}_{\mathbf{ML}}$	${\mathbf{\tau }}_{\mathbf{LB}}$	${\mathbf{\tau }}_{\mathbf{ML}}$	${\mathbf{\kappa }}_{\mathbf{LB}}$	${\mathbf{\kappa }}_{\mathbf{ML}}$
		%		$\mathbf{\mu }\mathbf{m}$			$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$	$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$			$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$	$\mathbf{\mu }{\mathbf{m}}^{\mathbf{2}}$
R2	1	6	0.688	7.12	1.22	1.26	6.01	8.18		1.01		18.20
	2	8	0.666	6.38	1.13	1.17	5.91	6.97		1.01		15.97
	3	11	0.678	6.72	1.15	1.28	6.07	7.03		1.01		16.31
	4	13	0.669	6.74	1.23	1.27	4.65	6.82		1.04		16.10
	5	16	0.669	6.74	1.11	1.35	6.98	6.25		1.05		16.09
	6	18	0.669	6.59	1.25	1.27	4.36	6.05		1.07		15.37
	7	19	0.680	6.05	1.12	1.26	5.49	5.91		1.07		14.09
	8	21	0.644	6.42	1.26	1.27	3.46	5.86		1.03		13.35
	9	24	0.640	6.41	1.27	1.27	3.23	5.12		1.02		12.25
	10	29	0.640	6.41	1.27	1.28	3.23	4.59		1.04		11.05
R3	1	7	0.685	7.61	1.18	1.13	7.46	7.65		1.08		16.23
	2	10	0.709	7.91	1.15	1.19	9.46	7.21		1.09		16.19
	3	11	0.669	7.02	1.20	1.13	5.39	6.94		1.07		15.08
	4	14	0.666	6.86	1.20	1.16	5.01	6.46		1.09		14.18
	5	18	0.678	6.91	1.18	1.20	5.68	6.08		1.08		14.13
	6	19	0.685	6.89	1.18	1.22		6.54		1.11		14.45
	7	24	0.597	4.61		1.08		5.15		1.04		10.79
	8	28	0.555	4.84		0.98		3.75		1.04		7.97
	9	30	0.570	6.69		1.19		3.80		1.12		7.38
	10	31	0.592	8.87		1.25		4.09		1.17		8.68

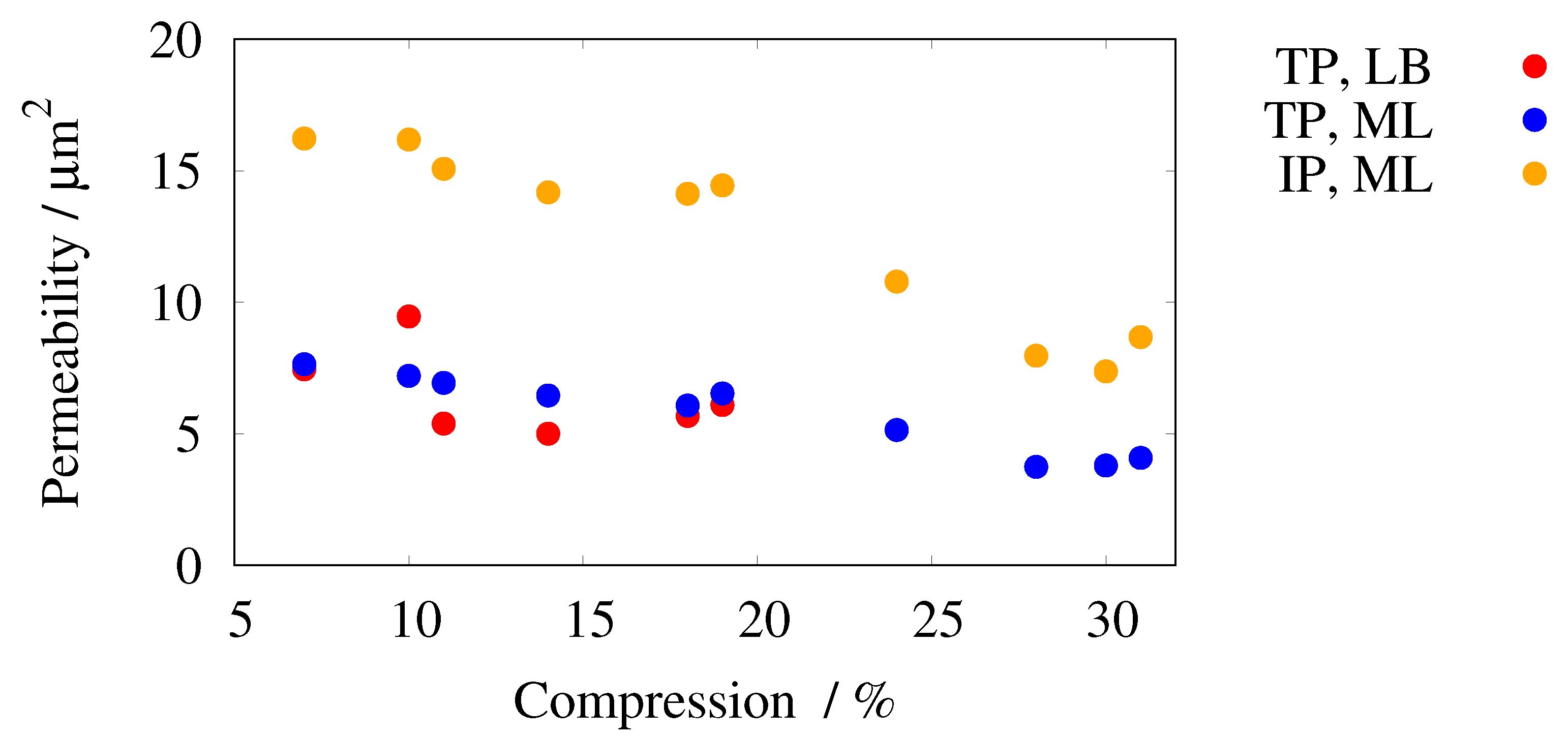

summarizes the predicted permeability.

The LB simulations in the IP direction did not converge on meaningful physical values. It is believed that the tight stacking of the images led to significant errors at the artificial inner breaking faces. These breaking faces are closer than the minimum domain size (100 in each coordinate direction) for these kinds of LB simulations, as identified by Froning et al. [26].

The inner structure is characterized by the porosity and the relationship $(V_p/S_p)$ which is used in the Kozeny–Carman trend, Equations (4) and (5). The values for $(V_p/S_p)$ in the table are related to the resolution of $1.797\mu \mathrm{m}/\mathrm{px}$ of the original images (see Section 3.2).

Mangal et al. [41] measured the TP permeability of Toray GDL as $10.9\pm 1.2{\mu \mathrm{m}}^2$, which is closer to the results of the LB simulations in artificial structures by Froning et al. [26] than to those from the segmentations of real data in Table 3. This indicates that the image segmentation possibly caused larger errors than the LB ones and the ML predictions.

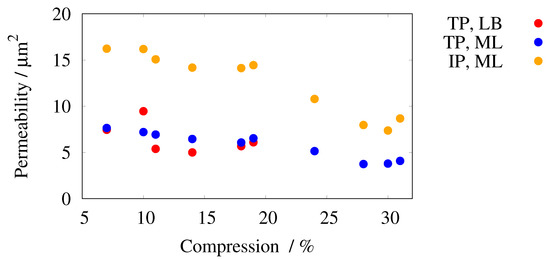

The IP permeability is systematically larger than the TP permeability, which is consistent with systematic investigations into the artificial micro-structures of Toray GDLs [26]. The permeability of series R2 along the compression of the material is depicted in Figure 11. Series R3 is shown in Figure 12.

Feser et al. [42] measured the IP permeability of three kinds of GDL, one of them being Toray 060, under mechanical compression. They observed a decrease in the IP permeability of Toray GDL by a factor of approximately two under compressions of up to 24%. Their experiments showed variances of only 10–15%. This behavior is consistent with the predicted ${\kappa }_{ML}$ values in the IP columns of Table 3 and the corresponding symbols in Figure 11 and Figure 12.

The IP permeability and tortuosity were calculated in only one direction—the x coordinate—because the geometry model of Thiedmann et al. [32] was stochastically invariant in the plane. The real data from Hoppe [35], however, were not invariant in its two IP directions because of the morphological changes of the micro-structure under compression. The x coordinate is the transport direction in the IP simulations. According to Figure 6, this direction is across the channel in the mechanical compression setup of Hoppe [35]. This fact may affect the LB simulations presented in Table 3 and Figure 11.

The consistency of the predicted data was evaluated via the product $\kappa ·\tau$. According to Equation (4), a constant was fitted to match $\kappa ·\tau$ with $\epsilon ·{(V_p/S_p)}^2$. The latter characterizes the compression of the material, assuming an almost similar shape of the inner structure. Series R3 shows some outliers of $(V_p/S_p)$ in Table 3, namely for compression levels 24%, 28%, and 31%.

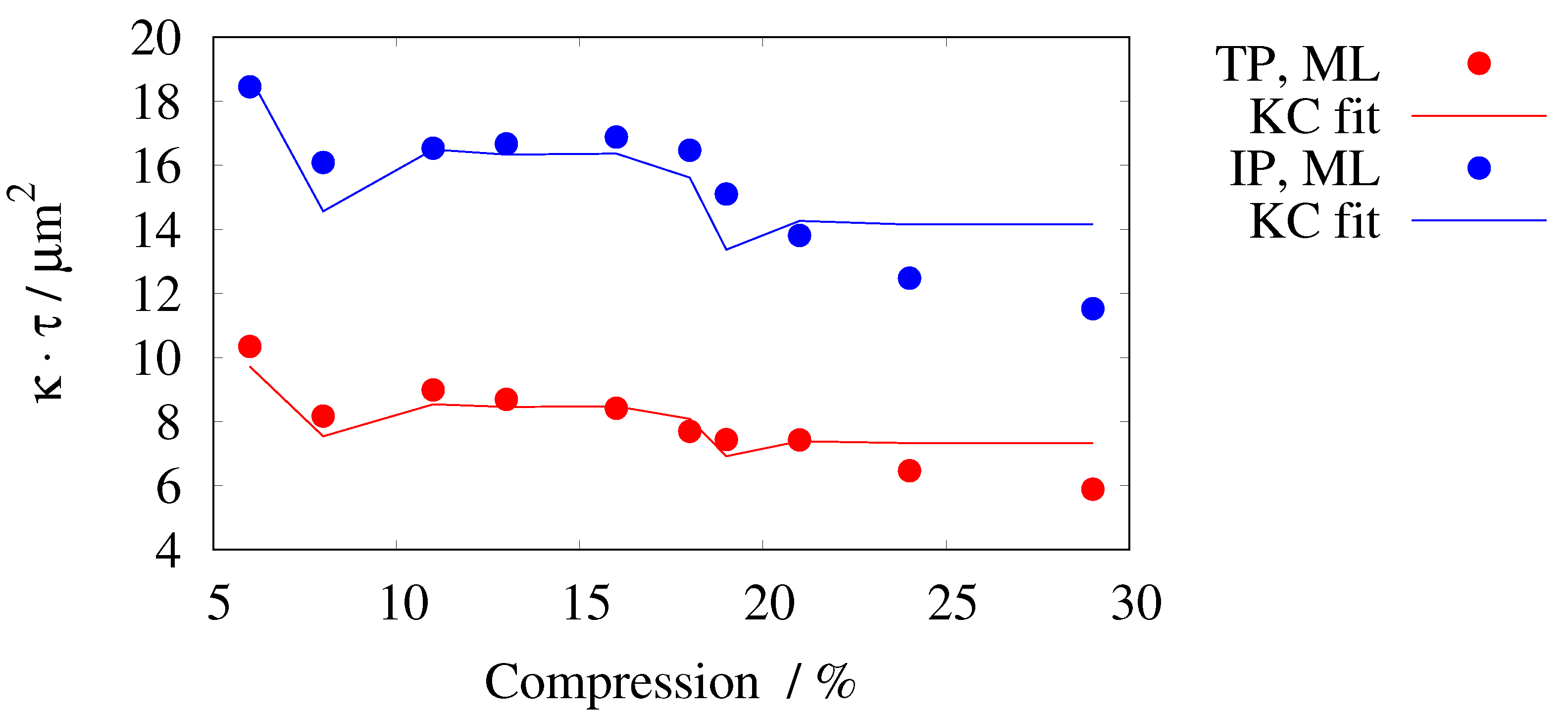

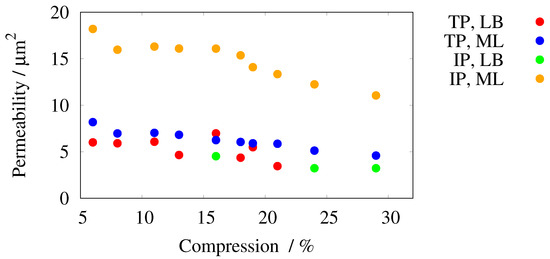

The KC trend (Equation (4)) was fitted to the predicted values for $\kappa ·\tau$ for the real data from series R2 and R3. According to Equation (4), a constant factor was determined that minimized the sum of the squared errors. The resulting factor was 0.91 for the TP values and 1.77 for the IP ones. The $\kappa ·\tau$ relationship of series R2 is shown in Figure 13. The data are presented in relation to the compression. Therefore, the straight line from the fit procedure follows the irregular shape of the displayed abscissa $\epsilon ·{(V_p/S_p)}^2$. The predicted values for $\kappa ·\tau$ show a good agreement with the Karman–Cozeny trend $\epsilon ·{(V_p/S_p)}^2$ (Equation (4)). Although the LB simulations in the IP direction failed in most cases, the ML predictions are also consistent in this case. The failing LB simulations may be a consequence of the fact that the images needed to be stacked upon each other. In the IP direction, the wrong shear layers potentially led to a different type of error than in the TP direction. For comparison, the average of the predicted $\kappa ·\tau$ of the R1 series was also inserted in Figure 13, including a small error bar representing the standard deviation from Table 2. This entry for uncompressed data does not conflict with an extrapolation of the R2 series of compressed geometries in Figure 13.

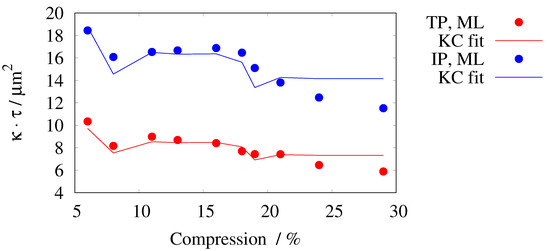

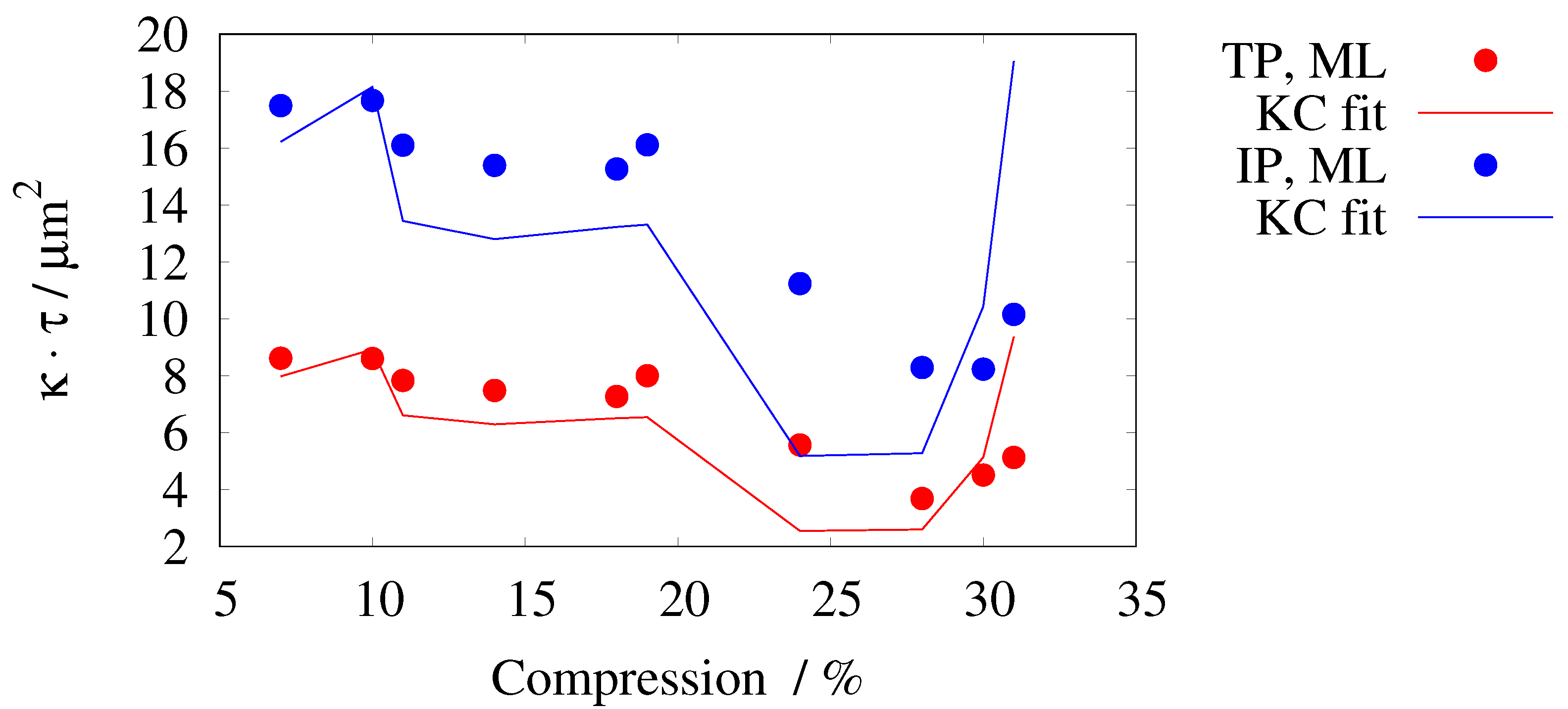

The $\kappa ·\tau$ relationship of series R3 is shown in Figure 14. The fitted factors for the KC trend of this data were 0.65 for the TP direction and 1.32 for the IP one. In comparison to Figure 13, the predicted $\kappa ·\tau$ for the R3 series shows less agreement with $\epsilon ·{(V_p/S_p)}^2$ than before, especially for higher compression levels. This is in accordance with the presence of outliers in the $(V_p/S_p)$ entries in Table 3. Furthermore, the R1 value for $\kappa ·\tau$ is further away from a meaningful extrapolation of the corresponding values of the compressed R3 series in Figure 14 than it was previously, in the R2 series. The sub-optimal agreement of the KC trend with $\kappa ·\tau$ along the compression indicates that the underlying micro-structure—in this case, its representation by BW images—changes its shape under compression.

The deviation in the KC trend in Figure 14 is in agreement with the observation that the LB simulations of these micro-structures failed more often than for the R2 series.

6. Discussion

The prediction of the permeability and tortuosity of Toray GDL was successfully applied to segmented images of the micro-structure of real data. A re-scale of different image resolutions and domain sizes led to consistent results.

Applied to real image data with unknown errors in the segmentation, overfitting effects were observed. In contrast to introductory examples [27], where the test dataset is usually of the same image quality as the training dataset, overfitting was not detected in the test data. Additional consistency checks were necessary in the case of the R3 series, where meaningless values ($\tau <1$) were predicted for the IP tortuosity.

As in previous work [26], the Kozeny–Carman trend on the product $\kappa ·\tau$ of both the permeability and tortuosity characteristics was applied to judge the consistency of the predicted results.

Using real data, re-sizing and re-scaling was applied to the micro-structure, because the CNN requires a 3D input geometry of fixed size. For this purpose, two image series, R2 and R3, were available.

The re-scaling from $1.797\mu \mathrm{m}/\mathrm{px}$ of the micro-structure to $1.5\mu \mathrm{m}/\mathrm{px}$ of the training data obviously did not hurt the accuracy; the features of the R2 series were satisfactorily predicted. That was not the case with the R3 series though.

One difference between the R2 and R3 series is the small size of the sample in the y direction. The images of both series must be stacked upon each other in the z direction to achieve the training size. Only for the R3 series was this procedure applied also in the y direction. The inaccuracy of the R3 series was observed in both the TP and IP directions. Moreover, the images of R2 were taken from the channel side of the compression device setup. The R3 images were taken from the block side. Although it was observed by Hoppe [35] that the complete MEA was deformed under the channel, the impact of deformation on the GDL micro-structure is expected to be lower on the block side than on the channel one. The high relevance of the GDL deformation under compressed flow fields was shown by Hoppe et al. [43], who investigated the GDL compression under misaligned flow fields.

The IP characteristics of the training data were only available for one direction [26]. This is absolutely sufficient, given of the stochastic nature of the underlying geometry model [32]. The geometries of the training data were homogeneously compressed. In contrast, the real data of the R2 and R3 series were inhomogeneously compressed [35]; according to Figure 6, there are regions under the channel and under the rib. In the arrangement of Figure 6, the IP characteristics differ, along and perpendicular to the channel. However, this cannot be distinguished by a model that was trained for homogeneous compression.

From the application’s view, the permeability of the GDL on the flow field side, R2, is expected to be higher than that of the GDL on the block side, R3. This is indeed predicted by the ML model, but it must be conceded that the predictions of the R3 series possibly cannot be trusted because of the KC trend.

Nevertheless, it must be noted that imaging errors could have occurred in different degrees of severity in both series. In this work, the KC trend was used to justify the consistency of the ML predictions. It may be that other methods are viable for evaluating the accuracy of predictions in case an application were to suffer from other effects than the training data.

This work investigated the limitation of a CNN when the predictions are applied to images that have un-trained features. To justify the consistency of the prediction—once un-trained features have been identified—an additional criterion is to be applied. In this work, it was the KC trend for compressed porous material. Future work can investigate the effect of artificial noise to the artificial micro-structures, mimicking the image artifacts on real data. In the field of dynamic PEFC modeling, this was successfully done by Zou et al. [44].

7. Conclusions

The CNN architecture for the prediction of permeability developed in previous work is also able to train and predict the tortuosity of paper-type GDLs. Applied to images from a different source than those of the training set, the consistency of the prediction must be verified by an additional criterion. The effect of compression on the characteristics of the porous media was verified using the Kozeny–Carman trend. This relationship was also used to identify the sub-optimal segmentation of the micro-structure, leading to a deviation between the Kozeny–Carman equation and the product of the permeability and tortuosity. For different situations, another criterion could possibly help justify the consistency of the predictions.
