Search Results (4)

This research investigates the impact of high-speed and thermal-assisted machining (HS-TAM) on tool wear and surface roughness during the milling of SKD11 steel. The goal is to identify high-speed and elevated temperature zones that can improve machining efficiency, enhance surface quality, minimize costs, and extend tool life. The study involves the high-speed milling of SKD11 steel at various temperature conditions to evaluate the effect of temperature on tool wear and surface roughness. Additionally, experiments are conducted at the highest allowable support temperature with increased high-speed cutting to examine the effect of high speed on tool wear and surface roughness. The study demonstrates the correlation between cutting-tool wear and surface roughness at various high-speed cutting conditions and TAM environments and provides recommendations for cutting speeds and heating temperatures for different quality and productivity objectives. The findings indicate that high-speed milling of SKD11 at 600 m/min and 500 °C can decrease cutting tool-wear height (wear volume) and surface roughness by 82.47% (95.74%) and 91.08%, respectively, compared to machining at room temperature. Furthermore, the higher-speed modes at 500 °C result in a slight increase in wear height and surface roughness for high-speed cutting below 800 m/min, but reduces surface roughness for high-speed cutting beyond 800 m/min, reaching a value of 0.158 µm at the high-speed cutting limit of 1000 m/min. Full article

This study aimed to investigate the effects of Thermal-Assisted Machining (TAM) on SKD11 alloy steel using titanium-coated hard-alloy insert cutting tools. The microstructure, material hardness, chip color, cutting force, chip shrinkage coefficient, roughness, and vibration during TAM were evaluated under uniform cutting conditions. The machining process was monitored using advanced equipment. The results indicated that thermal-assisted processing up to 400 °C did not alter the microstructure and hardness of the SKD11 alloy steel. However, a significant variation in chip color was observed, indicating improved heat transfer through TAM. The cutting force, vibration amplitude of the workpiece, and surface roughness all decreased with increasing TAM. Conversely, the chip shrinkage coefficient of the machined chips tended to increase due to the high temperatures. Full article

Thermally assisted machining (TAM) is an effective method for difficult-to-cut materials, and works by locally preheating the workpiece using various heat sources, such as laser, induction, and plasma. Recently, many researchers have studied TAM because of its low manufacturing costs, high productivity, and quality of materials. Laser assisted machining (LAM) has been studied by many researchers, but studies on TAM using induction or plasma heat sources, which are much cheaper than lasers, have been carried out by only a few researchers. Lasers have an excellent preheating effect, but are expensive, and the temperature of the heated workpiece drops quickly. Here, multi heat sources were used to solve the shortage in supplied heat source with a single heat source. Induction was applied as an additional heat source. The purpose of this study is to analyze the thermal effect and temperature distribution of single heat source and multi heat sources, and compare the machining characteristics according to heat source types. In order to analyze the preheating effect according to the feed rate of the heat sources, a temperature measurement experiment using thermocouples was carried out, and the efficiency of the thermal effect using multi heat sources was verified. In addition, the effectiveness of the thermal analysis results was verified by comparison with the measured temperature distribution. The machining characteristics of Inconel 718 and Ti-6Al-4V with laser, induction, and laser-induction assisted milling (LIAMill) were analyzed, by cutting force and surface roughness. Full article

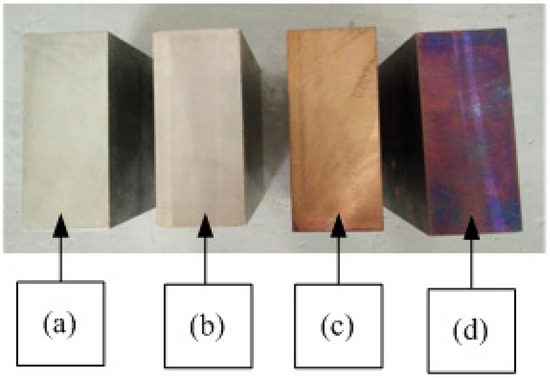

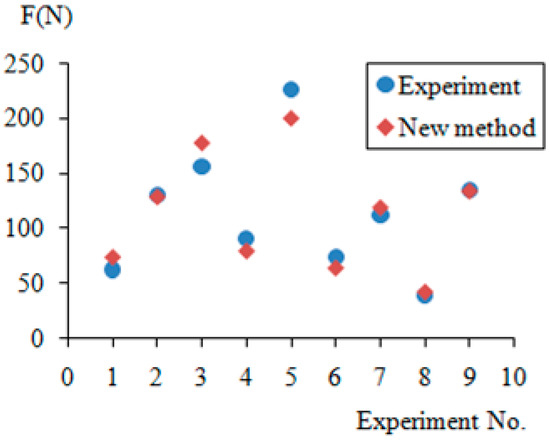

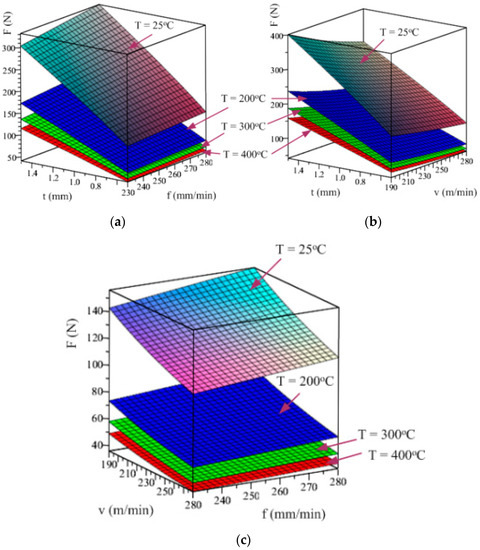

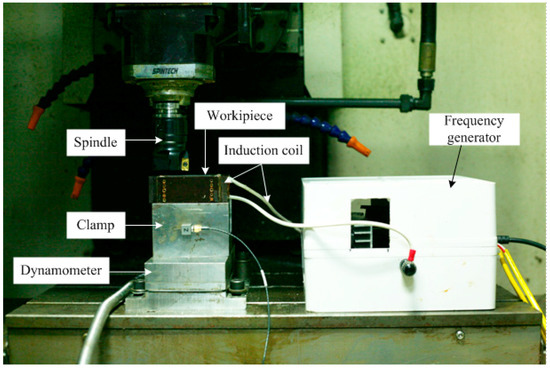

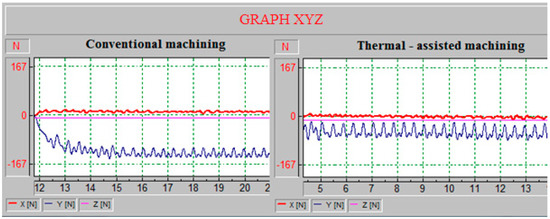

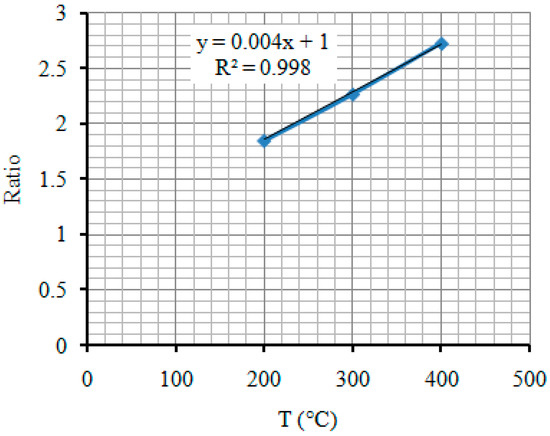

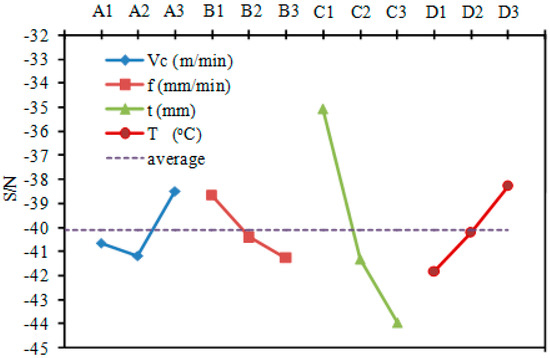

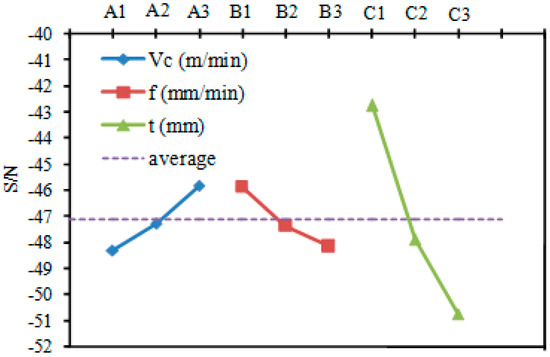

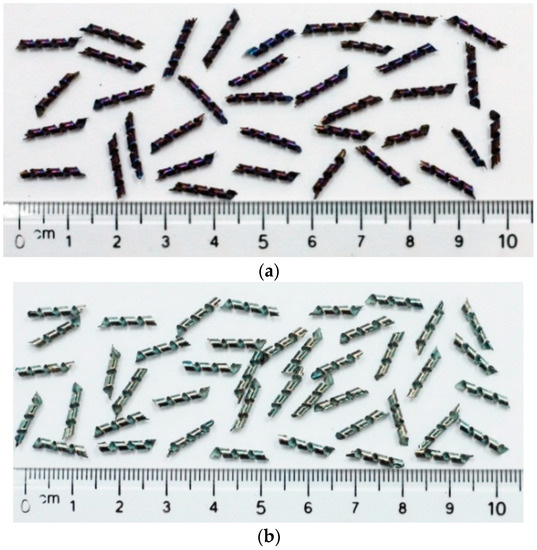

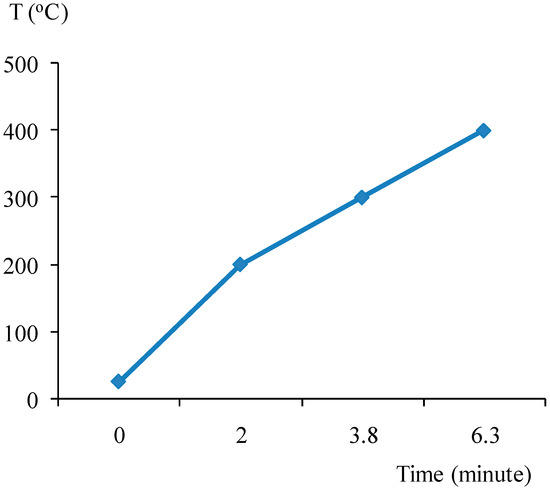

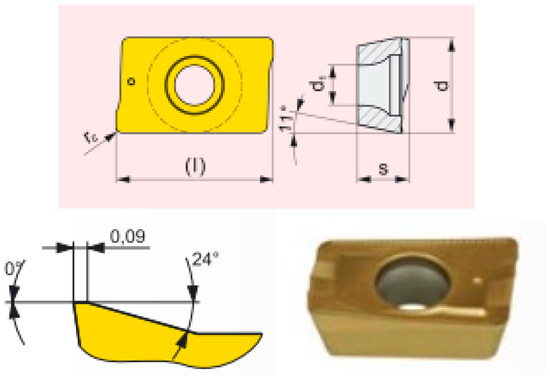

This paper investigates cutting force in thermal-assisted machining (TAM) by induction heating for SKD11 tool steel which is widely used in the mold industry. Experimental studies were first conducted at room and elevated temperatures to evaluate the effectiveness of the heating process on chip morphology and the cutting forces during the thermal-assisted machining and comparing with conventional machining method. The Taguchi method based on orthogonal array and analysis of variance ANOVA method was then used to design the number of experiments and evaluate the influence of cutting speed, feed rate, cutting depth, and elevated temperature on the cutting force. Study results showed a decrease in the cutting force in the TAM process. The optimal condition of parameters obtained for thermal-assisted machining were cutting speed 280 m/min, feed rate 230 mm/min, cutting depth 0.5 mm and temperature 400 °C. Finally, a proposed equation was established to determine the cutting force that was presented as a function of elevated temperatures when milling SKD11 material. A proposed cutting force model was compared, evaluated and confirmed to be in good agreement with experimental results. Full article
