Search Results (3)

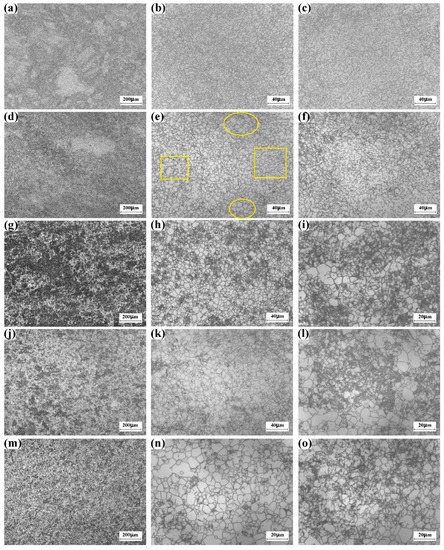

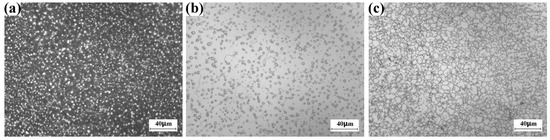

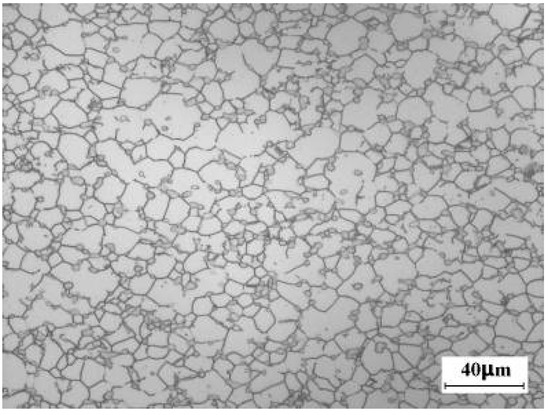

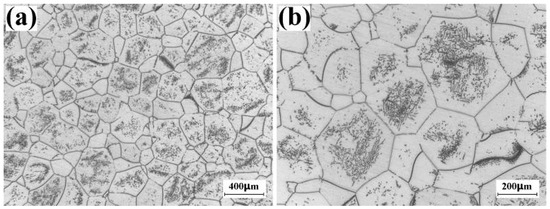

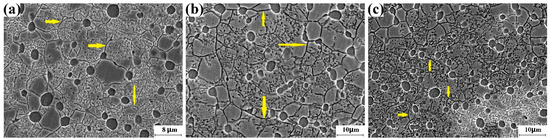

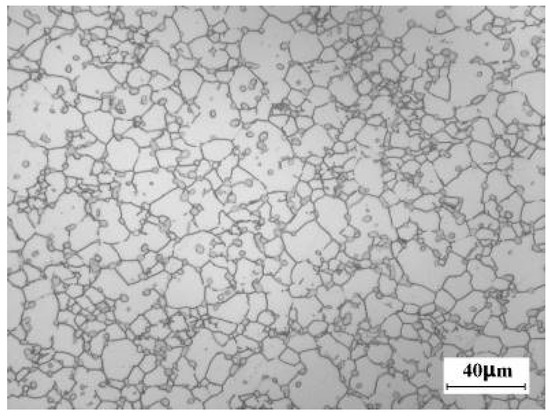

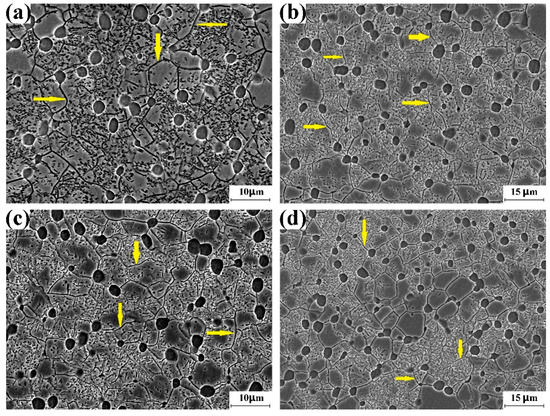

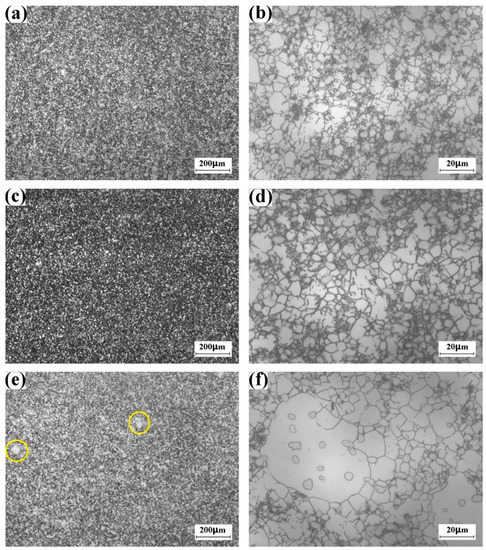

In order to fabricate homogeneous large-scale Ti-5Al-5V-5Mo-3Cr (Ti-5553) alloy bulk with fine and equiaxial β grain, we performed a series of multi-axial α + β field forging with 62 forging cycles on the large-scale Ti-5553 billet by using 12.5 MN high-speed hydraulic press. The β-annealed microstructure was the starting microstructure of the billet. After the 6th forging cycle, β grain deformed dramatically, and the grain-boundary network developed within the irregular β grain. As the forging cycle increased to 44, the volume fraction of the fine and equiaxial β grain that is less than 20 μm, which is caused by dynamic recrystallization, increased gradually. However, the incomplete dynamic recrystallization region within the original β grain could not be eliminated. As the forging cycle further increased, the volume fraction of the fine and equiaxial β grain did not increase. In contrast, the abnormal grain growth of the β phase occurred during 50th~62nd forging cycle. Here, we attribute the formation of the incomplete dynamic recrystallization region and the abnormal grain growth of the β phase to the high deformation rate of the α + β forging. The refining behavior of β grain and the abnormal coursing β grain, which is found during the multi-cycle multi-axial forging of large-scale Ti-5553 alloy billet, are seldom reported in the isothermal compression of small-scale Ti-5553 alloy specimen. The findings of the paper are instructive for improving the sub-transus forging strategy that is used to fabricate the large-scale homogeneity Ti-5553 alloy billet with fine and equiaxial β grain. Full article

In the present study, we propose a hybrid manufacturing route to produce high-quality Ti6Al4V parts, combining additive powder laser directed energy deposition (L-DED) for manufacturing of preforms, with subsequent hot forging as a thermomechanical processing (TMP) step. After L-DED, the material was hot formed at two different temperatures (930 °C and 1070 °C) and subsequently heat-treated for stress relief annealing. Tensile tests were performed on small sub-samples, taking into account different sample orientations with respect to the L-DED build direction and resulting in very good tensile strengths and ductility properties, similar or superior to the forged material. The resulting microstructure consists of very fine grained, partially globularized alpha grains, with a mean diameter ~0.8–2.3 µm, within a beta phase matrix, constituting between 2 and 9% of the sample. After forging in the sub-beta transus temperature range, the typical L-DED microstructure was no longer discernible and the anisotropy in tensile properties, common in additive manufacturing (AM), was significantly reduced. However, forging in the super-beta transus temperature range resulted in remaining anisotropies in the mechanical properties as well as an inferior tensile strength and ductility of the material. It was shown, that by combining L-DED with thermomechanical processing in the sub-beta transus temperature range of Ti6Al4V, a suitable microstructure and desirable mechanical properties for many applications can be obtained, with the advantage of reducing the material waste. Full article

Titanium alloys have excellent properties, but components are very expensive due to the high levels of processing required, such as vacuum melting, multi-stage forging, and machining. As a result, forged titanium alloy components are largely exclusive to the aerospace industry, where a high strength-to-weight ratio, corrosion resistance, and excellent fatigue resistance are essential. However, a typical buy-to-fly ratio for such components is approximately 9:1, as much of the forged billet is machined to swarf. The quantity of waste titanium alloy swarf generated is increasing as aircraft orders, and the titanium components contained within them, are increasing. In this paper, waste swarf material has been recycled using the two-step solid-state FAST-forge process, which utilizes field assisted sintering technology (FAST) followed by hot forging. Cleaned Ti-6Al-4V swarf was fully consolidated using the FAST process at sub-transus and super-transus temperatures, followed by hot forging at sub-transus temperatures at different strain rates. It was demonstrated that swarf-derived Ti-6Al-4V FAST billets have equivalent hot forging flow behaviour and resultant microstructures when directly compared to equivalently processed conventional expensive hydride–dehydride powder, and previously reported Kroll-derived melt-wrought material. This demonstrates that titanium swarf is a good quality feedstock for downstream processing. Additionally, FAST-forge is a viable processing route for the closed-loop recycling of machining waste for next-generation components in vehicles and non-aerospace applications, which is game changing for the economics of titanium alloy components. Full article
