The cavitation phenomenon of the self-resonating waterjet for the modulation of erosion characteristics is investigated in this paper. A three-dimensional computational fluid dynamics (CFD) model was developed to analyze the unsteady characteristics of the self-resonating jet. The numerical model employs the mixture two-phase model, coupling the realizable turbulence model and Schnerr–Sauer cavitation model. Collected data from experimental tests were used to validate the model. Results of numerical simulations and experimental data frequency bands obtained by the Fast Fourier transform (FFT) method were in very good agreement. For better understanding the physical phenomena, the velocity, the pressure distributions, and the cavitation characteristics were investigated. The obtained results show that the sudden change of the flow velocity at the outlet of the nozzle leads to the forms of the low-pressure zone. When the pressure at the low-pressure zone is lower than the vapor pressure, the cavitation occurs. The flow field structure of the waterjet can be directly perceived through simulation, which can provide theoretical support for realizing the modulation of the erosion characteristics, optimizing nozzle structure. Full article

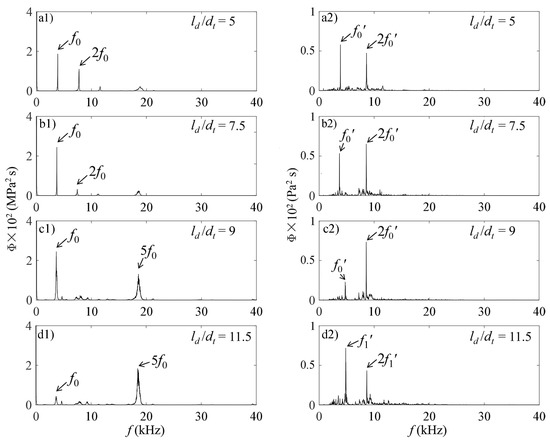

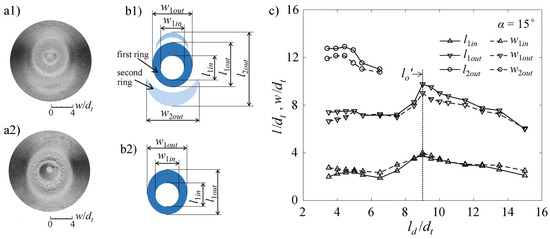

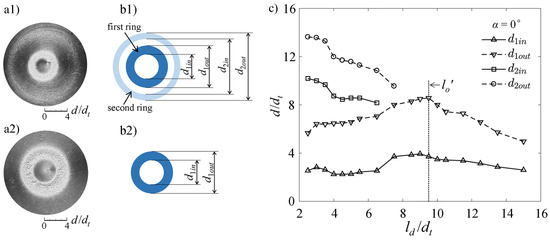

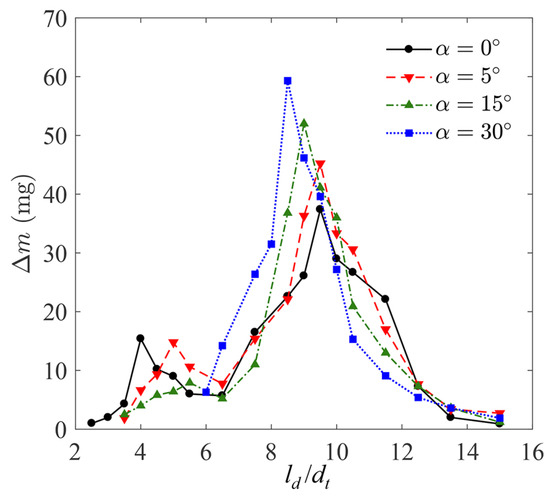

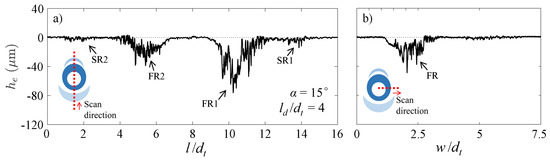

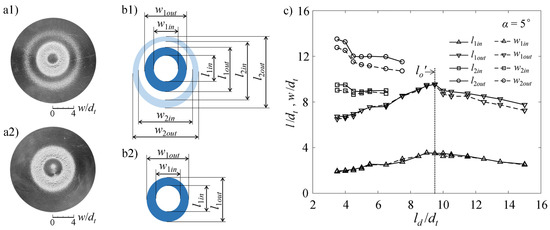

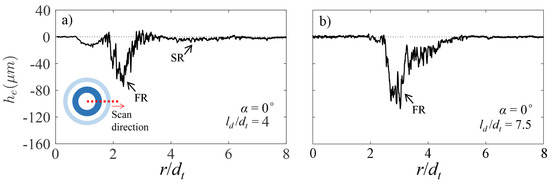

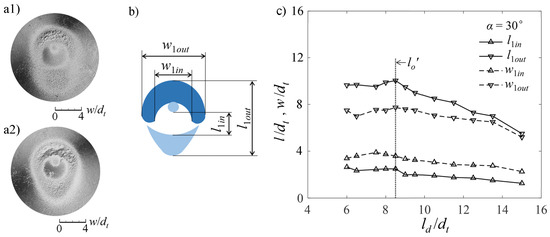

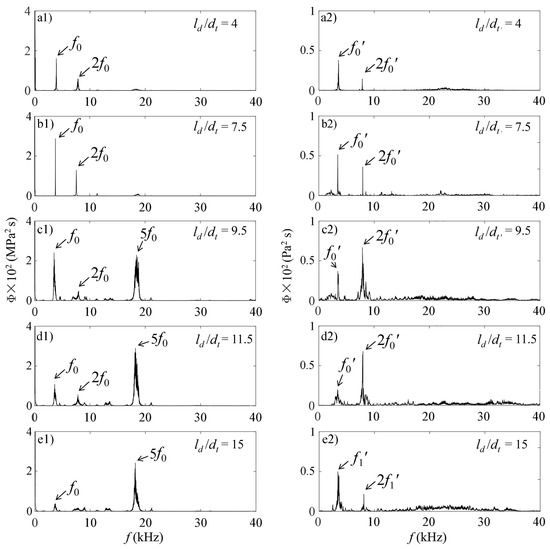

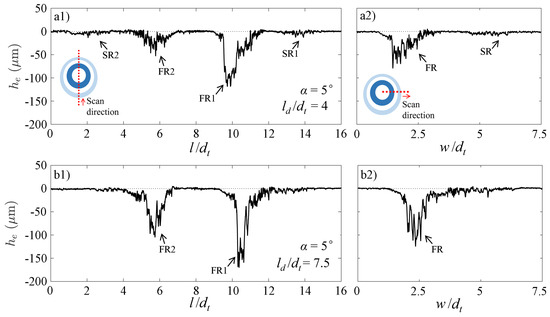

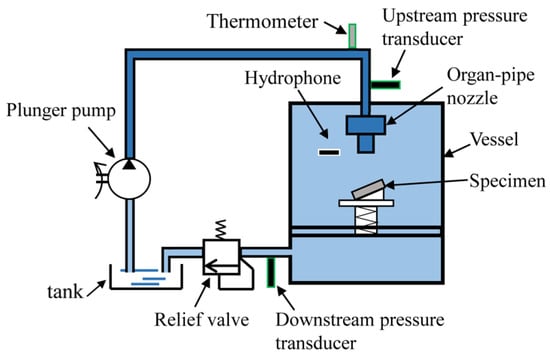

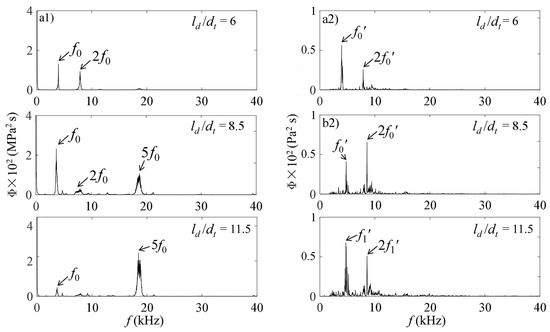

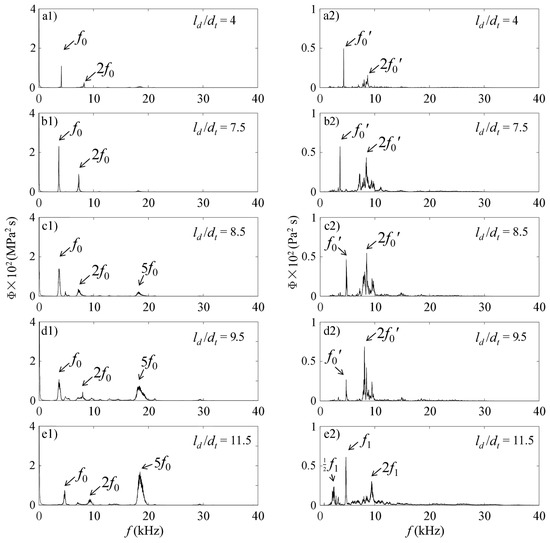

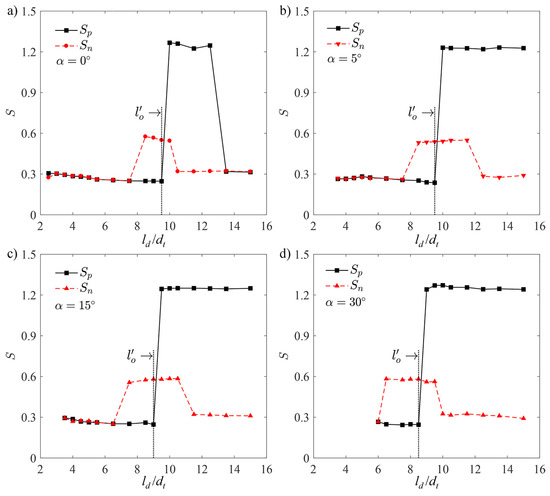

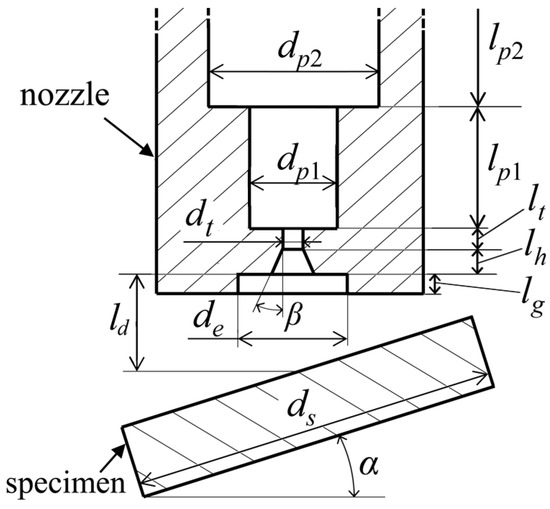

The erosion and the corresponding self-resonating oscillations of the cavitating jet were experimentally investigated on the oblique surfaces. To evaluate the intensities of erosion and self-resonating oscillations of the jet, mass loss, surface morphology of the eroded specimens, upstream fluctuating pressure and unsteady cavitation noise were obtained at a series of stand-off distance ratios $l_d/d_t$ in the cases where the oblique angles are $\alpha$ = 0°, 5°, 15° and 30°. In the low $l_d/d_t$ range, with the increase of $\alpha$ , the erosion gradually transforms from two isolated circular erosion rings at $\alpha$ = 0° into irregular oval shaped rings at $\alpha$ = 5° and separated horseshoe shaped rings at $\alpha$ = 15°. The self-resonating oscillations and cavitation were weak in this range because the dominating frequency $f_0$ is away from the design frequency of the organ-pipe nozzle, resulting in the depressed aggressive ability in the low $l_d/d_t$ range. With increasing $l_d/d_t$ , the cavitation is enhanced before the self-resonating oscillations achieving more energy. The spectral decomposition reveals the existence of an intermediate state at the optimum standoff distance, where the energy of self-resonating oscillations and the cavitation reach a balance to realize the severest erosion damage. Full article

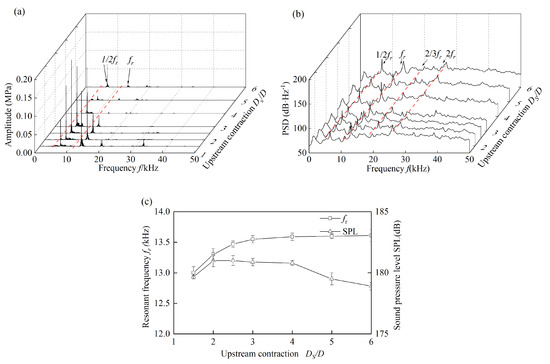

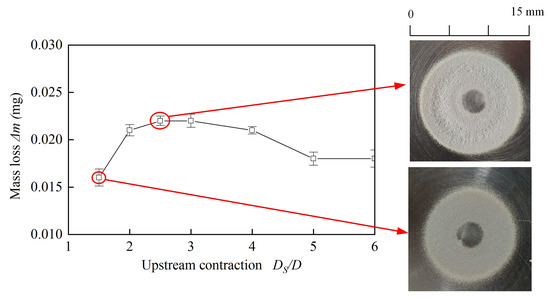

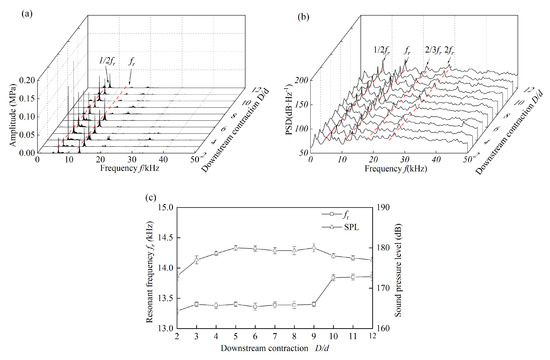

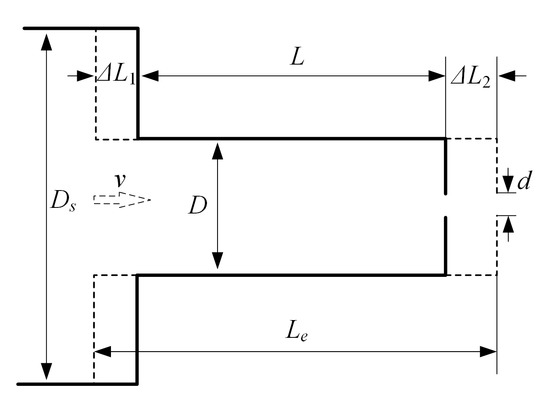

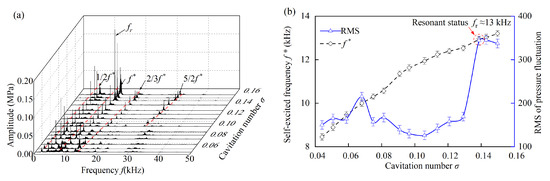

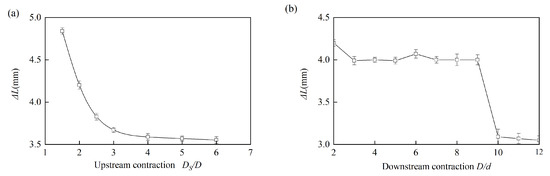

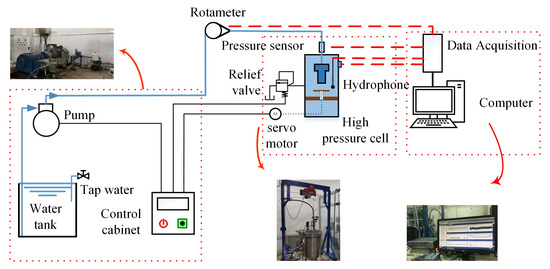

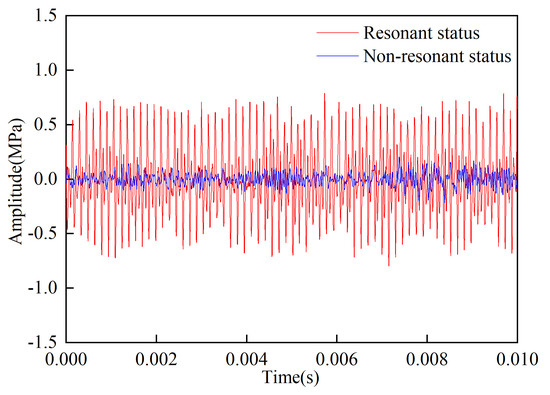

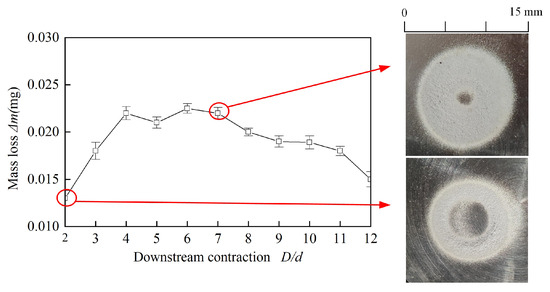

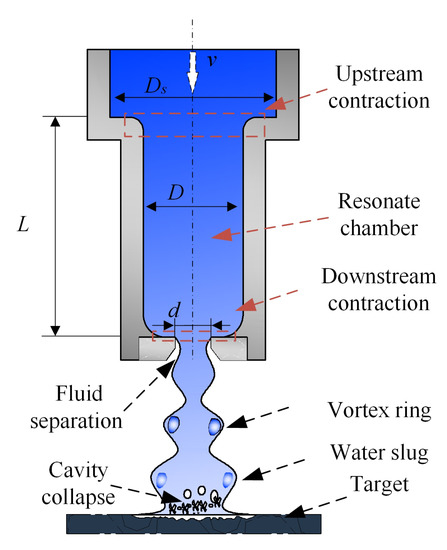

Erosion experiments were performed to uncover the impact of organ-pipe chamber geometry on the frequency and erosion characteristics of self-excited cavitating waterjets. Jets emanating from self-excited nozzles with various organ-pipe geometries were investigated. The upstream and downstream contraction ratios of the organ-pipe resonator were changed respectively from 1.5 to 6 and 2 to 12. Pressure sensors and hydrophone were used to characterize jets’ frequency characteristics. Mass loss was also obtained in each of the configurations to assess the erosion performance. By tuning the self-excited frequency, the peak resonance was achieved using the nozzles with different geometries. Accordingly, the acoustic natural frequencies of various chamber geometries were obtained precisely. Results show that with increasing upstream and downstream contraction ratio of the organ-pipe chamber, the acoustic natural frequency increases monotonically due to the reduction of equivalent length, while the resonance amplitude and mass loss first increase and then decrease. There are optimum geometric parameters to reach the largest resonance amplitude and erosion mass loss: the upstream contraction ratio being between two and four, and downstream ratio being between four and seven. The effective length of the organ pipe can be calculated by the sum of the physical length and equivalent length to accurately obtain the acoustic natural frequency. Under the optimized parameters, the equivalent length can be estimated as 0.35D. Full article

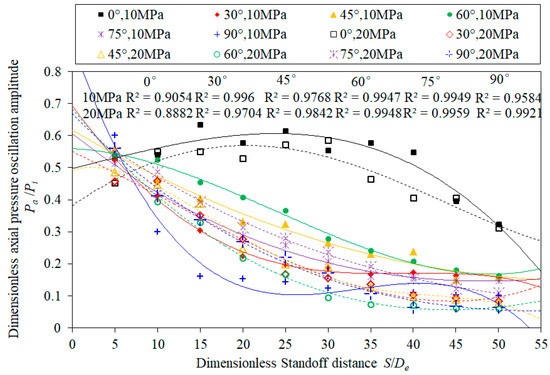

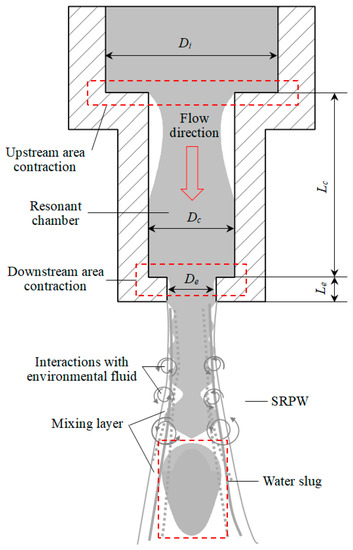

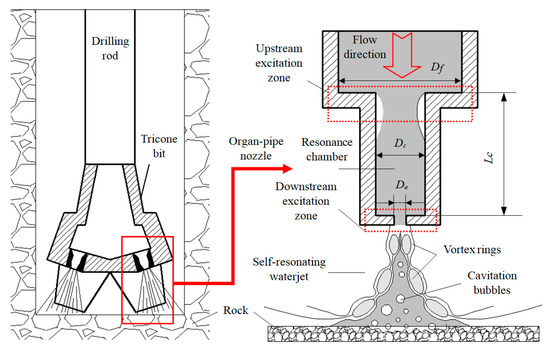

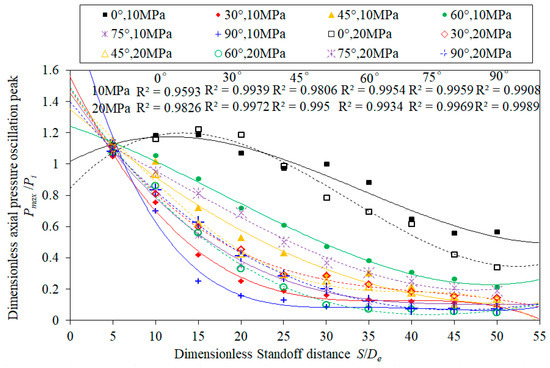

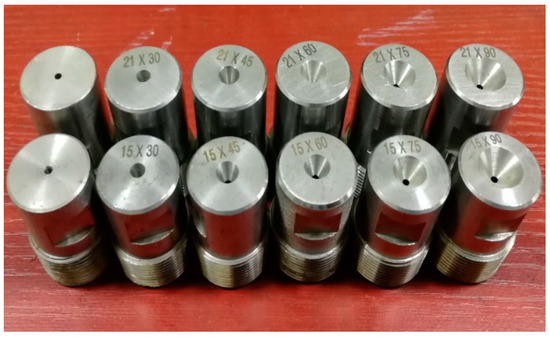

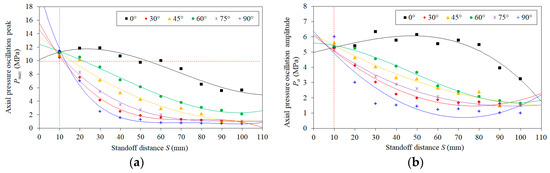

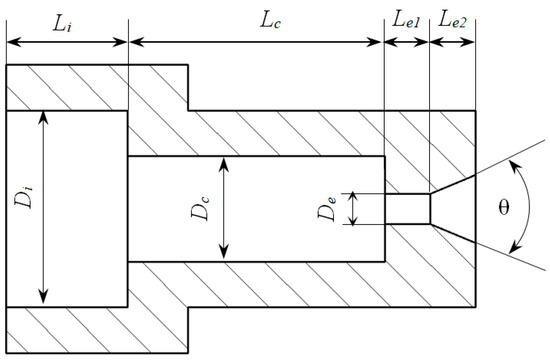

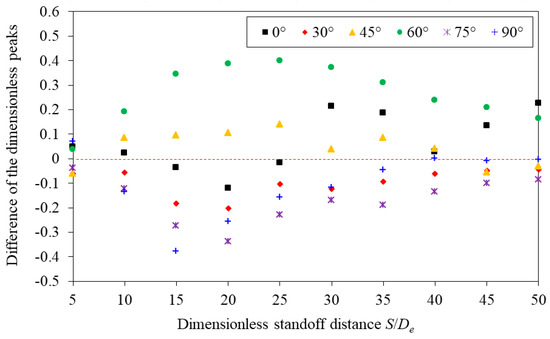

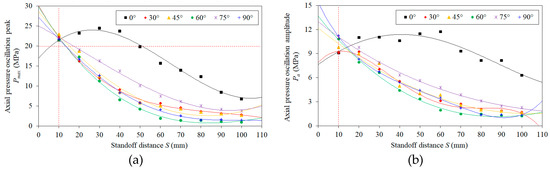

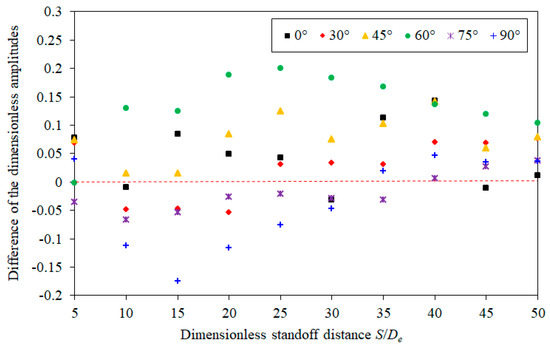

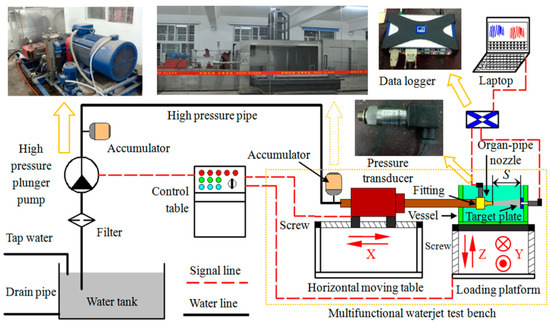

The self-resonating waterjet (SRWJ) has been applied in petroleum, natural gas, and mining engineering ever since its strong erosion ability in deep-hole drilling was recognized. Aiming at further improving the working efficiency of SRWJs, the effects of the exit angle of the organ-pipe nozzle on the axial pressure oscillations of the jet were experimentally studied. Six exit angles of θ = 0°, 30°, 45°, 60°, 75°, and 90° were employed in the experiment, and the axial pressure oscillation peak (P_max) and amplitude (P_a) were used for characterizing the performance of SRWJs. It was found that the exit angle greatly affects the axial pressure oscillations, including the development trends against the standoff distance and the magnitudes of P_max and P_a. Under testing with two inlet pressures, the exit angle of θ = 0° always resulted in the greatest P_max and P_a within the range of the testing standoff distance. With the increase of standoff distance, both P_max and P_a first increased and then decreased when the exit angle was 0°; while they kept decreasing when the exit angle was 30°, 45°, 60°, 75°, and 90°. Moreover, the exit angles of θ = 90° and 60°, corresponding to inlet pressures of P_i = 10 MPa and 20 MPa, led to both the minimum magnitudes of P_max and P_a under the experimental conditions. The results also indicate that the exit angle affects the interactions between the nozzle lip and the jet and help provide information for improving the working efficiency of SRWJs in practical applications. Full article

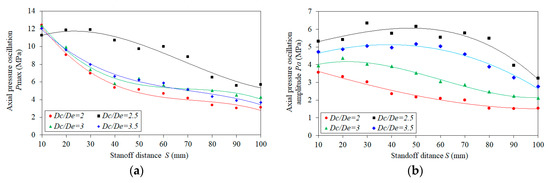

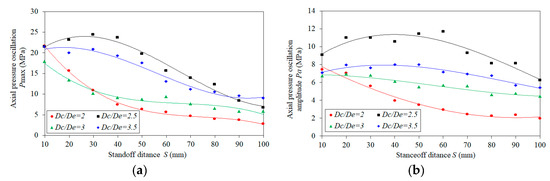

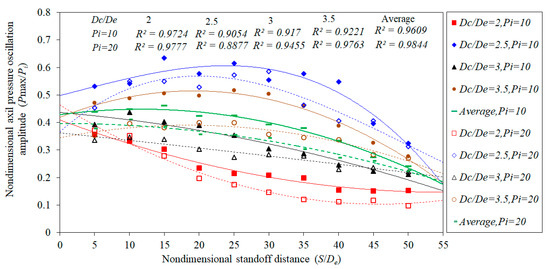

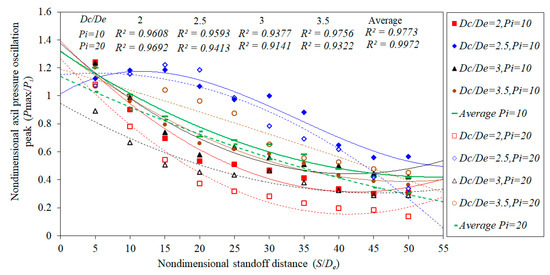

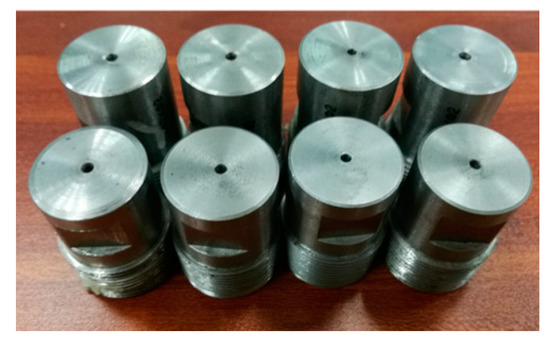

Self-resonating waterjets (SRWJs) are being widely used in the fields of energy exploitation, due to the significantly increased penetration rate of roller bits in deep-hole drilling. To further improve the impact and erosion abilities of SRWJs, the effects of the downstream contraction ratio of organ-pipe nozzle on the axial pressure oscillations were experimentally studied. The axial pressure oscillation peak and amplitude were used to evaluate the effects under two inlet pressures and various standoff distances. The results show that the downstream contraction ratio can affect the development trends of the pressure oscillations and determines the values of the peaks and amplitudes. Under the experimental conditions, 2.5 is the ratio that leads to the maximum peaks and amplitudes at almost all the testing standoff distances, while the ratio of 2 always results in the minimum ones. The development trend of the pressure oscillation peak for the ratio of 3.5 has a great change at an inlet pressure of 20 MPa. Generally, the relative pressure oscillations are more violent at an inlet pressure of 10 MPa, which is regardless of the contraction ratio. This study helps provide a guideline for determining the physical parameters required in the fabrication of organ-pipe nozzles used for deep-hole drilling. Full article
