Search Results (7)

Antimonide laser diodes, with their high performance above room temperature, exhibit significant potential for widespread applications in the mid-infrared spectral region. However, the laser’s performance significantly degrades as the emission wavelength increases, primarily due to severe quantum-well hole leakage and significant non-radiative recombination. In this paper, we put up an active region with a high valence band offset and excellent crystalline quality with high luminescence to improve the laser’s performance. The miscibility gap of the InGaAsSb alloy was systematically investigated by calculating the critical temperatures based on the delta lattice parameter model. As the calculation results show, In_0.54Ga_0.46As_0.23Sb_0.77, with a compressive strain of 1.74%, used as the quantum well, is out of the miscibility gap with no spinodal decomposition. The quantum wells exhibit high crystalline quality, as evidenced by distinct satellite peaks in XRD curves with a full width at half maximum (FWHM) of 56 arcseconds for the zeroth-order peak, a smooth surface with a root mean square (RMS) roughness of 0.19 nm, room-temperature photoluminescence with high luminous efficiency and narrow FHWM of 35 meV, and well-defined interfaces. These attributes effectively suppress non-radiative recombination, thereby enhancing internal quantum efficiency in the antimonide laser. Furthermore, a novel epitaxial laser structure was designed to acquire low optical absorption loss by decreasing the optical confinement factor in the cladding layer and implementing gradient doping in the p-type cladding layer. The continuous-wave output power of 310 mW was obtained at an injection current of 4.6 A and a heatsink temperature of 15 °C from a 1500 × 100 μm² single emitter. The external quantum efficiency of 53% was calculated with a slope efficiency of 0.226 W/A considering both of the uncoated facets. More importantly, the lasing wavelength of our laser exhibited a significant blue shift from 3.4 μm to 2.9 μm, which agrees with our calculated results when modeling the interdiffusion process in a quantum well. Therefore, the interdiffusion process must be considered for proper design and epitaxy to achieve mid-infrared high-power and high-efficiency antimonide laser diodes. Full article

Two blue-emitting materials, 4-(12-([1,1′:3′,1″-terphenyl]-5′-yl)chrysen-6-yl)-N,N-diphenylaniline (TPA-C-TP) and 6-([1,1′:3′,1″-terphenyl]-5′-yl)-12-(4-(1,2,2-triphenylvinyl)phenyl)chrysene (TPE-C-TP), were prepared with the composition of a chrysene core moiety and terphenyl (TP), triphenyl amine (TPA), and tetraphenylethylene (TPE) moieties as side groups. The maximum photoluminescence (PL) emission wavelengths of TPA-C-TP and TPE-C-TP were 435 and 369 nm in the solution state and 444 and 471 nm in the film state. TPA-C-TP effectively prevented intermolecular packing through the introduction of TPA, a bulky aromatic amine group, and it showed an excellent photoluminescence quantum yield (PLQY) of 86% in the film state. TPE-C-TP exhibited aggregation-induced emission; the PLQY increased dramatically from 0.1% to 78% from the solution state to the film state. The two synthesized materials had excellent thermal stability, with a high decomposition temperature exceeding 460 °C. The two compounds were used as emitting layers in a non-doped device. The TPA-C-TP device achieved excellent electroluminescence (EL) performance, with Commission Internationale de L′Eclairage co-ordinates of (0.15, 0.07) and an external quantum efficiency of 4.13%, corresponding to an EL peak wavelength of 439 nm. Full article

New blue-light-emitting materials, 2,7-Bis-[1,1′;3′,1″]terphenyl-spiro-fluorene[3,4]naphthalene (TP-AFF-TP) and spiro-fluorene[3,4]-5-terphenylnaphthalene (TP-ASF) were synthesized based on a fused core with anthracene and spirofluorene. The photoluminescence (PL) maximum values of TP-AFF-TP and TP-ASF in film states exhibited 477 nm and 467 nm within the blue region, respectively. Degradation temperature (T_d) values for TP-AFF-TP and TP-ASF were very high at 481 °C and 407 °C, respectively. TP-AFF-TP and TP-ASF exhibited power efficiencies (PE) of 1.03 lm/W and 2.39 lm/W, respectively, along with luminance efficiencies (LE) of 2.55 cd/A and 5.17 cd/A, respectively, in nondoped organic light-emitting diode (OLED) devices in which the newly synthesized compounds were employed as emissive layers. The achieved CIE values were (0.25, 0.45) for TP-AFF-TP and (0.17, 0.31) for TP-ASF. Furthermore, when TP-ASF was utilized as one of the emissive materials in solution-processed white OLED devices, the resultant device showcased a notably high LE of 3.13 cd/A, a PE of 2.69 lm/W, and a white CIE value of (0.30, 0.34). Full article

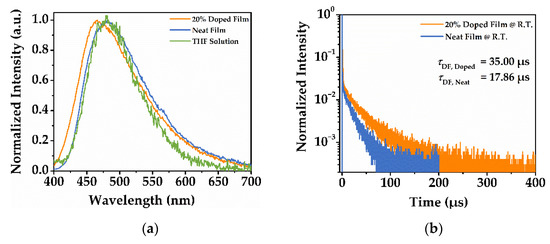

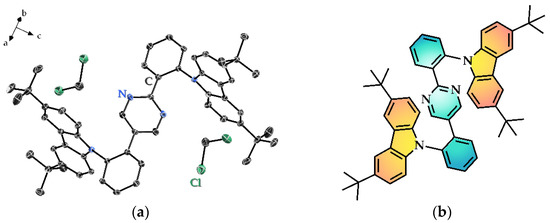

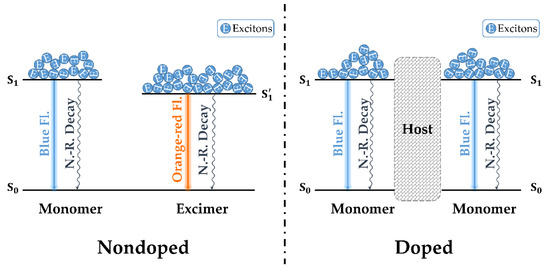

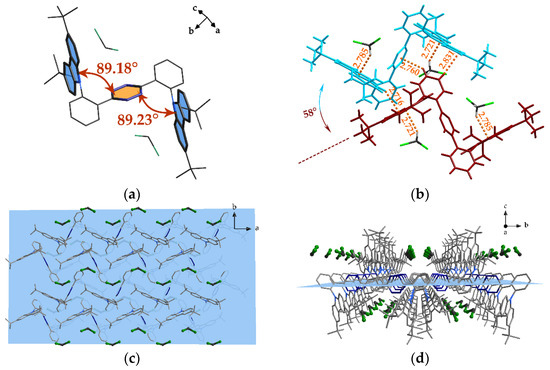

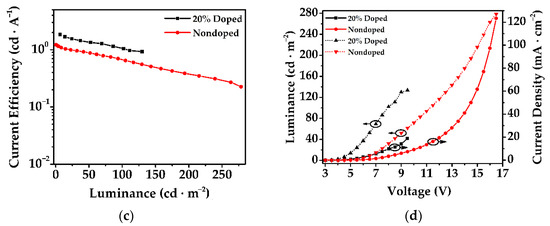

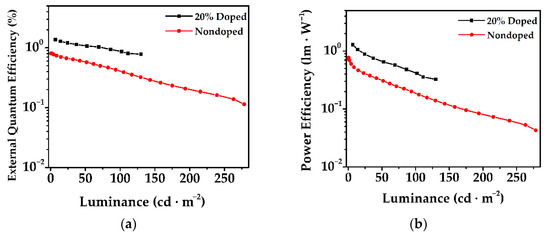

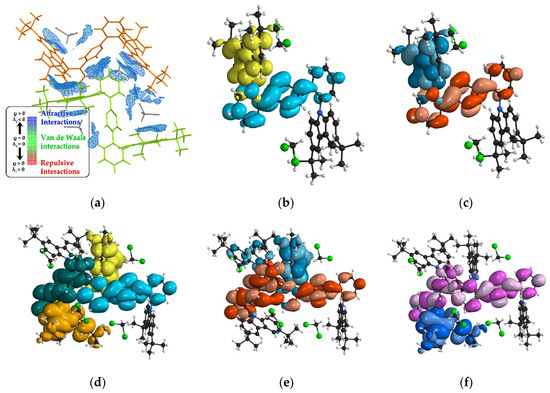

Organic light-emitting diodes (OLEDs) with tunable emission colors, especially white OLEDs, have rarely been observed with a single emitter in a single emissive layer. In this paper, we report a new compound featuring a D–A–D structure, 9,9′-(pyrimidine-2,5-diylbis(2,1-phenylene))bis(3,6-di-tert-butyl-9H-carbazole) (PDPC). A nondoped OLED using this compound as a single emitter exhibits unique voltage-dependent dual emission. The emission colors range from blue to orange–red with an increase in voltage, during which white electroluminescence with a Commission Internationale De L’Eclairage (CIE) coordinate of (0.35, 0.29) and a color render index (CRI) value of 93 was observed. A comparative study revealed that the dual emission simultaneously originates from the monomers and excimers of the emitter. This study provides insight into understanding the multimer-excited mechanism and developing novel color-tunable OLEDs. Full article

Three novel small organic heterocyclic compounds: 2-(1,2-diphenyl)-1H-benzimidazole-7-tert-butylpyrene (compound A), 1,3-di(1,2-diphenyl)-1H-benzimidazole-7-tert-butylpyrene (compound B), and 1,3,6,8-tetra(1,2-diphenyl)-1H-benzimidazolepyrene (compound C) were synthesized and characterized for possible applications as blue OLED emitters. The specific molecular design targeted decreasing intermolecular aggregation and disrupting crystallinity in the solid-state, in order to reduce dye aggregation, and thus obtain efficient pure blue photo- and electroluminescence. Accordingly, the new compounds displayed reasonably high spectral purity in both solution- and solid-states with average CIE coordinates of (0.160 ± 0.005, 0.029 ± 0.009) in solution and (0.152 ± 0.007, 0.126 ± 0.005) in solid-state. These compounds showed a systematic decrease in degree of crystallinity and intermolecular aggregation due to increasing steric hindrance, as revealed using powder X-ray diffraction analysis and spectroscopic studies. An organic light-emitting diode (OLED) prototype fabricated using compound B as the non-doped emissive layer displayed an external quantum efficiency (EQE) of 0.35 (±0.04)% and luminance 100 (±6) cd m⁻² at 5.5 V with an essentially pure blue electroluminescence corresponding to CIE coordinates of (0.1482, 0.1300). The highest EQE observed from this OLED prototype was 4.3 (±0.3)% at 3.5 V, and the highest luminance of 290 (±10) cd m⁻² at 7.5 V. These values were found comparable to characteristics of the best pure blue OLED devices based on simple fluorescent small-molecule organic chromophores. Full article

Hybrid white organic light-emitting diodes (WOLEDs) have drawn great attention both for display and solid-state lighting purposes because of the combined advantages of desirable stability of fluorescent dyes and high efficiency of phosphorescent materials. However, in most WOLEDs, obtaining high efficiency often requires complex device structures. Herein, we achieved high-efficiency hybrid WOLEDs using a simple but efficacious structure, which included a non-doped blue emissive layer (EML) to separate the exciton recombination zone from the light emission region. After optimization of the device structure, the WOLEDs showed a maximum power efficiency (PE), current efficiency (CE), and external quantum efficiency (EQE) of 82.3 lm/W, 70.0 cd/A, and 22.2%, respectively. Our results presented here provided a new option for promoting simple-structure hybrid WOLEDs with superior performance. Full article

Organic luminogens with strong solid-state emission have attracted much attention for their widely practical applications. However, the traditional organic luminogens with planar conformations often suffer from the notorious aggregation-caused quenching (ACQ) effect in solid state for the π–π stacking. Here, a highly efficient blue emitter TPE-4Py with an aggregation-induced emission (AIE) effect is achieved by combining twisted tetraphenylethene (TPE) core and planar pyrene peripheries. When the emitter was spin-coated in non-doped OLEDs with or without a hole-transporting layer, comparable EL performance was achieved, showing the bifunctional property as both an emitter and a hole-transporting layer. Furthermore, its EL efficiency was promoted in doped OLED, even at a high doping concentration (50%), because of its novel AIE effect, with a current efficiency up to 4.9 cd/A at 484 nm. Full article
