Search Results (7)

Nanojoining, which utilizes nanoparticles for joining applications, is an interesting method that stands out from conventional processes by combining relatively low joining temperatures with high service temperatures. To use the nanoparticles for this purpose, it has proven useful to process them as a paste. The chemical composition of such a nanopaste has a certain influence on the properties ultimately achieved by the joint. While nickel nanoparticles represent the metal content of the here investigated nanopastes, a variety of substances can be utilized as organic components to form the actual paste-like suspension. Derived from the literature on nanoparticle synthesis, a variety of candidates were identified from which numerous paste compositions were developed for this work. So, high metal content (70 wt.%) nickel nanopastes were prepared from these solvent–stabilizer systems by ultrasound-enhanced mixing. The study evaluates the pastes in terms of manufacturability and handleability. The findings reveal insights into the effects of different chemical substances. Additionally, joining tests using the mild steel DC01 are presented, demonstrating the impact of the paste composition on the joining strength and the microstructure of the joint as well. Within this study, a paste consisting of terpineol and KD4 was the most favorable. Full article

316L stainless steel joined to mild steel is widespread in several applications to reach a requested good association of mechanical properties at a lower cost. The activating tungsten inert gas (ATIG) weld was carried out using a modified flux composed of 76.63% SiO₂ + 13.37% Cr₂O₃ + 10% NaF to meet standard recommendations in terms of limiting the root penetration. Modified optimal flux gave a depth of penetration 1.84 times greater than that of conventional tungsten inert gas (TIG) welds and a root penetration of up to 0.8 mm. The microstructure of the dissimilar joints was investigated using a scanning electron microscope and EDS analysis. The mechanical properties of the weld were not affected by the modified flux. The results show that the energy absorbed in the fusion zone in the case of ATIG weld (239 J/cm²) is greater than that of TIG weld (216 J/cm²). It was found that the weld bead obtained with the optimal flux combination in ATIG welding can better withstand sudden loads. The obtained UTS value (377 MPa) for ATIG welding was close to that of TIG welding (376 MPa). The average Vickers hardness readings for ATIG welds in the fusion zone are up to 277 HV, compared to 252 HV for conventional TIG welding. Full article

Magnetically impelled arc butt (MIAB) welding is a solid-state technique of welding that utilizes the heating effect of a high-speed rotating arc for the formation of the weld. The process exhibits lower time and power consumption compared to conventional solid-state processes for tube–tube joining. However, the available research reports on MIAB welding of Mild Steel (MS)1018 are still inadequate and lack the details required for extending the applications of this process. Hence, this study was undertaken to investigate MIAB welding for MS 1018 tubes. Experimental investigations were performed on a specifically designed and newly fabricated MIAB welding machine. The experimental trials involved varying the process parameters and understanding their influence on joint strength and other weld characteristics. Microstructure of the MIAB weld consisted of acicular ferrite which differed from the microstructure of the heat-affected zone. These trials helped to arrive at the optimum parametric window that specified the ranges of key parameters viz. welding current, upset current, and welding time to yield an efficient weld. Chemical analysis of the weld indicated the absence of inter-metallics. MIAB welding of MS1018 showed greater strength and integrity at the joint when optimum ranges of the process parameters were maintained, and is feasible for deployment as economizer coils in boilers, pressure part tubes, and automobile tubular component joining applications. Full article

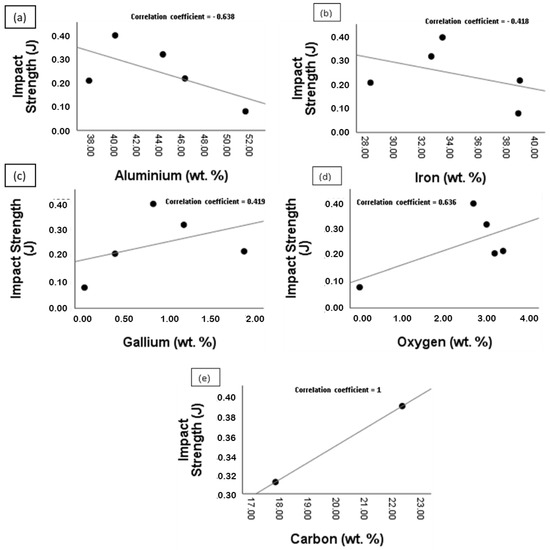

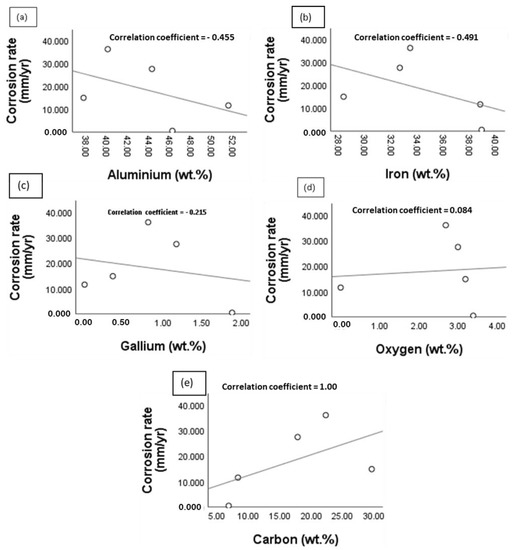

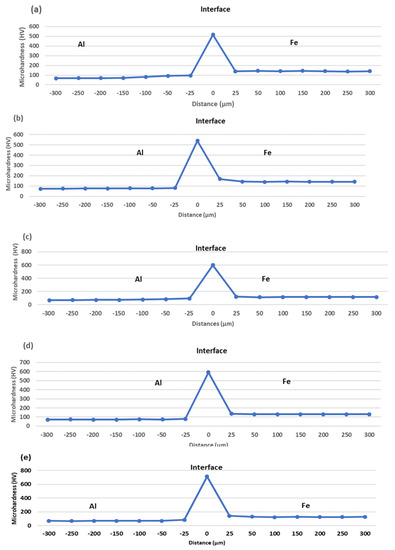

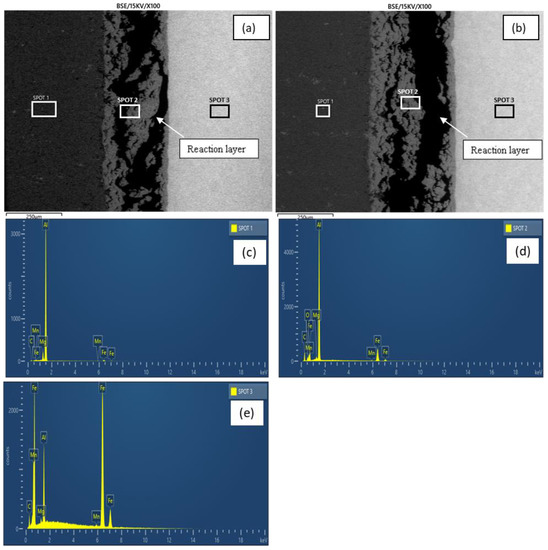

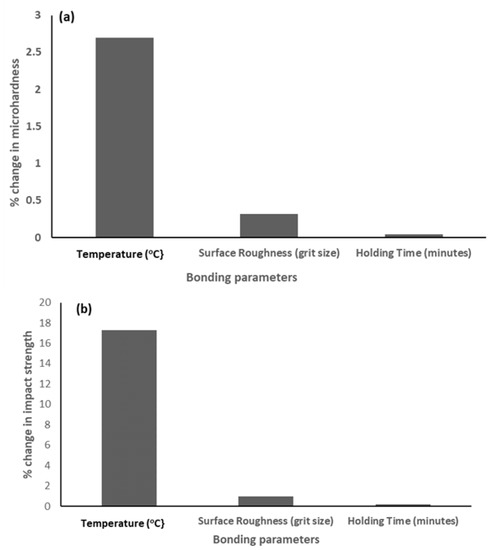

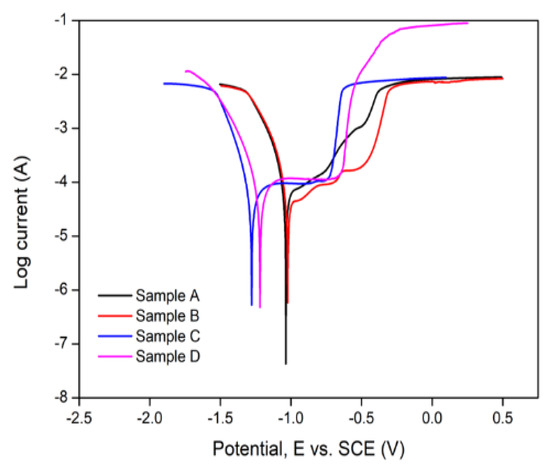

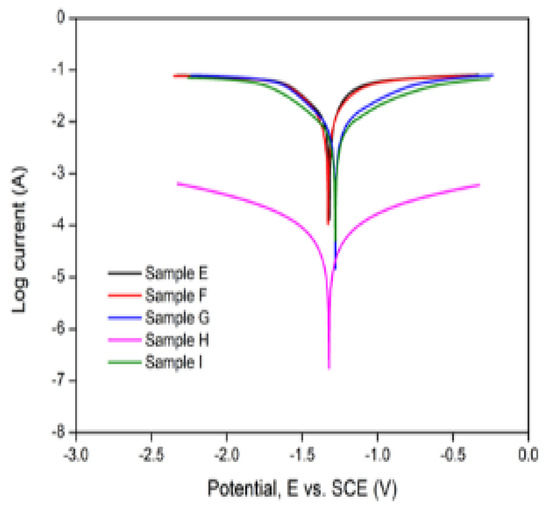

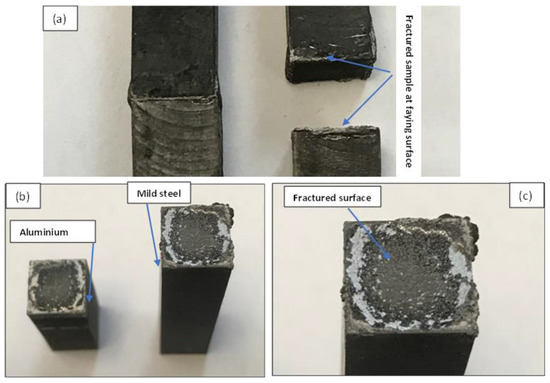

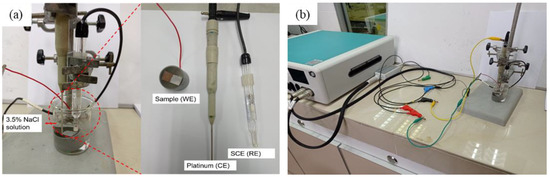

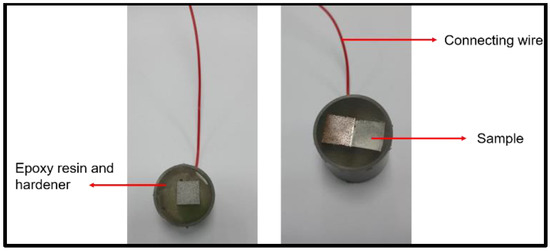

This article investigated the mechanical performance and corrosion behaviour of a diffusion-bonded A5083 aluminium/A36 mild steel dissimilar joint with a Gallium (Ga) interlayer. The bonding parameters were the bonding temperature (525 and 550 °C), holding time (60 and 120 min) and surface roughness (800 and 1200 grit). Property characterisation was achieved using Scanning Electron Microscopy (SEM), Energy Dispersive X-ray (EDX) analysis, Vickers microhardness tester, Izod impact tester and potentiodynamic polarisation testing. The results revealed that the significance of the bonding parameters was in the order bonding temperature > surface roughness > holding time. Increasing the bonding temperature resulted in an increase in the impact strength and a corresponding reduction in the corrosion rate and microhardness. However, increasing the grit size decreased the microhardness and a corresponding increase in the impact strength and corrosion rate. The impact strength and corrosion rate decreased with the increasing holding time while the microhardness followed a reverse trend. It was also discovered that incorporating the Ga interlayer resulted in a 67.9% improvement in the degradation rate. Full article

The use of modern structural adhesives provides a lightweight, practical, and high strength joining methodology, which is increasingly being adopted in the automotive and aeronautical sectors, among many others. However, the strict mechanical performance standards that must be met in these applications require a constant search for ways of improving the adhesives’ behavior, which has led to the growing use of reinforcements as a way of improving the capabilities of bonded joints. The aim of this work was, thus, to analyze how the addition of inorganic fillers to the adhesive layer affects a joint’s strength and its failure mechanism. To this end, single lap joint specimens with mild steel and high strength steel substrates were tested, at quasi-static speeds, and with different amounts of glass microspheres reinforcing two different structural adhesives. The experimental results indicated that the addition of glass particles reduced the joint performance for both substrates under study. Furthermore, the failure pattern was found to evolve from adhesive failure to a cohesive type of failure as the amount of glass particles present in the adhesive was increased. Full article

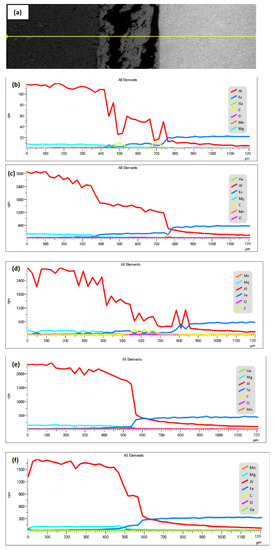

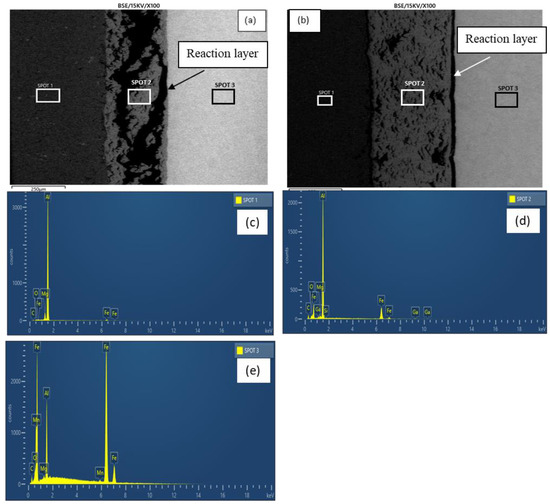

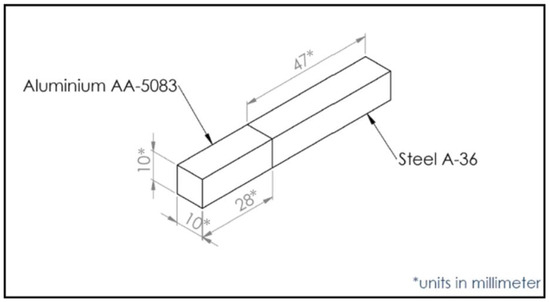

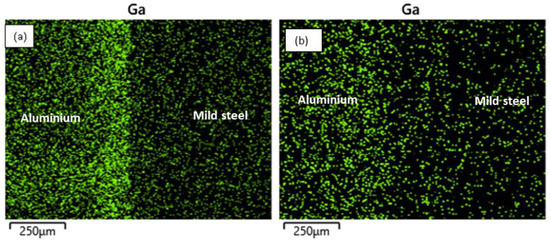

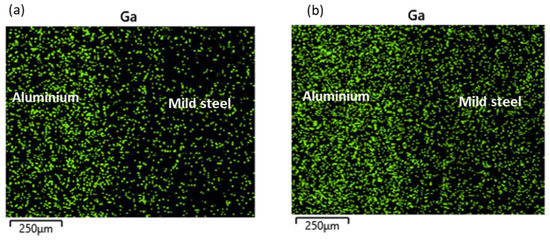

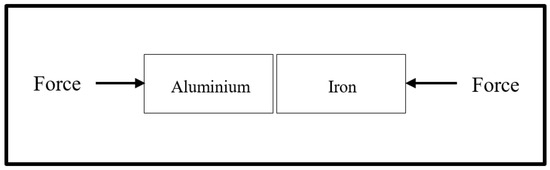

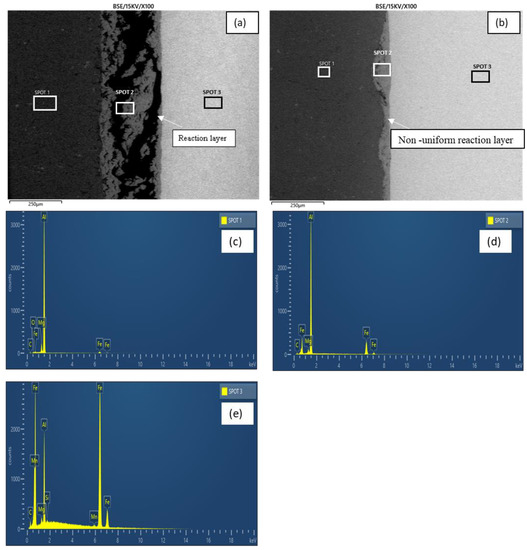

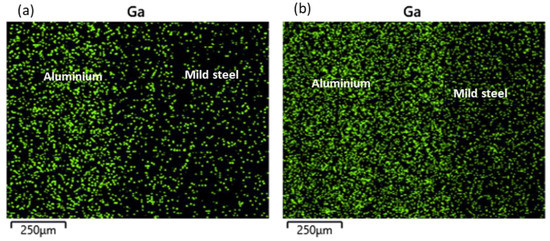

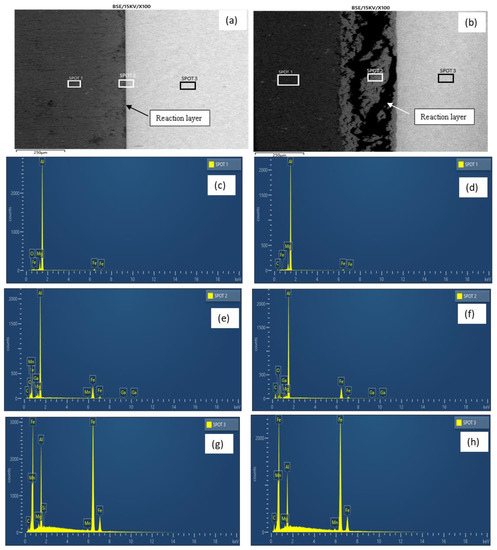

In this research, diffusion bonding was carried out to produce transition joints between mild steel A36 (Fe A36) and aluminium Al 5083 (AA5083) with the presence of gallium (Ga) as an interlayer between the two faying surfaces. The microstructural development and interfacial growth of intermetallic compounds at the interface layer between Fe A36 and AA5083 after the diffusion bonding process were investigated. The joining was performed by clamping the two materials with a Ga interlayer and then heated in a furnace. The interlayer developed from this diffusion heating in air condition provides an average thickness of 30 μm. Characterization of intermetallic compounds was conducted using SEM-EDX and XRD. The results showed that SEM-EDX confirmed the occurrence of interdiffusion of elements from Fe A36 and AA5083 present at interlayer. XRD analysis reveals the formation of Fe₃Al at the diffusion layer. Full article

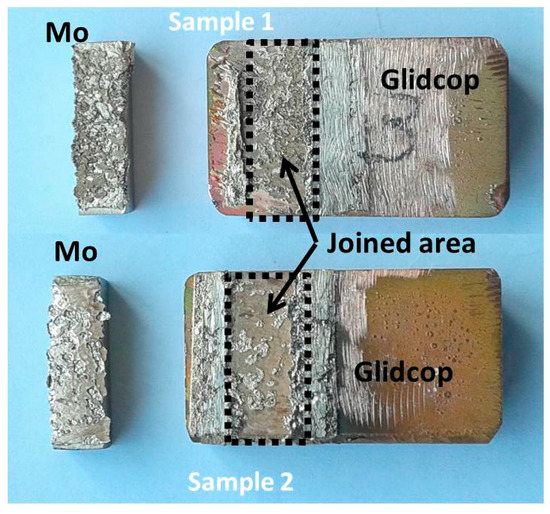

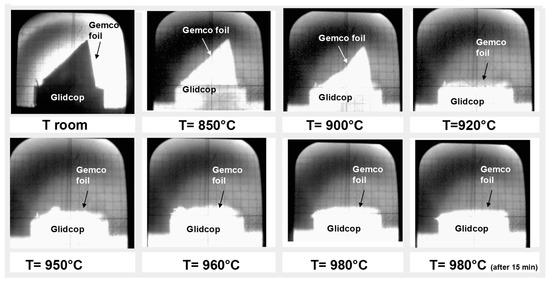

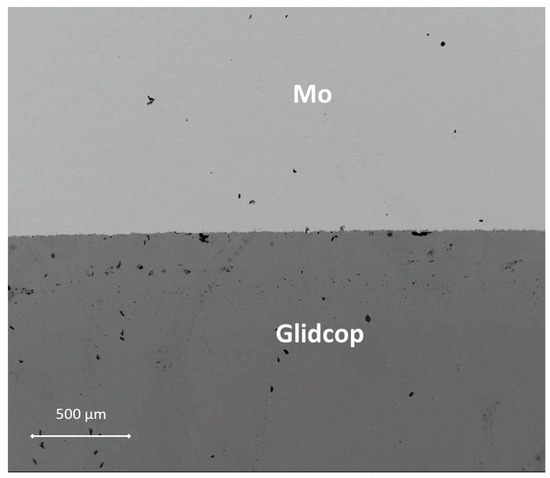

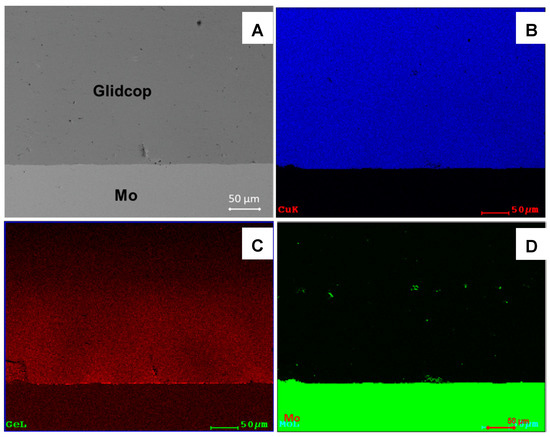

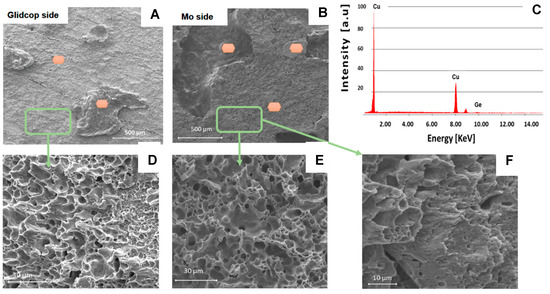

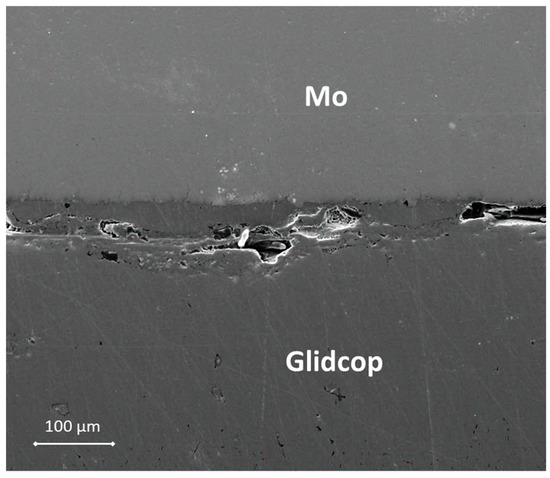

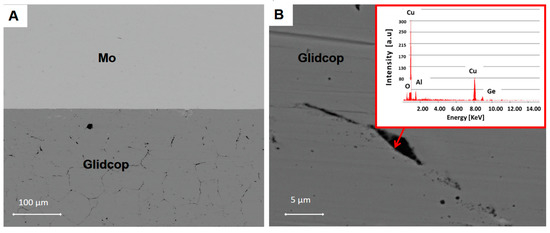

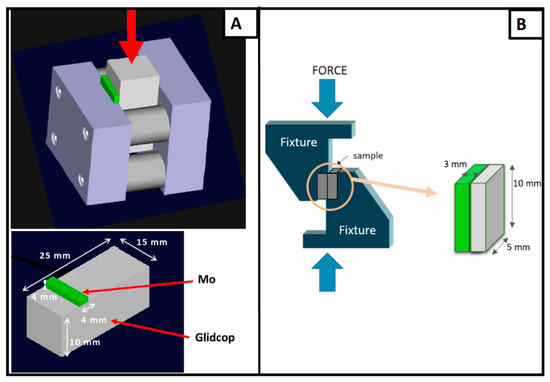

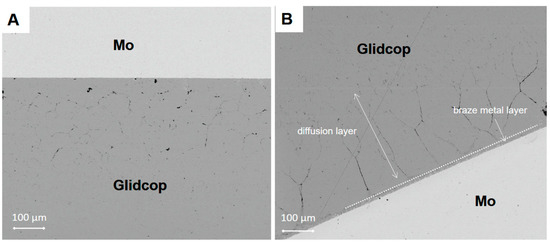

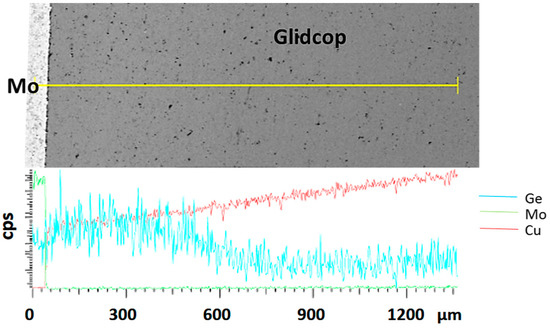

Alumina dispersion-strengthened copper, Glidcop, is used widely in high-heat-load ultra-high-vacuum components for synchrotron light sources (absorbers), accelerator components (beam intercepting devices), and in nuclear power plants. Glidcop has similar thermal and electrical properties to oxygen free electrical (OFE) copper, but has superior mechanical properties, thus making it a feasible structural material; its yield and ultimate tensile strength are equivalent to those of mild-carbon steel. The purpose of this work has been to develop a brazing technique to join Glidcop to Mo, using a commercial Cu-based alloy. The effects of the excessive diffusion of the braze along the grain boundaries on the interfacial chemistry and joint microstructure, as well as on the mechanical performance of the brazed joints, has been investigated. In order to prevent the diffusion of the braze into the Glidcop alloy, a copper barrier layer has been deposited on Glidcop by means of RF-sputtering. Full article
