Search Results (6)

(1) Background: Dental glass–ceramics shrink during crystallization, complicating restoration manufacturing. Thermo-pressure molding was introduced to address this, with lithium disilicate crystals providing high strength. Residual tensile stresses can influence the chipping strength of single tooth crowns. (2) Methods: Insync dentine was layered onto three lithia-based disilicate core ceramics (Amber Press, IPS e.max Press) for microtensile bond strength tests. The Vickers test assessed the residual tensile stress and interfacial bonding. Porcelain-veneered posterior ceramic crowns were fabricated and subjected to axial loading, measuring fracture loads (three per group). (3) Results: A chemical bonding layer formed at the interface, which was thicker in the Insync-IPS e.max Press and increased with more firings. The ultimate tensile bond strength was 28.5 MPa for the four-times-fired Insync-Amber Press, similar to the twice-fired Insync-IPS e.max Press. No residual tensile stress was found in the Insync-Amber Press; the Insync-IPS e.max Press showed crack growth within 250 μm of the bonded interface. The average fracture resistance was twice as high for the Insync-Amber Press. (4) Conclusions: The Insync-Amber Press exhibited better thermal harmony with no crack growth, while the IPS e.max Press showed crack growth due to residual tensile stress. Insync-Amber Press posterior ceramic crowns had significantly greater fracture resistance than Insync-IPS e.max Press crowns. Full article

Background: New lithia-based glass–ceramics, including Advanced Lithium Disilicate (ALD), have become popular in dentistry. However, it is unclear if glazing protocols for ALD might compromise its surface or optical properties. Thus, evaluating color and translucency changes in ALD and traditional lithium disilicate (LD) is crucial. Methods: This study aimed to assess how different firing protocols affect the surface and optical properties of LD and ALD. Sixty disc-shaped specimens were prepared, divided into three subgroups based on firing protocols, and subjected to surface roughness analysis. Specimens were immersed in coffee, wine, and water for 7 days, and then brushed. Color and translucency were measured. Results: Firing protocols significantly influenced surface roughness in LD (0.09–1.39 µm) and ALD (0.05–0.88 µm). Color differences were observed in both LD and ALD after 7 days, with visible changes within clinically acceptable thresholds. Translucency remained stable across firing protocols and staining liquids. Conclusions: Varying firing protocols impact surface roughness and color stability in LD and ALD. Despite differences, color and translucency changes remained within acceptable clinical thresholds, suggesting both materials are suitable for dental applications. Therefore, this study reinforces the reliability and versatility of these materials in restorative dentistry. Full article

Lithium disilicate (LDS) glass ceramics are among the most common biomaterials in conservative dentistry and prosthodontics, and their wear behavior is of paramount clinical interest. An innovative in vitro model is presented, which employs CAD/CAM technology to simulate the periodontal ligament and alveolar bone. The model aims to evaluate the effect of the abutment rigidity on the wear resistance of the LDS glass ceramic. Two experimental groups (LDS restorations supported by dental implants, named LDS-on-Implant, or by hybrid ceramic tooth replicas with artificial periodontal ligament, named LDS-on-Tooth-Replica) and a control group (LDS-Cylinders) were compared. Fifteen samples (n = 15) were fabricated for each group and subjected to testing, with LDS antagonistic cusps opposing them over 120,000 cycles using a dual axis chewing simulator. Wear resistance was analyzed by measuring the vertical wear depth (mm) and the volume loss (mm³) on each LDS sample, as well as the linear antagonist wear (mm) on LDS cusps. Mean values were calculated for LDS-Cylinders (0.186 mm, 0.322 mm³, 0.220 mm, respectively), LDS-on-Implant (0.128 mm, 0.166 mm³, 0.199 mm, respectively), and LDS-on-Tooth-Replica (0.098 mm, 0.107 mm³, 0.172 mm, respectively) and compared using one-way-ANOVA and Tukey’s tests. The level of significance was set at 0.05 in all tests. Wear facets were inspected under a scanning electron microscope. Data analysis revealed that abutment rigidity was able to significantly affect the wear pattern of LDS, which seems to be more intense on rigid implant-abutment supports compared to resilient teeth replicas with artificial periodontal ligament. Full article

The objective of this research was to quantify the effect of surface degradation and abrasion separately and in combination on the flexural strength of lithia disilicate ceramics. Lithia disilicate disks were fabricated using the lost wax technique and pressing in vacuum. The eight groups in this pilot experiment were (i) reference, hydrated in distilled water for 24 h prior to fracture; (ii) reference, non-hydrated group; (iii) 28-day pH cycling group; (iv) 125K chewing cycle group; (v) combined pH cycling + 125K chewing cycle; (vi) constant pH 2 solution for 28 days; (vii) constant pH 7 solution for 28 days; and (viii) constant pH 10 solution for 28 days. pH cycling is a method that alternates between pH 2, 7 and 10 over 28 days. A total of 15 disks were used for each group. All the groups were tested using the biaxial piston and a three-ball flexural strength test to obtain their biaxial flexural strength. pH 2 constant immersion demonstrated the highest fracture strength and was significantly greater than all other groups (p < 0.0001). Chewing and pH cycling + chewing groups exhibited the lowest fracture strengths and were significantly lower than all other groups (p < 0.0001). The damage observed from the chewing simulator does not represent apparent clinical fractures. Full article

Background and Objectives: Ceramic veneers represent the most appropriate treatment option for minimally invasive aesthetic rehabilitation. For long-term clinical success, the accurate marginal and internal adaptation of dental restorations are of paramount importance. The aim of this in vitro study is to assess the effect of a novel (patented) design of veneers compared to conventional ones on their marginal and internal gap to the prepared tooth surface. Materials and Methods: Twenty-four lithium disilicate ceramic veneers are obtained using Computer-Aided-Design (CAD) and then milled using Computer-Aided-Manufacturing (CAM). The samples are divided into two groups: 12 conventional (CO) veneers (i.e., with a linear marginal contour) and 12 crenelated (CR) veneers, the latter with the novel sinusoidal marginal design. All samples are bonded to frontal teeth, and the adhesive interfaces are analyzed using two methods, optical microscopy and micro-Computed Tomography (CT): the former for the accuracy of the marginal gap and the latter for the internal gap (as well as for the homogeneity of the luting cement) of ceramic veneers. Results: STATA and one-way ANOVA tests reveal significant differences between CO and CR veneers: (i) the marginal gap is smaller for CR (64 μm) than for CO veneers (236 μm); (ii) the internal adaptation is better for CR veneers: for a cement width of up to 120 μm, the covered surface for the CR group is 81.5%, while for the CO group it is 64.5%; (iii) the mean of the porosities within the cement is not significantly different (3.4·10⁶ μm³ for CO and 3.9·10⁶ μm³ for CR veneers), with a higher standard deviation for the CO group. Analytical modeling is achieved for internal gaps using the micro-CT results. The characteristic functions obtained allow us to compare the volume of luting cement for the two types of veneers. Conclusion: The novel veneers design produces an improvement in the marginal and internal adaptation of the restorations to the prepared tooth surface. Thus, it provides favorable premises for better clinical performances. Full article

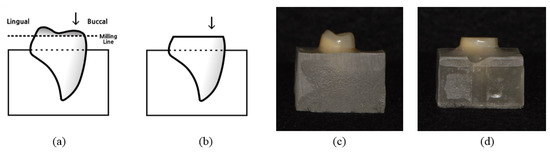

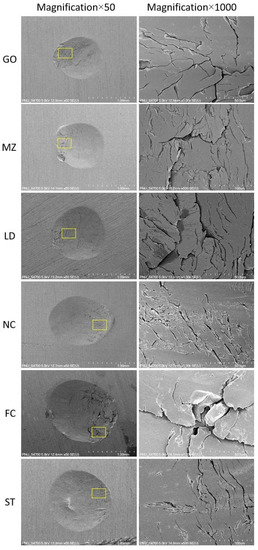

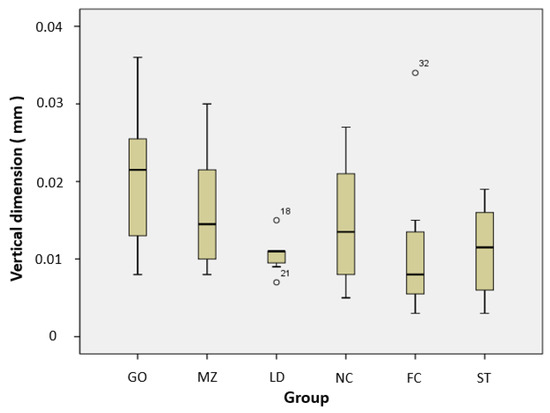

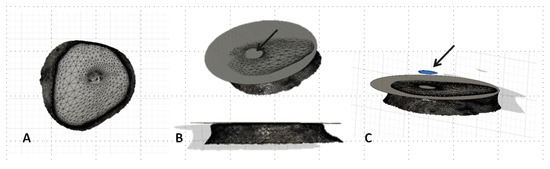

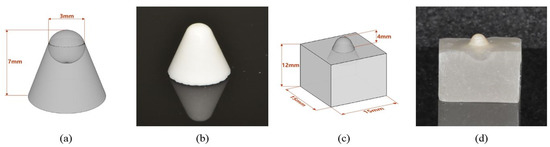

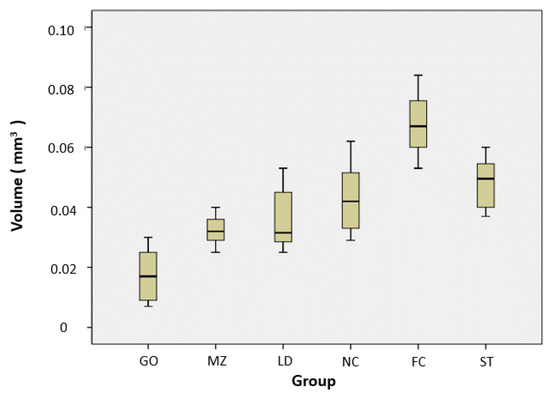

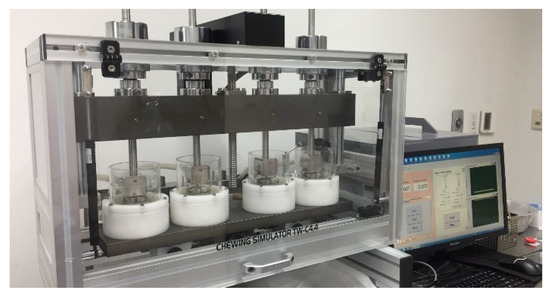

The aim of this study was to evaluate the wear properties of resin teeth with different opposing dental restorative materials. One type of resin tooth (Trubyte Biotone) was tested against six types of restorative materials including type III gold alloy (GO), monolithic zirconia (MZ), lithium disilicate glass ceramic (LD), nickel–chromium alloy (NC), feldspathic ceramic (FC), and steatite (ST). Two-body wear tests were performed under a vertical load of 5 kgf and thermo-cycling at 5/55 °C with a total of 120,000 cycles. The wear amount was quantified by measuring the volume loss of the resin teeth and the vertical substance loss of the opposing materials using three-dimensional images. The FC group showed a significantly greater amount of wear of the resin teeth, followed by the ST, NC, LD, MZ, and GO groups. The GO group showed significantly less wear of resin teeth than the other groups. There were no statistically significant differences in the wear of opposing restorative materials between groups. Within the limits of this study, it is recommended that zirconia, rather than feldspathic ceramic, should be used for restorations in the esthetic zone, and gold alloy should be used for areas with little or no esthetic demand. Full article
