Search Results (3)

The leachate from ion-adsorbed rare earth tailings poses challenges to the application of the anaerobic ammonium oxidation (anammox) process in this field due to its large fluctuations in ammonia nitrogen concentration (50–300 mg/L) and high flow rate (4000–10,000 m³/d). This study investigated the effects of nitrogen-loading rate (NLR) regulation on denitrification performance through reactor operation and elucidated the mechanisms of NLR impacts on anammox processes via microbial community analysis and metabolic profiling. The results revealed a nonlinear relationship between nitrogen loading and system performance. As NLR increased, both denitrification efficiency and anammox bacterial abundance (rising from 5.85% in phase P1 to 11.43% in P3) showed synchronous enhancement. However, excessive nitrogen loading (>3.68 kg/m³·d) or nitrogen starvation led to performance deterioration and reduced anammox bacterial abundance. Microbial communities adopted modular collaboration to counteract loading stress, with modularity indices of 0.563 and 0.545 observed in the inhibition phase (P2) and starvation phase (P4), respectively. Zi-Pi plot analysis demonstrated a significant increase in inter-module connectivity, indicating reinforced interspecies interactions among microorganisms to resist nitrogen-loading fluctuations. Full article

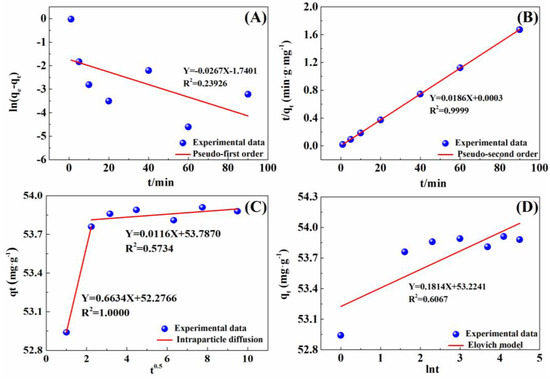

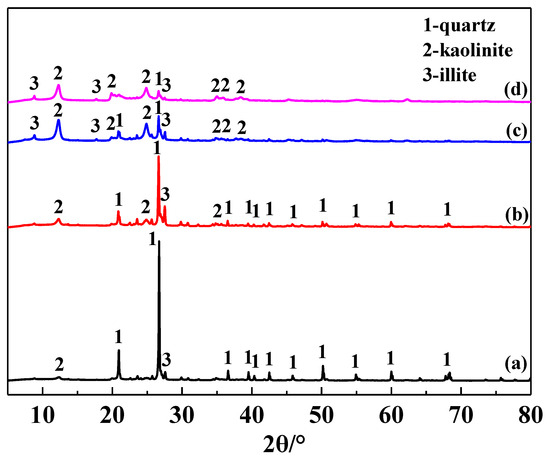

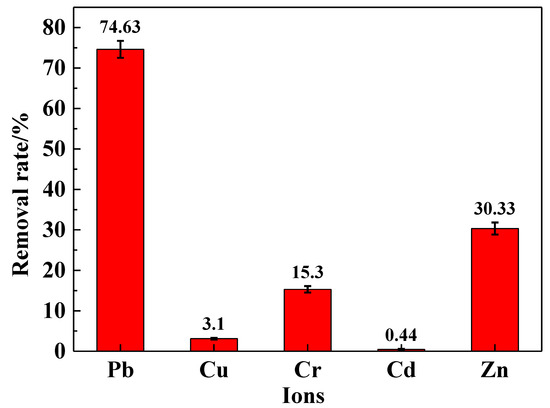

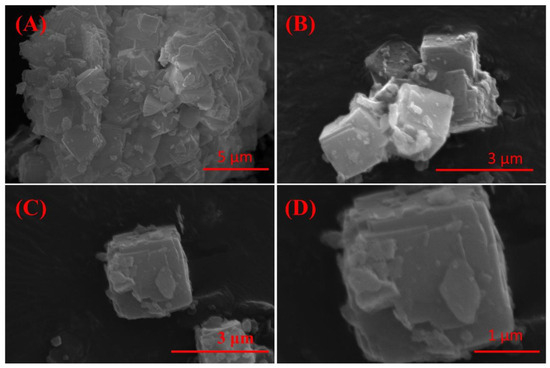

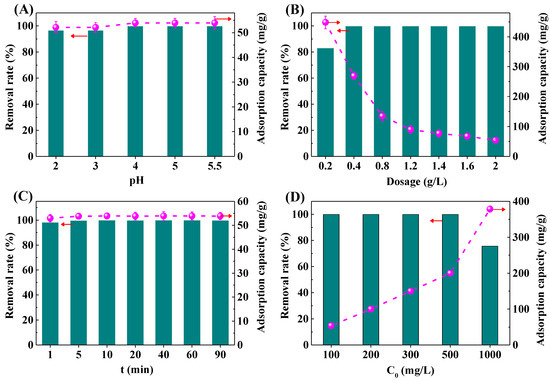

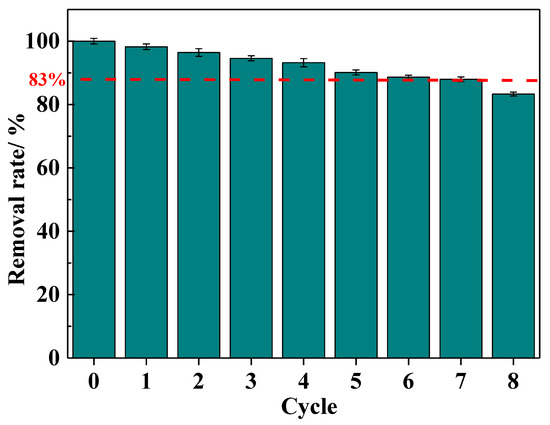

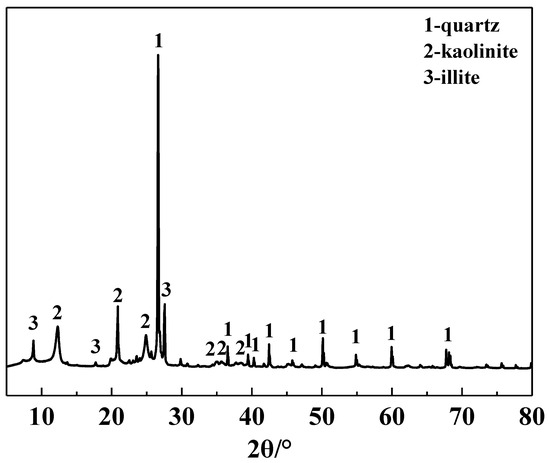

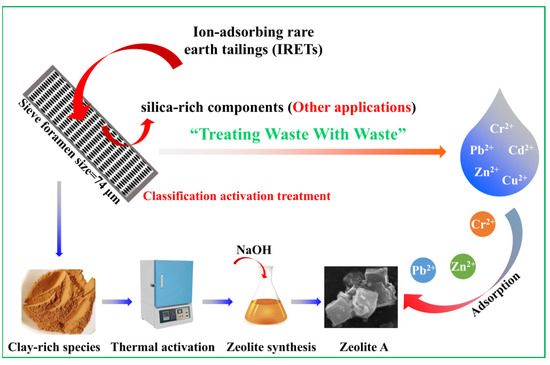

Ion-adsorbing rare earth tailings (IRETs) contain a large amount of clay minerals, which are a potential source of silicon and aluminum for the preparation of zeolite materials. The complexity of the tailings’ composition and the impurity composition are the main difficulties in the controllable preparation of zeolite. Herein, IRETs were treated by classification activation technology for the preparation of IRET-ZEO, which was used for the removal of heavy metal Pb²⁺ in water. A new method of resource utilization of ion-type rare earth tailings is realized by “treating waste with waste”. The results showed that the IRETs were classified and then thermally activated, and the optimal activation parameter was calcination at 850 °C for 1 h. The optimal NaOH concentration used in the crystallization process was 5 mol/L, with a crystallization time of 3 h and a crystallization temperature of 85 °C, and the crystallization product was zeolite A. The removal rate of the Pb²⁺ solution with an initial concentration of 100 mg/L was as high as 96.7% in an acidic solution with a pH value from 2 to 5.5. In particular, when the solution pH was higher than 4.2, the adsorption rate of Pb²⁺ was close to 100%. The IRET-ZEO showed a fast adsorption rate (5 min to reach adsorption equilibrium), a large adsorption capacity (378.35 mg/g), excellent acid resistance, and selectivity and regenerability for Pb²⁺. This work provides a new strategy for the green resource utilization of IRETs and the treatment of lead-containing wastewater. Full article

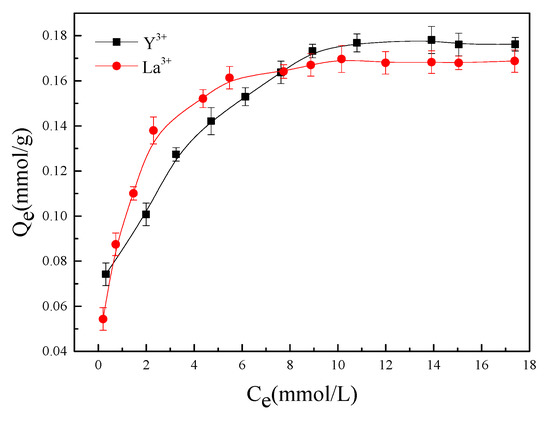

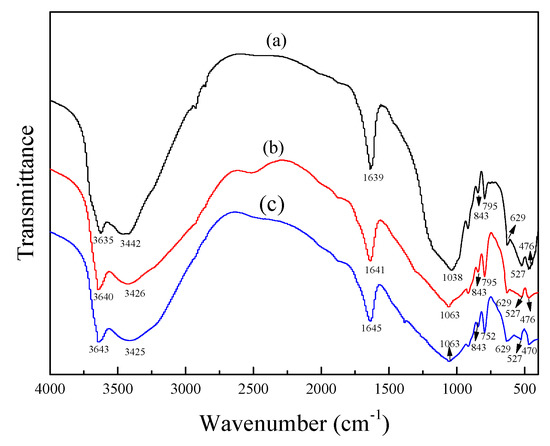

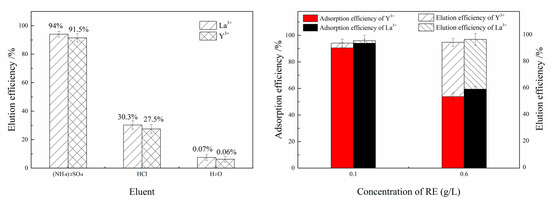

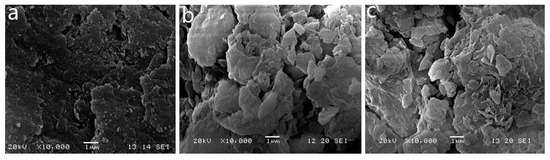

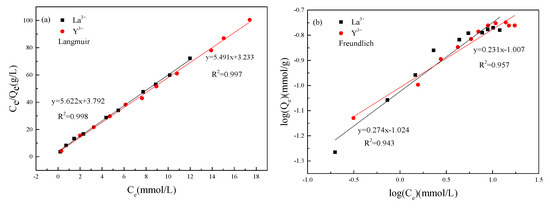

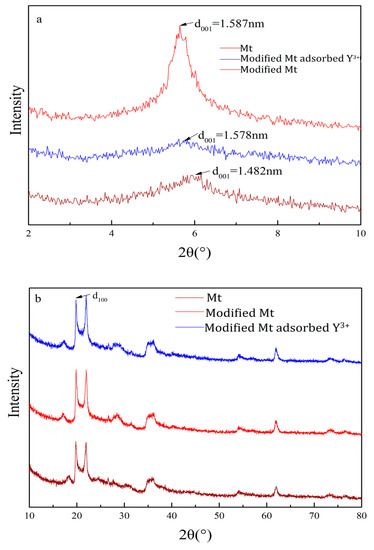

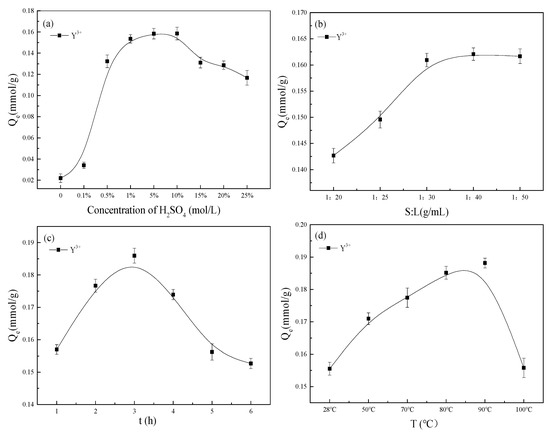

Montmorillonite, the major clay mineral in the tailings of weathered crust elution-deposited rare earth ores, was modified as an excellent adsorbent to enrich rare earth ions from solutions. It was demonstrated that 5% H₂SO₄ could be used as a modifier to effectively enhance the adsorption capacity of montmorillonite after modifying for 3 h with a liquid:solid ratio of 40:1 at 90 °C. A superior modified montmorillonite over montmorillonite on adsorption performance was analyzed by the XRD, FT-IR, SEM, and BET (Specific Surface Area and Pore Diameter Analysis). The adsorption behaviors of La³⁺ and Y³⁺ on modified montmorillonite were fitted well with the Langmuir isotherm model and their saturated adsorption capacities were 0.178 mmol/g to La³⁺ and 0.182 mmol/g to Y³⁺, respectively. Furthermore, (NH₄)₂SO₄ as a common leaching agent in weathered crust elution-deposited rare earth ores, were successfully used as the eluent to recover the adsorbed rare earth ions. Full article
