Search Results (4)

Search Parameters:
Keywords = duty ratio feedforward control

Order results
Result details
Results per page
Select all
Export citation of selected articles as:
13 pages, 3966 KiB
Article
Digitalized Control Algorithm of Bridgeless Totem-Pole PFC with a Simple Control Structure Based on the Phase Angle
by Gi-Young Lee, Hae-Chan Park, Min-Woo Ji and Rae-Young Kim
Electronics 2023, 12(21), 4449; https://doi.org/10.3390/electronics12214449 - 29 Oct 2023
Cited by 7 | Viewed by 4834
Abstract
Compared to the conventional boost power factor correction (PFC) converter, a totem-pole bridgeless PFC has high efficiency because it does not have an input diode rectifier stage, but a current spike may occur when the polarity of the grid voltage changes. This paper [...] Read more.

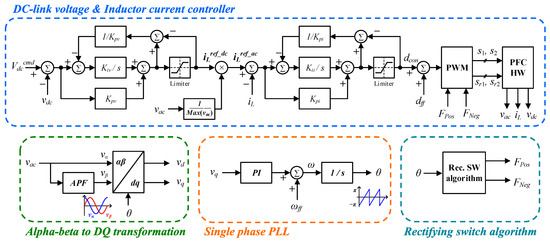

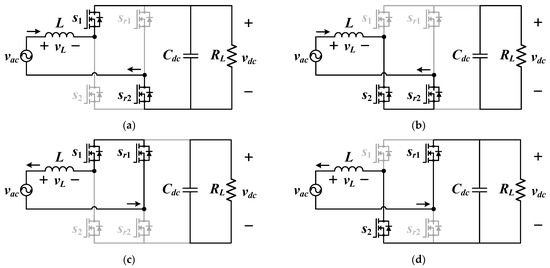

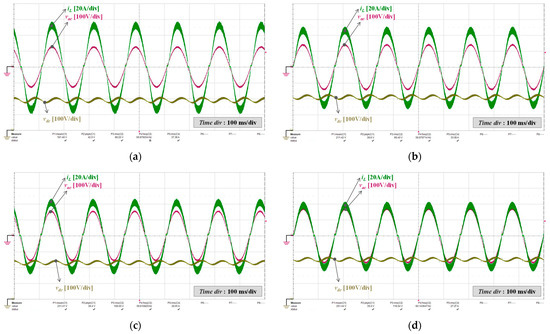

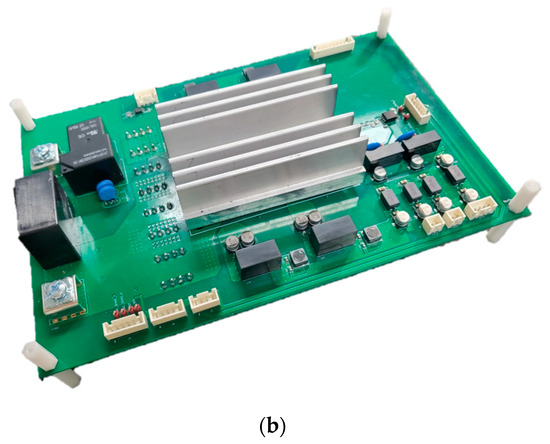

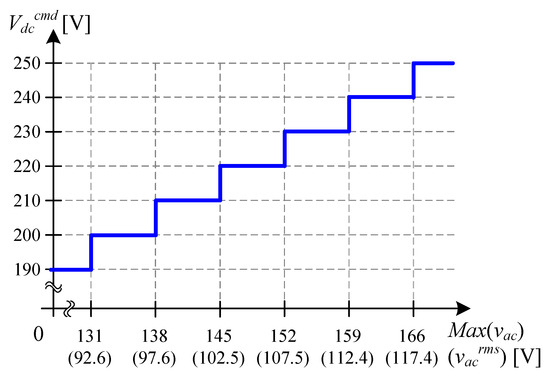

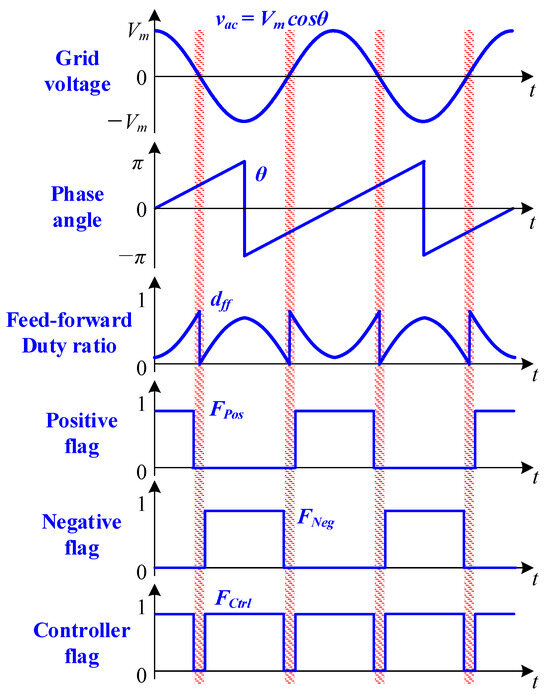

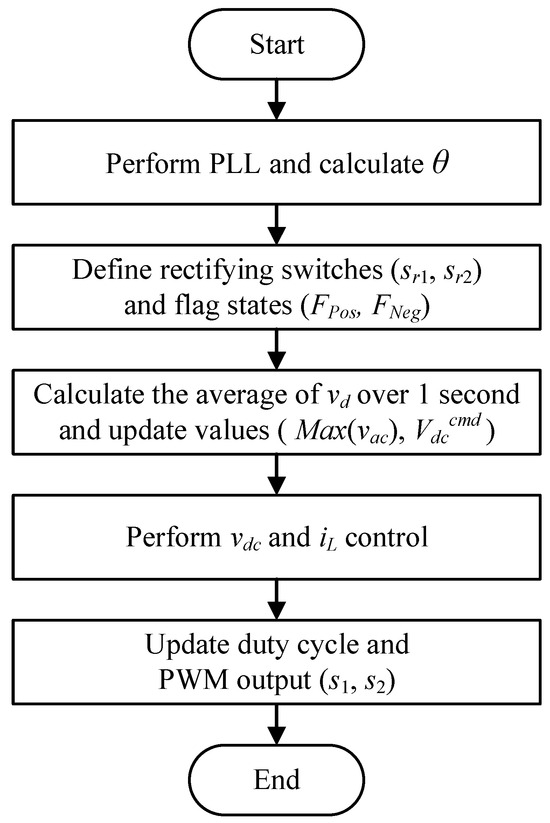

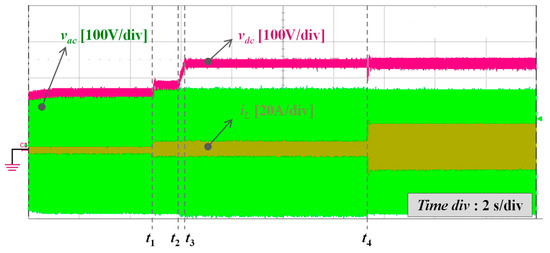

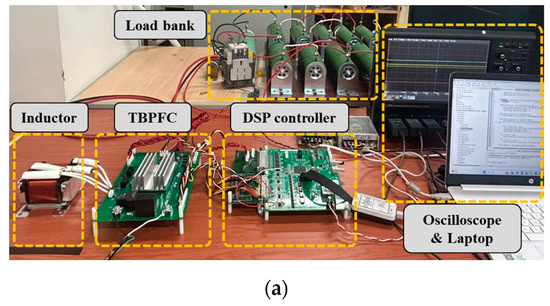

Compared to the conventional boost power factor correction (PFC) converter, a totem-pole bridgeless PFC has high efficiency because it does not have an input diode rectifier stage, but a current spike may occur when the polarity of the grid voltage changes. This paper proposes a digital control algorithm for bridgeless totem-pole PFC with a simple control structure based on the phase angle of grid voltage. The proposed algorithm has a PI-based double-loop control structure and performs DC-link voltage and input inductor current control. Rectifying switches operate based on the proposed rectification algorithm using phase angle information calculated through a single-phase phase-locked loop (PLL) to prevent current spikes. The feed-forward duty ratio value is calculated according to the polarity of the grid voltage and added to the double-loop controller to perform appropriate power factor control. The performance and feasibility of the proposed control algorithm are verified through a 3 kW hardware prototype. Full article
(This article belongs to the Section Power Electronics)
Show Figures

Figure 1

17 pages, 7723 KiB
Article
Dynamic Improvement with a Feedforward Control Strategy of Bidirectional DC-DC Converter for Battery Charging and Discharging
by Jingang Han, Xin Gu, Yi Yang and Tianhao Tang
Electronics 2020, 9(10), 1738; https://doi.org/10.3390/electronics9101738 - 21 Oct 2020
Cited by 13 | Viewed by 6001
Abstract
With the increasing importance of power accumulator batteries in electric vehicles, the accurate characteristics of power accumulator batteries have an important role. In order to evaluate the power accumulator battery, battery charging and discharging is indispensable. In this article, a H-bridge bidirectional DC-DC [...] Read more.
With the increasing importance of power accumulator batteries in electric vehicles, the accurate characteristics of power accumulator batteries have an important role. In order to evaluate the power accumulator battery, battery charging and discharging is indispensable. In this article, a H-bridge bidirectional DC-DC converter is presented which can charge and discharge the battery with different voltage levels and one of the merits of this topology is that a wide output voltage range can be easily achieved. In the control part, a proportional-integral (PI) control strategy is adopted to ensure a stable and reliable operation of the converter. Furthermore, compared with the PI control strategy, a duty ratio feedforward control is utilized to obtain the rapid current dynamic response. In this article, firstly, the system configuration for battery charging and discharging is introduced, then the operating principles and mathematical model of the DC-DC converter are analyzed and derived. Secondly, for bidirectional DC-DC converters, the PI control method and duty ratio feedforward control method are put forward and designed. Finally, the simulation model is established based on PSIM software and the experiment platform is also built in lab. The results of the simulation and experiment research show that the H-bridge bidirectional DC-DC converter can operate reliably and stably during the charging, discharging and power flow reverse modes. In addition, the dynamic response of the charging and discharging current can also be further improved by introducing the duty ratio feedforward control method. Full article
(This article belongs to the Section Power Electronics)
Show Figures

Figure 1

18 pages, 2432 KiB
Article
A Control Strategy for Suppressing Zero-Sequence Circulating Current in Paralleled Three-Phase Voltage-Source PWM Converters
by Zhao Han, Xiaoli Wang, Baochen Jiang and Jingru Chen
Appl. Sci. 2020, 10(5), 1703; https://doi.org/10.3390/app10051703 - 2 Mar 2020
Cited by 3 | Viewed by 3391
Abstract
In microgrids, paralleled converters can increase the system capacity and conversion efficiency but also generate zero-sequence circulating current, which will distort the AC-side current and increase power losses. Studies have shown that, for two paralleled three-phase voltage-source pulse width modulation (PWM) converters with [...] Read more.

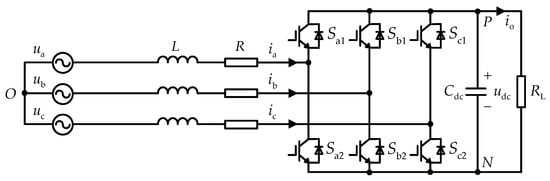

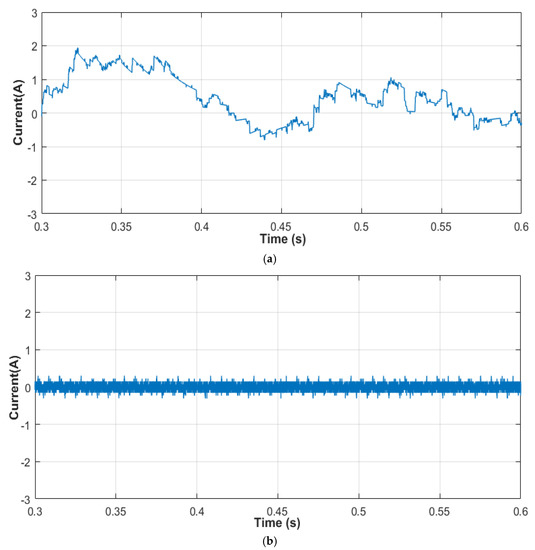

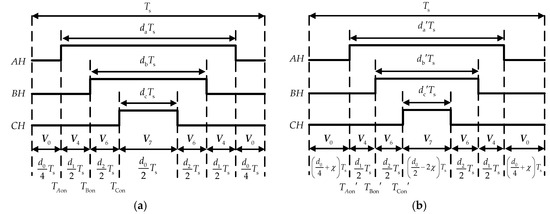

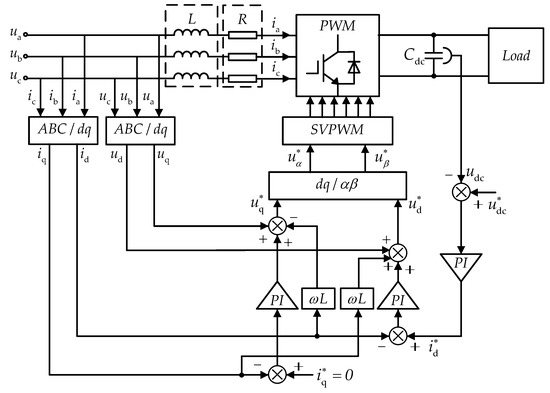

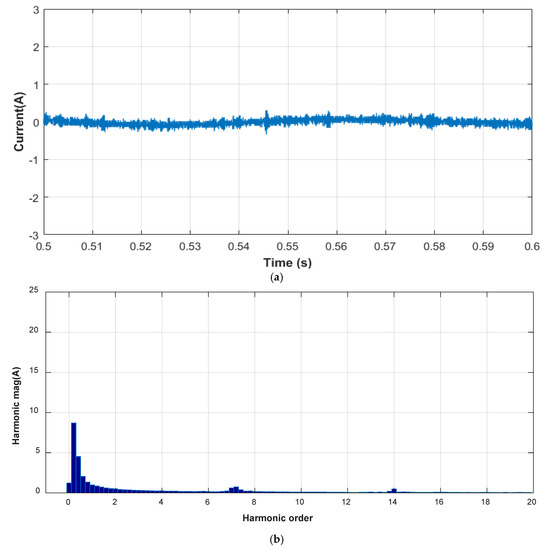

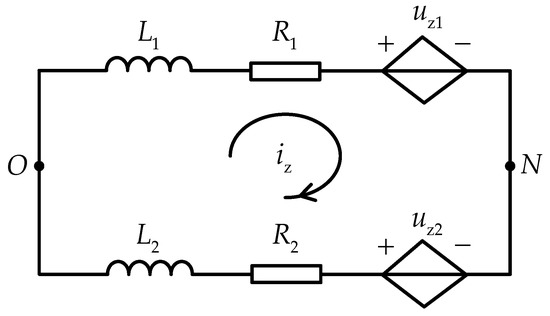

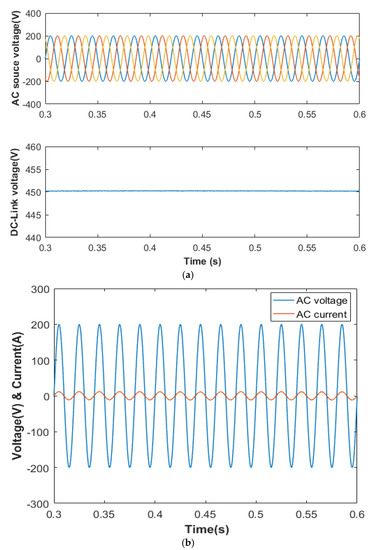

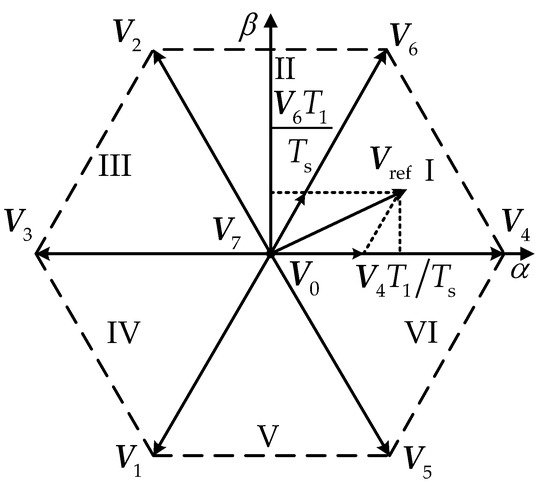

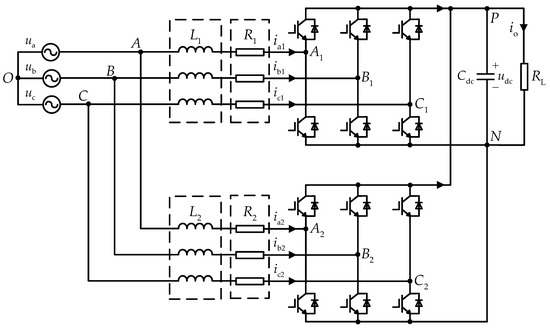

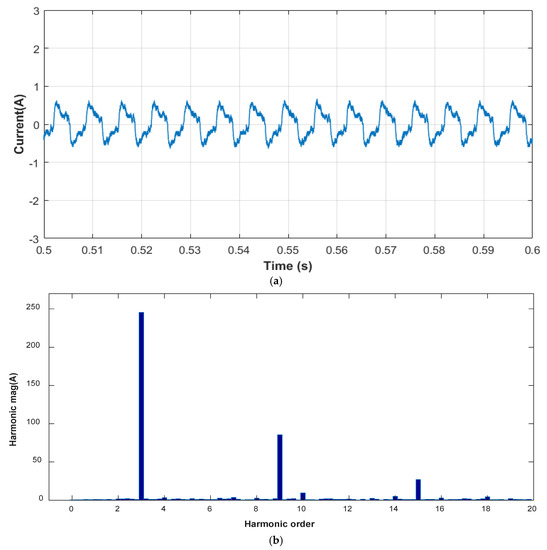

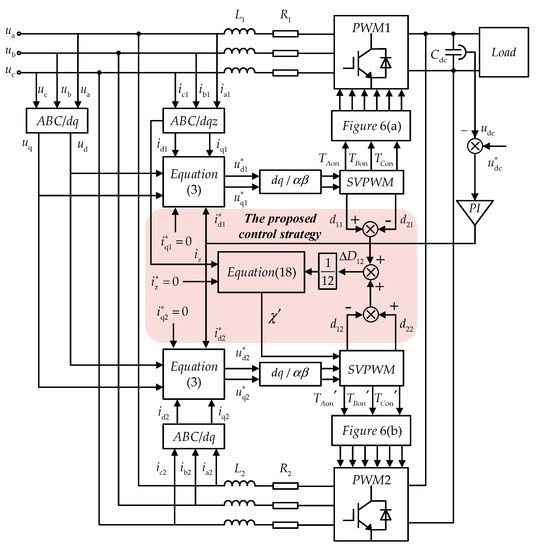

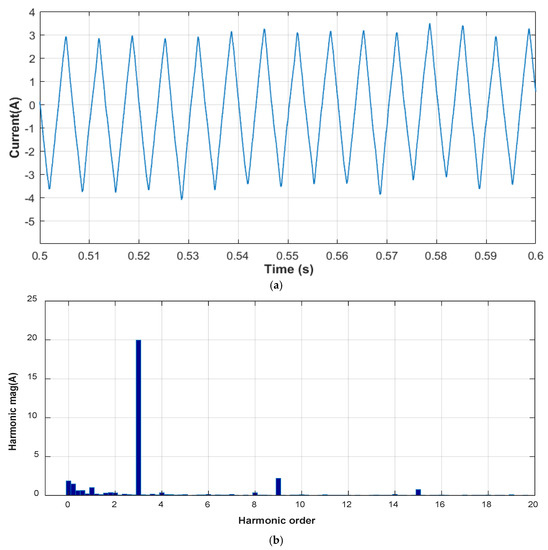

In microgrids, paralleled converters can increase the system capacity and conversion efficiency but also generate zero-sequence circulating current, which will distort the AC-side current and increase power losses. Studies have shown that, for two paralleled three-phase voltage-source pulse width modulation (PWM) converters with common DC bus controlled by space vector PWM, the zero-sequence circulating current is mainly related to the difference of the zero-sequence duty ratio between the converters. Therefore, based on the traditional control ideal of zero-vector action time adjustment, this paper proposes a zero-sequence circulating current suppression strategy using proportional–integral quasi-resonant control and feedforward compensation control. Firstly, the dual-loop decoupled control was utilized in a single converter. Then, in order to reduce the amplitude and main harmonic components of the circulating current, a zero-vector duty ratio adjusting factor was initially generated by a proportional–integral quasi-resonant controller. Finally, to eliminate the difference of zero-sequence duty ratio between the converters, the adjusting factor was corrected by a feedforward compensation link. The simulation mode of Matlab/Simulink was constructed for the paralleled converters based on the proposed control strategy. The results verify that this strategy can effectively suppress the zero-sequence circulating current and improve power quality. Full article
Show Figures

Figure 1

16 pages, 6880 KiB
Article
Optimized Modeling and Control Strategy of the Single-Phase Photovoltaic Grid-Connected Cascaded H-bridge Multilevel Inverter
by Seongjun Lee and Jonghoon Kim
Electronics 2018, 7(9), 207; https://doi.org/10.3390/electronics7090207 - 18 Sep 2018
Cited by 9 | Viewed by 4898
Abstract
This paper presents the modeling and control-loop design method with an inverted decoupling scheme of a single-phase photovoltaic grid-connected five-level cascaded H-bridge multilevel inverter. For the unity power factor, the proportional and integral current controller with a duty ratio feed-forward compensation is used. [...] Read more.
This paper presents the modeling and control-loop design method with an inverted decoupling scheme of a single-phase photovoltaic grid-connected five-level cascaded H-bridge multilevel inverter. For the unity power factor, the proportional and integral current controller with a duty ratio feed-forward compensation is used. In addition, in order to achieve the maximum power point tracking of each photovoltaic array, when the stacked modules are in the partial shading condition, each direct current (DC) voltage is stably controlled to their maximum power points (MPP) by dedicated voltage controllers of each H-bridge module. This paper also presents a control method that minimizes the effect of the loop-interaction in the design of an individual DC-link voltage control loop in a two-input two-output system. The proposed control methods of the cascaded H-bridge multilevel inverter are validated through the simulation and experimental results of the 2-kW prototype hardware. Full article
(This article belongs to the Special Issue Renewable Electric Energy Systems)
