Search Results (6)

The phenomenon of discontinuous shear thickening (DST) is observed in suspensions of solid particles with a very high-volume fraction. It is characterized by an abrupt decrease in the shear rate for critical stress during a ramp of stress. This behavior can be reproduced in numerical simulations by introducing a local friction between two particles above a given local force. We present experimental results showing this DST behavior obtained with suspensions of magnetic (iron) and nonmagnetic (calcium carbonate) particles and different amounts of a superplasticizer molecule used in the cement industry. For both types of particles, the same behavior was observed with first an increase in critical stress with the amount of plasticizer followed by a decrease at higher concentrations but with a larger viscosity before critical stress was reached. At a low concentration of plasticizer, the low critical stress is interpreted by the local sliding of plasticizer molecules on the surface of particles. At higher concentrations, when total coverage is achieved, the critical stress is higher since it has to remove the molecules out of the surface. At still higher concentrations, the increase in viscosity is explained by the formation of multilayers of molecules on the surface of the particles. This interpretation is supported by the measurement of the adsorption isotherm of the plasticizer on the surface of the particles. Full article

The Boltzmann kinetic equation for dilute granular suspensions under simple (or uniform) shear flow (USF) is considered to determine the non-Newtonian transport properties of the system. In contrast to previous attempts based on a coarse-grained description, our suspension model accounts for the real collisions between grains and particles of the surrounding molecular gas. The latter is modeled as a bath (or thermostat) of elastic hard spheres at a given temperature. Two independent but complementary approaches are followed to reach exact expressions for the rheological properties. First, the Boltzmann equation for the so-called inelastic Maxwell models (IMM) is considered. The fact that the collision rate of IMM is independent of the relative velocity of the colliding spheres allows us to exactly compute the collisional moments of the Boltzmann operator without the knowledge of the distribution function. Thanks to this property, the transport properties of the sheared granular suspension can be exactly determined. As a second approach, a Bhatnagar–Gross–Krook (BGK)-type kinetic model adapted to granular suspensions is solved to compute the velocity moments and the velocity distribution function of the system. The theoretical results (which are given in terms of the coefficient of restitution, the reduced shear rate, the reduced background temperature, and the diameter and mass ratios) show, in general, a good agreement with the approximate analytical results derived for inelastic hard spheres (IHS) by means of Grad’s moment method and with computer simulations performed in the Brownian limiting case ($m/m_g\to \infty$, where $m_g$ and m are the masses of the particles of the molecular and granular gases, respectively). In addition, as expected, the IMM and BGK results show that the temperature and non-Newtonian viscosity exhibit an S shape in a plane of stress–strain rate (discontinuous shear thickening, DST). The DST effect becomes more pronounced as the mass ratio $m/m_g$ increases. Full article

This study presents novel insights into thermal stress development and crack propagation mechanisms in single- and multilayered suspension plasma-sprayed (SPS) coatings of gadolinium zirconate (GZ) and yttria-stabilized zirconia (YSZ), thermally treated at 1150 °C. By combining image processing with finite element simulation, we pinpointed sites of high-stress concentration in the coatings, leading to specific cracking patterns. Our findings reveal a dynamic shift in the location of stress concentration from intercolumnar gaps to pores near the top coat/thermally grown oxide (TGO) interface with TGO thickening at elevated temperatures, promoting horizontal crack development across the ceramic layers. Significantly, the interface between the ceramic layer and TGO was found to be a critical area, experiencing the highest levels of both normal and shear stresses. These stresses influence failure modes: in double-layer SPS structures, relatively higher shear stresses can result in mode II failure, while in single-layer systems, the predominant normal stresses tend to cause mode I failure. Understanding stress behavior and failure mechanisms is essential for enhancing the durability of thermal barrier coatings (TBCs) in high-temperature applications. Therefore, by controlling the interfaces’ roughness along with improving interfacial toughness, the initiation and propagation of cracks can be delayed along these interfaces. Moreover, efforts to optimize the level of microstructural discontinuities, such as intercolumnar gaps and pores, within the creaming layer and close to the TGO interface should be undertaken to reduce crack formation in the TBC system. Full article

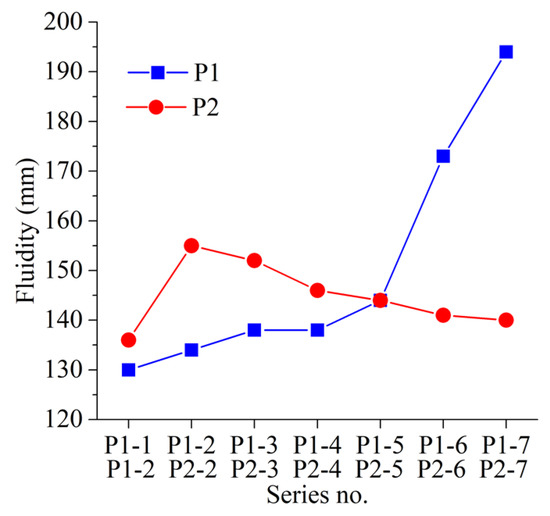

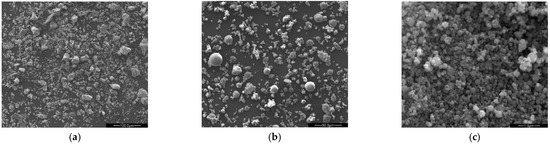

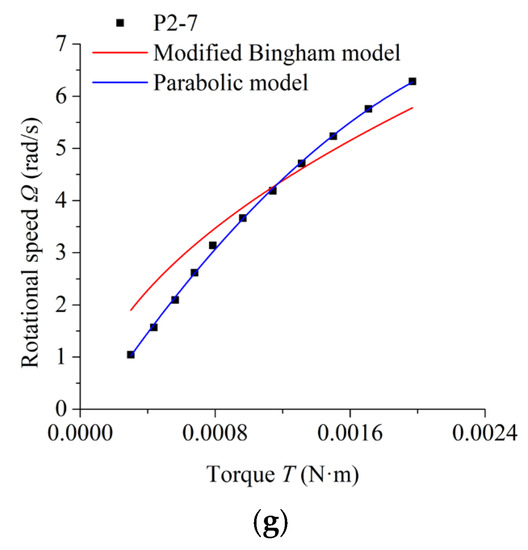

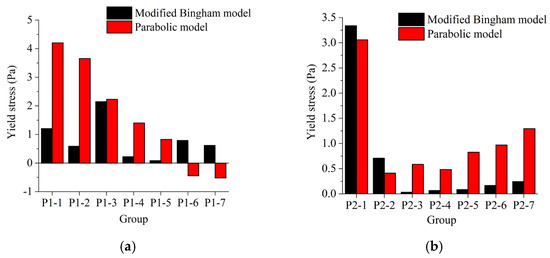

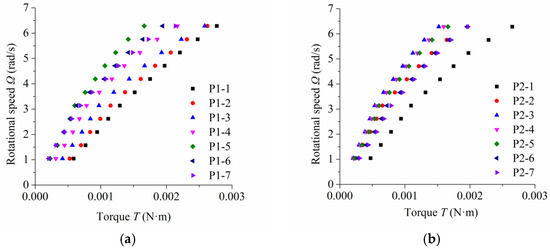

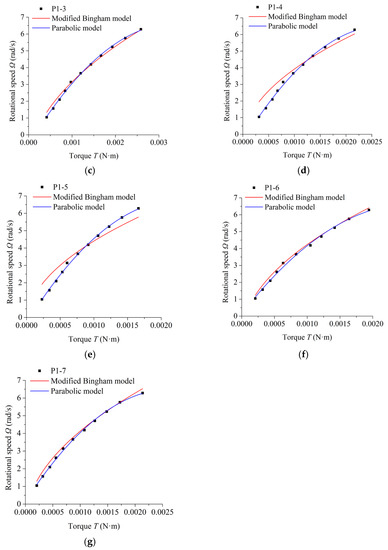

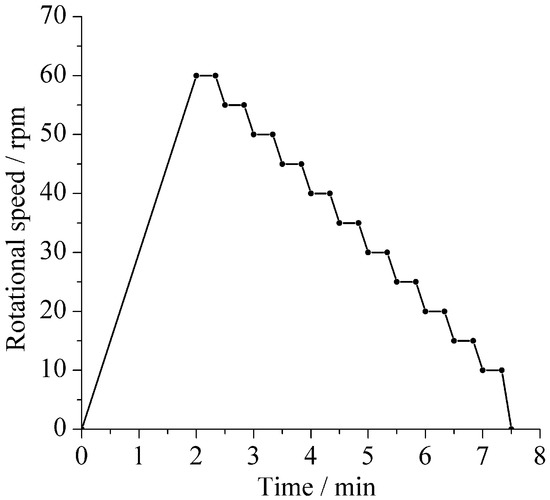

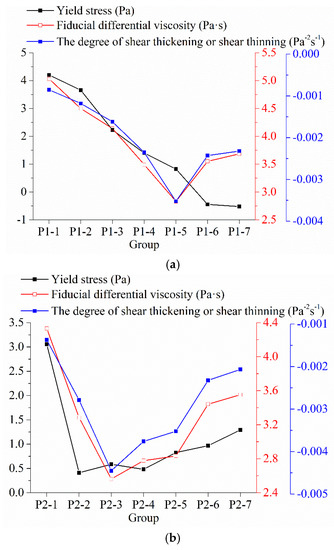

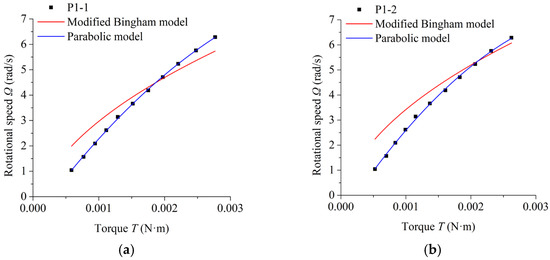

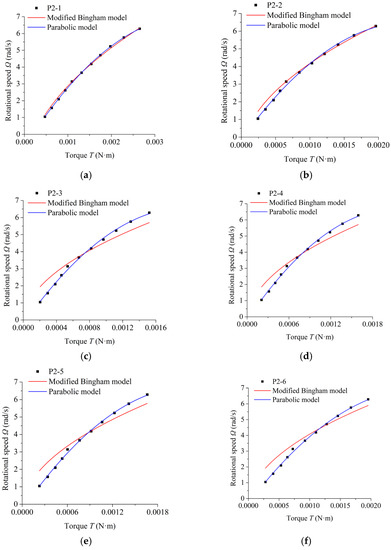

The physical meaning and calculating process of the rheological parameters of two nonlinear rheological models, the parabolic model and the modified Bingham model, were compared. The fluidity test and a rheological experiment on cementitious materials were performed. The Couette inverse problem is a key issue in measuring and solving the rheological parameters of fresh cementitious materials. The solution of the Couette inverse problem based on the modified Bingham model is discontinuous when the coefficient of the quadratic term is equal to zero, resulting in a large deviation between the fitting curve and the rheological experimental data. The credibility of the rheological parameters of the pastes calculated based on the modified Bingham model is low. The formulas for calculating yield stress, fiducial differential viscosity and the degree of shear thickening or shear thinning of the parabolic model have been developed. The credibility of the rheological parameters of the pastes calculated based on the parabolic model is high. The flow performance of the paste can be clearly characterized by the rheological parameters calculated with the parabolic model. Full article

Shear jamming, a relatively new type of phase transition from discontinuous shear thickening into a solid-like state driven by shear in dense suspensions, has been shown to originate from frictional interactions between particles. However, not all dense suspensions shear jam. Dense fumed silica colloidal systems have wide applications in the industry of smart materials from body armor to dynamic dampers due to extremely low bulk density and high colloid stability. In this paper, we provide new evidence of shear jamming in polypropylene glycol/fumed silica suspensions using optical in situ speed recording during low-velocity impact and explain how it contributes to impact absorption. Flow rheology confirmed the presence of discontinuous shear thickening at all studied concentrations. Calculations of the flow during impact reveal that front propagation speed is 3–5 times higher than the speed of the impactor rod, which rules out jamming by densification, showing that the cause of the drastic impact absorption is the shear jamming. The main impact absorption begins when the jamming front reaches the boundary, creating a solid-like plug under the rod that confronts its movement. These results provide important insights into the impact absorption mechanism in fumed silica suspensions with a focus on shear jamming. Full article

Colloidal shear thickening fluids (STFs) have applications ranging from commercial use to those of interest to the army and law enforcement, and the oil industry. The theoretical understanding of the flow of these particulate suspensions has predominantly been focused through detailed particle simulations. While these simulations are able to accurately capture and predict the behavior of suspensions in simple flows, they are not tractable for more complex flows such as those occurring in applications. The model presented in this work, a modification of an earlier constitutive model by Stickel et al. J. Rheol. 2006, 50, 379–413, describes the evolution of a structure tensor, which is related to the particle mean free-path length. The model contains few adjustable parameters, includes nonlinear terms in the structure, and is able to predict the full range of rheological behavior including shear and extensional thickening (continuous and discontinuous). In order to demonstrate its capability for complex flow simulations, we compare the results of simulations of the model in a simple one-dimensional channel flow versus a full two-dimensional simulation. Ultimately, the model presented is a continuum model shown to predict shear and extensional thickening, as observed in experiment, with a connection to the physical microstructure, and has the capability of helping understand the behavior of STFs in complex flows. Full article
