Search Results (10)

Human development has led to increased production of oil and gas, mainly as energy sources, which, however, are responsible for contamination and metal corrosion in industrial, marine, and terrestrial environments. Lubricating oil, in particular, is widely used in generators and industrial machines in the electric sector and is responsible for contamination not only in industrial environments but also in many terrestrial and aquatic ecosystems. In this context, this study aimed to apply the Starmerella bombicola ATCC 222214 biosurfactant to inhibit metal corrosion in seawater and in an Accelerated Corrosion Chamber (ACC). For this purpose, its toxicity against the microcrustacean Artemia salina, its dispersion capacity, and its ability to promote oil biodegradation in a saline environment were investigated. The biosurfactant, when applied at twice its Critical Micellar Concentration (CMC), caused low mortality (30.0%) of microcrustaceans in a saline environment, and, in its crude form, the biosurfactant ensured the dispersion of no less than 77.56% of residual engine oil in seawater. Oil biodegradation by autochthonous microorganisms reached 94.39% in the presence of the biosurfactant in seawater. Furthermore, the biosurfactant, when used at twice its CMC, acted satisfactorily as a corrosion inhibitor by reducing the mass loss of galvanized iron specimens (plates) in seawater in a static system to only 0.36%. On the other hand, when the biosurfactant was added at the CMC as an atmospheric corrosion inhibitor, the reduction in mass loss of carbon steel plates treated in the ACC was 17.38% compared to the control containing only a biodegradable matrix based on vegetable resin. When the biosurfactant was incorporated into different paints applied to galvanized iron plates placed in contact with the salt spray produced in the ACC, the best result was obtained using the biomolecule at a concentration of 3% in the satin paint, ensuring a plate mass loss (29.236 g/m²) that was almost half that obtained without surfactant (52.967 g/m²). The study indicated the use of yeast biosurfactant as a sustainable alternative in combating the contamination of marine environments and metal corrosion, with the aim of preserving the environment and improving the quality of life in aquatic and terrestrial ecosystems. Full article

Corrosion is the deterioration of metals due to environmental exposure. Commercial inhibitors used to control corrosion often contain heavy metal salts, which are highly toxic to both the environment and human health. A biosurfactant produced by the bacterium Pseudomonas cepacia CCT 6659 was tested as a corrosion inhibitor on carbon steel and galvanized iron surfaces. Matrices based on plant ingredients with different compositions were tested in a laboratory-constructed accelerated corrosion chamber (ACC) simulating a critical maritime atmosphere in conditions of 40 °C, 5% NaCl, and 100% humidity. The most stable matrix was selected for biosurfactant incorporation in different concentrations, expressed as critical micellar concentration (CMC), and was applied to metal surfaces to evaluate its ability to inhibit corrosion. Additionally, to evaluate the potential of the biosurfactant as a low-toxicity corrosion inhibitor additive in paint systems, iron and carbon steel samples were coated with three biosurfactant-containing commercial paints and subjected to critical atmospheric conditions for testing coating effectiveness. The formulation containing vegetable resin as a plasticizer, oleic acid, ethanol, and CaCO₃ was chosen to incorporate the biosurfactant. The addition of the biosurfactant at twice its CMC led to a reduction in carbon steel sample mass loss from 123.6 to 82.2 g/m², while in the galvanized iron plates, the mass loss decreased from 285.9 to 226.7 g/m² at the same biosurfactant concentration. When supplemented with the biosurfactant, the alkyd resin-based paint (A) ensured less mass loss in samples (46.0 g/m²) compared to the control without biosurfactant (58.0 g/m²). Using the paint formulated with oil-based resin (B), the mass loss decreased from 53.0 to 24.1 g/m², while with that based on petroleum derivatives (C), it decreased from 82.2 to 27.6 g/m². These results confirm the feasibility of using biosurfactants in biodegradable coatings, reducing the need for commercial corrosion inhibitors. Full article

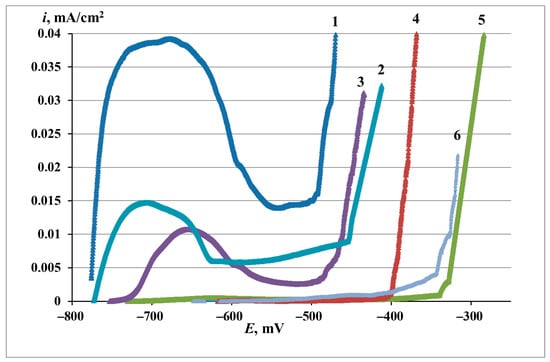

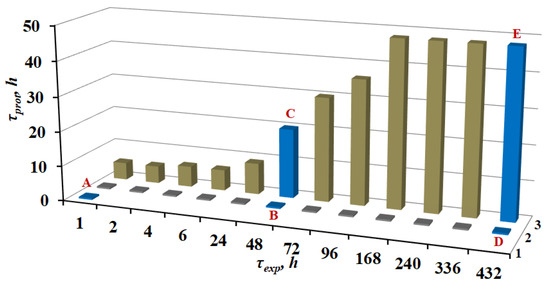

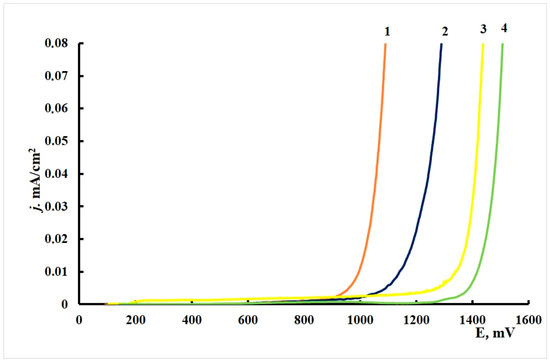

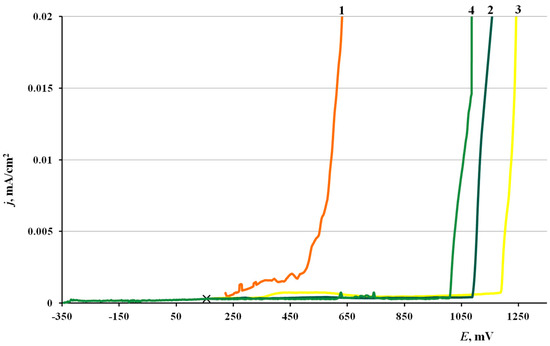

Chamber protection is a promising and quickly developing method of vapor-phase protection of metals against atmospheric corrosion by inhibitors. It was shown that chamber treatment with 2-ethylhexanoic acid (EHA) efficiently inhibits the initiation of zinc corrosion. The optimum conditions (temperature and duration) of zinc treatment with vapors of this compound were determined. If these conditions are met, adsorption films of EHA with thicknesses up to 100 nm are formed on the metal surface. It was found that their protective properties increase during the first day as zinc is exposed to air after chamber treatment. The anticorrosive action of adsorption films is due both to the surface being shielded from the corrosive environment and to the inhibition of corrosion processes on the active surface of the metal. Corrosion inhibition was caused by the ability of EHA to convert zinc to the passive state and inhibit its local anionic depassivation. Full article

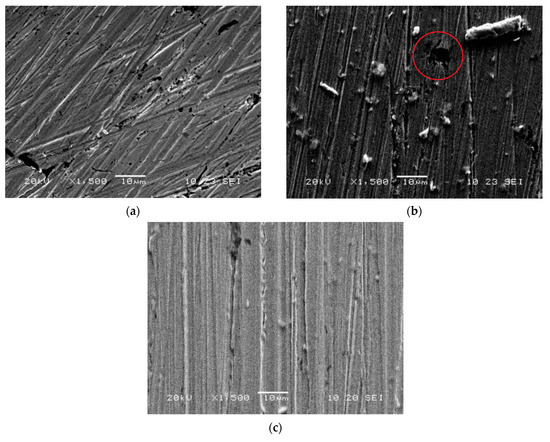

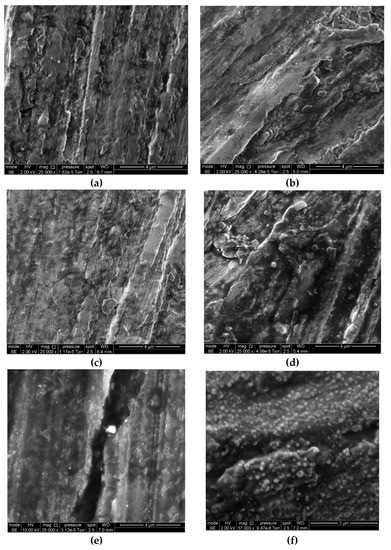

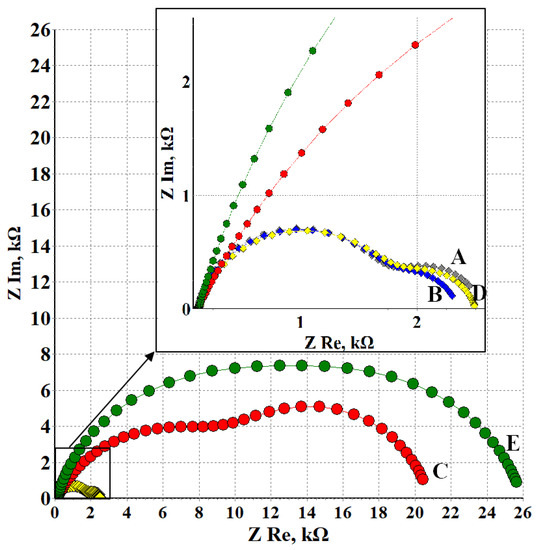

Bronze cultural heritage in urban areas is susceptible to decay due to the significant amount of pollutants present in the air. This causes the dissolution of bronze and the patina on its surface. The efficient protection of outdoor bronze cultural heritage is still an unresolved problem. The aim of this work is to investigate 16-phosphonohexadecanoic acid as an environmentally friendly and non-toxic corrosion inhibitor for patinated bronze. The corrosion protection of sulphide-patinated bronze by phosphonic acid alone and in combination with acrylic coating Paraloid B-72 is examined. In order to achieve efficient corrosion protection, various parameters of the phosphonic acid application were studied. The efficiency of protection is examined by electrochemical impedance spectroscopy (EIS) during the immersion in simulated acid rain solution and after exposure to a corrosion chamber. It was found that the studied phosphonic acid provides corrosion protection to patinated bronze and significantly improves the protective properties of Paraloid B72. This was also confirmed by scanning electron microscopy (SEM) examination of the coating surface after exposure to a corrosive environment. Full article

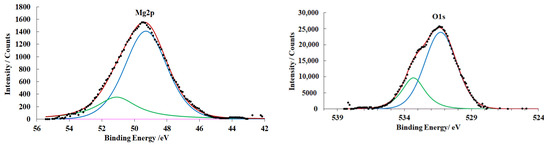

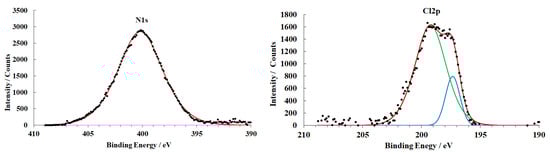

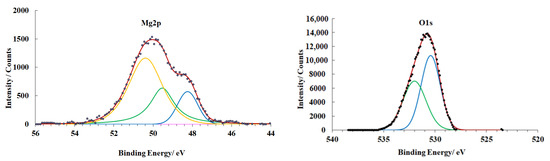

Chamberprotection of metals from atmospheric corrosion is a variety of vapor-phase inhibition. It is based on the effect of adsorption films formed in the vapors of low-volatile corrosion inhibitors at elevated temperatures. The paper analyzes the specific features of the chamber protection of a magnesium alloy with chlorobenzotriazole. It has been found that the protective properties of surface films formed in hot vapors of this compound increase upon exposure of the metal to air. The processes of structuring of protective films that occur in this case have been studied by a set of corrosion, electrochemical and physical methods. It has been shown that chamber treatment of the alloy is accompanied by chlorobenzotriazole adsorption and uniform thickening of the surface oxide-hydroxide layer. In this case, the corrosion processes slow down by a factor of up to 10. Prolonged exposure of the samples in air after the chamber treatment results in additional oxidation of magnesium and hydroxylation of the oxide. However, the oxide-hydroxide layer does not grow on the entire surface, but as separate islets. Such a change in the structure of the surface films results in an additional 10-fold increase in the corrosion resistance of the magnesium alloy. Full article

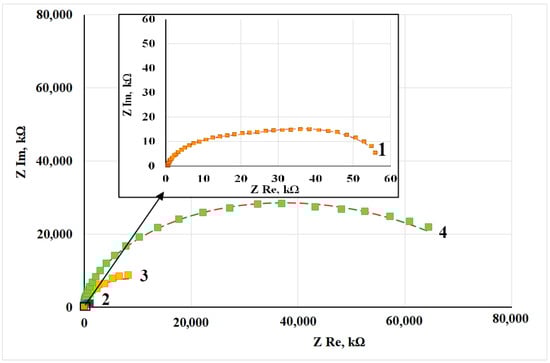

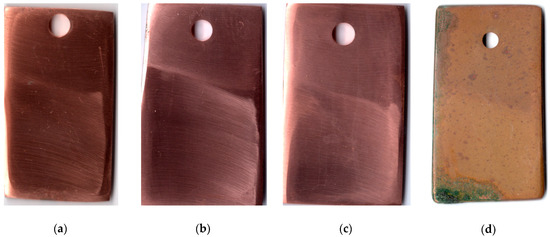

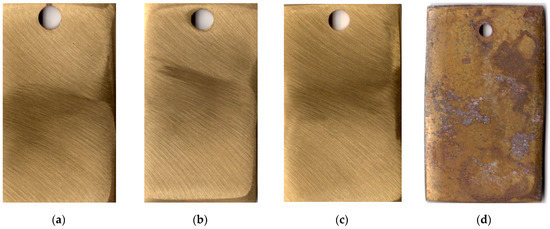

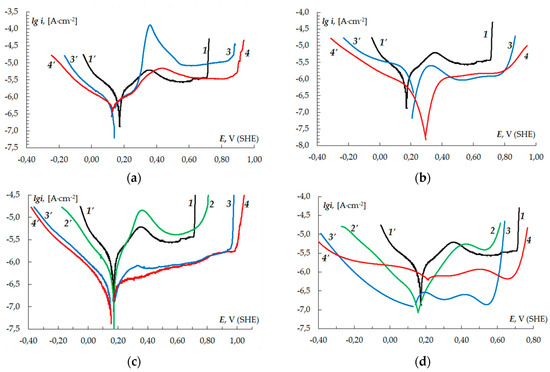

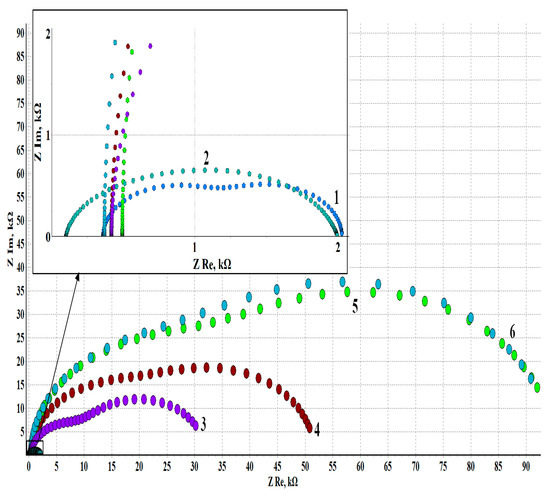

It has been shown by a set of corrosion, electrochemical and physical methods that a chamber corrosion inhibitor that consists of a mixture of octadecylamine (ODA) and benzotriazole (BTA) efficiently protects copper and brass from atmospheric corrosion and can be used for the temporary protection of metal items. The optimum temperatures of treatment with the ODA + BTA mixed inhibitor is 120 °C for brass and 100 °C for copper. One-hour treatment in ODA + BTA vapors at these temperatures results in the formation of nanosized adsorption films on the surface of these metals. These films stabilize the passive state and provide efficient temporary protection of metal items. The ODA + BTA inhibitor is superior to its components in terms of protective aftereffect. Our analysis of the mutual effect of BTA and ODA indicated that they show an antagonism of protective action on copper, but there is also a synergistic enhancement in the case of brass. Electrochemical impedance spectroscopy studies demonstrate that the inhibitors in question mainly act by using a blocking mechanism on copper and brass. Chamber treatment of the metals studied in vapors of the ODA + BTA mixture resulted in a noticeable hydrophobization of the copper surface and an insignificant effect on the brass surface. Chamber treatment of copper samples with artificially created polymodal roughness made it possible to obtain a superhydrophobic surface. Full article

Protection of metals in neutral media with pH 5.0–9.0 (in humid atmospheres and various aqueous solutions) can be achieved by formation of thin coatings (up to several tens of nm) on their surfaces due to adsorption and more complex chemical interactions of organic corrosion inhibitors (OCIs) with the metal to be protected. The review contains three sections. The first section deals with coatings formed in aqueous solutions, while the second one, with those formed in organic and water-organic solvents. Here we consider metal protection by coatings mainly formed by the best-known classes of OCI (carboxylates, organophosphates and phosphonates) and estimation of its efficiency. The third section discusses the peculiarities of protection of metals in the vapor-gas phase, i.e., by volatile OCIs, and a relatively new type of metal protection against atmospheric corrosion by the so-called chamber inhibitors. OCIs with relatively low volatility under normal conditions can be used as chamber OCIs. To obtain a protective coating on the surfaces of metal items, they are placed in a chamber inside which an increased concentration of vapors of a chamber OCI is maintained by increasing the temperature. This review mainly focuses on the protection of iron, steels, copper and zinc. Full article

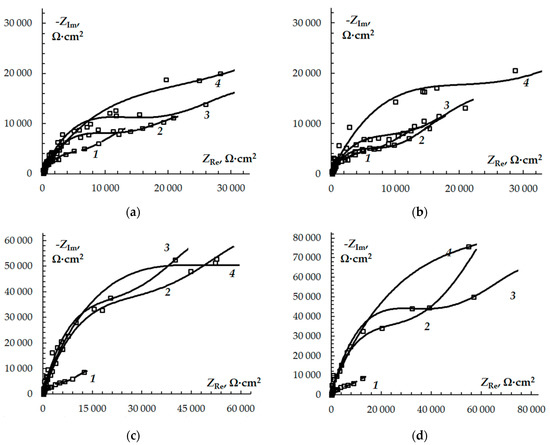

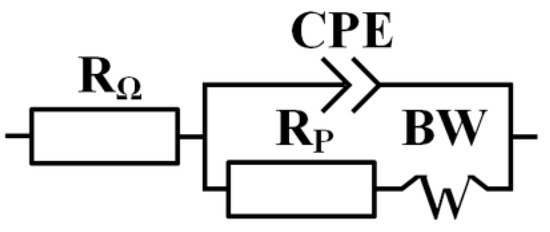

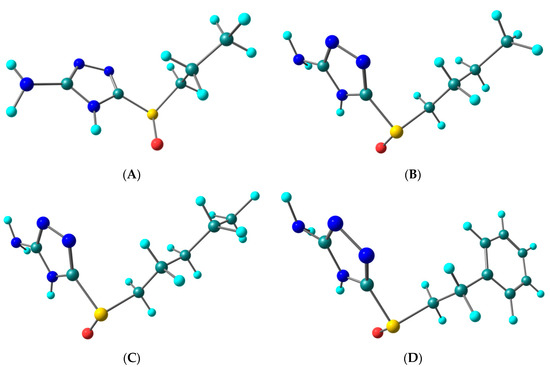

A set of electrochemical and full-scale corrosion testing methods demonstrates that 3-sulphinylalkyl-5-amino-1H-1,2,4-triazoles can be used as inhibitors of copper corrosion in neutral chloride solutions and under atmospheric corrosion. It was shown that the inhibition effect of 3-sulphinylalkyl derivatives of 5-amino-1H-1,2,4-triazole increases with the growth of the chain of the additive. By means of the impedance spectroscopy method, the authors determined that the polarisation resistance and the Warburg impedance increases whereas the double-layer capacitance decreased with the growth of the inhibitor chain and the concentration of the inhibitor. In addition, the period when the first signs of corrosion attack appear on the copper plates in the salt spray chamber increased with the growth of the inhibitor chain and its concentrations. The lowest value of this period was measured for 3-sulphinylpropyl derivatives. However, it is still 12 times higher that this value measured without any inhibitors. Full-scale testing in 1% HCl solution showed that the corrosion rate slows down by 10–20 times upon the introduction of the derivatives of 3-sulphinylbutyl and 3-sulphinylpentyl at a concentration of ≥5.00 mM. If the concentration of 3-phenethylsulphinyl is equal to or higher than 1.00 mM, then the protection level is about 85%. Full article

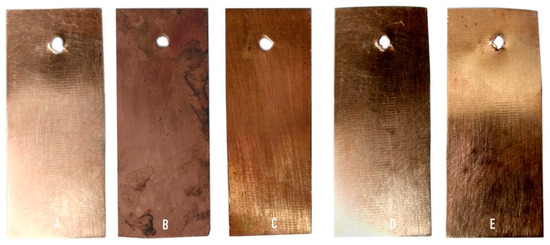

Museum objects made from metals face the challenge of delaying corrosion in exhibition rooms, showcases and holdings. This study examined some innovative solutions used to protect such items based on sol-gel coatings doped with lanthanum. These coatings were prepared from sols based on TEOS as a precursor. Lanthanum acetate/nitrate was added as a doping agent and corrosion inhibitor. The coatings were deposited upon slabs of copper, bronze, lead and steel, since they are among the most common metals present in museums items. The coatings application was accomplished by immersion-extraction, and the remaining sols were gelled and characterized by Fourier transformed infrared spectroscopy and differential thermal analysis and thermogravimetry. To evaluate the behaviour and resistance of the coatings, tests of accelerated aging were carried out in climatic and Kesternich chambers, as well as under an atmosphere saturated with organic acids and under UV irradiation. The simulated conditions tested were undertaken to approach real conditions inside a conventional museum showcase. The microstructure of the coatings before and after accelerated aging tests was observed through optical and field emission scanning electron microscopies. The results indicated that these coatings can be a useful preventive, conservation avenue to protect copper, bronze and lead items exhibited in museums. Full article

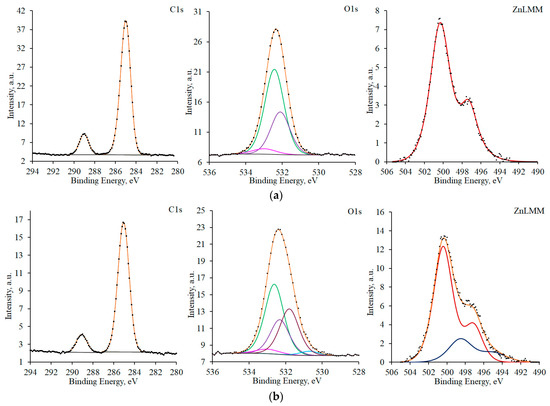

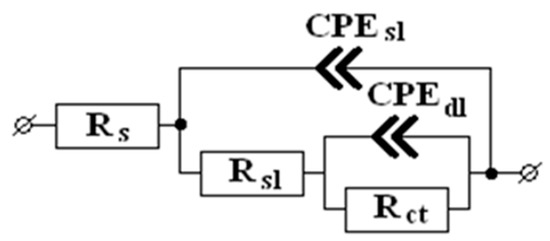

The effect of the adsorption of 5-mercaptopentyl-3-amino-1,2,4-triazole (MPATA) on the corrosive behavior of brass (Cu80/Zn20) in neutral (pH 7.4) borate buffer solutions with and without 0.01 M NaCl was studied. Electrochemical methods show significant decrease of the anodic and cathodic currents on the polarization curves in the presence of MPATA. X-ray photoelectron spectroscopy (XPS) reveals MPATA adsorption on the brass surface from an inhibitor solution. After 17 h of exposure, a mixed complex [Cu_xZn_yMPATA_z] with a thickness of about 3–3.5 nm is formed on the surface. This nanolayer has sufficient protective ability to withstand corrosion tests in a salt fog chamber: after 5 days of testing, the samples remain glossy and less than 1% of the surface has been damaged. After corrosion tests in a salt fog chamber, the surface of unprotected samples is enriched with zinc, while at the surface of inhibitor-treated samples, the copper and zinc are present in practically equal contents. Full article
