Search Results (6)

Laser powder bed fusion (L-PBF) has become a highly viable method for manufacturing metal structural components for a variety of industries. Despite many attractive qualities, the rough surfaces of L-PBF components often necessitates post-processing treatments to improve the surface finish. Furthermore, heat treatments are generally necessary to control the microstructure and properties of L-PBF components, which can impart a detrimental surface oxide layer that requires removal. In this investigation, cavitation abrasive surface finishing (CASF) was adopted for the surface treatment of Ti6Al4V components produced by L-PBF and removal of the surface oxide layer. The surface texture, residual stress, and material removal were evaluated over a range of treatment conditions and as a function of the target surface orientation. Results showed that CASF reduced the average surface roughness from the as-built condition (R_a ≈ 15 µm) to below 5 µm as well as imparted a surface compressive residual stress of up to 600 MPa. The CASF treatment removed the alpha case from direct line-of-sight surfaces under a range of treatment intensity. However, deep valleys and surfaces at large oblique angles of incidence (≥60°) proved challenging to treat uniformly. Overall, results suggest that CASF could serve as a potent alternative to chemical treatments for post-processing of L-PBF components of titanium and other metals. Further investigation is recommended for improving the process effectiveness and to characterize the fatigue performance of the treated metal. Full article

The hardfacing process aims to increase the life span of structural components in the petrochemical, mining, nuclear and automotive industries. During operation, these components are subject to demands of abrasion wear, cavitation erosion and corrosion. Duplex stainless steels are characterized by high mechanical characteristics and corrosion resistance, but poor behavior to abrasive wear and cavitation erosion. The improvement in wear resistance is possible by selecting and depositing a special alloy on the surface using a joining technique that ensures a metallurgical bonding between the layer and the substrate. The experimental investigations carried out in this work demonstrate the ability of the TIG pulsed welding process to produce layers with good functional properties for engineering surfaces. The “Corodur 65” alloy was deposited on a duplex-stainless-steel substrate, X2CrNiMoN22-5-3, using a series of process parameters that allowed for the control of the cooling rate and heat input. The properties of the deposited layers are influenced not only by the chemical composition, but also by the dilution degree value. Since the deposition of layers through the welding operation can be considered as a process with several inputs and outputs, the control of the input parameters in the process aims at finishing the granulation and the structure in the fusion zone as well as limiting the segregation phenomena. The aim of this work is to investigate the microstructural characteristics of the iron-based alloy layer, Corodur 65, deposited via pulsed current TIG welding on duplex X2CrNiMoN22-5-3 stainless-steel substrates. Full article

Fast progress in near-net-shape production of parts has attracted vast interest in internal surface finishing. Interest in designing a modern finishing machine to cover the different shapes of workpieces with different materials has risen recently, and the current state of technology cannot satisfy the high requirements for finishing internal channels in metal-additive-manufactured parts. Therefore, in this work, an effort has been made to close the current gaps. This literature review aims to trace the development of different non-traditional internal surface finishing methods. For this reason, attention is focused on the working principles, capabilities, and limitations of the most applicable processes, such as internal magnetic abrasive finishing, abrasive flow machining, fluidized bed machining, cavitation abrasive finishing, and electrochemical machining. Thereafter, a comparison is presented based on which models were surveyed in detail, with particular attention to their specifications and methods. The assessment is measured by seven key features, with two selected methods deciding their value for a proper hybrid machine. Full article

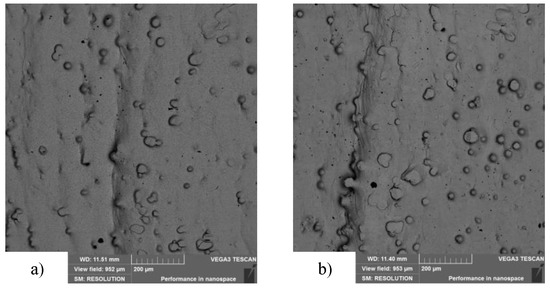

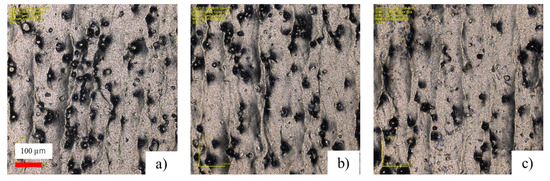

The paper is devoted to the research of the effect of ultrasonic postprocessing—specifically, the effects of ultrasonic cavitation-abrasive finishing, ultrasonic plastic deformation, and vibration tumbling on surface quality, wear resistance, and the ability of real aircraft parts with complex geometries and with sizes less than and more than 100 mm to work in exploitation conditions. The parts were produced by laser powder bed fusion from two types of anticorrosion steels of austenitic and martensitic grades—20Kh13 (DIN 1.4021, X20Cr13, AISI 420) and 12Kh18N9T (DIN 1.4541, X10CrNiTi18-10, AISI 321). The finishing technologies based on mechanical action—plastic deformation, abrasive wear, and complex mechanolysis showed an effect on reducing the submicron surface roughness, removing the trapped powder granules from the manufactured functional surfaces and their wear resistance. The tests were completed by proving resistance of the produced parts to exploitation conditions—vibration fatigue and corrosion in salt fog. The roughness arithmetic mean deviation R_a was improved by 50–52% after cavitation-abrasive finishing, by 28–30% after ultrasonic plastic deformation, and by 65–70% after vibratory tumbling. The effect on wear resistance is correlated with the improved roughness. The effect of used techniques on resistance to abrasive wear was explained and grounded. Full article

The paper is devoted to researching various post-processing methods that affect surface quality, physical properties, and mechanical properties of laser additively manufactured steel parts. The samples made of two types of anticorrosion steels—20kH13 (DIN 1.4021, X20Cr13, AISI 420) and 12kH18N9T (DIN 1.4541, X10CrNiTi18-10, AISI 321) steels—of martensitic and austenitic class were subjected to cavitation abrasive finishing and vibration tumbling. The roughness parameter R_a was reduced by 4.2 times for the 20kH13 (X20Cr13) sample by cavitation-abrasive finishing when the roughness parameter R_a for 12kH18N9T (X10CrNiTi18-10) sample was reduced by 2.8 times by vibratory tumbling. The factors of cavitation-abrasive finishing were quantitatively evaluated and mathematically supported. The samples after low tempering at 240 °C in air, at 680 °C in oil, and annealing at 760 °C in air were compared with cast samples after quenching at 1030 °C and tempering at 240 °C in air, 680 °C in oil. It was shown that the strength characteristics increased by ~15% for 20kH13 (X20Cr13) steel and ~20% for 12kH18N9T (X10CrNiTi18-10) steel than for traditionally heat-treated cast samples. The wear resistance of 20kH13 (X20Cr13) steel during abrasive wear correlated with measured hardness and decreased with an increase in tempering temperatures. Full article

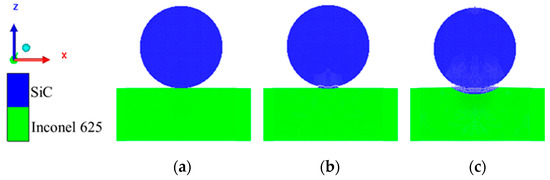

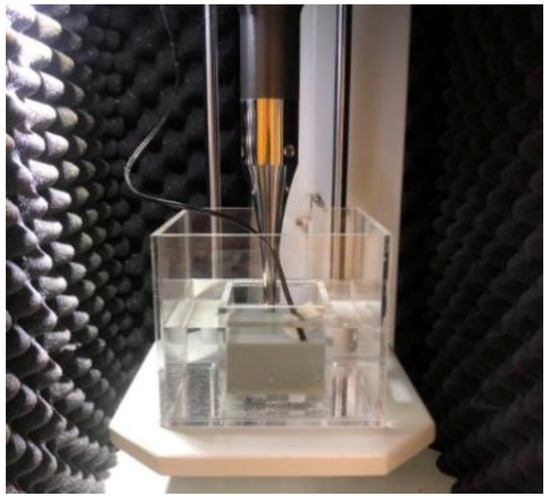

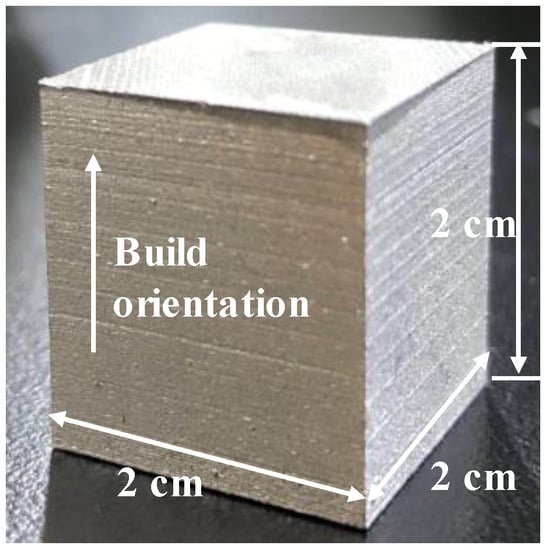

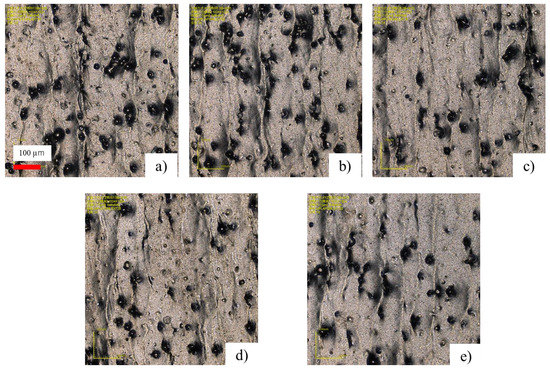

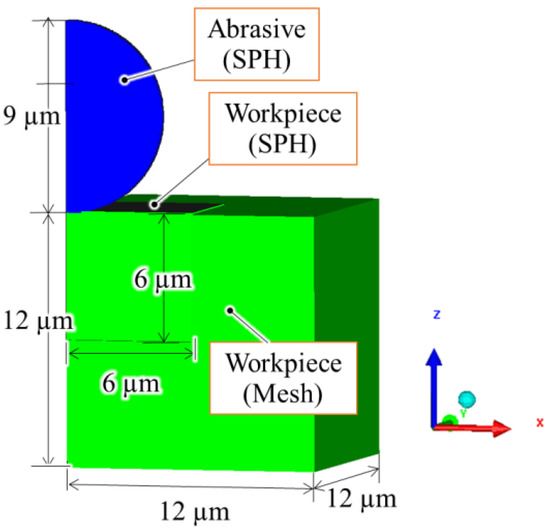

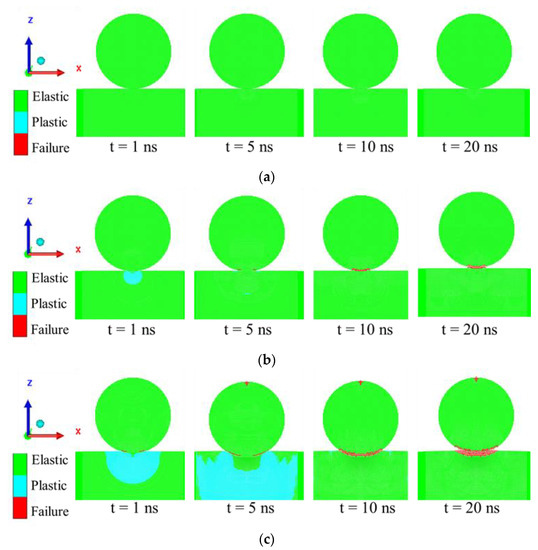

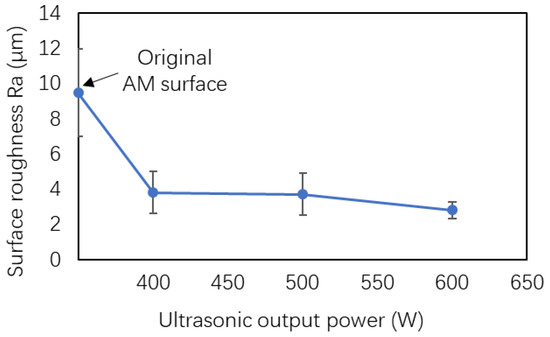

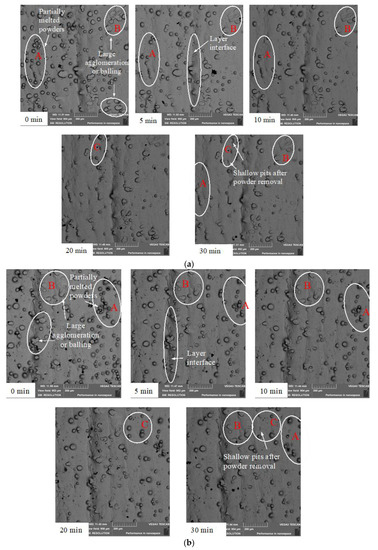

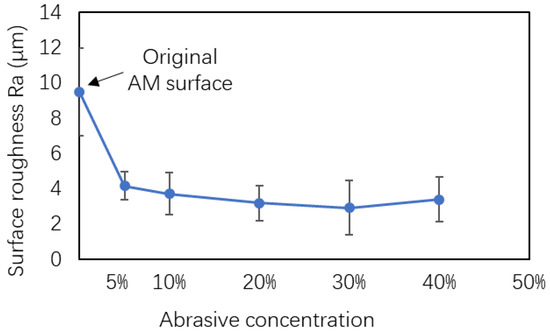

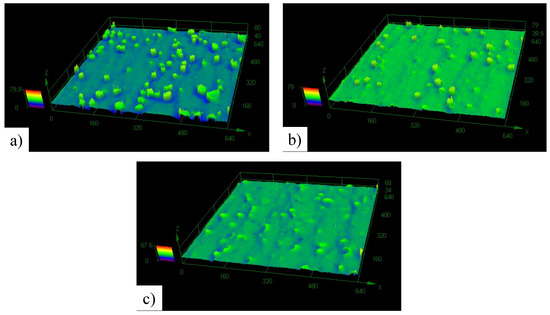

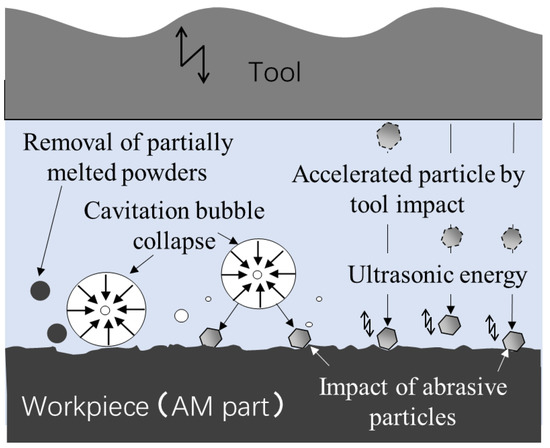

Powder-based layered Additive Manufacturing (AM) techniques lead to high surface roughness, due to the balling and partial melting of powders, which cannot satisfy the requirements of design and practical use. Consequently, until there is a significant step-change in the resolution of AM technology, finishing processes will be a necessary step in the additive manufacturing process. In this work, ultrasonic abrasive polishing experiments are conducted with the aim of improving the surface quality of additive manufactured components. The roles of cavitation bubbles and abrasive particles in material removal are discussed. The impact action of abrasive particles is simulated using the Smoothed Particle Hydrodynamics (SPH) method. The effects of ultrasonic output power and the concentration of abrasive suspension on machining characteristics are also examined. It is found that the cavitation bubble collapse in ultrasonic polishing can remove the partially melted structures efficiently, and further roughness improvement could be obtained using the micro-cut and impact of abrasive particles in the slurry. An increase in the ultrasonic output power and abrasive concentration within a certain range lead to a more desirable polishing effect. Full article
