Welding of maraging steels leads to a microstructural gradient from base material (BM) to weld metal (WM). During post-weld heat treatment (PWHT) the precipitation and reverted austenite (γ_r) reactions will occur defining the mechanical properties. These reactions are affected by the microstructure and local chemical composition of each zone in the “as welded” (AW) condition. This effect has not been clearly described yet nor the evolution of the microstructure. The objective of this work was to analyse the phase transformations at the different zones of the welded joint during the PWHT to explain the microstructure obtained at each zone. Samples of C250 maraging steel were butt-welded by GTAW-P (Gas Tungsten Arc Welding—Pulsed) process without filler material. The AW condition showed an inhomogeneous microhardness profile, associated with a partial precipitation hardening in the subcritical heat affected zone (SC-HAZ) followed by a softening in the intercritical (IC-HAZ) and recrystallized heat affected zone (R-HAZ). A loop-shaped phase was observed between low temperature IC-HAZ and SC-HAZ, associated with γ_r, as well as microsegregation at the weld metal (WM). The microstructural evolution during PWHT (480 °C) was evaluated on samples treated to different times (1–360 min). Microhardness profile along the welded joint was mostly homogeneous after 5 min of PWHT due to precipitation reaction. The microhardness in the WM was lower than in the rest of the joint due to the depletion of Ni, Ti and Mo in the martensite matrix related with the γ_r formation. The isothermal kinetics of precipitation reaction at 480 °C was studied using Differential Scanning Calorimetry (DSC), obtaining a JMAK expression. The average microhardness for each weld zone was proposed for monitoring the precipitation during PWHT, showing a different behaviour for the WM. γ_r in the WM was also quantified and modelled, while in the IC-HAZ tends to increase with PWHT time, affecting the microhardness. Full article

The lap welding process for 304L stainless steel welded using the pulsed gas tungsten arc welding (P-GTAW) procedure was studied, and the effects of the pulse welding parameters (the peak current, background current, duty cycle, pulse frequency, and welding speed) on the macroscopic morphology, microstructure, and mechanical properties of the resultant lap joints were investigated. Tensile tests, hardness measurements, and SEM/EDS/XRD analyses were conducted to reveal the characterization of the joint. The relationships between the welding parameters; certain joint characteristic dimensions (the weld width, D; the weld width on the lower plate, L_a; the weld depth on the lower plate, P; and the minimum fusion radius, R); and the maximum tensile bearing capacity were studied. The weld zone was primarily composed of vermicular ferrite, skeletal ferrite, and austenite, and no obvious welding defects, precipitation, or phase transformations were evident in the weld. Microhardness tests demonstrated that the weld microhardness was highest in the base metal zone and lowest in the weld zone. As the heat input increased, the average microhardness decreased. The hardness difference reached 17.6 Hv10 due to the uneven grain size and the transformation of the structure to ferrite in the weld. The fracture location in welded joints varied as the heat input changed. In some parameter combinations, the weld tensile strength was significantly higher than that of the base material, with fractures occurring in the weld. Scanning electron microscopy results exhibited an obvious dimple morphology, which is a typical form of ductile fracture. XRD revealed no significant phase changes in the weld zone, with a higher intensity of the austenite diffraction peaks compared to the ferrite diffraction peaks. Full article

This study explores the high-temperature (HT) tensile rupture characteristics of a dissimilar gas-tungsten-arc-welded (GTAW) joint between P92 steel and Alloy 617, fabricated using ER62S-B9 and ERNiCrCoMo-1 fillers. The high-temperature tensile tests were performed at elevated temperatures of 550 °C and 650 °C. An optical microscope (OM) and a field emission scanning electron microscope (FESEM) were utilized to characterize the joint. The high-temperature test results indicated that the specimen failed at the P92 base metal/intercritical heat-affected zone (ICHAZ) rather than the weld metal for the ERNiCrCoMo-1(IN617) filler. This finding confirmed the suitability of the joint for use in the Indian advanced ultra-supercritical (A-USC) program. The fracture surface morphology and presence of precipitates were analysed using an SEM equipped with energy dispersive spectroscopy (EDS). The appearance of the dimples and voids confirmed that both welded fillers underwent ductile–dominant fracture. EDS analysis revealed the presence of Cr-rich M₂₃C₆ phases, which was confirmed on the fracture surface of the ER62S-B9 weld (P92-weld). The hardness plot was analysed both in the as-welded condition and after the fracture. Full article

Ultrasonic-magnetic field coaxial hybrid GTAW(U-M-GTAW) is a new non-melting electrode welding method proposed by combining ultrasonic assisted GTAW(U-GTAW) and magnetic assisted GTAW(M-GTAW) on the regulation characteristics of the GTAW arc. U-M-GTAW introduces ultrasonic and magnetic field effects into GTAW to improve arc characteristics. The orthogonal experiment was designed to investigate the degree of influence of different process parameters on the arc. The degree of influence of ultrasonic power P, radiator height H, magnetic field current C_W, welding current C_W and tungsten electrode height H_T on ΔL₁ (degree of arc root diameter change), ΔL₂ (degree of maximum diameter change) and ΔS (degree of area change) were analyzed. In the parameter range, P has the greatest degree of influence on ΔL₁ and ΔL₂. As all process parameters increase, L₁ shows a tendency to decrease, indicating an increase in the compression of the arc root. ΔL₂ with the increase in P and C_W shows a trend of first decreasing and then increasing. ΔL₂ with the increase in H decreases, indicating that the acoustic radiation force increases, the arc energy increases, and the dark region decreases. The magnetic field current increases, the bottom of the arc expands, and the height of the tungsten electrode increases, the arc dispersion and thus the difference between the dark and luminous regions at the bottom increases, resulting in ΔL₂ with the increase in C_M and H_T increases. C_W has the greatest degree of influence on ΔS. ΔS decreases and then increases as P and H increase, which indicates that the force on acoustic radiation increases and then decreases in the range. An increase in the magnetic field current increases the rotation of the arc, leading to an increase in the arc area. An increase in welding current leads to an increase in arc energy, expansion of the arc morphology, and an increase in ΔS. The tungsten electrode height increases, the arc diverges, the dark region increases, the luminous area decreases, and ΔS increases. Finally, combined with the analysis of ultrasonic field and magnetic field theory, changes in process parameters will affect the force of the arc and thus the arc morphology. The U-M-GTAW arc under the action of acoustic radiation force, the plasma flow is shifted in the direction of the arc axis, and the arc contraction, under the action of magnetic field force to generate circumferential current, the arc undergoes periodic rotation, which improves GTAW arc characteristics. Full article

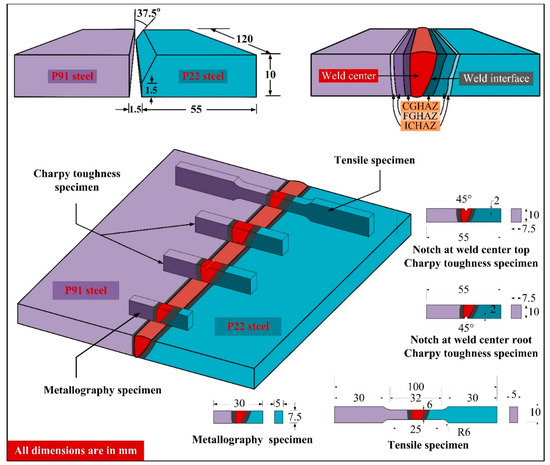

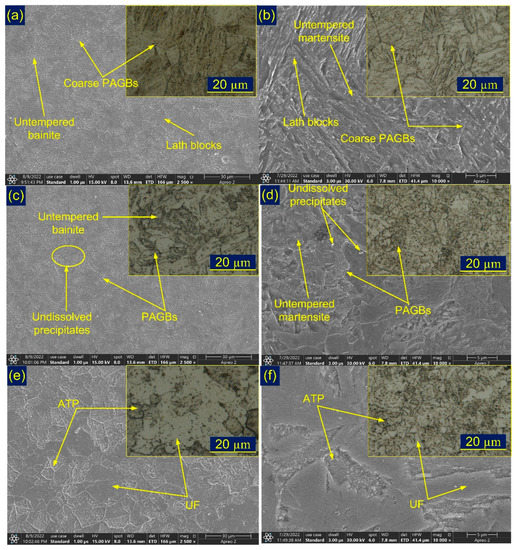

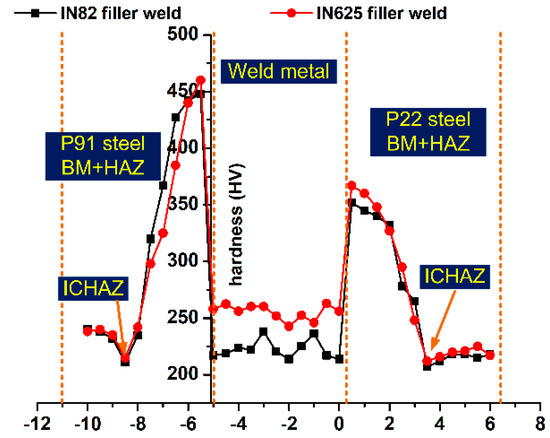

The dissimilar combination of 2.25Cr-1Mo (P22) and modified 9Cr-1Mo (P91) obtained using Gas Tungsten Arc Welding (GTAW) process employing the Ni-based superalloy filler ERNiCr-3 (IN82) and ERNiCrMo-3 (IN625) have been investigated for microstructure evolution and mechanical properties. The butt weld joint was produced using single bevel groove geometry. The structural integrity of the welded joint was measured in respect of tensile strength, impact toughness and hardness. The alloying elements’ segregation at the inter-dendritic areas of the weld metal was witnessed while using the IN82 and IN625 filler. The impact test trials showed the mixed mode of fracture with an impact toughness of 82 ± 6 J and 70 ± 5 J for IN82 and IN625 filler, respectively, ensuring that the welded joint was safe for the end boiler application. The tensile test coupons were fractured from the P22 base metal in all the trials and for both the fillers which confirmed the negligible effect of the filler composition on the tensile properties. The hardness plots showed the inhomogeneity in hardness value, which was also supported by the microstructure evolution along the weldments. The average hardness of the IN82 filler was measured lower than the IN625 filler. Full article

The 9% Cr steels were developed for ultra-supercritical (USC) power plants to meet the requirements of high operating temperature and pressure. These steels are produced to operate at high temperatures where impact toughness is not a concern; however, it becomes important for the welded joints to have good impact toughness at room temperature for manufacturing. The present work investigates the effect of the post-weld heat treatment (PWHT) parameters, i.e., temperature and time, on the impact toughness of multi-pass gas tungsten arc welded (GTAW) joints of ferritic/martensitic grade P92 steel. The microstructural evolution in welded joints given varying post-weld temperatures and times was studied. The lath martensitic structure of the weld metal for the as-welded joints resulted in high hardness and low impact toughness. The weld fusion zone toughness was 12 J, which was lower than the minimum specified values of 41 J (ASME standards) and 47 J (EN ISO 3580:2017). The PWHT temperature and time were found to have a significant effect on the impact toughness of the weld metal. A drastic increase in the impact toughness of the weld metal was noticed, which was attributed to lath break-up, reduction in dislocation density and reduction in solid solution hardening. The maximum impact toughness of 124 J was measured for PWHT temperature and time of 760 °C and 120 min, respectively. The effect of PWHT parameters on tensile strength was also investigated, and test results showed that the joint was safe for USC boiler application as it failed from the region of the P92 base metal. The variation in microstructural evolution along the weldments resulted in hardness variation. PWHT led to homogeneity in microstructure and, ultimately, reduction in hardness value. According to the study, the optimum temperature and time for PWHT of a GTAW joint of P92 steel were found to be 760 °C and 120 min, respectively. Full article

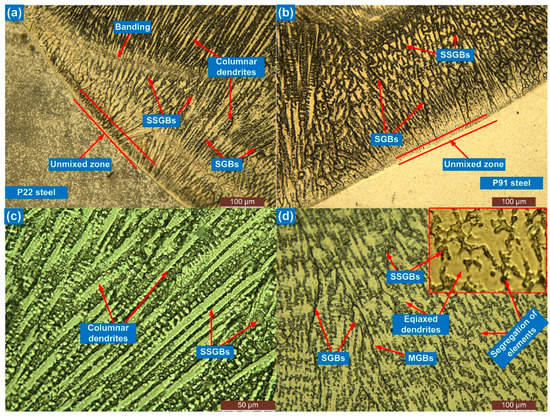

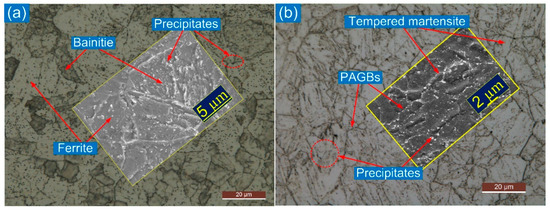

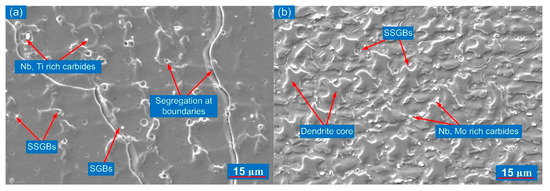

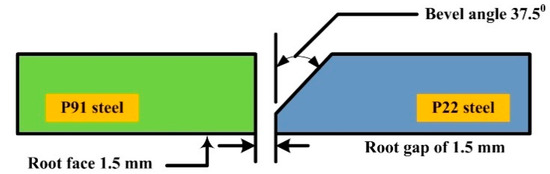

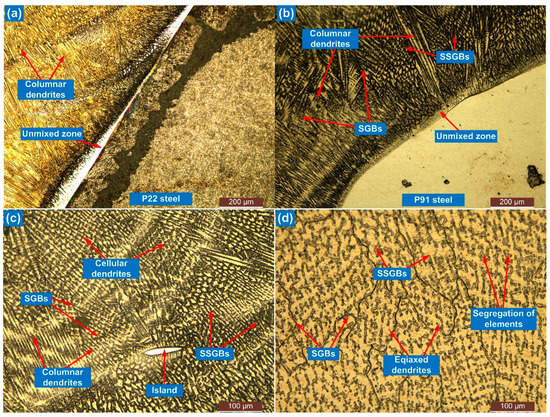

This article deals with the dissimilar joining of two different grade Cr-Mo steel (2.25Cr-1Mo: P22 and modified 9Cr-1Mo: P91) for power plant application. The dissimilar butt-welded joint was produced for conventional V groove design by using the gas tungsten arc welding (GTAW) process with the application of an ERNiCrMo-3 Ni-based super alloy filler. A microstructure characterization was performed to measure the inhomogeneity in the microstructure and element diffusion across the interface in a welded joint. The experiments were also performed to evaluate the mechanical properties of the dissimilar welded joint in as-welded (AW) and post-weld heat treatment (PWHT) conditions. An acceptable level of the mechanical properties was obtained for the AW joint. After PWHT, a significant level of the element diffusion across the interface of the weld metal and P22 steel was observed, resulting in heterogeneity in microstructure near the interface, which was also supported by the hardness variation. Inhomogeneity in mechanical properties (impact strength and hardness) was measured across the weldments for the AW joint and was reduced after the PWHT. The tensile test results indicate an acceptable level of tensile properties for the welded joint in both AW and PWHT conditions and failure was noticed in the weak region of the P22 steel instead of the weld metal. Full article

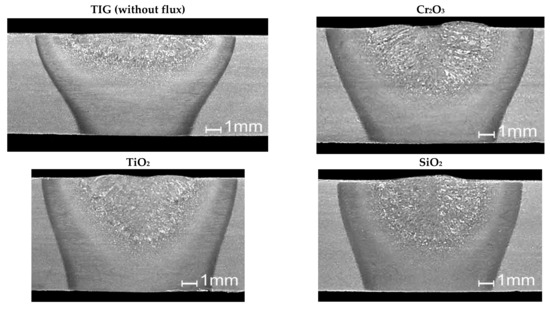

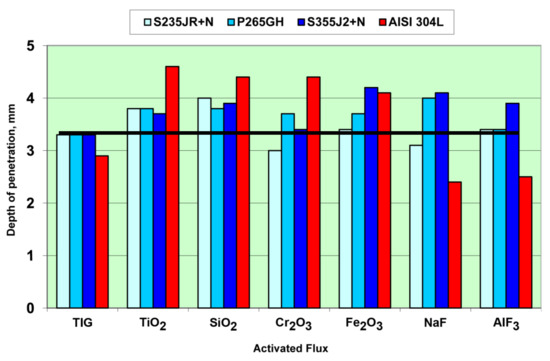

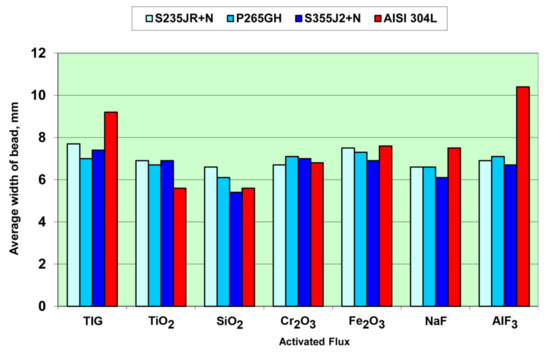

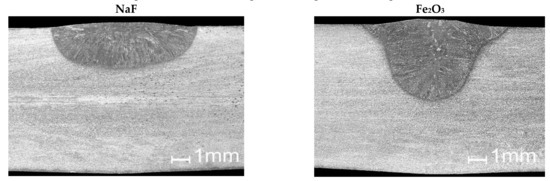

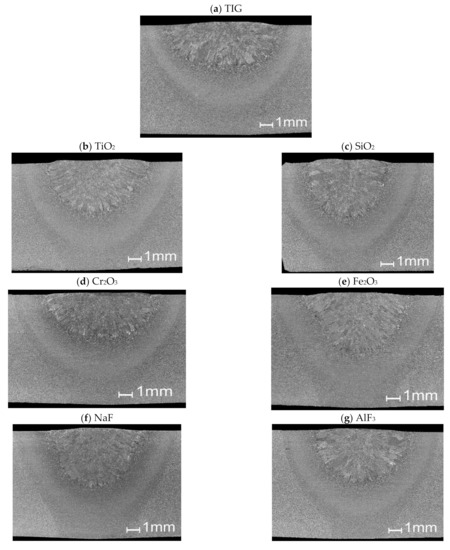

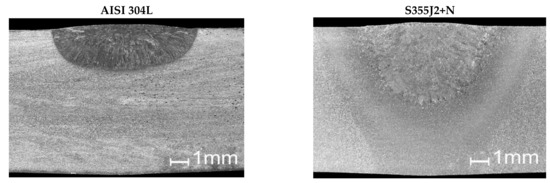

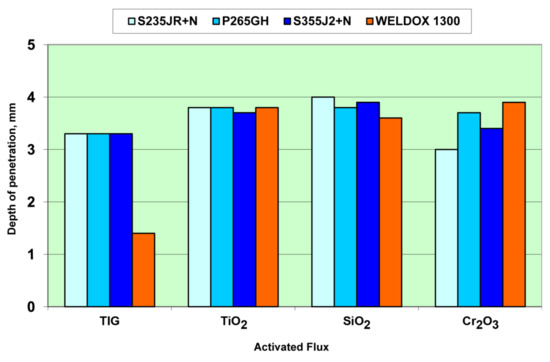

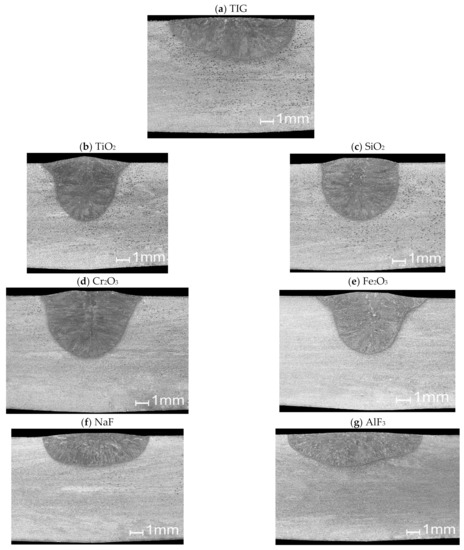

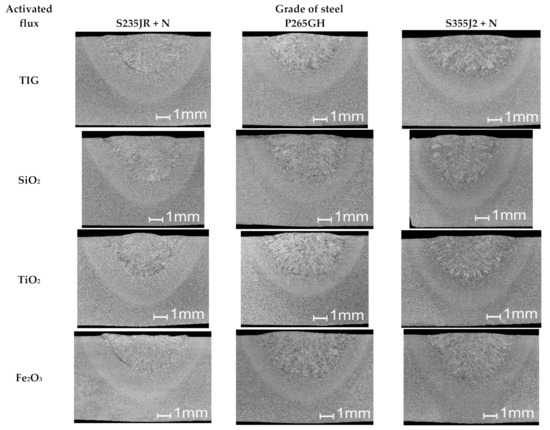

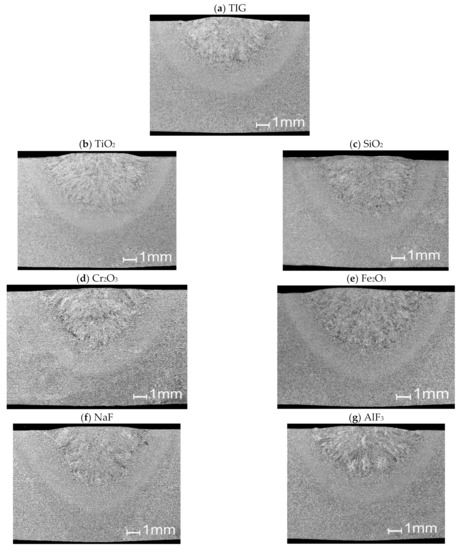

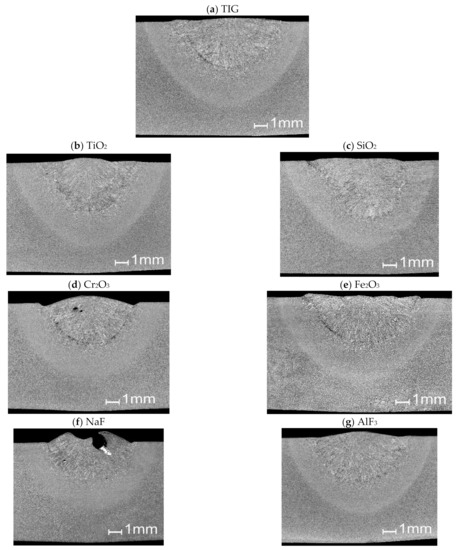

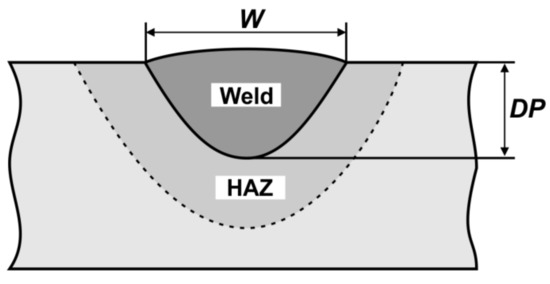

The article presents results of comparative A-TIG welding tests involving selected unalloyed and fine-grained steels, as well as high-strength steel WELDOX 1300 and austenitic stainless steel AISI 304L. The tests involved the use of single ingredient activated fluxes (Cr₂O₃, TiO₂, SiO₂, Fe₂O₃, NaF, and AlF₃). In cases of carbon and low-alloy steels, the tests revealed that the greatest increase in penetration depth was observed in the steels which had been well deoxidized and purified during their production in steelworks. The tests revealed that among the activated fluxes, the TiO₂ and SiO₂ oxides always led to an increase in penetration depth during A-TIG welding, regardless of the type and grade of steel. The degree of the aforesaid increase was restricted within the range of 30% to more than 200%. Full article

High-quality joining of dissimilar alloys between Fe-36Ni alloy and 304L stainless steel is essential in the manufacturing of LNG tanker. In this study, lap joints of Fe-36Ni and 304L dissimilar alloys were fabricated by a pulsed gas tungsten arc welding (P-GTAW) process. The effects of low-frequency pulse on the appearance, microstructure and mechanical properties of the Fe-36Ni/304L lap joints was investigated. With the increase of frequency, the feature sizes of α (the transition angle of the upper surface of Fe-36Ni to the surface of the weld bead) and R (shortest distance between weld root and weld surface) exhibited downtrend and uptrend, respectively, while La (the maximum weld width of lower sheet) and P (the maximum weld penetration of lower sheet) changed in a smaller range. Fusion zone (FZ) is mainly composed of γ phase and M₂₃C₆ during solidification, and M₂₃C₆ particles are distributed on the grain boundaries of the cells, which reduced the mechanical properties of joint. The average hardness between 110 HV₁ and 136 HV₁ is lower than that of the base metals. Fractures of all joints located at the Fe-36Ni side near the weld, and a dimple fracture in all samples indicated a ductile fracture. This study found that the heat input values remain 198.86 J mm⁻¹ and increased pulse frequency can improve the maximum tensile force. The average maximum tensile force of the lap weld is 11.95 kN when pulsed frequency is 15 Hz. Full article

P91 steel has been of interest to many researchers over the past two decades. This interest is because this steel has very interesting characteristics for application in power plants, where it is common to have pipes that need to support steam at temperatures between 570 and 600 °C, and at pressures in the range of 170 to 230 bar. These working conditions are quite severe for most common steels, requiring increased high-temperature mechanical strength as well as high creep resistance. The manufacture of these pipes normally includes welding operations, which must preserve the main characteristics of this type of steel. This justifies the concern of the researchers to ensure the best welding conditions so that the preservation of the properties of these steels becomes possible. The present work intends to depict the best results obtained varying the heat-treatment conditions applied to weldments made on heat-resistant steel P91. This steel usually takes the designation SA 213 T91 (seamless tube) or SA 335 P91 (seamless pipe), according to ASME II, as well as the designation X10CrMOVNb9-1 according to EN 10216-2. The purpose of this study is to compare the behavior of pipe welding under different post-welding heat-treatment (PWHT) conditions. One of them is performed with thermal cycles (preheating, post-heating, and the post-weld heat treatment) in agreement with most construction codes and standard rules. The second one is performed without any thermal cycle before and after welding. Both welds were made by the same process, TIG (Tungsten Inert Gas, or GTAW—Gas Tungsten Arc Welding) in the horizontal position (2G according to ASME IX) and the same welding parameters. In order to evaluate the results obtained in the welds, microstructure analyses, hardness measurements, bending tests, and tensile tests at room and high temperature (600 °C) have been performed. Other tests were also carried out according to the quality procedures, such as visual, penetrant dye, and X-ray tests. Regarding the different strategies used in the heat treatments, the best results have been obtained using a strategy similar to the one currently in use and recommended by construction codes and steel manufacturers but excluding the phases’ transformation time, and it was possible to observe that the tensile strength is impaired by about 2% to 9% at room and elevated temperatures, respectively; the elongation is reduced by 39% at room temperature but keeps a good performance at elevated temperature; the hardness profile is very similar at both temperatures; the microstructure presented is compatible with the requirements; and no cracking trend has been reported. Thus, a new strategy for the welding heat treatment of grade 91 steels was drawn, saving energy and processing time. Full article
