Search Results (37)

Rare-earth magnesium alloys exhibit higher comprehensive mechanical properties compared to other series of magnesium alloys, effectively expanding their applications in aerospace, weapons, and other fields. In this work, the tensile strength, yield strength, and elongation of a Mg-Gd-Y-Zn-Zr rare-earth magnesium alloy under different process conditions were determined, and a large number of microstructure observations and analyses were carried out for the tensile specimens; a prediction model of the corresponding mechanical properties was established by using a convolutional neural network (CNN), in which the metallographic diagram of the rare-earth magnesium alloy was taken as the input, and the corresponding tensile strength, yield strength, elongation, and three mechanical properties were taken as the output. The stochastic gradient descent (SGD) algorithm was used for parameter optimization and experimental validation, and the results showed that the average relative errors of the tensile strength and yield strength prediction results were 1.90% and 3.14%, respectively, which were smaller than the expected error of 5%. Full article

A high strength and ductile Mg-Gd-Y-Zn-Zr alloy was designed and fabricated. The local strain evolution of the alloys during plastic deformation was analyzed using high-resolution digital image correlation (DIC). The results showed that the β particles, nano-sized γ’ phases, and LPSO phases were distributed in the as-extruded alloy and a bimodal microstructure was exhibited, including elongated un-dynamic recrystallized grains and fine dynamic recrystallized grains. With increasing extrusion ratio, the grain size remained, with the volume fraction of dynamic recrystallization of the as-extruded alloy increasing from 30% to 75%, and the as-extruded alloy exhibited a high strength-ductility synergy, which is attributed to the grain refinement, extensive β particles, and elongated block-shaped LPSO phases. The strain evolution analysis showed that a strain-transfer from un-DRXed regions to adjacent DRXed regions and LPSO phases can promote uniform plastic deformation, which tends to improve the ductility of the alloy. Full article

The exploration of the relationship between process parameters and grain evolution during the thermal deformation of rare-earth magnesium alloys using simulation software has significant implications for enhancing research and development efficiency and advancing the large-scale engineering application of high-performance rare-earth magnesium alloys. Through single-pass hot compression experiments, this study obtained high-temperature flow stress curves for rare-earth magnesium alloys, analyzing the variation patterns of these curves and the softening mechanism of the materials. Drawing on physical metallurgical theories, such as the evolution of dislocation density during dynamic recrystallization, recrystallization nucleation, and grain growth, the authors of this paper establish a cellular automaton model to simulate the dynamic recrystallization process by tracking the sole internal variable—the evolution of dislocation density within cells. This model was developed through the secondary development of the DEFORM-3D finite element software. The results indicate that the model established in this study accurately simulates the evolution process of grain growth during heat treatment and the dynamic recrystallization microstructure during the thermal deformation of rare-earth magnesium alloys. The simulated results align well with relevant theories and metallographic experimental results, enabling the simulation of the dynamic recrystallization microstructure and grain size prediction during the deformation process of rare-earth magnesium alloys. Full article

A new heat source combination, consisting of a uniform body heat source and a tilted double ellipsoidal heat source, has been developed for cold metal transfer (CMT) wire-arc additive manufacturing of Mg-Gd-Y-Zn-Zr alloy. Simulations were conducted to analyze the temperature field and stress distribution during the process. The optimal combination of feeding speed and welding speed was found to be 8 m/min and 8 mm/s, respectively, resulting in the lowest thermal accumulation and residual stress. Z-axis residual stress was identified as the main component of residual stress. Electron Backscatter Diffraction (EBSD) testing showed weak texture strength, and Kernel Average Misorientation (KAM) analysis revealed that the 1st layer had the highest residual stress, while the 11th layer had higher residual stress than the 6th layer. Microhardness in the 1st, 11th, and 6th layers varies due to residual stress impacts on dislocation density. Higher residual stress increases dislocation density, raising microhardness in components. The experimental results were highly consistent with the simulated results. Full article

Mg alloys with excellent high-temperature mechanical properties are urgently desired to meet the design requirements of new-generation aircraft. Herein, novel cast Mg-10Gd-2Y-0.4Zn-0.2Ca-0.5Zr-xAg alloys were designed and prepared according to the advantages of multi-component alloying. The SEM and XRD results revealed that the as-cast microstructures contained α-Mg grains, β, and Zr-containing phase. As Ag rose from 0 wt.% to 2.0 wt.%, the grain size was refined from 40.7 μm to 33.5 μm, and the β phase significantly increased. The TEM observations revealed that the nano-scaled γ′ phase could be induced to precipitate in the α-Mg matrix by the addition of Ag. The stacking sequence of lamellar γ′ phases is ABCA. The multiple strengthening phases, including β phase, γ′ phases, and Zr-containing particles, were effectively tailored through alloying and synergistically enhanced the mechanical properties. The ultimate tensile strength increased from 154.0 ± 3.5 MPa to 231.0 ± 4.0 MPa at 548 K when Ag was added from 0 to 2.0 wt.%. Compared to the Ag-free alloy, the as-cast alloy containing 2.0 wt.% Ag exhibited a minor reduction in ultimate tensile strength (7.0 ± 4.0 MPa) from 498 K to 548 K. The excellent high-temperature performance of the newly developed Mg-RE-Ag alloy has great value in promoting the use of Mg alloys in aviation industries. Full article

Despite the consensus on the constructive effect of LPSO (long-period stacking-ordered) phases, the true effect of bulk LPSO phases on strengthening and toughening in deformed magnesium alloys is still controversial. This article, which introduces the alloys Mg-8Gd-4Y-0.6Zn-0.5Zr, without bulk LPSO phases, and Mg-8Gd-4Y-1.6Zn-0.5Zr, containing bulk LPSO phases, details a systematically comparative analysis conducted to clarify the true contribution of bulk LPSO phases to the properties of as-extruded alloys. The results indicate that bulk LPSO phases significantly improve strength by refining grain sizes remarkably. But contrary to expectations, bulk LPSO phases themselves only provide a small strengthening effect and deteriorate plasticity, ascribed to the poor compatible plastic deformation of bulk LPSO phases. More importantly, this work may offer new insights into the strengthening and toughening of LPSO phases for further research and engineering applications of this series of alloys. Additionally, an example of a design strategy for Mg-Gd-Y-Zn alloys with superior strength and excellent plasticity is proposed at the end of this article. Full article

Alloys Mg-8Gd-4Y-0.6Zn-0.5Zr (referred to as 0.6Zn) without the bulk long-period stacking ordered (LPSO) phase and Mg-8Gd-4Y-1.1Zn-0.5Zr (referred to as 1.1Zn) containing the bulk LPSO phase were prepared and a series of hot compression tests were conducted to examine and evaluate the influence of the bulk LPSO phase on the thermal deformation behavior and characteristics of the Mg-Gd-Y-Zn-Zr alloy. The bulk LPSO phase affects the dynamic recrystallization behavior, resulting in differences in flow stress between two alloys under different conditions. Specifically, in the temperature range of 380~460 °C, compression at lower strain rates is beneficial for the LPSO phase to promote dynamic recrystallization, while compression at a high strain rate inhibits the dynamic recrystallization due to the severe deformation of the bulk LPSO phase to release the stress concentration instead. The increase in temperature helps the LPSO promote dynamic recrystallization. As a result, the LPSO phase promotes dynamic recrystallization at all experimental strain rates at 500 °C. Furthermore, the thermal processing maps of the 0.6Zn and 1.1Zn alloys are established, and their optimal processing windows are located at 500 °C/0.001~0.01 s⁻¹ and 500 °C/0.01 s⁻¹, respectively. In addition, the instability zones for the 1.1Zn alloy are much larger than that for the 0.6Zn alloy, which corresponds to the microcracks generated at the interfaces between α-Mg and bulk LPSO phases. Full article

In this study, the constitutive equation of the high-strength Mg-Gd-Y-Zn-Zr alloy sheet was established by tensile tests at different temperatures and different tensile rates. The U-shape bending forming process of the sheet was simulated under different process conditions by the DEFORM software. The variation rules of the stress field, strain field and free bending force of the formed parts were analyzed, and the accuracy of the finite element simulation was verified by the U-shaped bending test. Studies have shown that the equivalent stress, equivalent strain and free bending force decreased with the increase in forming temperature. With an increase in the stamping speed, the equivalent stress and free bending force increased, while the equivalent strain did not change significantly. Notably, the maximum difference in the free bending force between the test and simulation was less than 10%. The results of this study can provide guidance for the stamping forming of high-strength Mg-Gd-Y-Zn-Zr alloy sheets. Full article

Strengthening Mg alloys with rare earth elements has been a research focus for several decades. To minimize the usage of rare earth elements while enhancing mechanical properties, we adopted the strategy of alloying with multiple rare earth elements, namely Gd, Y, Nd, and Sm. Additionally, to promote the precipitation of basal precipitate, Ag and Zn doping was also induced. Thus, we designed a new cast Mg-2Gd-2Y-2Nd-2Sm-1Ag-1Zn-0.5Zr (wt.%) alloy. The microstructure of the alloy and its relevance to mechanical properties in various heat treatment conditions were investigated. After undergoing a heat treatment process, the alloy demonstrated exceptional mechanical properties, with a yield strength of 228 MPa and an ultimate tensile strength of 330 MPa achieved through peak-aging for 72 h at 200 °C. The excellent tensile properties are due to the synergistic effect of basal γ″ precipitate and prismatic β′ precipitate. In its as-cast state, its primary mode of fracture is inter-granular, whereas in the solid-solution and peak-aging conditions, the predominant mode of fracture is a mixture of trans-granular and inter-granular fractures. Full article

The microstructure and mechanical properties of semi-continuous casting Mg-Gd-Y-Zr magnesium alloys with different Zn contents were studied in this paper. The results showed that an increase in Zn content resulted in gradual refinement of the grains and a gradual increase in the volume fraction of the second phase. At a Zn content of 0.7 wt%, the microstructure was mainly composed of the α-Mg matrix and the Mg5(GdY) and long-period stacking order (LPSO) phases. An increase in the Zn content lowered the volume fraction of the Mg5(GdY) phase and increased the volume fraction of the LPSO phase. At a Zn content of 3.3 wt%, the microstructure was mainly composed of the α-Mg matrix and the LPSO phase. Among these alloys, the alloy without Zn addition showed an optimal ultimate tensile strength and yield strength of 229 MPa and 185 MPa, respectively, while the alloy with 3.3 wt% Zn showed an excellent elongation after fracture of 4.5%. The tensile fracture analysis indicated that the cracks of the alloy without Zn mainly originated at the trigeminal junction of the grain boundary, the cracks of the 0.7 wt% Zn and 1.5 wt% Zn alloy mainly originated at the interface of the Mg/lamellar LPSO phase, and the cracks of the 3.3 wt% Zn alloy mainly originated at the bulk LPSO phase of the grain boundary and then propagated along the bulk LPSO phase. Full article

In this paper, the influence of long-period stacked ordered (LPSO) phases on the electrochemical impedance spectroscopy (EIS) of a Mg-Gd-Y-Zn-Zr-Ag alloy in 0.9 wt.% NaCl was investigated. The Mg-6Gd-3Y-1Zn-0.5Zr-0.3Ag (wt.%) alloy samples with and without LPSO phases in the grain interior (HOMO and LPSO, respectively) were prepared using different heat treatments. The EIS results showed that both the HOMO and LPSO samples’ Nyquist diagrams contained two inductive loops. However, in the Nyquist plots of the LPSO samples, the inductive loops at 1.71–0.67 Hz appeared in the first quadrant rather than the fourth quadrant. Analysis of the fitting parameters illustrated that the abnormal shape of the inductive loops is related to greater values of the surface film capacitance C_f and double layer capacitance C_dl in the LPSO samples. Further investigations through corrosion morphology observation indicated that the greater values of C_f and C_dl in the LPSO samples resulted from the existence of intragranular LPSO phases that created more film-free areas. The above results show that a better understanding of the relationship between the inductive impedance and corrosion morphology of a Mg-6Gd-3Y-1Zn-0.5Zr-0.3Ag alloy in 0.9 wt.% NaCl solution was attained. Full article

In recent years, Mg alloys have attracted increased attention for biomedical application owing to their good biodegradability, biocompatibility, and biomechanical properties. However, rapid corrosion is still one of the most common limitations for their implanted application. In this work, the microstructure and corrosion behavior of the solution- and aging-treated Mg-xGd-1Zn-0.4Zr (x = 3, 6, and 9 wt%, denoted as GZ31K, GZ61K, and GZ91K, respectively) alloys were studied using optical microscope (OM), scanning electron microscope (SEM), immersion tests, electrochemical tests, and quasi in situ corrosion method. The results show that block Gd-rich precipitates and needle-like Zr-Zn-rich precipitates are formed as well as α-Mg matrix. With the increase in Gd content, the precipitates increase and the grain size first reduces and then increases. Corrosion experiment results show that the GZ61K alloy has the best corrosion resistance and the GZ91K alloy shows the highest corrosion rate among the three alloys in simulated body fluid (SBF). It is found that α-Mg is preferentially corroded and the precipitates have better corrosion resistance as compared to the α-Mg matrix. The GZ61K alloy with the corrosion rate of 0.23 mm/y in SBF shows a promising prospect for biomedical application. Full article

In this work, the microstructure, mechanical, and anti-wear properties of the alloyed-extruded-aged Mg-8.3Gd-4.5Y-1.4Zn-0.3Zr (wt%) alloys were investigated by X-ray diffraction (XRD), scanning electron microscope (SEM), nanoindentation, and wear tests. Results showed that the alloying—extrusion processing induced a significant grain refinement of magnesium resulting in the formation of bulk Mg₂₄(GdYZn)₅ at the grain boundaries. The grain size decreased from 116 μm in pure magnesium to 17 μm in alloyed-extruded magnesium, while the grain refinement, solid solution and second phase strengthening led to a hardness enhancement from 0.67 GPa in pure magnesium to 1.64 GPa in alloyed-extruded magnesium. Aging treatment further drove the structural homogenization of the alloyed-extruded magnesium resulting in an enhanced hardness of 1.83 GPa. During the sliding wear tests, a large-area plastic deformation layer formed on the wear track surface of pure magnesium, leading to an unstable friction coefficient and a high wear rate of 2.64 × 10⁻³ mm³·N⁻¹·m⁻¹. The alloying—extrusion—aging treatments effectively inhibited the formation of the plastic deformation layer. The wear rate of the alloyed-extruded material decreased to 1.60 × 10⁻³ mm³·N⁻¹·m⁻¹. In contrast, the alloyed-extruded-aged material showed a lower wear rate of 1.16 × 10⁻³ mm³·N⁻¹·m⁻¹. The wear failure mechanisms of all fabricated materials were further discussed according to the characterization results. Full article

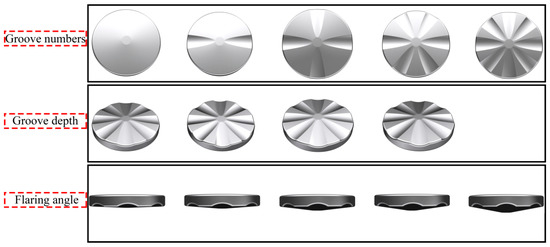

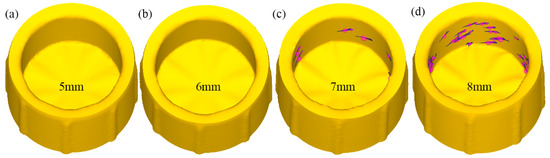

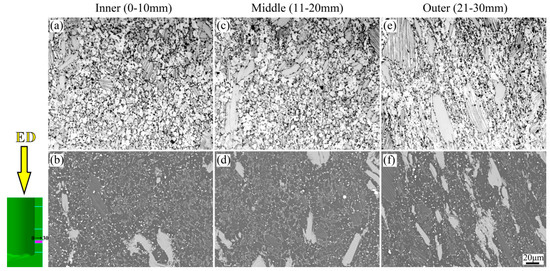

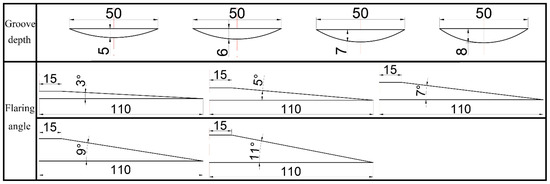

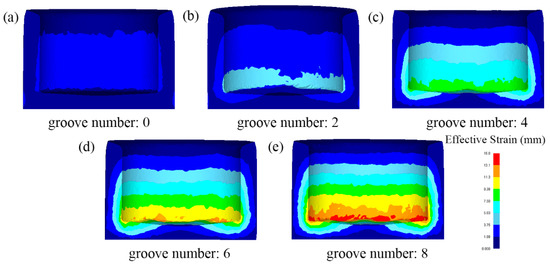

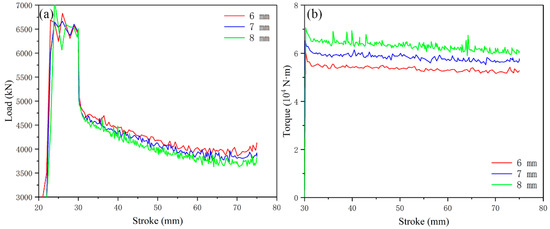

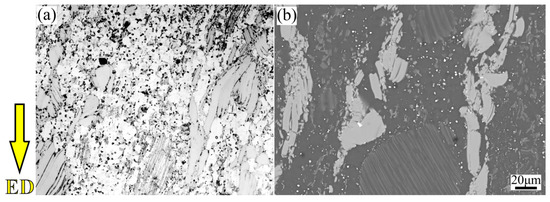

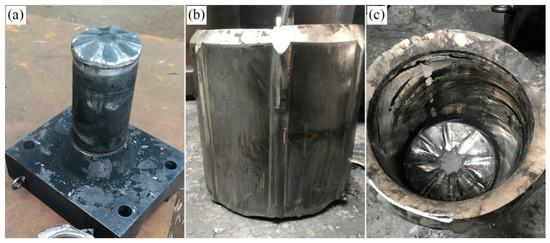

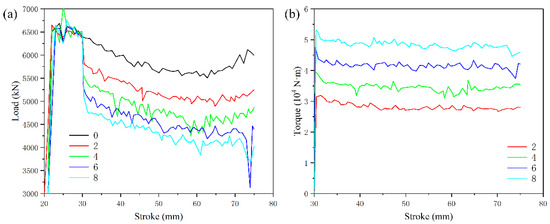

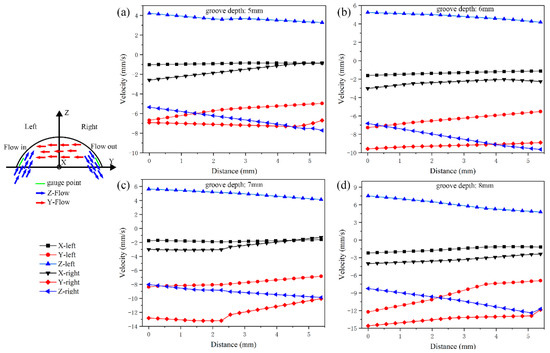

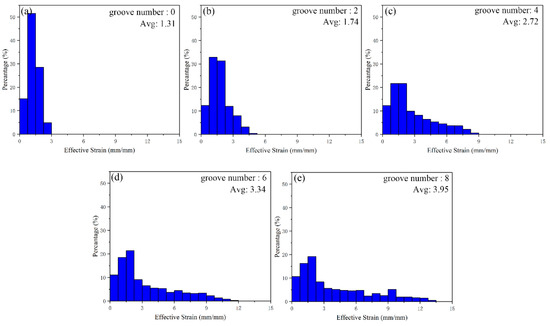

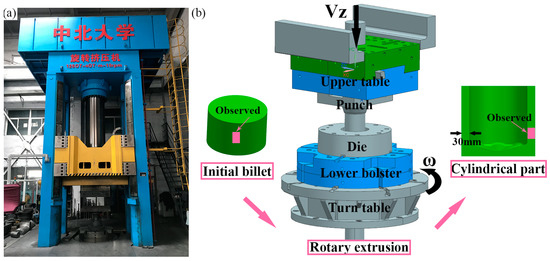

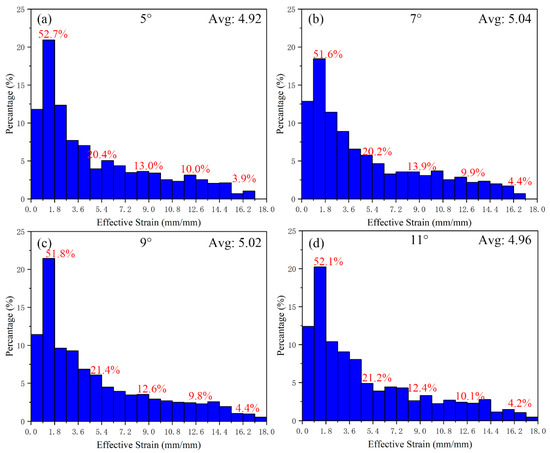

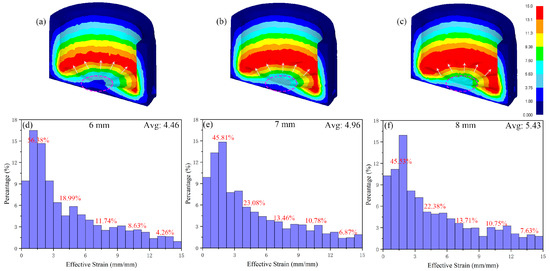

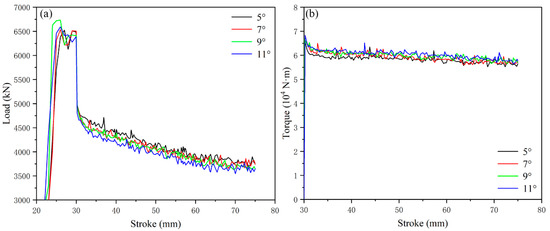

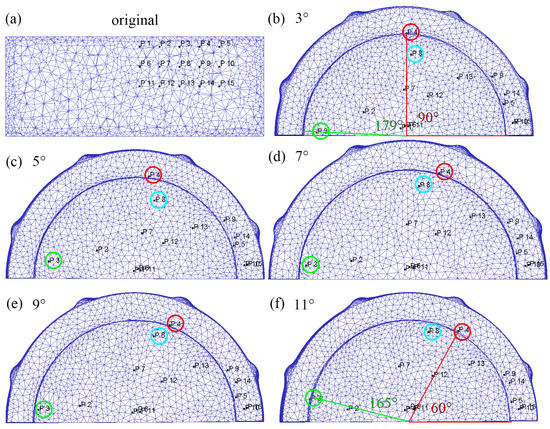

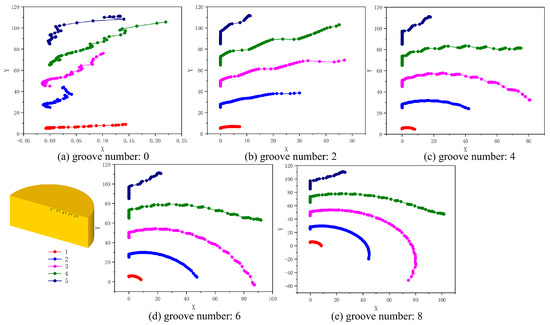

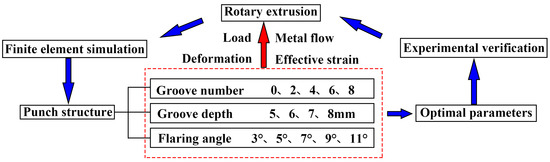

This article aims to explore the impact of the punch structure (number of grooves, area ratio of grooves, depth of grooves and flaring angle) on the loading, torque and metal flow during the rotary extrusion (RE) process via finite element simulation (FEM) software. In order to further verify the simulation results, physical experiments were carried out and the microstructure of Mg-Gd-Y-Zn-Zr alloy after RE deformation was characterized and analyzed. The FEM results indicated that increasing the groove number will increase the amount of shear deformation and promote the metal at the bottom of the punch to flow rapidly to the cylinder wall. The increase in the groove depth would continue to reduce the forming load and increase the strain. However, if the groove depth exceeded 6 mm, an excessive flow-velocity difference would be formed, resulting in the formation of folding defects. The time of metal flow from the bottom of the punch to the cylinder wall would be shortened with the increase in flaring angle. Therefore, a groove number of 8, an area ratio of 64.49%, a groove depth of 6 mm and a flaring angle ranging from 7° to 9° were the optimal parameters of the punch structure to form the Mg-Gd-Y-Zn-Zr cylindrical parts via the RE technique. In addition, the cylinder parts could be formed with good quality according to the optimized FEM results. The cylinder wall from inner region to outer region exhibited gradient microstructure owing to the different metal flow and strain during the RE process. Full article

Mg-13Gd-4Y-2Zn-0.4Zr (wt. %) alloy bar produced by three passes reciprocating upsetting extrusion (named as RUE-ed bar) exhibited fine grain with the average grain size of 3.02 μm. Hot compression tests of the RUE-ed bar were carried out on Gleeble-3800 compression unit at different deformation temperatures (653, 683, 713, and 743 K) and strain rates (0.001–1 s, 0.01–1 s, 0.1–1 s, and 0.5–1 s). This alloy showed work hardening and softening stages in hot compression, the thermal activation energy of the RUE-ed bar was 150 ± 1 kJ/mol and the constitutive equation was: $\dot{\epsilon }=1.80\times {10}^9{\left[\mathit{sinh}\left(0.0174\sigma \right)\right]}^{2.47}exp\left[-\frac{150\times {10}^3}{8.314\times T}\right]$. Numerous Mg₅ (Gd, Y, Zn) phase re-dissolved in α-Mg matrix appeared in the RUE-ed samples during hot compression deformation. The movement of the dislocation stimulated the re-dissolution of the Mg₅ (Gd, Y, Zn) phase. The re-dissolution of Mg₅ (Gd, Y, Zn) phase promoted texture strengthening and DRX grains growth in this experiment. In addition, the transformation and kinking of LPSO phase played an important coordinating role in the process of hot compression; 18R-LPSO was changed to 14H-LPSO phase at low strain rate while the LPSO phase kinked dominant to coordinated deformation at high strain rate. Full article
