Search Results (4)

In recent decades, the application of composite materials in aerostructures has significantly increased, with modern commercial aircraft progressively replacing aluminum alloys with composite components. This shift is exemplified by comparing the material compositions of the Boeing 777 and the Boeing 787 (Dreamliner). The Boeing 777 incorporates approximately 50% aluminum alloy and 12% composite materials, whereas the Dreamliner reverses this ratio, utilizing around 50% composites and 12% aluminum alloy. While metals remain advantageous due to their availability and ease of machining, composites offer greater potential for property tailoring to meet specific performance requirements. They also provide superior strength-to-weight ratios and enhanced resistance to corrosion and fatigue. To ensure the reliability of composites in aerospace applications, comprehensive testing under various loading conditions, particularly impact, is essential. Impacts were performed on quasi-isotropic (QIT) carbon-fiber reinforced epoxy panels with stainless steel, round-nosed and flat-ended impactors with rubber discs of 1-, 1.5- and 2 mm thickness, adhered to the flat-ended impactor to simulate the transition between hard and soft impact loading conditions. QIT composite panels were tested in this research employing similar lay-ups often being implemented in aircraft wings and other structures. The rubber discs were applied in the flat-ended impactor case but not for the round-nosed impactor due to the limited adhesion between the rubber and the rounded stainless-steel surface. Impact energies of 7.5, 15 and 30 J were investigated, and the performance of the panels was evaluated using force-time and force-displacement data alongside post-impact ultrasonic C-scan imaging to assess the damaged area. Damage was observed at all three energy values for the round-nosed impacts but only at the highest impact energy when using the flat-ended impactor, leading to the hardness study with adhered rubber discs being performed at 30 J. The most noticeable difference with the addition of rubber discs was the reduction in the damage in the plies nearest the top (impacted) surface. This suggests that the rubber reduces the severity of the impact, but increasing the thickness of the rubber from 1 to 2 mm does not notably increase this effect. Indentation clearly plays a significant role in promoting delamination at low-impact energies for the round-nosed impactors. Full article

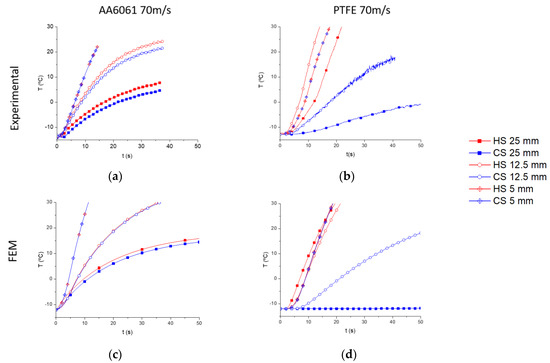

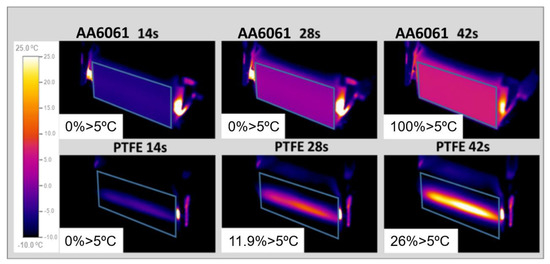

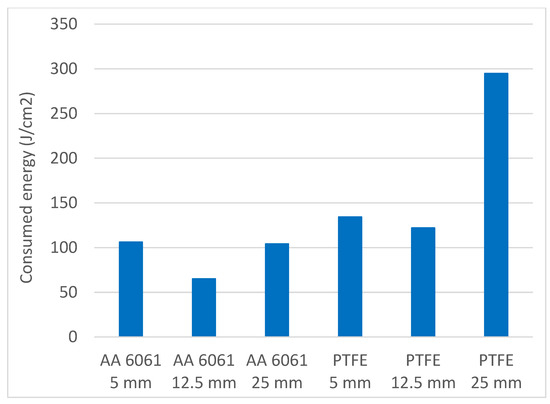

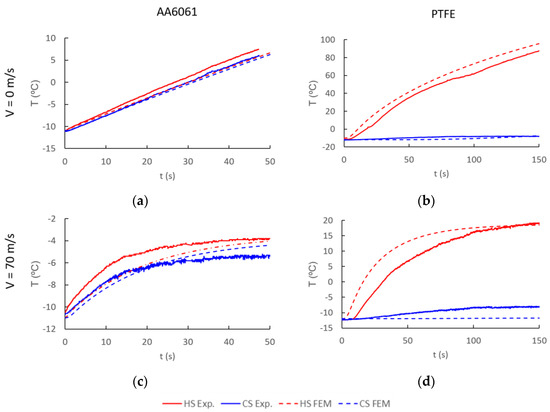

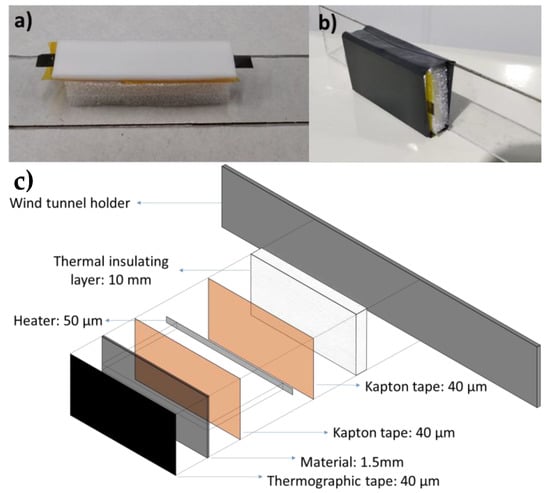

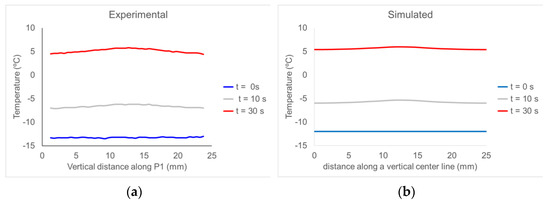

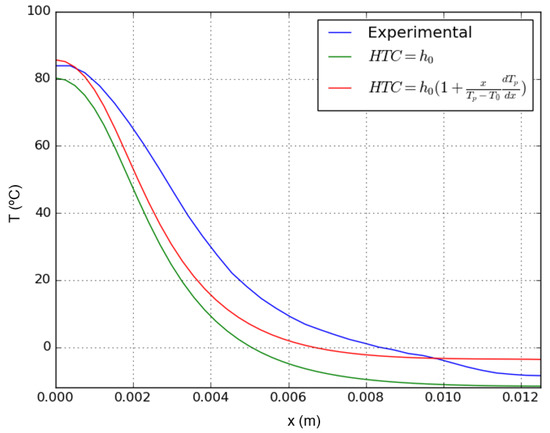

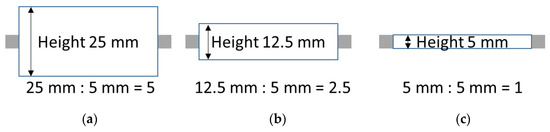

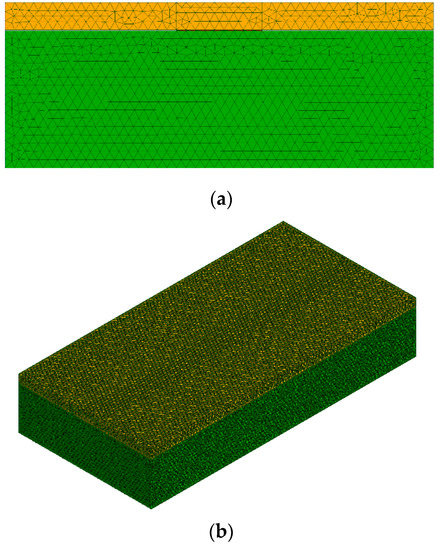

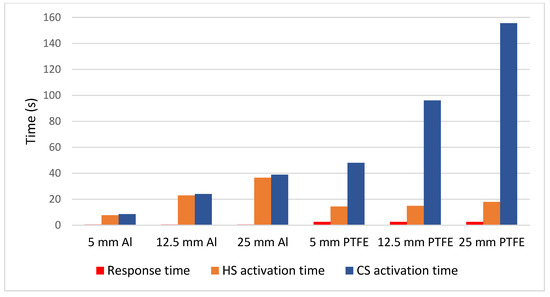

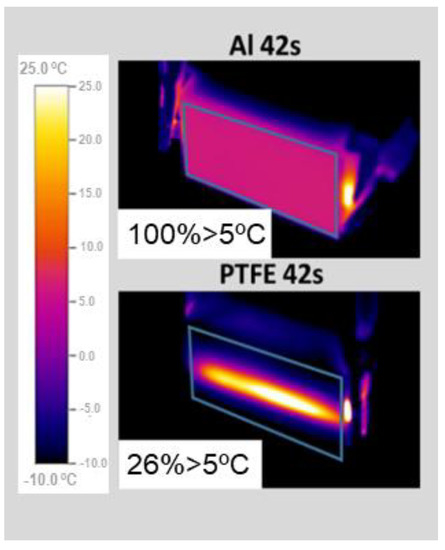

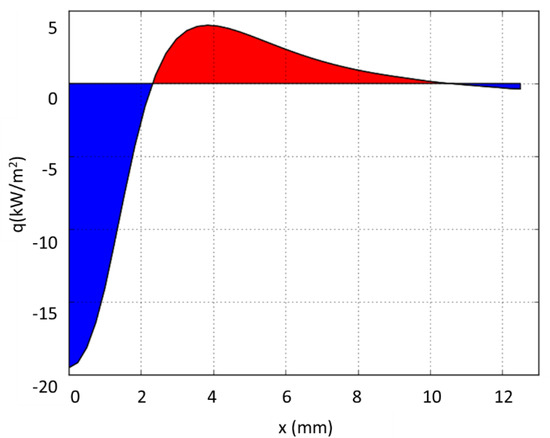

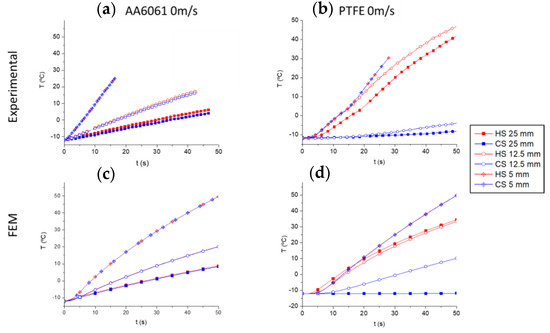

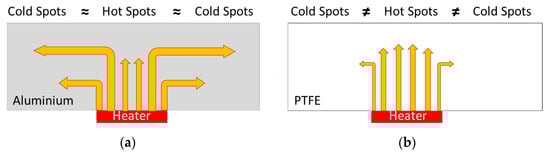

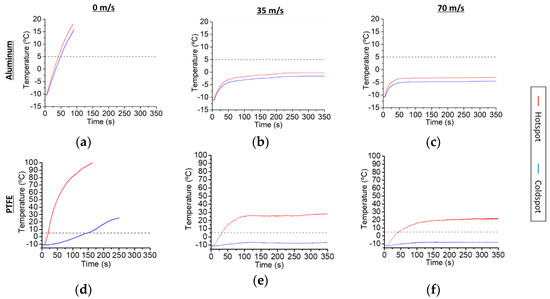

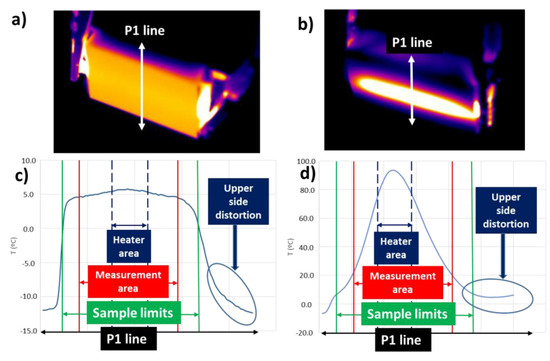

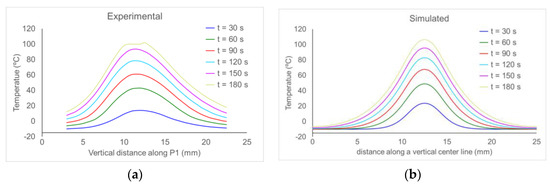

Icing is a major problem that affects the aeronautical sector, which is forced to use anti- and de-icing systems to ensure flight safety. The currently used systems are effective but exhibit high energy consumption. Resistive heating is used to prevent ice accretion or to release it once it has formed. To satisfy all the imposed airworthiness requirements, such as low aerodynamic impact, resistance to lightning strikes, no overheating, etc., multilayer systems are commonly configured with different layers fulfilling specific functions. For example, the Boeing 787 Dreamliner uses dry woven glass fiber fabric on top of the heating element to provide galvanic insulation and dielectric resistance. It satisfies the above-mentioned requirements, but its thermal conductivity is very low, therefore reducing energy efficiency. The thermal distribution of two materials (AA6061 aluminum alloy and PTFE) with significantly different thermal and electrical properties in contact with a heating element was studied. Finite element calculations and experimental testing in an icing wind tunnel were carried out at −12 °C under different convection conditions: natural (0 m/s) and forced (35 and 70 m/s), using specimens of different sizes. Heating elements areas were also varied. AA6061 showed homogeneous heating, whereas differences of up to 80 °C were observed when using PTFE. In addition, the test results highlighted the effect of forced convection and the need to evaluate these systems “in close to operative” conditions. The calculation results proved to it be an interesting tool for studying the behavior of the systems avoiding extensive testing. Full article

Since a laptop caught fire in 2006 at the latest, Li-ion cells were considered as more dangerous than other accumulators [1]. Recent incidents, such as the one involving a BYD e6 electric taxi [2] or the Boeing Dreamliner [3], give rise to questions concerning the safety of L#i-ion cells. This is a crucial point, since Li-ion cells are increasingly integrated in all kinds of (electric) vehicles. Therefore the economic success of hybrid electric vehicles (HEV) and battery electric vehicles (BEV) depends significantly on the safety of Li-ion cells. Lithium nickel manganese cobalt oxide (NMC) and lithium nickel cobalt aluminium oxide (NCA) are two standard Li-ion cathode chemistries, which are often used for today’s HEVs and BEVs Li-ion batteries. Cells with this two cathode technologies are investigated in detail and compared to cells with the alleged save lithium iron phosphate (LFP) technology. Furthermore only commercially available and mass produced Li-ion cells were tested, in order to get as close to real end-user applications as possible. To ensure comparability, cells with the most common 18650 casing have been used. Furthermore all cells had no built-in resistor with positive temperature coefficient (PTC-device). For each abuse test at least 2 cells have been tested to get to know the statistical dispersion. The spread was in all tests for all measured values of each cell type lower than 11 %. Consequently it can be supposed, that mass produced cells show equal behaviour also in abusive test. The performed electrical safety tests on these cells, involve overcharge, overdischarge and short circuit tests. These tests represent real abuse scenarios and are geared to established standards [15], [16], [17], [18]. To complete these measurements an accelerated rate calorimetry (ARC) test has been carried out, to determine the thermal stability of the cells. As in the literature discussed, the investigated LFP/C cells show a higher thermal stability and are therefore safer, although they do not have any overcharge buffer as the investigated NCA/C and NMC/C cells. Full article

On 16 January 2013, all Boeing 787 Dreamliners were indefinitely grounded due to lithium-ion battery failures that had occurred in two planes. Subsequent investigations into the battery failures released through the National Transportation Safety Board (NTSB) factual report, the March 15th Boeing press conference in Japan, and the NTSB hearings in Washington D.C., never identified the root causes of the failures—a major concern for ensuring safety and meeting reliability expectations. This paper discusses the challenges to lithium-ion battery qualification, reliability assessment, and safety in light of the Boeing 787 battery failures. New assessment methods and control techniques that can improve battery reliability and safety in avionic systems are then presented. Full article
