Search Results (3)

Manufacturing sectors, including automotive, aerospace, military, and aviation, are paying close attention to the increasing need for composite materials with better characteristics. Composite materials are significantly used in industry owing to their high-quality, low-cost materials with outstanding characteristics and low weight. Hence, aluminum-based materials are preferred over other traditional materials owing to their low cost, great wear resistance, and excellent strength-to-weight ratio. However, the mechanical characteristics and wear behavior of the Al-based materials can be further improved by using suitable reinforcing agents. The various reinforcing agents, including whiskers, particulates, continuous fibers, and discontinuous fibers, are widely used owing to enhanced tribological and mechanical behavior comparable to bare Al alloy. Further, the advancement in the overall characteristics of the composite material can be obtained by optimizing the process parameters of the processing approach and the amount and types of reinforcement. Amongst the various available techniques, stir casting is the most suitable technique for the manufacturing of composite material. The amount of reinforcement controls the porosity (%) of the composite, while the types of reinforcement identify the compatibility with Al alloy through improvement in the overall characteristics of the composites. Fly ash, SiC, TiC, Al₂O₃, TiO₂, B₄C, etc. are the most commonly used reinforcing agents in AMMCs (aluminum metal matrix composites). The current research emphasizes how different forms of reinforcement affect AMMCs and evaluates reinforcement influence on the mechanical and tribo characteristics of composite material. Full article

The poor formability of high volume fraction whisker reinforced aluminum matrix composites of original squeeze casting is an important factor restricting its further development and application. Currently, there are no reports on the secondary forgeability of aluminum matrix composites of original squeeze casting, although some papers on its first forgeability are published. The secondary forgeability is very important for most metals. This study aims to investigate the secondary forgeability of aluminum matrix composites. In this study, the secondary upsetting experiments of 20 vol% SiCw + Al₁₈B₄O₃₃w/2024Al composites, treated by the original squeeze casting and extrusion, were carried out. The first upsetting deformation is close to the forming limit, the secondary upsetting deformation under the same deformation conditions was carried out to investigate the secondary forgeability. The experimental results show that, unlike aluminum alloys, the 20 vol% SiCw + Al₁₈B₄O₃₃w/2024Al composites at the original squeeze casting and extrusion states have no secondary forgeability due to the whisker rotating and breaking during the secondary upsetting. The high volume fraction whisker reinforced aluminum matrix composites of original squeeze casting cannot be formed by the multiple-forging method since the cavities and cracks caused by whisker fracture continue to expand during secondary processing, which leads to further extension of macroscopic cracks. Full article

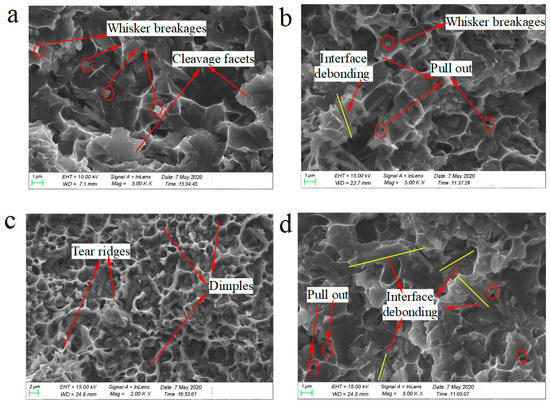

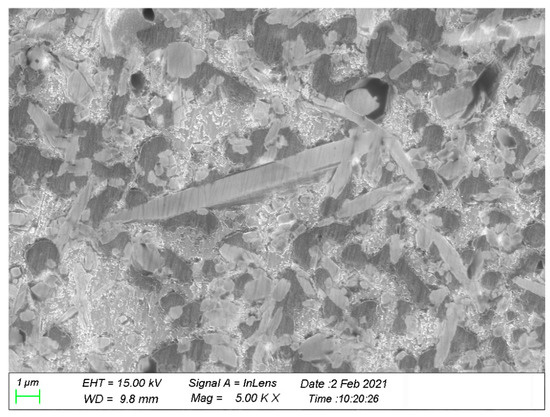

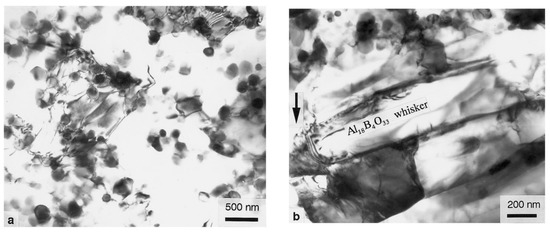

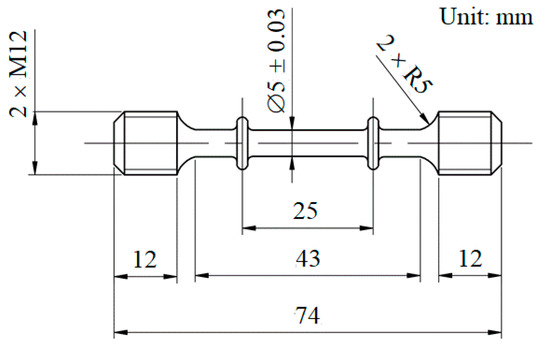

In order to evaluate the elevated temperature creep performance of the ABOw/Al–12Si composite as a prospective piston crown material, the tensile creep behaviors and creep fracture mechanisms have been investigated in the temperatures range from 250 to 400 °C and the stress range from 50 to 230 MPa using a uniaxial tensile creep test. The creep experimental data can be explained by the creep constitutive equation with stress exponents of 4.03–6.02 and an apparent activation energy of 148.75 kJ/mol. The creep resistance of the ABOw/Al–12Si composite is immensely improved by three orders of magnitude, compared with the unreinforced alloy. The analysis of the ABOw/Al–12Si composite creep data revealed that dislocation climb is the main creep deformation mechanism. The values of the threshold stresses are 37.41, 25.85, and 17.36 at elevated temperatures of 300, 350 and 400 °C, respectively. A load transfer model was introduced to interpret the effect of whiskers on the creep rate of this composite. The creep test data are very close to the predicted values of the model. Finally, the fractographs of the specimens were analyzed by Scanning Electron Microscope (SEM), the fracture mechanisms of the composites at different temperatures were investigated. The results showed that the fracture characteristic of the ABOw/Al–12Si composite exhibited a macroscale brittle feature range from 300 to 400 °C, but a microscopically ductile fracture was observed at 400 °C. Additionally, at a low tensile creep temperature (300 °C), the plastic flow capacity of the matrix was poor, and the whisker was easy to crack and fracture. However, during tensile creep at a higher temperature (400 °C), the matrix was so softened that the whiskers were easily pulled out and interfacial debonding appeared. Full article
