Search Results (10)

The 7000 series aluminum alloy represented by Al-Zn-Mg-Cu has good strength and toughness and is widely used in the aerospace field. However, its high Zn content results in poor corrosion resistance, limiting its application in other fields. In order to achieve the synergistic improvement of both strength and corrosion resistance, this study examines the response of strength, toughness and corrosion resistance of a high-strength aluminum alloy tail frame under aging conditions with external stresses of 135 MPa, 270 MPa and 450 MPa. The results show that with the increase in the external stress level, the strength of the alloy improves, while its corrosion resistance decreases. An optimal balance of strength, toughness and corrosion resistance is achieved at the conditions of 270 MPa-120–24 h. This phenomenon can be attributed to two main factors: first, lattice defects such as vacancy and dislocation are introduced into the stress aging process. The introduction of a vacancy makes it easier for neighboring solute atoms to migrate there. This makes the crystal precipitates more dispersed. Also, the number of precipitates in the matrix increases from 2650 to 3117, and the size is refined from 2.96 nm to 2.64 nm. At the same time, the dislocation entanglement within the crystal structure promotes the dislocation strengthening mechanism and promotes the solute atoms to have enough channels for migration. Since too many dislocations can cause the crystal to become brittle and thus reduce its strength, entangled dislocations hinder the movement of the dislocations, thereby increasing the strength of the alloy. Secondly, under the action of external force, the precipitated phase is discontinuous, which hinders the corrosion expansion at the grain boundary, thus improving the corrosion resistance of the alloy. At low-stress states, the binding force of vacancy is stronger, the precipitation free zone (PFZ) is significantly inhibited, and the intermittent distribution effect of intergranular precipitates is the most obvious. As a result, the self-corrosion current decreases from 1.508 × 10⁻⁴ A∙cm⁻² in the non-stress state to 1.999 × 10⁻⁵ A∙cm⁻², representing an order of magnitude improvement. Additionally, the maximum depth of intergranular corrosion is reduced from 274.9 μm in the non-stress state to 237.7 μm. Full article

In the present study, the hot roll bonding process of 7000 series aluminum alloy laminated materials was numerically simulated and investigated using the finite element method, and the process parameters were experimentally verified by properties testing and microstructure analysis after hot roll bonding. In the roll bonding process of aluminum alloy laminated materials, the effects of the intermediate layer, pass reduction ratio, rolling speed and thickness ratio of component layers were studied. The results of finite element simulations showed that the addition of a 701 intermediate layer in the hot roll bonding process could effectively coordinate the deformation of the 705 layer and 706 layer and prevented the warping of the laminated material during hot rolling. It is recommended to use a multi-pass rolling process with small deformation and high speed, and the recommended rolling reduction ratio is 20%~30%, the hot rolling speed is 1.5~2.5 m/s and the thickness ratio of the 705 layer and 706 layer is about 1:5. Based on the above numerical results, five-layer and seven-layer 7000 series aluminum alloy laminated materials were prepared by the hot roll bonding process. The results showed that metallurgical bonding was realized between each component layer, and no delamination was observed from the tensile fracture between the interfaces of component layers. The tensile strength of the prepared laminated materials decreased with the increase in the thickness ratio of the 705 layer, and the bonding strengths of the laminated materials were in the range of 88–99 MPa. The experimental results verified the rationality of the process parameters recommended by the numerical simulations in terms of warping and delamination prevention. Full article

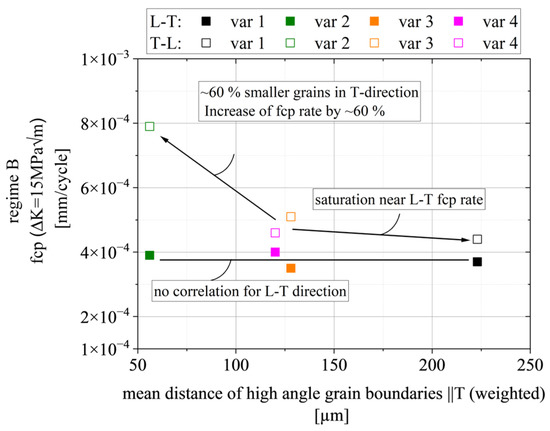

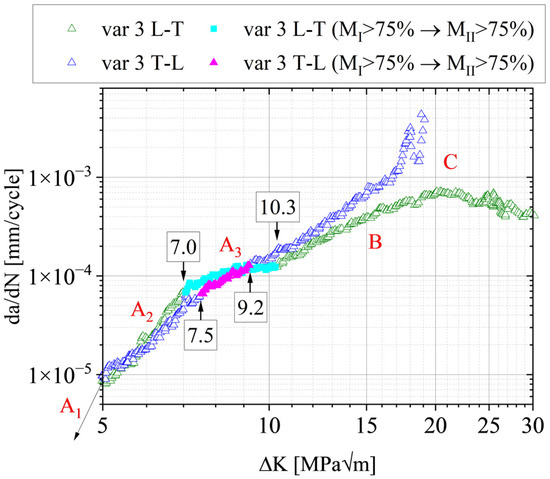

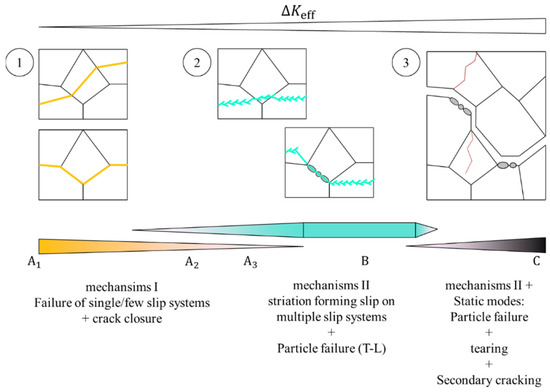

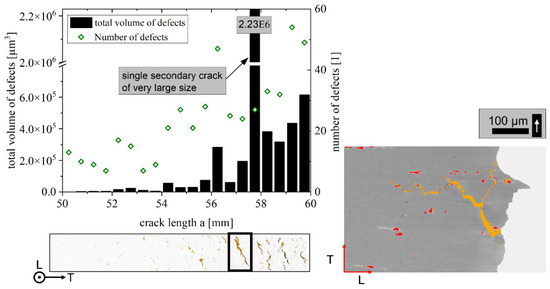

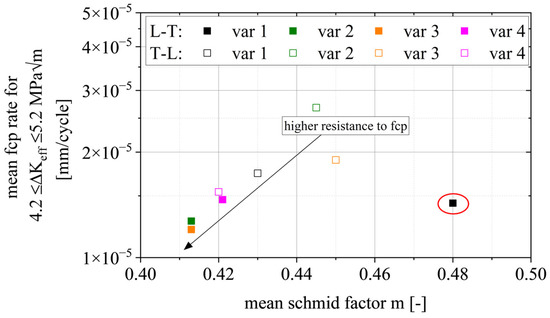

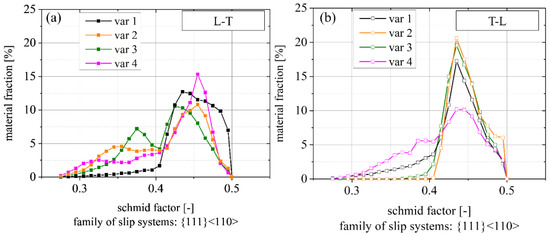

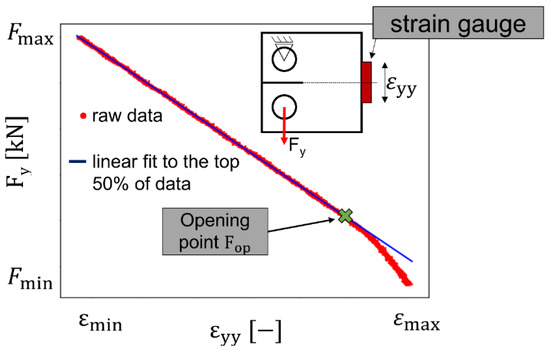

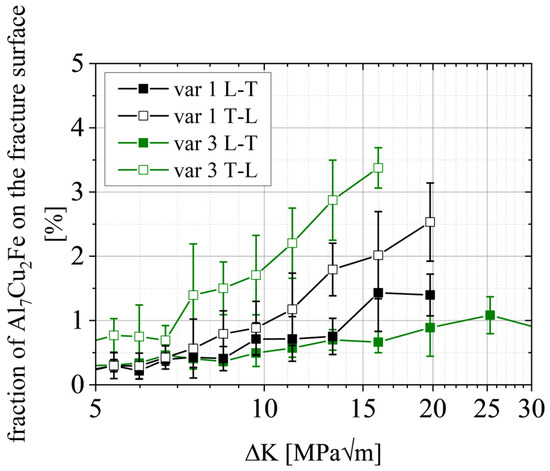

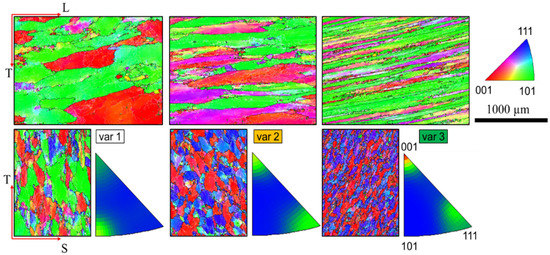

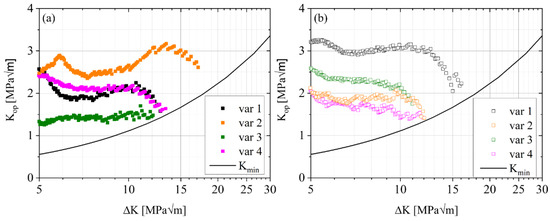

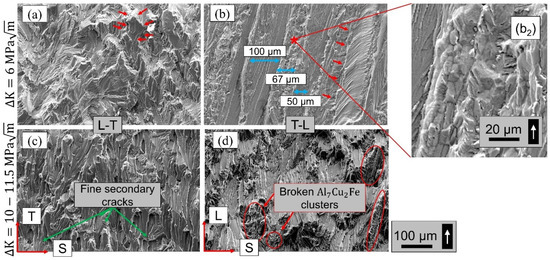

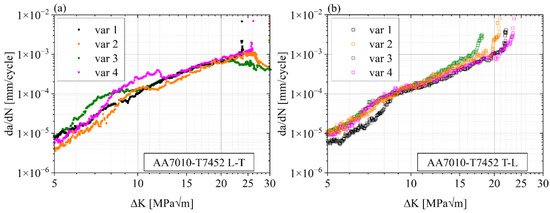

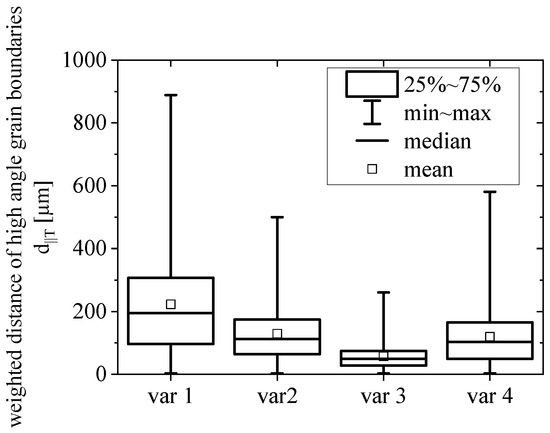

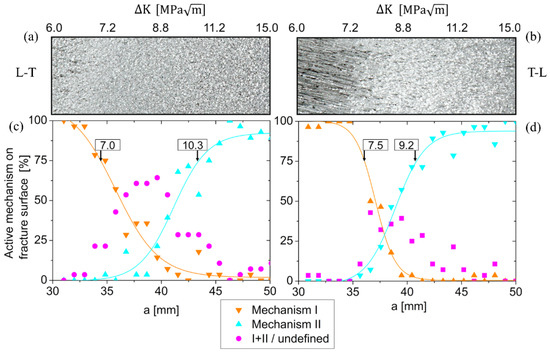

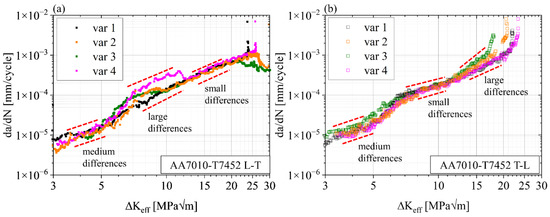

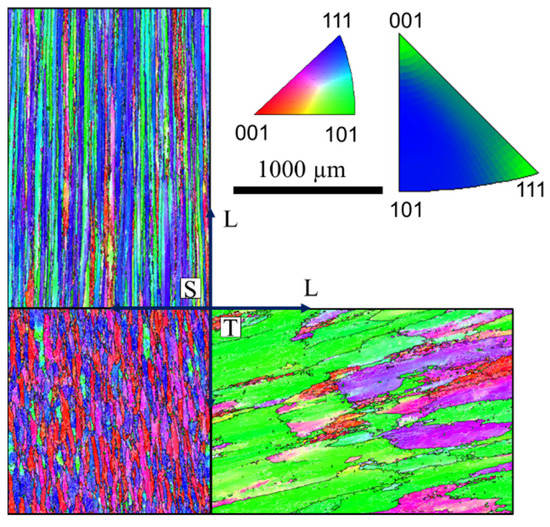

The process–microstructure–property relationship of high-strength 7000 series aluminum alloys during fatigue crack propagation (FCP) is highly relevant for safety during the design and service of aircraft structural components. It is scientifically evident that many metallurgical factors affect FCP properties, but partly contradictory or inconclusive results show that the quantitative description of the relationships is still a major challenge among researchers and engineers. Most research focuses on sheet or plate products and investigations lack quantitative information on the process–property relationship between open-die forged thick products and FCP. The present study contributes to this field by investigating the fatigue crack growth behavior of an open-die forged AA7010-T7452 aluminum alloy. Four different forging conditions comprising different characteristic microstructures are comparatively analyzed. The influence of grain size, grain shape, specimen orientation, crystallographic texture, and primary phase particles is investigated. Fractographic analysis reveals different active damage mechanisms during fatigue crack growth. Based on that, the microstructure features relevant to fatigue damage areidentified in each regime of crack growth. Full article

Creep-rupture properties and oxidation behavior of a series of alumina-forming austenitic (AFA) alloys with variations of Cr contents, based on Fe-(13.5-18)Cr-25Ni-4Al-1.5Nb-0.1C in weight percent, have been evaluated at 850–900 °C. The study investigates material responses in the properties and microstructure through compositional modifications in AFA alloys, targeting performance optimization of alloys under high-temperature, corrosive industrial environments. The creep-rupture life of the alloys at 850 °C and 30MPa monotonically decreased with increasing Cr content, which was correlated with changes in secondary phase volume fractions, such as the reduction in B2-NiAl + Laves-Fe₂Nb and increase in Sigma-FeCr with Cr content. The oxidation test at 900 °C in a water-vapor containing environment revealed a range of Cr content from 13.9 to 15.7 wt.%, enabling the formation of stable, protective external alumina scale as well as preventing internal oxidation/nitridation for up to total 7000 h exposure. On the other hand, the alloys with >16.7 wt.% Cr formed Sigma precipitates, which caused a reduction in not only Cr but also Al in the austenite matrix, resulting in less oxidation resistance than other alloys. The findings will guide the further optimization of material performance in the AFA alloy series. Full article

Currently, no commercial aluminum 7000 series filaments are available for making aluminum parts using fused deposition modeling (FDM)-based additive manufacturing (AM). The key technical challenge associated with the FDM of aluminum alloy parts is consolidating the loosely packed alloy powders in the brown-body, separated by thin layers of surface oxides and polymer binders, into a dense structure. Classical pressing and sintering-based powder metallurgy (P/M) technologies are employed in this study to assist the development of FDM processing strategies for making strong Al7075 AM parts. Relevant FDM processing strategies, including green-body/brown-body formation and the sintering processes, are examined. The microstructures of the P/M-prepared, FDM-like Al7075 specimens are analyzed and compared with commercially available FDM 17-4 steel specimens. We explored the polymer removal and sintering strategies to minimize the pores of FDM-Al7075-sintered parts. Furthermore, the mechanisms that govern the sintering process are discussed. Full article

In this study, the mechanical and microstructural properties of Al-Zn-Mg-Cu-Zr cast alloy with 0.1% Sc under homogeneous, dissolution, and T6 and thermomechanical treatments with the aim of increasing the volume fraction of MgZn₂. Al₃(Sc,Zr) reinforcing precipitates were examined by hardness, microscopic examinations, tensile tests and software analysis. The results showed that, firstly, the hardness results are well proportional to the results of the tensile properties of alloys and, secondly, the strength of the alloy with thermomechanical treatments compared to T6 treatments increased from 492 MPa to 620 MPa and the elongation increased from 8% to 17% and was 100% upgraded. Microstructural and fracture cross section investigations showed that Al₃(Sc,Zr) nanosize dispersoids were evenly distributed among MgZn₂ dispersoids and the alloy fracture was of semi-ductile type and nanosize dispersoids less than 10 nm were observed at the end of the dimples in the fracture section. The volume fraction of nanosize dispersoids in the whole microstructure of thermomechanical treatment samples was also much higher than that of T6 heat treated samples, so that the percentage of Al₃(Sc,Zr) precipitates arrived from less than 1% in T6 operation to 8.28% in the quench-controlled thermomechanical operation (with 50% deformation). The quality index (QI) in thermomechanical treatment samples is 19% higher than T6 samples, so that this index has increased from 641 in T6 operation to 760 in samples under thermomechanical treatment due to precipitate morphology, volume fraction of precipitates, their uniform distribution in the matrix, and nano sized precipitates in samples under thermomechanical treatment. Full article

The range of available aluminum alloy powders for laser powder bed fusion (LPBF) is restricted to mainly Al–Si based alloys. Currently aluminum alloy powders, designed for lightweight application, based on Al–Mg (5000 series), Al–Si–Mg (6000 series), or Al–Zn–Mg (7000 series), cannot be processed by LPBF without solidification cracks. This has an impact on the potential of LPBF for lightweight applications. In fusion welding, solidification cracks are eliminated by using filler materials. This study aims to transfer the known procedure to LPBF, by supplementing EN AW-5083 (AlMg4.5Mn0.7) with AlSi10Mg. EN AW-5083 and two modifications (+7 wt.% and +15 wt.% AlSi10Mg) were produced by LPBF and analyzed. It was found that, in EN AW-5083, the solidification cracks have a length ≥200 µm parallel to the building direction. Furthermore, the solidification cracks can already be eliminated by supplementing 7 wt.% AlSi10Mg. The microstructure analysis revealed that, by supplementing AlSi10Mg, the melt pool boundaries become visible, and the grain refines by 40% relative to the base alloy. Therefore, adding a low melting point phase and grain refinement are the mechanisms that eliminate solidification cracking. This study illustrates a practical approach to eliminate solidification cracks in LPBF. Full article

Complex concentrated alloys (CCAs) are new types of materials, where the equimolar rule proposed by high entropy alloys (HEAs) is modified in relation to the potential of the obtained structures. CCAs expend the compositional space of the conventional alloys, revealing new pathways for material design. The Al₇Cu_0.2Si_0.2Zn_0.2Mg_0.1 alloy was prepared in an induction furnace, in controlled atmosphere and was cast in a copper ingot mold. The resulting samples of Al₇Cu_0.2Si_0.2Zn_0.2Mg_0.1 were analysed by chemical, structural, and corrosion resistance. Furthermore, the alloy has been subjected to mechanical tests of hardness, elongation and tensile strength. The corrosion immersion tests were performed in 3wt% and 5wt% NaClsolution, and corrosion indices were measured periodically. The obtained corrosion film was analized by SEM-EDS to determine the composition and structural behaviour. Depending on the adhesion level, the corrosion film remained stable or partially broken and separated in the solution. The sample weight loss presented large variations between the various experimental conditions, but the general tendency was the decrease in the weight of the samples during the corrosion tests. The formation of oxide and chloride layers, during the corrosion process, determined only the dealloying in Al. Other elements remained in initial concentrations. Overall, the resistance of the alloy in saline environment seems to be promising, with significant improvement over the comparable compositions of 2000 and 7000 series aluminium alloys. Full article

Model 7000 series alloys with and without copper were fabricated into sheets to study precipitation hardening behavior under isothermal aging conditions. Samples of each alloy were subjected to 3 h annealing treatments at various temperatures to produce a range of precipitate size distributions. Hardness, electrical conductivity, and small-angle X-ray scattering (SAXS) were used to characterize the aging behavior of the two alloys. Precipitate size distributions were modeled from the scattering curves for each annealing condition using a maximum entropy method (MEM) and compared to select transmission electron microscopy (TEM) results. The measured average precipitate diameters from TEM were in good agreement with the average precipitate diameters determined from the scattering curves. Full article

The paper presents results of the investigations on the effect of low-temperature thermomechanical treatment (LTTT) on the microstructure of AlZn6Mg0.8Zr alloy (7000 series) and its mechanical properties as well as electrochemical and stress corrosion resistance. For comparison of the LTTT effect, the alloy was subjected to conventional precipitation hardening. Comparative studies were conducted in the fields of metallographic examinations and static tensile tests. It was found that mechanical properties after the LTTT were better in comparison to after conventional heat treatment (CHT). The tested alloy after low-temperature thermomechanical treatment with increasing plastic deformation shows decreased electrochemical corrosion resistance during potentiodynamic tests. The alloy after low-temperature thermomechanical treatment with deformation degree in the range of 10 to 30% is characterized by a high resistance to stress corrosion specified by the level of P_SCC indices. Full article
