Search Results (7)

In this article, the effects of high-energy proton irradiation on top-gate graphene field-effect transistors (GFETs) were investigated by using 20 MeV protons. The basic electrical parameters of the top-gate GFETs were measured before and after proton irradiation with a fluence of 1 × 10¹¹ p/cm² and 5 × 10¹¹ p/cm², respectively. Decreased saturation current, increased Dirac sheet resistance, and negative drift in the Dirac voltage in response to proton irradiation were observed. According to the transfer characteristic curves, it was found that the carrier mobility was reduced after proton irradiation. The analysis suggests that proton irradiation generates a large net positive charge in the gate oxide layer, which induces a negative drift in the Dirac voltage. Introducing defects and increased impurities at the gate oxide/graphene interface after proton irradiation resulted in enhanced Coulomb scattering and reduced mobility of the carriers, which in turn affects the Dirac sheet resistance and saturation current. After annealing at room temperature, the electrical characteristics of the devices were partially restored. The results of the technical computer-aided design (TCAD) simulation indicate that the reduction in carrier mobility is the main reason for the degradation of the electrical performance of the device. Monte Carlo simulations were conducted to determine the ionization and nonionization energy losses induced by proton incidence in top-gate GFET devices. The simulation data show that the ionization energy loss is the primary cause of the degradation of the electrical performance. Full article

The organic chemistry occurring in interstellar environments may lead to the production of complex molecules that are relevant to the emergence of life. Therefore, in order to understand the origins of life itself, it is necessary to probe the chemistry of carbon-bearing molecules under conditions that simulate interstellar space. Several of these regions, such as dense molecular cores, are exposed to ionizing radiation in the form of galactic cosmic rays, which may act as an important driver of molecular destruction and synthesis. In this paper, we report the results of a comparative and systematic study of the irradiation of CH₄:H₂O ice mixtures by 1 MeV protons and 2 keV electrons at 20 K. We demonstrate that our irradiations result in the formation of a number of new products, including both simple and complex daughter molecules such as C₂H₆, C₃H₈, C₂H₂, CH₃OH, CO, CO₂, and probably also H₂CO. A comparison of the different irradiation regimes has also revealed that proton irradiation resulted in a greater abundance of radiolytic daughter molecules compared to electron irradiation, despite a lower radiation dose having been administered. These results are important in the context of the radiation astrochemistry occurring within the molecular cores of dense interstellar clouds, as well as on outer Solar System objects. Full article

The Nagoya University Accelerator-driven Neutron Source (NUANS) is an accelerator-based neutron source by ⁷Li(p,n)⁷Be reaction with a 2.8 MeV proton beam up to 15 mA. The fast neutrons are moderated and shaped to beam with a Beam Shaping Assembly (BSA). NUANS is aiming at the basic study of the Boron Neutron Capture Therapy (BNCT) such as an in vitro cell-based irradiation experiment using a water phantom. Moreover, the BSA is developed as a prototype of one for human treatment. We have evaluated the radiation field of NUANS by a Monte Carlo code PHITS. It is confirmed that the radiation characteristics at the BNCT outlet meet the requirement of IAEA TECDOC-1223. Additionally, the radiation field in the water phantom located just in front of the BSA outlet is calculated. In the in vitro irradiation experiment, the boron dose of 30 Gy-eq, which is the dose to kill tumor cells, is expected for 20 min of irradiation at the beam current of 15 mA. Full article

Background: Radionuclides emitting Auger electrons (AEs) with low (0.02–50 keV) energy, short (0.0007–40 µm) range, and high (1–10 keV/µm) linear energy transfer may have an important role in the targeted radionuclide therapy of metastatic and disseminated disease. Erbium-165 is a pure AE-emitting radionuclide that is chemically matched to clinical therapeutic radionuclide ¹⁷⁷Lu, making it a useful tool for fundamental studies on the biological effects of AEs. This work develops new biomedical cyclotron irradiation and radiochemical isolation methods to produce ¹⁶⁵Er suitable for targeted radionuclide therapeutic studies and characterizes a new such agent targeting prostate-specific membrane antigen. Methods: Biomedical cyclotrons proton-irradiated spot-welded Ho_(m) targets to produce ¹⁶⁵Er, which was isolated via cation exchange chromatography (AG 50W-X8, 200–400 mesh, 20 mL) using alpha-hydroxyisobutyrate (70 mM, pH 4.7) followed by LN2 (20–50 µm, 1.3 mL) and bDGA (50–100 µm, 0.2 mL) extraction chromatography. The purified ¹⁶⁵Er was radiolabeled with standard radiometal chelators and used to produce and characterize a new AE-emitting radiopharmaceutical, [¹⁶⁵Er]PSMA-617. Results: Irradiation of 80–180 mg ^natHo targets with 40 µA of 11–12.5 MeV protons produced ¹⁶⁵Er at 20–30 MBq·µA⁻¹·h⁻¹. The 4.9 ± 0.7 h radiochemical isolation yielded ¹⁶⁵Er in 0.01 M HCl (400 µL) with decay-corrected (DC) yield of 64 ± 2% and a Ho/¹⁶⁵Er separation factor of (2.8 ± 1.1) · 10⁵. Radiolabeling experiments synthesized [¹⁶⁵Er]PSMA-617 at DC molar activities of 37–130 GBq·µmol⁻¹. Conclusions: A 2 h biomedical cyclotron irradiation and 5 h radiochemical separation produced GBq-scale ¹⁶⁵Er suitable for producing radiopharmaceuticals at molar activities satisfactory for investigations of targeted radionuclide therapeutics. This will enable fundamental radiation biology experiments of pure AE-emitting therapeutic radiopharmaceuticals such as [¹⁶⁵Er]PSMA-617, which will be used to understand the impact of AEs in PSMA-targeted radionuclide therapy of prostate cancer. Full article

This paper presents a design and working principle for a combined powder-in-gas target. The excellent surface-to-volume ratio of micrometer-sized powder particles injected into a forced carrier-gas-driven environment provides optimal beam power-induced heat relief. Finely dispersed powders can be controlled by a combined pump-driven inward-spiraling gas flow and a fan structure in the center. Known proton-induced nuclear reactions on isotopically enriched materials such as ⁶⁸Zn and ¹⁰⁰Mo were taken into account to be conceptually remodeled as a powder-in-gas target assembly, which was compared to thick target designs. The small irradiation chambers that were modeled in our studies for powdery ‘thick’ targets with a mass thickness (g/cm²) comparable to ⁶⁸Zn and ¹⁰⁰Mo resulted in the need to load 2.5 and 12.6 grams of the isotopically enriched target material, respectively, into a convective 7-bar pressured helium cooling circuit for irradiation, with ion currents and entrance energies of 0.8 (13 MeV) and 2 mA (20 MeV), respectively. Current densities of ~2 μA/mm² (20 MeV), induces power loads of up to 4 kW/cm². Moreover, the design work showed that this powder-in-gas target concept could potentially be applied to other radionuclide production routes that involve powdery starting materials. Although the modeling work showed good convective heat relief expectations for micrometer-sized powder, more detailed mathematical investigation on the powder-in-gas target restrictions, electrostatic behavior, and erosion effects during irradiation are required for developing a real prototype assembly. Full article

Gallium-68 is a popular radioisotope for positron emission tomography. To make gallium-68 more accessible, we developed a new solid target for medical cyclotrons. Fused zinc targets promise a new, efficient, and reliable technique without the downsides of other commonly used time-consuming methods for solid target fabrication, such as electroplating and sputtering. We manufactured targets by fusing small pressed zinc pellets into a recess in aluminum backings. Using a simple hotplate, the fusing could be accomplished in less than two minutes. Subsequently, the targets were cooled, polished, and used successfully for test irradiations at E_p = 12.8 MeV and up to 20 µA proton current. Full article

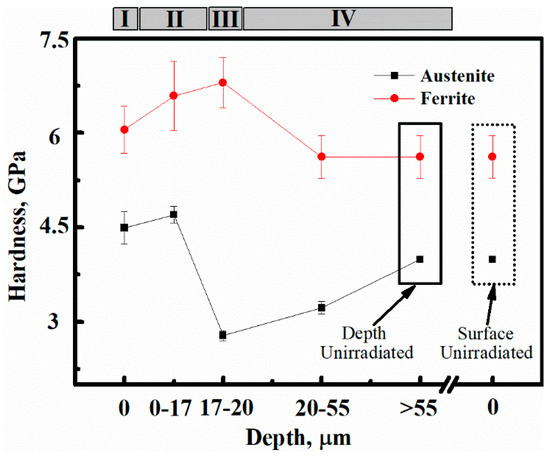

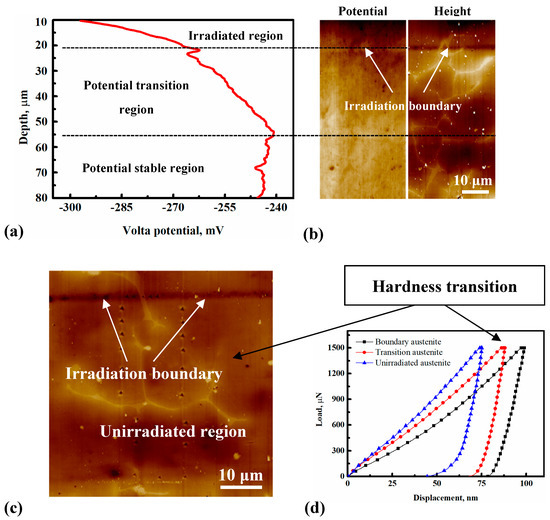

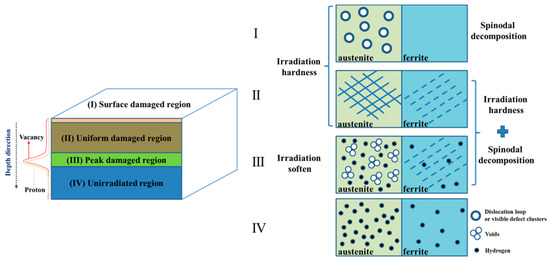

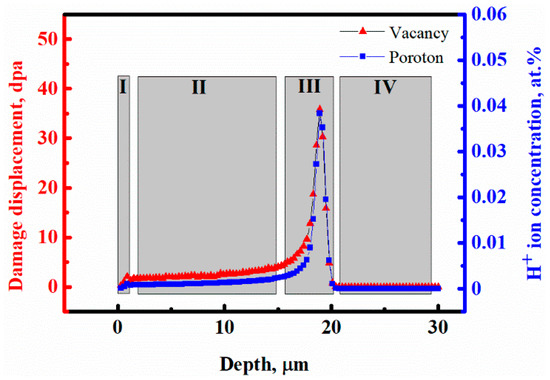

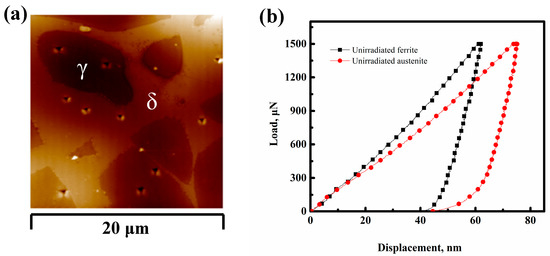

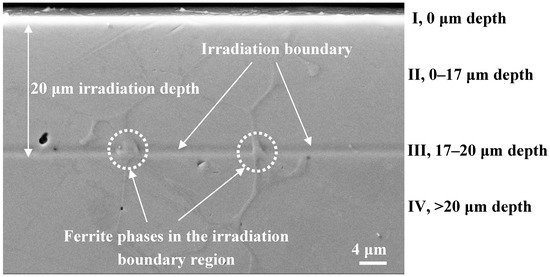

308L welding duplex stainless steel has been irradiated at 360 °C with 2 MeV protons, corresponding to a dose of 3 dpa at the maximum depth of 20 μm. Microhardness of the δ-ferrite and austenite phases was studied before and after proton irradiation using in situ nanomechanical test system (ISNTS). The locations of the phases for indentations placement were obtained by scanning probe microscopy from the ISNTS. The hardness of the δ-ferrite had a close relationship with the vacancy distribution obtained from the Stopping and Range of Ions in Matter (SRIM) Monte Carlo simulation code. However, the hardness of the austenite phase in the maximum damage region (17–20 μm depth) from the SRIM simulation was decreasing sharply, and a hardness transition region (>20 μm and <55 μm depth) was found between the maximum damage region (17–20 μm depth) and the unirradiated region (>20 μm depth). However, the δ-ferrite hardness behavior was different. A hardness of the two phases increased on the irradiated surface and the interior due to different hardening mechanisms in the austenite and δ-ferrite phases after a long time high-temperature irradiation. A transition region (>20 μm and <55 μm depth) of the Volta potential was also found, which was caused by the deeper transfer of implanted protons measured by scanning Kelvin probe force microscopy. Full article
