Quantum Biosensors on Chip: A Review from Electronic and Photonic Integrated Circuits to Future Integrated Quantum Photonic Circuits

Abstract

Quantum biosensors offer a promising route to overcome the sensitivity and specificity limitations of conventional biosensing technologies. Their ability to detect biochemical signals at extremely low concentrations makes them strong candidates for next-generation sensing systems. This paper reviews the current state of quantum biosensors and discusses their future implementation in chip-scale platforms that combine microelectronic and photonic technologies. It covers key quantum biosensing approaches including quantum dots (QDs), and nitrogen-vacancy (NV) centers. This paper also considers their potential compatibility with electronic integrated circuits (EICs), photonic integrated circuits (PICs) and integrated quantum photonic (IQP) systems for future biosensing applications. To our knowledge, this is the first review to systematically connect quantum biosensing technologies with the development of microelectronic and photonic chip-based devices. The goal is to clarify the technological trajectory toward compact, scalable, and high-performance quantum biosensing systems.

1. Introduction

Biosensing technologies have transformed clinical diagnostics, environmental monitoring, and public health surveillance. They are critical in clinical diagnostics for rapid and accurate detection of diseases, biomarkers, and pathogens, as well as in environmental monitoring for identifying pollutants, toxins, and pathogens [1]. In 1962, Clark and Lyons invented the first biosensor for the detection of blood oxygen content using enzymes. Since then, several efforts have been made to improve biosensing mechanism [2]. Advances in microfabrication and material science have facilitated the shift from traditional laboratory-scale devices to integrated chip-based sensors capable of rapid, label-free, and real-time detection. Electronic Integrated Circuits (EICs) represented the first significant breakthrough in chip-based biosensing. Since the introduction of complementary metal–oxide–semiconductor (CMOS) technology in the late 20th century, numerous EIC biosensors have been developed [3]. These devices detect biological signals by converting biochemical interactions into measurable electrical signals. EIC biosensors have demonstrated significant success, with applications including cardiovascular monitoring [4], cancer biomarker detection [5], and glucose sensing [6]. Nevertheless, fundamental limitations such as susceptibility to electrical noise, and power dissipation constraints have driven exploration into alternative integrated sensing paradigms.

Photonic Integrated Circuits (PICs) are one of the promising successors due to their advantages in speed, sensitivity, and immunity to electromagnetic interference. The first successful deployment of a commercial PIC was made in 2004 [7]. Since their inception in the early 2000s, PIC biosensors have utilized optical waveguides, ring resonators, and Mach–Zehnder interferometers (MZIs) to achieve high-performance biosensing capabilities. PIC-based sensors have been successfully applied in various critical domains, such as detecting cancer biomarkers [8], virus detection [9], and monitoring of water pollutants [10]. However, PIC technology still encounters challenges, including complex fabrication processes, precise optical alignment requirements, and optical nonlinearities that constrain broader practical adoption. Additionally, signal losses arising from waveguide geometry, coupling inefficiencies, and scattering remain a critical limitation in integrated photonic platforms, directly affecting sensing performance [11].

Parallel advancements in quantum technologies in early 2000s have introduced quantum sensing [12]. Thanks to quantum phenomena such as coherence, tunneling, and entanglement, these sensors can improve sensitivity and specificity limits in comparison with classical methods. Quantum biosensing approaches include quantum plasmonic sensors, quantum dots (QDs), and nitrogen-vacancy (NV) centers, each providing unique sensing mechanisms. Plasmonic quantum sensors detect molecular interactions by monitoring changes in light absorption or scattering from metal nanoparticles; quantum dot sensors exploit size-dependent fluorescence emission for detection; and NV center-based sensors use optically readable spin states in diamond for nanoscale bioimaging applications [13,14,15]. Nonetheless, quantum biosensors currently face significant integration challenges, including quantum state decoherence, complex readout systems, and the requirement for cryogenic temperatures in certain cases. In solid-state quantum structures such as quantum dots, coherence is often limited by phonon-induced decoherence. Studies have shown that exciton–phonon interactions significantly affect coherence dynamics in nanoscale structures, which is critical for sensing stability. Acknowledging these effects is essential for assessing the practical limits of quantum biosensors [16,17]. To address these limitations, integrated quantum photonic (IQP) biosensors have been considered as a future-oriented solution. IQP devices aim to combine quantum sensing principles with microelectronic and photonic integration on silicon platforms. In July 2025, Kramnik et al. [18] demonstrated the first integrated quantum photonic chip that combines electronic, photonic, and quantum components on a single silicon platform, fabricated in a commercial foundry for the first time, which is a major step toward IQP biosensors. Figure 1 shows biosensor development timeline. This paper explores the evolution of EIC, PIC, and quantum biosensors, highlighting their historical developments, advantages, and limitations. Unlike previous reviews that focus separately on quantum sensors or photonic/electronic integration, this work bridges quantum biosensing with on-chip EIC and PIC, outlining the pathway toward IQP for biomedical applications.

2. Materials and Methods

In preparing this manuscript, GPT-4 model, version 4.0, developed by Open AI, based in San Francisco, California, was used only as a tool for text refinement. This included improving the clarity of the text and correcting grammatical errors. The AI-assisted content was used as a support tool and did not generate any novel research data or insights. All decisions regarding the final content of the manuscript were made by the authors, who carefully reviewed all contents to ensure they met the publication’s ethical standards and the integrity of the research.

3. Fundamentals of Quantum Technologies

3.1. Introduction to Quantum Concepts

Quantum mechanics describes phenomena at atomic and subatomic scales and forms the basis of quantum technologies in sensing, imaging, and computing. In quantum information, a fundamental concept is the quantum bit (qubit). Unlike classical bits which exist only in definite states $|0⟩$ or $|1⟩$, a qubit can exist in a linear combination of both states. This phenomenon is called superposition. Equation (1) defines the superposition state of a two-level quantum system [19].

$$\left|\mathsf{\psi }\right.⟩=\alpha \left|0\right.⟩+\mathsf{\beta }\left|1\right.⟩,\hspace{1em}\mathrm{with} {\mid \alpha \mid }^2+{\mid \beta \mid }^2=1,$$

(1)

where $\alpha$ and $\beta$ are complex probability amplitudes. Superposition allows quantum systems to encode more information than classical devices, which is essential in quantum-accelerated tasks such as protein folding [20,21] and molecular structure search [22,23]. Another cornerstone is entanglement, in which two or more particles share a quantum state that cannot be described independently. A prototypical example is the Bell state (Equation (2)) [24]. Such entangled states form the foundation for quantum communication protocols and distributed sensing systems, which are increasingly being studied for biomedical applications requiring precise, correlated measurements [25,26].

$$\left|{\mathsf{\Phi }}^{+}\right.⟩={\displaystyle \frac{1}{\sqrt{2}}}[\left|00\right.⟩+\left|11\right.⟩].$$

(2)

Another fundamental idea is the Heisenberg uncertainty principle. This is mathematically expressed as Equation (3) and it imposes a lower bound on the simultaneous precision with which conjugate variables (e.g., position and momentum) can be known. This is fundamental to quantum measurement theory and directly influences the noise floor of biosensors and imaging systems [27,28]. This intrinsic uncertainty enables quantum-enhanced metrology. For instance, by exploiting squeezed states, quantum sensors can detect tiny magnetic or electric field fluctuations within biological tissues [29,30,31].

$${\mathsf{\sigma }}_x{\mathsf{\sigma }}_p\ge {\displaystyle \frac{\mathrm{\hslash }}{2}}.$$

(3)

Time evolution of quantum systems is governed by the Schrödinger equation (Equation (4)). Solutions to this equation form the basis for simulating quantum dynamics in biochemical systems, including reaction mechanisms and metabolic pathways [32,33].

$$i\mathrm{\hslash }{\displaystyle \frac{\partial }{\partial \mathrm{t}}}\left|\mathsf{\psi }\left(t\right)\right.⟩=\widehat{H}\left|\mathsf{\psi }\left(t\right)\right.⟩.$$

(4)

A key advantage of quantum sensors is their ability to surpass classical precision limits. The Standard Quantum Limit (SQL) represents the best possible precision achievable using classical resources. It states that the uncertainty in estimating a parameter $\theta$ scales inversely with the square root of the number of independent measurements or particles $N$ (Equation (5)).

$$\Delta {\mathsf{\theta }}_{\mathrm{SQL}}\sim {\displaystyle \frac{1}{\sqrt{N}}}.$$

(5)

When entangled resources are used, the measurement precision approaches the Heisenberg Limit (Equation (6)). This improved scaling is critical in the development of highly sensitive diagnostic tools for detecting weak biosignals, such as neural electromagnetic activity [34].

$$\Delta {\mathsf{\theta }}_{\mathrm{HL}}\sim {\displaystyle \frac{1}{N}}.$$

(6)

These quantum principles form the theoretical infrastructure upon which quantum microelectronic healthcare systems are being designed. Understanding these foundations is essential for translating quantum mechanics into clinical and biomedical technologies.

3.2. Quantum Phenomena in Biomedical Contexts

Quantum phenomena in the domains of physics and chemistry are now increasingly recognized for their roles in biological processes and healthcare technologies. These include tunnelling, coherence, and entanglement, which not only explain fundamental mechanisms in living systems but also enable next-generation diagnostics, sensing, and computation.

3.2.1. Quantum Tunnelling

One of the earliest and most well-established quantum effects in biology is quantum tunnelling, where subatomic particles such as electrons or protons cross energy barriers that are classically forbidden. In enzymatic catalysis, tunnelling enhances reaction rates far beyond what thermal activation can explain [35]. This enhancement can be modeled by incorporating a tunnelling correction factor $\left(\kappa \right)$ into the classical Arrhenius expression for the reaction rate (Equation (7)).

$$k=A\exp \left(-{\displaystyle \frac{G^{‡}}{k_{B}T}}\right)\kappa ,$$

(7)

where $A$ is the pre-exponential factor, $G^{‡}$ is the activation free energy, $k_B$ is Boltzmann’s constant, $T$ is temperature, and $\kappa$ quantifies the contribution from tunnelling. Recent studies have shown that hydrogen-transfer enzymes rely heavily on tunnelling mechanisms which influences drug metabolism [36]. Quantum models have also revisited proton tunnelling in DNA [36,37], originally proposed by Löwdin [38]. This has implications for cancer development [39] and genomic stability [40]. The role of tunnelling has also extended into virology. In 2022 and 2024, researchers modeled vibration-assisted electron tunnelling as a facilitator of SARS-CoV-2 spike protein binding to bioreceptors. By incorporating quantum state diffusion and vibrational mode coupling, these studies provided mechanistic insight into how viral proteins may exploit quantum-enhanced binding kinetics [41,42].

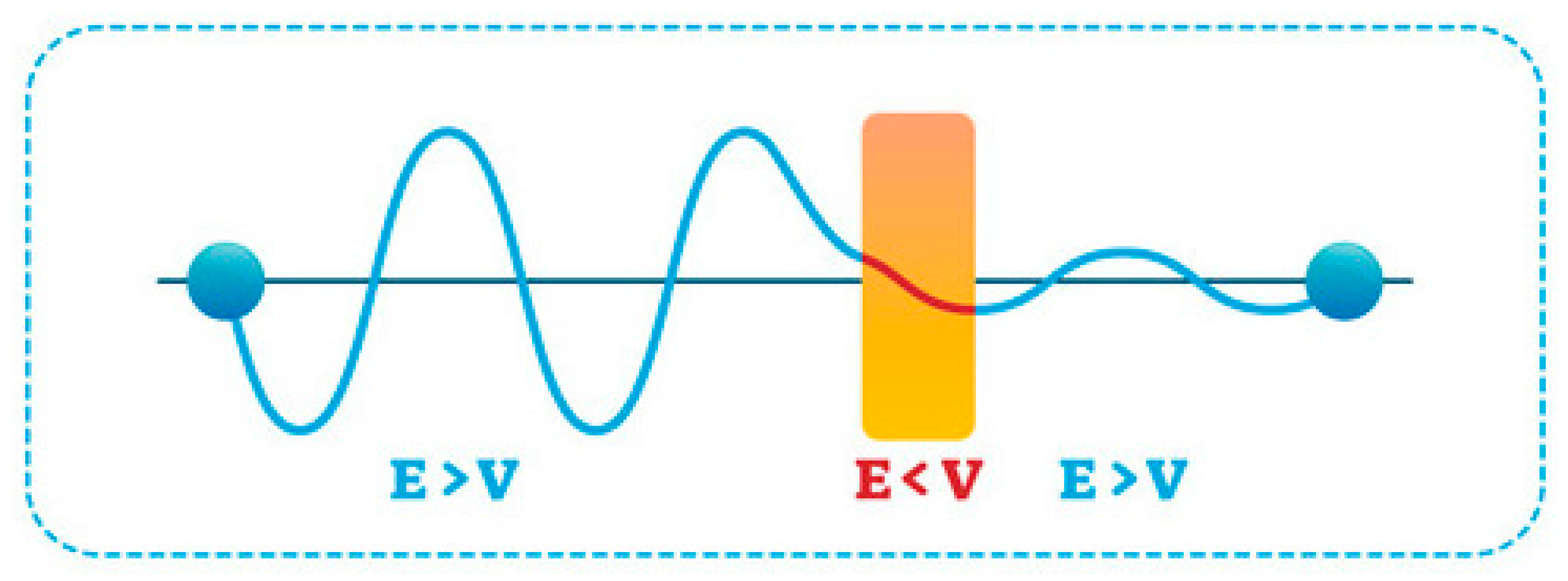

Figure 2 depicts the principle of quantum tunneling. In classical mechanics, a particle with energy (E) less than the barrier (V) cannot cross and is reflected back. In contrast, quantum mechanics describes the particle as a wavefunction that penetrates and decays exponentially within the barrier, even when its energy is lower than the barrier height. As shown in the graph, the wavefunction extends beyond the barrier, illustrating that there is a nonzero probability of finding the particle on the other side.

3.2.2. Quantum Coherence

Building upon the foundational understanding of tunnelling, recent advances have turned toward quantum coherence. Quantum coherence refers to the ability of a quantum system to maintain well-defined phase relationships between its states over time. The degree of coherence in a quantum sensor is often quantified by the coherence time $\left(T\right)$, which characterizes how long phase relationships are preserved (Equation (8)). T is typically extracted from decay curves using Ramsey or Hahn-echo measurements, with values ranging from nanoseconds in quantum dots to milliseconds in NV centers.

$$S\left(t\right)=S_{0}exp\left(-{\displaystyle \frac{t}{T}}\right),$$

(8)

where $S\left(t\right)$ is the signal at time $t$, $S_0$ is the initial signal amplitude and $\mathrm{T}$ is the coherence time. This phenomenon is used in quantum sensors, particularly those based on diamond nitrogen-vacancy (NV) centers, which exhibit extreme sensitivity to magnetic and electric fields [43]. These technologies are now being explored for biomedical applications, such as wearable magnetoencephalography (MEG) [44], real-time brain activity monitoring [45], and single-cell spectroscopy [46]. For example, Figure 3 illustrates how quantum coherence may play a role in neuronal function. The diagram shows quantum interactions between protein-based qubits within the nanoscale environment of a voltage-gated potassium channel. This suggests that quantum coherence within ion channels could influence neural signaling at the cellular level [47]. In this view, tiny quantum states inside the channel proteins (such as electron spins) may act like qubits that can interact and stay in superposition. These interactions could subtly change how the channel opens or closes, which in turn controls the flow of potassium ions. Because ion flow shapes nerve impulses, quantum effects at this scale might contribute to how neurons process and transmit information.

3.2.3. Quantum Entanglement and Superposition

Quantum entanglement and superposition are being applied in computational healthcare. Quantum processors can model complex molecular systems [48], accelerate drug discovery pipelines [49], and optimize personalized treatment strategies [50]. A growing body of work now demonstrates the feasibility of applying quantum machine learning to tasks such as genomic analysis [51], protein folding [52], and medical image reconstruction [53].

3.3. Quantum Devices: Qubits, Sensors, and Photons

Quantum devices are central to the development of quantum technologies in both computation and sensing. The main classes including qubits, quantum sensors, and photonic systems operate based on core quantum principles. Table 1 provides a comparative overview of these quantum devices. Qubits are quantum units of information that exist in superpositions of 0 and 1. Trapped ions and superconducting circuits were used in early qubit demonstrations and continue to serve as leading platforms in current scalable quantum computing architectures. For example, the Univ. of Oxford has recently reported the lowest error rate of 0.000015% for single-qubit operations in a trapped-ion quantum computer, based on using microwave-controlled Ca+ ions [54]. Penning traps are demonstrated to yield bilayer crystals with hundreds of self-organized ions, which opens new paths for a new generation of QIP experiments with multilayer 3D crystals of trapped ions [55]. State-of-the-art systems have also reported architectures approaching 3000 qubits [56], demonstrating that multi-qubit platforms now span a wider range of candidates beyond early implementations.

More recent developments include silicon spin qubits [57], diamond NV centers [58], and topological qubits [59]. Since 2016, superconducting platforms have shown considerable progress, with multi-qubit systems demonstrated by IBM and Google [60]. Solid-state qubits are also being applied in biomedical imaging and molecular sensing [61]. Quantum sensors measure physical quantities with extreme precision. For example, NV center magnetometers offer nanometer-scale resolution at room temperature [62]. Portable quantum sensors have advanced toward clinical use, such as quantum-enhanced magnetoencephalography (MEG) [63]. Photonic devices manipulate single photons for quantum information processing. Advances in integrated photonics have led to the development of on-chip entangled photon sources, and CMOS-compatible biosensors [64,65].

Table 1. Summary of Discussed Quantum Devices.

Class	Operating Principle	Implementations	Biomedical Applications	Advantages	Limitations
Qubits	Superposition, Entanglement	Trapped ions, Superconducting circuits, Silicon spin qubits, NV centers, Topological qubits [34,35,36,37]	Molecular sensing, Biomedical imaging [38]	Scalable, High fidelity	Decoherence, Cryogenic needs, Fabrication complexity
Quantum Sensors	Quantum coherence, Interference	NV center Magnetometers [62]	Brain imaging, Nanoscopic magnetic sensing [39]	High sensitivity, Room-temperature	Integration challenges, SNR issues
Quantum Photonic	Single-photon	On-chip photon sources, CMOS-compatible biosensors [41,42]	Optical biosensing, Quantum communication	Compact, Fast, Low noise, CMOS-compatible	Photon loss, Detection inefficiency

Table 1. Summary of Discussed Quantum Devices.

Class	Operating Principle	Implementations	Biomedical Applications	Advantages	Limitations
Qubits	Superposition, Entanglement	Trapped ions, Superconducting circuits, Silicon spin qubits, NV centers, Topological qubits [34,35,36,37]	Molecular sensing, Biomedical imaging [38]	Scalable, High fidelity	Decoherence, Cryogenic needs, Fabrication complexity
Quantum Sensors	Quantum coherence, Interference	NV center Magnetometers [62]	Brain imaging, Nanoscopic magnetic sensing [39]	High sensitivity, Room-temperature	Integration challenges, SNR issues
Quantum Photonic	Single-photon	On-chip photon sources, CMOS-compatible biosensors [41,42]	Optical biosensing, Quantum communication	Compact, Fast, Low noise, CMOS-compatible	Photon loss, Detection inefficiency

3.4. Interfacing Quantum and Classical Systems

The operation of quantum technologies heavily depends on interfaces with classical electronics. These interfaces must reconcile differences in operating principles. Quantum systems rely on superposition, coherence, and low-temperature environments, while classical systems are deterministic, noisy, and typically operate in ambient environments. Recent research has focused on developing cryogenic-compatible CMOS control electronics for superconducting and spin qubits [66,67,68], and hybrid optoelectronic platforms for quantum photonic systems [69,70].

Table 2. Comparison of different quantum platforms.

Working Principle	Example	Temperature	Control Method	Latency	Pros	Cons
Superposition	Trapped Ions [71]	10–100 mK	Laser pulses, RF fields	10–500 µs	Precise control, High-fidelity entanglement	Bulky optics, Slow
Coherent Charge States	Superconducting Circuits [72]	10–20 mK	Microwave pulses	10–300 ns	Fast switching, Supports multi-qubit arrays	Low-temp, microwave crosstalk in dense arrays
Spin-Based	Silicon Spin Qubits [73]	50 mK–1 K	GHz pulses	1–10 µs	Compact, CMOS process fabrication	Low-temp, Noise-sensitive
Defect-Based Qubits	NV Centers [74]	300–700 K	Optical and microwave drive	1–500 µs	Room-temp	Weak signals, Hard on-chip integration
Quantum Photonic	Entangled Photons [70]	273–300 K	Electro-optic/thermal tuning	1–10 ns	Room-temp, Fast data rates	Complex setup, Optical loss

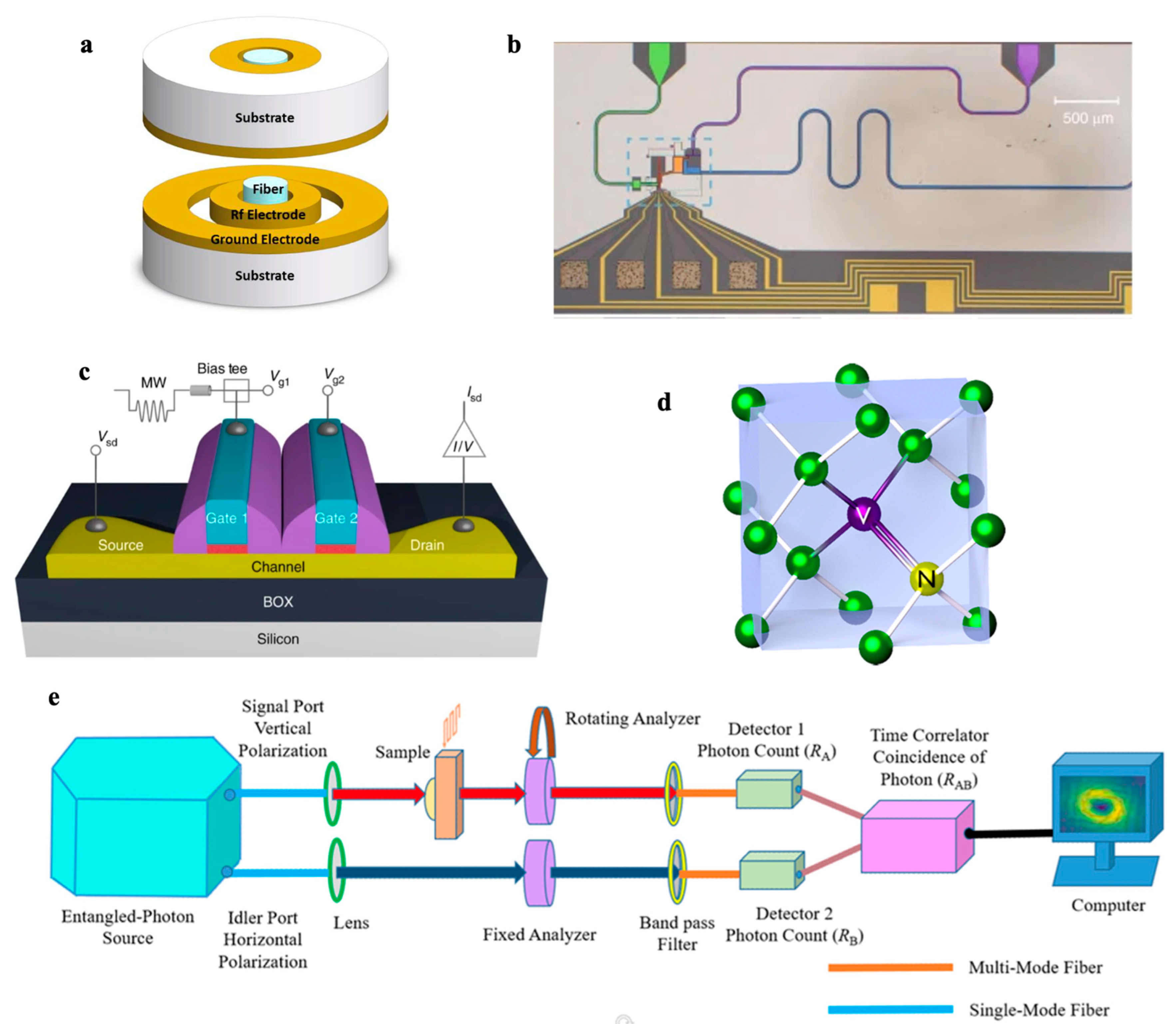

summarizes different quantum hardware factors. Among these, trapped ions (Figure 4a) are highly precise but still depend on large optical setups that do not easily translate to chip-scale electronics [71]. Superconducting circuits (Figure 4b) are impressive for their speed but require extremely low temperatures, which makes them harder to use in regular microelectronic setups [72]. Silicon spin qubits (Figure 4c) are attractive because they can be built using standard chip technology [73], while NV centers in diamond (Figure 4d) stand out for operating at room temperature but produce weak output signals that limit their use [74]. Photonic systems (Figure 4e) also work at room temperature and are already compatible with chip-based optics, making them strong candidates for integration.

4. Quantum Biosensing Systems

4.1. Quantum Sensing Principles

Quantum sensing uses quantum properties to measure physical quantities with higher sensitivity than classical sensors. A typical quantum sensing process has three essential stages. First, the quantum sensor is initialized into a well-defined quantum state, ensuring consistency across trials; multiple preparations are carried out to gather statistically meaningful data. Second, the sensor coherently interacts with the target system, during which quantum features like phase shifts or spin dynamics become imprinted with information about the physical quantity of interest. Finally, the quantum state is measured repeatedly, and the collected outcomes are analyzed to extract the signal with a high signal-to-noise ratio, with precision beyond what classical systems can achieve [80,81]. Quantum sensing applications include interferometry, gravitational wave detection, magnetometry, force sensing, biomedical sensing, and quantum radar. Quantum sensor applications span medical diagnosis, atmospheric sensing, and navigation systems. Among others, quantum sensors have demonstrated potential for early disease detection and non-invasive imaging techniques. Recent advances in wearable biosensing demonstrate the growing importance of integrated sensing and precise signal acquisition for developing next-generation diagnostic models [82,83]. Quantum sensors can also be used to identify different pollutants and provide precise data for climate models. Among the most precise quantum sensors are optical atomic clocks, which are used to search for new fundamental forces, test General Relativity, and detect dark matter and gravitational waves. Advances in entanglement-enhanced quantum metrology further demonstrate the potential of quantum correlations to surpass classical precision limits [84].

In this review, we focus on three major quantum sensing approaches: plasmonic, quantum dot (QD), and nitrogen-vacancy (NV) center-based sensors. Plasmonic sensors exploit quantum tunneling and surface plasmon resonance between metallic nanoparticles [85]. Quantum dot sensors use size-tunable semiconductor nanocrystals that exhibit discrete energy levels [86]. NV center sensors are based on atomic-scale spin defects in diamond that are highly responsive to magnetic, electric, or thermal changes, and are optically addressable at room temperature [87].

Table 3. Comparison of Different Quantum Sensing Approaches.

Criterion	Plasmonic	Quantum Dot (QD)	Nitrogen-Vacancy (NV) Center
Description	Uses metal nanoparticles to detect molecular interactions via shifts in light absorption or scattering.	Semiconductor nanocrystals that emit fluorescence when excited, with wavelength tunable by their size.	Defects in diamond that detect small magnetic or thermal changes through optical signals.
Biosensing Applications	Molecular binding, drug development.	Disease detection, biomarker sensing, bioimaging.	Magnetometry, viral detection, gene sensing, molecular tagging.
Sensitivity	Detects refractive index changes with high sensitivity.	Bright, tunable emission supports.	Spin-state readout enables single-molecule detection.
Limit of Detection (LOD ↓)	~1 fM–pM	~1 pM–nM	~1 aM–fM
Multiplexing	Enabled by engineering distinct plasmonic structures with different resonance frequencies.	Easily achieved through emission tuning across QDs.	Achieved using NVs with varied spin states or spatial encoding.
Limitations	Background interference and non-specific binding; requires precise surface engineering.	Fluorescence blinking, toxicity concerns, and spectral instability.	Low photon collection efficiency, need for complex optical setups.

Note: The symbol↓indicates that a lower LOD value represents higher sensitivity and better detection performance.

compares plasmonic, QD, and NV center-based sensors across key criteria. One important metric is the limit of detection (LOD), which defines the lowest concentration of analyte a sensor can detect. Comparing LODs, NV center-based sensors achieve the highest sensitivity, with LODs reaching the femtomolar range, followed by plasmonic sensors (picomolar), and then QD-based sensors (nanomolar). Another important metric is multiplexing capability, which refers to the sensor’s ability to simultaneously detect multiple targets in a single assay. Among these platforms, QD-based biosensors generally offer superior multiplexing due to their size-tunable, spectrally distinct emission. Plasmonic and NV center sensors can also be multiplexed, but typically with more limited spectral or spatial channels compared to QDs [88]. While plasmonic, QD, and NV-based sensors demonstrate high sensitivity, their scalability and integration readiness differ significantly. Plasmonic sensors offer simple fabrication but face challenges in surface functionalization. QD sensors enable multiplexing but encounter issues with toxicity and long-term stability. NV centers provide room-temperature operation and single-molecule resolution, yet are limited by photon collection efficiency and current fabrication complexity. Therefore, each sensing platform has specific strengths and limitations, and the choice depends on the target biosensing application.

4.2. Quantum Plasmonic Biosensors

Quantum biosensing can overcome classical noise limits through quantum techniques. One powerful implementation of these sensors involves plasmonic biosensors. plasmonic is a field of study focused on the behavior of light at the nanoscale, particularly how it interacts with electrons in metallic nanostructures. Quantum plasmonic biosensors are able to monitor real-time molecular bindings with exceptional sensitivity [89]. They can measure tiny changes at the nanoscale by tracking how electrons tunnel between two closely spaced metal nanoparticles. In 2016, Lerch and Reinhard [13] linked gold nanoparticles by DNA to detect molecular binding events. They showed quantum tunneling could be detected even when the particles are apart in nanometer scale. In this system, quantum tunneling refers to the process by which electrons pass through a nanoscale gap between metal nanoparticles.

Table 4. Specifications of the quantum plasmonic biosensor (Lerch and Reinhard [13]).

Parameter	Value
Nanoparticle material	Gold (Au)
Nanoparticle diameter	38.5 ± 4.6 nm
Interparticle Gap Distance (S)	0.5–2.8 nm (quantum regime)
DNA Linker Length	40 nucleotide/80 base pair
DNA conductivity	σ0 = 7.8 S/m (for S < 3 nm)

summarizes the main specifications of the described sensor. DNA conductivity measures how well the DNA linker can carry tunneling current, with a reported value of σ₀ = 7.8 S/m for gaps less than 3 nm. The tunneling current $I$ decreases exponentially with increasing gap distance $S$, as shown in Equation (9).

$$I\propto \exp \left(-{\displaystyle \frac{2S}{\mathsf{\lambda }}}\right),$$

(9)

where $\lambda$ is the decay length determined by the properties of the barrier (e.g., DNA type). Because of this exponential dependence, even tiny changes in gap size, such as when a protein or ion binds to the DNA lead to measurable changes in the current.

4.3. Quantum Dot (QD) Biosensors

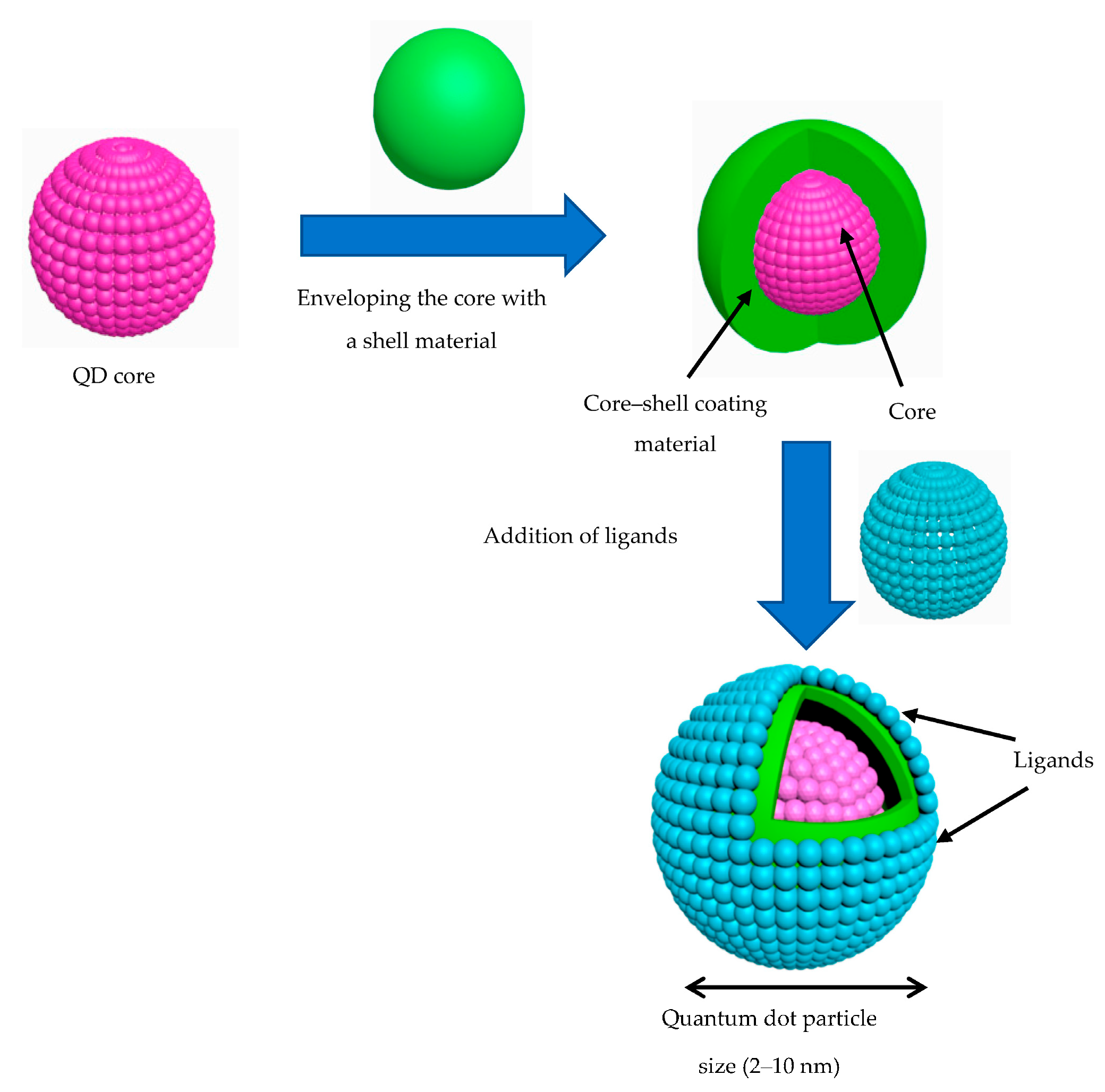

QD-based biosensors use semiconductor nanocrystals called quantum dots (QDs) for sensitive detection of biological targets. QDs emit bright, size-tunable light when excited, and their surfaces can be modified to bind specific biomolecules. When a target molecule interacts with a QD, it changes the dot’s fluorescence, providing a simple optical readout. Figure 5 shows QD basic structure. QDs are composed of a semiconductor core surrounded by an external shell and coated with surface ligands. The properties of the core primarily determine their optical characteristics, such as light absorption and emission, as well as their semiconducting behavior, including electrical conductivity [90]. Thanks to their strong, stable signal and ability to detect multiple targets at once, QD biosensors are widely used for biomarker detection and molecular imaging in biomedical research.

Recent advances demonstrate the versatility of QD-based biosensors across electrochemical, photoelectrochemical, and fluorescence platforms (

Table 5. Examples of Quantum Dot (QD) and Nitrogen-Vacancy (NV)-center Diamond Biosensors.

Type	Method	Application	Specification	Working Principle	Ref
Quantum Dot (QD) Biosensors	GQD electrochemical aptasensor	Streptomycin antibiotics detections	LOD: 0.0033 pg/mL; Linear range: 0.01–812.21 pg/mL	QDs increase electrode conductivity and active area, enabling sensitive detection via electron transfer changes upon target binding.	[92]
	NCQD, electrochemical sensor	Anticancer (flutamide) drugs detection in urine	LOD: 0.0169 μM; Linear range: 0.05–590 μM	NCQDs enhance electron transfer and surface area; quantum confinement in CQDs improves electrocatalytic sensing on the modified electrode	[93]
	GQD nano-ink immunosensor (Paper-based microfluidic)	Ovarian cancer (Carcinoma Antigen 125) biomarker detection in plasma	LLOQ: 0.001 U/mL; Linear range: 0.001–400 U/mL	Antibody-modified GQD nano-ink enables electrochemical detection via changes in current from antigen–antibody binding	[94]
	GQD electrochemical immunosensor (screen-printed electrodes)	Cancer metastasis biomarkers	LOD: 1.4 ng/mL (IL-13Rα2), 0.03 ng/mL (CDH-17)	GQDs enhance signal via peroxidase-like activity; hybrid nanocarriers amplify current from sandwich immunoassay	[95]
	NCQD perovskite Photoelectrochemical	FLS cells detection (Rheumatoid arthritis)	Linear range: 1 × 104–10 cells/mL; LOD: 2 cells/mL	QDs and perovskite enhance light absorption and charge separation, boosting photocurrent for ultrasensitive detection	[91]
	S-SiQD fluorescence probe	ClO− ion detection, imaging in cells and zebrafish	LOD: 13 nM; Linear range: 0.05–1.8 μM; Quantum yield: 38.5%	Surface sulfhydryl groups enable selective and rapid fluorescence quenching by ClO−	[14]
NV-center Diamond Biosensors	NV-center diamond quantum magnetometer	High-sensitivity magnetic field detection	Sensitivity: 1 nT/√Hz	Optically initializes and reads NV spin states; pulsed protocol filters noise for ultrasensitive magnetometry (biomedical and chip-scale)	[15]
	Spin-enhanced NV-center nanodiamond immunosensor	HIV-1 RNA detection (model biotin–avidin)	LOD: 8.2 × 10−19 M; ~100,000× more sensitive than gold-nanoparticles	Microwave-modulated NV center fluorescence separates signal from background, enabling record-low detection limits	[96]
	NV center nanodiamond quantum sensor	SARS-CoV-2 RNA detection	LOD: a few hundred RNA copies; <1% false negatives	NV centers in nanodiamonds detect magnetic noise from CRISPR-generated magnetic tags on RNA; optically read out	[97]
	NV center fluorescent nanodiamond relaxometry	Detection of free radicals (oxidative stress) in living cells	Single-cell resolution; real-time detection	NV center spin relaxation changes with local magnetic noise from free radicals.	[98]

Abbreviations: QD: Quantum Dots; GQD: Graphene Quantum Dot; NCQD: Nitrogen-doped Carbon Quantum Dot; S-SiQD: Sulfhydryl-functionalized Silicon Quantum Dot; NV: Nitrogen-Vacancy; LOD: Limit of Detection; LLOQ: Lower Limit of Quantification; FLS: Fibroblast-like Synoviocyte; ClO⁻: Hypochlorite; HIV: Human Immunodeficiency Virus; RNA: Ribonucleic Acid.

). In 2016, Pang et al. [91] introduced a photoelectrochemical biosensor based on NCQD-sensitized perovskite heterojunctions for detecting rheumatoid arthritis-related cells, reaching an LOD as low as 2 cells/mL [81]. In 2018, Roushani et al. [92] developed a graphene quantum dot (GQD)-based electrochemical sensor for streptomycin antibiotic detection, achieving an ultra-low LOD of 0.0033 pg/mL by enhancing electrode conductivity and surface area. In 2020, Muthusankar et al. [93] incorporated nitrogen-doped carbon QDs (NCQDs) with Co₃O₄ and carbon nanotubes to sensitively detect anticancer flutamide drugs in urine, to achieve an LOD of 0.0169 μM [78]. Meanwhile, Saadati et al. [94] fabricated a paper-based microfluidic immunosensor using GQD for ovarian cancer biomarker [79]. Moreover, a dual immunosensor by Serafín et al. [95] enabled simultaneous detection of cancer biomarkers using GQD composites for amperometric signal amplification, with LODs of 1.4 and 0.03 ng/mL, respectively [80]. In 2022, Wei et al. [14] reported sulfhydryl-functionalized silicon QDs with 38.5% quantum yield for imaging in live cells and zebrafish, with fluorescence quenching enabling detection down to 13 nM.

4.4. Nitrogen-Vacancy (NV) Center Diamond Biosensors

NV center diamond biosensors use atomic-scale defects in diamond for highly sensitive detection of biological signals. The NV center’s electron spin state is optically read out and is extremely sensitive to magnetic fields, temperature, or local chemical changes. These biosensors combine quantum-level sensitivity with room-temperature operation and have various applications such as single-molecule detection and nanoscale bioimaging. Figure 6 shows a typical NV center formation in the diamond lattice. It can exist in a neutral (NV⁰) or negatively charged (NV⁻) state, with the NV⁻ state being optically active and sensitive to external fields. A green laser excites the NV⁻ center in diamond, and the resulting spin-dependent fluorescence is detected by a photodetector. The NV center’s spin state is manipulated by microwave radiation. The local environment, such as magnetic fields or biomolecular interactions shifts the spin resonance [99]. In practice, the microwaves drive transitions between the $\mid m_s=0⟩$ and ∣$m_s$ = ±1⟩ spin levels, and any external perturbation changes the exact frequency at which these transitions occur. By monitoring how the resonance shifts under different conditions, the NV center can act as a highly sensitive probe of magnetic, thermal, or chemical variations at the nanoscale.

Various studies have used NV centers for highly sensitive biosensing (Table 5). In 2020, Zhang et al. demonstrated a chip-scale NV ensemble magnetometer using pulsed quantum filtering [15]. That same year, Miller et al. introduced a spin-enhanced NV nanodiamond lateral-flow immunosensor for HIV-1 RNA detection, approximately 100,000× more sensitive than conventional gold nanoparticles by separating signal from background through microwave modulation [96]. In 2021, Sharmin et al. applied fluorescent nanodiamonds to track oxidative stress in live cells, using NV spin relaxometry to detect free radicals in real time [98]. Most recently, Li et al. (2022) proposed an NV-based quantum sensor for SARS-CoV-2 RNA detection, employing CRISPR-induced magnetic tags and NV magnetometry for magnetic noise readout, reaching an LOD of a few hundred RNA copies and under 1% false negatives [97].

5. On-Chip Quantum Biosensing

5.1. From Electronic Chips to Photonic Circuits

Table 6. Comparison of electronic and photonic integrated circuit biosensors.

Technology	Electronic Integrated Circuit (EIC)	Photonic Integrated Circuit (PIC)
Advantage	Compact, scalable, cost-effective, readily available	High speed, low power consumption, immunity to electromagnetic interference, support high levels of multiplexing.
Limitation	Susceptible to electrical noise, electrode drift, and electromagnetic interference, speed limitation.	Complex fabrication, need precise optical alignment, technology is still evolving.
Specifications	SNR: 15–30 dB Multiplexing: up to 100 channels Footprint: ~0.01–10 mm2	Signal-to-Noise Ratio (SNR): 30–50 dB Multiplexing: 50–1000 channels Footprint: ~1–100 mm2
Application	Glucose biosensors, protein assays, cardiac sensors	Nucleic acid detection, protein biomarker panels, virus assays

compares Electronic Integrated Circuits (EICs) and photonic integrated circuits (PICs) biosensors, highlighting their respective strengths and trade-offs. While EICs offer compact integration and cost-effectiveness, PICs provide greater noise immunity and speed. The optimal platform depends on the demands of each application.

Electronic Integrated Circuits (EICs), particularly those based on complementary metal–oxide–semiconductor (CMOS) technology, have long served as the foundation for biosensing devices. In CMOS-based biosensors, signals from biological interactions, such as changes in impedance, voltage, or current are transduced and processed directly on-chip. In addition to CMOS, miniature microelectromechanical systems (MEMS) technologies have advanced the performance of EIC biosensors, offering superior sensitivity, greater miniaturization, and higher power efficiency compared to conventional electronic devices. MEMS-based biosensors use mechanical structures, such as cantilevers, membranes, or resonators that respond to forces or mass changes induced by biomolecular interactions [100]. Various electronic integrated circuit-based biosensors have been proposed for diverse biomedical targets (

Table 7. Comparison of some electronic integrated circuit (EIC)-based biosensors.

Type	Method	Working Principle	Specification	Application	Ref
CMOS	Bio-impedance IC	Impedance-based voltage/current sensing	Supply: 0.5 V; Power: <10 μW; Noise: 15.28 mΩ/√Hz; Phase error: <1°	Cardiovascular disease	[4]
	Capacitive CMOS	Capacitance change due to biomolecular binding	Power: 2.1 μW; Capacitance range: 16.137 pF; Resolution: 4.5 fF	Cancer enzyme biomarker (oncology)	[5]
	CMOS fluorescence microarray	Fluorescent emission, photodiode readout	Excitation: 532 nm; Dark current: ~12 fA; ADC resolution: 14-bit; Array size: 16 × 16	Genomics, DNA hybridization (bioassay platforms)	[101]
	CMOS potentiostat with carbon nanofiber	Amperometric current changes from glucose oxidation	Power: 71.7 μW; Sensitivity: 50–200 nA/mM; Electrode area: 0.09 mm2; Detection range: 0.5–7 μA	Diabetes, glucose	[6]
	CMOS picoamp current readout	Low-noise current readout for electrochemical biosensor arrays	Noise: 7.2 pA_rms; Power: 21 μW/channel; Area: 0.06 mm2/channel; Bandwidth: 11.5 kHz	Multiplexed biosensor readout, DNA sequencing	[102]
MEMS	MEMS resonator + microfluidics	Resonant frequency shift due to particle mass	Frequency: 16.5 kHz; Displacement: 1.44 μm; Q-factor: 49; Sensitivity: 1 × 1011 Hz/kg	Digital microfluidics, droplet (lab-on-chip)	[103]
	PDMS membrane	Membrane deflection from surface stress, interferometric readout	Membrane: 2.5 × 2.5 mm; Thickness: 35 μm; Young’s modulus: 12 kPa–2.5 MPa; Sensitivity: 0.56 × 10−5 N/m	E. coli (microbiology, pathogen screening)	[104]
	MEMS cantilever	Adsorption-induced stress, piezoresistive readout	LOD: 1 ppb (VOC); Cantilever: 150 × 500 μm; Resonant freq: ~12 kHz; Response time: <10 s	Cancer (lung, breast, prostate)	[105]
	MEMS cantilever	Resonant frequency shift of nickel cantilever	LOD: 0.1 ng/mL; Dynamic range: >1000×; Array: up to 16 cantilevers; Detection time: ~20 s	Hepatitis A/C virus, serum analysis	[106]
	MEMS ZnO Lamb wave resonator	Piezoelectric Lamb wave, frequency shift by DNA mass	Sensitivity: 310 Hz/ng/μL (DNA); LOD: 82 pg/μL; Frequency: 137 MHz; Membrane: 4.5 × 5.9 mm	DNA biosensing (meningitis pathogen)	[107]

Abbreviations: IC: integrated circuit; ADC: analog-to-digital converter; PDMS: polydimethylsiloxane; Q-factor: quality factor; LOD: limit of detection; CMOS: complementary metal–oxide–semiconductor; MEMS: miniature microelectromechanical systems; ZnO: zinc oxide; DNA: deoxyribonucleic acid; E. coli: Escherichia coli.

). For example, Kim et al. [4] developed a bio-impedance IC for cardiovascular monitoring with milliohm sensitivity. Alhoshany et al. [5] reported a CMOS capacitive sensor with femtofarad resolution for cancer biomarkers (Figure 7a), and Jang et al. [101] integrated on-chip photodiode arrays for DNA microarray assays. Al Mamun et al. [6] demonstrated amperometric glucose sensing using CMOS potentiostats and carbon nanofibers. Moreover, multiplexed CMOS readout circuits by Li et al. [102] enable the design of low-noise biosensor arrays. In other work, Mehdipoor et al. [103] introduced a MEMS resonator for microfluidic analysis with high mass sensitivity. Mechanical biosensors include Sang et al.’s [104] polydimethylsiloxane (PDMS) membrane sensor for E. coli detection (Figure 7c) and Kurmendra et al.’s [105] MEMS cantilever arrays for cancer biomarker detection. Timurdogan et al. [106] proposed hepatitis antigen detection using MEMS cantilevers (Figure 7b), while Bharati et al. [107] used a ZnO Lamb wave device for DNA biosensing (Figure 7d).

Microprocessor chips contain billions of transistors, leading to significant gains in computational speed and efficiency. Despite their advantages, EIC-based biosensors face several fundamental limitations [54]. To bypass CMOS constraints such as interconnect bottlenecks and power dissipation, photonic integrated circuits (PICs) were developed. These optical circuits overcome issues like signal delay and electromagnetic interference, but are still challenged by weak optical nonlinearity, and fabrication complexity [108].

5.2. Photonic Integrated Circuits for Biosensing

Photonic Integrated Circuits (PICs) process information using light instead of electrical signals. Recently, silicon photonic components are considered among the most promising platforms for photonic integration. They combine high refractive index contrast with full compatibility with CMOS microelectronic fabrication, and PICs can take advantage of established microelectronics manufacturing techniques (Figure 8c) [109]. PIC-based biosensors are commonly waveguide-based sensors, using ring resonators or interferometers to monitor changes in refractive index with high sensitivity. Changes in refractive index are typically quantified using the refractive index unit (RIU), which is as a standard metric for detection performance. RIU is a standard unit which measures how much light slows down as it passes through a material compared to vacuum. This unit allows for precise reporting of how sensitive a device is to small variations in the optical properties of the sample [110].

A waveguide is a narrow optical channel that directs light along a defined path on the chip. Some of the light traveling in the waveguide extends just outside its surface, forming what is called an evanescent field. When target biomolecules attach to the surface of the waveguide, they interact with this evanescent field and cause a change in the local refractive index. This, in turn, alters the properties of the light traveling through the waveguide, such as its speed or phase. Among the most widely used waveguide-based biosensing structures are ring resonators and Mach–Zehnder interferometers (MZIs), both of which exploit the evanescent field to detect local refractive index changes near the waveguide surface [111]. A ring resonator consists of a tiny closed-loop optical waveguide that traps light. It allows only specific wavelengths to resonate constructively. When biomolecules attach to the ring’s surface, they change the local refractive index, causing a shift in the resonance wavelength. An MZI splits light into two separate paths. One path is exposed to the sample, so that biomolecular binding alters its refractive index and therefore its optical path length. When the two light beams recombine, any difference in phase between the paths results in constructive or destructive interference, which can be measured as a change in output intensity. MZIs have demonstrated sensitivity to refractive index changes as small as ${10}^{-7}$ RIU [112].

Various PIC biosensors based on MZIs, and ring resonators have been proposed for label-free biosensing (

Table 8. Comparison of some photonic integrated circuit (PIC)-based biosensors.

Type	Method	Working Principle	Specification	Application	Ref
Mach–Zehnder Interferometer (MZI)	Si3N4 MZI + integrated laser source	Optical phase shift between split paths caused by binding events	Sensitivity: 6.8 × 10−6 RIU; LOD: ~1 ng/mL; Footprint: 3.5 × 0.6 mm2	Streptavidin–biotin sensing	[113]
	Spiral photonic wire MZI in SOI	Compact spiral MZI maximizes evanescent field–analyte interaction	LOD: 0.25 pg/mm2; Waveguide: 1.8 mm spiral; Channel width: 190 µm	Antibody–antigen detection	[114]
	3D femtosecond-laser-written MZI	Vertical sensing arm intersects fluidic channel orthogonally	LOD: 1 × 10−4 RIU; Spatial resolution: 10 µm; Channel width: 150 µm	Resolved label-free sensing	[115]
	Si3N4 rib nanodevice MZI	Evanescent field senses refractive index shifts	LOD: 7 × 10−6 RIU; Sensor length: 15 mm; Core thickness: 250 nm	Water pollutants detection	[8]
Ring Resonator	Subwavelength grating micro-ring	Antigen–antibody binding alters resonance in the ring	LOD: 1.31 fM; Detection time: 15 min; Q-factor: ~30,000	SARS-CoV-2 and influenza	[9]
	SiN ring resonator array with photonic packaging	Parallel resonance shift in functionalized rings	Q-factor: >4 × 104; ER: >20 dB; FSR: 2.54 nm	Respiratory antibody profiling	[10]
	Slotted plasmonic ring resonator	Enhanced field in slot increases sensitivity to refractive index	Sensitivity: 1609 nm/RIU; Spectral shift: 29.6 nm (ΔRI = 0.0184); Slot width: 10 nm	Water pollutants detection	[116]
	Rectangular semi-ring optical waveguide biosensor	Refractive index changes from biomolecular interaction shifts	LOD: 0.12 ng/mL; Linear range: 0.1–100 ng/mL; Sensor width: 800 nm	Hepatitis B virus	[117]
	Photonic crystal ring + PN phase shifter	Phase-tunable ring enables reconfigurable resonance sensing	Tuning range: 1.3–1.7 µm; Ring radius: 6 µm; Phase shift: π	General biomedical sensing	[118]
	Racetrack micro-ring resonator with dual ring readout	Refractive index changes shift resonance; monitored by intensity changes via secondary ring	Sensitivity: 110 nm/RIU; Delay: 10 ns at 100 MHz; Fabrication tolerance: ±8 nm	Liquid refractometry	[119]

Abbreviations: MZI: Mach–Zehnder Interferometer; PIC: Photonic Integrated Circuit; RIU: Refractive Index Unit; LOD: Limit of Detection; SOI: Silicon-On-Insulator; Si₃N₄: Silicon Nitride; Q-factor: Quality Factor; ER: Extinction Ratio; FSR: Free Spectral Range PN: P-type/N-type Semiconductor Junction.

). For example, Vogelbacher et al. [113] developed a Si₃N₄ MZI biosensor with an integrated laser diode for streptavidin–biotin assays (Figure 8d). Densmore et al. [114] demonstrated a spiral photonic wire MZI for antibody–antigen reactions. Crespi et al. [115] introduced a 3D femtosecond-laser-written MZI enabling spatially resolved label-free sensing with a 10 µm resolution. A rib-waveguide MZI was reported by Prieto et al. [8], for water pollutant monitoring. In micro-ring platforms, Ning et al. [9] proposed a resonator for femtomolar SARS-CoV-2 detection. Bryan et al. [10] realized multiplexed antibody profiling using SiN ring arrays (Figure 8a,b). Kumar et al. [116] developed a slotted plasmonic ring resonator for water pollutant sensing. Singh et al. [117] presented a rectangular semi-ring waveguide biosensor for hepatitis detection. Haron et al. [118] integrated a tunable photonic crystal ring with a PN phase shifter for dynamic wavelength control. Finally, Voronkov et al. [119] proposed a micro-ring with dual-ring interrogation for refractometric liquid sensing (Figure 8e).

Figure 8. Examples of photonic integrated circuit (PIC)-based biosensors (a) Fabricated and diced singleplex PIC for antibody profiling in upper respiratory disease, by Bryan et al. [10] (b) Fabricated and diced multiplex PIC, by Bryan et al. [10] (c) Schematic of a Silicon PIC packaged with a multi-channel quasi-planar coupled (QPC) fiber-array, a hybrid-integrated laser source based on a micro-optic bench (MOB), a vertically integrated electronic integrated circuit (EIC), and a thermo-electric cooler. [120] (d) Implementation of the waveguide MZI photonic lab-on-a-chip biosensor, by Vogelbacher et al. [113] (e) 3D design draft of the integrated microring (MRR)-based Photonic Sensing System for Liquid Refractometry, by Voronkow et al. [119] (Images are reprinted with permission from stated References).

Figure 8. Examples of photonic integrated circuit (PIC)-based biosensors (a) Fabricated and diced singleplex PIC for antibody profiling in upper respiratory disease, by Bryan et al. [10] (b) Fabricated and diced multiplex PIC, by Bryan et al. [10] (c) Schematic of a Silicon PIC packaged with a multi-channel quasi-planar coupled (QPC) fiber-array, a hybrid-integrated laser source based on a micro-optic bench (MOB), a vertically integrated electronic integrated circuit (EIC), and a thermo-electric cooler. [120] (d) Implementation of the waveguide MZI photonic lab-on-a-chip biosensor, by Vogelbacher et al. [113] (e) 3D design draft of the integrated microring (MRR)-based Photonic Sensing System for Liquid Refractometry, by Voronkow et al. [119] (Images are reprinted with permission from stated References).

5.3. Toward Integrated Quantum Photonics (IQPs)

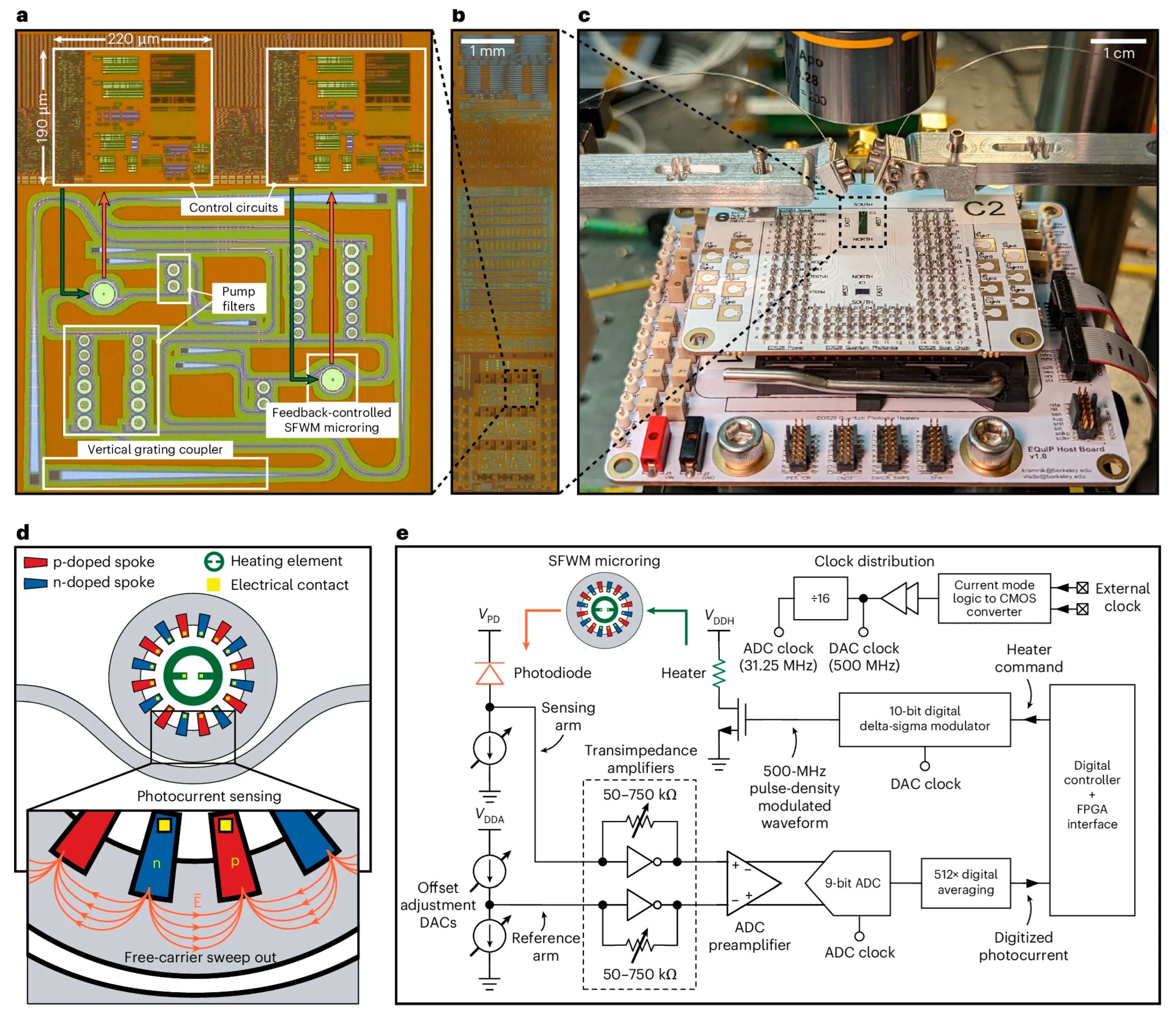

Chip-scale quantum system architectures integrate quantum elements directly onto a single microelectronic chip using advanced semiconductor fabrication. To build compact integrated quantum photonic (IQP) chips, silicon-based approaches have been widely investigated. Despite progress on individual components, achieving full integration likely demands the use of multiple materials. So far, a chip-based IQP remains a scientific challenge. However, with successful integration of on-chip light sources, a fully integrated silicon based IQP holds strong potential for future microelectronic [121]. Lithium niobate (LiNbO₃) is a material used in integrated photonics, along with diamond, silicon carbide (SiC), and III–V semiconductors such as Gallium arsenide (GaAs), Indium phosphide (InP), Gallium nitride (GaN). Silicon nanostructures, in particular, are now recognized as a leading platform for quantum photonic technology [122]. Recent progress in quantum biosensing has resulted in improved material stability and refined photonic interfacing. According to studies in silicon photonics roadmapping [123], these advances remain near-term developments, while concepts such as fully integrated IQP systems belong to long-term, speculative visions. Distinguishing between these stages prevents overstated expectations and maintains realistic scientific perspective.

IQP devices, including quantum light sources, phase shifters, and single-photon detectors, form the essential building blocks for on-chip quantum information processing and sensing. Among integrated quantum photonic devices, quantum light sources and phase shifters are already compatible with microelectronic fabrication and can be integrated on silicon chips. Single-photon detectors (SPDs) can also be integrated, especially single-photon avalanche diodes (SPADs), though superconducting nanowire single-photon detectors (SNSPDs) often require cryogenic cooling, which limits their practical use.

Each of IQP components contributes distinct functionalities to circuits, and their roles can be better understood by examining them individually. Quantum light sources generate non-classical states of light, such as single photons or entangled photon pairs. These devices often rely on nonlinear optical processes, where one photon is converted into two lower-energy photons. The main advantage of quantum light sources is their foundational role in enabling secure communication and quantum computation [124]. For instance, Politi et al. [125] designed a silicon chip integrating single-photon sources, beam splitters and phase shifters, and single-photon detectors. The device used micrometer-scale waveguides, thermo-optic phase shifters, and achieved low optical losses (<1 dB/cm).

Once photons are generated, their paths and phases must be precisely manipulated. This task is performed by phase shifters and universal interferometric circuits. Phase shifters and universal circuits are the core components for implementing quantum gates. These devices manipulate the paths and phases of single photons and applies a unitary transformation described by Equation (10), allowing precise control over photon interference. Their universality makes them critical for scalable optical quantum computing [126]. For example, Grottke et al. [127] designed a MEMS-based phase shifter on silicon nitride (Si₃N₄) that uses electrostatic actuation to control phase with low loss (<0.5 dB), low voltage (Vπ = 2 V), and short length (210 μm). The device achieved up to 13.3π phase shift and MHz operation. The device offers advantages such as low power consumption, compact size, and high modulation speed.

$$U\left(\theta \right)=\left(\begin{array}{cc}1& 0\\ 0& e^{i\theta }\end{array}\right).$$

(10)

Finally, the detection stage completes the quantum photonic system by converting single-photon events into measurable electrical outputs. Single-photon detectors (SPDs) are designed to register the arrival of individual photons, converting photonic events into electrical signals. SPDs are crucial for quantum measurement, but they may require cryogenic operation. Common implementations include superconducting nanowire single-photon detectors (SNSPDs) and single-photon avalanche diodes (SPADs) [128]. SPAD and SNSPD technologies rely on fundamentally different detection mechanisms. Avalanche photodetectors are highly sensitive semiconductor photodiodes that utilize the photoelectric effect to convert incident photons into electrical signals. When a photon is absorbed, it creates an electron–hole pair within the semiconductor, initiating charge multiplication. SPADs operate in Geiger mode, where the device is biased above its breakdown voltage. In this regime, absorption of a single photon can trigger an avalanche current, which persists until the bias is reduced below breakdown. The avalanche process enables detection of individual photons [129]. As an example, ref. [130] presents a room-temperature, CMOS-compatible Ge–Si SPAD array with 32 × 32 pixels, each with a diameter of 15 μm. The device achieves a photon detection probability of up to 12% at 1310 nm. The breakdown voltage is approximately 10.3 V. The SPAD array enabled high-resolution three-dimensional time-of-flight imaging, demonstrating the platform’s promise for quantum photonic and imaging applications. In contrast, SNSPDs exploit superconductivity to achieve even higher detection efficiency, albeit under cryogenic conditions. Superconducting nanowire single-photon detectors (SNSPDs) operate by cooling a nanowire below its critical temperature so that electrons form a superconducting state. When a photon is absorbed, it creates a localized hotspot that disrupts superconductivity, forcing the nanowire to briefly switch to a normal state and generating a detectable voltage pulse [131]. In 2024, Hao et al. [132] developed a compact 2 × 2-pixel SNSPD array using 5 nm niobium nitride (NbN) nanowires for high-speed optical communications. Operating at 1.5 K, the detector achieved 91.6% efficiency. The device supports photon-number resolution up to 24 photons. In system tests, it maintained error-free data transmission at 0.8 noise photons/slot and up to 1.5 Gbps. While offering high sensitivity and dynamic range, the array requires cryogenic cooling.

Despite these advances, many challenges remain in implementing fully integrated quantum photonic sensors. For instance, an innovative design [133] using asymmetric waveguides for bidirectional transmission on printed circuit boards (PCBs) offers a potential pathway to connect IQP with conventional microelectronics, indicating that much work is still needed in this growing field [134]. In July 2025, Kramnik et al. [18] demonstrated the first commercial integrated quantum photonic chip that combines electronic, photonic, and quantum components on a single silicon platform, which is a major step toward IQP biosensors (Figure 9).

6. Research Challenges and Future Perspectives

Quantum biosensors, electronic integrated circuits (EICs), and photonic integrated circuits (PICs) each offer distinct strengths yet face limitations. Quantum biosensors, despite their exceptional sensitivity, often face issues such as quantum state decoherence and the complexity of integration onto compact chip-scale devices. Similarly, EIC-based biosensors provide cost-effective and compact solutions; however, they encounter fundamental constraints, including electrical noise susceptibility, interconnect bottlenecks, and challenges in scaling signal multiplexing. PIC-based biosensors effectively address these electrical limitations through their immunity to electromagnetic interference and ability to achieve high multiplexing and low-power operation. Yet, they continue to struggle with complicated fabrication processes, optical alignment, and nonlinearities.

Advancing towards integrated quantum photonics (IQP) for biosensing is a promising way to address these limitations. It is also important to note that progress in quantum sensing is increasingly interconnected with developments in quantum computing and quantum communication, where techniques such as entanglement-enhanced protocols are contributing to improved precision and scalability [135]. Recent steps toward IQP integration have demonstrated the feasibility of on-chip quantum sources, universal quantum gates, and single-photon detectors. Nevertheless, current IQP circuits face notable challenges, including maintaining quantum coherence at room temperature, efficient photon coupling, minimizing optical losses, and achieving reliable quantum state readout without extensive cryogenic infrastructure. In addition, practical biosensing integration requires simultaneous inclusion of light sources, detectors, and microfluidic interfaces, which raises further constraints on CMOS compatibility and manufacturability. Beyond biosensing, related IC studies have also investigated on-chip optical sensing and RF spectral integrity, reflecting foundational constraints in integrated system design [136,137]. Current approaches often rely on laboratory-scale setups that are not scalable for mass production, particularly when cryogenic cooling or external optical alignment is needed. Several studies have proposed hybrid integration strategies to address these limitations, such as III–V light sources bonded onto silicon or photonic packaging techniques with fluidic access [138]. However, these solutions remain at early experimental stages and require critical evaluation before clinical deployment. Innovations such as silicon-compatible quantum emitters, MEMS-enabled dynamic phase modulators, and CMOS-integrated single-photon avalanche diodes (SPADs) are mitigating these constraints. For instance, room-temperature materials like diamond NV centers and Si-based SPAD arrays can significantly reduce system complexity and enhance operational robustness. Ultimately, the trajectory toward practical IQP biosensors will require ground-breaking solutions. Future progress may arise from adopting hybrid-material platforms, such as combining silicon carbide (SiC) or lithium niobate (LiNbO₃) waveguides, known for their superior nonlinear optical properties and room-temperature quantum coherence, with silicon photonics to boost photon coupling efficiency and quantum state stability. Integrating two-dimensional quantum materials like hexagonal boron nitride (hBN) or transition metal dichalcogenides (TMDs) might further provide tunable quantum emitters that facilitate on-chip generation and manipulation of entangled photons at room temperature.

To resolve challenges with photon detection and signal loss, next-generation quantum sensors could utilize superconducting nanowire detectors embedded within hybrid photonic-electronic layers, thermally isolated by advanced micro-scale cryocoolers. Alternatively, meta-surfaces or photonic crystal structures designed specifically to enhance photon extraction efficiency may dramatically improve the quantum sensing even at ambient temperatures. Quantum-classical interfacing issues could be creatively managed by embedding quantum states directly into topological photonic circuits. Moreover, future manufacturing of IQP biosensors might move toward three-dimensional integration, incorporating quantum, photonic, and electronic components vertically stacked through advanced wafer-bonding and through-silicon-via (TSV) techniques. Such approaches would accelerate mass production and standardization, crucial for real-world clinical adoption. Envisioning this integrated quantum-photonic roadmap illustrates a promising future where IQP biosensors provide diagnostic sensitivity in portable, and universally accessible healthcare technologies.

7. Conclusions

Quantum biosensors offer notable advantages over classical sensing platforms, particularly in achieving fast speed, high sensitivity, single-molecule resolution, and low-noise performance. This review compared different quantum sensors and evaluated their integration with microelectronic and photonic technologies. Electronic integrated circuits (EICs) and photonic integrated circuits (PICs) have advanced on-chip biosensing, yet both encounter limitations related to scaling, fabrication, and signal interference. Integrated quantum photonics (IQP) introduces a viable path to address these issues through discrete quantum states and enhanced measurement precision. Despite early-stage progress, current IQP devices face practical challenges in material uniformity, optical loss, and device complexity. Addressing these gaps will require new device layouts, better packaging strategies, and more compatible fabrication flows with silicon photonics. Continued progress in these directions can turn quantum biosensing from a laboratory concept into a clinically and industrially practical solution in future.
