Finite element analysis for electro-osmotic Erying-Powell fluid flow past a stretching sheet with an exponential heat source - an ANN approach

Abstract

This paper gives the numerical analysis for an electro-osmotic Eyring-Powell fluid flow that is in two dimensions along a stretched sheet. The modified governing equations are resolved by the finite element technique. Graphs are used to display the various properties for several relevant factors on dimensionless velocity and temperature fields. The results are compared with previous findings in order to confirm the accuracy of the numerical solution. There appears to be a decrease in velocity when the magnetic parameter and Eckret number increase. This study has implications for fluidization, environmental pollutants, and agriculture. In this study, computational fluid dynamics (CFD) simulations and an artificial neural network (ANN) model are both employed.

1. Introduction

The qualities of fluids that defy Newton’s rule of viscosity have been the subject of research for the last few decades. The usage of these fluids becomes more appropriate than Newtonian fluids in various industrial and physiological sectors. Blood, ceramics, fruit juices, printer inks, shampoos, polymer solutions, cosmetic products, paint sand, and other substances are examples of non-Newtonian fluids. For a better understanding of the various flow behaviors of these sort of fluids, various models are available in the literature. However, researchers have shown that it can be challenging for a specific non-Newtonian model to account for all possible non-Newtonian behaviors. One of the non-Newtonian fluids is the Eyring-Powell fluid model, which was developed in 1944 by Powell and Eyring [1]. Essential applications for the Eyring-Powell fluid model can be found in a wide range of geophysical, industrial, and natural phenomena. These crucial applications include enhanced oil recovery, thermal insulation, fog formation and dispersion, orchards of fruit trees, pollution in the environment, drying of porous substances, and subsurface energy conveyance. The Eyring-Powell fluid has also drawn a lot of attention for the reasons listed below, even though its mathematical analysis is more challenging. Eyring-Powell fluid acts like a Newtonian fluid under low and high shear rates. Noreen Sher Akbar et al. [2] investigated the MHD flow of the Eyring-Powell fluid on a stretching sheet. They implemented finite difference scheme to analyse various parameters graphically. The effects of slip on the peristaltic flow with wall characteristics was studied by Hina [3]. Hayat et al. [4] deliberated heat generation/absorption effects on Nanofluid flow over an impermeable stretched cylinder. They observed that high temperatures cause the radiation parameter to raise. The nanofluid across an exponentially stretched sheet is investigated by Srinivas Reddy et al. [5]. In this study it is perceived that raising the suction parameter and the material parameter, the velocity profile is reduced, but the material parameter exhibits the opposite trend. Gholinia et al. [6] examined the Eyring-Powell fluid Nano flow on a disk. Amin Jafarimoghaddam [7] deliberated the influence of thermal boundary condition on Eyring-Powel fluid flow over a sheet. Atul Kumar Roy et al. [8] illustrates Eyring-Powell fluid flow past a plate by considering convective boundary conditions. Waqas et al. [9] studied the Eyring fluid past a stretching sheet. The analysis of heat and mass transport for a viscoelastic fluid channel has been studied by Arshad Riaz [10]. The author noticed that the aspect ratio of the rectangular duct causes the velocity profile to increase. Nisar et al. [11] investigated the MHD peristaltic flow of an Eyring-Powell nanofluid. The effects of radiation and Joule heating are included during the analysis.

Electro-osmosis is widely observed in many systems such as bio membrane, fluid dialysis, porous materials, etc. The electroosmosis- flow in a channel has been instigated by Fazle Maboob et al. [12]. They observed that the Eyring-Powell fluid parameter supports the channel’s central velocity for negative electrokinetic pumping and acts in the opposite direction for positive electrokinetic pumping. Asha Shivappa and Sunitha [13] explored the fluid past a channel consists of gyrotactic microbe. The findings show that bioconvection lowers the gradient of pressure because convection instability occurs inside the system, which results in convection pattern and lowers gradient of pressure.

Due to its numerous uses in engineering and the environment, such as metal and polymer extrusion, etc., the flow model over the stretching sheet has recently acquired great relevance in fluid dynamics. Salleh et al. [14] examined the fluid of a boundary flow on stretching sheet and also considered Newtonian heating. Makinde [15] obtained a numerical solution for buoyancy driven vertical plate with a heat source. Yasir khan et al. [16] examined the flow of a fluid with thermal conductivity and viscosity on a stretching sheet. Subhas Abel et al. [17] studied the heat transfer analysis of a Maxwell fluid flow on a stretching sheet and observed that the Maxwell parameter influences the velocity and temperature profiles. Liancun Zheng et al. [18] studied the effect of velocity slip of a nanofluid on stretching sheet. Rashid et al. [19] has discussed the effects of magnetic field on flow of nanofluid on stretching sheet. Das et al. [20] investigated numerically the nanofluid flow past over a sheet with a heat source or sink. Turkyilmazoglu [21] examined the micropolar fluid flow caused by a permeable stretched sheet. Bhatti et al. [22] studied the flow of a Williamson nanofluid over a sheet. In the existence of radiation, the convective flow of a nanofluid over a stretching sheet was studied by Nayak et al. [23]. Sumit Gupta et al. [24] examined flow of a nanofluid on a sheet with the influence of thermal radiation and analysed the results graphically. They applied various perturbation techniques to study the solutions and conclude that the optimal homotopy asymptotic method is more effective, simpler and easier than other methods. With the influence of slip conditions, Umar et al. [25] discussed the importance of activation energy strength parameter on wall mass flux and mass friction field. Hayat et al. [26] carried out Darcy-Forchheimer model on nanofluid over a curved sheet. The magnetic dipole effect sheet with thermophoretic particle deposition is taken into consideration by Naveen Kumar et al. [27]. The flow equations are numerically solved by RK iterative method. They noticed that the velocity profile gets weaker as ferromagnetic interaction parameter values rise. The unsteady flow of Casson nanofluid is examined by Wasim Jamshed et al. [28] in terms of both its heat transport and entropy. They studied the effect of slip condition and solar thermal transport on Casson nanofluid flow. Warke et al. [29] considered the steady flow of micropolar fluid over a sheet. Sohail Nadeem et al. [30] analyzed the viscoelastic fluid flow through a stretching sheet which is not linearly extending is taken into account. Suction and injection cases are also covered. The effects of viscous dissipation and brownian motion with thermophoresis are taken into consideration. Dharmaiah et al. [31] applied second order velocity slip condition, Neild’s condition to investigate micropolar nanofluid along a Stretching surface. Li et al. [32] implemented homotopy analysis method to investigate Carreau nanofluid along a convectively heated sheet. Saravana et al. [33] investigated numerically the behaviour of two non-Newtonian fluids over a stretching surface. Li et al. [34] succinctly explained the impact of ohmic and viscous dissipation on plate with uniform suction. Li et al. [35] analysed numerically the influence of velocity and thermal slip effects on a ternary nanofluid over stretching sheet.

Effects from an exponential heat source is used to model the flow of a micro polar nano liquid past a stretchy surface was studied by Mishra et al. [36]. Ragupathi et al. [37] considered the the Casson nanofluid flow across a sheet with exponential heat source influences. Nagi reddy et al. [38] examined the effects of heat source on convective MHD flow across an exponentially extending surface. In the presence of exponential heat source, Mohan Krishna et al. [39] instigated the MHD Carreau fluid flows on parabolic regions. The process of heat and mass transmission is examined. A problem of heat transmission in half-space under the influence of a point non stationary heat energy source was studied by Formalev et al. [40]. Ikram Ullah et al. [41] investigated the flow of a nanoliquid in a rotating system with the influence of viscosity and thermal conductivity.

With the available literature, authors came to know that no effort has been reported yet to discuss on electro-osmotic flow of Powell fluid flow over stretching sheet with an exponential heat source and convective boundary conditions are taken into account. The authors are motivated to look at this issue by their aforementioned uses in industries, biomedicine, and studies. By employing the Galerkin finite element method, the governing equations are solved. The related ANN model has been projected, and there is thorough discussion of the attained numerical solutions. When the magnetic parameter and Eckret number rise, the velocity seems to fall. This research has applications in the fields of fluidization, environmental pollution, and agriculture.

2. Problem definition

• We investigate an Erying-Powell fluid flowing past a stretching sheet in an incompressible, two-dimensional electroosmotic flow, as shown in Figure 1.
• The sheet is pulled taut, allowing the fluid to flow quickly u_w = ax (a is a constant).
• A Cartesian coordinate system’s x-axis and y-axis are conceptualised as being parallel to and perpendicular to the stretching surface, respectively. Normally applied, a strong magnetic field B₀ is placed over the flow.

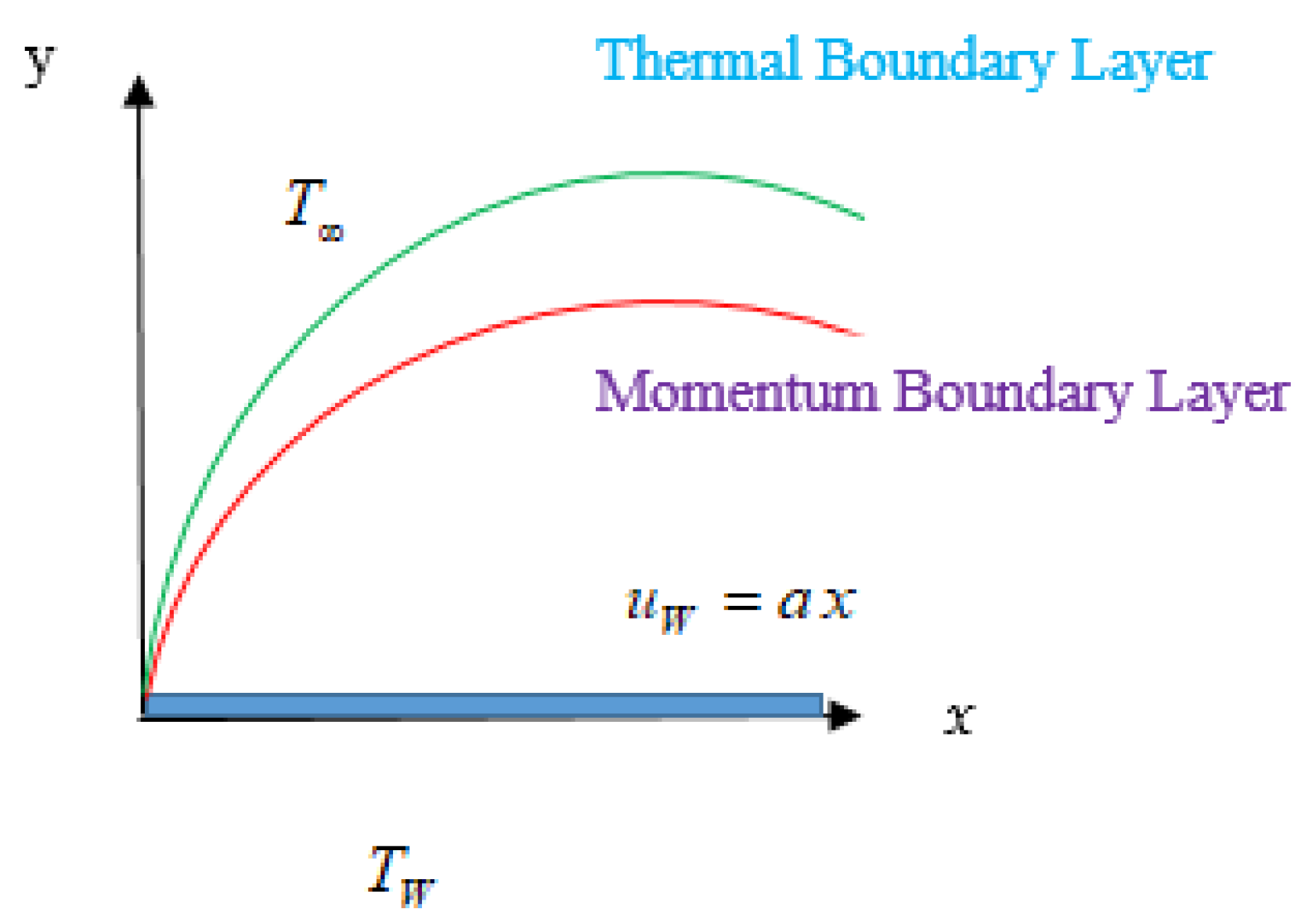

Figure 1. Physical Configuration of the Problem.

Figure 1. Physical Configuration of the Problem.

• Viscous dissipation and an exponential space-related heat source are considered. The equations underlying the approximations for the boundary layer are [2,30,36].

Governing Equations

Conditions

Non-dimensional equations

Non-dimensional conditions

2. b. Skin friction and Nusselt number

The skin friction and Nusselt number are

The non-dimensional skin friction and Nusselt number are

3. Numerical solution

Nonlinear coupled controlling equations are transformed into a matrix form by the Galerkin finite element method [42,43,44]. The global matrix for the entire domain is created by combining the coupled matrix equations for the individual elements, and it is then repeatedly solved to provide the velocity and temperature. To keep the findings as accurate as possible, the obtained solution’s error level is set at 10⁻⁴. The variance between the prior iteration and the present iteration for the variables at all nodes is reached, the iterative process comes to an end. To analyse the fluctuations in velocity and temperature, linear elements with two nodes are taken into consideration. The nodes are connected by lines to form a mesh structure. The outcomes are attained by considering 100 mesh nodes of points. To solve Equations, the Galerkin finite element method is used. (5)–(6) on a designated region 0 < η < 6. By applying the Galerkin method [37], the dependent variables f^′ and θ are approximated by . For two nodes the nodal distributions can be expressed as , where $N_i={\displaystyle \frac{{\eta }_j-\eta }{{\eta }_j-{\eta }_i}}$ and $N_j={\displaystyle \frac{\eta -{\eta }_i}{{\eta }_j-{\eta }_i}}$.

These essentials are then combined to form a global matrix with the n number of nodes. For n nodes, the element stiffness and load matrix are expressed as follows: Table 1 Comparison of the present results with Noreen Sher et al. [2] for the skin friction in the absence of Q_e, B_i and E₁ and for ς = 0, δ = 0.

The above system is solved for f′ and θ distributions.

4. Code Validation

Table 1. shows the cade validation results. The obtained results are in good agreement with the existing results.

Table 1. shows the cade validation results. The obtained results are in good agreement with the existing results.

5. Results and Discussion

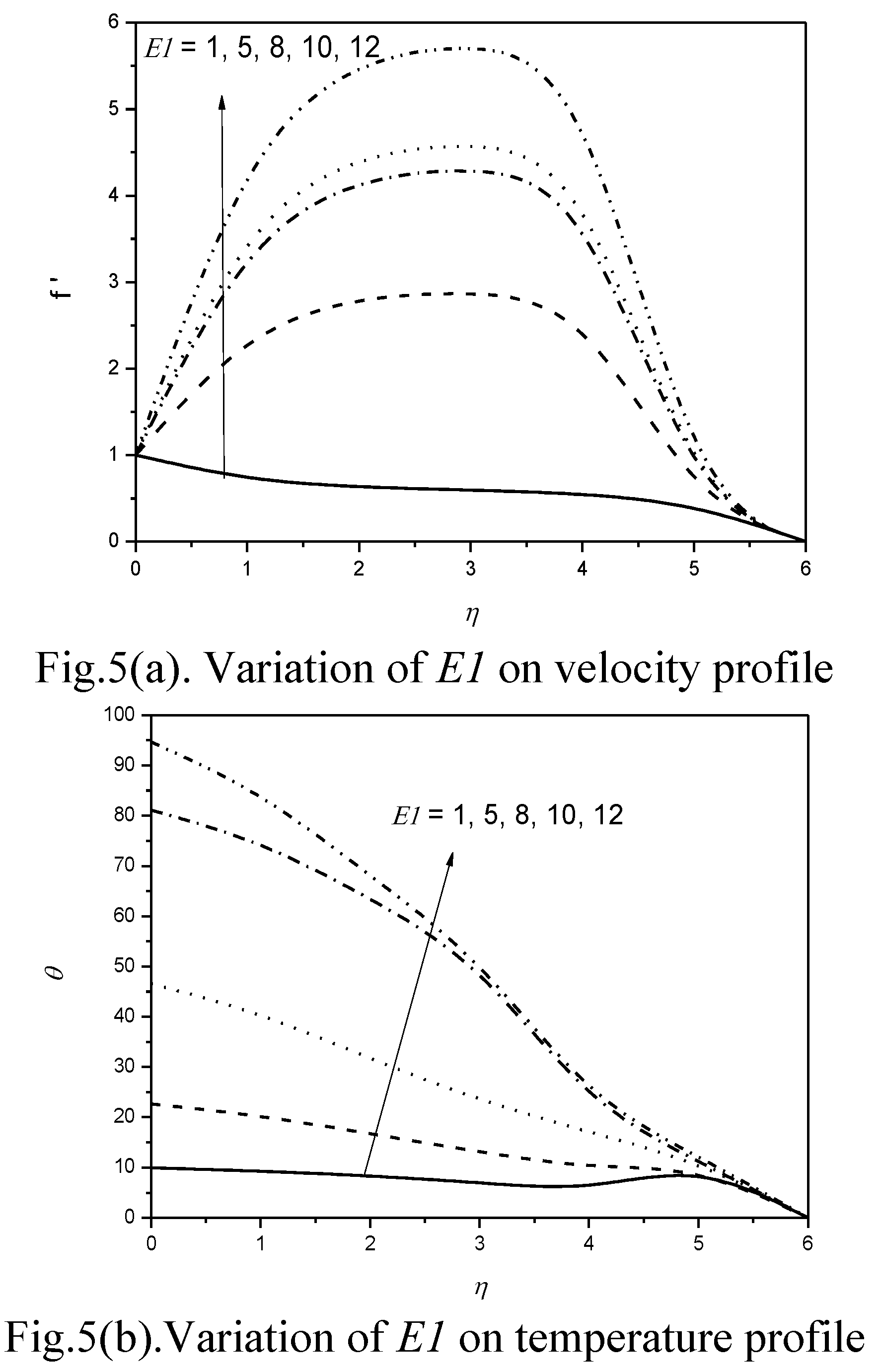

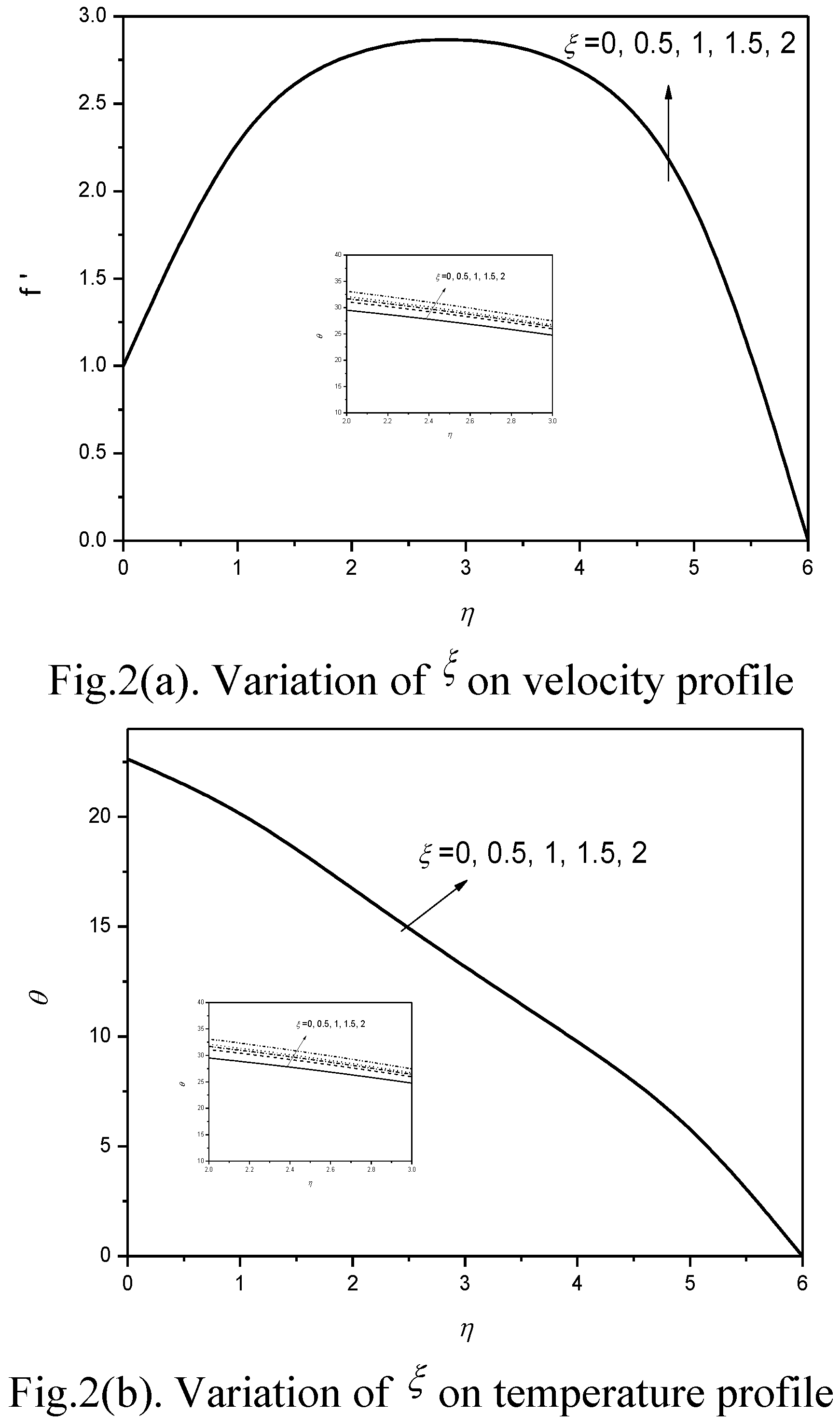

The impact of these variables on dimensionless velocity and temperature profiles was determined using the numerical method described above for many relevant parameter values, including material parameters (ξ) and(δ), Prandtl number (Pr), Electric parameter(E1), Magnetic parameter (M), and Eckert number (Ec). The computed outcomes are shown in Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9.

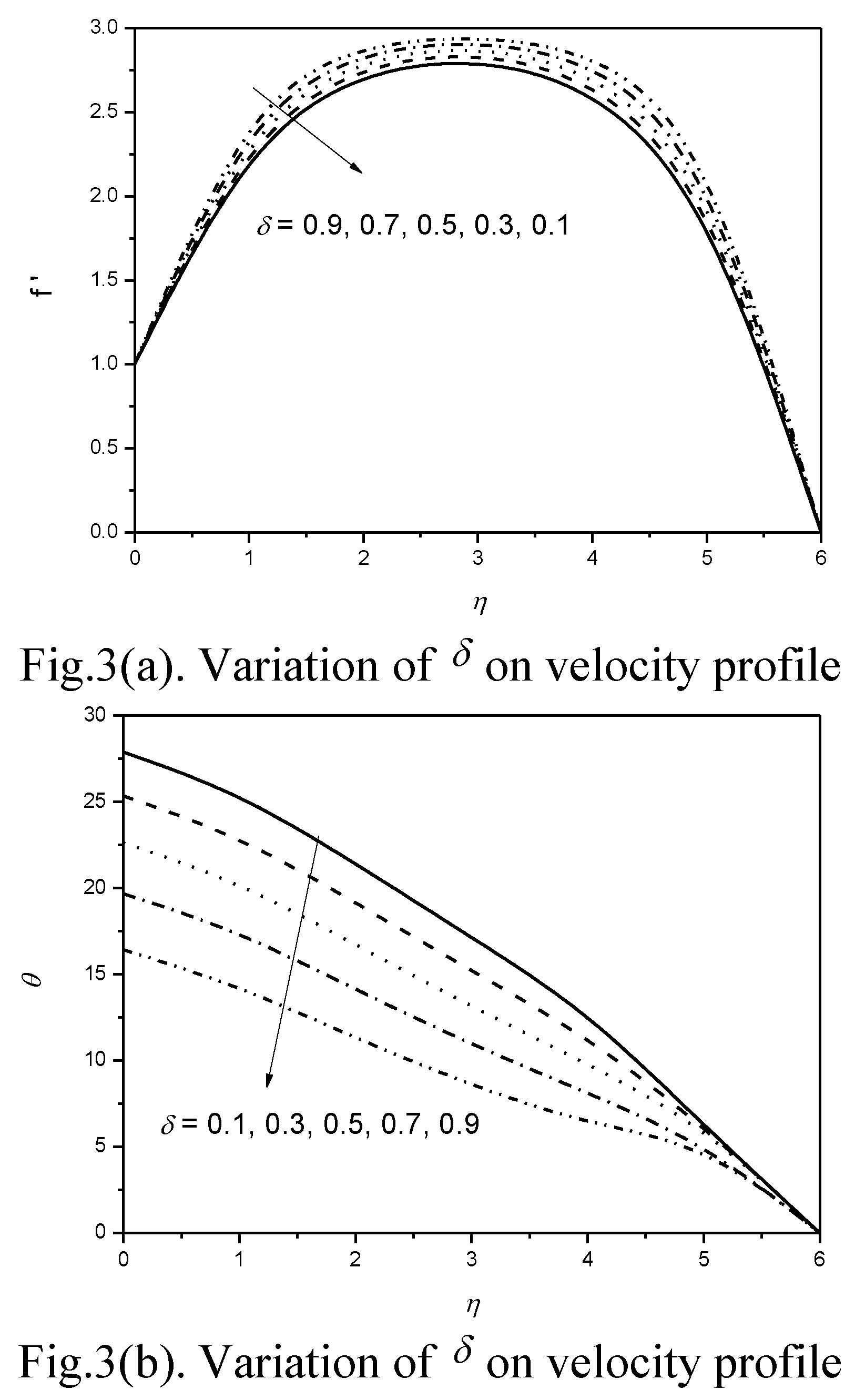

n temperature profile. As ξ augments the temperature profiles gets enhanced. Figure 3(a) depicts the impact of δ on the velocity field. An increment in δ leads to a diminishment in fluid velocity. As fluid parameter enhances the flow resistance improves so it reduces the velocity profiles. Temperature profiles exhibit a similar pattern of behaviour, as shown in Figure 3(b). The impact of Pr on fluid velocity is very low as depicted in Figure 4(a). It is evident from Figure 4(b) as Pr augments the temperature profiles gets magnified in the presence of exponential heat source. Physically this means momentum diffusivity dominates the thermal diffusivity. It is evident from Figure 5(a) an enhancement in E1 causes an increment in velocity. As E1 improves it augments the thickness of momentum boundary layer, so the velocity boosts up. Figure 5(b) displays the impact of E1 on the field of temperature. The large values of E1 makes the temperature increase.

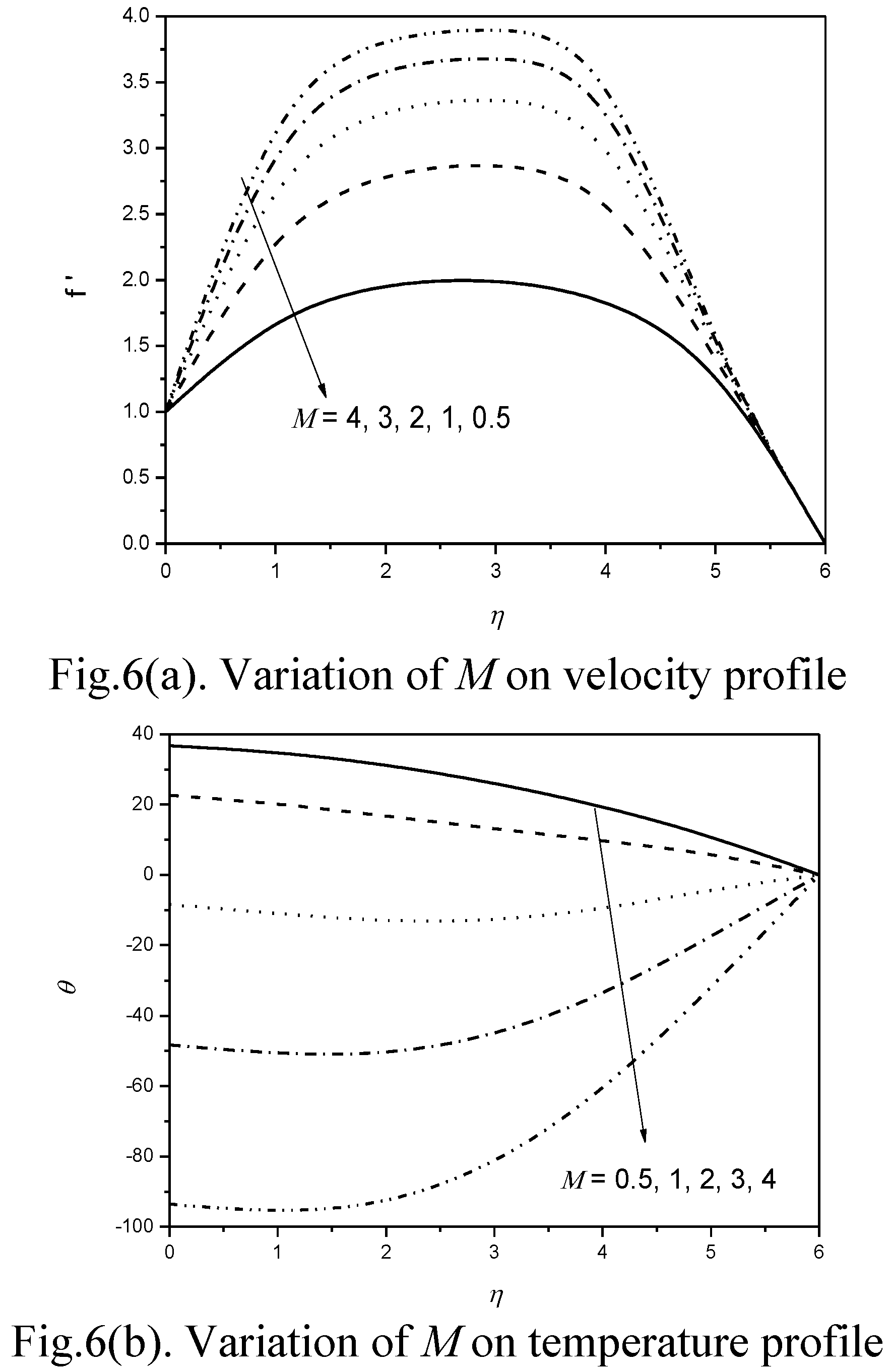

The impact of a magnetic parameter on velocity distribution is seen in Figure 6(a). With an increase in the magnetic field, the boundary layer’s thickness and velocity are both significantly reduced. This is attributed to the fact that the Lorentz force creates a resistance in opposite direction of the fluid flow. The effect of M on the temperature distribution is depicted in Figure 6(b). An increase in M values is associated with a decrease in temperature. Figure 7(a) manifests the pictorial description of velocity profile with the escalating values of Ec. As Ec improves a diminution in velocity is noticed. It is evident from Figure 7(b) that an increment in temperature owing to an enhancement in the values of Ec. The physical explanation for this is that greater heat is produced due to the drag force between the fluid particles.

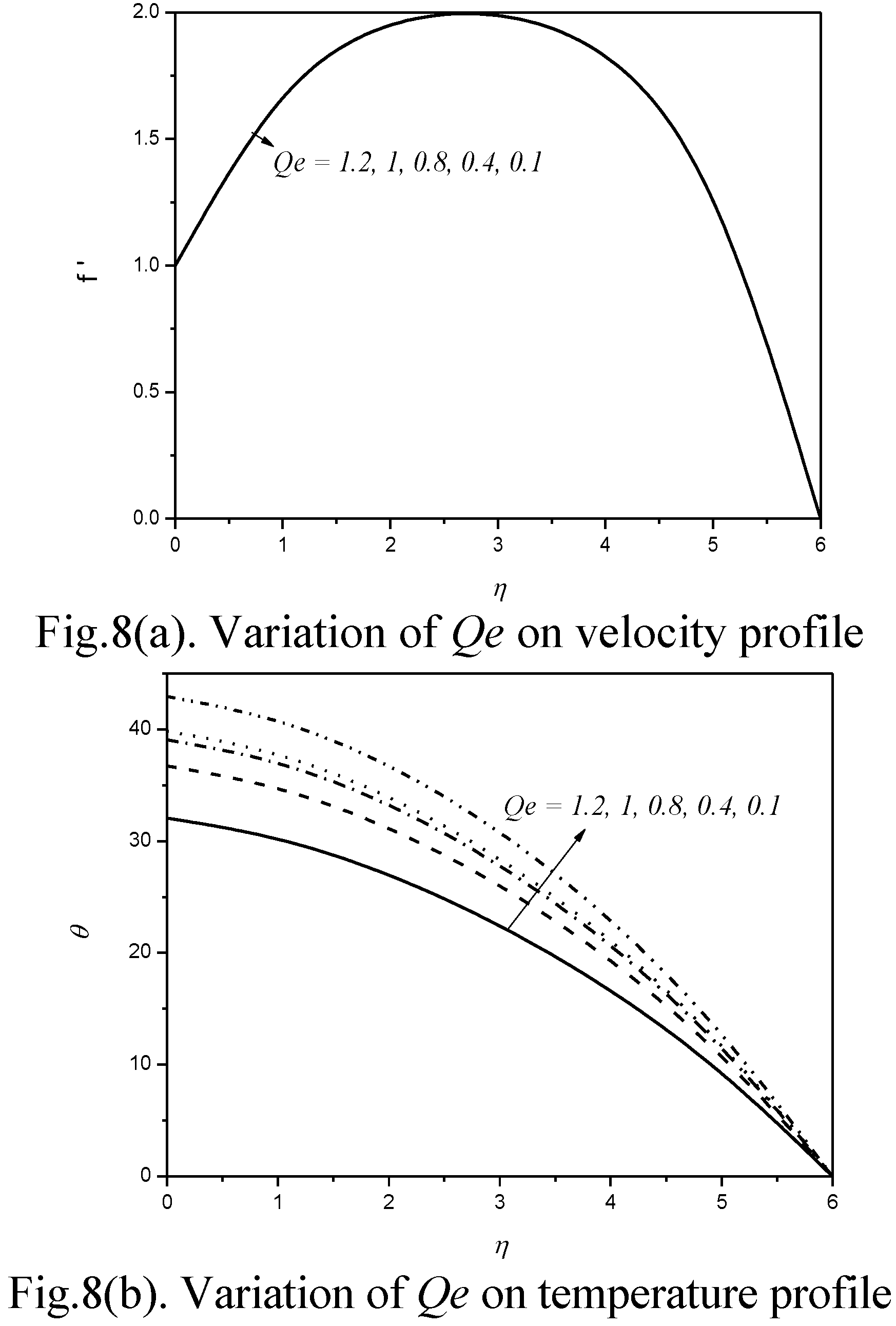

Figure 8(a) is captured to analyse the effect of exponential heat source parameter Qe on temperature distribution. It is noted that the velocity of the fluid decline for large values of Qe. Figure 8(b) establishes the impact of Qe on temperature profiles. It clear that an increase in the exponential heat source parameter causes more energy to be converted into liquid, which improves the thermal boundary layer thickness and temperature profiles. Figure 9(a) illustrates the fluid velocity is less influenced by Biot number. A drawing of Figure 9(b) shows how Bi affects the temperature profile. It appears that as Bi improves, the temperature increases quickly close to the borders.

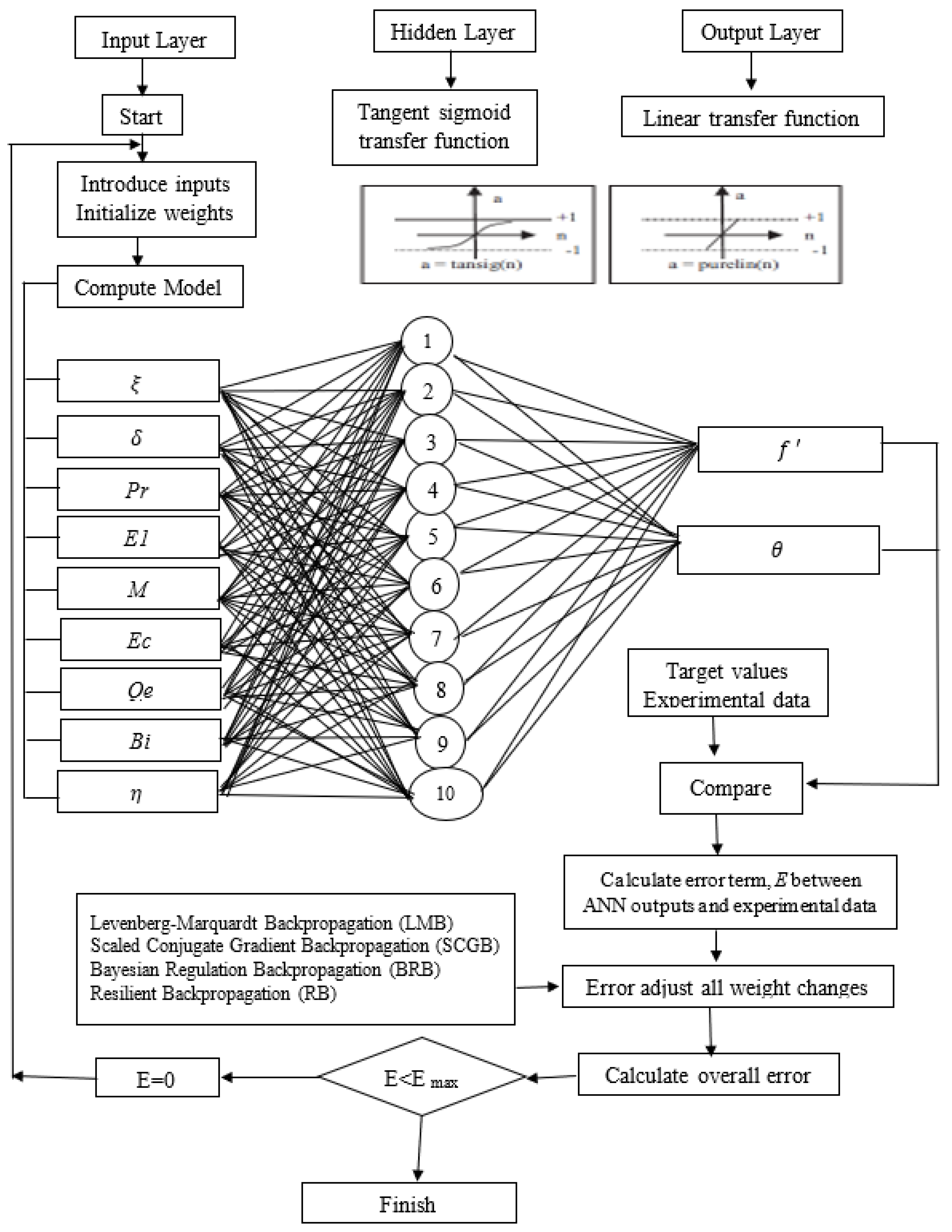

Figure 10 depicts the ANN configuration model. ξ, δ, Pr, E1, M, Ec, Qe, Bi and η are the input parameters, whereas the f^′ and θ are the output parameters. The available data set is separated into two datasets while constructing an artificial neural network model. The first dataset 20% is used to train the ANN model, and the second dataset 80% is used to validate it. The predicted outcomes of the ANN model are compared to the remaining data. The suggested technique employs LMB, SCGB, BRB, and RB, four different forms of back propagation algorithms.

By changing the weights and biases, Figure 10 attempts to reduce the error between expected output results and input data. Figure 10 depicts the ANN model’s architecture. The number of hidden layers and nodes in each layer are shown in this diagram. During training, a backward propagation algorithm is employed. In the hidden layer, all backward propagation techniques employ eight neurons. It uses a linear transfer function for the output layer and a tangent sigmoid transfer function (tansig) for the hidden layer.

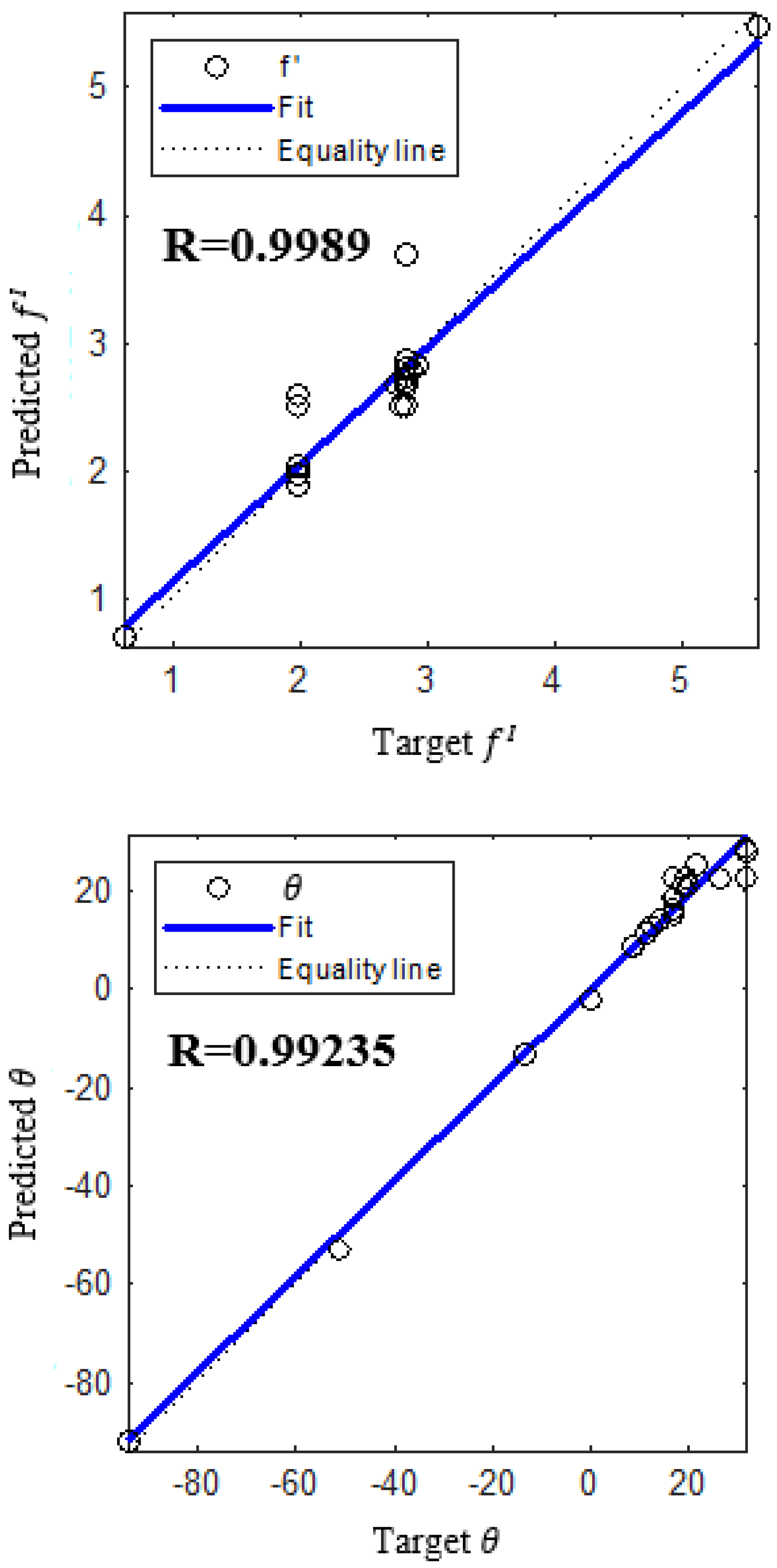

An ideal ANN model is constructed using the dataset gained from the numerical inquiry to predict the velocity and temperature profiles. By changing the number of neurons in a hidden layer and planning the ANN’s operation for each number, the best framework for the ANN can be discovered. As can be shown in Figure 11, the findings of the optimal ANN are in a better agreement with the theoretical dataset and can predict the velocity and temperature profiles more accurately than the correlation.

6. Concluding Remarks

In the current exploration an electroosmotic flow of Eyring-Powell fluid over a stretching sheet in the presence of magnetic field, viscous dissipation and convective boundary conditions has been considered. The finite element method is implemented to discuss the nature of governing parameters. The developed ANN model is trained using CFD data to forecast the properties of heat transfer in the under-consideration channel with an accuracy of 99.89%. Graphical representations have been made of the influence of the relevant parameters on velocity and temperature profiles. Apropos to the above discussion, the following are the concluding points.

• Higher magnetic field shows diminishment in the velocity as well as temperature distributions.
• Assuming greater values for ξ, the temperature profiles get reduced and the velocity gets enhanced.
• As Ec improves, velocity of fluid decline and temperature will incline.
• Temperature and velocity profiles are both enhanced when E1 is increased.
