High-Precision Methane Emission Quantification Using UAVs and Open-Path Technology

Abstract

Quantifying methane (CH₄) emissions is essential for climate change mitigation; however, current estimation methods often suffer from substantial uncertainties, particularly at the site level. This study introduces a drone-based approach for measuring CH₄ emissions using an open-path Tunable Diode Laser Absorption Spectroscopy (TDLAS) sensor mounted parallel to the ground, rather than in the traditional nadir-pointing configuration. Controlled CH₄ release experiments were conducted to evaluate the method’s accuracy, employing a modified mass-balance technique to estimate emission rates. Two wind data processing strategies were compared: a logarithmic wind profile (LW) and a constant scalar wind speed (SW). The LW approach yielded highly accurate results, with an average recovery rate of 98%, while the SW approach showed greater variability with increasing distance from the source, although it remained reliable in close proximity. The method demonstrated the ability to quantify emissions as low as 0.08 g s⁻¹ with approximately 4% error, given sufficient sampling. These findings suggest that the proposed UAV-based system is a promising, cost-effective tool for accurate CH₄ emission quantification in sectors, such as agriculture, energy, and waste management, where traditional monitoring techniques may be impractical or limited.

1. Introduction

Anthropogenic methane emissions reduction is one of the most effective strategies to rapidly curb the rate of global warming and significantly contribute to limiting global temperature rise. Methane (CH₄) is a powerful greenhouse gas, with a global warming potential 86 times greater than that of CO₂ over a 20-year period, and 30 times greater over a 100-year timescale [1].

Anthropogenic methane emissions are responsible for nearly half of the observed global warming since pre-industrial levels and account for 60% of the total methane released into the atmosphere. Over the past two centuries, the Earth’s average temperature has increased by 1.2 °C, largely due to human-caused emissions [2].

The main sources of anthropogenic methane emissions are attributable to agriculture and livestock (enteric fermentation, manure management, rice cultivation); the energy sector (extraction, storage, transport and use of fossil fuels); and the waste sector (landfill disposal, wastewater treatment). In 2021, agriculture was the leading source of anthropogenic emissions (42%), followed by energy (38%) and waste (20%) [2].

Quantifying methane emissions into the atmosphere from these three sectors is usually approached through either bottom-up or top-down methodologies; the validation of emission inventories requires both. Bottom-up methods use activity data (amount of waste produced or disposed of, number of livestock, facility components, energy consumption, etc.) multiplied by standardised emission factors. Top-down approaches, on the other hand, rely on direct measurements (usually aerial or satellite) of atmospheric CH₄ concentrations, from which emission rates are derived using dispersion models.

Despite its significant impact as a greenhouse gas, current estimates of CH₄ emissions are characterised by high uncertainty across all sectors; there is rarely good agreement between the two different approaches.

Several studies have highlighted a substantial underestimation by bottom-up methodologies when compared with direct field (top-down) measurements, concluding that many bottom-up inventories are likely not representative of actual atmospheric methane emissions [3,4,5,6,7].

The reasons for this divergence remain unclear. Some studies point out that emission factors are based on datasets from the 1990s and are thus potentially outdated [8,9]; others suggest that the underestimation may stem from bottom-up inventories failing to account for emissions released during abnormal conditions or equipment malfunctions [8,10,11].

Additionally, uncertainties remain in the quantification methods and technologies used for top-down estimates. It is therefore important to continue and expand top-down studies to enhance understanding of the divergence between the two inventory types across the three sectors [12].

Quantifying methane emissions requires measuring the molar fraction of the gas in the atmosphere in combination with wind measurements (speed and direction). CH₄ concentrations can be estimated using ground-based, aerial, or satellite systems. Ground-based systems may include fixed stations [13,14], mobile units operated manually [15,16,17,18,19,20], or vehicle-mounted platforms [21,22,23,24].

Ground-based systems allow for the direct measurement of emissions close to the surface and can eliminate interference from surrounding sources; however, these methods are often time-consuming and require complex interpolation techniques.

Among ground-based techniques, the eddy covariance (EC) method represents a widely adopted approach for continuous, high-frequency flux measurements and has been extensively used in global ecological networks such as FLUXNET. When mounted on a mobile mast and correctly positioned downwind of a source, with the appropriate height and distance under suitable meteorological conditions, EC systems can effectively capture the footprint of a point emission and provide reliable estimates of its emission strength.

Vehicle-based surveys can reduce the duration of data collection; however, they require accessible road infrastructure, which is not always available, thereby limiting their applicability in certain environments. Moreover, these surveys often encounter challenges in accurately locating and distinguishing individual emission points [25,26].

Aerial monitoring is widely used to quantify CH₄ emissions over large areas such as cities or wetlands [27,28,29]. However, conventional research aircraft are often too large and lack the manoeuvrability required to estimate emissions from small local sources such as landfills or fossil fuel facilities [30].

Several solutions employ smaller, more manoeuvrable aircraft to estimate small-scale anthropogenic methane emissions; however, the quantification methods used require a stable background and minimal external influences [31,32,33]. However, it is believed that the aerial method could be employed for emission estimates from landfills and fossil fuel facilities, which typically do not involve small emissions.

Satellite measurements have greatly aided in identifying methane super-emitters; however, the technology can struggle in mountainous terrain, snow- or ice-covered regions, and at high latitudes [31,32].

Unmanned Aerial Vehicles (UAVs, or drones) offer new opportunities to quantify CH₄ fluxes from various facility types, thanks in part to advances in sensor miniaturisation, which has made instruments lighter and suitable for drone deployment.

Compared with crewed aerial monitoring, drones can sample air closer to the surface, providing information otherwise inaccessible by aircraft. Their high manoeuvrability, fewer flight restrictions, and the relatively low cost of many sensors have driven rapid adoption of UAV-based systems across sectors, from agriculture to energy and waste management [33,34,35,36,37].

For atmospheric CH₄ monitoring, drones are often equipped with closed-path TDLAS (Tunable Diode Laser Absorption Spectroscopy) sensors. These instruments take point measurements along horizontal transects at different altitudes on the downwind side of a site. The data are then interpolated and combined with wind measurements to estimate emission rates via a mass-balance approach.

Numerous studies have implemented this in practice, for example, to estimate CH₄ emissions from livestock [38], coal mines [39,40], and solid waste landfills [41,42,43].

Sampling density is crucial for obtaining reliable results but may require long and impractical survey times. As a result, the spacing between successive transects is often around 10 m, which can introduce significant uncertainty in the data interpolation [43].

Additionally, measurements must be taken at a sufficient distance from the site to ensure adequate plume mixing and representative point measurements. However, increasing the distance makes it harder to separate external contributions in flux estimation and requires higher-sensitivity sensors (on the order of ppb), which are more expensive.

An alternative solution involves using an open-path TDLAS sensor, which may improve the representativeness of spatial interpolation by providing integrated CH₄ concentrations along an optical path and eliminating the need to reconstruct data distribution along the beam direction.

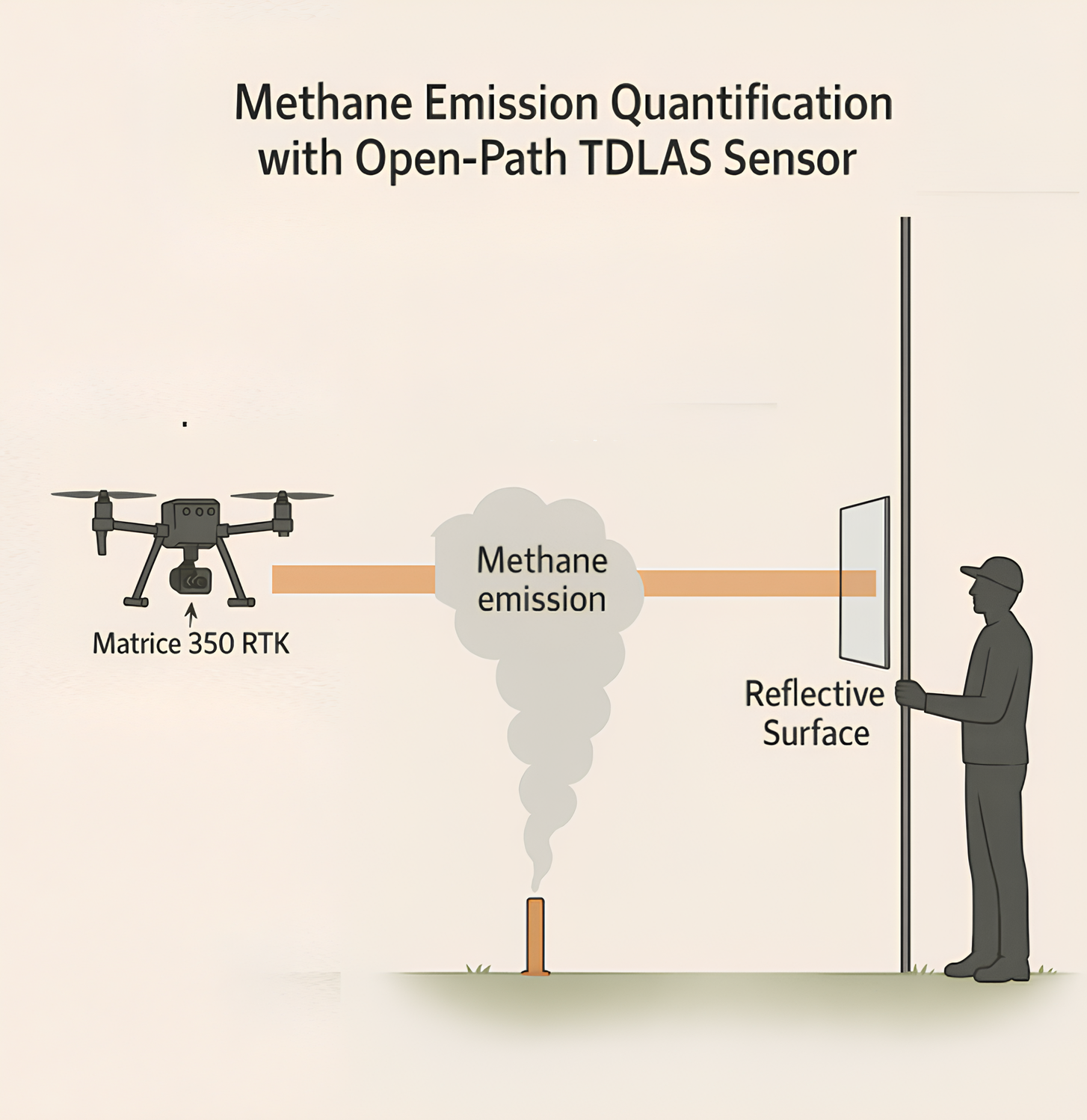

This study proposes a UAV-based approach to estimate CH₄ emissions from various site types and discusses the results of controlled release tests. It differs from other experiments conducted in previous studies [44,45] in the orientation of the optical path, which is not nadir-pointing but horizontal.

The methodological approach is similar to that of [46], with comparable spatial test scales. However, it differs in the use of a drone and a non-fixed, drone-mounted sensor.

The method proposed in this study possesses key characteristics that fully justify its significance and applicability in specific scenarios. In particular, it offers a low-cost, flexible solution that operates effectively at the local scale, and is well positioned to bridge the existing gap between large-scale measurements (satellite or airborne) and ground-level observations (fixed or mobile).

This paper is structured as follows. Results are analysed and discussed in Section 2, with a focus on measured concentrations (Section 2.1) and their spatial distribution (Section 2.2). Emission fluxes are then derived using two distinct wind data processing methods (Section 2.3). The influence of key parameters on results is discussed in Section 2.4. Section 2 describes the proposed method and test design in detail. Section 4 concludes the study, summarising the strengths and limitations of the proposed approach, suggesting potential solutions, and identifying aspects warranting further investigation.

2. Results and Discussion

This section summarises and discusses the results obtained from the experimental tests. The statistical distributions of CH₄ concentrations are analysed in Section 2.1, along with their vertical profiles in Section 2.2. Section 2.3 describes and compares the CH₄ fluxes obtained from the two methodological assumptions tested. Finally, Section 2.4 examines the impact of the two approaches on the result.

2.1. CH₄ Concentration Measurements

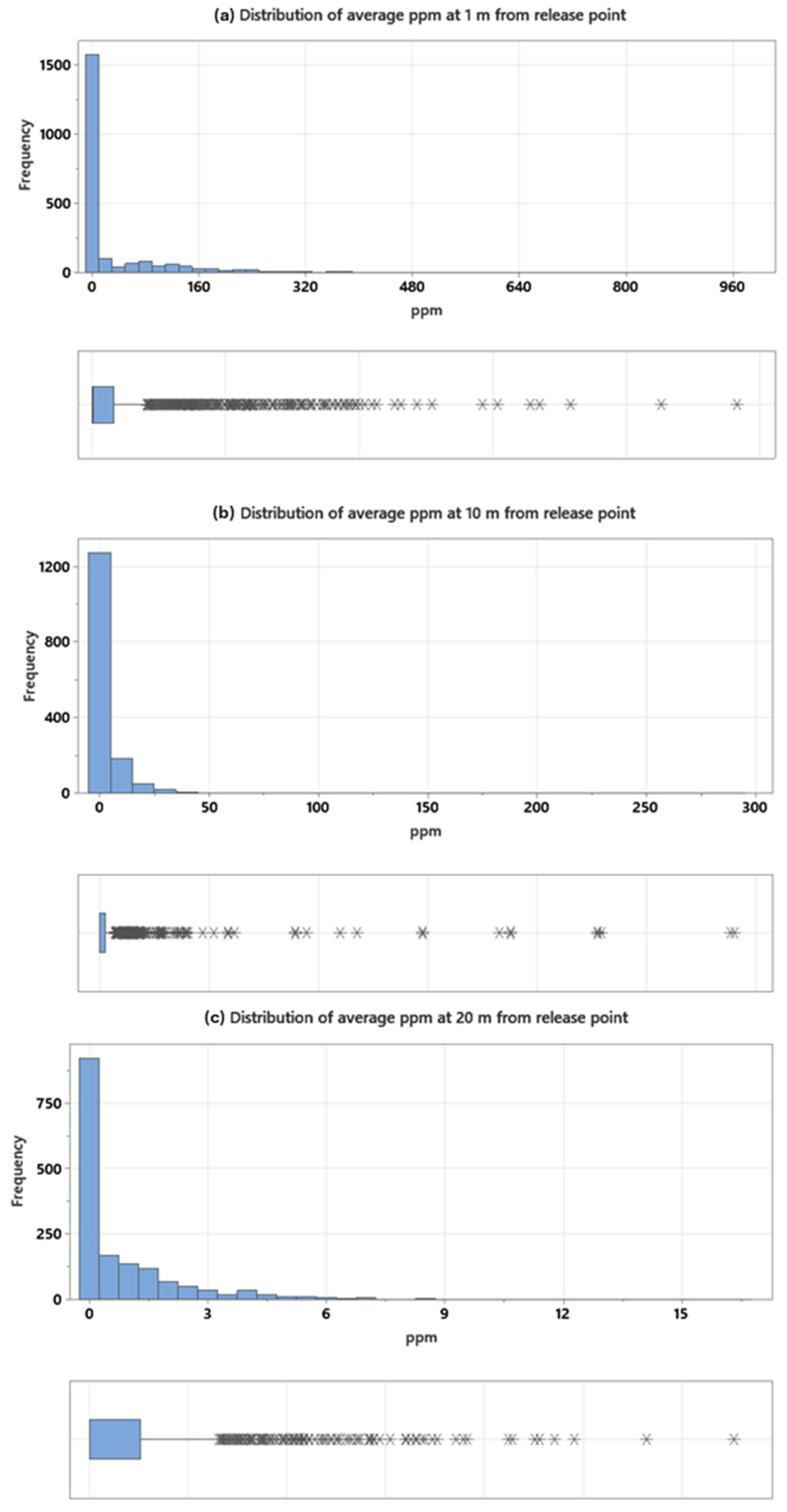

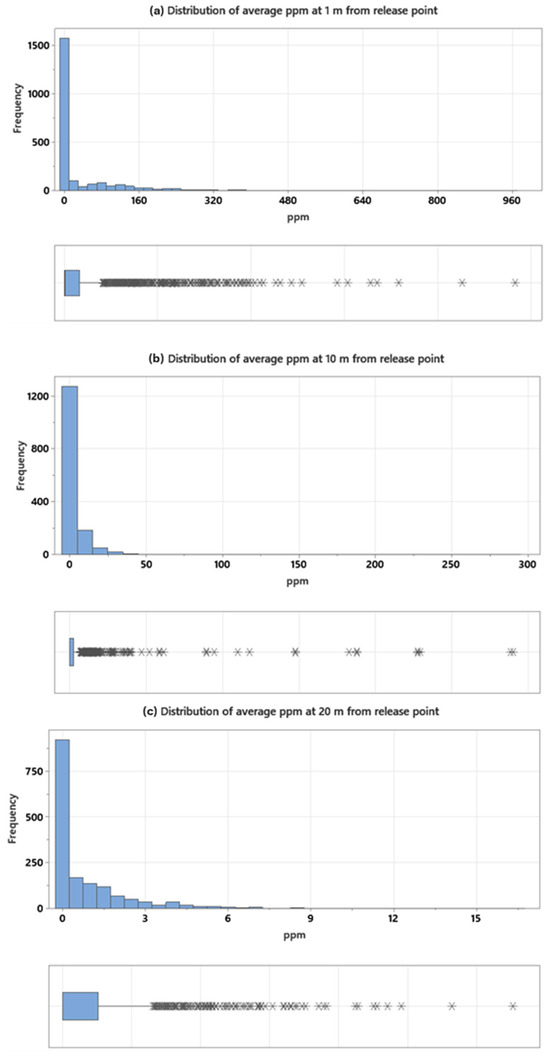

Figure 1 shows the distribution of the average CH₄ increments relative to the background concentration for the 17 valid tests, aggregated based on the distance from the emission point. The average values are obtained by dividing each measurement by the length of the respective optical path. A clear decrease in average ppm values is evident as the distance from the source increases. The value quickly drops from 40.6 ppm at 1 m (Figure 1a) to 4.7 ppm at 10 m (Figure 1b) and then further decreases to 0.96 ppm at 20 m (Figure 1c). Similarly, the maximum concentration observed at 1 m from the source (966 ppm) reduces by 70% at 10 m and by 98% at 20 m. This represents a clear expression of the dispersion phenomenon and transport mechanisms. It also confirms the ability of the proposed methodology to capture emissions during the controlled release tests.

A particular feature of the open-path TDLAS sensor is that its sensitivity depends on the optical path length. Provided that the return signal strength is adequate to ensure measurement reliability and that the recorded value exceeds the background noise, the Laser Falcon can detect the presence of CH₄ when the total concentration along the optical path reaches a minimum value of 1 ppm-m. The optical path length in the tests conducted was about 50 m, which corresponds to a sensitivity of 0.02 ppmv.

As is well known, the horizontal dispersion of the plume is more pronounced than the vertical dispersion during transport, although the impact depends on atmospheric stability. This aspect compromises the spatial resolution of the sensor when mounted on a drone in a nadir position and limits the detection of CH₄ emissions around 0.011 g s⁻¹ to within 10 m of the source [41,47].

To increase the signal-to-noise ratio, it is necessary to detect high concentrations of CH₄ above the background level. Flying at low altitude would be optimal; however, turbulence induced by the downwash of the propellers may yield unreliable results [48,49].

Orienting the optical path horizontally allows for exploiting the transverse dispersion and keeping the readings above the instrument’s detection threshold for greater distances from the emission point compared to the nadir configuration. As a result, it was possible to fully capture CH₄ increments above the background concentration even at more than 10 m from the source (Figure 1c).

To understand how the orientation of the optical path affects spatial resolution, tests were conducted using a Lagrangian particle model in both configurations (horizontal and vertical configurations). The aim was to quantify the capture percentage at increasing downwind distances (from 1 m to 50 m) for a CH₄ emission point at ground level with a rate of 0.050 g s⁻¹. The simulations were carried out under neutral atmospheric stability conditions, on a flat, obstacle-free surface cultivated with grass (surface roughness 2 cm), with various wind speeds (from 1 to 5 m s⁻¹).

A downwind plane, perpendicular to the wind direction, was defined, with dimensions of 50 m × 10 m, centred on the emission point. The plane was scanned by several linear sensors to measure integrated concentrations along the optical path (ppm-m), with a step of 10 cm for the vertical configuration and 2 cm for the horizontal configuration.

At the end of each simulation, the measured integrated concentrations were compared to those exceeding 1 ppm-m (the sensitivity of the instrument). The test was then repeated by increasing the wind speed up to 5 m s⁻¹, followed by increasing the distance from the source by one metre and repeating the procedure until reaching 50 m. The limit distance was defined based on the sensor’s ability to fully capture the plume.

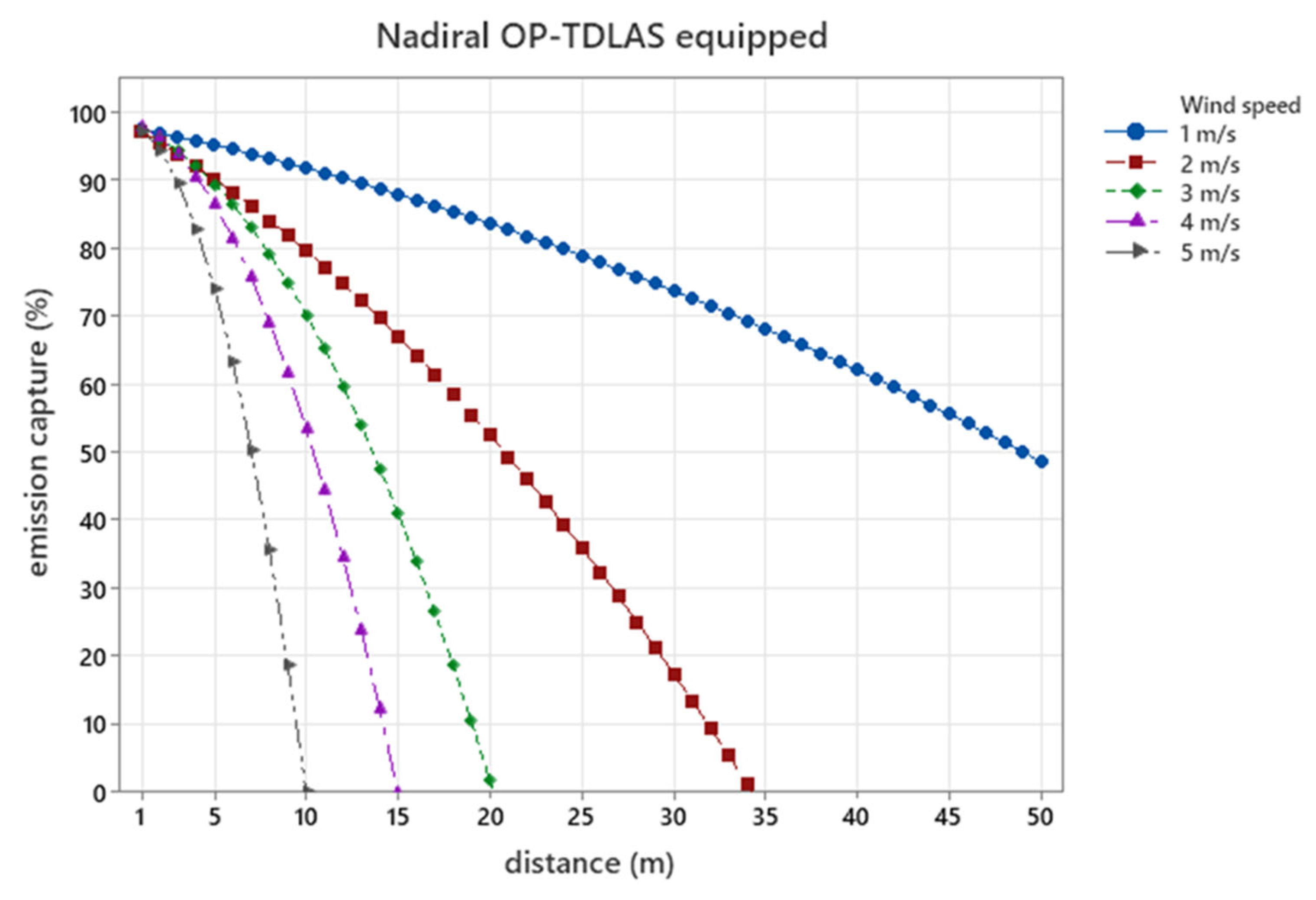

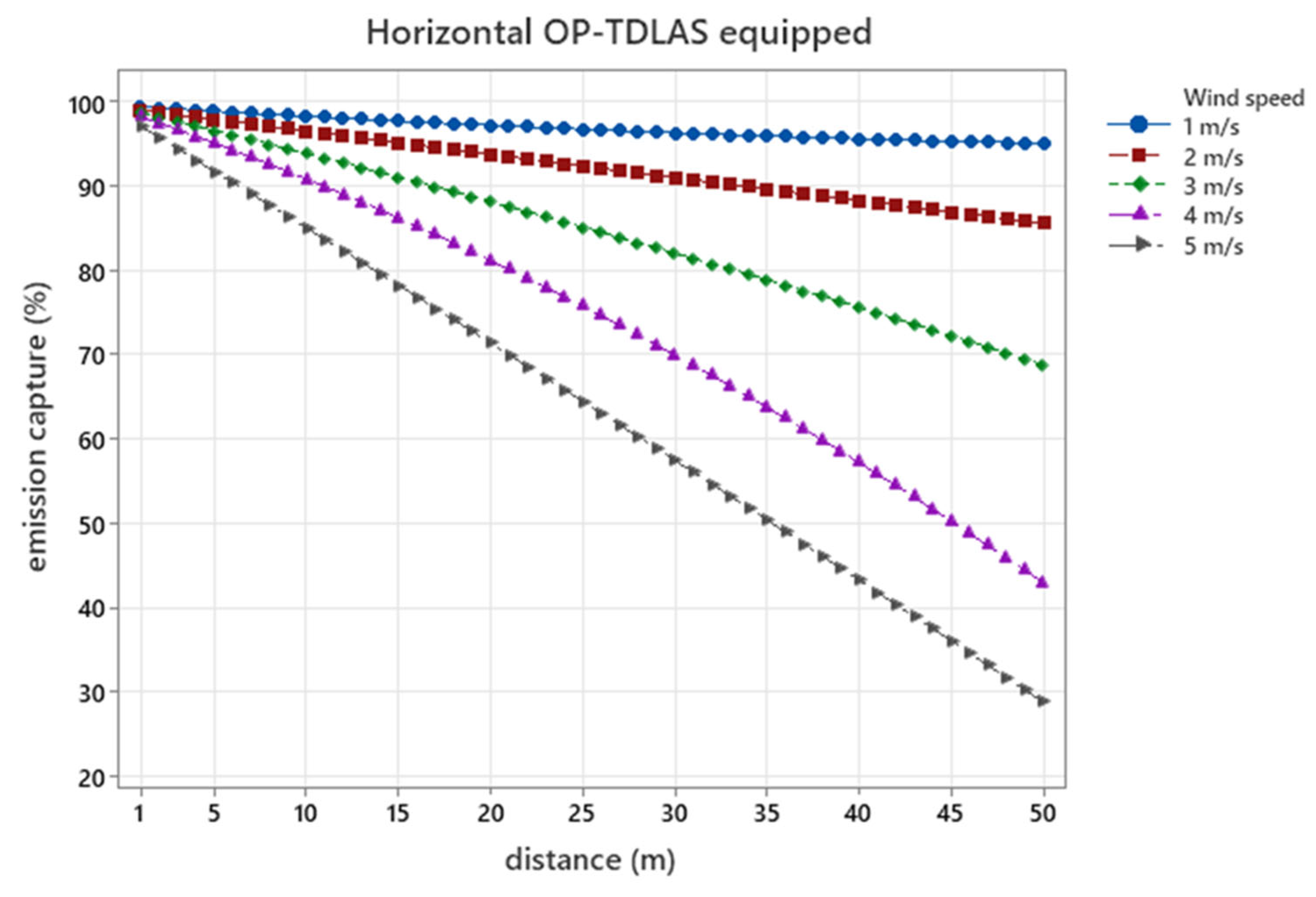

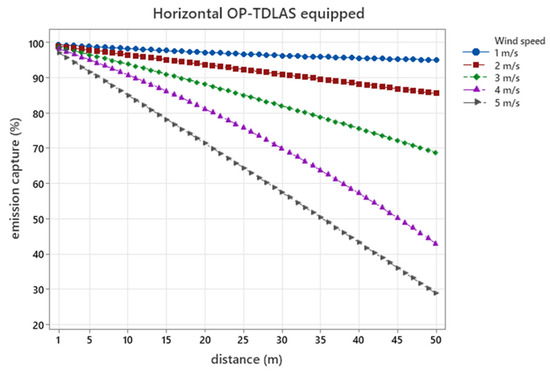

The results are shown in Figure 2 for the vertical configuration and in Figure 3 for the horizontal configuration.

As expected, spatial resolution worsens with increasing wind speed in both cases. When the OP-TDLAS sensor is positioned in a nadir orientation relative to the ground, the maximum detection distance rapidly decreases with wind speed (35 m at 2 m s⁻¹, 20 m at 3 m s⁻¹, 15 m at 4 m s⁻¹, and 10 m at 5 m s⁻¹). At 50 m, with a wind speed of 1 m s⁻¹, the system detects only 50% of the total emission.

The horizontal orientation of the sensor allows for significantly better recovery, managing to capture 30% of the emission at 50 m from the source when the wind is 5 m s⁻¹ and 95% when the wind is 1 m s⁻¹.

These results were derived assuming neutral atmospheric stability conditions; therefore, it is expected that capture percentages and maximum detection distances will tend to increase with higher stability classes and worsen in unstable conditions.

Additionally, the mathematical model operates under steady-state assumptions. With a constant wind of 1 m s⁻¹, an emission takes 50 s to travel 50 m. Due to atmospheric turbulence, it is unlikely that there will be no changes in speed and/or direction during this time interval. This suggests that the actual curves may be characterised by steeper slopes or may result in a combination of the curves represented in Figure 2 and Figure 3. This deviation is expected to increase with flight time, being minimal near the source and maximum at 50 m with weak winds (1 m s⁻¹).

2.2. Vertical Distribution of Average CH₄ Concentrations

The extent of the plume depends on its distance from the emission point and atmospheric stability. Under stable conditions, convective motions are strongly inhibited, favouring the horizontal transport of the gas along the mean wind direction. This tends to keep the emission plume low during transport. As instability increases, convective contributions become more significant, leading to a marked predominance of vertical motions, which contributes towards a more crosswise dispersion of the gas at higher altitudes than in the longitudinal direction.

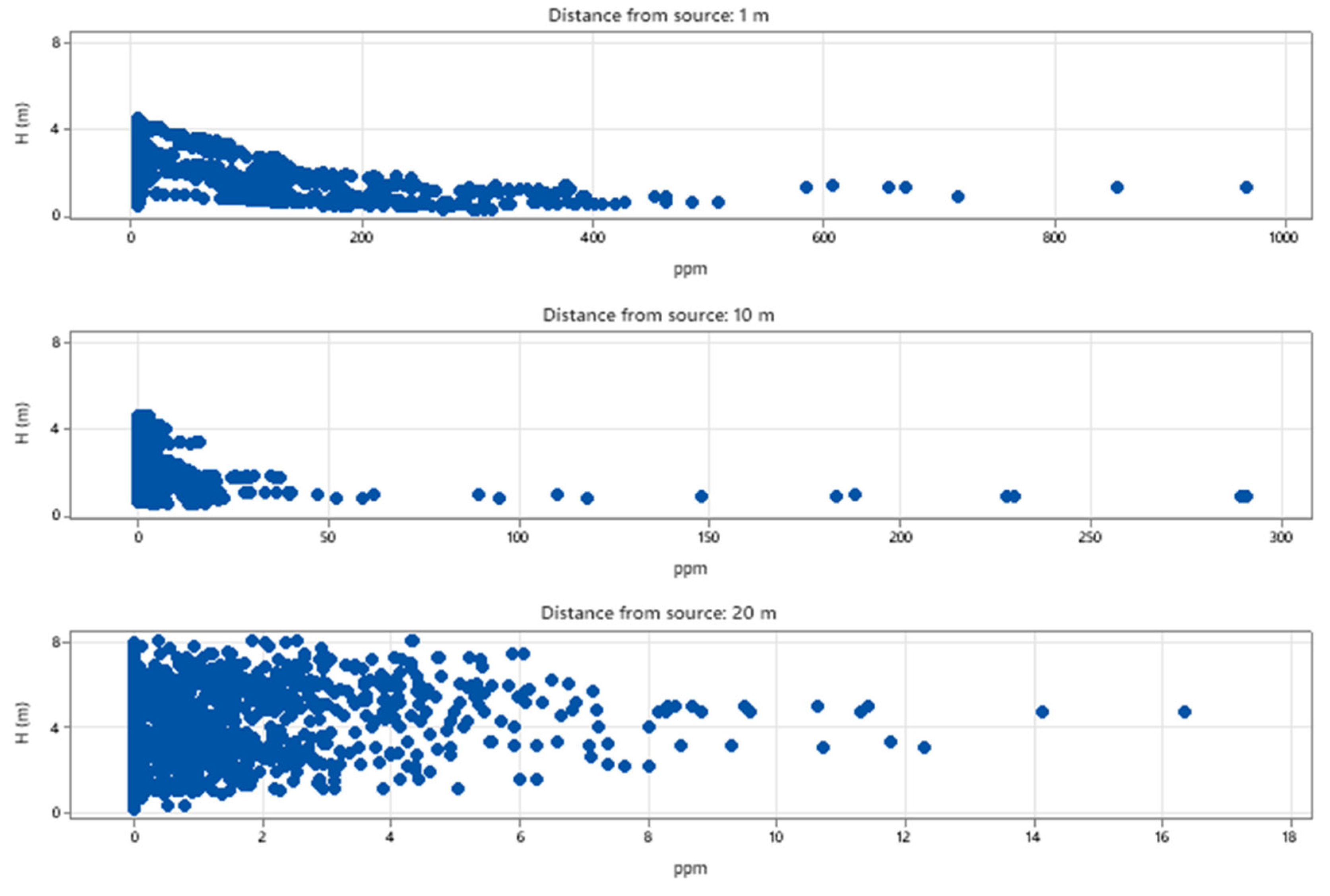

Figure 4 shows the vertical profiles of CH₄ increments for the 17 tests conducted, once again divided based on the downwind distance from the emission point. The results near the source (1 m) highlight the average horizontal transport below 4 m. The concentrations show a slight decreasing trend with height, reaching the peak at 1.57 m (966 ppm) and the minimum at 4.16 m (5.43 ppm).

Even at 10 m from the emission point, the horizontal transport dissipates within 4 m of the ground; however, the decreasing trend is less pronounced due to the increased turbulent dispersion in the atmosphere caused by the distance.

Tests conducted at 20 m suggest CH₄ increments beyond the maximum measured height (8.5 m); the peak concentration was observed at 4.72 m above the ground.

It is likely that the height of the retroreflector was insufficient to fully capture the plume at this distance, or the number of averaging repetitions (four for each flight) was not adequate to define a representative plume morphology.

The results are consistent with those obtained in previous studies involving controlled CH₄ release tests under similar conditions [46]. Compared to the maximum detection distance of 30 m estimated by the authors, the study conducted here limits the distance to 20 m downwind for estimating a CH₄ flux with 50 m optical paths.

Since the source position was central to the measurement plane in both studies, it would be beneficial to increase the horizontal extent of the window by conducting more measurements and integrating the measured data. For instance, the window could be extended to 100 m and the measurement could be split into two separate planes (0–50 m and 50–100 m), estimating the total CH₄ flux as the sum of the two contributions.

For practical reasons, it will be quite difficult to extend the measurement heights beyond 10 m. This obstacle could be overcome by using two synchronised drones in a simultaneous flight, with the first carrying the OP-TDLAS sensor and the second carrying the retroreflector panel and following the movements of the first drone.

The use of a drone equipped with a retroreflector panel has already been observed in literature [50,51], although in these studies the detector is fixed on the ground. There are significant regulatory restrictions regarding flying, which currently make the development and management of a simultaneous flight with multiple drones quite impractical.

2.3. Emission Estimates

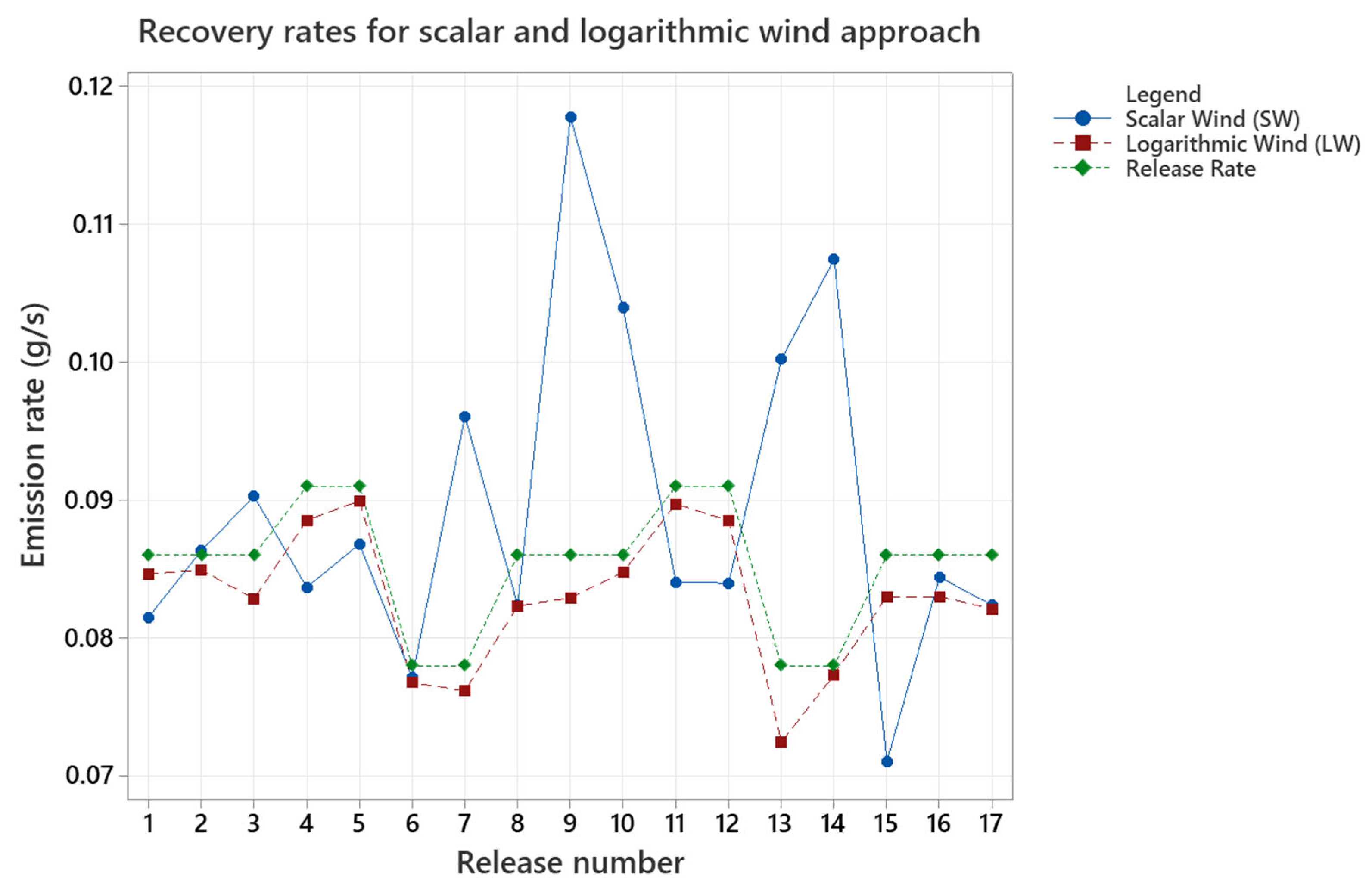

The CH₄ fluxes (g s⁻¹) estimated for each test are summarised in

Table 1. Result flux measurement of controlled release test.

Date	Number Test	Downwind Distance [m]	Release Rate [g s−1]	LW Approach [g s−1]	SW Approach [g s−1]	LW	SW
						Mean Absolute Error	Mean Absolute Error
15 January 2024	1	1	0.086 ± 0.006	0.085 ± 0.004	0.082 ± 0.002	3.6%	5.2%
	2	1	0.086 ± 0.007	0.085 ± 0.002	0.086 ± 0.003	2.1%	2.3%
	3	1	0.086 ± 0.009	0.083 ± 0.002	0.090 ± 0.002	3.8%	5.1%
	4	10	0.091 ± 0.009	0.089 ± 0.006	0.084 ± 0.004	6.0%	8.4%
	5	10	0.091 ± 0.008	0.090 ± 0.007	0.087 ± 0.004	5.5%	5.3%
	6	20	0.078 ± 0.007	0.077 ± 0.012	0.077 ± 0.006	6.8%	5.4%
	7	20	0.078 ± 0.006	0.076 ± 0.010	0.096 ± 0.007	10.3%	23.2%
16 January 2024	8	1	0.086 ± 0.007	0.082 ± 0.002	0.082 ± 0.003	4.5%	4.6%
	9	1	0.086 ± 0.009	0.083 ± 0.002	0.118 ± 0.004	3.6%	36.9%
	10	1	0.086 ± 0.007	0.085 ± 0.003	0.104 ± 0.003	1.9%	20.8%
	11	10	0.091 ± 0.008	0.090 ± 0.004	0.084 ± 0.004	3.2%	8.0%
	12	10	0.091 ± 0.007	0.089 ± 0.007	0.084 ± 0.005	4.0%	8.0%
	13	20	0.078 ± 0.007	0.072 ± 0.005	0.100 ± 0.006	8.9%	28.4%
	14	20	0.078 ± 0.007	0.077 ± 0.002	0.107 ± 0.008	5.5%	37.8%
17 January 2024	15	1	0.086 ± 0.008	0.083 ± 0.002	0.071 ± 0.002	3.6%	17.4%
	16	1	0.086 ± 0.008	0.083 ± 0.001	0.084 ± 0.002	3.5%	2.4%
	17	1	0.086 ± 0.006	0.082 ± 0.002	0.082 ± 0.003	4.5%	4.4%

, differentiated by the approach used for processing the wind data (scalar wind SW and logarithmic wind LW) (Table 1).

Both approaches show a good degree of agreement with the actual emission; however, the assumption of a logarithmic wind profile appears to be more robust than the scalar one. In fact, this method exhibits lower mean absolute errors (1.9–10.3%) compared to the use of scalar wind (2.3–37.8%), with a tendency for the error to increase as the downwind distance from the release point grows.

These results suggest that the logarithmic wind-based approach could be more accurate. In the SW approach, the mean absolute error also tends to increase with distance from the source; however, the trend is less clear, and errors of a similar magnitude can be observed at both 1 metre downwind (test 9: 36.9%; test 10: 20.8%; test 15: 17.4%) and 20 m (test 7: 23.2%; test 13: 28.4%; test 14: 37.8%).

When using an atmospheric mass balance to estimate the methane flux in the atmosphere, the wind vector is a key parameter; it accounts for much of the total uncertainty in the estimate, along with the variability of the background concentration during the flight [47].

It is therefore important to estimate the wind field with sufficient accuracy in order to associate each concentration measurement with the wind speed that best approximates the actual value. The error is also amplified near the source due to poor vertical mixing of the plume. This results in a high variability in CH₄ concentrations, which risks not being captured and could compromise the representativeness of the result.

The LW approach tends to slightly underestimate the actual emitted flux (Figure 5). The SW approach does not exhibit a clear trend; the CH₄ flux was both overestimated (8 tests) and underestimated (12 tests). In tests 7, 9, 10, 13, and 14, the overestimation exceeded 20% of the actual emission rate and almost all these measurements were taken 20 m downwind.

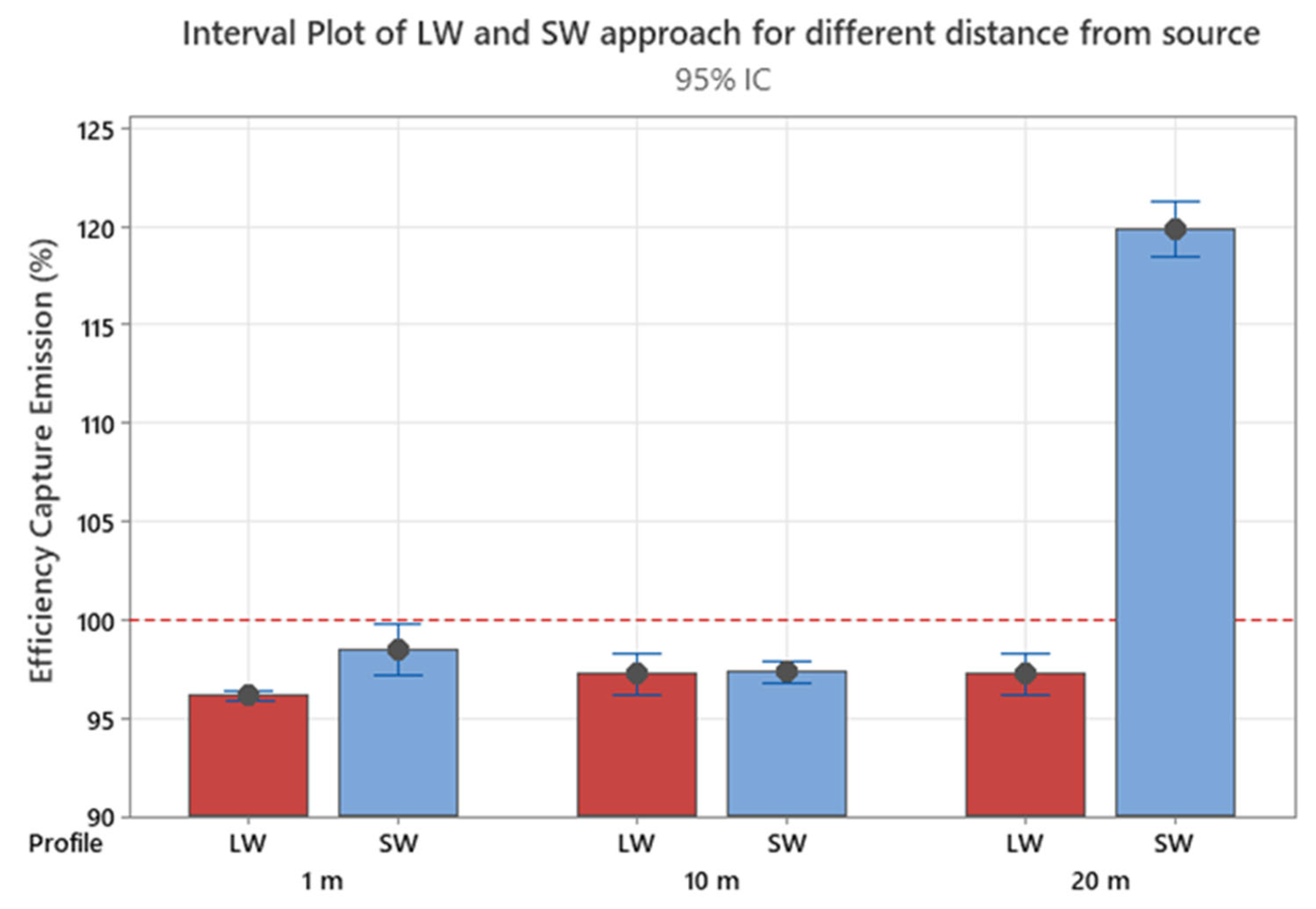

Figure 6 summarises the capture efficiencies of the two tested approaches. The LW approach shows a constant average efficiency (around 98%), regardless of distance. In contrast, the use of scalar wind overestimates at 20 m (120%), while it tends to underestimate at 1 m (98%) and at 10 m (97%).

The results are consistent with those obtained by [52], who highlighted a mean error using scalar wind that was 4% higher than that of logarithmic wind under optimal conditions.

Ultimately, the assumption of a logarithmic wind profile has proven to be a more robust approach than the use of scalar wind. While the former captured the emission with minimal deviation (2%) from the actual flux, the latter is affected by the turbulent fluctuations typical of transport phenomena, resulting in larger errors. The reduced standard deviation is attributable to the speed of the measurement, which allows for four scans to be completed in less than 40 s (which was not able to capture the stochastic variability of the emission profile).

Finally, it is noted that the capture percentages for the LW approach are perfectly comparable to those shown in Figure 3, which report efficiencies ranging from 96% to 100% for distances less than 20 m, with winds between 1 and 2 m s⁻¹ (conditions of the field tests).

2.4. Optimal Conditions

The experimental data were further analysed using a DOE (Design of Experiment) approach. This term refers to a design and analysis technique that involves the intentional manipulation of one or more process factors to study their effect on measurable responses.

The method allows for detailed information to be gathered on the cause-and-effect relationships between variables and helps to identify the optimal conditions to either maximise or minimise a given response. DOE thus provides a statistical and scientific approach to making decisions based on experimental data, offering a solid foundation for process optimisation and the search for innovative solutions. It is widely used in various sectors, from pharmaceutical design to water treatment [53,54,55].

In this study, two process variables (wind speed and distance from the source) were identified, with the aim of understanding their effect on the response variable (mean percentage error). Other available process variables (mean concentration of ambient background, standard deviation of wind speed, angle between the plane and the wind vector) were excluded as they were statistically insignificant (p value > 0.05).

The low standard deviation observed in wind speed is likely due to the speed of the measurement, which was completed in about 40 s per flight (too short to capture the variability induced by atmospheric turbulence). More interesting is the non-significance of the angle between the plane and the wind direction. This is due to both the speed of the measurement and the flexibility of the panel equipped with a retroreflector. Unlike fixed systems (which require initial collimation and must remain stationary to maintain alignment with the sensor), the designed panel can be easily rotated by the operator. This allows for the panel to be positioned perpendicular to the wind direction just moments before the flight, reducing random effects induced by turbulence over time.

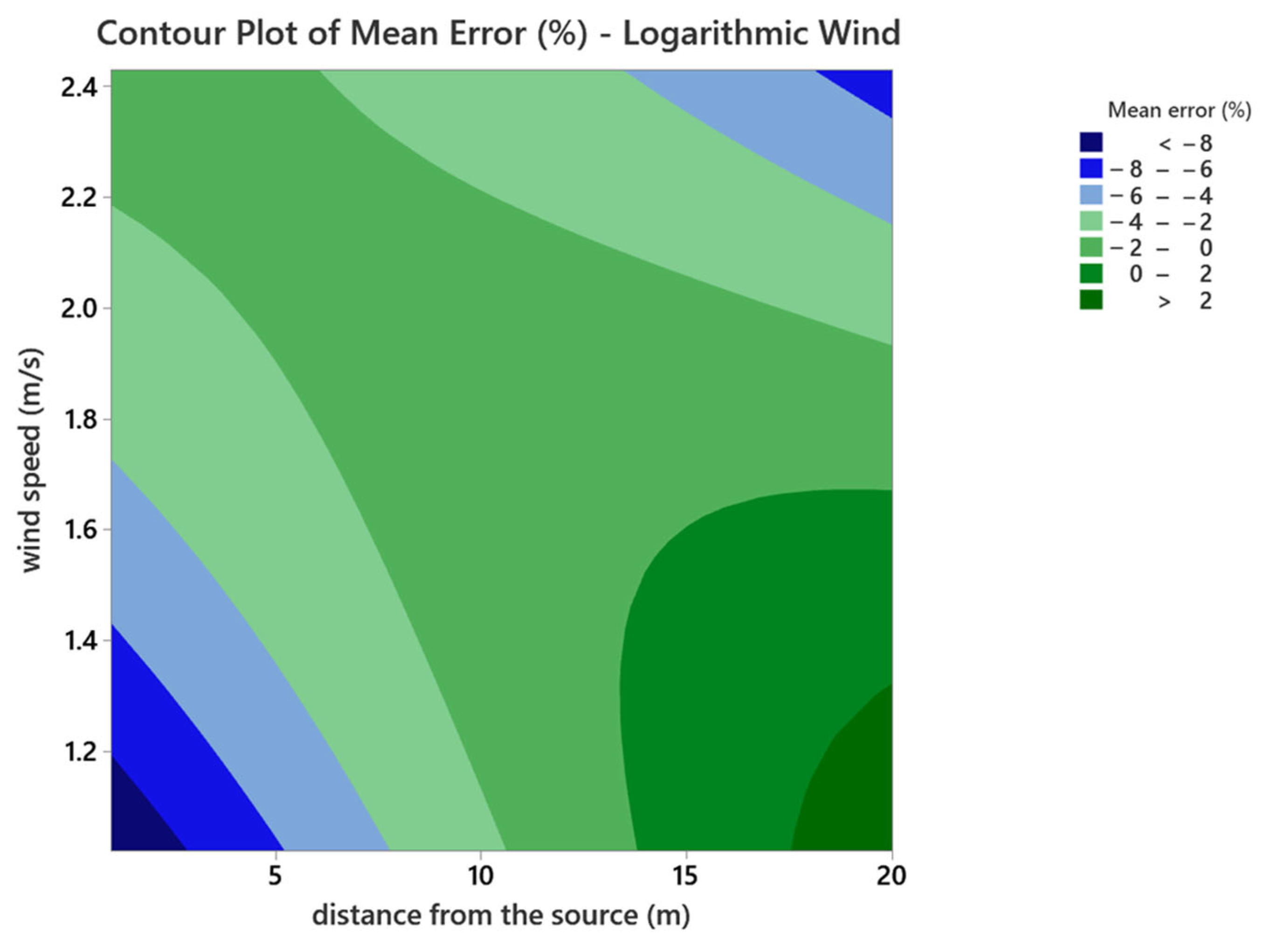

Figure 7 illustrates the trend of the mean percentage error for the LW approach. Near the source (d < 3 m) with weak winds (<1.2 m s⁻¹), the underestimation is at its maximum (<8%). This is likely due to the portion of the plane not scanned by the drone (from 0 to about 0.5 m). The drone automatically initiates the landing protocol when it is at a short distance from the ground. To address this issue, it was necessary to maintain a minimum altitude during the scans, which left a dark zone in the first vertical segment. It is possible that the plume was not fully captured during some tests, as indicated in Figure 6.

As the distance from the source increases, the error tends to decrease without showing a clear dependence on wind speed. In the range of 14–18 m and for winds below 1.6 m s⁻¹, the best match is observed, and the method starts to slightly overestimate the actual flux (<2%). As the distance increases and for winds below 1.3 m s⁻¹, the overestimation exceeds 2%.

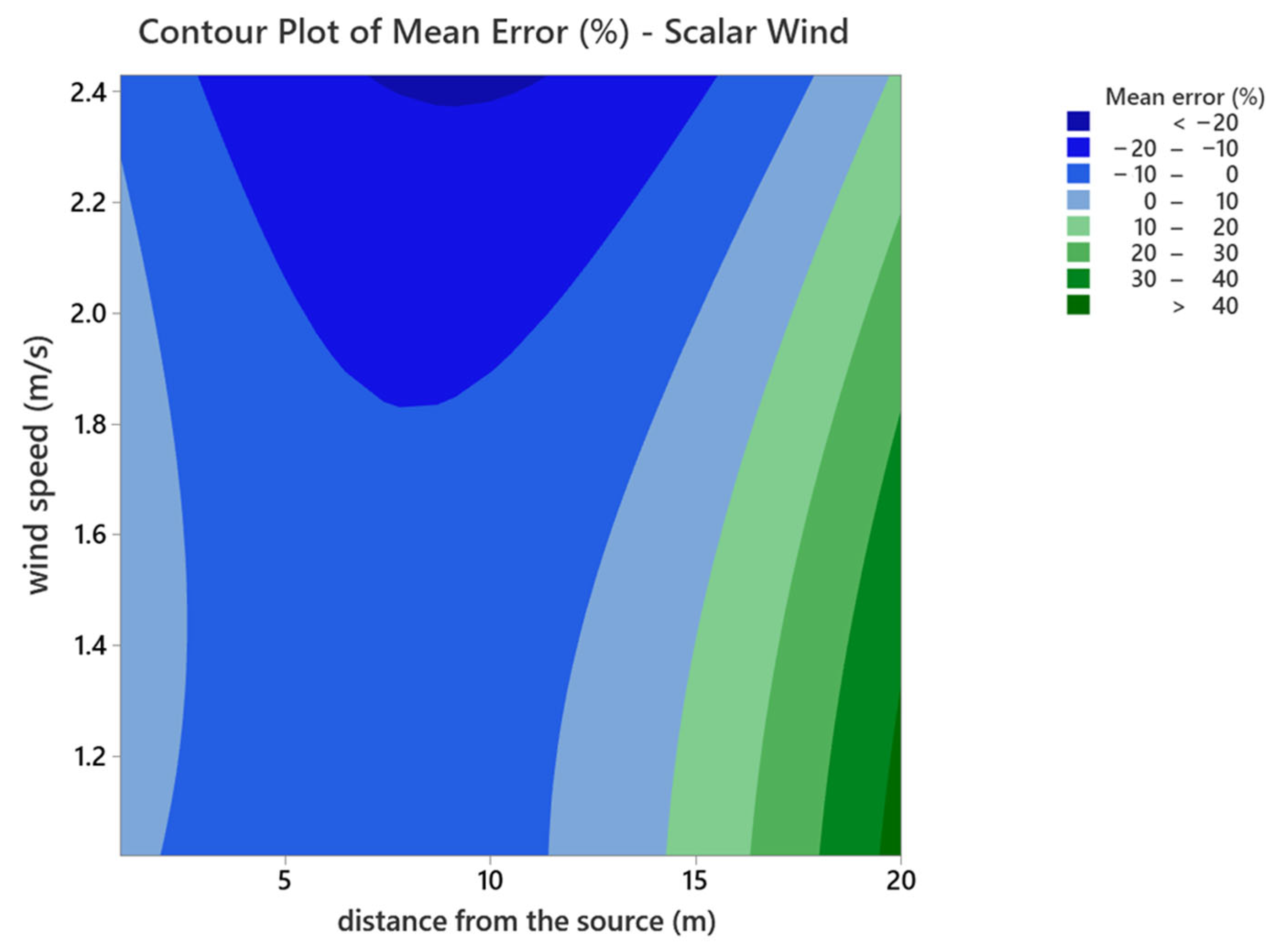

The SW approach (Figure 8) is characterised by higher mean percentage errors; the graph is consistent with what was already observed in the previous section. Near the source (d < 2 m), the method slightly overestimates the actual emission (up to 10%). As the distance increases, there is a tendency to underestimate by up to 10%, with no apparent relationship to wind speed. From 15 m onwards, the trend reverses, with vertical areas showing increasing overestimation up to 20 m (>40%).

2.5. Influence of Background Concentration Uncertainty

An uncertainty analysis was conducted to evaluate the influence of the error in measuring the background CH₄ concentration on the estimation of source power. The uncertainty, calculated for both the logarithmic wind (LW) and scalar wind (SW) approaches across all valid tests performed, is summarised in

Table 2. Effect of background concentration on emission estimates and uncertainties.

Number Test	LW Approach		SW Approach
	[g s−1]	[%]	[g s−1]	[%]
1	0.085	15.30%	0.082	18.90%
2	0.085	16.20%	0.086	15.50%
3	0.083	17.50%	0.09	12.50%
4	0.089	14.00%	0.084	16.40%
5	0.09	13.20%	0.087	14.30%
6	0.077	22.80%	0.077	23%
7	0.076	23.70%	0.096	12%
8	0.082	18.10%	0.082	19.60%
9	0.083	17.10%	0.118	12.10%
10	0.085	15.90%	0.104	12.60%
11	0.09	12.70%	0.084	17%
12	0.089	13.80%	0.084	15.80%
13	0.072	29.50%	0.1	12.90%
14	0.077	22.20%	0.107	12.30%
15	0.083	16.70%	0.071	32%
16	0.085	15.30%	0.084	16.90%
17	0.085	16.20%	0.082	19.20%

.

The results show a variation ranging from 13% to 30% for the LW approach, with a tendency to decrease as the emission rate increases (reflecting the reduced impact of the background value on the overall signal). As expected, higher emission fluxes correspond to lower relative uncertainties due to the diminished influence of background measurement error compared to the total signal. A similar trend is observed for the SW approach, confirming the inverse relationship between emission intensity and relative uncertainty.

Although these results are slightly lower than other data reported in the literature [38,47], they demonstrate how an inaccurate assessment of the background concentration can adversely affect the estimated emission rate, particularly for modest fluxes. Therefore, it is essential to carefully consider this aspect and ensure that the sensors employed are suitable for the task in terms of sensitivity, precision, and accuracy.

3. Materials and Methods

This section outlines the methods and tools used in the present study. Section 3.1 introduces the UAV platform and the sensors required for the application of the method. Section 3.2 briefly summarises the adopted mass-balance approach. Finally, Section 3.3 describes the experimental configurations of the controlled release tests.

3.1. UAV Platform and Instrumentation

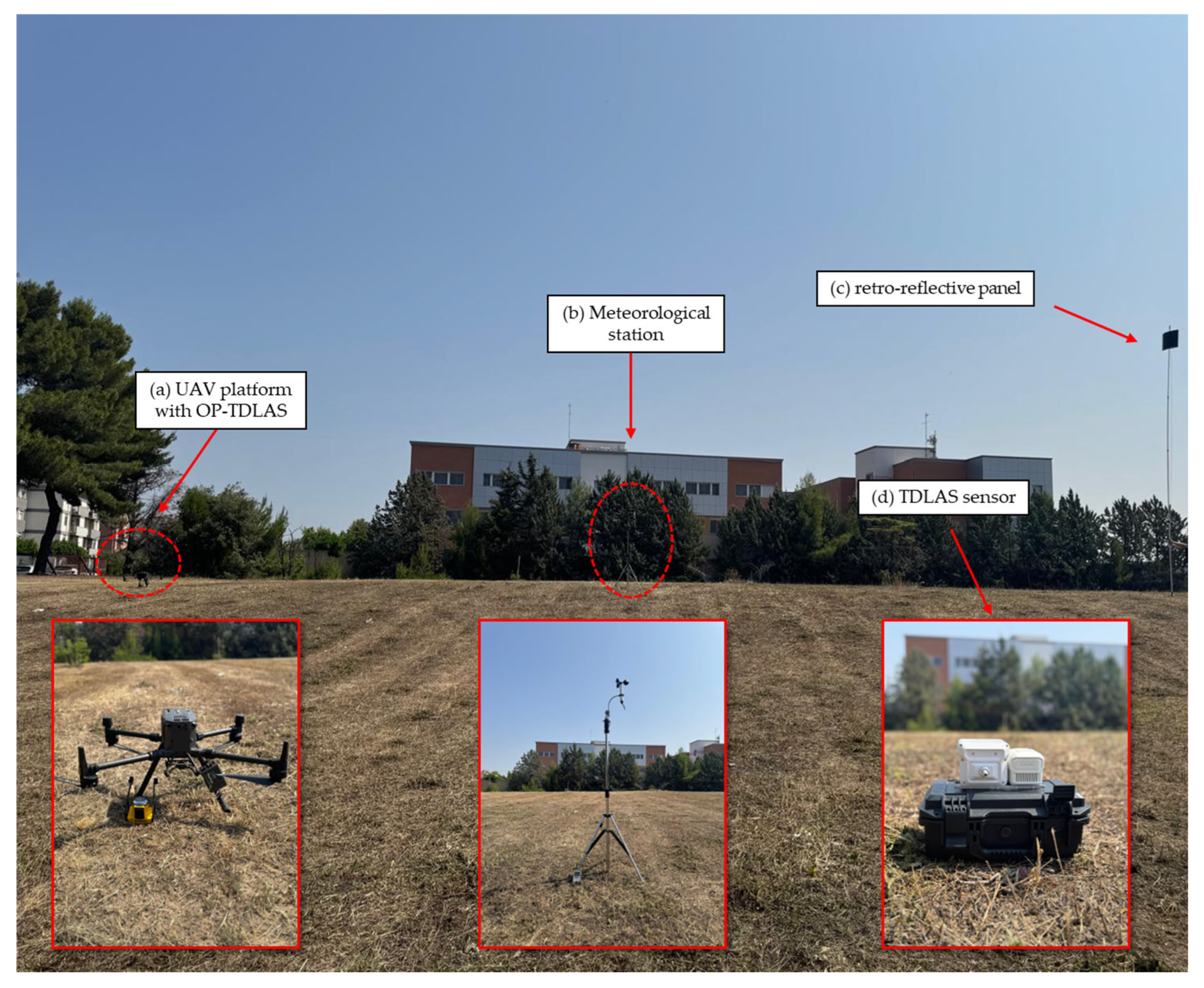

The UAV platform used is a commercial quadcopter (Matrice 350, DJI Technology Co., Shenzhen, Cina), equipped with a Real-Time Kinematic (RTK) system for high-precision positioning. Typically, spatial coordinates are obtained using GPS (Global Positioning System) data combined with on-board atmospheric pressure measurements, particularly to determine flight altitude. However, this method generally provides vertical accuracy within several tens of centimetres, which is not sufficient to quantify gas fluxes with the required precision [56]. The RTK system used by the M350 drone allows for a positioning accuracy of 1.5 cm (±1 ppm) vertically and 1 cm (±1 ppm) horizontally.

The UAV platform is fitted with an open-path Tunable Diode Laser Absorption Spectroscopy (OP-TDLAS) methane spectrometer. The sensor (Laser Falcon methane detector, Pergam-Suisse AG, Zürich, Switzerland) emits electromagnetic radiation at a wavelength selective for CH₄ (1.65 μm); this beam reaches a designated target (typically the ground) and is then reflected back to the sensor. The device records data at a frequency of 10 Hz and provides measurements expressed in ppm-m (range: 0–50,000 ppm-m).

The support brackets were customised to allow for horizontal mounting of the sensor. Thus, the laser is not oriented nadirally towards the ground but is rather directed at a vertical target—a pole-mounted, mobile retro-reflective panel.

The retro-reflective panel measures 50 cm × 50 cm and is attached to a 9 m pole, along which it can be raised using a pulley system. The maximum height of the pole was determined as a compromise between operational constraints and data from the literature. Refs. [46,48] observed measurable CH₄ increases at no more than 6–7 m above ground level under comparable conditions in terms of the spatial scale of the measurements.

The design of the retro-reflective panel was optimised to enhance pointing precision and accuracy. The drone is equipped with a zoom camera and a viewfinder to maintain correct alignment with the target during flight. Any misalignment is identified and corrected during post-processing of the raw data, together with potential false positives from the OP-TDLAS sensor (Pergam Ltd., London, UK), using a dedicated algorithm [57].

False positives refer to erroneous readings indicating the presence of CH₄ when it is either absent or present in negligible amounts. These may arise from external interferences, calibration errors, or unfavourable environmental conditions. False positives can lead to incorrect conclusions and negatively impact the precision and reliability of measurements. Therefore, regular calibration checks and the development of dedicated algorithms are essential to minimise the occurrence of false positives.

Meteorological parameters (wind speed and direction, temperature, atmospheric pressure) were recorded at 2 m above ground level using a weather station positioned near the retro-reflective panel. The instrumental setup is summarised in Figure 9.

3.2. Mass-Balance Approach

The methodology proposed in this study is based on a Lagrangian approach to mass balance, which has previously been employed to estimate fugitive CH₄ emissions from various landfill sites through airborne measurements [33] or UAV platforms [38,41,44].

It differs in the type of concentration measured and processed, which is not a point value but rather represents the total amount of CH₄ along a horizontally measured optical path (g m⁻²).

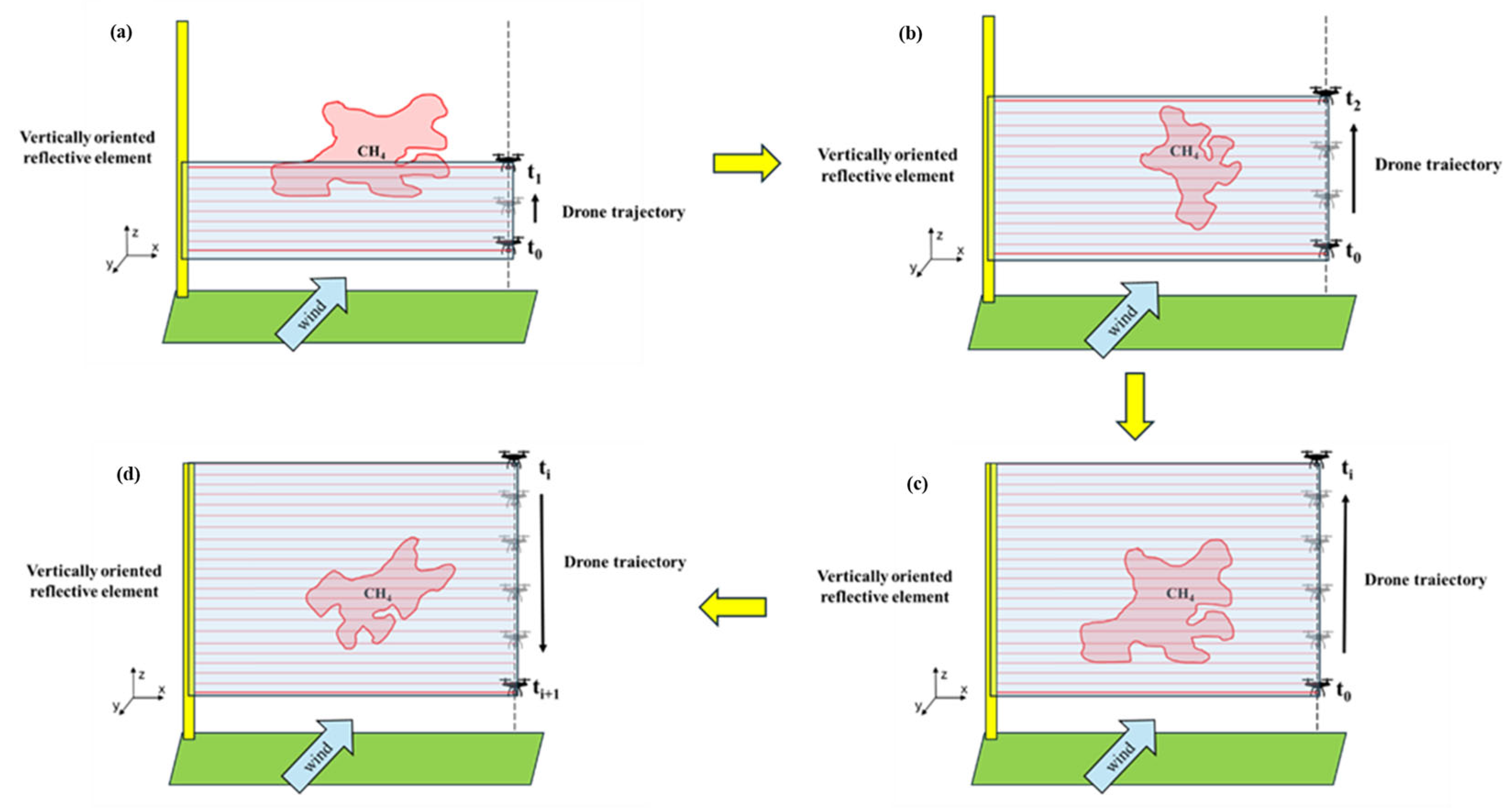

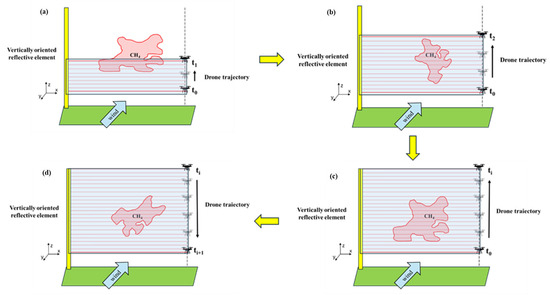

The UAV system described in Section 2.1 directs the horizontal laser beam towards a retro-reflective panel, performing rapid successive scans at different heights. The maximum distance from the panel depends on the technical specifications of the OP-TDLAS sensor mounted on the drone. The sensor used in this study can detect CH₄ over an optical path of up to 100 m. However, the manufacturer recommends an optical path length between 30 and 50 m to optimise performance. Therefore, the tests were carried out using a 50 m optical path.

Since the OP-TDLAS sensor allows for the calculation of an integrated concentration along an optical path (g m⁻²), the CH₄ flux for the i-th vertical scan, Fᵢ (g s⁻¹), can be estimated using Equation (1):

$$F_i={\int }_0^H{v}_{z,i}\sin \theta \left({\overline{\rho }}_{{CH}_{4,d,z,i}-}{\overline{\rho }}_{{CH}_{4,b,z,i}}\right)dz$$

(1)

where $v_{z,i}$ (m s⁻¹) is the horizontal wind component at altitude z (m), θ is the angle between the wind direction and the optical path, and $\left({\overline{\rho }}_{{CH}_{4,d,z,i}-}{\overline{\rho }}_{{CH}_{4,b,z,i}}\right)$ represents the increase in the integrated CH₄ concentration relative to the background level along the same path (g m⁻²). The subscript d indicates that the measurement was taken downwind of the source, b refers to the background concentration, z denotes the altitude of the optical path, and i identifies the i-th vertical scan.

The final emission rate F (g s⁻¹) is calculated as the average over n scans conducted during a single flight (Equation (2)):

$$F={\sum }_{i=1}^n{\displaystyle \frac{F_i}{n}}$$

(2)

The duration of a flight depends on the number of scans performed, as well as the drone’s altitude and vertical speed. Experimental observations have shown that a minimum of four scans is sufficient to obtain satisfactory results. Assuming an altitude of 9 m and a vertical speed of 1 m s⁻¹, the time required to complete four scans is approximately 36 s.

When comparing our approach with that of a drone equipped with a point sensor, each single scan across a plane downwind of the source typically takes longer to complete (approximately 50 s). As a result, spatial resolution is compromised in favour of faster scanning, but this complicates subsequent data interpolation and reduces accuracy (particularly in the vertical direction). Furthermore, non-simultaneous sampling along the vertical axis of the plume is one of the main limiting factors in achieving accurate emission estimates using the mass-balance approach [38]. In Figure 10, the flight plan is shown with the transects covered by the drone during the survey.

3.2.1. Conversion from ppm-m to Integrated Concentration (g m⁻²)

The integrated mole fractions returned by the sensor (ppm-m) were converted into an integrated concentration (g m⁻²) using Equation (3), which approximates the behaviour of CH₄ as an ideal gas:

$${\overline{\rho }}_{{CH}_{4,d,z,i}}=\left[{\displaystyle \frac{P\times 16.04\times \left({1-\mathrm{H}}_2\mathrm{O}\right)}{RT}}\right]\times {\displaystyle \frac{{(\mathrm{p}\mathrm{p}\mathrm{m}-\mathrm{m})}_{d,z,i}}{{10}^6}}$$

(3)

where the terms P, T, and R respectively represent atmospheric pressure, temperature, and the universal gas constant, while 16.04 (g mol⁻¹) is the molecular weight of CH₄. The mole fraction of water vapour (H₂O, %) is calculated based on temperature and relative humidity (RH) measurements. In cases where humidity is not measured during the survey, the (1—H₂O) contribution may be omitted from Equation (3). The uncertainty introduced by humidity is, in fact, less than 1% [56]. Since the focus is solely on CH₄ concentration increase above the background level, this error can be considered minor and negligible in the absence of field measurements.

3.2.2. CH₄ Background Measurements

The background concentrations (CH_4,b) were measured by conducting upwind flights relative to the emission source, carried out a few minutes prior to the quantification flight. The same experimental setup was adopted (maintaining the same distance from the retroreflective panel and scanning height). The results were then processed statistically to remove any false positives. The validated measurements were divided by the actual lengths of the optical paths and subsequently averaged, yielding an average background CH₄ concentration expressed in ppmv.

Assuming an approximately constant background level across the vertical plane, the integrated CH_4,b concentration along each path was calculated as the product of the average value and the optical path length.

Due to the relatively short vertical flight path (approximately 9 m) and the drone’s low flight speed (1 m/s) with a data acquisition frequency of 10 Hz, each vertical scan yielded just under 90 optical paths. Since at least half of these paths intersected the plume, background estimation based on downwind measurements resulted in significant overestimation. For this reason, background concentrations were instead estimated using upwind scans, where only clean air measurements could be averaged.

3.2.3. Wind Measurements

The wind speed perpendicular to the generic optical path was estimated using two different approaches. The first method is based on the construction of a theoretical logarithmic wind profile, which has already been adopted by several UAV-based methodologies in landfills [52,58,59] and in various controlled release tests [52,56].

Based on the parameters measured by the meteorological station at a height of 2 m, the wind speed v(_z,i) (m s⁻¹) at a given height z (m) is calculated using Equation (4):

$$v_{z,i}={\mathrm{v}}_{z_r,\mathrm{i}}\times {\displaystyle \frac{\left[\ln \left(\frac{z}{z_0}\right)-{\Psi }_m\left(\frac{z}{L}\right)\right]}{\left[\ln \left(\frac{z_r}{z_0}\right)-{\Psi }_m\left(\frac{z_r}{L}\right)\right]}}$$

(4)

where ${\mathrm{v}}_{z_r,\mathrm{i}}$ (m s⁻¹) is the wind speed measured at the reference height z_r (2 m), z₀ represents the surface roughness of the terrain (m), while Ψ_m is a correction function depending on atmospheric stability. The term L represents the Monin–Obukhov length, which defines the ratio between the convective and mechanical forcing of turbulence.

The second approach is conceptually simpler. Each sensor measurement was associated with the instantaneous wind data recorded by the meteorological station at 2 m above ground level. It is assumed that the station is near the measurement plane in order to minimise the uncertainty due to spatial variability of the wind field and turbulent transport.

The aim was to assess whether the reduced scale of the tests allowed for a simplification of Equation (4) by evaluating the error introduced when atmospheric stability is neglected. In other words, wind speed was calculated using the following Equation (5):

$$v_{z,i}={\mathrm{v}}_{z_r,\mathrm{i}}$$

(5)

where ${\mathrm{v}}_{z_r,\mathrm{i}}$ (m s⁻¹) is the wind speed measured at the reference height z_r (2 m).

3.3. Controlled Release Test

The controlled release tests were conducted in an open field cultivated with grass. The site morphology is approximately flat, and there are no potential external sources of CH₄ nearby. The grass height was less than 5 cm, and there were no obstructions to wind flow within the field. However, the site is bordered by high-speed roads on two sides. To exclude possible interference from turbulent phenomena induced by vehicular traffic, a safety zone was defined. This limitation allowed the vertical plane to be placed no more than 20 m from the source.

A total of 22 tests were conducted between 15 and 17 January 2024, of which 20 were suitable for flux quantification. During the last two flights on 17 January, the meteorological station failed to record data due to technical issues, and the flights were discarded. The effective flight altitudes during the tests ranged from approximately 0.5 m to 9 m. The plume was fully captured in all tests. The main operational parameters of the valid tests are summarised in

Table 3. Summaries of controlled release test.

Date	Number Test	Time (Take Off—Landing)	Downwind Distance [m]	Release Rate [g s−1]	Mean Wind Speed [m s−1]	Mean Wind Direction [deg Nord]	Angle Between Wind and Plane [deg Nord]
15 January 2024	1	11:28:05–11:28:54	1	0.086 ± 0.006	2.32 ± 0.34	266 ± 20	82 ± 20
	2	11:35:03–11:35:52	1	0.086 ± 0.007	2.41 ± 0.30	294 ± 28	84 ± 28
	3	11:42:22–11:43:12	1	0.086 ± 0.009	2.02 ± 0.32	313 ± 18	84 ± 18
	4	12:00:05–12:00:52	10	0.091 ± 0.009	1.33 ± 0.15	311 ± 16	87 ± 16
	5	12:06:26–12:07:07	10	0.091 ± 0.008	1.77 ± 0.25	288 ± 25	96 ± 25
	6	12:20:03–12:20:54	20	0.078 ± 0.007	2.42 ± 0.62	302 ± 20	98 ± 20
	7	12:26:01–12:26:51	20	0.078 ± 0.006	2.43 ± 0.77	299 ± 26	101 ± 30
16 January 2024	8	15:24:16–15:25:01	1	0.086 ± 0.007	1.64 ± 0.30	302 ± 27	81 ± 27
	9	15:31:01–15:31:53	1	0.086 ± 0.009	1.97 ± 0.51	288 ± 31	101 ± 25
	10	15:39:12–15:40:00	1	0.086 ± 0.007	1.33 ± 0.18	143 ± 21	104 ± 21
	11	15:47:01–15:47:52	10	0.091 ± 0.008	1.28 ± 0.08	283 ± 18	86 ± 21
	12	15:52:25–15:53:04	10	0.091 ± 0.007	1.49 ± 0.21	247 ± 15	92 ± 23
	13	15:57:12–15:58:01	20	0.078 ± 0.007	1.96 ± 0.27	304 ± 25	91 ± 25
	14	16:05:42–16:06:33	20	0.078 ± 0.007	1.46 ± 0.25	259 ± 23	103 ± 42
17 January 2024	15	10:19:18–10:20:02	1	0.086 ± 0.008	1.91 ± 0.11	96 ± 18	88 ± 18
	16	10:30:02–10:30:52	1	0.086 ± 0.008	1.77 ± 0.07	64 ± 12	85 ± 12
	17	10:35:27–10:36:03	1	0.086 ± 0.006	1.93 ± 0.05	92 ± 16	102 ± 16
	18 *	10:45:01–10:45:47	1	0.086 ± 0.009	1.02 ± 0.08	69 ± 21	82 ± 19
	19 *	11:02:07–11:02:56	10	0.091 ± 0.007	0.97 ± 0.10	299 ± 23	86 ± 23
	20 *	11:09:03–11:09:49	10	0.091 ± 0.008	1.02 ± 0.18	280 ± 16	86 ± 21

* Flights were excluded from the analysis to ensure consistency, owing to significant variations in wind speed.

.

The days selected for the tests presented favourable meteorological conditions, with winds exceeding 1 m s⁻¹ and no precipitation. The source consisted of a cylinder containing CH₄ (99%), equipped with a flow meter and connected by a small tube (internal diameter 1.2 cm) to the release point. The end of the tube was positioned approximately 10 cm above the surface to simulate a ground emission. Each release lasted on average 20 s, and the vertical plane was measured at various distances from the source (1 m, 10 m, 20 m).

The release rates were selected based on the minimum emission estimated using the chamber method across 11 US landfills [60]. The 428 tests conducted between May 2006 and December 2009 provided an emission rate ranging from 0.06 g s⁻¹ to 2.00 g s⁻¹.

To verify that the CH₄ released during one test did not interfere with the measurements of the next, screening flights were conducted at the end of each test. For this purpose, a second drone was used, equipped with a multi-gas sensor (Sniffer 4D, range 0–10,000 ppm, resolution 1 ppm, accuracy ±10%). The subsequent release was carried out only when the concentrations measured within the study area fell within the ambient background range.

4. Conclusions

This study presents and discusses the results of 20 controlled CH₄ release tests conducted between 15 and 17 January 2024 at a test field cultivated with grass. The objective was to estimate the emission rate on a downwind plane at various distances from the source, using an UAV-based mass balance. A quadcopter drone (M350, DJI) was used, equipped with a TDLAS sensor with an open path to measure integrated CH₄ concentrations. Wind data were collected from a ground-based weather station. Two different approaches for processing the wind data were tested: assuming a logarithmic wind profile (LW) with height or using the wind data from the weather station as constant and representative over the entire plane (SW).

The main results can be summarised in the following points:

• The recoveries calculated using the LW approach were on average 98%, regardless of the downwind distance from the source;
• The recoveries calculated using the SW approach showed more variable trends with distance, with good correspondence near the source (98%) and marked overestimation at 20 m from the source (120%);
• Experimentally, it was observed that a minimum of four scans was sufficient for the LW approach, while it is recommended to increase this number for the SW approach in order to reduce the plume variability induced by atmospheric turbulence;
• Due to the short time required to perform four scans (about 40 s) and the manoeuvrability of the retroreflector panel, it was easy to ensure the perpendicularity of the plane to the wind during each test. Therefore, wind direction variability was negligible;
• The results were consistent with numerical simulations carried out using a Lagrangian particle model for pollutant dispersion in the atmosphere, considering two different scenarios: one with a horizontal path and the other with a vertical path for the laser sensor.

The study demonstrated that the proposed technique can identify an emission rate of at least 0.08 g s⁻¹ within 4% of the actual value using the LW approach, provided that the number of scans is sufficient (at least four).

Several limitations and aspects requiring further study were also identified. In particular, the height of the plane is limited by the operational practicality of the retroreflector system (which can hardly exceed 10 m in the field).

An ideal configuration would involve the simultaneous and synchronised flight of two drones; however, this is currently strongly constrained by existing flight regulations (procedural complications for issuing permits, waiting times, and higher costs). Alternatively, gas-filled balloons, building walls or industrial sheds could be used to lift the retroreflector panel, as they are considered to be similar to masts under many regulations up to 50 m in height and do not require specific permits. However, this reduces the system’s flexibility and adds costs and management complications for transporting and storing the gas to be used.

Another aspect to consider is the maximum length of the optical path. The laser sensor used in this study allows for measurement along an optical path up to 50 m, enabling the scanning of a plane with approximate dimensions of 50 m × 9 m. Since the plume disperses and the cross-section increases with distance, a wider scanning window is necessary.

Furthermore, the position of the source is often unknown. Therefore, it is preferable to scan larger planes by subdividing them into 50 m long tracks, estimating the emission as the sum of the contributions.

Finally, CH₄ increments above the ambient background tend to decrease with distance from the emission point. It would be preferable to measure the ambient background concurrently with the release, rather than at previous or subsequent times. This aspect could be addressed in future experiments.

In conclusion, the proposed and analysed method is a promising tool for estimating CH₄ emissions from various sectors (agriculture, energy, and especially waste), where the field situation allows for its use.
