Exploring the Feasibility and Performance of Perovskite/Antimony Selenide Four-Terminal Tandem Solar Cells

Abstract

The tandem solar cell presents a potential solution to surpass the Shockley–Queisser limit observed in single-junction solar cells. However, creating a tandem device that is both cost-effective and highly efficient poses a significant challenge. In this study, we present proof of concept for a four-terminal (4T) tandem solar cell utilizing a wide bandgap (1.6–1.8 eV) perovskite top cell and a narrow bandgap (1.2 eV) antimony selenide (Sb₂Se₃) bottom cell. Using a one-dimensional (1D) solar cell capacitance simulator (SCAPS), our calculations indicate the feasibility of this architecture, projecting a simulated device performance of 23% for the perovskite/Sb₂Se₃ 4T tandem device. To validate this, we fabricated two wide bandgap semitransparent perovskite cells with bandgaps of 1.6 eV and 1.77 eV, respectively. These were then mechanically stacked with a narrow bandgap antimony selenide (1.2 eV) to create a tandem structure, resulting in experimental efficiencies exceeding 15%. The obtained results demonstrate promising device performance, showcasing the potential of combining perovskite top cells with the emerging, earth-abundant antimony selenide thin film solar technology to enhance overall device efficiency.

1. Introduction

Solar energy represents rich renewable energy on the Earth. Harvesting of solar energy by a single-junction solar cell for electricity generation is limited by the Shockley–Queisser limit (SQL) [1,2]. To overcome this theory bottleneck, forming a tandem solar cell architecture by combining a wide bandgap and a narrow bandgap subcell is an effective and affordable approach [3,4]. Traditionally, two types of tandem structures were widely developed: one is the monolithic two-terminal (2T) tandem solar cell and the other is the mechanical stacking of two subcells to form a four-terminal (4T) tandem solar cell [5]. Particularly, the 4T tandem solar cell has more freedom to utilize the subcells cost-effectively without considering the current matching in the 2T tandem solar cell. The top cell with a wide-bandgap (WBG) absorbs high-energy photons and allows the low-energy photons to be transmitted through and then absorbed by the narrow-band gap (NBG) bottom cell [6,7]. The suitable WBG top cells should have a bandgap from 1.6 to 1.9 eV, while the bottom solar cell is around 1.1 to 1.2 eV to maximize the overall power conversion efficiency (PCE) at greater than 40% [4]. So far, various tandem device has been proposed based on the available relatively mature solar cell technology. A theoretical efficiency of around 42% can be achieved for an ideal two-junction tandem solar cell [8]. An example is the multijunction InGaP/GaAs-based tandem device [9]. However, most of these tandem devices still have high costs and are difficult to scale up for manufacture. Particularly, in 2T tandem devices, the wide bandgap top and narrow bandgap bottom cells are connected by an interconnect layer (ICL) [10,11]. Ensuring efficient charge transport through the ICL and current alignment between the top and bottom cells are the key challenges to avoid extra power dissipation. In addition, the lattice and thermal expansion coefficient mismatch between dissimilar materials can lead to stress, strain and defects at the interface that affect the long-term stability. In contrast, in four-terminal designs, the top and bottom subcells are separated, allowing each device to be easily modified or replaced as needed. The 4T devices tend to be more stable due to their physical isolation, making them less prone to degradation compared to 2T structures [12,13]. To enhance the upscale manufacturing of tandem solar cells, an effective approach is to utilize low-cost subcells while maintaining high efficiency. This can be achieved by combining the different subcells through an interconnect layer, which facilitates the efficient transfer of electrical charges between the subcells. By implementing this method, the overall cost of manufacturing tandem solar cells can be reduced while maintaining high efficiency.

So far, single-junction metal halide perovskite solar cells (PSCs) have demonstrated a PCE from ~3.8% in 2009 to a recent record efficiency exceeding 26% in 2023 [14,15,16] Perovskite materials, despite being less stable compared to traditional light absorber materials such as Si and CdTe, have gained significant attention due to their low-cost manufacturing and high efficiency. As a result, they are considered promising candidates for the development of next-generation solar cell technology. Especially, with the rise of PSC technology, its high PCE, tunable bandgap, great light absorption, easy manufacturing approach, and suitability for large-scale manufacturing using a solution process make it a great candidate for the top cell in the tandem solar cell application [1,7,17,18,19]. Particularly, PSCs with a low temperature of processing (~100 °C) are ideal candidates to be used in current commercial solar cell technologies to form tandem solar cells [20,21]. For instance, tandem photovoltaics (PVs) have been made by coupling PSCs with silicon [22,23,24], CIGS [25,26,27], and all PSC tandem PVs [28,29,30].

As an emerging PV absorber material, antimony chalcogenide, such as selenide (Sb₂Se₃), has emerged as a promising material due to its narrow bandgap (1.1–1.3 eV) similar to Si, high absorption coefficient (10⁵ cm⁻¹ at 600 nm), low toxicity and earth abundance [31,32,33,34,35,36]. To date, the PCE of Sb₂Se₃ has been improved to >10% [37,38]. The lower bandgap for the Sb₂Se₃ cell makes it an ideal material for the bottom subcell of a tandem solar cell [39]. So far, there is no experimental report for the perovskite/Sb₂Se₃ tandem solar cells. Recent advancements in device performance have been made through the utilization of both vapor-based growth and solution-processed approaches. These methods have shown significant progress in enhancing the overall quality of devices. The development of these techniques has become crucial in the field of business and academia, due to the increasing demand for high-performance devices. By incorporating these methods, businesses and academic institutions can achieve greater efficiency and productivity, leading to improved outcomes in their respective fields. The deposition of Sb₂Se₃ has been widely carried out using close space sublimation, vapor transport deposition, and sputtering techniques. Recently, these methods have demonstrated a power conversion efficiency (PCE) exceeding 8% [35,40]. The solution-processed Sb₂Se₃ and related Sb₂(S, Se)₃ cells have accomplished high efficiency due to the fine control of film quality and the optimized device bandgap [41].

Herein, in this work, we evaluate the proof of concept of a 4T-terminal tandem device based on a WBG perovskite top cell and a Sb₂Se₃ NBG bottom cell. To demonstrate the concept, we first simulated the 4T tandem configuration using solar cell capacitance simulator (SCAPS-1D) software (SCAPS3.3.09) to simulate both the single-junction and tandem solar cells. The simulated 4T tandem champion device obtained a PCE of 23.14% measured under reverse voltage scan at 100 mW/cm² with 1.5 G solar irradiation when the 1.6 eV PSC was used in combination with the 1.2 eV Sb₂Se₃ cell. To validate the simulated results, we fabricated 4T tandem cells from two WBG PSCs (1.77 eV and 1.6 eV) and Sb₂Se₃ NBG cells and demonstrated that these materials can provide improved efficiency for the Sb₂Se₃ solar cells in the tandem configuration. Two WBG PSCs were used as top cells to understand the effect of bandgap on the following tandem configuration. The champion 4T tandem cell with the top WBG PSC (1.6 eV) and bottom Sb₂Se₃ had a PCE of 16.13% compared to the WBG PSC (1.77 eV) with a tandem PCE of 14.96%. From the device performance, we conclude that the perovskite material with a bandgap of 1.6 eV is more suitable for the 4T tandem architecture.

2. Materials and Methods

2.1. SCAPS-1D Device Simulation

SCAPS-1D is utilized to model the single-junction and tandem solar cells. SCAPS-1D is an open-source application to simulate solar cells, which was developed by the Department of Electronics and Information Systems (ELIS) at the University of Ghent, Belgium [42]. The details for the simulation are listed in

Table 1. Parameters of materials used in the simulation of the 4T tandem solar cells.

Parameter	HTL	PSC	SnO2	ITO	FTO	CdS	Sb2Se3
Thickness (nm)	250	500	100	100	300	50	400
Bandgap (eV)	3.06	1.6	3.5	3.72	3.5	2.4	1.2
Electron Affinity (eV)	2.2	3.9	4.0	3.6	4.5	4.3	3.9
Dielectric Permittivity	3.0	10	9.0	10	10.0	9.35	15
Conduction Band of State (cm−3)	2.8 × 1019	2.2 × 1018	2.2 × 1017	4 × 1019	2.2 × 1018	2.2 × 1018	2.2 × 1018
Valence Band of States (cm−3)	2.2 × 1019	1.8 × 1018	2.2 × 1017	1 × 1018	2.2 × 1018	1.8 × 1019	1.8 × 1019
Electron Mobility (cm2/Vs)	1 × 10−4	1.66	20	30	100	100	15
Hole Mobility (cm2/Vs)	2 × 10−4	1.60	10	5.0	20	25	5
Donor Concentration (cm−3)	0.0	1.0 × 109	1.0 × 1018	1 × 109	1.0 × 1017	7 × 1016	0
Acceptor Concentration (cm−3)	1.0 × 1018	1.0 × 109	0		0	0	3.0 × 1013
Ref.	[37]	[38]	[39]	[39]	[29]	[29]	[29]

, showing the materials used in this work. For the subcell simulation, the device architecture used Glass/F:SnO₂ (FTO)/CdS/Sb₂Se₃/In:SnO₂(ITO)/Au and Glass/F:SnO₂/SnO₂/Perovskite/Spiro-OMeTAD HTL/Au for the bottom Sb₂Se₃ and top perovskite solar cells, respectively. For the tandem device, we used Glass/F:SnO₂/CdS/Sb₂Se₃/In:SnO2(ITO).

2.2. WBG PSC Precursor Preparation

The 1.6 eV WBG PSC—Cs_0.04FA_0.81MA_0.15PbI_2.49Br_0.51: The 1.6 eV Cs_0.04FA_0.81MA_0.15PbI_2.49Br_0.51 (1.35 M) precursor solution was prepared with corresponding molar ratios of 1.1 M lead iodide (PbI₂), 0.24 M lead bromide (PbBr₂), 1.05 M formamidinium iodide (FAI), 0.2 M methylammonium bromide (MABr), and 0.05 M cesium iodide (CsI) dissolved in a solvent of dimethylformamide (DMF) and dimethyl sulfoxide (DMSO) with a volume ratio of 4:1 [43].

The 1.77 eV WBG PSC—FA_0.8Cs_0.2Pb(I_0.7Br_0.3)₃: The FA_0.8Cs_0.2Pb(I_0.7Br_0.3)₃ solution was prepared using 0.55 mmol PbI₂, 0.45 mmol PbBr₂, 0.8 mmol FAI, and 0.2 mmol CsI in 1 mL of mixed DMF and DMSO with a volume ratio of 4:1 [44].

2.3. Film Deposition and Device Fabrication of the WBG PSC

PSCs were deposited as mentioned in our previous work [45]. The In-doped SnO₂ (ITO)-coated substrates were cleaned by sonication with a detergent solution, deionized water, acetone, and isopropanol for thirty minutes each followed by a UV–ozone treatment for 30 min. The SnO₂ electron transport layer (ETL) was spin-coated using the prepared precursor solution. The SnO₂ layers were annealed at 180 °C for 1 h under ambient conditions. The ITO substrates were then moved to a nitrogen-filled glovebox for depositing the perovskite layer. The triple cation perovskite precursors were deposited at a low speed of 1000 r.p.m. for 10 s and then at a high speed of 6000 r.p.m. for 20 s. Diethyl ether (DEE) was dropped on the spinning substrate 25 s before the end of spin-coating. The films were then annealed at 100 °C for 30 min. A spiro-OMeTAD hole transport layer (HTL) was deposited on top of the perovskite film by spin coating at 3000 r.p.m. for 30 s. Tin-doped indium oxide films were deposited on the film using DC sputtering. To prevent the bombard effect of the ITO on the spiro-OMeTAD layer, we reduce the power to 10 W and tuned the distance between the target and substrate to 15 cm.

2.4. Film Deposition and Device Fabrication of Sb₂Se₃ Cells

Sb₂Se₃ cells were deposited as mentioned in our previous work [40]. Florine-doped SnO₂ (FTO)-coated soda–lime glass substrates were cleaned with detergent, deionized water, acetone, and isopropyl alcohol in the ultrasonic bath for 30 min each. Additionally, the FTO substrates were cleaned with UV–ozone treatment for 30 min. The CdS buffer layer with a thickness of ~50 nm was deposited on the FTO by chemical bath deposition. After that, the Sb₂Se₃ absorber layer of around a 330 nm thickness was grown on the FTO/CdS substrate via a CSS deposition method. During Sb₂Se₃ deposition, the substrate and source temperature were controlled at 300 and 550 °C, respectively, whereas the chamber pressure was kept at around ~10 mTorr. After the CSS deposition of the Sb₂Se₃, the film was naturally cooled down to room temperature. The spiro-OMeTAD HTL was deposited on the Sb₂Se₃ absorber layer. Finally, to complete the solar cell device, a carbon counter electrode was prepared by the doctor blade method with an active cell area of 0.08 cm².

2.5. Fabrication of the 4T Tandem Solar Cell

The 4T tandem cell was completed by mechanically stacking the WBG PSC on the NBG Sb₂Se₃ solar cell.

2.6. Material and Device Characterization

The current–voltage electrical characteristics were determined using a solar simulator (Newport, Oriel Class AAA 94063A, 1000-Watt Xenon light source) with a Keithley 2420 source meter under simulated AM 1.5 G (100 mW/cm²) solar irradiation. The light intensity was calibrated using a silicon reference cell (Newport, 91150 V, certified by the National Renewable Energy Lab). The masked active area is 0.08 cm². The external quantum efficiency (EQE) was recorded by an EnliTech QE measurement system. The transmittance of the films was measured using UV-Vis (Shimadzu UV-1800, Simadzu, Columbia, MD, USA).

3. Results

3.1. SCAPS Simulation

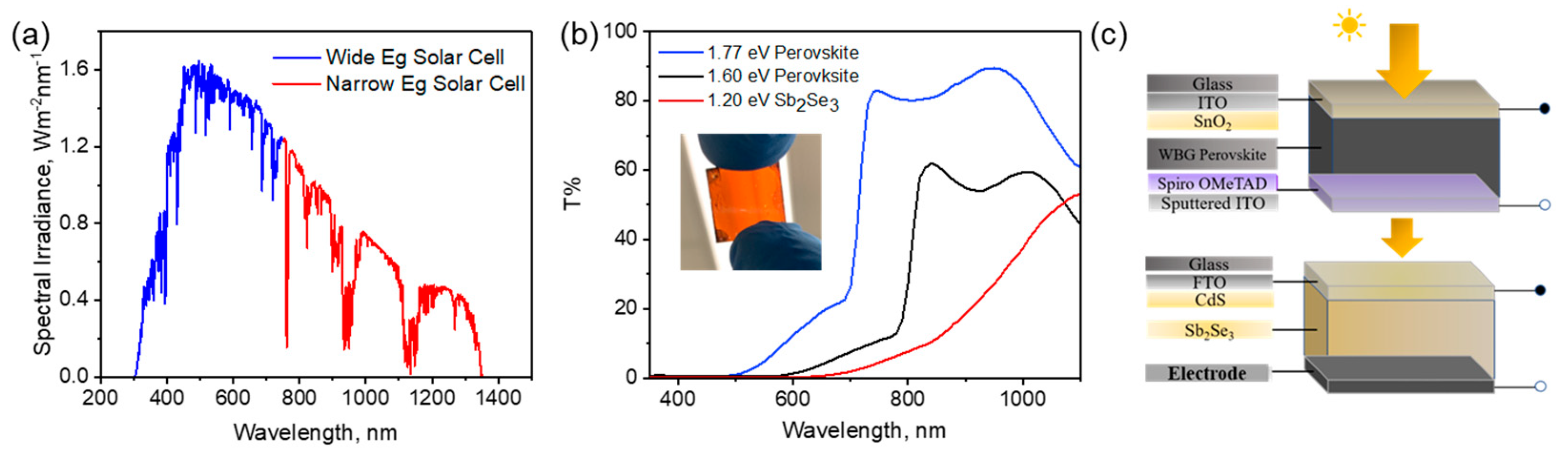

For tandem cell application, one of the challenges is to form a transparent electrode for the WBG top cell to transmit the sunlight after absorption by the WBG perovskite. The AM1.5 sun spectra for the top perovskite solar cell before and after filtering is shown in Figure 1a. The transmittance of the two 1.6 eV and 1.77 eV perovskite films and the Sb₂Se₃ were characterized, as shown in Figure 1b. It is shown that most of the sunlight can be absorbed by perovskite below 650 and 800 nm for the 1.77 eV and the 1.6 eV films, respectively, while the light from 700 to 1100 nm can be absorbed by the 1.2 eV Sb₂Se₃, demonstrating that the tandem device design is suitable, as shown in Figure 1c.

To simulate the 4T tandem solar cell, we focus on the PSCs with a bandgap of 1.6 eV and extend to the 1.77 eV PSC during the experimental validation. We first simulated the top cell with the standard AM 1.5 G one sun spectrum, which was followed by the filtration of the incident AM 1.5 G spectrum using the model mentioned below.

$$S\left(\lambda \right)=S_0(\lambda ).\mathrm{e}\mathrm{x}\mathrm{p}\{{\sum }_{i=1}^4-a \mathrm{mati}\left(\lambda \right)\mathrm{dmati}\}$$

(1)

where S₀(λ) is the incident A.M 1.5G spectrum, S(λ) is the filtered spectrum from the top cell, α(λ) is the absorption coefficient, and “mati” represents a particular material (i = 1 for Spiro-OMeTAD, 2 for perovskite material, 3 for SnO₂ and 4 for ITO) for the top perovskite cell and d is the thickness of each layer. The bottom cell was then simulated using the filtered spectrum from the top cell. The detailed material parameters input to SCAPS-1D are shown in Table 1. Input parameters were carefully chosen from the published literature and experimental works and are listed in Table 1 [37,46,47,48].

As shown in Figure 1c, the top cell configurations consist of Spiro-OMeTAD as the HTL, tin oxide (SnO₂) as the ETL, and Cs_0.04FA_0.81MA_0.15PbI_2.49Br_0.51 as the WBG (1.6 eV) absorbers, and ITO as the back electrode for the top cells. The bottom cell consists of CdS as the ETL, Sb₂Se₃ (1.2 eV) as the NBG absorber layer, and carbon as the back contact. We performed the simulation of the single-junction solar cell containing the perovskite layer and Sb₂Se₃ using SCAPS-1D software (SCAPS3.3.09 ) under AM 1.5 G illumination and the filtered spectrum, respectively, as shown in Figure 2. All the simulations have been performed at a temperature of 300 K. Further, the losses due to the reflection at interfaces, as well as series resistance of the device, have not been taken into consideration.

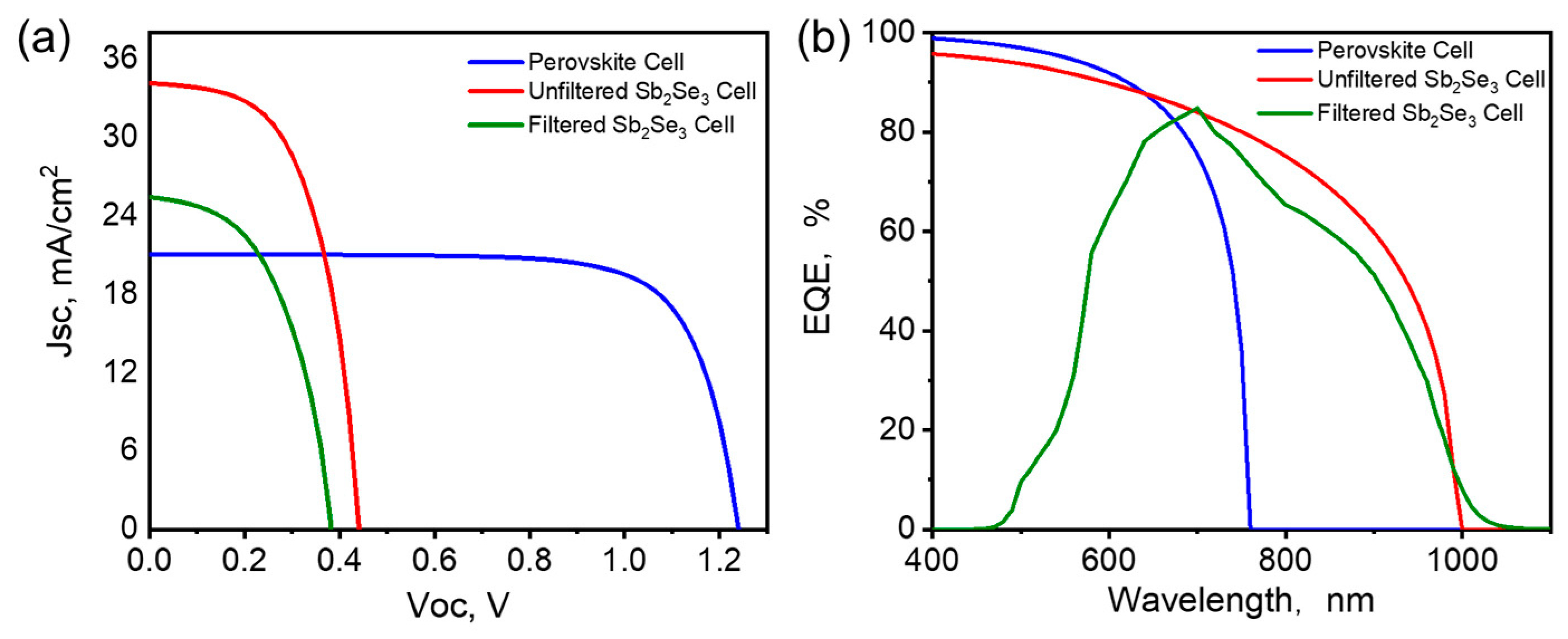

Figure 2a shows the current density vs. voltage (J-V) curves for the 1.6 eV WBG PSC and the 1.2 eV NBG Sb₂Se₃ bottom cell. For the 4T configuration, the optimum photovoltaic parameters of the top cell and the bottom cell with the AM 1.5 G spectrum and the filtered spectrum, respectively, are listed in

Table 2. Photovoltaic parameters of the 1.6 eV WBG PSC, Sb₂Se₃ cells, and the resulting 4T tandem solar cell efficiency.

	Voc (V)	Jsc (mA/cm2)	FF (%)	PCE (%)
1.60 eV PSC	1.23	21.05	75	19.62
Unfiltered Sb2Se3	0.44	34.13	57.29	8.62
PSC Filtered Sb2Se3	0.38	25.42	50.91	3.52
4T Tandem Cell				23.14

. The simulated J-V curves for both the standalone perovskite and Sb₂Se₃ are close to the experimental results. By applying the filtered solar spectrum, as shown in Figure 1a, the filtered Sb₂Se₃ cell device performance can be achieved. It is shown that the filtered Sb₂Se₃ possesses a reduced Jsc and FF. Thus, from the simulation for the 4T device design, the maximum PCE achieved is 23.1%, which is higher than either of the individual cells, which have a PCE of 19.62% and 8.62% (top and bottom cells, respectively). The external quantum efficiency (EQE) of the two cells is also shown in Figure 2b. The onset wavelength of the perovskite top cell is ~770 nm, while the bottom cell onset is around 1000 nm. The EQE spectra of the filtered bottom Sb₂Se₃ cell indicate that the perovskite can match well with the Sb₂Se₃ to maximize sunlight absorption. This indicates that the 4T tandem device configuration with the WBG PSC cell and the Sb₂Se₃ cell exhibits an excellent overall QE that spans the visible and infrared regions of the electromagnetic spectrum.

3.2. 4T Perovskite/Sb₂Se₃ Tandem Cell Performance

To validate the results for the simulated perovskite/Sb₂Se₃ tandem cells, we fabricated the 4T tandem configuration by mechanically stacking the top perovskite solar cell and the Sb₂Se₃ bottom cells. To understand the impact of the perovskite bandgap on the 4T tandem solar cell performance, we fabricated two WBG PSCs with a bandgap of 1.6 eV and 1.77 eV with the composition of Cs_0.04FA_0.81MA_0.15PbI_2.49Br_0.51 and FA_0.8Cs_0.2Pb(I_0.7Br_0.3)₃, respectively. For the two single-junction PSCs with PCEs of 14.95% and 13%, and the Sb₂Se₃ with a PCE of ~5.76% used in this work, the detailed device parameters are listed in

Table 3. Photovoltaic parameters of champion semitransparent WBG PSC (1.6 eV and 1.77 eV) cells with Sb₂Se₃ cells, and the resulting 4T tandem efficiencies.

	Voc (V)	Jsc (mA/cm2)	FF (%)	PCE (%)	Ref.
1.6 eV WBG PSC	1.15	18.72	67.34	14.95
Unfiltered Sb2Se3	0.38	27.86	54.04	5.76
Filtered Sb2Se3	0.32	6.70	54.52	1.18
Tandem PCE				16.13	This work
1.77 eV WBG PSC	1.16	15.83	68.8	13
Unfiltered Sb2Se3	0.38	27.86	54.04	5.76
Filtered Sb2Se3	0.34	10.70	53.18	1.96
Tandem PCE				14.96	This work
1.58 eV PSC	1.04	22.68	75.54%	17.88%
Unfiltered Sb2Se3	0.40	30.01	64.96%	7.85%
Filtered Sb2Se3	0.37	11.12	65.77	2.70%
Tandem PCE				20.58%	Ref. [49]

. The primary goal here is to prototype the 4T tandem concept using reasonable device performance for each subcell. Our work is in line with the latest reported perovskite and Sb₂Se₃ four-terminal tandem devices, as listed in Table 3, where the perovskite top cells have a relatively lower bandgap and higher device performance, which promise a higher tandem power conversion efficiency than this work [49]. It is demonstrated that the bandgap match between the top perovskite solar cell and bottom antimony selenide solar cell has big room to be further investigated. In the 4T configuration, the PSC was mechanically stacked on top of the Sb₂Se₃ solar cell. As shown in Figure 3a, when the top perovskite filter was applied, the Jsc of the Sb₂Se₃ cell was significantly reduced from 27.86 mA/cm² to 6.7 and 10.7 mA/cm², respectively, by employing the 1.6 eV and 1.77 eV perovskite filters. The PSC with a 1.6 eV bandgap and the filtered NBG Sb₂Se₃ cell had PCEs of 14.95% and 1.18%, respectively, making the overall 4T tandem device have a PCE of 16.13%. The PSC with 1.77 eV had a PCE of 13% and the filtered NBG Sb₂Se₃ had a PCE of 1.96%, giving an overall 4T tandem PCE of 14.96%. Note that the device performance for the two wide bandgap perovskites is similar to the recently reported perovskite/Sb₂Se₃, which has a bandgap of 1.58 eV for the top perovskite subcells, as shown in Table 3 [50]. The improved device is majorly from the top perovskite cells. In addition, the bandgap engineering between the top perovskite and bottom Sb₂Se₃ seems play an important role in the overall tandem device performance, which should be further studied in the future. The top solar cell acts as an optical filter on the Sb₂Se₃ cell and absorbs wavelengths between 300 and 700 nm, whereas the unabsorbed light, especially that at longer wavelengths, is expected to be harvested by the Sb₂Se₃ bottom solar cell. The efficiency of the 4T tandem solar cell is higher than that of both perovskite and Sb₂Se₃ cells, demonstrating that further improvement of the perovskite and Sb₂Se₃ can further improve the device performance. In addition, further engineering of each layer’s thickness and the device architecture by employing another transparent inter-electrode deposition approach may further improve the top perovskite solar cell performance and the overall tandem device performance.

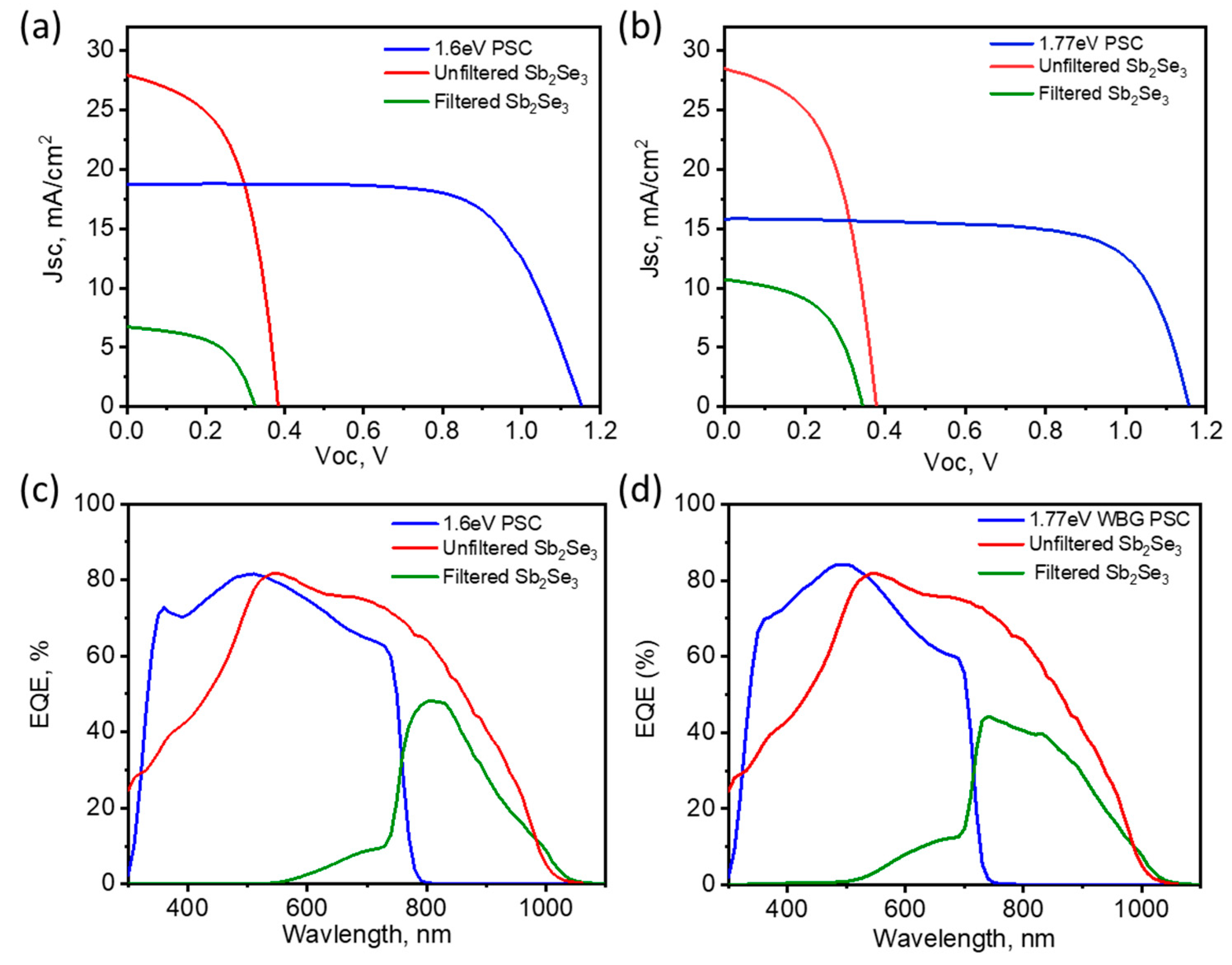

To further elucidate the wavelength-dependent photon–electron transition, EQE was performed for both 1.6 eV and 1.77 eV-based perovskite 4T tandem cells. The individual EQE spectra for the top perovskite cell and the bottom Sb₂Se₃ cells and the filtered bottom Sb₂Se₃ cells are shown in Figure 3c,d. It is shown that the perovskite top cells have an onset wavelength of 790 and 760 nm, respectively, while the bottom Sb₂Se₃ has an onset wavelength of 1050 nm. Thus, the top and bottom cells are matched well to maximize light absorption. As shown in Figure 3c,d, the sum of the Jsc of the subcells is 25.42 and 26.53 mA/cm² for the 1.6 and 1.77 eV perovskite top cells. The FF for the filtered bottom cells did not change too much, while the Voc is slightly less compared to the unfiltered bottom cell. Even though the wider bandgap of the 1.77 eV PSC allows for more performance from the filtered Sb₂Se₃ bottom cell, the effect of the higher PCE of the 1.66 eV PSC outperforms this and results in higher efficiency of the 4T tandem cell.

Therefore, we validate that the PV parameters obtained in the experiments are close to the simulated results. However, there are still mismatches between the model and experiment results. For example, the efficiency for our WBG perovskites is still lower than that of the simulated one, which could be due to the damage from the sputtered ITO electrode. In addition, the bottom Sb₂Se₃ cell has low efficiency, and further improvements are needed, for example, by converting the four-terminal tandem solar cell into a two-terminal tandem solar cell to minimize the efficiency loss due to the current mismatch between the top and bottom subcells. It is critical to find the suitable interconnection layer to bridge the two subcells, such as a transparent conducting layer on top of the Sb₂Se₃ cell. In addition, bandgap engineering is still needed to efficiently capture a broad range of the solar spectrum. In a two-terminal configuration, the bandgap of each subcell should be optimized to ensure the efficient absorption of photons while maintaining a good current match. The requirement includes the precise control over the material properties, layer thickness, and device configuration. Meanwhile, the manufacturing cost should be further reduced for the two-terminal tandem solar cells, which is a bottleneck for scaled up production [50,51]. Overall, we provide an effective way to utilize the relatively low-efficiency Sb₂Se₃ solar technology as a bottom cell for the wide bandgap perovskite. It is demonstrated that the tandem architecture between the perovskite and antimony chalcogenide could be the desired match to maximize sunlight conversion.

4. Conclusions

In summary, we demonstrate a 4T tandem solar cell based on WBG PSC and NBG Sb₂Se₃ cells. We found that the utilization of WBG PSC and Sb₂Se₃ as top and bottom cells can generate well-matched spectral utilization. From the simulation, we predict the possibility of forming a 4T tandem cell with a PCE exceeding 23%. We then experimentally fabricated two WBG PSC with bandgaps of 1.6 eV and 1.77 eV, and, on pairing with the Sb₂Se₃ cell, it demonstrated PCEs of 16.13% and 14.96%, respectively. This efficiency is much higher than the Sb₂Se₃ standalone cells and provides an alternative way to boost the antimony chalcogenide device performance and utilize its lower bandgap features to maximize sunlight conversion. These perovskite/Sb₂Se₃ tandem solar cells can be further improved by addressing the individual subcell’s performance. Research indicates that the highest efficiency perovskite solar cells have a significant impact on the performance of tandem devices. With the recent advancement of 26% perovskite solar cell technology, there is potential for perovskite/Sb₂Se₃ tandem solar technology to offer a cost-effective alternative for scaling up thin film solar technology in the form of a tandem solar module. This paves the way to further develop low-cost and earth-abundant solar cell technology.
