Relationship Between Heart Rate, Muscle, and Peripheral Oxygen Saturation During Dry Static Apnea

Abstract

Background: During an apnea, oxygen depletion occurs at all tissue levels, so apnea duration is influenced by the mammalian dive reflex, which includes a bradycardia resulting in reduced cardiac oxygen consumption. This study aimed to examine the relationships between heart rate (HR), peripheral estimation of O₂ (SpO₂), deltoid and respiratory muscle oxygenation (SmO₂), and apnea duration. Methods: The study included 10 breath-hold divers (BHD), 39 ± 10 years of age, with body height of 184.3 ± 3.5 cm, body mass of 84.0 ± 9.2 kg, and 16.2 ± 9.7 years of apnea experience. The BHD performed three preparatory apneas followed by three maximal apneas with 5 min of supine rest between each apnea. During all apneas (duration, 115–323 s; involuntary breathing movements (IBMs), 7–35), SmO₂ (measured via NIRS on intercostals (respiratory) and deltoid (locomotor) muscles), heart rate, and SpO₂ (measured via forehead sensor) were obtained. Results: The smallest disagreement in oxygen levels was between intercostal SmO₂ and SpO₂ during the easy-going phase (no IBMs), whereas deltoid desaturation values were more variable. During the struggle phase, Intercostal SmO₂, moderately, and Deltoid SmO₂, strongly, differed from SpO₂. Correlations between apnea duration and O₂ saturation showed that only Intercostal SmO₂ (r = −0.71; p = 0.03) was significantly related to apnea duration. There was also a significant correlation between HR and SpO₂ in the struggle phase (r = −0.58; p = 0.05). Conclusions: These findings suggest that during the struggle phase, SpO₂ and SmO₂ are not highly connected and that local and systemic oxygen levels in the blood are depleted at different rates. Furthermore, the HR response during the struggle phase affected only SpO₂, which indicates that lowering the heart rate may help prevent more rapid deoxygenation. Lastly, the intercostal trend of deoxygenation could be interpreted as respiratory muscle work, suggesting that the increased work of respiratory muscles may prolong apnea duration.

1. Introduction

The human diving response (DR) is defined as the physiological adaptations to a voluntary breath-hold (apnea) that promote the efficient use of oxygen [1,2,3]. This response is potentiated by face immersion in cold water [4]. Even though cold receptors initiate this potentiation, a dry, static breath-hold also initiates the DR [5,6]. In both cases, the DR induces strong selective vasoconstriction to the periphery and a heart rate reduction, known as bradycardia. The diving bradycardia is caused by increased cardiac vagal activity [7,8]. This reduction in heart rate reduces cardiac metabolism of oxygen, thereby conserving oxygen stores and delaying the onset of potential hypoxia-related consequences [9]. At the same time, peripheral vasoconstriction is caused by increased sympathetic activity [10]. Vasoconstriction to the periphery ensures that the brain, heart, and adrenal glands are prioritized to receive oxygen-rich blood via centralization of the blood volume [11].

These physiological adaptations occur differently throughout the duration of apnea. Specifically, apnea is divided into two main phases: the easy-going phase and the struggle phase [12]. The easy-going phase is characterized by a slow accumulation of CO₂ and a reduction in PO₂ with no breathing movements, whereas the struggle phase occurs when breath-hold divers (BHD) experience a strong urge to breathe due to the sufficient accumulation of arterial CO₂ and reduction in PO₂ that induces involuntary breathing movements (IBM), by simulating chemoreceptors [13,14]. Even though there are multiple physiological responses during such a prolonged period without air, Bain, Drvis, Dujic, MacLeod and Ainslie [12], in their review, state that apnea preparation, VO₂ storage, and VO₂ economy play key roles in apnea duration. Following this and the fact that apnea is performed with limited oxygen availability stored only in the lungs, efficient oxygen consumption is a main priority in order to perform a prolonged apnea [12].

The bradycardia and vasoconstriction induced by DR reduce cardiac metabolism, thereby improving O₂ economy and consequently reducing the production of CO₂ [12]. Hence, the real-time monitoring and analysis of O₂ circulation, consumption, and storage, on both local muscle and peripheral oxygen saturation levels, could be valuable determinants of BHD performance. Previous studies determined how local muscle O₂ saturation changes during an apnea [15,16]. The respiratory muscles desaturated and recovered differently from other locomotor muscles [15], which was explained by the interaction with IBMs during the struggle phase. However, peripheral estimation of O₂ saturation (SpO₂) decreased during both phases of the apnea [16].

Previous studies have defined the changes in tissue oxygenation in non-respiratory muscles and peripheral tissues that occur during the diving-induced bradycardia and decrease in oxygen saturation [11,17,18]. However, no study to date has characterized the influence of these diving-induced changes on the respiratory muscles. To fill this gap, the current study aimed to examine the relationship between local respiratory muscle oxygenation, heart rate, and peripheral oxygen saturation during maximal static apnea in elite BHDs. We also determined which oxygenation parameters (local muscle or peripheral) were related to apnea duration. Lastly, we wanted to determine the difference between peripheral estimation (SpO₂) and local muscle oxygen saturation (SmO₂) during apneas in elite BHD.

2. Materials and Methods

2.1. Experimental Design

The sample of participants consisted of 10 BHD. Participants arrived at the laboratory 30–45 min before the start of the experiments for instrumentation and explanation of the procedures. They had abstained from food for at least 4 h. All experimental procedures were performed in accordance with the Declaration of Helsinki on the treatment of human participants and were approved by the Human Research Protection Program at Northern Arizona University (approval number: 2161517-4) and the Ethical Committee of the University of Split Faculty of Kinesiology (approval number: 2181-205-02-05-24-007). Informed, written consent was obtained from each participant. All experiments were carried out in a climate-controlled room (22–24 °C).

On each participant, anthropometric and spirometry measures were performed preceding the apnea protocol. Next, participants performed 3 preparatory apneas, targeting 10 IBMs with the first one done on functional residual capacity and the other two on total lung capacity. All preparatory apneas were done as submaximal with 2.5 min of rest in between. The preparation was followed by 3 maximal apneas with 5 min of rest between each maximal apnea. The detailed protocol has been described previously [15,19,20].

2.2. Anthropometric and Spirometry Indices

Anthropometric indices included body height, body mass, and body fat percentage. Body mass and body fat percentage were assessed with the bioimpedance scale (Tanita BC 418 scale; Tokyo, Japan). Body height was determined with a Tanita HR-001 anthropometer (Tanita; Tokyo, Japan).

Baseline pulmonary function, including forced vital capacity (FVC), forced expiratory volume in 1 s (FEV1), and FEV1/FVC ratio, was determined using computerized spirometry (CPFS/D Spirometer; MedGraphics; St. Paul, MN, USA) and conducted and reported per Societal standards and using appropriate predictive equations [21].

2.3. Peripheral Arterial Oxygen Saturation and Local Muscle Oxygenation Procedure

Peripheral estimates of arterial oxygen saturation (SpO₂) and heart rate (HR) were continuously measured using a forehead sensor in 8 participants (Nellcor, Oximax N-600 pulse oximeter, Tyco, Mansfield, MA, USA) that has been validated against direct measures of arterial oxygen saturation in the range of SaO₂ = 63.5–99.5% [22]. Because of a technical malfunction in 2 participants, this measurement was taken only from 8, to ensure the quality of data acquisition.

Muscle oxygenation and blood volume changes in the muscles were measured by a commercially available continuous-wave near-infrared spectroscopy (NIRS) sensor (Moxy Monitor; FortioriDesigns LLC, Hutchinson, MN, USA) [23]. A NIRS sensor was placed over the area of the following muscles: external intercostal muscles (7th and 8th intercostal spaces) and deltoid muscle of the dominant side. The placement and proper fixing of the device followed the protocol from [23]. Participants’ body fat percentage was low (14.4 ± 3.8%), and previous work has suggested that adipose tissue thickness < 15 mm is considered negligible and would likely have no impact on NIRS results, so no correction factors were made [24]. The main parameters calculated from NIRS were muscle oxygen saturation (SmO₂) and total hemoglobin (tHb). tHb is derived as the sum of oxygenated (O₂Hb) and deoxygenated hemoglobin (HHb) in the measured region (tHb = O₂Hb + HHb) and is indicative of a change in the blood volume of the muscle. On the other hand, SmO₂ is the fraction of O₂Hb compared to tHb (SmO₂ = O₂Hb/tHb) and is defined as the percentage of oxygenated hemoglobin and myoglobin relative to the total quantity of chromophores present in the muscle tissue at a certain moment.

2.4. Data Acquisition and Statistical Analysis

From the main variables of both NIRS and forehead sensor (SmO₂, tHb, SpO₂, and HR), we calculated trends of change (the difference between the starting and ending point of a range over time). The trends were calculated for the easy-going, struggle, and recovery phases, as a change in value during the time period (i.e., duration of the easy-going or struggle phase). Additionally, the means of absolute values were calculated for different phases of the apnea (easy-going phase, struggle phase, and recovery). The means of easy-going and struggle phases were defined in the beginning (0–33%), middle (34–66%), and end (67–100%) of the apnea duration. Also, to determine the relationship between SmO₂ and SpO₂, the percentage of differences between values and baseline at the beginning of apnea was calculated. The statistical analyses were done on the longest apnea out of the 3 maximal ones.

Descriptive and physiological data are presented as pooled means ± SD. To determine the estimation difference between SpO₂ and SmO₂, a Bland–Altman plot was used to calculate bias, and upper and lower limits. The results from the Bland–Altman plot were explained as differences in 3 categories: small (low bias, small limits of agreement), moderate (low or large bias, small limits of agreement), or large (large bias, large limits of agreement) [25]. Pearson’s correlation was used to determine the relation among all measured variables.

Statistica version 13.0 (Dell Inc., Austin, TX, USA) was used for the analyses, and a level of 95% (p < 0.05) was applied.

3. Results

Participant Characteristics

The means of the participant characteristics were as follows: age, 39 ± 10 years; body mass, 84.0 ± 9.2 kg; body height, 184.3 ± 3.5 cm; and body fat, 14.4 ± 4.4%. Three participants were national team competitors who participated in international competitions, and others would be considered moderate BHD athletes based on their apnea length, with a mean training experience of 16.2 ± 9.7 years. At the time of the study, they all self-reported to be healthy. Demographic, anthropometric characteristics, and PFT data are shown in

Table 1. Demographic data of participants (N = 10).

Variables	Mean ± SD	Range
Age (years)	39 ± 10	(22–55)
Body fat (%)	14.4 ± 4.4	(8.2–23.4)
Body height (cm)	184.3 ± 3.5	(180.0–190.0)
Body mass (kg)	84.0 ± 9.2	(69.8–101.1)
Training experience (years)	16.2 ± 9.7	(1–35)
Best static apnea (min)	6.4 ± 1.6	(4.3–10.0)
Apnea duration in study (min)	5.4 ± 1.2	(3.4–7.4)
FEV1, %predicted	106.4 ± 10.2	(91–121)
FVC, %predicted	108.0 ± 11.9	(84–125)
FEV1/FVC ratio, %predicted	97.6 ± 7.2	(87–107)

Abbreviations: FEV1—forced expiratory volume in 1 s; FVC—forced vital capacity; SD—standard deviation.

.

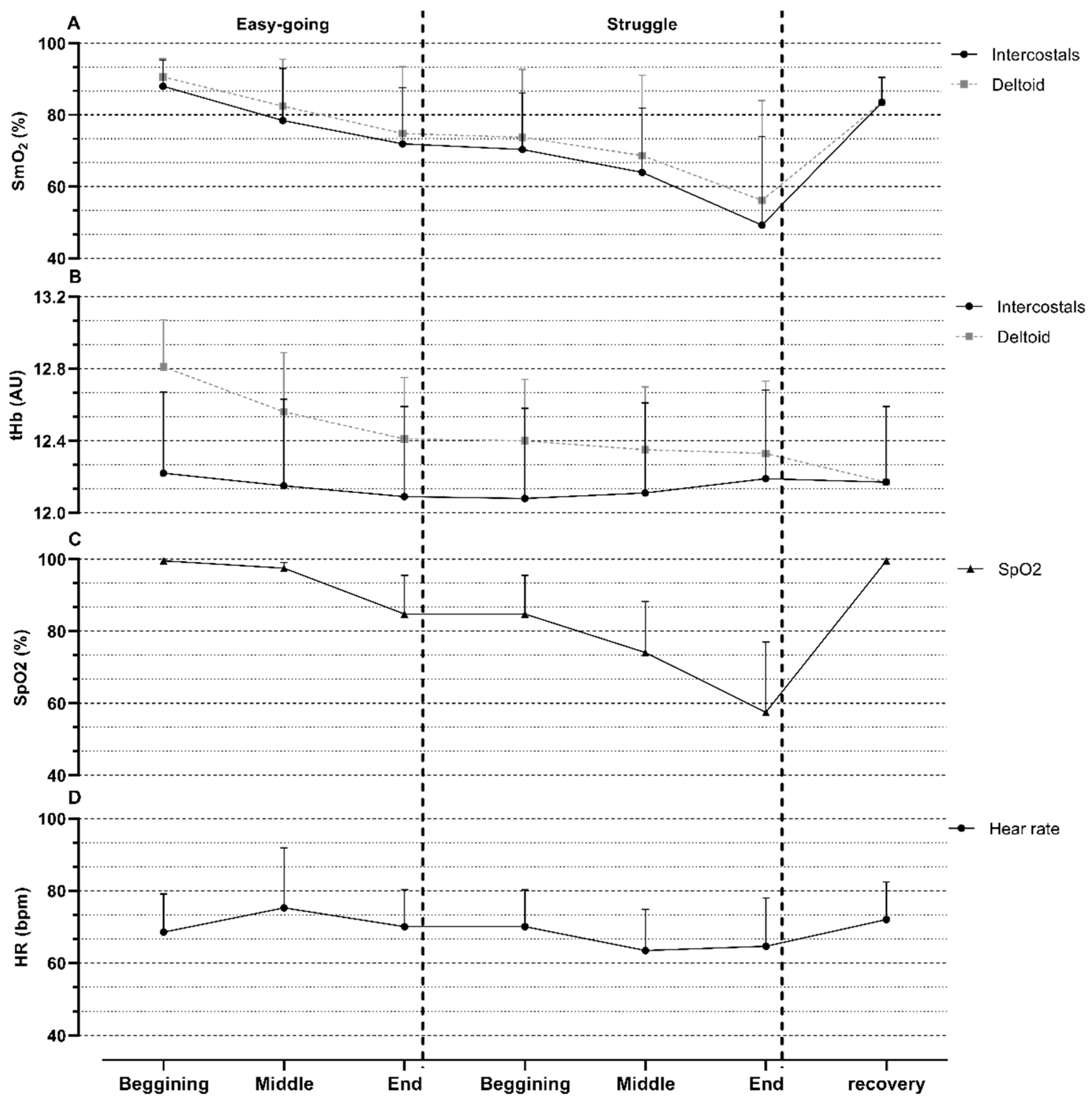

Analysis of the diver responses during maximal static apnea (Figure 1) revealed that the onset of the struggle phase was followed by greater oxygen desaturation and a decreased heart rate. Moreover, tHb had a tendency toward increasing in the intercostal muscles and slightly decreasing in the deltoid muscles.

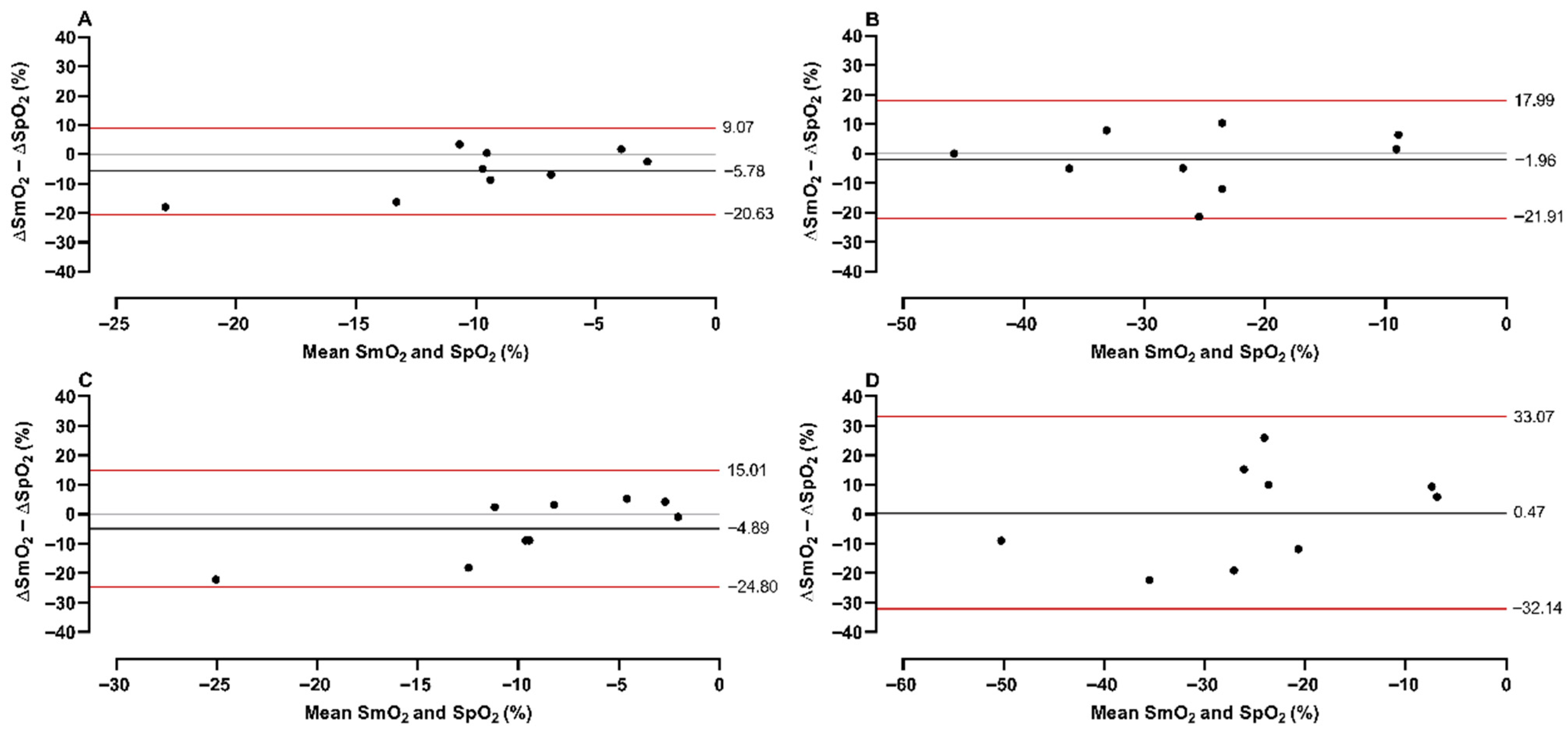

Furthermore, the Bland–Altman plot revealed that the smallest difference was between intercostal SmO₂ and SpO₂ during the easy-going phase (bias = −5.78; lower = −20.53; Upper = 9.07), whereas deltoid SmO₂ had moderate differences (bias = −4.89; lower = −24.80; Upper = 15.01). During the struggle phase, intercostal SmO₂ moderately (bias = −1.96; lower = −21.91; Upper = 17.99) and deltoid SmO₂ strongly differed from SpO₂ (bias = 0.47; lower = −32.14; Upper = 33.07). These moderate and strong differences were mostly seen during stronger desaturations in the struggle phase (−20–50%) (Figure 2).

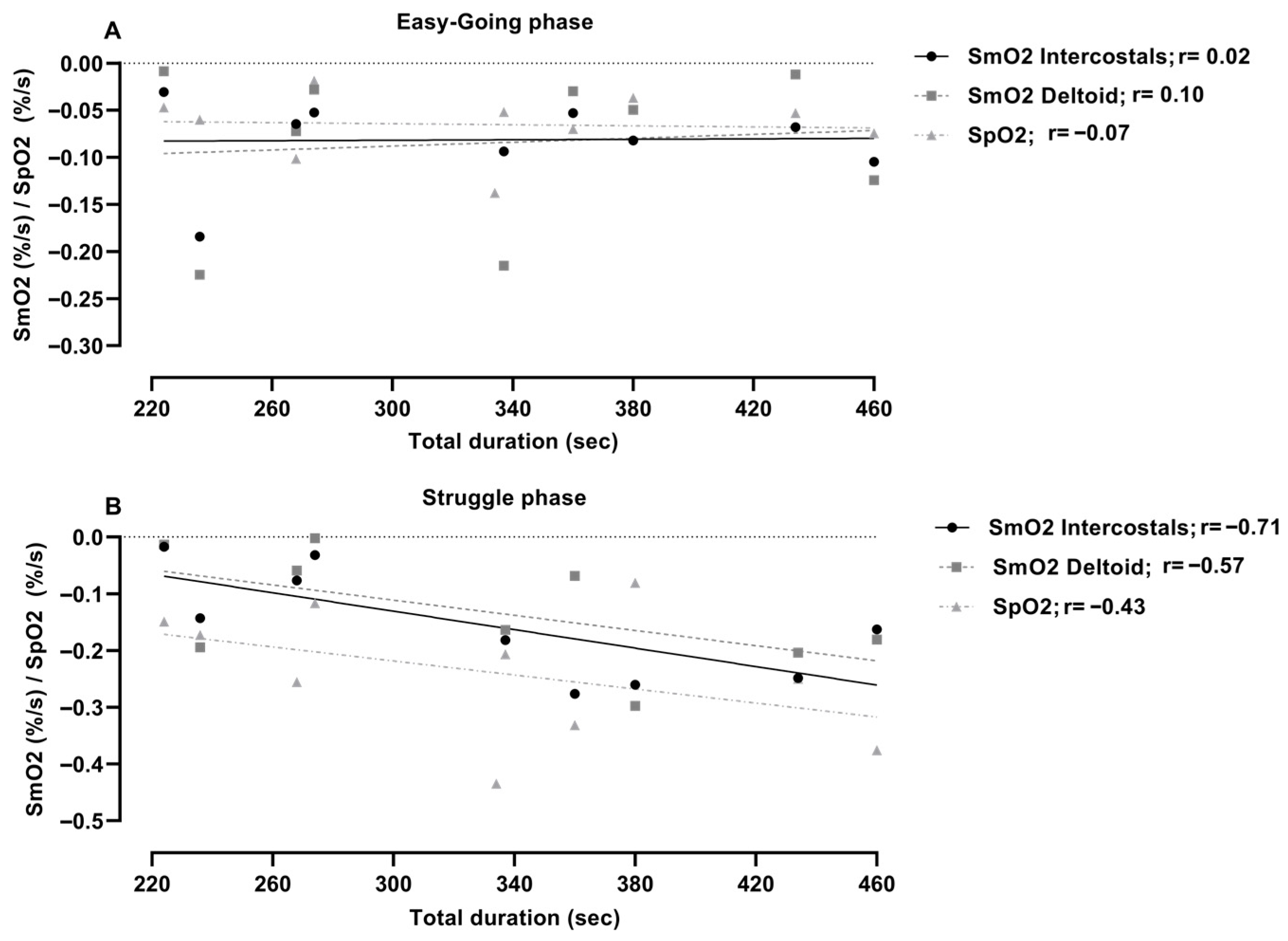

There was no significant correlation between the measured changes of oxygenation (SmO₂ and SpO₂) during the easy-going phase and total duration of apnea (r = −0.07–0.10; p = 0.80–0.90) (Figure 3). Furthermore, during the struggle phase, intercostal oxygen saturation was significantly related to the duration of apnea (r = −0.71; p = 0.03). Peripheral and deltoid oxygen saturation were not significantly related to duration of apnea, r = −0.43; p = 0.21, and r = −0.57; p = 0.11, respectively.

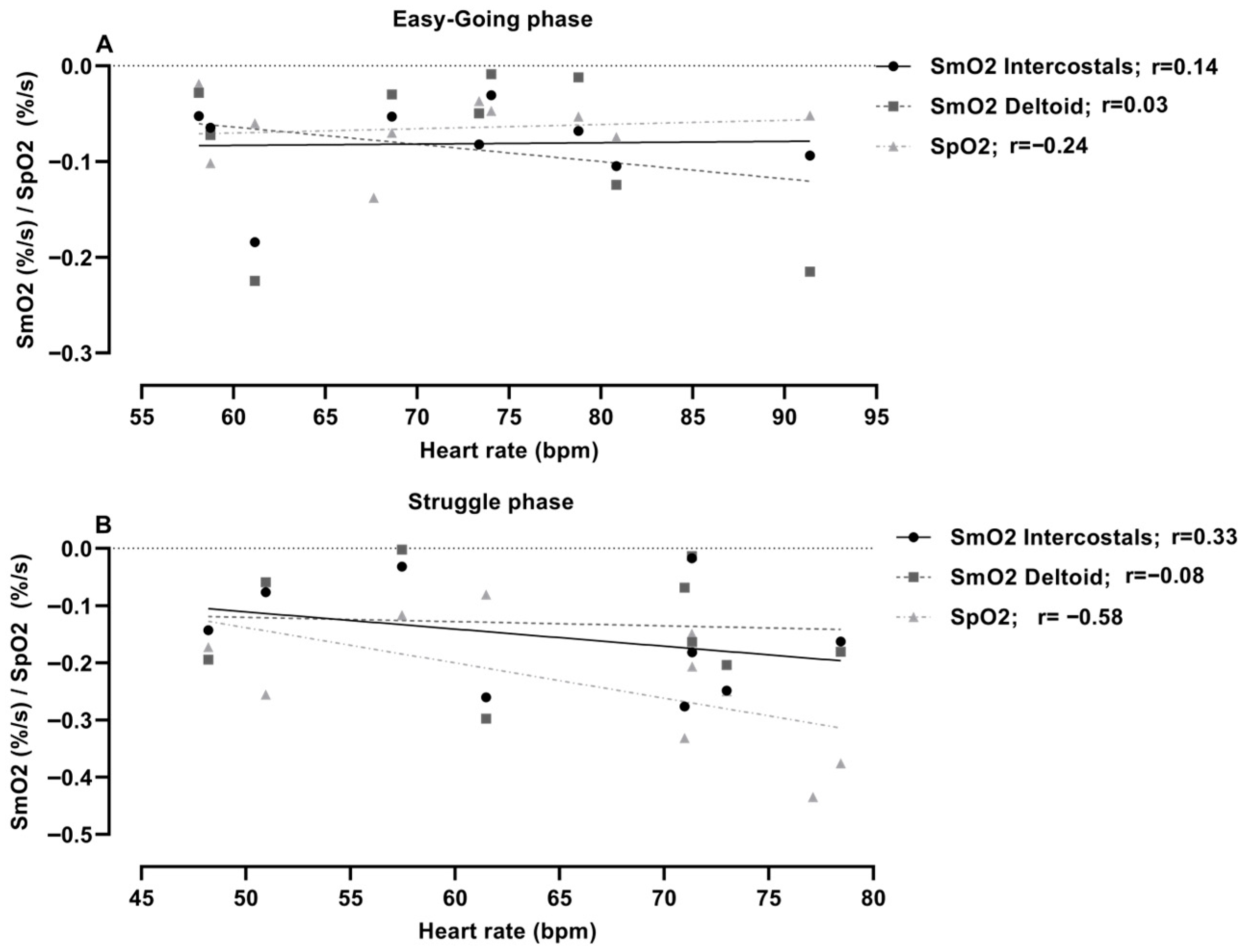

Correlation analysis among measured trends during the easy-going phase showed that muscle saturation did not relate significantly to heart rate, in either muscle groups or SpO₂ (r = 0.03–0.14; p = 0.78–0.94) (Figure 4). The struggle-phase heart rate was not significantly correlated to the measured oxygenation trends in the muscles (r = 0.03–0.06; p = 0.88–0.94), but was significantly associated with SpO₂ (r = −0.58; p = 0.05).

4. Discussion

This study aimed to examine the relationships among deltoid and respiratory muscle oxygenation, heart rate, and peripheral oxygen saturation during maximal static apneas in elite BHDs. Three main findings in the current study were: (1) the duration of apnea was highly related to the desaturation of intercostals during the struggle phase; (2) lower heart rate was related to slower peripheral oxygen desaturation during the struggle phase; (3) muscle and peripheral desaturation differences were more pronounced during the struggle phase than the easy-going phase in both muscle groups.

4.1. Local Muscle Oxygen Saturation and Apnea Duration

According to Schagatay [26], three main factors (total body gas storage, tolerance to asphyxia, and metabolic rate) determine the limits of static apnea. The author concluded that these factors could be enhanced with training and further prolonging apnea duration. Following this, and as mentioned above, apnea duration relies on oxygen consumption and conservation [12]. However, respiratory muscle work and deoxygenation could be observed from our results. Such an effect may act to prolong a breath hold in the way that a higher workload of these muscles helps push oxygenated blood towards the heart and brain to prevent blacking out.

The results of our study indicate that the BHD who have longer apnea durations perceive higher respiratory muscle desaturation during the struggle phase. However, the deltoid muscles and peripheral oxygen saturation did not show such a relation. The observed desaturation trend of intercostals could be interpreted as the workload placed upon the respiratory muscles. This workload is presented as IBMs that contract all respiratory muscles [13]. Previous studies defined that IBMs help BHD maintain cerebral blood flow (CBF) through improved stroke volume [27,28]. The maintenance of CBF prevents asphyxia tolerance, where any decrease in CBF would initiate apnea cessation [29]. Also, if CBF decreases, the risk of hypoperfusion and potential neural ischemia rises, thereby compromising the safety and performance of BHD [30]. Hence, higher oxygen decreases in the intercostal muscles could be connected to IBMs and CBF maintenance through the higher workload of these muscles.

4.2. Heart Rate and Oxygen Saturation

As noted in the introduction, severe bradycardia mostly occurs during the struggle phase of apnea [12]. However, the lowering in heart rate as a preparation indicates a parasympathetic system activation, which helps prolong apnea [7]. This study’s results indicate that neither SmO₂ nor SpO₂ is influenced by heart rate during the easy-going phase. Despite the lack of relation, desaturation occurs in peripheral tissues and muscles, indicating blood centralization and peripheral vasoconstriction [13].

However, HR and SpO₂ were negatively correlated during the struggle phase, demonstrating how lower HR induces lower deoxygenation of tissues. These results demonstrate the bradycardic preservation of O₂. Such findings corroborate previous studies that showed how the majority of apnea performance is influenced by oxygen consumption and preservation [26]. Previously, it was defined that diving bradycardia is induced by increased vagal activity, whereas the peripheral vasoconstriction of selected vascular beds is linked to increased sympathetic discharge [10]. Such a notion is also observed as sympathetic activity increases by ~100% during the easy-going phase, whereas during the struggle phase, this increase rises up to ~700–800% at the end of the maximal breath hold [31]. Additionally, HR reduction was monitored as an indicator of apnea performance because a lower heart rate indicates better results in competition [7,26]. Following that, maintaining low HR for as long as possible can help keep cardiac O₂ consumption down and thus increase apnea duration.

4.3. Peripheral and Local Muscle Oxygen Saturation

Observation of the peripheral estimation of oxygen saturation is defined as an indicator of O₂ content in capillary blood, assuming Hb levels remain constant [32]. Previously, it was shown that peripheral estimates and direct measures of arterial oxygen saturation (SaO₂) differ, particularly at lower oxygen levels. Hoiland, Ainslie, Bain, MacLeod, Stembridge, Drvis, Madden, Barak, MacLeod and Dujic [16] demonstrated that when SpO₂ drops below 70%, the SpO₂ overestimates SaO₂ by approximately 5%. Concerning this error in estimation, the SpO₂ and SmO₂ were collected in a similar manner using near-infrared spectroscopy at different sites on the body. However, in this study, we examined deltoid and respiratory muscle SmO₂ and compared it to SpO₂ with an oximeter placed on BHD’s forehead, which has been validated against direct measures of arterial blood in the range of SaO₂ = 63.5–99.5% [22]. Our results are the first to show that during the easy-going phase, both the deltoid and respiratory muscles showed similar oxygen depletion as was recorded by the SpO₂, which has been validated against direct measures of arterial blood. These results indicate constant vasoconstriction in the peripheral tissues. Conversely, during the struggle phase, differences between the two muscle groups emerged. It can be seen that BHDs have a greater SmO₂ decrease in the respiratory muscles than SpO₂. Yet, in the deltoid, it was variable, with some participants having a greater decrease of SpO₂ than SmO₂, and in others, a greater SmO₂ depletion than SpO₂.

4.4. Limitations and Strengths

This study is one of the first that examined the correlation between heart rate, peripheral oxygen saturation, and deltoid and respiratory muscle oxygenation in a relatively small group of apnea divers during dry static apneas. Thus, one limitation of this study was a small sample size, which could contribute to low statistical power. Furthermore, we did not have direct measures of tissue perfusion, which would allow for more precise indications of O₂ fluctuations due to blood flow compared to the measurements made in this study. Although we did not have direct measures of arterial oxygen saturation, we used a forehead saturation probe that was validated against arterial oxygen saturation in the range of saturations expected in this study, minimizing the impact of this limitation. Furthermore, the current investigation may support the need for future studies to examine some other parameters, such as CaO₂, PaO₂, and PaCO₂, which could be valuable to further understand the presented relations. The lack of cold-water face immersion would initiate a stronger bradycardia, leading to greater reductions in HR; however, all divers had a bradycardia appropriate for the dry static apnea condition. Nevertheless, the current study presents valuable new insights into physiological adaptations and responses to maximal inspiratory apnea. Also, some of the data presents novel practical applications for BHDs, which could help them enhance their performance.

5. Conclusions

This study examined the relationships among some physiological responses that occur during a dry static apnea. Specifically, we examined the associations between bradycardia and peripheral oxygen saturation with oxygenation in both the deltoid and intercostal muscles and the differences between them with apnea. From these aims, three main findings were observed: (1) apnea duration was highly related to the desaturation of intercostal muscles during the struggle phase; (2) lower heart rate was related to slower peripheral oxygen desaturation during the struggle phase; (3) muscle and peripheral desaturation differences are more pronounced during the struggle phase than the easy-going phase in both muscles groups.

Such findings lead to the conclusion that HR does not have a significant influence on muscle oxygenation in both respiratory and locomotor muscles during the entire static apnea. To the contrary, during the struggle phase, peripheral oxygen estimation shows a slower desaturation when participants experience lower HR values. Hence, those participants who perceive stronger bradycardia have a lower rate of deoxygenation in peripheral oxygen saturation. Taken together, it can be concluded that a higher workload of respiratory muscles due to IBMs could prolong apnea duration, though this remains to be directly tested.
