A Transdisciplinary Overlay for Nature-Based Design of Sustainable Buildings
Abstract
:1. Introduction
2. Materials and Methods
3. Survey on the Engagement of Architects for NBD Applications at Different Stages of the RIBA PoW in BREEAM Outstanding Projects
3.1. Survey Results

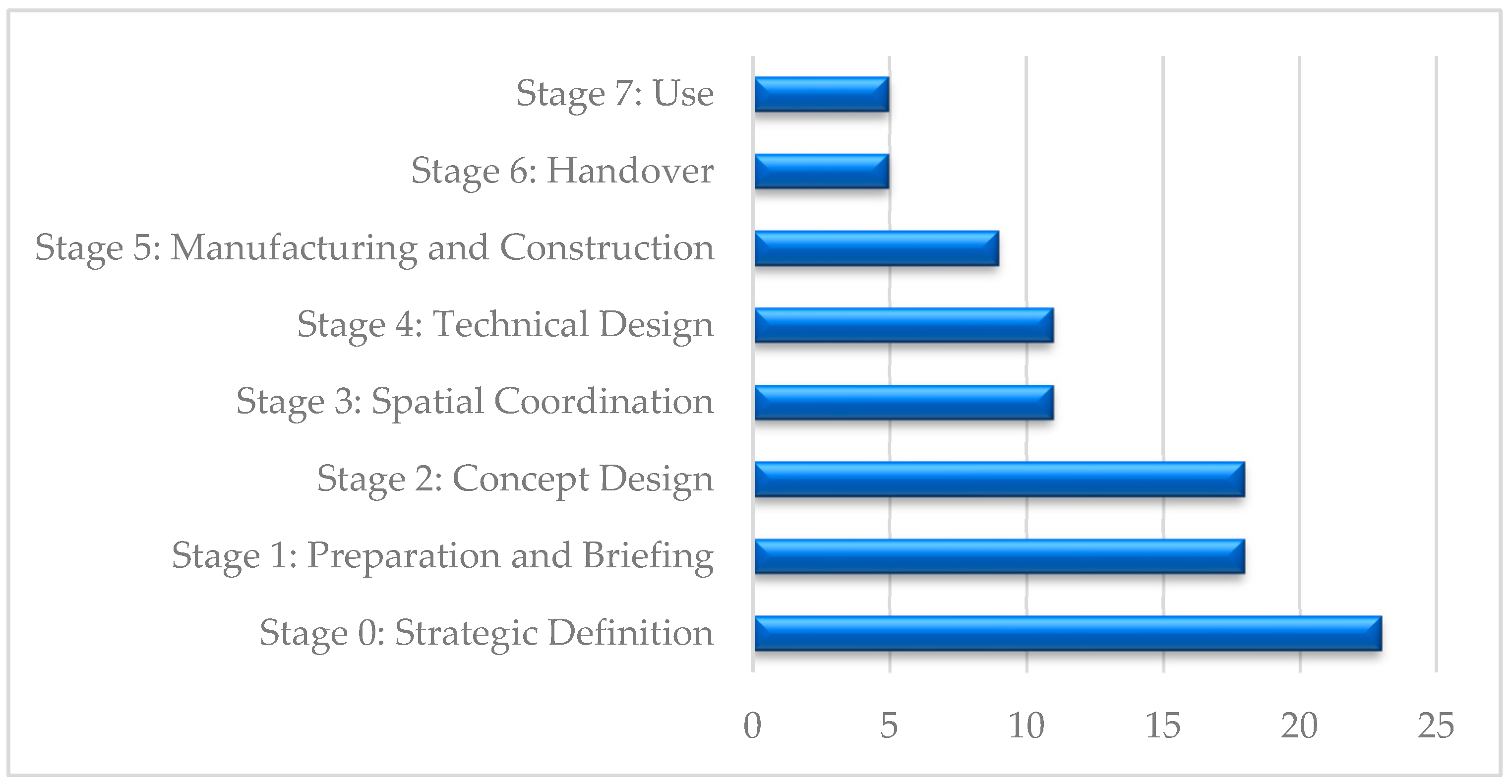

3.1.1. Application of NBD Approaches and Stages of RIBA Plan of Work

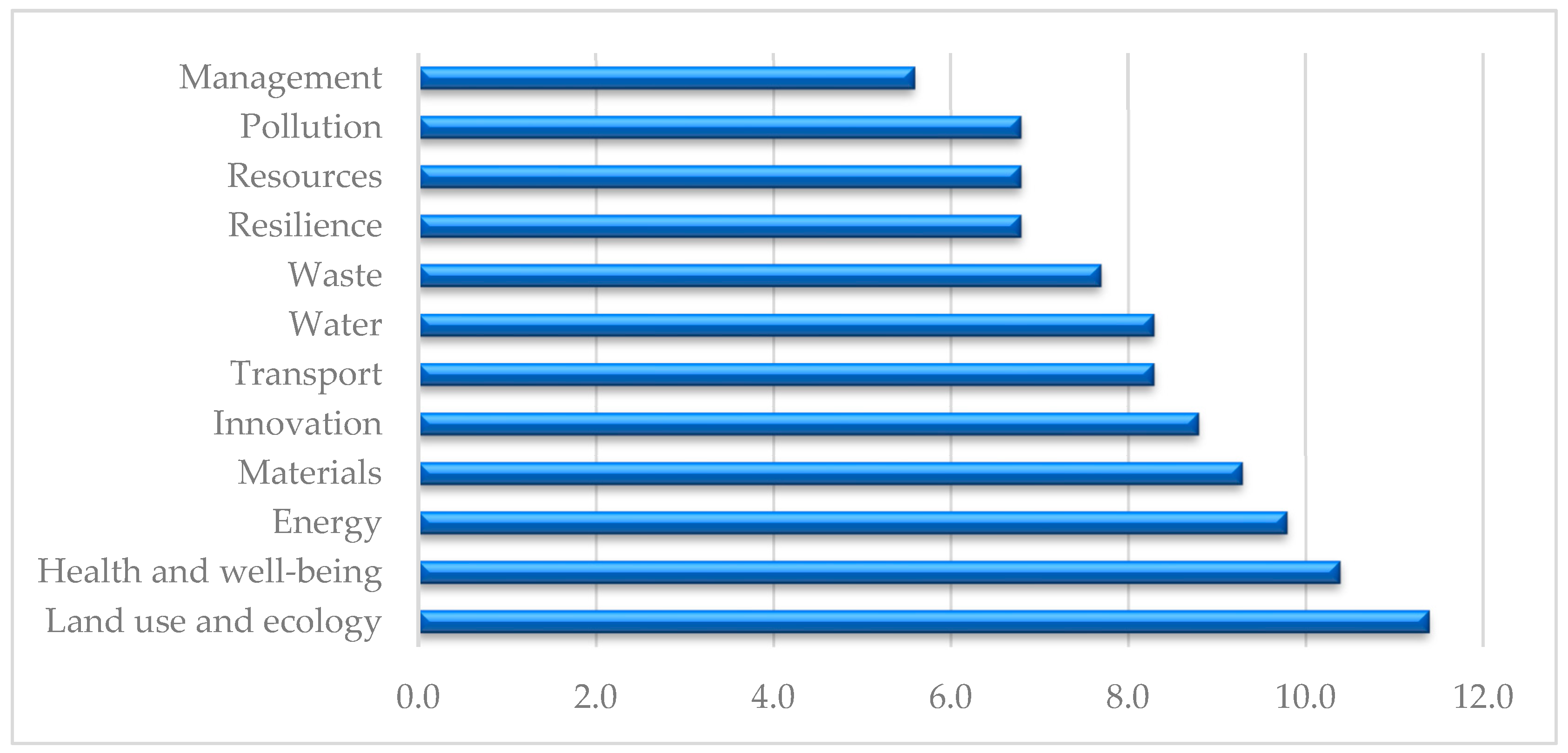

3.1.2. Application of NBD Approaches and BREEAM Categories

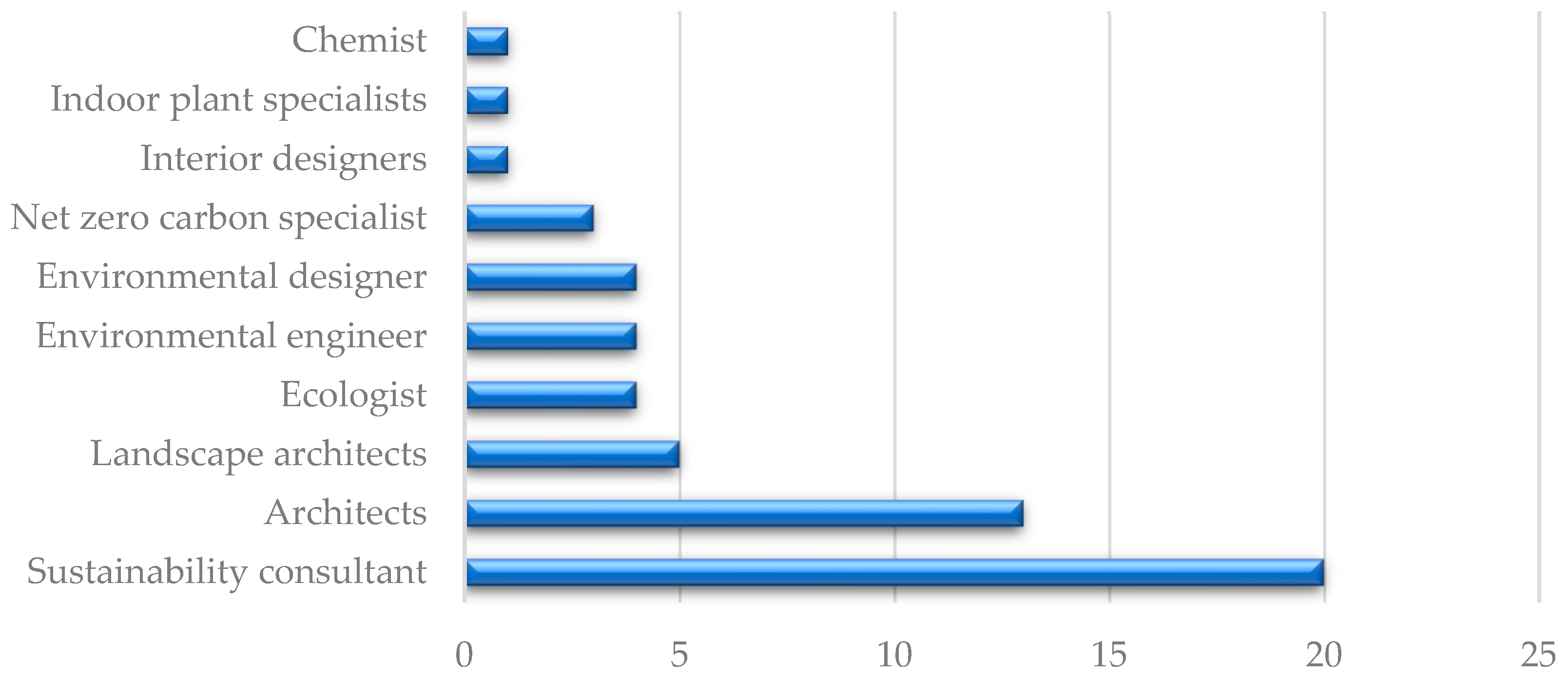

3.1.3. Professions Who Contributed to NBD to Improve Sustainability
4. NBD Overlay of RIBA PoW 2020: Guidelines for TDC in the NBD of Buildings

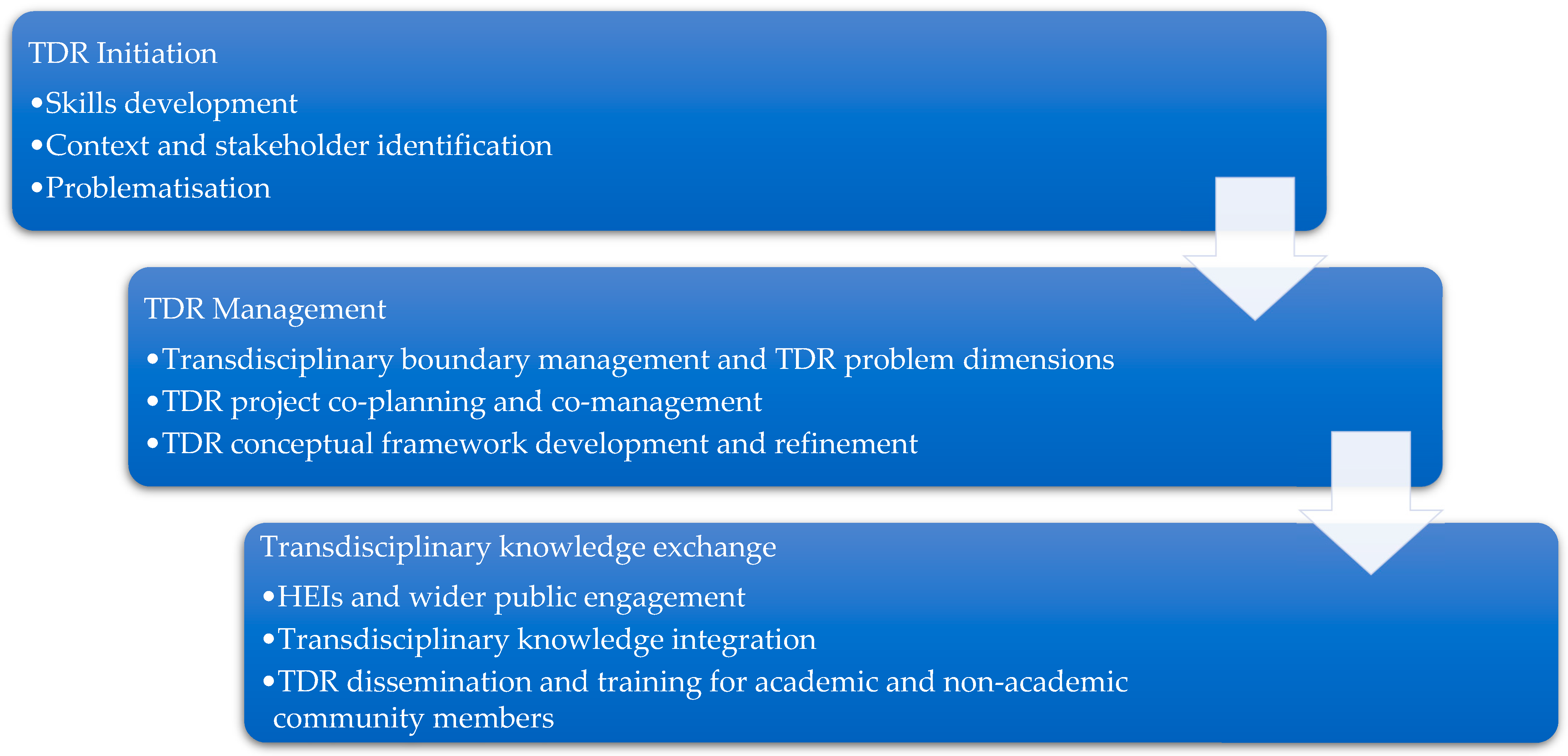

4.1. Adapting the General Transdisciplinary Framework into Guidelines for TDC in the NBD of Buildings
4.2. TCF for the NBD Overlay of Sustainable Buildings Aligned with the RIBA Plan of Work 2020
4.3. Recommendations for Possible Training of NBD Team
5. Validation of the Proposed NBD Overlay to the RIBA PoW
5.1. Survey Participants
5.2. Research Results
6. Results
7. Discussion
8. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A
RIBA PoW 2020 | TCF for NBD of Sustainable BuildSSSings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
0 | 1. Prepare Client Requirements. | 1. Confirmed client requirements. | i. Appointing NBD team leaders: The Project Architect (PA) and NBD Management Coordinator (MC). | i. PA and NBD MC identify disciplines that need to be involved in the development of NBD solutions as well as internal experts and potential external consultants in each discipline. | i. Sessions/meetings with internal and external experts in disciplines involved in the development of NBD solutions to identify potential future members of the NBD team. |
ii. Establishing the interdisciplinary NBD team, led by the Project Architect and coordinated by NBD MC, by appointing experts in different disciplines who will be involved in the development of NBD solutions. | ii. The NBD team meets to plan and agree methods for collaborating in the development of NBD solutions. | ii. KE session of NBD team members to share the knowledge and experience of different methods for interdisciplinary and transdisciplinary collaboration (IDC/TDC). | |||
1. Defining sustainability objectives, including NBD objectives, aligned with the Client Requirements. | 1. NBD team meeting to articulate NBD objectives aligned with the Client Requirements. | 1. KE session with the client to share the knowledge on possible NBD solutions that can meet the client requirements. Summary report for reference and future KE. | |||
2. Develop Business Case for feasible options, including review of Project Risks and Project Budget. | 2. Collecting data on the feasibility of NBD solutions including potential risks and estimated costs. | 2. NBD team members to collaborate in developing the business case for feasible NBD options, including review of related Project Risks and Project Budget based on collected data. | 2. NBD team KE session to share the and experience on the feasibility of different NBD solutions, related risks, and costs. Summary report for reference and future KE. | ||
3. Ratify option that best delivers Client Requirements. | 3. Identifying potential NBD solutions that might meet the Client Requirements. Investigating if and how existing NBD solutions might be applied and possibly improved. Reviewing innovative, advanced approaches and recent NBD research outcomes. | 3. NBD team to undertake research and report on existing NBD solutions; select those that best meet the Client Requirements considering the feasibility, related risks, and cost; inform the client on innovative, advanced approaches and recent NBD research outcomes to raise awareness of NBD innovations that might be applied in the current or future projects. | 3. NBD team share summary reports on existing and emerging NBD solutions and participate in a session to evaluate them and select those that best meet the Client Requirements considering the feasibility, related risks, and cost. | ||
4. Review Feedback from previous projects. | 4. Collecting reports on Post Occupancy Evaluation (POE) on previously applied NBD solutions. It is recommended to undertake this action in conjunction with the above action no. 3. | 4. NBD team members to provide summary reports on POE of previously applied NBD solutions. It is recommended to undertake this action in conjunction with the above action no. 3. | 4. NBD team members share summary reports on POE of previously applied NBD solutions for reference and future KE. It is recommended to undertake this action in conjunction with the above action no. 3. | ||
5. Undertake Site Appraisals. | 5. Participating in Site Appraisal to understand opportunities and limitations for application of NBD solutions and to include observations in Site Appraisal. | 5. NBD team members to provide summary reports on opportunities and limitations for application of NBD solutions based on their disciplinary expertise, experience, and the knowledge of possible regulatory restrictions. | 5. NBD team members share summary reports on opportunities and limitations for application of NBD solutions based on their disciplinary expertise, experience, and the knowledge of possible regulatory restrictions, for reference and future KE. |
RIBA PoW 2020 | TCF for NBD of Sustainable Buildings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
1 | 1. Prepare Project Brief including Project Outcomes and Sustainability Outcomes, Quality Aspirations and Spatial Requirements. | 1. Project Brief approved by the client and confirmed that it can be accommodated on the site. | 1. Participating in the preparation of the Project Brief by defining how the outcomes of NBD solutions contribute to achieving Sustainability Outcomes, Quality Aspirations, and Spatial Requirements. | 1. NBD team members to define how the outcomes of NBD solutions contribute to achieving Sustainability Outcomes, Quality Aspirations, and Spatial Requirements. | 1. NBD team KE session to define NBD outcomes and prepare a summary report for the Project Brief. |
2. Undertake Feasibility Studies. | 2. Collecting data required to ascertain the feasibility of the selected NBD solutions. | 2. NBD team to prepare reports on the feasibility of selected NBD solutions. | 2. NBD team knowledge sharing sessions on the feasibility of NBD solutions for reference and future KE. | ||
3. Agree Project Budget. | 3. Collecting data on the cost of manufacturing and developing related to NBD solutions. | 3. NBD team liaising with manufacturers and contractors who might work on NBD solutions. | 3. NBD Team shares the cost estimates of NBD solutions for reference and knowledge exchange. | ||
4. Source Site Information including Site Surveys. | 4. Acquiring the sourced Site Information to use when developing NBD solutions. | 4. Facilitate acquiring the sourced Site Information for the NBD team. | 4. NBD team session to discuss implications of Site Information for the development of NBD solutions. Summary report for reference and future KE. | ||
5. Prepare Project Programme. | 5. Collecting data related to NBD solutions required for the preparation of Project Programme. | 5. Facilitate NBD team collaboration in collecting data required for the preparation of Project Programme in sections related to the application of NBD solutions. | 5. NBD session to review data related to NBD solutions collected for the preparation of Project Programme. Summary report for reference and future KE. | ||
6. Prepare Project Execution Plan. | 6. Collecting data required for defining the execution phase of NBD solutions required for the preparation of Project Execution Plan. | 6. Facilitate NBD team liaising with contractors and collaboration in collecting data to define the execution phases of the NBD solutions. | 6. NBD team KE session on the execution phases of the NBD solutions in the Project Execution Plan. Summary report for reference and future KE. |
RIBA PoW 2020 | TCF for NBD of Sustainable Buildings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
2 | 1. Prepare Architectural Concept incorporating Strategic Engineering requirements and aligned to Cost Plan, Project Strategies and Outline Specification. | 1. Architectural Concept approved by the client and aligned to the Project Brief. | 1. Preparing design concepts of NBD solutions to integrate with Architectural Concept and collecting data required for incorporating Strategic Engineering requirements and aligned to Cost Plan, Project Strategies and Outline Specification. | 1. Facilitate collaboration of NBD team in developing design concepts of NBD solutions for integration with Architectural Concept, and in collecting data related to Strategic Engineering requirements and alignment to Cost Plan, Project Strategies and Outline Specification. | 1. NBD team KE session on design concepts of NBD solutions prepared for Architectural Concept, including data required for definition of Strategic Engineering requirements for NBD solutions that are aligned to Cost Plan, Project Strategies and Outline Specification for NBD solutions. Summary report for reference and future KE. |
2. Agree Project Brief Derogations. | 2. Preparing data for the discussion on Project Brief Derogations that might be related to NBD solutions. | 2. Facilitate internal discussions of NBD team regarding Project Brief Derogations related to NBD solutions. | 2. NBD team session on Project Brief Derogations that might impact the application of NBD solutions. Summary report for reference and future KE. | ||
3. Undertake Design Reviews with client and Project Stakeholders. | 3. Preparing presentations on design of NBD solutions for Design Reviews with client and Project Stakeholders. | 3. Facilitate preparations on design on NBD solutions for the Design Reviews with client and Project Stakeholders. | 3. NBD team session to discuss implications of the outcomes of Design Reviews with client and Project Stakeholders on design of NBD solutions. Summary report for reference and future KE. | ||
4. Prepare stage Design Programme. | 4. Preparing descriptions of the design tasks sequences of each member of the NBD team from the start contributing to the completion of the NBD solutions for stage Design Programme. | 4. Facilitate collaboration of NBD team in preparing descriptions of the design tasks sequences from the start to the completion of the NBD solutions. | 4. NBD team session to elaborate and discuss descriptions of the design tasks sequences from the start to the completion of the NBD solutions. |
RIBA PoW 2020 | TCF for NBD of Sustainable Buildings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
3 | 1. Undertake Design Studies, Engineering Analysis and Cost Exercises to test Architectural Concept resulting in Spatially Coordinated design aligned to updated Cost Plan, Project Strategies and Outline Specification. | 1. Architectural and engineering information Spatially Coordinated. | 1. Undertake NBD studies through an integrated design process aided by interdisciplinary collaboration, prepare engineering analysis and cost exercises related to NBD solutions to test Architectural Concept resulting in Spatially Coordinated design aligned to update Cost Plan, Project Strategies and Outline Specification. | 1. Facilitate coordination of NBD team for integrating design process aided by interdisciplinary collaboration and preparing engineering analysis and cost exercises related to NBD solutions to test Architectural Concept resulting in Spatially Coordinated design aligned to updated Cost Plan, Project Strategies and Outline Specification. | 1. Establish regular interdisciplinary coordination meetings of the NBD team to present NBD studies testing the Architectural Concept. Summary report for reference and future KE. |
2. Initiate Change Control Procedures. | 2. Encourage all project stakeholders, including the NBD team and project participants, to identify change requests that relate specifically to NBD initiatives. These requests may involve modifications to the project's design, materials, systems, or processes in order to enhance its performance and align with NBD objectives. | 2. Facilitate a systematic process for documenting and tracking change requests related to NBD. This includes recording the details of each change request, such as its nature, rationale, potential impact, and priority. Assign unique identifiers to facilitate tracking and reference throughout the change control process. | 2. Conduct an impact assessment session of each NBD-related change requests. This assessment should evaluate factors such as feasibility, cost implications, schedule impacts, and alignment with project objectives and sustainability objectives. Engage relevant experts, such as architects, engineers, and environmental consultants, to provide insights and recommendations regarding the potential impacts of the proposed NBD changes. | ||
3. Prepare stage Design Programme. | 3. Preparing descriptions of the design tasks sequences of each member of the NBD team from the start contributing to the completion of the NBD solutions for stage Design Programme. | 3. Facilitate collaboration of NBD team in preparing descriptions of the design tasks sequences from the start to the completion of the NBD solutions. | 3. NBD team session to elaborate and discuss descriptions of the design tasks sequences from the start to the completion of the NBD solutions. |
RIBA PoW 2020 | TCF for NBD of Sustainable Buildings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
4 | 1. Develop architectural and engineering technical design. | 1. All design information required to manufacture and construct the project completed. | 1. Identify, develop, and accommodate NBD solutions to architectural and engineering technical design. | 1. Facilitate collaboration of NBD team to identify, develop, and accommodate NBD solutions to architectural and engineering technical design. | 1. Interdisciplinary design review session to validate NBD solutions ensuring compliance with sustainability goals and industry standards. |
2. Prepare and coordinate design team Building Systems information. | 2. Prepare and coordinate interdisciplinary NBD team led by the PA and NBD MC to develop Building Systems information. | 2. Facilitate collaboration and coordination of NBD team in developing Building Systems information for implementing NBD solutions. | 2. NBD KE session to review and validate Building Systems information to implement NBD solutions. Summary report for reference and future KE. | ||
3. Prepare and integrate specialist subcontractor Building Systems information. | 3. Prepare, integrate, and liaise the NBD team with specialist subcontractor to develop Building Systems information for implementing NBD solutions. | 3. NBD team liaising with specialist subcontractors who produce Building Systems information to implement NBD solutions. | 3. NBD team session to discuss implications of liaising with different specialist subcontractors and their impact on the implementation of NBD solutions. | ||
4. Prepare stage Design Programme. | 4. Preparing descriptions of the design tasks sequences of each member of the NBD team from the start contributing to the completion of the NBD solutions for stage Design Programme. | 4. Facilitate collaboration of NBD team in preparing descriptions of the design tasks sequences from the start to the completion of the NBD solutions. | 4. NBD team session to elaborate and discuss descriptions of the design tasks sequences from the start to the completion of the NBD solutions. |
RIBA PoW 2020 | TCF for NBD of Sustainable Buildings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
5 | 1. Finalise Site Logistics. | 1. Manufacturing, construction and Commissioning completed. | 1. The NBD team participates in on-site activities to finalise the site logistics to collaborate closely with contractors and suppliers for the implementation of NBD solutions. | 1. NBD team members consult summary reports from previous projects to consider possible on-site restrictions in relation to the implementation of NBD solutions. | 1. NBD team and construction team session to ensure finalisation of the site logistics for the implementation of NBD solutions during construction. Summary report for reference and future KE. |
2. Manufacture Building Systems and construct building. | 2. Prepare the interdisciplinary NBD team to collaborate on-site with contractors and subcontractors. | 2. Facilitate on-site collaboration between the NBD team and construction teams to realize NBD solutions as part of manufacturing building systems and constructing the building. | 2. Maintain open communication channels with contractors, suppliers, and manufacturers involved in the fabrication and installation of NBD solutions. | ||
3. Monitor progress against Construction Programme. | 3. Interdisciplinary NBD team and construction team monitor progress against the Construction Programme and develop NBD milestones that are integrated into the overall Construction Programme that serve as checkpoints for monitoring progress. | 3. Facilitate on-site collaboration to align NBD milestone coordination with the Construction Programme and overall construction timeline. | 3. NBD KE session to report progress of the Construction Programme and NBD milestones and the completion of construction activities, including NBD solutions. | ||
4. Inspect Construction Quality. | 4. NBD team prepare to inspect the quality of workmanship of NBD solutions and construction quality defined in the final specifications that the construction must comply with. | 4. Facilitate the development of an NBD Construction Quality Control Plan to outline the processes and procedures for inspecting construction quality of NBD solutions. The plan includes specific checkpoints, inspections, and tests that are carried out. | 4. Monthly report on Construction Quality to be produced for the client team, detailing the quality of the ongoing manufacturing and construction on the project and related NBD solutions. These reports capture the findings, including any deviations from the established quality standards, and provide a record of the construction quality for future KE. | ||
5. Resolve Site Queries as required | 5. Contractor prepares questions directed to the NBD team to clarify information in the Building Contract documentation. | 5. Facilitate communication between construction team and NBD team to resolve Site Queries as required. | 5. NBD team session to include current Site Queries to an NBD Queries Database and prepare a summary report for reference and future KE. | ||
6. Undertake Commissioning of building. | 6. Construction team prepare to undertake Commissioning of building including the calibration and adjustment of building systems manufactured/constructed to realize NBD solutions. | 6. Facilitate collaboration of construction team and NBD team during Commissioning of building to support NBD solutions. | 6. NBD team session to identify, discuss, and elaborate optimum calibrations and adjustments of building systems related to NBD solutions. Summary report for reference and future KE. | ||
7. Prepare Building Manual. | 7. NBD team liaise with the contractor to prepare Building Manual, which includes all key information including the Health and Safety File, Fire Safety Information, and information related to NBD solutions. | 7. Facilitate communication between NBD team and construction team for providing them with detailed instructions regarding the maintenance of Building Systems related to NBD solutions. | 7. Workshop of NBD Building Manual with participants including the PA, NBD MC, interdisciplinary NBD team, and construction team to discuss on how the NBD information can be effectively accessed and stored as part of the Building Manual. Summary report for reference and future KE. |
RIBA PoW 2020 | TCF for NBD of Sustainable Buildings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
6 | 1. Hand over building in line with Plan for Use Strategy. | 1. Building handed over, Aftercare initiated and Building Contract concluded. | 1. NBD team hand over building in line with Plan for Use Strategy. The hand over will include completing an effective transfer to Facilities Management, including user training, a user friendly Building Manual and any outstanding Asset Information related to NBD solutions. | 1. Facilitate NBD team collaboration to complete an effective transfer to Facilities Management, including user training, a user friendly Building Manual and any outstanding Asset Information related to NBD solutions. | 1. NBD solutions user workshop: To transfer the necessary knowledge and skills to the building owner or operator regarding the care and maintenance of NBD solutions. |
2. Undertake review of Project Performance. | 2. Prepare the interdisciplinary NBD team to evaluate project performance in relation to NBD solutions to determine if they have enhanced biodiversity, improved sustainability, and provided ecosystem services and delivered the intended environmental, social, and economic benefits. | 2. Facilitate preparations to evaluate project performance in relation to NBD solutions to determine if they have enhanced biodiversity, improved sustainability, and provided ecosystem services and delivered the intended environmental, social, and economic benefits. | 2. A project performance session held by the NBD team to gather their views on the handover and integrating Facilities Management thinking from the start for the benefit of future projects. Summary report for reference and future KE. | ||
3. Undertake seasonal Commissioning. | 3. Prepare the interdisciplinary NBD team to fine tune operational systems during Seasonal Commissioning, with reference to sustainability objectives, including NBD objectives. | 3. Facilitate NBD collaboration to fine tune operational systems during Seasonal Comissioning, with reference to sustainability objectives, including NBD objectives. | 3. NBD KE session to report effectiveness of the chosen NBD solutions, identify what has worked well, and learn from any obstacles or limitations faced. | ||
4. Rectify defects. | 4. Prepare the construction team and NBD team to rectify any residual defects related to fire safety, health and safety, inclusive design, and NBD solutions as promptly as possible. | 4. Facilitate the construction and NBD team to rectify any residual defects related to fire safety, health and safety, inclusive design, and NBD solutions as promptly as possible. | 4. NBD team session to discuss most recent rectifications of current project and rectifications from previous projects to identify and report trends. Summary report for reference and future KE. | ||
5. Complete initial Aftercare tasks including light touch Post Occupancy Evaluation. | 5. Prepare the interdisciplinary NBD team to gather feedback on how the building is performing, whether the building and its systems for implementing NBD solutions are being used as planned before the Building Contract is concluded. | 5. Facilitate NBD team collaboration to gather feedback on how the building performing, whether the building and its systems for implementing NBD solutions are being used as planned. | 5. NBD KE session to report gathered feedback after completing initial Aftercare tasks including light touch POE. |
RIBA PoW 2020 | TCF for NBD of Sustainable Buildings | ||||
---|---|---|---|---|---|
Stage | Core Tasks | Stage Outcomes | Initiation | Management | Knowledge Exchange (KE) |
7 | 1. Implement Facilities Management and Asset Management. | 1. Building used, operated and maintained efficiently. | 1. Prepare the interdisciplinary NBD team to assist the client team in the implementation of Facilities Management and Asset Management. | 1. Facilitate the NBD team to assist the client team in the implementation of Facilities Management and Asset Management. | 1. NBD team KE session to share knowledge and experience on assisting the implementation of Facilities Management and Asset Management of different NBD solutions from the current project. Summary report for reference and future KE. |
2. Undertake Post Occupancy Evaluation of building performance in use. | 2. Prepare the interdisciplinary NBD team to undertake POE of building performance in use to determine whether the Project Outcomes, sustainability outcomes, NBD outcomes, set out in the Project Brief, or later design targets for Building Systems, have been achieved. | 2. Facilitate NBD team collaboration to undertake POE of building performance in use to determine whether the Project Outcomes, sustainability outcomes, and NBD outcomes, set out in the Project Brief, or later design targets for Building Systems, have been achieved. | 2. NBD team session to report the current challenges and future opportunities identified from the POE of the implemented NBD solutions. Summary report for reference and future KE. | ||
3. Verify Project Outcomes including Sustainability Outcomes. | 3. Prepare the interdisciplinary NBD team led by PA and NBD MC to verify Project Outcomes, including Sustainability Outcomes, and NBD outcomes. | 3. Facilitate interdisciplinary and transdisciplinary collaboration to verify Project Outcomes, including Sustainability Outcomes, and NBD outcomes. | 3. PA and NBD MC hold a transdisciplinary KE session to consult NBD team, construction team, client team and review summary reports from Stage 0–Stage 7 to highlight key aspects that would be part of NBD project dissemination, e.g., reports, case studies, presentations, publications. |
References
- Schroeder, T. Giving meaning to the concept of sustainability in architectural design practices: Setting out the analytical framework of translation. Sustainability 2018, 10, 1710. [Google Scholar] [CrossRef]
- Oliver, P. Encyclopedia of Vernacular Architecture of the World; Cambridge University Press: New York, NY, USA, 1997. [Google Scholar]
- Imani, M. Bio-inspired design approach analysis: A case study of Antoni Gaudi and Santiago Calatrava. Int. J. Archit. Environ. Eng. 2017, 11, 1156–1162. [Google Scholar]
- Flannery, M.C. Building biology. Am. Biol. Teach. 2002, 64, 64–69. [Google Scholar] [CrossRef]
- Stein, J.G. Speculative Artisanry: The Expanding Scale of Craft within Architecture. J. Mod. Craft 2011, 4, 49–63. [Google Scholar] [CrossRef]
- Joye, Y. Cognitive and evolutionary speculations for biomorphic architecture. Leonardo 2006, 39, 145–152. [Google Scholar] [CrossRef]
- Tsui, E. Evolutionary Architecture: Nature as a Basis for Design; John Wiley & Sons: Hoboken, NJ, USA, 1999. [Google Scholar]
- Thompson, B.S. Environmentally-sensitive design: Leonardo WAS right! Mater. Des. 1999, 20, 23–30. [Google Scholar] [CrossRef]
- Joye, Y. Biophilic Design Aesthetics in Art and Design Education. J. Aesthetic Educ. 2011, 45, 17–35. [Google Scholar] [CrossRef]
- Vincent, J.F.V.; Bogatyreva, O.A.; Bogatyrev, N.R.; Bowyer, A.; Pahl, A.-K. Biomimetics: Its practice and theory. J. R. Soc. Interface 2006, 3, 471–482. [Google Scholar] [CrossRef]
- Benyus, J.M. Biomimicry: Innovation Inspired by Nature; Morrow: New York, NY, USA, 1997. [Google Scholar]
- John, G.; Clements-Croome, D.; Jeronimidis, G. Sustainable building solutions: A review of lessons from the natural world. Build. Environ. 2005, 40, 319–328. [Google Scholar] [CrossRef]
- Ramzy, N. Sustainable spaces with psychological values: Historical architecture as reference book for biomimetic models with biophilic qualities. Int. J. Archit. Res. ArchNet-IJAR 2015, 9, 248–267. [Google Scholar] [CrossRef]
- Barozzi, M.; Lienhard, J.; Zanelli, A.; Monticelli, C. The sustainability of adaptive envelopes: Developments of kinetic architecture. Procedia Eng. 2016, 155, 275–284. [Google Scholar] [CrossRef]
- Al-Obaidi, K.M.; Ismail, M.A.; Hussein, H.; Rahman, A.M.A. Biomimetic building skins: An adaptive approach. Renew. Sustain. Energy Rev. 2017, 79, 1472–1491. [Google Scholar] [CrossRef]
- Hosseini, S.M.; Mohammadi, M.; Rosemann, A.; Schröder, T.; Lichtenberg, J. A morphological approach for kinetic façade design process to improve visual and thermal comfort: Review. Build. Environ. 2019, 153, 186–204. [Google Scholar] [CrossRef]
- Rian, I.M.; Sassone, M. Tree-inspired dendriforms and fractal-like branching structures in architecture: A brief historical overview. Front. Archit. Res. 2014, 3, 298–323. [Google Scholar] [CrossRef]
- Pohl, G.; Nachtigall, W. Biomimetics for Architecture & Design: Nature-Analogies-Technology; Springer: Berlin/Heidelberg, Germany, 2015. [Google Scholar]
- Shahin, H.S.M. Adaptive building envelopes of multistory buildings as an example of high performance building skins. Alex. Eng. J. 2019, 58, 345–352. [Google Scholar] [CrossRef]
- Tabadkani, A.; Tsangrassoulis, A.; Roetzel, A.; Li, H.X. Innovative control approaches to assess energy implications of adaptive facades based on simulation using EnergyPlus. Sol. Energy 2020, 206, 256–268. [Google Scholar] [CrossRef]
- Radwan, G.A.N.; Osama, N. Biomimicry, an Approach, for Energy Effecient Building Skin Design. Procedia Environ. Sci. 2016, 34, 178–189. [Google Scholar] [CrossRef]
- Spiegelhalter, T.; Arch, R. Biomimicry and circular metabolism for the cities of the future. WIT Trans. Ecol. Environ. 2010, 129, 215–226. [Google Scholar]
- Wahl, D.C.; Baxter, S. The designer’s role in facilitating sustainable solutions. Des. Issues 2008, 24, 72–83. [Google Scholar] [CrossRef]
- Kellert, S.R.; Heerwagen, J.; Mador, M. Biophilic Design: The Theory, Science and Practice of Bringing Buildings to Life; John Wiley & Sons: Hoboken, NJ, USA, 2011. [Google Scholar]
- Abdelaal, M.S. Biophilic campus: An emerging planning approach for a sustainable innovation-conducive university. J. Clean. Prod. 2019, 215, 1445–1456. [Google Scholar] [CrossRef]
- Wickson, F.; Carew, A.L.; Russell, A.W. Transdisciplinary research: Characteristics, quandaries and quality. Futures 2006, 38, 1046–1059. [Google Scholar] [CrossRef]
- Brandt, P.; Ernst, A.; Gralla, F.; Luederitz, C.; Lang, D.J.; Newig, J.; Reinert, F.; Abson, D.J.; Von Wehrden, H. A review of transdisciplinary research in sustainability science. Ecol. Econ. 2013, 92, 1–15. [Google Scholar] [CrossRef]
- Kates, R.W.; Clark, W.C.; Corell, R.; Hall, J.M.; Jaeger, C.C.; Lowe, I.; McCarthy, J.J.; Schellnhuber, H.J.; Bolin, B.; Dickson, N.M. Sustainability science. Science 2001, 292, 641–642. [Google Scholar] [CrossRef] [PubMed]
- Spangenberg, J.H. Sustainability science: A review, an analysis and some empirical lessons. Environ. Conserv. 2011, 38, 275–287. [Google Scholar] [CrossRef]
- Kates, R.W. What kind of a science is sustainability science? Proc. Natl. Acad. Sci. USA 2011, 108, 19449–19450. [Google Scholar] [CrossRef]
- Pohl, C. Transdisciplinary collaboration in environmental research. Futures 2005, 37, 1159–1178. [Google Scholar] [CrossRef]
- Cundill, G.; Harvey, B.; Tebboth, M.; Cochrane, L.; Currie-Alder, B.; Vincent, K.; Lawn, J.; Nicholls, R.J.; Scodanibbio, L.; Prakash, A. Large-scale transdisciplinary collaboration for adaptation research: Challenges and insights. Glob. Chall. 2019, 3, 1700132. [Google Scholar] [CrossRef]
- de Oliveira, T.M.; Amaral, L.; Pacheco, R.C.d.S. Multi/inter/transdisciplinary assessment: A systemic framework proposal to evaluate graduate courses and research teams. Res. Eval. 2019, 28, 23–36. [Google Scholar] [CrossRef]
- Wardani, J.; Bos, J.J.A.; Ramirez-Lovering, D.; Capon, A.G. Towards a practice framework for transdisciplinary collaboration in planetary health. Glob. Sustain. 2024, 7, e16. [Google Scholar] [CrossRef]
- Butt, A.N.; Dimitrijević, B. Developing and Testing a General Framework for Conducting Transdisciplinary Research. Sustainability 2023, 15, 4596. [Google Scholar] [CrossRef]
- Butt, A.N.; Dimitrijević, B. Multidisciplinary and Transdisciplinary Collaboration in Nature-Based Design of Sustainable Architecture and Urbanism. Sustainability 2022, 14, 10339. [Google Scholar] [CrossRef]
- Sinclair, D. BIM Overlay to the RIBA Outline Plan of Work; RIBA Publishing: London, UK, 2012. [Google Scholar]
- RIBA. DfMA Overlay to the Plan of Work. Available online: https://www.architecture.com/knowledge-and-resources/resources-landing-page/dfma-overlay-to-the-riba-plan-of-work?srsltid=AfmBOoo2LZKycSY3UE66MSEBI8Y56nWiuR8CPJhZr3MxgEccph3jaDnp (accessed on 28 November 2024).
- RIBA. Engagement Overlay to the RIBA Plan of Work. Available online: https://www.architecture.com/knowledge-and-resources/resources-landing-page/engagement-overlay-to-riba-plan-of-work?srsltid=AfmBOookn2cxkGZLQAF4810dVtzTanxdj20u21QeuvavD4tThcM4DdpH (accessed on 28 November 2024).
- Gething, B. Green Overlay to the RIBA Outline Plan of Work; RIBA Publishing: London, UK, 2011. [Google Scholar]
- RIBA. Inclusive Design Overlay to the RIBA Plan of Work. Available online: https://www.architecture.com/knowledge-and-resources/resources-landing-page/inclusive-design-overlay-to-riba-plan-of-work?srsltid=AfmBOoqmBf26r03VDInLFjJ53Lx86odFERsS1kiOipBd9z1tuWLytikW (accessed on 28 November 2024).
- RIBA. Passivhaus Overlay to the RIBA Plan of Work. Available online: https://www.architecture.com/knowledge-and-resources/resources-landing-page/passivhaus-overlay-to-the-riba-plan-of-work?srsltid=AfmBOopC7ahJuWwVSkMevkAA27V_8xcwPPh-UB_VoaTkDR6nqlAluL_l (accessed on 28 November 2024).
- RIBA. Security Overlay to the RIBA Plan of Work. Available online: https://www.architecture.com/knowledge-and-resources/resources-landing-page/security-overlay-to-the-plan-of-work?srsltid=AfmBOooigYkhe1PNi23rBXVhmY_RDA7C9VvOXlP7Zh7-2RjReuWgSQQ2 (accessed on 28 November 2024).
- RIBA. Smart Building Overlay to the RIBA Plan of Work. Available online: https://www.architecture.com/knowledge-and-resources/resources-landing-page/smart-building-overlay-to-riba-plan-of-work?srsltid=AfmBOopJhGnyDJjo8tHSKV-Vzyz56HyO1OdfPzTnTGSBCaLyxtqeKB_b (accessed on 28 November 2024).
- RIBA. RIBA Plan of Work. Available online: https://www.architecture.com/knowledge-and-resources/resources-landing-page/riba-plan-of-work (accessed on 29 April 2024).
- Butt, A.N. BREEAM Outstanding Rated Projects, Related Architectural Firms, and Bespoke Survey Links. Available online: https://figshare.com/articles/online_resource/BREEAM_Outstanding_rated_projects_related_architectural_firms_and_bespoke_survey_links/24638859 (accessed on 29 April 2024).
- BREEAM. Explore BREEAM—Explore the Data Behind BREEAM Projects. Available online: https://tools.breeam.com/projects/explore/buildings.jsp (accessed on 29 April 2024).
- Butt, A.N. Sample Questionnaire for Project Architect of Related BREEAM Outstanding-Rated Projects in the UK. Available online: https://figshare.com/articles/online_resource/Sample_questionnaire_for_Project_Architect_of_related_BREEAM_Outstanding-rated_projects_in_the_UK/24638919 (accessed on 29 April 2024).
- Buildings, D. Overlays to the RIBA Plan of Work. Available online: https://www.designingbuildings.co.uk/wiki/Overlays_to_the_RIBA_plan_of_work (accessed on 28 November 2024).
- Butt, A.N. Online Questionnaire to Validate the TCF for NBD of Sustainable Buildings Aligned with the RIBA Plan of Work 2020. Available online: https://figshare.com/articles/online_resource/Online_questionnaire_to_validate_the_TCF_for_NBD_of_sustainable_buildings_aligned_with_the_RIBA_Plan_of_Work_2020/24638931 (accessed on 29 April 2024).
- BREEAM. Why BREEAM? Available online: https://bregroup.com/products/breeam/why-breeam/ (accessed on 10 October 2023).
- Butt, A.N. Architectural Firms who Responded and Confirmed Their Engagement in NBD for Their Design Projects. Available online: https://figshare.com/articles/dataset/Architectural_firms_who_responded_and_confirmed_their_engagement_in_NBD_for_their_design_projects/24638904 (accessed on 29 April 2024).
- BDP Values. Available online: https://www.bdp.com/en/about/about-bdp/ (accessed on 28 November 2024).
- Blue3 Vision, Mission & Values. Available online: https://www.blu-3.co.uk/about-us/vision-mission-values (accessed on 28 November 2024).
- London, D. Our Business. Available online: https://www.derwentlondon.com/about/our-business (accessed on 29 April 2024).
- Zeng, R.; Chini, A.; Ries, R. Innovative design for sustainability: Integrating embodied impacts and costs during the early design phase. Eng. Constr. Archit. Manag. 2021, 28, 747–764. [Google Scholar] [CrossRef]
- Kibert, C.J. Sustainable Construction: Green Building Design and Delivery; John Wiley & Sons: Hoboken, NJ, USA, 2016. [Google Scholar]
- Salem, D.; Bakr, A.; El Sayad, Z. Post-construction stages cost management: Sustainable design approach. Alex. Eng. J. 2018, 57, 3429–3435. [Google Scholar] [CrossRef]
- Pearlmutter, D.; Theochari, D.; Nehls, T.; Pinho, P.; Piro, P.; Korolova, A.; Papaefthimiou, S.; Mateo, M.C.G.; Calheiros, C.; Zluwa, I. Enhancing the circular economy with nature-based solutions in the built urban environment: Green building materials, systems and sites. Blue-Green Syst. 2020, 2, 46–72. [Google Scholar] [CrossRef]
- Butt, A.N.; Rigoni, C. Exploring the impact of spatial arrangements on BREEAM Outstanding projects in London, UK. Urban Sci. 2024, 8, 239. [Google Scholar] [CrossRef]
- Horcea-Milcu, A.-I.; Leventon, J.; Lang, D.J. Making transdisciplinarity happen: Phase 0, or before the beginning. Environ. Sci. Policy 2022, 136, 187–197. [Google Scholar] [CrossRef]
- Lorenz, S. Transdisciplinary sustainability research. Procedural perspectives and professional cooperation. Curr. Res. Environ. Sustain. 2022, 4, 100182. [Google Scholar] [CrossRef]
- Kreß-Ludwig, M.; Marg, O.; Schneider, R.; Lux, A. Lessons from transdisciplinary urban research to promote sustainability transformation in real-world labs: Categories, pathways, and key principles for generating societal impact. GAIA-Ecol. Perspect. Sci. Soc. 2024, 33, 10–17. [Google Scholar] [CrossRef]
- Butt, A.N. Transdisciplinary education for reducing environmental impact of AEC industry. Transdiscipl. J. Eng. Sci. 2024, 15, 395–426. [Google Scholar] [CrossRef]
- Jutraž, A.; Zupančič, T. The role of architect in interdisciplinary collaborative design studios. IGRA Ustvarjalnosti (IU)/Creat. Game (CG)–Theory Pract. Spat. Plan. 2014, 2, 34–42. [Google Scholar] [CrossRef]
- Emmitt, S. Managing Interdisciplinary Projects: A Primer for Architecture, Engineering and Construction; Routledge: London, UK, 2010. [Google Scholar]
- Kasali, A.; Nersessian, N.J. Architects in interdisciplinary contexts: Representational practices in healthcare design. Des. studies 2015, 41, 205–223. [Google Scholar] [CrossRef]
- Singh, V.; Gu, N.; Wang, X. A theoretical framework of a BIM-based multi-disciplinary collaboration platform. Autom. Constr. 2011, 20, 134–144. [Google Scholar] [CrossRef]
- Shen, W.; Hao, Q.; Mak, H.; Neelamkavil, J.; Xie, H.; Dickinson, J.; Thomas, R.; Pardasani, A.; Xue, H. Systems integration and collaboration in architecture, engineering, construction, and facilities management: A review. Adv. Eng. Inform. 2010, 24, 196–207. [Google Scholar] [CrossRef]
- Russell, A.W.; Wickson, F.; Carew, A.L. Transdisciplinarity: Context, contradictions and capacity. Futures 2008, 40, 460–472. [Google Scholar] [CrossRef]
- Klein, J.T. Creativity, Design, and Transdisciplinarity. In Creativity, Design Thinking and Interdisciplinarity; Darbellay, F., Moody, Z., Lubart, T., Eds.; Springer: Singapore, 2017; pp. 53–68. [Google Scholar]
- Basta, C.; Kunseler, E.; Wamsler, C.; Van Der Jagt, A.; Baró, F.; Balenciaga, I.; Bach, M.; Wickenberg, B. Inclusiveness, equity, consistency, and flexibility as guiding criteria for enabling transdisciplinary collaboration: Lessons from a European project on nature-based solutions and urban innovation. Front. Clim. 2021, 3, 630075. [Google Scholar] [CrossRef]
Guidelines and Outputs from the General Framework for TDR | RIBA PoW Stages and Outcomes | Adapted Guidelines for NBD of Buildings |
---|---|---|
Recommendations on collaborative learning environments, responsible research and innovation, and interdisciplinary working. | Stage 0 Strategic Definition Outcome: Confirmed client requirements | Discuss and agree with the client to complete the following: adopt NBD approaches; define NBD-related objectives; adopt or develop NBD-related innovations; identify NBD-related disciplines that should be included in the team. |
Diagrams: Innovation ecosystems and the team of scientist/researchers for the TDR project. | Stage 1 Preparation and Briefing Outcome: Project brief approved by the client and confirmed to be accommodated on the site. | Obtain the client’s approval of the project brief and the proposed interdisciplinary team members who will collaborate on the site assessment. |
Formulate joint TDR problem. | Stage 2 Concept Design Outcome: Architectural concept approved by the client and aligned to the project brief. | Obtain client’s approval of the architectural concept that includes NBD approaches and is aligned with the project brief. |
Diagrams: Site related-dimensions of the TDR problem and stakeholder mapping. | Stage 3 Spatial Coordination Outcome: Architectural and engineering information spatially coordinated. | Extract architectural and engineering information related to the proposed NBD solutions and define their spatial relationships. Consult and obtain approval from planners and other relevant agencies for integration of the NBD solutions at the construction site. |
An overview of relevant case studies and their results, including related TDC. | Stage 4 Technical Design Outcome: All design information required to manufacture and construct the project completed. | Interdisciplinary coordination (including potential manufacturers and construction team) and design reviews to prepare and validate manufacturing and construction information related to the NBD solutions. |
A TDR framework for the project on which the team will collaborate. | Stage 5 Manufacturing and Construction Outcome: Manufacturing, construction, and commissioning completed. | Coordination and collaboration between the construction team and the transdisciplinary design team to complete the construction phase. |
A diagram of the TDC, descriptions of the research findings, and draft papers for dissemination and project promotion. | Stage 6 Handover Outcome: Building handed over, aftercare initiated, and building contract concluded. | Comprehensive documentation and training on the operation and maintenance of the NBD solutions for building users. |
Training and development plan, summative evaluation criteria, and summative evaluation of the transdisciplinary knowledge exchange processes. | Stage 7 Use Outcome: Building used, operated, and maintained efficiently. | Post-occupancy evaluation of the NBD solutions leading to knowledge exchange sessions between the transdisciplinary team members for future projects. |
Stage of RIBA PoW 2020 | Possible Training of NBD Team for Applying TCF for NBD of Sustainable Buildings |
---|---|
Stage 0: Strategic Definition | (1) A scoping exercise: Review the project requirements and objectives to determine the scope of the NBD solutions needed; (2) Collaborative planning workshops: To understand the processes of interdisciplinary design and transdisciplinary collaboration projects; (3) NBD goal setting workshop: To familiarise team members how sustainability objectives, including NBD objectives can align with the client requirements using goal setting techniques such as SMART (Specific, Measurable, Achievable, Relevant, Time-bound) framework; (4) Collaborative business case development session: To train team members on the process of developing a business case for NBD solutions. |
Stage 1: Preparation and Briefing | (1) Collaborative workshops: To encourage interdisciplinary collaboration and open dialogue to incorporate diverse perspectives related to NBD solutions and ensure a comprehensive brief. |
Stage 2: Concept Design | (1) Interdisciplinary concept design workshop: To train and develop brainstorming skills necessary to explore NBD concepts. |
Stage 3: Spatial Coordination | (1) Interdisciplinary design solutions workshop: To discover, apply, and present applications of NBD solutions to Architectural Concepts that balance aesthetics, functionality, and sustainability. |
Stage 4: Technical Design | (1) NBD case study analysis: Training workshops or presentations that explore successful NBD case studies from different project types and scales. Learning from real-world examples helps participants understand the application and potential of NBD in similar contexts. |
Stage 5: Manufacturing and Construction | (1) Interdisciplinary collaboration in construction for NBD solutions workshop: To enable interdisciplinary collaboration among project participants including NBD team members, and construction team members for the implementation of NBD solutions. |
Stage 6: Handover | (1) Effective Hand Over communication workshop: To develop effective communication and training materials for providing induction to building owners, facility managers, and maintenance personnel who will be responsible for the ongoing maintenance of the NBD solutions. |
Stage 7: Use | (1) Transdisciplinarity for sustainable buildings through NBD solutions workshop: To train the NBD team members by exploring previous projects to identify the bespoke information needed for Initiation, Management, and KE at various stages of the RIBA Plan of Work as seen in case studies, presentations, and publications. |
RIBA Registered Architect | Related Architectural Firm |
---|---|
A1 | Farrell & Clark LLP |
A2 | Magnus & Associates |
A3 | Stride Treglown |
A4 | Stride Treglown |
A5 | Make Architects |
A6 | Chapman Taylor |
A7 | PRP |
A8 | Allford Hall Monaghan Morris (AHMM) |
A9 | Ecologic Architects |
A10 | Feilden Clegg Bradley Studios |
A11 | WilkinsonEyre |
A12 | RSHP |
A13 | MH Architects |
A14 | Zameen Developments |
A15 | Foster + Partners |
A16 | Morris + Company |
RIBA PoW Stage | Positive Response | Negative Response |
---|---|---|
Stage 0: Strategic Definition | 93.8% (15) | 6.2% (1) |
Stage 1: Preparation and Briefing | 81.3% (13) | 18.7% (3) |
Stage 2: Concept Design | 93.8% (15) | 6.2% (1) |
Stage 3: Spatial Coordination | 87.5% (14) | 12.5% (2) |
Stage 4: Technical Design | 93.8% (15) | 6.2% (1) |
Stage 5: Manufacturing and Construction | 93.8% (15) | 6.2% (1) |
Stage 6: Handover | 87.5% (14) | 12.5% (2) |
Stage 7: Use | 93.8% (15) | 6.2% (1) |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Butt, A.N.; Dimitrijević, B. A Transdisciplinary Overlay for Nature-Based Design of Sustainable Buildings. Architecture 2024, 4, 1157-1189. https://doi.org/10.3390/architecture4040060
Butt AN, Dimitrijević B. A Transdisciplinary Overlay for Nature-Based Design of Sustainable Buildings. Architecture. 2024; 4(4):1157-1189. https://doi.org/10.3390/architecture4040060
Chicago/Turabian StyleButt, Anosh Nadeem, and Branka Dimitrijević. 2024. "A Transdisciplinary Overlay for Nature-Based Design of Sustainable Buildings" Architecture 4, no. 4: 1157-1189. https://doi.org/10.3390/architecture4040060
APA StyleButt, A. N., & Dimitrijević, B. (2024). A Transdisciplinary Overlay for Nature-Based Design of Sustainable Buildings. Architecture, 4(4), 1157-1189. https://doi.org/10.3390/architecture4040060
