Characterization of Microplastics in Bees and Their Products in Urban and Rural Areas of the Sabana De Bogotá, Colombia

Abstract

Microplastics, plastic fragments smaller than 5 mm present in the environment due to the decomposition of larger plastics, can cause damage to various ecosystems and species of pollinating insects, such as Apis mellifera bees. These bees play a crucial role in the ecology and production of honey and pollen, also serving as bioindicators of environmental quality as they are sensitive to contaminants such as microplastics. In this study, we evaluated the presence of microplastics in these insects and their products—pollen, and honey—collected in August 2021 and August 2023 in rural areas (Tabio and Guasca) of Cundinamarca, Colombia, and urban areas (Universidad Nacional de Colombia and Pontificia Universidad Javeriana) of Bogotá, Colombia. Each year, 24 bees, 10 g of honey, and 5 g of pollen were collected per sampling point. Microplastics in bees and their products were identified and quantified by stereomicroscopy, with or without hydrogen peroxide digestion pretreatment. Microplastics were found in bees, pollen, and honey in both periods, with an increase in their quantity observed over time due to increasing environmental pollution. Blue fibers were the most common microplastics, with a greater amount recorded in 2023 compared to 2021.

1. Introduction

The western honeybee (Apis mellifera) is a pollinating insect that has its origins in Europe and Africa, with adaptations over time in America, Asia, and Australia. This adaptation has been possible due to its exploitation for honey production and pollination of agricultural crops. Therefore, it is recognized as the most common individual pollinator species in crops worldwide [1,2]. These insects collect nectar and pollen, which are essential elements for the colony and commercial use. Honey collection is carried out in colonies with a mated queen bee, and it is then collected in panels within a machine that uses centrifugal force that makes the honey fall. On the other hand, pollen collection is done using pollen “traps”. These traps are placed at the entrance or under the hive and force the forager bees to pass through a metal or plastic mesh to enter the hive. In this way, loads of pollen come off their legs and fall into a collection tray [3]. However, honeybees not only play a vital role in honey production and pollination but also act as bioindicators of environmental pollution. Due to their flight behavior, high reproduction rate, and sensitivity to toxic substances, honeybees can accumulate contaminants from the air, water, soil, and plants during their foraging flights [4]. In fact, bees and their products, such as pollen and honey, are used as samplers to assess environmental quality in specific areas. Using techniques such as mass spectrometry, samples collected from hives can be analyzed for levels of heavy metals, pesticides, microplastics, and other particles, providing valuable information on local contamination [4].

However, a reduction in bee colonies has been observed worldwide. This reduction is attributed to the use of pesticides, the fragmentation of habitats, climate change, and the accumulation of plastics in the environment. The latter, when fragmented through photo- and thermo-oxidative degradation, produces polymeric particles known as microplastics (MPs), with sizes between 1 μm and 5 mm, and nanoplastics (NPs) with sizes < 1 μm [5].

MPs are divided into two categories: primary and secondary. Primary MPs are produced with a specific size for application in cosmetics and other commercial industries, while secondary MPs are derived from the degradation of larger plastic particles due to photochemical oxidation, hydrolysis, and mechanical forces. Furthermore, natural erosion processes, such as tire wear and road particles, as well as sludge in wastewater, also contribute to the generation of secondary MPs, thus representing significant sources of MPs in the environment. Both primary and secondary MPs are considered ubiquitous pollutants and resistant to natural degradation, in a wide variety of ecosystems, from soils to urban, suburban, remote atmospheres, through aquatic systems, with a focus on oceans where the presence of MPs in seafood has been demonstrated. However, MP contamination in terrestrial ecosystems may be greater than in aquatic systems since MPs have been found in beer, other beverages, fruits, and vegetables [6]. MP particles accumulate in ecosystems, influencing soil processes and plant production, and altering microbial composition. In this way, MPs enter the food chain, acting as vectors for other contaminants [7].

Animals are exposed to MPs through ingestion of water and food, as well as contact with contaminated air and soil. In insects, MPs can have a significant impact, due to their prevalence in the environment and the key ecosystem services they provide. Due to their size, insects are subject to greater impact from MPs than larger organisms. Pollinating insects, such as honeybees, play an important role in ecosystems, supporting the genetic diversity of angiosperm flora, and making them essential for food production. Furthermore, their products, such as honey, pollen, and beeswax, are used for human consumption [8]. Therefore, MPs significantly affect the diversity of bees’ intestinal microbiomes and genes related to the immune system, making them more susceptible to viral infections that damage their intestinal tissues. Therefore, they impact the ecological function of pollinators, which could eventually affect human health [4].

It is important to establish techniques to identify contaminating MPs to mitigate the irreversible damage they can cause [9]. Various studies have been carried out to analyze and identify MPs, using techniques such as Raman spectroscopy, Fourier transform infrared spectroscopy (FTIR), scanning electron microscopy (SEM) coupled to energy dispersive x-rays (EDX), and thermal analysis [10]. The Raman spectroscopy technique can detect MPs in the submicron size range, using a laser beam directed at a specific sample and producing a unique spectrum based on the chemical composition of the sample [11]. Similarly, FTIR allows the quantitative and qualitative analysis of plastic polymers, producing unique spectra that differentiate plastics from other organic and inorganic particles, and providing specific information about the composition of the polymer to determine its source or origin. Scanning electron microscopy (SEM) enables the identification of nanoparticles, easily differentiating organic particles from microplastics by providing high-resolution images, while SEM coupled to EDX allows microplastics to be differentiated according to their elemental composition. Thermal analysis is an alternative to spectroscopic techniques, which allows the measurement of any type of change in the chemical and physical properties of substances based on their stability or thermal degradation [12].

To understand the impact of MPs on the environment, it is necessary to consider their presence in living organisms and the products derived from them. Therefore, it is important to identify the presence of MPs through analytical techniques in samples collected at different sampling points. The following study covered both rural areas (Guasca and Tabio) and urban areas (Pontificia Universidad Javeriana and Universidad Nacional), considering the climatic data and environmental quality of the same month in two different years (August 2021 & 2023).

2. Materials and Methods

2.1. Collection of Specimens and Their Bee Products

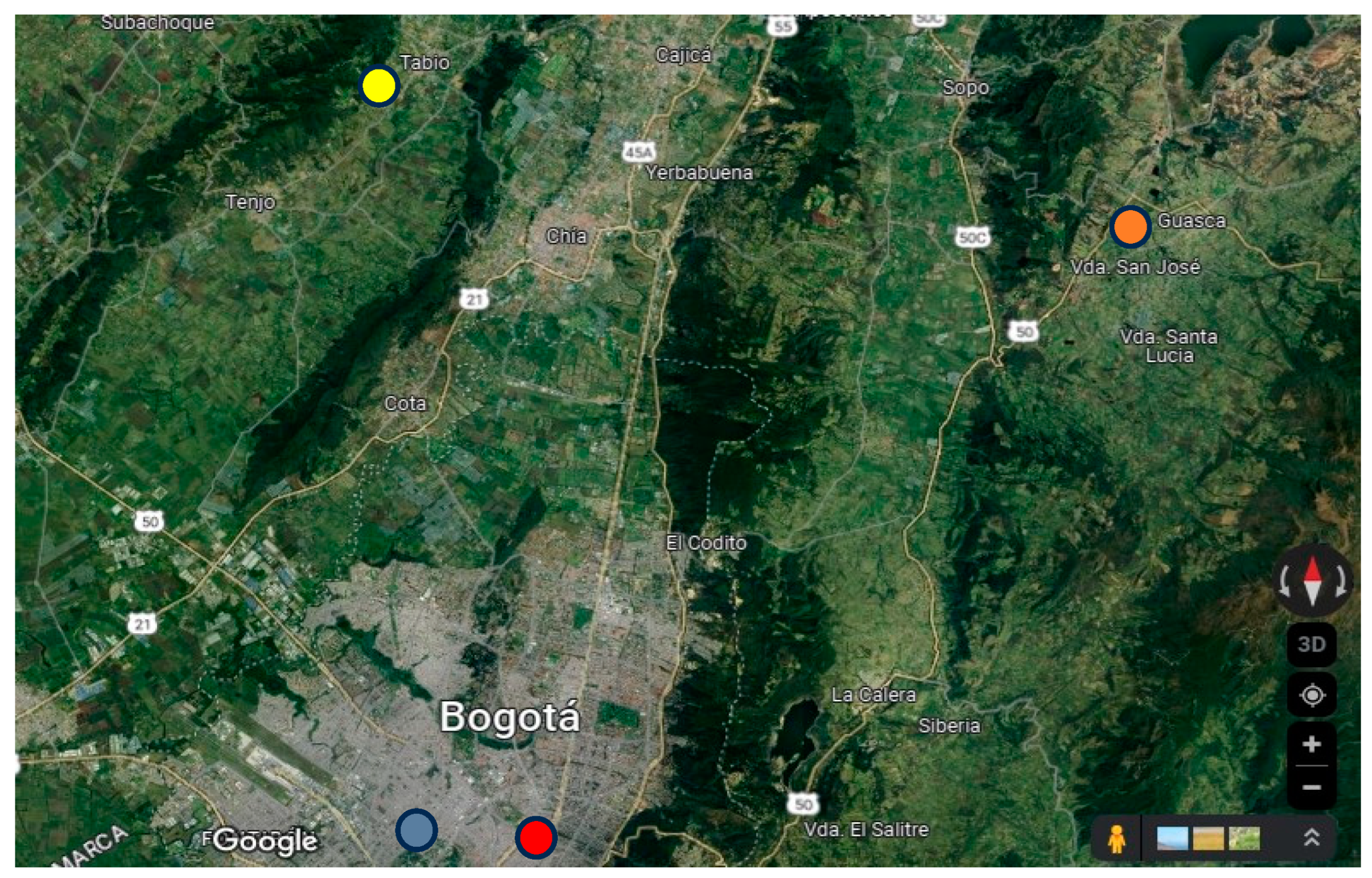

A total of 24 A. mellifera individuals, along with 10 g of honey and pollen, were collected from each sampling point in August 2021 and August 2023, in two rural areas (Tabio 4°54′57″ N, 74°5′54″ W and Guasca 4°51′57″ N, 73°52′38″ W) and two urban areas (LABUN Apiary, the National University of Colombia—UNAL 4°38′8″ N, 74°4′58″ W, and Apiario Javeriano of the Pontificia Universidad Javeriana—PUJ 4°37′44.2″ N, 74°3′53.46″ W) (Figure 1). The study material was placed in a refrigerator and transported to the Microbiology laboratories of the PUJ for subsequent analysis.

2.2. MP Quantification in Bees

To determine the presence of MPs attached to the body of the bees, the A. mellifera individuals obtained at each sampling point were observed under a Zeiss^® Stemi 350 stereoscope, with an 8×–40× lens. Then, the individuals were placed in beakers with 150 mL of distilled water and 50 mL of ethanol to wash off particles from the bees’ bodies. Subsequently, the individuals were filtered through 47 mm stainless steel filters and 2 mm sieves and subjected to digestion for 24 h in 100 mL of 33% (v/v) hydrogen peroxide (H₂O₂), 60 °C, 80 RPM, in a Brunswick Innova^® 44/44R, to digest the remains of organic matter. After this time, the individuals were filtered in 20% NaCl (w/v) on Whatman^® paper and placed in Petri dishes so they could be observed under a stereoscope for the quantification and characterization of the fibers found [4].

2.3. MP Quantification in Honey

For honey, a 10 g sample of honey was heated in a Memmert^® thermostated bath at 70 °C until crystallization reversed. Then, the samples were diluted 1:1 with distilled water and filtered using Whatman^® #2 paper on a 2 mm sieve. After this, digestion was carried out with 100 mL of 30% (v/v) H₂O₂, in a 250 mL Erlenmeyer, for 72 h. After this, a second filtration was carried out with Whatman^® #2 paper on a 2 mm sieve and paper filters were immersed in absolute ethanol and sonicated for 15 min at 55 °C in a Bransson^® sonicator until the ethanol evaporated. The filters were washed and finally observed under a stereoscope with an 8×–40× lens [6].

2.4. Quantification and Identification of MP in Pollen

A total of 5 g of pollen from each sampling point was weighed on an analytical balance and observed directly under a stereoscope Zeiss^® Stemi 350 with 8×–40× objectives.

3. Results

3.1. MP Quantification from Direct Observation of Individuals and Pollen

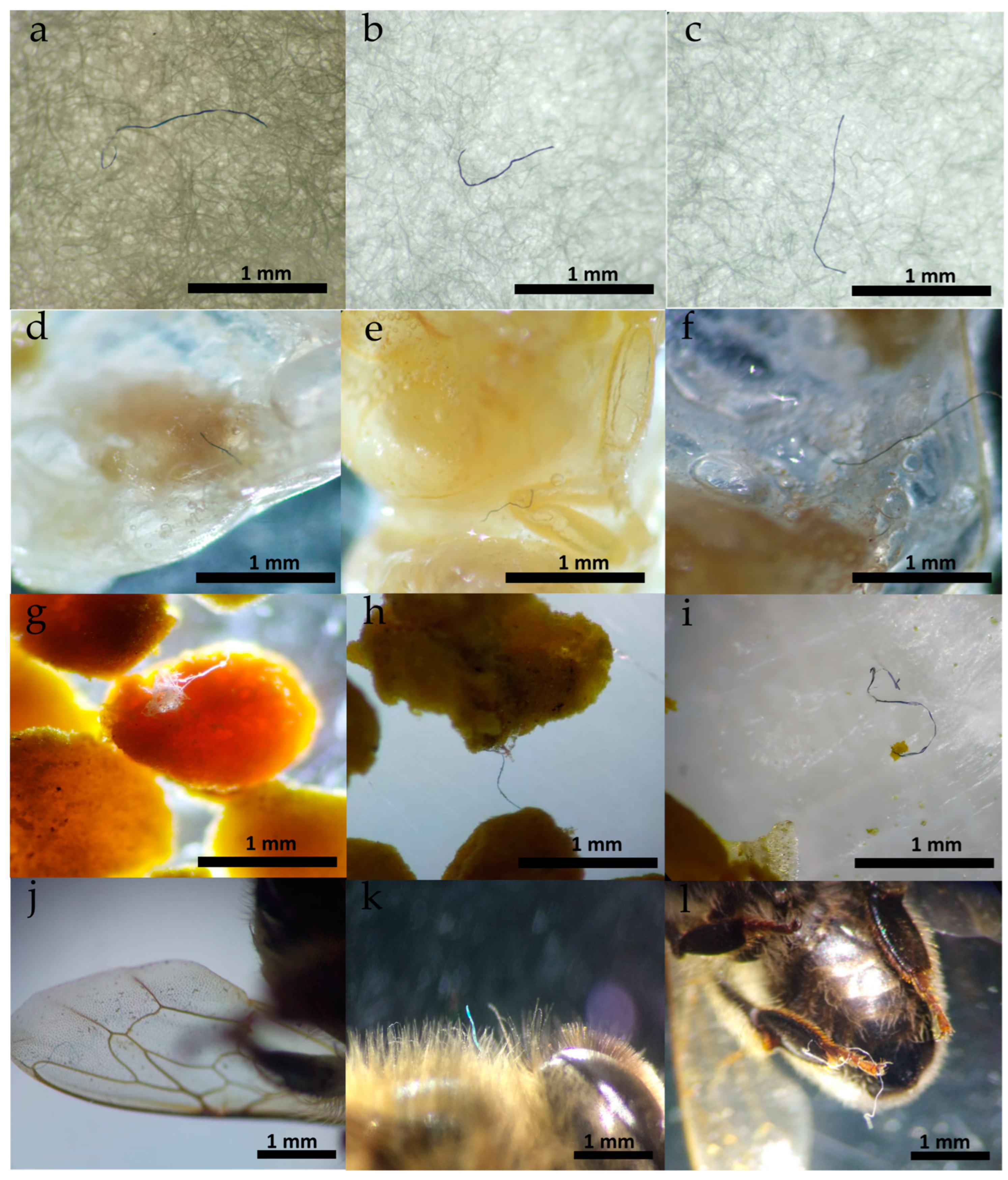

Through direct observation under a stereoscope, MPs present in A. mellifera individuals and pollen were quantified (Figure 2). The results obtained show a variation in the number of MPs found in bees between the years and sampling points. At the UNAL sampling point, the amount increased in 2023 compared to 2021, while at the PUJ sampling point, the presence of MPs was higher in 2021, but in 2023 it drastically decreased to zero. However, in 2021, a greater number of MPs was detected in A. mellifera individuals; PUJ had the highest presence of MPs found in both years (Figure 3). Furthermore, the difference in MPs found in city bees compared to rural bees is notable. In fact, MPs did not exceed two items in Tabio and Guasca in the years analyzed.

Regarding the quantification of MPs in pollen, an increase of 11.58% was observed from 2021 to 2023, although there was no variation in the items found in the product, with UNAL recording the highest presence of MPs in pollen in both years. The variation in MPs found in rural areas was just one item between the two years (Figure 3).

3.2. MP Quantification in Honey

A variation was observed at the Tabio and Guasca sampling points. In 2021, Guasca recorded the highest presence of MPs in honey, being the sampling point and the year with the highest number of MPs, while, in 2023, Tabio obtained the highest number of MPs.

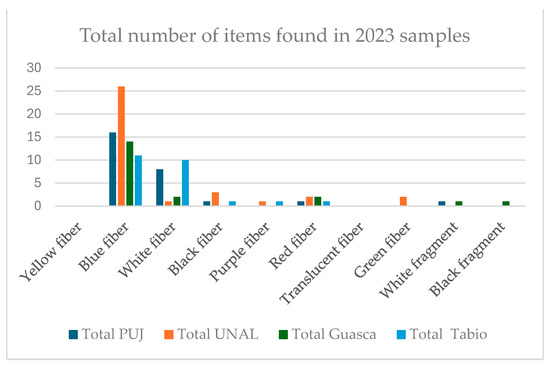

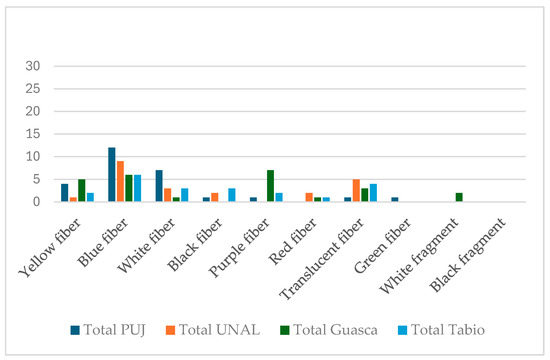

The quantification by items of both years showed an increase in the total number of items found, increasing from 95 in 2021 to 106 in 2023 (p = 0.581303). Blue fiber was the most frequent type of MP in both years (Figure 4 and Figure 5), while there was only the presence of yellow, green, and translucent fibers, and white fragments, in 2021 (Figure 4). The diversity of fibers and fragments suggests a varied composition and diverse sources of MP contamination in bees and their products.

3.3. MP Quantification in Digested Bee

Except for the 2021 PUJ sample, all the bees subjected to digestion with H₂O₂ presented MPs, with the samples from UNAL (29 in total for the two years) and Guasca (21 in total) having more items. In 2023, the largest presence of items from the sampled areas was obtained from the intestinal tract of bees, apart from PUJ, which was obtained from honey. In 2021, only the intestinal tract of UNAL bees presented the largest number of items.

4. Discussion

The levels of environmental contamination in the study areas are essential in analyzing the presence of MPs found in the collected bees, pollen, and honey. According to official data, the air quality in Bogotá City has declined when comparing the years 2021 and 2023. The annual average PM_2.5 particulate matter in 2021 was 16 μ/mg³, this value being higher than the annual norm of 15 μ/mg³, so the air quality index ranged between “moderate” and “harmful for sensitive groups” during the year, considering that the main sources of pollution were industrial emissions and vehicular traffic. Meanwhile, the data until August 2023 indicate an average PM_2.5 of 22 μ/mg³, where the environmental quality index recorded more days in the “harmful to health” category, which is attributed to the increase in vehicle emissions and unfavorable climatic conditions [13]. In Cundinamarca, according to the Corporación Autónoma Regional (CAR) Monitoring Network, the Soacha, Chía, and Zipaquirá stations recorded PM₁₀ levels above the annual norm (50 μ/mg³) in both years industrial emissions [14,15]. Furthermore, the difference between environmental pollution levels between 2021 and 2023 is attributed to studies that confirm that the quality of the environment decreased after the COVID-19 contingency [16], which could have influenced the increase in the presence of microplastics in the samples analyzed.

Pollution levels with particulate matter can be related to the presence of MP and the foraging patterns of A. mellifera bees. By actively interacting with plants, air, soil, and water close to the hive, honeybees transfer contaminants such as MPs, to their products [7]; this may explain the presence of different MPs in the samples analyzed in this study.

This foraging pattern increases the probability that honeybees meet different potential sources of MP contamination in A. mellifera, demonstrating the impact of contamination on these pollinating insects. Alma et al. (2023) demonstrated that honeybees can incorporate MPs from their food sources and subsequently transfer them to honey, wax, and larvae. This implies that upon returning to the hive after foraging in contaminated areas, bees can introduce these plastic contaminants to bee products intended for human consumption [10]. In the present study, MPs were found in both honey and pollen.

It is important to mention the wide flight range that these pollinators have when obtaining resources. Honeybees are collectors from central places that can search for food at certain distances from their nests. The method they use to collect food consists of a dance of wagging, indicating foraging distances of up to 15 km from the nest. For A. mellifera, however, average foraging ranges rarely exceed 3 km and vary between seasons or environmental settings. Honeybees actively interact with plants, air, soil, and water in the vicinity of the hive [17] and, consequently, contaminants from these sources are transferred to the honeybees and hive products. When bees collect nectar, honeydew, pollen, water, and other plant exudates such as propolis, they encounter almost all environmental contaminants, so MP contamination will eventually be introduced into the bee colony and bee products [18]. UNAL is an open field, larger, and has less tree and flower density than PUJ, which would force the bees to fly farther and explore more points with anthropogenic intervention. This university is in a central area of the city surrounded by urban and industrial areas. In addition, PUJ is close to the eastern hills of the city, which would explain the greater presence of MPs in the bees at UNAL.

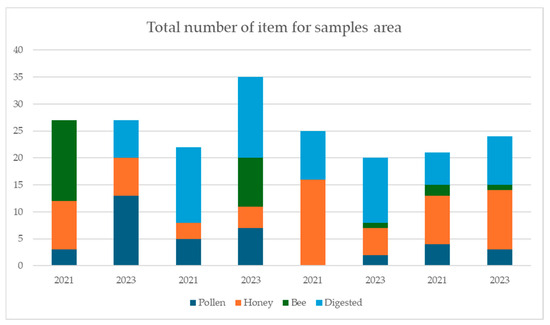

According to the data obtained, Figure 3 shows that in 2021, PUJ (urban area) recorded a greater number of MPs in bees (with 15 items), compared to the rural areas and UNAL. For the year 2023, the observation of bees under digestion with H₂O₂ showed that UNAL had the largest amount (with 15 items), followed by Guasca (12 items), Tabio (9 items), and PUJ (7 items). On the other hand, after the observation of the filtration used for honey after digestion with H₂O₂, in the year 2023, Tabio recorded the highest number of items, followed by PUJ (6 items), Guasca (4 items), and UNAL (4 items). Regarding pollen, the highest amount of MP was evident in the year 2023. In PUJ, 13 items were evident, followed by UNAL (7 items), Tabio (3 items), and Guasca (2 items), showing that urban areas (UNAL and PUJ) had a higher incidence of MPs than rural areas. This may be due to factors specific to each location such as the presence of particulate matter (MP_2.5 and MP₁₀) that can act as vectors for microplastics [19], adhering to their surface and facilitating their atmospheric dispersion, as well as point sources of pollution such as a greater population concentration, human activity, infrastructure, the use of chemical products, the lack of vegetation, and climatic conditions.

According to the number of fibers found per color, blue fibers were the most frequent types of MPs in bees, pollen, and honey, both in 2021 and 2023 (Figure 4 and Figure 5). This predominance is linked to the preference of A. mellifera bees for shades in the visual range between 300 and 700 nm, with maximum peaks in ultraviolet (344 nm), blue (438 nm), and green (560 nm) [20]. These wavelengths correspond to the vibrant colors that bees prefer when pollinating and collecting nectar and pollen. Therefore, the high prevalence of blue fibers in UNAL and PUJ urban areas could be due to several factors. Firstly, the green areas and gardens present in these places could be contaminated due to their location. In these areas, vehicle pollution, garbage accumulation, and the deposition of plastic or synthetic materials could contribute to the presence of fibers [18]. On the other hand, the preference of bees for flowers of bright colors such as blue, yellow, red, and green, during foraging, could influence their exposure to these fibers since they could transport them from the gardens and green areas present in that environment to the hive, which may explain the high prevalence in these areas. The translucent fibers could be related to proteins present in bees, while fibers of other colors are attributed to the incorporation of MPs by bees during foraging. These notable differences in the types of MPs found between the rural (Tabio and Guasca) and urban areas sampled could be related to the presence of urban settlements within the feeding range of worker bees and the ease with which the MPs can be dissipated by wind. However, it has been shown that transparent, white, and black MP fibers are the most abundant in sediments and freshwater. Prevalence of these types of fibers or fragments could indicate the presence of sediments close to the sampling points, considering that rural areas possibly have a greater probability of nearby sediments due to the greater number of green areas, which could also be contaminated due to urbanization [21]. However, blue MPs and shades close to that color should not be ignored in rural areas close to the studied apiaries. Various polypropylene (PP) or polyethylene (PE) type plastics were observed in Guasca and Tabio used as enclosures (walls) of farms (Figure 6).

MPs found in bees and their products revealed the presence of fibers and fragments, including fibers of different colors such as blue, red, black, white, and translucent, as well as black and white, but not in the size or shape, and likely not in the polymeric composition. Some colored fibers could, with low probability, come from primary sources such as synthetic fabrics, clothing, or ropes, while the blue, green, gray, or black fragments and fibers could be remains of the degradation of larger plastics in the environment, such as those used as dividing nets, becoming secondary MPs (Figure 6), significantly affecting their behavior and environmental impact. In addition, some fibers may also have been formed by the fragmentation of larger plastics exposed to environmental processes such as UV-B rays [22]. Both primary and secondary MPs are ubiquitous and persistent pollutants found in urban, suburban, and rural atmospheres far from their sources, indicating possible long-distance atmospheric transport [7]. Some of the polymers commonly found in MPs include PP, PE, polystyrene (PS), polyvinyl chloride (PVC), polyurethane (PU), and terephthalate (PET) [23]. In this study, an attempt was made to determine the chemical compositions of the observed MPs, but due to their size, the microscope coupled to the infrared spectrometer did not detect them.

Understanding the composition of MPs is essential to evaluate their persistence, distribution, transport, and impact on ecosystems, as well as human and animal health. The confirmed presence of primary MPs and secondary effects in these reservoirs highlight the importance of continuing to investigate the sources, exposure routes, and effects of these contaminating particles.

MPs found in bees, pollen, and honey, may represent a risk to the health and well-being of these pollinating insects. Fibers and plastic fragments could damage the digestive system of bees, as well as alter their behavior and foraging capacity [24]. Furthermore, the presence of MPs in pollen and honey could affect the nutritional quality of these products for both bees and human consumption.

5. Conclusions

The presence of MPs was confirmed in bees, pollen, and honey collected in both urban (PUJ and UNAL) and rural (Tabio and Guasca) areas. MPs varied in size, shape, and color, as well as their polymeric composition; the samples included fibers of different colors (mainly blue) and fragments. Both primary and secondary MPs were present in the samples analyzed. The findings demonstrate that MP contamination affects pollinators and their products regardless of geographical location.
