Article

Closing Data Gaps to Measure the Bioeconomy in the EU

1
Agricultural Economics and Rural Policy Group, Wageningen University & Research, Hollandseweg 1, 6706 KN Wageningen, The Netherlands
2
Faculty of Economics and Social Development, Latvia University of Life Sciences and Technologies, Svetes Str 18, LV-3001 Jelgava, Latvia
*
Author to whom correspondence should be addressed.
Biomass 2023, 3(2), 108-122; https://doi.org/10.3390/biomass3020008
Submission received: 17 November 2022 / Revised: 13 February 2023 / Accepted: 28 March 2023 / Published: 11 April 2023

Abstract

:
The expansion of bio-based value chains is prioritized through various European Union (EU) policy initiatives. Due to the growing awareness of the importance of a sustainable bioeconomy in Europe, the need to increase the availability and quality of statistics is increasing. There are several essential aspects lacking, including (i) comprehensive databases and statistics for bio-based sectors; (ii) transparent methodology for bio-based data collection; and (iii) integrated value chain data and indicators that illustrate the flows of different bio-based commodities. The aim of this paper is to develop a bio-based material flow monitor to measure the physical contribution of industries to the bioeconomy. The material flow monitor describes physical material flows (including biomass) to, from, and within the economy. It is recorded in the form of supply and use tables. To measure the bioeconomy, the BioSAM database, along with disaggregated commodities and activities, are used. Data regarding waste generation/treatment and CO2 emissions/sequestrations are added to assess the impact on climate change. The results indicate that the bioeconomy in the EU is underreported due to a lack of data, leading to an insufficient understanding of its contribution to the economy. It can also be concluded that the data from the BioSAM tables are the most complete and have the highest disaggregation level for commodities and sectors, allowing one to measure the significance of the bioeconomy.

1. Introduction

The bioeconomy comprises different sectors of the economy that produce, process, and re-use renewable biological resources. These sectors are typically agriculture, forestry, fishing, chemicals, food, bio-based materials, and bioenergy. Therefore, it is in our interest to analyze the possible impacts of sectoral policies at the national and regional levels, as well as cross-sectoral policies that address social challenges such as increasing food demand and climate change [1]. The European Commission defines the scope of bioeconomy as encompassing all sectors and systems that rely on biological resources (animals, plants, micro-organisms, and derived biomass, including organic waste), their functions, and their principles. Interlinks are also included, such as land and marine ecosystems and the services they provide; all primary production sectors that use and produce biological resources, i.e., agriculture, forestry, fisheries, and aquaculture; and all economic and industrial sectors that use biological resources and processes to produce food, feed, bio-based products, energy, and services [2].
A major barrier to analyzing the activities of the bioeconomy is the lack of available data. More specifically, in the framework of the standard National Accounts, bioeconomy sectors are represented as broad sectoral aggregates (i.e., agriculture, food processing, forestry, fisheries, wood, and pulp) or even subsumed within their parent sectors (for example, chemical industries, clothing, energy). Furthermore, while the coverage of secondary data on traditional bioeconomy activities is ‘relatively’ accessible, data inventories of more contemporary biomass sources and bio-based activities are scarce, which severely hampers our ability to estimate the economic importance of these evolving sectors within national economies [3].
While bio-based products and materials are on the rise, it is still difficult to quantify and monitor the development of the bioeconomy. This is because bio-based materials and products are increasingly used to substitute petrochemicals, but are not separately captured by statistical classifications. Using coefficients to determine the bio-based shares per product category is the best method currently available to measure the size of the bioeconomy, but it is not sufficiently accurate to reliably capture small developments [4].
Numerous attempts have been made to measure the size of the bioeconomy. The most widely used indicators to monitor the impact of national bioeconomy strategies and to measure the size of bioeconomy include the gross output (turnover), value added, investments, exports of bioeconomy goods, and employment [5]. Cingiz et.al. [6] analyzed the value added of the bioeconomy in 28 EU member states using an input–output (IO) model. The IO model is suitable for tracking biomass inputs, for determining the contribution of different industries to the bioeconomy, and, consequently, for assessing the bioeconomy’s contribution to the total economy. Lazorcakova et.al. [7] used IO analysis to quantify economic as well as environmental indicators for the purpose of measuring the bioeconomy. These studies involve a high aggregation level of commodities and sectors that do not display physical volumes of specific bio-based commodities.
The Joint Research Centre (JRC) of the European Commission (EC) developed the biomass flow diagram that describes the flow of biomass across sectors of the economy [8]. In this case, the physical flows were directly estimated without conversion from monetary data at a higher level of sectorial aggregation. Meanwhile, the Material Flow Monitor (MFM) was developed by Statistics Netherlands [9], and describes the physical material flows of the Dutch economy, measured in millions of kilograms. Physical flows also include imports and exports of goods. The MFM originates from the monetary supply and use tables published in the National Accounts, and is converted into physical flows of materials. The level of disaggregation achieved with these material flows makes it possible to estimate the size of the bioeconomy, in physical terms, relative to the entire Dutch economy. Currently, this tool is only available for the Netherlands.
The aim of this paper is to develop a bio-based material flow monitor (BFM) to measure the physical contributions of different sectors to the bioeconomy of Latvia. It is structured as follows. Section 2 describes the bioeconomy in the EU and Latvia. Section 3 presents the method and data. Section 4 presents and discusses the results obtained using the method. Section 5 concludes the paper and provides a general discussion and limitations.

2. Measuring Bioeconomy in EU and Latvia

The bioeconomy is an important part of the EU economy. In 2018, the total number of employed persons in the EU bioeconomy amounted to 18.4 million, with a declining trend which was mainly due to the decrease in employment in the agricultural sector, caused by consolidation across the agricultural sector [10] and increasing efficiency through optimization, automation, and digitalization of the sector [11,12]. The data for EU-28 show a continuous increase in turnover in the bioeconomy from less than EUR 2 trillion in 2008 to more than EUR 2.43 trillion in 2018, with the food sector being the largest contributor [13]. The focus on the potential of the bioeconomy highlighted in the EU policy narratives (e.g., EU Bioeconomy strategy and Green Deal) makes it essential to monitor the bioeconomy and to understand its driving forces.
For Latvia, bio-based sectors are an essential part of the national economy. In 2018, the Ministry of Agriculture of Latvia defined the Latvian Bioeconomy Strategy for 2030 [14], with an aim to become the EU leader in the preservation, growth, and sustainable use of natural capital. The Strategy also recognizes the necessity of raising awareness of the significance of the bioeconomy in Latvia and of determining the potential directions for development up to 2030. Thus, it also indicates the need for a comprehensive data collection and analysis of the bioeconomy that would enable researchers to monitor the bioeconomy sectors more thoroughly.
According to the Strategy, the bioeconomy includes agriculture, forestry, fisheries, aquaculture, production of food, cellulose, and paper, as well as, in part, the chemical, biotechnology, and energy sectors. This definition excludes other industries that use bio-based inputs in production. The objectives of this strategy are to maintain or increase exports and value provided by traditional bioeconomy sectors, namely agriculture (A01); forestry (A02); fisheries (A03); processing of food, beverages, and tobacco (C10, C11, C12); manufacturing of leather and related products (C15); manufacturing of wood, straw, plaiting materials, and paper products (C16, C17); and manufacturing of furniture (C31). Using the structure of the bioeconomy defined in the Strategy is the only approach to measure the size of the bioeconomy of Latvia. Furthermore, it is expressed in monetary values, and volatility of price can create biased increases in these values. Therefore, it would be advisable, rather, to use physical volumes, as they would provide an unbiased outlook on the size of the bioeconomy.
In Table 1, the main indicators of the bioeconomy are shown for EU-27 and Latvia.
Table 1 shows that the size of the bioeconomy is growing, both in EU and in Latvia. Gross value added (GVA) and turnover per employed person are higher in the EU than in Latvia, while the bio-based share of the bioeconomy is above 80% in Latvia and above 60% in the EU.

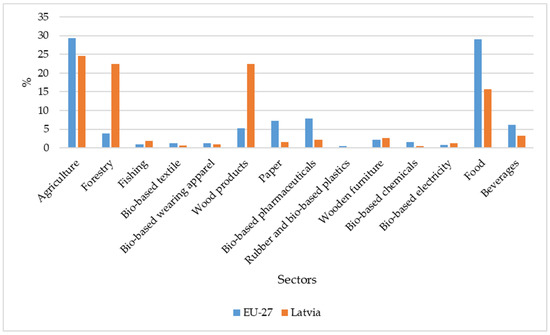

In both the EU and Latvia, the largest share of value added is created by traditional bioeconomy sectors such as agriculture and food production, but other sectors also contribute (Figure 1). In Latvia, a large share of the bioeconomy (48.7%) is taken up by forestry and production of wood products and furniture. This share is considerably higher than the EU average in these sectors. It is also noticeable that more advanced sectors with a higher value added (e.g., bio-based pharmaceuticals and bio-based chemicals) are not as prominent in the bioeconomic structure of Latvia compared to the EU average. These tendencies indicate a lower value added for the produced goods within the national bioeconomy, and are also visible in the data regarding the GVA and turnover per employed person, as is reflected in Table 1.

3. Materials and Methods

3.1. Data

According to the definition of the European Commission [2], the bioeconomy encompasses not only the primary sectors that employ and produce biological resources, but also the activities that depend on biological resources to generate value added products (i.e., food, feed, materials, and energy).
Crucial data need to be gathered regarding the methodology of compiling the bio-based material flow monitor (BFM) to measure the significance of the bioeconomy. Detailed monetary supply and use tables (MSUT), as well as unit values, are the basic data required. There are several options for dealing with unavailable MSUT. The first option is to take the 64 commodities, according to the SUT of 64 sectors, that every national statistics institution reports to Eurostat. An advantage of this is the availability of data, because the data are published annually by Eurostat, while a disadvantage is that the aggregated table gives very rough estimates when converting to physical units. The reason for this is that the commodities and sectors are very heterogeneous, even within a single group. Therefore, it is difficult to find a unit value that represents a group. The 64-by-64 tables can further be disaggregated by using the PRODCOM dataset. An advantage of this is that it is a detailed dataset, but disaggregation of only the supply side is possible, as there are no data for the use table. PRODCOM dataset has limited (confidential) data in the publicly available statistical files, especially for a small-sized country like Latvia. Therefore, PRODCOM dataset was not used in this research. The Exiobase dataset is another option for obtaining detailed supply and use tables of a country. However, the Exiobase has not been updated for a long time and is, therefore, not up-to-date.
Another option is to use a BioSAM (Social Accounting Matrix) developed by EC JRC [16]. The advantage is that it is publicly available, while the disadvantage is that the use and supply should be separated, and there is no direct link with the monetary data of the National Accounts [9]. For each of the EU member states, and for the EU aggregate, a set of highly disaggregated bio-based sector account splits within the framework of BioSAM were constructed for the first time for the year 2010. Since then, BioSAM has been constructed every five years, with the latest version developed in 2015. The systematic method of estimation is used based on the reconciliation of four main databases, namely, (i) the complete and consistent (CoCo) database from the Common Agricultural Policy Regionalized Impacts (CAPRI) model, using re-estimated AgroSAMs (Table A1); (ii) the National Accounts; (iii) the Economic Accounts for Agriculture (EAA) from Eurostat; and, finally, (iv) the database of the computable general equilibrium model (MAGNET) [1].
In addition, diverse types of data sources were used to compile unit values (prices) for domestically produced commodities. First, sectoral data from the national statistics [17], and second, data on international trade [18], were used to develop unit values for domestically produced and used commodities. Unit values of international trade statistics are a quantity-weighted average of the different prices at which the product is purchased/imported or sold/exported. Unit values of imported goods are given in the use table, and unit values of exported goods are given in the supply table.
Data on CO2 emissions [19] and waste generation [20] and treatment [21] were included from Eurostat. Due to biannual data reports, waste management data were taken from 2016.
To calculate bio-based shares of the supplied/used commodities, a variety of data sources, e.g., nova-Institute, Statistics Netherlands, Classification of Products by Activity (CPA), and 4-digit aggregation of commodities (where available) were used based on international trade data and unpublished researchers’ opinions (Table A3).

3.2. Methods

This article reflects an attempt to apply the approach developed by Statistics Netherlands (SN) to the datasets available for Latvia, intending to become one of the pilot countries to test the validity of this approach. For this analysis, BioSAM data from 2015 were used. To the best of our knowledge, for the EU and its member states, including for Latvia, this dataset is the most complete multisector database that exists with detailed coverage on the bioeconomy sectors and their links with other activities and institutional sectors.
The approach of SN was combined with the BioSAM dataset and price information from different sources to measure the bio-based material flow in Latvia. SN instead used the SUT and price information with a high disaggregation level which they collected for the Netherlands.
After separating the supply and use of BioSAM, a structure was obtained for commodities, services, and sectors, and is reflected in Table 2 and Table 3.
Initially, BioSAM contained 171 accounts for 2015, including 80 activity/commodity accounts (see Table A2). According to the available data for Latvia, there were 63 commodities and 69 activities/sectors and households. In the supply table, an additional column for other activities (Table A4) was added into which allocate supplied volumes which were not mentioned elsewhere in BioSAM accounts. In addition, the BioSAM contained one account for the rest of the world (exports/imports).
As a next step, unit values were used to calculate physical supply and use tables (PSUT) using monetary supply and use tables (MSUT) as a basis. The unit value of a commodity is assessed in EUR per kilogram (kg). For this reason, services are excluded from the PSUT for Latvia.
To calculate physical (p) supply (S) of a commodity (i) by sector (j) in millions of kg, the unit price (p) of the commodity was applied to the monetary (m) supply of the commodity supplied by the sector, in increments of EUR 1 million.
S i j p = S i j m P i
For the calculation of the use (U) in millions of kg, the same approach was used.
U i j p = U i j m P i
The PSUT can be enhanced by adding additional information (rows and columns). Conversion from MSUT to PSUT has not yet provided a complete overview of all the material flows. Material flows may exist where there is no monetary component in the MSUT, such as CO2 emissions or waste. These flows are include in the MFM and are used for balancing the sectors.
Some production processes use resources that are extracted from the environment. For example, trees for the timber industry or grain harvests in agriculture are also considered extraction. Data on extraction were taken from Material Flow Accounts (MFA). The MFA covers the extraction of crops, livestock crops, wood, fish, salt, limestone, clay, sand, gravel, natural gas, and crude oil.
Due to differences in sources and in the quality of the data, it was possible that supply would not equal use, even with balancing items (BI) such as emissions and waste. Therefore, the last step to complete the MFM was to balance the supply and use of goods and the input and output of sectors. Supply was expected to equal use for each product group (rows), because logically, all materials supplied in the economy must be used. Likewise, for each sector (columns), the amount of materials used was also supplied in one form or another. The result of this methodology was a complete and balanced physical supply and use table (see Table 4 and Table 5).
After balancing the tables, the bio-based shares (Table A3) were applied to commodities to obtain physical bio-based material flow monitor data (BFM). Using the waste generation dataset, part of the waste was indicated as bio-based (paper and cardboard wastes; wood wastes; textile wastes; animal and mixed food waste; and animal feces, urine, and manure). The shares of these waste categories were used to calculate bio-based waste. Calculating the share of bio-based energy carriers (biodiesel, biochemicals, and biogas) provides the option to calculate bio-based CO2 emissions. The coefficients were fixed in this study, but they may vary by sector in practice.

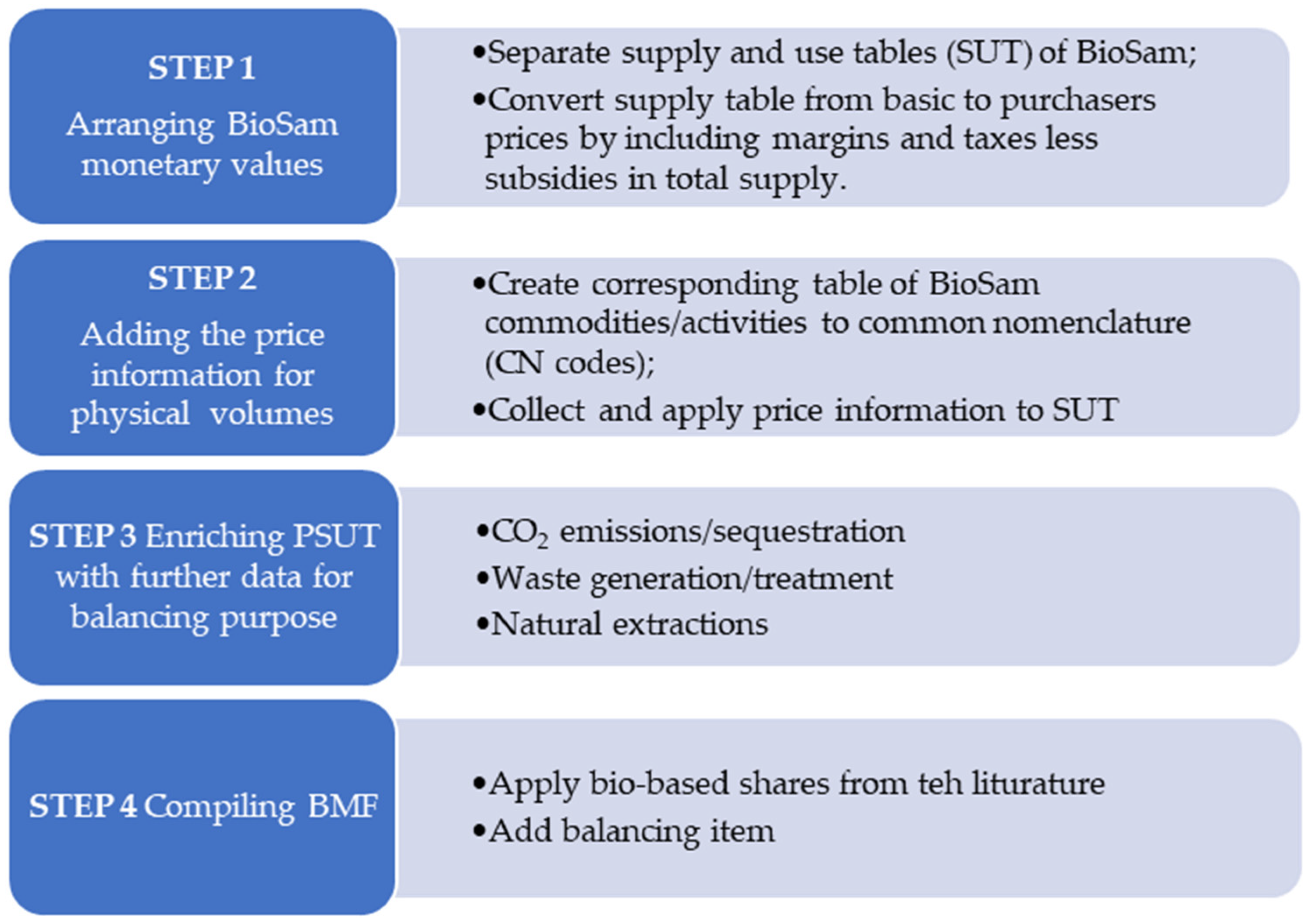

Figure 2 presents a summary of the method applied in this research.

4. Results and Discussion

The application of the methodology previously described for the data on the Latvian bioeconomy enabled us to review the contribution of bio-based material flows to the bioeconomy and to distinguish the bio-based and non-bio-based material flows within the sectors.
There are sectors such as construction, administration, education, and manufacturing that are not considered in Knowledge Center data nor in the Latvian Bioeconomy Strategy, but these sectors are included in the BSUT of BioSAM.
Few assumptions have been made to estimate the results. First, from a commodity perspective, a value pyramid based on the financial value of biomass applications developed by Bos et al. [22] (Figure 3) was used. Each commodity is allocated to a category irrespective of which sector uses the commodity, and all waste is allocated to residual flows without considering if it is used for energy generation, fodder, or materials.

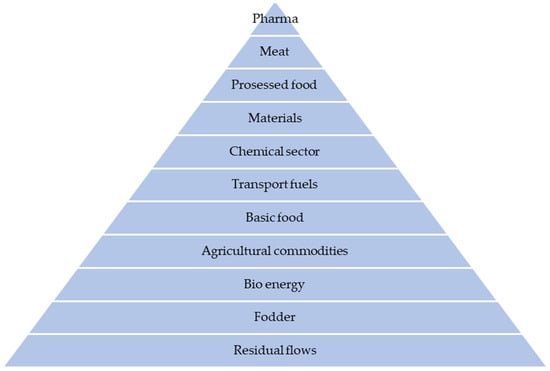

The layer at the bottom of the pyramid represents large volumes of relatively low-value biomass. Higher in the pyramid, biomass that has been transformed into other products is represented; these types typically have smaller volumes, but higher values.

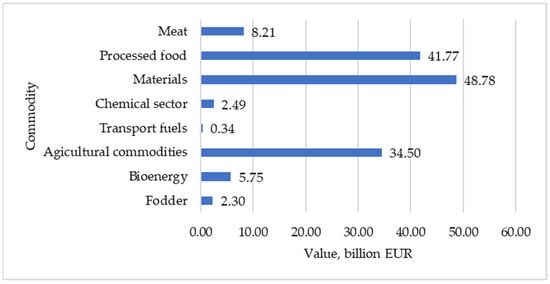

When commodities are cascaded in Latvia, according to the value hierarchy developed by Bos et al. [22] (Figure 4), it can be observed that materials form the share with the largest value (EUR 48.78 billion), followed by processed food (EUR 41.77 billion) and agricultural commodities (EUR 34.50 billion). The lowest value is formed by the production of transport fuels (EUR 0.34 billion).

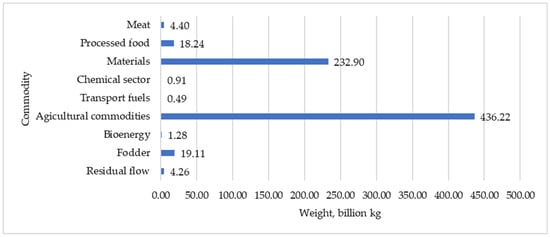

Agriculture commodities form by far the largest share of volume (436.22 billion kg). These commodities are mainly used by the agriculture sector itself (40%) and the food processing sector (20%). More advanced materials, such as transport fuels and chemistry-related bio-based commodities, form the smallest share (0.49 and 0.91 billion kg, respectively). In general, most biomass is contained in the bottom half of the pyramid. Nevertheless, the category “Materials”, in the top half of the pyramid, forms a relatively large share as well. As the wood processing sector is prevalent in the bioeconomy of Latvia, commodities in this category, namely, paper, wood products, and textiles, highlight the specialization of the bioeconomy sector of Latvia in wood processing.
The cascade of biomass in Latvia includes all types of commodities for which biomass is used, except pharmaceuticals and basic food, which are not included due to the aggregation level of the BioSAM data. It can be observed that agriculture commodities comprise the largest share in the cascade of biomass, followed by materials, which is not in accordance with the value pyramid by Bos et al. [22]; however, it is expected for Latvia due to the high availability and use of forest biomass.

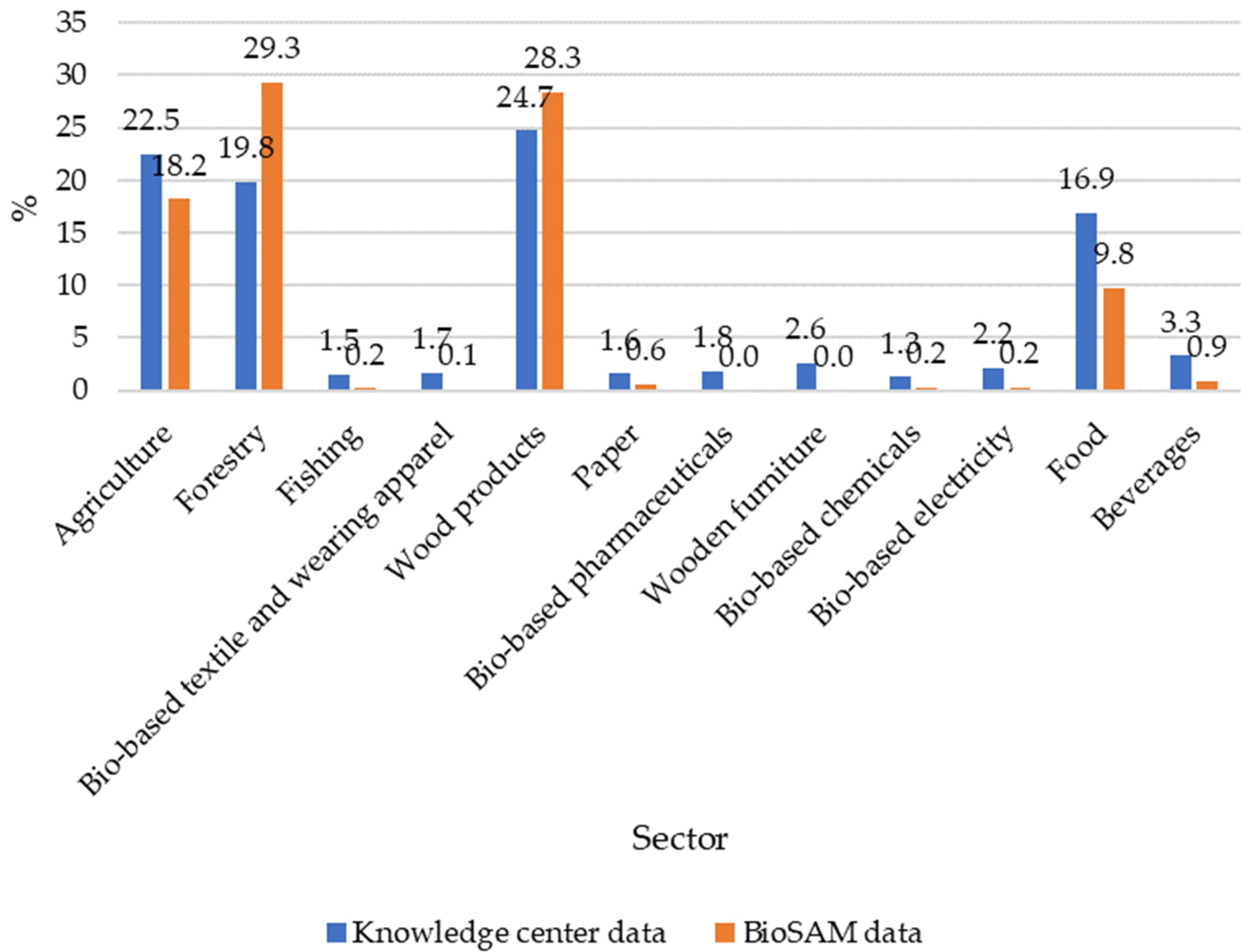

The sectors compared in Figure 5 from the BioSAM dataset form 87.8% of the total bioeconomy, and when compared to the data from the knowledge center, it can be observed that there are several sectors, e.g., forestry, where differences are as large as almost 10%.
The results indicate that there are more sectors contributing to the bioeconomy than reported. Figure 6 demonstrate the results of the study, which show that the share of the bioeconomy’s sectors differ according to the data source.

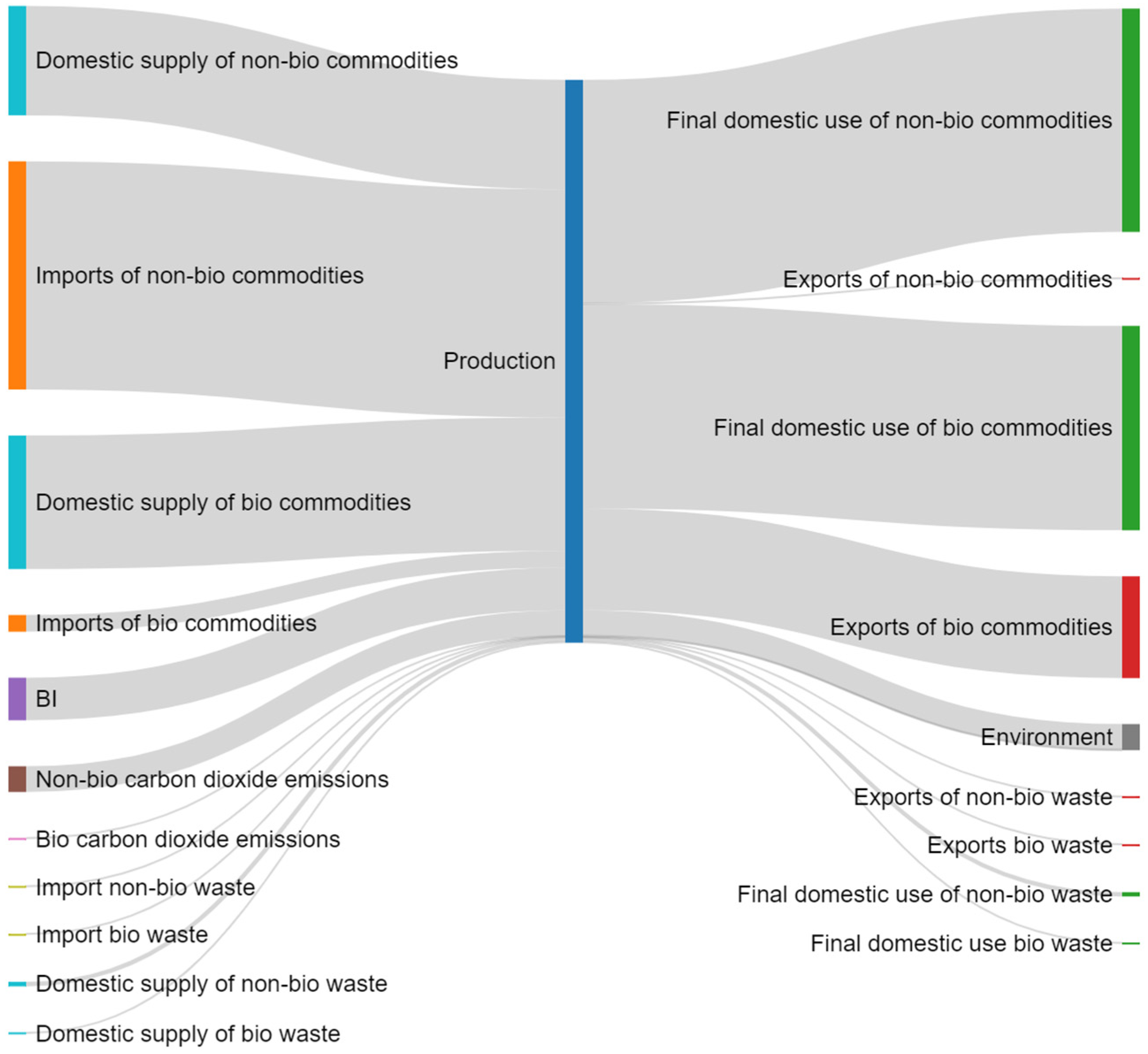

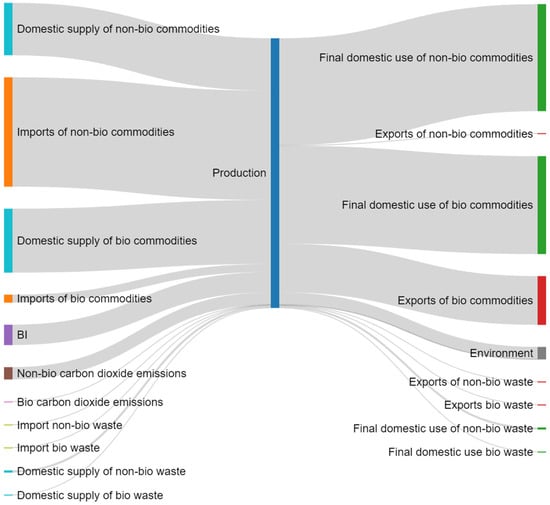

Furthermore, the results of the adopted methodology can be used to describe the material flows of Latvia’s economy. Figure 7 reflects the material flow between the supply and use of bio-based and non-bio-based commodities, carbon dioxide (CO2) emissions, and waste. In total, 49.79% of all commodities are domestically supplied and 50.21% are imported; of that proportion, 93.18% non-bio-based commodities are imported. Latvia’s bioeconomy is largely self-sufficient in terms of the use of bio-based commodities, with only a minor flow of bio-based commodity imports (6.81% of all imports).
On the use side, it can be observed that the produced commodities are mainly used domestically—80.66%—while 19.34% are exported. Of those exported, 99.19% are bio-based commodities, and only 0.8% are non-bio-based commodities.
Material flows can be also constructed for each sector of the economy or each commodity separately (e.g., “Fertilizers” in Figure 8). In this case, the material flow shows the supply and use of bio-based and non-bio-based streams of fertilizers within the economy.

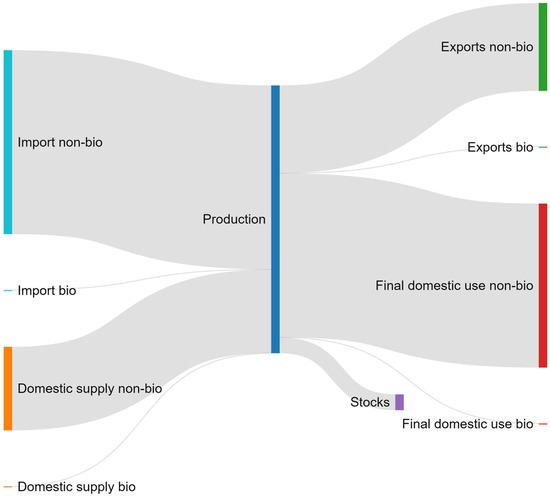

Figure 8 indicates that the material flow of fertilizers is dominated by the import of non-bio-based fertilizers (167.83 million kg, or 99.9% of all imports and 68.67% of all supply). The import of bio-based fertilizers is only 0.17 million kg, or 0.1% of all imports of fertilizers. Domestic supply is also dominated by non-bio-based supply—76.29 million kg or 99.9% of the domestic supply—and only 0.08 million kg of bio-based fertilizers are supplied domestically. Exports form 32.81% of the total use, and 99.3% of those are non-bio-based, while 0.07% are bio-based fertilizer exports. In addition, 61.29% of all fertilizers are used domestically, with the same proportion of bio-based and non-bio-based fertilizers as are exported. A total of 14.41 million kg or 5.9% of fertilizers are stored domestically as stock.

5. Conclusions

The paper represents the first attempt to close the gap in the data to measure the bioeconomy in Latvia. In some cases, it required arbitrary assumptions to be made to compile a BFM for Latvia and identify the data gaps for further research.
With available data, this approach can be applied to any country aiming to measure the size of its bioeconomy.
According to the results of the bio-based material flow monitor (BFM), we conclude that the bioeconomy includes more sectors than mentioned in previous reviews of the literature. This should be considered by Latvian policy makers when defining the bioeconomic strategy for the next period. There are significant differences when measuring the bioeconomy in terms of monetary values and physical volumes, which emphasizes the importance of high-added-value sectors in the bioeconomy.
There are some shortcomings of the use of BioSAM. Initial BioSAM supply and use tables are not balanced. The BioSAM has a higher disaggregation level than SUTs do; nevertheless, it does not cover all the sectors of national SUTs. For example, waste management is included in SUTs, but it is not included in BioSAM.
The definitions of BioSAM commodities should be elaborated to set correspondence with common nomenclature (CN) and Prodcom codes. Otherwise, the granularity may include a diverse set of commodities for a BioSAM commodity that hampers pricing.
To promote the credibility of the results, national statistics officers should be involved to validate the results of the approach used in this paper.
This study can be built upon by applying data regarding the total physical volumes of commodities that are mostly available by national statistics to BioSAM shares of commodities supplied/used by the different sectors. This might provide an opportunity for BioSAM tables in volumes that result in physical supply and use tables, to check the robustness of the results. The release of BioSAM 2020 data is expected in 2023, and it will provide opportunities to analyze more recent data and observe the dynamics.

Author Contributions

Conceptualization, V.T.; methodology, V.T.; validation, V.T. and S.Z.-R.; formal analysis, V.T. and S.Z.-R.; investigation, V.T.; resources, V.T.; data curation, V.T.; writing—original draft preparation, V.T. and S.Z.-R.; writing—review and editing, V.T. and S.Z.-R.; visualization, V.T. and S.Z.-R.; supervision, V.T.; project administration, S.Z.-R.; funding acquisition, S.Z.-R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the BioMonitor project (http://biomonitor.eu), which received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 773297. The APC was funded by the BioMonitor project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author. The data are not publicly available due to ongoing research.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

BFMbio-based material flow monitor
BIbalancing item
CNcommon nomenclature
CPA classification of products by activity
EAAeconomic accounts for agriculture
ECEuropean Commission
EUEuropean Union
GVAgross value added
IOinput–output
JRCJoint Research Centre
MFAmaterial flow account
MFMmaterial flow monitor
MSUTmonetary supply-use table
NACEstatistical classification of economic activities
PSUTphysical supply and use table
SAMsocial accounting matrix
SNStatistics Netherlands
SUTsupply and use table

Appendix A

Table A1. Classification of sectors and commodities in standard SAMs [13].
Table A1. Classification of sectors and commodities in standard SAMs [13].
Sectors and Commodities
AgricultureMachinery and equipment nec
ForestryManufactures nec
FishingElectricity and gas
CoalWater
Food industryConstruction
Textiles, wearing, leatherTrade
Wood productsTransport nec
Paper products, publishingWater transport
Petroleum, coalAir transport
Chemical, rubber, plastic productsCommunication
Mineral products necFinancial services nec
MetalsInsurance
Metal productsBusiness services nec
Motor vehicles and partsRecreational and other services
Transport equipment necPublic administration, defense, education, health
Electronic equipmentDwellings
Table A2. Sectors and commodities of BioSAM accounts [13].
Table A2. Sectors and commodities of BioSAM accounts [13].
Sectors and Commodities
Paddy riceProcessed sugar
WheatPrepared animal feeds
BarleyOther food products
Grain maizeWine
Other cerealsOther beverages and tobacco
TomatoesTextiles, apparel, and leather
Other vegetablesWood products
GrapesPellets
Fruits and nutsPaper products, publishing
RapeseedsPetroleum, coal
Sunflower seedChemical, rubber, plastic products (non-bio-based)
Soya seedBiogasoline
Olive for the oil industryBiodiesel
Other seed for the oil industry2nd-generation biofuel–biochemical pathway fuels *
Sugar beet2nd-generation biofuel–thermal pathway fuels *
Fibre plantsFertilizers
PotatoesBiochemicals *
Live plantsMineral products nec
Fodder cropsMetals
TobaccoMetal products
Other cropsMotor vehicles and parts
Bovine cattle, liveTransport equipment nec
Sheep, goats, horses, asses (live)Electronic equipment
Swine, liveMachinery and equipment nec
Poultry, liveManufactures nec
Other animals, live, and their productsElectricity and gas **
Raw milkBioelectricity **
Forestry *Water
Plantations *Construction
FishingTrade
MiningTransport nec
Meat of bovine animalsWater transport
Meat of swineAir transport
Meat of sheep, goats, and equinesCommunication
Meat and edible offal of poultryFinancial services nec
Vegetable oils and fatsInsurance
Olive oilBusiness services nec
Oil-cakesRecreational and other services
Dairy productsPublic administration, defense, education, health
Rice, milled or huskedDwellings
* Due to a lack of price information, the commodity Plantations was added to Forestry; the commodity 2nd generation biofuels was added to Biochemicals. ** The commodities Electricity and gas were replaced with Natural gas (volumes from PEFA, with conversion rate 1 terajoule = 46.52 t), and Bioelectricity with Biogas (1 TJ = 20.00 T).

Appendix B

Table A3. Bio-based shares of BioSAM commodities.
Table A3. Bio-based shares of BioSAM commodities.
CommodityBio-Based Share, %CommodityBio-Based Share, %
Paddy rice100.00Meat of sheep, goats, and equines100.00
Wheat 100.00Meat and edible offal of poultry100.00
Barley 100.00Vegetable oils and fats100.00
Maize100.00Olive oil100.00
Other cereals100.00Dairy products100.00
Tomatoes100.00Rice, milled or husked100.00
Other vegetables100.00Processed sugar100.00
Grapes100.00Prepared animal feeds100.00
Fruits and nuts100.00Other food products100.00
Rapeseeds100.00Wine100.00
Sunflower seed100.00Other beverages and tobacco75.00
Soya seed100.00Textiles, wearing apparel and leather80.00
Olive for the oil industry100.00Wood products100.00
Other seed for the oil industry100.00Pellets100.00
Sugar beet100.00Paper products, publishing100.00
Fiber plants100.00Petroleum, coal0.00
Potatoes100.00Chemical, rubber, plastic products (non-bio-based)0.00
Live plants100.00Biogasoline100.00
Fodder crops100.00Biodiesel85.00
Tobacco100.00Fertilizers0.13
Other crops100.00Biochemicals100.00
Bovine cattle, live100.00Mineral products nec0.00
Sheep, goats, horses, asses,… (live)100.00Metals0.00
Swine, live100.00Metal products0.00
Poultry, live100.00Motor vehicles and parts0.00
Other animals, live, and their products100.00Transport equipment nec0.00
Raw milk100.00Electronic equipment0.00
Forestry100.00Machinery and equipment nec 0.00
Fishing100.00Manufactures nec0.00
Mining 0.00Natural gas0.00
Meat of bovine animals100.00Biogas100.00
Meat of swine100.00

Appendix C

Table A4. NACE * sectors that are not included in BioSAM.
Table A4. NACE * sectors that are not included in BioSAM.
NACE Code and Sector
C18—Printing and reproduction of recorded media
C21—Manufacture of basic pharmaceutical products and pharmaceutical preparations
C26—Manufacture of computer, electronic and optical products
C33—Repair and installation of machinery and equipment
H52—Warehousing and support activities for transportation
H53—Postal and courier activities
I—Accommodation and food service activities
K66—Activities auxiliary to financial services and insurance activities
L—Real estate activities
M71—Architectural and engineering activities; technical testing and analysis
M72—Scientific research and development
M73—Advertising and market research
M74–M75—Other professional, scientific and technical activities; veterinary activities
N77—Rental and leasing activities
N78—Employment activities
N79—Travel agency, tour operator, and other reservation service-related activities
N80–N82—Security and investigation, service and landscape, office administrative, and support activities
Q87–Q88-Residential care activities and social work activities without accommodation
S94—Activities of membership organizations
S95—Repair of computers and personal and household goods
S96—Other personal service activities
T—Activities of households as employers; undifferentiated goods- and services-producing activities of households for their own use
U—Activities of extraterritorial organizations and bodies
* NACE—Statistical classification of economic activities.

References

  1. Philippidis, G.; Mainar, A. BioSAMs 2015 Estimation and Basic Considerations; Publications Office of European Union: Luxembourg, 2021; ISBN 978-92-76-37268-4. [Google Scholar]
  2. European Commission. A Sustainable Bioeconomy for Europe: Strengthening the Connection between Economy, Society and the Environment: Updated Bioeconomy Strategy; Publications Office of European Union: Luxembourg, 2018. [Google Scholar]
  3. Mainar-Causapé, A.J.; Philippidis, G.; Sanjuán-López, A.I. Constructing an Open Access Economy-Wide Database for Bioeconomy Impact Assessment in the European Union Member States. Econ. Syst. Res. 2021, 33, 133–156. [Google Scholar] [CrossRef]
  4. Tunn, V.S.C. Adding Bio-Based Products and Materials to Statistical Classifications Process, Responsibilities, Timeline; Statistics Netherlands: Hague, The Netherlands; Heerlen, The Netherlands, 2021. Available online: https://www.cbs.nl/en-gb/longread/diversen/2021/adding-bio-based-products-and-materials-to-statistical-classifications (accessed on 25 October 2022).
  5. Kuosmanen, T.; Kuosmanen, N.; El-Meligi, A.; Ronzon, T.; Gurria, P.; Iost, S.; M’barek, R. How Big Is the Bioeconomy? Reflections from an Economic Perspective; Publications Office of European Union: Luxembourg, 2020. [Google Scholar]
  6. Cingiz, K.; Gonzalez-Hermoso, H.; Heijman, W.; Wesseler, J.H.H. A Cross-Country Measurement of the EU Bioeconomy: An Input–Output Approach. Sustainability 2021, 13, 3033. [Google Scholar] [CrossRef]
  7. Lazorcakova, E.; Dries, L.; Peerlings, J.; Pokrivcak, J. Potential of the Bioeconomy in Visegrad Countries: An Input-Output Approach. Biomass Bioenergy 2022, 158, 106366. [Google Scholar] [CrossRef]
  8. Gurria, P.; Ronzon, T.; Tamosiunas, S.; Lopez, R.; Condado, S.G.; Jordi , J.; Cazzaniga, N.; Jonsson, R.; Banja, M.; Fiore, G.; et al. Biomass Flows in the European Union: The Sankey Biomass Diagram—Towards a Cross-Set Integration of Biomass; Publications Office of European Union: Luxembourg, 2017. [Google Scholar]
  9. Van Berkel, J.; Delahaye, R. Material Flow Monitor 2016—Technical Report; Statistics Netherlands: Hague, The Netherlands; Heerlen, The Netherlands, 2019. Available online: https://www.cbs.nl/en-gb/background/2019/10/material-flow-monitor-2016-technical-report (accessed on 22 October 2022).
  10. European Parliament. The EU Farming Employment: Current Challenges and Future Prospects. Policy Department for Structural and Cohesion Policies. 2019. Available online: https://www.europarl.europa.eu/thinktank/en/document/IPOL_STU(2019)629209 (accessed on 7 February 2023).
  11. Prause, L. Digital Agriculture and Labor: A Few Challenges for Social Sustainability. Sustainability 2021, 13, 5980. [Google Scholar] [CrossRef]
  12. Subeesh, A.; Mehta, C.R. Automation and digitization of agriculture using artificial intelligence and internet of things. Artif. Intell. Agric. 2021, 5, 278–291. [Google Scholar] [CrossRef]
  13. Porc, O.; Hark, N.; Carus, M.; Carrez, D. European Bioeconomy in Figures 2008–2018. 2021. Available online: https://renewable-carbon.eu/publications/product/european-bioeconomy-in-figures-2008-2018-pdf/ (accessed on 30 October 2022).
  14. Latvian Bioeconomy Strategy 2030. 2018. Available online: https://www.zm.gov.lv/lv/media/1023/download?attachment (accessed on 28 October 2022).
  15. Knowledge Center for Bioeconomy. Available online: https://knowledge4policy.ec.europa.eu/bioeconomy/monitoring_en (accessed on 7 November 2022).
  16. Causapé, M.; Ferrari, A.; Castro Malet, E.; Caivano, J.; El Meligi, A.; Philippidis, G. BioSAMs EU Member States—2015. European Commission, Joint Research Centre (JRC). 2021. Available online: http://data.europa.eu/89h/41b05f72-0c65-4a4c-bffc-27c71d01d159 (accessed on 7 November 2022).
  17. Central Statistical Bureau of Latvia, Purchase Prices of Agricultural Products 1995–2021. 2022. Available online: https://stat.gov.lv/en/statistics-themes/business-sectors/agriculture/tables/lac020-purchase-prices-agricultural-products (accessed on 5 November 2021).
  18. Eurostat, Air Emissions Accounts by NACE Rev. 2 Activity[env_ac_ainah_r2]. 2022. Available online: https://ec.europa.eu/eurostat/cache/metadata/en/env_ac_ainah_r2_sims.htm (accessed on 10 November 2021).
  19. Eurostat, Generation of Waste by Waste Category, Hazardousness and NACE Rev. 2 Activity [env_wasgen]. 2022. Available online: https://www.eea.europa.eu/data-and-maps/data/external/generation-of-waste-by-waste (accessed on 16 December 2021).
  20. Eurostat, Treatment of Waste by Waste Category, Hazardousness and Waste Management Operations[env_wastrt]. 2022. Available online: https://www.eea.europa.eu/data-and-maps/data/external/treatment-of-waste-tonnes (accessed on 16 December 2021).
  21. Central Statistical Bureau of Latvia, Exports and Imports by Countries (CN at 4-Digit Level) 2005–2022. 2022. Available online: https://stat.gov.lv/en/statistics-themes/trade-and-services/foreign-trade-goods/tables/atd040-exports-and-imports (accessed on 23 September 2021).
  22. Bos, H.L.; van den Oever, M.J.A.; Meesters, K.P.H. Kwantificering Van Volumes en Prijzen van Bio-Based en Fossiele Producten in Nederland: De Waardepiramide en Cascadering in de Biobased Economy (No. 1493), 2014. Wageningen UR-Food & Bio-Based Research. Available online: https://edepot.wur.nl/331277 (accessed on 5 November 2022).
Figure 1. Value added per sector in the bioeconomies of EU-27 and Latvia in 2019, in % [11].
Figure 1. Value added per sector in the bioeconomies of EU-27 and Latvia in 2019, in % [11].
Biomass 03 00008 g001
Figure 2. Steps to convert the BioSAM dataset from MSUT to PSUT for BFM.
Figure 2. Steps to convert the BioSAM dataset from MSUT to PSUT for BFM.
Biomass 03 00008 g002
Figure 3. Value pyramid adapted from Bos et al. [22].
Figure 3. Value pyramid adapted from Bos et al. [22].
Biomass 03 00008 g003
Figure 4. Cascading of biomass in Latvia in 2015, in EUR 1 billion.
Figure 4. Cascading of biomass in Latvia in 2015, in EUR 1 billion.
Biomass 03 00008 g004
Figure 5. Cascade of biomass in Latvia in 2015, in billion kg.
Figure 5. Cascade of biomass in Latvia in 2015, in billion kg.
Biomass 03 00008 g005
Figure 6. Share of sectors in the bioeconomy in Latvia, comparison of results of PSUT of BioSAM and Knowledge Centre data in 2015, in % [15].
Figure 6. Share of sectors in the bioeconomy in Latvia, comparison of results of PSUT of BioSAM and Knowledge Centre data in 2015, in % [15].
Biomass 03 00008 g006
Figure 7. Bio-based and non-bio-based material flow (Sankey diagram) of the economy in Latvia in 2015, in million kg.
Figure 7. Bio-based and non-bio-based material flow (Sankey diagram) of the economy in Latvia in 2015, in million kg.
Biomass 03 00008 g007
Figure 8. Material flow of bio-based and non-bio-based fertilizers in the Latvian economy in 2015, in million kg.
Figure 8. Material flow of bio-based and non-bio-based fertilizers in the Latvian economy in 2015, in million kg.
Biomass 03 00008 g008
Table 1. Employment, gross value added, and turnover per person employed in the bioeconomy in EU-27 and Latvia in 2015 and 2019 [15].
Table 1. Employment, gross value added, and turnover per person employed in the bioeconomy in EU-27 and Latvia in 2015 and 2019 [15].
IndicatorEULV
2015201920152019
Employment, 1000 persons17,691.3417,424.29132.06120.46
GVA per employed person, EUR 1000/person31.4037.7014.8020.80
Turnover per employed person, EUR 1000116.91134.6252.3166.72
Table 2. Structure of the supply table.
Table 2. Structure of the supply table.
Supply, Million EURSector 1Sector 2ImportsTotal
Commodity 125512
Commodity 263211
Service 11001
Total98724
Table 3. Structure of the use table.
Table 3. Structure of the use table.
Use, Million EURSector 1Sector 2ExportsTotal
Commodity 174011
Commodity 223712
Service 10303
Total910726
Table 4. Example of a balanced supply table.
Table 4. Example of a balanced supply table.
Supply, million kgSector 1Sector 2ImportsEnvironmentBITotal
Commodity 1255 012
Commodity 2632 112
Natural extractions 10010
CO2 emissions210058
Waste generation4620012
Balancing item100102
Total1515911656
The background is made to show that those lines should not contain any data.
Table 5. Example of a balanced use table.
Table 5. Example of a balanced use table.
Use, million kgSector 1Sector 2ExportsEnvironmentBITotal
Commodity 1740 112
Commodity 2237 012
Natural extractions64 010
CO2 sequestration 808
Waste treatment031357
Balancing item011002
Total1515911656
The background is made to show that those lines should not contain any data.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tetere, V.; Zeverte-Rivza, S. Closing Data Gaps to Measure the Bioeconomy in the EU. Biomass 2023, 3, 108-122. https://doi.org/10.3390/biomass3020008

AMA Style

Tetere V, Zeverte-Rivza S. Closing Data Gaps to Measure the Bioeconomy in the EU. Biomass. 2023; 3(2):108-122. https://doi.org/10.3390/biomass3020008

Chicago/Turabian Style

Tetere, Vineta, and Sandija Zeverte-Rivza. 2023. "Closing Data Gaps to Measure the Bioeconomy in the EU" Biomass 3, no. 2: 108-122. https://doi.org/10.3390/biomass3020008

Article Metrics

Back to TopTop
