The Influence of the Design and Technological Parameters of Polymer-Based Multipolar Magnets with SrFeO Hard Magnetic Filler on the Residual Magnetic Properties

Abstract

Multipolar bonded magnets based on a thermoset matrix provide the opportunity to expand the applications of bonded magnets, especially within the drive technology industry, in terms of the high thermal and chemical resistance, along with a higher utilisation of the magnetic potential. To realize the application of polymer bonded magnets based on thermosets within the drive technology industry, general design parameters in terms of the material, the process parameters, and the tool concept are needed. These allow for a fundamental realization of multipolar bonded magnets with complex geometries in drive technologies, based on thermosets as the matrix material. This paper investigates the impact of the material (matrix material and filler grade), the process conditions (holding pressure (p_h) and heating time (t_h)), and the tool concept (gating position and system, sleeve material, pole division, and sample thickness) on the magnetic properties in terms of the remanence (B_R) and the deviation (Δs) of the pole division, as well as the orientation of the fillers in the middle of the pole and at the pole pitch. For each parameter, an optimised value is derived. In the majority of the cases, this value is equal in terms of the magnetic properties and the orientation. In terms of the sleeve material and the sample thickness, the ideal value differs between the two criteria. Therefore, an optimised value for each criterion, as well as an overall value, is defined. In terms of the material, PF, along with a high filler grade; in terms of the process conditions, a high holding pressure (p_h) and a low heating time (t_h); and in terms of the tool concept, a two-pinpoint gating system, located in the middle of the pole, a Ferro-Titanit-Cromoni sleeve material, a high pole division, as well as small sample thickness, should be selected to improve the properties of polymer bonded magnets based on thermosets.

1. Introduction

Polymer bonded magnets are mainly made up of two important material groups: the matrix material and the hard magnetic filler. Currently, the matrix material defines the production process, as thermoset based polymer bonded magnets are mainly fabricated from the pressing and thermoplastic-based types by injection moulding [1]. However, early attempts have been made to generate a basic understanding of the material behaviour of thermoset based bonded magnets, which are fabricated in the injection moulding process [2]. In general, the fabrication within the injection moulding process reveals the possibility of reaching a high freedom of design [3], size accuracy [4], and functional integration [5]. Thermoplastic based bonded magnets are limited in terms of their applications, as the magnetic properties are restricted by the maximum filler grade of 60 vol.-%. Further, highly filled thermoplastics reach a high viscosity, which reduces the movability of the hard magnetic fillers. The magnetic potential cannot be fully accessed. Furthermore, the temperature setting in the injection moulding process of thermoplastics leads to a fast cooling outer phase, where no orientation of the fillers takes place [6]. With that, thermoplastic based polymer bonded magnets realize the general advantages of the injection moulding process, but reveal a significant lack in regards to the usage of the full potential of the magnetic properties due to the material behaviour.

In terms of thermosets, a lower viscosity can be reached, which allows higher filler grades. Within the pressing process, the grade of hard magnetic fillers can be increased to 85 vol.-% [1]. The temperature setting of the injection moulding process for thermosets differs significantly compared to that for thermoplastics and does not lead to a fast cooling outer phase. With that, the magnetic properties are more likely to be fully used in thermoset based bonded magnets after the movability of the fillers reaches a higher level in terms of a smaller viscosity, and the orientation is not limited in the outer region [2]. Furthermore, thermosets reveal temperature and chemical resistance [7], which are important functions in terms of the possible applications of polymer bonded magnets.

The smallest magnetic unit of a solid, which is the basis of magnetic properties, is described by the magnetic moment of a single electron and is generated by the rotation of this electron around its axis or the proton [1]. Ferromagnetic materials make up the largest group in regards to the differing behaviours of magnets. They reveal a permanent magnetic moment, without the presence of an outer magnetic field, but with the temperature restriction of the Curie temperature (T_C). Hard magnets are a group of materials with ferromagnetic behaviour which reveal a characteristically high resistance against demagnetization [8].

The hard magnetic fillers, in addition to the matrix material, is the second group within the polymer bonded magnets, and these are divided into two main groups: ceramic materials, such as strontium–ferrite–oxide (SrFeO), and rare earth materials, such as neodymium–iron–boron (NdFeB) [1]. Each filler reveals an isotropic or anisotropic behaviour relative to the crystal structure and the fabrication process, with some exceptions, in which the anisotropic variant cannot be realized [9]. Several factors, such as intrinsic magnetic properties, geometries, and particle sizes, as well as flow conditions of the filler, define the possible magnetic properties of polymer bonded magnets. To access the full potential of anisotropic fillers, the fillers have to be geometrically orientated by the integration of an outer magnetic field within the fabrication process. It has to be ensured that the movability of the fillers is high enough, and that the viscosity low enough, to realize the change in the geometric position of the fillers [10]. The magnetization, however, can take place during the fabrication process, as well as after this step, as there is no geometrical change of the position required. Rather, this process lies in a change at the atomic level [11].

Polymer bonded magnets reveal the two main fields of application in terms of sensor systems and drive technology. Over the past years, the application of polymer bonded magnets has become highly important within the second group. New motor concepts attempt to implement polymer bonded magnets by using a multipolar and complex magnetic field structure to expand the motor efficiency and performance [12]. Even though the general possibility to integrate polymer bonded magnets in motor applications has been proven, the limitation in the filler grade, the lack of orientation in the outer phase, and a generally low temperature and chemical resistance hinder the usage of thermoplastic based polymer bonded magnets within drive technology applications. Early investigations in terms of thermoset based bonded magnets, which are fabricated in the injection moulding process and therefore, employ the general advantages of this process, prove that the possible filler grade is expanded, the lack of orientation in the outer phase is overcome, and the resistance is increased relative to thermoplastic based magnets [2]. To realize the usage of thermoset based polymer bonded magnets, not only in the injection moulding process in general, but further in complex applications of drive technology, general design parameters are required. Such parameters would summarize the understanding of the material behaviour and further show the important factors which must be taken into account, in terms of the process conditions and the tool concept, when fabricating thermoset based polymer bonded magnets.

This paper aims to investigate the influence of the material, the process parameters, and particularly the tool concept, on the magnetic properties and the filler orientation of thermoset based polymer bonded magnets with a multipolar magnetic structure fabricated in the injection moulding process. Based on the general understanding of the material behaviour of thermosets in polymer bonded magnets [13,14,15], design parameters are defined for thermoset based polymer bonded multipolar ring magnets. The investigations are based on the two matrix materials EP and PF, with the hard magnetic filler SrFeO and a filler grade between 40 and 70 vol.-%. This paper only deals with the influence of SrFeO as a hard magnetic filler, as this is currently the favoured material from an environmental point of view. NdFeB is a limited resource. Mainly, the impact of the tool concepts, such as the gating system or the material of the sleeve, is discussed. The tool concept highly influences the strength of the outer magnetic field and the flow conditions. Both factors are important in terms of the orientation of the fillers and therefore, the usage of the full magnetic potential. It should be taken into account that the high tool temperature (T_t) in terms of thermosets in the injection moulding process limits the possible strength of the outer magnetic field due to the dependency on the magnetic properties and the temperature. The design parameters are defined in terms of reaching an ideally high magnetic property (represented by the remanence, B_R) and a low deviation (Δs) of the pole division, as well as an optimal particle orientation in the middle of the pole (0°) and the pole pitch (90°), according to the outer magnetic field. The design parameters portrayed in this paper reveal an important indication of the construction of thermoset based polymer bonded magnets applied in complex geometries, such as drive technology, and are therefore essential for expanding the applications of bonded magnets.

2. Materials and Methods

2.1. Material

The experiments were conducted using the two thermoset based matrix materials epoxy resin (EP|type: EPOXIDUR EP 3681 E) and phenolic resin (PF|type: RESINOL EPF 87120), both obtained from the manufacturer Raschig GmbH (Ludwigshafen, Germany). These two matrix materials are a pre-mixture of resin, hardener, and catalyst. Further, EP resin also contains some carbon black pigments. However, the exact composition is confidential and is a business secret of the manufacturer. The density (φ_M) of the two matrix materials is similar, with a value of 1.225 g∙cm⁻³ for EP, and 1.292 g∙cm⁻³ for PF. However, the pure matrix materials are significantly different in terms of the reaction kinetics and the viscosity behaviour, as the reaction turnover α is shifted to lower temperatures and times in terms of PF, and the minimum complex viscosity reaches higher values in terms of PF, with a faster response behaviour during the curing relative to that of EP. These differences are mainly based on the varying reaction mechanisms of the two resins. These two material systems are frequently used within thermosets and in the field of drive systems. In addition, both are representatives of the step growth reaction, whereby EP corresponds to polyaddition and PF to polycondensation [7]. Since a chain growth reaction leads to a significant time restriction with regards to the orientation of fillers relative to the curing reaction, only chain growth reactions were considered in the context of the paper. A typical representative of each of the two reaction types (polyaddition and polycondensation) was selected.

Within the material system, the hard magnetic filler was kept constant using strontium-ferrite-oxide (SrFeO), of the anisotropic type OP-71 (Dowa Holdings Co., Ltd., Tokyo, Japan). The density (φ_F) of the hard magnetic filler is 5.38 g∙cm⁻³, with a mean particle size of 4.87 µm numerically and 1.94 µm volumetrically. The remanence (B_R) of the pure hard magnetic filler reveals a value of 439 mT. The filler grade was varied between 40 and 70 vol.-% in 15 vol.-% steps.

2.2. Fabrication of the Test Specimens

Within the first step of the fabrication of the test specimens, the pure materials (matrix/hard magnetic filler) were manually premixed using the appropriate amount of the components. The mixture was placed in a twin-screw extruder (type: KraussMaffei Berstorff ZSE 25Ax45D, KraussMaffei Group, Munich, Germany) to fabricate the compounds using a constant speed of 80 min⁻¹ and a throughput of 2 kg∙h⁻¹ to keep the temperature impact through sheering as low as possible and to prevent curing during the compounding process. The temperature was set between 50 °C and 90 °C from the entry to the nozzle. After the compounding process, the material was pelletized.

Afterward, the test samples of multipolar ring samples were produced under pressure control by an injection-moulding machine (type: KraussMaffei KM 80-380 CX DUR/03, KraussMaffei Group, Munich, Germany) with a screw diameter of 30 mm. The circular test samples revealed an outer diameter of 50.6 mm and an inner diameter of 22.6 mm. Within this investigation, the process parameters and the tool concept were changed. Therefore,

Table 1. Process parameters for injection moulding to fabricate test samples (EP/PF with SrFeO) (reference setting highlighted in grey).

Process Parameters	Matrix Material
	EP				PF
mass temperature (Tm) in °C	85				85
tool temperature (Tt) in °C	190				180
injection speed (vin) in mm∙s−1	15				15
holding pressure (ph) in bar	50	250	450	650	50	250	450	650
heating time (th) in s	200		250		45		90

shows the process conditions with respect to the reference setting (highlighted in grey) and the variation of the holding pressure (p_h) and the heating time (t_h). The fact that the two different reaction mechanisms in the resins lead to the adoption of the process conditions, mainly due to the shift of the reaction turnover α to higher temperatures and longer times in terms of EP, must be taken into account. Since the thermosets are highly affected by temperature and time, further changes of the process conditions, such as the injection velocity (v_in) or the mass temperature (T_m) are not possible in terms of preventing fast curing prior to the cavity.

Table 2. Variation of the tool concept for injection moulding test samples (EP/PF with SrFeO) (reference setting highlighted in grey).

Tool Concept	Variations
gating position	middle of the pole	pole pitch			-
gating system	two pinpoint system				umbrella system
material of the sleeve (relative magnetic permeability µr)	steel 1.1730 (µr > 1)		PEEK-GF (µr = 1.04)		Ferro-Titanit-Cromoni (µr = 1.1)
pole division	24			48
thickness of the sample	5		10		15

reveals the changes in the tool concept in terms of the gating position, the gating system, the material of the sleeve around the cavity, the pole division, and the thickness of the sample. The reference setting is again highlighted in grey. The differentiation of the material of the sleeve around the cavity has a high impact on the actual magnetic strength in the cavity with respect to the outer magnetic field, as it shields the cavity from the outer magnetic field relative to the material of the sleeve. If the material of the sleeve has a high magnetic permeability, the magnetic field is guided from one outer magnet through the sleeve to the next magnet, which significantly reduces the magnetic field. On the other hand, if the magnetic permeability of the sleeve is low, the magnetic field is directed from one outer magnet through the cavity to reach the next outer magnet.

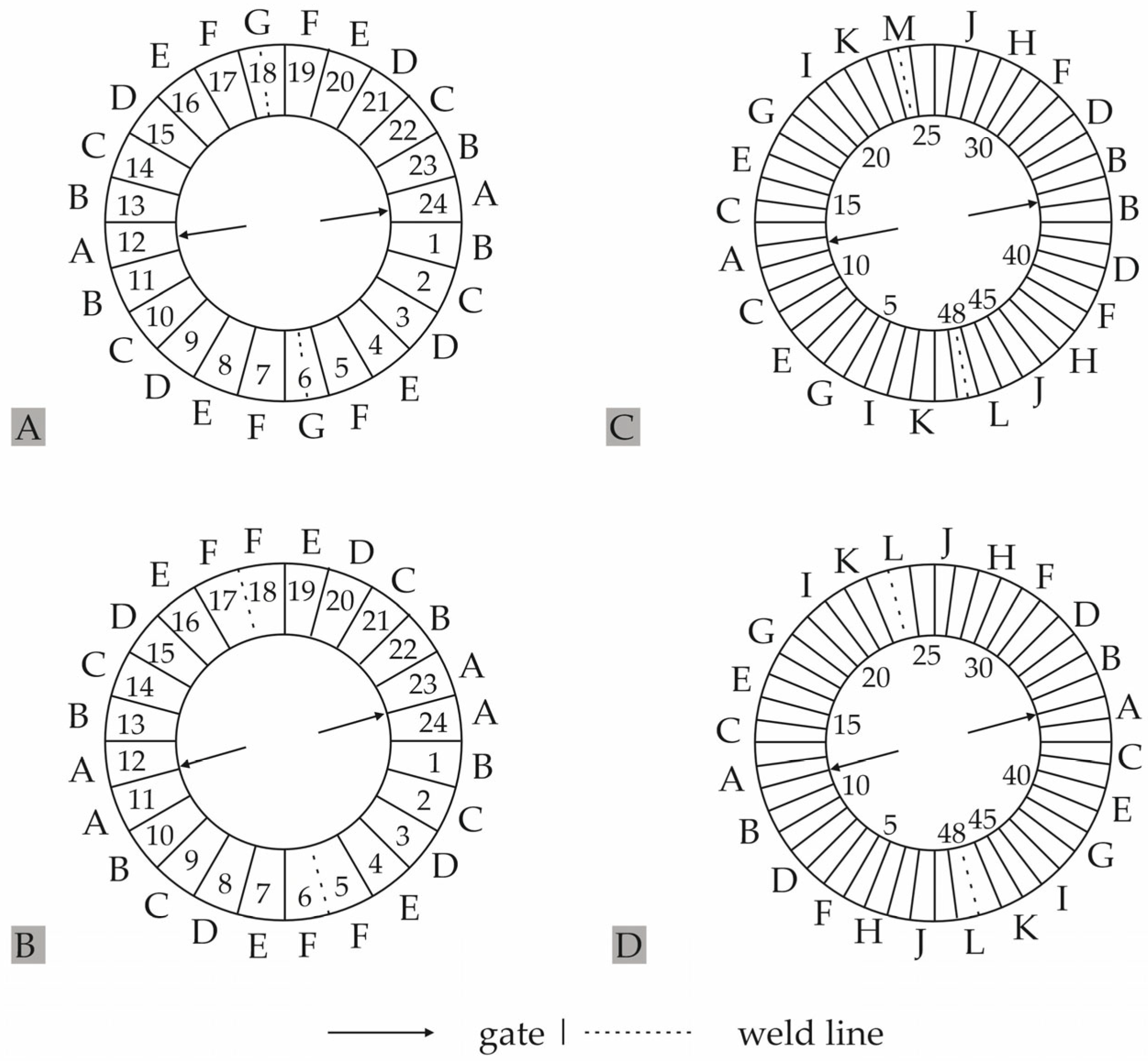

The 24 and 48 poles, which were equally distributed on the circumference of the ring sample, were summarized in so-called characteristic poles. In terms of 24 poles, the characteristic pole A depicts the gating position, and F or G, with respect to the gating position, reveal the weld line. Equivalent to 48 poles, the characteristic pole A is located at the gating position, and L or M (relative to the gating position) are located at the weld line. Figure 1 reveals the characteristic poles relative to the pole division (24 poles: A and B; 48 poles: C and D) and the gating position (middle of the pole: A and C; pole pitch: B and D) in terms of a two pinpoint system. In Figure 1C,D, only every second characteristic pole is named, and every fifth number of the poles is shown to ensure a high level of clarity.

2.3. Characterization

2.3.1. Differential Scanning Calorimetry (DSC) following DIN EN ISO 11357 [16]

To characterize the temperature dependent reaction kinetic of the compounds, differential scanning calorimetry (type: DSC 2500, TA Instruments, New Castle, DE, USA) was used, under nitrogen atmosphere. Within the dynamic measurement, about 5 mg of the samples were placed into an aluminium pane and heated at a rate of 20 K∙min⁻¹, for EP, and 5 K∙min⁻¹, for PF, between 0 °C and 300 °C. The difference in the heating rate was necessary due to the different reaction kinetics of the two resin types. The classification of the dynamic reaction kinetics was based on the reaction turnover α (according to Equation (1)) in the first heating cycle, with a total specific enthalpy ΔH_tot;1 and the specific enthalpy ΔH_j at the temperature step j.

$$\mathsf{\alpha }=\frac{{∆\mathrm{H}}_{\mathrm{j}}}{{∆\mathrm{H}}_{\mathrm{tot};1}}$$

(1)

2.3.2. Determination of the Viscosity Behaviour Based on a Rotational Viscometer, According to DIN EN 6043 [17]

The temperature dependent viscosity behaviour was defined using a rotational viscometer (type: Discovery Hybrid Rheometer 2, TA Instruments, New Castle, DE, USA), based on two plates with a shearing load. After reaching the starting setup of each measurement, a shell was placed around the sample, and the chamber was floated with nitrogen. The samples were analysed at temperatures between 80 °C and 200 °C, with a constant heating rate of 5 K∙min⁻¹ for both matrix materials, and were characterized by the minimum viscosity (η_min). Further, the frequency was kept constant at 1 Hz, with a deformation of 0.01%.

2.3.3. Magnetic Properties

Previous investigations [13,14,18] revealed that in terms of thermoset based polymer bonded magnets fabricated in the injection moulding process, a further magnetization step outside of the cavity is necessary to access the full magnetic potential of the materials. Therefore, within these investigations, the characteristic poles representative of the gating position, the weld line, and the pole in between those two positions were analysed in terms of the magnetic properties after a full magnetization had been guaranteed. Samples with the dimensions of 5 × 5 × 5 [cm³] were prepared from the multipolar ring sample taken from the outer diameter using a milling machine, and the final magnetization was ensured usinga pulse magnetizer (type: Im-12220-U-MA-C, Magnet-Physik Dr. Steingroever GmbH, Cologne, Germany) and a magnetic device (type: MV D30 × 30 mm F-TC, Magnet-Physik Dr. Steingroever GmbH, Cologne, Germany). The magnetic properties were analysed in terms of the parameter remanence (BR) using a permagraph (type: C-300, Magnet-Physik Dr. Steingroever GmbH, Cologne, Germany).

Further, the multipolar ring samples were placed in a defined position using a clamping device and the deviation of the pole division Δs was analyzed using a hall sensor (Magnet-Physik Dr. Steingroever GmbH, Cologne, Germany) and a rotary encoder (Heidenhaim GmbH, Traunreut, Germany). The sample was placed on a shaft, which was driven by a motor with a constant speed.

To define the design parameters in terms of the magnetic properties, the ideal magnetic properties were set. Regarding the remanence (B_R), the ideal parameter is based on the value of the B_R of the pure filler (439 mT) and the filler grade. This leads to the ideal parameter of 175.6 mT for 40 vol.-% and 307.3 mT for 70 vol.-%, with respect to a full orientation of the anisotropic fillers and therefore, a complete usage of the magnetic potential. On the other hand, the ideal deviation of the pole division (Δs) is 0, which means that the pole division is accurately realized for the 24 or 48 poles. The higher the deviation Δs, the more the poles become blurred, which leads to an undefined stadium on the outer surface of the multipolar ring samples. The results for magnetic properties are portrayed in a diagram, in which both the remanence (B_R) and the deviation of the pole division (Δs) are depicted. The more frequently the values reach a high value at the y-axis and a parallel low value on the x-axis, the more suitable the setting in regards to increasing the magnetic properties.

2.3.4. Filler Orientation

The orientation of the fillers was defined at different values of the thickness relative to the outer surface using samples prepared from the multipolar bonded ring. The thickness was varied from 0 mm (outer surface) to 7.5 mm (middle of the sample thickness, using15 mm thick rings) in 2.5 mm steps until the middle of the sample thickness was reached. For example, in terms of 5 mm thick ring samples, only two thickness steps of 0 mm and 2.5 mm were analysed.

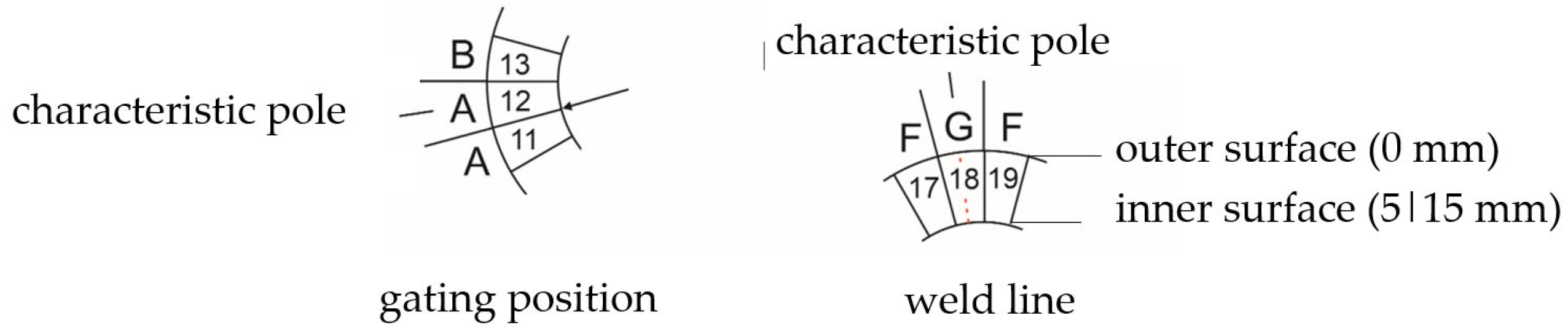

The characteristic poles representative of the gating position, the weld line, and the pole in between those two positions were separated from the full sample by a water-cooled saw, with minimal temperature input. Figure 2 exemplarily shows the characteristic pole and the position of the preparation.

The prepared samples were embedded in cold-curing epoxy resin (type: Epofix, Struers GmbH, Ottensoos, Germany) and subsequently polished until the first thickness mark was reached. The images were captured by a stereo microscope (type: Axio Zoom.V16, Carl Zeiss AG, Oberkochen, Germany), while different positions relative to each characteristic pole were analysed. The positions at which the images were captured were marked by I to III at the pole pitch and by i to ii at the middle of the pole. After the images were captured relative to the thickness, the next thickness mark was prepared by further polishing.

Using a grey scale threshold analysis, the matrix material and the fillers could be separated within the images so that the orientation of the fillers could be defined with respect to the longest axis of each filler.

Again, the ideal filler orientation must be defined in order to set the design parameters. The orientation at the pole pitch (positions I to III) should reveal 90° in terms of the outer magnetic field, while it should reach 0° at the middle of the pole (positions i to iii). Both parameters are portrayed in one diagram, where again a high value on the y-axis and a low value on the x-axis is the goal. The poorest rating for a parameter setting is provided in terms of a low y-axis and a high x-axis value.

3. Results and Discussion

3.1. Differential Scanning Calorimetry (DSC), following DIN EN ISO 11357 [16]

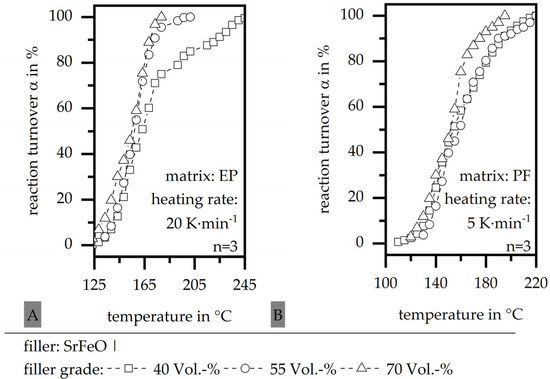

Figure 3 depicts the route of the reaction turnover α in terms of the DSC measurement for the SrFeO filler and the variation of the filler grade, as well as the matrix material, with EP shown in Figure 3A and PF shown in Figure 3B. The route shows a typical s-curve, with a high rate of change in the middle section. Further, there is a tendency for an increasing filler grade to shift the routes toward lower temperatures. This goes along with the reduction of the matrix amount in the material system, which reduces the material proportion, taking place at the chemical reaction. However, the effect is only small. More importantly, the route of the reaction turnover α is shifted to lower temperatures in terms of a PF matrix, with an offset of about 20 °C between the two material systems. This is mainly important with respect to the process parameters, as the curing of PF starts at lower temperatures, and therefore, the material is more affected by temperature as a trigger of the chemical process.

3.2. Determination of the Viscosity Behaviour Based on a Rotational Viscometer, According to DIN EN 6043 [17]

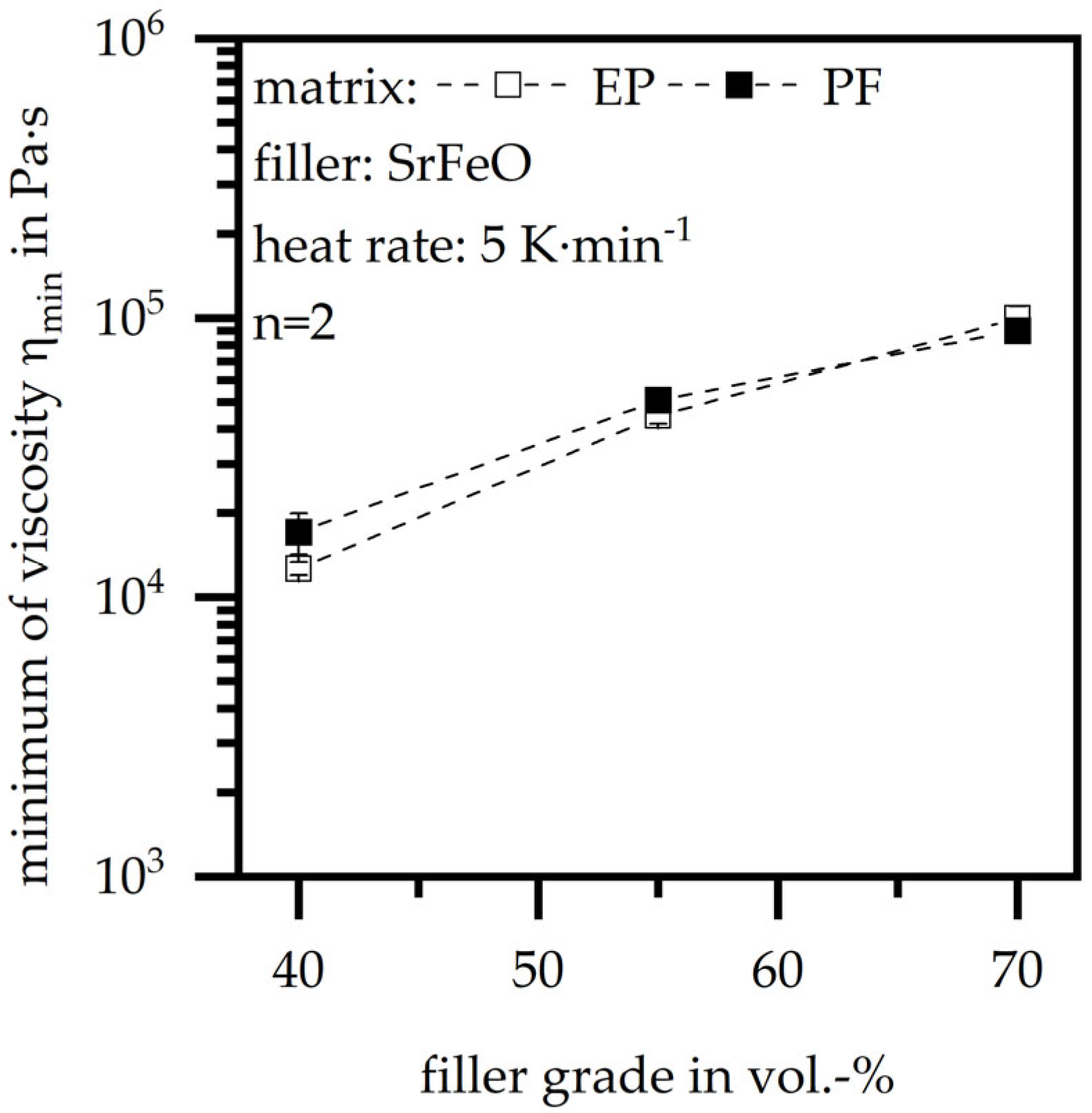

Figure 4 reveals the change in the minimum of the viscosity (η_min) with respect to the changing filler grade and the matrix material. There is a slight tendency for a further reduction in η_min when using an EP based material system, at least for lower filler grades. The filler grade itself has a higher impact on the minimum viscosity (η_min), as the increase in η_min is about one decade for a 30 vol.-% higher filler grade, from 40 up to 70 vol.-%. The higher viscosity might reduce the movability of the fillers throughout the orientation process in the tool, thus, reducing the magnetic properties [7]. Further, a particle interaction becomes more likely as a higher filler grade reduces the distance between the fillers, and therefore, the probability that each filler interferes with a neighbouring filler increases [19].

3.3. Magnetic Properties

The results of the magnetic properties and the filler orientation are evaluated below. In particular, the data regarding pole deviation and, in some cases, the orientation of the fillers, show a significant deviation. This is due to individual outliers within the process and can be explained by the very sensitive process of injection moulding thermosets. For reasons of transparency, the authors have shown the data in the manuscript; however, process reliability still needs to be improved.

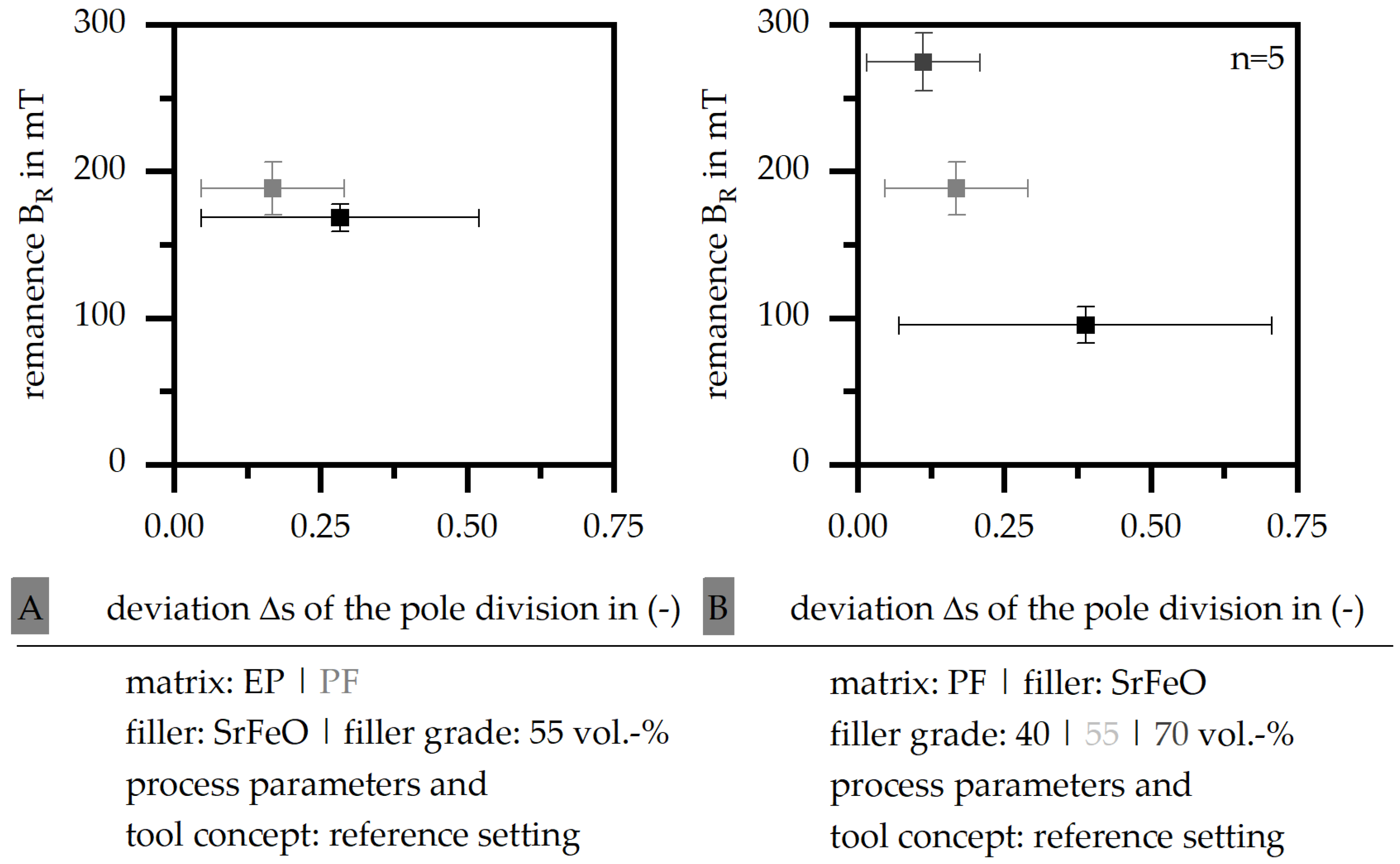

Figure 5 shows the influence of the matrix material (A) and the filler grade (B) on the magnetic properties in terms of the remanence (B_R) and the deviation (Δs) of the pole division. The process conditions and the tool concept are kept standard. With PF as the matrix material, a slightly higher value for B_R and a lower value for Δs can be reached relative to EP. Specifically, the standard deviation of Δs is reduced due to the use of PF. An increasing filler grade (i.e., in a PF matrix) increases the value of B_R and decreases both the value and the standard deviation of Δs. It is assumed, that the higher filler grade reduces the space between each filler, which hinders particle interaction, as it is more likely that a filler interferes with a neighbouring filler and orientates it similarly. With that, the magnetic potential is highly utilized, and the pole division is mapped quite accurately. Therefore, with a filler grade of 70 vol.-%, almost 90% of the ideal parameter of B_R is reached, whereas only 58% is gained for a filler grade of 40 vol.-%. In terms of the magnetic properties, PF should be used as matrix material, along with a high filler grade, in order to increase the magnetic performance.

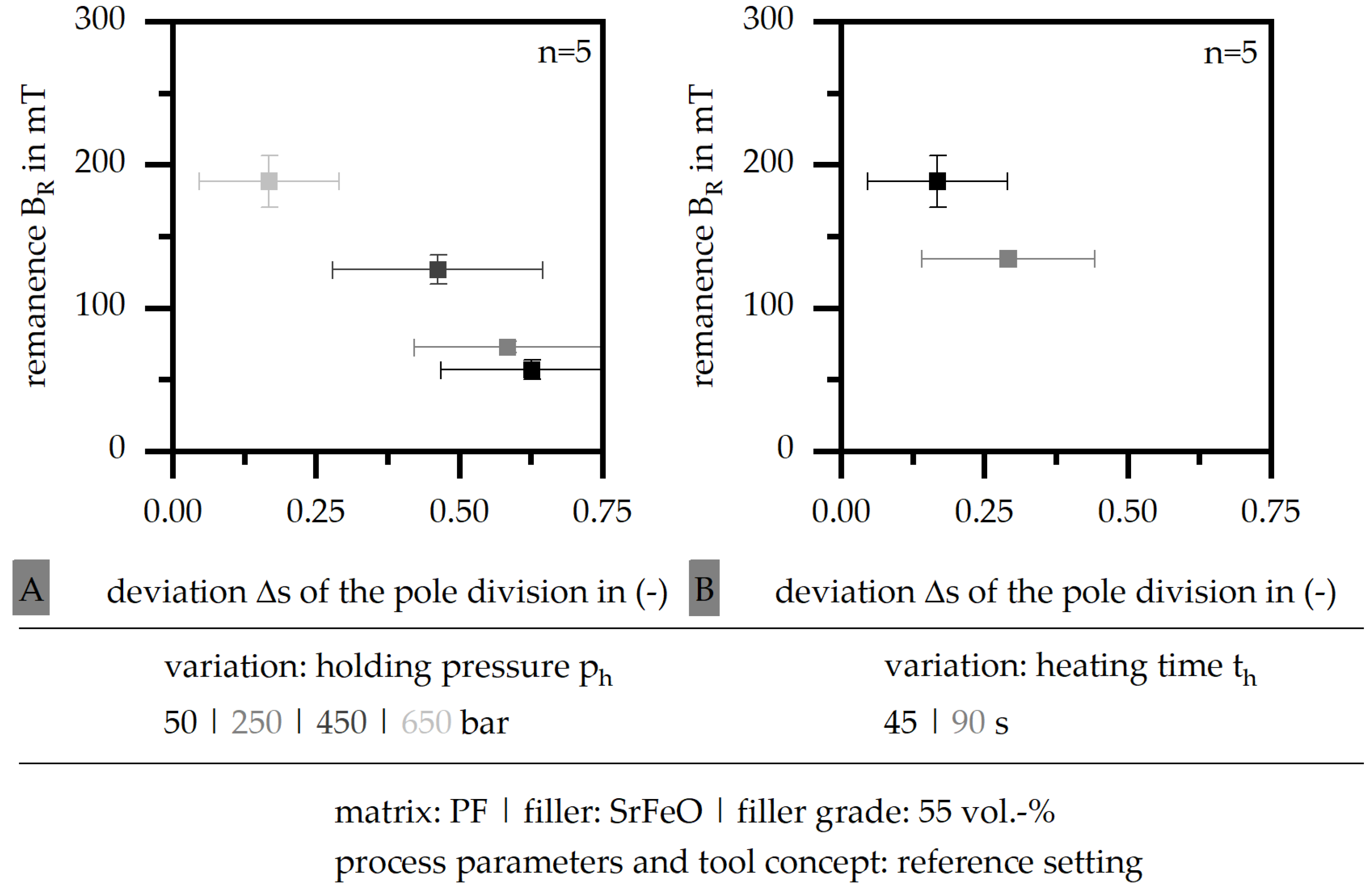

The influence of the process parameters in terms of the holding pressure (p_h) (A) and the heating time (t_h) (B) on the magnetic properties is shown in Figure 6, using the matrix material PF and a moderate filler grade of 55 vol.-%. In addition to the changed process parameters, the process conditions and the tool concept are kept standard. Due to the increase in p_h, the remanence (B_R) is increased up to almost 80% relative to the ideal parameters, and both the value and the standard deviation of Δs are reduced relative to a low p_h value. The increase in t_h leads to a reduction of B_R, with no significant impact on the deviation (Δs). Therefore, high p_h and a low t_h values should be reached in order to optimize the magnetic properties.

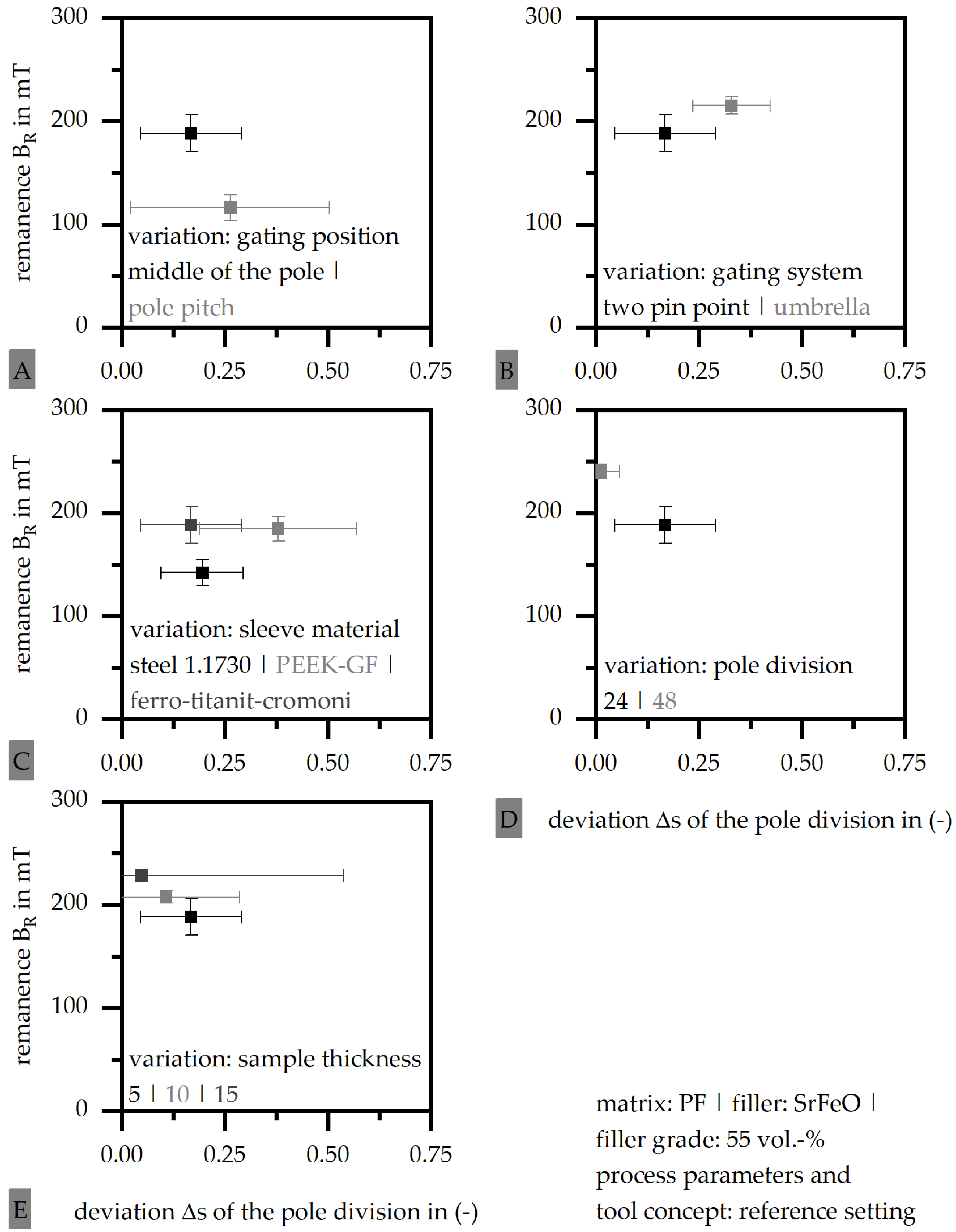

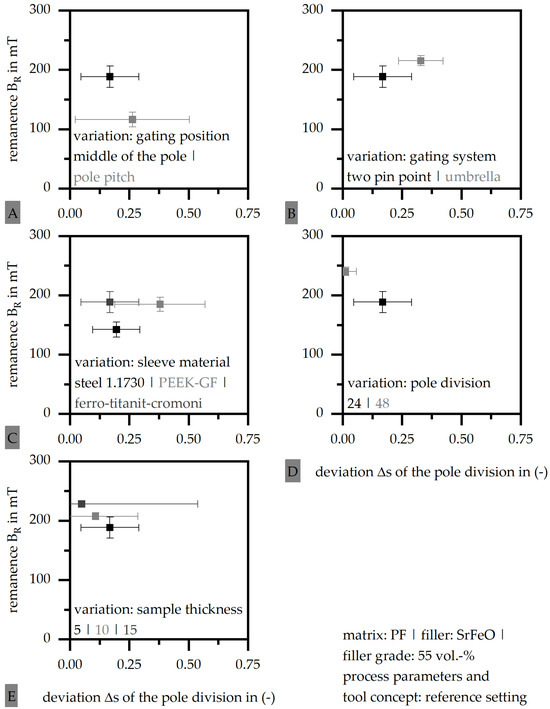

The impact of the tool concept on the magnetic properties is shown in Figure 7 in terms of the variation of the gating position (A), the gating system (B), the sleeve material (C), the pole division (D), and the sample thickness (E). The results are shown exemplarily for the PF matrix material and a moderate filler grade of 55 vol.-%, while the process conditions and the tool concept are kept standard. Due to the change in the gating position from the middle of the pole to the pole pitch, the value of the remanence (B_R) decreases, while the value of the deviation (Δs) of the pole division, together with the standard deviation, is significantly increased. Therefore, the location of the gating position at the pole pitch should not be the goal in terms of the improvement of the magnetic properties. The change of the gating system from a two-pinpoint system to an umbrella system increases the value of B_R slightly; however, it further shifts the Δs to higher values as well. With that, the choice between the two gating system investigated must be made in terms of the preferred low deviation (Δs) of the pole division or the preferred high value of the remanence (B_R). The sleeve material significantly affects the strength of the outer magnetic field and with that, the possible orientation of the hard magnetic fillers. This orientation is directly proportional to the value of B_R. Therefore, the two sleeve materials of PEEK-GF and Ferro-Titanit-Cromoni reach a similar B_R value, but as a sleeve material, PEEK-GF leads to higher values of Δs, with higher standard deviations. It can be assumed that the change in the thermal conductivity of the two materials is responsible for the shift in Δs. With that, Ferro-Titanit-Cromoni should be the sleeve material of choice. The 1.1730 steel sleeve material is not suitable in terms of magnetic properties, as the remanence (B_R), and to a lesser extent, the deviation (Δs) of the pole division is reduced relative to the material Ferro-Titanit-Cromoni. Due to the increase in the pole division from 24 to 48 poles, not only B_R, but also Δs is highly improved. Both values reach nearly the optimum of the parameters, which means that especially due to the small pole width, the orientation of the particles is supported, and the magnetic potential is almost fully utilized. Further, the pole division is mapped almost completely. Therefore, thermoset based polymer bonded magnets are highly suitable for a small pole width. The increase in the sample thickness shows a constant increase in the value of B_R. It is assumed that the particles have more space for orientation in terms of an increase in the sample thickness, as the degree of limitation due to the cavity is reduced. However, the increase in the sample thickness increases the standard deviation of Δs, although the value of Δs is reduced. When the increase in B_R reaches only 21% and that of Δs becomes more than 300%, the lower sample thickness should be the goal in terms of the reduction of the standard deviation of Δs.

3.4. Filler Orientation

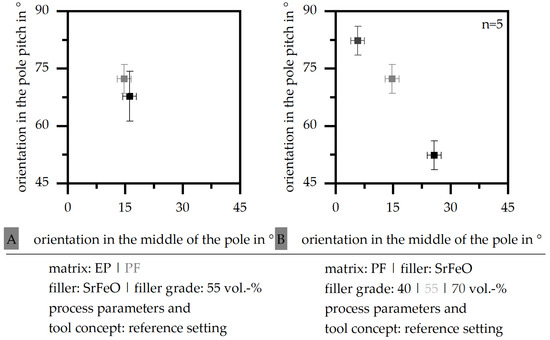

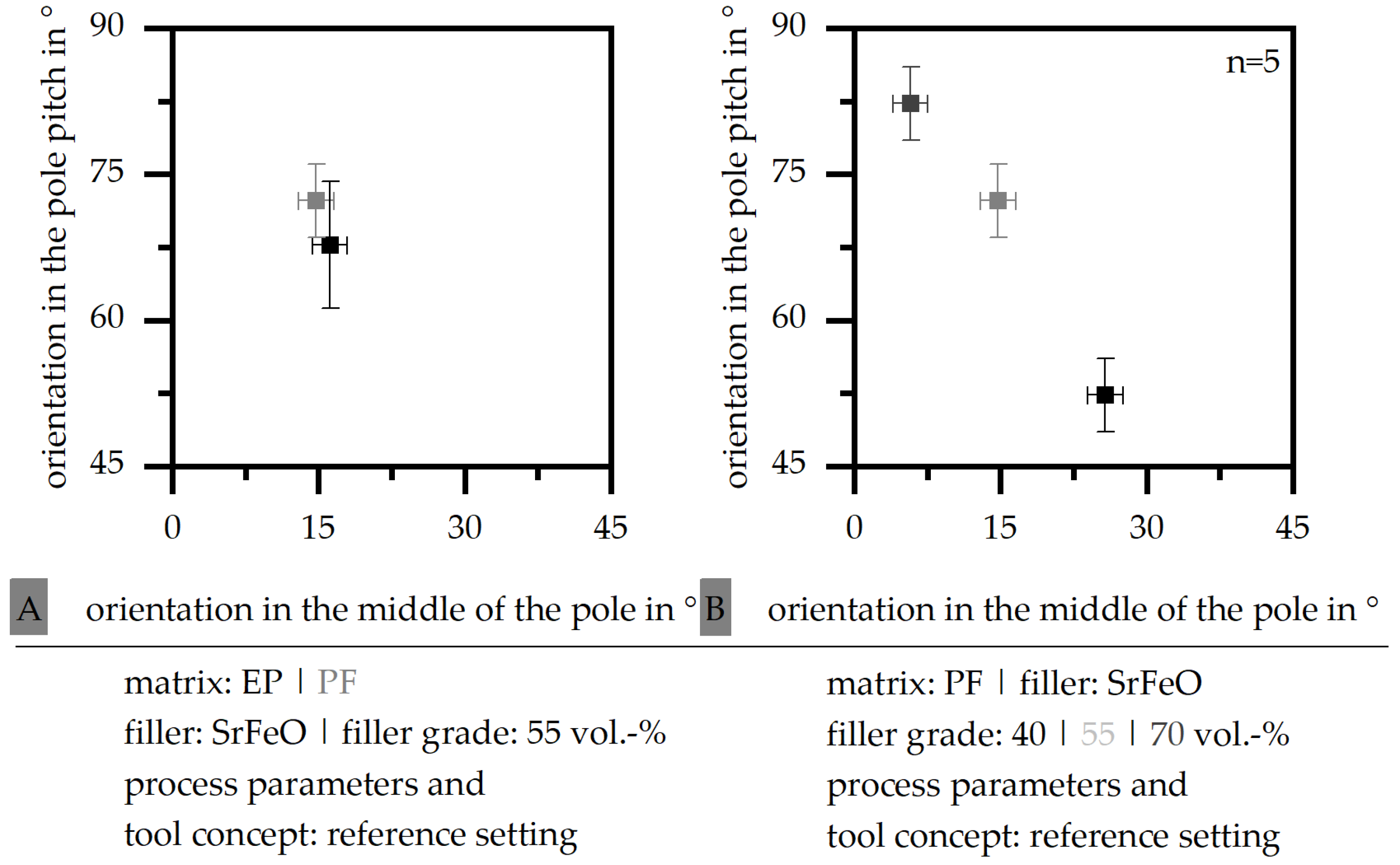

In addition to the magnetic properties, the orientation in the middle of the pole and the pole pitch were defined to further understand the change in the magnetic properties. With respect to the two different matrix materials and the filler grade, Figure 8 shows the change of the orientation comparing EP and PF (A) and the filler grade between 40 and 70 vol.-% for a PF matrix (B). The process conditions and the tool concept are kept constant, and the orientation is investigated in the middle of the sample thickness. The orientation is slightly improved in terms of the PF matrix compared to the EP matrix in both the middle of the pole and the pole pitch, with lower standard deviations in terms of PF. In terms of the increasing filler grade, the orientation is highly improved with an increasing amount of fillers, which goes along with the change in the remanence (B_R) and the assumption of a supportive effect of neighbouring particles. With that, the orientation results fit with the magnetic properties and the goals for a PF matrix, as well as a high filler grade in terms of improved properties.

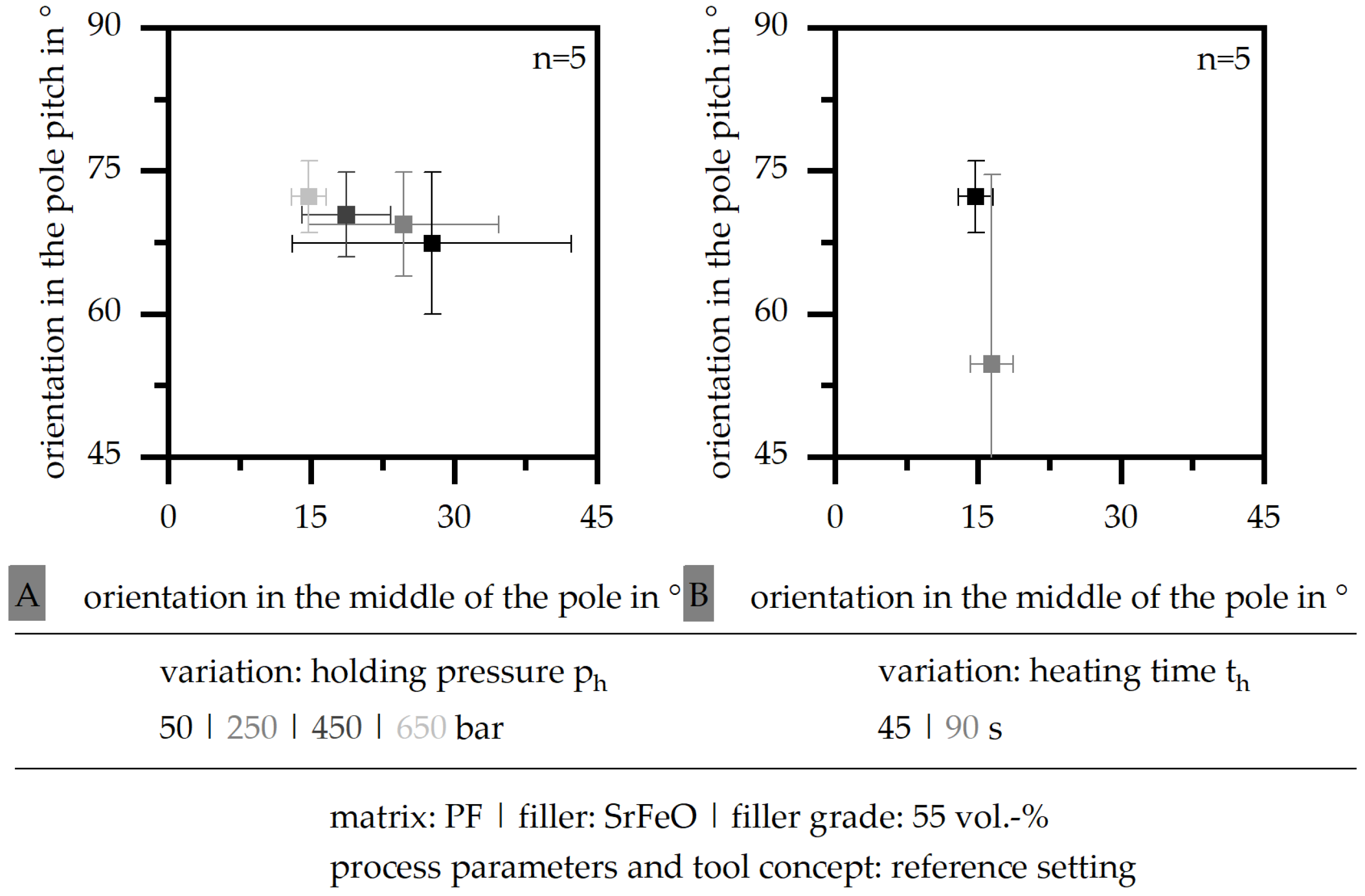

In Figure 9, the influence of the process parameters (holding pressure (p_h) (A) and heating time (t_h) (B)) on the orientation is portrayed for a PF matrix material and a moderate filler grade of 55 vol.-%, while the process conditions and the tool concept are kept constant, except in regards to the two analysed factors. Again, the orientation was investigated in the middle of the sample thickness. With increasing holding pressure (p_h), the orientation for both the middle of the pole and the pole pitch is improved and shifts the orientation to the ideal position of 0° in the abscissa and 90° in the ordinate. Further, the standard deviation is significantly reduced in terms of a high p_h value. The change in the orientation relative to p_h correlates with the magnetic properties; however, the influence of p_h on the magnetic properties is higher than that on the orientation. Therefore, the improved conditions of the magnetic properties in terms of a high p_h value cannot be defined only by the analysed orientation. Possible further reasons for this improvement could lie in the orientation, which might be further improved within the whole sample, but which was not analysed or improved in regards to flow conditions. The increase in the heating time (t_h) reduces the orientation, especially in terms of the orientation at the pole pitch, where a high standard deviation is reached. It is assumed that the reduction of the magnetic properties due to high t_h relies in the diminished orientation. Further, the longer heating time span could lead to chemical reactions and the production of by-products which hinder the orientation of the fillers along the outer magnetic field. Similar to the magnetic properties, a high p_h and a low t_h value should be the goal in order to improve the sample performance.

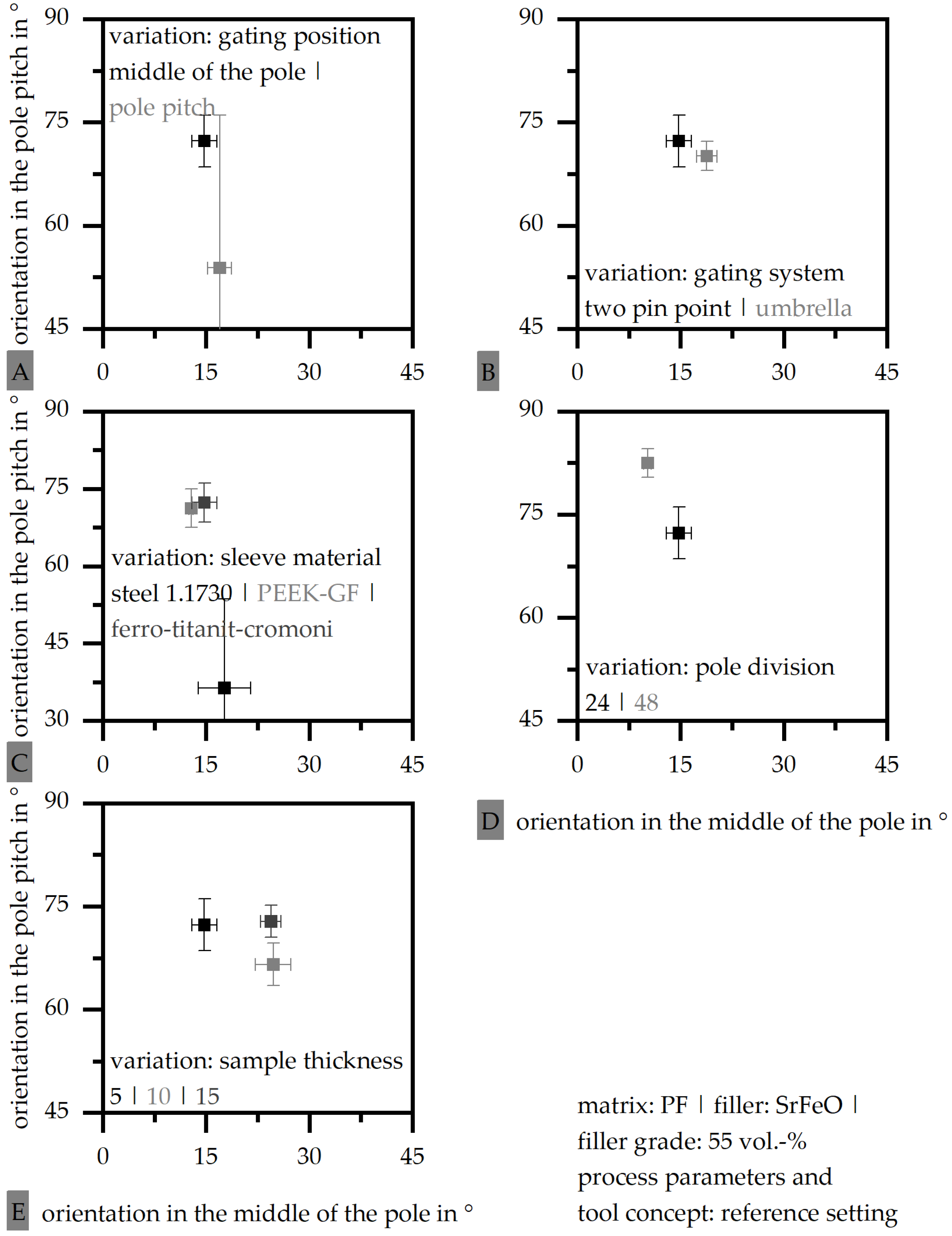

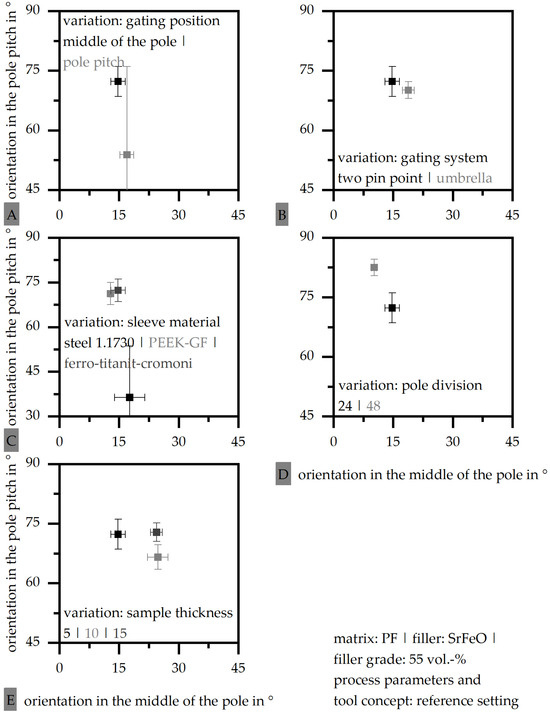

In addition to the influence of the material and the process conditions, the impact of the tool concept in terms of the orientation was also investigated. Therefore, Figure 10 shows the change in the orientation in terms of the variation of the gating position (A), the gating system (B), the sleeve material (C), the pole division (D), and the sample thickness (E) in regards to a PF matrix material and a filler grade of 55 vol.-%. The process conditions and the tool concept are kept constant, despite the variations. Initially, the orientation was investigated in the middle of the sample thickness.

The orientation in the pole pitch is highly reduced, and the standard deviation is increased with a gating position at the pole pitch, which goes along with the reduction of the magnetic properties. Therefore, the gating system should be allocated in the middle of the pole to improve both the orientation and the magnetic properties. With respect to the gating system, the orientation is slightly improved in terms of the two-pinpoint system, which does not agree with the results in terms of the magnetic properties, as the remanence (B_R) is improved in terms of the umbrella system.

When the change in the orientation of the gating system is rather low, it is assumed that the flow conditions, which highly affect the deviation (Δs) of the pole division, are more likely to interfere with the magnetic properties. Taking only the orientation into account, the two-pinpoint system should be selected. In terms of the sleeve material, a similar orientation level is reached for PEEK-GF and Ferro-Titanit-Cromoni, with a slightly better orientation for PEEK-GF. In regards to the use of 1.1730 steel as sleeve material, the orientation is highly reduced (compared to the other two materials) and reaches a high standard deviation. Taking both the magnetic properties and the orientation into account, the Ferro-Titanit-Cromoni sleeve material should be selected, as not only the orientation and the remanence (B_R) are improved, but also the deviation (Δs) of the pole division. With respect to the orientation in an isolated view, the PEEK-GF sleeve material should be selected. Similar to the results for the magnetic properties, the increase in the pole division up to 48 poles increases the orientation in both directions (at the middle of the pole and at the pole pitch) and reduces the standard deviation. Therefore, thermoset based polymer bonded magnets prove to be applicable in terms of small pole division. The orientation relative to the sample thickness is reduced in terms of the middle of the pole for a 10 and 15 mm sample thickness, as well as for a pole pitch for 10 mm. The orientation was defined in the middle of each sample thickness. Further, the orientation in the outer layer was investigated as well, where the orientation is highly reduced for each thickness due to the limitation of the cavity. This reduction could be proven for the outer surface (0 mm) at each sample thickness. The change in the depth to 2.5 mm already improved the orientation. This depth equals the sample middle for the 5 mm thickness, but reveals only one-sixth of the thickness for the 15 mm thickness. When the proportion of the layers with limited orientation due to the cavity is higher for a small sample thickness, the orientation is less hindered for a high sample thickness. The slight reduction in the orientation in the middle of the sample with increasing sample thickness might accompany particle interactions. However, in terms of the orientation itself, the sample thickness selected should be rather large in order to reduce the influence of the layers when the orientation is limited due to the cavity. Taking the magnetic properties and the orientation into account, a small sample thickness should be the goal in order to reduce the standard deviation in terms of the deviation (Δs) of the pole division.

4. Conclusions

Within this paper, the influence of the material system, the process conditions, and the tool concept was investigated in terms of the optimization of the magnetic properties, and the orientation in multipolar bonded magnets based on thermosets. Within the material system, a hard magnetic filler, SrFeO, was chosen. The matrix material differed in terms of EP and PF, as well as in regards to the filler grade, which was modified between 40, 55, and 70 vol.-%. To generate a basic understanding of the material behaviour, the reaction turnover (α) relative to the temperature and the minimum viscosity (η_min) was analysed. In terms of α, the s-curve is shifted towards lower temperatures for PF and reveals the tendency towards lower temperatures in terms of an increasing filler grade. The minimum viscosity (η_min) is increased with higher filler grades.

Mainly, the improvement of the magnetic properties in terms of the remanence (B_R) and the deviation (Δs) of the pole division, as well as the orientation in the middle of the pole and the pole pitch, were analysed to define the design parameters for thermoset based polymer bonded magnets with a multipolar ring structure.

Table 3. Design parameters to optimize the magnetic properties and filler orientation relative to the material system, the process parameters, and the tool concept.

Parameters		Design Parameter to Optimize
		Magnetic Properties	Filler Orientation
material	matrix material	PF	PF
	filler grade	70 vol.-% (high)	70 vol.-% (high)
process	holding pressure (ph)	650 bar (high)	650 bar (high)
	heating time (th)	45 s (low)	45 s (low)
tool	gating position	middle of the pole	middle of the pole
	gating system	umbrella (in terms of high value for BR)|two-pinpoint (in terms of low deviation (Δs))	two pin point
	sleeve material	Ferro-Titanit-Cromoni	PEEK-GF
	pole division	48 (high)	48 (high)
	sample thickness	5 mm (low)	15 mm (high)

depicts a summary of the best parameters with respect to each variation, investigated in terms of the material system, the process parameters, and the tool concept. For most of the variations, the suggested design parameters are equal for both criteria—the magnetic properties and the filler orientation. Different parameters are suggested in terms of the sleeve material and the sample thickness. In terms of the sample thickness and considering both criteria, Ferro-Titanit-Cromoni should be selected, as PEEK-GF reveals a similar behaviour in terms of the remanence (B_R) and the orientation, but a lower performance in terms of the deviation (Δs) of the pole division. Within the sample thickness, a small value should be the goal in order to improve the deviation (Δs) of the pole division, in addition to the other two parameters.

Further, the design parameters should be transferred to other applications to enable the usage of thermoset based polymer bonded magnets within, i.e., motor applications. Within this transmission, the validity of the design parameters in terms of more complex geometries should also be evaluated.
