Integrated Fabry–Perot Cavities: A Quantum Leap in Technology

Philippe Velha
DISI Department, University of Trento, 38122 Trento, Italy
Trento Institute for Fundamental Physics and Applications (TIFPA), 38122 Trento, Italy
Quantum Science and Technology in Trento, 38122 Trento, Italy
The author dedicates this article to the memory of Stefano Faralli and Alberto Franzoi that recently passed away.
Encyclopedia 2024, 4(2), 622-629;
Submission received: 14 February 2024 / Revised: 7 March 2024 / Accepted: 14 March 2024 / Published: 22 March 2024
(This article belongs to the Section Physical Sciences)


Integrated Fabry–Perot cavities (IFPCs), often referred to as nanobeams due to their form factor and size, have profoundly modified the landscape of integrated photonics as a new building block for classical and quantum engineering. In this entry, the main properties of IFPCs will be summarized from the classical and quantum point of view. The classical will provide some of the main results obtained in the last decade, whereas the quantum point of view will explore cavity quantum electrodynamics (CQED), which promises to revolutionize the future “quantum internet”.

1. The Advent of Integrated Fabry–Perot Cavities

In the quest for faster optical communication, researchers have been motivated to explore innovative optoelectronic devices. In the meantime, electronics circuits are approaching their limits in terms of bandwidth and power efficiency. For these reasons, keeping signals in the optical domain is seen as a possible strategy to overcome these limitations and continue to improve the high-performance computing (HPC) throughput and power efficiency. To achieve this, optical micro-cavities, which confine light in small volumes at optical wavelength scales, have emerged as important components for signal processing functions. Fabry–Perot cavities, from their inception [1] to the present day, have found many applications in telecoms, spectroscopy and sensing technologies [2,3]. The development of integrated optics in the last few decades has brought renewed interest in integrated Fabry–Perot cavities (IFPCs). High-Q optical microcavities, in particular, characterized by their high quality factor (Q) and their ability to confine light in small modal volumes (VM), have been at the heart of recent advancements in optical telecommunication. They play a pivotal role in various signal processing functions [4], including channel-drop filtering, on–off switching and light modulation. Moreover, the exaltation of optical non-linearity and spontaneous emission inhibition or exaltation is primarily governed by the Q/VM ratio. Thus, the quest for ultra-small high-Q cavities [5] has been critical in optical telecommunications [6] and in quantum optics [7]. Several strategies have been proposed to obtain high-Q cavities, like photonic crystals [8], micro-rings, micro-disks [9,10], micro-toroids [11], micro-spheres [12], meta-materials [13], plasmonics [14] and other interesting schemes [15]. However, each of these strategies either produces very large Q factors in excess of 106, but with rather large volumes, or, for the case of plasmonic resonators, a non-CMOS-compatible fabrication process. This entry will focus on arguably the most promising approach, Fabry–Perot cavities. It is believed that a Q factor as large as 108 can be achieved with cavities offering mode volumes close to the theoretical limit of VM = ( λ / 2 n ) 3 , where λ is the resonant wavelength and n is the waveguide’s refractive index.

2. The Challenges with Current Cavities

While significant advancements have been made in developing high-Q cavities [16,17], challenges persist. Notably, while suspended membranes have proven viable at a research level, they present many drawbacks—namely, challenging electrical injection, deformation due to thermal dilatation and the related mechanical stability. As such, the development of IFPCs realized on a substrate, rather than on a membrane, has emerged as a critical issue in the field. In response to these challenges, researchers have turned their attention to integrated Fabry–Perot cavities. Specifically, researchers have demonstrated a practical and easy approach to cavity design consisting of two mirrors composed of a chain of periodic holes located on a ridge waveguide [18], with dedicated sections for the management of scattering losses. This design has proven to significantly enhance the Q factor, making it an attractive solution for the integration of high-Q cavities on a substrate.

3. The Design of Integrated Fabry–Perot Cavities for Classical Light

The design of an IFPC involves a unique tapering process based on Bloch-mode engineering concepts. This procedure aims to adapt the mode profiles between the cavity fundamental mode, supported by the ridge waveguide, and the evanescent Bloch mode of the periodic mirror [19]. By doing so, it significantly reduces the radiation losses at the mirror–ridge interface, thereby enhancing the Q factor of the resonant peak. Demonstrations of this process have been given on a wide range of platforms, such as silicon-on-insulator, silicon nitride, diamond, GaN, III-V, etc.
The general structure is reported in Figure 1, where the basic scheme for a Fabry–Perot cavity is presented (A) and consists in a cavity delimited by two mirrors. Each mirror consists of three main zones(B), including an optional first taper where the launched mode, which can be a standard waveguide mode or Bloch mode itself, can be adapted to the mirror Bloch mode. Then, the mirror is obtained through the periodic variation in the refractive index. As shown in (C), the cell can be of multiple types and defines the properties of the Bloch mode but, in essence, it is always based on a periodic variation in the refractive index. Such variation is known to create a photonic bandgap [20] that excites contra-directional Bloch waves, resulting in very large reflection over a wide range of wavelengths. Finally, the inside taper (IN TAPER), which might be different from the external one (OUT TAPER), needs to be carefully crafted in order to minimize the losses experienced by the cycling cavity mode, which bounces back and forth due to the mode mismatch between the field profiles of both the cavity and mirror mode. Let’s note that other methodologies based on the framework of Fourier space analysis have been used [21] but bring little physical insight. The cavity length is defined by the physical separation of the mirror (A) however one needs to also consider the penetration depth inside the mirror. For example, in [22], the optical field has been measured on top of the cavity. The same can be obtained through a numerical simulation [23], as shown in Figure 2. As expected in a cavity, the field forms a standing wave due to the waveguide mode bouncing back and forth, which translates into a series of peaks (see red cross) and nodes. It can be seen that the field effectively spreads inside the optical mirror, requiring us to define the modal volume with an alternative definition to the simple physical length as V M = ϵ | E | 2 d V m a x ( ϵ | E | 2 ) , and it can be shown that the effective length is connected to the phase ϕ of the reflected wave as L p = λ 0 2 4 π n g ϕ λ , or the penetration length of the field, where ng is the group velocity of the cavity mode and λ 0 the resonant wavelength.
The mirror is defined by three coefficients: the reflection Rm, the transmission Tm and the scattering losses Lm. Rm is determined by the length of the periodic mirror and by the loss management due to the tapering process. This is due to energy conservation, which imposes that R m + T m + L m = 1 or, in other words, all the energy is accounted for by the reflection, transmission and loss coefficients. Considering an infinite mirror allows us to derive an upper limit on the reflection: R m = 1 L m . As for Bragg mirrors, R m is a function of the period number and the refractive index contrast. Therefore, the real upper limit is dictated by the losses. In order to obtain a very large Q factor, a simple condition, albeit difficult to achieve in integrated optics, is needed, namely R m > > T m > > L m . Note that the losses Lm are mainly due to the scattering of light into the external radiation continuum of modes. Indeed, when light propagates in a waveguide mode, with a certain mode profile, the transition into another is characterized by a coupling coefficient and a loss, like the transition in microwaves between two regions of different impedance. The coupling and the loss coefficients are expressed as a function of an overlap integral ( η ) between the mode profiles of the two regions, as described in [24]. When the two modes are very much alike, the overlap is close to one and therefore the coupling is as well, whereas the losses can be obtained with a good approximation as Lm = 1− η 2 . The Bloch modes depend mainly on the geometry of the index modulation profile, and it can be shown that small holes at an appropriate period Λ / λ 0 , for a specific wavelength λ 0 , exhibit lower losses. However, Rm drops drastically as well, implying a much longer mirror and larger cavity volume. The main idea of the tapering process is to bring gradually the mode profile of the cavity mode close to the one of the mirror. This transition cannot be obtained adiabatically; otherwise, Lp grows exponentially [25] and can be computed numerically [23] (even a simple linear transition is beneficial). Although the adaptation is done at a single wavelength, it is interesting to note that it is quite broadband as the roll-off is not excessively steep. This explains the relative robustness of the technique against fabrication variations. It is important to note that the transmission coefficient Tm could be made arbitrarily small by increasing the number of periods in the mirror. However, due to the loss channel available, the resonant behavior of the cavity also boosts the losses at resonance—see [6]—and any energy that is not transmitted is lost by the coupling to the radiation continuum. As a result, the maximum transmission at resonance is obtained and is equal to T M A X = 1 ( 1 + L m / T m ) 2 . This simple relation indicates that the peak intensity at transmission vanishes to zero with Tm and therefore limits the practical value of the transmission coefficient. It is possible to derive the general expression for the Q factor based on the parameters defined previously:
Q = π R m 1 R m 2 h n g λ 0 λ 0 π ϕ λ
where h is the physical cavity length as defined in Figure 1. From this expression, it is possible to infer that several strategies can be used to boost the Q factor. It is possible to increase the group index ng, as in [26]; to augment the mirror reflectivity using the method described previously; or finally to increment the cavity length. Thanks to this mode engineering, for the first time, in 2006, integrated Fabry–Perot cavities demonstrated impressive performance [17]. Experimental results have shown that these cavities can achieve a Q factor as high as 58,000, with a modal volume Vm of approximately 0.6( λ /n)3. This led to a Q/V ratio as high as 1.0 105 ( λ /n)3, representing a significant milestone in the field and proving the viability of the approach.
A very simple model is illustrated in Figure 3, where the simplified computation of an IFPC is performed, as in [18]. The three coefficients of the mirror are calculated and then used in a simple transmission matrix algorithm. The cavity modes appear as dark thin lines, where the cavity is transmitting over a very narrow bandwidth (so R = 0)—in particular, at the center of the bandgap light strip. By increasing the cavity length, it is possible to observe a repeated cavity mode at a fixed wavelength. However, the increase in cavity length is detrimental for the mode volume. For filtering purposes [27], this strategy is a viable option, but, to harness the full potential of these cavities, the real metric of interest is the ratio Q/VM. On the far right, another light vertical band appears, indicating another bandgap or reflection band due to the periodic nature of the structure. One can also notice some dark vertical bands that correspond to a range of wavelengths where the cavity is “transparent” and almost no reflection occurs.

4. Quantum Light in Cavity

As previously mentioned, a very large ratio Q/VM is a direct reflection of the interaction between light and matter. As such, IFPCs have emerged as one of the most crucial tools for quantum information technologies. They can effectively isolate an atom–photon system from the external environment and significantly boost weak interactions between light and matter. The non-linear interactions, either through high-order susceptibility ( χ ( 2 ) , χ ( 3 ) ) or atomic interaction with the electronic dipole (quantum dots), are the key components to obtain quantum light. Hence, this capacity offers the perfect basis for cavity quantum electrodynamics (CQED), which has been confined to very complex cryogenic systems. CQED is expected to be a key facilitator of the future “quantum internet”. This technological breakthrough would be based on devices that mediate quantum entanglement between photons and atomic emitters. For instance, across a “quantum” network, specific nodes are defined, where quantum states (i.e., qubits) are stored and processed. Other nodes are enabled to broadcast through optical connections from entangled states to the whole network. It has been proposed that these networks might leverage arrays of tunable optical cavities, on a single chip or a series of interconnected chips, where atoms can be introduced in specific positions and trapped in order to create qubit memories [28]. However, the technological challenge is not only to create the cavity but to include an emitter inside the cavity [29]. It is not only the interplay between the atom and cavity that is at the center of quantum light generation, but also the ability to place the emitter at a strategic position, namely the maxima of the electric field, which is crucial. Some demonstrations [30,31] have shown the potential for this, but it remains elusive.

5. Fundamental Principles of CQED

Interactions between atoms and photons within a cavity are governed by three rate parameters [32]: the non-resonant atomic dipole lifetime ( γ = 1 / τ e ), the photon lifetime of the cavity ( κ = 1 / τ c ) and the atom–cavity coupling rate ( g 0 ). As a consequence, the interaction between the atom electronic dipole and the cavity vacuum field controls the atom–cavity coupling rate. For a single two-level atom (for example, a quantum dot, a nanocrystal) placed conveniently at the maximum electric field of the cavity mode in an otherwise empty cavity, the atom–cavity coupling rate can be expressed as
g 0 2 = μ 2 ω 2 ϵ 0 V M μ 2 E c a v i t y 2 λ 0 2 n c a v i t y Q V M
where μ is the electric dipole moment for the transition and VM is the fundamental cavity mode volume. In Figure 2, a red cross indicates the best location for a single quantum dot, as in [33]. This coupling rate is the main parameter that governs the system’s behavior and two main regimes can be identified. Again, it can be shown that this coupling is directly linked to the ratio Q/VM.

5.1. Strong Coupling Regime

The first regime of interest is the “strong coupling regime”, which is achieved when the atom–cavity coupling rate ( g 0 ) exceeds both the cavity and atomic decay rates ( κ , γ ), i.e., g 0 > > ( κ , γ ) . Under these conditions, the atomic system and the optical cavity mode can reversibly exchange energy back and forth faster than each system’s channel of loss. This energy is swapped through photon emission when the excited atomic system emits a photon and the same photon is absorbed back. This gives rise to an oscillation at the single-photon Rabi frequency Ω R = 2 g 0 . In the frequency domain, this mechanism is revealed by the splitting of the cavity resonance, which becomes a double-peaked cavity transmission (vacuum-Rabi splitting) with peaks centered at ω ± g 0 [34,35]. g 0 is of particular importance as it represents the interaction strength between the atomic system and the cavity without the effect of the losses. This regime results in a singular object called a polariton [36], which is a pseudo-particle constituted of the coupled system of excitons from the excited atomic system and photons of the cavity mode. Polariton devices are highly appealing for their narrow linewidth and polarized emission [37], and their profound quantum nature makes them interesting for quantum computation in general.

5.2. Weak Coupling Regime

Alternatively, the second regime, known as the “weak coupling regime”, occurs when g 0 < < ( κ , γ ) . In this regime, an important dimensionless factor known as the single-atom cooperativity C, defined as C = g 0 2 / 2 κ γ , represents the effect that a single atom inserted appropriately, will have on the cavity mode. The single-atom cooperativity, often expressed as N0 = 1/C, is termed the critical atom number and can be interpreted as the number of atoms required to significantly affect the cavity field. Therefore, large cooperativity indicates large coupling between the cavity mode and the atomic system, even with the addition of losses. In fact, the emitter placement greatly affects C and constitutes, in practice, the main parameter limiting it.

5.3. The Purcell Regime

An intermediate weak coupling condition that corresponds to κ > > g 0 > > γ and C > > 1 , where the coupled system can still interact quickly enough to exchange energy but the loss channel of the electronic system is faster, characterizes the so-called “Purcell regime” [38]. In this case, photon emission is scattered out of the cavity due to losses but significantly altered relative to the free-space situation due to the modification of the photonic density of the modes available to the emitting atom. The spontaneous emission from an atom is altered preferentially to a desired resonant mode of the cavity. This Purcell effect is a highly desirable property as it can be shown to be directly linked to the threshold of a lasing mode [26], since it forces the spontaneous emission to specific modes, as in the case of stimulated radiation.

5.4. Heralded Single Photon Emitters

Another application of weak coupling is non-linear atomic memory systems, or NLAMs, based on the non-linear interplay between atoms and light to establish entanglement among photons and atoms [39]. This interaction allows the electromagnetic field released by the atom to interfere with itself, thereby altering the rate at which the atom emits within the cavity. Under such conditions, the random emission into free space can be inhibited, paving the way for a highly directional emission and efficient interaction. Consequently, NLAM media can facilitate consistent entanglement between photons and atoms. A practical result [7] is the production of heralded single photons, where a non-linear interaction (four-wave mixing) has been harnessed to create entangled photons with the largest rate of emission yet.

6. Conclusions

IFPCs have emerged as a significant player in the field of CQED as well as in telecommunications due to their properties both in terms of filtering and electrodynamic light–matter interactions. These cavities can greatly enhance the inherently weak interactions between light and matter, thanks to the strong confinement in a very tight volume, offering a unique means of creating new quantum functions and paving the way towards a quantum internet.


This research received no external funding.

Data Availability Statement

Any data are available upon reasonable request to the author and some codes can be found at (accessed on 14 February 2024).

Conflicts of Interest

The author declares no conflicts of interest.


The following abbreviations are used in this manuscript:
HPCHigh-Performance Computing
IFPCIntegrated Fabry–Perot Cavity
QQuality Factor
VMModal Volume
CMOSComplementary Metal Oxide Semiconductor
NLAMNon-Linear Atomic Memory
CQEDCavity Quantum Electrodynamics


  1. Perot, A.; Fabry, C. On the Application of Interference Phenomena to the Solution of Various Problems of Spectroscopy and Metrology. Astrophys. J. 1899, 9, 87. [Google Scholar] [CrossRef]
  2. Protsenko, I.E.; Uskov, A.V. Quantum Fluctuations in the Small Fabry-Perot Interferometer. Symmetry 2023, 15, 346. [Google Scholar] [CrossRef]
  3. Iwaguchi, S.; Ishikawa, T.; Ando, M.; Michimura, Y.; Komori, K.; Nagano, K.; Akutsu, T.; Musha, M.; Yamada, R.; Watanabe, I.; et al. Quantum Noise in a Fabry-Perot Interferometer Including the Influence of Diffraction Loss of Light. Galaxies 2021, 9, 9. [Google Scholar] [CrossRef]
  4. Liu, Q.; Zeng, D.; Mei, C.; Li, H.; Huang, Q.; Zhang, X. Integrated photonic devices enabled by silicon traveling wave-like Fabry–Perot resonators. Opt. Express 2022, 30, 9450–9462. [Google Scholar] [CrossRef]
  5. Vahala, K.J. Optical microcavities. Nature 2003, 424, 839–846. [Google Scholar] [CrossRef]
  6. Velha, P.; Picard, E.; Charvolin, T.; Hadji, E.; Rodier, J.C.; Lalanne, P.; Peyrade, D. Ultra-High Q/V Fabry-Perot microcavity on SOI substrate. Opt. Express 2007, 15, 16090–16096. [Google Scholar] [CrossRef]
  7. Azzini, S.; Grassani, D.; Galli, M.; Gerace, D.; Patrini, M.; Liscidini, M.; Velha, P.; Bajoni, D. Stimulated and spontaneous four-wave mixing in silicon-on-insulator coupled photonic wire nano-cavities. Appl. Phys. Lett. 2013, 103, 031117. [Google Scholar] [CrossRef]
  8. Akahane, Y.; Asano, T.; Song, B.S.; Noda, S. High-Q photonic nanocavity in a two-dimensional photonic crystal. Nature 2003, 425, 944–947. [Google Scholar] [CrossRef]
  9. Soltani, M.; Yegnanarayanan, S.; Adibi, A. Ultra-high Q planar silicon microdisk resonators for chip-scale silicon photonics. Opt. Express 2007, 15, 4694–4704. [Google Scholar] [CrossRef]
  10. Michael, C.P.; Borselli, M.; Johnson, T.J.; Chrystal, C.; Painter, O. An optical fiber-taper probe for wafer-scale microphotonic device characterization. Opt. Express 2007, 15, 4745–4752. [Google Scholar] [CrossRef]
  11. Armani, D.K.; Kippenberg, T.J.; Spillane, S.M.; Vahala, K.J. Ultra-high-Q toroid microcavity on a chip. Nature 2003, 421, 925–928. [Google Scholar] [CrossRef] [PubMed]
  12. Cai, M.; Painter, O.; Vahala, K.J. Observation of Critical Coupling in a Fiber Taper to a Silica-Microsphere Whispering-Gallery Mode System. Phys. Rev. Lett. 2000, 85, 74–77. [Google Scholar] [CrossRef]
  13. Huang, L.; Jin, R.; Zhou, C.; Li, G.; Xu, L.; Overvig, A.; Deng, F.; Chen, X.; Lu, W.; Alù, A.; et al. Ultrahigh-Q guided mode resonances in an All-dielectric metasurface. Nat. Commun. 2023, 14, 3433. [Google Scholar] [CrossRef] [PubMed]
  14. Bin-Alam, M.S.; Reshef, O.; Mamchur, Y.; Alam, M.Z.; Carlow, G.; Upham, J.; Sullivan, B.T.; Ménard, J.M.; Huttunen, M.J.; Boyd, R.W.; et al. Ultra-high-Q resonances in plasmonic metasurfaces. Nat. Commun. 2021, 12, 974. [Google Scholar] [CrossRef]
  15. Ginis, V.; Benea-Chelmus, I.C.; Lu, J.; Piccardo, M.; Capasso, F. Resonators with tailored optical path by cascaded-mode conversions. Nat. Commun. 2023, 14, 495. [Google Scholar] [CrossRef] [PubMed]
  16. Velha, P.; Rodier, J.C.; Lalanne, P.; Hugonin, J.P.; Peyrade, D.; Picard, E.; Charvolin, T.; Hadji, E. Ultra-high-reflectivity photonic-bandgap mirrors in a ridge SOI waveguide. New J. Phys. 2006, 8, 204. [Google Scholar] [CrossRef]
  17. Velha, P.; Rodier, J.C.; Lalanne, P.; Hugonin, J.P.; Peyrade, D.; Picard, E.; Charvolin, T.; Hadji, E. Ultracompact silicon-on-insulator ridge-waveguide mirrors with high reflectance. Appl. Phys. Lett. 2006, 89, 171121. [Google Scholar] [CrossRef]
  18. Lalanne, P.; Mias, S.; Hugonin, J.P. Two physical mechanisms for boosting the quality factor to cavity volume ratio of photonic crystal microcavities. Opt. Express 2004, 12, 458–467. [Google Scholar] [CrossRef] [PubMed]
  19. Lalanne, P.; Hugonin, J. Bloch-wave engineering for high-Q, small-V microcavities. IEEE J. Quantum Electron. 2003, 39, 1430–1438. [Google Scholar] [CrossRef]
  20. Velha, P.; Hugonin, J.P.; Lalanne, P. Compact and efficient injection of light into band-edge slow-modes. Opt. Express 2007, 15, 6102–6112. [Google Scholar] [CrossRef]
  21. Quan, Q.; Loncar, M. Deterministic design of wavelength scale, ultra-high Q photonic crystal nanobeam cavities. Opt. Express 2011, 19, 18529–18542. [Google Scholar] [CrossRef] [PubMed]
  22. Lalouat, L.; Cluzel, B.; Velha, P.; Picard, E.; Peyrade, D.; Hugonin, J.P.; Lalanne, P.; Hadji, E.; de Fornel, F. Near-field interactions between a subwavelength tip and a small-volume photonic-crystal nanocavity. Phys. Rev. B 2007, 76, 041102. [Google Scholar] [CrossRef]
  23. Philippe Lalanne, J.P.H. RETICOLO Software for Grating Analysis. 2021. Available online: (accessed on 14 February 2024).
  24. Sauvan, C.; Lecamp, G.; Lalanne, P.; Hugonin, J. Modal-reflectivity enhancement by geometry tuning in Photonic Crystal microcavities. Opt. Express 2005, 13, 245–255. [Google Scholar] [CrossRef]
  25. Oskooi, A.; Mutapcic, A.; Noda, S.; Joannopoulos, J.D.; Boyd, S.P.; Johnson, S.G. Robust optimization of adiabatic tapers for coupling to slow-light photonic-crystal waveguides. Opt. Express 2012, 20, 21558–21575. [Google Scholar] [CrossRef]
  26. Baba, T. Slow light in photonic crystals. Nat. Photonics 2008, 2, 465–473. [Google Scholar] [CrossRef]
  27. Porzi, C.; Serafino, G.; Velha, P.; Ghelfi, P.; Bogoni, A. Integrated SOI High-Order Phase-Shifted Bragg Grating for Microwave Photonics Signal Processing. J. Lightwave Technol. 2017, 35, 4479–4487. [Google Scholar] [CrossRef]
  28. Reiserer, A.; Rempe, G. Cavity-based quantum networks with single atoms and optical photons. Rev. Mod. Phys. 2015, 87, 1379–1418. [Google Scholar] [CrossRef]
  29. Emran, R.; Chalupnik, M.; Knall, E.N.; Riedinger, R.; Chia, C.; Loncar, M. Limitations in design and applications of ultra-small mode volume photonic crystals. arXiv 2024, arXiv:2402.00363. [Google Scholar]
  30. Gong, Y.; Ellis, B.; Shambat, G.; Sarmiento, T.; Harris, J.S.; Vukovic, J. Nanobeam photonic crystal cavity quantum dot laser. Opt. Express 2010, 18, 8781–8789. [Google Scholar] [CrossRef]
  31. Kiršanskė, G.; Thyrrestrup, H.; Daveau, R.S.; Dreeßen, C.L.; Pregnolato, T.; Midolo, L.; Tighineanu, P.; Javadi, A.; Stobbe, S.; Schott, R.; et al. Indistinguishable and efficient single photons from a quantum dot in a planar nanobeam waveguide. Phys. Rev. B 2017, 96, 165306. [Google Scholar] [CrossRef]
  32. Ataman, S. The quantum optical description of a Fabry-Perot interferometer and the prediction of an antibunching effect. Eur. Phys. J. D 2015, 187, 69. [Google Scholar] [CrossRef]
  33. Douglas, J.S.; Habibian, H.; Hung, C.L.; Gorshkov, A.V.; Kimble, H.J.; Chang, D.E. Quantum many-body models with cold atoms coupled to photonic crystals. Nat. Photonics 2015, 9, 326–331. [Google Scholar] [CrossRef]
  34. Auffèves-Garnier, A.; Simon, C.; Gérard, J.M.; Poizat, J.P. Giant optical nonlinearity induced by a single two-level system interacting with a cavity in the Purcell regime. Phys. Rev. A 2007, 75, 053823. [Google Scholar] [CrossRef]
  35. Aoki, T.; Dayan, B.; Wilcut, E.; Bowen, W.P.; Parkins, A.S.; Kippenberg, T.J.; Vahala, K.J.; Kimble, H.J. Observation of strong coupling between one atom and a monolithic microresonator. Nature 2006, 443, 671–674. [Google Scholar] [CrossRef]
  36. Basov, D.N.; Asenjo-Garcia, A.; Schuck, P.J.; Zhu, X.; Rubio, A. Polariton panorama. Nanophotonics 2021, 10, 549–577. [Google Scholar] [CrossRef]
  37. Galbiati, M.; Ferrier, L.; Solnyshkov, D.D.; Tanese, D.; Wertz, E.; Amo, A.; Abbarchi, M.; Senellart, P.; Sagnes, I.; Lemaître, A.; et al. Polariton Condensation in Photonic Molecules. Phys. Rev. Lett. 2012, 108, 126403. [Google Scholar] [CrossRef] [PubMed]
  38. Purcell, E.M. Proceedings of the American Physical Society. Phys. Rev. 1946, 69, 674. [Google Scholar] [CrossRef]
  39. Lei, Y.; Asadi, F.K.; Zhong, T.; Kuzmich, A.; Simon, C.; Hosseini, M. Quantum optical memory for entanglement distribution. Optica 2023, 10, 1511–1528. [Google Scholar] [CrossRef]

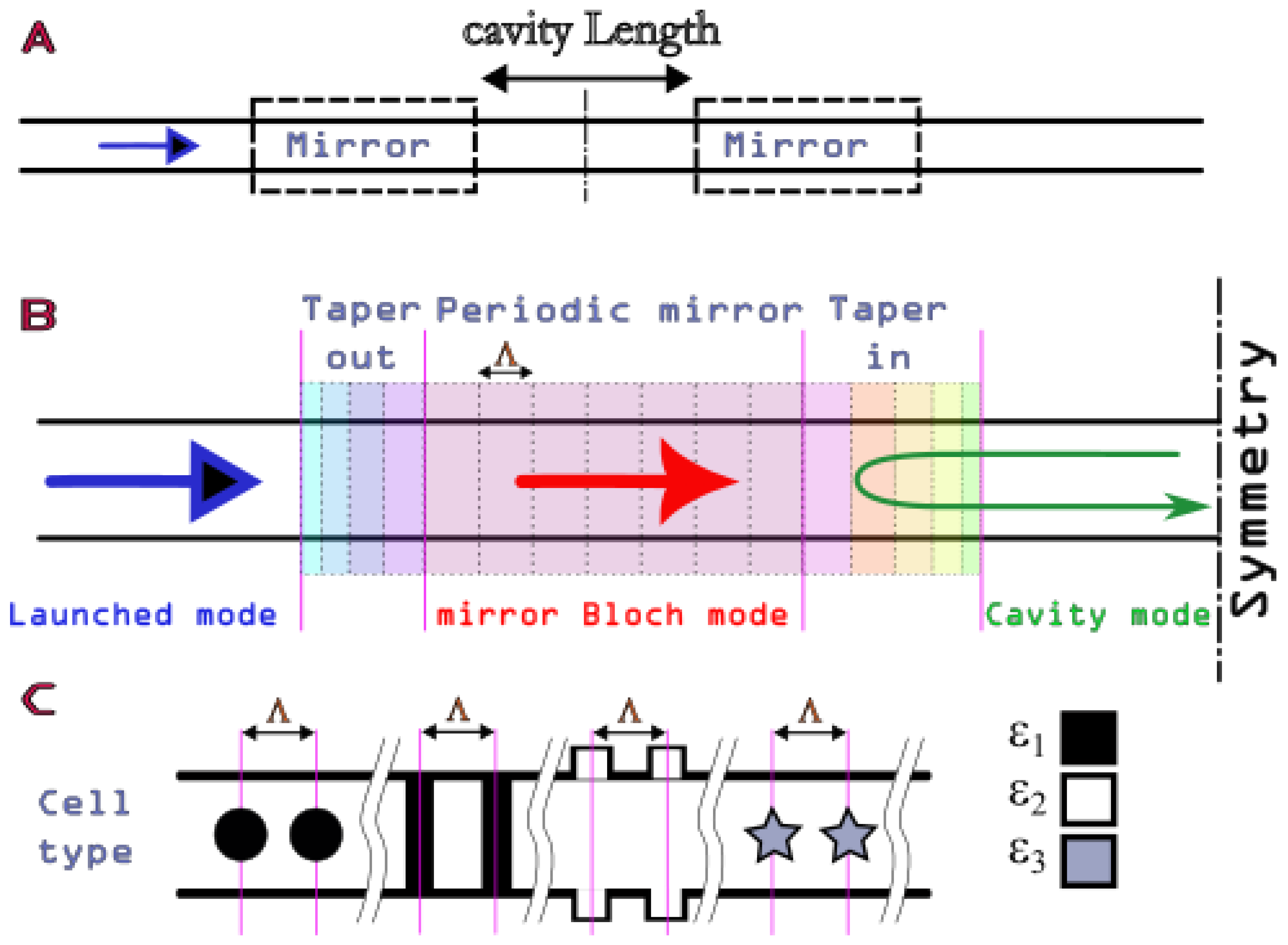

Figure 1. Diagram of an integrated Fabry–Perot cavity. (A) General structure and definition of the physical cavity length. (B) Definition of the different components of a mirror described in terms of cells and of period Λ . (C) Description of possible cell types that can be found in the literature.
Figure 1. Diagram of an integrated Fabry–Perot cavity. (A) General structure and definition of the physical cavity length. (B) Definition of the different components of a mirror described in terms of cells and of period Λ . (C) Description of possible cell types that can be found in the literature.
Encyclopedia 04 00039 g001

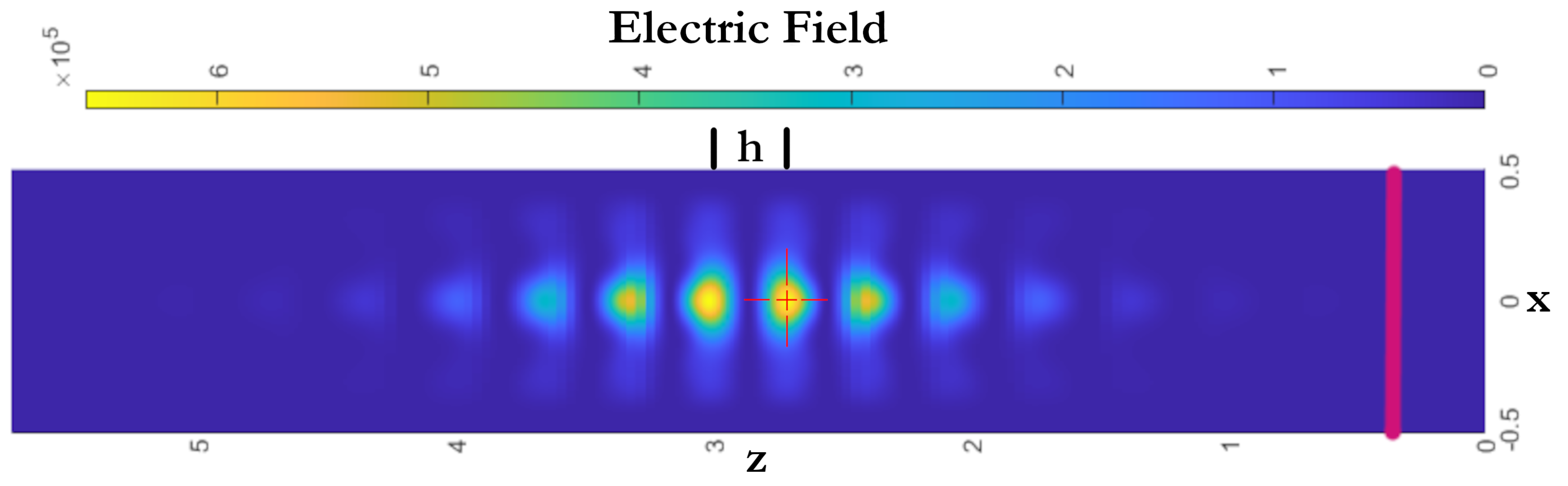

Figure 2. Transverse electric field calculated using [23] of a microcavity designed in [22]. The axes are reported in microns and the electric field is reported in V/m. The magenta bar is 1 micron long. Regarding the red cross, see the text. h indicates the physical length of the cavity.
Figure 2. Transverse electric field calculated using [23] of a microcavity designed in [22]. The axes are reported in microns and the electric field is reported in V/m. The magenta bar is 1 micron long. Regarding the red cross, see the text. h indicates the physical length of the cavity.
Encyclopedia 04 00039 g002

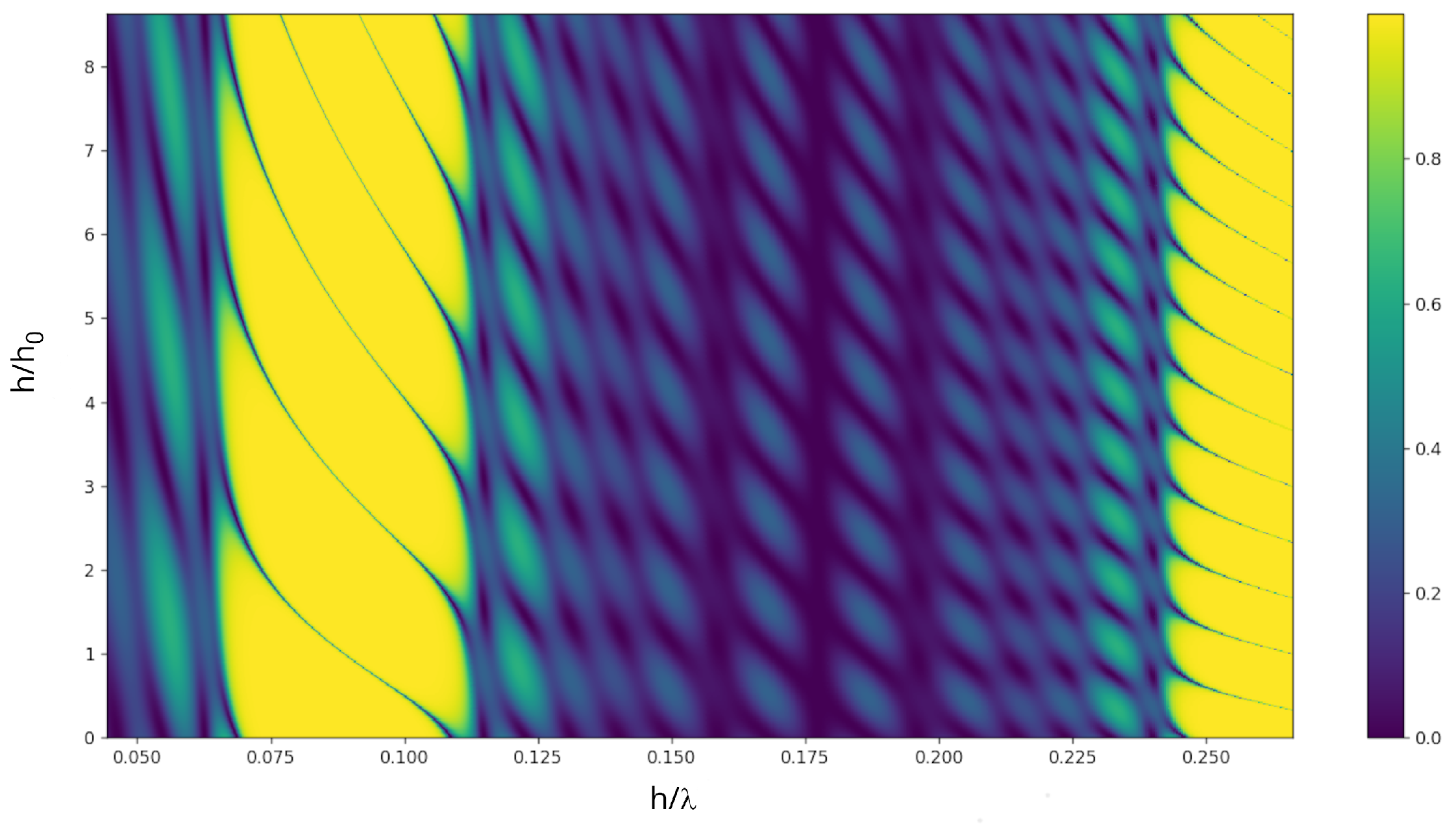

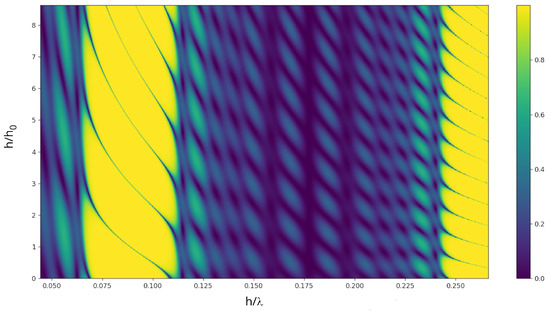

Figure 3. Reflection calculation of a laminar system composed of high and low index layers as a function of the dimensionless factor h/ λ and the normalized cavity length h/h0. Here, the nominal cavity resonance λ 0 is set at a wavelength of 1550 nm, corresponding to a cavity length h0 of 383 nm.
Figure 3. Reflection calculation of a laminar system composed of high and low index layers as a function of the dimensionless factor h/ λ and the normalized cavity length h/h0. Here, the nominal cavity resonance λ 0 is set at a wavelength of 1550 nm, corresponding to a cavity length h0 of 383 nm.
Encyclopedia 04 00039 g003
