Photoremovable Protecting Groups

Definition

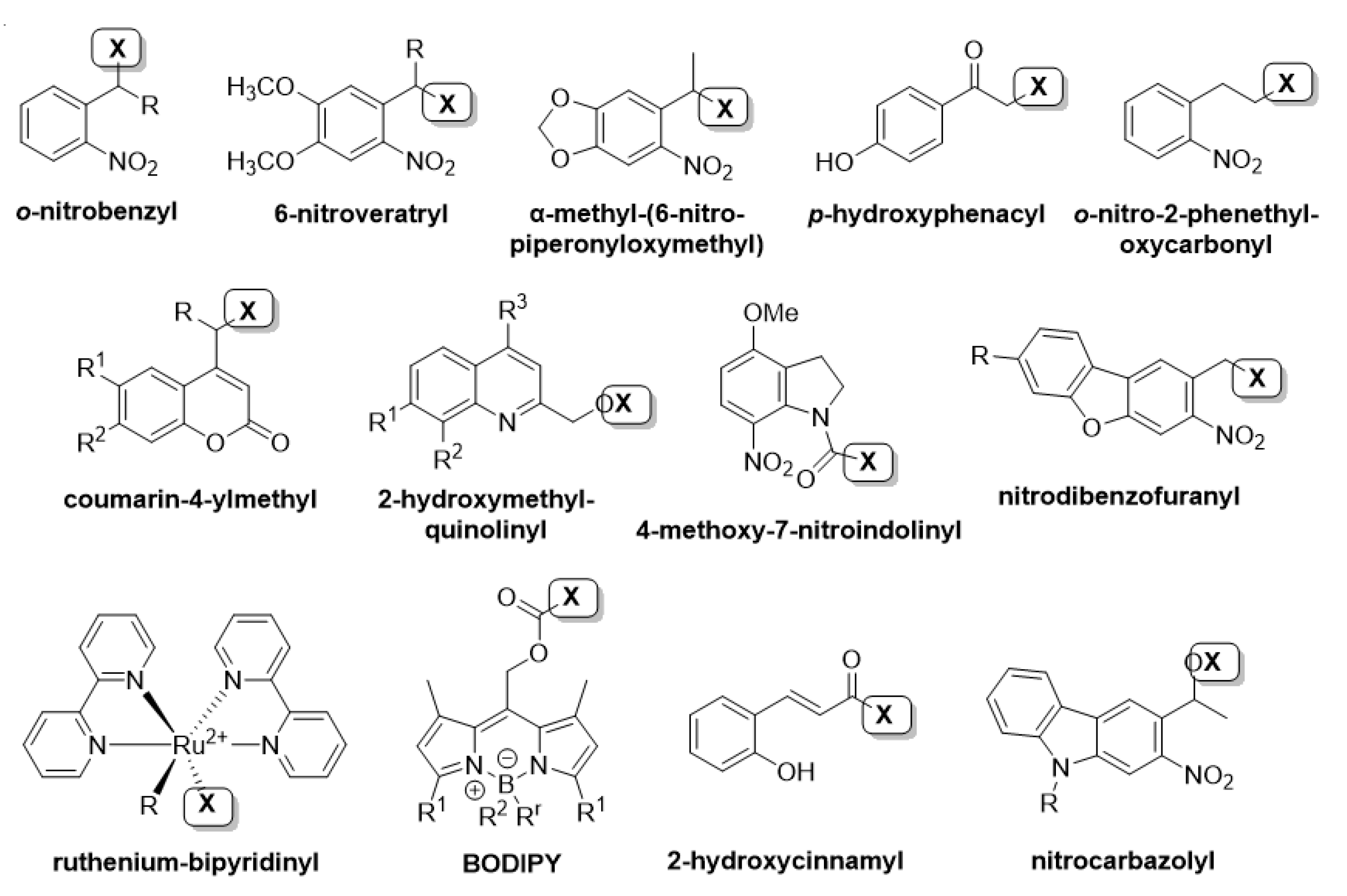

Photoremovable protecting groups (PPGs) (also often called photocages in the literature) are used for temporary inactivation of biologically active substrates. By photoirradiation the PPG could be cleaved off and the biological activity could be restored on-demand, with a high spatiotemporal precision. The on-site liberation of the biologically active substrate could be exploited for studying dynamic biological processes or for designing targeted pharmacological interventions in vitro or in vivo. Several chemical scaffolds have been described and tested as PPGs, operating at different wavelengths. The scope of potential substrates is very broad, spanning from small molecules to proteins. In a wider context, PPGs could be used for the design of various light-responsive materials as well, for diverse applications.

1. Introduction

Gaining spatiotemporal control over drug action or biological functions in a broader sense is a long sought for goal for therapeutic or experimental interventions. Thus, dynamic functions could be studied in vivo with high precision, ideally on a timescale relevant for the process studied, or in a clinical setting, deleterious side effects could be avoided or minimized. A possible approach towards this goal is to use materials/systems responding to a specific internal or external stimulus [1]. Chemical, physical and biological stimuli (e.g., pH, enzymes, ionic microenvironment, temperature, ultrasound, magnetic field, light) have been addressed in this respect. Of the various external stimuli, light has several potential benefits [2]. At appropriate wavelengths, phototoxicity could be avoided and light could be considered bioorthogonal (i.e., not interfering with biological signals or functioning). The light pulse can be precisely tuned in its duration and intensity and, with this external stimulus, extracellular regions or intracellular compartments could be selectively addressed, as necessary [3]. Moreover, the external activation is independent of the microenvironment vs. the case of endogenous approaches.

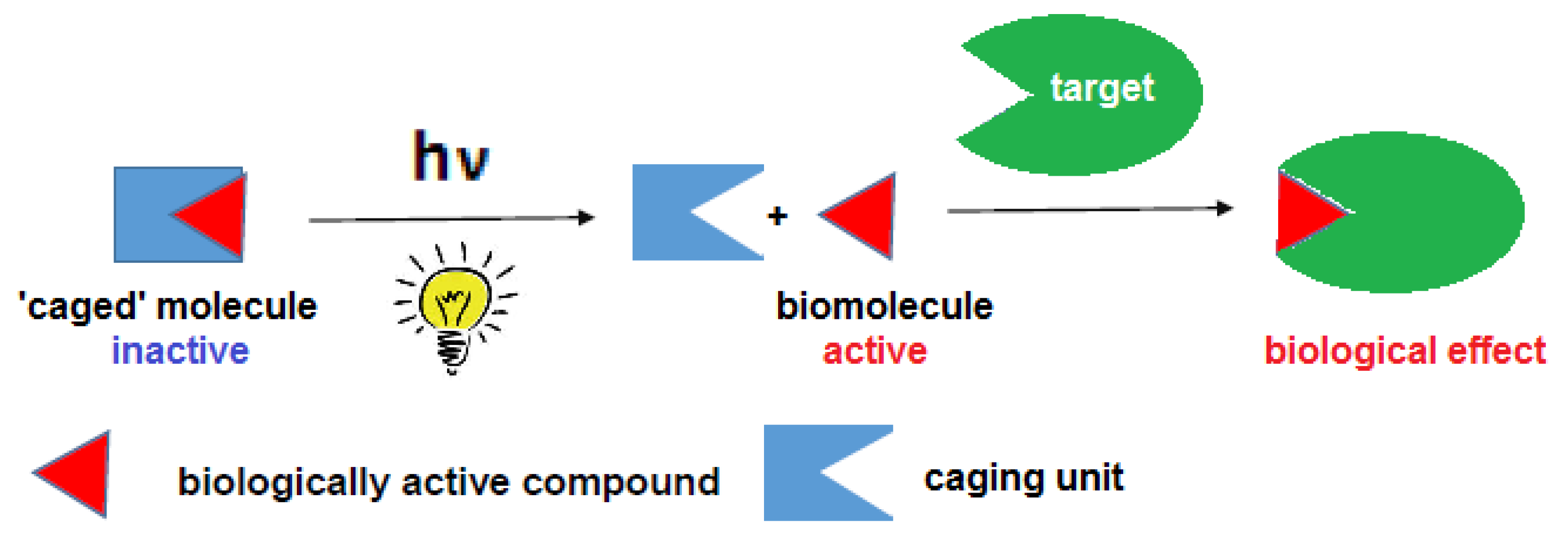

The operational mode of photoremovable protecting groups (PPGs, often referred to in the literature with the illustrative (photo)cage name, expressing the concept of the biological activity being trapped, although the term photolabile/photosensitive/photocleavable (protecting group) are also in use) is to temporarily inactivate the biological action of a given agent by linking a PPG to it. The action could be restored on-demand following a photoactivation step: the cleavage of the PPG via the dissociation of a covalent bond and the liberation of the parent biologically active compound (Figure 1). The activation step in the case of PPGs is typically a one-way, irreversible process [4]. (A reversible process, based on photoisomerisation occurs in the case of the so-called photoswitches [5]. The field of photoswitches—also referred to as photopharmacology—has seen a considerable expansion in the last decade with more elaborate applications emerging [6,7] that are, however, beyond the scope of the present entry). The relative simplicity of the PPG approach has its benefits, e.g., in terms of design, as the properties of an already optimized active agent could be further modified via a PPG linked to it. However, the approach has its limits as well, such as the on-site release of the PPG in stoichiometric amounts, the irreversibility of the process allowing only a one-time activation protocol, or the potential unwanted effects caused by the parent effector molecules upon diffusion from the intended site of action.

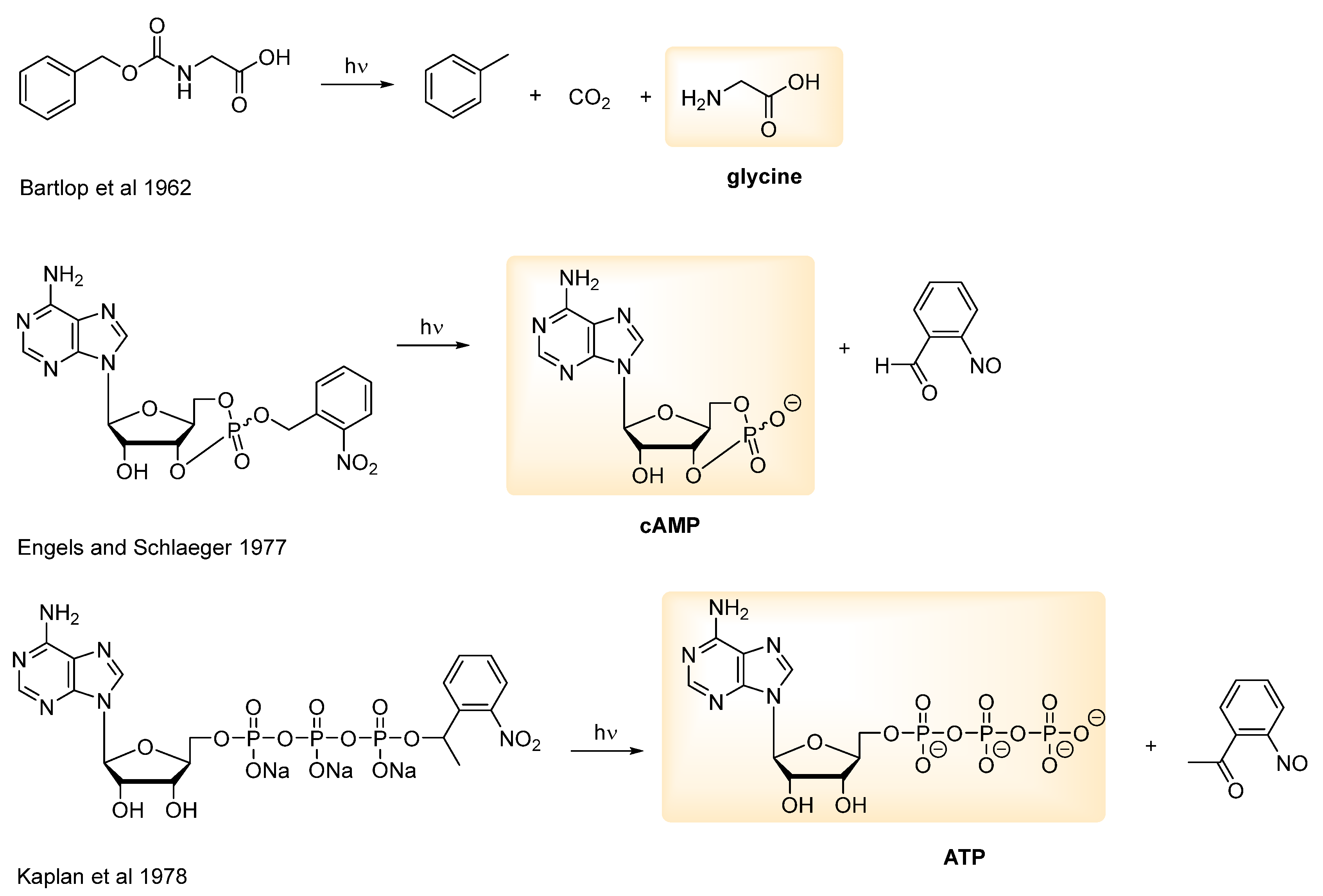

The application of PPGs in the biological context dates back to the 1970s, to the first studies of Engels and Schlaeger and Kaplan et al. with caged cAMP and ATP [10,11], following an earlier report by Barltrop and Schofield on the photorelease of glycine (Figure 2) [12]. Although the present paper will focus on the biological applications of PPGs, synthetic applications (although relatively less common in the literature vs. the biological ones) could also be envisaged [13,14]. A deprotection step carried out under mild conditions and not requiring an additional reagent (i.e., light acting as a traceless reagent) is of considerable interest also for designing a (more complex/multi-step) synthesis pathway.

2. Design and Applications of PPGs

2.1. The Substrate Scope of PPGs

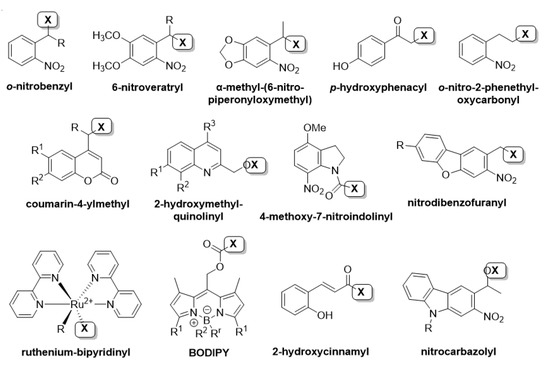

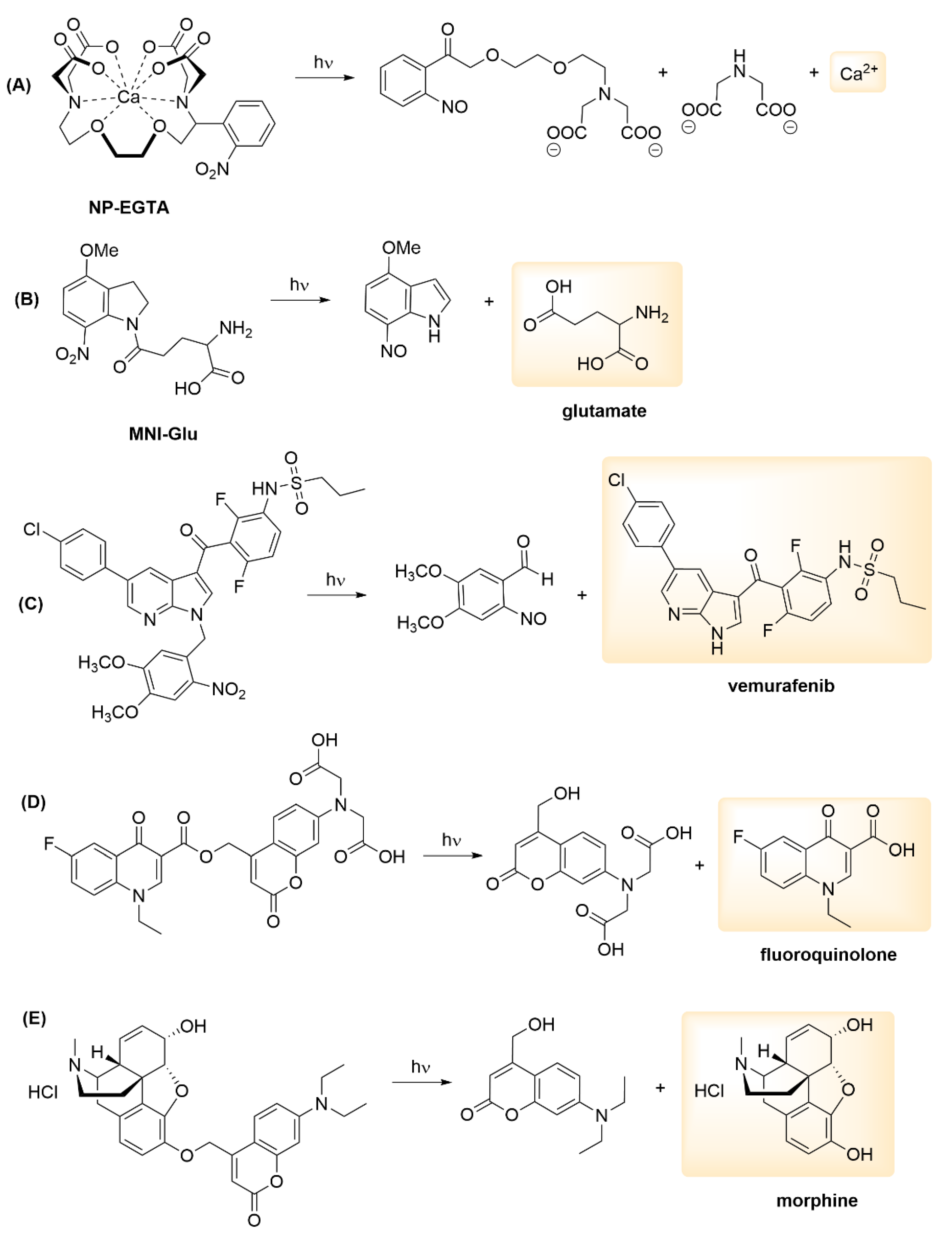

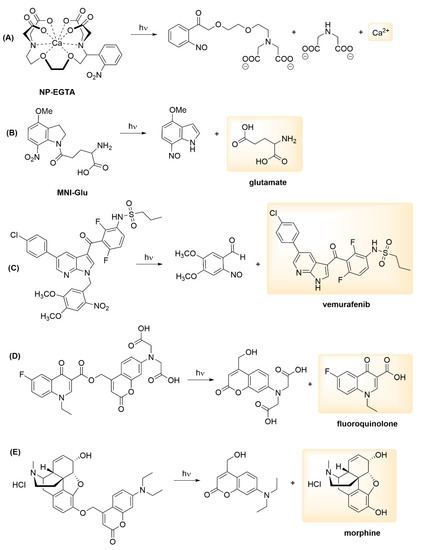

Since the 1970s, a considerable effort has been dedicated both to the development of novel photoactivatable chemical probes and their applications in various experimental studies. Regarding the scope of PPG applications, the caged substrate could be as simple as a proton or an inorganic species or ion (e.g., Ca²⁺ [15], Zn²⁺ [16], CO [17], NO [18], H₂S [19]), it could be a small molecule (e.g., second messenger (such as inositol-1,4,5-triphosphate (IP₃) [20]), neurotransmitter (notably GABA and glutamate [21,22]), nucleotide [23], peptide [24], drug molecule [25] (such as antibiotics [26], analgesics [27] or anticancer agents [28]) or a more complex biomolecule (e.g., enzymes [29], RNA [30] or DNA [31]) (Figure 3).

2.2. Preparation of PPG-Substrate Constructs

With some exceptions, typically the PPG is linked with a covalent bond to the substrate. In the case of, e.g., Ca²⁺, instead of forming a covalent bond directly with the substrate, via photocleavage the affinity of calcium chelating agents (e.g., ethylene glycol tetraacetic acid (EGTA), 1,2-bis(o-aminophenoxy)ethane-N,N,N′,N′-tetraacetic acid (BAPTA)), is compromised irreversibly [15]. Binding the PPG to its substrate is possible via different functional groups, offering sufficient flexibility of design (binding is possible via, e.g., ester, ether, carbamate or amide bonds). Choosing the appropriate site (i.e., one where binding a PPG efficiently masks the biological activity) for introducing the PPG is often directed by computational studies [33]. Having sufficient structural and SAR information on the target concerned, the site(s) critical for biological activity could be judiciously addressed. However, more elaborate chemical modification(s) of the substrate could necessitate a collaboration of biologists and synthetic chemists and, therefore, the biological applications described are often based on a limited array of commercially available PPGs, despite the continuously growing number of alternative caging scaffolds (Figure 4 shows a non-exhaustive selection of the most important PPGs described so far) [35]. Besides a more efficient communication and collaboration between distinct scientific fields, application-driven photocage development could also contribute in the future to the transition from studies under laboratory settings towards (therapeutic) applications.

2.3. Application Criteria for PPGs

For their intended use, PPG-substrate constructs should comply with several criteria (such properties were considered by Lester and Nerbonne in 1982 [38]), some of them related to photophysics and photochemistry, some to the living system itself. Application criteria include good aqueous solubility (or solubility in the experimental medium); stability to hydrolysis (to avoid residual activity from the unmasked substrate, e.g., the often used ester bonds could be sensitive to hydrolysis); an efficient photorelease process (sufficiently rapid vs. the kinetics of the process to be studied, high yielding and not resulting in unwanted side products); photostability of the photolysis products; efficient masking of the biological activity with the PPG (the construct should be inactive prior to photoactivation); compatibility of the applied irradiation with the biological system in terms of wavelength and light intensity; and compatibility and non-reactivity of the PPG with the biological system to be studied/treated [35]. Additionally, a straightforward synthesis and purification process for the PPG itself and the PPG-substrate construct is necessary. To name a specific challenge, from a synthetic point of view, higher polarity molecules (e.g., molecules containing a number of hydrophilic groups such as sulfonates [39]) with better aqueous solubility could require aqueous synthesis and purification conditions, not typically used for organic synthesis. Upon choosing a chemical probe, often not all criteria of an ideal PPG are met. However, depending on the application, some shortcomings could still be tolerated.

2.4. UV and VIS (One-Photon) Activation of PPGs, Design Aspects

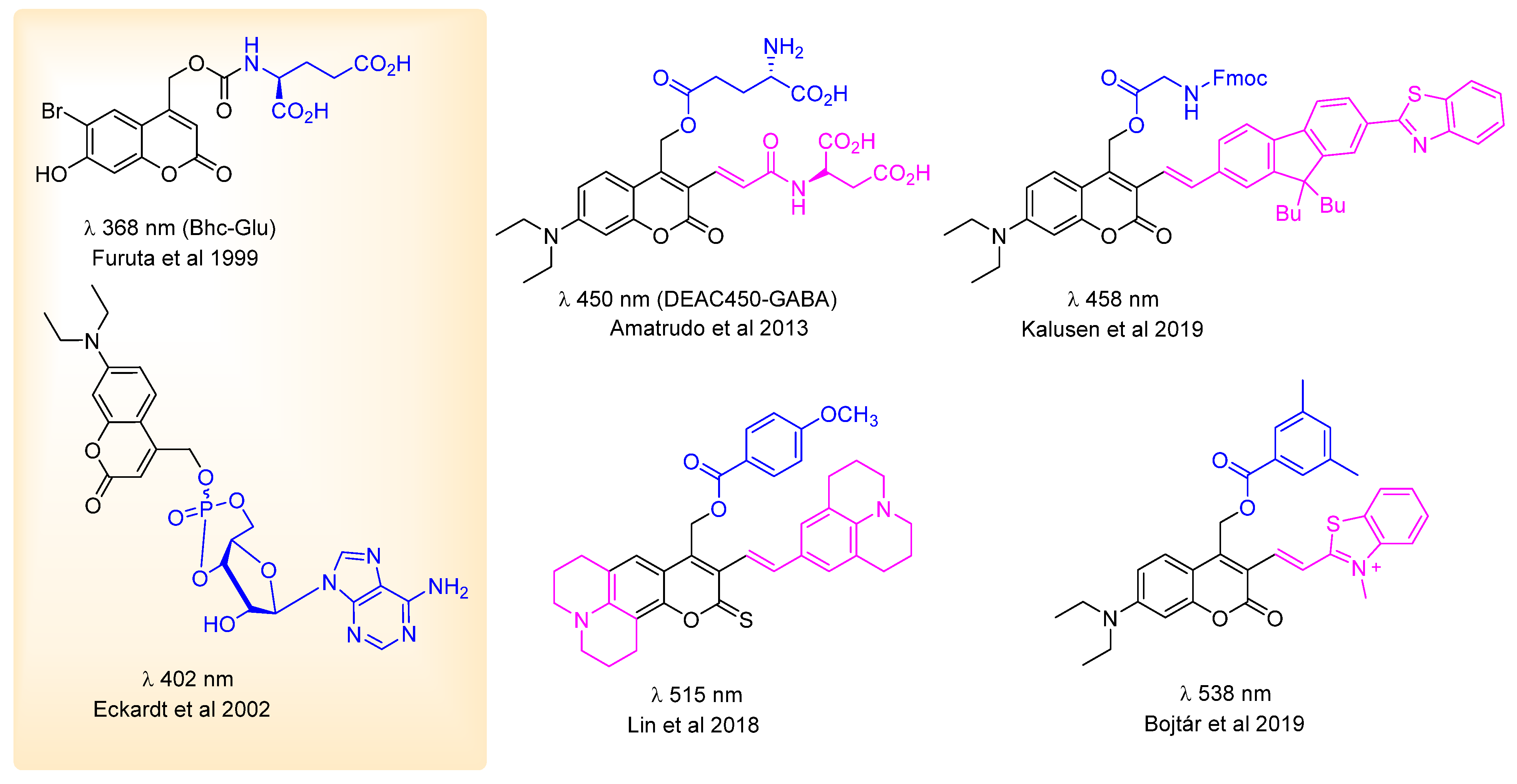

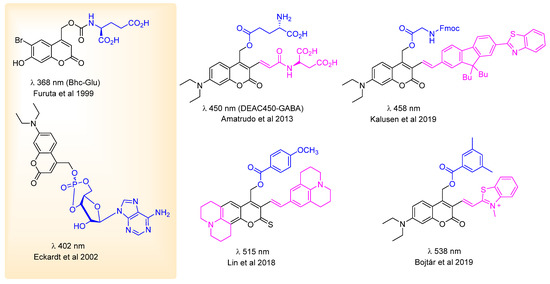

Regarding the activation signal used, phototoxicity of shorter (UV) wavelengths [40] and the tissue penetration of the light trigger are important factors when considering biological applications. The optical window of tissues (the wavelength region offering the best tissue penetration for light) spans the 650–900 nm (NIR) region [41,42], limited at the two extremities by the absorption of hemoglobin (<650 nm) and water (>900 nm). (Targeting this particular wavelength region is crucial also for in vivo optical imaging techniques.) Most of the PPGs used in experimental settings at present operate, however, outside this range (i.e., often at 350–450 nm). Work is ongoing for the development of PPGs operating at higher (visible/NIR) wavelengths (such as boron dipyrromethene (BODIPY) [36] or heptamethine cyanine derivatives [43]), that are more advantageous for in vivo operations. A straightforward approach is the modification of PPGs with moieties increasing the absorption wavelength (typically by creating systems with extended conjugation) [44]. To illustrate the optimization work around a specific scaffold, Figure 5 presents modifications of coumarin PPGs for obtaining probes operating at higher wavelengths. The modifications include extended conjugation with push-pull substituent patterns, application of conformationally locked electron-donating groups and a combination of π-extension with cationic moieties [45,46,47,48]. Of note, however, the different properties of PPGs are often difficult to fine-tune separately and the optimization of one characteristic could be detrimental for another (e.g., extended conjugation or the introduction of hydrophilic groups could alter the pharmacokinetics or the aqueous solubility of the construct).

2.5. NIR (Two-Photon) Activation of PPGs, Design Aspects. Characterization of PPGs

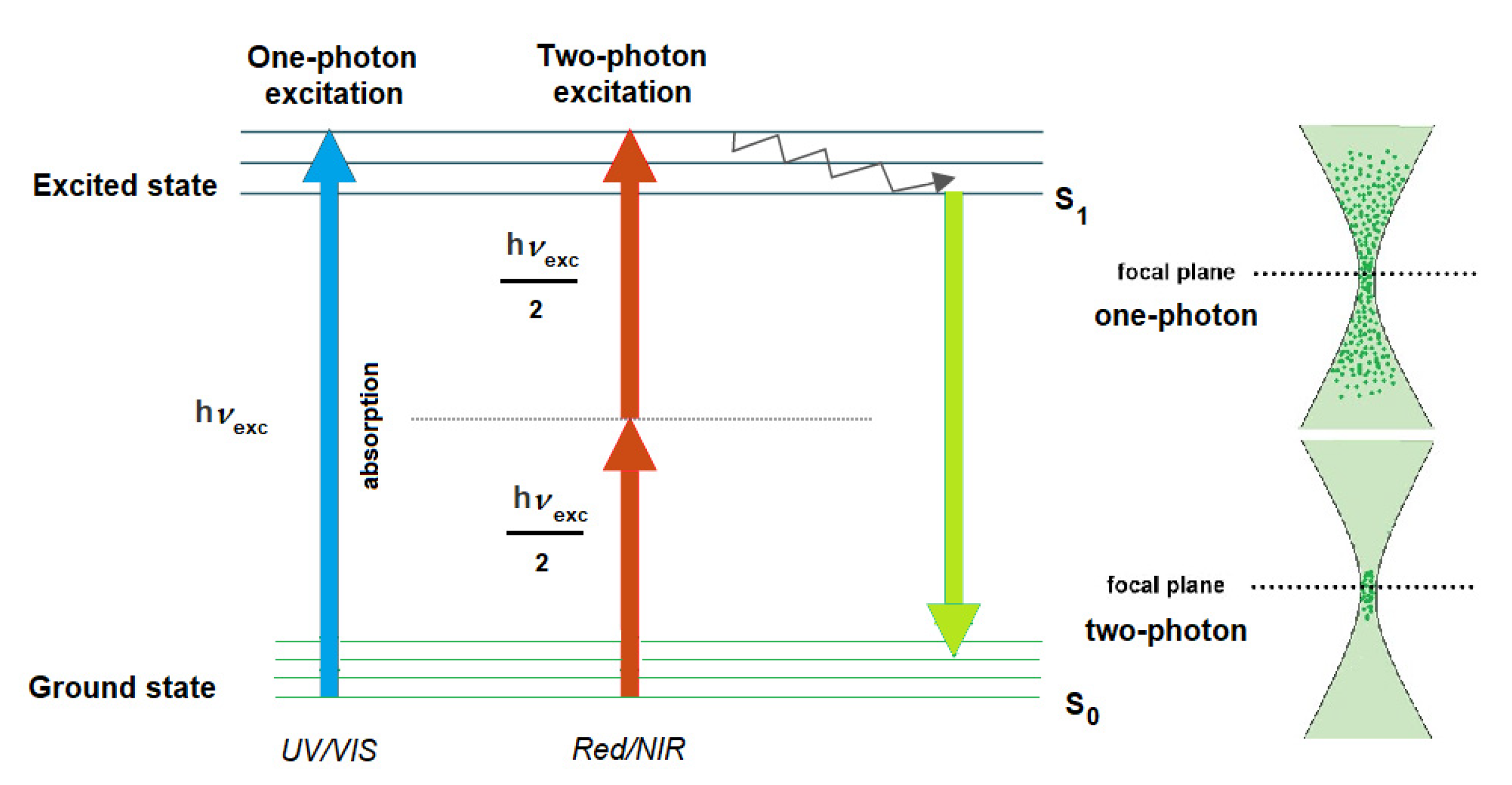

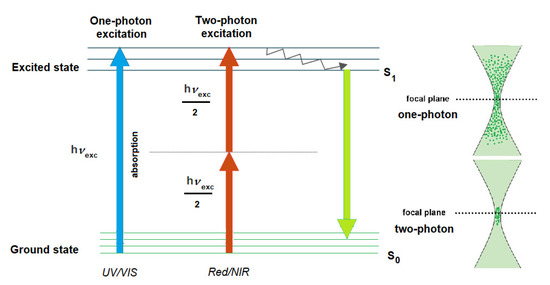

Alternatively, NIR wavelengths could be exploited for the photoactivation via a nonlinear optical process, the two-photon absorption (TPA) [51]. Whereas in this case the simultaneous absorption of two lower energy photons leads to excitation and consequent photoreaction, the process has a quadratic dependence on the light intensity (Figure 6). The excitation in this case necessitates on the one hand a maximum light intensity typically achieved at the focal point of the irradiation and, on the other hand, for practical purposes, a specific instrumentation. Two-photon (TP) activation has several advantages over the conventional one-photon (OP) activation. The longer wavelength used for TP activation is less phototoxic, has a deeper tissue penetration and the activation could be confined more efficiently, due to the inherent criteria of the process (i.e., a better resolution could be achieved).

PPGs are typically characterized by their absorption maxima and molar extinction coefficients (i.e., their light absorption properties), fluorescence, hydrolytic stability (crucial for avoiding unwanted release of the substrate prior to photoirradiation) and aqueous solubility. The quantum yield of the photolysis reaction (Φ_u—‘uncaging’ quantum yield) expresses the number of molecules liberated from the PPG-substrate construct vs. the photons absorbed. The overall photocleavage efficiency at a given wavelength depends also on the light-absorbing property of the construct (extinction coefficient—ε—in the case of a OP process or two-photon absorption cross-section—σ₂—for a TP process). The OP and TP uncaging cross sections could be expressed as the product of the quantum yield and the respective extinction coefficient (ε, in M⁻¹ cm⁻¹ or two-photon absorption cross-section σ₂, in GM (Göppert–Mayer), where 1 GM = 10⁻⁵⁰ cm⁴ s photons⁻¹) [51]. The quantitative cross section values reported in the literature could be used for a first evaluation and comparison of the novel PPGs disclosed. One-photon quantum yield measurements necessitate a monochromatic light source, that is often a mercury lamp or a LED/OLED source. Two-photon uncaging measurements require femtosecond pulsed infrared (Ti:Sapphire) lasers. The photolysis is often quantified by HPLC monitoring of the liberated substrate and the remaining fraction of the PPG-substrate construct [52]. With more sensitive chemical probes, a lower light intensity could be used, avoiding thereby phototoxicity. The minimal requirements regarding the uncaging performance of the probe are governed, however, by the studied system and the intended effect [53].

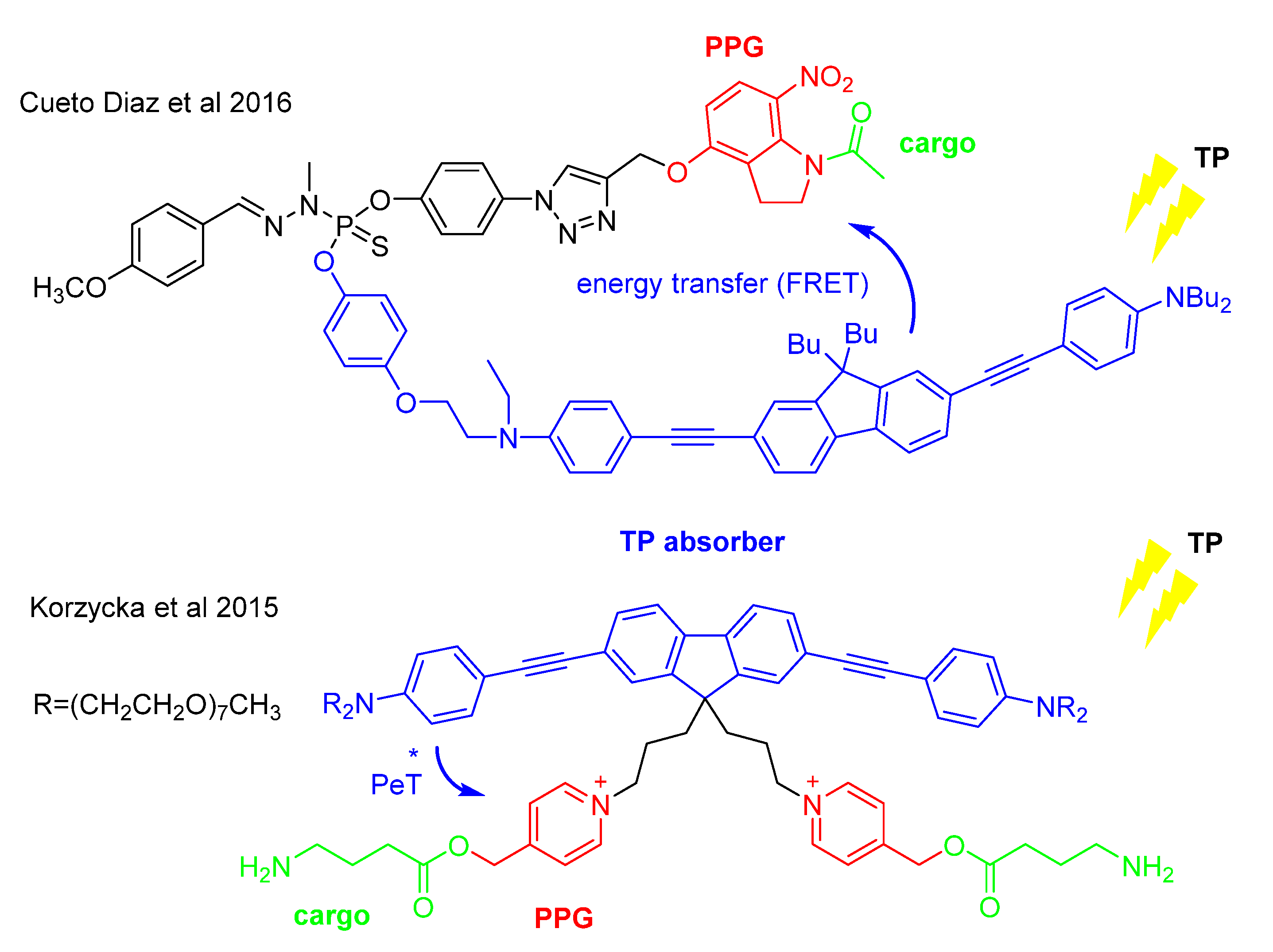

Particularly for TP PPGs, rational engineering and optimization of TP uncaging efficiency, i.e., predicting the effect of structural modifications on the uncaging process is still problematic, despite successful strategies for increasing the TP absorption itself [51,53]. To circumvent the issues related to the design of novel TP PPGs, modular approaches were suggested [54]: the light-harvesting and the cargo-releasing moieties of the probe are decoupled, by designing antenna-sensitized tandem systems operating via different mechanisms (such as triplet-energy transfer, photoinduced electron transfer or Förster resonance energy transfer sensitization—Figure 7) in which the two units could be optimized independently from each other.

2.6. Selected Applications of PPGs

PPGs via masking the toxicity or altering the physicochemical properties could enable harnessing drug molecules with a suboptimal ADMET profile. Dcona et al. attached a cell impermeable (sulfonated) small molecule to an anticancer drug (doxorubicin) via a nitroveratryl PPG linker [56]. While the construct itself could not enter the cells, upon photorelease the cell permeability as well as the consequent cytotoxic effect were restored (called ‘photocaged permeability’ by the authors).

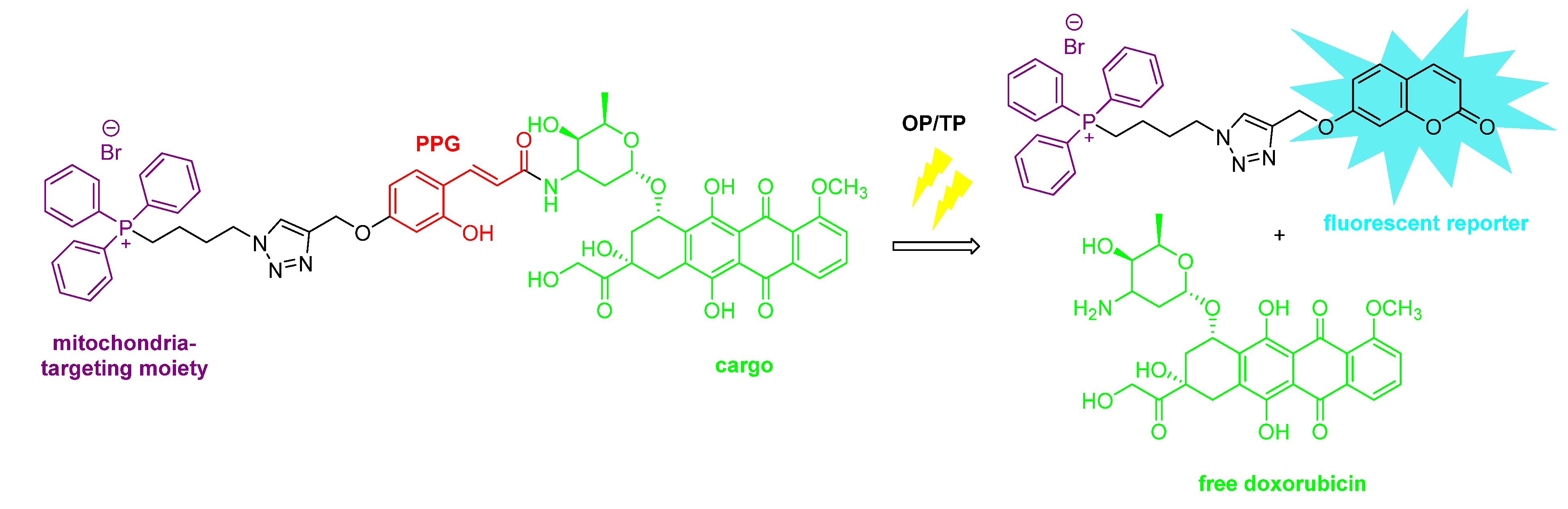

Besides the on-site activation of a biological agent (i.e., prodrug applications), PPG-substrate constructs could be endowed with further (e.g., theranostic) functions, such as monitoring the distribution of the probe or the photorelease process (typically via a turn-on fluorescence phenomenon). In this respect, Wu et al. designed a construct composed of a coumarin PPG, an anticancer drug as a cargo (camptothecin), a cleavable linker unit and a NIR fluorescent dye (dicyanomethylene-4H-pyran) [57]. In the construct, the fluorescence of the drug molecule and the PPG is quenched by the dye unit via fluorescence energy transfer. The cellular uptake of the construct and its intracellular distribution could be monitored using the fluorescence of the NIR dye (red emission). Upon OP or TP activation, following a reaction cascade, the release of the drug molecule could be visualized via its restored fluorescence (besides observing its pharmacological–cytotoxic–action). Additionally, cell- or site-selective targeting units could be integrated into the construct. Singh et al. developed a mitochondria-targeting system (using an alkyltriphenylphosphonium (TPP) targeting moiety) with an o-hydroxycinnamate PPG, releasing doxorubicin upon light irradiation [58] (Figure 8). Although the o-hydroxycinnamate PPG itself is not fluorescent, upon its photoinduced isomerization and cyclization a fluorescent coumarin derivative is formed, that could be exploited for the real-time monitoring of the release process. In an in vivo setting, drug release monitoring options (besides a targeting functionality) could consequently allow more precise (local) dosing and optimization of the side effect profile.

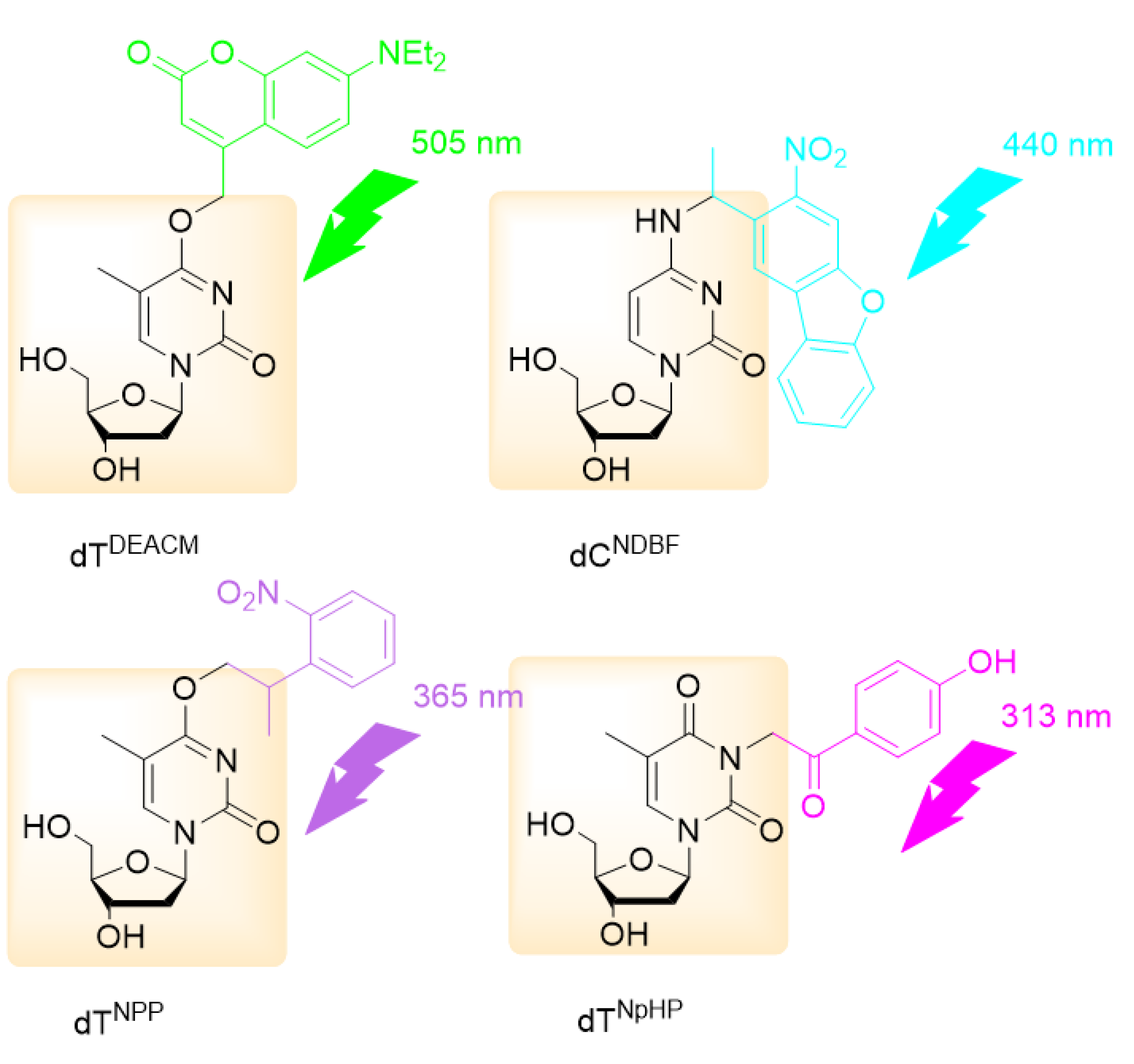

PPGs allow the design of more elaborate photorelease scenarios, with the liberation of several substrates. Namely, by applying a selection of PPGs activatable at different wavelengths, a sequential photorelease protocol could be devised (‘chromatic orthogonality’ [59,60]), as illustrated on Figure 9 with a wavelength-selective uncaging approach for oligonucleotides using four different PPGs [61].

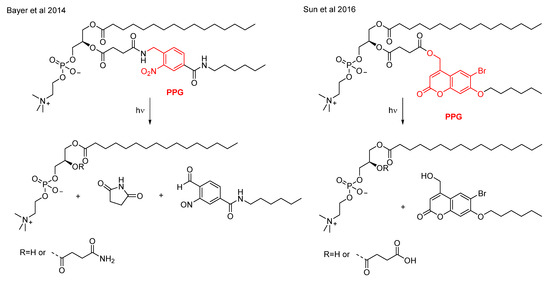

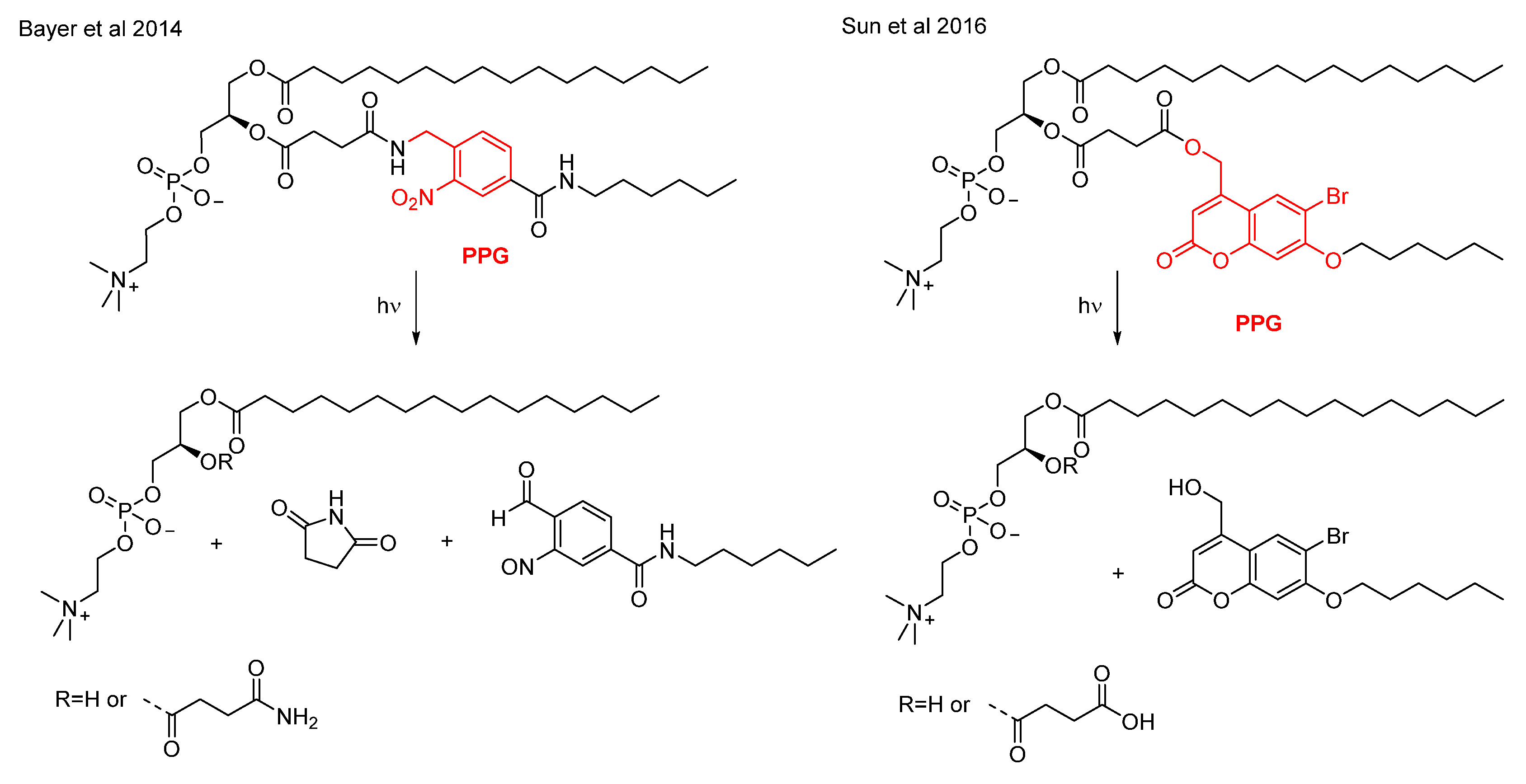

PPGs could be used in the design of more complex, nanoparticle-based drug delivery systems as well. In their structure, a PPG could be integrated in different manners to orchestrate the targeting or the drug release [62]. To address targeting, a straightforward approach is to modify directly the targeting ligands (anchored typically on the surface of the nanoparticles) with PPGs to block their interactions with their target. Alternatively, targeting ligands could be anchored within nanoparticles using PPG units, their photolysis resulting in the surface exposure of the ligands. Integrating the PPGs into the structure of nanocarriers, the photolysis could lead to their dissociation and the consequent release of their payload. The dissociation could be the result of various processes, as hydrophobicity change or photocleavage at the block junction of block copolymers [62]. Of the potential nanocarrier systems, photodisruption of liposomes was studied by several groups, using various photocleavable synthetic amphiphilic lipids. Bayer et al. placed a 2-nitrobenzyl PPG into the sn-2 acyl chain of the naturally occurring phosphatidylcholine, the photolysis of which leads to a nonbilayer lipid (upon release of the succinimide linker) and consequent membrane destabilization [63]. An analogue system was reported, based on a NIR-sensitive coumarin PPG (Figure 10), better suited for in vivo applications [64].

3. Practical Issues and Future Directions

The previous section aimed to elucidate the essential features of PPGs, besides highlighting some of their interesting applications. Despite the growing number of elegant studies using PPGs, there are still several obstacles to overcome to be able to exploit their full potential even in therapeutic/clinical settings. To address the therapeutic potential of photoresponsive systems, Lerch et al. recently introduced the concept of ‘photodruggability’ [65]. As for other externally addressable systems, critical aspects encompass tissue penetration of the trigger, delivery to and retention at the active site of the light-responsive constructs (small molecules or nanocarriers), precise control of the activation signal under in vivo conditions, availability and complexity of the necessary instrumentation, availability of translational models and safety [66]. For addressing the tissue penetration issue (less relevant however for superficial locations, such as the skin or the eyes) in the case of PPGs, structural modifications leading to higher operational wavelengths [44], exploiting TP activation with specifically designed probes [51] or specific formulations/alternative light sources have been studied (e.g., upconversion nanoparticles [67] or Cherenkov-radiation initiated uncaging [68]). Alternatively, endoscopy or surgical interventions could be envisaged for targeting otherwise not accessible, deeper lying organs [65]. Regarding the instrumentation, the field of PPGs could build on systems developed for other light-driven approaches, such as sophisticated implantable devices for photoswitches [69,70] or light sources for photodynamic therapy [71], as well as the previously cited optical fibers or endoscopic setups. The availability of in vivo results is a major bottleneck of the field at present. Many studies discussing novel PPGs are focusing on the organic synthesis and the photophysical-photochemical properties of the novel probes and are not going beyond proof of concept studies. Although not yet imminent, the regulation and approval for therapy of PPG-substrate constructs would need further consideration and experimental (safety) data vs. conventional small-molecule drugs. However, given the well-established application of PPGs particularly in neurophysiological studies and their potential for diverse research areas (e.g., materials science), a further expansion and diversification of the field could be expected, offering novel chemical probes with improved properties and innovative systems for addressing research and clinical needs.
