Conservation Voltage Reduction Impact Investigation for Personal Computing Devices Using Experimental Measurements and Computation Performance Metrics

Abstract

Conservation Voltage Reduction (CVR) is a potential energy management approach for increasing computer system energy efficiency. This study uniquely contributes to the field by thoroughly investigating the impact of CVR on computing devices, filling a significant gap in the existing literature. The research employs a novel experimental approach, considering the temporal variations in energy use behavior, and presents a comprehensive benchmark analysis of desktop PCs and laptops. Notable gains in processing efficiency are observed, with specific instances such as Desktop 1’s 1.53% Single-Core performance improvement and Desktop 3’s 3.19% total performance boost. Despite variations, the thermal performance of CVR-equipped devices, particularly Desktop 3 and Laptop 3, consistently demonstrates lower temperatures, indicating thermal management enhanced by 3.19% and 1.35%, respectively. Additionally, the study introduces the CVR Performance Enhancement Ratio (%), providing a unique metric for evaluating the trade-offs between energy efficiency and system performance. This research highlights the dual impact of CVR on thermal and computational elements, emphasizing its broad advantages. Integrating CVR emerges as a viable strategy for developing more durable, efficient, and sustainable computing devices, setting the stage for advancements in voltage regulation.

1. Introduction

The quest of utility operators for energy efficiency and sustainability has greatly heightened the interest in understanding the load characteristics and power consumption behavior of electronic devices, making it a critical area of study.Voltage regulation of the Distribution Network is a control approach used to keep the voltage of the Distribution Network within a specific range [1]. Because of the world’s current energy crisis, energy conservation has become critical. The CVR strategy is widely used in the power grid system to handle such emergencies and minimize peak hour electricity demand [2]. The work of [3] contributes significantly to the understanding of CVR dynamics in the context of power systems with PE-based components, paving the way for further research in this evolving field. Energy conservation is critical to the industrial and economic development of nations all over the world [4,5]. Energy conservation and planning are becoming increasingly important as the economic and worldwide environmental implications of energy consumption rise [6]. In the context of load parameter estimation and energy management, recent advancements in Energy Internet (EI) systems are exemplified by the work of [7]. The study introduces a bottom-up EI architecture employing data-driven dynamical control and deep reinforcement learning (DRL) techniques, with integrated curriculum learning (CL) for enhanced efficiency. Through simulations, the approach showcased a substantial reduction in overall generation costs by 7.1% and 37%, surpassing traditional methods like proportional integral and optimal power flow [7].

Electronic office equipment accounts for the majority of power consumption from service and tertiary end users [8]. Understanding the consumption behavior of computing devices is critical for the development of active load management techniques for such systems [9]. Consumer energy consumption is expanding at a fast pace, and it is predicted to quadruple by 2030. As a result, various research on practical strategies for managing energy supply and demand have been performed [10,11,12]. Office equipment is now thought to be the end-use of electrical energy in the commercial sector which is rising at the highest [13].

In the context of the escalating integration of renewable energy sources, it is essential to consider the implications for power quality and adherence to grid codes. The authors of [14] underlined the critical significance of power quality in maintaining efficiency, limiting excessive heating, and protecting assets connected to the electrical grid; they emphasized the possible consequences associated with poor power quality. The authors of [15] discussed the challenges and issues related to grid codes, power quality, and stability during contingencies. Power quality concerns may include voltage fluctuations, harmonic distortions, and frequency variations, all of which can affect the overall performance of the electrical grid [16]. The authors of [16] explicitly delved into the national grid codes that govern the operation and integration of power sources into Pakistan’s electrical grid. Grid codes are regulatory frameworks that set standards and guidelines for the performance, safety, and reliability of power systems; meanwhile, the primary focus remains on investigating the impact of CVR on computing system performance and recognition of the broader significance of power quality and grid codes in the evolving energy landscape is integral. Specifically, CVR, as a technique optimizing voltage levels, plays a crucial role in enhancing overall power quality and aligning with evolving grid code requirements.

1.1. Related Works and Research Gaps

Due to their widespread usage in homes and workplaces, personal computing devices like desktop PCs and laptops considerably contribute to total energy consumption. CVR implementation can potentially reduce the energy consumption of computational devices by intelligent reduction in terminal voltage. The authors of [17] provided a probabilistic technique for evaluating capabilities while accounting for uncertainties in renewable generation and system loads, exposing the impact of non-Gaussian solar PV and wind penetration on CVR capabilities. Using technology, ref. [18] provided a real-time power smoothing control technique for distribution systems with significant PV penetration. Its efficiency is demonstrated by modeling and field findings in China. To reduce substation demand, the authors of [19] proposed a method that combines distributed generation, var optimization, and CVR. The best location for the DG and shunt capacitor is determined using the GWO approach. Despite the clear potential of CVR to significantly reduce energy consumption, a key unanswered concern is the impact of CVR on the computational performance of personal computing devices. Previous studies have concentrated on energy management approaches and their possible influence on computer systems [20,21,22]. It is critical to reduce energy usage while preserving or even improving system performance. The thermodynamic approach proposed in [23] provides a comprehensive method for evaluating energy performance in IT servers and data centers. It is crucial to note that the authors of [23] did not include an investigation into CVR.This study, on the other hand, extensively explores the experimental impact of CVR on performance metrics and energy efficiency in computer systems. Traditional energy performance metrics, such as energy usage intensity, have been used to assess energy efficiency [24,25,26]; however, they may not completely represent the temporal variations in energy use behavior. As a result, more comprehensive performance measurements that reflect not just overall energy usage but also the temporal elements of energy use are required. The authors of [27] emphasized the innovative approach of load-shape benchmarking, which refers to a method of assessing and comparing the patterns of energy consumption to enable easy access to low-cost tools for energy efficiency and understanding energy use behaviors in commercial buildings.

Different performance metrics can be used to analyze the performance of personal computing devices. The authors of [28] discussed measuring average normalized turnaround time and system throughput for thorough benchmarking when evaluating multi-program workload performance on multi-threaded hardware. In practice, running benchmarks to completion, especially in simulation setups, can be time-consuming and impractical. Full benchmark execution may take weeks, even on the fastest simulators and hardware. To address this, academics frequently employ sampling simulation, which involves running just representative units with a limited number of simulation points, or simply a single simulation point per benchmark [29,30,31,32]. The authors of [33] presented a novel approach for improved power quality disturbance detection by analyzing key factors, including wavelet analysis and disturbance features, and employing various wavelet transforms to enhance parameter selection and accuracy. In addition to demonstrating that higher motor efficiency, particularly in smaller machines, lowers iron-core losses, the authors of [34] validated the energy-saving potential of CVR for refrigeration loads (RLs) and presented a criterion for evaluating CVR efficacy. This study aims to fill gaps in earlier research by presenting a unique approach for benchmarking the performance of computing systems under CVR deployment. There are some existing studies analyzing the CVR impact on buildings using performance metrics, but similar studies are lacking for computational devices.

1.2. Contributions

The primary objectives of this research are to investigate the behavior of desktop and laptop computers under varying voltage conditions. The study employs a Variac to test devices at different voltage settings, evaluating their energy efficiency, load behavior, power consumption, performance metrics, and thermal characteristics in response to voltage variations. Additionally, the research explores the potential benefits of implementing CVR strategies for improving energy efficiency.

The specific contributions of this study are as follows:

• Developed a novel experimental approach to benchmark the performance of computing systems under CVR deployment, considering the temporal variations in energy use behavior.
• Presented a comprehensive benchmark analysis of desktop PCs and laptops, assessing performance metrics like Single-Core and Multi-Core Scores under different voltage settings with a focus on CVR implementation.
• Investigated the thermal performance of computing systems under various CVR scenarios, providing novel insights into the impact of CVR on heat dissipation from the computing devices. This aspect has not been extensively discussed in the existing literature, marking it as a distinct and valuable contribution.
• Introduced and defined the CVR Performance Enhancement Ratio (%), a novel metric for systematically evaluating and quantifying the impact of CVR on the performance efficiency of computing systems. This ratio offers a unique perspective on the trade-offs between energy efficiency and system performance, contributing to the body of knowledge on sustainable computing practices.

The study’s findings provide vital information for customers, manufacturers, and legislators to make educated judgments about energy-efficient computing technologies. The study might pave the way for sustainable and energy-conscious computing practices, leading to considerable energy savings, by establishing the appropriate voltage levels and examining the possible advantages of CVR.

2. Conservation Voltage Reduction

Due to the growing concern about environmental sustainability and rising energy prices, energy-efficient computing has emerged as a crucial component of contemporary technology. Optimizing the energy use of personal computing devices, such as desktop PCs and laptops, is crucial in lowering the overall carbon footprint, since they are now so common in our everyday lives. The ideas of energy-efficient computing will be covered in this section, along with power-saving techniques and the importance of reducing energy consumption in computer hardware. CVR strategies are important in modern power systems because they are an effective way to optimize energy usage and improve overall system efficiency. CVR entails lowering voltage levels in power Distribution Networks, resulting in energy savings without sacrificing electrical service performance or quality. Given the growing emphasis on environmental responsibility, incorporating CVR methodologies into personal computing activities has the potential to promote not only energy conservation but also alignment of technology with the broader aims of sustainable development. Our primary focus centers on how CVR techniques can be applied in personal computer settings to achieve energy savings without compromising device performance.

2.1. CVR Factor

The CVR factor, $CV{R}_f$, is crucial in quantifying the resulting energy savings achieved by reducing voltage levels in the Distribution Network.

$$\begin{array}{c}\hfill \begin{array}{c}\hfill CV{R}_{f_E}=\frac{\%\Delta E}{\%\Delta V}\end{array}\end{array}$$

(1)

where $\%\Delta V$ is the percentage of the voltage change, and $\%\Delta E$ is the percentage energy saved. $CV{R}_{f_E}$ represents the CVR in terms of Energy saved [35]. In terms of active power demand reduction, $CV{R}_f$ is represented as:

$$\begin{array}{c}\hfill \begin{array}{c}\hfill CV{R}_{f_P}=\frac{\%\Delta P}{\%\Delta V}\end{array}\end{array}$$

(2)

Here, $\%\Delta P$ is the percentage variation of the active demand load and $CV{R}_{f_P}$ represents active power demand reduction by CVR implementation [36].

2.2. Performance Metric of a Single-Core System

A performance metric, more precisely the “Single-Core Score” of the Geekbench [37] program, is a numerical depiction of the Central processing unit’s (CPU) competence and efficiency when carrying out tasks that need a single processing core in a computer system. This score, which is produced by Geekbench using standard tests, measures how well the system performs across a variety of workloads that are performed in single threads and gives an indication of how well it can handle activities that are not optimized for parallel processing. The Single-Core Score is a performance indicator that helps users and stakeholders evaluate the computing capacity of each individual core in a system. It provides useful data for a range of workloads and applications that primarily employ a single processing core.

2.3. Performance Metric of a Multi-Core System

A performance metrics for Multi-Core systems is a numerical measure that measures the collective processing efficiency of a computer system’s CPU across several cores, as represented by the “Multi-Core Score” in the context of tools like Geekbench [37]. This measure is developed from standardized tests that evaluate the system’s performance in parallel workloads, demonstrating its ability to execute tasks across several processor cores at the same time. The Multi-Core Score is a comprehensive performance metric that provides information about the system’s overall multitasking capabilities as well as its efficacy in handling workloads that benefit from parallel processing. It provides a quantifiable benchmark for analyzing the system’s capacity to distribute and manage computational workloads over several cores at the same time, providing vital information for optimizing Multi-Core architecture performance.

2.4. CVR Performance Enhancement Ratio

The CVR Performance Enhancement Ratio (CVR PER) is a new metric proposed in this study to assess the relative impact of CVR on a system’s performance efficiency. This ratio is stated as a percentage and is determined by comparing the performance metric obtained with CVR to the performance metric obtained without CVR, offering vital insight into CVR’s efficacy in impacting total system performance.

$$CVR\_PER(\%)=\frac{PM\_cvr-PM\_wocvr}{PM\_wocvr}\times 100$$

(3)

where $PM\_cvr$ represents the measured performance metric of the system under consideration when CVR is deployed. and $PM\_wocvr$ signifies the measured performance metric of the system without the application of CVR.

The formula proposed in this research, denoted as the CVR PER, serves as a novel metric aimed at evaluating the influence of CVR on the performance efficiency of a system. It is computed by scaling the ratio of the performance metric obtained with CVR to the performance metric obtained without CVR by 100, and it is expressed as a percentage. This novel formula is highly relevant to the field of energy-efficient systems, especially those that use CVR techniques. Researchers and practitioners can use the formula to systematically evaluate and quantify the increase or decrease in performance efficiency that happens as a result of using CVR. Through an analysis of the performance metric both with and without CVR, this formula offers important information about how well CVR contributes to total system performance. The CVR PER (%) holds importance as it provides information to researchers, engineers, and decision-makers regarding the trade-offs between system performance and energy conservation measures like CVR. It serves as a powerful tool for evaluating the holistic impact of CVR on a system, considering both energy consumption and performance metrics. By balancing energy conservation with preserving or even improving system performance, these data can help optimize energy-efficient systems. As a result, the formula advances knowledge about and application of high-performance, sustainable computing systems across a range of industries.

3. Experimental Setup and Methodology

The experimental setup was meticulously designed to assess the performance of various desktops and laptops under different voltage conditions as shown in Figure 1. A Variac with a 1 kVA rating served as the primary component for adjusting the supply voltage, ranging from 230 V to 200 V in precise 5 V increments. This setup aimed to simulate varying voltage scenarios to analyze device performance under different power conditions.

To capture essential data, including voltage, current, and power, we employed the Lab Volt Data Acquisition and Control Interface (LVDACI) [38] in conjunction with the LVDAC EMS Version 3.22 software. This combination facilitated accurate and real-time data recording throughout the experimental process.

3.1. Validation Procedures

Ensuring the accuracy and reliability of our measurements was paramount. Calibration checks were regularly performed on the LVDACI to maintain precise measurements. The instruments used in the experiment were selected for their high accuracy, contributing to the overall reliability of the data collected.

3.2. Accuracy and Repeatability

The accuracy of our measurements was influenced by the precision of the instruments used. To address repeatability concerns, each device underwent five individual tests, and the results from repeated measurements were consistently reproducible. This demonstrated the stability and reliability of our experimental setup.

3.3. Number of Tests Conducted

In total, six devices—tabulated in

Table 1. Description of devices under test.

Category	Desktop 1	Desktop 2	Desktop 3
Operating System	Microsoft Windows 10 Enterprise (64-bit)	Microsoft Windows 11 Famille (64-bit)	Microsoft Windows 11 Professionnel (64-bit)
Model	BRK5DRS	Dell Inc. XPS One 2710	System manufacturer System Product Name
Processor	Intel Core i5-2320 @ 2.99 GHz, 1 Processor, 4 Cores	Intel Core i7-3770S @ 3.10 GHz, 1 Processor, 4 Cores, 8 Threads	AMD Ryzen 5 1600X, 1 Processor, 6 Cores, 12 Threads
Processor ID	Genuine-Intel Family 6 Model 42 Stepping 7	GenuineIntel Family 6 Model 58 Stepping 9	AuthenticAMD Family 23 Model 1 Stepping 1
Processor Code-name	Sandy Bridge	Ivy Bridge	Summit Ridge
Processor Package	Socket 1155 LGA	Socket 1155 LGA	Socket AM4 (1331)
L1 Instruction Cache	32.0 KB × 2	32.0 KB × 4	64.0 KB × 6
L1 Data Cache	32.0 KB × 2	32.0 KB × 4	32.0 KB × 6
L2 Cache	6.00 MB × 1	256 KB × 4	512 KB × 6
L3 Cache	3.00 MB × 1	8.00 MB × 1	8.00 MB × 2
Motherboard	Intel Corporation DH67CL	Dell Inc. 02XMCT	ASUSTeK COMPUTER INC. PRIME X370-PRO
Category	Laptop 1	Laptop 2	Laptop 3
Operating System	Microsoft Windows 10 Pro (64-bit)	Microsoft Windows 10 Pro Education (64-bit)	Microsoft Windows 10 Home (64-bit)
Model	Dell Inc. Latitude E4310	Dell Inc. Vostro 14-3468	ASUSTeK COMPUTER INC. TUF Z370-PLUS GAMING
Processor	Intel Core i5-520M @ 2.40 GHz, 1 Processor, 2 Cores, 4 Threads	Intel Core i7-7500U @ 2.89 GHz, 1 Processor, 2 Cores, 4 Threads	Intel Core i5-8500 @ 3.01 GHz, 1 Processor, 6 Cores
Processor ID	Genuine-Intel Family 6 Model 37 Stepping 5	GenuineIntel Family 6 Model 142 Stepping 9	GenuineIntel Family 6 Model 158 Stepping 10
Processor Code-name	Arrandale	Kaby Lake-R	Coffee Lake
Processor Package	Socket 989 rPGA	Socket 1515 FCBGA	Socket 1151 LGA
L1 Instruction Cache	32.0 KB × 2	32.0 KB × 2	32.0 KB × 2
L1 Data Cache	32.0 KB × 2	32.0 KB × 2	32.0 KB × 3
L2 Cache	256 KB × 2	256 KB × 2	256 KB × 3
L3 Cache	3.00 MB × 1	4.00 MB × 1	9.00 MB × 1
Motherboard	Dell Inc. 0T6M8G	Dell Inc. 0VCX0K	ASUSTeK

—were subjected to a comprehensive testing regime. Each device underwent five individual tests of repeating measurements on each voltage level, and within each test, we conducted 15 performance metric assessments tabulated in

Table 2. Benchmark tests from Geekbench.

Benchmark Test	Description
File Compression	This metric measures how rapidly
	the system can compress files.
Navigation	This function assesses the system’s
	performance during web-based operations.
HTML5 Browser	The HTML5 rendering critical for
	the current online applications and multimedia content are evaluated
PDF renderer	This metric assesses the system’s ability
	to produce PDF documents effectively
Photo Library	The system’s performance in maintaining and processing
	picture files inside a photo library is measured.
Clang	This function measures the system’s performance
	when compiling programs with the Clang compiler.
Asset Comparison	The system’s capacity to compress and decompress
	digital materials effectively is measured.
Object Detection	The performance of the system in
	identifying items inside photos/videos.
Background Blur	The ability of the system to create
	a background blur effect on photographs
Horizon Detection	This test evaluates the system’s ability to
	recognize the horizon line in photos
Object Remover	Evaluates effectiveness to remove items from photos.
HDR	Evaluates performance of producing/processing HDR photos.
Photo Filter	Evaluates performance in applying
	filters and effects to photos
Ray tracer	Capacity of the system to conduct
	ray tracing is evaluated.
Structure from Motion	Evaluates performance in building 3-D models using structure from motion approaches.

. These assessments covered scenarios both with and without CVR. Therefore, the total number of tests for each device equated to $15\times 4\times 5$ performance metric tests per individual test, resulting in 300 tests per device. Considering the fact that the study involved six devices, the cumulative number of tests conducted for all devices was $6\times 300$, totaling 1800 tests.

These rigorous validation measures and the extensive testing protocol contribute to the transparency, rigor, and validity of our experimental study, ensuring the reliability of the obtained results.

3.4. Power Supply Unit (PSU) Analysis

The Power Supply Unit (PSU) is a critical component in computing devices, responsible for converting electrical energy from the mains input into a stable and regulated form suitable for powering internal components. In the context of CVR, understanding the behavior of the PSU becomes paramount, as fluctuations in input voltage may impact the overall energy efficiency and performance of computing systems.

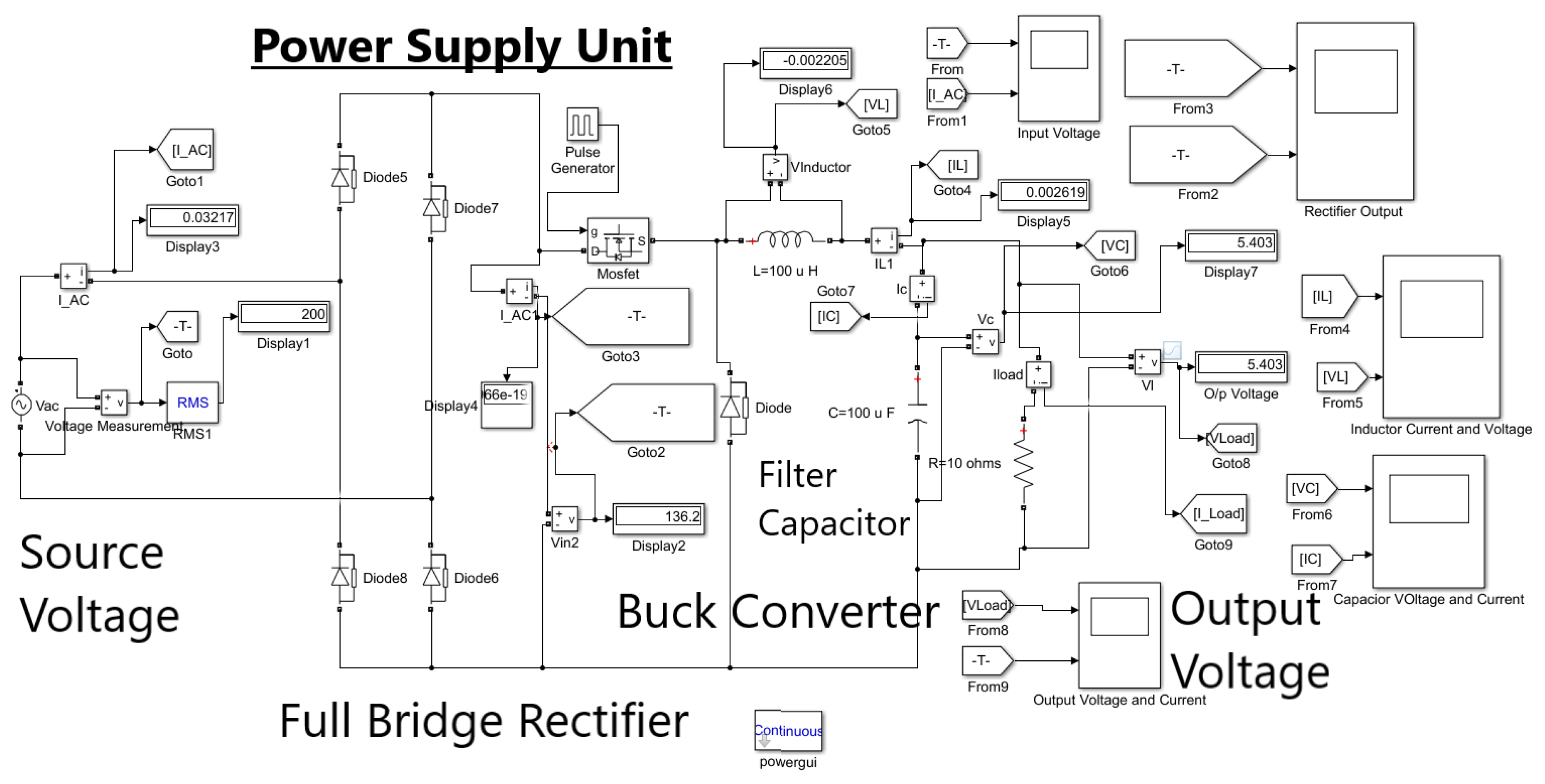

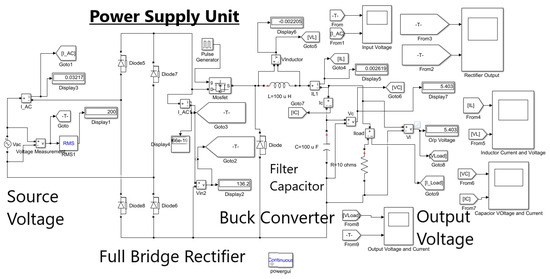

Simulink Model of PSU Operation

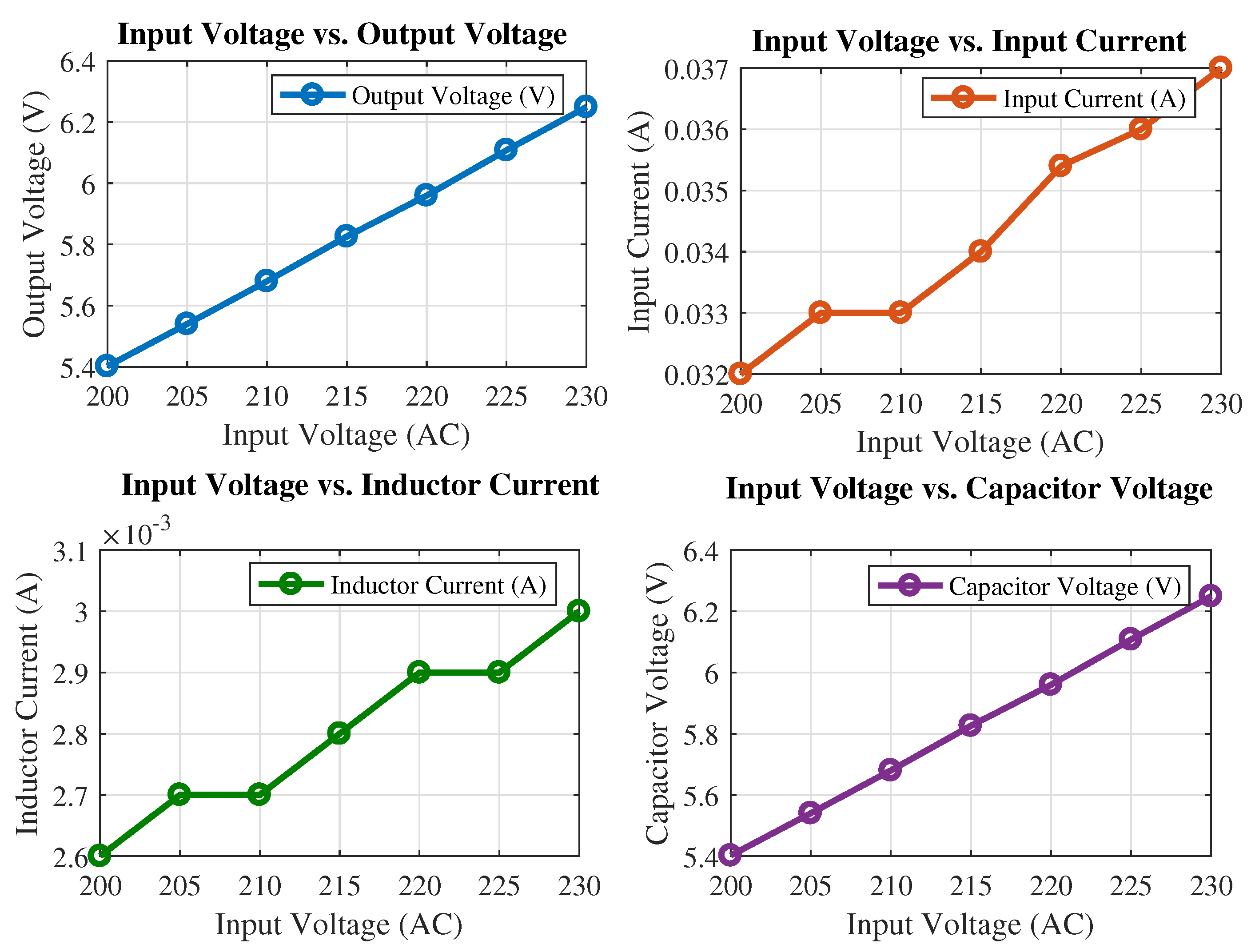

A comprehensive Simulink model was created to examine the effect of CVR on PSU functioning shown in Figure 2. A full bridge rectifier, buck converter for voltage control, AC voltage supply, and a load that represents desktop and laptop computers are some of the components that are included in the model. This simulation sheds light on how different input voltages affect the PSU and how that affects the output.

3.5. Description of Desktop PCs and Laptops Specifications

In this study, the effects of CVR on the performance of a different Desktop PCs and a Laptops were examined. To evaluate the Single-Core and Multi-Core performances of all devices, tests, and benchmarks were performed. The study provided important insights into CVR’s performance under various circumstances by examining its impacts at voltage levels ranging from 230 V to 200 V. Table 1 provides detailed information about all the systems under examination.

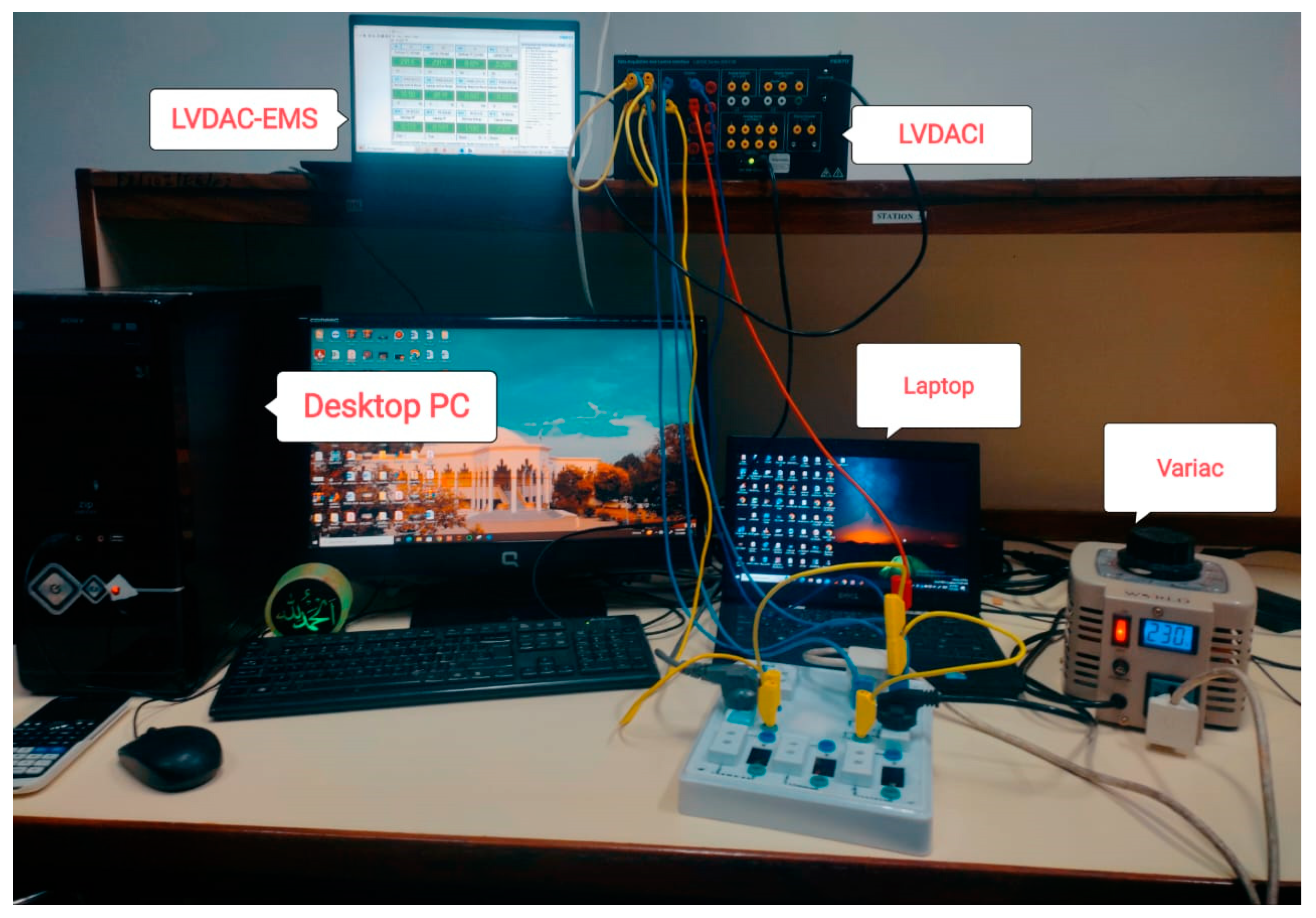

3.6. LVDACI and Variac Integration for Variable Voltage Conditions

A flexible data acquisition and control interface from Festo [38], the LVDACI, offers accurate measurement of voltage, current, active and reactive powers, power factor, and energy up with to 4 loads connected at a time. The output voltage that is delivered to the devices may be changed using the 1 kVA Variac, a variable auto-transformer. Variac ranges between 0 and 250 V are well suited here for providing variable voltage to loads and for the analysis of CVR. A connection board with banana sockets is specially designed to connect loads and Variac with LVDACI considering safety precautions. A complete set of modern computer-based instruments for measuring, viewing, analyzing, and manipulating electrical characteristics is provided through the collaboration of the LVDACI and LVDAC-EMS. The LVDACI and LVDAC-EMS both provide manual and timed data recording. The gathered information can be exported into a spreadsheet program and can be used for analysis purposes. The functionality of LVDACI and LVDAC-EMS is clearly described in [38].

4. Task Execution and Data Collection for Benchmarking

A series of controlled tests were carried out to study the load characteristics, power consumption, and performance metrics of the desktop PCs and laptops under varied voltage settings. Section 3 described the experimental setup, which included the integration of LVDACI and Variac for voltage control. This section describes the tasks carried out during the experiments as well as the data-gathering processes.

4.1. Tasks

A variety of activities were performed to evaluate the performance of the desktop PCs and laptops, reflecting both computationally intensive and real-world application settings. The activities were deliberately chosen to test various hardware components such as the CPU, GPU, and memory under varying voltage settings.

4.1.1. CPU-Intensive Work

Using synthetic benchmarks and computational simulations, a CPU-intensive work was created. To fully leverage the CPU’s processing power, this activity required completing complicated mathematical computations and algorithms.

4.1.2. Graphics-Intensive Work

A graphics-intensive work was run to stress the GPU and evaluate graphical performance. Running graphics benchmarks and 3D rendering apps was part of this work.

4.1.3. Multitasking Scenario

A multitasking scenario was created to imitate real-world usage in which numerous apps, such as online surfing, video playing, and document editing, were run concurrently.

4.2. Data Gathering

Data were collected concurrently with job execution to gather important performance indicators and power consumption values.

4.2.1. Power Consumption

The inbuilt LVDAC and digital power meter were used to measure the power consumption of the desktop PC and laptop at each voltage level. The data were taken at regular intervals throughout the task execution to provide a detailed power usage profile.

4.2.2. Performance Metrics

Using appropriate benchmarking tools, performance measurements such as CPU load, GPU utilization, frame rates, reaction times, and data transfer rates were recorded. These measures were critical in determining the responsiveness and efficiency of the devices under varied voltage situations. In this work, performance metrics are computed using Geekbench, a benchmarking tool for performance metrics.

4.2.3. Thermal Behavior

In this experiment, the thermal behavior of the system was analyzed to understand how the temperature of the CPU varies under different conditions. Temperature measurements were taken using the software named CPUID HWmonitor Version 1.51.0. CPUID HWmonitor is a well-known piece of software that allows the real-time monitoring of several hardware metrics, such as CPU temperature, voltage, and fan speed [39]. It has an intuitive user interface and enables users to monitor temperature changes as the device runs. Regularly throughout carrying out various duties on both the desktop PC and the laptop, the temperature data were recorded. The measurements were utilized to examine each system’s thermal performance under different load scenarios.

4.3. Performance Benchmarking with Geekbench

A popular benchmarking tool for assessing the performance of computers and mobile devices is Geekbench [37]. It assesses the performance of Single-Core and Multi-Core processors, providing important information regarding computing capabilities. Geekbench is used in an experimental setup to assess desktop and laptop performance in various scenarios. The software, which has a user-friendly interface and thorough reporting, is developed by Primate Labs. Geekbench supports several different operating systems, making it possible to benchmark both Windows-based desktop computers and Mac laptops. Geekbench was run numerous times on each system to guarantee statistical significance and dependability. The performance disparities between the each system under various settings, such as (CVR), were then analyzed using the mean scores. Benchmark tests that were used for this study using Geekbench are summarized in Table 2.

4.3.1. Single-Core Score

This is an aggregated metric derived from Geekbench overall scores. This score assesses the system’s capability to execute operations outlined in Table 2 utilizing the processing power of a Single-Core. The Single-Core Score offers valuable insights into the system’s efficiency when handling tasks that rely on individual processing units, providing a detailed perspective on its core-level performance.

4.3.2. Multi-Core Score

This is another crucial metric derived from Geekbench overall scores. Unlike the Single-Core Score, the Multi-Core Score evaluates the system’s performance when leveraging the combined processing power of multiple cores. This metric holds significance in assessing the system’s efficiency in scenarios demanding parallel processing and multitasking capabilities, offering a comprehensive view of its overall performance.

5. Results and Analysis

This section presents the benchmarking and CVR impact results. First, the power consumption analysis results are presented, followed by the CVR analysis.

5.1. Power Consumption Analysis

Table 3. Power consumption of desktop and laptop.

Voltage (V)	Desktop PC Active Power (W)			Laptop Power Consumption (W)
	Desktop 1	Desktop 2	Desktop 3	Laptop 1	Laptop 2	Laptop 3
230	15.4	22.202	18.55	35.6	40.25	25.52
225	15.8	22.388	17.65	32.52	39.67	25.19
220	15.2	21.586	18.98	33.41	39.67	24.12
215	16.72	20.869	18.52	32.79	38	23.09
210	14.78	18.955	17.25	32.62	37.48	21.89
205	14.9	18.622	17.11	31.66	36.02	20.51
200	14.73	18.241	16.89	31.91	35.7	19.74

investigates the power consumption patterns of Desktop PCs and Laptops at various voltage levels, providing a look into how these devices respond to CVR scenarios. As the voltage drops from 230 V to 200 V, both desktop PCs and laptops reduce active power usage, complying with energy-saving principles. Notably, laptops appear to be more sensitive to voltage variations than desktop PCs. The differences in power consumption amongst devices at the same voltage level highlight the importance of hardware configurations and device-specific considerations. These findings emphasize the potential energy-saving benefits of purposeful voltage reduction, highlighting the importance of proper voltage levels and device selection in energy-efficient applications. Consistent measurements across numerous devices at each voltage level add to the study’s dependability, giving useful insights for CVR research and energy-efficient computation.

5.2. CVR Analysis

CVR factors for all desktop PCs and laptops are calculated using the given power consumption data from Table 3 and utilizing Equation (2). The CVR Factors

Table 4. CVR factors for desktop and laptop.

Voltage (V)	Desktop 1	Desktop 2	Desktop 3	Laptop 1	Laptop 2	Laptop 3
230	-	-	-	-	-	-
225	−1.19	−0.37	2.23	3.97	0.66	0.59
220	0.29	0.64	−0.53	1.41	0.33	1.26
215	−1.31	0.92	0.02	1.21	0.85	1.46
210	0.46	1.68	0.8	0.96	0.79	1.63
205	0.29	1.48	0.71	1.01	0.96	1.8
200	0.33	1.36	0.68	0.79	0.86	1.73

helps in determining the ideal voltage for energy savings for each device in addition to illuminating the complex link between voltage changes and power consumption. Interestingly, desktop PCs show negative CVR factors at 225 V, indicating that power usage increases as voltage decreases. Nevertheless, each device has a different specific magnitude of these parameters. Desktop 2, for example, shows a significant negative CVR factor of −0.37, indicating a significant rise in power usage at this voltage. Laptops, on the other hand, constantly display positive CVR factors, highlighting their more energy-efficient reaction. With a noteworthy CVR factor of 3.97 at 225 V, Laptop 1 stands out remarkably, demonstrating its effectiveness in striking a balance between performance and energy conservation. Making the switch to 220 V, for desktop PCs, the complex relationship between voltage decrease and power usage becomes more evident. In this case, Desktop 1 displays an energy-efficient behavior with a positive CVR value of 0.29. Nevertheless, Desktop 3 shows a negative value of −0.53, indicating that power usage at this voltage can rise. Conversely, laptops continuously maintain good CVR values, demonstrating their energy-efficient nature. For example, Laptop 3 has a noteworthy CVR factor of 1.26 at 220 V, which indicates optimal power utilization. This detailed analysis emphasizes that each device’s ideal voltage for energy savings is shown by the voltage at which the CVR factor is maximum. As a result, many devices may have unique ideal voltage levels, highlighting the significance of taking device-specific factors into account in order to achieve energy economy without sacrificing functionality.

5.3. Performance Benchmarking of Computing Devices with and without CVR

The performance benchmarking results presented in

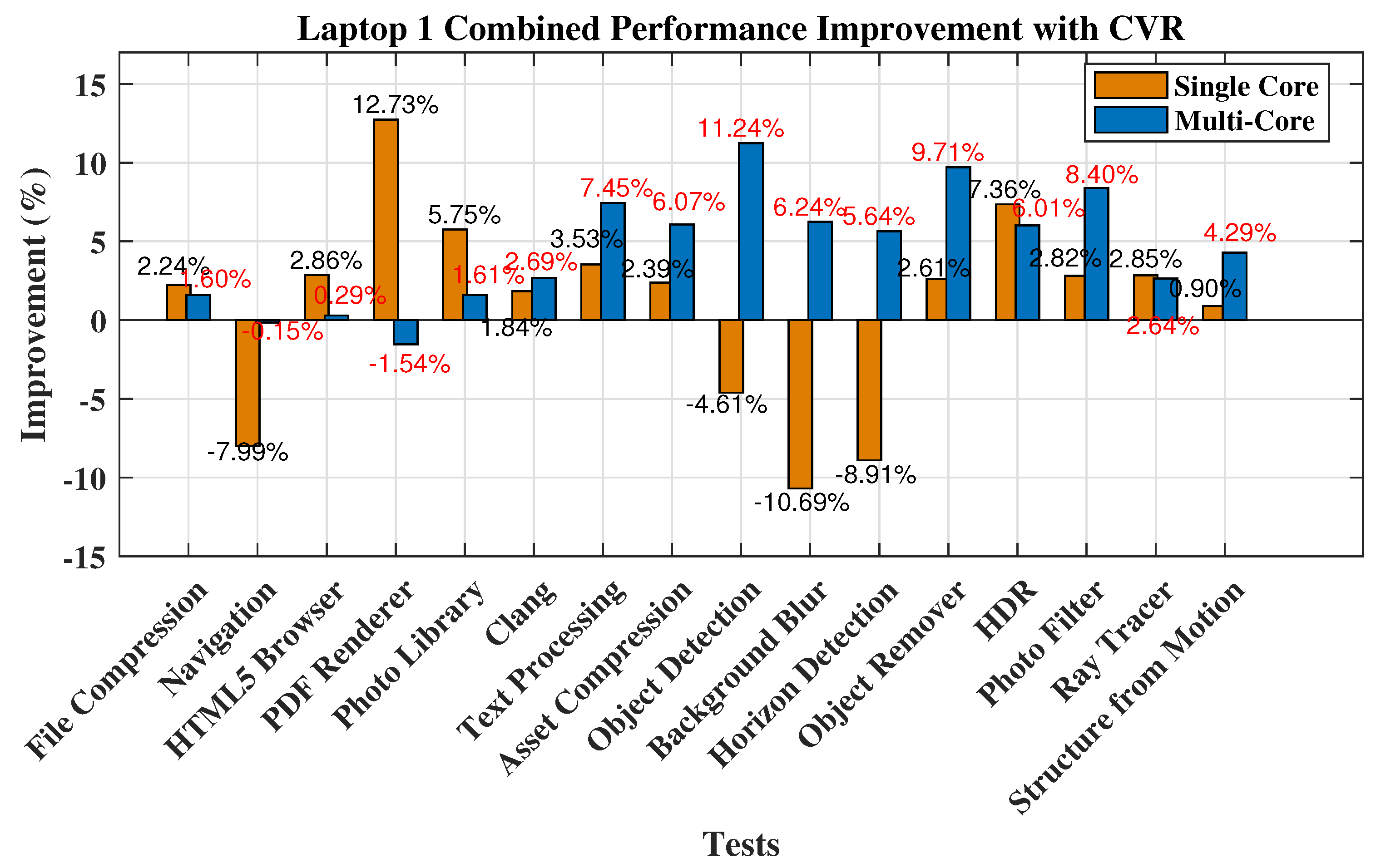

Table 5. Performance of Laptop 1 without CVR vs. with CVR.

Test	Single-Core Performance			Multi-Core Performance
	W/O CVR	With CVR	% Improvement	W/O CVR	With CVR	% Improvement
File Compression	637.2	651.8	2.24	810.4	823.6	1.60
Navigation	824.4	763.4	−7.99	1890.4	1887.6	−0.15
HTML5 Browser	692.4	712.8	2.86	1372.4	1376.4	0.29
PDF Renderer	655.4	751	12.73	1730.4	1704.2	−1.54
Photo Library	180.2	191.2	5.75	353.8	359.6	1.61
Clang	702.6	715.8	1.84	1493.2	1534.4	2.69
Text Processing	689	714.2	3.53	778.2	840.8	7.45
Asset Compression	660.4	676.6	2.39	1424	1516	6.07
Object Detection	45.4	43.4	−4.61	77.4	87.2	11.24
Background Blur	281.6	254.4	−10.69	493.2	526	6.24
Horizon Detection	549.8	504.8	−8.91	1141.6	1209.8	5.64
Object Remover	410	421	2.61	740.2	819.8	9.71
HDR	410.2	442.8	7.36	891.2	948.2	6.01
Photo Filter	262	269.6	2.82	519.2	566.8	8.40
Ray Tracer	566.4	583	2.85	1357.6	1394.4	2.64
Structure from Motion	221.2	223.2	0.90	468	489	4.29
Overall Score	412.6	418.2	1.34 (%)	789.2	824.4	4.27 (%)

provide a detailed examination of Laptop 1’s computational capabilities under varying scenarios with and without CVR. Across a spectrum of tests encompassing diverse computing tasks, including file compression, navigation, HTML5 browser operations, and more, the table captures the Single-Core and Multi-Core performance metrics. The term “improvement” in the table refers to the percentage change in performance metrics under the influence of CVR, as detailed in the CVR Performance Enhancement Ratio formula (Equation (3))—previously discussed. Overall, the analysis reveals nuanced performance variations. Notably, there is a 1.34% improvement in the overall score for Single-Core tasks with CVR, while Multi-Core tasks show a more substantial 4.27% enhancement. Specific tasks, such as file compression, text processing, and object removal, demonstrate varied impacts, with some tasks showcasing improvements and others experiencing slight performance decrements. These findings underscore the importance of considering specific computing tasks and metrics when evaluating the impact of CVR on device performance. Figure 3 shows that the overall positive trend in both Single-Core and Multi-Core performance metrics. These results suggests that CVR can be strategically employed to achieve energy efficiency without compromising computational capabilities.

Table 5,

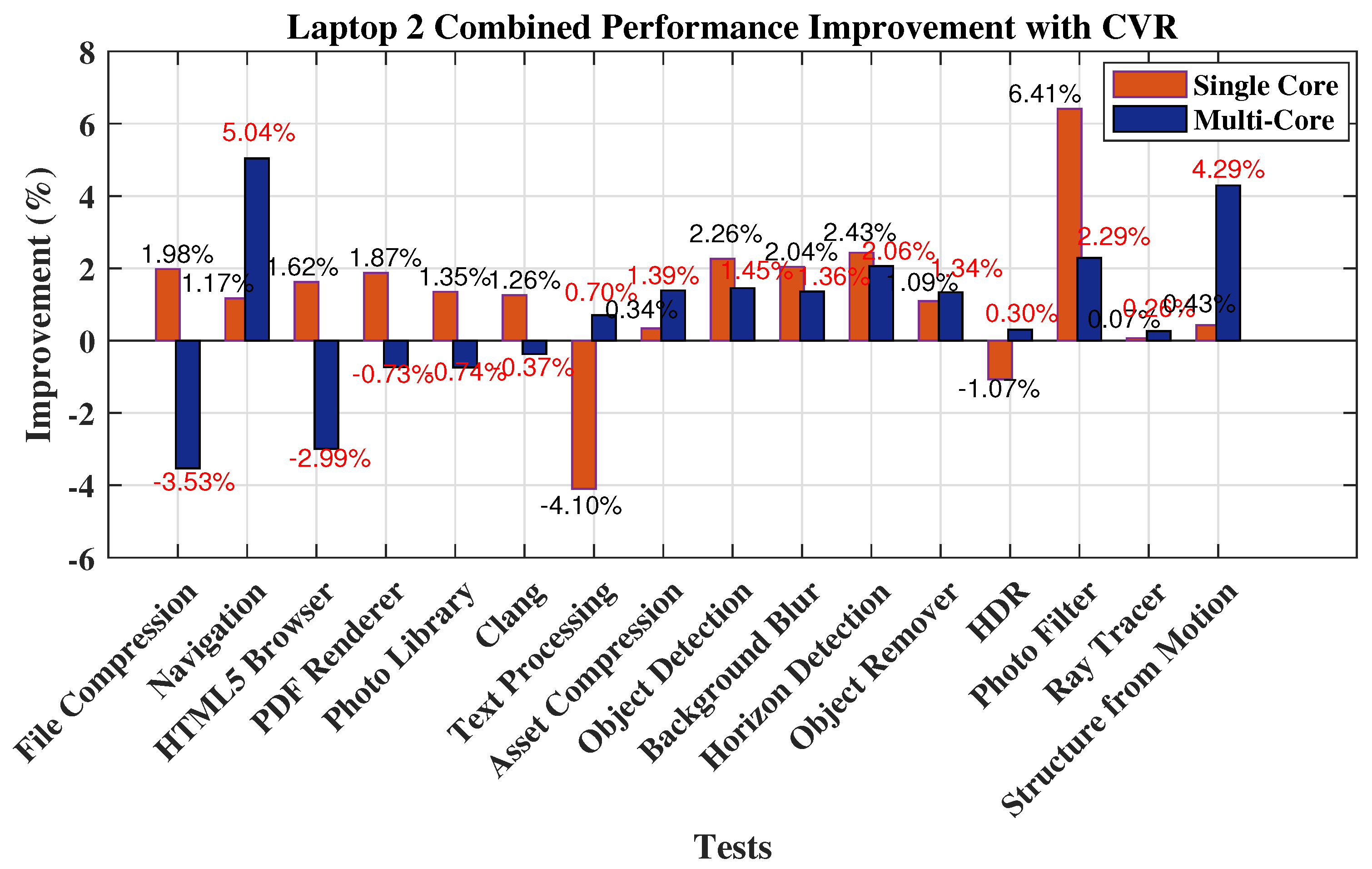

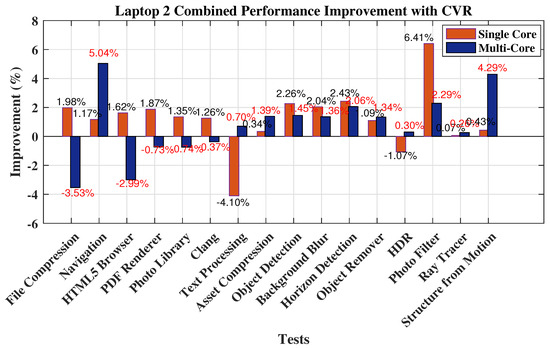

Table 6. Performance of Laptop 2 without CVR vs. with CVR.

Test	Single-Core Performance			Multi-Core Performance
	W/O CVR	With CVR	% Improvement	W/O CVR	With CVR	% Improvement
File Compression	1118.6	1141.2	1.98	1284.6	1240.8	−3.53
Navigation	1371.4	1387.6	1.17	2942.2	3098.2	5.04
HTML5 Browser	1241.8	1262.2	1.62	2290.2	2223.8	−2.99
PDF Renderer	1272.4	1296.6	1.87	2915.2	2894.2	−0.73
Photo Library	996.8	1010.4	1.35	2160.6	2144.8	−0.74
Clang	1313.4	1330.2	1.26	2854.8	2844.4	−0.37
Text Processing	1156.8	1111.2	−4.10	1399.8	1409.6	0.70
Asset Compression	1339.4	1344	0.34	3285.2	3331.6	1.39
Object Detection	535.6	548	2.26	980.8	995.2	1.45
Background Blur	1626.4	1660.2	2.04	3146.2	3189.6	1.36
Horizon Detection	1774.4	1818.6	2.43	3625.6	3702	2.06
Object Remover	982.2	993	1.09	1938.8	1965.2	1.34
HDR	1229.4	1216.4	−1.07	2358	2365.2	0.30
Photo Filter	1474.6	1575.6	6.41	2482.8	2483	0.01
Ray Tracer	1079.8	1080.6	0.07	2921.2	3002.4	2.70
Structure from Motion	1384.8	1404.4	1.40	2828.2	2711.8	4.29
Overall Score	1189	1202	1.09 (%)	2276.4	2279.6	0.14 (%)

,

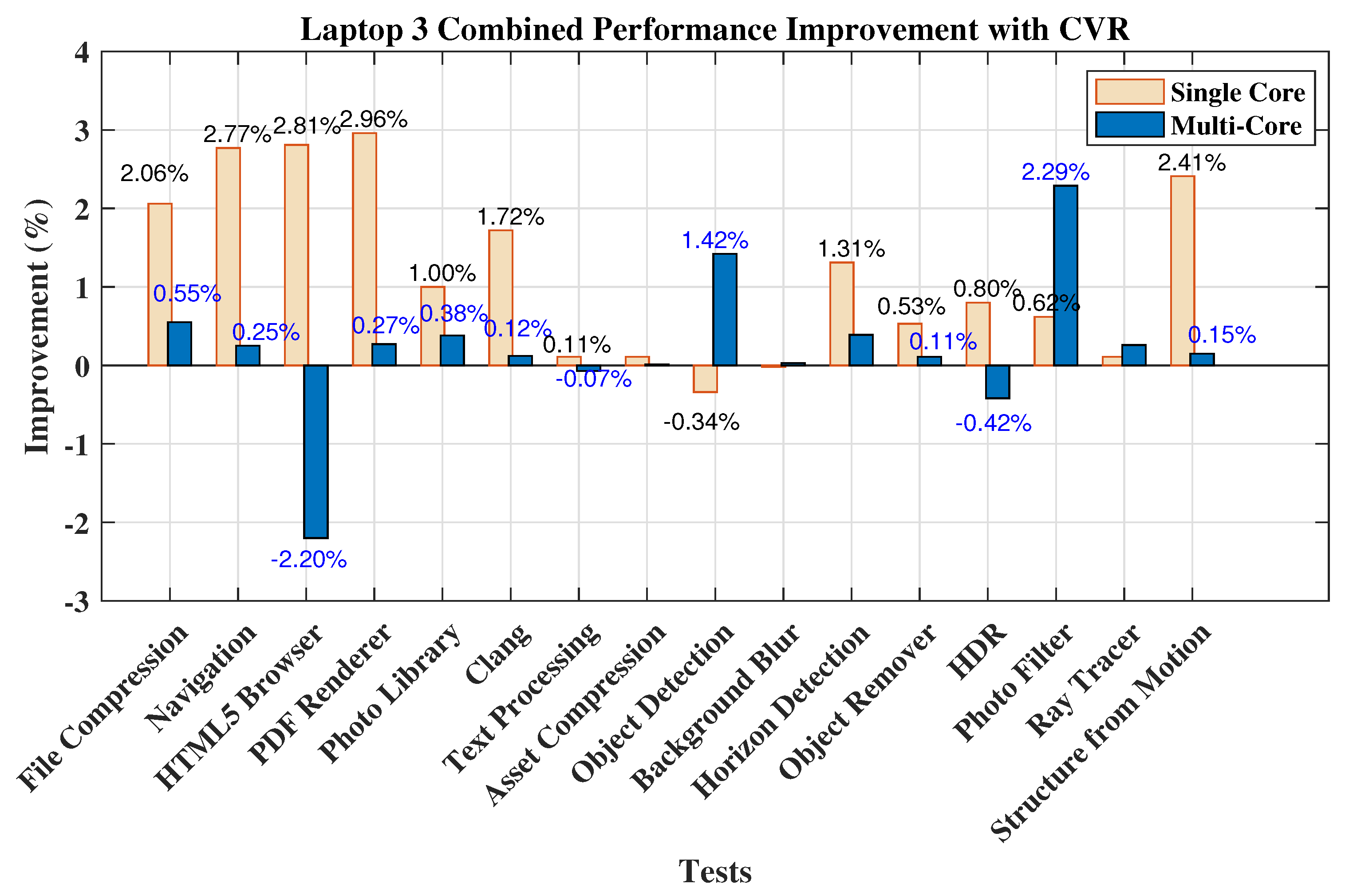

Table 7. Performance of Laptop 3 without CVR vs. with CVR.

Test	Single-Core Performance			Multi-Core Performance
	W/O CVR	With CVR	% Improvement	W/O CVR	With CVR	% Improvement
File Compression	1349	1377.4	2.06	2224.4	2236.8	0.55
Navigation	1417.2	1457.6	2.77	5529.6	5543.4	0.25
HTML5 Browser	1100.8	1132.6	2.81	4724.4	4715.2	−0.20
PDF Renderer	1266.4	1305	2.96	6486.2	6503.6	0.27
Photo Library	1169	1180.8	1.00	4707	4725	0.38
Clang	1463	1488.6	1.72	7285.4	7293.8	0.12
Text Processing	1317.8	1319.2	0.11	1762.8	1761.6	−0.07
Asset Compression	1517.6	1519.2	0.11	8233.6	8234.2	0.01
Object Detection	641.2	639	−0.34	2152.8	2183.8	1.42
Background Blur	1942.8	1942.4	−0.02	7342.8	7344.8	0.03
Horizon Detection	2046.4	2073.6	1.31	6775.8	6802	0.39
Object Remover	1305.4	1312.4	0.53	4832.2	4837.4	0.11
HDR	1492.6	1504.6	0.80	4924.4	4903.8	−0.42
Photo Filter	1972.4	1984.8	0.62	4118.4	4215	2.29
Ray Tracer	1121.2	1122.4	0.11	7191.8	7210.8	0.26
Structure from Motion	1604	1643.6	2.41	4994.6	5002.2	0.15
Overall Score	1336.4	1393.8	4.12 (%)	4642.4	4680.2	0.81 (%)

,

Table 8. Performance of Desktop 1 without CVR vs. with CVR.

Test	Single-Core Performance			Multi-Core Performance
	W/O CVR	With CVR	% Improvement	W/O CVR	With CVR	% Improvement
File Compression	838	861.6	2.74	1236.8	1299	4.79
Navigation	1109.6	1145	3.09	3104	3290.8	5.68
HTML5 Browser	878.4	898.8	2.27	1960.4	2003.2	2.14
PDF Renderer	918.6	937.4	2.01	2545.2	2844.4	10.52
Photo Library	220.8	225.8	2.21	733.4	799.4	8.26
Clang	909.8	894.6	−1.70	2952	3366.2	12.30
Text Processing	839	859.8	2.42	1020	1095	6.85
Asset Compression	862.2	868	0.67	2928.4	3197.8	8.42
Object Detection	53.6	56.8	5.63	178.4	195	8.51
Background Blur	486.8	491.2	0.90	1578.6	1729	8.70
Horizon Detection	756.4	766.2	1.28	2090	2283.4	8.47
Object Remover	701.6	727	3.49	2021.4	2238.2	9.69
HDR	522.4	532.2	1.84	1454	1562.2	6.93
Photo Filter	337.2	342.8	1.63	894.8	990.4	9.65
Ray Tracer	722	723	0.14	2504.4	2734.2	8.40
Structure from Motion	276.6	277.8	0.43	908.8	998.2	8.96
Overall Score	547.4	555.8	1.51 (%)	1452.8	1580.2	8.06 (%)

,

Table 9. Performance of Desktop 2 without CVR vs. with CVR.

Test	Single-Core Performance			Multi-Core Performance
	W/O CVR	With CVR	% Improvement	W/O CVR	With CVR	% Improvement
File Compression	968.6	981.2	1.28	2219.75	2244.4	1.10
Navigation	1158.4	1182.2	2.01	4732	4754	0.46
HTML5 Browser	1093	1123	2.67	3184.5	3194.6	0.32
PDF Renderer	1125	1146.6	1.88	3873.5	3903	0.76
Photo Library	260.2	290.6	10.46	1047.5	1083.4	3.31
Clang	1069.2	1150.8	7.09	4365	4364.6	−0.01
Text Processing	1032.8	1044.8	1.15	1304.25	1312.4	0.62
Asset Compression	1076.2	1051.6	−2.34	4545	4563	0.39
Object Detection	66	64.6	−2.17	243.25	260.8	6.73
Background Blur	573.2	590.4	2.91	1922.75	1935.4	0.65
Horizon Detection	882.4	895.6	1.47	3249.5	3262.2	0.39
Object Remover	911.2	956.8	4.77	3343.25	3368	0.73
HDR	657.2	605	−8.63	2650	2662.2	0.46
Photo Filter	398.6	413	3.49	1089.25	1098.2	0.81
Ray Tracer	868	865	−0.35	4143.5	4187.6	1.05
Structure from Motion	340.6	352.4	3.35	1480.25	1514.8	2.28
Overall Score	652.4	683.8	4.59 (%)	2189.4	2218	1.29 (%)

and

Table 10. Performance of Desktop 3 without CVR vs. with CVR.

Test	Single-Core Performance			Multi-Core Performance
	W/O CVR	With CVR	% Improvement	W/O CVR	With CVR	% Improvement
File Compression	1354	1386.2	2.32	2219.75	2243.2	1.05
Navigation	1420.75	1428.4	0.54	5529	5553.6	0.44
HTML5 Browser	1103	1129	2.30	4727.75	4789	1.28
PDF Renderer	1273.25	1311.2	2.89	6486.75	6519.6	0.50
Photo Library	1173.5	1198.8	2.11	4705	4706.4	0.03
Clang	1474.25	1486	0.79	7286	7297.6	0.16
Text Processing	1324	1341	1.27	1767	1791.8	1.38
Asset Compression	1523.75	1502	−1.45	8234.75	8277	0.51
Object Detection	649.5	666	2.48	2154.5	2147.2	−0.34
Background Blur	1946.25	1966.8	1.04	7334.75	7344.6	0.13
Horizon Detection	2058.25	2086.4	1.35	6785.5	6797.4	0.18
Object Remover	1305.5	1292.2	−1.03	4834.75	4838.4	0.08
HDR	1502.75	1494.6	−0.55	4927	4948	0.42
Photo Filter	1975.25	1995.2	1.00	4123.5	4138	0.35
Ray Tracer	1124.75	1155.8	2.69	7199	7206.6	0.11
Structure from Motion	1608.75	1624	0.94	4997.25	5026.6	0.58
Overall Score	1346.8	1391.2	3.19 (%)	4647.2	4711	1.35 (%)

offer more in-depth insights into the performance dynamics of particular devices. The Single-Core improvements that have been found for laptops vary from 1.09% to 4.27%, with Laptop 3 demonstrating the greatest improvement as shown in Figure 4. Performance variations in Multi-Core scenarios are negligible, ranging from −0.14% to 1.29%. Laptop 2 continues to increase its Single-Core performance while experiencing a minor drop in Multi-Core performance.

With CVR, Laptop 2 shows a little improvement in several Single- and Multi-Core performance tests. For Single-Core jobs, there is a slight overall improvement of 1.09%; however, for Multi-Core workloads, there is very little difference, at 0.14%. The performance improvements are visibly represented in the accompanying Figure 5, which emphasizes the slight impact of CVR on Laptop 2’s total score.

Notably, Desktops 1 in Figure 6 and Desktop 3 in Figure 7 exhibit notable Multi-Core improvements of 8.06% and 1.35%, respectively, whilst Desktop 2 has a more evenly distributed improvement of 4.59% and 1.29% in both Single and Multi-Core cases as shown in Figure 8. The results point to the necessity for device-specific energy optimization techniques since they imply that the effects of CVR differ throughout devices.

Additionally, the experiments that show negative improvements—like HDR in Desktop 2 and Object Remover in Laptop 3—highlight how crucial it is to take into account a variety of workloads and potential trade-offs when putting CVR solutions into practice. The study promotes a sophisticated approach to sustainable computing by offering insightful information about how to customize energy-saving strategies for certain devices and workloads.

The results of CVR on Desktop 1 as shown in Figure 6 are not all the same. For example, while Clang (−1.70%) shows a fall, file compression (2.74%), and navigation (3.09%) show improvements. The significant increases observed in Multi-Core activities, such as object removal and background blur (8.70% and 9.69%, respectively), highlight the influence of CVR on overall performance.

Table 8 shows Desktop 1’s performance in various tests both with and without CVR. Tasks like file compression (4.79%) and navigation (5.68%) show notable gains, adding up to an overall 1.51% rise in Single-Core performance and 8.06% increase in Multi-Core performance score. Figure 6 shows notable improvement of 12.30% in Multi-Core performance is observed in resource-intensive tasks such as Clang compilation, where the influence of CVR is especially noticeable. These results imply that CVR enhances Desktop 1’s total computational power, particularly in situations that call for parallel processing.

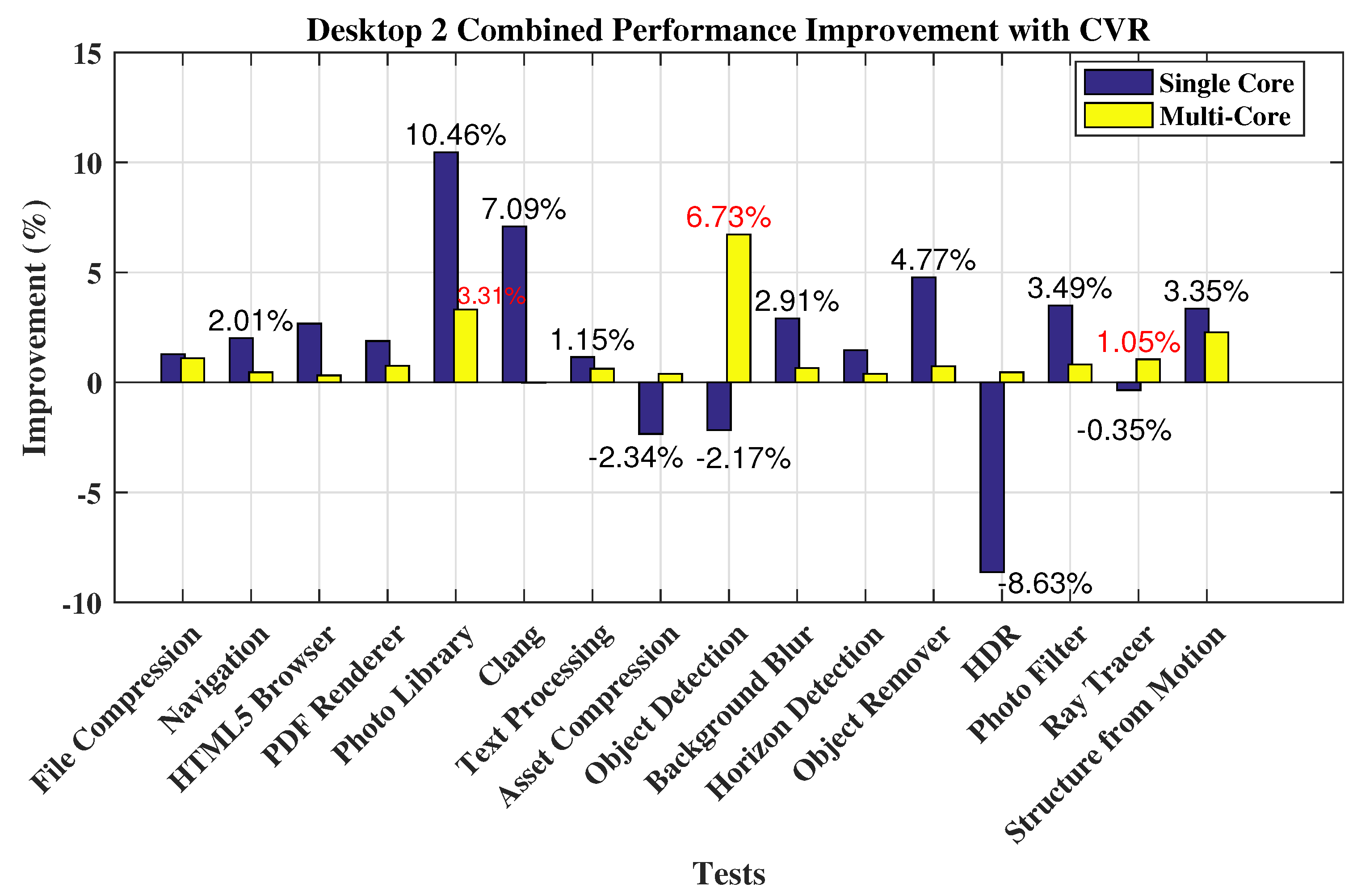

The detailed performance metrics for Desktop 2 can be found in Table 9, while the corresponding performance improvement chart is illustrated in Figure 8. A notable 4.59% improvement in total performance is shown by Desktop 2 with CVR, which is mostly driven by gains in resource-intensive operations such as Clang compilation. Although there are some Single-Core performance losses in some activities, CVR improves the device’s computational power.

Performance Enhancement Ratio Analysis

A more complex view of how CVR affects desktop and laptop performance may be seen in the Performance Enhancement Ratio (PER)

Table 11. Performance Enhancement Ratio for all systems.

System	PM W/O CVR	PM with CVR	PER (%)
Desktop 1 Single-Core	547.4	555.8	1.53
Desktop 1 Multi-Core	1452.8	1580.2	8.76
Desktop 2 Single-Core	652.4	683.8	4.8
Desktop 2 Multi-Core	2189.4	2218	1.3
Desktop 3 Single-Core	1346.8	1391.2	3.19
Desktop 3 Multi-Core	4647.2	4711	1.35
Laptop 1 Single-Core	412.6	418.2	1.34
Laptop 1 Multi-Core	789.2	824.4	4.27
Laptop 2 Single-Core	1189	1202	1.09
Laptop 2 Multi-Core	2276.4	2279.6	0.14
Laptop 3 Single-Core	1336.4	1393.8	4.12
Laptop 3 Multi-Core	4642.4	4680.2	0.81

. Notable differences are seen between devices and performance indicators. Desktop 1 shows that CVR improves performance by 1.53% for Single-Core and 8.76% for Multi-Core, demonstrating its beneficial effects on a range of configurations. Comparable patterns are shown for Desktops 2 and 3, emphasizing the variable but generally advantageous effect of CVR on performance indicators. Additionally, laptops display device-specific reactions. For example, Laptop 1 shows a significant 4.27% boost in Multi-Core performance and a 1.34% rise in Single-Core performance. Laptop 3 also shows a 4.12% increase in Single-Core and a 0.81% increase in Multi-Core performance. These results highlight how CVR’s impact on performance varies depending on the device and configuration, offering insightful advice on how to maximize energy conservation without sacrificing computational power on a wide variety of computing systems.

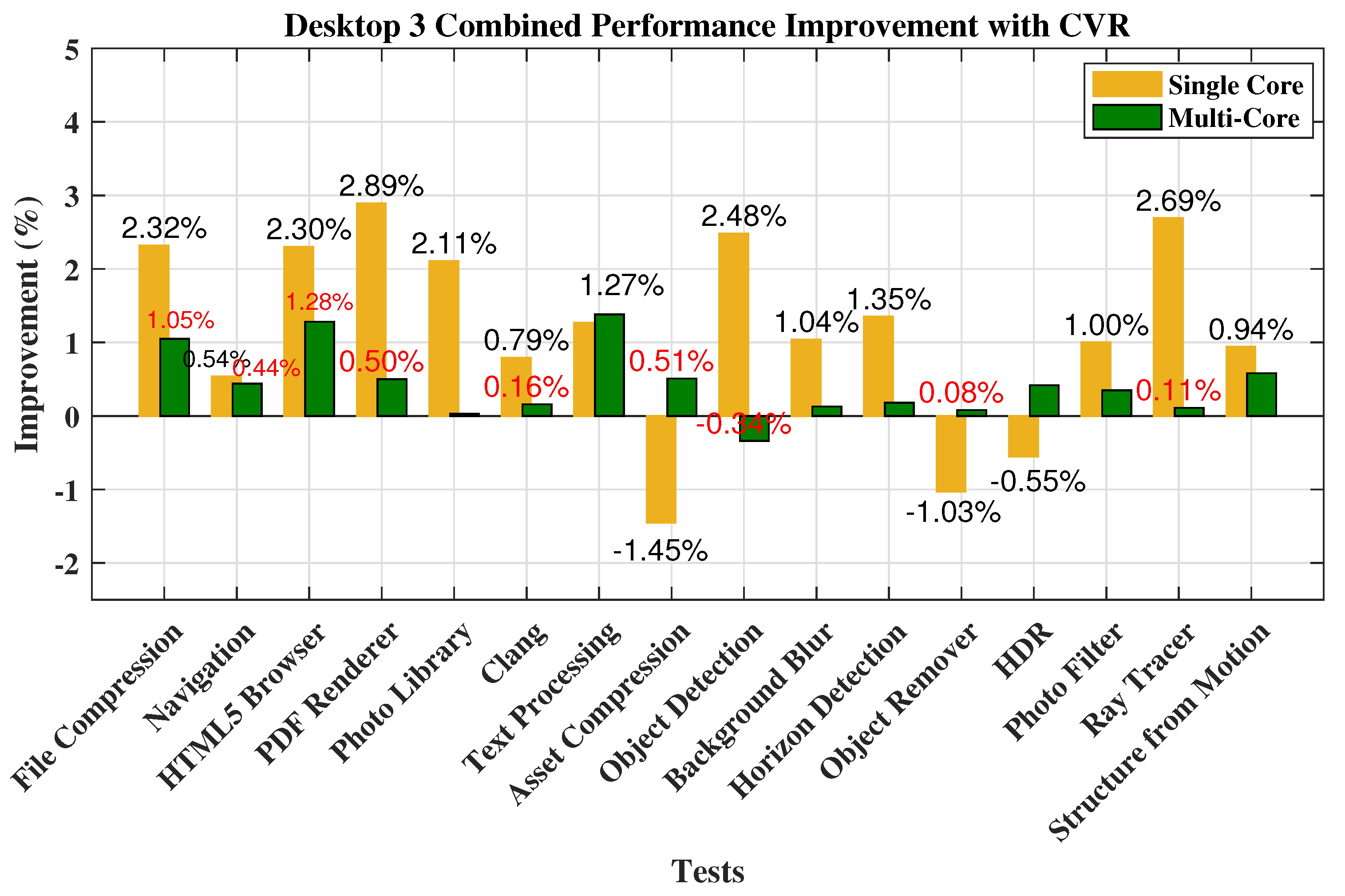

The performance evaluation of Desktop 3, detailed in Table 10, demonstrates a 3.19% improvement in Single-Core performance and a 1.35% enhancement in Multi-Core performance with CVR. Figure 7 visually illustrates the performance improvement for Desktop 3, highlighting the overall positive impact of CVR across various tests.

5.4. Power Supply Unit (PSU) Measurements Analysis

Significant insights into the behavior of the PSU within the context of CVR can be gained from the examination of the PSU measurements, as shown in

Table 12. Power supply unit results.

Vin (AC)	Iin (A)	IL (A)	Vc (V)	Iout (A)	Vout (V)
230	0.037	0.003	6.249	0.624	6.249
225	0.036	0.0029	6.108	0.6108	6.108
220	0.0354	0.0029	5.96	0.5966	5.96
215	0.034	0.0028	5.826	0.0582	5.826
210	0.033	0.0027	5.68	0.5685	5.68
205	0.033	0.0027	5.54	0.554	5.54
200	0.032	0.0026	5.402	0.504	5.402

and Figure 9. Interestingly, the input current decreases in proportion to the decrease in input voltage, indicating that the PSU is flexible with different input circumstances. This pattern is reflected in the dynamics of the inductor and capacitor, demonstrating how sensitive the PSU is to variations in input voltage. The output voltage and current likewise show proportionate drops, highlighting the PSU’s ability to stay stable even with fluctuating input voltages. In Figure 9, the diverse relationships between input voltage and various parameters reveal intriguing insights into the power supply unit’s behavior. The linear correlation between input voltage and output voltage signifies a stable operational region, suggesting a proportional response. Conversely, the wired relationship between input voltage and input current hints at the intricate interplay of components influenced by voltage fluctuations. Non-linear trends observed in plots like input voltage vs. output current underscore the system’s nuanced behavior, possibly involving threshold effects or transitions between operational modes. The presence of abrupt points in the plots may indicate critical thresholds or trigger points for specific mechanisms, warranting further investigation. These characteristics play a pivotal role in understanding the power supply unit’s performance, stability, and reliability under varying input conditions.

These results imply that the PSU has qualities that make it suitable for implementing CVR, providing chances for energy-efficient computing techniques and possible advancements in thermal management. The PSU’s observed adaptability serves as a basis for optimization techniques to boost energy efficiency without sacrificing system stability.

5.5. Thermal Performance Analysis under Variable Voltage Conditions

Table 13. Thermal performances of desktop and laptop.

Voltage (V)	Desktop Temp (°C)			Laptop Temp (°C)
	Desktop 1	Desktop 2	Desktop 3	Laptop 1	Laptop 2	Laptop 3
230	76	68	62	81	74	56
225	76	64	62	81	74	53
220	76	64	60	80	73	53
215	71	60	56	69	72	50
210	70	60	60	66	70	50
205	75	62	58	66	70	50
200	75	64	58	66	72	50

provides comprehensive information regarding the thermal behavior of Desktops 1, 2, and 3 and Laptops 1, 2, and 3 at different voltage levels. Interestingly, compared to Desktops 1 and 2, Desktop 3 continuously maintains lower temperatures throughout a range of voltage levels, suggesting a more effective thermal design. Laptop 3 had the lowest temperatures of all the computers, especially when the voltage is reduced, demonstrating excellent thermal control. The effect of CVR on thermal performance is an interesting finding. Data analysis indicates that devices with CVR, including the Desktop 3 and Laptop 3, have better thermal efficiency. Over a range of voltage settings, the temperatures measured for Desktop 3 and Laptop 3 are noticeably lower than those of their counterparts (Desktops 1 and 2, and Laptops 1 and 2, respectively). This demonstrates how CVR can improve thermal performance, resulting in more ideal operating temperatures and possibly extending the lifespan of devices.These new results highlight the significance of CVR in obtaining improved thermal efficiency as well as higher computing performance, as was previously mentioned. The use of CVR technology is a viable path for optimizing devices, providing a comprehensive method to enhance both computational efficiency and thermal properties.

6. Conclusions

Our thorough investigation into the effects of (CVR) on computing equipment offers insightful information on the two aspects of computational and thermal performance. Notable gains with CVR implementation are revealed by the analysis of CVR parameters, including Single-Core and Multi-Core performances across various devices (Desktops 1, 2, and 3 and Laptops 1, 2, and 3). Superior computational efficiency is a consistent feature of Desktop 3, and the overall performance enhancement ratio (PER) highlights the beneficial effects of CVR on Single-Core and Multi-Core processes. All these results highlight the comprehensive advantages of CVR, which include increased computing speed and improved thermal performance. A key component of device optimization is the conservation voltage reduction strategy, which provides a synergistic solution for increased computing efficiency and better thermal management. The integration of CVR stands out as a potential path in the ever-evolving field of computing technology, opening the door to more durable, effective, and sustainable computing equipment. This study establishes a solid foundation for further investigation and creativity in the field of computing technology, paving the way for future developments in voltage regulation techniques.
