An X-ray and Neutron Scattering Study of Aqueous MgCl₂ Solution in the Gigapascal Pressure Range

Abstract

The structure of electrolyte solutions under pressure at a molecular level is a crucial issue in the fundamental science of understanding the nature of ion solvation and association and application fields, such as geological processes on the Earth, pressure-induced protein denaturation, and supercritical water technology. We report the structure of an aqueous 2 m (=mol kg⁻¹) MgCl₂ solution at pressures from 0.1 MPa to 4 GPa and temperatures from 300 to 500 K revealed by X-ray- and neutron-scattering measurements. The scattering data are analyzed by empirical potential structure refinement (EPSR) modeling to derive the pair distribution functions, coordination number distributions, angle distributions, and spatial density functions (3D structure) as a function of pressure and temperature. Mg²⁺ forms rigid solvation shells extended to the third shell; the first solvation shell of six-fold octahedral coordination with about six water molecules at 0 GPa transforms into about five water molecules and one Cl⁻ due to the formation of the contact ion pairs in the GPa pressure range. The Cl⁻ solvation shows a substantial pressure dependence; the coordination number of a water oxygen atom around Cl⁻ increases from 8 at 0.1 MPa/300 K to 10 at 4 GPa/500 K. The solvent water transforms the tetrahedral network structure at 0.1 MPa/300 K to a densely packed structure in the GPa pressure range; the number of water oxygen atoms around a central water molecule gradually increases from 4.6 at 0.1 MPa/298 K to 8.4 at 4 GPa/500 K.

1. Introduction

Understanding the nature of Mg²⁺ solvation is an important issue since Mg²⁺ plays an essential role in various application fields, such as biological systems [1], environmental aerosols [2], and geological processes in the Earth [3]. Mg²⁺ affects many cellular functions, including the transport of K⁺ and Ca²⁺; and modulates signal transduction, energy metabolism, and cell proliferation [1]. Mg²⁺ is the second cation rich in seawater and lake water after Na⁺. Thus, Mg²⁺ affects the properties of sea salt aerosols in an atmospheric environment [2]. Most investigations on Mg²⁺ solvation in aqueous solutions have been performed under ambient conditions. When high pressure of gigapascals (GPa) is applied to aqueous solutions, the hydrogen bonding of solvent water is greatly perturbed [4], followed by a possible change in ion solvation. Thus, investigation of Mg²⁺ solvation in the GPa pressure range will provide valuable information for the nature of ion solvation and association.

Furthermore, electrolyte solutions in the GPa pressure range exist in the Earth’s upper mantle and play critical roles in geological processes, such as earthquakes, and growing magma, followed by the eruption of a volcano [3]. Due to the development of a high-pressure cell and data acquisition techniques at synchrotron and pulsed neutron sources, high-pressure and high-temperature X-ray- and neutron-scattering measurements in the GPa pressure range became possible. Many studies have been conducted on aqueous solutions of electrolytes, such as NaCl [5,6,7], RbCl [8], CaCl₂ [9,10], and CeCl₃ [11].

The Mg²⁺ solvation was investigated at a molecular level under ambient conditions by various techniques, such as X-ray scattering [12,13], neutron scattering [14,15], classical molecular dynamics (MD) simulations [16,17,18,19,20,21], and ab initio MD simulation [15,22,23,24]. The results are consistent with the conclusion that Mg²⁺ has a rigid solvation shell of six water molecules arranged in an octahedral geometry. The Mg²⁺-H₂O distance ranges from 1.92 to 2.12 Å, depending on the methods and pair potentials employed. These features of Mg²⁺ solvation differ from the Ca²⁺ solvation, with seven and eight water molecules in an almost equal population in the first solvation shell at 0.1 MPa [9,10]. When the solution is compressed to 1 GPa/300 K, the distribution of water molecules around Ca²⁺ becomes sharp and has a maximum of eight [10]. The distance of the Ca²⁺-O_W(I) (2.44 Å) does not change significantly with pressure (O_W(I) is a water oxygen atom in the first solvation shell). However, the Ca²⁺-H_W(I) distance is shortened from 3.13 Å at 0.1 MPa to 3.10 Å at 4 GPa (H_W(I) is a water hydrogen atom in the first solvation shell). This result suggested that the orientation of the water dipole around Ca²⁺ is affected by pressure. The contact and solvent-shared ion pairs between Ca²⁺ and Cl⁻ are formed with Ca²⁺-Cl⁻ distances of 2.82 and 5.0 Å, respectively [10]. There are no appreciable changes in the coordination number of Ca²⁺-Cl⁻ at 0.2–0.3 with pressure. It is interesting to see the behavior of Mg²⁺ solvation and association in the GPa pressure range and compare it with the Ca²⁺ solvation from a biological point of view [1].

In this study, we perform X-ray- and neutron-scattering measurements on a 2 m MgCl₂ aqueous solution at ambient pressure to 4 GPa and temperatures of 300 and 500 K. An EPSR modeling method is employed to analyze both X-ray- and neutron-scattering data together to extract the pair distribution functions, coordination number distributions, angle distribution (orientational correlation), and spatial density functions (3D structure) in aqueous electrolyte solutions. We show the effects of pressure and temperature on ion solvation and association, and solvent water structure.

2. Materials and Methods

2.1. Sample Solutions

Magnesium chloride (MgCl_2, 99.99%, Sigma-Aldrich, St. Louis, MO, USA), commercially available, was used without further purification. MgCl₂ powder was dried in a vacuum oven at 393 K for 3 h and then cooled in a desiccator at room temperature. Deuterium oxide (D₂O) (99.8 atom %D) was purchased from Kanto Chemical Ltd., Chuo-ku, Tokyo, Japan. For X-ray-scattering measurements, a required amount of dried MgCl₂ powder was weighed and dissolved into degassed H₂O to prepare a 2 m solution. For neutron-scattering experiments, a 2 m MgCl₂ aqueous solution in D₂O was prepared in a similar way to the X-ray sample in a nitrogen-filled glove box to avoid contamination of light water (H₂O) since the incoherent scattering cross-section of H is about 40 times larger than D (${\sigma }_i^H=80.27 \mathrm{barns}, {\sigma }_i^D=2.05\mathrm{barns})$.

2.2. Experimental PT Condition and Density Estimation

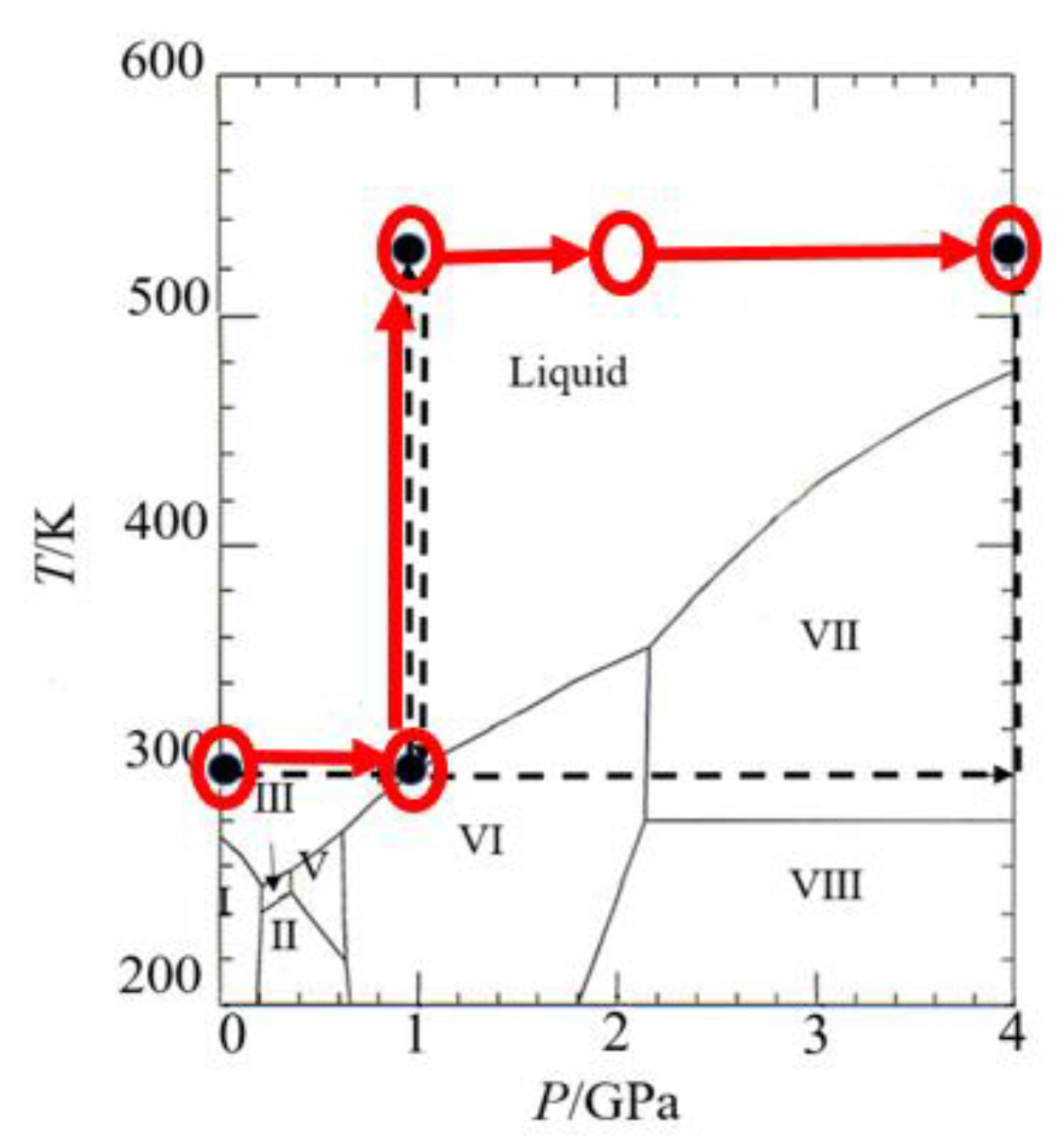

Figure 1 shows the phase diagram of water. The red open circles are thermodynamic states for X-ray-scattering measurements, and the solid red arrows show the experimental pressure and temperature path. The black-filled circles show those for neutron scattering experiments, and the black dashed arrows are the experimental PT path, which was carefully chosen to avoid the sample blowout by compression at high temperatures. The densities of the sample solutions were measured at 300 K with a vibrational densitometer (Anton Paar GmbH, Graz, Austria, DMA48). Those at high temperatures and high pressures were estimated from the densities of water in the corresponding thermodynamic states available in the literature [25].

Table 1. Concentration c, bulk densities d_X and d_N, the atomic number densities ρ_S of a sample solution, and measured conditions of aqueous MgCl₂ solutions. X and N denote X-ray and neutron-scattering, respectively.

Abbreviation	c/mol dm–3	dX/g cm–3	dN/g cm–3	ρS/atoms Å–3	PX/GPa	PN/GPa	TX/K	TN/K	Method
0.1 MPa 300 K	2.024	1.113	1.204	0.09577	1.0 × 10−4	1.0 × 10−4	300	298	X, N
1 GPa 300 K	2.397	1.377	1.426	0.1134	1.0	0.65	300	298	X, N
1 GPa 500 K	2.125	1.269	1.264	0.1005	1.0	0.63	500	523	X, N
2 GPa 500 K	2.020	1.396	⋯	0.1386	2.0	⋯	500	⋯	X
4 GPa 500 K	2.439	1.459	1.451	0.1388	3.8	4.5	500	523	X, N

summarizes the compositions and densities at the measured pressures and temperatures.

2.3. X-ray Scattering Measurements

A sample solution was inserted into a diamond cylindrical cell of 1.5 mm in inner diameter and 1.2 mm in height, which was capped with a thin gold foil and placed in a high-pressure cell assembly, as shown in Figure S1, Supplementary Materials [27]. The incident X-ray beam size was 300 μm (width) and 50 μm (height). The applied pressure was estimated from the equation of state of NaCl of the lattice constant of NaCl powder pellets placed below the diamond cell measured at various thermodynamic states [28]. The sample was heated by applying AC to the graphite heater surrounding the pressure cell. The sample temperature was estimated from the temperature-electric power relation of the power applied to the heater [29]. High-pressure X-ray-scattering experiments were done at 1 GPa/300 and 500 K, 2 GPa/500 K, and 4 GPa/500 K on a high-pressure X-ray diffractometer installed at BL14B1 of SPring-8 [30]. X-ray-scattering data were collected in an energy-dispersive mode with a Ge-SSD over an energy I region of 40~140 keV at the scattering angles (2θ) from 4° to 24° with an increment of 2° to 4°, which corresponded to the magnitude of the scattering vector Q = (4π/hc)Esin θ (h is the Planck constant, and c is the velocity of light) of 0.5–13.85 Å⁻¹. A set of scattering patterns measured at different scattering angles was empirically merged into the whole Q-range values [27,28]. The experimental scattering data were normalized to the absolute units (electrons) in the usual manner [31] and then corrected for incoherent scattering. The interference functions, F(Q), were obtained by Equation (1).

$$F\left(Q\right)=\frac{\left(I^{\mathrm{coh}}\left(Q\right)-\sum x_i{f}_i^2\left(Q\right)\right)}{\sum x_i{f}_i^2\left(Q\right)}$$

(1)

Here, I^coh(Q) denotes the coherent scattering intensity per atom, and x_i and f_i are the atomic fraction and atomic-scattering factor of atom i, respectively.

2.4. Neutron Scattering Measurements

A sample solution under ambient conditions was inserted in a cylindrical vanadium cell (2.8 mm in inner diameter, 0.1 mm in thickness, and 30 mm in height) and sealed with an indium wire. Under high-pressure conditions, a sample solution was inserted into a cylindrical Teflon cell (5.5 mm in inner diameter and 6.5 mm in inner height) against corrosion by aqueous salt solutions at high temperatures. The Teflon cell was loaded in a high-pressure cell assembly, as shown in Figure S2. The neutron scattering experiments were carried out on a PLANET high-pressure diffractometer, equipped with the six-axis multi-anvil press ATSUHIME [32], at BL11 of a pulsed neutron facility, J-PARC MLF [33]. The scattered neutrons were collected with 160 ³He position-sensitive detectors placed at the scattering angle (2θ) of 90° for each side with the horizontal and vertical coverage of 90 ± 11.3° and 0 ± 34.6°, respectively. The wavelength (λ) range used was 0. 2–12 Å, corresponding to the amplitude of wavevector Q (=4πsinθ/λ) of 0.8–40 Å⁻¹. Neutron-scattering measurements were performed at 0.1 MPa/298 K, 0.65 GPa/298 K, 0.63 GPa/523 K, and 4.5 GPa at 523 K according to the pressure and temperature path, as is shown in Figure 1. This path was chosen to avoid the sample blowout by compression at high temperatures. A vanadium rod with the same dimension as the sample was placed in the high-pressure cell and measured at the same thermodynamic states as the sample solution. An empty cell at each pressure point was prepared and measured at ambient conditions to estimate the background. The time for measurements at the ambient condition was 6 h for a sample, 6 h for a vanadium rod, and 3 h for an empty can. For high-pressure, the measurements were 9 h at 1 GPa and 13 h at 4 GPa for the sample, 6 h for the vanadium rod at 1 and 4 GPa, and 6 h for each empty cell.

Small Bragg peaks from a vanadium rod were removed. The corresponding regions were interpolated using data outside of this range. Normalization by proton intensities was applied to the total cross-sections of a sample, a vanadium rod, and an empty cell and binned as an increment of Q = 0.01 Å^–1. The scattered data were corrected for absorption by the sample and the cell [34] and multiple scattering [35], and then normalized to the absolute units (barns) by using the data of the vanadium rod. After subtraction of the incoherent scattering, the structure factor S(Q) was calculated by Equation (2). All the data treatments were performed with a program nvaSq [36].

$$S\left(Q\right)=\frac{\left(\frac{\mathrm{d}\sigma }{\mathrm{d}\Omega }\right)-\left\{(\sum x_i{b}_i^2)-{(\sum x_i{b}_i)}^2\right\}}{{(\sum x_i{b}_i)}^2}$$

(2)

where $\left(\frac{\mathrm{d}\sigma }{\mathrm{d}\Omega }\right)$, x_i, and b_i are the differential scattering cross-section, atomic fractions, and coherent-scattering length of atom i, respectively. The coherent-scattering length, absorption, and incoherent cross-sections of all atoms except for D were taken from the literature [37]. The absorption and incoherent cross-sections for D were calculated by a least-squares fitting procedure using the experimentally obtained total cross-section of D₂O [38]. The inelastic correction was made by the Kameda method [39] and, subsequently, a third-order polynomial equation. The S(Q) data not available in the experiments below Q < 0.2 Å^–1 were obtained by extrapolation.

The radial distribution function G(r) were obtained by the Fourier transform of S(Q) by Equation (3).

$$G\left(r\right)=1+\frac{1}{2{\pi }^{2}r{\rho }_0}{{\displaystyle \int }}_{Q_{min}}^{Q_{max}}Q\left[S\left(Q\right)-1\right]\sin \left(Qr\right)dQ$$

(3)

Unphysical ripples below 0.7 Å in the radial distribution functions were corrected in a usual manner [36]. The structure factors S(Q) were transformed to the interference functions F(Q) used in the EPSR calculations by Equation (4).

$$F\left(Q\right)=[{(\sum x_i{b}_i)}^2\left(S\left(Q\right)-1\right)] / \sum x_i{b}_i^2\left(Q\right)$$

(4)

An overall scaling factor of F(Q) was finally obtained by a least-squares fitting procedure applied to the experimental F(Q) values over 10–30 Å⁻¹ compared with the theoretical ones of the intramolecular O–D and D–D interactions in a D₂O molecule. An overall scaling factor, the intramolecular distances, and the root mean square amplitudes were treated as independent variables. The OriginPro software 2022b was used for the calculations [40].

2.5. EPSR Modeling

EPSR calculations were performed in a cubic cell, including 40 Mg²⁺, 80 Cl⁻, and 1000 D₂O, to reproduce the composition of a 2 m MgCl₂ aqueous solution. Monte Carlo calculations were carried out using the seed potentials to equilibrate the system. The parameter values of the Lennard-Jones potential in this study were taken from the literature for Mg²⁺ [20], Cl⁻ [41], and water from the SPC/E model [42]. Various parameter values were proposed for Mg²⁺ to reproduce the experimental values, such as the Mg²⁺-H₂O distance, solvation energy, and ion association [13,16,17,18,19,20,21]. In this study, we employed those in Ref. [20] to reproduce the solvation energy and contact ion pair formation to meet our aims. The simulated interference function F^sim(Q) is defined as Equation (5).

$$F^{sim}\left(Q\right)={\sum }_i{\sum }_j\left(2-{\delta }_{ij}\right)x_i{x}_j{b}_i{b}_j{s}_{ij}\left(Q\right)$$

(5)

Here, parameter δ_ij = 0 for i ≠ j and =1 for i = j and sij(Q) the partial structure factors of atom pair i and j. According to Equation (5), the contributions of all-atom pairs to X-ray- and neutron-scattering intensities were calculated and shown in Figure S2. The O–O and O–H of solvent water and Cl–O and Mg–O pairs due to ion solvation are distinct in X-ray scattering, whereas the D–D and O–D of solvent water are major contributions, and the water O–O. Moreover, Cl–H pairs of Cl⁻ solvation are significant in neutron scattering. Thus, the complementary use of X-ray- and neutron-scattering data is an advantage for EPSR calculations. In the present study, X-ray- and neutron-scattering data were employed for EPSR calculations except for 2 GPa/500 K, where only X-ray-scattering data were available. Unfortunately, the pressure and temperature values at which X-ray- and neutron-scattering data were taken were slightly different for 1 and 4 GPa data. In this study, no correction was applied to the S(Q) and G(r) shapes or the number densities to avoid artificial modifications. The number density difference estimated from the pressure dependence of ρ(dρ/dP) and the pressure difference (ΔP) were 5.4%, 2.0%, and 3.2%, at 1.0 GPa/500 K, 1.0 GPa/500 K, and 4.0 GPa/500 K, respectively, which would affect the coordination number. The pair potentials were empirically optimized from the initial ones by comparing the simulated and experimental data. The above calculations were continued until good agreements were obtained between the simulated and experimental interference functions. Then, we calculate the pair distribution functions (pdfs), coordination number (CN) distributions, angle distributions (orientational correlation), and spatial density functions (SDF, 3D structure). The CN of atom j around atom i was calculated from the corresponding pdf g_ij(r) by Equation (6),

$$C{N}_{ij}=4\mathsf{\pi }{\rho }_j{{\displaystyle \int }}_{r_{min}}^{r_{max}}{g}_{ij}\left(r\right)r^{2}dr$$

(6)

where ρ_j is the number density of atom j, and r_min and r_max are the lower and upper limits to define the coordination shell. The present study took r_max as the first minimum of pdf. The parameters and references of each element for EPSR calculations are given in

Table 2. Potential parameter values for each element.

Atoms	ε/kJ mol–1	$\mathit{\sigma }/\mathit{\AA }$	Atomic Mass	Coulomb Charge/e	Refs.
Mg2+	0.0040	2.63	24.31	2	[20]
Cl−	0.4187	4.40	35	−1	[41]
Ow	0.65	3.16	16.00	−0.8476	[42]
Hw	0.00	0.00	2.00	0.4238	[42]

. The detailed procedure in EPSR modeling has been described in Refs. [43,44,45].

3. Results

3.1. Interference Functions and Radial Distribution Functions

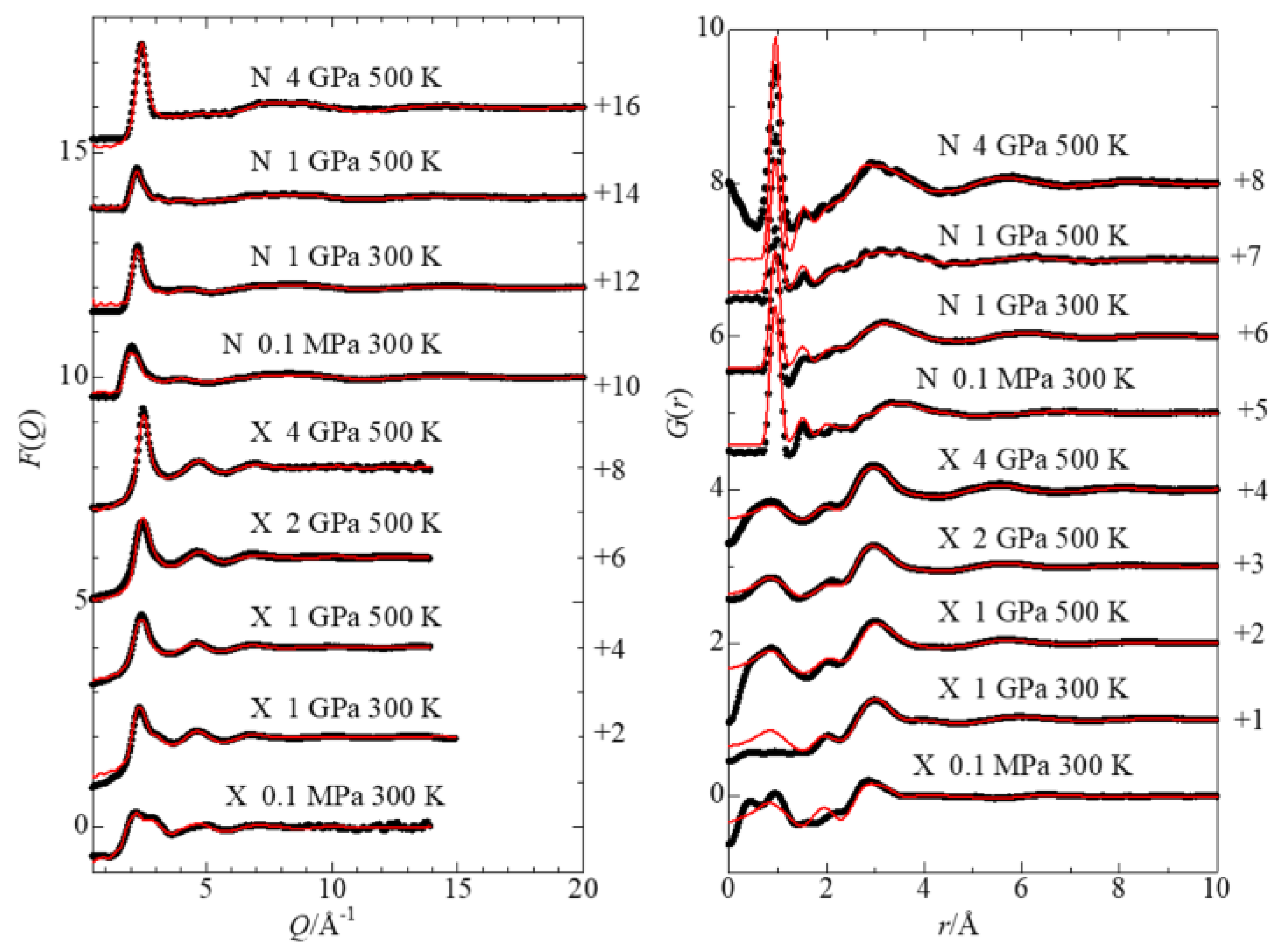

Figure 2 shows the X-ray and neutron experimental interference functions and corresponding radial distribution functions obtained by the experiments (black dots) and EPSR modeling (red lines) of an aqueous 2 m MgCl₂ solution as a function of pressure and temperature. Symbols X and N denote X-ray and neutron scattering, respectively. In the neutron interference functions, a hump observed at Q ~ 4 Å^–1 at 0.1 MPa/300 K gradually decreases and becomes a plateau at 4 GPa/500 K. On the other hand, the X-ray interference function has first double peaks at 2–3 Å^–1 at 0.1 MPa/300 K, merging into a single sharp peak at 4 GPa/500 K. These characteristic features suggest the disruption of the tetrahedral hydrogen-bonded network in water with increasing pressure and temperature [4,46]. In the X-ray radial distribution functions, there are peaks at 1.0, 2.0, and 3.0 Å, which are ascribed to the intramolecular O–H bonds within water molecules, Mg²⁺–O(H₂O) bonds due to Mg²⁺ solvation, and an overlap of the first neighbor O–O bonds of solvent water and Cl—O(H₂O) bonds of Cl⁻ solvation. In the neutron radial distribution functions, peaks at 0.96 Å and 1.55Å are assigned to the intramolecular O–D and D–D interactions within a D₂O molecule, respectively. The broad peak is seen at about 3.3 Å at 0.1 MPa/300 K and shifts to about 3.0 Å with new broad peaks evolved at 5.9 and 8 Å in the GPa pressure range, indicating the structure change in solvent water because of its dominant contributions to the neutron data as seen in Figure S3.

3.2. Mg²⁺ Solvation

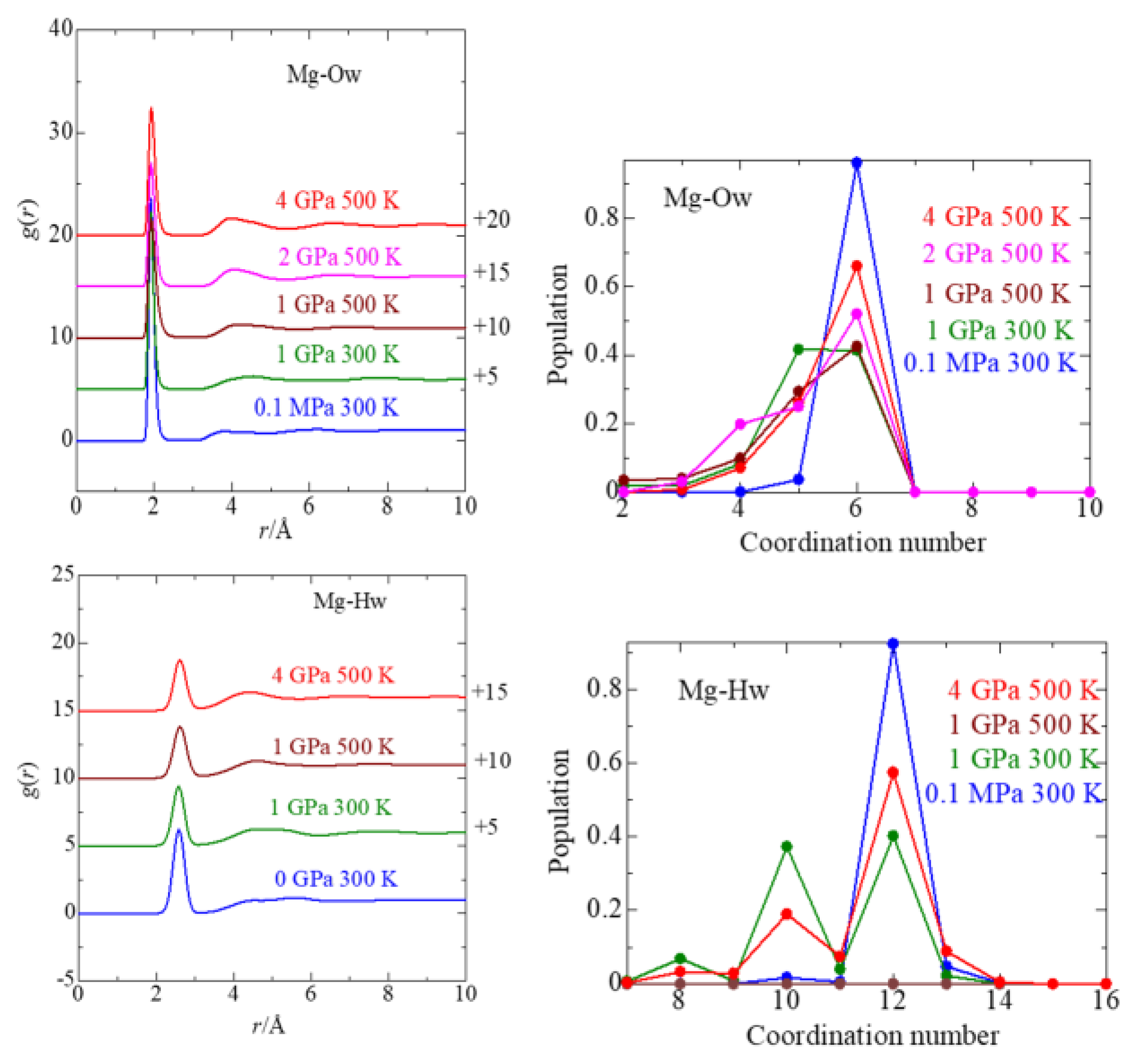

The structural information of Mg²⁺ solvation is obtained from the pdfs of Mg–Ow and Mg–Hw pairs shown in Figure 3 (left). The numerical values are given in Table S1 of the Supplementary Materials.

Table 3. Interatomic distances (r) and coordination numbers (CN) of the individual atom pairs in a 2 m MgCl₂ aqueous solution at various pressures and temperatures. I and II denote the first- and second-coordination shells, respectively. r_max is the upper limit of integration in Equation (5) to define the coordination shell. The uncertainties in the interatomic distance are estimated as 0.02 and 0.04 Å for the first and outer shells, respectively.

P, T	Parameter	Mg–Ow(I)	Mg–Hw(I)	Mg–Ow(II)	Cl–Ow(I)	Cl–Hw(I)	Cl–Ow(II)	Mg–Cl(I)	Mg–Cl(II)
0.1 MPa/ 300 K	r/Å	1.92	2.58	3.78	3.18	2.32	5.76	2.37	4.32
	C.N.	6.0 ± 0.2	12.0 ± 0.4		8.2 ± 1.2	6.7 ± 1.1		0.01 ± 0.12
	rmax/Å	2.40	3.15		4.05	3.00		3.21
1 GPa/ 300 K	r/Å	1.92	2.58	4.53	3.14	2.24	4.41, 5.75	2.33	4.57
	C.N.	5.0 ± 1.3	10.2 ± 2.6		8.2 ± 1.8	6.2 ± 2.0		0.78 ± 0.90
	rmax/Å	2.37	3.09		3.87	2.91		3.15
1 GPa/ 500 K	r/Å	1.92	2.61	4.14	3.21	2.31	5.86	2.19	4.50
	C.N.	4.2 ± 2.0	8.6 ± 4.0		8.4 ± 2.2	4.0 ± 2.0		1.12 ± 1.27
	rmax/Å	2.58	3.18		4.17	2.88		2.85
2 GPa/	r/Å	1.92	⋯	4.03	3.12	⋯	5.70	2.35	4.34
500 K	C.N.	5.3 ± 0.9	⋯		14.2 ± 1.5	⋯		0.65 ± 0.75
	rmax/Å	2.32	⋯		4.19	⋯		3.00
4 GPa/500 K	r/Å	1.93	2.61	3.99	3.14	2.18	5.73	2.36	4.34
	C.N.	5.6 ± 0.7	11.4 ± 1.2		14.0 ± 1.4	6.2 ± 1.6		0.33 ± 0.54
	rmax/Å	2.31	3.07		4.15	2.72		3.30

summarizes the peak positions corresponding to the interatomic distances of the first (I) and second (II) coordination shells of Mg²⁺. The first neighbor Mg–O_W(I) distance is almost constant at 1.92 Å over the pressure range measured, suggesting a rigid solvation shell. The value for the Mg–O_W(I) distance obtained in this study agrees with a lower limit of the Mg–O_W(I) distances from 1.92 to 2.14 Å reported in the literature [12,13,14,15,16,17,18,19,20,21,22,23,24]. Despite the constant Mg–O_W(I) distance, the Mg–H_W(I) distance is sensitive to pressure and temperature. At 300 K, the compression to 1 GPa does not significantly affect the Mg–H_W(I) distance at 2.58 Å. However, it becomes longer to 2.61 Å while elevating the temperature to 500 K. The second neighbor Mg–O_W(II) distance shows an appreciable change with pressure and temperature. As the pressure increases from 0.1 MPa to 1 GPa at 300 K, the Mg-O_W(II) distance is lengthened from 3.78 to 4.53 Å but is shortened to 4.14 Å while elevating the temperature to 500 K. At 500 K, the compression from 1 to 4 GPa shortens the Mg-O_W(II) distance from 4.14 to 3.99 Å.

Figure 3 (right) shows the CN distribution of Mg–O_W(I) and Mg–H_W(I) pairs. Table 3 summarizes the mean coordination number calculated by Equation (6). The Mg–O_W(I) pair has a single peak at six at 0.1 MPa/300 K. With increasing pressure and temperature, the population of the six-fold coordination decreases, and five- and four-fold coordination gradually increases. This decrease in CN of Mg–O_W(I) is compensated by an increase in CN of Mg²⁺–Cl⁻ due to the formation of contact ion pairs, as discussed later. The CN for Mg–H_W(I) is twice that of Mg–O_W(I). These findings demonstrate a rigid solvation shell of six-fold coordination of Mg²⁺.

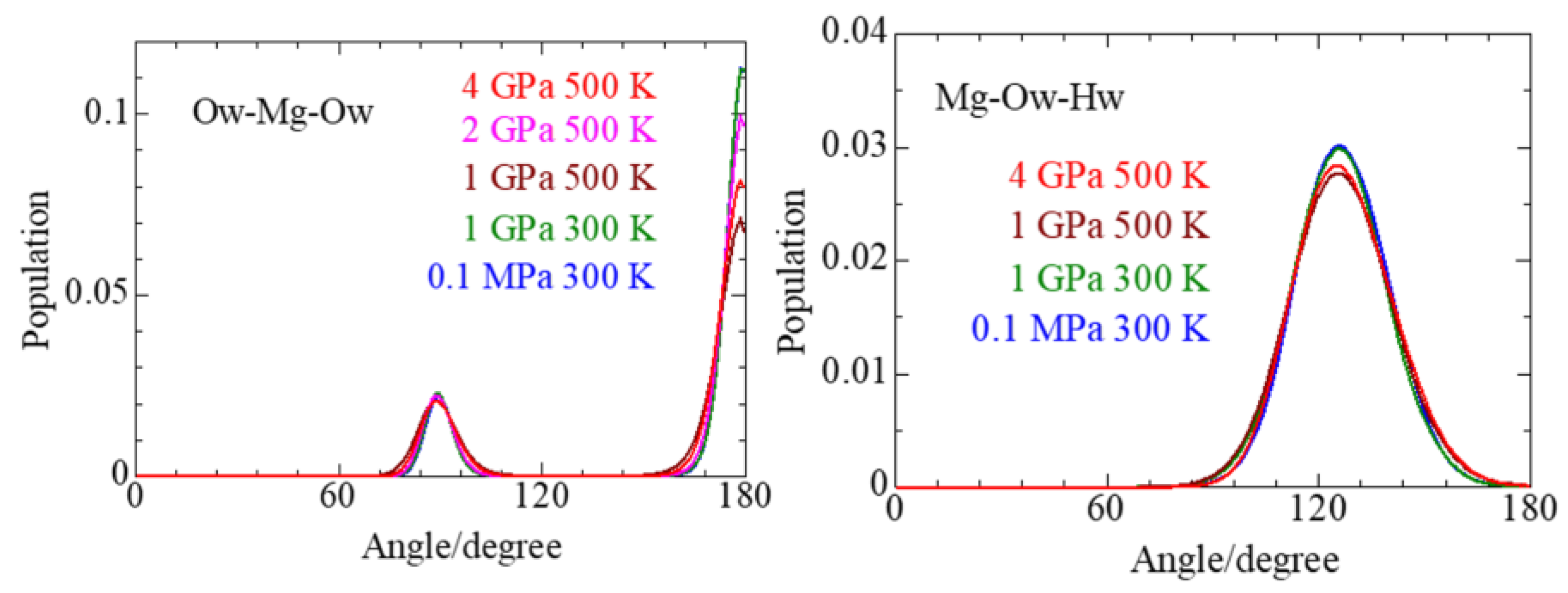

Figure 4 shows the angle distributions of ∠O_W–Mg–O_W and ∠Mg–O_W–H_W. The ∠O_W–Mg–O_W angle has maxima at 90° and 180°, which correspond to cis- and trans-positions of solvated water molecules of an octahedral geometry. The ∠Mg–O_W–H_W angle shows a maximum of 126°, leading to the tilt angle of the water dipole from the Mg–Ow direction of 26°. This tilt angle does not agree with the value (0°) estimated by an MD simulation [16]. Since the ∠Mg–O_W–H_W angle is widely distributed around 126°, the tilt angle of the water dipole would be widely distributed around 26°. With increasing pressure and temperature, the distributions at 90° and 180° slightly broaden, much less than those for Cl⁻ solvation and solvent water shown later. These features again support a rigid octahedral solvation shell of Mg²⁺ over the pressure range measured. The present result contrasts the relatively flexible Ca²⁺ solvation at high pressures in an aqueous CaCl₂ solution [9,10]. This rigid solvation shell of Mg²⁺ could be responsible for many cellular functions in biological systems.

3.3. Cl⁻ Solvation

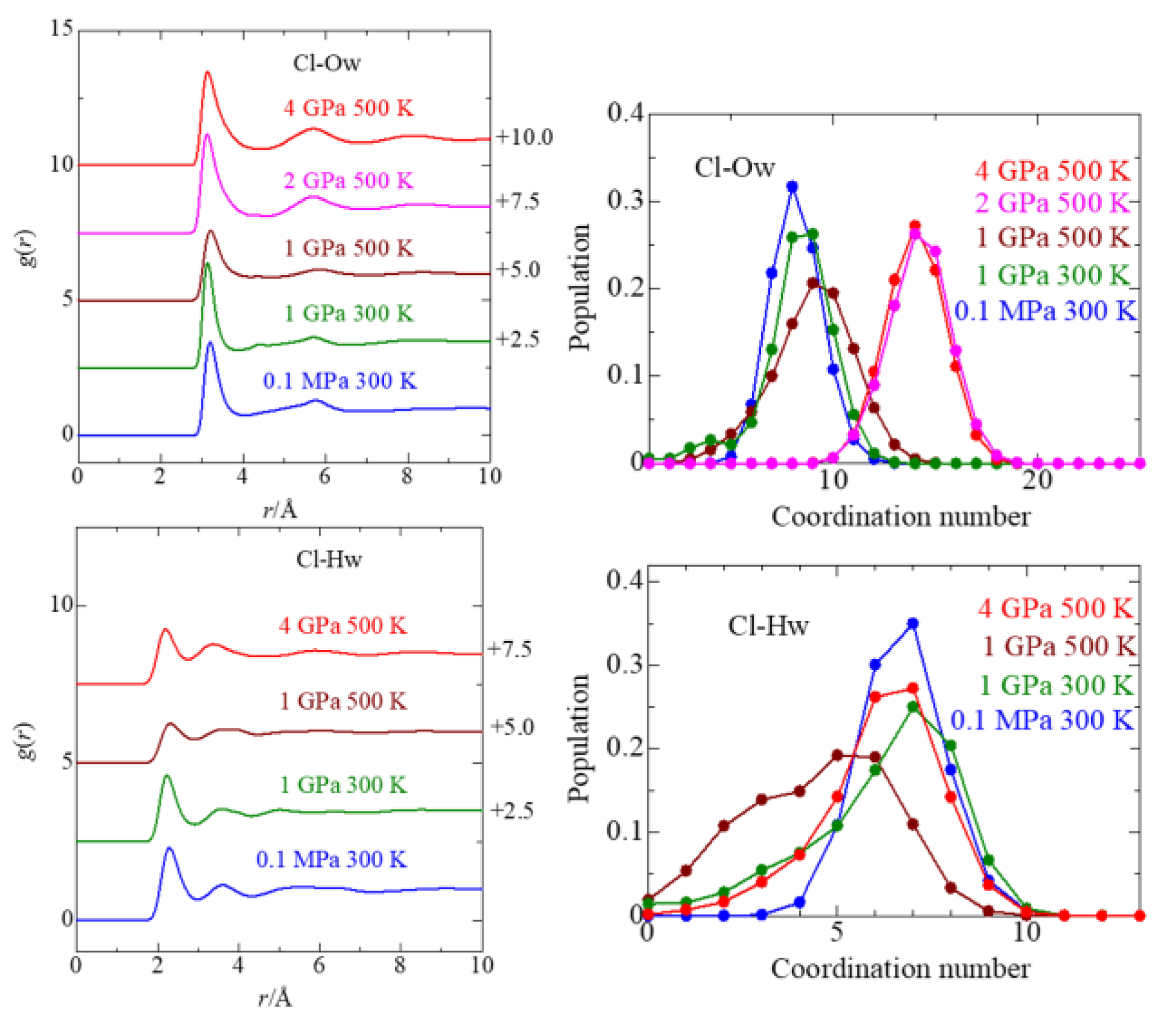

Figure 5 shows the pdfs (left frames) and the corresponding CN distributions (right frames) of Cl–Ow and Cl–Hw pairs, respectively. The numerical values are given in Table S1 of Supplementary Materials. The pdf of Cl–Ow shows the first peak at 3.1–3.2 Å due to Cl⁻ solvation. The broad peak appears at 5.67 Å, corresponding to the second solvation shell of Cl⁻. It should be noted that the third peak evolved at 8 Å at 4 GPa/500 K. With elevating temperature and pressure, the first peak gradually becomes more asymmetrical toward the longer distance, suggesting more water molecules entering into the solvation shell of Cl⁻. In the pdfs of Cl–H_W pairs, the first peak is observed at 2.2–2.3 Å, ascribed to the first-neighbor hydrogen-bonded Cl$\cdots$H-OH interactions, whereas the second broad peak at 3.6 Å corresponds to the interatomic distance between Cl- and another water hydrogen atom. With increasing temperature and pressure, the height of both peaks gradually decreases, and the peak becomes asymmetric toward the long-distance side, which is consistent with the changes of Cl–O_W pairs with temperature and pressure. The Cl–O_W (I) and Cl–H_W (I) distances follow an expected change with pressure and temperature, i.e., both distances decrease upon compression and increase with elevating temperature.

Figure 5 (right frames) shows the CN distributions of Cl–O_W pairs. The CN distributions of Cl–O_W pairs gradually become broader and shift to larger values with increasing pressure and temperature, corresponding to the asymmetry of the first peak in the Cl–Ow pdfs. Table 3 summarizes the mean CN of Cl–O_W. The mean CN of Cl–O_W changes from 8.2 ± 1.2 at 0.1 MPa/300 K to 14.0 ± 1.4 at 4 GPa/500 K, contrasting sharply with the change in the mean CN of Mg–O_W. Here, it is noted that the uncertainties in the coordination number are larger than the estimated errors in the number densities by slightly different thermodynamic states employed in neutron scattering experiments stated in the experimental section. As discussed in the next section, the increase in the CN of Cl⁻ is probably ascribed to an increase in non-hydrogen bonded water molecules at high pressures and temperatures. On the other hand, interestingly, the CN of Cl–H_W(I) remains almost unchanged (6.7 ± 1.1 at 0.1 MPa/300 K and 6.2 ± 1.6 at 4 GPa/500 K). This result suggests strong Cl⁻$\cdots$H-OH hydrogen bonds. The discrepancy between the mean CNs of Cl–Ow and Cl–Hw in the GPa pressure range indicates that most excess oxygen atoms belong to water molecules not forming hydrogen bonds with Cl⁻.

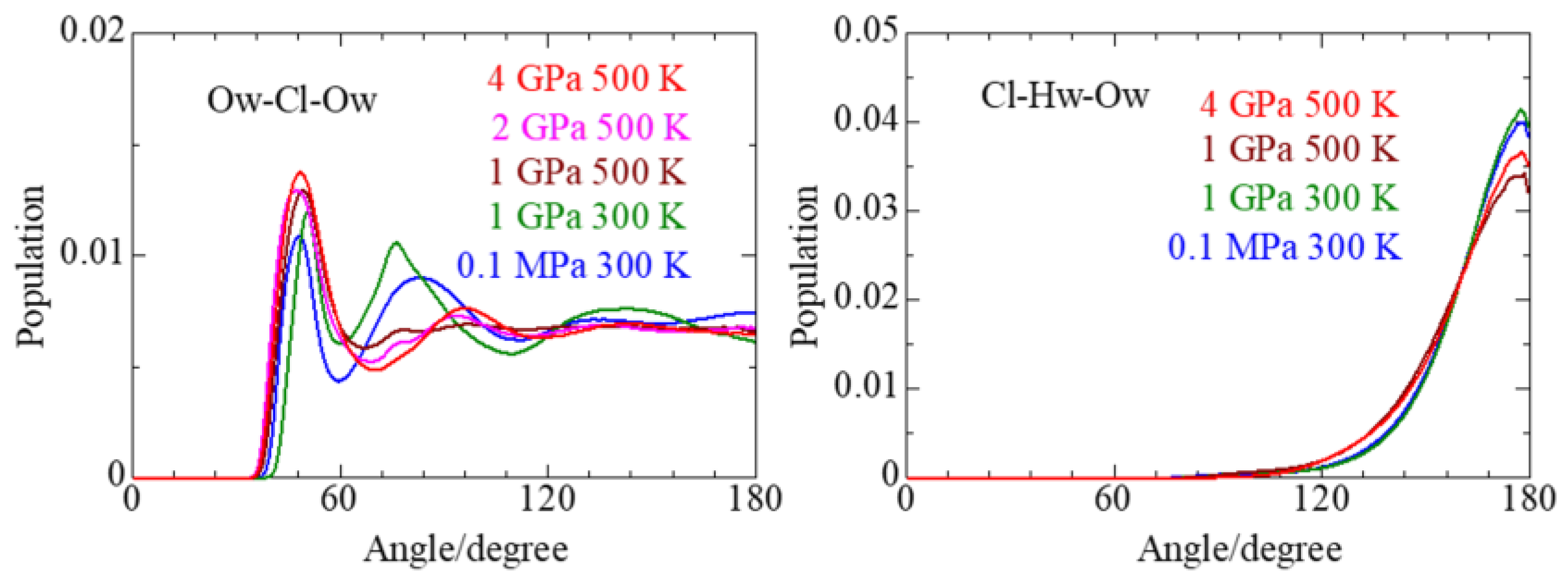

The angle distribution of ∠ Ow–Cl–Ow and ∠ Cl–Hw–Ow are plotted in Figure 6. In the distribution of ∠ Ow–Cl–Ow at 0.1 MPa/300 K, there is a dominant peak at 49° and a subdominant, broad peak at 84°. When the pressure is increased to 1 GPa at 300 K, the two peaks shift to 51° and 77°, respectively. The subdominant peak disappears at 1–4 GPa and 500 K, and a peak is evolved at 94°. The distribution of ∠ Cl–Hw–Ow angle peaks close to 180°, showing the almost linear Cl$\cdots$Hw–Ow hydrogen bonds. With increasing pressure and temperature, the distribution broadens due to the distortion of the hydrogen bonds.

3.4. Solvent Water

From our previous studies of aqueous 3 m NaCl [5,7], 3 m RbCl [8], 2 m CaCl₂ [10], and 1 m CeCl₃ [11] solutions in the GPa pressure range, we found that the tetrahedral network structure of solvent water at 0.1 MPa/300 K transforms to a random dense-packing structure in the GPa pressure range. As seen in the pdfs of Ow–Ow in Figure 7 (left frame), three peaks are observed at 2.8, 4.1, and 6.8 Å, characteristic for the tetrahedral network structure of water, at 0.1 MPa/300 K. The structure parameters are summarized in

Table 4. Interatomic distances (r) and coordination numbers (CN) of Ow–Ow and Ow–Dw for solvent water in 2 m MgCl₂ aqueous solutions under the four thermodynamic conditions. I, II, and III denote the first-, second-, and third-coordination shells, respectively. r_max is the upper limit of the integration Equation (5). The uncertainties in the interatomic distance are estimated as 0.01 and 0.03 Å for the first and outer shells, respectively.

P, T	Parameters	Ow–Ow(I)	Ow–Hw(I)	Ow–Ow(II)	Ow–Ow(III)
0.1 MPa/ 300 K	r/Å	2.76	1.80	3.91–4.80	6.63
	C.N.	4.6 ± 1.7	1.1 ± 0.90
	rmax/Å	3.39	2.04
1 GPa/ 300 K	r/Å	2.79	2.07	3.84	6.09
	C.N.	6.3 ± 1.8	1.3 ± 1.0
	rmax/Å	1.8	2.13
1 GPa/ 500 K	r/Å	2.85	1.98	5.61	8.22
	C.N.	7.6 ± 1.7	1.5 ± 1.1
	rmax/Å	3.78	2.22
2 GPa/	r/Å	2.71	$\cdots \cdots$	5.31	7.99
500 K	C.N.	9.5 ± 1.5	$\cdots \cdots$
	rmax/Å	3.63	$\cdots \cdots$
4 GPa/ 500 K	r/Å	2.74	1.74	5.38	7.83
	C.N.	8.4 ± 1.6	0.88 ± 0.84
	rmax/Å	3.69	1.98

. When the solution is compressed to 1 GPa/300 K, the second and third peaks slightly shift to the shorter distance side. However, the full feature of the O_W–O_W pdf does not change, showing that the tetrahedral water structure remains at 1 GPa/300 K. This finding is in contrast with the case of a 3 m NaCl aqueous solution where the tetrahedral structure is completely broken down at 1 GPa/298 K [7]. This structural difference of solvent water is ascribed to the solute concentrations, i.e., more water molecules are present in a 2 m MgCl₂ solution than in a 3 m NaCl solution. A similar change in solvent water’s structure has also been observed for a 1 m CeCl₃ solution [11]. When the solution is heated to 500 K at 1 GPa, the O_W–O_W pdfs show a drastic change in the second and third peaks evolved at 5.6 and 8.2 Å, respectively, showing the transformation to a random dense-packing structure. In addition, the first peak at 2.8 Å becomes broader to the long-distance side, suggesting an increase in non-hydrogen bonded water molecules at the interstitial sites.

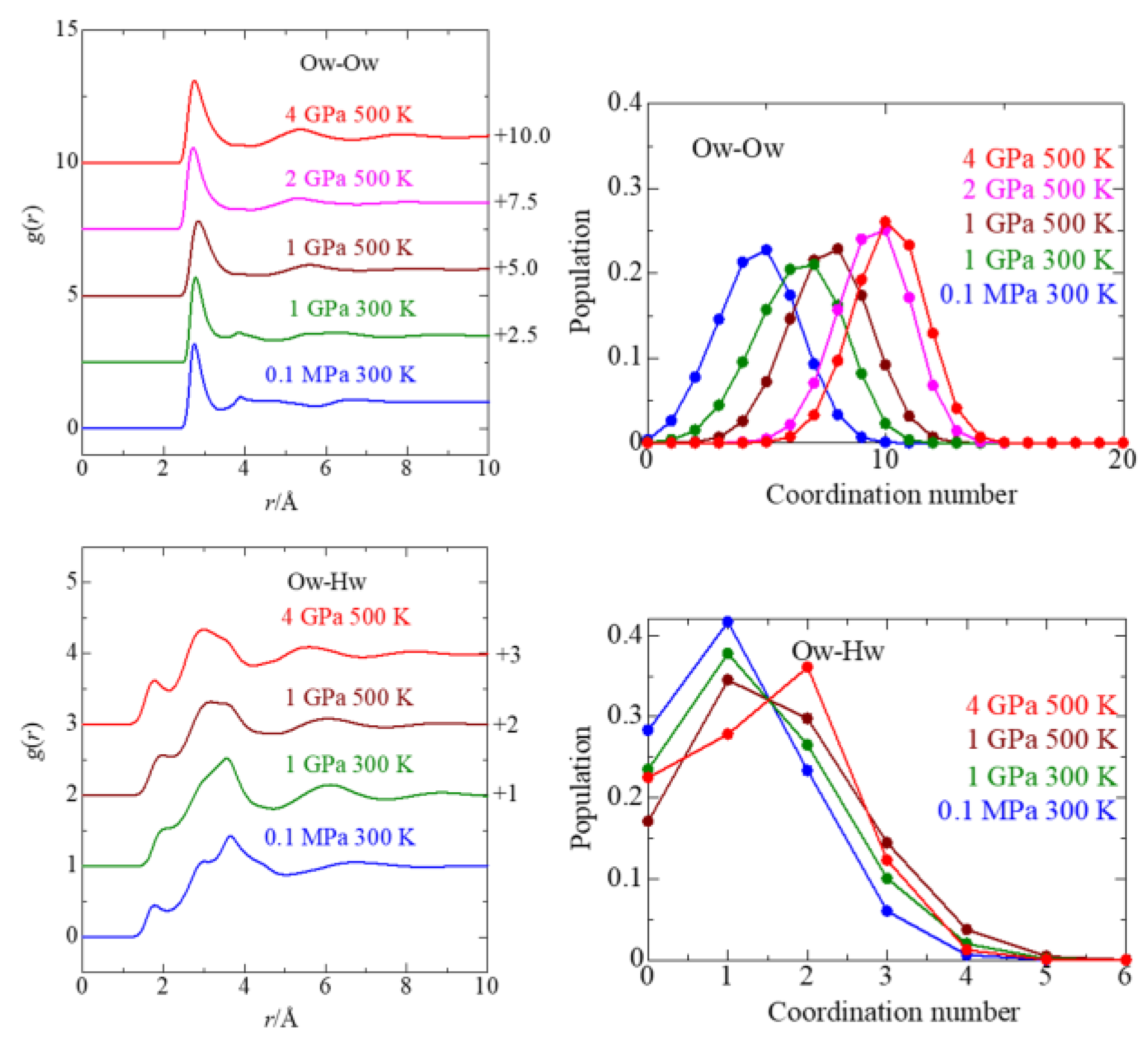

The detailed picture of hydrogen bonds between solvent water molecules with pressure and temperature is seen in pdfs of O_W–H_W in Figure 7 (left frame). Over the pressure and temperature range measured, the peak at 1.8 Å due to the intermolecular O-H hydron bonds is observed, demonstrating that the hydrogen bonds are preserved even at 4 GPa/500 K. The O_W–H_W distance is lengthened from 1.80 Å at 0.1 MPa/300 K to 2.07 Å at 1 GPa/300 K. Thus, although the tetrahedral network structure retains at 1 GPa/300 K, the hydrogen bonds are largely distorted by compression. When the temperature is elevated to 500 K at 1 GPa, the O_W–H_W distance is shortened; upon compression to 4 GPa, the O_W–H_W distance is further shortened to 1.7 Å. The CN distribution of O_W–H_W does not change largely with pressure and temperature, in contrast with the O_W–O_W. This finding suggests that pressure and temperature do not considerably affect the first-neighbor O_W–H_W.

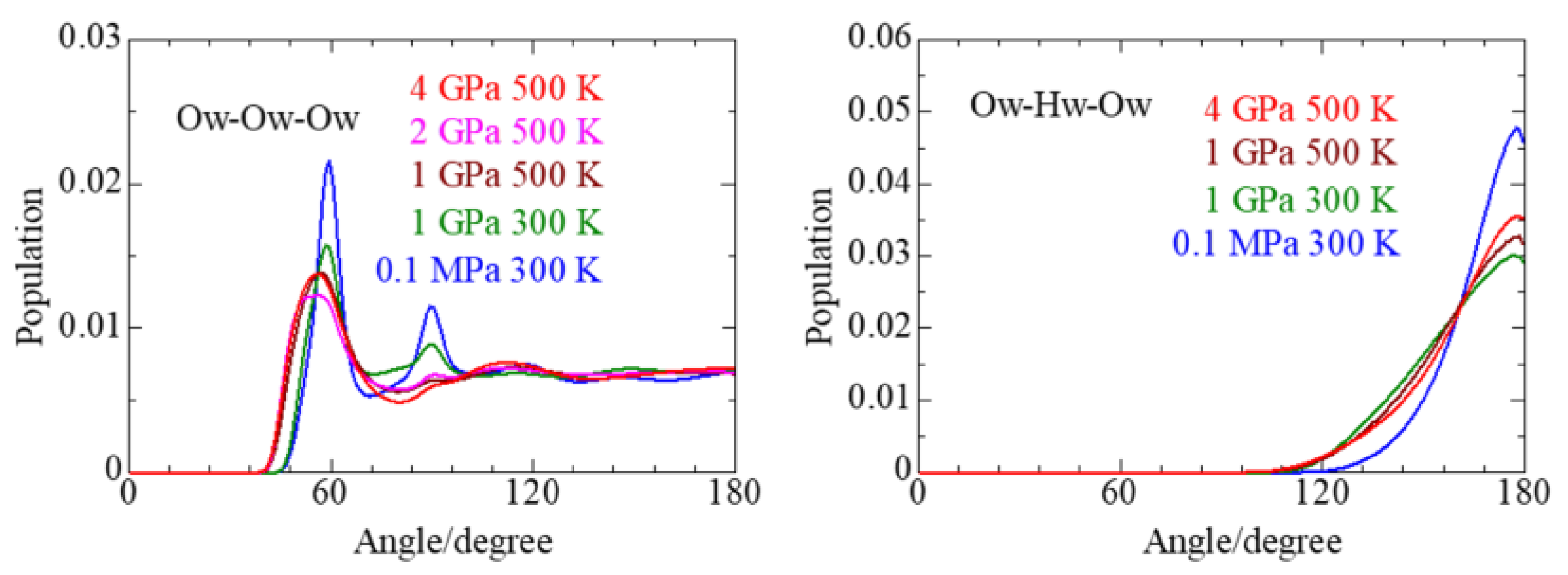

The structural change of solvent water with pressure and temperature is again discussed from the distribution of ∠Ow–Ow–Ow and ∠Ow–Hw–Ow angles, as seen in Figure 8. We can see 60° and 90° πεακσ in ∠Ow–Ow–Ow at 0.1 MPa/300 K. The latter angle is close to 109°, showing the presence of the tetrahedral hydrogen-bonded network. The sharp peak at 60° originates from non-hydrogen bonded or interstitial water molecules. Upon compression to 1 GPa at 300 K, both peaks decrease, suggesting the distortion of the network structure. Heating the solution to 500 K at 1 GPa results in the disappearance of the 90° peak and broadening of the 60° peak. Furthermore, very broad peaks evolved at approximately 116 and 180°. The drastic change in ∠Ow–Ow–Ow corresponds to transforming the tetrahedral structure into a dense random-packing arrangement. The results are consistent with 3 m and 5 m aqueous NaCl solutions [5,6].

The geometry of the intermolecular OW–HW hydrogen bonds is seen in the distribution of ∠Ow–Hw–Ow. A unique peak at 180° appears over the pressure and temperature measured. However, in the GPa pressure range, the peak is gradually lowered, and the tail of the distribution is widened to 110°. Thus, the intermolecular O_W–H_W hydrogen bonds are almost linear but distorted in the GPa pressure range.

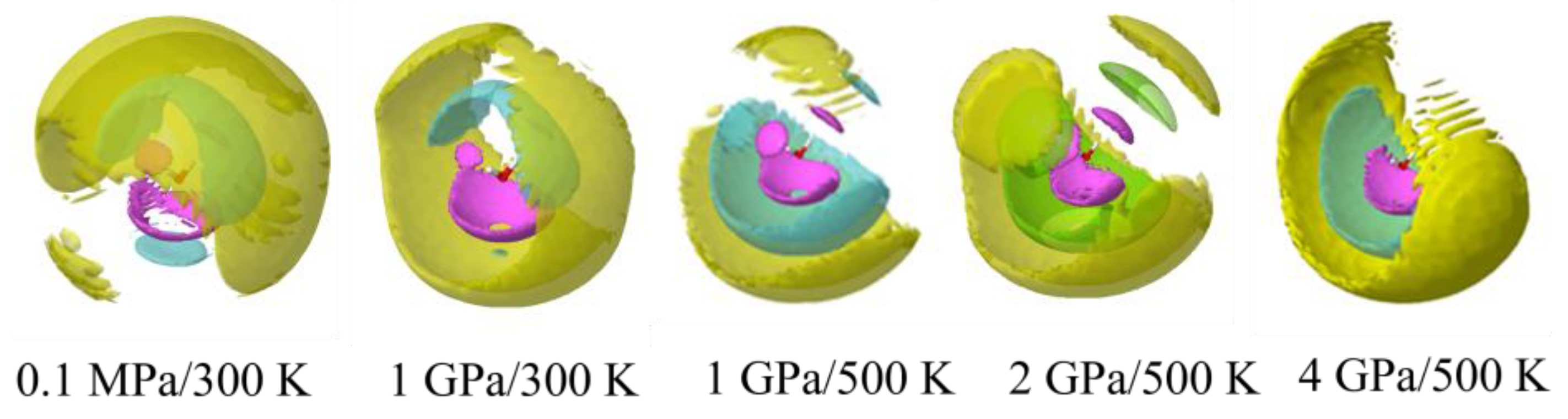

Figure 9 shows the change in the spatial density functions of the first-, second-, and third-neighbor water oxygen atoms around a central water molecule with pressure and temperature. We can see the tetrahedral hydrogen-bonded network structure at 0.1 MPa/300 K, which remains at 1 GPa/300 K. With increasing pressure and temperature, the water molecules hydrogen bonded to the hydrogen atoms of a central water molecule decrease, showing the distortion of hydrogen bonds. On the other hand, the lobe of water molecules on the lone-pair electron side of a central water molecule expands, and finally, a dense-packing structure of solvent water molecules at 4 GPa/500 K.

3.5. Ion Association

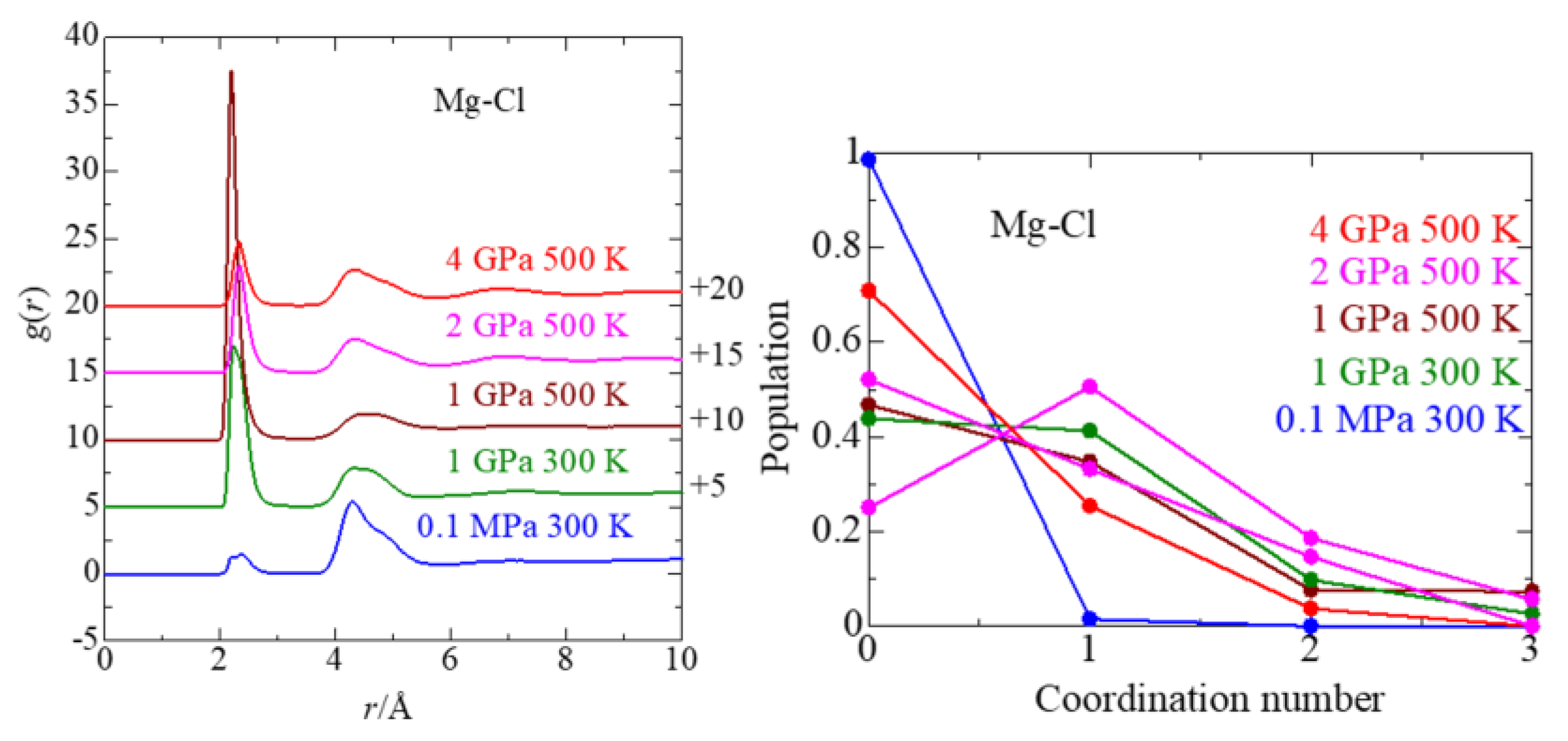

Structural information on ion association is obtained from the pdfs of Mg–Cl, as shown in Figure 10. The peak positions are given in Table 3. At 0.1 MPa/300 K, there is a small peak at 2.37 Å and a large, broad peak at 4–5.5 Å. The 2.37 Å peak is ascribed to the contact ion pairs (CIP) Mg²⁺–Cl⁻ since the distance is close to the sum of the Shannon effective ionic radii of Mg²⁺ (0.57 Å) and Cl⁻ (1.81 Å) [47]. The second peak should originate from the solvent-shared ion pairs (SSIP) Mg²⁺$\cdots$OH₂$\cdots$Cl⁻ estimated from the interatomic distances of Mg–O_W (1.92 Å) and CL–O_W (3.18 Å). Under ambient conditions, SSIP is preferable to CIP since water molecules surround Mg²⁺. When the pressure is increased to 1 GPa at 300 K, the first peak of CIP is enhanced, and that of SSIP is lowered, showing that CIP is more favorable than SSIP. The formation of CIP is promoted by increasing the temperature to 500 K at 1 GPa. However, with further compression to 2 and 4 GPa at 500 K, CIP decrease. As seen in Table 3, the mean CN of Mg–Cl reflects the above change of CIP and SSIP with pressure and temperature. In Figure 10 (right frame), the CN distribution of Mg–Cl extends to CN = 3, suggesting the formation of higher ion pairs in the GPa pressure range.

4. Conclusions

Ion solvation, association, and water structure in a 2 m MgCl₂ aqueous solution have been revealed in the GPa pressure range by X-ray- and neutron-scattering experiments combined with EPSR modeling. Over pressures from 0.1 MPa to 4 GPa, Mg²⁺ maintain an octahedral solvation shell comprising six water molecules at 0.1 MPa/300 K, one of which is replaced by one Cl⁻ in the GPa pressure range due to the formation of CIP. The orientational correlation of solvated water dipoles around Mg²⁺ does not change significantly with pressure and temperature, but the distribution of the dipole orientation becomes broadened in the GPa pressure range. On the contrary, the solvation structure of Cl^– is drastically changed upon compression to GPa; the mean CN of water oxygen atoms around Cl^– increases from 8.2 at 0.1 MPa/300 K to 10.1 at 4 GPa/500 K. On the other hand, the CN of the water hydrogen atom surrounding Cl⁻ remains at about six regardless of pressure due to linear Cl$\cdots$H-OH bonds. These results suggest some of the solvated water molecules present slightly distant from Cl⁻ without forming hydrogen bonds with Cl⁻. Compression of solvent water to a GPa pressure range transforms the tetrahedral hydrogen-bonded network structure to a dense random packing arrangement, as evidenced by the mean CN change from 4.6 at 0.1 MPa/300 K to 8.4 at 4 GPa/500 K, accompanied by distortion of hydrogen bonds. In a pressure range from 0.1 MPa to 4 GPa, the intermolecular O_W–H_W(I)–O_W hydrogen bonds are linear but distorted in the GPa pressure range. CIP and multiple IPs are promoted with increasing pressure and temperature.
