1. Introduction
The car-following (CF) model is a fundamental component of microscopic traffic simulation tools, as it represents the longitudinal movement of cars. CF models aim to accurately replicate the specific driving patterns of individual drivers as they follow another vehicle in a particular network simulation. Several CF models have been developed in recent decades, each based on different driving strategies. These strategies are typically classified as stimulus-based, safety distance, desired measures, optimal velocity, and psychophysical models [
1].
Each of these CF models is derived from a mathematical formulation that incorporates multiple parameters. Calibrating these parameters is a challenging task that is of great interest to traffic researchers. If the parameters are not properly calibrated, the model may inaccurately represent a car’s movement and lead to incorrect conclusions.
While several methods have been suggested to address this issue, many experts believe that the most accurate way to calibrate CF models is by using vehicle trajectory data. These data track the positions, speeds, and distances between the leading and following vehicles over time as they move along a road [
2,
3]. However, obtaining trajectory data from real-world conditions is often difficult, and the calibration procedures for CF and adaptive cruise control systems are usually expensive and complex. This may explain why only a small percentage (9%) of recent studies have focused on this topic [
4].
This work intends to develop and assess a reasonably affordable method for calibrating the Intelligent Driver Model (IDM), a car-following model, using actual trajectory data acquired in an urban environment. This particular calibration technique, which combines sequential and simultaneous approaches, was chosen due to its ability to balance the physical interpretability of IDM parameters with computational efficiency, making it well suited for small research teams with limited resources. Unlike more complex methods relying on extensive datasets or advanced optimization algorithms, this approach only requires low-cost instrumentation and a two-step process to ensure practical applicability while maintaining accuracy. Specifically, this work has the following aims: (i) to calibrate the IDM parameters by considering their physical interpretation in basic driving scenarios, such as unconstrained acceleration and deceleration maneuvers and steady-state car following; (ii) to develop an accessible method that combines sequential and simultaneous calibration approaches to accurately replicate real trajectories; and (iii) to validate the model under typical urban driving conditions, assessing its predictive capability. To guide this investigation, this study seeks to answer the following research questions: How can the physical meaning of IDM parameters be effectively utilized to enhance calibration accuracy? Is a two-step calibration process (sequential followed by simultaneous) sufficient to reproduce observed driving behaviors in urban settings? And does constraining parameter ranges based on their physical significance improve the model’s performance compared to unconstrained optimization?
In the rest of this document,
Section 2 presents a brief overview of the advancements in the calibration techniques of CF models.
Section 3 introduces the IDM and emphasizes the physical meanings and properties of all model parameters that are adjustable in the calibration process of the IDM.
Section 4 provides a detailed description of the methodology employed to gather and analyze field data on a group of individual drivers, which ultimately formed the basis of our study’s trajectory data.
Section 5 outlines the sequential calibration procedures used to estimate reasonable boundary values for all parameters and explains the simultaneous calibration and validation tasks in relation to typical driving conditions.
Section 6 contains the overall findings of this study.
2. Literature Review
The calibration and validation of microscopic traffic simulation models have advanced to improve the accuracy and realism of traffic dynamics representation. Some authors have presented calibration procedures that rely on macroscopic variables [
5,
6]. The fundamental concept of this approach is to modify the variables of a specific CF model based on field data that represent steady-state conditions of road traffic (such as traffic flow, speed, and density) collected from loop detectors or similar devices. Other researchers combined macroscopic speed–flow graphs and vehicle trajectory data to calibrate and validate model parameters, specifically through the reduction in the search space and the number of potential solutions [
7,
8].
Two major conclusions can be drawn from these studies. First, driver behavior changes depending on the road environment (e.g., increased following distance in tunnels), so car-following parameters should be adjusted to account for these differences [
9]. Second, while methods using macroscopic loop detector data are useful, they fall short in capturing the detailed interactions between individual vehicles. Adding microscopic data, like vehicle trajectories, improves the accuracy of calibration methods.
Vehicle trajectories are commonly obtained using driving simulators [
10], instrumented vehicles [
11,
12,
13], or aerial images captured by video cameras placed on tall buildings, helicopters, or drones [
14,
15]. Some datasets are managed by transportation authorities and are available for research under specific conditions, such as the Strategic Highway Research Program’s naturalistic driving study focused on US freeways [
16].
One influential study by Brockfeld and Wagner [
17] examined ten different microscopic traffic flow models. They used data collected from cars equipped with DGPS technology on a test track in Japan, creating a controlled environment for studying driver behavior. Their approach involved inputting the lead car’s data into each model to predict the following car’s headway, and then comparing these simulated headways with actual measurements. The calibration results, which showed errors between 12% and 17%, underscored the significant impact of individual driver behavior on traffic flow.
Kesting and Treiber [
2] developed a calibration technique for car-following models using trajectory data from a vehicle with radar sensors. They applied a genetic algorithm to minimize the differences between observed and simulated trajectories.
Ossen and Hoogendoorn [
18] highlighted the impact of measurement errors in trajectory data on the calibration of car-following models. They emphasized the need for careful data preprocessing and methods to reduce errors, as inaccuracies can distort parameter estimation and limit the models’ general applicability. This aligns with the findings of Brockfeld and Wagner [
17], who warned about the risks of “overfitting”, where models become overly tailored to specific training data, thereby restricting their applicability to other scenarios. Another related debate in the field concerns whether parameters should be calibrated sequentially (individually in a set order) or simultaneously (adjusted together) [
4,
13,
19].
This study presents a simple and cost-effective method for collecting trajectory data, suitable for small research teams and projects, and introduces a two-step process for calibrating the IDM, a car-following model. The method involves an initial partial sequential calibration followed by simultaneous constrained optimization.
3. The Intelligent Driver Model
3.1. Overview
The Intelligent Driver Model is a simple, deterministic, time-continuous model that belongs to the family of optimal velocity models [
20]. Developed in 2000 [
21], it includes specifications that make it collision-free. Over time, the IDM has evolved into several variants [
22], becoming one of the most widely used CF models. Its popularity stems from its superior performance in representing vehicle CF behavior across all single-lane traffic situations, including the driving behavior of automated vehicles [
23]. Moreover, the IDM’s collision-free design, simplicity in calibrating model parameters using empirical data, fast numerical simulations, and the existence of a corresponding macroscopic model [
24] further contribute to its widespread adoption. For these reasons, the IDM is the CF model employed in the present work.
3.2. Model Structure
The IDM has the following dynamic properties [
22]:
The following vehicle acceleration is a strictly decreasing function of its own speed; in free road conditions, the vehicle accelerates to the desired speed.
The following vehicle acceleration is a strictly decreasing function of the relative distance from the leading vehicle.
The following vehicle acceleration grows with the speed of the leading vehicle.
The following and leading vehicles keep a minimum distance (bumper-to-bumper distance); there is no reverse movement even if any event leads to a relative distance between the follower and leading vehicles that is less than the minimum distance.
Altogether, it implies that the IDM is a complete CF model in the sense that it has a distinctive steady-state flow density.
The model equations are expressed mathematically as coupled ordinary differential equations: that is, the subject vehicle
v (speed) and its derivative dv/dt (acceleration, hereon represented by
) are calculated simultaneously. The IDM acceleration is calculated as presented in Equation (1):
where,
—Acceleration [m/s2]
a—Maximum acceleration [m/s2]
v—Speed of the following vehicle [m/s]
v0—Desired speed [m/s]
δ—Exponent factor
s—Actual distance between vehicles (bumper-to-bumper distance) [m]
s*—Desired distance between vehicles [m]
The acceleration equation has two major terms. The following vehicle acceleration under free road conditions is described in the first term by comparing the current speed v to the desired speed v0, with δ controlling the smoothness of the acceleration decrease as the vehicle approaches its desired speed.
The second term compares the actual distance between vehicles
s with the desired distance
s*. If
s ≈ s
*, the output acceleration is roughly zero. The IDM desired distance between vehicles is given by Equation (2):
where,
s*—Desired distance between vehicles [m]
s0—Minimum distance between vehicles [m]
v—Speed of the following vehicle [m/s]
T—Desired safety time headway to the vehicle in front [s]
Δv—Speed difference between vehicles [m/s]
a—Maximum acceleration [m/s2]
b—Maximum braking deceleration [m/s2]
Thus, the following vehicle’s acceleration at a given instant t depends on its own speed v, the speed difference Δv between vehicles, and distance s. Overall, the IDM parameters that are adjustable to represent specific driving behaviors are a, b, δ, v0, s0, and T.
To simulate vehicle trajectories, a numerical integration scheme is necessary. The term “integration” refers to the process of estimating the solution to the coupled ordinary differential equations that characterize the time-continuous car-following model. In practice it means that over a finite time interval Δ
t, the speed
v, position
x, and distance
s between the vehicles are updated under the assumption of a constant acceleration. The ballistic method, a well-known standard integration scheme used in this work [
25], is as follows:
where,
—New updated speed of the following vehicle [m/s]
—Speed of the following vehicle [m/s] at time t
—IDM acceleration [m/s2] calculated at time t
—New updated position of the following vehicle [m]
—Position of the following vehicle [m] at time t
v—Speed of the following vehicle [m/s]
3.3. Estimation Approach for Particular Cases
Each IDM parameter represents a specific element of driving behavior, enabling the development of a combined calibration procedure (sequential + simultaneous) in two stages:
Phase 1: This phase seeks to precisely adjust the IDM parameters associated with a specific set of basic driving scenarios conducted in a controlled environment.
Phase 2: This phase involves the simultaneous adjustment of all parameters using an automatic calibration procedure. This procedure focuses on typical driving scenarios in urban areas and is based on the results obtained in Phase 1, which established boundaries and initial estimates of the IDM parameters.
The driving cases considered for Phase 1 are as follows: (i) car following in steady-state conditions, (ii) unconstrained acceleration from a standstill, and (iii) approaching a stopped vehicle.
3.3.1. Car Following in Steady-State Conditions
When following a leading vehicle at a constant speed
, the bumper-to-bumper distance between vehicles
s is determined by Equation (2). If the leader vehicle travels at speeds considerably lower than the follower’s desired speed
, the distance between them varies linearly with speed and is mainly influenced by
s0 and
T. The parameter
s0 can be considered as the distance between two consecutively stopped vehicles.
3.3.2. Unconstrained Acceleration from a Standstill
When the vehicle is travelling in the absence of surrounding traffic or at a significant distance from the leader (
s → ∞), Equation (1) can be simplified. Note that the vehicle achieves its maximum acceleration
a when it begins to accelerate from a standstill position. The acceleration subsequently diminishes as the velocity of the vehicle rises and ultimately reaches zero as the vehicle approaches the target speed
v0. The exponent
δ governs the decrease in acceleration. As the value increases, the rate of acceleration decreases more smoothly. As a result, the limit
δ → ∞ is a bilinear speed diagram. In this scenario, the braking deceleration term is zero, and the vehicle acceleration can be easily calculated using the following equation:
3.3.3. Approaching a Stopped Vehicle
When a vehicle is moving at a constant velocity and detects a slower or stationary car ahead, it will apply the brakes or decrease its speed to avoid any potential collisions. The vehicle’s trajectory in this scenario is affected by all IDM parameters, which complicates the process of individual calibration. However, because the parameters a, δ, T, and s0 can be estimated from the driving scenarios previously examined, their respective values can be treated as constant. This means that the maneuver of approaching a stationary vehicle is primarily influenced by the maximum deceleration b.
4. Data Collection and Preparation
4.1. Sample and Vehicle Instrumentation
This study involved data collection from various vehicles and drivers. The vehicles used included a 2021 Hyundai Bayon with a manual transmission, a 2005 Opel Corsa with a manual transmission, and a 2015 Mercedes C220 with an automatic transmission. The study sample comprised five drivers, who were students and professors from the Polytechnic Institute of Viseu, Portugal. These participants, representing both genders, were aged between 23 and 53 years and had prior driving experience. While a larger sample size would be ideal for capturing the full spectrum of driving behaviors, the focus of this research was on developing and demonstrating a cost-effective data collection and calibration methodology. Further research with a larger and more diverse sample is recommended to validate these findings and to develop more generalizable parameter sets.
Data were gathered on their car-following behavior using leader–follower pairs, with the follower vehicles equipped with a datalogger (DL1 Club, Race Technology Ltd., Nottingham, UK) paired with a Lidar (ULS, Laser Technology Inc., Centennial, CO, USA): see

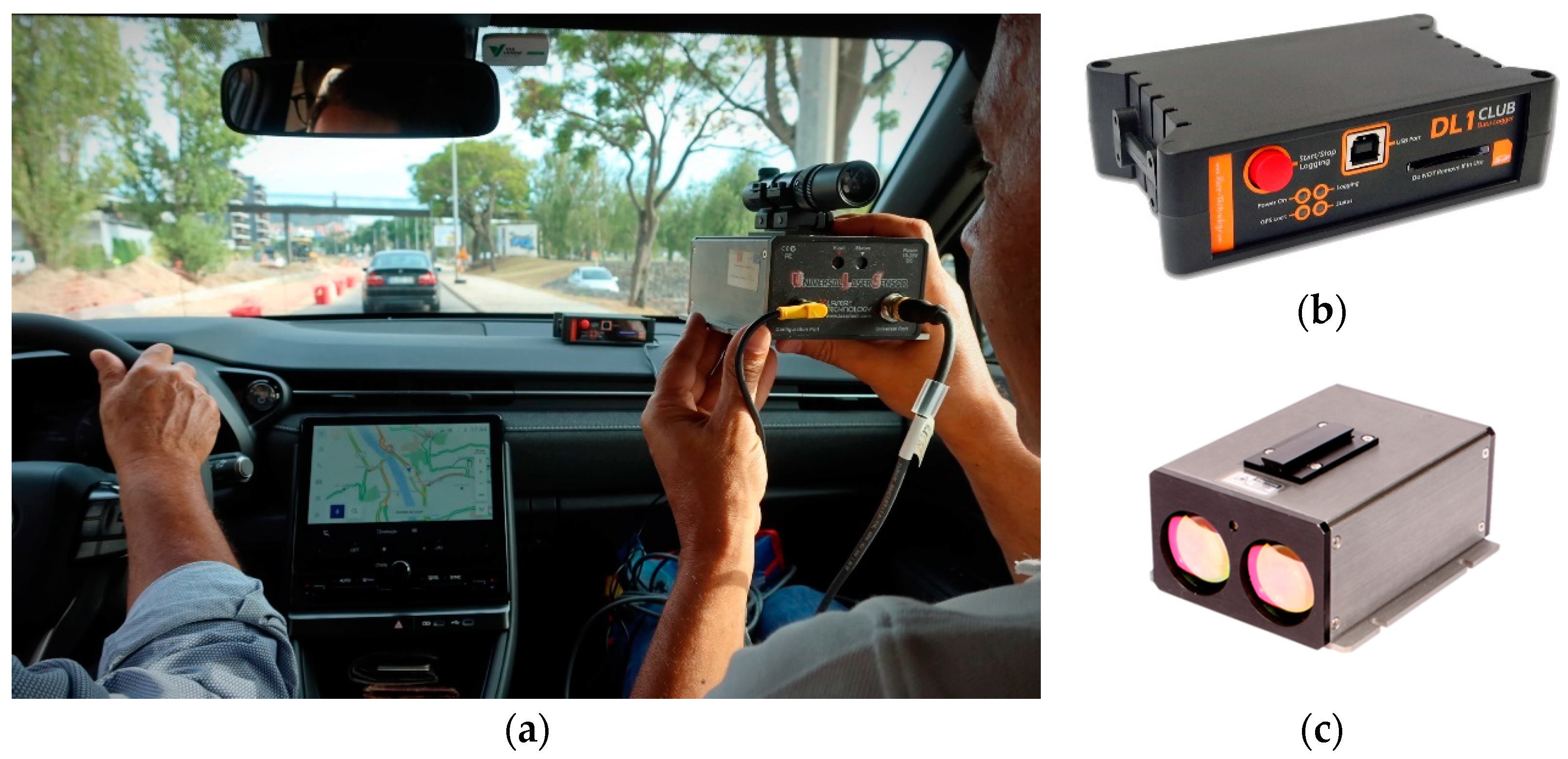

Figure 1.
The datalogger allows for the collection of speed measurements with a precision of less than 0.1 km/h and positional measurements with a precision of 3 m (circular error probability) thanks to its internal accelerometers and a 20 Hz GPS receiver. The total expense for this equipment is below EUR 2500. The coupled Lidar was employed to measure the bumper-to-bumper distance to the vehicle in front. However, as the equipment was placed inside the follower car it was necessary to subtract the distance between the Lidar’s location and the vehicle bumper to determine the precise bumper-to-bumper distance.
4.2. Route and Experimental Procedures
The experiment was conducted on a diverse urban route spanning 4.4 km in each direction (refer to

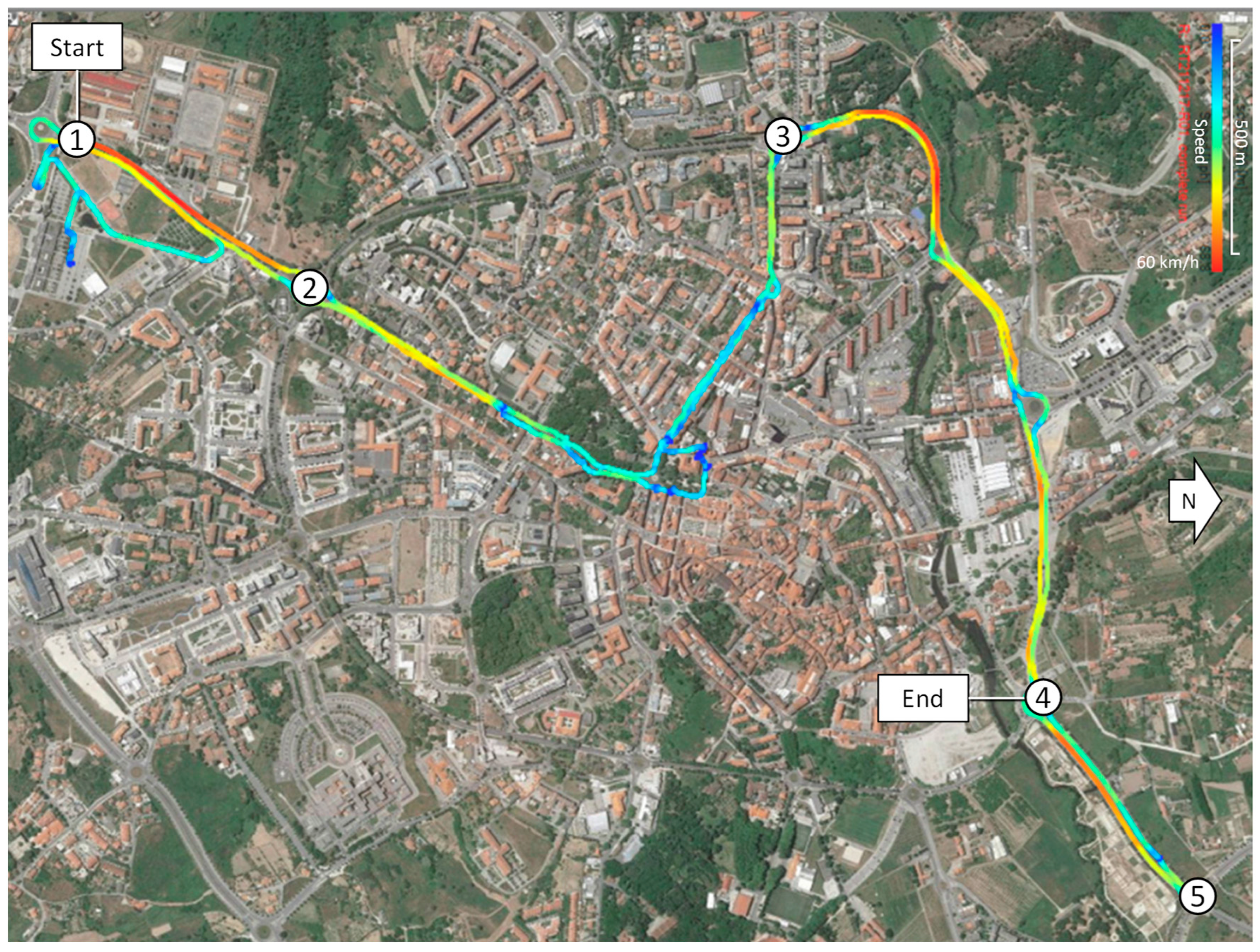

Figure 2). The route included different types of roads: sections 1–2 and 3–4 were arterial roads with a central divider, while section 2–3 was a distribution road. Starting at the university campus, drivers were instructed to follow the lead vehicle through sections 1–4 while driving normally. The lead driver maintained various steady speeds along the route, all relatively low, to prompt the follower vehicle to engage in longitudinal following maneuvers. In some instances, the leader’s speed exceeded the follower vehicle’s preferred speed, causing a disruption in the speed–distance elastic response. Sections 4–5 was specifically designated for acceleration and deceleration maneuvers: drivers were instructed to accelerate from a standstill to a steady desired speed and then decelerate to a complete stop. Drivers 1 and 3–5 performed these maneuvers while driving normally, whereas driver 2 repeated the acceleration/deceleration maneuvers 20 times, adopting different driving styles—comfortable, normal, and aggressive—to determine realistic variation ranges for the associated IDM parameters.
4.3. Data Preparation
The obtained database comprises time series data that include the follower vehicle’s position, speed, acceleration, and distance from the leader. Initially, these data were analyzed using the Race Technology software (refer to

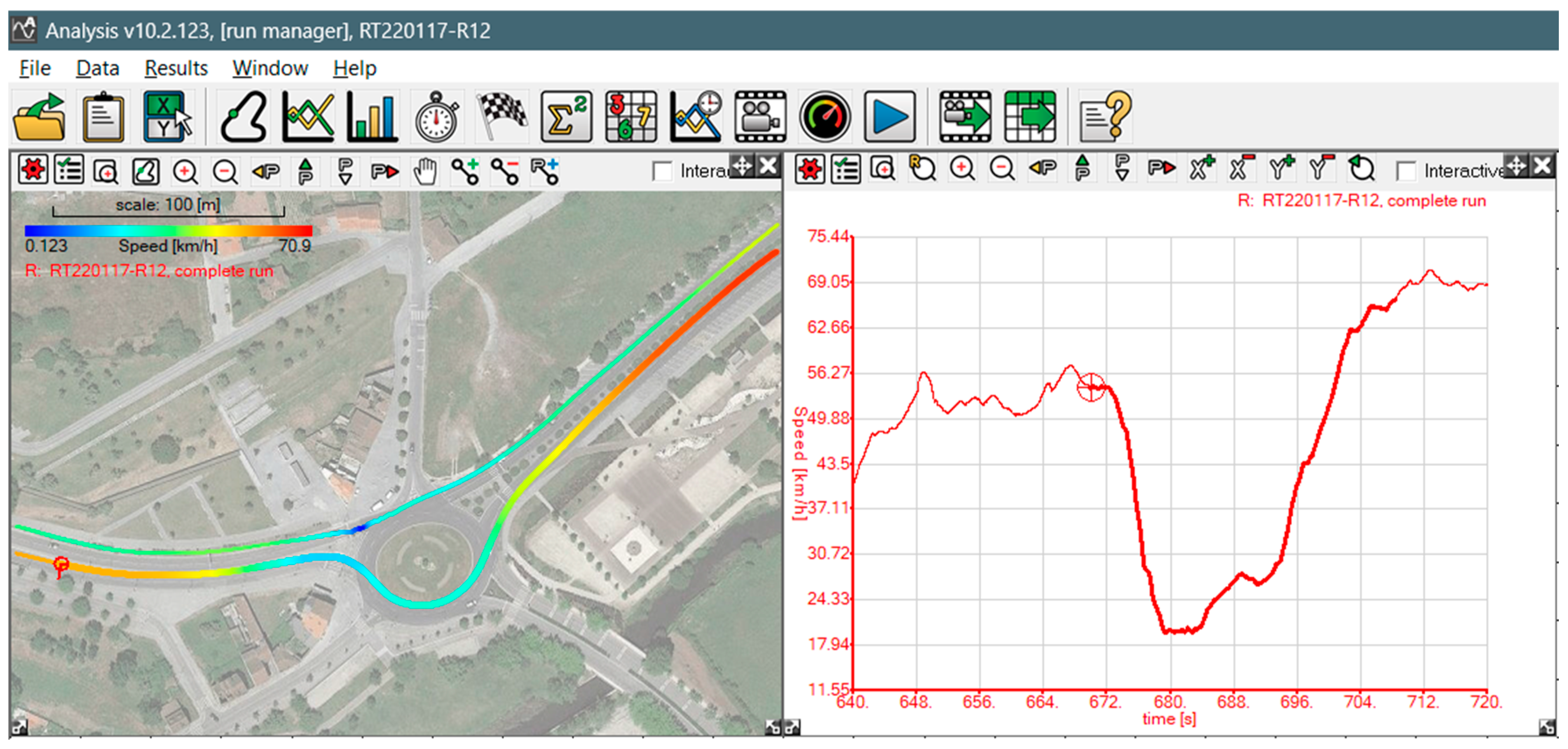

Figure 3) and subsequently exported in “.mat” format for further analysis in Matlab (v. 9.12). This software was used to filter the data to remove outliers, such as Lidar detection failures, and resize them from a frequency of 100 Hz to 4 Hz. This resulted in smaller files and faster optimization procedures.
5. Calibration Methodology
5.1. General Considerations
This work used a process called systematic estimation of optimal parameters to accurately calibrate the IDM to observed car-following behavior. Generally, each calibration process follows an optimization framework that involves, at the very least, defining a measure of performance (MoP) and an objective function [
26].
A measure of performance (MoP) is a metric that highlights a specific aspect of car-following behavior. In the literature, various MoPs are used in optimization problems related to this behavior. Examples include the distance and time headway between two consecutive vehicles as well as the position and speed of the following vehicle. Based on recent studies [
27,
28], the kinematic measure with the higher magnitude (position) should be preferred. However, in this study case we have opted for a metric of intermediate magnitude (speed) because it is the most traditionally favored metric.
The objective function, in this context, dictates whether the difference between the observed and simulated MoPs should be maximized or minimized, while also defining the relevant constraints. To achieve this, formulas like the Mean Absolute Error (MAE) or the GEH statistic are often utilized. However, due to its heightened sensitivity to small values, the Root Mean Square Error (RMSE) is particularly favored in car-following studies [
26,
29].
Therefore, the objective function seeks to minimize the Root Mean Square Error (RMSE) between the observed and simulated speeds of the following vehicle, as given below:
where,
RMSE—Root Mean Square Error [m/s]
vsim—Speed of the following vehicle estimated by the model [m/s]
vobs—Speed of the following vehicle observed in the experiment [m/s]
N—Observation number (time step or time interval)
β—Solution vector (a, δ, b, s0, T, v0)
LBβ—Vector of the minimum values admitted as solution
UBβ—Vector of the maximum values admitted as solution
The optimization procedure was executed in Matlab by employing the fmincon function, which is intended to identify the minimum value of a constrained nonlinear multivariable function. Alternative techniques, such as genetic algorithms, might be preferable for solving more complex problems [
1,
30].
5.2. Sequential Calibration
5.2.1. Car Following Under Steady-State Conditions
Equation (6) establishes a nearly linear correlation between speed and distance in the context of steady-state car following. Therefore, for every driver the speed and distance to the leader have been recorded in brief intervals (≈4 s), not necessarily consecutively, along the 1–4 route, where stationary conditions (consistent speed and distance) were observed. The number of data points collected on each route is relatively small because most of the time drivers were either approaching or moving away from the leader.

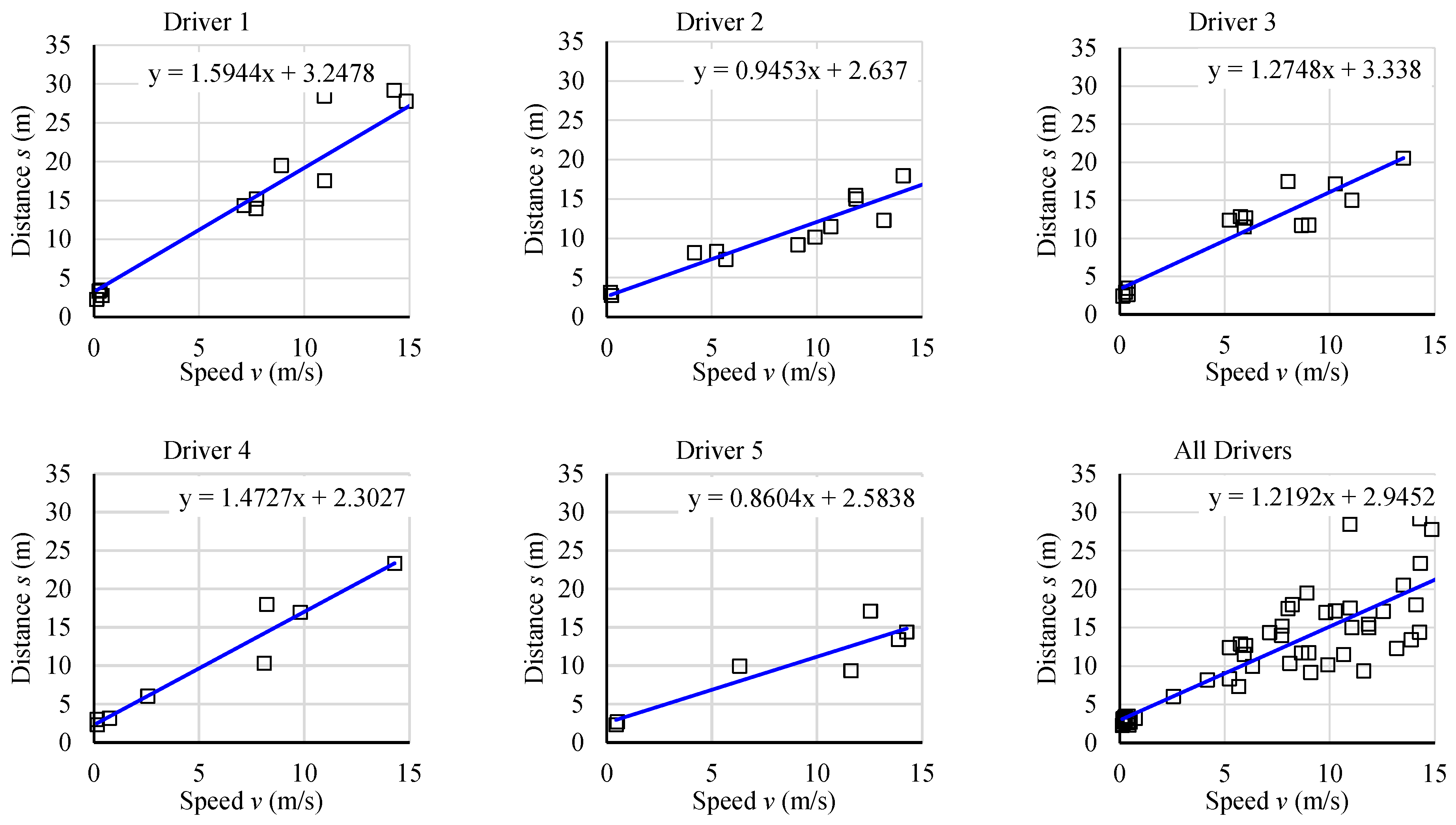

Figure 4 displays the data points for speed–distance (
v–
s) and their corresponding linear regression lines. The defining features of these lines are their point of intersection and their inclination, which correspond to the values of
s0 and
T. The proximity of the points to the regression line indicates that each driver consistently follows a consistent driving style.
However, there is significant variation between drivers, as indicated by the dispersion of points in the overall graph. This variation aligns with the findings of Ossen and Hoogendoorn [
31], who identified clear differences in speed-dependent desired headways and emphasized the stochastic nature of traffic.
Specifically, drivers 2 and 5 consistently maintain a significantly shorter distance to the leader compared to drivers 1, 3, and 4.
Table 1 includes the outcomes of the calibration phase, specifically the average values of the parameters
s0 and
T, along with other described elements.
5.2.2. Acceleration and Deceleration Under Free-Flow Conditions
According to Equation (7), which governs acceleration maneuvers, the parameters
a and
δ regulate the evolution of speed until the desired speed
v0 is reached. In the optimization problem,
v0 was manually assigned based on clear thresholds in the speed diagram, while
a and
δ were optimized for each maneuver.

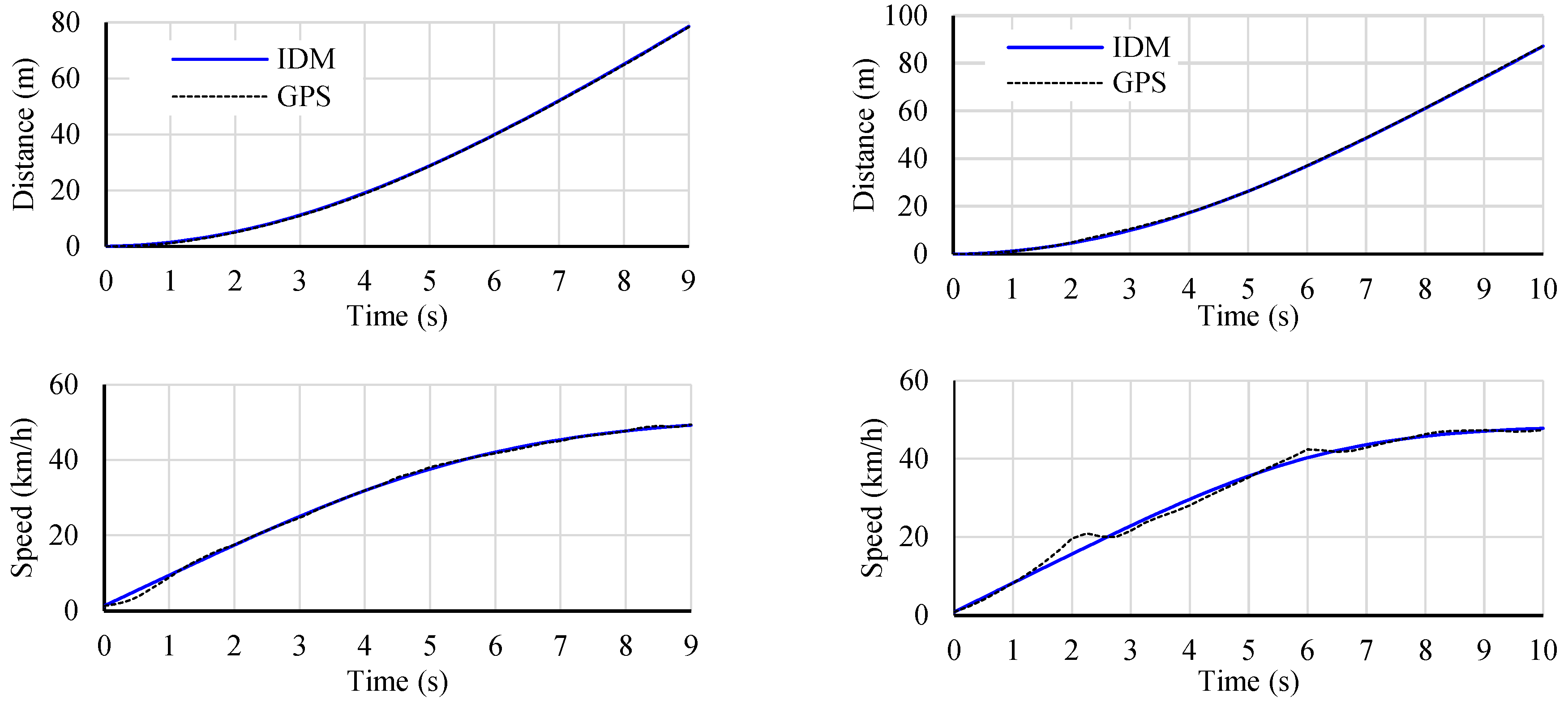

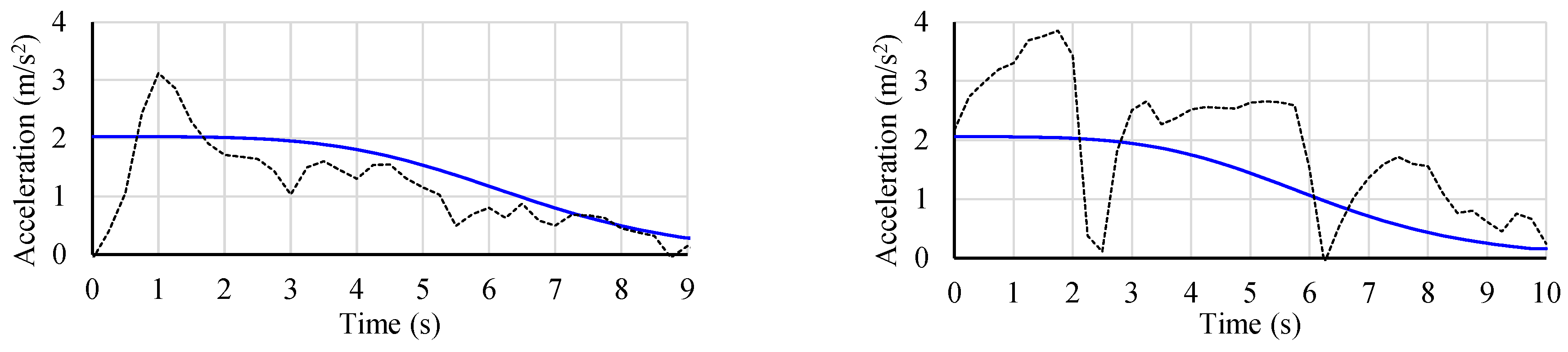

Figure 5 illustrates the model’s predicted trajectory for two driver–vehicle combinations, one with automatic transmission (left panel,
a = 2.03 m/s
2,
δ = 4.20, and
v0 = 14.0 m/s) and the other with manual transmission (right panel,
a = 2.06 m/s
2,
δ = 3.84, and
v0 = 13.5 m/s). The model closely replicates the distance profile, with almost indistinguishable lines. Speeds were also predicted with high accuracy, although small deviations start to emerge due to the amplification of errors inherent in the first derivative of position, particularly in the manual transmission scenario. Predictions for acceleration, however, were less precise, as the second derivative further amplifies noise and minor discrepancies in the input data and model.
To calibrate the maximum deceleration parameter
b, a similar procedure was followed, this time aiming to replicate the speed profile of an isolated vehicle from the moment it begins to decelerate to the moment it comes to a stop. Given that all parameters have an impact on this profile,
s0 was set to 0 (the leading vehicle is fictitious), and the parameters
a,
δ, and
T were assigned the average values identified in the previous steps for the respective driver. The curve fitting was then performed solely by adjusting
b. It is important to acknowledge that the impact of this parameter on the model’s outcomes cannot be separated from the value of
a (refer to Equation (2)), meaning that the same deceleration behavior can be achieved through different
a–
b combinations.

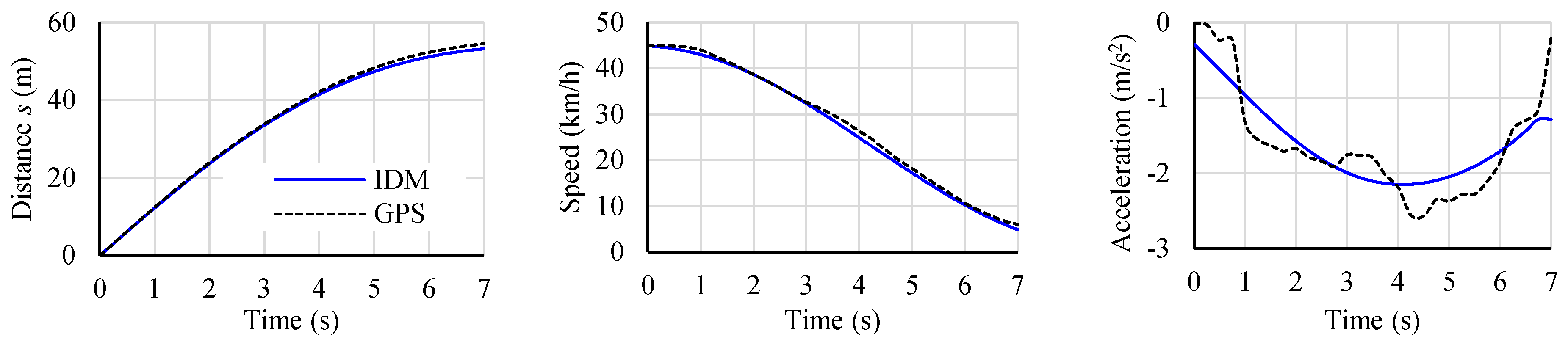

Figure 6 illustrates the kinematic profiles corresponding to one of the deceleration maneuvers of driver 2 (
a = 2.02 m/s
2,
δ = 2.40,
T = 0.95,
s0 = 0 →
b = 2.08 m/s
2). The results of this calibration phase, expressed as average values for each driver, can be found in
Table 1. Note that desired speed values are not included, as these were chosen arbitrarily by the drivers during each maneuver.
5.3. Simultaneous Calibration
5.3.1. Parameter Domain
The estimates obtained in the previous section through the sequential calibration process were derived under specific conditions, namely unconstrained acceleration and deceleration maneuvers, and by following a leader vehicle under steady-state conditions on a traffic-free road. Nevertheless, the primary objective consists in accurately representing driver conduct in urban settings, which are distinguished by a multitude of driving patterns and stimuli. Under these circumstances, all elements of CF models are involved, including parameters that are more challenging or unattainable to observe through simpler actions. The optimal parameters for representing these conditions are expected to be different from those that are best suited for simple maneuvers. Therefore, a simultaneous calibration process with local data is necessary. This optimization should be carefully limited for the following reasons:
Unforeseen events frequently arise in real-world driving situations that are not accounted for in the model specifications (e.g., navigating intersections, distractions from mobile devices, abrupt braking, etc.). While these events should be excluded, there are instances where the analyst fails to detect them, resulting in their inclusion in the training data. This can introduce bias in the calibration process and yield unrealistic parameters.
Occasionally, the calibration data are relevant to segments with minimal fluctuations in traffic conditions, which may result in impractical values for the less significant parameters.
To ensure that the calibration yields parameters accurately reflecting driver behavior based on the training data, while also performing well with independent data, our goal was to establish a practical range of values for each parameter. To achieve this, we concentrated on the variability in parameters for driver 2. As previously noted, driver 2 executed acceleration and deceleration maneuvers across a range of speeds, from very gentle to highly aggressive driving styles. For this driver, a specific range was determined for each parameter, defined as [LB, UB], where LB and UB represent the lower and upper bounds, set at the 15th and 85th percentiles of the results, respectively. The relationship between each percentile and the average A was then similarly applied to the other drivers that, to streamline data collection and reduce costs and time, only performed maneuvers in normal driving mode (
Table 1).
5.3.2. Calibration and Cross-Validation
After establishing acceptable ranges for the different parameters, a simultaneous parameter calibration was conducted using optimization techniques, similar to the sequential calibration performed with the fmincon function. To streamline the presentation of findings, this analysis focused specifically on two drivers: driver 1 and driver 2. A standardized procedure was applied to each driver.
Trajectory data, including kinematic variables and distance to the leader, were extracted for two large heterogeneous segments: outbound (1 → 4) and inbound (4 → 1). The periods at the beginning and end, where stable following conditions were not met, were excluded from the analysis.
Parameter calibration was conducted for each segment using two optimization methods: (a) constrained within the [LB, UB] intervals specified in
Table 1; (b) unconstrained, where no restrictions were placed on the parameter values (only physically plausible ranges were defined).
Model validation was conducted on the complementary segments, meaning that parameters calibrated on the outbound segment were utilized to forecast behavior on the return segment and vice versa.
The results of this procedure are shown in
Table 2. Furthermore,

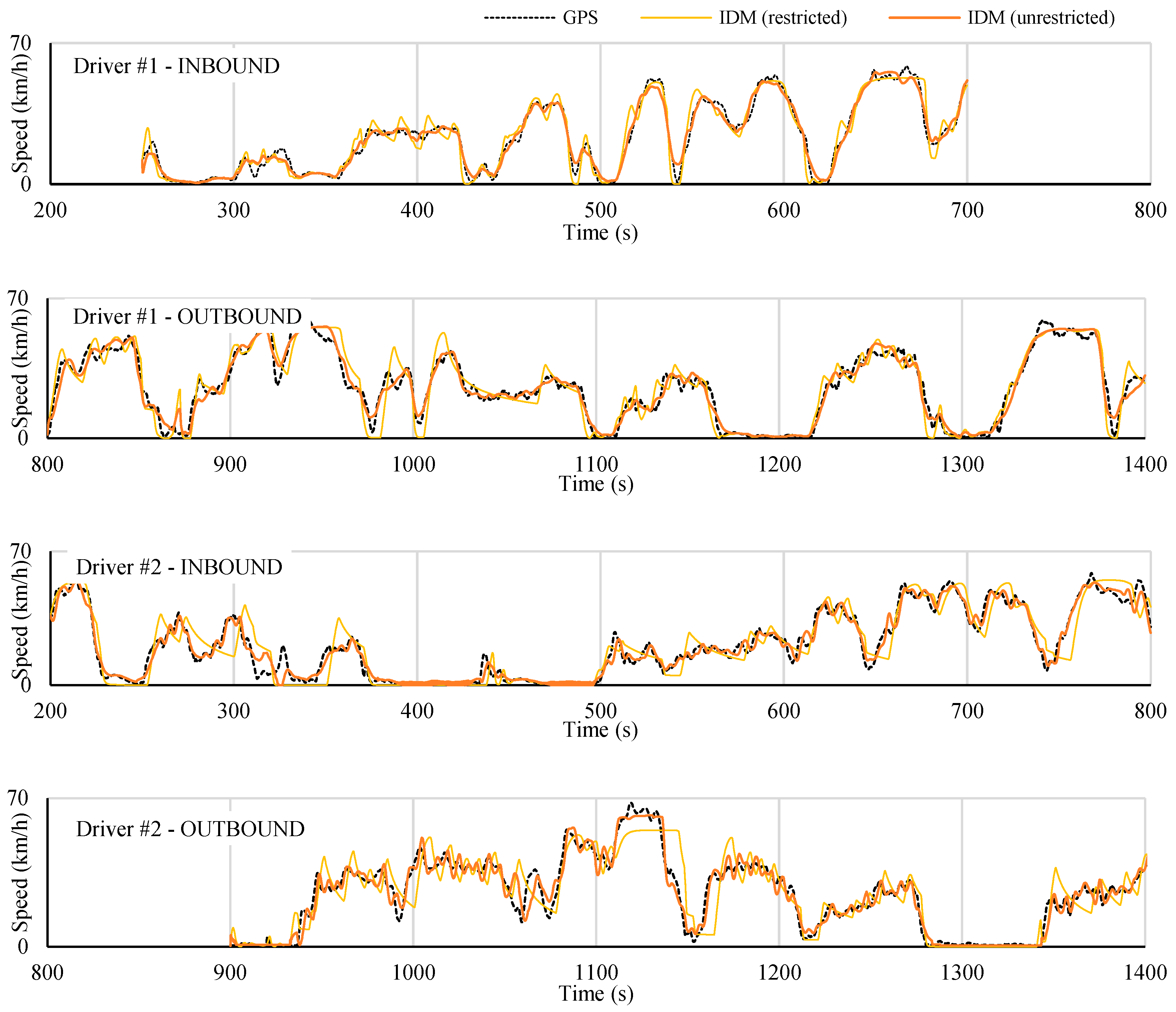

Figure 7 presents a graphical depiction of these findings for drivers 1 and 2. The diagram depicts the performance of the model on the inbound route when using parameters calibrated on the outbound route, and vice versa, using both constrained and unconstrained calibration methods.
5.4. Analysis and Discussion of Results
Upon initial analysis, it is evident that the IDM accurately reproduces the actual speed profiles, thereby confirming the model’s capability to simulate urban traffic. The RMSE values for a specific driver exhibit similarity between the calibration and validation segments, as anticipated due to the instruction given to drivers to maintain a normal driving style on both segments. Nevertheless, when assessing the impact of parameter restriction during the calibration process an unexpected outcome is observed: the model typically exhibits superior performance against independent data (validation segment) when employing parameters derived from unconstrained calibration. As an illustration, when considering driver 1 the calibrated parameters with limitations on the outbound route yielded an RMSE of 1.64 m/s. Conversely, the estimated parameters without any restrictions resulted in an RMSE of 1.04 m/s. The unconstrained calibration mode resulted in solution sets where one or more parameters reached the boundary of the domain, enabling a more accurate alignment of the speed profile in both the calibration and validation segments.
This finding contradicts previous research [
13,
32], which suggested that parameters estimated with minimal restrictions are less effective than those within “realistic” ranges for predicting driver behavior in new situations on validation segments. Given that unconstrained optimization occasionally yielded values that clearly fell outside the anticipated and realistic range, it is reasonable to speculate about the underlying causes for this outcome. One aspect could pertain to the circumstances in which the parameters
a,
b, and
δ were estimated, specifically on a road without traffic, with the maneuvers being unrelated to a typical urban road setting. More likely, it could be that the calibration and validation conditions are not sufficiently different, thereby preventing the IDM’s limitations from being emphasized when excessively calibrated to extreme scenarios. The traffic conditions on both the outbound and return segments are very similar, and the lead vehicle driver consistently maintained a uniform driving style throughout the session.
As a result, it is necessary to thoroughly test the model under significantly different conditions before dismissing the need to appropriately restrict the parameters based on their physical significance. This points to several important areas for future research. A major challenge is expanding data collection to include a larger and more diverse driver population from a broader range of geographical locations and road types (including highways). Another significant challenge is developing robust, automated methods for detecting and handling anomalous driving events in trajectory data, such as driver distractions or unexpected braking.
The methodology presented here is not limited to the IDM; it can be easily extended to calibrate other car-following models, allowing for comparative analyses of their performance and suitability in various driving contexts. Furthermore, future research may look into how external factors like weather, visibility, and time of day affect driving behavior and car-following parameters, with the goal of developing context-aware models. Achieving this level of detail could contribute to the development of innovative car-following models that adapt to individual driver characteristics, potentially leading to more accurate and realistic traffic simulation.
6. Conclusions
The analysis of the structure of the IDM, a car-following model, revealed specific cases that support a sequential and individualized calibration process for its parameters. Building on these insights, a process for collecting and analyzing trajectories was conducted to calibrate and validate the model in an urban environment. For this purpose, a low-cost system (under EUR 2500) comprising a datalogger and a Lidar was employed. This system proved to be both practical and highly accurate.
The data collection session included five drivers and enabled the identification of plausible ranges of variation for the IDM parameters. These ranges were then used to limit a simultaneous calibration process for an urban route. The outcomes of this procedure were unexpected, as the parameters derived from unconstrained calibration yielded superior model performance in the validation sections. The variation in driving styles during different maneuvers and urban driving sessions, as well as the lack of diversity in the driving environment during calibration and validation segments, are the probable causes of this phenomenon.
This research offers significant contributions beyond the immediate findings. Firstly, it offers a practical and cost-effective methodology for calibrating car-following models that can be used by a broader range of researchers and practitioners, particularly those with limited resources. Second, empirically derived IDM parameter ranges tailored to the urban context provide a useful analysis for improving the realism of microscopic traffic simulation. These simulations can then be used to address practical issues in urban traffic management, infrastructure planning, and the evaluation of emerging technologies such as connected and automated vehicles.
Despite these contributions, it is important to acknowledge this study’s limitations. The small sample size of five drivers, while sufficient to demonstrate the methodology, limits the generalizability of the specific parameter ranges to the larger driving population. Furthermore, this study was conducted solely in the urban environment of Viseu, Portugal, so the findings may not be directly applicable to other cities, road types (e.g., highways), or traffic conditions. The reliance on driver 2’s data to establish parameter variability bounds for other drivers, while justified due to resource constraints, introduces a potential bias that should be considered.
Further development of this study is necessary to confirm the reasonableness of the parameter domains and to test the model’s predictive capability in road environments significantly different from those used in the calibration.
Author Contributions
Both the authors have contributed on each of the themes. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
According to Portuguese legislation—notably Law no. 58/2019 and the General Data Protection Regulation (EU) 2016/679—studies that do not involve personal or sensitive data, clinical procedures, or physical or psychological interventions on human participants are not subject to mandatory review by an Ethics Committee or IRB. As this study exclusively involved anonymized trajectory data without any identifiable information or interaction with participants, no formal ethics approval was required or obtained.
Informed Consent Statement
Informed consent was obtained from all subjects involved in this study.
Data Availability Statement
Data are contained within this article.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Rodrigues, R.; Bastos Silva, A.; Vasconcelos, L.; Seco, Á. The Longitudinal Driving Behavior of a Vehicle Assisted with Lv2 Driving Automation: An Empirical Study. J. Adv. Transp. 2022, 2022, 3073393. [Google Scholar] [CrossRef]
- Kesting, A.; Treiber, M. Calibrating Car-Following Models by Using Trajectory Data: Methodological Study. Transp. Res. Rec. 2008, 2088, 148–156. [Google Scholar] [CrossRef]
- Anil Chaudhari, A.; Srinivasan, K.K.; Rama Chilukuri, B.; Treiber, M.; Okhrin, O. Calibrating Wiedemann-99 Model Parameters to Trajectory Data of Mixed Vehicular Traffic. Transp. Res. Rec. 2022, 2676, 718–735. [Google Scholar] [CrossRef]
- Punzo, V.; Zheng, Z.; Montanino, M. About Calibration of Car-Following Dynamics of Automated and Human-Driven Vehicles: Methodology, Guidelines and Codes. Transp. Res. Part C Emerg. Technol. 2021, 128, 103165. [Google Scholar] [CrossRef]
- Rakha, H.; Wang, W. Procedure for Calibrating Gipps Car-Following Model. Transp. Res. Rec. 2009, 2124, 113–124. [Google Scholar] [CrossRef]
- Barceló, J. Models, Traffic Models, Simulation, and Traffic Simulation. In Fundamentals of Traffic Simulation. In Fundamentals of Traffic Simulation; Barceló, J., Ed.; Springer: New York, NY, USA, 2010; pp. 1–62. ISBN 978-1-4419-6142-6. [Google Scholar]
- Menneni, S.; Sun, C.; Vortisch, P. Integrated Microscopic and Macroscopic Calibration for Psychophysical Car-Following Models. In Proceedings of the 88th TRB Annual Meeting 2009, Washington, DC, USA, 11–15 January 2009. [Google Scholar]
- Vasconcelos, L.; Seco, Á.; Silva, A.B. Hybrid Calibration of Microscopic Simulation Models. In Computer-Based Modelling and Optimization in Transportation; de Sousa, J.F., Rossi, R., Eds.; Springer International Publishing: Cham, Switzerland, 2014; pp. 307–320. ISBN 978-3-319-04630-3. [Google Scholar]
- Rakha, H.; Gao, Y. 2010. Available online: https://rosap.ntl.bts.gov/view/dot/25645 (accessed on 1 October 2024).
- Berghaus, M.; Kallo, E.; Oeser, M. Car-Following Model Calibration Based on Driving Simulator Data to Study Driver Characteristics and to Investigate Model Validity in Extreme Traffic Situations. Transp. Res. Rec. J. Transp. Res. Board 2021, 2675, 036119812110326. [Google Scholar] [CrossRef]
- Brackstone, M.; Sultan, B.; McDonald, M. Motorway Driver Behaviour: Studies on Car Following. Transp. Res. Part F Traffic Psychol. Behav. 2002, 5, 31–46. [Google Scholar] [CrossRef]
- Ranjitkar, P.; Nakatsuji, T.; Kawamura, A. Experimental Analysis of Car-Following Dynamics and Traffic Stability. Transp. Res. Rec. 2005, 1934, 22–32. [Google Scholar] [CrossRef]
- Vasconcelos, L.; Neto, L.; Santos, S.; Silva, A.B.; Seco, Á. Calibration of the Gipps Car-Following Model Using Trajectory Data. Transp. Res. Procedia 2014, 3, 952–961. [Google Scholar] [CrossRef]
- Coifman, B.; Li, L. A Critical Evaluation of the Next Generation Simulation (NGSIM) Vehicle Trajectory Dataset. Transp. Res. Part B Methodol. 2017, 105, 362–377. [Google Scholar] [CrossRef]
- Hale, D.K.; Ghiasi, A.; Khalighi, F.; Zhao, D.; Li, X.; James, R.M. Vehicle Trajectory-Based Calibration Procedure for Microsimulation. Transp. Res. Rec. 2023, 2677, 1764–1781. [Google Scholar] [CrossRef]
- Medina, J.C.; Malekloo, A.; Kersavage, K.; Porter, R.J.; Liu, X.C.; University of Utah; VHB/Vanasse Hangen Brustlin, Inc. Verification and Calibration of Microscopic Traffic Simulation Using Driver Behavior and Car-Following Metrics for Freeway Segments. 2024. Available online: https://highways.dot.gov/sites/fhwa.dot.gov/files/FHWA-HRT-24-103.pdf (accessed on 1 October 2024).
- Brockfeld, E.; Wagner, P. Calibration and Validation of Microscopic Traffic Flow Models. In Proceedings of the Traffic and Granular Flow ’03; Hoogendoorn, S.P., Luding, S., Bovy, P.H.L., Schreckenberg, M., Wolf, D.E., Eds.; Springer: Berlin/Heidelberg, Germany, 2005; pp. 67–72. [Google Scholar]
- Ossen, S.; Hoogendoorn, S.P. Validity of Trajectory-Based Calibration Approach of Car-Following Models in Presence of Measurement Errors. Transp. Res. Rec. 2008, 2088, 117–125. [Google Scholar] [CrossRef]
- Daguano, R.F.; Yoshioka, L.R.; Netto, M.L.; Marte, C.L.; Isler, C.A.; Santos, M.M.D.; Justo, J.F. Automatic Calibration of Microscopic Traffic Simulation Models Using Artificial Neural Networks. Sensors 2023, 23, 8798. [Google Scholar] [CrossRef] [PubMed]
- Ahmed, H.U.; Huang, Y.; Lu, P. A Review of Car-Following Models and Modeling Tools for Human and Autonomous-Ready Driving Behaviors in Micro-Simulation. Smart Cities 2021, 4, 314–335. [Google Scholar] [CrossRef]
- Treiber, M.; Hennecke, A.; Helbing, D. Congested Traffic States in Empirical Observations and Microscopic Simulations. Phys. Rev. E 2000, 62, 1805–1824. [Google Scholar] [CrossRef]
- Treiber, M.; Kesting, A. Car-Following Models Based on Driving Strategies. In Traffic Flow Dynamics: Data, Models and Simulation; Treiber, M., Kesting, A., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; pp. 181–204. ISBN 978-3-642-32460-4. [Google Scholar]
- Zhang, D.; Chen, X.; Wang, J.; Wang, Y.; Sun, J. A Comprehensive Comparison Study of Four Classical Car-Following Models Based on the Large-Scale Naturalistic Driving Experiment. Simul. Model. Pract. Theory 2021, 113, 102383. [Google Scholar] [CrossRef]
- Malinauskas, R. The Intelligent Driver Model: Analysis and Application to Adaptive Cruise Control. Master’s Thesis, Clemson University, Clemson, SC, USA, 2014. Available online: https://open.clemson.edu/all_theses/1934/ (accessed on 5 October 2024).
- Treiber, M.; Kanagaraj, V. Comparing Numerical Integration Schemes for Time-Continuous Car-Following Models. Phys. A Stat. Mech. Its Appl. 2015, 419, 183–195. [Google Scholar] [CrossRef]
- Sharma, A.; Zheng, Z.; Bhaskar, A. Is More Always Better? The Impact of Vehicular Trajectory Completeness on Car-Following Model Calibration and Validation. Transp. Res. Part B Methodol. 2019, 120, 49–75. [Google Scholar] [CrossRef]
- Punzo, V.; Montanino, M. Speed or Spacing? Cumulative Variables, and Convolution of Model Errors and Time in Traffic Flow Models Validation and Calibration. Transp. Res. Part B Methodol. 2016, 91, 21–33. [Google Scholar] [CrossRef]
- de Souza, F.; Stern, R. Calibrating Microscopic Car-Following Models for Adaptive Cruise Control Vehicles: Multiobjective Approach. J. Transp. Eng. Part A Syst. 2021, 147, 04020150. [Google Scholar] [CrossRef]
- Ciuffo, B.; Punzo, V.; Montanino, M. The Calibration of Traffic Simulation Models: Report on the Assessment of Different Goodness of Fit Measures and Optimization Algorithms MULTITUDE Project—COST Action TU0903. Available online: https://publications.jrc.ec.europa.eu/repository/handle/JRC68403 (accessed on 7 June 2024).
- Wang, J.; Zhang, Z.; Liu, F.; Lu, G. Investigating Heterogeneous Car-Following Behaviors of Different Vehicle Types, Traffic Densities and Road Types. Transp. Res. Interdiscip. Perspect. 2021, 9, 100315. [Google Scholar] [CrossRef]
- Ossen, S.; Hoogendoorn, S.P. Heterogeneity in Car-Following Behavior: Theory and Empirics. Transp. Res. Part C Emerg. Technol. 2011, 19, 182–195. [Google Scholar] [CrossRef]
- Treiber, M.; Kesting, A. Microscopic Calibration and Validation of Car-Following Models—A Systematic Approach. Procedia—Soc. Behav. Sci. 2013, 80, 922–939. [Google Scholar] [CrossRef]
| Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
