Simulative Study of an Innovative On-Demand Transport System Using a Realistic German Urban Scenario
Abstract
:1. Introduction
2. Related Work
- the PRT traffic does not interfere with other traffic participants, because the PRT track is elevated to a higher level or hidden underground;because of the separation of the track from pedestrian traffic, the PRT system provides a high-level of safety. However, the investment costs for the infrastructure of PRT systems amounted to 30–100 M$/Mile, according to [10], because of the exclusivity and technical complexity of PRT tracks.
2.1. Scientific Research of DARP
2.2. Application Projects of DARP in Germany
3. FLAIT-Trains
4. Methodology
4.1. Aim and Key Figures
- average waiting time per passenger,
- maximum waiting time for a single passenger,
- average in-vehicle time per passenger,
- daily transportation productivity, and
- total annual service provider’s costs.
4.1.1. Average Waiting Time per Passenger
4.1.2. Maximum Waiting Time of a Single Passenger
4.1.3. Average In-Vehicle Time per Passenger
4.1.4. Daily Transportation Productivity
4.1.5. Total Annual Service Provider’s Costs
- infrastructure costs (Cin),
- vehicle costs (Cveh), and
- operating costs (Cop).
4.2. Simulation Scenario
4.2.1. Tram Route between Duisburg Central Station and Mülheim Central Station
4.2.2. Relevant Vehicles
4.3. Modelling and Simulation
4.3.1. Vehicle Models

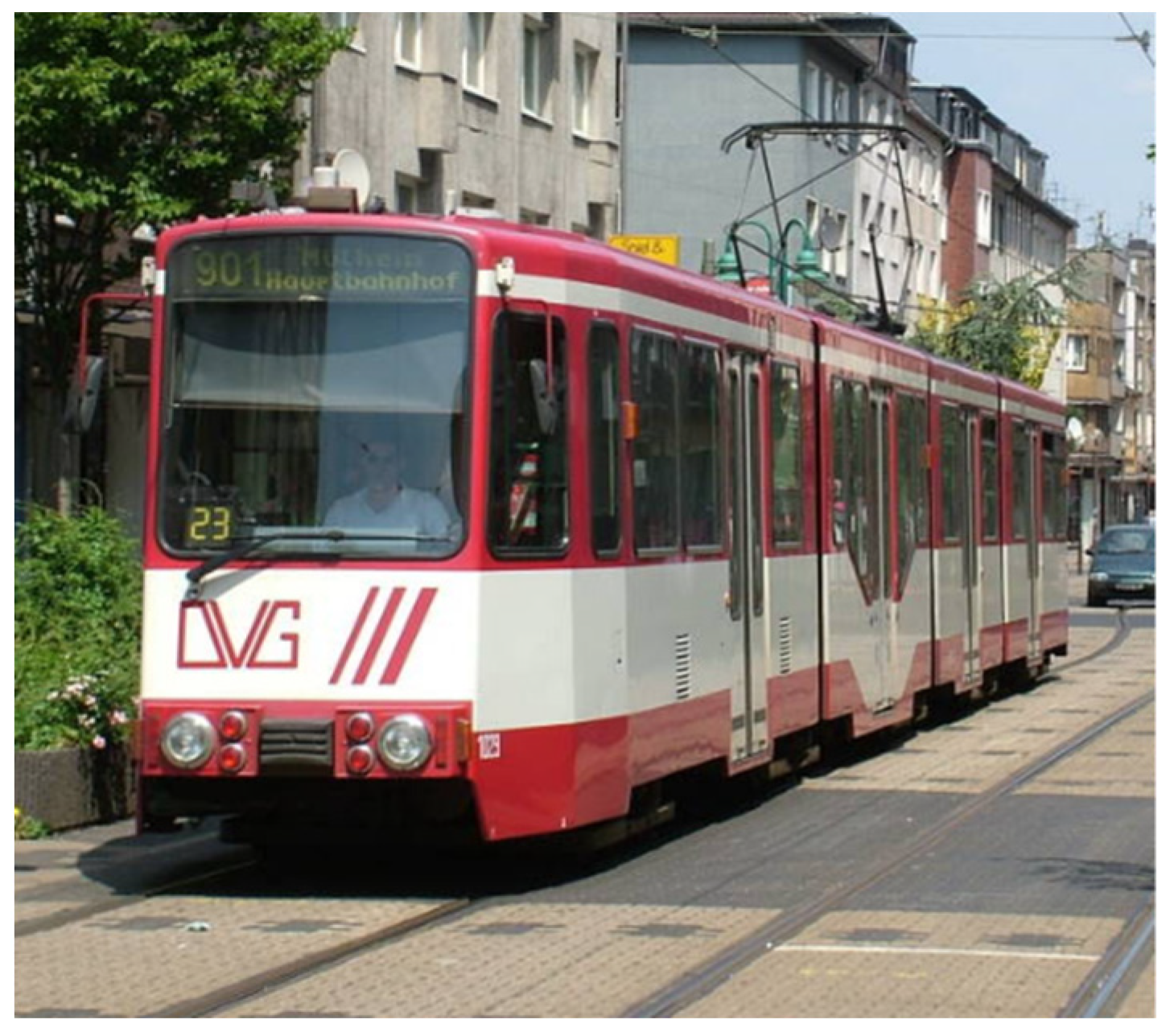

Tram

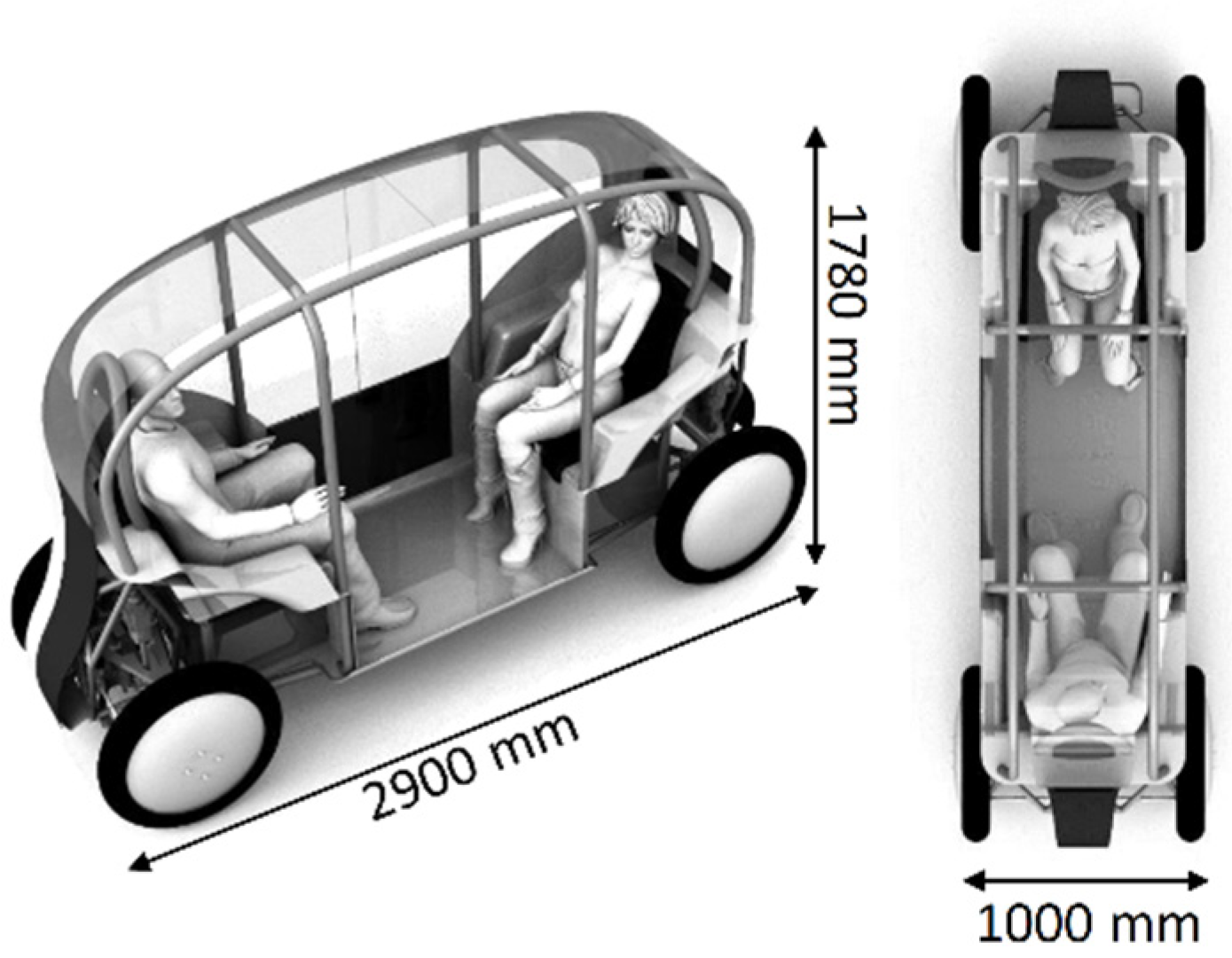

FLAIT
4.3.2. Passengers
- the time to the second when the first passenger of this group departs;
- the to-the-second times until when the last passenger of that group departs;
- the number of group members;
- the street ID where the group departs;
- the stop where the group waits for tram or FLAIT train;
- the destination street ID where the group alights
4.3.3. Flexible Platooning
5. Results and Analyses

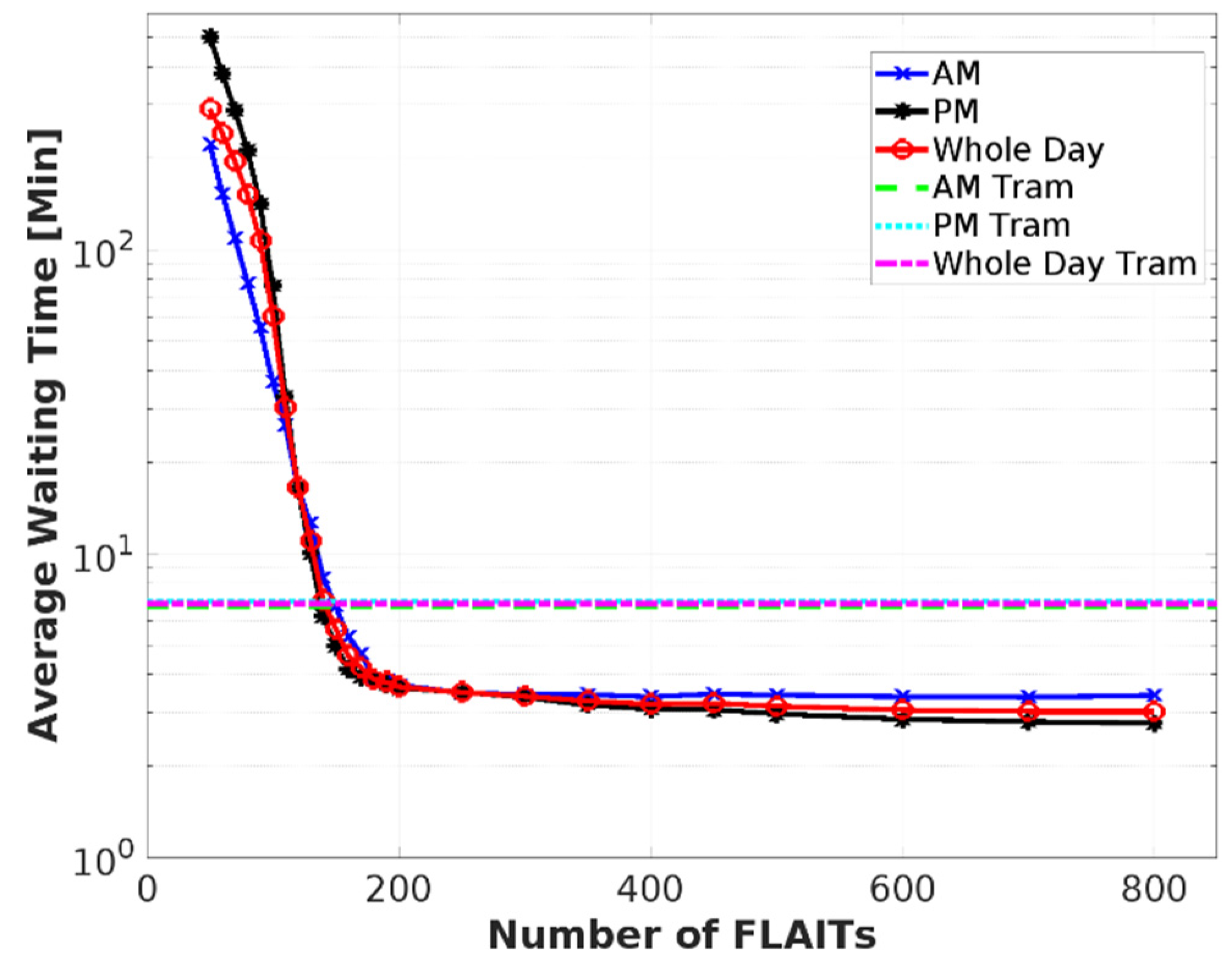

5.1. Average Waiting Time per Passenger

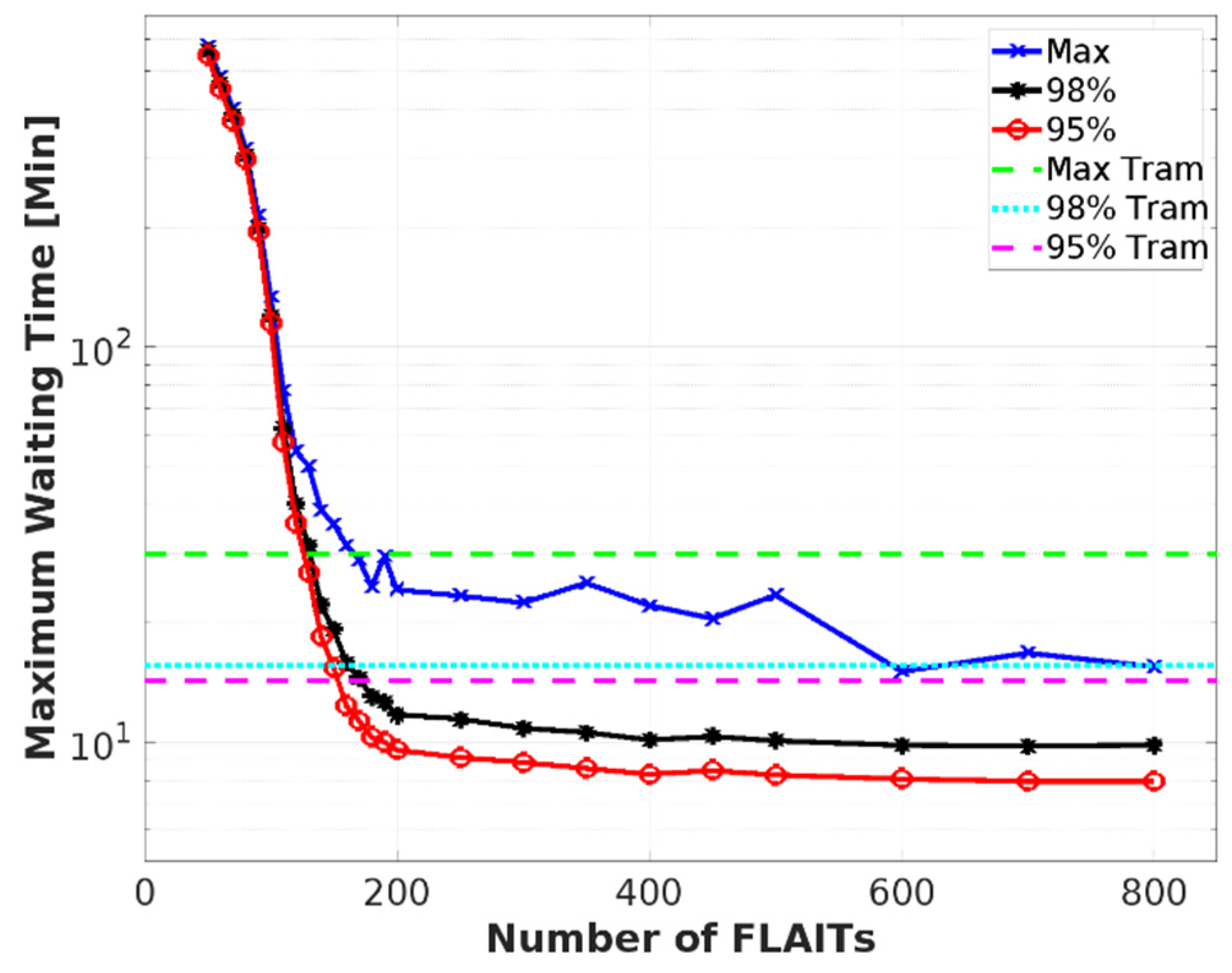

5.2. Maximum Waiting Time of a Single Passenger
5.3. Average In-Vehicle Time per Passenger
5.4. Daily Transportation Productivity
5.4.1. Mornings
5.4.2. Afternoons
5.4.3. Whole Day
5.5. Total Annual Service Provider’s Costs
6. Conclusions and Outlook
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Bok, J.; Kwon, Y. Comparable Measures of Accessibility to Public Transport Using the General Transit Feed Specification. Sustainability 2016, 8, 224. [Google Scholar] [CrossRef] [Green Version]
- Murray, A.T.; Davis, R.; Stimson, R.J.; Ferreira, L. Public Transportation Access. Transp. Res. Part D Transp. Environ. 1998, 3, 319–328. [Google Scholar] [CrossRef] [Green Version]
- van Oort, N. Service Reliability and Urban Public Transport Design. Ph.D. Thesis, Delft University of Technology, Delft, The Netherlands, 2011. [Google Scholar]
- Suder, E.; Pfaffenbach, C. Alltagsmobilität in Kommunen zwischen Niederrhein und Ruhrgebiet. Aus welchen Gründen wird der ÖPNV nicht häufiger genutzt? Standort 2021, 45, 31–37. [Google Scholar] [CrossRef]
- Deutsch, V. Cost Pointers for the Implementation of Tramway and Bus Systems. Public Transp. Int. 2008, 57, 48–51. [Google Scholar]
- Parragh, S.N.; Doerner, K.F.; Hartl, R.F. A survey on pickup and delivery problems. J. Betr. 2008, 58, 81–117. [Google Scholar] [CrossRef]
- Ho, S.C.; Szeto, W.Y.; Kuo, Y.-H.; Leung, J.M.; Petering, M.; Tou, T.W. A survey of dial-a-ride problems: Literature review and recent developments. Transp. Res. Part B Methodol. 2018, 111, 395–421. [Google Scholar] [CrossRef]
- Cordeau, J.-F.; Laporte, G. The Dial-a-Ride Problem (DARP): Variants, modeling issues and algorithms. J. Belg. Fr. Ital. Oper. Res. Soc. 2003, 1, 89–101. [Google Scholar] [CrossRef]
- Drakoulis, R.; Bellotti, F.; Bakas, I.; Berta, R.; Paranthaman, P.K.; Dange, G.R.; Lytrivis, P.; Pagle, K.; de Gloria, A.; Amditis, A. A Gamified Flexible Transportation Service for On-Demand Public Transport. IEEE Trans. Intell. Transp. Syst. 2018, 19, 921–933. [Google Scholar] [CrossRef]
- McDonald, S.S. Personal Rapid Transit and Its Development. In Transportation Technologies for Sustainability; Springer: New York, NY, USA, 2013; pp. 831–850. [Google Scholar]
- Daszczuk, W.B. Measures of Structure and Operation of Automated Transit Networks. IEEE Trans. Intell. Transp. Syst. 2020, 21, 2966–2979. [Google Scholar] [CrossRef]
- Cordeau, J.-F.; Laporte, G. The dial-a-ride problem: Models and algorithms. Ann. Oper. Res. 2007, 153, 29–46. [Google Scholar] [CrossRef]
- Vansteenwegen, P.; Melis, L.; Aktaş, D.; Montenegro, B.D.G.; Vieira, F.S.; Sörensen, K. A survey on demand-responsive public bus systems. Transp. Res. Part C Emerg. Technol. 2022, 137, 103573. [Google Scholar] [CrossRef]
- Stein, D.M. Scheduling Dial-a-Ride Transportation Systems. Transp. Sci. 1978, 12, 232–249. [Google Scholar] [CrossRef]
- Psaraftis, H.N. A Dynamic Programming Solution to the Single Vehicle Many-to-Many Immediate Request Dial-a-Ride Problem. Transp. Sci. 1980, 14, 130–154. [Google Scholar] [CrossRef]
- Sexton, T.R.; Bodin, L.D. Optimizing Single Vehicle Many-to-Many Operations with Desired Delivery Times: I. Scheduling. Transp. Sci. 1985, 19, 378–410. [Google Scholar] [CrossRef]
- Sexton, T.R.; Bodin, L.D. Optimizing Single Vehicle Many-to-Many Operations with Desired Delivery Times: II. Routing. Transp. Sci. 1985, 19, 411–435. [Google Scholar] [CrossRef]
- Gupta, A.; Hajiaghayi, M.; Nagarajan, V.; Ravi, R. Dial a Ride from k-forest. ACM Trans. Algorithms 2010, 6, 1–21. [Google Scholar] [CrossRef]
- D’Souza, C.; Omkar, S.N.; Senthilnath, J. Pickup and delivery problem using metaheuristics techniques. Expert Syst. Appl. 2012, 39, 328–334. [Google Scholar] [CrossRef]
- Jaw, J.-J.; Odoni, A.R.; Psaraftis, H.N.; Wilson, N.H. A heuristic algorithm for the multi-vehicle advance request dial-a-ride problem with time windows. Transp. Res. Part B Methodol. 1986, 20, 243–257. [Google Scholar] [CrossRef]
- Cordeau, J.-F.; Laporte, G. A tabu search heuristic for the static multi-vehicle dial-a-ride problem. Transp. Res. Part B Methodol. 2003, 37, 579–594. [Google Scholar] [CrossRef] [Green Version]
- Jorgensen, R.M.; Larsen, J.; Bergvinsdottir, K.B. Solving the Dial-a-Ride problem using genetic algorithms. J. Oper. Res. Soc. 2007, 58, 1321–1331. [Google Scholar] [CrossRef]
- Parragh, S.N.; Schmid, V. Hybrid column generation and large neighborhood search for the dial-a-ride problem. Comput. Oper. Res. 2013, 40, 490–497. [Google Scholar] [CrossRef] [PubMed]
- Melis, L.; Sörensen, K. The real-time on-demand bus routing problem: What is the cost of dynamic requests. Comput. Oper. Res. 2022, 147, 105941. [Google Scholar] [CrossRef]
- Desrosiers, J.; Dumas, Y.; Soumis, F.; Taillefer, S.; Villeneuve, D. An Algorithm for Mini-Clustering in Handicapped Transport; Cahiers du GERAD: Montréal, QC, Canada, 1991. [Google Scholar]
- Ioachim, I.; Desrosiers, J.; Dumas, Y.; Solomon, M.M.; Villeneuve, D. A Request Clustering Algorithm for Door-to-Door Handicapped Transportation. Transp. Sci. 1995, 29, 63–78. [Google Scholar] [CrossRef]
- Rekiek, B.; Delchambre, A.; Saleh, H.A. Handicapped Person Transportation: An application of the Grouping Genetic Algorithm. Eng. Appl. Artif. Intell. 2006, 19, 511–520. [Google Scholar] [CrossRef]
- Atahran, A.; Lenté, C.; T’kindt, V. A Multicriteria Dial-a-Ride Problem with an Ecological Measure and Heterogeneous Vehicles. J. Multi-Crit. Decis. Anal. 2014, 21, 279–298. [Google Scholar] [CrossRef]
- Garaix, T.; Artigues, C.; Feillet, D.; Josselin, D. Optimization of occupancy rate in dial-a-ride problems via linear fractional column generation. Comput. Oper. Res. 2011, 38, 1435–1442. [Google Scholar] [CrossRef] [Green Version]
- Parragh, S.N.; Pinho de Sousa, J.; Almada-Lobo, B. The Dial-a-Ride Problem with Split Requests and Profits. Transp. Sci. 2015, 49, 311–334. [Google Scholar] [CrossRef] [Green Version]
- Borndörfer, R.; Grötschel, M.; Klostermeier, F.; Küttner, C. Telebus Berlin: Vehicle Scheduling in a Dial-a-Ride System. In Computer-Aided Transit Scheduling; Springer: Berlin/Heidelberg, Germany, 1999; pp. 391–422. ISBN 9783642859700. [Google Scholar]
- Rigas, E.S.; Ramchurn, S.D.; Bassiliades, N. Algorithms for electric vehicle scheduling in large-scale mobility-on-demand schemes. Artif. Intell. 2018, 262, 248–278. [Google Scholar] [CrossRef] [Green Version]
- Lim, A.; Zhang, Z.; Qin, H. Pickup and Delivery Service with Manpower Planning in Hong Kong Public Hospitals. Transp. Sci. 2017, 51, 688–705. [Google Scholar] [CrossRef]
- Pimenta, V.; Quillot, A.; Toussaint, H.; Vigo, D. Models and algorithms for reliability-oriented dial-a-ride with autonomous electric vehicles. Eur. J. Oper. Res. 2017, 257, 601–613. [Google Scholar] [CrossRef]
- Zwick, F.; Axhausen, K.W. Ride-pooling demand prediction: A spatiotemporal assessment in Germany. J. Transp. Geogr. 2022, 100, 103307. [Google Scholar] [CrossRef]
- Knie, A.; Ruhrort, L.; Gödde, J.; Pfaff, T. Ride-Pooling-Dienste und Ihre Bedeutung für den Verkehr. Nachfragemuster und Nutzungsmotive am Beispiel von “CleverShuttle”—Eine Untersuchung auf Grundlage von Buchungsdaten und Kundenbefragungen in vier Deutschen Städten; WZB Discussion Paper SP III 2020-601. 2020. Available online: https://www.econstor.eu/handle/10419/220020 (accessed on 29 December 2022).
- Viergutz, K.K.; Brinkmann, F. Ride-pooling—A model for success? Digitisation in local public transport. SIGNAL + DRAHT 2018, 7 + 8, 13–18. [Google Scholar]
- Gebhardt, L.; Brost, M.; Steiner, T. Bus on demand—Ein Mobilitätskonzept mit Zukunft: Das Reallabor Schorndorf zieht nach dem Testbetrieb Bilanz. GAIA—Ecol. Perspect. Sci. Soc. 2019, 28, 70–72. [Google Scholar] [CrossRef]
- Fischer, H. FLAIT—Netzwerkgestütztes Mobilitätssystem zum autonomen Betrieb von Fahrzeugflotten. In Mobilität in Zeiten der Veränderung; Proff, H., Ed.; Springer Fachmedien Wiesbaden: Wiesbaden, Germany, 2019; pp. 211–227. ISBN 9783658261061. [Google Scholar]
- Infas Institut für Angewandte Sozialwissenschaft. Mobilität in Deutschland 2017—Tabellenband, Bonn. 2018. Available online: http://www.mobilitaet-in-deutschland.de/pdf/MiD2017_Tabellenband_Deutschland.pdf (accessed on 28 March 2022).
- Netzsieger. “Durchschnittsgeschwindigkeit der Stadtbahnen in ausgewählten deutschen Städten (in Kilometer pro Stunde; Stand: 2016).” Chart. 19 April 2018. Statista. Available online: https://de.statista.com/statistik/daten/studie/921422/umfrage/durchschnittsgeschwindigkeit-der-stadtbahnen-in-deutschland/ (accessed on 24 November 2022).
- INRIX. “Durchschnittliche Geschwindigkeit im Autoverkehr in ausgewählten deutschen Städten im Jahr 2018 (in Meilen pro Stunde).” Chart. 12 February 2019. Statista. Available online: https://de.statista.com/statistik/daten/studie/994676/umfrage/innerstaedtische-durchschnittsgeschwindigkeit-im-autoverkehr-in-deutschen-staedten/ (accessed on 24 November 2022).
- Varrier, E. Urbanloop: Retour vers le Futur. Les Tablettes Lorraines 2019, 1917, 20. [Google Scholar]
- Vuchic, V.R. Urban Transit Systems and Technology; John Wiley & Sons: Hoboken, NJ, USA, 2007; ISBN 0470168064. [Google Scholar]
- Alonso-Mora, J.; Samaranayake, S.; Wallar, A.; Frazzoli, E.; Rus, D. On-demand high-capacity ride-sharing via dynamic trip-vehicle assignment. Proc. Natl. Acad. Sci. USA 2017, 114, 462–467. [Google Scholar] [CrossRef] [Green Version]
- Babicheva, T.; Burghout, W.; Andreasson, I.; Faul, N. The matching problem of empty vehicle redistribution in autonomous taxi systems. Procedia Comput. Sci. 2018, 130, 119–125. [Google Scholar] [CrossRef]
- Klatt, S. Die Ökonomische Bedeutung der Qualität von Verkehrsleistungen; Duncker & Humblot: Berlin, Germany, 1965; ISBN 9783428407781. [Google Scholar]
- Hass-Klau, C.; Crampton, G.; Biereth, C.; Deutsch, V. Bus or Light Rail: Making the Right Choice.: A Financial, Operational, and Demand Comparison of Light Rail, Guided Buses, Busways, and Bus Lanes, 2nd ed.; Government of the United Kingdom—Environmental and Transport Planning: Brighton, UK, 2003; ISBN 0951962086.
- Stadt Duisburg. Zahlen, Daten, Fakten. Available online: https://www.duisburg.de/wohnenleben/zahlen_daten_fakten/zahlen-daten-fakten.php (accessed on 30 March 2022).
- Stadt Mülheim an der Ruhr. Bevölkerungsbestand. Available online: https://www.muelheim-ruhr.de/cms/bevoelkerungsbestand1.html (accessed on 30 March 2022).
- DVG. Fahrplan 901. 2021. Available online: https://www.dvg-duisburg.de/fileadmin/Media/Downloads/Linienplaene/Bahn/DVG_Fahrplan_901.pdf (accessed on 20 September 2022).
- File:Dvg1029wis220605.jpg—Wikimedia Commons. Available online: https://commons.wikimedia.org/wiki/File:Dvg1029wis220605.jpg (accessed on 23 March 2022).
- Ma, X. Effects of Vehicles with Different Degrees of Automation on Traffic Flow in Urban Areas. Ph.D. Thesis, University of Duisburg-Essen, Duisburg, Germany, 2021. [Google Scholar]
- Weber, T. On the Potential of a Weather-Related Road Surface Condition Sensor Using an Adaptive Generic Framework in the Context of Future Vehicle Technology. Ph.D. Thesis, University of Duisburg-Essen, Duisburg, Germany, 2022. [Google Scholar]
- Persons—SUMO Documentation. Available online: https://sumo.dlr.de/docs/Specification/Persons.html (accessed on 10 December 2022).
- Schmidt, G.; Thomas, B. Hochrechnungsfaktoren für Manuelle und Automatische Kurzzeitzählungen im Innerortsbereich; Bundesministerium für Verkehr: Bonn, Germany, 1996. [Google Scholar]
- Segata, M. Safe and Efficient Communication Protocols for Platooning Control. Ph.D. Thesis, University of Trento, Trento, Italy, University of Innsbruck, Innsbruck, Austria, 2016. [Google Scholar]
- Krauss, S. Microscopic Modeling of Traffic Flow: Investigation of Collision Free Vehicle Dynamics. Ph.D. Thesis, DLR, Abt. Unternehmensorganisation und—Information, Cologne, Germany, 1998. [Google Scholar]
- German Federal Ministry of Finance. AfA-Tabelle für den Wirtschaftszweig “Personen- und Güterbeförderung (im Straßen- und Schienenverkehr)”. Available online: https://www.bundesfinanzministerium.de/Content/DE/Standardartikel/Themen/Steuern/Weitere_Steuerthemen/Betriebspruefung/AfA-Tabellen/AfA-Tabelle_Personen-und-Gueterbefoerderung.html (accessed on 4 September 2022).
- Milanés, V.; Shladover, S.E. Modeling cooperative and autonomous adaptive cruise control dynamic responses using experimental data. Transp. Res. Part C Emerg. Technol. 2014, 48, 285–300. [Google Scholar] [CrossRef]
Tram | Known On-Demand Transit | Taxi | FLAIT-Train | PRT | |
---|---|---|---|---|---|
Route | fixed | flexible | flexible | fixed | fixed |
Stop | fixed | w/o | w/o | w/o | fixed |
Schedule | fixed | by request | by request | by request | by request |
Ticket Cost | low | medium | high | low | low |
Mode | shared | shared | non-shared | shared 1 | shared 1 |
Seating Capacity | >100 | <50 | <7 | 2 | 2–4 |
Autonomous Level | no | no | no | automated | fully |
Track Usage | exclusive | mixed | mixed | exclusive | exclusive |
Reservation | not needed | often needed | not needed | not needed 2 | not needed |
Avg. Speed [kph] | 33.5 3 | 23 4 | 23 4 | 32 | 60 5 |
DVG GT-10 NC-DU | FLAIT | |
---|---|---|
Passenger Capacity | 176 | 2 |
Maximum Speed | 70 kph | 80 kph |
Normal Acceleration | 1.3 m/s2 | 2.5 m/s2 |
Normal Deceleration | −1.1 m/s2 | −2.5 m/s2 |
Name | Hourly Percentage Passenger Distribution [%] | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | |
TGw2_PKW [57] | 0.3 | 0.4 | 1.2 | 4.6 | 7.5 | 6.7 | 5.3 | 5.1 | 5.1 | 5.3 | 5.4 | 5.7 | 6.8 | 8.5 | 8.7 | 7.5 | 5.1 | 4.0 | 3.1 | 2.1 | 1.6 |
DU-MUE | 0.0 | 0.7 | 1.5 | 3.0 | 11.1 | 7.4 | 5.6 | 4.9 | 5.0 | 6.0 | 8.4 | 7.7 | 8.2 | 9.6 | 7.5 | 5.4 | 3.6 | 2.1 | 1.0 | 0.9 | 0.4 |
Tram | FLAIT-Train | |
---|---|---|
Pros |
|
|
Cons |
|
|
Time Period | Tram | 170 FLAIT-Train | |
---|---|---|---|
Passenger Capacity per Vehicle | - | 176 | 2 |
Average Waiting Time [min] | Mornings | 6.7 | 4.7 |
Afternoons | 7.0 | 3.9 | |
Whole Day | 6.9 | 4.2 | |
Maximum Waiting Time [min] | Mornings | 18 | 28.9 |
Afternoons | 30 | 26.5 | |
Whole Day | 30 | 28.9 | |
Average In-Vehicle Time [min] | Mornings | 7.7 | 5.2 |
Afternoons | 6.9 | 4.7 | |
Whole Day | 7.2 | 4.9 | |
Daily Transportation Productivity [Persons∙km/day] | Mornings | 511,146 | 724,937 |
Afternoons | 555,478 | 796,563 | |
Whole Day | 537,181 | 767,002 | |
Total Annual Costs [k€] | - | 9,278 | 2,956 |
Operator’s Annual Operating Costs [€/km] | - | 66.9 1 | 39.3 |
