# The Effect of the Isolator Design on the Efficiency of Rotary Piston Compressors

^{*}

## Abstract

**:**

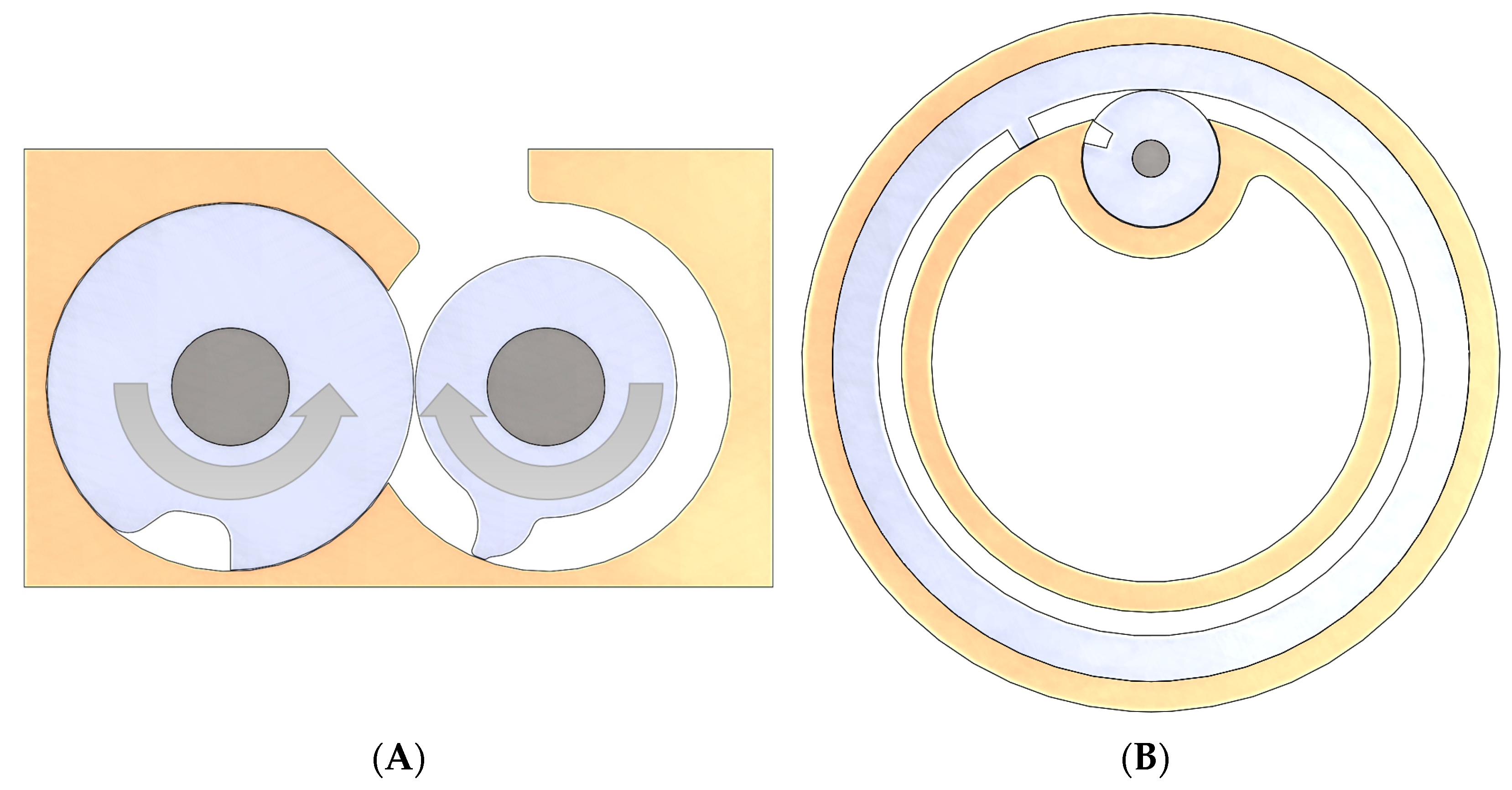

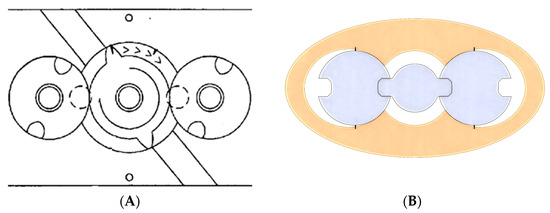

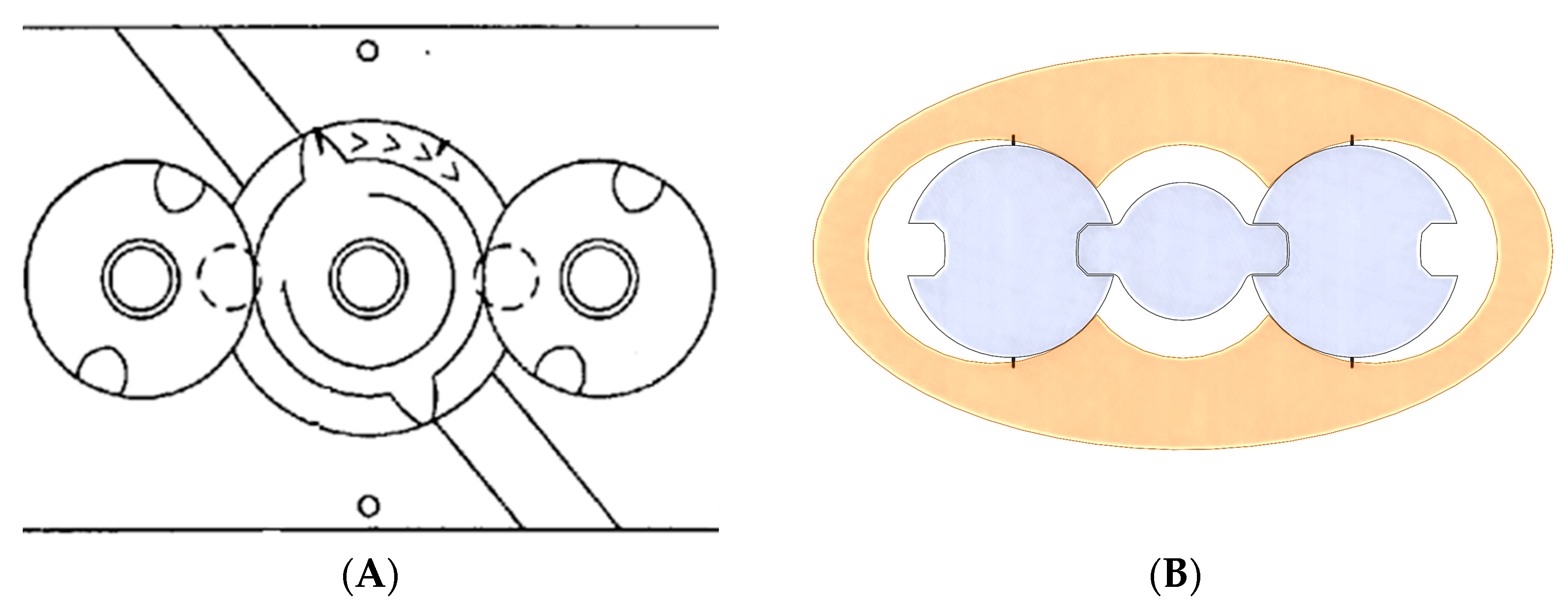

## 1. Introduction

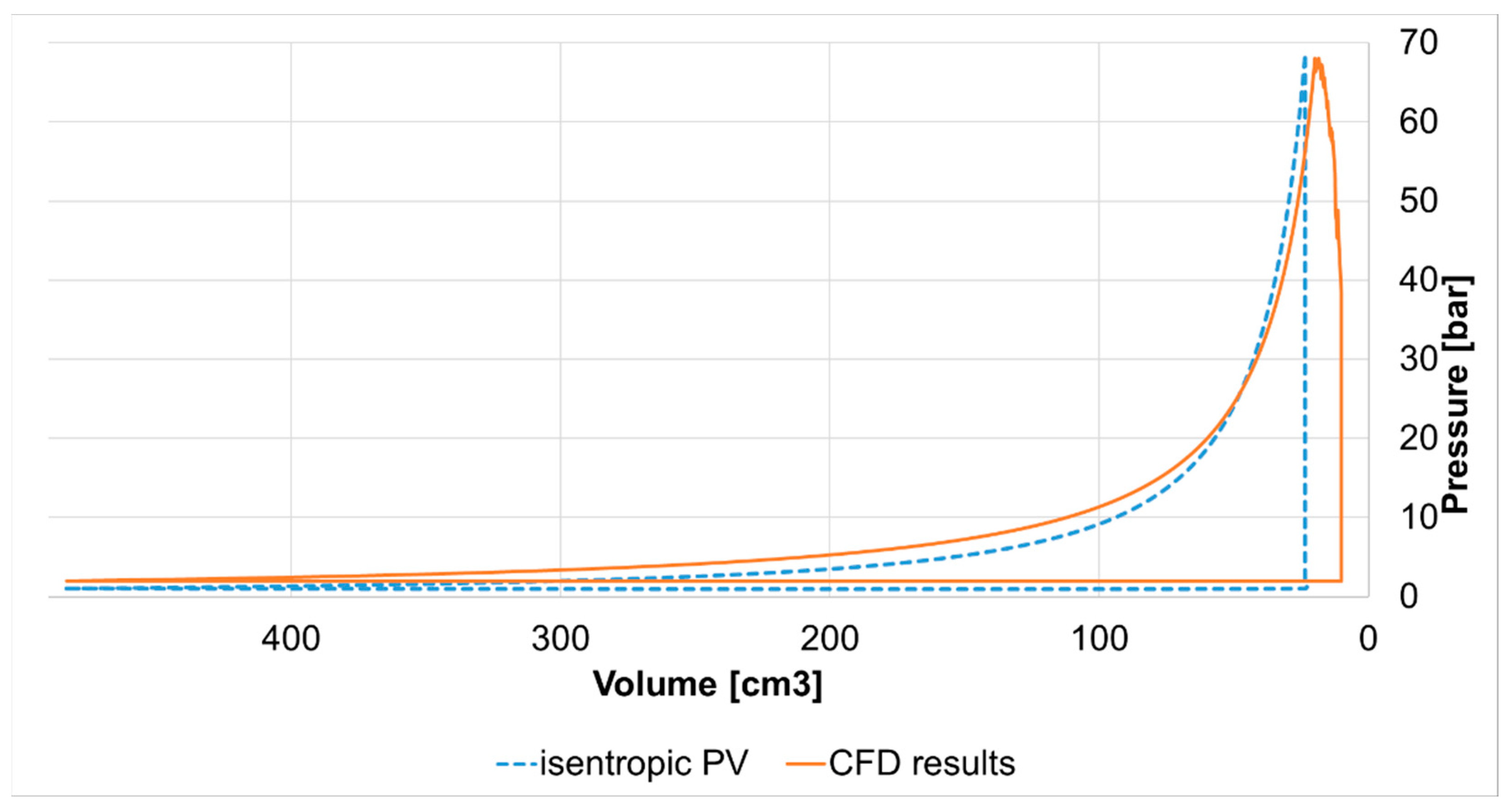

## 2. Materials and Methods

## 3. Results

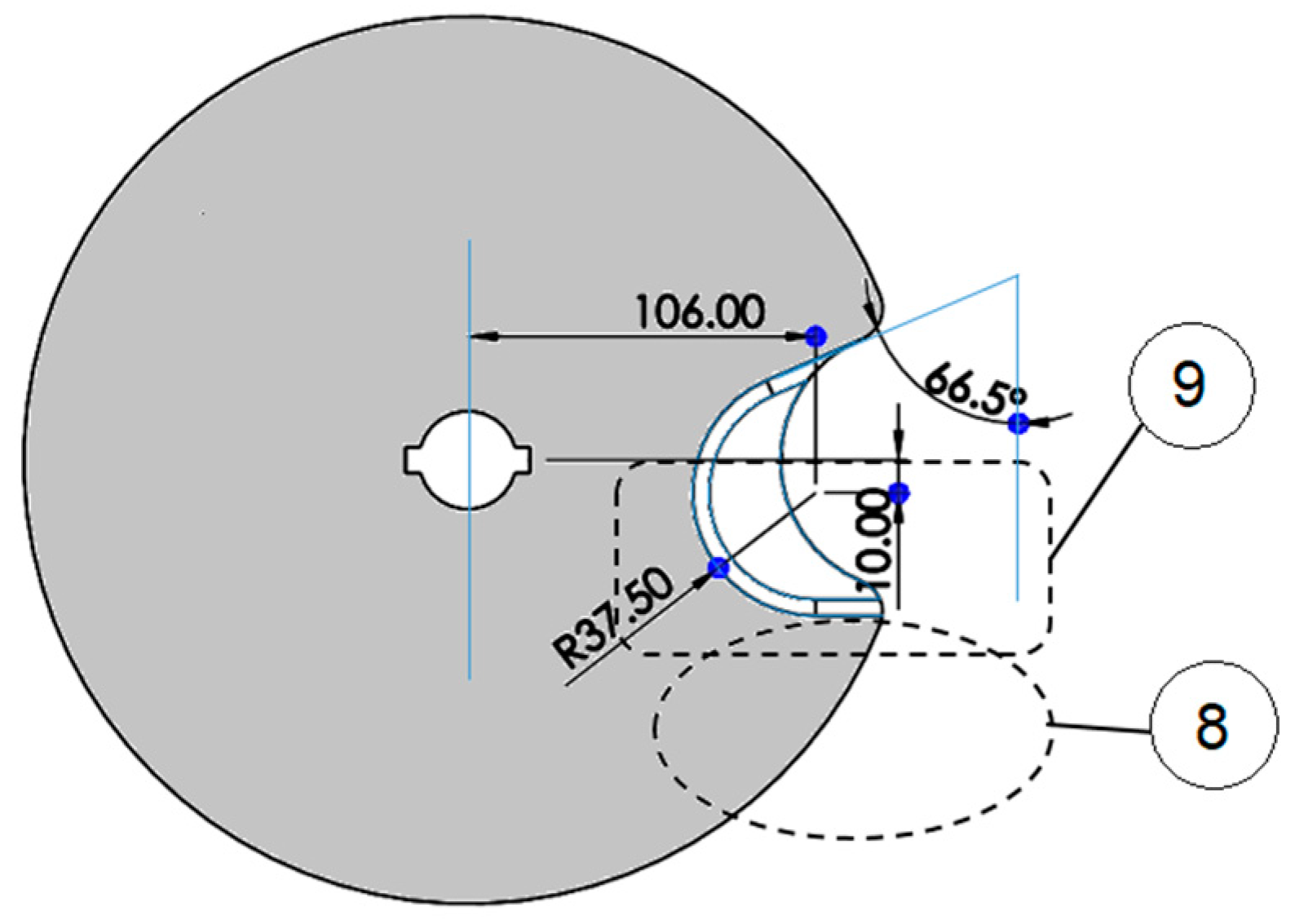

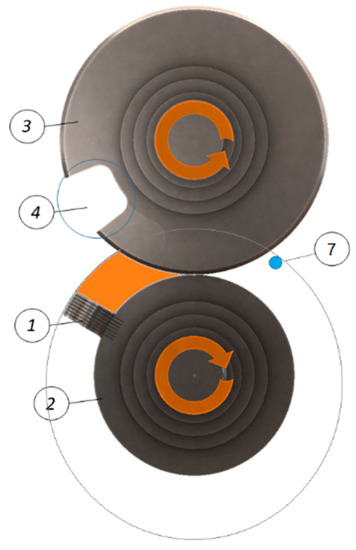

#### 3.1. Proposed Solution

#### 3.2. Initial Geometries

#### 3.3. Alternative Geometries

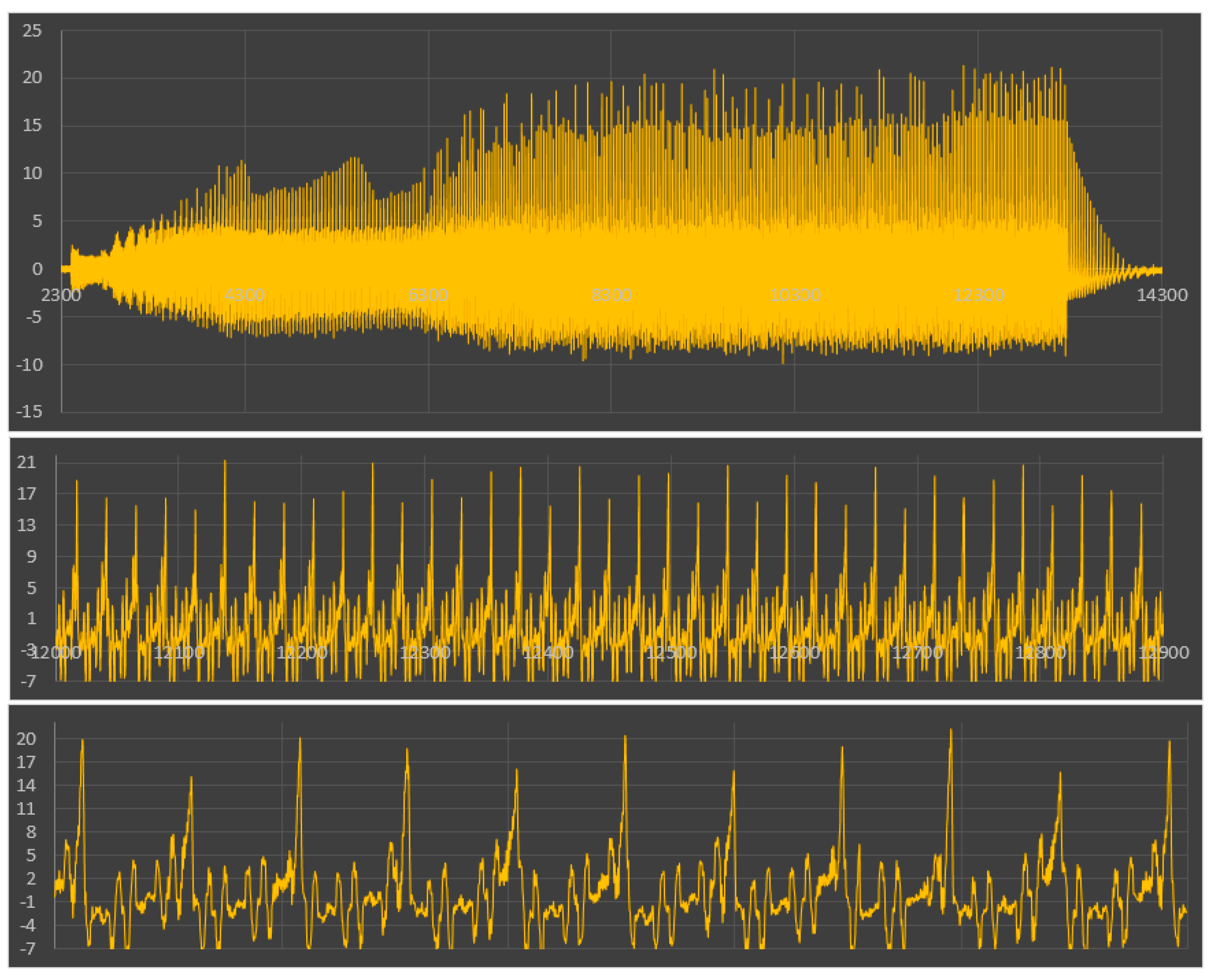

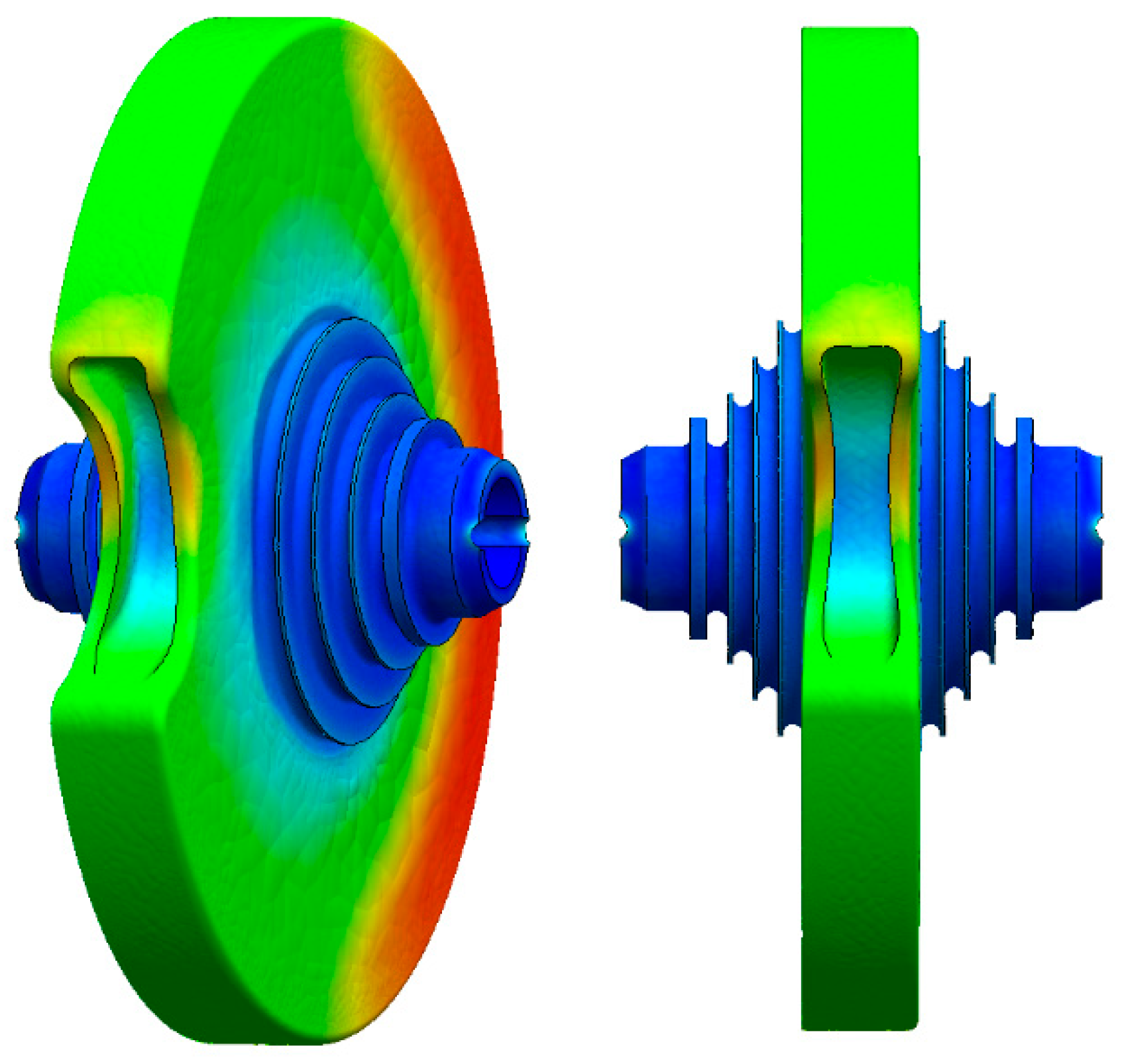

## 4. Experimental Setup and Validation

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Bloch, H.P. A Particular Guide to Compressor Technology; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2006. [Google Scholar]
- Radgen, P.; Blaustein, E. Compressed Air Systems in the European Union: Energy, Emissions, Savings Potential and Policy Actions; LOG_X Verlag GmbH: Stuttgart, Germany, 2001. [Google Scholar]
- US Department of Energy and Energy Efficiency and Renewable Energy. Improving Compressed Air System Performance: A Sourcebook for Industry; US Department of Energy: Washington, DC, USA, 2003. [Google Scholar]
- Cipollone, R.; Vittorini, D. Energy saving potential in existing compressors. In Proceedings of the 22nd International Compressor Engineering Conference, West Lafayette, IN, USA, 14–17 July 2014. [Google Scholar]
- Grand View Research, Air Compressor Market Size Analysis Report, 2021–2028. 2021. Available online: https://www.grandviewresearch.com/industry-analysis/air-compressor-market (accessed on 25 July 2022).
- Ooi, K.T. Design optimization of a rolling piston compressor for refrigerators. Appl. Therm. Eng.
**2005**, 25, 813–829. [Google Scholar] [CrossRef] - Liu, Y.; Hung, C.; Chang, Y. Design optimization of scroll compressor applied for frictional losses evaluation. Int. J. Refrig.
**2010**, 33, 615–624. [Google Scholar] [CrossRef] - Etemad, S.; Nieter, J. Design optimization of the scroll compressor. Int. J. Refrig.
**1989**, 12, 146–150. [Google Scholar] [CrossRef] - Hirayama, T.; Ito, Y.; Shida, S.; Kawabe, I.; Hirano, K. Development of large capacity rotary compressor with three cylinders. First report: Prototype designs and their efficiencies. Int. J. Refrig.
**2021**, 130, 278–287. [Google Scholar] [CrossRef] - Meng, X.; Qi, Y.; Sheng, L.; Li, Q.; Su, L. Investigations on efficiency improvement of rolling piston type rotary compressor with a new-designed cylinder. Appl. Therm. Eng.
**2023**, 222, 119920. [Google Scholar] [CrossRef] - Noh, K.-Y.; Min, B.-C.; Song, S.-J.; Yang, J.-S.; Choi, G.-M.; Kim, D.-J. Compressor efficiency with cylinder slenderness ratio of rotary compressor at various compression ratios. Int. J. Refrig.
**2016**, 70, 42–56. [Google Scholar] [CrossRef] - Gu, H.; Ye, F.; Chen, Y.; Wu, J.; Li, W.; Sundén, B. Performance investigation and design optimization of novel rotating-cylinder sliding vane rotary compressors. Int. J. Refrig.
**2022**, 142, 137–147. [Google Scholar] [CrossRef] - Pelekis, Emmanouil Andreas, General Supply (Constructions) Co. Ltd., 22 August 1980. Available online: https://patentimages.storage.googleapis.com/52/03/a0/d6a3adfa53238a/EP0046586A2.pdf (accessed on 25 July 2022).
- Duncan, R.J. 26 5 2005. Available online: https://patentimages.storage.googleapis.com/27/7a/af/e922e7025ac297/US20050284440A1.pdf (accessed on 25 July 2022).
- Lurtz, J.R. 8 6 2006. Available online: https://patentimages.storage.googleapis.com/27/98/25/0aff3dd7f209ff/US20060120910A1.pdf (accessed on 25 July 2022).
- ASTRON AEROSPACE LLC, 18 2 2021. Available online: https://patentimages.storage.googleapis.com/05/ec/2f/3c5a66694e42df/WO2021029906A1.pdf (accessed on 25 July 2022).
- BETA CAE Systems International AG. ANSA 21.1.3 User’s Guide; BETA CAE Systems: Luzern, Switzerland, 2021. [Google Scholar]
- Sullivan, P.E.; Sehmby, M. Internal Force Analysis of a Variable Displacement Vane Pump; SAE International: Warrendale, PA, USA, 2012. [Google Scholar]
- Stosic, N. On heat transfer in screw compressors. Int. J. Heat Fluid Flow
**2015**, 51, 285–297. [Google Scholar] [CrossRef] - Smith, H.I.C.P.R. Supercritical Fluid Science and Technology; Elsevier: Amsterdam, The Netherlands, 2013. [Google Scholar]
- Yakhot, V.; Orszag, S.A.; Thangam, S.; Gatski, T.B.; Speziale, C.G. Development of turbulence models for shear flows by a double expansion technique. Phys. Fluids A
**1992**, 4, 1510–1520. [Google Scholar] [CrossRef] [Green Version] - Roache, P.J. Perspective: A Method for Uniform Reporting of Grid Refinement Studies. J. Fluids Eng.
**1994**, 116, 405–413. [Google Scholar] [CrossRef] - Lin, Y.; Li, X.; Zhu, Z.; Wang, X.; Lin, T.; Cao, H. An energy consumption improvement method for centrifugal pump based on bionic optimization of blade trailing edge. Energy
**2022**, 246, 123323. [Google Scholar] [CrossRef]

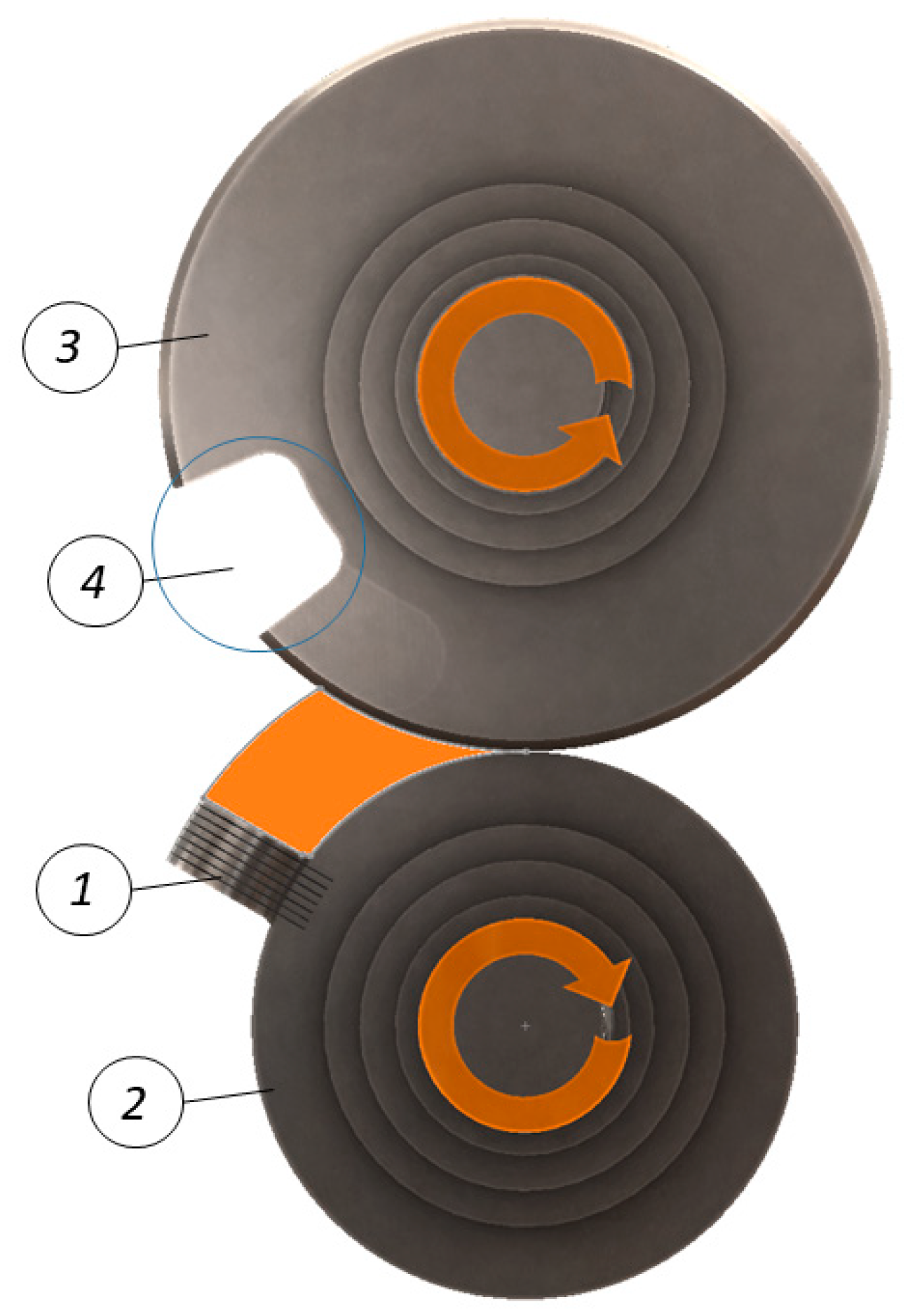

**Figure 1.**The piston-rotor position near the end of the compression process (some degrees before the primary peak pressure is developed).

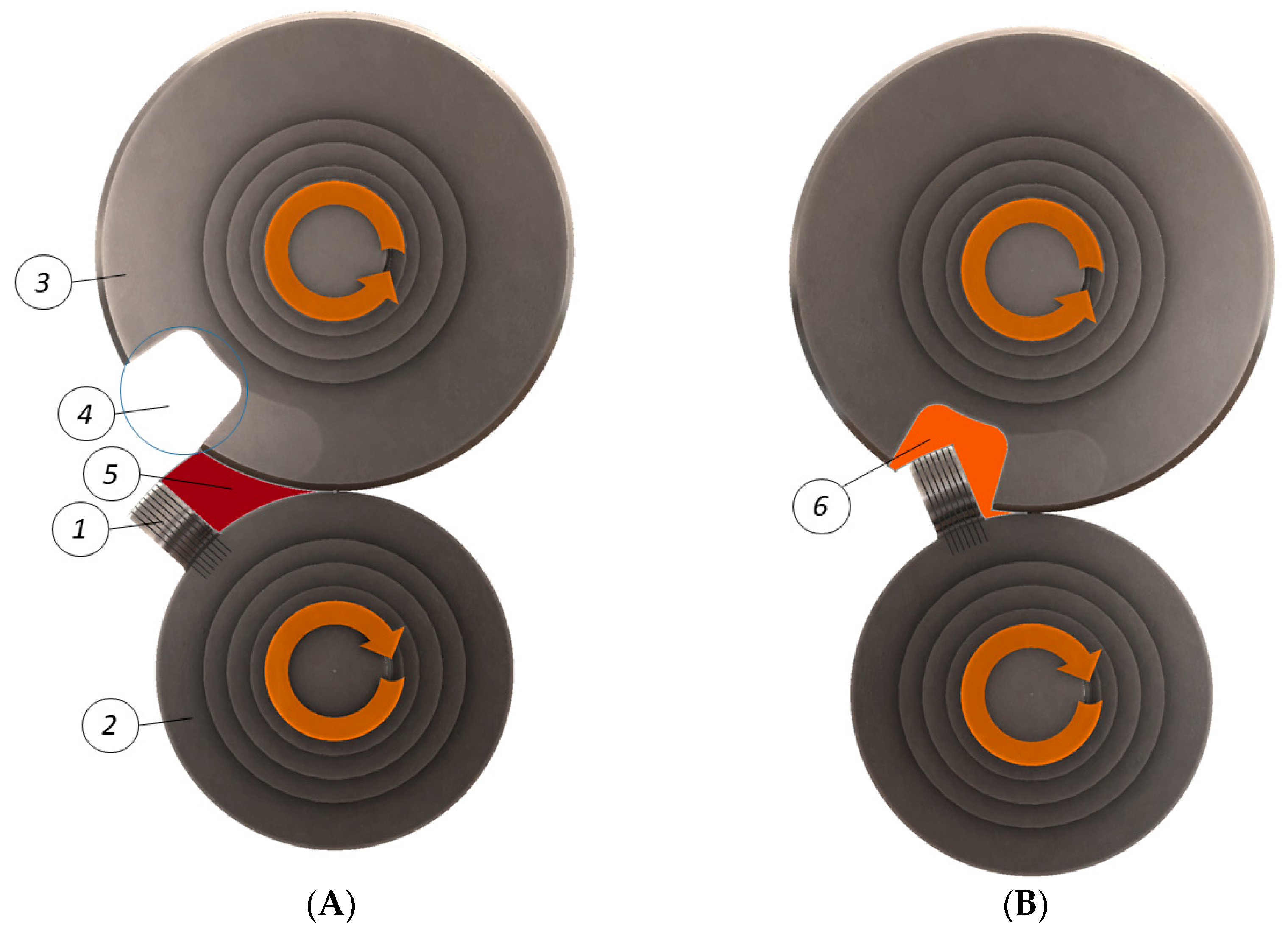

**Figure 4.**(

**A**) the moment the primary (5) peak pressure is reached during the operating cycle and (

**B**) the moment the secondary (6) peak pressure is reached during the operating cycle.

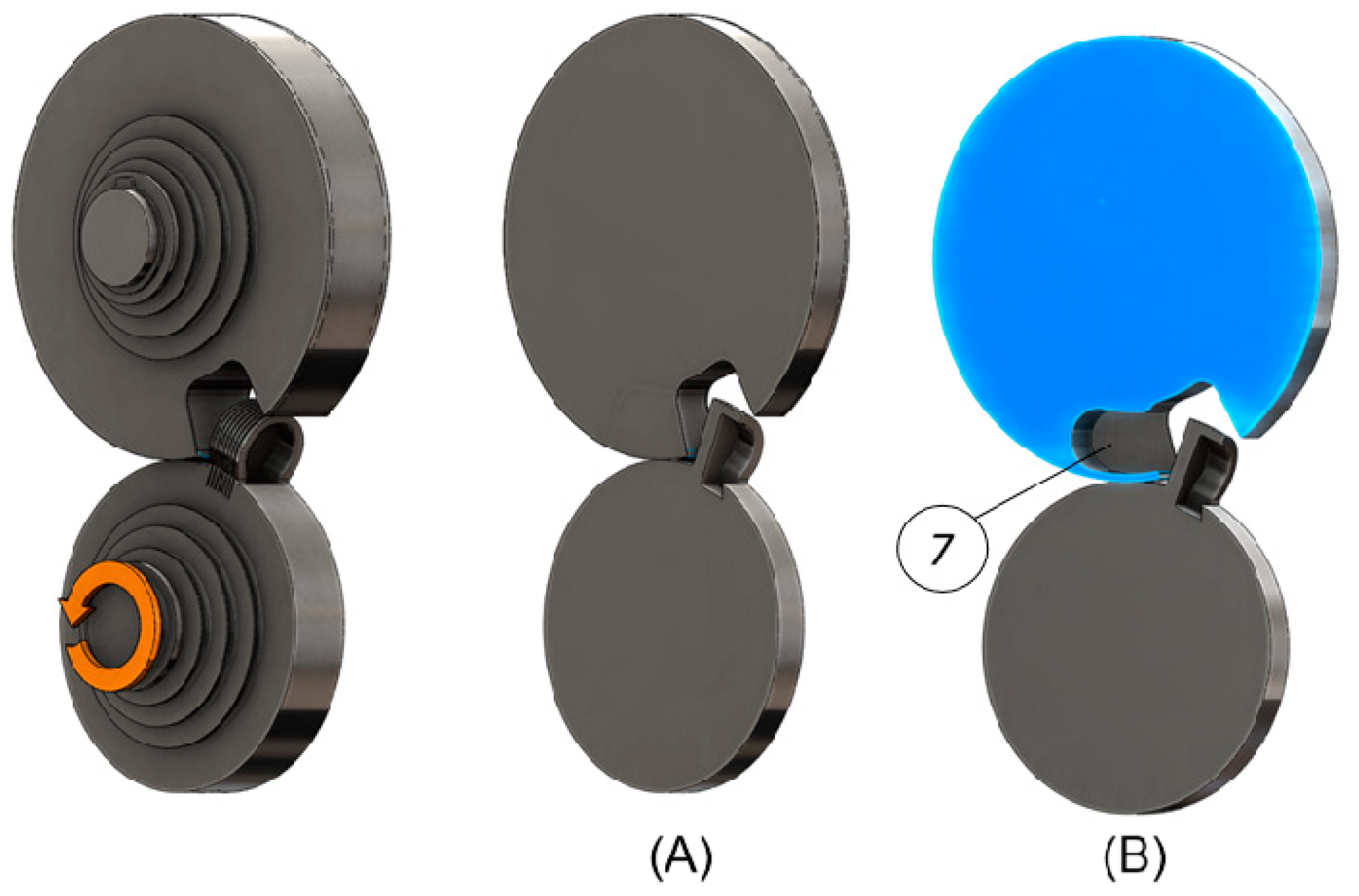

**Figure 8.**The original (

**A**) and modified design ((

**B**) = 3D printing design with the extra, secondary cavity (7)).

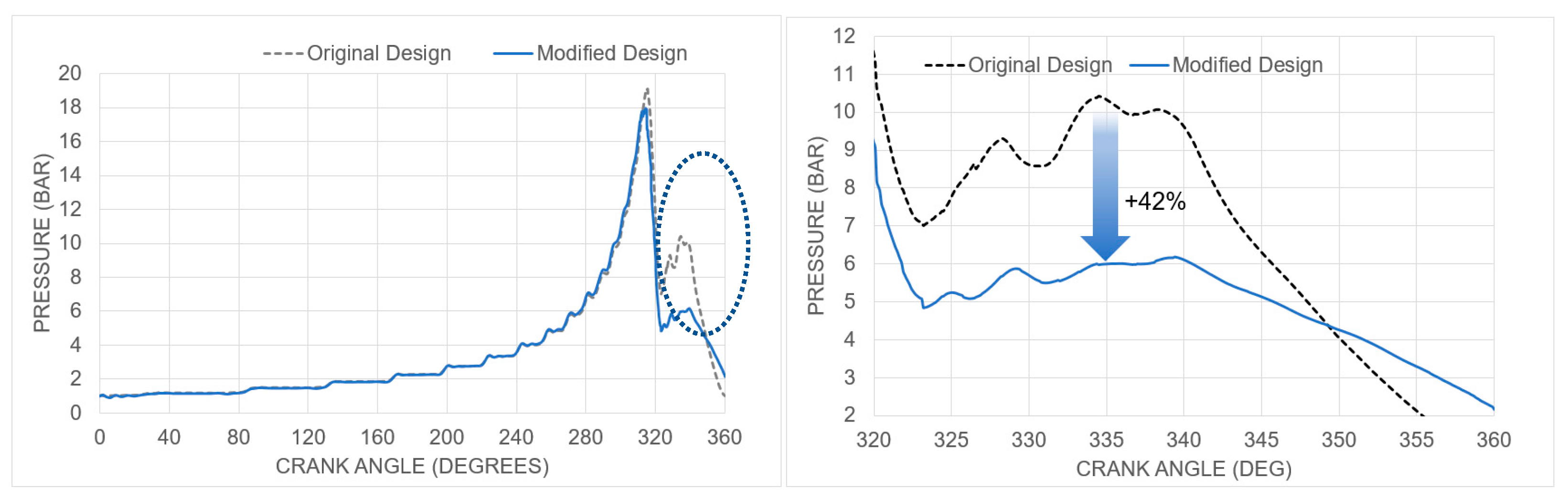

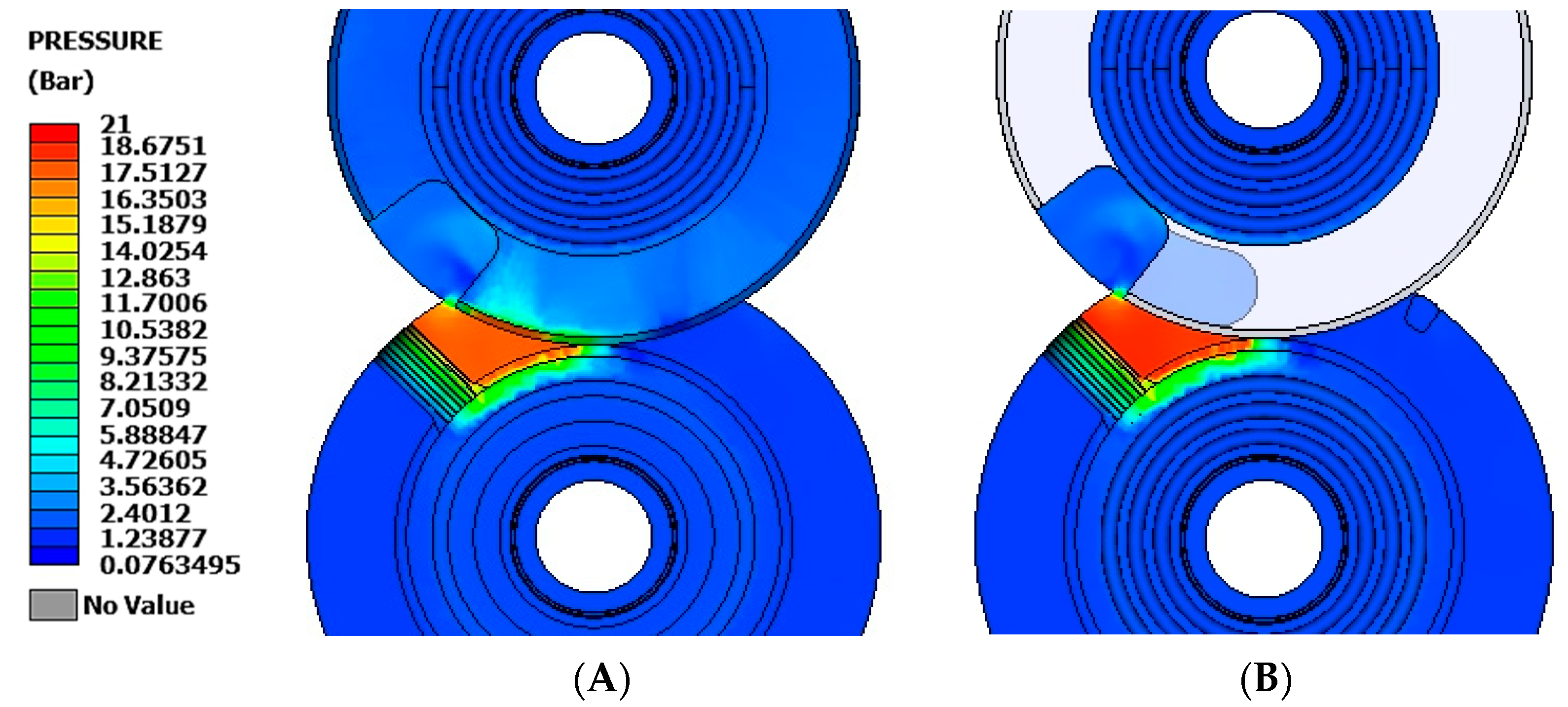

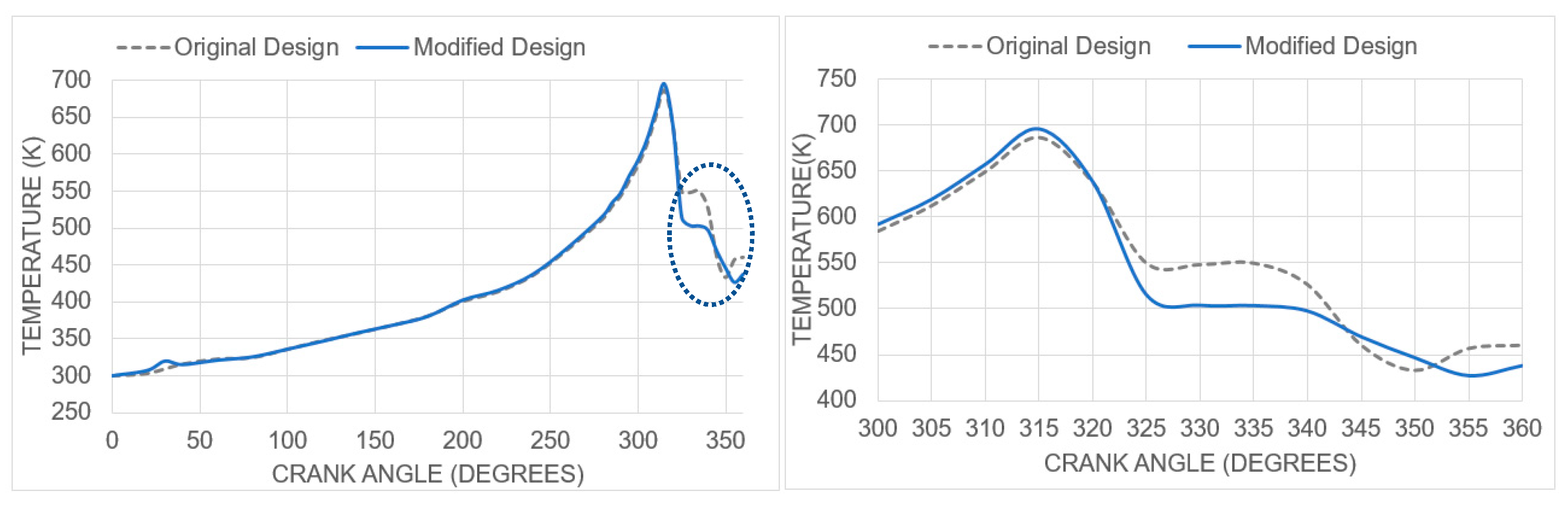

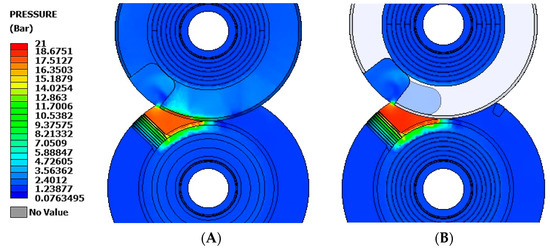

**Figure 11.**(

**A**) End of compression process with original design (primary peak pressure); (

**B**) End of compression process with modified design (primary peak pressure).

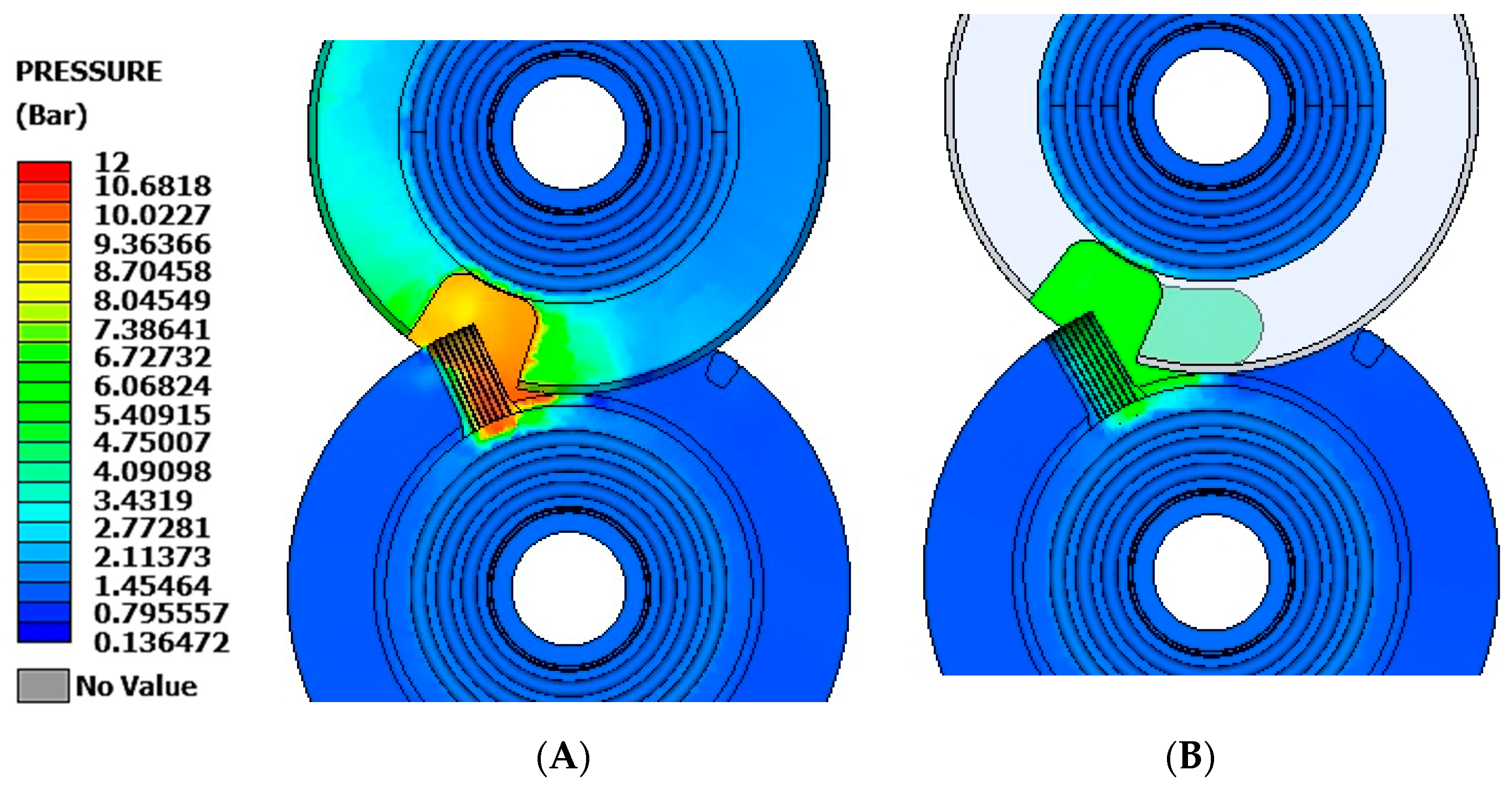

**Figure 12.**(

**A**) The secondary peak pressure contour plot of the original design of the geometry; (

**B**) The secondary peak pressure contour plot of the modified geometry.

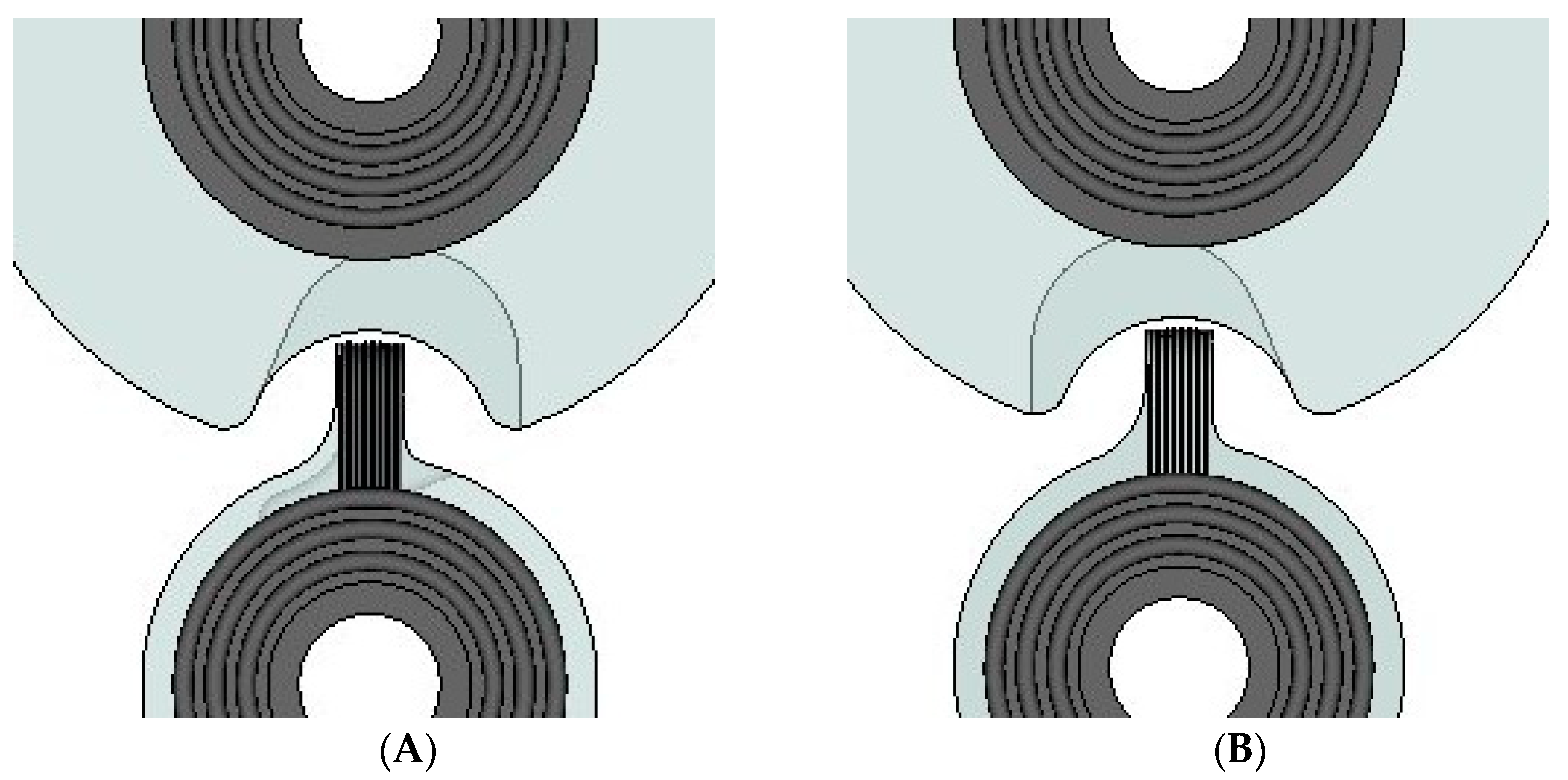

**Figure 13.**(

**A**) The alternative geometry with the extended cavity, called 4.1; (

**B**) The alternative geometry with the extended cavity, called 4.2.

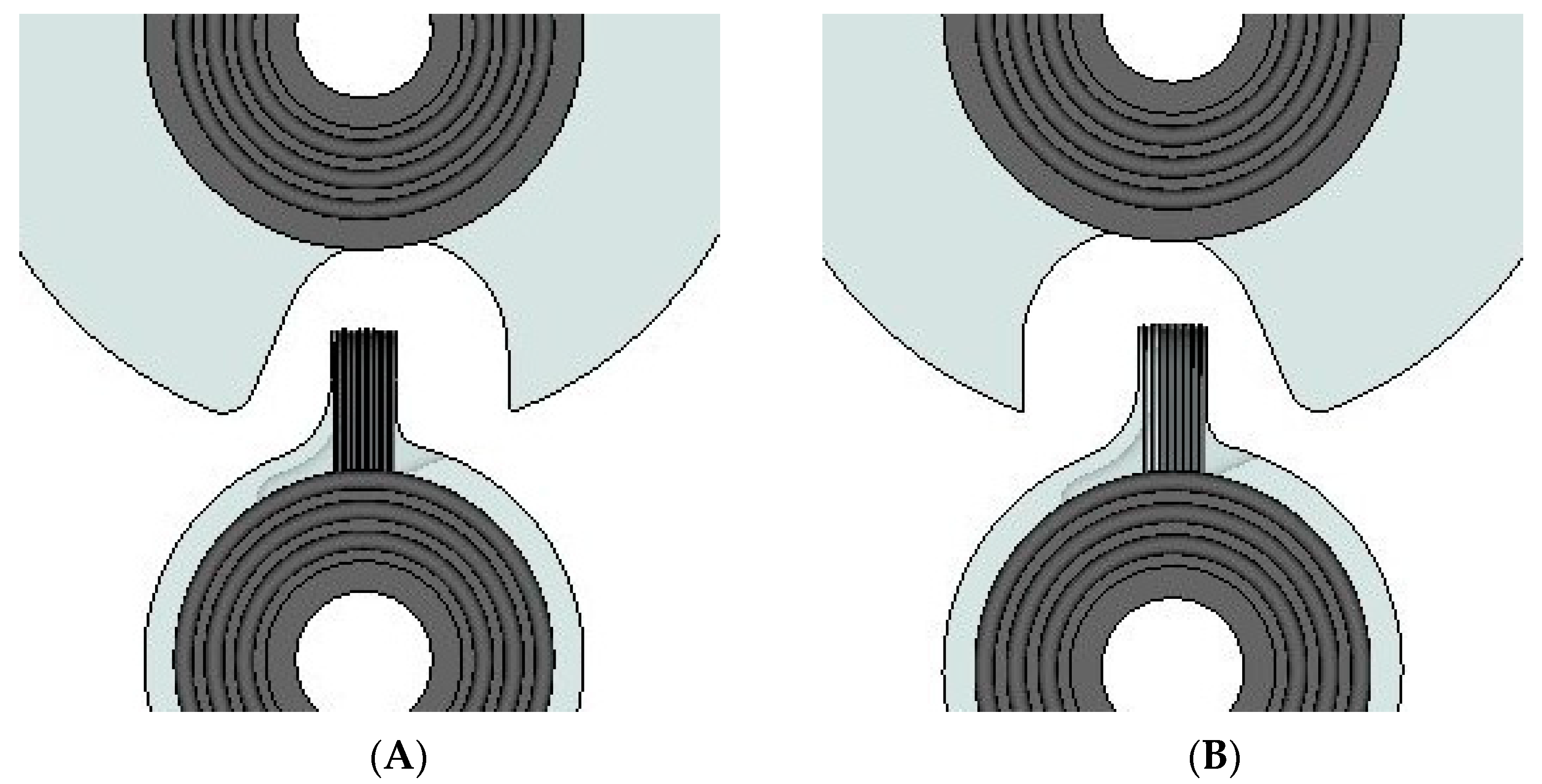

**Figure 14.**(

**A**) The alternative geometry with the extended cavity, called 4.3; (

**B**) The alternative geometry with the extended cavity, called 4.4.

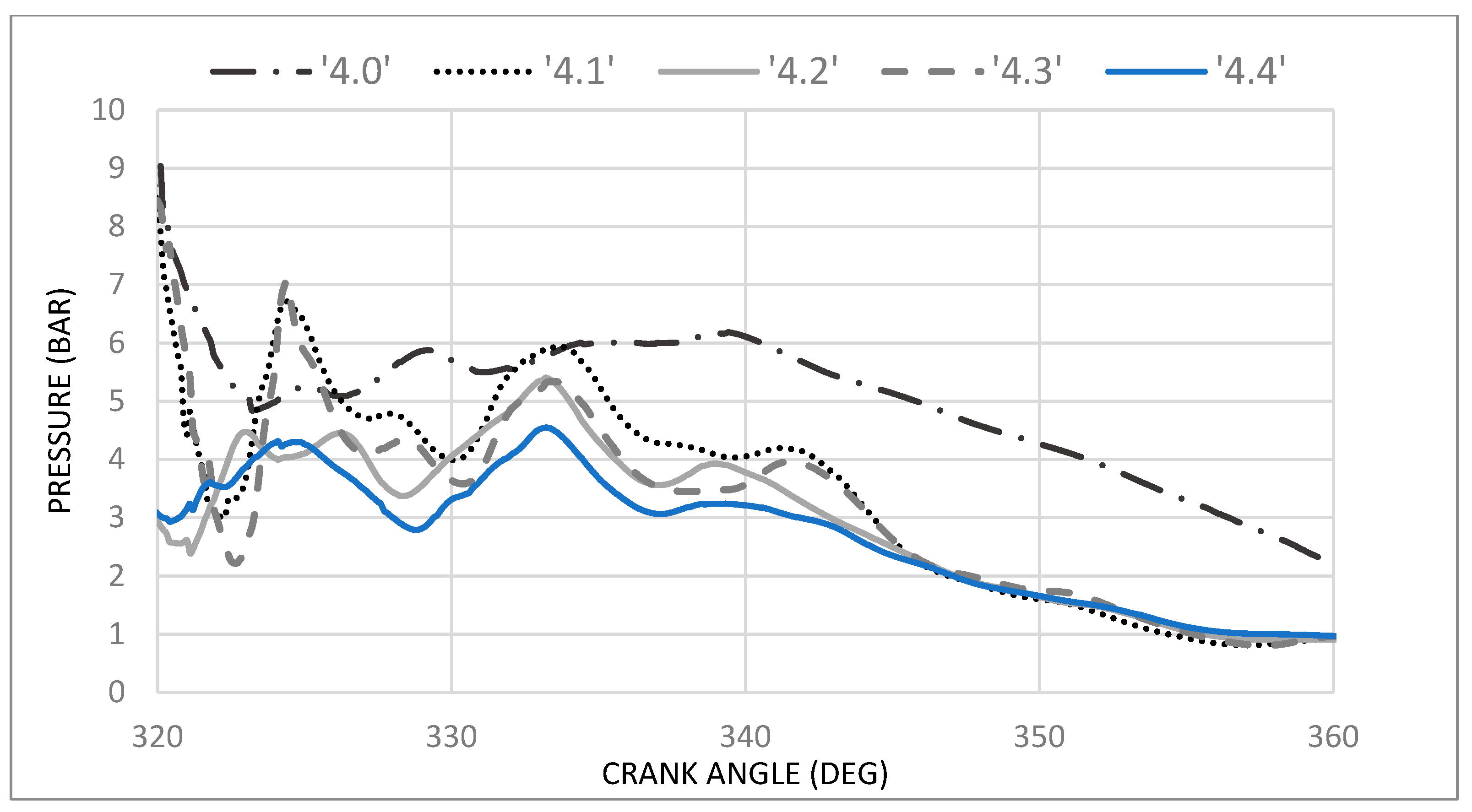

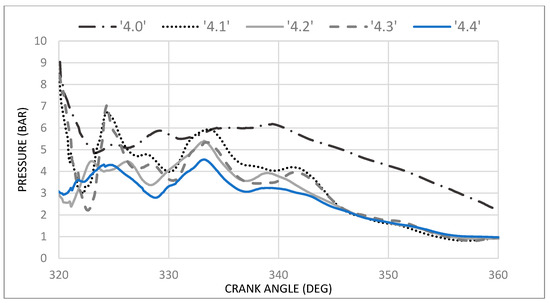

**Figure 15.**Pressure developed around the secondary peak pressure point for the four different designs.

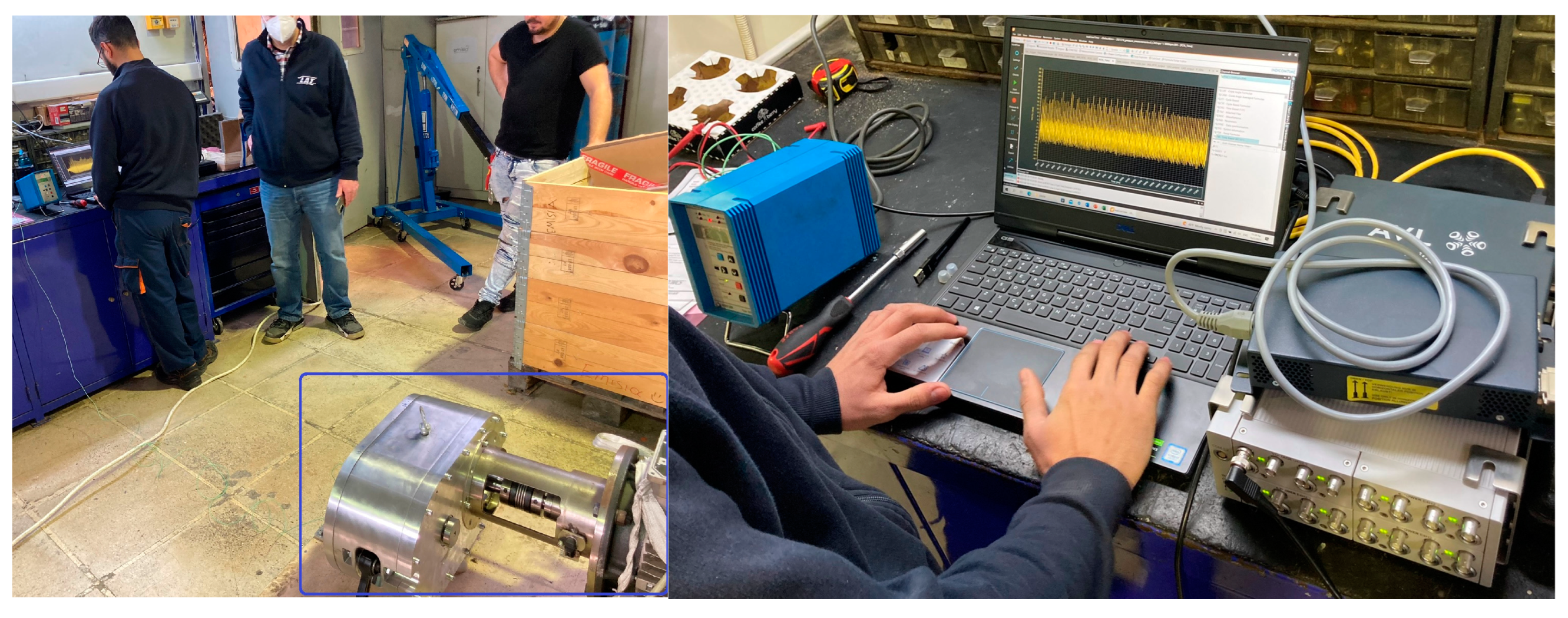

**Figure 16.**The final assembly of the rotary piston compressor and photographs from the experimental campaign.

Φ = Pressure (Pa) | |
---|---|

N_{1} (×10^{6}) | 4 |

N_{2} (×10^{6}) | 2 |

N_{3} (×10^{6}) | 1 |

GCI^{21} | 0.093% |

GCI^{23} | 0.78% |

Setup | Parameters |
---|---|

Solver | Navier–Stokes density-based |

Pressure inlet (bar) | 1.01 |

Temperature inlet (K) | 300 |

Fluid flow assumption | Redlich-Kwong equation/compressible gas |

Material | Air |

Wall properties | Absolute roughness = 0 |

Models | RNG k-ε, RANS |

Solution method scheme | Transient |

Convergence criterion | PISO/Tolerance: ${10}^{-3}$ |

Primary Peak Pressure | Secondary Peak Pressure | |||
---|---|---|---|---|

Pressure (Bar) | Crank Angle Degree (Deg) | Pressure (Bar) | Crank Angle Degree (Deg) | |

Modified Design | 18.39 | 313.51 | 6.18 | 339.4 |

Original Design | 17.74 | 313.51 | 10.41 | 334.5 |

Design | Pressure (bar) | Temperature (K) | Crank Angle Degree (deg) |
---|---|---|---|

4.0 | 6.18 | 515.8 | 339.4 |

4.1 | 6.47 | 530.24 | 324.6 |

4.2 | 5.35 | 507.43 | 333.4 |

4.3 | 7.07 | 547.54 | 324.4 |

4.4 | 4.52 | 481.76 | 333.4 |
