Investigating Color as a Non-Destructive Indicator of Strength Loss in High Tensile Nylon 6,6 Webbings

Abstract

High-performance nylon 6,6 webbings used in critical applications degrade under solar exposure, necessitating reliable methods to assess their residual strength non-destructively. This study investigates the feasibility of using instrumental color change as a predictive indicator for the loss of breaking strength. Four colors of nylon 6,6 webbings were subjected to accelerated xenon-arc solar weathering for up to 15 days. The resulting color change was quantified using both the CIELab and CIEDE2000 formulas, and residual breaking strength was measured following ASTM D6775. A regression analysis was performed to correlate these properties. The results demonstrate that a strong predictive relationship exists, but its efficacy is highly color-dependent. Webbing with high initial chroma, namely tan (R² = 0.889) and navy (R² = 0.817), showed a strong correlation between color change and strength loss. In contrast, the models for low-chroma black and white webbings were weak and unreliable. Furthermore, the simpler CIELab (ΔE*_ab) formula provided slightly more accurate predictions than the more complex CIEDE2000 (ΔE*₀₀) metric. It is concluded that colorimetry can be a viable non-destructive tool for predicting mechanical degradation, but its application is limited to specific high-chroma materials, precluding a universal model based entirely on colorimetry.

1. Introduction

Color has been a fundamental part of human history since prehistoric times, shaping societies, economies, and cultures for centuries [1,2]. Today, it remains a powerful form of artistic expression, conveying emotions, cultural identity, and even gender [3]. Among the most accessible and widely used mediums for expressing color is textile dyeing, offering a vast array of possibilities [4].

In technical textiles, color serves functions that extend well beyond just visual appeal. These materials are engineered primarily for performance, and color is frequently employed to convey critical information regarding material properties and functional specifications [4]. Webbings used in safety harnesses in the military are subjected to rigorous testing protocols and must meet strict military specifications prior to deployment by the U.S. military, as the failure of even a single component can result in catastrophic loss of personnel and equipment [5,6,7,8]. These load-bearing webbings are frequently manufactured from polyamide, specifically nylon 6,6. Nylon 6,6 is preferred for its ease of processing, high strength, durability, and superior abrasion resistance. Its high melting point renders it ideal for applications involving elevated temperatures, while its excellent crystalline properties allow it to resist deformation under mechanical stress. In such critical applications, colored yarns are integrated into these nylon 6,6 webbing structures to differentiate between varying grades, specifications, and performance attributes [7]. The use of different colors also facilitates quick visual identification to prevent accidental misuse of lower-rated webbing in high-load scenarios, thus enhancing safety and operational efficiency. However, exposure to environmental factors, particularly solar radiation, inevitably leads to degradation, with one of the most obvious signs being discoloration. While this color change is easily observed, its relationship to the underlying loss of mechanical integrity is not well understood.

To standardize the measurement of color, the International Commission on Illumination (CIE) introduced the CIELab color space in 1976, which otherwise could vary depending on the observer’s physiology, psychological state, and environmental influences. In this system three parameters are employed—L*, a*, and b*—to communicate and describe lightness, red-green, and yellow-blue components of the color measured [9]. Thus, allowing for the objective quantification of color difference (ΔE*) between a standard and the sample, a metric that has been explored in various degradation studies. It is universally agreed that ΔE* values above 2.7 indicating perceptibility to the human eye [10].

In a study by Cordeiro et al., the effects of solar exposure on the color and tensile properties of glass fiber-reinforced polymer (GFRP) composites were examined. While significant changes in ΔE* were observed over time, no direct correlation with mechanical property degradation was established [11]. Conversely, Lan et al. reported a measurable correlation between mechanical properties and color variation in GFRP composites. Their findings indicated that the L* value (brightness) was the most sensitive indicator of degradation. They concluded that changes in brightness could potentially serve as a predictor for variations in tensile and flexural strength [9].

Building on this, studies have also incorporated gloss measurements as another potential indicator of degradation. Badji et al. investigated the impact of weathering on the microstructure and mechanical properties of wood-plastic composites (WPCs) [12]. Based on their previous work that relied on atomic-level imaging techniques such as Atomic Force Microscopy (AFM) and Scanning Electron Microscopy (SEM), this study incorporated CIELab and gloss analysis to explore alternative approaches for predicting mechanical degradation. While changes in L* were observed with increased exposure, no strong correlation with mechanical property loss was found. However, a positive correlation was noted between gloss and mechanical properties, linking it to surface microcracking observed via SEM.

In our previous study, we examined the effects of solar exposure on the surface morphology and chemical structure of these webbings, particularly those deployed at military installations in the extreme environmental conditions of Arizona [13]. Building upon that work, the present study investigates the color changes associated with accelerated weathering and explores the potential correlation between discoloration and breaking strength loss. The goal of this study is to evaluate the feasibility of a color-based non-destructive testing (NDT) method for in situ assessment of webbing integrity. This study aims to systematically investigate the relationship between colorimetric changes, gloss, and the residual breaking strength of exposed, high-performance nylon 6,6 webbings used in safety harness systems. By analyzing four distinct colors under controlled accelerated weathering, this research seeks to determine if a robust, non-destructive predictive model can be developed. Specifically, it evaluates the efficacy of both the CIELab (ΔE*_ab) and the more complex CIEDE2000 (ΔE*₀₀) formulas to test the central hypothesis: that instrumental color change can serve as a reliable proxy for mechanical degradation in these critical materials.

2. Materials and Methods

2.1. Material

Narrow woven webbings of 4 different colors (white, navy, black, and tan) were provided by Bally Ribbon Mills (Bally, PA, USA). The webbings provided comply with the following requirements listed in

Table 1. MIL-DTL-4088 Specifications [7].

	Specification
Class	1—Critical use
Type	VII
Polymer	Nylon 6,6
Linear Density	840 Denier (W B F) 1
# of Filaments	140 (W B F) 1
Twist per inch	2.5
Weave Design	Double Plain Weave
Picks per inch	Min. 26
# of Ends	Min. 229 (W) 1 & 27 (B) 1
Width	1.71 ± 0.06 in
Thickness	0.06–0.10 in
Weight	2.35 oz/yd
Breaking Strength	Min. 6000 lbs
Fabric Finishes	None

¹ W = Warp; B = Binder; F = Fill.

, as per the military specification MIL-DTL-4088 [7].

2.2. Sample Preparation

The samples were initially conditioned under standard environmental conditions, 21 ± 1 °C and 65 ± 2% RH. A total of 36 samples of 36 inches were cut from 200 yds rolls for all 4 colors conforming to ASTM D6775-13 Standard Test Method for Breaking Strength and Elongation of Textile Webbing, Tape and Braided Material [14].

2.3. Accelerated Weathering Setup

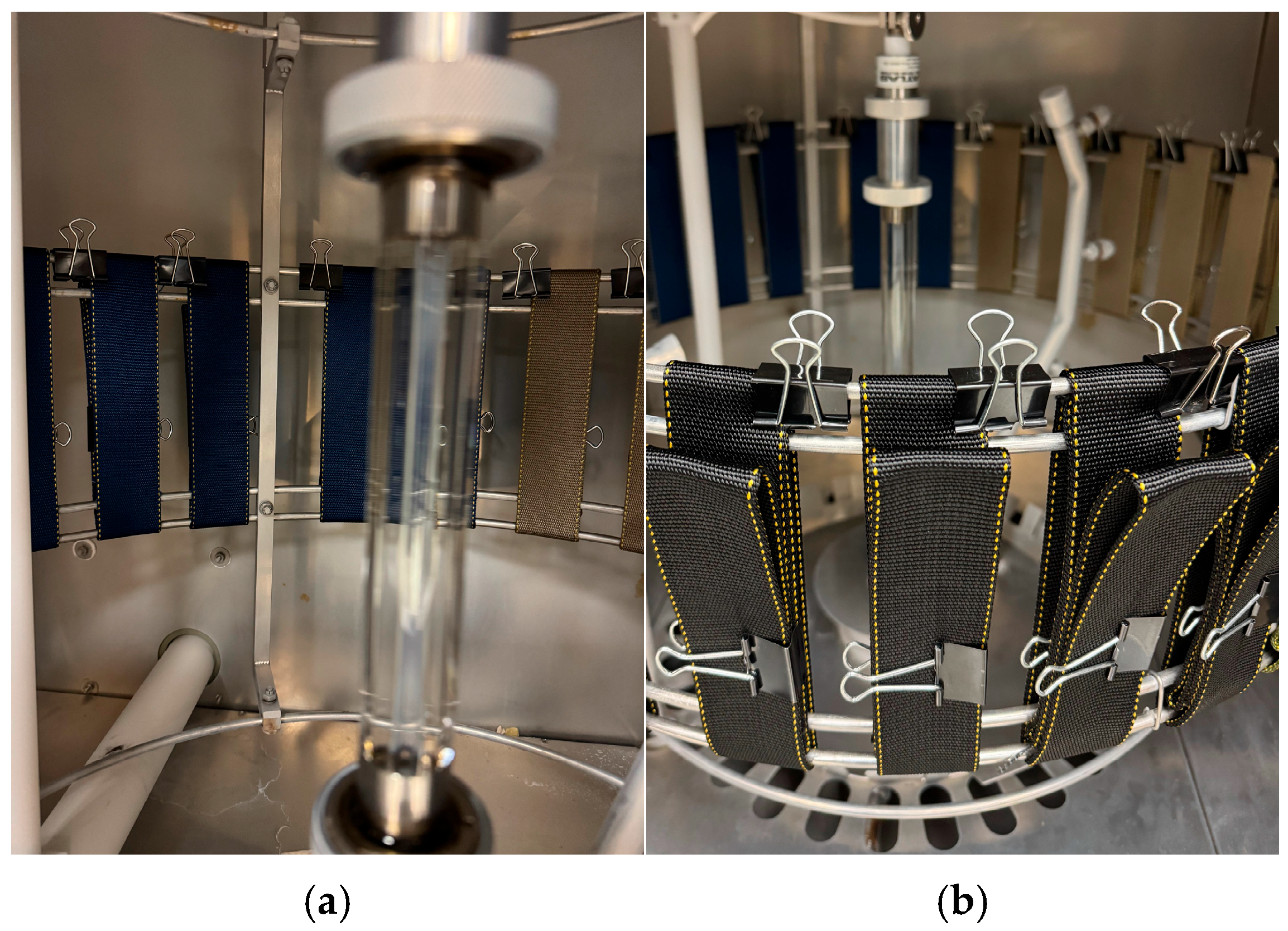

Accelerated weathering was performed using Ci4000 Xenon-Arc Weather-Ometer from Atlas/Ametek (Mount Prospect, IL, USA). In this study, only a central 8-inch section on the face of the webbings was continuously exposed to an irradiance of 1.5 sun equivalent or 0.83 W/(m² · nm) at 340 nm simulating Arizona (dry) conditions (43 °C and 30% relative humidity) in the chamber. The irradiance was set to 1.5 sun to accelerate degradation.

Table 2. The equivalent natural weathering duration corresponding to lamp hours (exposure duration) in the Weather-Ometer.

Weather-Ometer Lamp Hours (Days)	Natural Weathering Equivalent (Days)
3	21
6	43
9	64
12	86
15	107

shows that the exposure duration is equal to 2.7× of the lamp hours in the weatherometer. The detailed calculations, based on available historical data and a generally accepted acceleration formula, are reported in the previous study [13]. Six samples were removed at 3-day intervals up to 15 days of exposure in the Weather-Ometer for each color. The webbings were mounted on the Weather-Ometer racks using heavy duty clips as seen in Figure 1.

2.4. Color and Gloss Measurement

Color and gloss were measured for control and exposed samples using Spectro-Guide Sphere Gloss S from BYK-Gardner USA (Columbia, MD, USA). The resultant L*, a*, b* coordinates of color were used to calculate ΔE* according to both CIE76 and CIEDE2000 following ISO/CIE 11664-4:2019 “Colorimetry—Part 4: CIE 1976 L*a*b* Colour space” and ISO/CIE 11664-6:2022 “Colorimetry—Part 6: CIEDE2000 Colour-difference formula” respectfully [15,16]. The color difference formula in accordance with the CIE76 is shown in Equation (1) and CIEDE2000 is shown in Equation (2).

$$∆E_{ab}^{*}=\sqrt{∆L^2+∆a^2+∆b^2} ,$$

(1)

$$∆E_{00}^{*}=\sqrt{{\left({\displaystyle \frac{∆L\prime }{k_L{S}_L}}\right)}^2+{\left({\displaystyle \frac{∆C\prime }{k_C{S}_C}}\right)}^2+{\left({\displaystyle \frac{∆H\prime }{k_H{S}_H}}\right)}^2+R_T·\left({\displaystyle \frac{∆C\prime }{k_C{S}_C}}\right)·\left({\displaystyle \frac{∆H\prime }{k_H{S}_H}}\right)} ,$$

(2)

where ΔL′ is the lightness difference; ΔC′ is the chroma difference; ΔH′ is the hue difference; S_L, S_C, S_H are weighing functions of lightness, chroma and hue; k_L, k_C, k_H are parametric factors of lightness, chroma and hue (for textiles k_L is 1.5–2 while k_C and k_H are 1) [16,17,18].

To calculate the color difference, first the L*, a*, b* values from the spectrophotometer should be transformed into L′, a′, b′ and C′, h′ are calculated following Formulas (3)–(7),

$$L^{\prime }=L^{*} ,$$

(3)

$$a^{\prime }=\left(1+G\right)a^{*} ,$$

(4)

$$b^{\prime }=b^{*} ,$$

(5)

$$C^{\prime }=\sqrt{{a\prime }^2+{b\prime }^2},$$

(6)

$$h^{\prime }=\left\{\begin{array}{cc}{\tan }^{-1}\left({\displaystyle \frac{b^{\prime }}{a^{\prime }}}\right)\hfill & if a^{\prime }>0 and b^{\prime }\ge 0\hfill \\ {\tan }^{-1}\left({\displaystyle \frac{b^{\prime }}{a^{\prime }}}\right)+360\hfill & if a^{\prime }>0 and b^{\prime }<0\hfill \\ {\tan }^{-1}\left({\displaystyle \frac{b^{\prime }}{a^{\prime }}}\right)+180\hfill & if a^{\prime }<0\hfill \\ 90\hfill & if a^{\prime }=0 and b^{\prime }>0\hfill \\ 270\hfill & if a^{\prime }=0 and b^{\prime }>0\hfill \\ 0\hfill & if a^{\prime }=0 and b=0\hfill \end{array}\right. ,$$

(7)

where G in Formula (3) is the switching function calculated using Formula (8)

$$G=0.5·\left(1-\sqrt{{\displaystyle \frac{{\overline{C^{*}}}^7}{{\overline{C^{*}}}^7+{25}^7}}}\right) ,$$

(8)

C* is calculated from the CIELab values of the control and test sample, denoted by subscript 0 and 1, respectively, using Formulas (9) and (10)

$$C_0^{*}=\sqrt{{a_0^{*}}^2+{b_0^{*}}^2} ; C_1^{*}=\sqrt{{a_1^{*}}^2+{b_1^{*}}^2} ,$$

(9)

$$\overline{C^{*}}={\displaystyle \frac{C_0^{*}+C_1^{*}}{2}} ,$$

(10)

The differences between the samples, denoted by subscript 0 for control and 1 for test sample is calculated according to Formulas (11)–(14),

$${∆L}^{\prime }=L_1^{\prime }-L_0^{\prime } ,$$

(11)

$${∆C}^{\prime }=C_1^{\prime }-C_0^{\prime } ,$$

(12)

$${∆H}^{\prime }=2\sqrt{C_0^{\prime }{C}_1^{\prime }}·\sin \left({\displaystyle \frac{∆h\prime }{2}}\right) ,$$

(13)

$$∆h^{\prime }=\left\{\begin{array}{cc}0°\hfill & if C_0^{\prime }{C}_1^{\prime }=0\hfill \\ h_1^{\prime }-h_0^{\prime }\hfill & if C_0^{\prime }{C}_1^{\prime } \ne 0 and \left|h_1^{\prime }-h_0^{\prime }\right|\le 180°\hfill \\ h_1^{\prime }-h_0^{\prime }-360\hfill & if C_0^{\prime }{C}_1^{\prime } \ne 0 and \left|h_1^{\prime }-h_0^{\prime }\right|>180°\hfill \\ h_1^{\prime }-h_0^{\prime }+360\hfill & if C_0^{\prime }{C}_1^{\prime } \ne 0 and \left|h_1^{\prime }-h_0^{\prime }\right|\le -180°\hfill \end{array}\right. ,$$

(14)

while the weighting factors in Formula (1) are calculated using the Formulas (15)–(21).

$$S_L=1+{\displaystyle \frac{0.015{\left(\overline{L^{\prime }}-50\right)}^2}{\sqrt{20{\left(\overline{L^{\prime }}-50\right)}^2}}} ,$$

(15)

$$S_C=1+0.045\overline{C\prime } ,$$

(16)

$$S_H=1+0.015\overline{C\prime }T ,$$

(17)

$$T=1-0.17\cos \left(\overline{h\prime }-30°\right)+0.24\cos \left(2\overline{h\prime }\right)+0.32\cos \left(3\overline{h^{\prime }}+6°\right)-0.20\cos \left(4\overline{h^{\prime }}-63°\right),$$

(18)

$$∆\theta =30°·e^{-{\left({\displaystyle \frac{\overline{h^{\prime }}-275°}{25}}\right)}^2} ,$$

(19)

$$R_C=2\sqrt{{\displaystyle \frac{{\overline{C^{\prime }}}^7}{{\overline{C^{\prime }}}^7+{25}^7}}} ,$$

(20)

$$R_T=-R_C·\sin \left(2·∆\theta ·{\displaystyle \frac{\pi }{180}}\right) ,$$

(21)

where $\overline{L^{\prime }}, \overline{C^{\prime }}, \overline{h\prime }$ are the arithmetic means of the measurements of 2 samples.

The gloss index measurements at 60° angle of incidence were also measured using spectro-guide from BYK-Gardner USA and will be reported as G_L for this study.

2.5. Tensile Evaluation

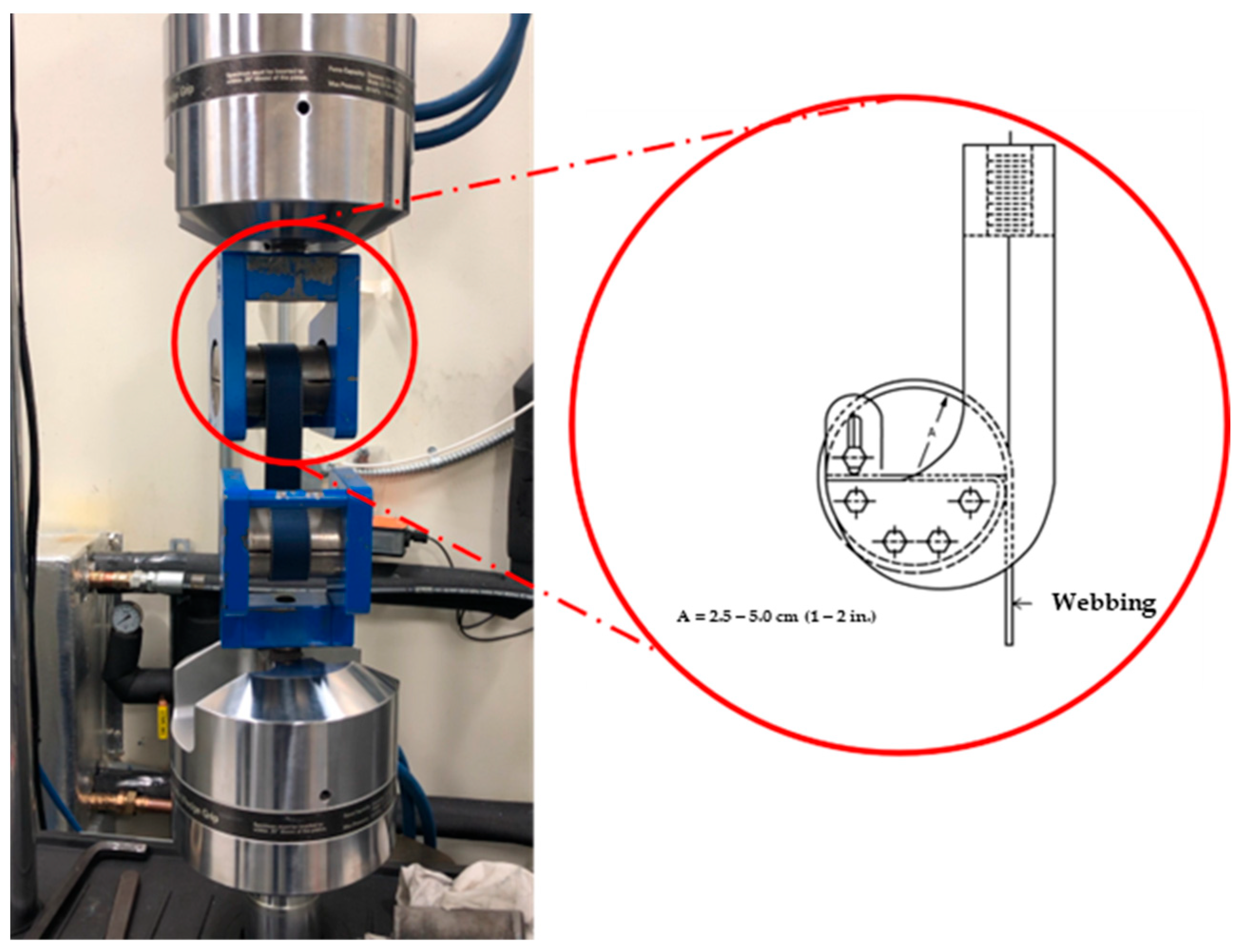

The tensile evaluation for the webbings was performed on Landmark Servohydraulic test system from MTS (Eden Prairie, MN, USA) based on ASTM D6775-13 Standard Test Method for Breaking Strength and Elongation of Textile Webbing, Tape and Braided Material [14]. The split-drum fixtures were first mounted to the MTS Landmark’s hydraulic wedges with a pressure of 100 kPa. One end of the 36-inch sample was inserted between the two halves of the upper fixture and wrapped around the drums once. The webbing was then wrapped around the lower fixture once before the other end was inserted between the two halves of the fixture. The setup of the clamps with webbings is shown in Figure 2. The samples were preloaded to ~4500 N (~1000 lbs) of tension deviating from the standard test method due to the traversal limitations of the test frame to achieve breaking strength [13]. The strain data obtained post preload is not representative of the actual strain behavior of the webbings; hence, the tensile evaluation is limited to breaking strength only. The test was performed under standard environmental conditions, 21 ± 1 °C and 65 ± 2% RH, under a constant rate of elongation (CRE) of 3 in/min.

2.6. Statistical Analysis

The study’s test results were evaluated statistically for normal distribution and effect size using JMP 18 software package from JMP (Cary, NC, USA). The significant level or alpha (α) is set to 0.05 to give confidence of 95%, any p-value lower than the α will be statistically significant. Regression analyses were conducted using JMP 18 and Origin 2023b software package from OriginLab Corp. (Northampton, MA, USA). Data processing and visualization were conducted using Origin 2023b.

3. Results and Discussion

Based on the experimental methods described in the previous section, quantitative analyses of color change and breaking strength loss were conducted to assess whether visual indicators can reliably predict mechanical degradation

3.1. Accelerated Weathering

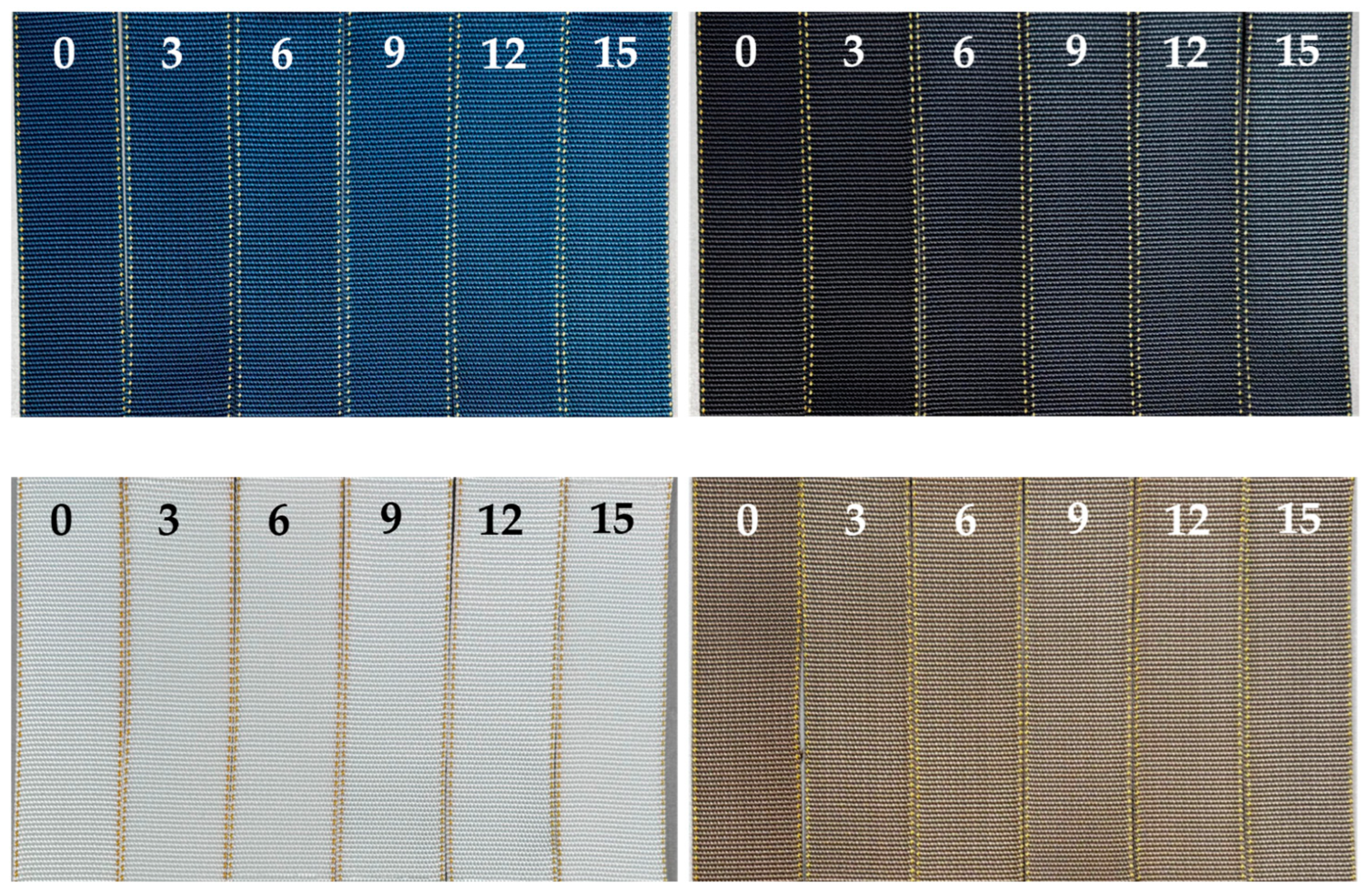

Accelerated weathering in the xenon-arc Weather-Ometer resulted in a clear progression of color change, with samples appearing increasingly lighter when viewed under a lightbox equipped with a CIE D65 daylight-simulating light source. The extent of this change became more perceptible to the naked eye with longer exposure durations. This trend was consistent across all colors except for the white webbings, which exhibited minimal visible change, as shown in Figure 3.

3.2. Color and Gloss Difference

To quantify these visual observations, colorimetric data were collected using the CIELab system, and changes in lightness (L*), red-green (a*), yellow-blue (b*) and gloss value (G_L) were plotted over time to evaluate the degree of discoloration. The findings are shown in Figure 4, below.

3.2.1. Color Difference

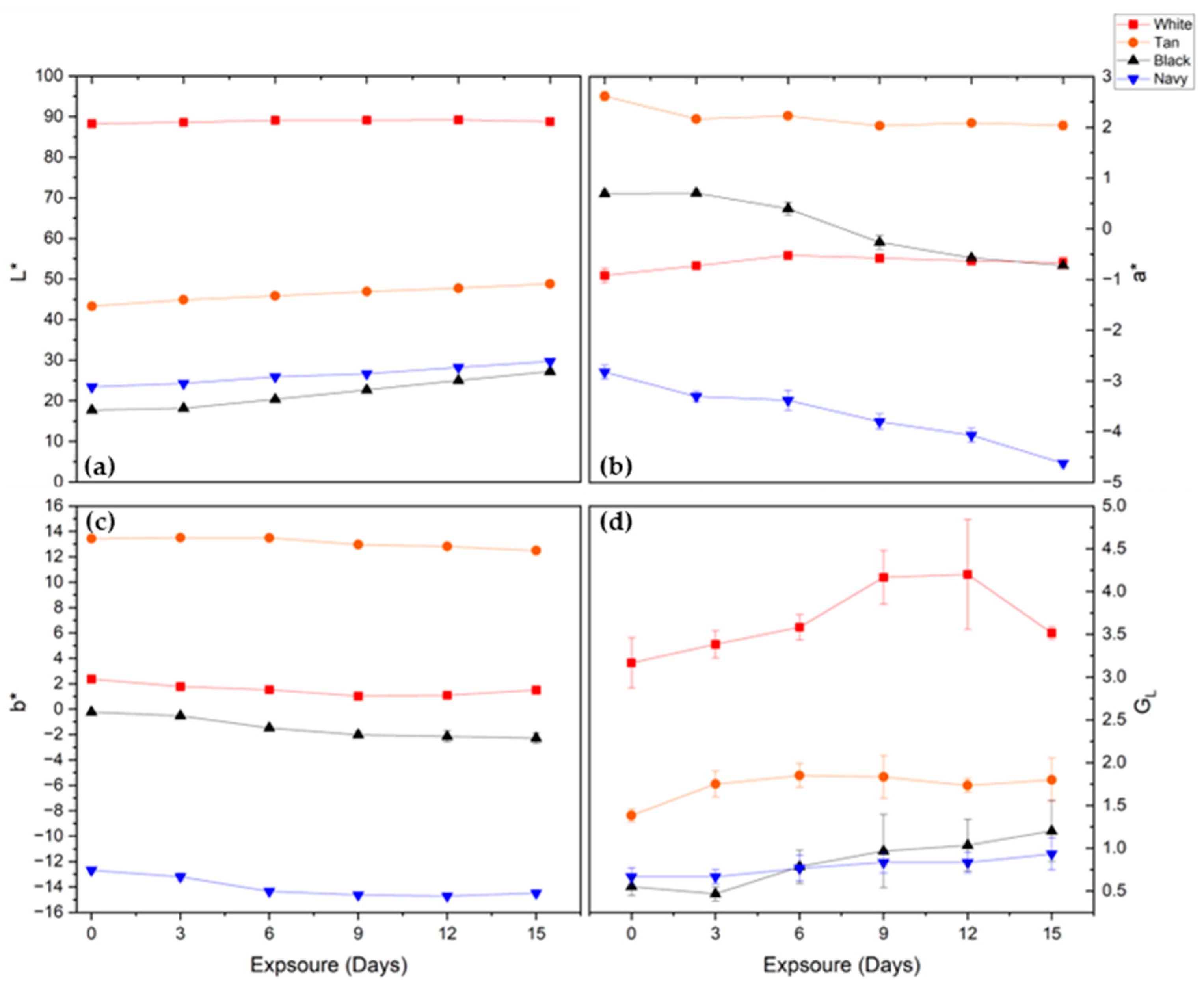

The color coordinates of the six unexposed samples of each color were averaged and set as the control or reference coordinates for their respective color. Figure 4a shows increasing lightness values (L*) of all colors, although the increase for white was less significant than for the other colors. This could be the result of degradation of dye molecules on the surface of the webbing. The general trend in reduction in a* and b*, in Figure 4b,c, are consistent with the findings in the literature [11,19,20]. It is important to note that the color coordinates are independent of each other and do not influence one another directly in the CIELab color space. As a result, changes in L*, a*, or b* represent distinct aspects of color alteration and should be interpreted separately when analyzing color degradation.

To quantify the magnitude of color change, these components are combined into a single metric, color difference (ΔE*), which allows for quantitative measure of color change over time. The most common approach in textiles is to use CIELab as given by Equation (1). It is simple and often provides good agreement with observations by observers with average color perception. In contrast, the CIEDE2000 formula is more complex and accounts for subtler changes in color [21]. CIEDE2000 also applies weighting and corrections for non-uniformity in human color perception [16]. The resultant color change over time is shown in Figure 5.

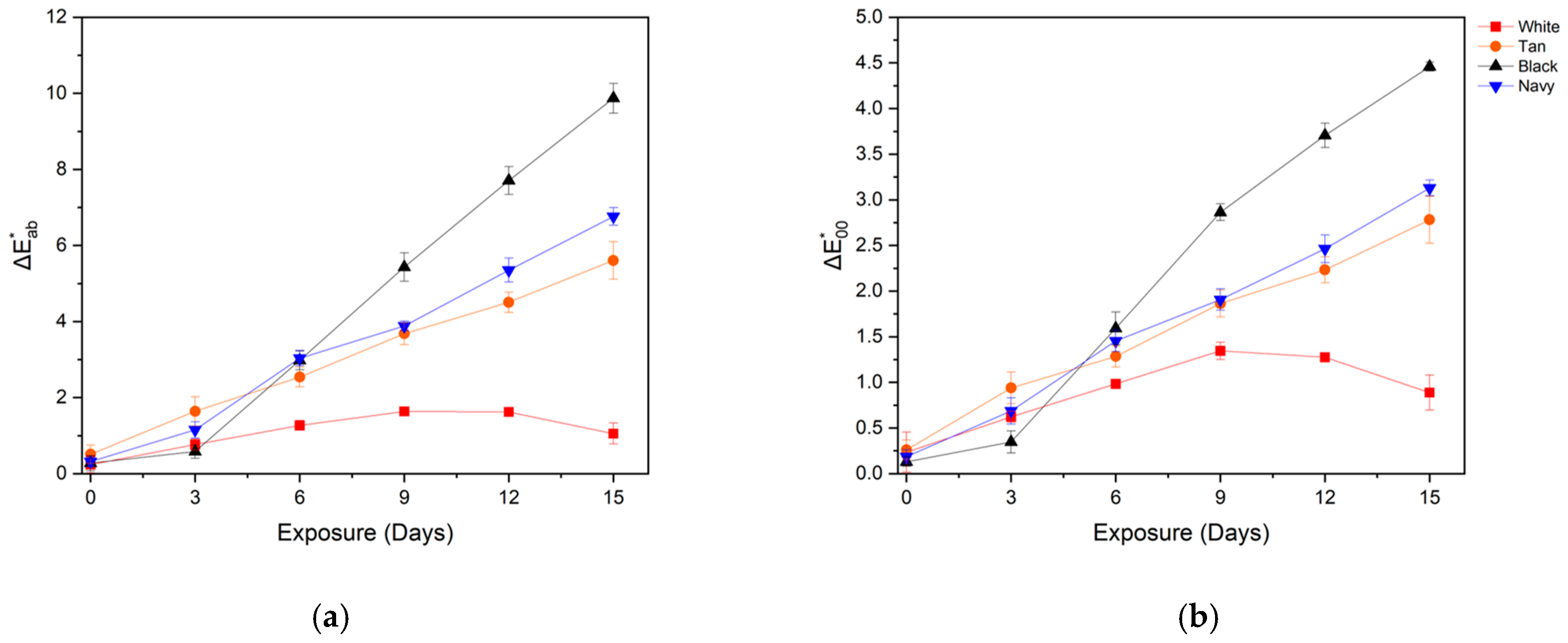

Figure 5 shows there is significant change in color as the duration of exposure increases. It is generally accepted that ΔE* values between 1.0 and 3.7 correspond to the perceptibility of color difference, while values between 2.7 and 6.8 correspond to the acceptability of that difference [21,22,23]. In textiles aesthetics also play a crucial role in discerning any materials’ utility, while ΔE* of 1 would be ideal since the human perception varies from person to person; hence in this study, a ΔE* value of 2.7 is set as the acceptable and perceivable limit for an average observer. In doing so, it is observed that CIELab formula overestimates the change in comparison to CIEDE2000. This is attributed to the CIELab formula measuring the simple Euclidean distance between colors, while CIEDE2000 corrects for human perception of chroma and hue. However, the trend observed for both calculations shows increasing color change with increasing exposure duration. CIELab and CIEDE2000 both agree that the color change in white webbings is imperceptible to an untrained human eye but disagree regarding the other colors. The CIELab formula shows perceptible color change (≥2.7) after 6 days of exposure for all colors, while CIEDE2000 shows that the perceptible color change only occurs after 9 days for black webbings and 15 days for both tan and navy webbings. This result is consistent with the corrections in the CIEDE2000 formula, accounting for poor human perception of differences in high-chroma colors (namely blues and yellows), a fact supported by the Δb* coordinates of the tan and navy webbings in Figure 5b.

Normality of CIELab and CIEDE2000 were assessed within each of the 24 color-exposure duration groups using the Shapiro–Wilk test. All groups yielded p-values greater than 0.05, indicating that the null hypothesis of normality could not be rejected. Given that the assumption of normality was met across all groups, a two-way ANOVA was conducted to examine the effects of color and exposure duration on color change. Interaction effects between color and exposure were also evaluated.

A two-way ANOVA was performed to assess the effects of color and exposure duration on color difference for both CIELab (ΔE*_ab) and CIEDE2000 (ΔE*₀₀). The main effect of color was not statistically significant (F(3, 120) = 1.26 and 1.125; p = 0.2907 and p = 0.3417, respectively), indicating that the magnitude of color change did not differ significantly between colors when averaged across exposure durations. However, exposure duration had a significant effect on ΔE* (F(5, 120) = 549.58 and 125.45, respectively; p < 0.001 for both), suggesting that total color difference increased with longer exposure. Additionally, a significant interaction was observed between color and exposure duration (F(15, 120) = 190.54 and 136.78, respectively; p < 0.001 for both), indicating that the pattern of color change over time varied among different colors. This interaction implies that while overall color change may not differ significantly between colors, the rate and trend of color degradation across exposure times are color dependent.

3.2.2. Gloss

In this study, gloss was measured in gloss units (G_L), which is a relative measure compared to a high-gloss standard with a defined value of 100 G_L at a 60° angle of incidence. It is typically expected that gloss will decrease with increasing exposure duration [20,24,25]. However, the G_L values observed in this study for all colors increased as exposure duration increased contrary to the literature as shown in Figure 4d.

To analyze these changes, the normality of G_L data was assessed within each of the 24 color-exposure duration groups using the Shapiro–Wilk test. All groups yielded p-values greater than 0.05, indicating that the null hypothesis of normality could not be rejected. Given that the assumption of normality was met across all groups, a two-way ANOVA was conducted to examine the effects of color and exposure duration, as well as their interaction effect, on gloss change. The results were similar to those observed for color change. The main effect of exposure duration and the interaction effect between color and exposure were both statistically significant (p < 0.0001). However, the main effect of color was not significant (p > 0.05), indicating that, while no single color was inherently more susceptible to gloss change, the specific pattern of change over time was dependent on the color.

These findings can be attributed to two concurrent physical mechanisms observed in polymers. First, the degradation of dye molecules could result in exposure to the underlying substrate. As exposure breaks down the dyes, the inherently glossier nylon 6,6 filaments become the dominant light-reflecting surface, potentially explaining the increasing L* values in Figure 5a. This is supported by the high gloss measured for the white webbings, which are manufactured without dyes and are thus representative of raw nylon 6,6 filament characteristics. Second, it has been observed that increased solar exposure can induce planarization on polymer surface [24]. This causes the degradation of the initial asperities and peaks on the webbing’s surface resulting in surface flattening. This reduction in surface roughness could in turn increase the reflection of incident light from the spectrophotometer, registering as higher gloss. However, these gloss-increasing effects do not continue indefinitely. This reversal is seen in the data for the white webbings, where gloss increased for 12 days but subsequently exhibited a slight decline after 15 days. This non-monotonic relationship is governed by competing physical mechanisms: (1) Initial Stage: Effects like dye removal and planarization dominate, causing gloss to rise, (2) Later Stage: As polymer chain scission becomes more severe, destructive mechanisms such as surface pitting and micro-cracking begin to dominate, causing increase in surface roughness and subsequent decrease in gloss.

The increasing gloss for colored webbings, even after 15 days of exposure, suggests that the colored samples remained in the ‘Initial Stage’ during this study. This is corroborated by our previous SEM analysis in Figure 6, which revealed a smooth surface morphology with no formation of cracks or pitting even after 15 days [13]. The absence of these destructive features in Figure 6 confirms that the material has not yet reached the ‘Later Stage’ of degradation, lending support to our hypothesis that the more subtle, gloss-increasing mechanisms are dominant in the initial phase. The detailed SEM images can be found in the Supplementary Document Figures S1–S4.

However, confirming the presence and influence of these competing mechanisms would require direct characterization using other analytical techniques, such as SEM at higher magnification, optical profilometry, or atomic force microscopy (AFM). This study’s 15-day duration was only sufficient to capture the initial rise and the very beginning of the subsequent decline, further highlighting the need for such analysis and increased exposure durations.

Given this complex behavior, a simple linear regression analysis would be statistically inappropriate and misleading. To accurately model this relationship a non-linear approach (such as a polynomial regression) is required and would necessitate data from a much longer exposure study to fully capture the entire degradation curve. Since the underlying mechanism is not yet fully characterized and the current data only represents the initial phase of a complex process, a regression analysis correlating gloss with breaking strength was not performed.

3.3. Breaking Strength

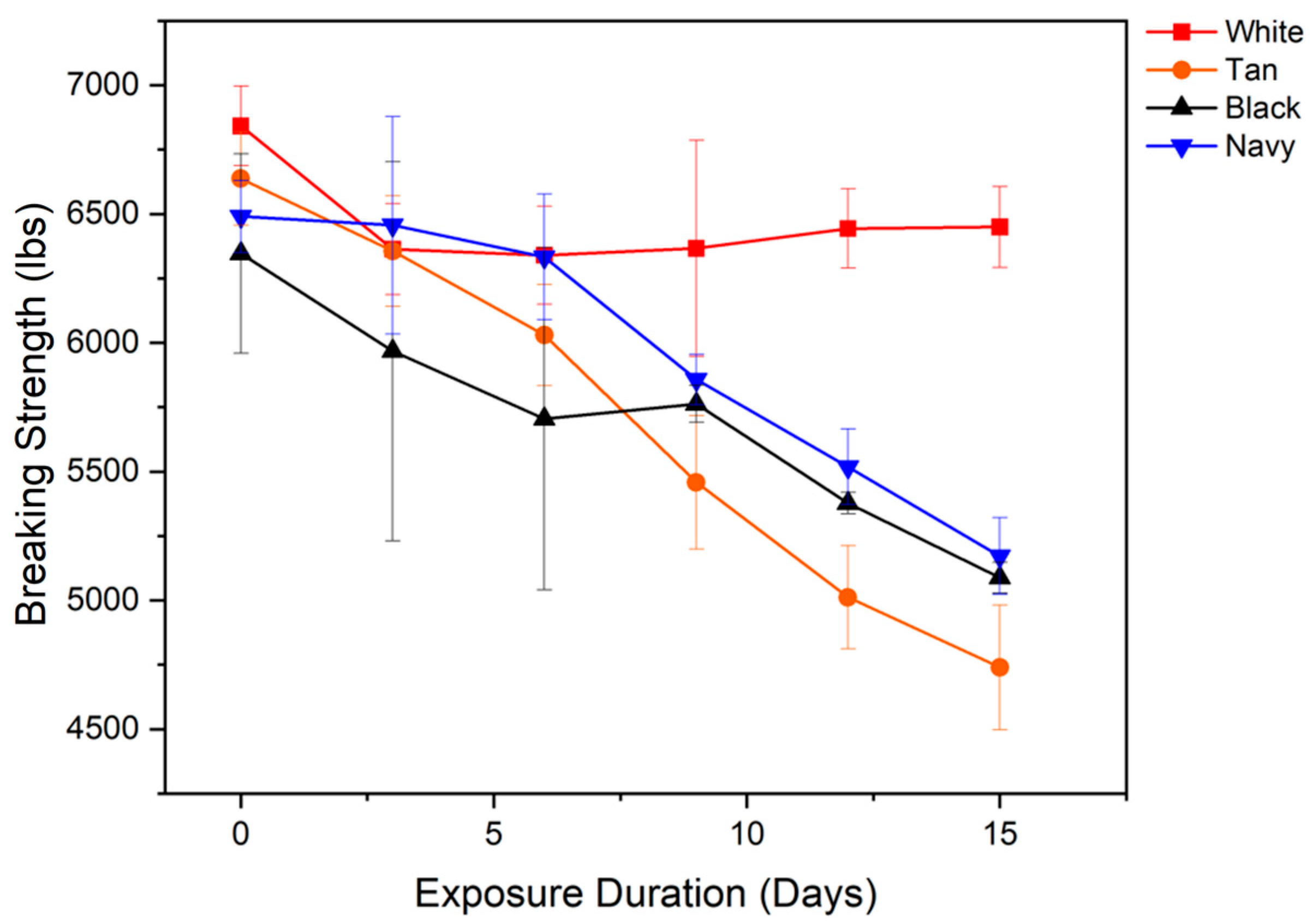

The mechanical properties of the webbings subjected to different durations of exposure were tested following the ASTM D6775 standard. A preload of 4500 N (1000 lbs) was applied because the machine’s traversal limit of 170 mm was insufficient to break the high-strength webbings without it. While ASTM D6775 requires testing only a single 36-inch sample to characterize a sample lot, this study tested six replicates for each color at each exposure duration to improve the reliability and accuracy of the results. This analysis builds upon our previous work and utilizes tensile data from our investigation into the accelerated solar degradation of nylon 6,6 [13]. The results of the tensile tests are shown in Figure 7.

While breaking strength was the primary outcome, elongation data were omitted from this report. The use of preload that exceeds beyond the requirement for removing initial slack causes significant extension that is not recorded and prevents the accurate determination of true zero strain starting point; therefore, elongation data were excluded in the analysis.

To assess the significance of color on mechanical properties, normality of the tensile data was first confirmed for each of the 24 color-exposure duration groups using the Shapiro–Wilk test. All groups yielded p-values greater than 0.05, indicating that the null hypothesis of normality could not be rejected. A subsequent two-way ANOVA revealed that the main effects of color and exposure duration, as well as their interaction effect were all statistically significant (p < 0.05). These results indicate that breaking strength is dependent on the color, the exposure duration and a combination of the two factors.

Although the loss of strength is color-dependent, this study was unable to investigate the effect of different dyes due to intellectual property constraints. It is evident both statistically and empirically that the specific color and its interaction with exposure duration are significant contributors to the degradation rate. This evidence suggests that dye chemistry or processing cannot be completely ignored; however, these factors remain beyond the scope of the current study and warrant a dedicated future investigation focused on the dye chemistry of nylon 6,6. The primary goal of this work was to build a rapid method to predict strength loss based on colorimetric changes to the webbings’ physical appearance.

3.4. Color Difference vs. Breaking Strength

The ANOVA results from the previous sections confirmed solar exposure significantly impacts both breaking strength and color. To investigate the potential correlation between the two properties, which forms the basis for a non-destructive predictive model, a regression analysis was performed. The analysis modeled the relationship between breaking strength and color change calculated using both the CIELab (ΔE*_ab) and CIEDE2000 (ΔE*₀₀) formulas.

3.4.1. CIELab (ΔE*_ab) vs. Breaking Strength

Based on the preceding spectral and mechanical analyses, the relationship between breaking strength and CIELab color change (ΔE*_ab) was plotted, as shown in Figure 8.

A linear regression analysis was performed to model the relationship between CIELab (ΔE*_ab) and breaking strength. The results of the regression analysis are given in

Table 3. Regression models for predicting breaking strength from CIELab color change (ΔE*_ab).

Color	Regression Equation	R2	p
All colors	Breaking Strength = 6529.37 − 187.03 × ΔE*ab	0.595	<0.0001
White	Breaking Strength = 6708.64 − 219.68 × ΔE*ab	0.175	0.0112
Tan	Breaking Strength = 6905.65 − 388.64 × ΔE*ab	0.889	<0.001
Black	Breaking Strength = 6189.18 − 107.63 × ΔE*ab	0.457	<0.0001
Navy	Breaking Strength = 6715.60 − 216.22 × ΔE*ab	0.817	<0.0001

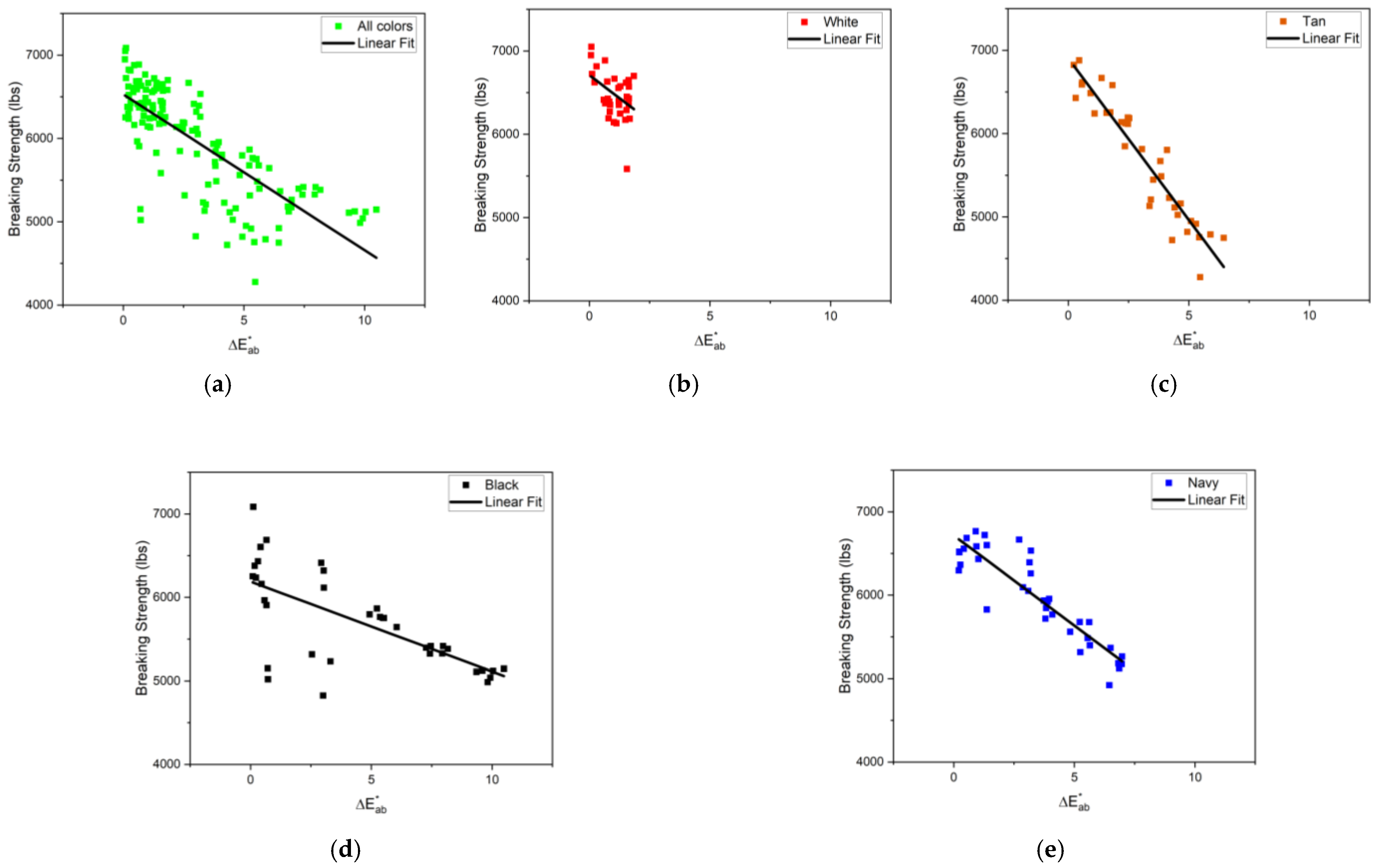

, below while the model fit is shown in Figure 8.

To first establish an overall trend, a linear regression model was fitted to the entire dataset, combining all colors. The results show a statistically significant negative correlation between color change and breaking strength (p < 0.001). However, the R-squared value (R² = 0.595) indicates that this general model is insufficient for accurate prediction. This suggests that the relationship is not uniform across all samples which is consistent with the significant interaction effect found in the ANOVA tests. Hence, regression analysis was performed for each color to develop more robust and precise predictive relationships. The analysis reveals a negative correlation between color change and breaking strength stays true for all colors. However, the coefficients in the equations differ for each color, confirming that the rate of strength loss per unit of color change is dependent on the specific color and exposure interaction. This finding strongly highlights the possible influence of dye chemistry or processing on breaking strength.

The analysis yielded high R-squared values for tan (R² = 0.889) and navy (R² = 0.817), confirming the observed trend in the graph. These coefficients confirm that, for these particular colors, the degradation of strength follows a predictable linear path relative to exposure time. In contrast, the analysis showed poor R-squared values for white (R² = 0.175) and black (R² = 0.457) webbings. While the p-values indicate statistical significance for white and black, the low coefficients suggest the linear model explains only a small fraction of the variability in breaking strength degradation.

The predictive efficacy of the CIELab regression model appears to be strongly correlated with high chroma colors. The highest coefficients of determination were observed for the tan and navy colors, which possess the largest magnitudes in their respective b* and a* coordinates as seen in Figure 5—the primary drivers of chroma (C*). This finding is significant, as it indicates that substantial, instrumentally measured colorimetric shifts provide robust indicators of polymer degradation, though this predictive relationship appears limited to materials with high initial chroma. To validate and generalize this conclusion, future work should examine a broader palette of high-chroma webbings, such as those with vibrant red or green dyes.

3.4.2. CIEDE2000 (ΔE*₀₀) vs. Breaking Strength

Given the weak correlation observed when using the CIELab formula for white and black webbings, the analysis was repeated using the more perceptually uniform CIEDE2000 color difference formula (ΔE*₀₀). The relationship between breaking strength and ΔE*₀₀ is plotted in Figure 9.

The results of the regression analysis are given in

Table 4. Regression models for predicting breaking strength from CIEDE2000 color change (ΔE*₀₀).

Color	Regression Equation	R2	p
All colors	Breaking Strength = 6611.64 − 412.28 × ΔE*00	0.578	<0.0001
White	Breaking Strength = 6710.77 − 272.92 × ΔE*00	0.160	0.0155
Tan	Breaking Strength = 6952.33 − 797.34 × ΔE*00	0.883	<0.001
Black	Breaking Strength = 6221.78 − 235.43 × ΔE*00	0.460	<0.0001
Navy	Breaking Strength = 6760.00 − 478.16 × ΔE*00	0.803	<0.0001

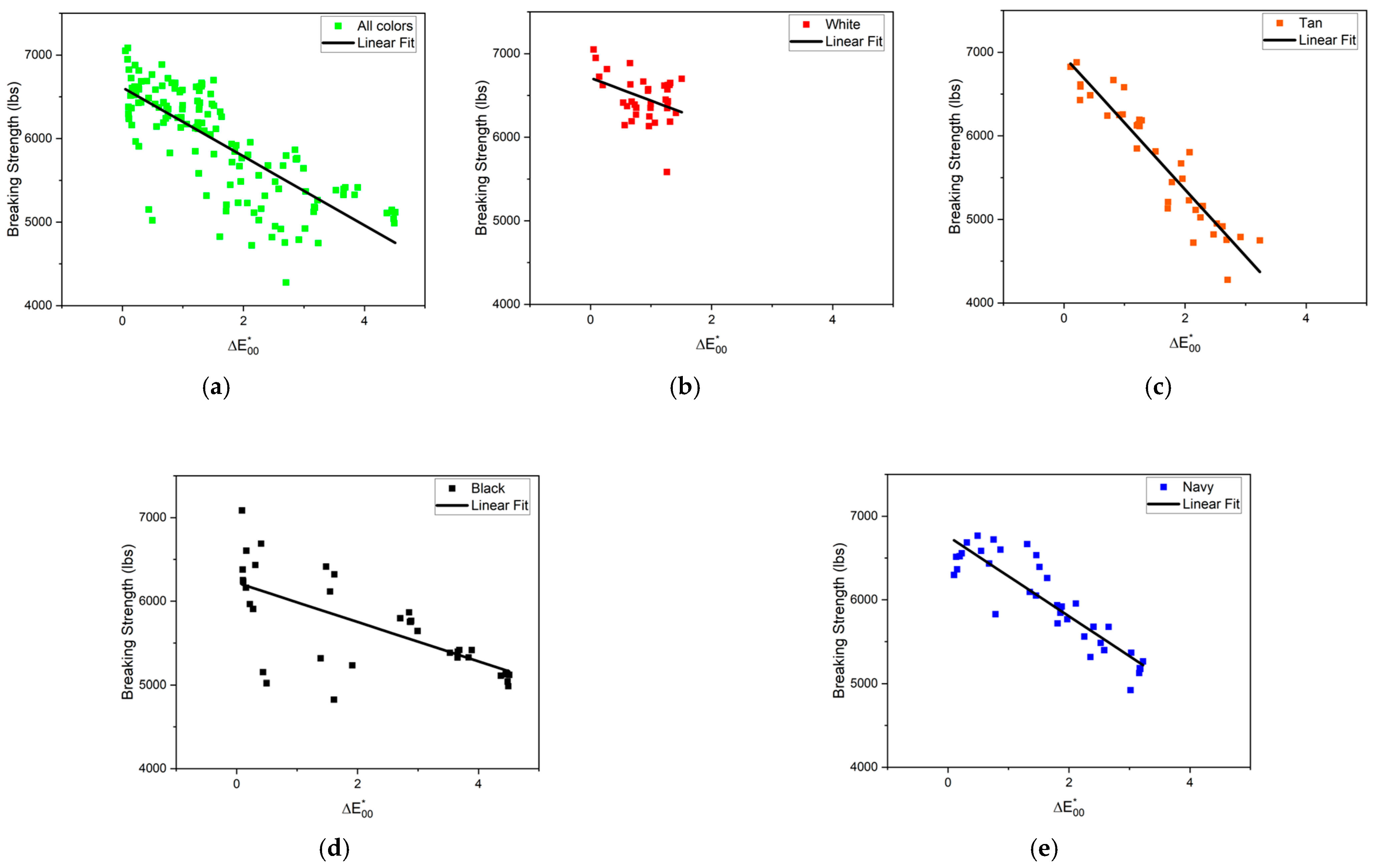

, below while the model fit is shown in Figure 9 for breaking strength and ΔE*₀₀.

When the analysis was repeated using the CIEDE2000 (ΔE*₀₀) formula, the overall trend for the combined dataset was still negative and statistically significant (p < 0.001). However, the model’s predictive power did not improve; the R-squared value was slightly lower at 0.578, confirming that a general model still remains insufficient for accurate prediction.

Furthermore, when regression models were fitted for each individual color, the resulting R-squared values were consistently lower than those obtained using the simpler CIELab formula. This key finding suggests that for this material system, the additional complexity, inclusions of weighting factors (S_L, S_C, S_H) and parametric factors (k_L, k_C, k_H), of the CIEDE2000 formula to correct for human perception offers no advantage for predicting mechanical degradation. This perceptual “correction” adds noise and obscures the simpler, physical correlation with strength loss while also heavily weighing color changes in neutral, low-chroma regions (like the black and white webbings) where the human eye is highly sensitive. Since these webbings had a poor correlation to begin with, the perceptual weighting only skewed the model further. Therefore, the simpler CIELab (ΔE*_ab) model is the more effective and practical choice.

4. Conclusions

This study investigated the potential of using color change as a rapid non-destructive predictor for the breaking strength of solar-degraded nylon 6,6 webbings. The results demonstrate that the efficacy of this method is highly dependent on the material’s color. A strong, reliable correlation was established for webbings with high initial chroma, namely tan (R² = 0.889) and navy (R² = 0.817). In contrast, the coefficient of determination of the model was poor for the neutral, low-chroma black and white webbings, confirming that a universal predictive model is not feasible.

Two key secondary findings were also noted. First, the simpler CIELab (ΔE*ab) formula yielded slightly more accurate predictions than the more complex, perceptually uniform CIEDE2000 (ΔE*00) formula which had lower R² values across all colors. This is because the CIELab system is a direct mathematical transformation of physical spectral data, whereas CIEDE2000 is a complex difference formula that uses weighting factors to intentionally correct CIELab coordinates to match human perception. Second, an unexpected increase in gloss was observed during initial exposure, which was attributed to concurrent dye degradation and surface planarization, as supported by previous morphological findings [13,24,25].

While these preliminary findings are promising, certain limitations must be acknowledged. The experimental design’s duration was insufficient to fully capture the subsequent gloss degradation expected at longer exposure times. Furthermore, the study was conducted under accelerated laboratory conditions, which may not perfectly replicate real-world weathering. The results also highlight the influence of specific dye and processing on strength loss; however, this influence could not be evaluated due to intellectual property constraints. Finally, the generalizability of these conclusions to other polymers, such as polyester or polypropylene, remains unknown.

Nonetheless, it could still be a viable rapid prediction method to assess strength loss in high chroma colors, though this hypothesis requires further evaluation across a broader color palette. The proposed surface degradation mechanisms should also be directly investigated using techniques like optical profilometry and atomic force microscopy (AFM). Finally, the regression model for predicting breaking strength developed here should be tested on outdoor-weathered samples to assess their real-world accuracy and utility.
