The Local Structure of the BiS2 Layer in RE(O,F)BiS2 Determined by In-Plane Polarized X-ray Absorption Measurements

by
G. M. Pugliese
1,
L. Tortora
1,
E. Paris
1,2,
T. Wakita
3,
K. Terashima
3,4,
A. Puri
5,
M. Nagao
6,
R. Higashinaka
7,
T. D. Matsuda
7,
Y. Aoki
7,
T. Yokoya
3,
T. Mizokawa
8 and
N. L. Saini
1,*
1
Department of Physics, Sapienza University of Rome, P. le Aldo Moro 2, 00185 Roma, Italy
2
Photon Science Division, Swiss Light Source, Paul Scherrer Institut, 5232 Villigen, Switzerland
3
Research Institute for Interdisciplinary Science (RIIS), Okayama University, Okayama 700-8530, Japan
4
National Institute for Materials Science, Sengen 1-2-1, Tsukuba 305-0047, Japan
5
CNR-IOM-OGG c/o ESRF—The European Synchrotron, 71 Avenue des Martyrs, 38000 Grenoble, France
6
Center for Crystal Science and Technology, University of Yamanashi, 7-32 Miyamae, Kofu 400-8511, Japan
7
Department of Physics, Tokyo Metropolitan University, 1-1, Minami-Osawa, Hachioji 192-0397, Japan
8
Department of Applied Physics, Waseda University, Tokyo 169-8555, Japan
*
Author to whom correspondence should be addressed.
Physchem 2021, 1(3), 250-258; https://doi.org/10.3390/physchem1030019
Submission received: 12 October 2021 / Revised: 1 November 2021 / Accepted: 2 November 2021 / Published: 10 November 2021
(This article belongs to the Special Issue Physical Chemistry Perspectives for the New Decade)
Browse Figures
Versions Notes

Abstract

:
We have investigated the local structure of BiS 2 -based layered materials by Bi L 3 -edge extended X-ray absorption fine structure (EXAFS) measurements performed on single crystal samples with polarization of the X-ray beam parallel to the BiS 2 plane. The results confirm highly instable nature of BiS 2 layer, characterized by ferroelectric like distortions. The distortion amplitude, determined by the separation between the two in-plane (Bi-S1) bonds, is found to be highest in LaO 0.77 F 0.23 BiS 2 with Δ R∼0.26 Å and lowest in NdO 0.71 F 0.29 BiS 2 with Δ R∼0.13 Å. Among the systems with intrinsic doping, CeOBiS 2 shows smaller distortion ( Δ R∼0.15 Å) than PrOBiS 2 ( Δ R∼0.18 Å) while the highest distortion appears for EuFBiS 2 revealing Δ R∼0.22 Å. It appears that the distortion amplitude is controlled by the nature of the RE(O,F) spacer layer in the RE(O,F)BiS 2 structure. The X-ray absorption near edge structure (XANES) spectra, probing the local geometry, shows a spectral weight transfer that evolves systematically with the distortion amplitude in the BiS 2 -layer. The results provide a quantitative measurements of the local distortions in the instable BiS 2 -layer with direct implication on the physical properties of these materials.

1. Introduction

Layered materials have been a subject of intense research during these decades due to possibility of control and manipulation of their physical properties to obtain desired functions. The discovery of high T c superconductivity in layered copper oxides [1] had been one of the major breakthroughs and since then a large number of new layered materials have been found to show unconventional superconductivity. The research in the field was further fuelled by the discovery of superconductivity in the layered iron arsenides [2] resulting in several new layered systems. Among others, BiS 2 -based systems [3,4] have received increasing attention during the last decade both for their superconducting and thermoelectric properties, leading to numerous theoretical and experimental studies to understand their functional properties [5,6,7,8]. The most studied BiS 2 -based systems have been RE(O,F)BiS 2 (RE = rare earth element) in which twin BiS 2 -layer is alternated by a RE(O,F) spacer layer in the crystallographic unit cell. The characteristic transport properties of these materials are generally controlled by manipulating the electronic structure and crystal structure in different ways [5,6,7]. The parent REOBiS 2 is semiconducting and substitution of O 2 − by F 1 − in the REO layer introduces electrons in the BiS 2 -layer that leads to superconductivity at low temperature with transition temperature depending on the nature of the spacer layer as well on the growth conditions [5,6,7]. The highest superconducting transition temperature T c ∼10.5 K has been found in high pressure grown LaO 1 − x F x BiS 2 system.
Beyond electron doping by substitution in the REO spacer layer, the superconductivity in these materials has been manipulated by physical and chemical pressure. For example, isovalent substitutions in the REO-layer by RE 3 + and in the BiS 2 -layer by Se 2 − (at of S 2 − ) have been exploited to optimise the transition temperature and the nature of the superconducting properties of these materials through the chemical pressure [9]. The isovalent substitution of S 2 − by Se 2 − in undoped LaOBiS 2 has also been used to manipulate the thermoelectric characteristics resulting a quality factor zT as high as ∼0.36 at 650 K in LaOBiSSe [10,11]. Besides, it has been found that the mixed valent rare earth ion in the REO spacer layer can be a source of electron doping in the BiS 2 layer. This is known as self-doping, that is of particular interest since no external substitution is required and the self-doped system is free from any substitutional disorder. Indeed, self-doped superconductivity in EuFBiS 2 is known to occur due to mixed valence of Eu (Eu 2 + /Eu 3 + ) [12]. Similarly, CeOBiS 2 has been found to show superconductivity due to self-doping introduced by the Ce 3 + /Ce 4 + mixed valence [13]. The examples also include other BiS 2 -based superconductors in which RE mixed valence provides the self-doping [14,15,16,17,18] including in PrOBiS 2 [19].
One of the peculiar properties of the BiS 2 -based superconductors is their structural instability. Indeed, BiS 2 -layer in these materials has been found to be intrinsically instable [20,21,22] in the structure driven by the local Bi 3 + defect chemistry and hence their physical properties can be easily manipulated by chemical and/or physical pressures. Experimental techniques sensitive to the local structure have revealed ferroelectric like distortions of BiS 2 -layer to be prevalent that varies from system to system [23,24,25,26]. Furthermore, the local structure studies have also revealed the axial sulfur position with respect to Bi to play an important role in the physical properties [26,27]. Incidentally, all these local structural studies have been performed on polycrystalline samples and considering the highly susceptible nature of the BiS 2 -layer under physical and/or chemical pressures a quantitative estimation of the local distortions can be challenging as it may depend on the sample morphology and growth conditions.
Here, we have measured the local structure of a series of RE(O,F)BiS 2 (RE = La, Eu, Pr, Ce, Nd) using single crystal samples to quantify the local distortions in the instable BiS 2 -layer. For the purpose, we have studied two samples (LaO 0.77 F 0.23 BiS 2 and NdO 0.71 F 0.29 BiS 2 ) in which the doping is introduced by substitution while three samples are self-doped (EuFBiS 2 , CeOBiS 2 and PrOBiS 2 ). The samples were chosen on the basis of their superconducting transition temperature at optimum doping and their crystal quality. The optimum doping in the LaO 1 − x F x BiS 2 and NdO 1 − x F x BiS 2 corresponds to x∼0.25. The crystal quality was the factor for slightly different doping contents in the two systems but such a small difference hardly affects the transition temperature and the local structure. We have exploited Bi L 3 -edge extended X-ray absorption fine structure measurement (EXAFS) with polarization of the X-ray beam parallel to the BiS 2 -layer. The study has been carried out at low temperature (∼20 K) on five different systems confirming that the BiS 2 -layer of these materials is characterized by ferroelectric or quasi-ferroelectric like distortions of which magnitude depends on the nature of the RE(O,F) spacer layer. The single crystal of LaO 0.77 F 0.23 BiS 2 reveals largest distortion with Δ R∼0.26 Å, while NdO 0.71 F 0.29 BiS 2 is characterized by the smallest distortion ( Δ R∼0.13 Å). Among self-doped systems, EuFBiS 2 with EuF-spacer layer reveals distortion amplitude Δ R∼0.22 Å, substantially larger than the one in CeOBiS 2 ( Δ R∼0.15 Å) and PrOBiS 2 ( Δ R∼0.18 Å) with REO-spacer layer. The X-ray absorption near edge structure (XANES) spectra reveal a differing spectral weight that depends on the distortion amplitude. We find that the local distortions amplitude measured on single crystal samples is systematically lower than the one reported on polycrystalline samples. The results provide a quantitative measurements of the local distortions in the instable BiS 2 -layer of these materials.

2. Materials and Methods

Single crystals samples of LaO 0.77 F 0.23 BiS 2 , NdO 0.71 F 0.29 BiS 2 and self-doped EuFBiS 2 , CeOBiS 2 and PrOBiS 2 were grown by CsCl-based flux method [28,29,30]. A single-crystal X-ray analysis was performed revealing the average crystal structure to have the tetragonal space group P4/nmm with lattice parameters shown in Table 1. The samples were well characterized for their physical properties prior to the X-ray absorption measurements at the European Synchrotron Radiation Facility (ESRF) in Grenoble, France. The samples studied were all superconducting (except EuFBiS 2 ) showing zero resitivity below the transition temperature T c shown in Table 1. Details on sample synthesis, growth and characterization are reported elsewhere [28,29,30]. Bi L 3 -edge (13418 eV) X-ray absorption experiments were carried out in the normal incidence geometry in which the X-ray polarization is parallel to the ab-plane of the flat single crystal samples. Four samples (LaO 0.77 F 0.23 BiS 2 , NdO 0.71 F 0.29 BiS 2 , EuFBiS 2 and CeOBiS 2 ) were measured at the beamline BM23 while PrOBiS 2 was measured at BM08 using similar experimental set-up obtaining the X-ray absorption spectra in the fluorescence mode. In-plane polarized X-ray beam was monochromatized by a double crystal Si(111) monochromator and a 13-element Ge detector system was used for the fluorescence detection. A continuous flow He cryostat was used for the sample cooling and the measurements were carried out at 20 K with the sample temperature control within ±1 K during the measurements. Four to five absorption scans were obtained on each sample for the spectral reproducibility. Standard procedure based on the spline fits [31,32] was used to extract EXAFS oscillations from the measured X-ray absorption spectra exploiting ATHENA software [33].

3. Results and Discussion

Figure 1 shows the Bi L 3 -edge EXAFS oscillations extracted from the in-plane polarized X-ray absorption spectra measured at 20 K on the single crystal samples of LaO 0.77 F 0.23 BiS 2 , EuFBiS 2 , PrOBiS 2 , CeOBiS 2 and NdO 0.71 F 0.29 BiS 2 . The EXAFS oscillations are multiplied by k 2 to enhance the spectral amplitude at higher k. The differing EXAFS oscillations indicate that the local structure has strong rare-earth dependence in RE(O/F)BiS 2 . The crystal unit cell of RE(O/F)BiS 2 is also included for a ready reference. Large differences in the EXAFS oscillations indicate that the local structure evolves significantly with the RE(O/F)-layer. The oscillations for k ≤ 8 Å − 1 are largely damped in LaO 0.77 F 0.23 BiS 2 and EuFBiS 2 due to larger distortions involving nearest neighbors sulfur atoms around the photoabsorbing Bi (i.e., Bi-S1 bonds). Incidentally, self-doped systems (EuFBiS 2 , PrOBiS 2 , CeOBiS 2 ) show relatively damped oscillations for k ≥ 10 Å − 1 , likely to be related with mixed valence of the RE atoms since the higher k-oscillations are sensitive to the heavier atoms.
The Fourier Transform (FT) magnitude of the k 2 -weighted EXAFS oscillations is shown in Figure 2, providing real-space information on the local atomic distribution around the photoabsorbing Bi. In the RE(O/F)BiS 2 structure, the Bi atom is coordinated with one axial sulfur atom (S2) and one sulfur of the twin BiS 2 layer, however, their contributions are minimum in the EXAFS measured with polarization parallel to the crystallographic ab-plane. Therefore, the nearest neighbor contribution, at 2–3 Å, is mainly coming from the four in-plane sulfur atoms (S1) since the polarization vector of the X-ray beam e ^ ‖ a b plane [32,34]. The contribution appears as peak structures in the FT magnitude at ∼2.5 Å. The peak structure ∼4 Å is mainly due to the Bi-Bi bonds within the plane, representing the in-plane lattice parameter in RE(O/F)BiS 2 structure. Apparently the Bi-Bi peak shifts and follows the in-plane lattice behavior in the tetragonal RE(O/F)BiS 2 structure. The lattice parameters of the studied crystals are summarized in Table 1 [28,29,30,35]. The distant peaks beyond ∼4 Å include contribution of Bi-RE and diagonal Bi-Bi distances including also multiple scattering contributions.
Here the aim is to quantify the distortions in the BiS 2 -layer and for the purpose the contribution of Bi-S1 was Fourier filtered in the R-window (1.5–3.5 Å) shown as shadowed region in Figure 2. The shapes of filtered EXAFS oscillations, shown in Figure 3 (inset), are significantly different between them indicating that the local Bi-S1 distribution in RE(O/F)BiS 2 evolves largely with RE(O/F)-spacer layer. We have evaluated the pair distribution function (PDF) of the Bi-S1 bonds from the analysis of the filtered EXAFS. The EXCURVE 9.275 code (with calculated phase shift functions and backscattering amplitudes) was used for extracting the PDF [36] starting from a model containing a distribution of harmonic oscillators describing the Bi-S pairs. The final Bi-S1 distribution was merged in a two peak function for all the samples (Figure 3) confirming that BiS 2 -layer in these materials is characterized by a ferroelectric or quasi ferroelectric-like distortion [20,21,22]. Similar Bi-S1 distribution was obtained by constrained EXAFS model fits in which residual contribution of axial Bi-S2 bonds was included together with the in-plane Bi-S1 bonds respecting the effective number of near neighbors expected from the polarization dependence of L 3 -edge EXAFS [32,34]. The corresponding theoretical signals are included as solid lines with the filtered EXAFS as insets. It is worth mentioning that such a distortion corresponds to atomic displacement within the BiS 2 -layer. On the basis of first principles calculations a spontaneous in-plane ferroelectric polarization has been suggested [37].
One can make several observations from the PDF shown in Figure 3. The largest distortion amplitude, defined by the separation between the two peaks ( Δ R) of the distribution, is found to be for La(O/F)BiS 2 (see, e.g., the vertical dotted lines in Figure 3). The distribution is quasi ferroelectric-like with differing weight of the two Bi-S1 bonds. Incidentally, the distortion amplitude of Δ R∼0.26 Å is smaller than the one found in polycrystalline samples reporting Δ R∼0.4 Å by neutron pair distribution function (PDF) analysis [23] and by EXAFS analysis [24]. On the other hand Nd(O/F)BiS 2 reveals smallest distortion amplitude ( Δ R∼0.13 Å) with the distortion being quasi ferroelectric-like. Again, the distortion amplitude is significantly lower than the one reported by neutron PDF on polycrystalline sample showing Δ R to be ∼0.18 Å [25]. Among the self-doped BiS 2 systems, EuFBiS 2 shows almost equal probability of the two bonds indicating ferroelectric-like distortion. The distortion amplitude for EuFBiS 2 ( Δ R∼0.22 Å) is lower than what has been reported in polycrystalline sample of the same system ( Δ R∼0.26 Å) measured by EXAFS [26]. The self-doped system PrOBiS 2 also appears with ferroelectric-like distortion although the amplitude ( Δ R∼0.18 Å) is lower than the one in EuFBiS 2 . Similarly, the distribution in CeOBiS 2 is quasi ferroelectric-like, that is smallest among the self-doped systems ( Δ R∼0.15 Å). Again, the distortion amplitude is lower than the one found in polycrystalline samples CeOBiS 2 ( Δ R∼0.19 Å). This seems plausible due to the fact that the ground state of these materials is highly susceptible to the external conditions and one can expect the morphology of the system to have substantial effect on the distortion amplitude as well. It should be mentioned that the mean Bi-S1 distance, estimated by the weighted average of the PDF, is consistent with the one measured by diffraction experiments [28,29,30,35]. It is also worth noting that the distortion evolves with c-axis of the system and hence the axial coupling may have some important role in these materials.
Apparently, there is no direct correlation between the superconducting transition temperature and the Bi-S1 distortion amplitude in the studied samples. However, if we compare La(O/F)BiS 2 and Nd(O/F)BiS 2 , the less distorted system tends to have higher T c . Indeed, La(O/F)BiS 2 , showing highest distortion amplitude, is superconducting with T c ∼2.5 K while Nd(O/F)BiS 2 with lowest distortion amplitude shows T c ∼5.1 K. However, among the self-doped systems, PrOBiS 2 is superconducting at T c ∼3.5 K with distortion amplitude larger than that in CeOBiS 2 showing superconductivity at lower temperature (T c ∼1.3 K). Unlike the above, the self-doped EuFBiS 2 with EuF spacer layer is non-superconducting down to 0.15 K and reveals substantial distortion in compare to other self-doped systems with REO spacer layer (PrOBiS 2 and CeOBiS 2 ). Therefore, although the T c is affected by in-plane distortions, a direct relationship can not be argued. Here, it is worth mentioning that in the self-doped systems, if the carriers provided by the mixed valence of the rare-earth ions are trapped by the out-of-plane Bi 6p z orbitals, the in-plane Bi 6p x , y orbitals are less populated and the strong in-plane distortion can still survive with superconductivity.
X-ray absorption near edge structure (XANES) probes higher order atomic correlation function, thus highly sensitive and useful probe of the local geometry and the valence electronic states [31,32]. The Bi L 3 -edge XANES spectra measured at 20 K on single crystal samples of RE(O/F)BiS 2 are shown in Figure 4. The spectra are normalized with respect to the atomic absorption estimated by standard procedure based on a linear fit to the EXAFS region. Here, the spectrum of PrOBiS 2 is not included for the comparison considering different experimental set-up and spectral resolution. The spectra show different spectral features and the nearest edge peak features are denoted by A and B. These features are related to the dipole allowed transition from Bi 2p to the unoccupied Bi 6d states in the continuum, admixed with the unoccupied Bi 6p states [31,32]. The latter are also hybridized with Bi 6s and S 3p states due to Bi 3 + defect chemistry [38,39]. Therefore these peaks are sensitive probe of the local geometry around the photoabsorbing Bi.
The differences in the XANES features can be seen in the inset displaying a zoom-over the peaks A and B. Apparently, the peak A moves towards higher energy from La(O/F)BiS 2 to Nd(O/F)BiS 2 while the peak B tending to shift towards lower energy with an exchange of the spectral weight. Here, the spectral weight transfer is estimated by normalized intensity difference between the two peak features (I A − I B /I A + I B ) and plotted as a function of the distortion amplitude determined by EXAFS (Figure 3) and shown in the inset (right) of Figure 4. The intensity difference shows a gradual decrease as a function of the distortion in the BiS 2 -layer. Although, due to complexity of the distortions in these materials, it is difficult to establish a quantitative correlation between the distortions and the spectral weight transfer in the XANES spectra, the observed change in the local geometry can be taken as a marker for the local distortions.

4. Conclusions

In summary, the local distortions in RE(O/F)BiS 2 have been determined by Bi L 3 -edge EXAFS measured on single crystal samples with polarization of the X-ray to be parallel to the BiS 2 layer. The BiS 2 layer is characterized by a two peak distribution function confirming ferroelectric-like nature of the local distortions in these materials. The distortion is largest for La(O/F)BiS 2 and shows a substantial change with the RE(O/F)-spacer layer appearing smallest in the case of Nd(O/F)BiS 2 . The self-doped EuFBiS 2 shows a significantly larger distortion than other self-doped systems, namely PrOBiS 2 and CeOBiS 2 . The distortion amplitude, measured on single crystal samples using polarized EXAFS, is systematically lower than the one found in polycrystalline samples. This is likely to be due to highly susceptible nature of BiS 2 -based materials. Apparently, we do not observe any quantitative correlation between the local distortions in the instable BiS 2 -layer and the superconductivity. It is likely that in-plane distortions are responsible for the charge fluctuations in the BiS 2 -layer with axial displacements having a crucial role in controlling the electronic transport properties of these materials.

Author Contributions

Conceptualization, N.L.S., T.M., T.Y. and Y.A.; methodology, E.P., T.W., A.P., K.T., R.H., T.D.M., M.N.; formal analysis, G.M.P. and L.T.; writing—original draft preparation, G.M.P. and N.L.S. All authors have read and agreed to the published version of the manuscript.

Funding

The work is partially supported by the Sapienza University of Rome and JSPS/MEXT KAKENHI (Grants No. 15H03693, 19H01839, 18KK0076 and 20H05882).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on reasonable request from the corresponding author.

Acknowledgments

The authors thank the ESRF staff for the support during the experimental run. We acknowledge technical assistance from Joe Kajitan, Takuya Asano, and Naoki Yamamoto for sample preparation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bednorz, J.G.; Müller, K.A. Possible high Tc superconductivity in the Ba-La-Cu-O system. Z. Phys. B 1986, 64, 189. [Google Scholar] [CrossRef]
  2. Kamihara, Y.; Watanabe, T.; Hirano, M.; Hosono, H. Iron-Based Layered Superconductor La[O1−xFx]FeAs (x = 0.05–0.12) with Tc 26 K. J. Am. Chem. Soc. 2008, 130, 3296. [Google Scholar] [CrossRef] [PubMed]
  3. Mizuguchi, Y.; Fujihisa, H.; Gotoh, Y.; Suzuki, K.; Usui, H.; Kuroki, K.; Demura, S.; Takano, Y.; Izawa, H.; Miura, O. BiS2-based layered superconductor Bi4O4S3. Phys. Rev. B 2012, 86, 220510(R). [Google Scholar] [CrossRef] [Green Version]
  4. Mizuguchi, Y.; Demura, S.; Deguchi, K.; Takano, Y.; Fujihisa, H.; Gotoh, Y.; Izawa, H.; Miura, O. Superconductivity in Novel BiS2-based Layered Superconductors LaO1−xFxBiS2. J. Phys. Soc. Jpn. 2012, 81, 114725. [Google Scholar] [CrossRef] [Green Version]
  5. Mizuguchi, Y. Review of superconductivity in BiS2-based layered materials. J. Phys. Chem. Sol. 2015, 84, 34. [Google Scholar] [CrossRef]
  6. Yazici, D.; Jeon, I.; White, B.D.; Maple, M.B. Superconductivity in layered BiS2-based compounds. Phys. Supercond. Its Appl. 2015, 514, 218. [Google Scholar] [CrossRef] [Green Version]
  7. Mizuguchi, Y. Material Development and Physical Properties of BiS2-Based Layered Compounds. J. Phys. Soc. Jpn. 2019, 88, 041001. [Google Scholar] [CrossRef]
  8. Suzuki, K.; Usui, H.; Kuroki, K.; Nomoto, T.; Hattori, K.; Ikeda, H. Electronic Structure and Superconducting Gap Structure in BiS2-based Layered Superconductors. J. Phys. Soc. Jpn. 2019, 88, 041008. [Google Scholar] [CrossRef]
  9. Mizuguchi, Y.; Miura, A.; Kajitani, J.; Hiroi, T.; Miura, O.; Tadanaga, K.; Kumada, N.; Magome, E.; Moriyoshi, C.; Kuroiwa, Y. In-plane chemical pressure essential for superconductivity in BiCh2-based (Ch: S, Se) layered structure. Sci. Rep. 2015, 5, 14968. [Google Scholar] [CrossRef] [Green Version]
  10. Nishida, A.; Miura, O.; Lee, C.H.; Mizuguchi, Y. High thermoelectric performance and low thermal conductivity of densified LaOBiSSe. Appl. Phys. Express 2015, 8, 111801. [Google Scholar] [CrossRef] [Green Version]
  11. Nishida, A.; Nishiate, H.; Lee, C.H.; Miura, O.; Mizuguchi, Y. Electronic Origins of Large Thermoelectric Power Factor of LaOBiS2−xSex. J. Phys. Soc. Jpn. 2016, 85, 074702. [Google Scholar] [CrossRef]
  12. Guo, C.Y.; Chen, Y.; Smidman, M.; Chen, S.A.; Jiang, W.B.; Zhai, H.F.; Wang, Y.F.; Cao, G.H.; Chen, J.M.; Lu, X.; et al. Evidence for two distinct superconducting phases in EuFBiS2 under pressure. Phys. Rev. B 2015, 91, 214512. [Google Scholar] [CrossRef] [Green Version]
  13. Nagao, M.; Miura, A.; Ueta, I.; Watauchi, S.; Tanaka, I. Superconductivity in CeOBiS2 with cerium valence fluctuation. Solid State Comm. 2016, 245, 11. [Google Scholar] [CrossRef] [Green Version]
  14. Zhai, H.F.; Zhang, P.; Wu, S.Q.; He, C.Y.; Tang, Z.T.; Jiang, H.; Sun, Y.L.; Bao, J.K.; Nowik, I.; Felner, I.; et al. Anomalous Eu Valence State and Superconductivity in Undoped Eu3Bi2S4F4. J. Am. Chem. Soc. 2014, 136, 15386. [Google Scholar] [CrossRef] [Green Version]
  15. Luo, Y.; Zhai, H.F.; Zhang, P.; Xu, Z.A.; Cao, G.H.; Thompson, J.D. Pressure-enhanced superconductivity in Eu3Bi2S4F4. Phys. Rev. B 2014, 90, 220510(R). [Google Scholar] [CrossRef] [Green Version]
  16. Haque, Z.; Thakur, G.S.; Selvan, G.K.; Block, T.; Janka, O.; Pottgen, R.; Joshi, A.G.; Parthasarathy, R.; Mugam, S.A.; Gupta, L.C.; et al. Valence State of Eu and Superconductivity in Se-Substituted EuSr2Bi2S4F4 and Eu2SrBi2S4F4. Inorg. Chem. 2018, 57, 37. [Google Scholar] [CrossRef] [PubMed]
  17. Haque, Z.; Thakur, G.S.; Parthasarathy, R.; Gerke, B.; Block, T.; Heletta, L.; Pottgen, R.; Joshi, A.G.; Selvan, G.K.; Arumugam, S.; et al. Unusual Mixed Valence of Eu in Two Materials: EuSr2Bi2S4F4 and Eu2SrBi2S4F4: Mössbauer and X-ray Photoemission Spectroscopy Investigations. Inorg. Chem. 2017, 56, 3182. [Google Scholar] [CrossRef] [Green Version]
  18. Zhai, H.F.; Tang, Z.T.; Jiang, H.; Xu, K.; Zhang, K.; Zhang, P.; Bao, J.K.; Sun, Y.L.; Jiao, W.H.; Nowik, I.; et al. Possible charge-density wave, superconductivity, and f-electron valence instability in EuBiS2F. Phys. Rev. B 2014, 90, 064518. [Google Scholar] [CrossRef] [Green Version]
  19. Morita, T.; Matsuzawa, Y.; Kumar, S.; Schwier, E.F.; Shimada, K.; Higashinaka, R.; Matsuda, T.D.; Aoki, Y.; Saini, N.L.; Mizokawa, T. Evolution of the Fermi surface in superconductor PrO1−xFxBiS2 (x= 0.0, 0.3,and 0.5) revealed by angle-resolved photoemission spectroscopy. Phys. Rev. B 2021, 103, 094510. [Google Scholar] [CrossRef]
  20. Yildirim, T. Ferroelectric soft phonons, charge density wave instability, and strong electron-phonon coupling in BiS2 layered superconductors: A first-principles study. Phys. Rev. B. 2013, 87, 020506(R). [Google Scholar] [CrossRef] [Green Version]
  21. Liu, Q.; Zhang, X.; Zunger, A. Polytypism in LaOBiS2-type compounds based on different three-dimensional stacking sequences of two-dimensional BiS2 layers. Phys. Rev. B 2016, 93, 174119. [Google Scholar] [CrossRef] [Green Version]
  22. Zhou, X.; Liu, Q.; Waugh, J.A.; Li, H.; Nummy, T.; Zhang, X.; Zhu, X.; Cao, G.; Zunger, A.; Dessau, D.S. Predicted electronic markers for polytypes of LaOBiS2 examined via angle-resolved photoemission spectroscopy. Phys. Rev. B 2017, 95, 075118. [Google Scholar] [CrossRef] [Green Version]
  23. Athauda, A.; Yang, J.; Lee, S.; Mizuguchi, Y.; Deguchi, K.; Takano, Y.; Miura, O.; Louca, D. Charge Fluctuations in the NdO1−xFxBiS2 Superconductors. Phys. Rev. B 2015, 91, 144112. [Google Scholar] [CrossRef] [Green Version]
  24. Paris, E.; Mizuguchi, Y.; Wakita, T.; Terashima, K.; Yokoya, T.; Mizokawa, T.; Saini, N.L. Suppression of structural instability in LaOBiS2−xSex by Se substitution. J. Phys. Cond. Matt. 2018, 30, 455703. [Google Scholar] [CrossRef] [PubMed]
  25. Athauda, A.; Louca, D. Nanoscale Atomic Distortions in the BiS2 Superconductors: Ferrodistortive Sulfur Modes. J. Phys. Soc. Jpn. 2019, 88, 041004. [Google Scholar] [CrossRef]
  26. Pugliese, G.M.; Paris, E.; Capone, F.G.; Stramaglia, F.; Wakita, T.; Terashima, K.; Yokoya, T.; Mizokawa, T.; Mizuguchi, Y.; Saini, N.L. The local structure of self-doped BiS2-based layered systems as a function of temperature. Phys. Chem. Chem. Phys. 2020, 22, 22217. [Google Scholar] [CrossRef] [PubMed]
  27. Pugliese, G.M.; Stramaglia, F.; Capone, F.G.; Hacisalihoglu, M.Y.; Kiyama, R.; Sogabe, R.; Goto, Y.; Pollastri, S.; Souza, D.O.D.; Olivi, L.; et al. Local structure displacements in La1−xCexOBiSSe as a function of Ce concentration. J. Phys. Chem. Solids 2020, 147, 109648. [Google Scholar] [CrossRef]
  28. Nagao, M. Growth and characterization of R(O, F)BiS2 (R = La, Ce, Pr, Nd) superconducting single crystals. Nov. Supercond. Mater. 2019, 1, 64. [Google Scholar] [CrossRef]
  29. Higashinaka, R.; Asano, T.; Nakashima, T.; Fushiya, K.; Mizuguchi, Y.; Miura, O.; Matsuda, T.D.; Aoki, Y.J. Symmetry Lowering in LaOBiS2: A Mother Material for BiS2-Based Layered Superconductors. Phys. Soc. Jpn. 2015, 84, 023702. [Google Scholar] [CrossRef] [Green Version]
  30. Sugimoto, T.; Paris, E.; Terashima, K.; Barinov, A.; Giampietri, A.; Wakita, T.; Yokoya, T.; Kajitani, J.; Higashinaka, R.; Matsuda, T.D.; et al. Inhomogeneous charge distribution in a self-doped EuFBiS2 superconductor. Phys. Rev. B 2019, 100, 064520. [Google Scholar] [CrossRef] [Green Version]
  31. Koningsberger, D.C.; Prins, R. X-ray Absorption: Principles, Applications, Techniques of EXAFS, SEXAFS and XANES. In Chemical Analysis: A Series of Monographs on Analytical Chemistry and Its Applications; Wiley: Hoboken, NJ, USA, 1988. [Google Scholar]
  32. Bunker, G. Introduction to XAFS; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar]
  33. Ravel, B.; Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: Data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synch. Rad. 2005, 12, 537. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Brouder, C. Angular dependence of X-ray absorption spectra. J. Phys. Condens. Matter 1990, 2, 701. [Google Scholar] [CrossRef]
  35. Miura, A.; Nagao, M.; Takei, T.; Watauchi, S.; Tanaka, I.; Kumada, N. Crystal structure of LaO1−xFxBiS2 (x∼0.23, 0.46): Effect of F doping on distortion of Bi-S plane. J. Solid State Chem. 2014, 212, 213. [Google Scholar] [CrossRef] [Green Version]
  36. Gurman, S.J. Interpretation of EXAFS Data. J. Synchrotron Radiat. 1995, 2, 56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. He, C.; Zhu, J.; Zhao, Y.-H.; Liu, C.; Fu, B. Unconventional inner-TL electric polarization in TL-LaOBiS2 with ultrahigh carrier mobility. Nanoscale 2019, 11, 18436. [Google Scholar] [CrossRef] [PubMed]
  38. Du, Y.; Ding, H.C.; Sheng, L.; Savrasov, S.Y.; Wan, X.; Duan, C.G. Microscopic origin of stereochemically active lone pair formation from orbital selective external potential calculations. J. Phys. Condens. Matter 2014, 26, 025503. [Google Scholar] [CrossRef] [PubMed]
  39. Rathore, E.; Juneja, R.; Culver, S.P.; Minafra, N.; Singh, A.K.; Zeier, W.G.; Biswas, K. Origin of Ultralow Thermal Conductivity in n-Type Cubic Bulk AgBiS2: Soft Ag Vibrations and Local Structural Distortion Induced by the Bi6s2 Lone Pair. Chem. Mater. 2019, 31, 2106. [Google Scholar] [CrossRef]
Physchem 01 00019 g001 550

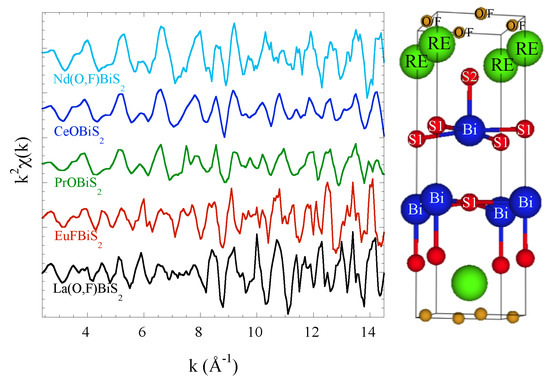

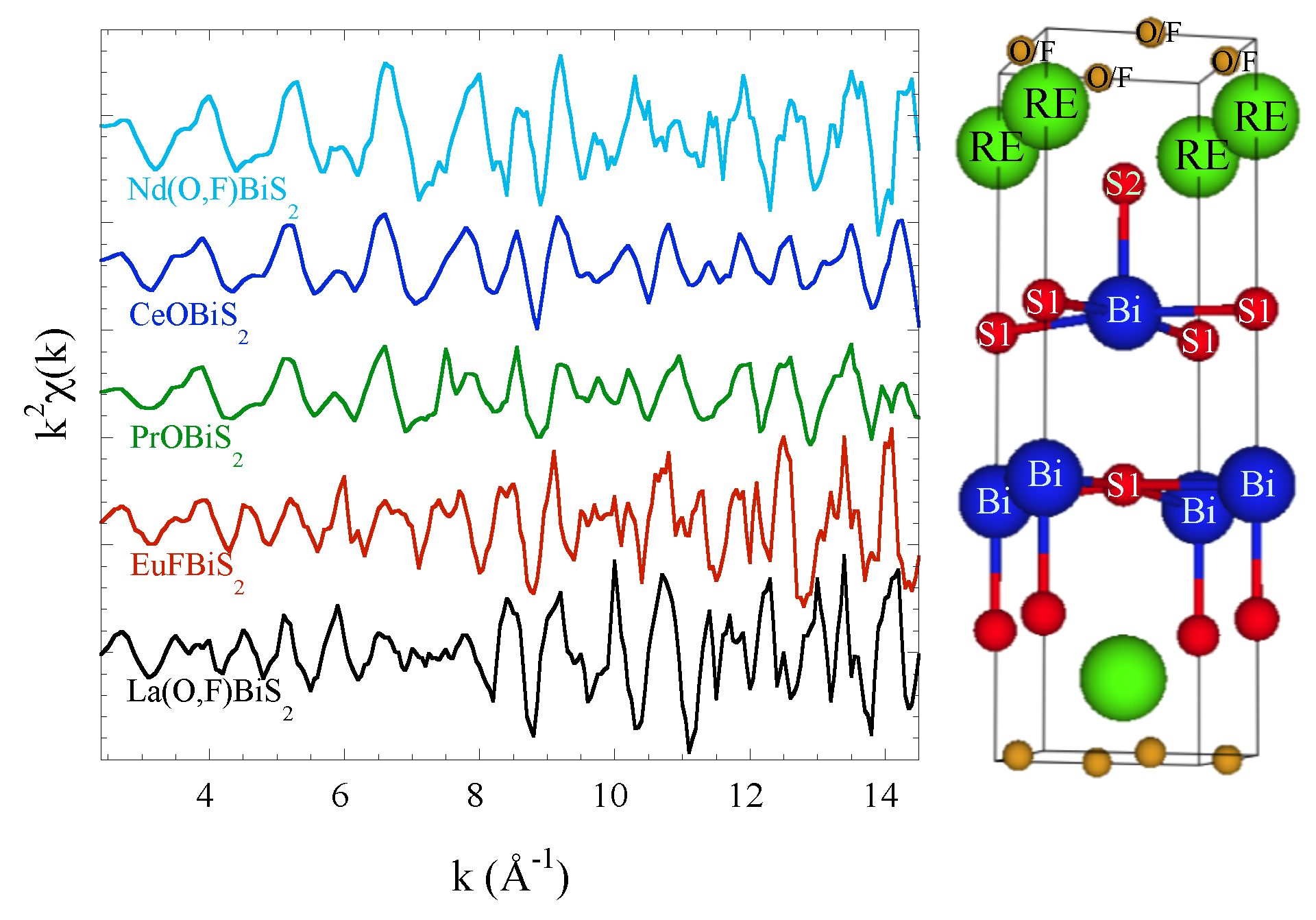

Figure 1. EXAFS oscillations of RE(O/F)BiS 2 single crystals samples (RE = La, Eu, Pr, Ce, Nd) measured at Bi L 3 -edge with X-ray polarization parallel to the crystallographic ab-plane. The oscillations are weighed by k 2 to amplify the signal at higher k-values and vertically shifted for a better visualization. The crystal unit cell of RE(O/F)BiS 2 is also shown.
Figure 1. EXAFS oscillations of RE(O/F)BiS 2 single crystals samples (RE = La, Eu, Pr, Ce, Nd) measured at Bi L 3 -edge with X-ray polarization parallel to the crystallographic ab-plane. The oscillations are weighed by k 2 to amplify the signal at higher k-values and vertically shifted for a better visualization. The crystal unit cell of RE(O/F)BiS 2 is also shown.
Physchem 01 00019 g001
Physchem 01 00019 g002 550

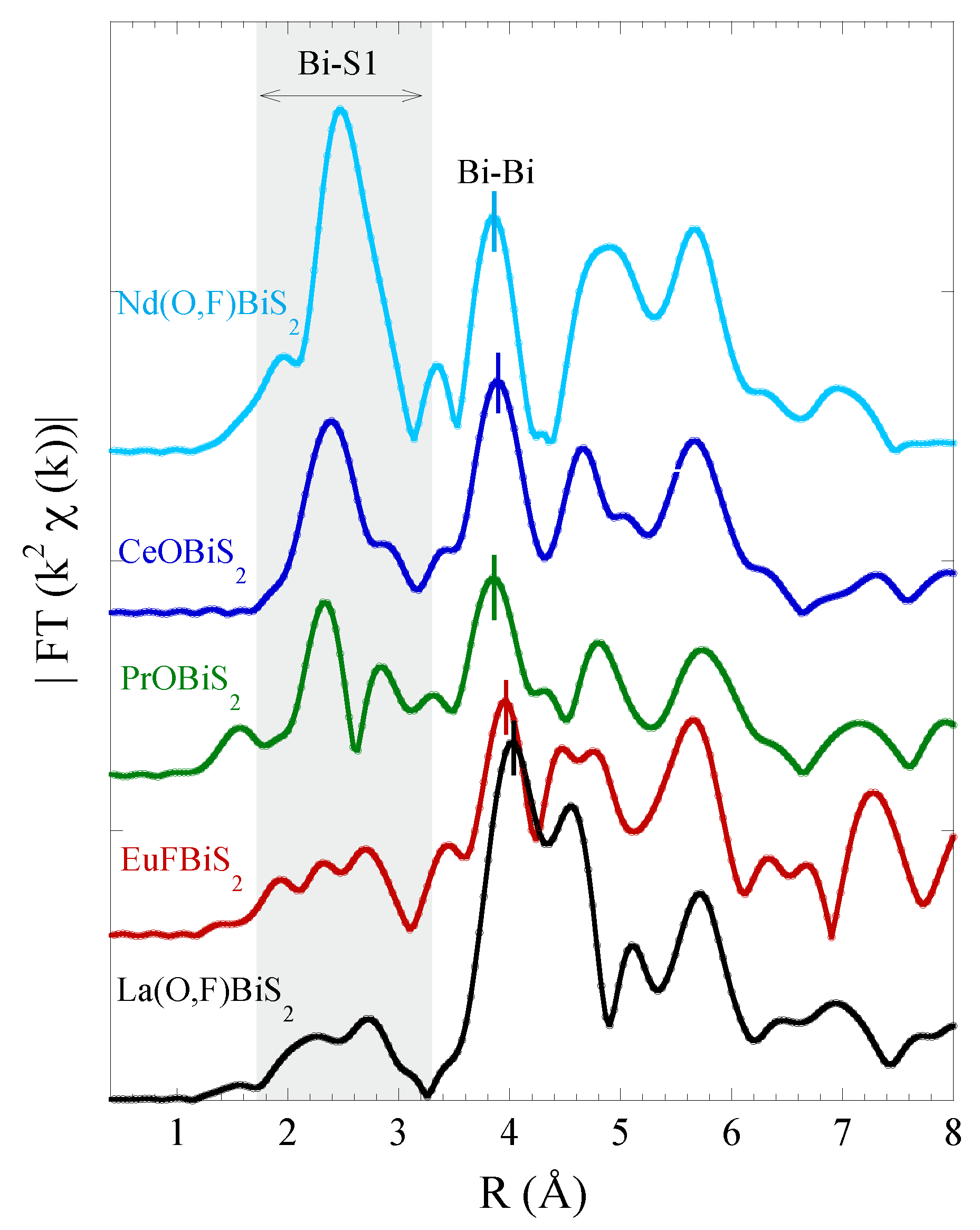

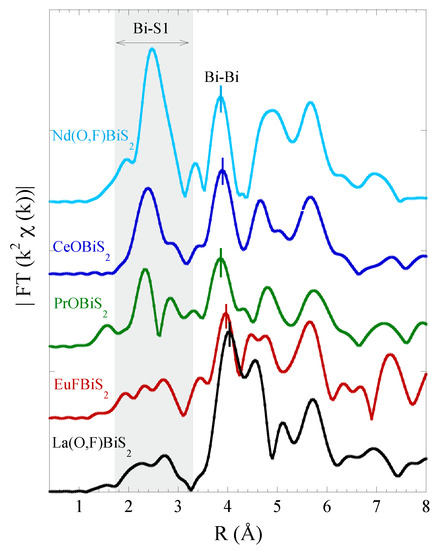

Figure 2. Fourier transforms (FT) magnitudes of Bi L 3 -edge k 2 -weighted EXAFS oscillations for RE(O/F)BiS 2 at 20 K. The FTs are performed using a Gaussian window in the k-range of 3–14.5 Å − 1 .
Figure 2. Fourier transforms (FT) magnitudes of Bi L 3 -edge k 2 -weighted EXAFS oscillations for RE(O/F)BiS 2 at 20 K. The FTs are performed using a Gaussian window in the k-range of 3–14.5 Å − 1 .
Physchem 01 00019 g002
Physchem 01 00019 g003 550

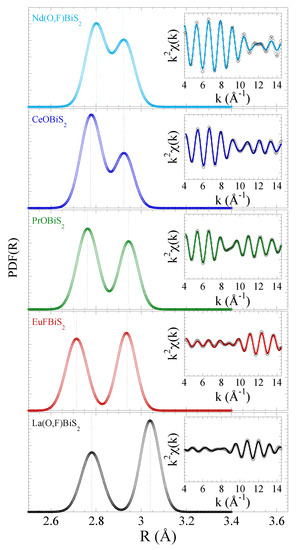

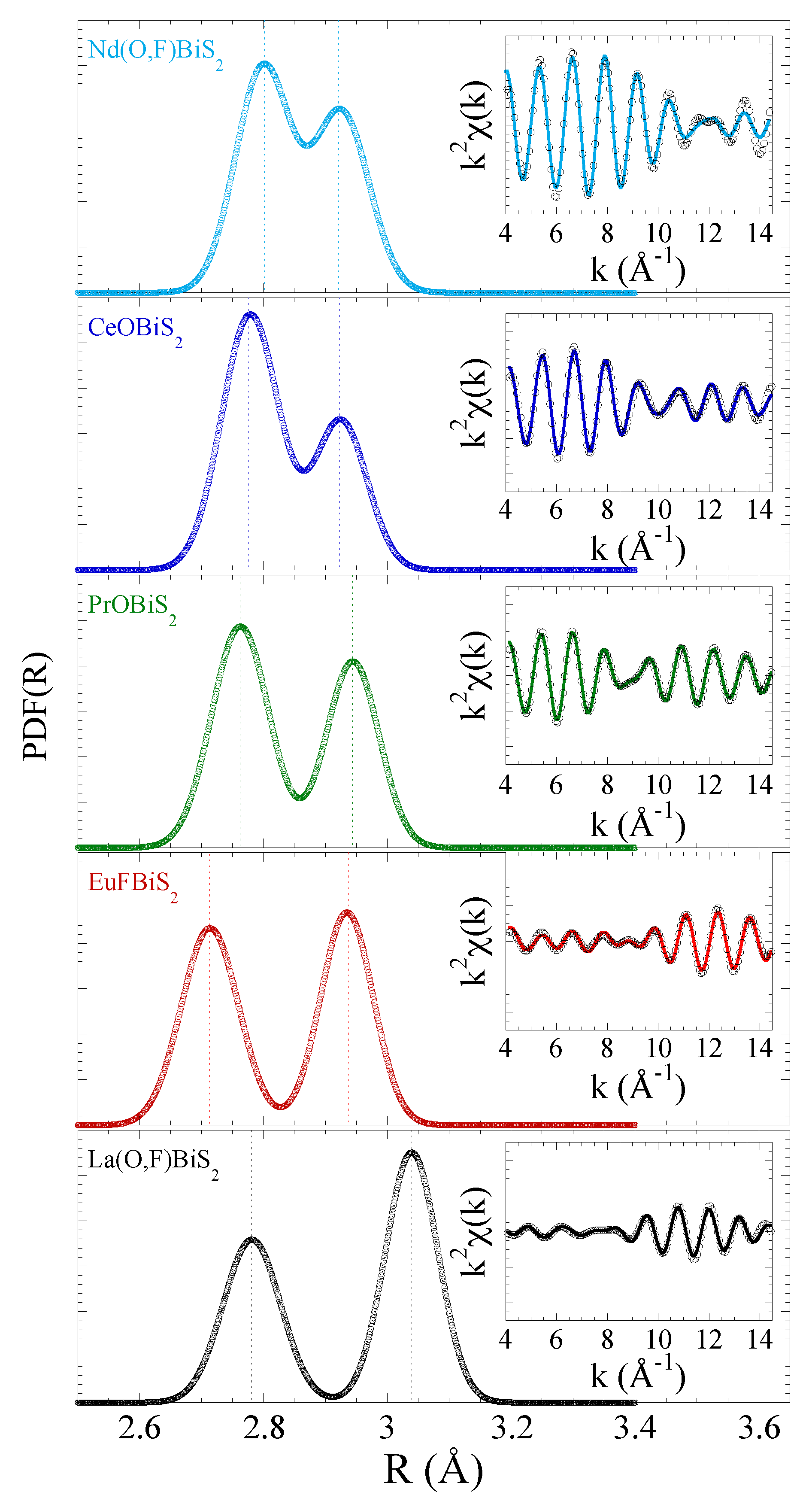

Figure 3. Bi-S1 bonds distribution functions obtained by in-plane polarized EXAFS measured on single crystal samples of RE(O/F)BiS 2 . The insets show the Fourier filtered EXAFS oscillations (symbols) compared with the theoretical EXAFS (solid line) corresponding to the plotted distributions.
Figure 3. Bi-S1 bonds distribution functions obtained by in-plane polarized EXAFS measured on single crystal samples of RE(O/F)BiS 2 . The insets show the Fourier filtered EXAFS oscillations (symbols) compared with the theoretical EXAFS (solid line) corresponding to the plotted distributions.
Physchem 01 00019 g003
Physchem 01 00019 g004 550

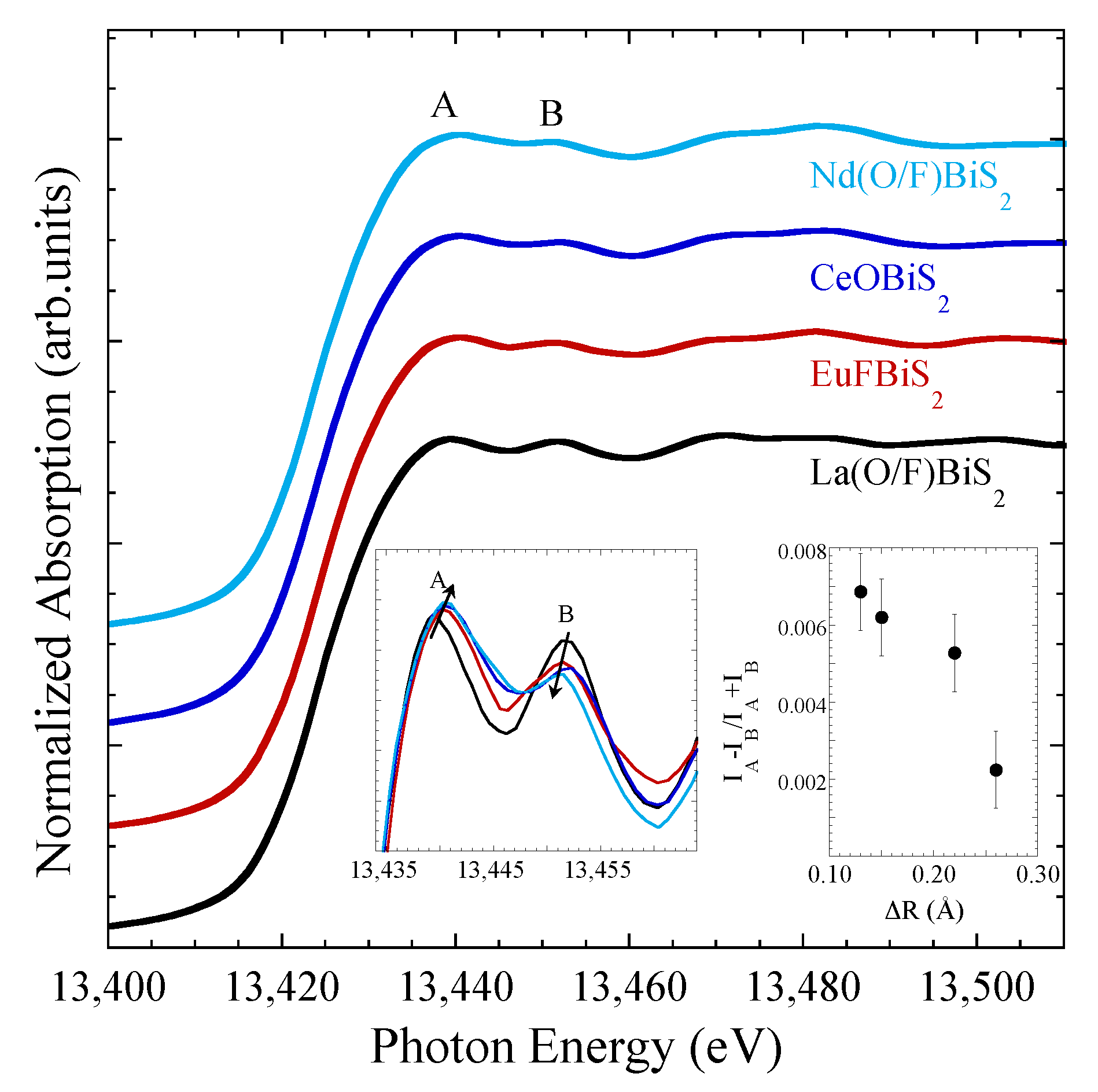

Figure 4. X-ray absorption near edge structure (XANES) spectra of RE(O/F)BiS 2 single crystals measured at the Bi L 3 -edge. The nearest edge features are denoted by A and B. The left inset shows a zoom-over the features A and B. The right inset shows normalized intensity difference plotted as a function of the distortion amplitude in the BiS 2 -layer. The error bars represent maximum uncertainty estimated by analyzing different scans for each sample.
Figure 4. X-ray absorption near edge structure (XANES) spectra of RE(O/F)BiS 2 single crystals measured at the Bi L 3 -edge. The nearest edge features are denoted by A and B. The left inset shows a zoom-over the features A and B. The right inset shows normalized intensity difference plotted as a function of the distortion amplitude in the BiS 2 -layer. The error bars represent maximum uncertainty estimated by analyzing different scans for each sample.
Physchem 01 00019 g004
Table
Table 1. Lattice parameters of the tetragonal unit cell (Space group P4/nmm) of different compounds. The transition temperatures (T c ) and in-plane distortion amplitudes ( Δ R) are also included. Δ R s c represents the separation between the two peaks in the pair distribution function derived in the present work while Δ R p corresponds to the distortion amplitudes reported on polycrystalline samples.
Table 1. Lattice parameters of the tetragonal unit cell (Space group P4/nmm) of different compounds. The transition temperatures (T c ) and in-plane distortion amplitudes ( Δ R) are also included. Δ R s c represents the separation between the two peaks in the pair distribution function derived in the present work while Δ R p corresponds to the distortion amplitudes reported on polycrystalline samples.
T c (K)a (Å)c (Å) Δ R sc (Å) Δ R p (Å)
LaO 0.77 F 0.23 BiS 2 2.54.05713.5470.260.40
EuFBiS 2 -4.05113.5600.220.26
NdO 0.71 F 0.29 BiS 2 5.13.99613.4640.130.18
CeOBiS 2 1.33.98413.4900.150.19
PrOBiS 2 3.54.01013.8240.180.21
