Technical Note

LionVu: A Data-Driven Geographical Web-GIS Tool for Community Health and Decision-Making in a Catchment Area

by
Nathaniel R. Geyer
1,* and
Eugene J. Lengerich
1,2
1
Department of Public Health Sciences, Penn State College of Medicine, Penn State University, Hershey, PA 17033, USA
2
Penn State Cancer Institute, Hershey, PA 17033, USA
*
Author to whom correspondence should be addressed.
Geographies 2023, 3(2), 286-302; https://doi.org/10.3390/geographies3020015
Submission received: 28 February 2023 / Revised: 4 April 2023 / Accepted: 16 April 2023 / Published: 18 April 2023
(This article belongs to the Special Issue Advanced Technologies in Spatial Data Collection and Analysis)
Browse Figures
Versions Notes

Abstract

:
In 2018, the Penn State Cancer Institute developed LionVu, a web mapping tool to educate and inform community health professionals about the cancer burden in Pennsylvania and its catchment area of 28 counties in central Pennsylvania. LionVu, redesigned in 2023, uses several open-source JavaScript libraries (i.e., Leaflet, jQuery, Chroma, Geostats, DataTables, and ApexChart) to allow public health researchers the ability to map, download, and chart 21 publicly available datasets for clinical, educational, and epidemiological audiences. County and census tract data used in choropleth maps were all downloaded from the sources website and linked to Pennsylvania and catchment area county and census tract geographies, using a QGIS plugin and Leaflet JavaScript. Two LionVu demonstrations are presented, and 10 other public health related web-GIS applications are reviewed. LionVu fills a role in the public health community by allowing clinical, educational, and epidemiological audiences the ability to visualize and utilize health data at various levels of aggregation and geographical scales (i.e., county, or census tracts). Also, LionVu is a novel application that can translate and can be used, for mapping and graphing purposes. A dialog to demonstrate the potential value of web-based GIS to a wider audience, in the public health research community, is needed.

1. Introduction

Over fifty years ago, the National Cancer Act established a program for cancer research and demonstration centers to be administered by the National Cancer Institute (NCI) [1]. In 2012, the NCI Funding Opportunity Announcement (FOA), as part of the P30 Cancer Center Support Grant, required that designated cancer centers establish and describe their catchment areas and document research that addresses cancer burden, risk factors, incidence, morbidity, mortality, and inequalities [2]. In 2016, the focus was expanded to include community outreach and engagement [3]. However, the FOA provided limited guidance and was difficult for reviewers to review the grant applications [4]. Moreover, the catchment area can be defined by the cancer center, which can range from smaller than a single county to over 200 counties, with the total NCI catchment area encompassing approximately 2.4 million square miles (6,215,971,464,810 m2) [1].
NCI’s Catchment Area Initiative increased the need for using Geographic Information Systems (GIS). Research using GIS is critical for cancer prevention and control. Between 1971–2016, the peer-reviewed literature has at least one affiliation in one or more author within a NCI-designated Cancer Centers [5]. Cancer data visualization tools needs to include academic, governmental, or community stakeholders with some knowledge of GIS, while safeguarding ethical concerns [6]. Specifically, the Health Insurance Portability and Accountability Act (HIPAA) limits the use of personally identifiable health information (PHI) for research purposes. Common examples of PHI include names, dates (except year), telephone numbers, Web addresses, and geographic data [7]. Therefore, geographical data below a state-level, may be protected health information and safeguarded by HIPAA [8]. Until recently, educators at public health graduate schools have not taught GIS, limiting the emergence of combined Internet-based geospatial technologies and health-based applications. However, with the NCI Catchment Area Initiative, the gap between software-based and web-based GIS tools, in public health, is narrowing.
Pennsylvania has 67 counties with almost 45% rural (30 counties). In addition, Pennsylvania includes 52 Appalachian counties, 28 counties in the Penn State Cancer Institute catchment area, and 19 classified as both catchment area and Appalachian counties out of 67 total counties. In Pennsylvania, there are no rural (i.e., RUCC > 3) non-Appalachian counties in the state; therefore all 30 rural counties and 22 urban counties fall in the Appalachia Subregion [9], with one-fourth (107 out of 423 counties) of are rural within 13 states. In general, Appalachia’s counties lagged in areas in most indicators, with populations in vulnerable economic positions pre-COVID-19 [10,11]. Since approximately 78% (52 Counties) of Pennsylvania are within Appalachia shows the need for a web-GIS tool.
Originally, LionVu, consists of a web-based GIS tool that displays spatial data in Pennsylvania and the 28-county catchment area of the Penn State Cancer Institute, was developed using ArcGIS Online. Since ArcGIS Online is proprietary, we found that moving to a HIPAA-protected server a payment is necessary, and it was challenging to add newer data to the tool. In response, LionVu was redesigned using Leaflet JavaScript, and a usability assessment was completed [12]. Leaflet uses the Web Mercator projection, which is based on WGS84 and remains the de facto projection for web mapping applications [13]. Figure 1 shows the most recent version of LionVu, which is publicly available online at (https://app-phs.hmc.psu.edu/lionvu/), accessed on 20 March 2023.
LionVu datasets are a single point in time, so it is critical for only mapping the latest information using an automated process. The challenge of updating the data was the extensive preprocessing required, such as merging to a geographical file and converting to Leaflet JavaScript file format. Previously, our team merged a CSV, or text file with a geographical file manually into a GeoJSON format. is an Open Geospatial Consortium (OGS) standard that holds geographical data in a JSON format [14]. Leaflet JavaScript best utilizes GeoJSON as a JavaScript variable; meaning that we had to manually add a JavaScript variable name with a semicolon at the end, which was tedious for multiple datasets. Moreover, we found that manual conversion from GeoJSON file to Leaflet JavaScript using Notepad+ caused extensive manual review and was prone to human error. We found that data was easily corrupted, by manual review, rendering files useless, which was especially problematic when working with 21 datasets and two geographies. Comparatively, QGIS has the flexibility to handle multiple python libraries and it can be reused by others in the GIS field [15]. The final product is a JavaScript file, which can be uploaded, to a hosted HIPAA-protected cloud-based Server maintaining LionVu, using FileZilla.
The three aims of this paper are: (a) to describe the process-flow of updating LionVu, including the methodology of the Data to Leaflet plugin graphical user interface with all its functionality; (b) to provide two demonstrations of using LionVu to map and chart publicly available datasets collected from various sources, including the United States Census Bureau and Pennsylvania Department of Health; and (c) to compare the functionality of LionVu to ten other public-health related web GIS tools. Demonstrations will include both area (i.e., population density per dentist and oral cancer) and point-level (i.e., finding hospitals, federally qualified health centers, and medically underserved areas in Dauphin County, Pennsylvania) using spatial vector data integrated into LionVu. The main functionalities of LionVu are all publicly available, using open-source JavaScript libraries.

2. Data to Leaflet JavaScript Plugin

In 2021, we developed the Data to Leaflet JavaScript QGIS plugin, specifically for converting CSV or text files to GeoJSON format, and then a JavaScript variable to work with Leaflet JavaScript. Both Leaflet and QGIS are GIS software that have a large community of users and developers. To automate the process of using CSV or text file and/or spatial data sets (e.g., KML, SHP, GeoJSON, or GeoPackage) inputs to a Leaflet JavaScript output, we created a graphical user interface accessible through the plug-in dropdown menu. In the plug-in the first two rows are for merging the two files, and the third and fourth rows create the Leaflet JavaScript file in either point, line, or polygon geometries (Figure 2).
To use the QGIS plug-in, we uncovered the necessity for the spatial data and spatial merge data, which was projected using the WGS84 instead of the NAD83, commonly used in North America and saved as a GeoJSON format. After loading the spatial data, a list or file name appears on the right side. The text merge option requires that the data be either in CSV or text format to create a list of field names that can be set as the variable used in the CSV merge tool. The merge button is used to complete the join, and only links the data where the same values and type are similar. Once the data has successfully merged and appeared in the QGIS layer listing and appears in the third row, clicking on Convert to JavaScript converts the layer to a Leaflet JavaScript format. Clicking on the globe in the middle of the third row instead of merge button will directly create the JavaScript file from the spatial dataset without merging, and then clicking on the Leaflet button converts the JavaScript file to JSON format, which allows JavaScript libraries (i.e., Leaflet, DataTables, Chroma, and Geostats) to utilize the data (Figure 3).
Conceptually, our team created the QGIS plugin using Python 3, with five dependencies (i.e., OS, CSV, JSON, RE, PyQt5) and QGIS functionality. More specifically, we used CSV and OS libraries to import the CSV or text file into QGIS and create a list of variable names; and OS and JSON libraries to export the GeoJSON into a minified Leaflet JavaScript format. The other two libraries added minor parts to the plugin to make the tool smarter and more able to work for vector data of points, lines, or polygon geometries. A minified JavaScript file removes unnecessary characters without changing its functionality, allowing LionVu to run efficiently. Our team evaluated the plugin using QGIS 3.28.4 on Windows 11, using either county or census tract geographies (Supplementary Material S1). The QGIS reference manual should be consulted to properly install the plugin to QGIS 3+ [16].
Our team used the Data to Leaflet Plugin, to standardize the geographic files for speeding up the merging with a CSV or text file. For example, the 2023 LionVu release included both the county and census tracts data sets from the 2022 United States Census Bureau’s TIGER/Line SHP program. Using QGIS 3+, we reprojected from NAD83 to WGS84 and filtered out an approximately 735 mi2 (1,903,641,260 m2) of a single census tract (i.e., GEOID: 4204990000) in Erie County that was completely in Lake Erie. To make the spatial data smaller, we stripped all variables except county name. Since LionVu includes both Pennsylvania and the Penn State Cancer Institute catchment area geographies, we created two GeoJSON files for both the county and census tract geographies.

3. LionVu Functionality

The 2023 redesign of LionVu, utilized the Leaflet, jQuery, Chroma, Geostats, DataTables, and ApexChart JavaScript libraries, and a feedback form, on 15 February 2023 (Table 1).The end-user can: display the data on the website via the Leaflet JavaScript mapping library; pick a Color Brewer 2.0 schema using Chroma JavaScript library choose the number of bins (i.e., 3–20) [17,18]; a classification method (i.e., quantiles, natural breaks, equal intervals, standard deviation, arithmetic progression, geometric progression, maximum breaks, and unique values); and utilize the Geostats JavaScript Library, except for the manual classification method, which cannot be applied to a dropdown menu. Additionally, on the web-GIS tool, the end-user has either four or five buttons to adjust the zoom (i.e., in, out, home), to download the map to image, and to display the secondary legend (in choropleth maps only). On the top-right, there are buttons to turn on county labels and boundaries (e.g., catchment area, Appalachia, and county [in census tract choropleth maps only]) to add more detail to the web map. The end-users can see the table of the datasets below the maps via jQuery and its DataTable plugin. The end-user can click on the County Charts button to create two bar charts and one scatter plot of the chosen values for county-level datasets using ApexCharts Library. Finally, the end-user can also use the feedback form to send emails to the developer and other end-users using PHP syntax.
By default, LionVu maps American Community Survey’s population estimates for Pennsylvania in the left-side display and the Penn State Cancer Institute catchment area in the right-side display. The other defaults include Oranges Color Brewer 2.0 schema, 5—bin values, quantiles classification, no reverse color schema (i.e., light to dark), primary legend position on the bottom right, 100% transparency, no summary statistics, and a data table below only showing two rows per data. The codebook button downloads a CSV file for each of the relevant datasets selected in the two dropdown menus. As shown in Figure 1, the display also includes a secondary legend, which is by default turned off, that contains simple summary statistics (e.g., count, minimum, maximum, mean, standard deviation [SD], median, variance, coefficient of variation [COV], and total) for the mapped layer.
In the Healthcare Facilities and Underserved Area section, we included the HRSA-defined underserved area component boundaries (i.e., dental, medical, mental, and primary care) and individual-level data from various health care providers (i.e., Penn State Health, ambulatory surgery centers, federally qualified health centers, hospitals, mammography, and rural health centers). Since this section includes 10 data sets and no choropleth maps, we added only 10 codebook buttons appear with captions at the bottom of the page. We found that the rest of the providers contain both Pennsylvania and other catchment area geographies. However, since the Penn State Cancer Institute catchment area is specific to our group and consists of 28 counties, we were required to use street and zip code geocoding using SAS 9.4 [19]. The primary reason is the special case where Bethlehem, Pennsylvania is in both Lehigh and Northampton Counties but only Lehigh County is in the Penn State Cancer Institute catchment area.
Currently, the charting functionality in LionVu is for county-level datasets only and utilizes two bar charts by county for a selected field, then creates a scatter plot of the given field on the left display as the x-axis and right display as the y-axis field. The challenge was keeping the load time down and preventing out-of-memory errors, which slows down the charting functionality in LionVu. In the case where a non-county dataset exists on either the left or right display, LionVu charts the default American Community Survey’s population estimates, with a sweet alert to notify the user about the issue.
Other LionVu functionality includes a 5-min video, documentation, and a feedback form, allowing an end-user to send an email providing feedback on improving the website, while filtering out spam. Our team developed a HTML documentation file on the website supplying additional information on methods useful for guidance, including attributions to external sources, and hyperlinks to download the QGIS plugin and geography files. We made sure to allow the end-user the ability to download the documentation as one file format: PNG image, CSV, PDF, or GeoJSON. PNG images include most maps and charts. CSV files include the data sets and the codebooks. PDF files include the documentation and Pennsylvania EJSCREEN, which was too big for the Leaflet plugin to save as a PNG image file. We also included a GeoJSON with Pennsylvania and the Penn State Cancer Institute catchment area geographies to aid with future updates (Supplementary Material S2).

4. Data Sources

LionVu includes 21 data sources in the 2023 LionVu release and allows for various kinds of visualizations and analyses of these data sources. We categorized the downloaded data sets into four main groups:
  • Health outcomes and access to care data: measures concerning the health of the community or access to care, such as cancer incidence, early stage, late state, survival, mortality, County Health Rankings, County Health Profiles, and health providers.
  • Socioeconomic and environmental exposures data: economic indicators, policy, population behavioral changes, environmental health justice, social vulnerability, and health insurance.
  • Multiple: County Health Ranking, which consists of health outcome, access to care, and both socioeconomic and environmental exposure information.
  • Geographical data: county and census tract geographies, county centroids, county boundaries, catchment area, and Appalachian County designation.
Table 2 outlines the main data sources used in LionVu as of 20 March 2022, including the organization, topics, year, and geography. The organizations included in LionVu, are the Pennsylvania Department of Health, United States Census Bureau, County Health Profiles, and other data sources (i.e., FDA. HRSA, CDC, EPA, and ARC). We saved the data sets (i.e., geographies, catchment data, Pennsylvania data, and point or individual-level data) and codebooks used in LionVu for Pennsylvania and the Penn State Cancer Institute catchment area geographies, as either CSV or GeoJSON formatted files and accessed on 27 February 2023 (See Supplementary Material S2).

5. Results

This section focuses on two demonstrations and then compares LionVu to other public health-related web-GIS tools. The two demonstrations are based on choropleth map and charting functionality of LionVu and used the Healthcare Facilities and Underserved Area section to find providers and underserved areas in one county. Demonstration one used area data dealing with population density per dentist and oral cancer incidence, which uses both the mapping and charting functionality in LionVu. The second demonstration used individual-level data in LionVu to find hospitals, federally qualified health centers, and medical underserved areas within Dauphin County, Pennsylvania, which is one of the Penn State Cancer Institute catchment area counties. We included a comparison between LionVu and ten other public health related web-GIS tools.

5.1. Area Data Example: Population Density per Dentist vs. Oral Cancer Incidence

Using LionVu’s side-by side functionality, it is possible to put the population density per dentist (Pennsylvania: County Health Ranking) on the left side, oral cancer incidence (Pennsylvania: Cancer Incidence Age-Adjusted Rates), on the right side, and then download both images to PNG format (Figure 4 and Figure 5). The default 5—bin, quantiles, and orange color schema choropleth map of county showed a potential comparison between the two figures. The county charts functionality enables the display of the county percentages and rates in two bar charts (Figure 6 and Figure 7) and one scatter plot (Figure 8). This demonstration shows that counties that have a lower population density per dentist also have an increase in oral cancer. The county charts show that Montour County is an outlier because of both a high population density per dentist and oral cancer. Cameron, Forest, Fulton Potter, and Sullivan Counties had a zero oral cancer incidence because the Pennsylvania Department of Health did not display the rates due to small cell counties, which suppressed the results, due to HIPAA issues. Forest County also had zero population density in the County Health Ranking data due to similar HIPAA issues. We believe that the actual rates are closer to the rates of the neighboring counties.

5.2. Individual-Level Data Example: Finding Hospitals, Federally Qualified Health Centers, and Medical Underserved Areas in Dauphin County, Pennsylvania

Dauphin County in southcentral Pennsylvania, an urban non-Appalachian county, has severe inequalities. The Southwest of Dauphin County contains the state capital Harrisburg, which is separated from western Pennsylvania counties by the Susquehanna River, Harrisburg has a population of 50,135 people (34% white, 50% black, 25% Hispanic), of which 9.9% have no health insurance, and 28% live in poverty [20]. The southeastern area near Hershey (a census-designated place) has 13,858 people with higher wealth and more health care providers than other parts of the county, which includes 78% white, 2% black, 12% Hispanics, 2% have no health insurance, and 9% live in poverty [21]. The northeastern part of the county, near Lykens, has 1932 people, of which 80% are white, 8% have no health insurance, and 30% are in poverty [22]. Figure 9 shows that there are four hospitals in Dauphin County (three in the Harrisburg area and one in Hershey), seven federally qualified health centers (six in the Harrisburg area and one in Millersburg), but only two medical underserved areas—one in the northeast (i.e., Berrysburg, Gratz, Lykens, and Pillow) and one in the Harrisburg area. The data for the cities and boroughs come from de-duplicating the SAS 9.4 zip code dataset and using QGIS 3.28.4. These three maps suggest that in Dauphin County, Pennsylvania, there is a need for more medical services in the Harrisburg area and in northeastern parts of the county, including Berrysburg, Gratz, Lykens, and Pillow.

5.3. LionVu Comparison to Other Public Health-Related Webmaps

In 2014, Luan and Law did a comprehensive comparison of 27 public health-related web maps [23]. In 2023, the authors of the current paper found that out of the 27 web maps referenced, only 8 were still regularly updated. For example, the Pennsylvania West Nile program is still live but not being regularly updated. Another web map, the Periscope Atlas, was newly created for the COVID-19 epidemic in Europe [24]. Both authors [23,24] did not cite Pennsylvania Department of Health’s Enterprise Data Dissemination Informatics Exchange, but we reviewed it for this assessment. The Pennsylvania Department of Health’s Enterprise Data Dissemination Informatics Exchange was not cited in either study but was reviewed for this assessment. Table 3 shows the comparison of ten different GIS public health websites. CDC’s cancer statistics website contains a national and state web map of cancer-related data. CDC’s Diabetes Interactive Atlas uses bubble and candlestick charts specific to diabetes. CDC Heart and Stroke Prevention has a comprehensive dataset on the conditions, health determinants, and environmental factors. CDC’s oral health map is updated every two years. The Pennsylvania Department of Health’s Enterprise Data Dissemination Informatics Exchange had various health related data, from which the data easier to download, but it is more difficult to fit the data and to create a bivariate display for more than one variable at multiple time periods. EpiScanGIS is a German web map for meningococcal disease, containing both point and area data of seropositive populations, and is updated weekly, unlike LionVu, which is mostly area data and is updated annually. HealthMap is global, focused on influenza and COVID-19, and uses ArcGIS Online, time series data, and symbols. The Kentucky Cancer Registry was easier to drill down than LionVu for more specific cancer diagnoses, including rarer types of cancer, but it only has data for one state with no other data sources. Florida Health Charts has state, census tract, zip code, and county geographies, with data and functionality comparable with the Pennsylvania Department of Health. Finally, the Periscope Atlas was developed for COVID-19 and has more multivariate analysis than LionVu. All ten web-GIS tools examined had at least one choropleth map.

6. Discussion

The three aims included: (a) describing the process-flow of updating LionVu, including the methodology of the CSV to Leaflet plugin graphical user interface with all its functionality; (b) providing two demonstrations using LionVu to map and chart publicly available data collected from County Health Ranking and Pennsylvania Department of Health; and (c) compare LionVu with ten other public health related Web-GIS tools. For the first aim, the Data to JavaScript plugin automated data processing and minimized manual review. The second aim included maps, bar charts, and a scatter plot to compare the population density per dentist with oral cancer incidence, which shows an increasing trend in the scatter plot. Furthermore, the health care providers in Dauphin County, Pennsylvania showed how LionVu data can fit a hypothesis-driven assessment. The third aim suggests that LionVu has functionality that is comparable to the ten other web-GIS tools examined. The discussion section overviews this LionVu assessment, the lessons learned, the strengths and limitations, and further recommendations.

6.1. LionVu Assessment

LionVu, as presented in this paper, was the result of using secondary data and various JavaScript libraries, functions, and results. Thanks to the 21 datasets included, LionVu makes it easier for community health members in Pennsylvania to implement this information into research projects, teaching, and other uses. This project provides a low-cost strategy to implement a web-GIS tool, with the possibility of adding newer functionality to improve mapping in the future. Other teams could replicate LionVu’s tools, depending on knowledge about markup, scripting languages, JavaScript libraries [25], and spatial analyses techniques [26]. Moreover, a basic knowledge of the spatial data standards and open-source software, such as QGIS, Leaflet, or FileZilla, is necessary to relieve the programmer of developmental works due to ready-made functions and classes [25]. Unlike proprietary GIS software, QGIS and other open-source tools used in LionVu reads most data formats, and has one data license, no vendor lock-in, is free to use and is customizable, has improved reliability and quality, requires less preparation time, and has better rendering capacities [15]. For example, QGIS has a built-in function that quickly creates directory tiles processed by Leaflet, using a landscape model that converts spatial data into GeoJSON format that can be read by Leaflet as a JavaScript variable [27]. These features make open-source solutions the way of the future.
The demonstration of the comparison of population density per dentist and oral cancer shows that there may be a significant multivariable association between the two with a spatial autocorrelation, which is outside the scope of this study. The maps and charts show that Montour, Sullivan, and Fulton counties, which are in the Penn State Cancer Institute catchment area, are outliers in this analysis. There appears to be an inverse relationship between dental care and oral cancer incidence. In Figure 8, we found, after removing the outliers, that an increase in the population density per dentist correlate with the increase in oral cancer incidence in Pennsylvania. Since the source data could be downloaded within LionVu via a CSV output, it is possible to use spatial analysis approaches. For example, we completed a previous auto-correlation analysis looking at ambulatory surgery centers in Pennsylvania in relation to colorectal cancer mortality, using data from LionVu [28].
The example of using point-level maps to determine providers in Dauphin County, Pennsylvania, shows the potential for LionVu to support hypothesis-driven research. The biggest challenge is HIPAA preserving confidentiality and doing research. In LionVu, we added pop-ups for each health care provider, and could also download the datasets and zoom in the data. However, to create a reference map for demonstration purposes (see Figure 9), we had to add the cities and boroughs in QGIS. LionVu is a hypothesis-driven tool to supplement and not conduct research. If an end-user wants to do advanced analysis or, for example add cities and boroughs to a map of Pennsylvania, one can use supplemental software such as ArcGIS, QGIS, R, GeoDa, SAS, and others.
Based on the ten different web maps examined (see Table 3), the majority only have data on one type of condition. This is often the result of teams developing products in an internal silo, which limits the content, or only performing basic analyses for a restricted set of variables [29]. For example, if a person needs national data from CDC for Cancer, Diabetes, Heart Disease and Stroke, or Oral Health a person must go to four web maps for national data, since they do not zoom within a state, nor do they allow cross-disease comparisons. In LionVu, the system is limited to the availability of publicly accessible data and server space. A person could theoretically download cancer (e.g., mortality, incidence, and survival) from the three dropdowns; diabetes, heart disease, and stroke data from the county health profile section; and oral health from the County Health Rankings subset, without leaving the website.

6.2. Lessons Learned

One of the first lessons learned is how to justify web mapping with big data. Big data refers to tools that extract information based on four factors: large volume (size), high velocity (time frequency), large variety (data types), and veracity (quality). Some of the potential benefits of big data to public health are determining risk factors that lead to diseases, such as cancer, and that generate new knowledge, improve clinical care, and streamline health surveillance [30]. When using GIS to present public health data, there are issue that restrict data availability, such as HIPAA [7], but one also has to watch out for data heterogeneity, data security, transparency, and fair use of data [30]. In the case of LionVu, we are providing hypothesis-driven research that uses smarter GIS functionality in ways that can utilize big data sources (see Table 2).
A second lesson is justifying LionVu in terms of systems development. To develop a successful web-GIS public health tool, it is important to focus on health data collection, user interface design, maps and charts, system maintenance, privacy issues, cost, and training [23]. LionVu has over 21 data sources, updates data annually, has a side-by-side user interface, contains both maps and charts, is maintained on a HIPAA protected server, uses open-source tools, and contains a short video for training purposes. However, in terms of training and reaching out to the target audience, the clinical, educational, and epidemiology researchers, it is still a working progress.
The third lesson is to develop a system that reaches a public health audience. Currently, public health and clinical graduate schools do not teach geospatial methodology, such as mapping software and web-based GIS tools, even though there is a need for ecological research. Because of legislations such as HIPAA, many individual-level researchers and staff are struggling to make sense of geographical data [31], leading to misinterpretation [32]. For example, the CDC printed choropleth maps that were not data normalized, where counts were not standardized based on population size using a rate, density, or percentage, and that underscored the impact of COVID-19 in areas with fewer cases and small populations, leading to poor policy decisions [33]. One strategy to correct these issues is teaching geospatial thinking and reasoning skills to undergraduate students in higher education. Geospatial thinking and reasoning skills include developing a geospatial research question, creating a geospatial data visualization, performing a geospatial data analysis, supporting a geospatial explanation, and justifying the argument and claims [34]. In this way, by the time the student progresses into graduate or medical schools, they are more likely to be familiarized with GIS and make better sense of spatial data.

6.3. Strengths and Limitations

Data to JavaScript is the first QGIS plugin to integrate QGIS and Leaflet in a way that automates the processing while minimizing manual review. It currently works best on vector data with a predetermined projection because reprojecting is not currently an option but is an area of development in the future. Another related issue is that although the format of the spatial data is flexible, the text data must be either CSV or text files, which excludes other formats, due to a QGIS import issue. Despite these limitations, the QGIS plugin could be a valuable resource to people who work with both QGIS and Leaflet.
The strength of LionVu is the ability to view images side-by-side, as two univariate maps, and to produce bivariate plots or charts, such as in our example where we have both the Penn State Cancer Institute catchment area and Pennsylvania geographies. LionVu is a quick study instrument to examine hypothesis as an ecological analysis. The tool creates easily downloadable data and maps to conduct a multivariable analysis. Moreover, since the data is de-identified, we did not need IRB approval. Another strength is that GeoJSON specification allows for the use of multiple unrelated JavaScript libraries, such as Leaflet, Geostats, Chroma, ApexCharts, and jQuery, which permit the tool to use the best features of the available libraries.
The limitations of LionVu are that one cannot do meaningful individual analysis, uses only publicly available data, and single point-in-time information. Also, the data in Leaflet is data that must be encoded in GeoJSON format. The GeoJSON specification has no information on how to display the objects, but informal standards, such as CSS styles, can be added as properties [27,35]. Another limitation is that one has to take count data with a grain of salt and only use data that is normalized, such as by rate, percentage, or density, when using LionVu and other geospatial tools [33]. Currently, the only image format permitted in the maps are PNG image or PDF; charts are either SVG, PNG, or CSV formats, which is due to the JavaScript libraries (e.g., Leaflet Browser Print and ApexCharts), only permitting one and three file types, respectively. Finally, very often JavaScript libraries become outdated, so annual checks for any revisions to the JavaScript code are required.

6.4. Recommendations

Depending on community feedback, our team may include data from other Pennsylvania agencies such as Revenue, Human Services, Agriculture, Insurance, Environmental Protection, and Labor and Industry, depending on data availability. Since catchment area is a hot topic in cancer health research, our team may be able to collaborate with other agencies in different geographical areas in the future. For example, zip code data, although convenient to map, is currently not included in LionVu, because it crosses state, county, and census tract geographies, or may not have a boundary in the case of post office boxes, but may be added in the future due to its utility in specialized public health GIS applications [36], such as Florida Health Charts. We hope that future versions of Leaflet Browser Print and ApexCharts allow more file formats, such as JPEG and TIFF, which are the preferred types for most journals. Our team may explore creating bivariate maps [37], and charting for census tract data in a way that does not slow down the server. We are strongly considering the option to view multiple time periods in addition to seeing two variables side-by-side. Future releases may include created a predicted line or multivariate spatial analyses comparable to web-GIS applications, such as the Periscope Atlas developed to visualize and analyze COVID-19 data [24]. We might also explore the usage of creating a manually defined data classification that allows the end-user to change the ranges of values. A final opportunity lies in developing training courses that could count as continuing education credits for clinicians and public health researchers in geospatial thinking and reasoning skills.

7. Conclusions

In 2023, our team is part of the growing trend in public health research that is using specialized surveillance systems for clinical sites that include web-GIS, leading to a need for training to use the data in web-based platforms. Currently, LionVu includes 21 publicly available data sources with geographies composed of county, census tracts, health professional service areas, medically underserved areas, and select individual-level data. Our team continues to update LionVu annually to allow for mapping comparisons for a variety of different variables in each dataset for Pennsylvania. Although the geography is just Pennsylvania, it is possible based on data availability to replicate to a larger area, potentially increasing the effectiveness and efficiency of LionVu. If an organization outside of Pennsylvania needs to develop a comparable system, they can collaborate with us and can help us to develop a more powerful web-GIS tool with a server that can better manage different geographic information. Considering the massive amount of data, the hope is to create a dialog to demonstrate the potential value of web-based GIS applications to a wider audience within the public health research community.

Supplementary Materials

The following supporting information materials are downloadable at: https://www.mdpi.com/article/10.3390/geographies3020015/s1. Supplementary Material S1: S1_data_leafletjs.zip, Data to Leaflet JavaScript Plugin for QGIS 3+, reference [16] is cited in the main text; Supplementary Material S2: S2_LionVu_Data.zip, includes five folders: Codebooks, Geographies, Catchment Data, Pennsylvania Data, and Point Data, as of 27 February 2023.

Author Contributions

Conceptualization, E.J.L. and N.R.G.; Methodology, N.R.G.; Formal Analysis, N.R.G.; Resources, E.J.L.; Data Curation, N.R.G.; Writing-Original Draft Preparation, N.R.G.; Writing-Review and Editing, E.J.L. and N.R.G.; Validation, N.R.G.; Visualization, N.R.G.; Supervision, E.J.L.; Project Administration, E.J.L.; Funding Acquisition, E.J.L.; Software, N.R.G. All authors have read and agreed to the published version of the manuscript.

Funding

Highmark Incorporation Grant at Penn State Cancer Institute (no key-personnel role) partially supported this study. The content is solely the responsibility of the authors and does not necessarily represent the official views of Highmark.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All available datasets integrated inside LionVu and cited in this paper (i.e., Table 2), and found in Supplementary Material S2, accessed on 27 February 2023.

Acknowledgments

The authors acknowledge the contribution of Fritz Kessler, who supplied geographical advice during the initial phase of redeveloping LionVu.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ArcGIS = software developed and maintained by Esri (Environmental Systems Research Institute) since 1999; CDC = Centers for Disease Control and Prevention; CSS = Cascading Style Sheet; CSV = Comma Separated Values file format, also the name of a Python library; EJSCREEN = Environmental Justice Screening and Mapping Tool, EPA data set that provides census tract information on national environmental justice issues; EPA = Environment Protection Agency; FDA = Food and Drug Administration; GeoJSON = Geographical JavaScript Object Notation, a OGS (Open Geospatial Consortium) format for encoding geographical features and attributes based on JSON; GeoDa = Introductory spatial data analysis software, which does basic spatial analysis like spatial autocorrelation; GEOID = Geographic Identifiers, are numeric codes that uniquely identify all administrative/legal and statistical geographic areas for which the Census Bureau tabulates data; GIS = Geographical Information Systems; HIPAA = Health Insurance Portability and Accountability Act of 1996, protects health insurance data with PHI; HRSA = Health Resources and Services Administration; HTML = Hypertext Markup Language; IRB = Institutional Review Board, reviews the ethics of human-subject research; JPEG = Joint photographic expert’s group, a file format that involves lossy compression, where information is lost after compression; JSON = JavaScript Object Notation, a lightweight, text-based, language-independent data interchange format, based on the JavaScript programming language; KML = Keyhole Markup Language; NAD83 = North American Datum of 1983; NCI = National Cancer Institute; NIH = National Institutes of Health, which include NCI; OS = Operating System Python Library; P30 = NIH grant for Core Centers or Centers of Excellence; PDF = Portable Document Format; PHI = Personally Identifiable Health Information, including most geographies less than state; PHP = Hypertext Preprocessor, a server-based language that permits the sending of emails from the feedback form; PNG = Portable Network Graphic image file, a lossless compression that does not lose information; PyQt5 = Python library with dual licenses on all platforms under the Riverbank Commercial License and the GPL (general public license) v3.; QGIS = Quantum GIS software; R = free software environment for statistical computing and graphics; RUCC = Rural-Urban Continuum Code; RE = Regular Expression Python Library, USDA (United States Department of Agriculture) classification for rurality, 2013; SAS 9.4 = Statistical Analysis System software version 9.4; SHP = shapefile; SVG = Scalable Vector Graphics, XML-based format with 2-D vector graphics; TIFF—tagged image file format, can be lossy or lossless with high file size; TIGER = Topologically Integrated Geographic Encoding and Referencing, United State Census Bureau, 2022; WGS84 = World Geodetic System Datum of 1984.

References

  1. DelNero, P.F.; Buller, I.D.; Jones, R.R.; Tatalovich, Z.; Vanderpool, R.C.; Ciolino, H.P.; Croyle, R.T. A National Map of NCI-Designated Cancer Center Catchment Areas on the 50th Anniversary of the Cancer Centers Program. Cancer Epidemiol. Biomark. Prev. 2022, 31, 965–971. [Google Scholar] [CrossRef]
  2. PAR-12-298: Cancer Center Support Grants (CCSGs) for NCI-Designated Cancer Centers (P30). Available online: https://grants.nih.gov/grants/guide/pa-files/PAR-12-298.html (accessed on 20 March 2023).
  3. PAR-17-095: Cancer Center Support Grants (CCSGs) for NCI-Designated Cancer Centers (P30). Available online: https://grants.nih.gov/grants/guide/pa-files/PAR-17-095.html (accessed on 20 March 2023).
  4. Paskett, E.D.; Hiatt, R.A. Catchment Areas and Community Outreach and Engagement: The New Mandate for NCI-Designated Cancer Centers. Cancer Epidemiol. Biomark. Prev. 2018, 27, 517–519. [Google Scholar] [CrossRef]
  5. Korycinski, R.W.; Tennant, B.L.; Cawley, M.A.; Bloodgood, B.; Oh, A.Y.; Berrigan, D. Geospatial Approaches to Cancer Control and Population Sciences at the United States Cancer Centers. Cancer Causes Control 2018, 29, 371–377. [Google Scholar] [CrossRef]
  6. Baeker Bispo, J.A.; Balise, R.R.; Kobetz, E.K. Cancer Data Visualization: Developing Tools to Serve the Needs of Diverse Stakeholders. Curr. Epidemiol. Rep. 2022. [Google Scholar] [CrossRef]
  7. Krzyzanowski, B.; Manson, S.M. Twenty Years of the Health Insurance Portability and Accountability Act Safe Harbor Provision: Unsolved Challenges and Ways Forward. JMIR Med. Inform. 2022, 10, e37756. [Google Scholar] [CrossRef] [PubMed]
  8. Rundle, A.G.; Bader, M.D.M.; Mooney, S.J. The Disclosure of Personally Identifiable Information in Studies of Neighborhood Contexts and Patient Outcomes. J. Med. Internet Res. 2022, 24, e30619. [Google Scholar] [CrossRef] [PubMed]
  9. McDonald, A.C.; Wasserman, E.; Lengerich, E.J.; Raman, J.D.; Geyer, N.R.; Hohl, R.J.; Wang, M. Prostate Cancer Incidence and Aggressiveness in Appalachia versus Non-Appalachia Populations in Pennsylvania by Urban-Rural Regions, 2004–2014. Cancer Epidemiol. Biomark. Prev. 2020, 29, 1365–1373. [Google Scholar] [CrossRef]
  10. Rural Appalachia Compared to the Rest of Rural America. Available online: https://www.arc.gov/rural-appalachia/ (accessed on 3 April 2023).
  11. Pollard, K.; Jacobsen, L.A. The Appalachian Region: A Data Overview from the 2015–2019 American Community Survey Chartbook. Available online: https://www.arc.gov/report/the-appalachian-region-a-data-overview-from-the-2015-2019-american-community-survey/ (accessed on 3 April 2023).
  12. Geyer, N.R.; Kessler, F.C.; Lengerich, E.J. LionVu 2.0 Usability Assessment for Pennsylvania, United States. ISPRS Int. J. Geo-Inf. 2020, 9, 619. [Google Scholar] [CrossRef]
  13. Farkas, G. Applicability of Open-Source Web Mapping Libraries for Building Massive Web GIS Clients. J. Geogr. Syst. 2017, 19, 273–295. [Google Scholar] [CrossRef]
  14. OGC EO Dataset Metadata GeoJSON(-LD) Encoding Standard. Available online: https://www.ogc.org/standard/eo-geojson/ (accessed on 15 April 2023).
  15. Khan, S.; Mohiuddin, K. Evaluating the Parameters of ArcGIS and QGIS for GIS Applications. Int. J. Adv. Res. Sci. Eng. 2018, 7, 582–594. [Google Scholar]
  16. Lesson: Installing and Managing Plugins—QGIS Documentation. Available online: https://docs.qgis.org/3.22/en/docs/training_manual/qgis_plugins/fetching_plugins.html (accessed on 27 February 2023).
  17. Harrower, M.; Brewer, C.A. ColorBrewer.Org: An Online Tool for Selecting Colour Schemes for Maps. Cartogr. J. 2003, 40, 27–37. [Google Scholar] [CrossRef]
  18. Brewer, C.A.; Pickle, L. Evaluation of Methods for Classifying Epidemiological Data on Choropleth Maps in Series. Ann. Assoc. Am. Geogr. 2002, 92, 662–681. [Google Scholar] [CrossRef]
  19. Massengill, D.; Odom, E. PROC GEOCODE: Finding Locations Outside the U.S. In Proceedings of the SAS Global Forum 2013, San Francisco, CA, USA, 1 April 2013. [Google Scholar]
  20. U.S. Census Bureau QuickFacts: Harrisburg City, Pennsylvania. Available online: https://www.census.gov/quickfacts/harrisburgcitypennsylvania (accessed on 21 March 2023).
  21. U.S. Census Bureau QuickFacts: Hershey CDP, Pennsylvania. Available online: https://www.census.gov/quickfacts/fact/table/hersheycdppennsylvania/PST045222 (accessed on 21 March 2023).
  22. Lykens, PA|Data USA. Available online: https://datausa.io/profile/geo/lykens-pa/ (accessed on 21 March 2023).
  23. Luan, H.; Law, J. Web GIS-Based Public Health Surveillance Systems: A Systematic Review. ISPRS Int. J. Geo-Inf. 2014, 3, 481–506. [Google Scholar] [CrossRef]
  24. Pala, D.; Parimbelli, E.; Larizza, C.; Cheng, C.; Ottaviano, M.; Pogliaghi, A.; Đukić, G.; Jovanović, A.; Milićević, O.; Urošević, V.; et al. A New Interactive Tool to Visualize and Analyze COVID-19 Data: The PERISCOPE Atlas. Int. J. Environ. Res. Public Health 2022, 19, 9136. [Google Scholar] [CrossRef]
  25. Schmidt, F.; Dröge-Rothaar, A.; Rienow, A. Development of a Web GIS for Small-Scale Detection and Analysis of COVID-19 (SARS-CoV-2) Cases Based on Volunteered Geographic Information for the City of Cologne, Germany, in July/August 2020. Int. J. Health Geogr. 2021, 20, 40. [Google Scholar] [CrossRef] [PubMed]
  26. Rushton, G. Public Health, GIS, and Spatial Analytic Tools. Annu. Rev. Public Health 2003, 24, 43–56. [Google Scholar] [CrossRef] [PubMed]
  27. Horbiński, T.; Lorek, D. The Use of Leaflet and GeoJSON Files for Creating the Interactive Web Map of the Preindustrial State of the Natural Environment. J. Spat. Sci. 2022, 67, 61–77. [Google Scholar] [CrossRef]
  28. Geyer, N.R.; Moss, J.L.; Wang, M.; Lengerich, E.J. Spatial Relationship between Ambulatory Surgery Centers and Colorectal Cancer Mortality within Pennsylvania, United States. Public Health 2020, 189, 126–128. [Google Scholar] [CrossRef]
  29. Lee, P.; Abernethy, A.; Shaywitz, D.; Gundlapalli, A.V.; Weinstein, J.; Doraiswamy, P.M.; Schulman, K.; Madhavan, S. Digital Health COVID-19 Impact Assessment: Lessons Learned and Compelling Needs. NAM Perspect. 2022, 2022, 10.31478/202201c. [Google Scholar] [CrossRef]
  30. Pastorino, R.; De Vito, C.; Migliara, G.; Glocker, K.; Binenbaum, I.; Ricciardi, W.; Boccia, S. Benefits and Challenges of Big Data in Healthcare: An Overview of the European Initiatives. Eur. J. Public Health 2019, 29, 23–27. [Google Scholar] [CrossRef]
  31. Mullner, R.M.; Chung, K.; Croke, K.G.; Mensah, E.K. Introduction: Geographic Information Systems in Public Health and Medicine. J. Med. Syst. 2004, 28, 215–221. [Google Scholar] [CrossRef] [PubMed]
  32. Juergens, C. Trustworthy COVID-19 Mapping: Geo-Spatial Data Literacy Aspects of Choropleth Maps. KN J. Cartogr. Geogr. Inf. 2020, 70, 155–161. [Google Scholar] [CrossRef]
  33. Adams, A.; Li, W.; Zhang, C.; Chen, X. The Disguised Pandemic: The Importance of Data Normalization in COVID-19 Web Mapping. Public Health 2020, 183, 36–37. [Google Scholar] [CrossRef] [PubMed]
  34. Reed, R.E.; Bodzin, A. Studying Vector-Borne Disease Transmission in Public Health Education Using a Geospatial Curriculum Approach. Pedagog. Health Promot. 2020, 6, 88–101. [Google Scholar] [CrossRef]
  35. Page, R. Visualising Geophylogenies in Web Maps Using GeoJSON. PLoS Curr. 2015, 7, ecurrents.tol.8f3c6526c49b136b98ec28e00b570a1e. [Google Scholar] [CrossRef] [PubMed]
  36. Grubesic, T.H. Zip Codes and Spatial Analysis: Problems and Prospects. Socio-Econ. Plan. Sci. 2008, 42, 129–149. [Google Scholar] [CrossRef]
  37. Biesecker, C.; Zahnd, W.E.; Brandt, H.M.; Adams, S.A.; Eberth, J.M. A Bivariate Mapping Tutorial for Cancer Control Resource Allocation Decisions and Interventions. Prev. Chronic Dis. 2020, 17, E01. [Google Scholar] [CrossRef]
Geographies 03 00015 g001 550

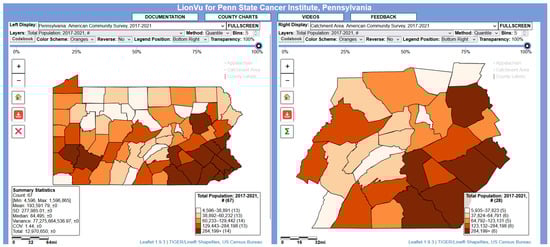

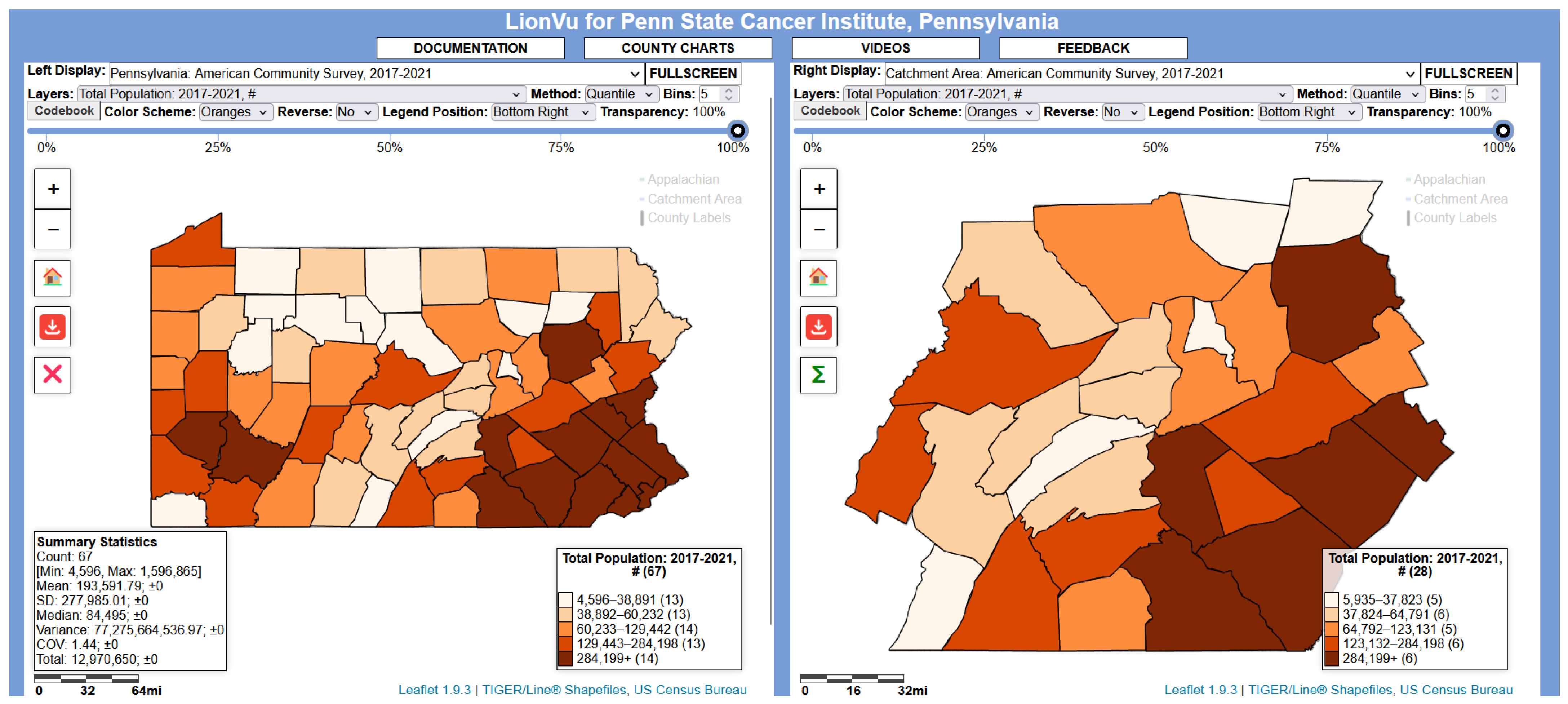

Figure 1. Screenshot of LionVu with the Summary Statistics turned on in the left display. Accessed on 20 March 2023 (1 mi ≅ 1610 m).
Figure 1. Screenshot of LionVu with the Summary Statistics turned on in the left display. Accessed on 20 March 2023 (1 mi ≅ 1610 m).
Geographies 03 00015 g001
Geographies 03 00015 g002 550

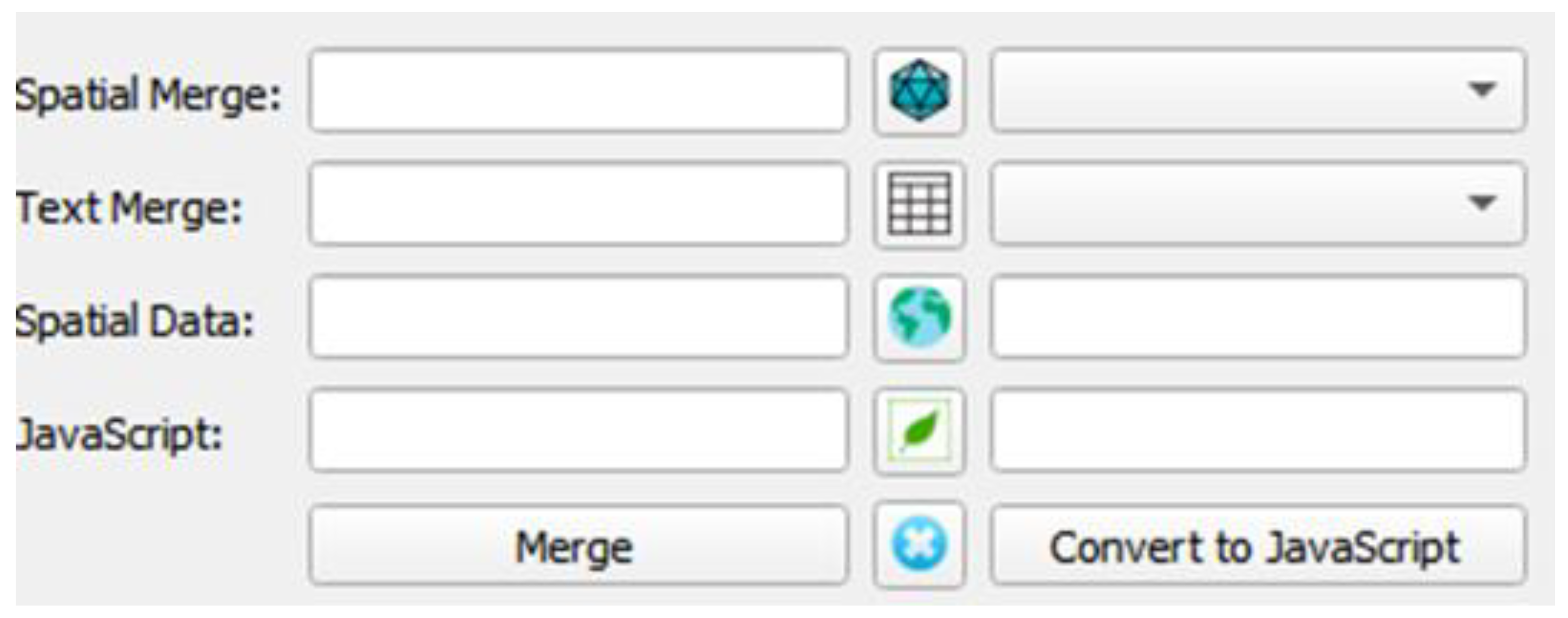

Figure 2. CSV to Leaflet Plugin graphical user interface.
Figure 2. CSV to Leaflet Plugin graphical user interface.
Geographies 03 00015 g002
Geographies 03 00015 g003 550

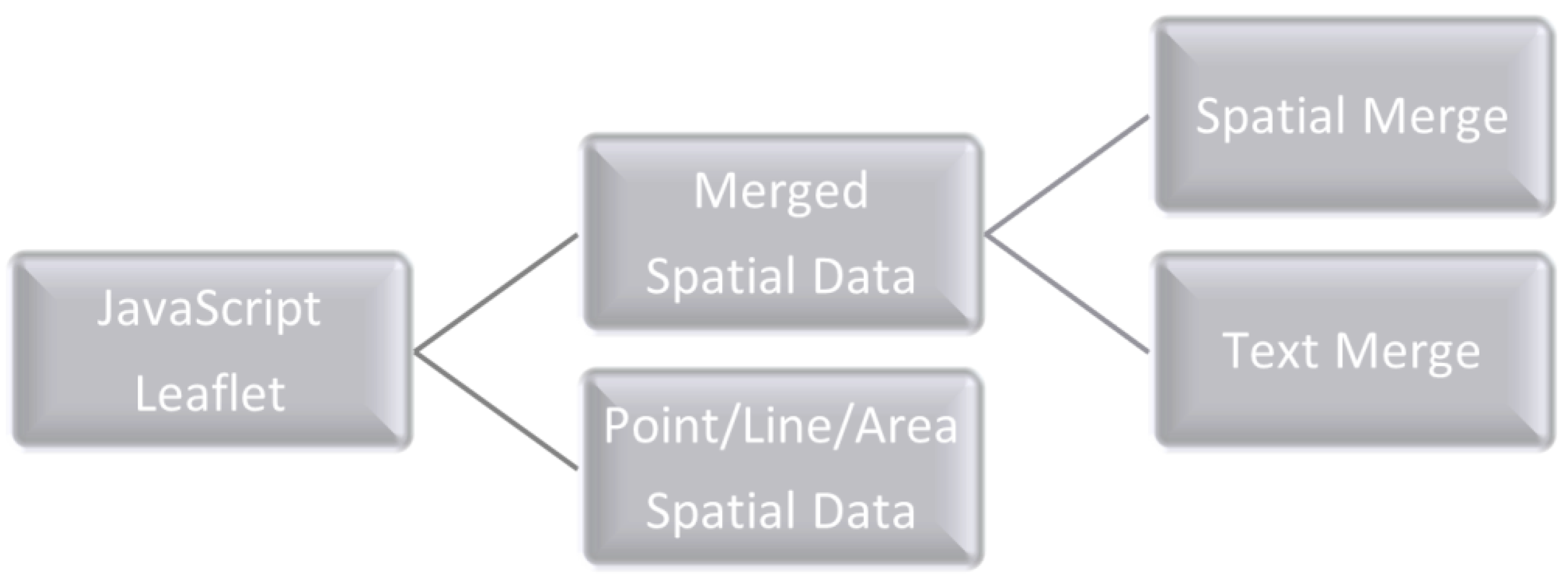

Figure 3. Flow chart of CSV to Leaflet QGIS Plugin.
Figure 3. Flow chart of CSV to Leaflet QGIS Plugin.
Geographies 03 00015 g003
Geographies 03 00015 g004 550

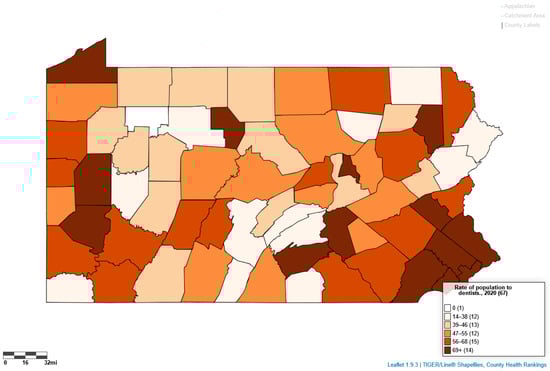

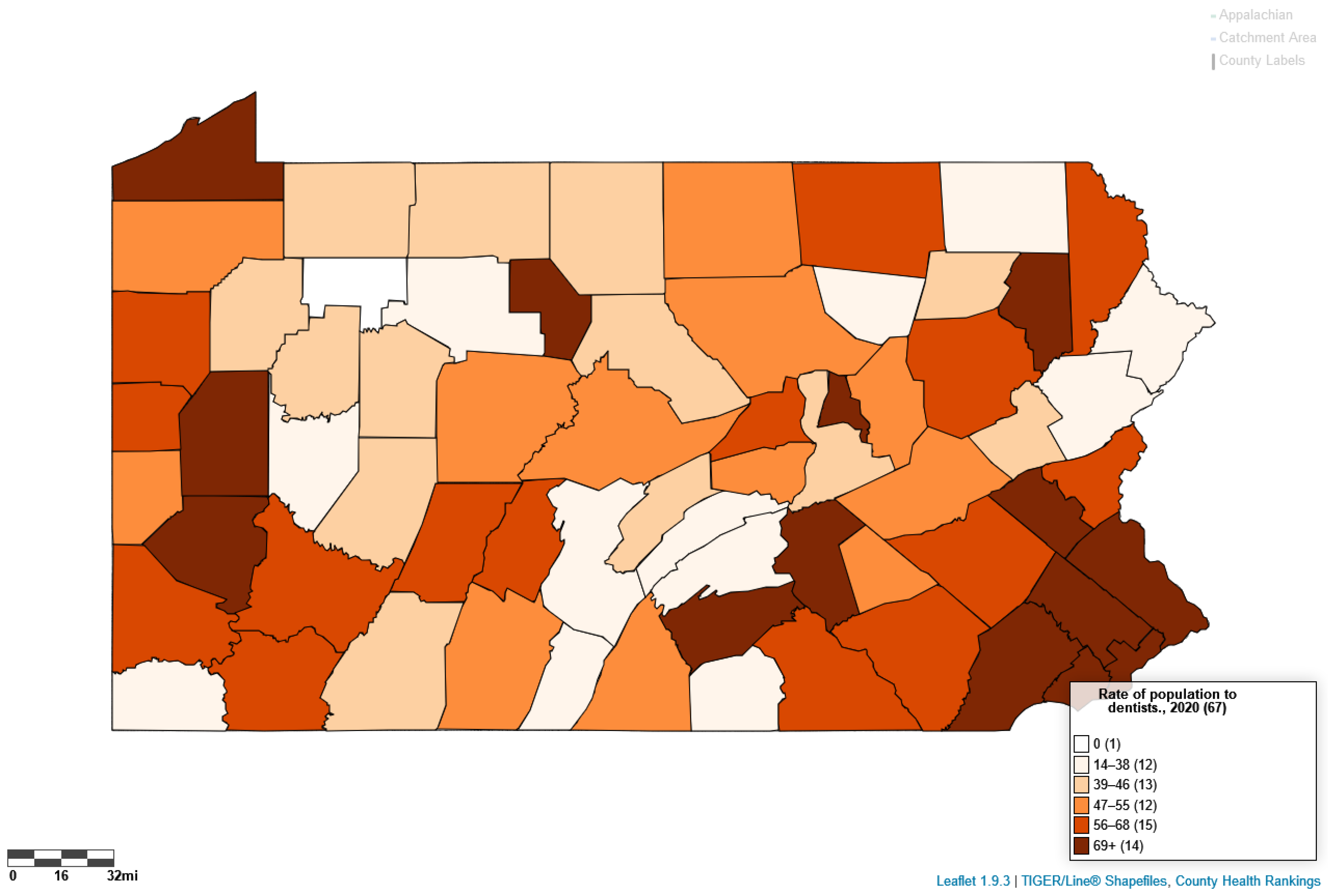

Figure 4. Population density per dentist in Pennsylvania, 2020 (1 mi ≅ 1610 m).
Figure 4. Population density per dentist in Pennsylvania, 2020 (1 mi ≅ 1610 m).
Geographies 03 00015 g004
Geographies 03 00015 g005 550

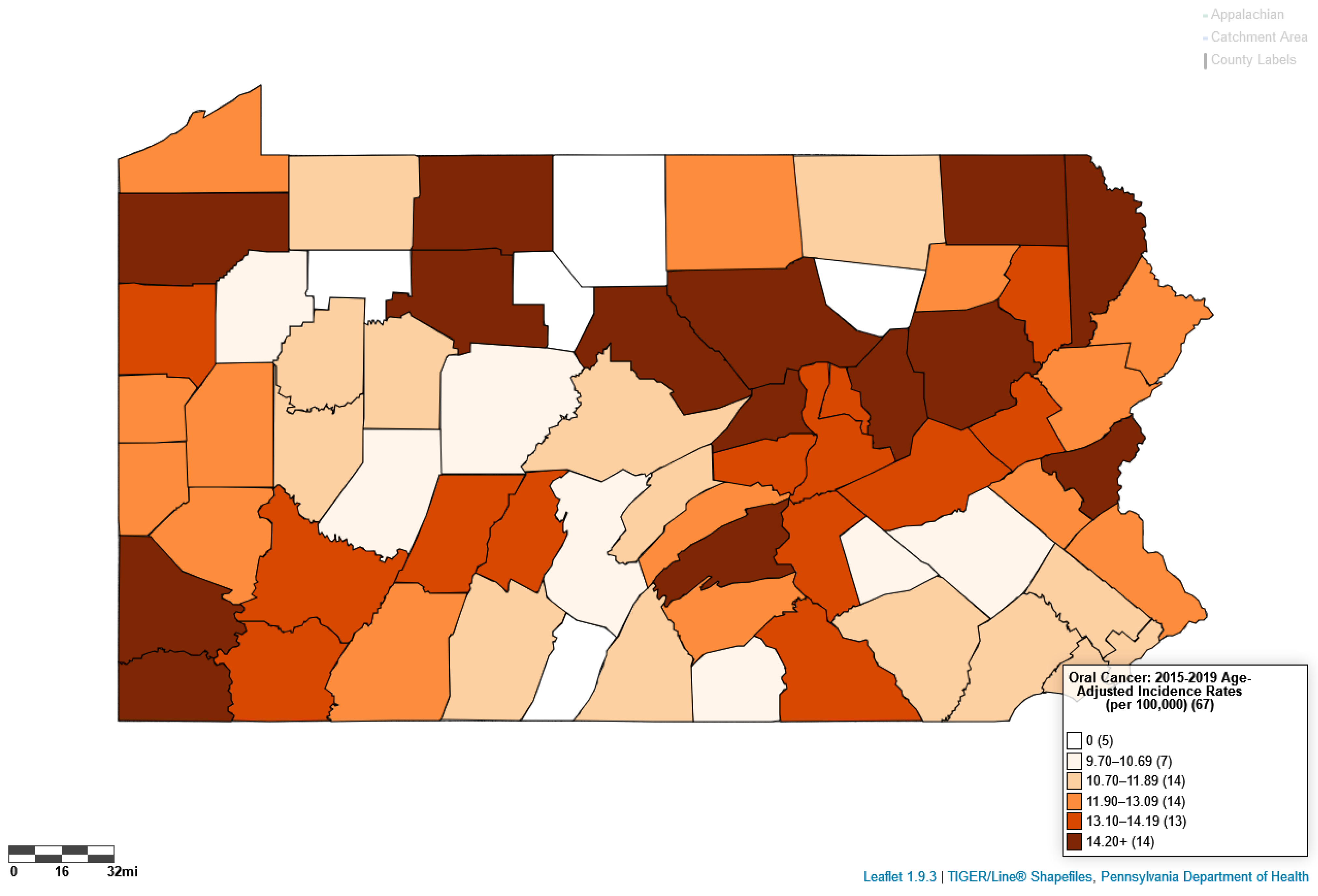

Figure 5. Oral cancer incidence rates, 2015–2019 (1 mi ≅ 1610 m).
Figure 5. Oral cancer incidence rates, 2015–2019 (1 mi ≅ 1610 m).
Geographies 03 00015 g005
Geographies 03 00015 g006 550

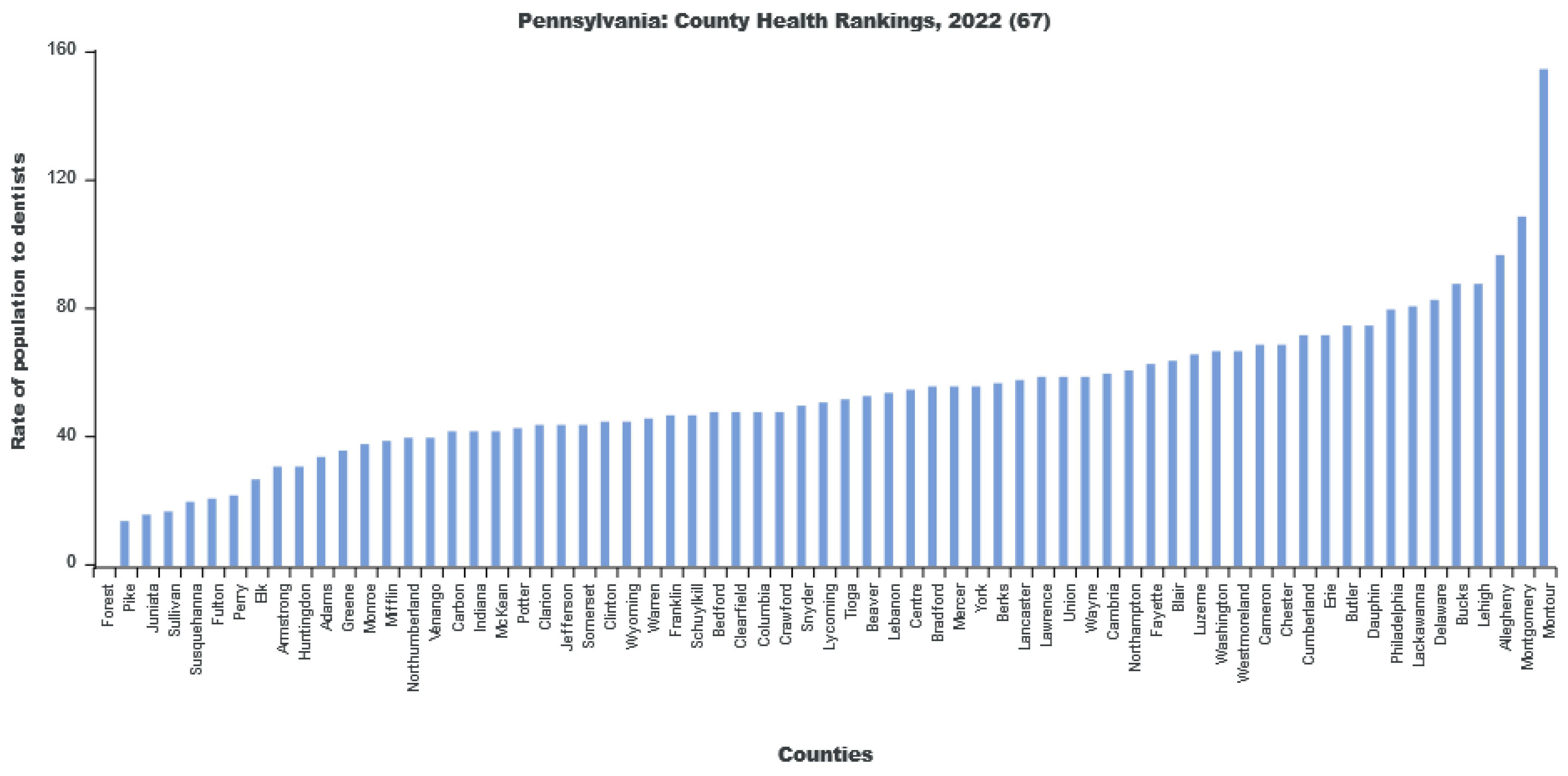

Figure 6. Bar chart of the population density per dentist 2020 per Pennsylvania County.
Figure 6. Bar chart of the population density per dentist 2020 per Pennsylvania County.
Geographies 03 00015 g006
Geographies 03 00015 g007 550

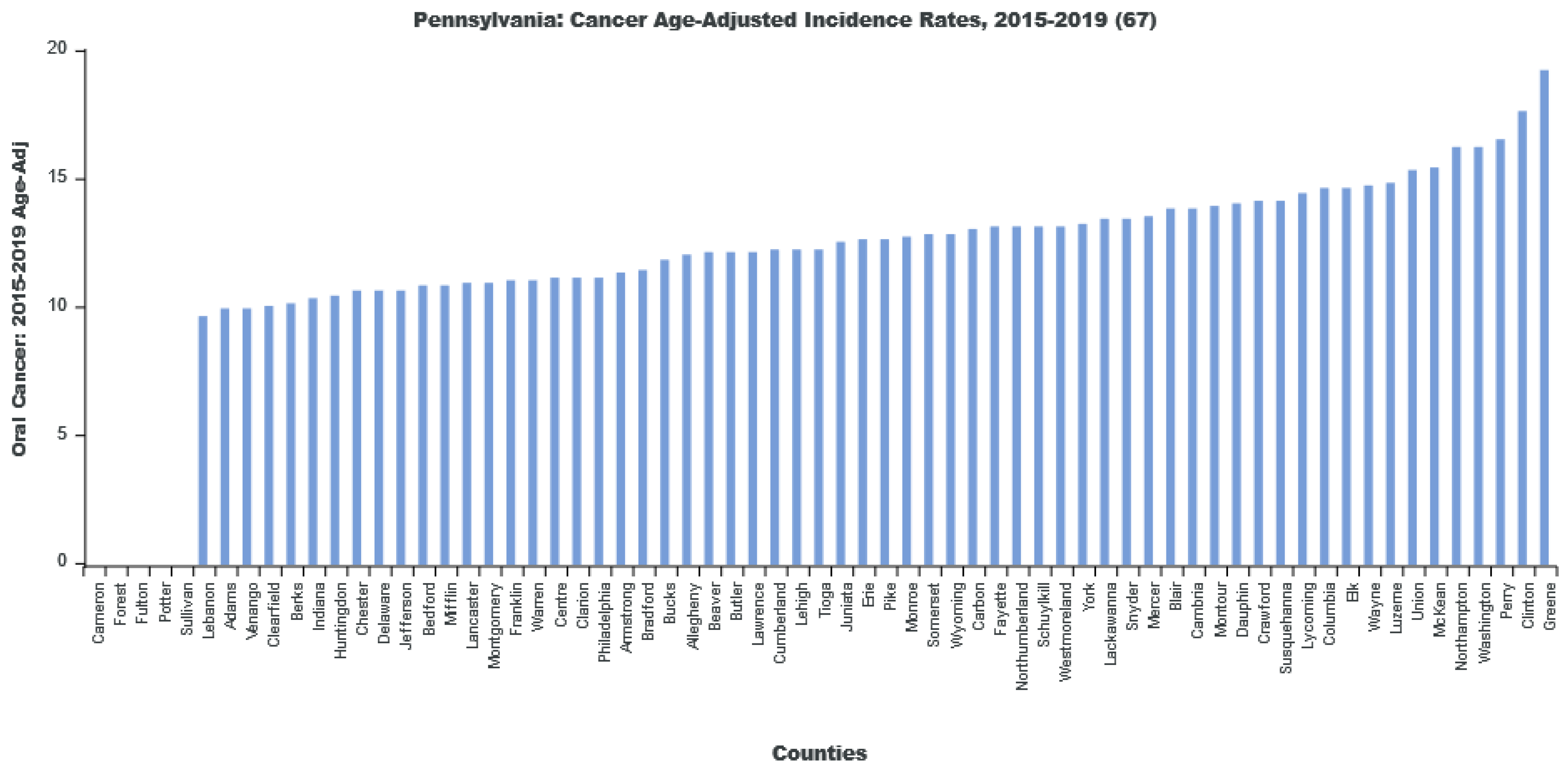

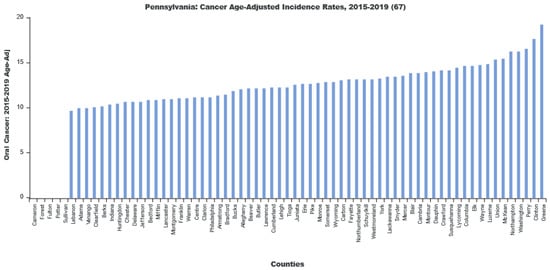

Figure 7. Bar chart of the 2015–2019 oral cancer incidence rate per Pennsylvania County.
Figure 7. Bar chart of the 2015–2019 oral cancer incidence rate per Pennsylvania County.
Geographies 03 00015 g007
Geographies 03 00015 g008 550

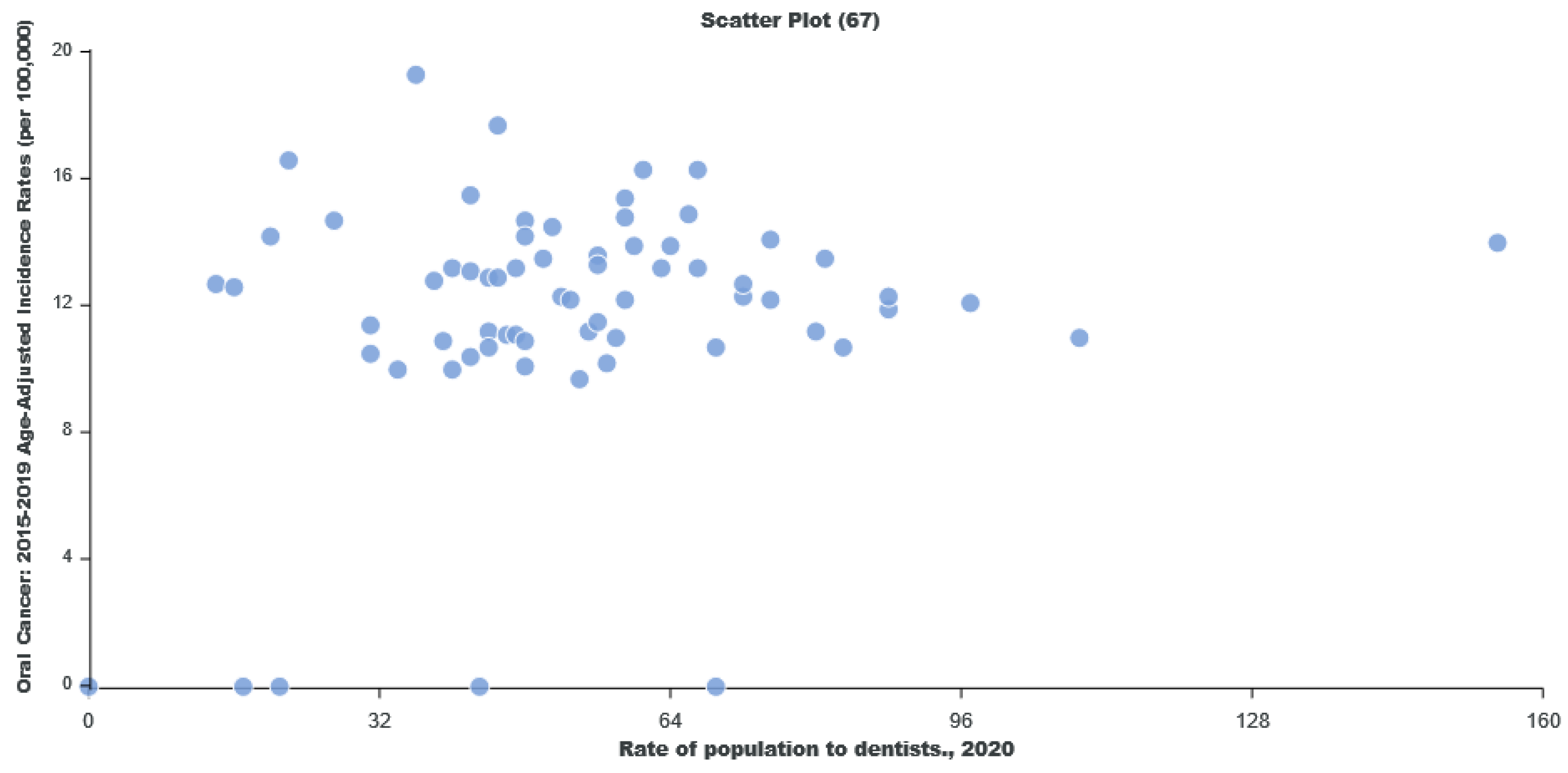

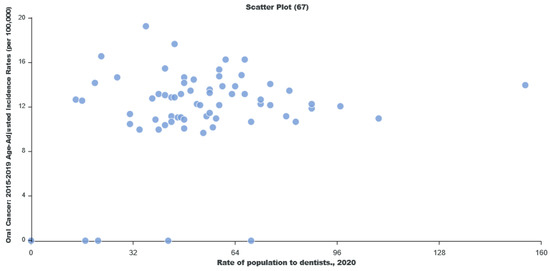

Figure 8. Scatter plot of prevalence of oral cancer incidence rate in comparison with population density of dentists.
Figure 8. Scatter plot of prevalence of oral cancer incidence rate in comparison with population density of dentists.
Geographies 03 00015 g008
Geographies 03 00015 g009 550

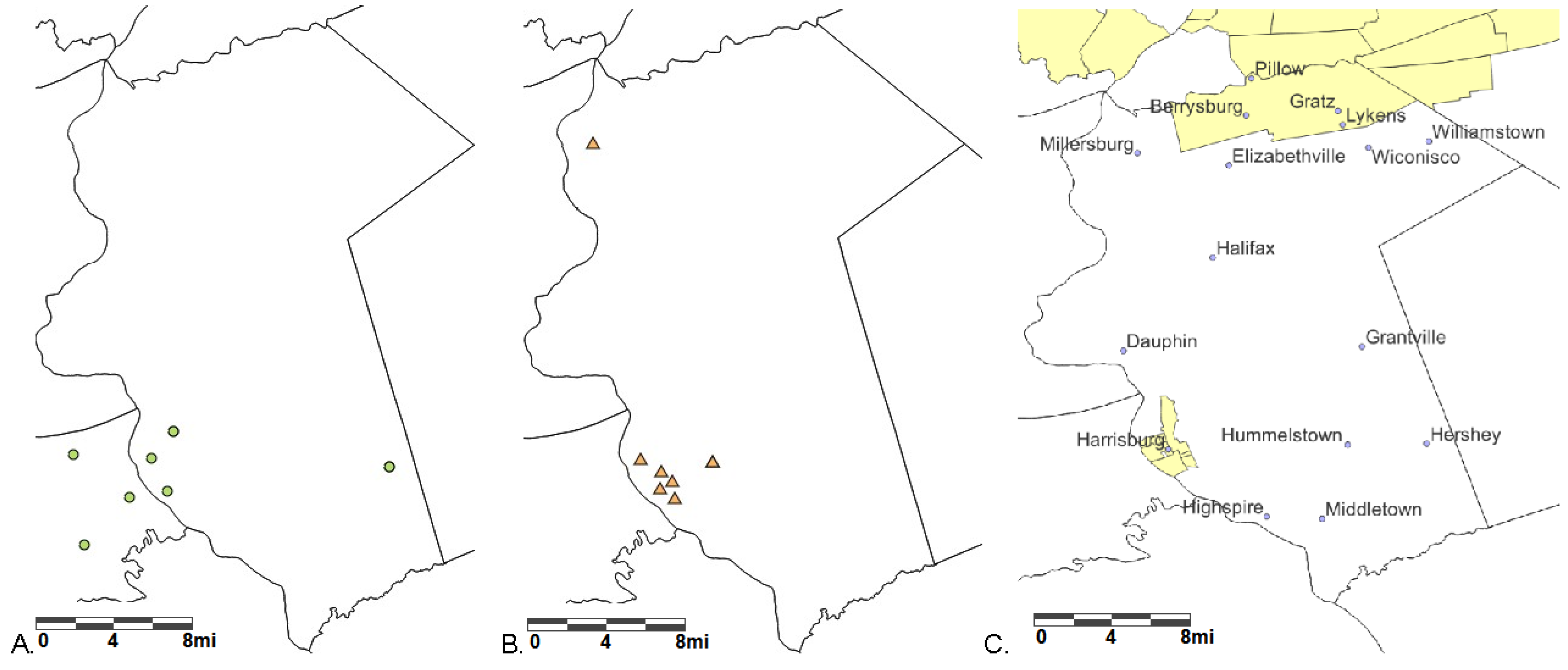

Figure 9. Providers in Dauphin County: (A) hospitals; (B) federally qualified health centers; and (C) medical underserved areas with cities and boroughs (1 mi ≅ 1610 m).
Figure 9. Providers in Dauphin County: (A) hospitals; (B) federally qualified health centers; and (C) medical underserved areas with cities and boroughs (1 mi ≅ 1610 m).
Geographies 03 00015 g009
Table
Table 1. JavaScript libraries and feedback form used in LionVu, as of 15 February 2023.
Table 1. JavaScript libraries and feedback form used in LionVu, as of 15 February 2023.
NameWebsiteDescription
Leaflet 1.9.3https://leafletjs.com/Open-source mapping JavaScript Library.
Leaflet.Browser.Print 2.0.2https://igor-vladyka.github.io/leaflet.browser.print/A Leaflet plugin that allows users to print full page maps directly from their browser.
Leaflet-Betterscale 2.0.1https://daniellsu.github.io/leaflet-betterscale/A better scalebar for Leaflet maps that is more GIS-like with alternating black/white bars.
Leaflet-control-topcenter 2.0.1http://fcoo.github.io/leaflet-control-topcenter/demo/Extend Leaflet to allow placement of controls in the top-center and bottom-center positions.
Leaflet.EasyButton 2.4.0cliffcloud.github.io/leaflet.easybutton/v1/Leaflet control buttons with icons and callbacks.
Leaflet.SvgShapeMarkers 1.4.0http://rowanwins.github.io/Leaflet.SvgShapeMarkers/Additional SVG marker types for Leaflet, such as triangle, diamond, and square.
Leaflet Legend 1.0.0https://ptma.github.io/Leaflet.Legend/Plugin for Leaflet that display legend symbols and toggles overlays.
Dom-To-Image 2.6.0https://github.com/tsayen/dom-to-imageA JavaScript library that can turn an arbitrary DOM node into a raster PNG image.
Geostats 2.0.0https://github.com/simogeo/geostatsA library for map classification and basic statistics.
Chroma 2.4.2https://www.vis4.net/chromajsA JavaScript library for color conversions and scales.
jQuery 3.6.3https://jquery.comA fast, small, and feature-rich JavaScript library.
jquery-fullscreen-plugin 1.1.5https://code-lts.github.io/jquery-fullscreen-pluginA jQuery plug-in that provides a way to control the new Fullscreen mode of modern browsers.
DataTables 1.13.1https://www.datatables.net/download/A jQuery plug-in that adds features to HTML tables.
Buttons 2.3.3https://www.datatables.net/download/A common framework for user interaction buttons.
Column Visibility 2.3.3https://www.datatables.net/download/End-user buttons to control column visibility.
HTML5 Export 2.3.3https://www.datatables.net/download/Copy to clipboard and create Excel, PDF, and CSV files from the table’s data.
ColReorder 1.6.1https://www.datatables.net/download/Click-and-drag column reordering.
Responsive 2.4.0https://www.datatables.net/download/Dynamically show and hide columns based on the browser size.
html2pdf 0.10.1https://ekoopmans.github.io/html2pdf.jsClient-side HTML-to-PDF rendering.
ApexCharts 3.37.0https://apexcharts.com/A modern and interactive open-source charts library.
sweetAlerts2 11.7.1https://sweetalert2.github.io/An accessible replacement for JavaScript’s popular boxes.
Feedback Formhttps://phppot.com/jquery/php-contact-form-with-jquery-ajax/PHP contact form with jQuery AJAX.
Table
Table 2. Data currently available in LionVu for visualization and analysis, as of 20 March 2023.
Table 2. Data currently available in LionVu for visualization and analysis, as of 20 March 2023.
Data TypeOrganizationData SourceTopicsYearGeographyWebsite
Health Outcomes & Access to CarePennsylvania
Department of Health		Enterprise Data Dissemination
Informatics
Exchange		Age-Adjusted
Cancer Mortality		2016–2020Countyhttps://www.phaim1.health.pa.gov/EDD/
Age-Adjusted Cancer
Incidence: Invasive, Early, & Late Stages		2015–2019County
County Health
Profile		Birth, Death, Cancer, Disease, Hospitalization, & Risks2022Countyhttps://www.health.pa.gov/topics/HealthStatistics
Cancer SurvivalCancer 5 Year Net Survival2021County
Healthcare
Facilities and
Licensing		Ambulatory Surgery Centers2022Pointhttp://www.pasda.psu.edu
Hospitals2022Point
Rural Health Centers2022Point
Food & Drug
Administration		Mammography
Facility Database		Mammography Locations2020Pointhttps://www.fda.gov
Penn State HealthLocationsInpatient, Outpatient, &
Outreach Sites		2022Pointhttps://www.pennstatehealth.org/locations
Health Resources & Services
Administration		Health
Underserved
Areas		Dental, Medical, Mental Health, & Physical Health2022Varioushttps://data.hrsa.gov/data/download
Health Center
Service Delivery &
Look-Alike Sites		Federally Qualified Health Centers & Look-Alike
Locations		2022Point
Socioeconomic & Environmental
Exposures		United States
Census Bureau		American
Community
Survey		Demographics, Social,
Economic, & Housing		2017–2021Countyhttps://data.census.gov
Small Area Health
Insurance
Estimates		Health Insurance by Age, Race, Sex, & Income2020Countyhttps://www.census.gov/programs-surveys/sahie.html
Environmental Protection AgencyEnvironmental Justice Screening
Mapping Tool		Environmental &
Socioeconomic Indicators		2022Census Tracthttps://www.epa.gov/ejscreen/
Agency for Toxic Substances & Disease RegistrySocial
Vulnerability
Index		Socioeconomics, Household, Racial Ethnic Minorities, Housing, & Transportation2020Census Tracthttps://www.atsdr.cdc.gov/placeandhealth/svi/
MultipleCounty Health
Rankings & Roadmaps		County Health
Ranking		Health Outcomes, Behaviors,
Clinical Care, Socioeconomic,
& Environmental		2022Countyhttps://www.countyhealthrankings.org
GeographicalUnited States
Census Bureau		TIGER/Line®
Shapefile		County or Census Tract Geographies; Land & Water Areas2022County
Census Tract		https://www.census.gov/geographies.html
Appalachian
Regional
Commission		Appalachian
Subregions		County Boundaries Filtered by Appalachian Subregion & Catchment Area, Pennsylvania2021Line Stringhttps://www.arc.gov
Table
Table 3. Comparison of ten web-GIS public health tools, as of 26 March 2023.
Table 3. Comparison of ten web-GIS public health tools, as of 26 March 2023.
NameWebsiteGeographyHealth Condition
LionVuhttps://app-phs.hmc.psu.edu/lionvu/PennsylvaniaHealth related data
Enterprise Data Dissemination Informatics Exchangehttps://www.phaim1.health.pa.gov/EDD/PennsylvaniaHealth related data
CDC: United States Cancer Statisticshttps://gis.cdc.gov/Cancer/USCSUSACancer
CDC: Diabetes Public Health Resourcehttps://www.cdc.gov/diabetesUSADiabetes
CDC: Division for Heart Disease and Stroke Preventionhttps://www.cdc.gov/dhdspUSAHeart disease stroke
CDC: Division of Oral Healthhttps://www.cdc.gov/OralHealthUSAOral health
EpiScanGIShttps://www.episcangis.org/GermanyMeningococcal
HealthMaphttps://www.healthmap.orgGlobalCOVID-19, influenza
Kentucky Cancer Registryhttps://www.cancer-rates.info/ky/KentuckyCancer
Florida Health Chartshttps://www.flhealthcharts.gov/FloridaHealth related data
Periscope Atlashttps://www.periscopeproject.euEuropeCOVID-19
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Geyer, N.R.; Lengerich, E.J. LionVu: A Data-Driven Geographical Web-GIS Tool for Community Health and Decision-Making in a Catchment Area. Geographies 2023, 3, 286-302. https://doi.org/10.3390/geographies3020015

AMA Style

Geyer NR, Lengerich EJ. LionVu: A Data-Driven Geographical Web-GIS Tool for Community Health and Decision-Making in a Catchment Area. Geographies. 2023; 3(2):286-302. https://doi.org/10.3390/geographies3020015

Chicago/Turabian Style

Geyer, Nathaniel R., and Eugene J. Lengerich. 2023. "LionVu: A Data-Driven Geographical Web-GIS Tool for Community Health and Decision-Making in a Catchment Area" Geographies 3, no. 2: 286-302. https://doi.org/10.3390/geographies3020015

APA Style

Geyer, N. R., & Lengerich, E. J. (2023). LionVu: A Data-Driven Geographical Web-GIS Tool for Community Health and Decision-Making in a Catchment Area. Geographies, 3(2), 286-302. https://doi.org/10.3390/geographies3020015

Article Metrics

Back to TopTop
