Technologies and Sensor Design for the Measurement of Ground Reaction Forces in Mice: A Review

Abstract

To better understand the pathophysiology and functional outcomes of musculoskeletal and neuromotor pathologies, research is often conducted in mice models. As a key component of such research, metrics of movement, loading, symmetry, and stability all have to be assessed, ideally requiring the measurement of 3D ground reaction forces, which can be difficult. While the measurement of ground reaction forces (GRF) is well developed for humans, appropriate devices for mice remain rare or inadequate. Such devices need to combine high sensitivity with small dimensions, especially when the forces for each individual paw should be measured. As preparation for building such a device that can measure 3D GRF per paw in mice in an upcoming study, this systematic review of the literature identified 122 articles and 49 devices that measured the ground reaction forces for mice and other small animals. Based on a variety of criteria, such as sensitivity and resonance frequency, the miniaturisation of each device and/or its capability to measure the three components of the ground reaction forces in individual paws were judged. The devices were consequently classified; eight devices were classified as “can be adapted”, nine as “hard to be adapted”, and 24 as “cannot be adapted”.

1. Introduction

The measurement of the ground reaction forces (GRFs) is used in a wide range of human movement studies, for instance, to investigate the internal forces in rehabilitation [1] or sports coaching [2,3], but importantly also to monitor the progression of musculoskeletal pathologies and neuromotor disorders [4,5]. When combined with spatiotemporal and kinematics parameters, GRFs allow the loading conditions acting on internal skeletal structures to be calculated [6], muscle activity to be assessed [7], and joint contact forces to be determined [8,9,10].

For many research questions, direct studies in humans would be unethical, and are thus performed in animal models instead [11,12]. Consequently, researchers are increasingly interested in applying movement analysis in animal models whenever it is ethical—particularly in mice—which represent about 95% of animal models. At our institute, researchers are investigating the effects of mechanical intervention therapies for improving bone properties and musculoskeletal regeneration [13,14]; measuring the GRFs per paw in mice before and after the interventions can help better qualify the results. While GRF measurement devices for human studies are plentiful and highly developed, options for mice and other small animals remain rare and inadequate.

For the direct measurement of GRFs in humans, two main techniques are used: instrumented shoes [15,16] and force plates [17]. While instrumented shoes could be made suitable for large animals by adapting the design to the animal’s paw [18], shoes are impractical for rodents, particularly because the sensor weights and sizes would impair the animal’s movement. Therefore, mice studies have used commercial or custom-built force plates to measure GRFs. However, all of these force plates are generally either limited in the number of GRF components or are unable to measure GRFs per individual paw. Similar to the importance of measuring the three components of the GRFs per leg in humans, measuring the three components of the GRFs per paw in mice is crucial for many studies. Knowledge of the GRFs per paw in rodents is essential for assessing gait symmetry and asymmetry [19], dynamic balance [20], and local tremor [21], while the 3D GRFs are essential for determining internal loads mainly using inverse dynamics [22]. So, while measurement of just one or two GRF components or the total GRFs over all paws is sufficient for some studies, many research questions can only be answered when 3D GRFs per individual paw are available.

Unfortunately, measuring GRFs for individual mouse paws is challenging due to the small size of the animal paw, which is only 17.5 mm in length [23], and the small forces in the range of 0.01 to 0.2 N [24]. One study was able to measure left/right side forces [25] by using two force plates side by side and forcing the mouse to walk centrally, in a way that its left paws fall on the left plate and its right paws fall on the right plate. Another study covered a large force plate (152.5 mm × 152.5 mm) with a walkway constructed of three separated wooden plates in which only the middle one was the same size as a mouse paw and was in direct contact with the force plate, another study was able to measure the GRFs for individual paws in mice [24]. However, such solutions remain non-optimal due to the use of large forces plates, hence restricting the assessment of multiple successive steps.

Therefore, this study reviews the force plates available for rodents and small animals and evaluates how easily they could be adapted towards a force plate design capable of measuring 3D GRFs in mice for each individual paw and successive steps.

2. Methods

2.1. Literature Selection

In this review of the literature, we investigated devices used for measuring GRFs in small animals (with an average weight of less than 1 kg) during functional movements. Figure 1 presents an overview of the systematic search process and the number of publications at each step.

We searched two databases (Pubmed and Web of Science) while restricting the publication year to the period between 1980 and 2020 and the language to English. The exact search strings contained the terms “ground reaction forces” and “small animals” combined with an AND operator. The synonyms of small animals, such as mice, rats, rodents, ants, frogs, lizards, geckos, birds, or insects, were added using the operator OR. We excluded cats, chicks, turkeys, rabbits, and dogs (all combined with an OR) from this study using the operator NOT. The research string was the following: ((Ground reaction forces) AND ((small animals OR mice OR rats OR rodents OR ants OR frogs OR lizards OR geckos OR birds OR insects) NOT (cats OR chicks OR turkeys OR rabbits OR dogs))), with adding “ALL=” for Web of Science. This initial search in PubMed and the Web of Science returned 417 possible publications. After removing duplicates and irrelevant literature (based first on the title and abstract, then the full text), 118 remaining articles were considered relevant. An article was considered relevant when it involved a direct measurement of GRFs, the measurement device was described in the article itself, or in a cited reference and the used animals that weighed less than 1 kg.

After manually reviewing the references cited in the remaining articles, the total number of included articles was 122.

2.2. Criteria for Platform Classification

We assessed the possibility of adapting the measurement technology for use in force plates to measure the three GRF components per paw in mice according to the following criteria:

-

Independent measurement of 3 orthogonal components of the GRF.

-

Determination of the centre of pressure (CoP).

-

Low ‘crosstalk’ between the components: where an upper limit of 3% crosstalk was considered acceptable [26].

-

Sensing technique (load cells, strain gauges, gelatin slabs, water sensors…) and how easily the technology can be adapted for use in the assessment of mice GRFs.

-

Sufficient sensitivity and resolution: the expected forces for a 20 g mouse are 0.01 N to 0.12 N for the vertical direction, 0.004 N to 0.036 N for the fore-aft direction, and 0.002 N to 0.02 N for the mediolateral direction [27]. Accordingly, the force plate needs to have a minimum resolution of 10 mN in the vertical direction and 2 mN for the horizontal directions, while for sensitivity, 10 V/N should be sufficient.

-

Linear response: According to the expected forces, the linear response should cover a range of about 0.008 N to 0.15 N for vertical forces and a range of 0.001 to 0.05 N for horizontal forces.

-

Uniform response over the plate surface: Previous research suggests a maximum variation of 3% for mice gait [26], even though the origin of this number was not further discussed.

-

High natural frequency: If the mouse gait contains any frequencies at the natural frequency of the plate, this will lead to resonance, which causes high noise or could even damage the mechanical structure. Thus, it is important to ensure that the plate’s natural frequency is well above any frequency components of the mouse movement under assessment. During mice gait, frequencies up to 30 Hz [28] can occur, and therefore, the natural frequency of the force plate should be at least 100 Hz.

-

Force plate size: A mouse hind paw about 17.5 mm long and about 5.8 mm wide [23], while the stride length is around 60 mm, which is defined as the distance from the centre of the front paw to the centre of the ipsilateral hind paw. So, in order to measure the forces per paw, the top plate on which the animal will step cannot be smaller than 18 mm to fit a whole paw and not bigger than 20 mm to avoid overlapping paws for full-width plates (three paws per stride length). If the separate left and right plates are used in the runway, the plates can be 30 mm long (two paws per stride length).

We finally present the classification on how easily a device could be adapted using the following scheme: (a) if one of the previous criteria could not be met without a fundamental change in the sensing technique or force platform architecture, the technique was categorised as “Cannot be adapted”; (b) if the required performance criteria could potentially be achieved, but would require substantial modification and success would remain uncertain, the technique was categorised as “Hard to adapt”; (c) if the required performance could likely be achieved by straight-forward improvements, the technique was categorised as “Can be adapted”; (d) if there was missing information about four or more of the previous criteria, the device was categorised as “Insufficient information”.

3. Results and Discussion

In this paper, we differentiate between running wheels (Table 1) and flat force plates (Table 2, Table 3 and Table 4) While the measuring principle is similar in both cases, in that the animal steps on a surface and the system measures the GRF applied to it, there are fundamental differences between walking/running on a rotating, movable surface vs. a flat fixed surface (overground movement) [29]. We furthermore categorised our results according to the GRF components the device could measure. Under each section, we present only the force plates classified as “can be adapted “and “Hard to adapt”, while the devices that were classified as “cannot be adapted” or “insufficient information” are presented in the Table 4. Since the sensing technique plays an important role in classifying the devices, a small explanation of the most used force sensors in the studied devices can be found in Box 1.

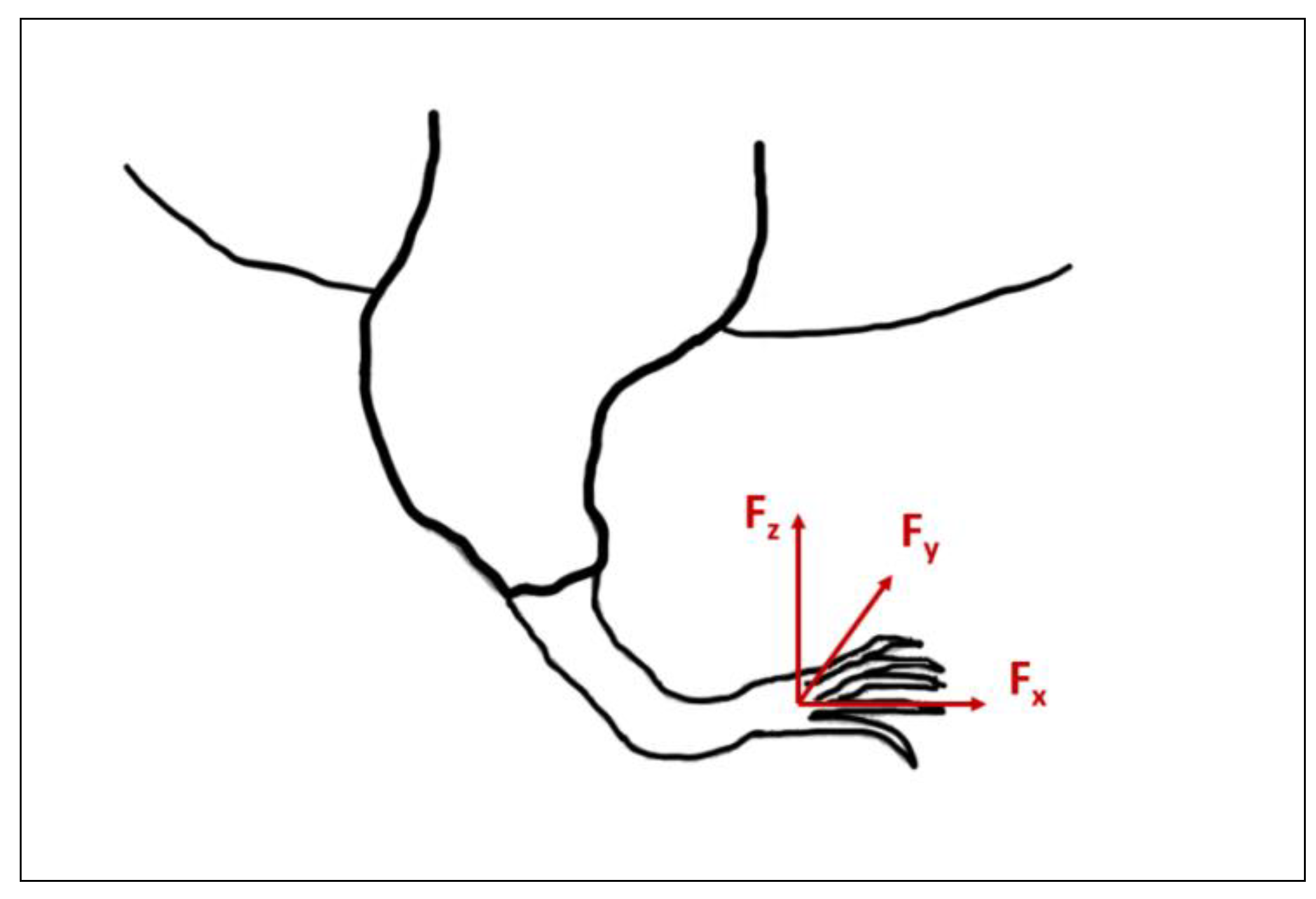

In this paper, the force components were defined as follows: F_z is the vertical component, F_x is the for-aft (anteroposterior) component, and F_y is the mediolateral component (Figure 2), similar to the reference [30]. The notation here may differ from some references.

Box 1. Force sensors.

Force sensors typically operate on the principle of measuring strain in a known material and then derive the applied force from this strain through the known stress-strain relationship. Strain is commonly measured using strain gauges, which come in a variety of technologies: Resistance strain gauges, for instance, consist of a metallic foil pattern on a flexible support. Because the support is flexible, applying a strain changes the geometry of the foil pattern and thus leads to a change in overall resistance. The resistance strain gauges, also called metal-foil strain gauges, are the most widespread type of strain gauges and often just called strain gauges. Semiconductor strain gauges, on the other hand, use a semiconductor material with a piezoresistive effect to measure strain. Here, it is not the geometry of a pattern that changes, but the resistance of the piezoresistive material itself changes when stress is applied. Compared to resistance strain gauges, semiconductor strain gauges offer higher measurement sensitivity but suffer from nonlinearity and temperature dependency. While resistance and semiconductor strain gauges are the most common types, there also exist other principles to measure strain. For example, in Hall effect strain sensors, a metallic strip and magnetic field are used to measure the position and thus strain. The hall effect sensors are quite robust and immune to vibration, but the accuracy of its measurement can be easily affected by external magnetic fields.

To measure forces, all types of strain sensors have to be fixed to an appropriate mechanical support structure and require the use of dedicated readout electronics such as bridge electronics or amplifiers. Load cells are an alternative to building a custom design using strain gauges. Load cells are force sensors, typically pairing resistance strain or piezoresistive strain gauges with a predefined support structure (and sometimes readout electronics), that are available as off-the-shelf components and directly measure applied force. While their performance depends on the design details, we consider load cells as a separate sensor category since their design makes them hard to adapt unless a sister device with appropriate specifications is offered by the manufacturer.

3.1. Running Wheels

A running wheel is an exercise device often used in rodent studies to investigate the effect of exercise on metabolism and obesity or to assess pain [31,32]. While most of these devices are plain, non-instrumented wheels, a few recent studies have developed running wheels that are able to measure the GRF during animal exercise (Table 1). The advantage of using running wheels for measuring GRFs is that the mouse voluntarily chooses to use the wheel [33]. This method is stress-free for the animal [33] compared to the use of flat force plates where the mouse generally has to be compelled to move by the researcher.

Table 1. The results for running wheels.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References
Fx and Fz	Resistance strain gauges		Vertical: 1.5%; Fore-aft: 38%	Tested between 10 mN and 402 mN		Strain magnitude varied linearly (R2 > 0.99)	A standard stainless-steel mouse running wheel	Mice	Cannot be adapted	[34]
Fx, Fy and Fz	Hall-effect sensors				94.3 ± 12.1 Hz		Running Wheel	Mice	Hard to adapt	[35]

Table 1. The results for running wheels.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References
Fx and Fz	Resistance strain gauges		Vertical: 1.5%; Fore-aft: 38%	Tested between 10 mN and 402 mN		Strain magnitude varied linearly (R2 > 0.99)	A standard stainless-steel mouse running wheel	Mice	Cannot be adapted	[34]
Fx, Fy and Fz	Hall-effect sensors				94.3 ± 12.1 Hz		Running Wheel	Mice	Hard to adapt	[35]

Two types of running wheels have been used to measure GRFs in mice: an upright running wheel with rods based on resistance strain gauges [34] and an angled running wheel based on the Hall effect [35]. The upright wheel measured two components of the GRF per paw during mouse movement, but video records showed occasional foot-slipping or misplacement on the wheel rungs, particularly in inexperienced animals. In addition, this wheel suffered from high crosstalk (tangential forces produced 38% crosstalk in the normal force measurement) and high noise. Adding a third spring blade to measure F_y, would likely result in a longer vertical spring blade that could interfere with the overall size of the wheel. Since it is hard to measure all three components without an important modification of the design, in addition to the high crosstalk, the upright running wheel was classified as “Cannot be adapted”. The angled running wheel measured three components of the GRF per paw and can measure GRFs of multiple paws simultaneously (contrary to the upright wheel). This design further improved on the upright running wheel by using an angled shape that reduces paw slippage and allows more natural running conditions [35]. This setup used Hall sensors instead of resistance strain gauges, which reduced the sensor noise (for more information about both technologies, please see Box 1). However, such angled running wheels were unable to determine the CoP and underestimated the contact times at low mouse speeds, hence resulting in less accurate stance and duty factor measurements. As the reason for this underestimation remains unclear, improvement may prove challenging. Furthermore, in order to measure the CoP, significant modifications, such as using a florescent pressure-sensitive material for the pads, would be required. Overall, this device was classified as “Hard to adapt”.

3.2. Flat Force Plates

In this section, we will present the flat force plates that had enough information to be classified. The devices under the category “insufficient information” in Table 4 will not be further discussed.

3.2.1. Devices That Can Measure Only the Vertical Component

Many force plates used for measuring GRFs in mice can measure only the vertical component of the force (Table 4). Measuring only the vertical GRF is sufficient if only the gait patterns or the maximum magnitude of the applied forces are needed, but it is not adequate for studying internal loading conditions since this requires the three components of the GRFs. Vertical component force plates have one basic design: a large plate with sensors fixed directly under it, typically four uniaxial load cells, one under each corner of the plate. The relatively large size of load cells makes it hard to miniaturise this kind of force plate, and using only one load cell instead of four will sacrifice the measurement of the CoP, which is essential for the majority of locomotion studies. Furthermore, to measure the three components of the GRF, the sensing technology would need to be changed.

In one study, the authors used strain gauges instead of load cells by placing one strain gauge under the corners of a mouse cage—while in this case, the miniaturisation would be easier than for load cells, the mechanical structure would need to be completely redesigned before strain gauges could be added to measure the other GRF components. Therefore, all the vertical GRF force plates were classified as “Cannot be adapted”.

3.2.2. Devices That Can Measure Two Components of the GRF

The mediolateral component Fy of the GRF in mice is usually the smallest of the three components (<5%–8% of body weight [26]. It is often neglected, and measurements are therefore presented only for the vertical and anterior-posterior forces, which explains the existence of two-component devices. However, neglecting the F_y component will introduce errors in the calculation of non-sagittal joint moments using inverse dynamics approaches, especially for joints that are more distant from the paws. Thus, while sophisticated musculoskeletal models of mice have been developed to study the role of knee joint loading and its relationship to osteoarthritis, investigating the medial-lateral distribution of the loads across the knee is not possible without accurate measurement of F_y [36,37]. Furthermore, mouse musculature volume measurements show that the hip rotators are actually stronger than the hip flexors and knee flexors, indicating the significant role that non-sagittal moments could play in mouse locomotion [38].

A force plate used to assess ground reaction forces in cockroaches [39] was based on a beam design with slots in different directions, onto which semiconductor strain gauges were attached. Its simple mechanical design explains the widespread usage of this force plate. It was used in chick studies after replacing the semiconductor strain gauges with resistance strain gauges [40]. In the cockroach study, this force plate was able to measure forces with a resolution of 4 mN [39], with low crosstalk (2%) and a high natural frequency of 400 Hz. The structure can be easily miniaturised, and a variation of this force plate that can measure all three GRF components already exists [26] (see the strain gauge based devices section). Therefore, this force plate was considered suitable for GRF measurement in mice and was classified as “Can be adapted”.

The force plate presented by Heglund [41] was made of two perpendicular spring blades that were fixed horizontally to the plate at one end and to a base support at the other end, such that the plate was suspended. Strain gauges were attached to the spring blades structure. Such force plate designs have been used for the study of kangaroo rats [42,43]. Measuring 250 mm × 250 mm, this design has a high natural frequency of 180 Hz but also a high crosstalk of 16%. The sensitivity and the range of linearity were not stated in the original references. Importantly, the kangaroo rats used in this study weighed 94 g to 125 g, which is considerably higher than that of a mouse (approximately 20 g). It is, therefore, hard to judge whether this force plate could be suitable for mice. Adding a third measurement axis to this design would be relatively easy: a vertical spring blade could be added to the structure, but this modification might decrease the natural frequency of the force plate. As a result of the uncertainty of the modifications outcome, this force plate was considered “Hard to adapt”.

Using microfabricated strain sensors, an ant study [44] created a miniaturised force plate array with a high resolution of 1 μN and a high natural frequency of 560 Hz. While building a larger version of this force plate for mouse paws should be unproblematic, measurements of the lateral force Fy would require a fundamental change of the plate design. Therefore, this force plate was classified as “Hard to adapt”.

In their study involving crayfish, Klarner and Barnes [45] presented a force plate that also measured two GRF components: F_z and either F_x or F_y, depending on the mounting orientation of the device. Based on resistance strain gauges attached to an L shaped beam with cavities, the plate was also sufficiently small (14 mm × 14 mm) to measure single paws in mice. While the article did not specify the sensitivity and measurement range, this study measured forces of about 86 mN, which is comparable to values required for mice studies (200 mN). Because the natural frequency remains unknown, and because simultaneous measurement of F_x and F_y would require drastic changes in architecture, this force plate was considered “Hard to adapt”.

A study on local tremor in mice presented an opto-mechanical device that measured the two in-plane components F_x and F_y, but not F_z [46]. This force plate used infrared diodes and phototransistors to measure the movement of the mechanical structure in each direction, offering a high resolution of 1 mN with a natural frequency of 100 Hz. With a sensor size of 1.5 cm [21], it would appear to be suited for measuring the GRF per paw in mice. As discussed by the authors, adding a transducer to measure the vertical component would be straight-forward [46]. However, this three-component device would still be unable to measure the COP, as this would require four sensors for the vertical forces. In order to measure the CoP, more than one transducer should be added, possibly making the size of the plate excessive for GRF measurement in mice. For this reason, we considered this force plate “Hard to adapt”.

Devices that use gelatine slabs were considered as “cannot be adapted” [47,48] because the slabs do not provide sufficient stability for mouse walking. Similarly, a force plate with 0.1 mm plate thickness used to study ants [49] is too thin to support a mouse weight, and a thicker plate would decrease the low natural frequency of 80 Hz leading to a risk of resonance and hence alter the measurement characteristics of this device. Therefore, this device was also classified as “cannot be adapted”. The specifications of these force plates, as well as those that had insufficient information, can be found in Table 4.

Table 2. Devices that can measure two components of the GRFs and were classified as “can adapted” or “hard to adapt”.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation Across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References and Remarks
Fz and Fx	Semiconductor strain gauges	Resolution 0.5 mN	<2%	In the range 0.001–0.1 N	400–650 Hz	Less than 7%	107 mm × 60 mm	Cockroach	Can be adapted	[39,50,51]
	MEMS Piezoresistive strain gauges	Resolution 1 μN			560 Hz		2 mm × 0.98 mm	Ants	Hard to adapt	[44]
	Resistance strain gauges		<2%		180 Hz (the large plates) 300 Hz (the lighter plates)	2%	Runway each plate 250 mm × 250 mm	Kangaroo rats	Hard to adapt	[41,42,43]
Fx and Fy	IR-emitting diode and a phototransistor	Resolution 1 mN		Linear in the range of ±100 µm	100 Hz		150 mm in diameter	Mice	Hard to adapt	[21,28,46,52]
Fz and (Fx or Fy)	Resistance strain gauges		5%			11%	Area 220 mm2	Crayfish	Hard to adapt	[45]

Table 2. Devices that can measure two components of the GRFs and were classified as “can adapted” or “hard to adapt”.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation Across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References and Remarks
Fz and Fx	Semiconductor strain gauges	Resolution 0.5 mN	<2%	In the range 0.001–0.1 N	400–650 Hz	Less than 7%	107 mm × 60 mm	Cockroach	Can be adapted	[39,50,51]
	MEMS Piezoresistive strain gauges	Resolution 1 μN			560 Hz		2 mm × 0.98 mm	Ants	Hard to adapt	[44]
	Resistance strain gauges		<2%		180 Hz (the large plates) 300 Hz (the lighter plates)	2%	Runway each plate 250 mm × 250 mm	Kangaroo rats	Hard to adapt	[41,42,43]
Fx and Fy	IR-emitting diode and a phototransistor	Resolution 1 mN		Linear in the range of ±100 µm	100 Hz		150 mm in diameter	Mice	Hard to adapt	[21,28,46,52]
Fz and (Fx or Fy)	Resistance strain gauges		5%			11%	Area 220 mm2	Crayfish	Hard to adapt	[45]

3.2.3. Devices That Can Measure Three Components of the GRF

• Load-cell based devices

The most common force plates in human kinesiology are based on three-axis load cells fixed underneath a plate (Table 4). Devices in this category include commercial products (e.g., by Kistler, AMTI, etc.) but also custom-built force plates [53,54]. These devices exist in many variations and can measure all three GRF components, have high sensitivity, low cross talk, and a high natural frequency. Due to their large size (the smallest force plate in this group measures approximately 150 mm × 150 mm), they are only suited for full body GRF measurement over multiple steps. However, no force plate is yet small enough to measure individual steps in mice, which is required when studying the mechanics of individual limbs. Here, the limiting factor for miniaturisation is the relatively large size of the load cell; the smallest sensors available on the market have a diameter of circa 17 mm. Therefore, the force plate cannot easily be shrunk to measure individual mouse paws and reducing the number of loading cells to make the force plate smaller would entail giving up the capability to determine the COP. Consequently, we classified these devices as “Cannot be adapted”.

• Resistance and semiconductor strain gauge based devices

In contrast to load cells, resistance strain gauges (metallic) and semiconductor strain gauges (piezoresistive) typically have flexible support, which can be mounted on almost any kind of flat surface. They are small, with dimensions in the millimetre-range. Their flexibility and small size allow a variety of 3D sensor designs for small applications. More information on these technologies can be found in Box 1.

Strain gauge technologies have been implemented in force plates to study rats [27,55], chicks [40,56], geckos [57], as well as in cockroaches [39], albeit as an adaptation of the two-component force plate discussed above. While the gecko force plate used semiconductor strain gauges and reached a range of measurement of 0.001–0.1 N, the chick [56] and rat [27] force plates used metal strain gauges to reach 0.1–4 N. The natural frequency was high in all the force plate variations (≥240 Hz), with reported crosstalk values below 5%. The design of the force plate can be miniaturised, and by replacing the strain gauges with a model more suitable for the mice measurement range (e.g., a model with higher resistance), this force plate could be adapted to measure the GRF per paw in mice. Such a modification of the resistance strain gauge model was successfully undertaken to measure force in vampire bats [58]. This device had a natural frequency of 128 Hz, which remains sufficiently high for mice studies. Furthermore, as vampire bats (30 g) have comparable weights to mice (20 to 25 g), the force plate sensitivity and measurement range should be sufficient for one paw mice studies. We thus classify this group of force plates as “Can be adapted”.

In a study on locusts [59], a design similar to that used for cockroach studies was used, but instead of having four connected beams (each with three semiconductor strain gauges), it used only one perpendicular beams structure with six semiconductor strain gauges: two for each direction. The authors reported a sensitivity of 12.60 V/N, a natural frequency of 527 Hz and a crosstalk of 3%. The measurements of 150 mm × 75 mm suggest that this solution could also be reduced to measure mouse paws. Moreover, the use of four of these sensors under a single plate would allow the measurement of COP. Therefore, this force plate was classified as “Can be adapted”.

A force plate that was used to capture GRFs in lizards [60] and frogs [61] was based on resistance strain gauges on a T-shaped beam structure under a 30 mm × 30 mm plate. This beam structure was either used in a vertical orientation to measure climbing animals [60,62] or in a horizontal orientation for studies on frog jumps or gecko gait [63,64]. The device has a sufficiently high natural frequency of 277 Hz and a resolution of about 2 mN. The reported crosstalk (<5%), while in an acceptable range, would require improvement. This kind of mechanical structure could indeed be suitable for mouse GRF measurements, and by decreasing the load carrier size, this device could be used to measure GRFs in mice per paw. Therefore, this force plate was considered “Can be adapted”.

Semiconductor strain gauges have also been attached to a perpendicular beams structure to assess GRFs in ants [30], which have an average weight of 20 mg [65]. With a plate size of 4 mm × 4 mm, a resolution up to 1 µN, and a natural frequency of 280 Hz, this platform could be suitable for mice. However, due to the big weight and size difference between ants and mice, some modification would be needed (e.g., the size of the plate needs to be bigger to fit the mouse paw size), and more tests would be required to ensure the stability and rigidity of this force plate when a mice moves over it. We tentatively classify this force plate as “Can be adapted”.

Another force plate based on semiconductor strain gauges was used in stick insects studies [66,67]. It had a plate size of 5 mm × 5 mm and used a perpendicular blade structure that host the semiconductor strain gauges. This device had a resolution of 0.05 mN, which would be well suitable for mice measurements. However, since the stability and rigidity of the plate when used with mice remains unclear and the natural frequency was unreported, we classify this device as “Hard to adapt”.

A modification of a two components force plate described above [41] allowed the measurement of the three components and was used in lizard studies [68,69]. Based on resistance strain gauges attached to a spring blade structure, the force plate had a resolution of 15 mN. While the size of the plate was 200 mm × 600 mm, which is too big to measure GRFs in mice per paw, miniaturisation of this force plate should be possible based on the mechanical structure and the sensing technique. However, the natural frequency was not reported for this design, and it is hard to foresee how the required modification and miniaturisation would affect the device characteristics. Therefore, this force plate, similar to the previous one, was classified as “Hard to adapt”.

Another force plate in the strain gauge category is the octagonal rings force plate. Two versions of this force plate were used to study lizards and birds, respectively [70]. The difference between the two versions was mainly the size of the components, based on the size of the animal under investigation. The force plates contained four flexible octagonal rings, on which the resistance strain gauges were attached; these rings were then mounted under the four corners of the force plate. The version for lizards reported a higher resolution: 0.026 N in the Z, 0.062 N in the X, and 0.095 N in the Y direction, but these values are insufficient for mice studies, especially for the horizontal directions. Additionally, no information about the natural frequency was given. In order to adapt this force plate, some modifications would be needed in order to improve the sensitivity (changing the material or the thickness of the structure), and further testing would be required in order to ensure that the natural frequency is sufficiently high. Due to the needed modification and the lack of information about the natural frequency, we classified this device as “Hard to adapt”.

Table 3. Devices that can measure three components of the GRFs and were classified as “can adapted” or “hard to adapt”.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation Across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References and Remarks
Fv, Fx, and Fy	Resistance strain gauges	8.5 V/N in the Z direction and 5.0 V/N in the Y and X directions	Between vertical and lateral 2%	In the range of 0.1 to 4 N			105 mm × 105 mm	Rats	Can be adapted	[26,27,55,71,72,73,74,75,76,77,78,79,80,81] Was also used in runways
	Resistance strain gauges	Resolution 500 mN	<5%	In the range of 0.1 to 4 N	240 Hz	<7%	100 mm × 80 mm	Chicks	Can be adapted	[26,40,56]
	Resistance strain gauges		16% between horizontal directions		≥128 Hz		74.6 mm × 155 mm	Vampire bats	Can be adapted	[58,82]
	Resistance strain gauges	Resolution 2 mN in the X and Y directions and 3 mN in the Z direction	<5%		277 Hz		30 mm × 30 mm	Lizard Frog	Can be adapted	[60,61,62,63,64,83,84,85]
	Semiconductor strain gauges		<5%	In the range of 0.0001–0.1 N	400 Hz		110 mm × 60 mm	Gecko	Can be adapted	[57]
	Semiconductor strain gauges	Resolution Fx = 5.4 μN, Fy = 2.9 μN and Fv = 10.8 μN	4%–6%.		201 Hz		4 mm × 4 mm	Ants	Can be adapted	[30,65,86,87]
	Semiconductor stain gauges	Sensitivity 12.60 V/N	3%		527 Hz		15 mm × 7.5 mm	Locust	Can be adapted	[59,88]
	Resistance strain gauges	Resolution 15 mN					200 mm × 600 mm	Lizard	Hard to adapt	[68,69]
	Resistance strain-gauges	Resolution 0.026 N, in the Z direction, 0.062 N in the X direction, and 0.095 N in the Y direction	3.2% of vertical in the X direction and 4.4% of the vertical force in the Y direction					Lizard	Hard to adapt	[70] Supplementary information of [70]
		Resolution 0.05 N in the Z direction, 0.03 N in the X direction, and 0.02 N in the Y direction	Vertical force was 3.2% in the X direction and 4.4% in the Y direction					Bird	Hard to adapt
	Semiconductor strain gauges	Resolution 0.05 mN					5 mm × 5 mm	Stick insect	Hard to adapt	[66,67,89,90]
	Semiconductor strain gauges for X and Y directions + Water pressure sensors for the Z-direction			In the range 0–3 mN for the X and Y directions and in the range 0–5 mN for the Z direction				Stick insect and cockroaches	Hard to adapt	[91]
	MEMS piezoresistive strain gauges	Sensitivity of 55 V/N in the vertical direction and 12 V/N in horizontal directions		Linear in the in range of 1–100 mN	900 Hz		5.3 mm square plate	Cockroach	Hard to adapt	[92]

Table 3. Devices that can measure three components of the GRFs and were classified as “can adapted” or “hard to adapt”.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation Across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References and Remarks
Fv, Fx, and Fy	Resistance strain gauges	8.5 V/N in the Z direction and 5.0 V/N in the Y and X directions	Between vertical and lateral 2%	In the range of 0.1 to 4 N			105 mm × 105 mm	Rats	Can be adapted	[26,27,55,71,72,73,74,75,76,77,78,79,80,81] Was also used in runways
	Resistance strain gauges	Resolution 500 mN	<5%	In the range of 0.1 to 4 N	240 Hz	<7%	100 mm × 80 mm	Chicks	Can be adapted	[26,40,56]
	Resistance strain gauges		16% between horizontal directions		≥128 Hz		74.6 mm × 155 mm	Vampire bats	Can be adapted	[58,82]
	Resistance strain gauges	Resolution 2 mN in the X and Y directions and 3 mN in the Z direction	<5%		277 Hz		30 mm × 30 mm	Lizard Frog	Can be adapted	[60,61,62,63,64,83,84,85]
	Semiconductor strain gauges		<5%	In the range of 0.0001–0.1 N	400 Hz		110 mm × 60 mm	Gecko	Can be adapted	[57]
	Semiconductor strain gauges	Resolution Fx = 5.4 μN, Fy = 2.9 μN and Fv = 10.8 μN	4%–6%.		201 Hz		4 mm × 4 mm	Ants	Can be adapted	[30,65,86,87]
	Semiconductor stain gauges	Sensitivity 12.60 V/N	3%		527 Hz		15 mm × 7.5 mm	Locust	Can be adapted	[59,88]
	Resistance strain gauges	Resolution 15 mN					200 mm × 600 mm	Lizard	Hard to adapt	[68,69]
	Resistance strain-gauges	Resolution 0.026 N, in the Z direction, 0.062 N in the X direction, and 0.095 N in the Y direction	3.2% of vertical in the X direction and 4.4% of the vertical force in the Y direction					Lizard	Hard to adapt	[70] Supplementary information of [70]
		Resolution 0.05 N in the Z direction, 0.03 N in the X direction, and 0.02 N in the Y direction	Vertical force was 3.2% in the X direction and 4.4% in the Y direction					Bird	Hard to adapt
	Semiconductor strain gauges	Resolution 0.05 mN					5 mm × 5 mm	Stick insect	Hard to adapt	[66,67,89,90]
	Semiconductor strain gauges for X and Y directions + Water pressure sensors for the Z-direction			In the range 0–3 mN for the X and Y directions and in the range 0–5 mN for the Z direction				Stick insect and cockroaches	Hard to adapt	[91]
	MEMS piezoresistive strain gauges	Sensitivity of 55 V/N in the vertical direction and 12 V/N in horizontal directions		Linear in the in range of 1–100 mN	900 Hz		5.3 mm square plate	Cockroach	Hard to adapt	[92]

Table 4. Devices in the “cannot be adapted” and “insufficient information” catagories.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation Across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References and Remarks
Fz	Uniaxial load cell	Resolution 0.02 N		Range of measurement 0–2.5 N			Force plate 300 mm × 300 mm	Mice	Cannot be adapted	[93,94,95,96]
	Uniaxial load cell	Sensitivity: 112, 410 mV/kN					Force plate 460 mm × 510 mm	Rats	Cannot be adapted	[97]
	uniaxial load cells						Force plate 177.8 mm × 177.8 mm	Mice Rats	Cannot be adapted	[98,99]
	Uniaxial lBased i1oad cell			Linear between 0–1.94 N			Runway of 1000 mm–1200 mm length and adjustable width		Cannot be adapted	[100,101,102,103,104]
	Strain gauges load cell						Runway of 420 mm with four force plate of 38 mm × 30 mm each	Mice	Cannot be adapted	[105]
	load cells 5-OMEGA, model LCL-227G						Elevated force plates 40 mm × 40 mm each	Rats	Cannot be adapted	[106]
	Resistance strain gauges		<2%	linearity 99%			Glass plate under the mouse cage	Mice	Cannot be adapted	[107]
Fz and Fx	Semiconductor strain gauges				80 Hz		5 mm × 5 mm	Ants	Cannot be adapted	[49]
	Gelatin slab (Photoelastic material) between polarizing filter and a light source)						102 mm × 305 mm 286 mm × 286 mm 245 mm × 245 mm	Cockroaches	Cannot be adapted	[47,48]
	Uniaxial force sensors							Beetles	Insufficient information	[108]
	Strain gauges							Caterpillars	Insufficient information	[109,110]
	Strain gauges							Rats	Insufficient information	[111]
Fv, Fx and Fz	Load cell (Kistler platform 9286A)	Resolution Fz < 250 mN	<0.05% between vertical and lateral	Linearity of 0.5% for a range of −2.5 kN to 2.5 kN for lateral direction and a range of 0 to 10 kN for the vertical direction	200 Hz		400 mm × 600 mm	Rats	Cannot be adapted	[112] data sheet of Kistler 9286A
	Load cell	Sensitivity 2 mV/V					Runway with four force plate	Rats	Cannot be adapted	[113]
	Load cell (kistler, type 9251A)	Resolution 0.01 N	1% between vertical and lateral	Range of measurement 0–2500 N			Runway 1200 mm × 88 mm	Rats	Cannot be adapted	[114,115] Datasheet
	Load cells						Runway of 760 mm × 80 mm	Rats	Cannot be adapted	[11,25,116,117]
	Load cell FT3/10 ATI	Resolution 0.01 N					Runway of four separated force plates	Rats	Cannot be adapted	[118,119,120,121]
	Load cell FSG15N1A Honeywell	Sensitivity 0.24 V/N		The measuring range of 0–1500 g			Sensor array in a runway of 125 mm × 75 mm	Rats	Cannot be adapted	[122] Datasheet
	Load cell Nano43, ATI Industrial Automation	Resolution 1/512 N						Rats	Cannot be adapted	[123] Sensor Specifications
	Load cell (nano 17, ATI)	Resolution 1/160 N					70 mm × 150 mm	Rats	Cannot be adapted	[124] Sensor Specification
	Load cell (ATI nano17)	Resolution 300 mN			200 Hz		80 mm × 9 mm	Small Birds/Lizard/Frogs	Cannot be adapted	[125,126,127,128,129,130]
	Load cell AMTI MC3A-100	Sensitivity Fv = 1.35 µV/(V × N), Fx = Fy 5.4 µV/(V × N)	<2%		300 Hz		150 mm × 150 mm	Frog	Cannot be adapted	[54,131]
	Load cell kistler force plates	threshold Fz <250 mN	<2%	In the range of 2.5 to 2.5 kN in X and Y and 0 to 10 kN in Z	200 Hz		400 mm × 600 mm	Birds	Cannot be adapted	[132] + data sheet of Kistler 9286A
	Load cell kistler force plates	Resolution ±0.01 N			200 Hz		200 mm × 100 mm	Birds	Cannot be adapted	[53]
	Load cell Bertec force plate	Sensitivities 5 mN for horizontal and 10 mN for vertical force components		The measurement range −10 to 10 kN	800 Hz		400 mm × 600 mm 150 mm × 150 mm	Birds	Cannot be adapted	[133,134,135] [53,136]
	Hall Effect (HE6X6 by AMTI)	Resolution 2.5 mN	1% in the X and Y and 2% in the Z direction		38 Hz		152 mm × 152 mm 105 mm × 110 mm	Rats Mice	Cannot be adapted	[24,137,138,139,140,141,142,143,144,145,146,147]
	Load cell						600 mm × 600 mm	Marmosets	Insufficient information	[148]
	Strain gauges						600 mm × 200 mm	Lizards	Insufficient information	[69]
	Strain gauges						cylindrical sensitive region of 38 mm	Opossums	Insufficient information	[149,150]
	Not mentioned	Resolution 1 mN						Locust	Insufficient information	[151]

Table 4. Devices in the “cannot be adapted” and “insufficient information” catagories.

GRF Components	Sensing Techniques	Sensitivity/Resolution	Crosstalk	Linearity of the Response	Natural Frequency	Variation Across the Platform	Shape and Size	Application	Complexity Level of Adaptation	References and Remarks
Fz	Uniaxial load cell	Resolution 0.02 N		Range of measurement 0–2.5 N			Force plate 300 mm × 300 mm	Mice	Cannot be adapted	[93,94,95,96]
	Uniaxial load cell	Sensitivity: 112, 410 mV/kN					Force plate 460 mm × 510 mm	Rats	Cannot be adapted	[97]
	uniaxial load cells						Force plate 177.8 mm × 177.8 mm	Mice Rats	Cannot be adapted	[98,99]
	Uniaxial lBased i1oad cell			Linear between 0–1.94 N			Runway of 1000 mm–1200 mm length and adjustable width		Cannot be adapted	[100,101,102,103,104]
	Strain gauges load cell						Runway of 420 mm with four force plate of 38 mm × 30 mm each	Mice	Cannot be adapted	[105]
	load cells 5-OMEGA, model LCL-227G						Elevated force plates 40 mm × 40 mm each	Rats	Cannot be adapted	[106]
	Resistance strain gauges		<2%	linearity 99%			Glass plate under the mouse cage	Mice	Cannot be adapted	[107]
Fz and Fx	Semiconductor strain gauges				80 Hz		5 mm × 5 mm	Ants	Cannot be adapted	[49]
	Gelatin slab (Photoelastic material) between polarizing filter and a light source)						102 mm × 305 mm 286 mm × 286 mm 245 mm × 245 mm	Cockroaches	Cannot be adapted	[47,48]
	Uniaxial force sensors							Beetles	Insufficient information	[108]
	Strain gauges							Caterpillars	Insufficient information	[109,110]
	Strain gauges							Rats	Insufficient information	[111]
Fv, Fx and Fz	Load cell (Kistler platform 9286A)	Resolution Fz < 250 mN	<0.05% between vertical and lateral	Linearity of 0.5% for a range of −2.5 kN to 2.5 kN for lateral direction and a range of 0 to 10 kN for the vertical direction	200 Hz		400 mm × 600 mm	Rats	Cannot be adapted	[112] data sheet of Kistler 9286A
	Load cell	Sensitivity 2 mV/V					Runway with four force plate	Rats	Cannot be adapted	[113]
	Load cell (kistler, type 9251A)	Resolution 0.01 N	1% between vertical and lateral	Range of measurement 0–2500 N			Runway 1200 mm × 88 mm	Rats	Cannot be adapted	[114,115] Datasheet
	Load cells						Runway of 760 mm × 80 mm	Rats	Cannot be adapted	[11,25,116,117]
	Load cell FT3/10 ATI	Resolution 0.01 N					Runway of four separated force plates	Rats	Cannot be adapted	[118,119,120,121]
	Load cell FSG15N1A Honeywell	Sensitivity 0.24 V/N		The measuring range of 0–1500 g			Sensor array in a runway of 125 mm × 75 mm	Rats	Cannot be adapted	[122] Datasheet
	Load cell Nano43, ATI Industrial Automation	Resolution 1/512 N						Rats	Cannot be adapted	[123] Sensor Specifications
	Load cell (nano 17, ATI)	Resolution 1/160 N					70 mm × 150 mm	Rats	Cannot be adapted	[124] Sensor Specification
	Load cell (ATI nano17)	Resolution 300 mN			200 Hz		80 mm × 9 mm	Small Birds/Lizard/Frogs	Cannot be adapted	[125,126,127,128,129,130]
	Load cell AMTI MC3A-100	Sensitivity Fv = 1.35 µV/(V × N), Fx = Fy 5.4 µV/(V × N)	<2%		300 Hz		150 mm × 150 mm	Frog	Cannot be adapted	[54,131]
	Load cell kistler force plates	threshold Fz <250 mN	<2%	In the range of 2.5 to 2.5 kN in X and Y and 0 to 10 kN in Z	200 Hz		400 mm × 600 mm	Birds	Cannot be adapted	[132] + data sheet of Kistler 9286A
	Load cell kistler force plates	Resolution ±0.01 N			200 Hz		200 mm × 100 mm	Birds	Cannot be adapted	[53]
	Load cell Bertec force plate	Sensitivities 5 mN for horizontal and 10 mN for vertical force components		The measurement range −10 to 10 kN	800 Hz		400 mm × 600 mm 150 mm × 150 mm	Birds	Cannot be adapted	[133,134,135] [53,136]
	Hall Effect (HE6X6 by AMTI)	Resolution 2.5 mN	1% in the X and Y and 2% in the Z direction		38 Hz		152 mm × 152 mm 105 mm × 110 mm	Rats Mice	Cannot be adapted	[24,137,138,139,140,141,142,143,144,145,146,147]
	Load cell						600 mm × 600 mm	Marmosets	Insufficient information	[148]
	Strain gauges						600 mm × 200 mm	Lizards	Insufficient information	[69]
	Strain gauges						cylindrical sensitive region of 38 mm	Opossums	Insufficient information	[149,150]
	Not mentioned	Resolution 1 mN						Locust	Insufficient information	[151]

4. Synopsis

In this paper, we have reviewed the technologies and devices that were used to assess GRFs in rodents and small animals in order to find a device that could be adapted for measuring the three components of the GRF for individual steps in mouse gait. From 49 studied devices, we classified eight as “Can be adapted”, nine as “Hard to adapt”, 24 as “Cannot be adapted”, and the rest were classified as “Insufficient information”.

The main decisive factors for the classifications turned out to be miniaturisation and sensitivity, which are both highly linked to the underlying sensing technique. Load cells are generally bulky and have a minimal size that is too large to measure individual mouse paws for consecutive steps. Consequently, all eight of the devices categorised as “Can be adapted” were based on strain gauges. Four of those devices were based on resistance strain gauges [27,56,58,60], and four devices on semiconductor strain gauges [30,39,57,59]. Both types are available in small sizes of a few millimetres, and thus, force plates using strain gauges can often be simply scaled down. While semiconductor strain gauges have about fifty times higher gauge factors than resistance strain gauges, they suffer from a higher sensitivity to temperature variations, a higher temperature drift, and a non-linear resistance-strain relation. For these reasons, it is preferable to use metal strain gauges, as long as their sensitivity is sufficient. For the vertical forces arising in mouse gait (between 0.01 N and 0.2 N), the sensitivity of metal strain gauges is sufficient, while the situation is less clear for the smaller horizontal forces (between 0.002 N and 0.03 N). Here, semiconductor strain gauges can be used to increase sensitivity, or the mechanical structures can be optimised to produce higher strains for the applied load in the horizontal directions. The ideal mechanical structure would thus have a high strain per applied load, but such a design is compromised by the need to be sufficiently rigid to not disturb the mouse during walking. While the design utilised to measure GRFs in ants [30] might be more susceptible to breakage, the other four sensor designs [26,56,59,60] all appear to be suitable choices.

In summary, to measure 3D GRFs for individual paws during mouse gait, we recommend adapting one of the four structures outlined in [26,56,59,60] using resistance strain gauges. The structure in the locust study [59] was used only with semiconductor strain gauges, and therefore sufficient sensitivity cannot be guaranteed when combined with metal strain gauges instead. On the other hand, the structures used in the rat, lizard, and chick studies [26,56,60] were already constructed with metal strain gauges, and thus their sensitivity after adaptation is likely to be sufficient. For our upcoming study, which will measure GRFs in mice per paw before and after bone surgery, we have chosen to adapt the mechanical design of the locust study [59] and to use resistive strain gauges as a sensing technique. Nevertheless, no matter what design is chosen, the miniaturised needs to be tested extensively to ensure the quality of the measurement, particularly the effect of changing the dimensions of the plate on the natural frequency and the sensitivity, as well as the position of the sensors on the uniformity of the measurement.
