Search Strategy for Buried Objects in Water: Geophysics, Probes and Dogs

Abstract

The aqueous search for objects covered by sediment is a common and challenging problem. Here we outline a sequential methodology for the assessment of targets identified by sub-bottom profiling. This comprises desktop study of available data; background hydrological information gathering (bathymetry, sediment cover, water chemistry); acoustic sub-bottom imaging (water-penetrating radar, sonar); geolocation and probing of sub-bottom anomalies; and deployment of suitable scent dogs. This procedure creates a hierarchy of targets for examination by dive teams and thence recovery.

1. Background to the Issue

Probes are commonly used in terrestrial search, both to assess ground conditions [1,2] and often conjunctively to vent gases for search dogs [3,4,5]. The search of aqueous environments for human remains [6] may seem a counterintuitive environment in which to use probes. However, archaeological studies such as in Winton (2019 [7] and in our water-search casework has consistently shown that a water-bottom object can be covered by sediment, precluding the use of underwater cameras and sonar and limiting the work of dive personnel. This may occur through natural processes of siltation, sedimentation accelerated by climate change, land use alterations [8], or intentionally at landfill sites and in rare cases by the perpetrator. Should the water-covered and sediment-buried object (e.g., a human cadaver [9]) degrade over time, then this problem of detection is exacerbated. Thus when standard water searches (divers, dogs, sonar) are inconclusive, yet background information (sometimes, ‘intelligence’ or offender profiling ‘data’—author parentheses) is indicative of a water deposition site and thus the target covered by sediment, the only remaining options are the use of ground-penetrating radar (more correctly, water-penetrating radar [10]) or (as is seen frequently in news reports) draining of the site, then fingertip search/archaeological excavation.

2. Example Case That Demonstrates the Issue

In this case of accidental drowning in a lake in Ireland, a fisherman was reported missing in 2005. Background information from financial records moved the search of the lake to a missing persons enquiry involving possible fraud, as the man’s transactions showed activity after his disappearance. These subsequently transpired to be erroneous (a relative was using his bank card), thus some four years after he went missing, a renewed search of the lake was made by the police and volunteer search teams, using sonar (Figure 1) and water-trained search dogs. The dogs consistently indicated a specific location in the lake, yet the sonar showed only sediment: a dive team was deployed, and using a fingertip search, came across fishing tackle (initially a float and line, which led to a rod). With further arm extension into the lake bottom silt, the body of the man was found and recovered: without the fortuitous discovery of the fishing tackle, this may never have been achieved.

3. Recommended Equipment and Methods

When a search of water is initiated and sediment build-up is thought likely, or observed visually (in clear water by eye, or by underwater camera/sonar), then the possibility of a sub-sediment target maybe assumed if the background information is strong enough to warrant further searching. The initial stage in such an operation is completion of as full a desktop study as possible [11] including: solid/drift geology, hydrology, historic land use, recent land use (commonly, orthoimagery) and most critical for geophysics and probe use, bathymetry [12]. When the standard options of sonar (see above), dive teams and water-trained scent dogs are exhausted or too complex, then the methodology proposed here should be considered. First, some form of sediment profiling device(s) be it either acoustic [7], such as a sub-bottom profiler (e.g., GeoPulse or StataBox); CHIRPS (compressed high intensity radar pulse, for example, Edgetech or Pinger) when searching salt/brackish/fresh or polluted water, or water-penetrating radar (WPR—terrestrial radar such as Sensors & Software, Mala Geoscience or GSSI placed in a suitable vessel [9]) in freshwater only. Such devices provide targets in the water column—but also most relevant here, in the sediment subsurface below: see Figure 2.

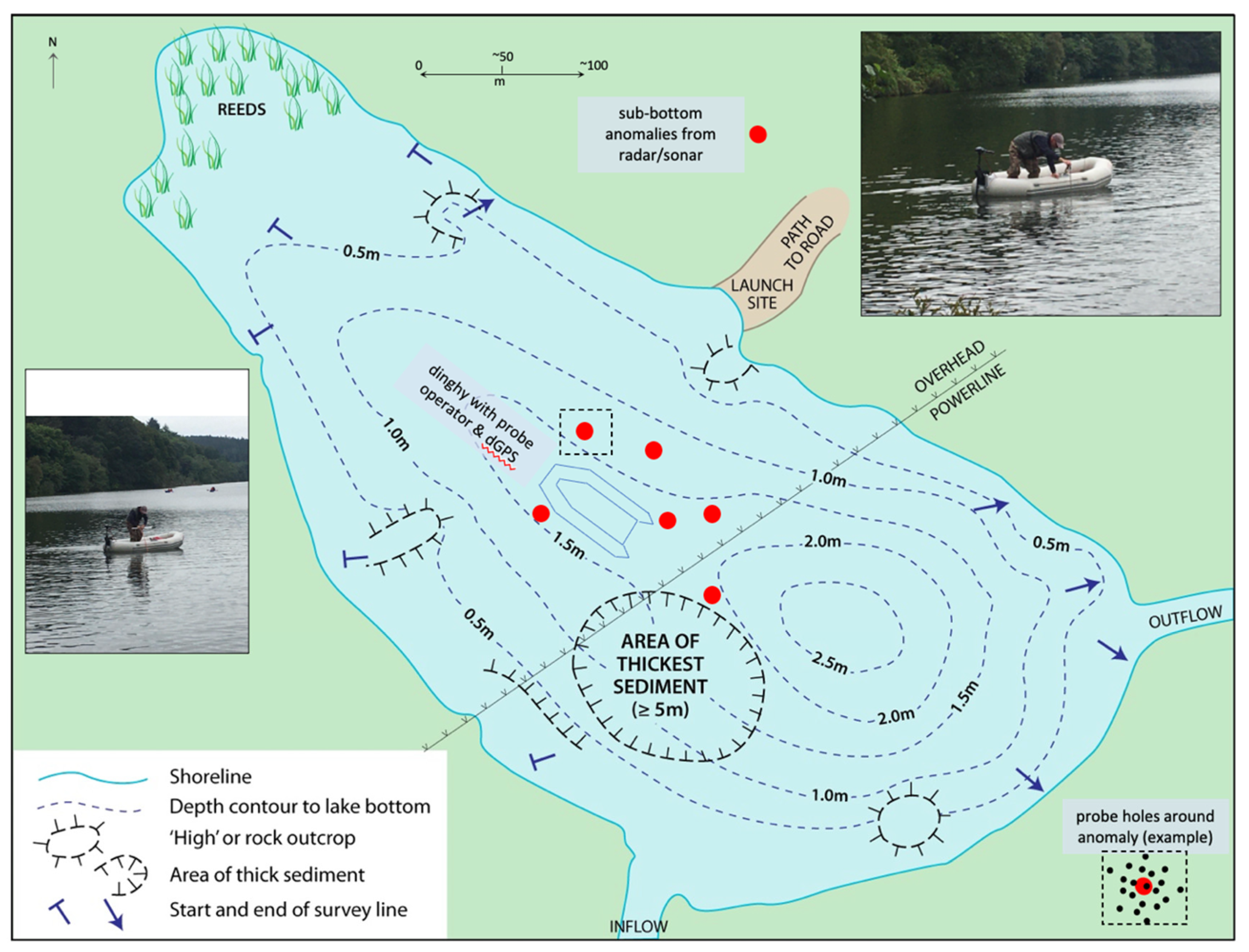

The problem is what to do with such multiple targets, such as we see in Figure 2. This leads to the second stage in the methodology: the use of the probe, before which, water samples that may be used for VOC (volatile organic compound) or isotope analysis may be taken [13]. Sub-bottom anomalies are marked on the water surface by buoys on thin line and small weights, recorded by dGPS. We then probe over and into these anomalies on a rough 10 to 20 cm lateral spacing to the depth of the top of each anomaly (Figure 3): this minimises the problems of penetrating the target [14], yet maximises the chance of gas (scent) emission for the search dogs.

Any probe will suffice; we favour steel-tipped, and ideal are the van Walt peat probes (Figure 4), which come in 75 cm length extensions: probes longer than ~2 m become unwieldy in a small boat, and potential hazards to boat users that may pierce inflatable craft. Prior to deployment of water-trained scent dogs [15], buoys maybe removed and their general location sailed over in a zig-zag manner from downwind to upwind; or buoys may be left, but control or ‘dummy’ buoys placed over areas with no sub-bottom anomalies as internal tests for the dog(s) and handlers—both remove bias and have advantages and disadvantages. A more focused search will then begin, starting from somewhere upwind of the designated search area, then zig zagging downwind where a ‘no-indication’ response would be expected until the emerging scent cone is again detected by the dog [15].

The effectiveness of water search dogs is, however, dependent on the appropriateness of the training aids used in their preparation [16,17,18]. For example, the odours of human decay are closely mirrored by those of human blood [16,17,18]. It is recommended that blood used in this capacity is best stored for up to 6 weeks at 4 °C or room temperature but not frozen [18]. On the other hand, and where legislation permits, human remains rather than porcine or chemically manufactured training aids are more apposite [17,18].

4. Recommendations

The overall principles for using sonar, CHIRP, WPR, probes and water-deployed scent dogs are individually reviewed in published literature [2,3,19,20]. This work provides the first account of integrating these assets in the search for water-sunken and sediment-buried objects, most specifically, human remains. In death-related investigations, a multi-proxy approach such as we outline is (in our experience) considered good practice, in order to decrease the possibility of false-positives from any one method: no doubt other techniques, such as UAV-operated underwater cameras (in clear water), can be added. A suggested workflow for the application of our methods may comprise the steps below.

• Background information (formerly known as ‘intelligence’) from search authorities (search and rescue; law enforcement; humanitarian organisations) is received—providing an indication of the search area.
• Search area defined by specialists, considering hazards, water chemistry (e.g., conductive seawater/brackish water/ polluted areas), size/makeup of target.
• Reconnaissance sonar of water body and its base gathered by boat or UAV/drone [12]: may provide an ‘easy win’ in location of the missing object/person.
• Simultaneous gathering of CHIRP and radar (both can be deployed from one boat) data, viewed in real time with anomalies marked by dGPS and buoys.
• Buoys should be subtle but observable from the water, with controls at locations with no anomaly, to avoid unconscious bias by dog and dog-handler.
• Repeated sonar/CHIRP/WPR surveys over marked anomalies, to improve location accuracy—repositioning of buoys if needed.
• Evaluation of anomalies, with a hierarchy of likely targets based on reflection characteristics, dimensions, depth, spatial location in the water body (close to shore, covert, access via perpetrator boat etc.).
• Probing of sediment above and to the top of target anomalies (as in Figure 3): observation of gas bubble release.
• Deployment of water-trained scent dogs 5 to 20 min after probing (depending on gas release): best practice being two or more dogs, each taken individually by boat and moved in a zig-zag manner from downwind of the target to upwind. The other dog(s) remain out of sight and earshot to be deployed independently [3,4,15].
• No consistent dog indication over targets allows buoys to be removed (locations are known from dGPS and stored in a geographic information system). If an individual object such as one human cadaver is the target, combined background, geophysical anomaly and dog indication are usually sufficient in terrestrial searches to prompt forensic archaeological investigation. In this work, this would involve divers investigating the sediment by hand, or the construction of a coffer dam to isolate water from the location and allow excavation by trained archaeologists/anthropologists/disaster victim response personnel.

5. Further Work

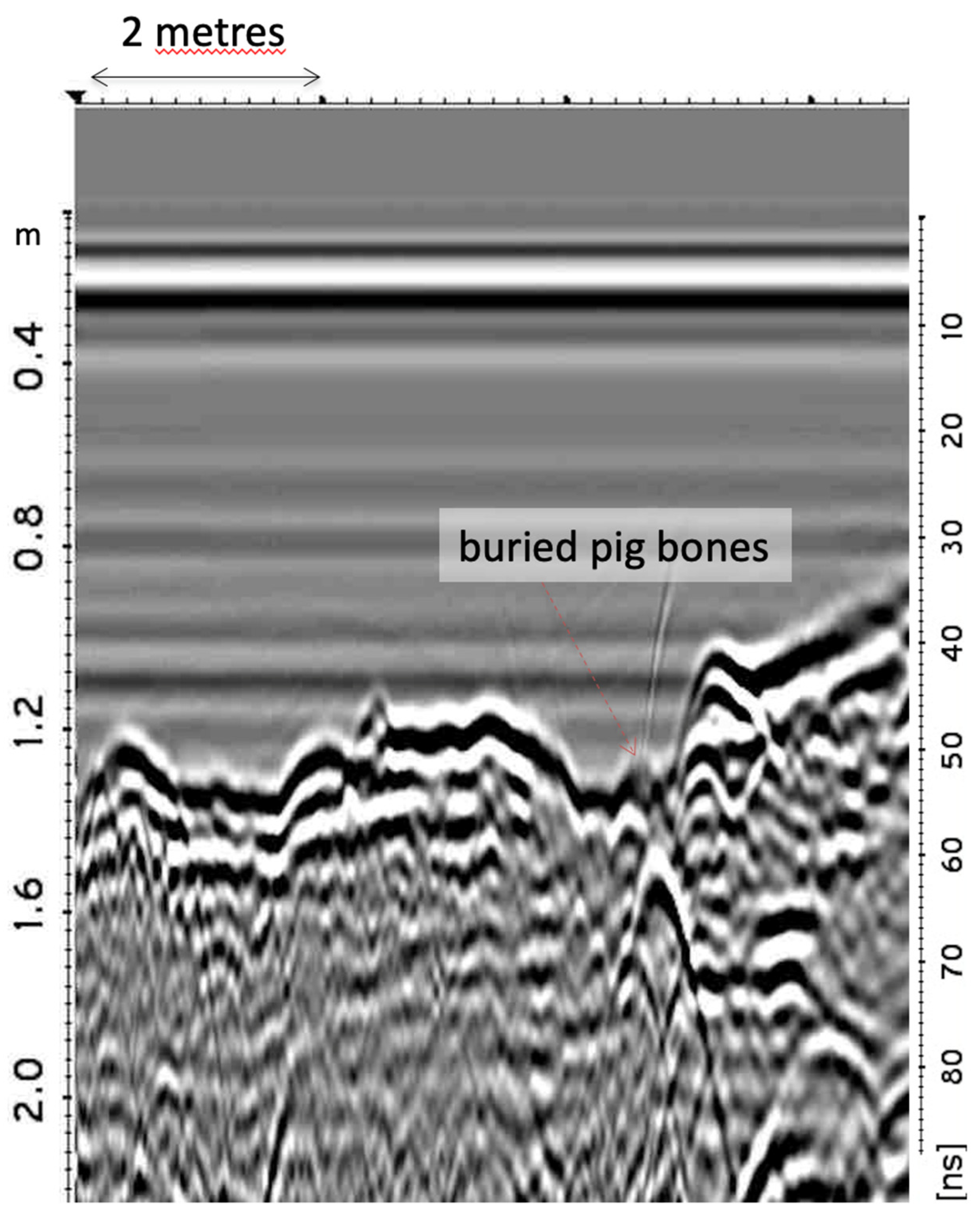

Whilst acoustic sub-bottom profiling devices may be used in any aqueous environment, data acquisition may be impeded or completely eliminated by weed growth and gas bubbles [20], while WPR does not suffer this limitation. Conversely, WPR is only successful in freshwater; even estuarine, brackish water becomes conductive enough to stop radar wave penetration and reflection. A future test of this proposed methodology may compare acoustic and radar responses from a forensic target or targets, just as Fuchs et al. [19] did for sedimentological studies of Swiss lakes. As with all geophysics, the balance between resolving target size and depth, but also target type and surrounding sediment, remains a problem. A small (e.g., less than 1 m) target with good contrast to surrounding sediments (e.g., containing metal, gas, non-skeletonised remains) be it chemical or physical, will become hard to image at more than a few metres’ depth. Likewise, targets with similar properties to the enclosing sediment may prove invisible: on the same search as shown in Figure 2, a minor target contact was made (Figure 5).

Due to its location at a canal access point, police divers used the anomaly as a test location and recovered pig (Sus scrofa, prob. domesticus) bones in a degraded bag with stones, some 15 cm under the sediment surface. Compared to the more apparent targets found in the survey, this would have been unlikely as a priority search location, the radar interpreter dismissing it as a human artefact from canal use or discard, or rock of dissimilar different makeup to the sediment. In retrospect, the search advisor may have been dismayed to see tens of buoys at this search location, following sub-bottom WPR or sonar surveys: yet when the speed and ease (usually) of probing soft sediment is considered, and the trained dog(s) eliminating targets, so this number diminishes to fewer locations, each of which has a GPS point or buoy for a dive/body recovery team.
