Advanced Prussian Blue Cathodes for Rechargeable Li-Ion Batteries

Abstract

Taking advantage of fact that the surface electrons of metallic nanoparticles (NPs) can be effectively released even at a low voltage bias, we demonstrate an improvement in the electrochemical performance of nanosized Prussian Blue (PB)-based secondary batteries through the incorporation of bare Ag or Ni NPs in the vicinity of the working PB NPs. It is found that the capacity for electrochemical energy storage of the 17 nm PB-based battery is significantly higher than the capacity of 10 nm PB-based, 35 nm PB-based or 46 nm PB-based batteries. There is a critical PB size for the highest electrochemical energy storage efficiency. The full specific capacity C_F of the 17 nm PB-based battery stabilized to 62 mAh/g after 130 charge–discharge cycles at a working current of I_W = 0.03 mA. The addition of 14 mass percent of Ag NPs in the vicinity of the PB NPs gave rise to a 32% increase in the stabilized C_F. A 42% increase in the stabilized C_F could be obtained with the addition of 14 mass percent of Ag NPs on the working electrode of the 35 nm PB-based battery. An enhancement in C_F was also found for electrodes incorporating bare Ni NPs but the effect was smaller.

1. Introduction

Although the Li-ion battery has become the most commonly used power source in portable electronic devices, efforts to enhance the cyclability of secondary batteries toward extending their cycle life and increasing their energy content continue [1,2,3,4]. It is the repeated extraction and restoration of electrochemical energy in the solid electrode that makes a battery reusable [5,6,7,8]. Prussian Blue analogues (PBAs) with the general chemical formula AM[M′(CN)₆] (A, alkali metal; M and M′, transition metal; hereafter denoted as A-MM′) [9,10] have been favored as promising active materials for cathodes [11,12,13,14,15]. The three-dimensional open channels in A-MM′s, enclosed by the MN₆-M′C₆-MN₆-M′C₆ octahedral chains along the three crystallographic directions, allow for the migration of weakly bonded ions through the channels for energy extraction and restoration [16,17,18,19,20,21,22,23]. The voids for accommodating alkali ions in the open channels of the PBAs are uniformly distributed and spacious enough to receive ions as large as K⁺. There are two possible redox active sites, Mⁿ⁺-M⁽ⁿ⁺¹⁾⁺ and M′ⁿ⁺-M′⁽ⁿ⁺¹⁾⁺, in A-MM′. As a Li⁺-ion rechargeable battery, the reactions of $2\mathrm{L}\mathrm{i}\to {2\mathrm{L}\mathrm{i}}^{+}+{2\mathrm{e}}^{-}$ at the anode coupled to the reactions of ${2\mathrm{L}\mathrm{i}}^{+}+{2\mathrm{e}}^{-}+\mathrm{M}\left[{\mathrm{M}}^{\prime }{\left(\mathrm{C}\mathrm{N}\right)}_6\right]\to {\mathrm{L}\mathrm{i}}_2\mathrm{M}\left[{\mathrm{M}}^{\prime }{\left(\mathrm{C}\mathrm{N}\right)}_6\right]$ at the cathode provide a transport pathway for the Li⁺-ions for electrical conduction which are stored on the A-MM′ in the discharge process. The reversal reactions of ${\mathrm{L}\mathrm{i}}_2\mathrm{M}\left[{\mathrm{M}}^{\prime }{\left(\mathrm{C}\mathrm{N}\right)}_6\right]\to {\mathrm{M}\left[{\mathrm{M}}^{\prime }{\left(\mathrm{C}\mathrm{N}\right)}_6\right]+2\mathrm{L}\mathrm{i}}^{+}+{2\mathrm{e}}^{-}$ at the cathode coupled to the reactions of ${2\mathrm{L}\mathrm{i}}^{+}+{2\mathrm{e}}^{-}\to 2\mathrm{L}\mathrm{i}$ at the anode provide a pathway for Li⁺-ions to return to the anode in the charge process. Theoretically, when fully redox active, each site can provide a specific capacity of 170.8 mAh/g during the charging–recharging cycle [24]. However, most PBAs give a specific capacity that is considerably smaller than 170.8 mAh/g [24], showing that only a portion of the metal ions are redox active. A high specific capacity that can reach 140 mAh/g has been reported in K-CuFe with a Li-ion organic electrolyte, but the capacity decreases significantly with cycling due to the instability of the reduced state [16,17,18,19]. Stabilization of the reduced states through the application of a coating of stable K-NiFe onto high-capacity K-CuFe has been demonstrated to improve cycle stability [25]. It has been shown that the capacity of K-NiFe with organic electrolytes does not fade over 100 cycles [26,27]. Various approaches, such as employing nanosized [27,28,29], core–shell [26,27,28,29,30], Ni-doped [31], polymer-coated [32,33,34] or carbon-coated [35] PBAs, have been taken to improve cycle stability.

The transferring of H₂O onto A sites and the replacement of M′(CN)₆ by (H₂O)₆ are unavoidable when the co-precipitation method is employed for synthesis. The intake of H₂O onto A sites reduces the number of sites available for A⁺ restoration, while intake onto the M′ sites weakens the redox capability at the M′-C sites. These naturally occurring structural imperfections limit the redox capability of PBA as a cathode material. One way to provide additional electrons to facilitate redox activity in the PBAs is through the incorporation of metallic nanoparticles, where surface electrons are weakly bonded to the NPs. Recently, we have demonstrated that the addition of bare Ag or Ni NPs into the vicinity of the nanosized K-CoCo or Na-CoFe particles can effectively improve the electrochemical performance of the batteries, leading toward a higher energy storage capacity [36]. In this study, we focus on the influence of particle size of the host Na-FeFe NPs in the cathode compact on the electrochemical performance of the batteries upon the addition of Ag or Ni NPs, and demonstrate that there is a critical Na-FeFe size to achieve the highest electrochemical energy storage efficiency.

2. Materials and Methods

2.1. Synthesis of Prussian Blue Nanoparticles

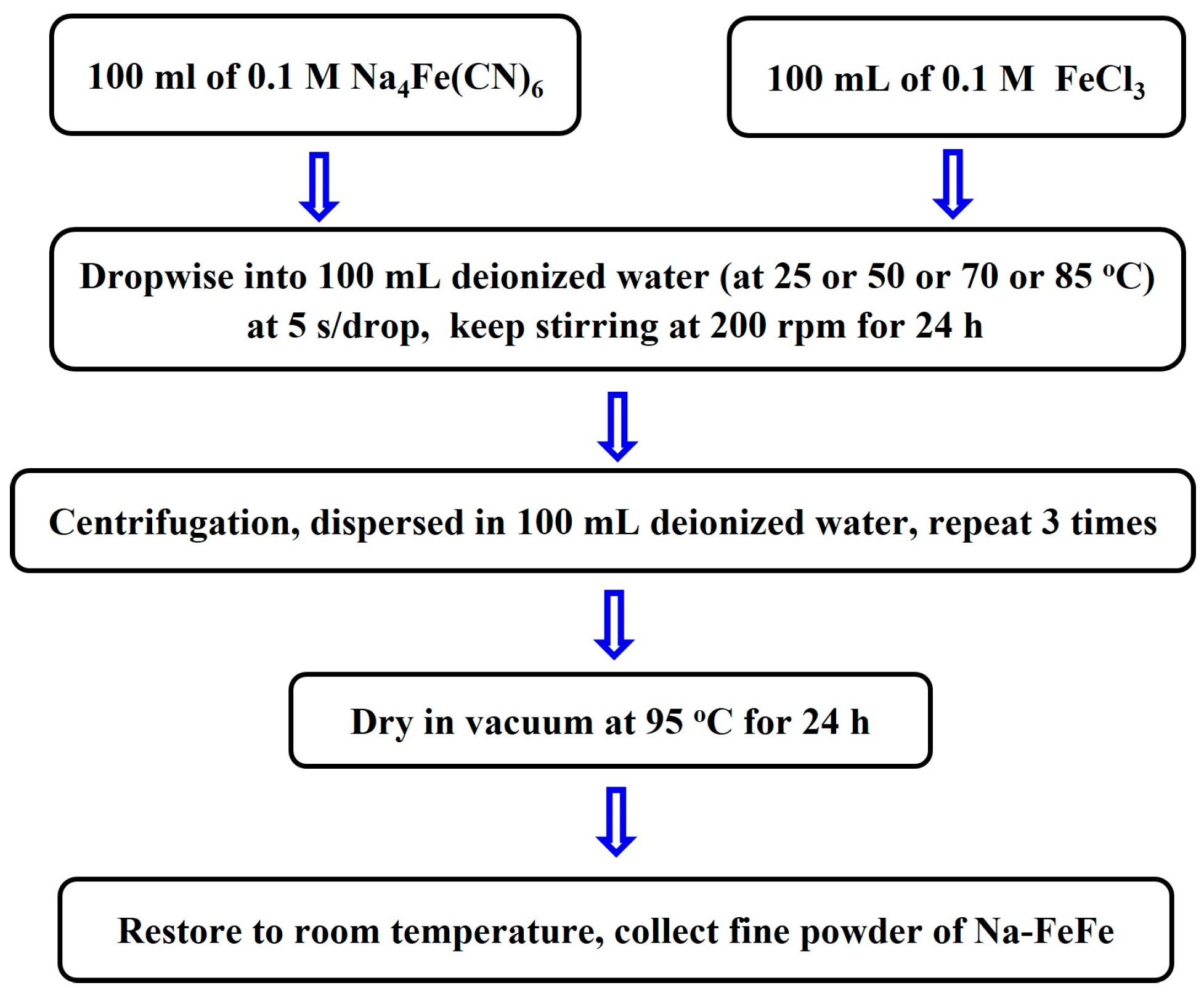

Four sets of Na-FeFe NPs were synthesized by the co-precipitation method. All reagents were purchased from Alfa-Aesar, Acros-Organics or Nihon-Shiyaku and used without further purification. The deionized water used in the synthetic procedures was obtained from a Milli-Q-Gard purification system. Fast PES Bottle Top Filters with a 0.45 μm pore size obtained from Nalgene were used during the synthesis process. Two separate solutions of 0.1 M Na₄Fe(CN)₆ and 0.1 M FeCl₃ were simultaneously dropped at a rate of 5 s/drop into deionized water maintained at a temperature of 25, 50, 70 or 85 °C, as illustrated in Figure 1. Each solution was slowly stirred at 200 rpm for another 24 h after the addition of the reaction solution was completed. The microcrystalline powder was isolated from the solution through centrifugation before being washed and redispersed in 100 mL of deionized water. This washing process was repeated three times before the wet, muddy powder was dried at 95 °C in a vacuum for 24 h.

2.2. Synthesis of Ag and Ni Nanoparticles

The Ag/Ni NPs were fabricated by employing the gas condensation method. High-purity Ag/Ni ingots (0.6 g, 99.99% pure, ~2 mm in diameter) were heated by a current source of 65/50 A and were evaporated at a rate of 0.05 Å/s in an Ar atmosphere of 1.5 torr. The evaporated particles were collected on a non-magnetic SS316 stainless steel plate placed 20 cm above the evaporation source, maintained at 77 K. After natural cooling to room temperature, the NPs, which were only loosely attached to the collector, were stripped off in a N₂ atmosphere. The samples thus fabricated were in powdered form, consisting of macroscopic amounts of individual Ag/Ni NPs.

2.3. X-ray Diffraction

The X-ray diffraction measurements were performed on a Bruker D8 ADVANCE diffractometer, employing reflection geometry with an incident wavelength of λ = 1.5406 Å from a Cu target and collimation slits of 0.3 mm in width before and after the sample was positioned. For each measurement, ~0.1 g of the sample was shaped into a width of ~1 mm to receive the whole of the X-ray beam at all scattering angles.

2.4. Transmission Electron Microscopy Images

The transmission electron microscopy (TEM) images were taken on a JOEL 200CX, operated at an acceleration voltage of 160 kV.

2.5. X-ray Photoemission Spectrum

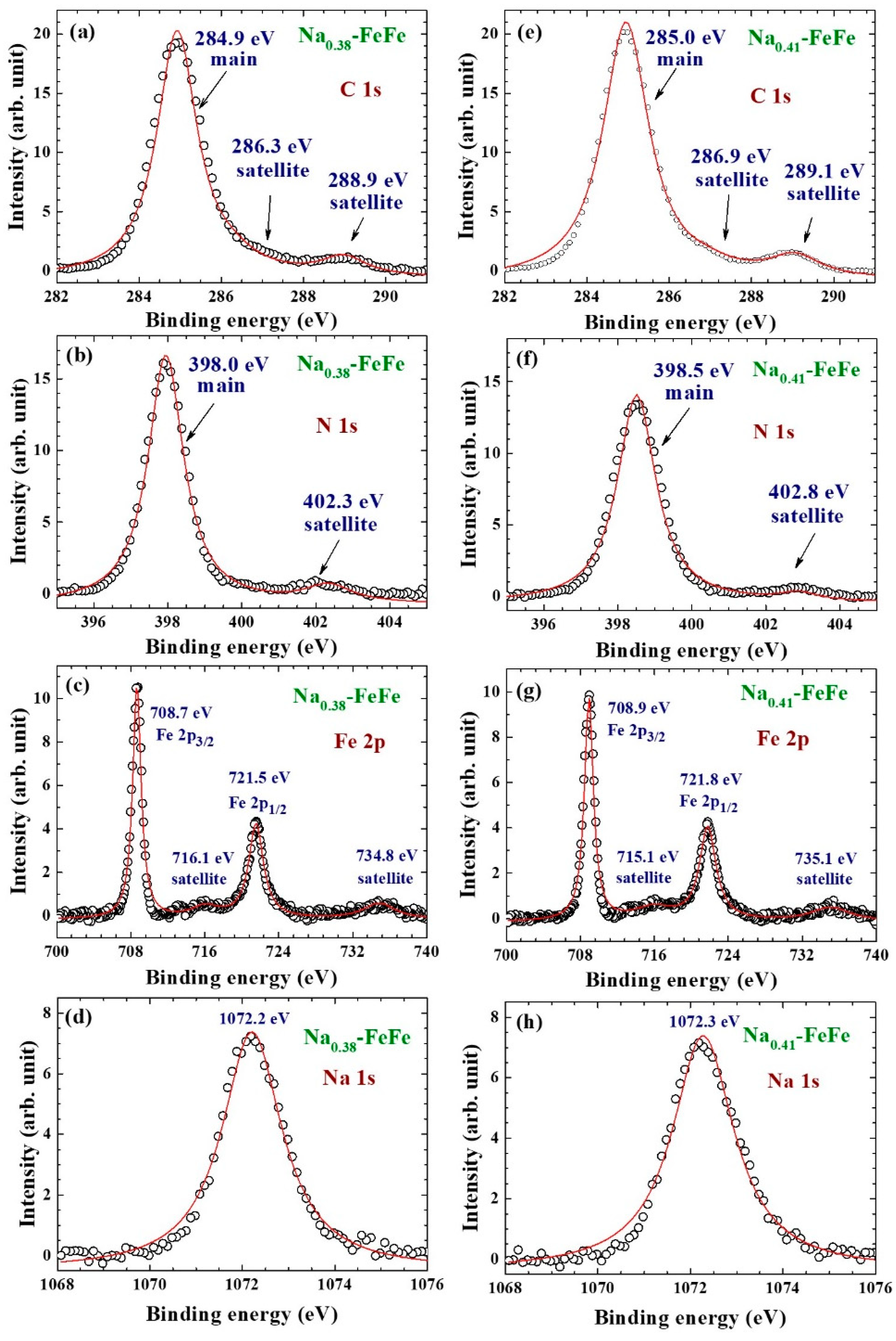

The X-ray photoemission spectra (XPS) were taken on a Thermo Scientific K-Alpha⁺ XPS system, by Thermo Fisher Scientific, East Grinstead, UK, employing an Al-K_α monochromator with an energy resolution of 0.2 eV.

2.6. Electrochemical Experiments

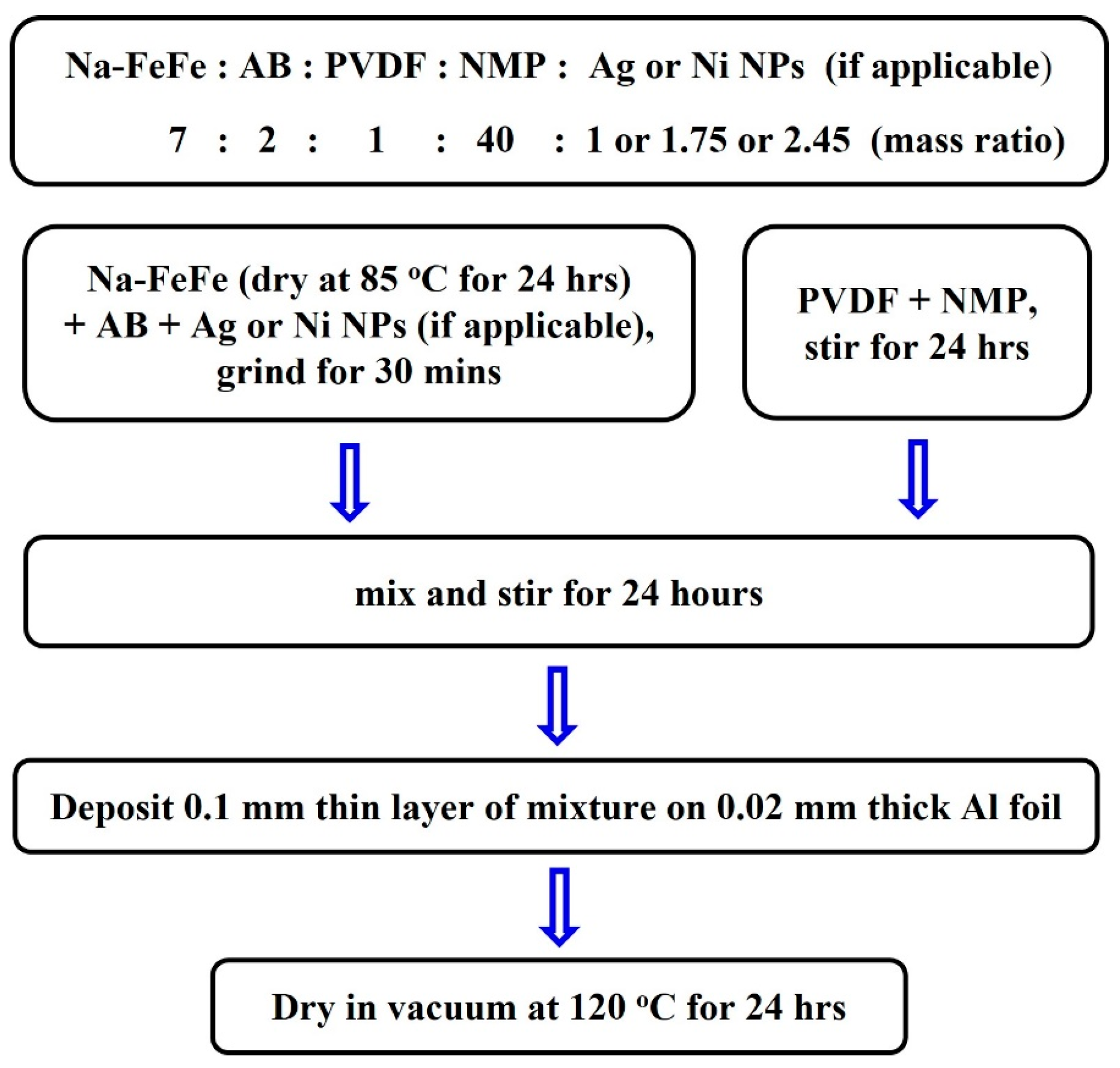

Electrochemical tests were conducted using a CR2032 coin–cell configuration assembled in a N₂ atmosphere with H₂O and O₂ levels both below 0.01 ppm. The circular working electrode (coated onto thin aluminum foil that was 0.02 mm thick) for Li-ion insertion and extraction contained a uniformly mixed Na-FeFe/Ag/Ni NPs (if applicable)/acetylene-black (AB)/polyvinylidene-fluoride (PVDF)/N-Methyl-pyrrolidone (NMP) slurry (dried in a vacuum at 120 °C for 24 h) with mass ratios of 7:1 (14%), 1.75 (25%) or 2.45 (35%):2:1:40. Details of the electrode fabrication processes are shown in Figure 2. The mass loading for the electrode was 1.9 mg of Na-FeFe over the circular working area, which was 15 mm in diameter and 0.1 mm thick (17.67 mm³ in volume). A piece of porous polypropylene (1.8 mm thick) was used as a separator between the Na-FeFe containing the working electrode and lithium metal electrode, which was filled with 1 M of LiPF₆ dissolved in mixed ethylene carbonate (EC) and diethyl carbonate (DEC) solutions (1:1 v/v %) as the electrolyte. The charge–discharge experiments were performed with an HOKUTO HJSD8 in constant current mode, with a cut-off voltage of 1.5 V for Li-ion insertion and 4.0 V for Li-ion extraction. All capacities are expressed per gram of PB.

3. Results and Discussion

3.1. Chemical Composition

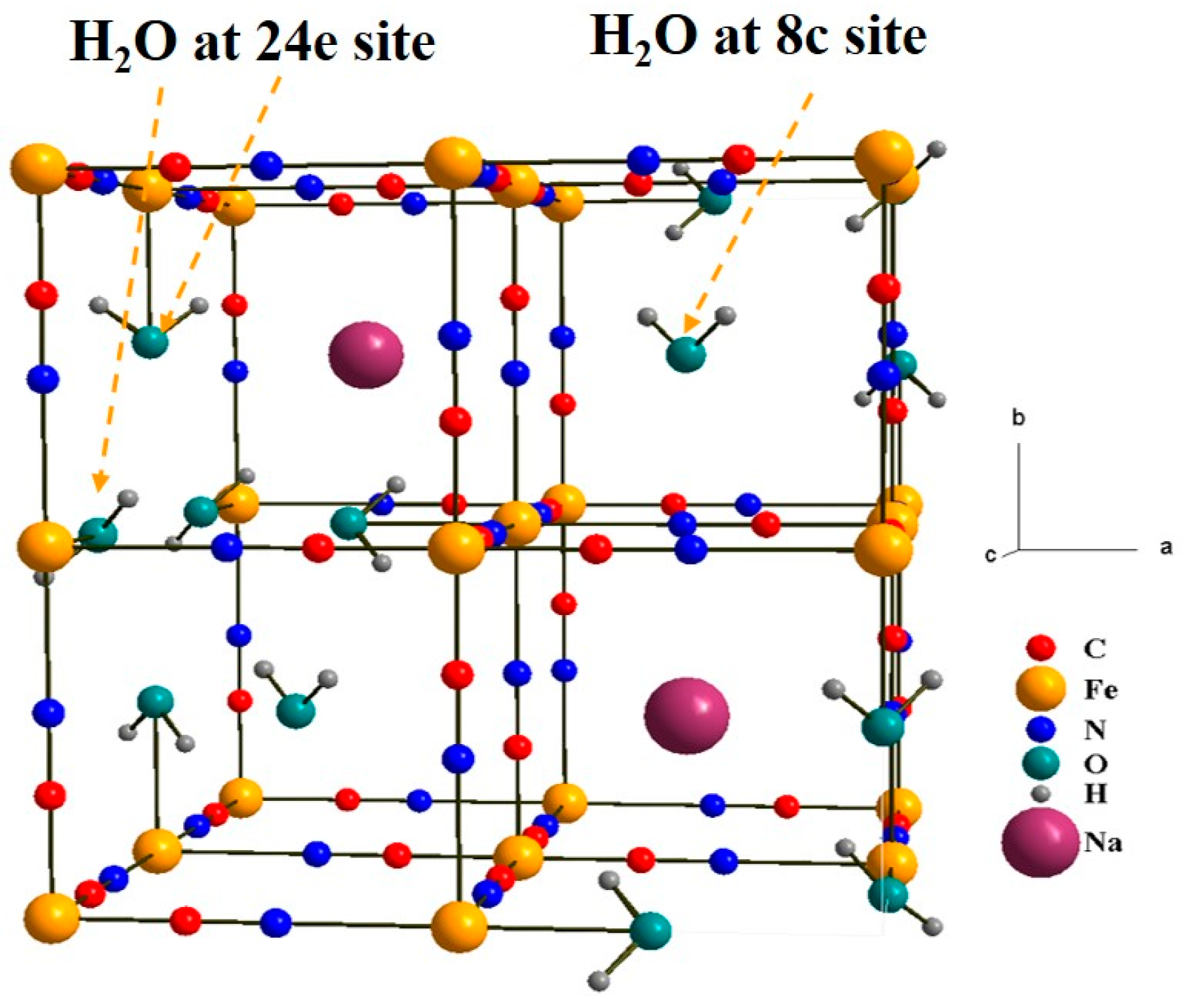

There are two lattice sites in the A-MM′ where H₂O can transfer onto them during the co-precipitation reactions [37]. The M ions in A-MM′ form a face-centered cubic sublattice allowing for the accommodation of either M′(CN)₆ or (H₂O)₆ between the two M ions, giving rise to a stoichiometric composition of M[M′(CN)₆]_1−y[(H₂O)₆]_y. The voids enclosed by the MN₆ and M′C₆ octahedra can accommodate either A ions or H₂O molecules or be left empty, giving a stoichiometric composition of A_2x·z(H₂O), with 2x + z ≤ 1. Taking A = Na, M = Fe, M′ = Fe and H₂O on the O sites in the present PB compounds gives a constrained stoichiometric composition of Na_2xFe[Fe′(CN)₆]_1−y[(H₂O)₆]_y·z(H₂O), with a charge balance of 2x + z ≤ 1 and x + 2 − 3(1 − y) = 0 for diffraction pattern refinement. The diffraction patterns were analyzed using the General Structure Analysis System (GSAS) program [38], following the Rietveld profile refining method, assuming a cubic $Fm\overline{3}m$ symmetry. Figure 3a–d illustrate the observed (crosses) and calculated (solid lines) diffraction patterns of the Na-FeFe synthesized with reaction solutions of 25, 50, 70 and 85 °C, respectively, giving a chemical composition of Na_0.38Fe[Fe(CN)₆]_0.82[(H₂O)₆]_0.18·0.34H₂O (marked Na_0.38-FeFe) for the Na-FeFe synthesized at 25 °C, Na_0.41Fe[Fe(CN)₆]_0.84[(H₂O)₆]_0.16·0.36H₂O (marked Na_0.41-FeFe) for that synthesized at 50 °C, Na_0.34Fe[Fe(CN)₆]_0.81[(H₂O)₆]_0.19·0.34H₂O (marked Na_0.34-FeFe) for that synthesized at 70 °C, and Na_0.36Fe[Fe(CN)₆]_0.84[(H₂O)₆]_0.16·0.38H₂O (marked Na_0.36-FeFe) for that synthesized at 85 °C. Figure 4 illustrates the atomic arrangement of Na-FeFe, with 2/8 of the 8c sites and 1/9 of the 24e sites being occupied by H₂O. Occupations of H₂O on the 8c or 24e sites will limit the redox capability during the electrochemical processes. Photoemissions from C 1s, N 1s, Fe 2p and Na 1s were all detected in the XPS taken on the Na_0.38-FeFe NPs (Figure 5a–d) and on the Na_0.41-FeFe NPs (Figure 5e–h), giving a composition ratio of Na/Fe/C/N = 0.20:1:2.76:2.74 (corresponding to Na_0.36-Fe[Fe(CN_0.99)₆]_0.85) for the former and 0.23:1:2.78:2.72 (corresponding to Na_0.43-Fe[Fe(CN_0.97)₆]_0.86) for the latter. The composition ratio obtained from the XPS and from the X-ray diffraction analysis agree reasonably well. The binding energies of C 1s (Figure 5a,e), N 1s (Figure 5b,f), Fe 2p (Figure 5c,g) and Na 1s (Figure 5d,h) obtained for Na_0.38-FeFe are all slightly lower than those for Na_0.41-FeFe NPs, suggesting that the particle size of the Na_0.38-FeFe is somewhat smaller.

3.2. Particle Size

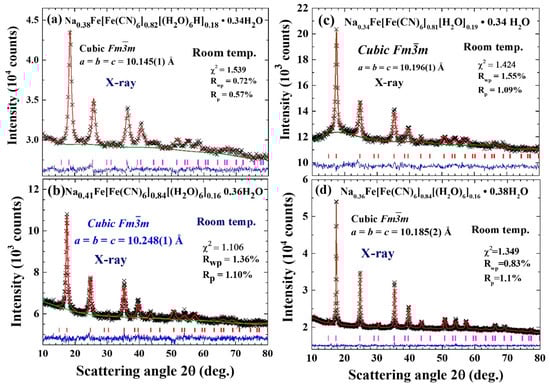

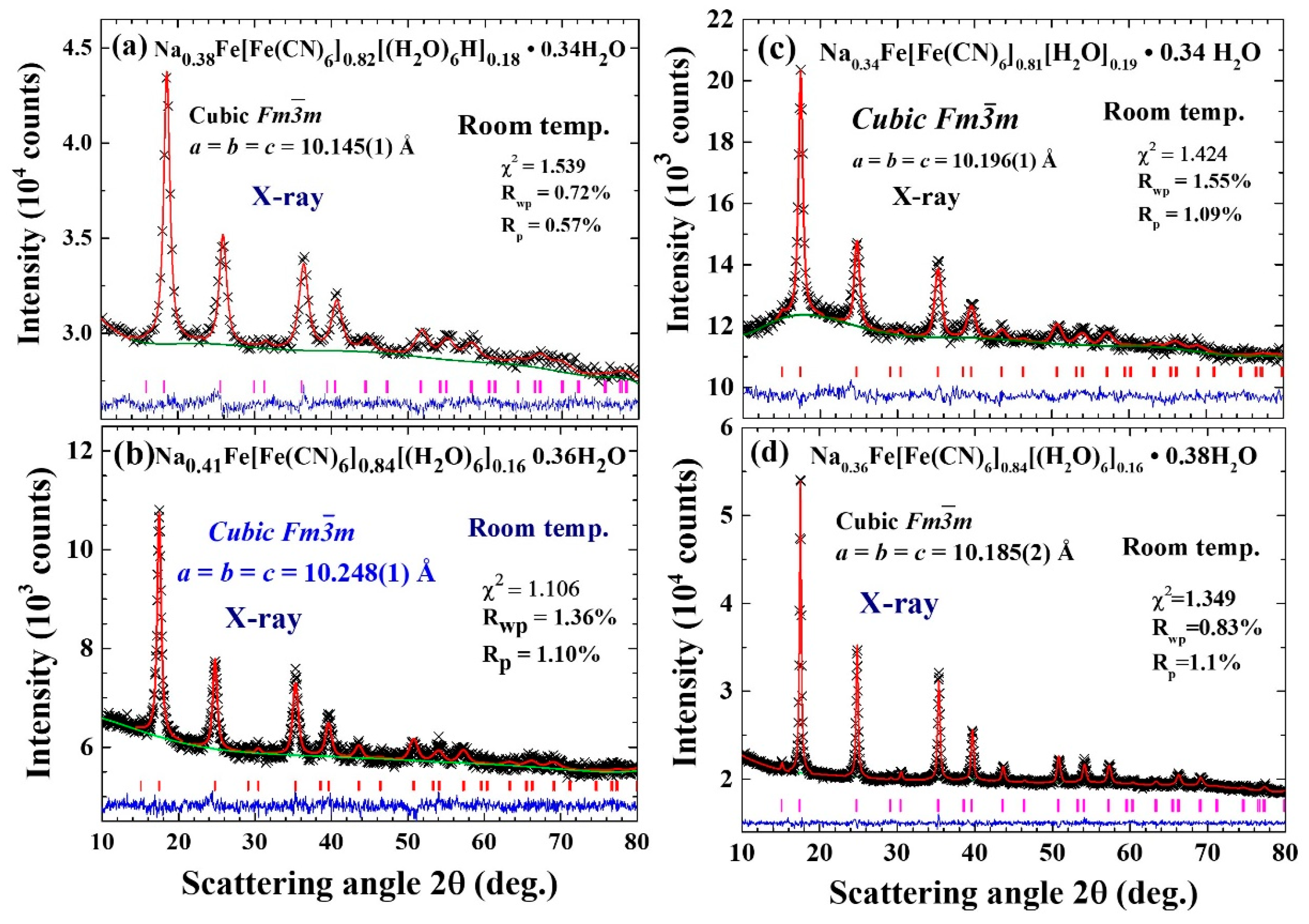

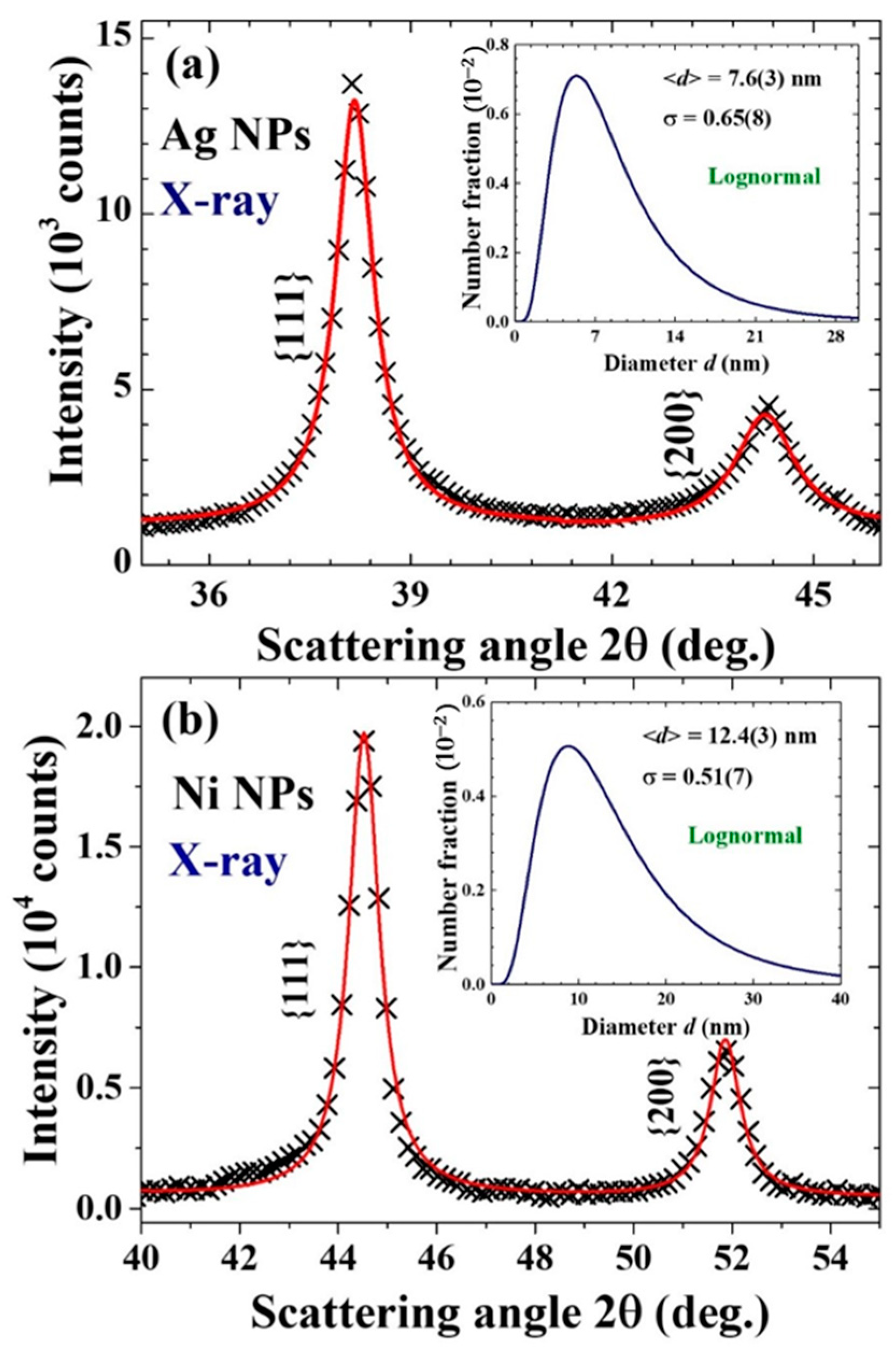

The X-ray diffraction peaks of Na_0.38-FeFe are significantly broader in width than those of Na_0.36-FeFe (Figure 3a,b), revealing that the particles in the Na_0.38-FeFe NP assembly are much smaller than those in the Na_0.36-FeFe assembly. In addition, the X-ray diffraction peaks of the four Na-FeFe, Ag and Ni NP assemblies appear to be much broader than the instrumental resolution, reflecting the broadening of the peak profiles due to the finite-size effect. The size distributions and mean particle diameters of the NP assemblies were determined by fitting the diffraction peaks to the diffraction profiles of finite-sized particles. Taking a Lorentzian diffraction profile of the peak width w_i(d_i) from each nanoparticle of diameter d_i, the diffraction intensity I_hkl of the (hkl) Bragg reflection at a scattering angle 2θ from a multi-dispersed NP assembly with a log-normal size distribution n_i(d_i) takes the following form [39,40]:

$$I_{hkl}\left(2\mathsf{\theta },w_i,n_i\right)=\mathrm{C}\sum _{d_i}\left(\frac{2}{\pi }\right)\left[\frac{w_i}{4(2\theta -2{\theta }_{hkl}{)}^2+w_i^2}\right]n_i\left(d_i\right)$$

(1)

$${withw}_i\left(d_i\right)=\frac{0.94\lambda }{d_i\cos {\theta }_{hkl}}$$

$${andn}_i\left(d_i\right)=\frac{1}{d_i\sqrt{2\pi }\sigma }exp\left\{-\frac{{\left(ln{d}_i-ln{d}_m\right)}^2}{2{\sigma }^2}\right\},$$

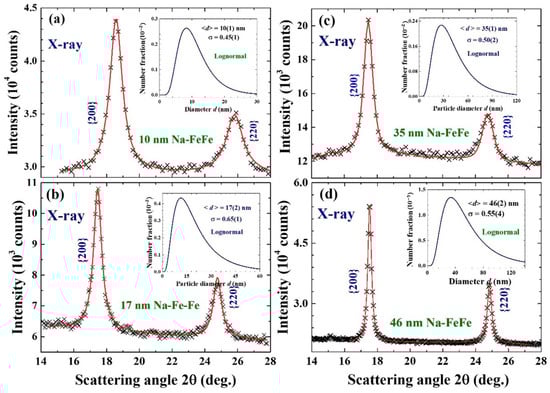

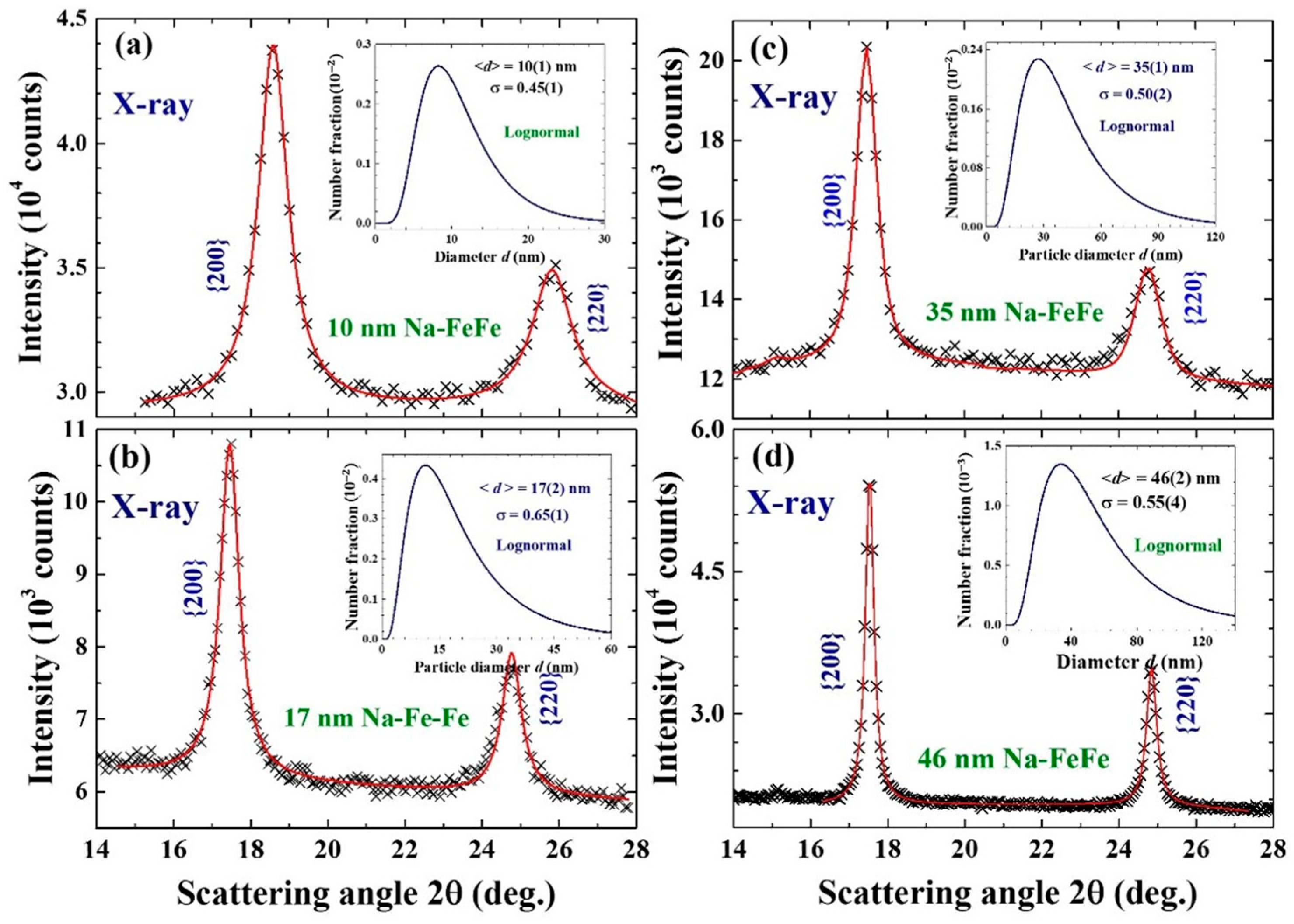

where C is the instrumental scale factor, 2θ_hkl is the Bragg position of the (hkl) reflection, λ is the X-ray wavelength, d_m is the mean particle diameter and σ is the standard deviation of the size distribution of the NP assembly. Figure 6a–d show the observed (crosses) and calculated (solid lines) {200} and {220} diffraction peak profiles of the Na_0.38-FeFe, Na_0.41-FeFe, Na_0.34-FeFe and Na_0.36-FeFe NP assemblies, respectively, obtained from the fits of the diffraction profiles to the expression (1). A mean particle diameter of d = 10(1) nm with a deviation width of σ = 0.45(1) was obtained for the Na_0.38-FeFe NP assembly (inset to Figure 6a), that of d = 17(2) nm with σ = 0.65(1) for the Na_0.41-FeFe NP assembly (inset to Figure 6b), that of d = 35(2) nm with σ = 0.50(2) for the Na_0.34-FeFe NP assembly (inset to Figure 6c) and that of d = 46(2) nm with σ = 0.55(4) for the Na_0.36-FeFe NP assembly (inset to Figure 6d). Figure 7 displays the representative TEM images obtained for the Na_0.38-FeFe (Figure 7a) and Na_0.41-FeFe (Figure 7b) assemblies, giving an average particle diameter of 9.5 nm for the Na_0.38-FeFe assembly and 17.5 nm for the Na_0.41-FeFe assembly. There is no noticeable asymmetry in the shape of the nanoparticles identified in the TEM images. The average particle diameters of the PB NPs obtained from the X-ray diffraction and from the TEM images agree very well. It appears that larger particles were obtained for the Na-FeFe synthesized at a higher reaction temperature. A profile analysis of the X-ray diffraction peaks of the Ag and Ni NP assemblies gives d = 7.6(3) nm with σ = 0.65(8) for the Ag NP assembly (Figure 8a) and d = 12.4(3) nm with σ = 0.51(7) for the Ni NP assembly (Figure 8b). The reaction temperature, chemical composition, lattice parameters, mean particle diameter and deviation width of the size distribution for each of the four Na-FeFe compounds, the Ag NP assemblies and the Ni NP assemblies are listed in

Table 1. The labels, reaction solution temperatures, chemical compositions, lattice parameters, mean particle diameters and deviation widths of the size distributions of the four Na-FeFe compounds used in this study.

Label	T (°C)	Chemical Composition	a (Å)	d (nm)	σ
Na0.38-FeFe	25	Na0.38Fe[Fe(CN)6]0.82[(H2O)6]0.18·0.34H2O	10.145(1)	10(1)	0.45(2)
Na0.41-FeFe	50	Na0.41Fe[Fe(CN)6]0.84[(H2O)6]0.16·0.36H2O	10.248(1)	17(2)	0.65(1)
Na0.34-FeFe	70	Na0.34Fe[Fe(CN)6]0.81[(H2O)6]0.19·0.34H2O	10.196(1)	35(2)	0.50(2)
Na0.36-FeFe	85	Na0.36Fe[Fe(CN)6]0.84[(H2O)6]0.16·0.38H2O	10.185(2)	46(2)	0.55(4)
Ag		Ag	4.088(1)	7.6(3)	0.65(8)
Ni		Ni	3.526(3)	12.4(3)	0.51(7)

T = temperature of reaction solution; a = lattice constant at room temperature; d = mean particle diameter; σ = deviation width of size distribution of nanoparticle assembly.

.

3.3. Ultimate Size for Energy Storage

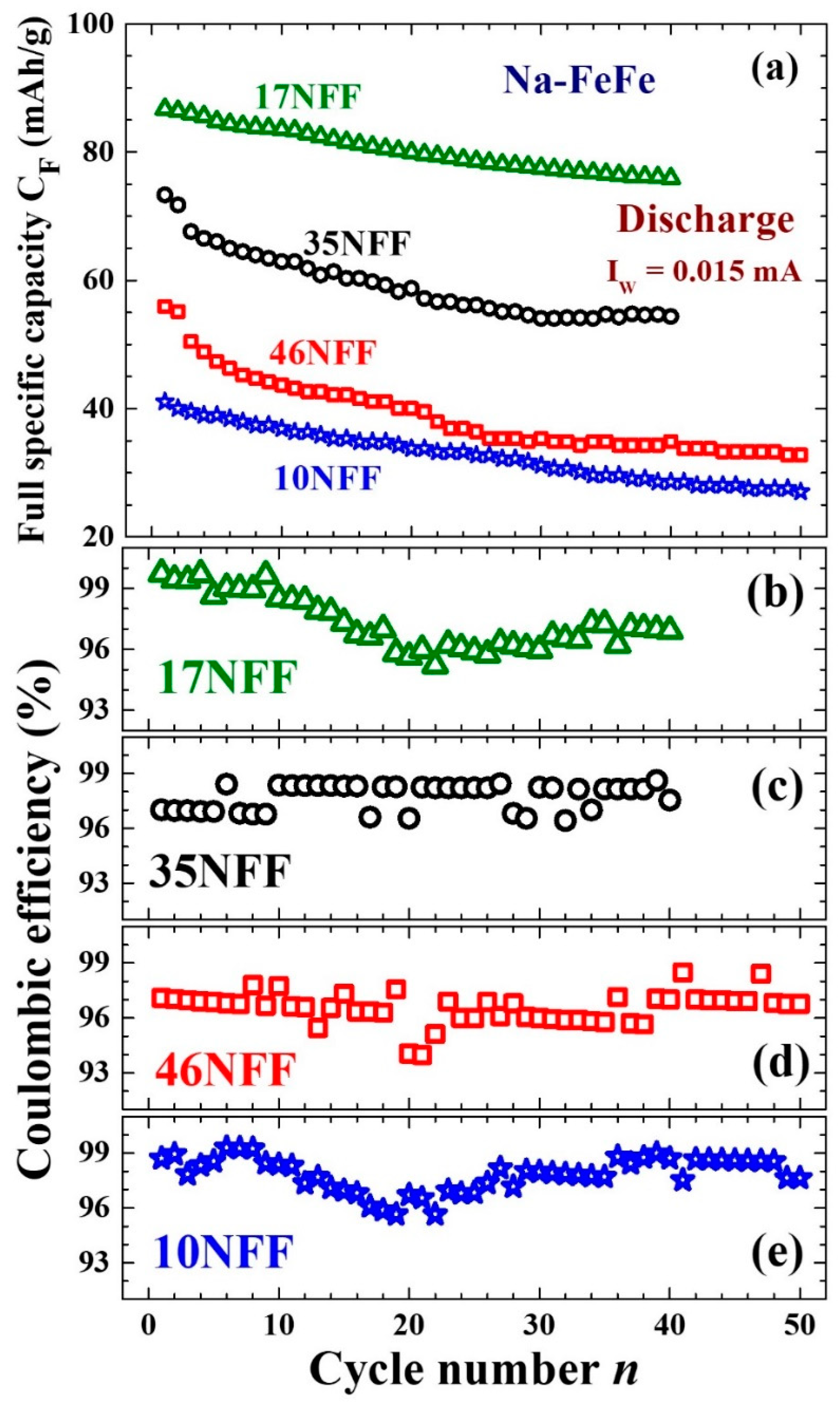

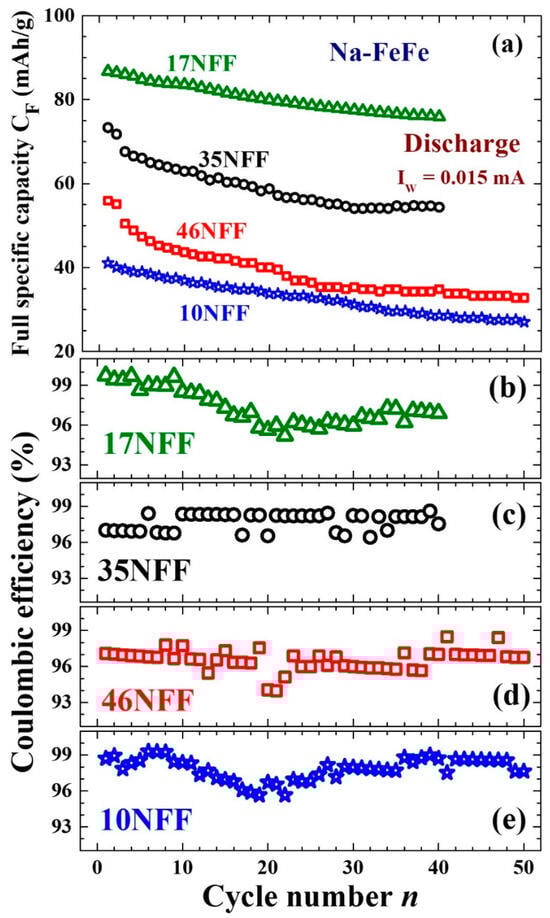

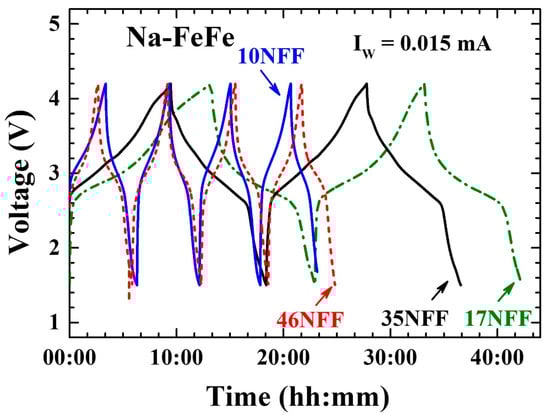

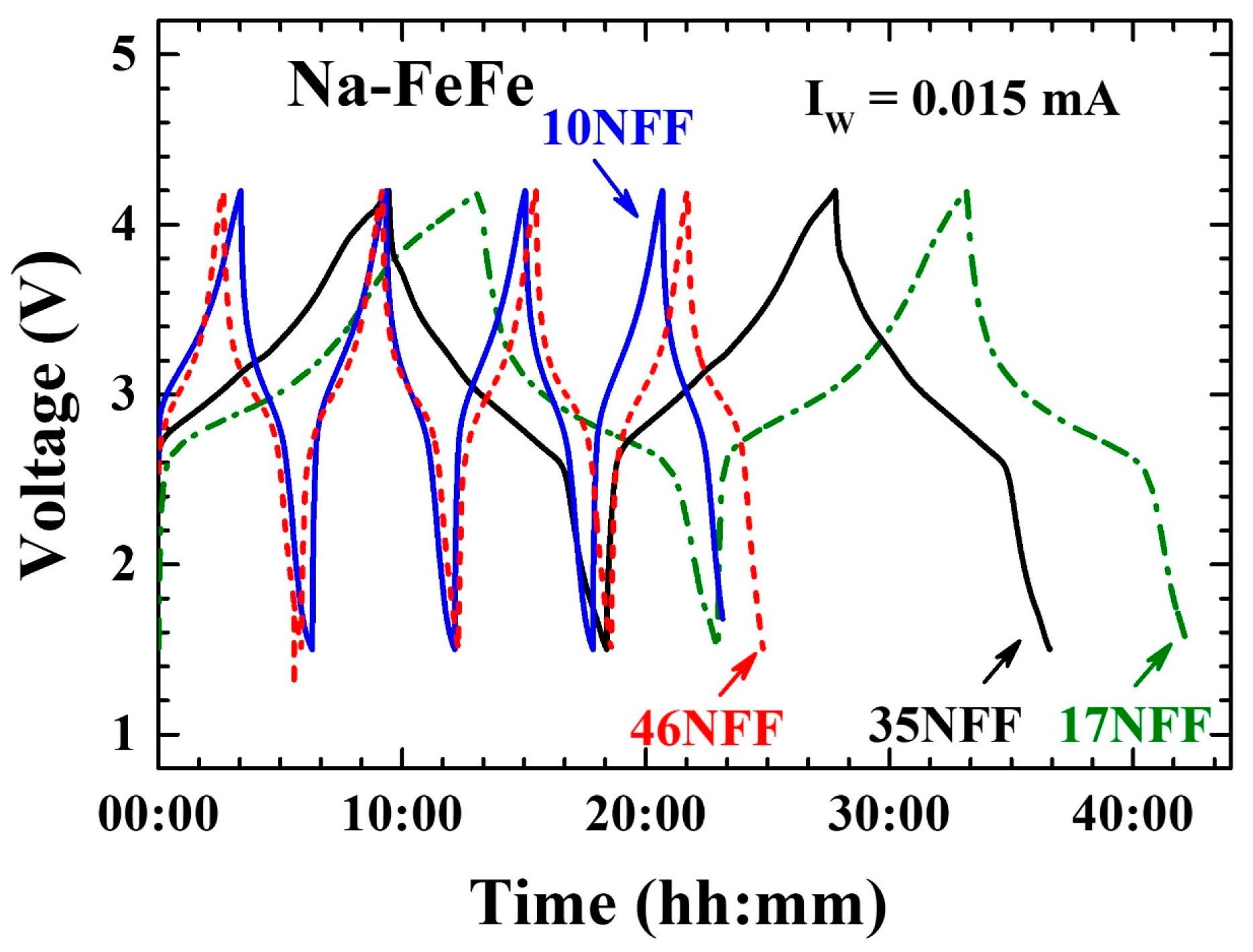

The galvanostatic charge–discharge (GCD) cycles were performed in constant working current I_W mode for each cycle. The working electrodes packed using 10, 17, 35 and 46 nm Na-FeFe are labeled 10NFF, 17NFF, 35NFF and 46NFF, respectively. Obvious differences in the GCD profiles are observed for the batteries using different sizes of Na-FeFe in the working electrode. The GCD profiles of the 17NFF battery took the longest in time to complete a cycle, followed by the 35NFF battery and then the 46NFF battery, but the 10NFF battery took the shortest time (Figure 9). Among the four batteries studied, the 17NFF battery had the highest energy capacity. The full specific capacity (FSC) C_F of the 17NFF battery reached 86 mAh/g in the initial cycle at I_W = 0.015 mA, but it gradually decayed to 76 mAh/g and then stabilized after 40 GCD cycles (open triangles in Figure 10a). A relatively low C_F of 42 mAh/g, which is only 50% of that for 17NFF, was obtained for the 10NFF battery (open stars in Figure 10a). The decay profiles of C_F with respect to the number of GCD cycles completed for the four batteries are similar, with Coulombic efficiencies for all of the cycles studied in the four batteries reaching between 95 and 99% (Figure 10b–e). The Na and H₂O contents in the four Na-FeFe compounds studied are similar (Table 1). It is mainly the size of Na-FeFe that gives rise to the differences in the GCD behavior. Apparently, there is a size limit to the Na-FeFe NPs to obtain the highest electrochemical energy storage efficiency. The higher energy storage efficiency of the 17NFF battery compared to the 35NFF and 46NFF batteries is a direct result of there being more Na-FeFe particles for dispersal in the working electrode allowing for the receiving and releasing of Li⁺ ions. On the other hand, the Li⁺ ions are received and released at the surfaces of the Na-FeFe NPs facing the anode. The reduction in energy storage efficiency of the 10NFF battery is thus a result of the appearance of a large amount of surface atoms that cannot effectively store Li⁺ ions. It is the competition between the number of NPs that are available for dispersal over the electrode and the loss of storage capability for the atoms on the surfaces of the NPs that result in the ultimate size limitation for electrochemical energy storage by the Na-FeFe NPs.

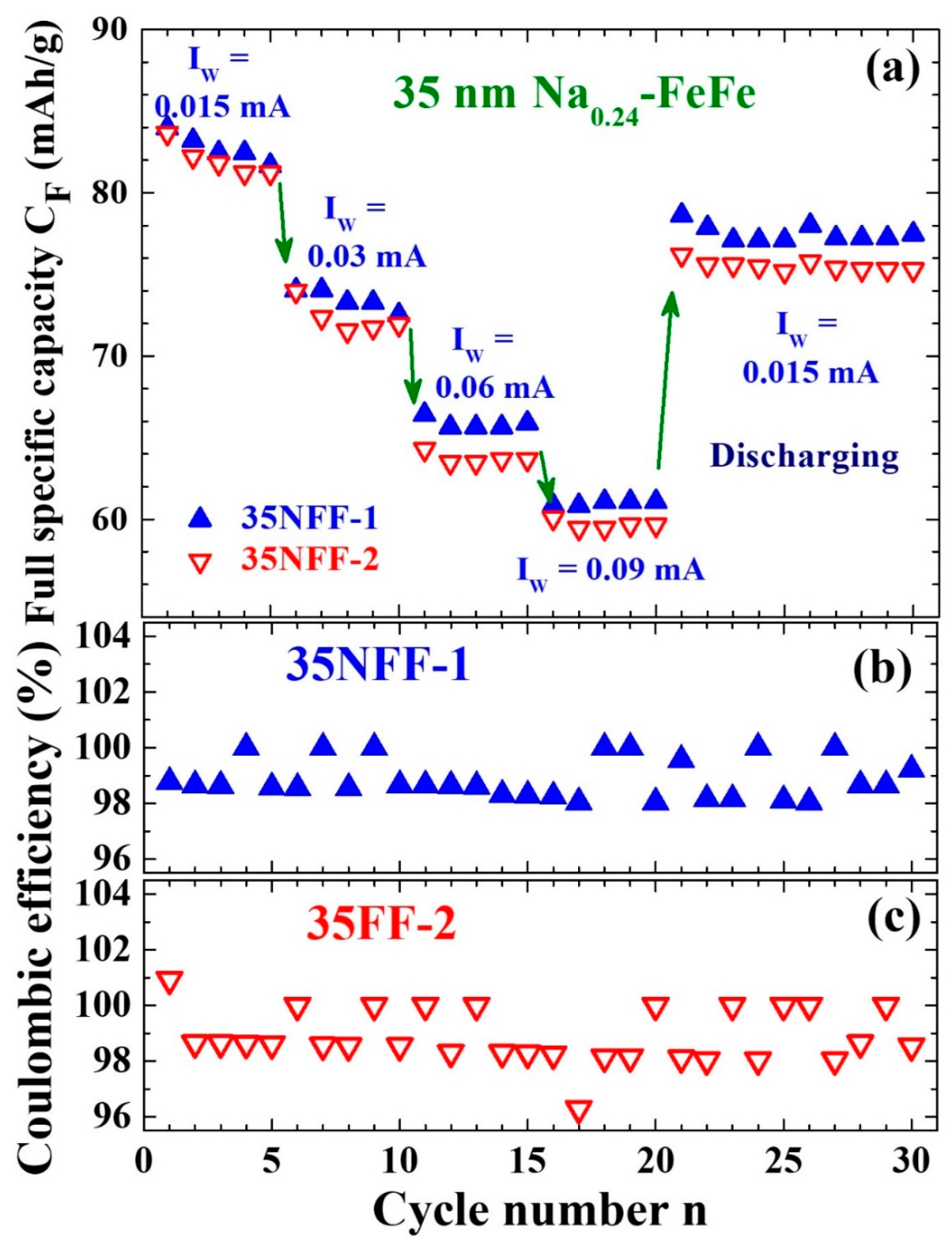

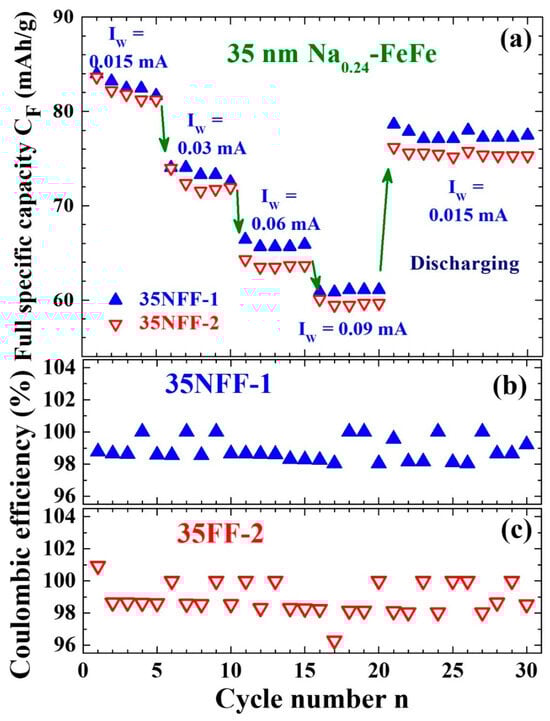

The full specific capacity C_F can be affected by the working current employed in running the GCD cycles. The C_F of the two 35NFF batteries, configured using working electrodes with the same set of coatings, was measured by employing a sequence of different I_Ws for the GCD cycles (Figure 11a). A C_F of 84 mAh/g was obtained for the two 35NFF batteries at I_W = 0.015 mA. A direct drop in C_F appeared whenever the I_W was raised. The C_F dropped to 60 mAh/g after runs through a series of changes in the I_W from 0.015 to 0.03 to 0.06 to 0.09 mA. Remarkably, the C_F jumped back to 78 mAh/g when the I_W was subsequently reduced to 0.015 mA. The behavior of the C_F with respect to the I_W shows that the loss of the C_F at a high I_W is linked to the reduced efficiency in receiving Li⁺ onto the Na-FeFe. Coulombic efficiencies for all of the cycles studied in the two batteries reached ~99% (Figure 11b,c). Discharging at a high I_W drives the accumulation of more Li⁺ ions onto the cathode plate rather than causing them to enter the Na-FeFe NPs for energy storage, which builds the potential between the cathode and the anode, but with fewer Li+ ions stored in the Na-FeFe NPs.

3.4. Enhanced Electrochemical Stability

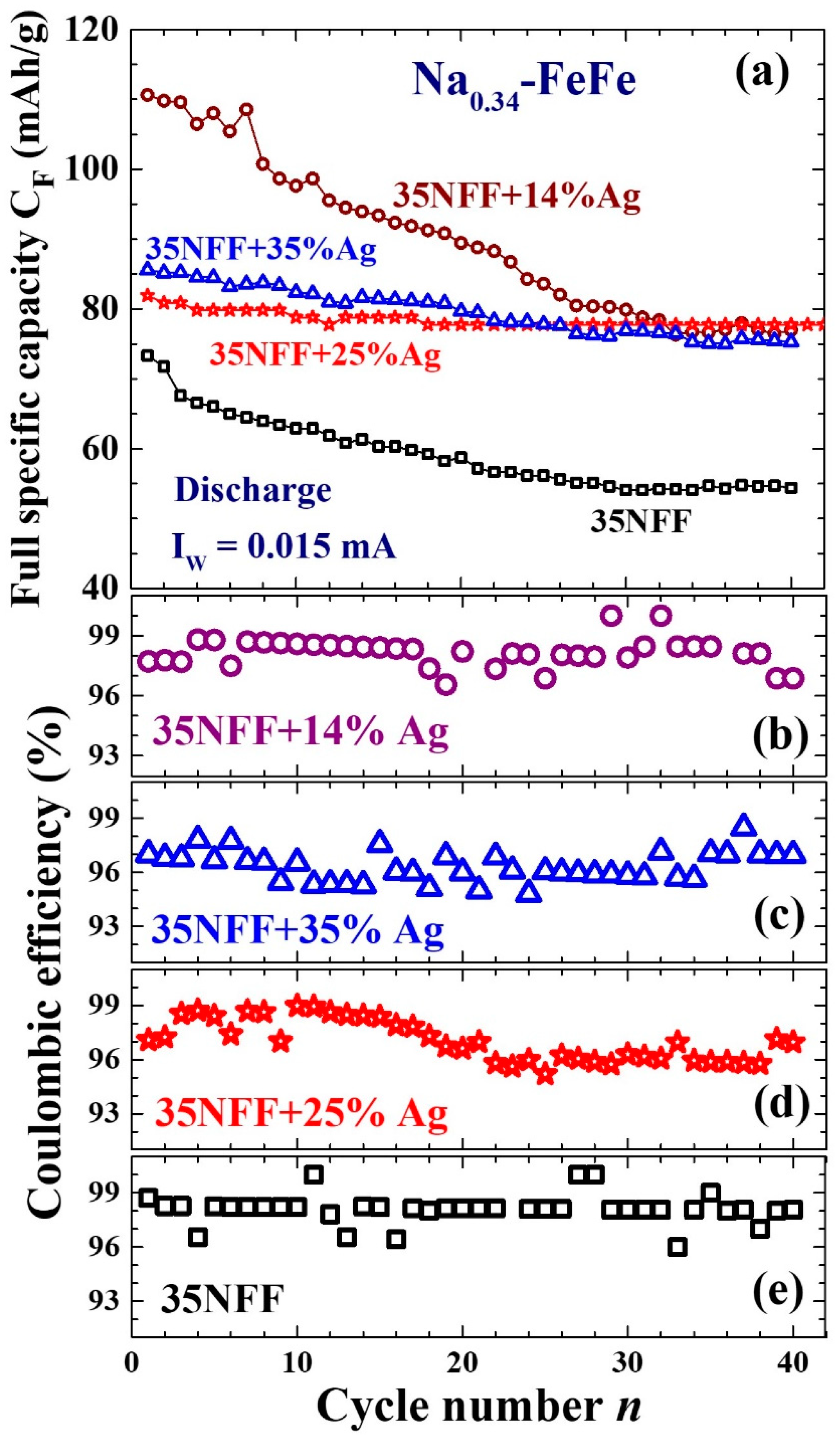

The amount of Ag/Ni NPs added into the electrode is specified in the label for each battery. For example, the label 17NFF+14%Ag indicates a 17NFF battery with an addition of 14 mass percent of Ag NPs onto the working electrode. In the initial stage, represented by the second GCD cycle, the 35NFF+14%Ni battery took 10% longer to complete a GCD cycle than did its counterpart battery 35NFF (dashed lines in Figure 12a). The difference in the time taken to complete a GCD cycle increased to 15% after the completion of 200 GCD cycles (solid lines in Figure 12a). The Coulomb efficiency of nearly 100% obtained for the second GCD cycle was retained after 200 GCD cycles. It appears that the incorporation of Ni NPs onto the working electrode can enhance as well as stabilize the energy capacity stored in the battery.

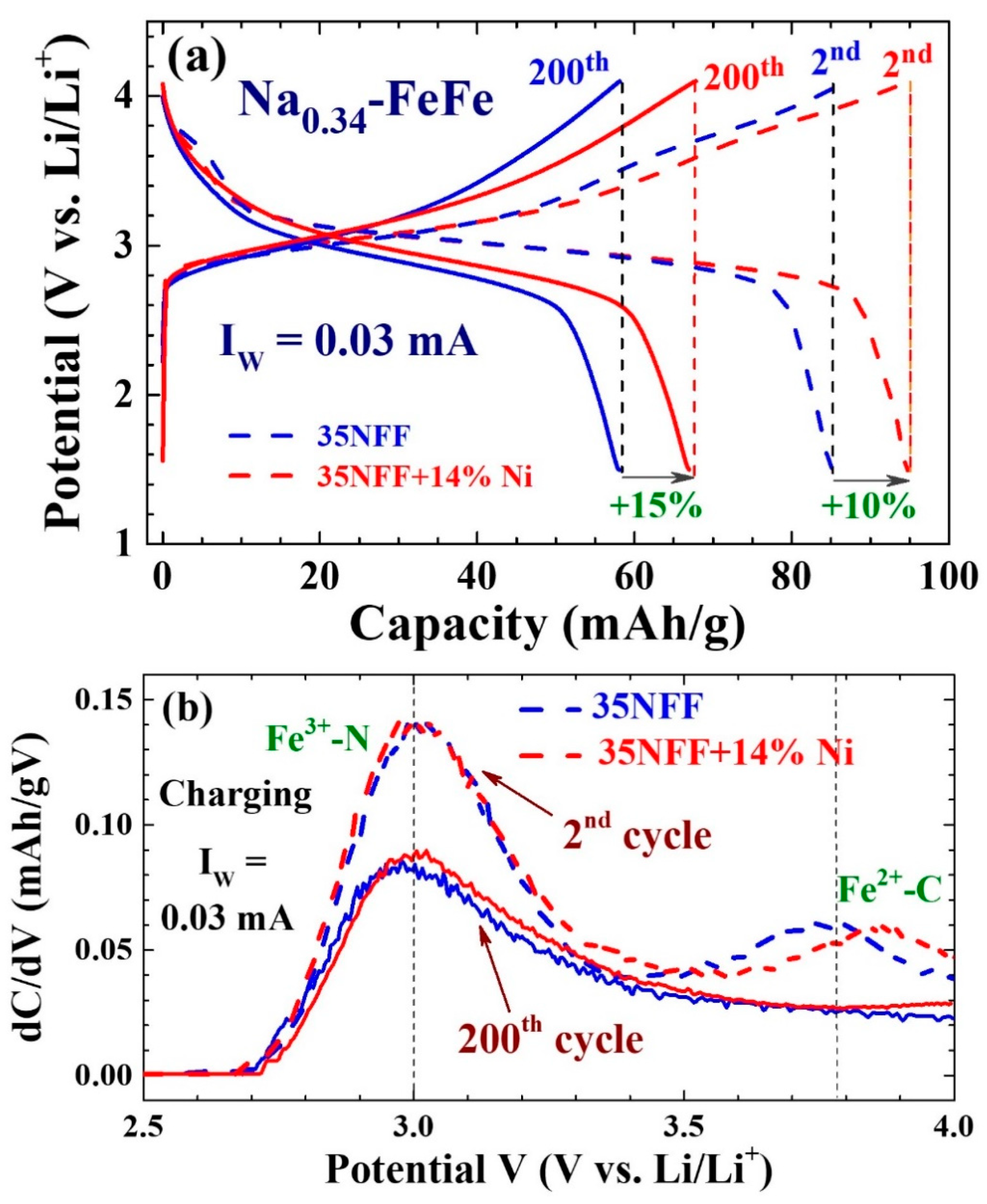

The two separated peaks are clearly revealed in the dC/dV curves for the initial GCD cycles (dashed lines in Figure 12b). The one at around 3.0 V is from the redox reaction at the Fe³⁺-N sites, whereas the one at around 3.8 V is from reaction at the Fe²⁺-C sites. The lower redox efficiency for the Fe²⁺-C sites reflects a reduction in the redox activity because of the partial occupation of the sites by H₂O. The main difference between the dC/dV curves of the 35NFF and 35NFF+14%Ni batteries in the initial stage (dashed lines in Figure 12b), which appears in the high-voltage regime, shows that the incorporation of Ni NPs facilitates the redox reactions more on the Fe²⁺-C sites than on the Fe³⁺-N sites. As expected, there is a reduction in the redox efficiency at both the Fe²⁺-C and Fe³⁺-N sites after 200 GCD cycles, but at a noticeably smaller rate for the 35NFF+14%Ni battery than for the 35NFF battery. The incorporation of Ni NPs in the vicinity of Na_0.24-FeFe NPs enhances the GCD cycle stability. This behavior may be understood as arising from the participation of loosely bounded surface electrons of the Ni NPs in the redox reactions with Li⁺ ions during GCD cycles.

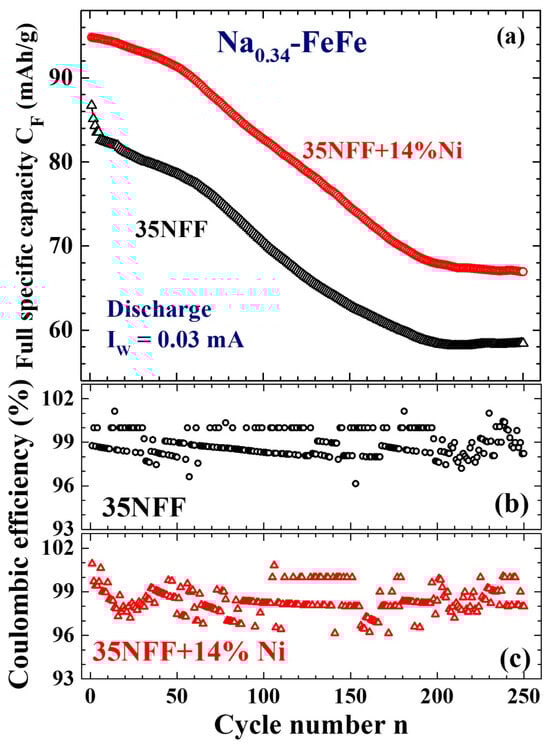

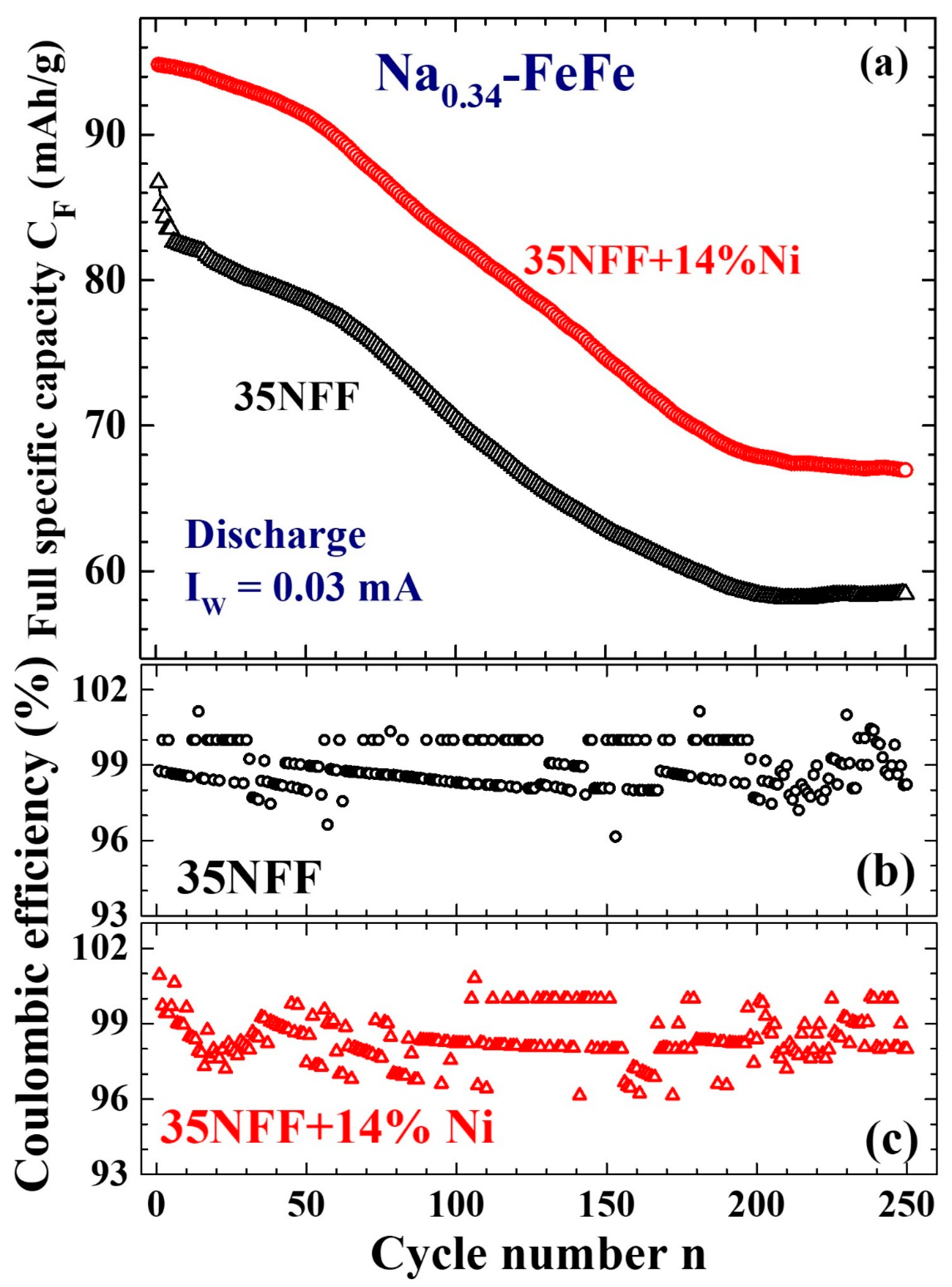

In the initial stage, the full specific capacity C_F of the 35NFF+14%Ni battery reached 95 mAh/g, which is 10% higher than the 86 mAh/g of the 35NFF battery (open circles in Figure 13a). The C_F of both batteries stabilized after 200 GCD cycles. The C_F of the 35NFF+14%Ni battery reduced to 67 mAh/g, but this was still 15% higher than the 58 mAh/g of the 35NFF battery. The profiles of the decay of the C_F with respect to the number n of GCD cycles completed of the 35NFF+14%Ni and 35NFF batteries are similar, with Coulombic efficiencies for all of the cycles studied in the two batteries reaching ~98% (Figure 13b,c). An enhancement in the capacity is also seen in the batteries with Ag NPs incorporated in the working electrodes. The amount of Ag NPs added to the working electrodes significantly affects the enhancement factor and the decay profile of the C_F(n) (Figure 14a). The incorporation of 14% Ag NPs enhances the C_F by 30%, with the initial C_F reaching 110 mAh/g and stabilizing at 78 mAh/g after 30 GCD cycles (open circles and squares in Figure 14a). On the other hand, the C_F(n) remains stable for batteries incorporating 25% or 35% Ag NPs onto the working electrode, with the C_F remaining around 78 mAh/g (open stars and triangles in Figure 14a). The C_F of the three 35NFF+14%Ag, 35NFF+25%Ag and 35NFF+35%Ag batteries stabilized to 78 mAh/g, 44% higher than the 55 mAh/g of the 35NFF battery. Coulombic efficiencies for all of the cycles studied in the four batteries reached between 95 and 98% (Figure 14b–e).

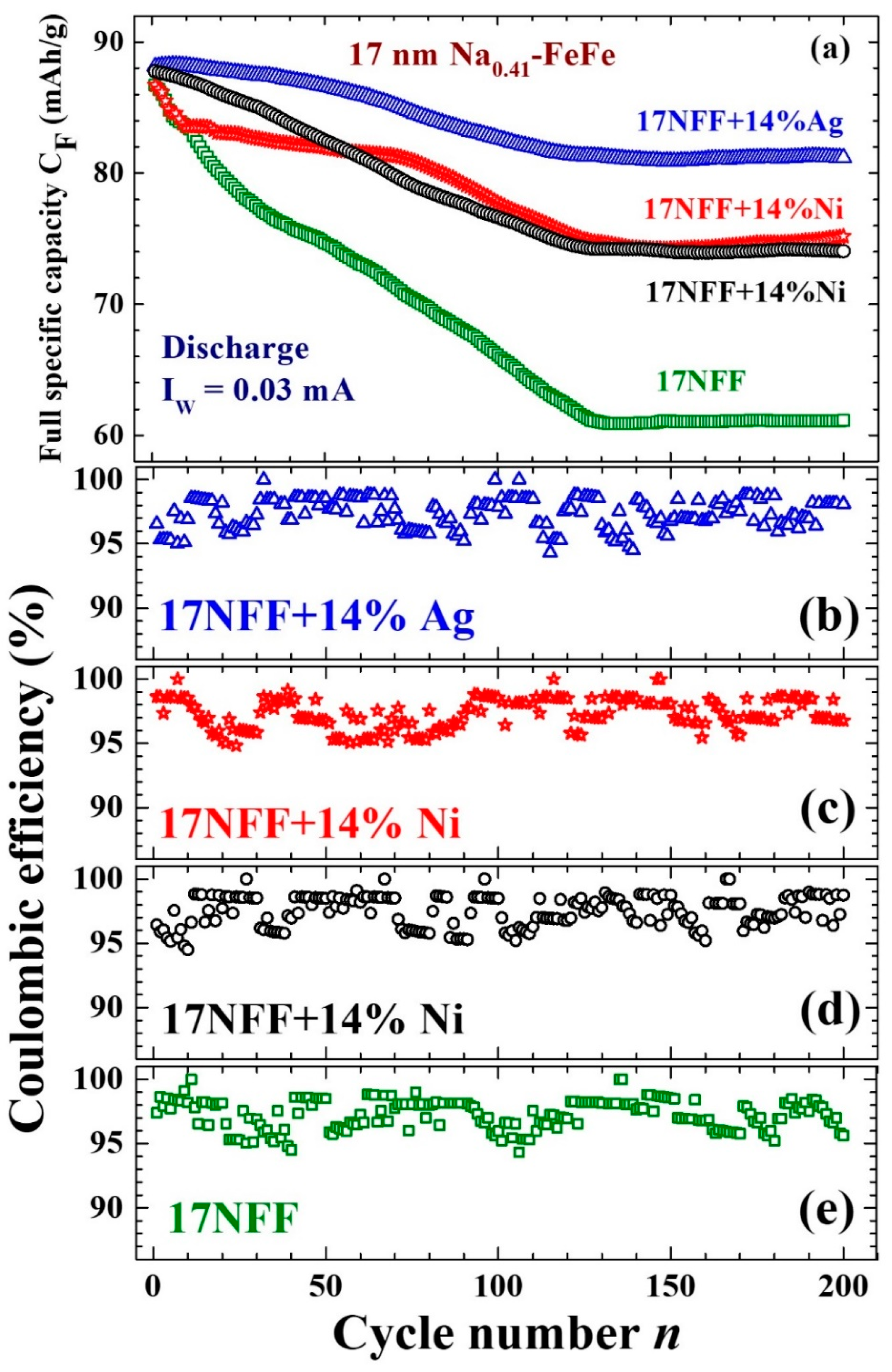

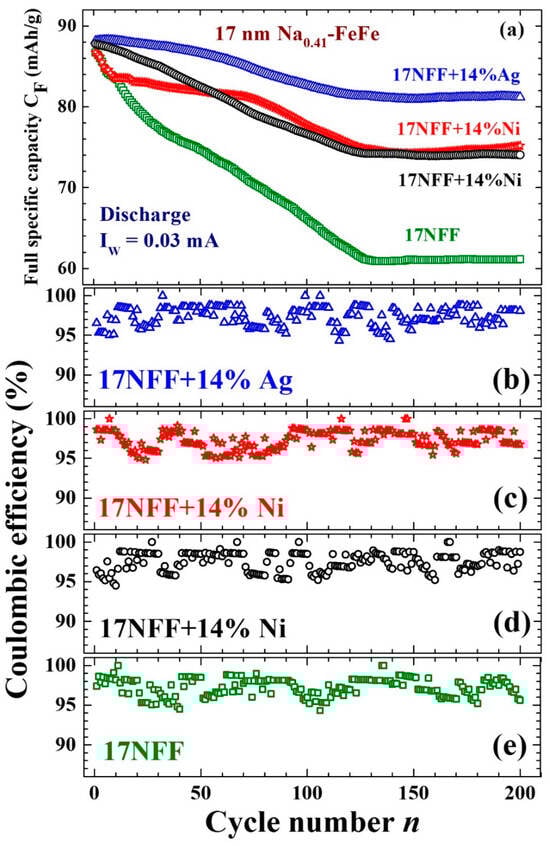

The decay rate of the C_F(n) is largely reduced when Ag or Ni NPs are added into the working electrodes of the 17 nm Na_0.41-FeFe batteries. The C_F(n) of the 17NFF battery decayed by 30% (from 88 to 62 mAh/g) before stabilizing after 130 GCD cycles (open squares in Figure 15a). The addition of 14% Ni NPs reduced the decay in the C_F(n) to 16% (from 88 to 74 mAh/g) (open triangles and stars in Figure 15a), whereas the addition of 14% Ag NPs reduced the decay in the C_F(n) to 7% (from 88 to 82 mAh/g) (open circles in Figure 15a). Coulombic efficiencies for all of the cycles studied in the four batteries reached between 95 and 98% (Figure 15b–e). The higher efficiency in stabilization of the C_F for the 7.6 nm Ag NPs compared to the 12.4 nm Ni NPs arises from there being more surface electrons available for redox reactions of Li⁺ ions in the Ag NPs than in the Ni NPs.

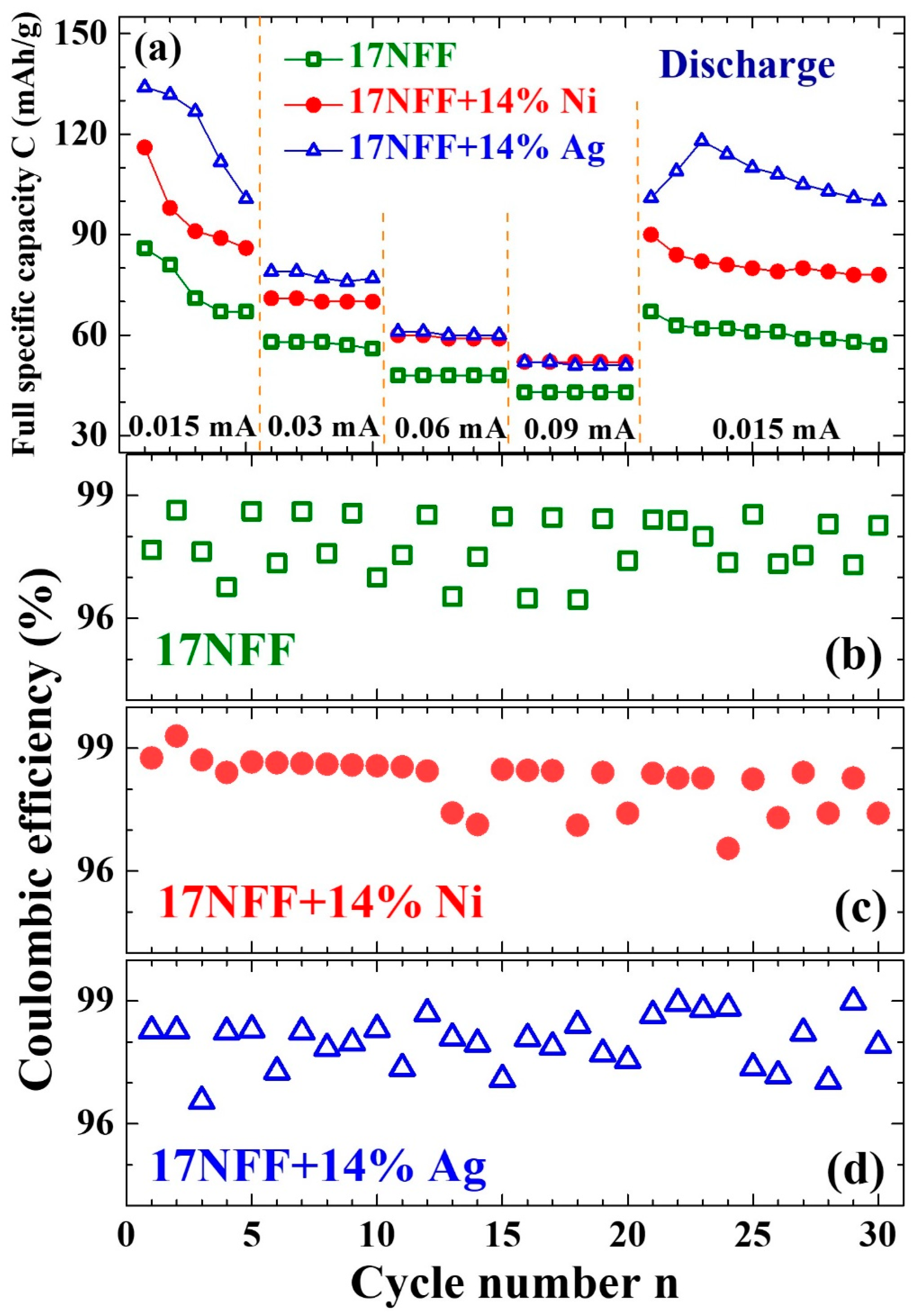

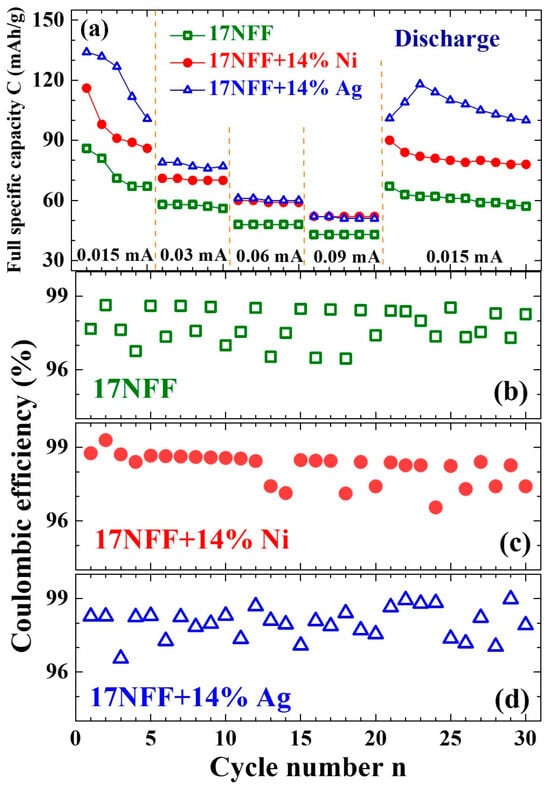

A lower working current giving rise to a higher energy storage rate is also seen in the 17 nm Na_0.41-FeFe batteries with and without the addition of Ag/Ni NPs onto the working electrodes. A higher C_F for the 17NFF+14%Ag compared to the 17NFF+14%Ni and the 17NFF is revealed regardless of the I_W employed (Figure 16a). The C_F of the 17NFF+14%Ag battery stabilized from 88 to 81 mAh/g after 130 GCD cycles when I_W = 0.03 mA was employed from the initial cycle (open circles in Figure 16a). On the other hand, it was reduced from 135 to 101 mAh/g after five GCD cycles with I_W = 0.015 mA, but then dropped directly to 79 mAh/g once the I_W was raised to 0.03 mA in the sixth GCD cycle, and then further dropped to 61 and 52 mAh/g at I_W = 0.06 and 0.09 mA, respectively (open triangles in Figure 16a). The C_F jumped back to 101 mAh/g once the I_W was again reduced to 0.015 mA. This behavior of a lower I_W which gives rise to a higher C_F with a larger decay in the C_F was also observed in the 17NFF+14%Ni and 17NFF batteries (filled circles and open squares in Figure 16a). Coulombic efficiencies for all of the cycles in the three batteries reached 98% (Figure 16b–d).

4. Conclusions

Prussian Blue with a general chemical formula of Na_xFe[Fe′(CN)₆]_1−y[(H₂O)₆]_y·z(H₂O) is demonstrated to be an active cathode material for electrochemical energy storage. Four sets of Prussian Blue NPs, with mean particle diameters of 11, 17, 35 and 46 nm, were fabricated through co-precipitation of Na₄Fe(CN)₆ and FeCl₃ in deionized water each at a selective temperature. Among these, the 17 nm Na-FeFe NPs had the highest efficiency in terms of electrochemical energy storage when used as the working electrode of a rechargeable battery. There are two redox active Fe²⁺-C and Fe³⁺-N sites in Na-FeFe. The unavoidable replacement of Fe(CN)₆ by (H₂O)₆ during the co-precipitation in deionized water limits the redox activity of Na-FeFe when used as a working electrode. We demonstrate that the introduction of bare Ag or Ni NPs in the vicinity of the working Na-FeFe NPs can effectively stabilize the GCD cycles. In particular, the addition of 14 mass percent of 7.6 nm Ag NPs to the vicinity of the 17 nm Na-FeFe NPs could enhance the storage capacity by as much as 32%, and the addition of 14 mass percent of 12.4 nm Ni NPs led to an enhancement in storage capacity of 24%. The storage capacity of Na-FeFe NPs was enhanced by the participation in redox reactions of the weakly bonded surface electrons of the Ag/Ni NPs. It is hence essential to use capping free metallic NPs for effective enhancement. Enhancement in storage capacity through the addition of Ag or Ni NPs has also been observed in K-CoCo-based and Na-CoFe-based cathodes [36]. Comparisons of the electrochemical data obtained in Ref. [36] and this work are listed in

Table 2. Direct comparisons of the electrochemical data of the batteries reported in Ref. [36] and this work.

Chemical Composition	d (nm)	mAg (%)	mNi (%)	IW (mA)	CFi (mAh/g)	CFs (mAh/g)	n
Na0.38Fe[Fe(CN)6]0.82 [(H2O)6]0.18·0.34H2O (this work)	10			0.015	42	28	50
Na0.41Fe[Fe(CN)6]0.84 [(H2O)6]0.16·0.36H2O (this work)	17			0.03	86	61	130
		14			86	81	130
			14		86	74	120
Na0.34Fe[Fe(CN)6]0.81 [(H2O)6]0.19·0.34H2O (this work)	35			0.015	74	55	35
		14			110	78	30
		25			82	78	10
		35			86	78	20
				0.03	86	59	200
			14		95	67	210
Na0.36Fe[Fe(CN)6]0.84 [(H2O)6]0.16·0.38H2O (this work)	46			0.015	56	35	25
K0.58Co[Co(CN)6]0.86 [(H2O)6]0.14·0.24H2O (Ref. [36])	120			0.03	300	40	60
		14			340	130	120
			10		305	40	125
			14		310	125	120
Na0.46Co[Fe(CN)6]0.84 [(H2O)6]0.16·0.25H2O (Ref. [36])	80			0.03	110	56	90
		10			110	60	95
			10		110	70	110

d = mean particle diameter; m_Ag = mass percentage of Ag NPs; m_Ni = mass percentage of Ni NPs; I_w = working current; C_Fi = initial full specific capacity; C_Fs = stabilized full specific capacity; n = number of charge–discharge cycles prior to stabilization.

.
