Tourism, Design and Climate Change: The Urban Glaciology Experiment at Fuorisalone 2024 Event
Abstract
1. Introduction

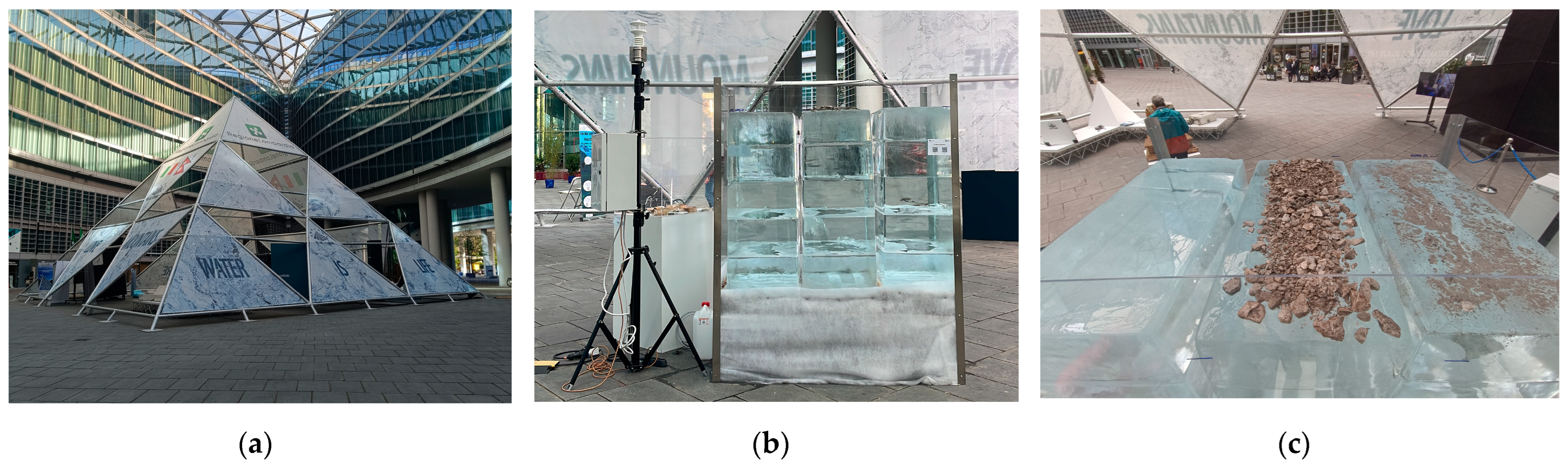

2. The Urban Glaciology Experiment at the Milano “Fuorisalone”
- Clean ice (bare ice conditions), which means ice without visible impurities and deposits, freely exposed to sunlight, with albedo (i.e., solar reflectivity) between 0.25 and 0.30 (Hartmann, 2015);
- Darkening ice (dirty ice conditions), meaning ice with the deposition of dust and black carbon on the surface, substances resulting from atmospheric pollution and forest fires that deposit on the surface of glaciers, reducing their albedo and increasing melting;
- Buried ice conditions, which means ice covered by gravelly and sandy debris that can have a different effect on the melting of the underlying ice depending on its thickness: if it is thicker than about 5 cm, it acts as an insulator and reduces melting; if it is thinner than about 5 cm, it reduces the albedo of the surface and conducts heat, increasing melting.
- Continuous measurements of surface melt rates indicating on the Plexiglass box (in which the ice blocks were located) the daily level of the ice and the date in order to allow visitors to observe the progressive reduction in the ice block thickness and thus the intensity of surface ice melting under the three different proposed conditions;
- Periodic surveys with close-range photogrammetry techniques to reconstruct the volume variation in the blocks over time and the volume lost on a daily and total scale;
- Continuous measurements of the meltwater produced by the three ice blocks and its virtuous reuse for urban gardening.
3. Materials and Methods

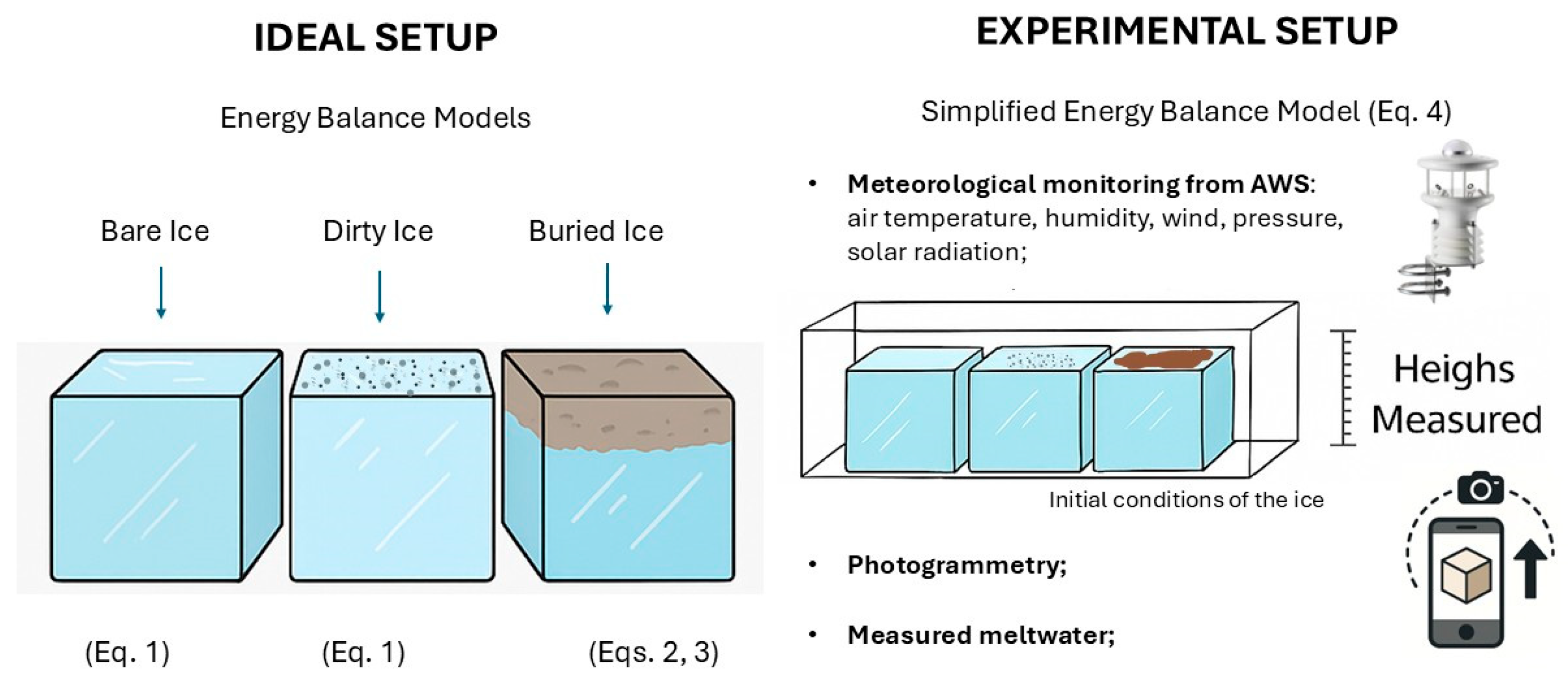

3.1. Ideal Model
- qrad is the radiative heat transfer per unit time;
- Δt is the time of exposition;
- Lm is the latent heat of melting (3.34 × 105 J kg−1);
- A is the surface of the exposed ice in m2;
- α is the average albedo of the ice (0.3 for bare ice, 0.1 for dirty ice);
- SWin is the incoming solar radiation, as measured by the AWS;
- ε is the emissivity of the surroundings, which was assumed to be 0.75, accounting for the combined radiative properties of the materials present in the urban environment, including concrete paving, glass facades, and metallic surfaces;
- σ is the Stefan-Boltzmann constant (5.67 × 10−8 W m2 K−4);
- T24 is the temperature of the air, averaged over the preceding 24 h;
- εice is the emissivity of the ice considered equal to 1;
- Tice is the surface temperature of the ice, considered at the melting point.
3.2. Realization: Ice Melt Prevision
- qconv is the convective heat transfer per unit time;
- α is the average albedo of the ice, assumed to be 0.2 (Cuffey & Paterson, 2010);
- Tair is the temperature of the air, as measured by the AWS;
- h is a convective exchange coefficient.

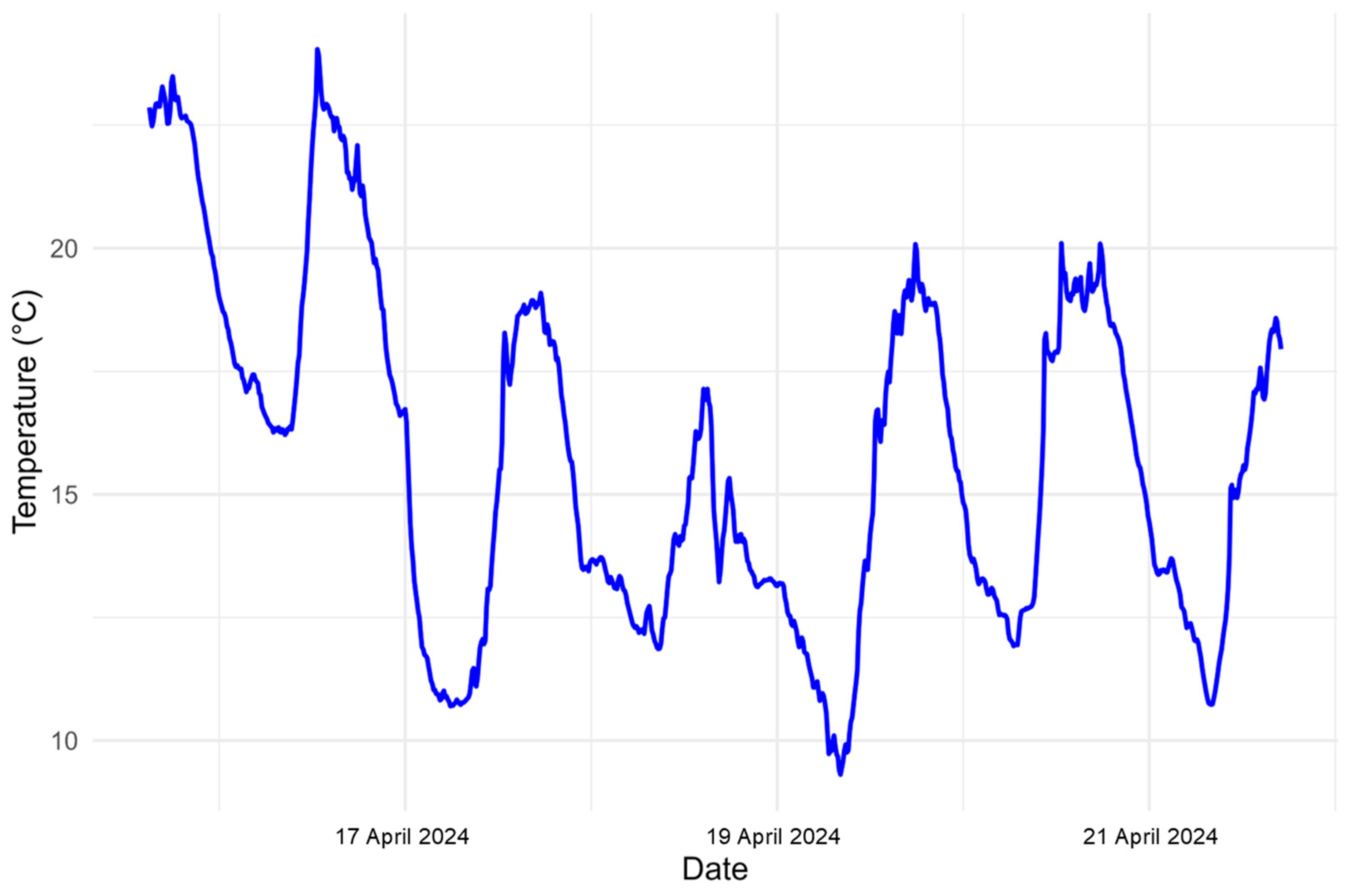

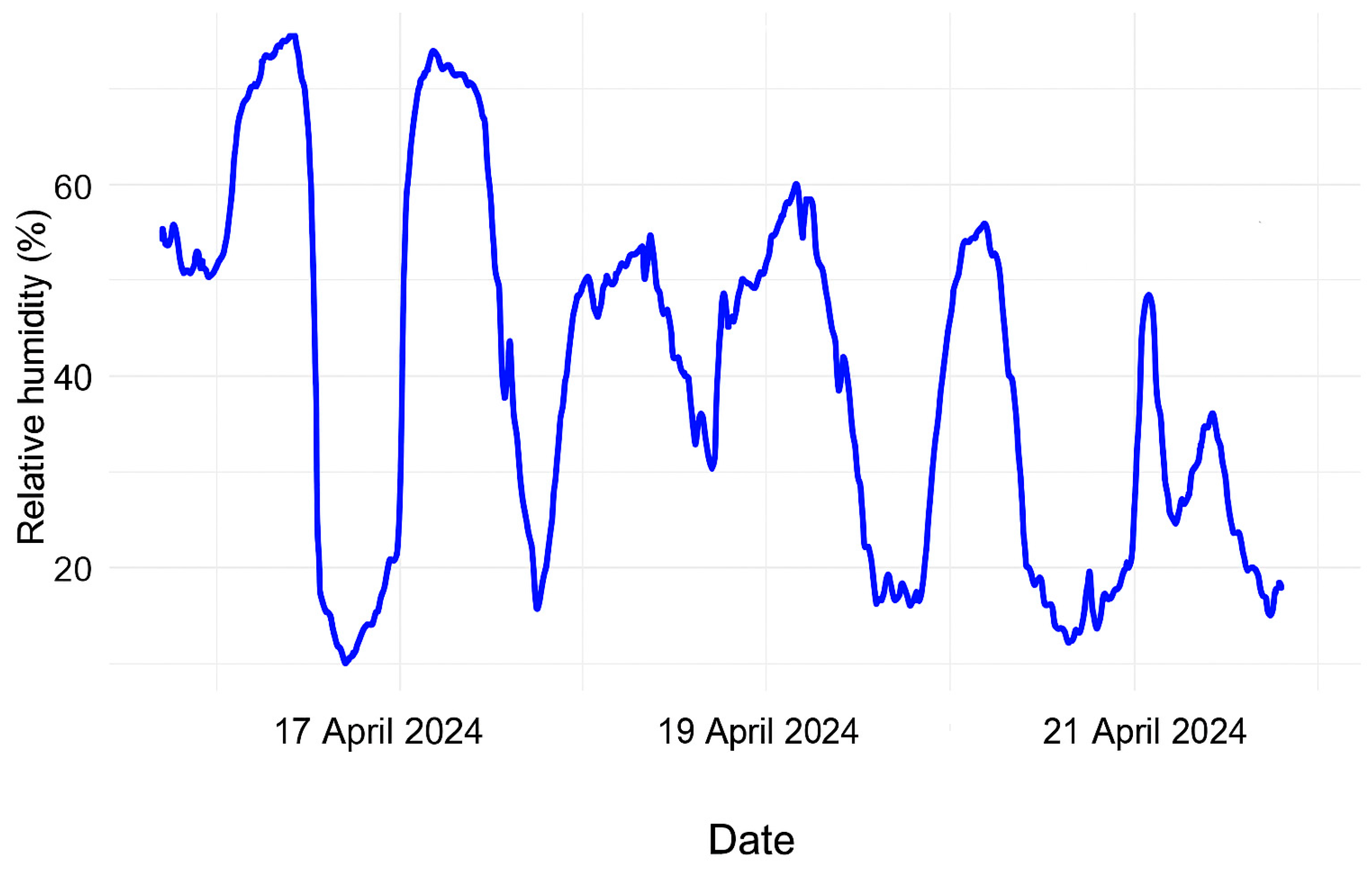

3.3. Meteorological Conditions
3.4. Close Range Low-Cost Photogrammetry
4. Results

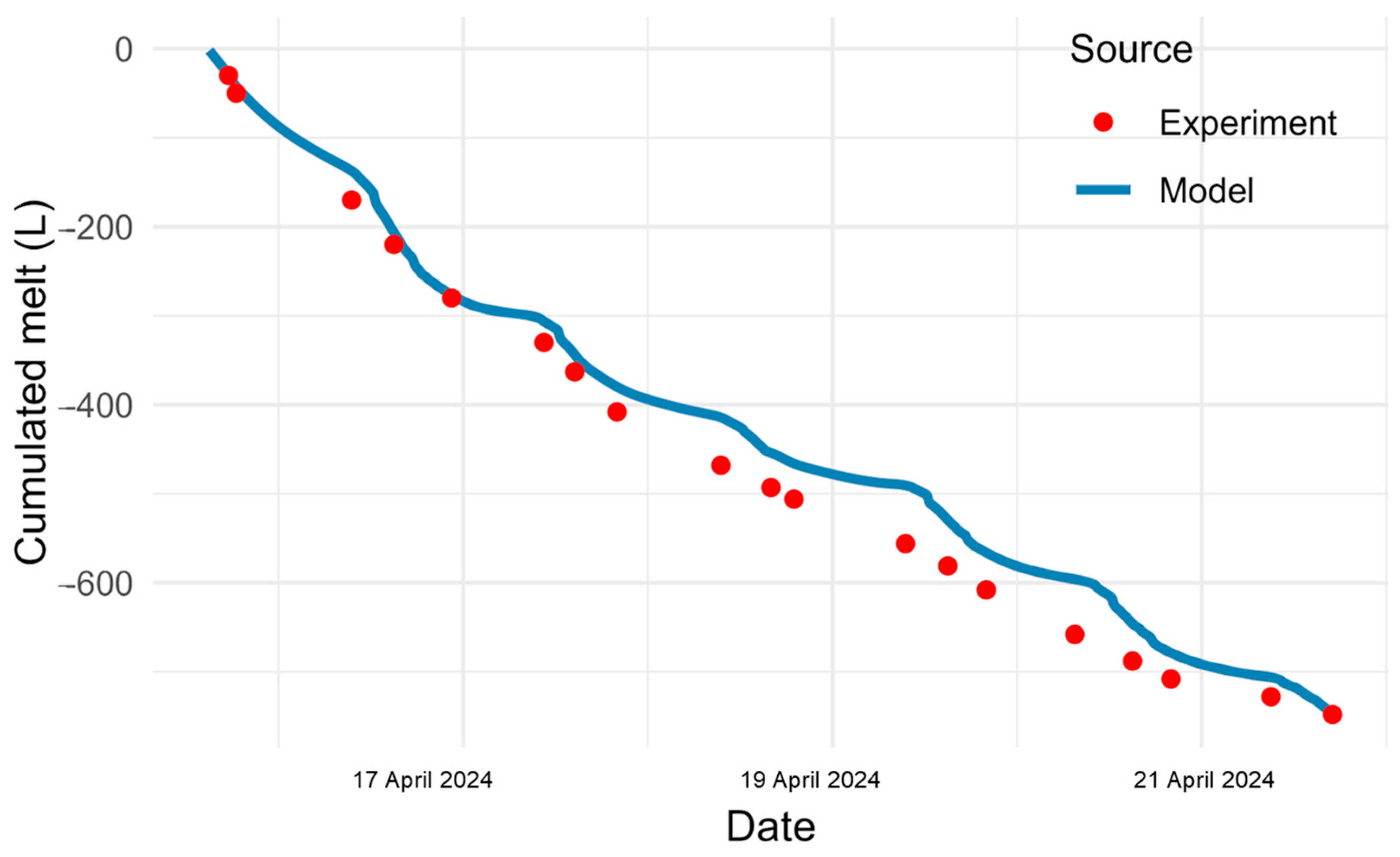

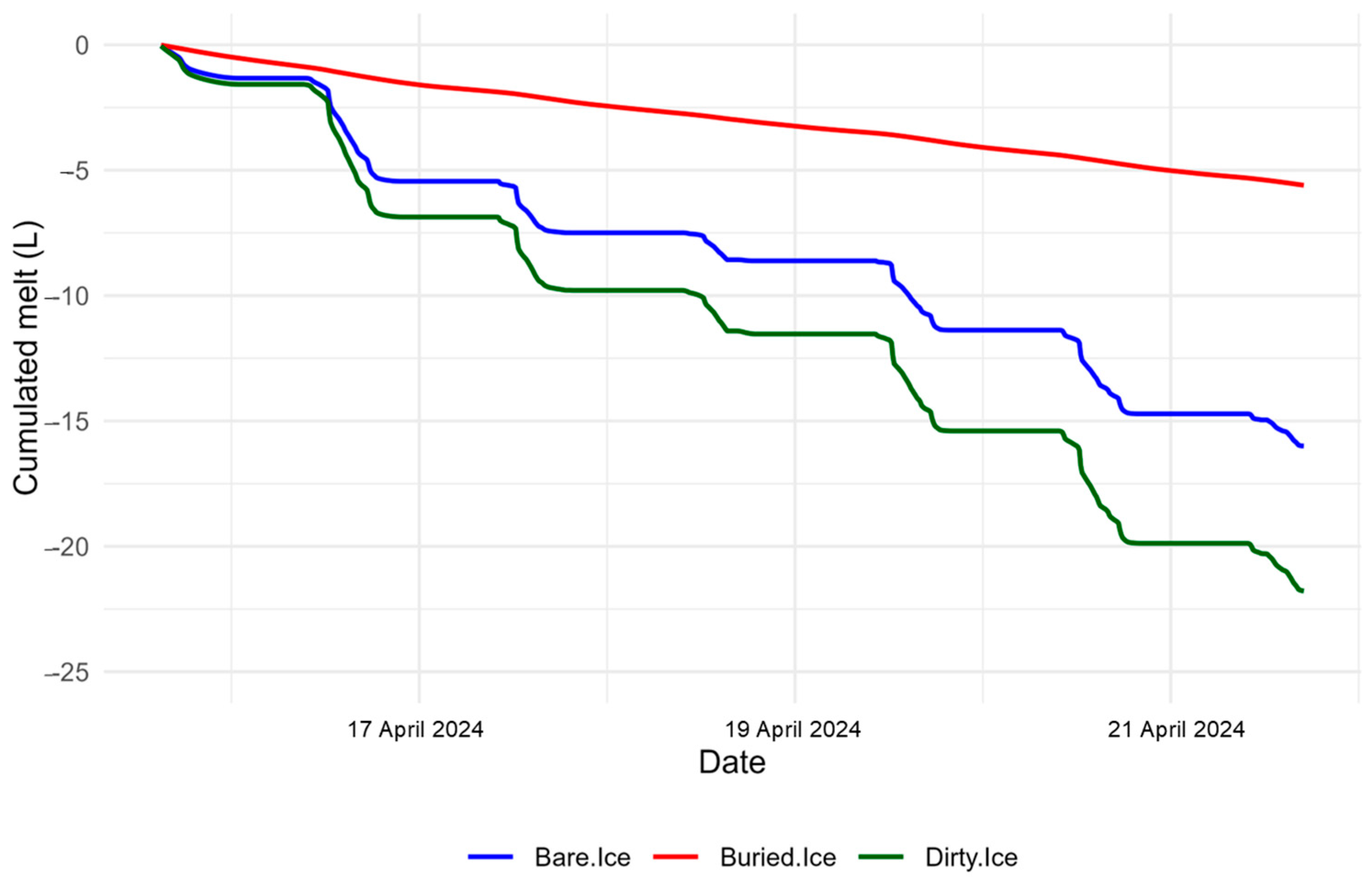

4.1. Ice Melt Prediction
4.2. Meteorological Conditions Affecting Ice Melt
4.3. Actual Ice Melt Quantification
5. Discussion
5.1. Comparison with Similar Global Initiatives
- −
- Ice Watch by Olafur Eliasson: twelve Arctic ice blocks displayed in a clock-like configuration in Copenhagen (2014), then Paris and London, left to melt in public urban spaces to evoke the passage of time and the accelerated loss of ice (Cucuzzella, 2021).
- −
- The Tempestry Project, a participatory fiber art initiative visualizing annual temperature trends through color-coded knitted panels, shared in museums and public installations worldwide (Zambello, 2019).
5.2. Interpretation and Future Potential
6. Conclusions
6.1. Theoretical Implications
6.2. Practical Implications
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Agisoft LLC. (2025). Agisoft metashape user manual professional edition (Version 2.2) [Computer software]. Agisoft LLC.
- Balduini, M., Della Valle, E., Dell’Aglio, D., Tsytsarau, M., Palpanas, T., & Confalonieri, C. (2013). Twindex fuorisalone: Social listening of milano during fuorisalone 2013. In The semantic web: ESWC 2013 satellite events (Vol. 7955). Lecture Notes in Computer Science. Springer. [Google Scholar] [CrossRef]
- Barbagallo, B., Senese, A., Ambrosini, R., Cresi, L., Franceschini, M., Almagioni, C. D., Arcuri, B., Crosta, A., De Rosa, S., Litholdo, T., Lopopolo, S., Manara, V., Melada, J., Montemurro, A. M., Spezza, A., Maugeri, M., & Diolaiuti, G. A. (2024). Immersive 360° experiences for geoscience learning. In L. T. De Paolis, P. Arpaia, & M. Sacco (Eds.), Extended reality (Vol. 15030, pp. 161–178). Springer Nature. [Google Scholar] [CrossRef]
- Barrett, M. J., Harmin, M., Maracle, B., Patterson, M., Thomson, C., Flowers, M., & Bors, K. (2017). Shifting relations with the more-than-human: Six threshold concepts for transformative sustainability learning. Environmental Education Research, 23(1), 131–143. [Google Scholar] [CrossRef]
- Bonasoni, P., Laj, P., Marinoni, A., Sprenger, M., Angelini, F., Arduini, J., Bonafè, U., Calzolari, F., Colombo, T., Decesari, S., Di Biagio, C., Di Sarra, A. G., Evangelisti, F., Duchi, R., Facchini, M. C., Fuzzi, S., Gobbi, G. P., Maione, M., Panday, A., … Cristofanelli, P. (2010). Atmospheric brown clouds in the Himalayas: First two years of continuous observations at the Nepal Climate Observatory-Pyramid (5079 m). Atmospheric Chemistry and Physics, 10(15), 7515–7531. [Google Scholar] [CrossRef]
- Capari, L., Wilfing, H., Exner, A., Höflehner, T., & Haluza, D. (2022). Cooling the city? A scientometric study on urban green and blue infrastructure and climate change-induced public health effects. Sustainability, 14(9), 4929. [Google Scholar] [CrossRef]
- Carturan, L., Cazorzi, F., De Blasi, F., & Dalla Fontana, G. (2015). Air temperature variability over three glaciers in the Ortles-Cevedale (Italian Alps): Effects of glacier fragmentation, comparison of calculation methods, and impacts on mass balance modeling. Cryosphere, 9(3), 1129–1146. [Google Scholar] [CrossRef]
- Chu, E., & Schenk, T. (2017). Communicating about climate change with urban populations and decision-makers. In Oxford research encyclopedia of climate science. Oxford University Press. [Google Scholar] [CrossRef]
- Cook, D., Malinauskaite, L., Davíðsdóttir, B., & Ögmundardóttir, H. (2021). Co-production processes underpinning the ecosystem services of glaciers and adaptive management in the era of climate change. Ecosystem Services, 50, 101342. [Google Scholar] [CrossRef]
- Cucuzzella, C. (2021, October 26). Eco-art, design and architecture can be agents of environmental change in the public realm. SocialCommon.Ca. Available online: https://socialcommons.ca/2021/10/26/eco-art-design-and-architecture-can-be-agents-of-environmental-change-in-the-public-realm (accessed on 25 July 2025).
- Cuffey, K. M., & Paterson, W. S. B. (2010). The physics of glaciers (4th ed.). Academic Press. [Google Scholar]
- Dombrowski, O., Franssen, H. J. H., Brogi, C., & Bogena, H. R. (2021). Performance of the ATMOS41 all-in-one weather station for weather monitoring. Sensor, 21(3), 741. [Google Scholar] [CrossRef]
- Gagné, K., Rasmussen, M. B., & Orlove, B. (2014). Glaciers and society: Attributions, perceptions, and valuations. Wiley Interdisciplinary Reviews: Climate Change, 5(6), 793–808. [Google Scholar] [CrossRef]
- Gaspari, F., Barbieri, F., Fascia, R., Ioli, F., Pinto, L., & Migliaccio, F. (2025). Strategies for glacier retreat communication with 3D geovisualization and open data sharing. ISPRS International Journal of Geo-Information, 14(2), 75. [Google Scholar] [CrossRef]
- Gramegna, S. M., Mattioli, F., & Pei, X. (2024). What Italian furniture companies do towards sustainable transition? Design actions and strategies showcased during Milan Design Week 2023. Proceedings of the Design Society, 4, 1269–1278. [Google Scholar] [CrossRef]
- Hartmann, D. L. (2015). Global physical climatology (2nd ed.). Elsevier Inc. [Google Scholar] [CrossRef]
- Hugonnet, R., McNabb, R., Berthier, E., Menounos, B., Nuth, C., Girod, L., Farinotti, D., Huss, M., Dussaillant, I., Brun, F., & Kääb, A. (2021). Accelerated global glacier mass loss in the early twenty-first century. Nature, 592, 726–731. [Google Scholar] [CrossRef]
- IPCC. (2023). Climate change 2023: Synthesis report. IPCC. [Google Scholar]
- Jacolbe, J. (2025, April 22). Lars Jan’s art goes underwater as warning of climate crisis rises. ALL ARTS. Available online: https://www.allarts.org/2025/04/lars-jan-holoscenes/ (accessed on 25 July 2025).
- Koutlemanis, P., Zabulis, X., Stivaktakis, N., Partarakis, N., Zidianakis, E., & Demeridou, I. (2024). A low-cost close-range photogrammetric surface scanner. Frontiers in Imaging, 3, 1341343. [Google Scholar] [CrossRef]
- Leclercq, P. W., Oerlemans, J., Basagic, H. J., Bushueva, I., Cook, A. J., & Le Bris, R. (2014). A data set of worldwide glacier length fluctuations. Cryosphere, 8(2), 659–672. [Google Scholar] [CrossRef]
- Markowitz, E. M., & Guckian, M. L. (2018). Climate change communication: Challenges, insights, and opportunities. In Psychology and climate change: Human perceptions, impacts, and responses (pp. 35–63). Elsevier Academic Press. [Google Scholar]
- Marley, M. (2021, May 10). In maya lin’s new installation, a forest grows in Manhattan. Vogue. Available online: https://www.vogue.com/article/maya-lin-ghost-forrest (accessed on 25 July 2025).
- Ming, J., Du, Z., Xiao, C., Xu, X., & Zhang, D. (2012). Darkening of the mid-Himalaya glaciers since 2000 and the potential causes. Environmental Research Letters, 7(1), 014021. [Google Scholar] [CrossRef]
- Moreau, M. (2010). Visual perception of changes in a high mountain landscape: The case of the retreat of the Évettes Glacier (Haute-Maurienne, northern French Alps). Geomorphologie: Relief, Processus, Environnement, 16(2), 165–174. [Google Scholar] [CrossRef]
- Moser, S. C. (2006). Talk of the city: Engaging urbanites on climate change. Environmental Research Letters, 1(1), 14006–14010. [Google Scholar] [CrossRef]
- Moser, S. C. (2013). Navigating the political and emotional terrain of adaptation: Community engagement when climate change comes home. In Successful adaptation to climate change: Linking science and policy in a rapidly changing world. Routledge. [Google Scholar]
- Moser, S. C. (2014). Communicating adaptation to climate change: The art and science of public engagement when climate change comes home. Wiley Interdisciplinary Reviews: Climate Change, 5(3), 337–358. [Google Scholar] [CrossRef]
- Nakawo, M., & Takahashi, S. (1982). A simplified model for estimating glacier ablation under a debris layer. In Hydrological aspects of alpine and high mountain areas. Proceedings of the exeter symposium, July 1982. Penn State University Press. [Google Scholar]
- Newman, C. P. (2018). Geoscience education and public outreach in Rocky Mountain National Park, Colorado, U.S.A. Rocky Mountain Geology, 53(1), 45–55. [Google Scholar] [CrossRef]
- Oerlemans, J., Giesen, R. H., & Van Den Broeke, M. R. (2009). Retreating alpine glaciers: Increased melt rates due to accumulation of dust (Vadret da Morteratsch, Switzerland). Journal of Glaciology, 55(192), 729–736. [Google Scholar] [CrossRef]
- Palomo, I. (2017). Climate change impacts on ecosystem services in high mountain areas: A literature review. Mountain Research and Development, 37(2), 179–187. [Google Scholar] [CrossRef]
- Robel, A. A., Ultee, L., Ranganathan, M., & Nash, M. (2024). For whom and by whom is glaciology? Journal of Glaciology, 70, e68. [Google Scholar] [CrossRef]
- Saladié, Ò., Boqué-Ciurana, A., Sevil, J., & Olano Pozo, J. X. (2025). Summer thermal comfort in urban squares: The case of human tower exhibitions in Catalonia. Atmosphere, 16(6), 666. [Google Scholar] [CrossRef]
- Salerno, F., Guyennon, N., Yang, K., Shaw, T. E., Lin, C., Colombo, N., Romano, E., Gruber, S., Bolch, T., Alessandri, A., Cristofanelli, P., Putero, D., Diolaiuti, G., Tartari, G., Verza, G., Thakuri, S., Balsamo, G., Miles, E. S., & Pellicciotti, F. (2023). Local cooling and drying induced by Himalayan glaciers under global warming. Nature Geoscience, 16(12), 1120–1127. [Google Scholar] [CrossRef]
- Scanlon, E. (2014). Scholarship in the digital age: Open educational resources, publication and public engagement. British Journal of Educational Technology, 45(1), 12–23. [Google Scholar] [CrossRef]
- Schaefli, B., Manso, P., Fischer, M., Huss, M., & Farinotti, D. (2019). The role of glacier retreat for Swiss hydropower production. Renewable Energy, 132, 615–627. [Google Scholar] [CrossRef]
- Senese, A., Caspani, A. C., Lombardo, L., Manara, V., Diolaiuti, G. A., & Maugeri, M. (2024). A user-friendly tool to increase awareness about impacts of human daily life activities on carbon footprint. Sustainability, 16(5), 1976. [Google Scholar] [CrossRef]
- Senese, A., Fugazza, D., Chiatante, G., Kaihoh, K., Trasatti, S., Maugeri, M., & Diolaiuti, G. (2023a). Indoor glaciology: “Melting Landscape” to increase people awareness on climate change impacts. Geografia Fisica e Dinamica Quaternaria, 46, 153–162. [Google Scholar]
- Senese, A., Leidi, M., & Diolaiuti, G. (2021). A new enhanced temperature-index melt model including net solar and infrared radiation. Geografia Fisica e Dinamica Quaternaria, 44(1), 5–14. [Google Scholar] [CrossRef]
- Senese, A., Maugeri, M., Ferrari, S., Confortola, G., Soncini, A., Bocchiola, D., & Diolaiuti, G. (2016). Modelling shortwave and longwave downward radiation and air temperature driving ablation at the Forni Glacier (Stelvio National Park, Italy). Geografia Fisica e Dinamica Quaternaria, 39(1), 89–100. [Google Scholar] [CrossRef]
- Senese, A., Pecci, M., Ambrosini, R., & Diolaiuti, G. A. (2023b). MOUNTAINPLAST: A new Italian plastic footprint with a focus on mountain activities. Sustainability, 15(8), 7017. [Google Scholar] [CrossRef]
- Singer-Brodowski, M. (2023). The potential of transformative learning for sustainability transitions: Moving beyond formal learning environments. Environment, Development and Sustainability. [Google Scholar] [CrossRef]
- Stewart, E. J., Wilson, J., Espiner, S., Purdie, H., Lemieux, C., & Dawson, J. (2016). Implications of climate change for glacier tourism. Tourism Geographies, 18(4), 377–398. [Google Scholar] [CrossRef]
- Wamsler, C., Brink, E., & Rivera, C. (2013). Planning for climate change in urban areas: From theory to practice. Journal of Cleaner Production, 50, 68–81. [Google Scholar] [CrossRef]
- Williamson, S. N., Marshall, S. J., & Menounos, B. (2025). Temperature mediated albedo decline portends acceleration of North American glacier mass loss. Communications Earth & Environment, 6(1), 555. [Google Scholar] [CrossRef]
- Zambello, E. (2019, April 3). Crafters work to create the national park tempestry project. National Parks Traveler. Available online: https://www.nationalparkstraveler.org/2019/04/crafters-work-create-national-park-tempestry-project (accessed on 25 July 2025).
- Zemp, M., Jakob, L., Dussaillant, I., Nussbaumer, S. U., Gourmelen, N., Dubber, S., A, G., Abdullahi, S., Andreassen, L. M., Berthier, E., Bhattacharya, A., Blazquez, A., Boehm Vock, L. F., Bolch, T., Box, J., Braun, M. H., Brun, F., Cicero, E., Colgan, W., … Zheng, W. (2025). Community estimate of global glacier mass changes from 2000 to 2023. Nature, 639, 382–388. [Google Scholar] [CrossRef] [PubMed]
Days | Modeled (L) | Measured (L) | Difference (L) |
---|---|---|---|
15 April (18.30) | 43 | 50 | −7 |
16 April (22.30) | 234 | 230 | 4 |
17 April (20.00) | 103 | 128 | −25 |
18 April (19.00) | 86 | 98 | −12 |
19 April (20.00) | 100 | 102 | −2 |
20 April (20.00) | 113 | 100 | 13 |
21 April (17.00) | 67 | 40 | 27 |
Photogrammetry (L) | Modeled (L) | |
---|---|---|
18 April 9.00–19 April 16.50 | −124 | −132 |
19 April 16.50–21 April 11.10 | −213 | −171 |
Event/Installation | Location | Educational Activity Hosted | Estimated Visitors |
---|---|---|---|
Urban Glaciology (this work) | Milan (Fuorisalone 2024) | Ice melt simulation in public square | ~2000 (entire square) |
Ice Watch (first edition) https://socialcommons.ca/2021/10/26/eco-art-design-and-architecture-can-be-agents-of-environmental-change-in-the-public-realm/ (accessed on 25 July 2025) | Copenhagen 2014 | Arctic ice blocks arranged as a clock | over 100,000 |
Ice Watch (Paris edition) https://socialcommons.ca/2021/10/26/eco-art-design-and-architecture-can-be-agents-of-environmental-change-in-the-public-realm/ (accessed on 25 July 2025) | Paris 2015 | Same, during COP21 | tens of thousands |
Tempestry Project https://www.nationalparkstraveler.org/2019/04/crafters-work-create-national-park-tempestry-project (accessed on 25 July 2025) | global sites | Knitted temperature records displayed | hundreds per venue |
Ghost Forest (https://www.vogue.com/article/maya-lin-ghost-forrest) (accessed on 25 July 2025) | New York (Madison Sq. Park) | Dead trees as symbolic forest | tens of thousands |
Holoscenes (https://www.allarts.org/2025/04/lars-jan-holoscenes/) (accessed on 25 July 2025) | NYC, Brisbane, London | Live performance inside a flooding glass box | thousands (public shows) |
