Extraction of Surface Water Extent: Automated Thresholding Approaches ^†

Abstract

Inland water bodies play a crucial role in both ecological and sociological contexts. The distribution of these water bodies can change over time due to natural or human-induced factors. Monitoring the extent of surface water is vital to understand extreme events such as floods and droughts. The availability of dense temporal Earth observation data from sensors like Landsat and Sentinel, coupled with advancements in cloud computing, has enabled the analysis of surface water extent over extended periods. In this study, automated thresholding approaches were applied within the Google Earth Engine platform to extract the surface water extent of the Chembarampakkam reservoir in Tamil Nadu, India. Sentinel-2 data spanning from 2019 to 2023 were used to derive two key indices, namely, the Normalized Difference Vegetation Index (NDVI) and the Normalized Difference Water Index (NDWI). These indices were then thresholded to determine the presence of water. The performance of two different global thresholding techniques, namely, the deterministic thresholding and Otsu thresholding methods, was compared to achieve better results. To enhance the accuracy of the deterministic technique, an iterative method was implemented. While the threshold values were generally similar for both techniques, the Otsu algorithm slightly outperformed the iterated deterministic technique in water classification. Furthermore, a surface water dynamics image was obtained using temporal images, providing insights into the temporal surface dynamism of the reservoir. Overall, this study highlights the significance of surface water monitoring using remote sensing and cloud computing techniques.

1. Introduction

Inland water bodies are important due to both their ecological and sociological significance. Fresh water bodies like rivers have played a major role in shaping human settlements since their rich natural resource forms the basis of livelihood and it also provides a medium for transport and access [1]. Surface freshwater is the main source of water to meet agricultural, domestic and industrial water demands [2]. The expansion of human settlements into towns and cities and the shift of the economy towards the industrial sector is resulting in poor management of the available freshwater, affecting its availability, quality, ecological balance and eventually affecting the marginal communities whose livelihoods are still dependent on it. Inland surface water bodies are very dynamic, both temporally and spatially. Their distribution and course change over time due to natural or human-induced processes [3]. Monitoring their dynamic behavior is crucial for understanding the availability of water stocks and ensuring the planned usage of available water resources. Surface water spread also helps in monitoring certain extreme events. For example, an excessive increase in the water spread could indicate the possibility of flooding, while, on the other hand, shrinking suggests the possibility of drought.

Surveying and documenting surface water spread is possible for a smaller spatial and temporal range, but it is not cost efficient and is time consuming. Recent advances in remote sensing will help overcome these challenges and allow us to perform huge computations over a larger spatial and temporal scale in a cost-effective manner [4]. The availability of temporally dense Earth observation data from sensors like Landsat, Sentinel, etc., has made it possible to analyze surface water spread extent for a longer time period [5]. Today, cloud computation has allowed us to process these images in a matter of time and perform temporal analyses with decades of data. Advances in Image Analysis Techniques have led us to extract different levels of information from images. One of these techniques, which suits surface water extent extraction, is the image segmentation of resultant water or vegetation indices images [6], and several previous studies have used the same technique to map the extent of surface water [7,8,9]. Image segmentation is the technique of grouping regions in an image [10]. One of the famous image segmentation techniques is thresholding-based segmentation, where one or more threshold values are used to segment an image. Generally, thresholding is a technique in which the new value of a pixel in the segmented image is decided based on certain criteria set for the old value of the same pixel in the original image [11]. Thresholding-based segmentation is basically grouped into (i) global thresholding, (ii) local thresholding, and (iii) adaptive thresholding [12].

In this study, an attempt has been made to extract the monthly surface water extent of an inland reservoir using global thresholding in Google Earth Engine. Generally, determinant and Otsu are two global thresholding techniques that have been predominantly used in previous studies on surface water extraction [8,13]. Otsu is a cluster-based thresholding technique [14] where the image is segmented into two classes with a particular gray level as a threshold such that the classes have larger inter-class variance and lower intra-class variance [11]. Deterministic thresholding uses a single threshold value to segment the image into two regions and, particularly, 0 has often been used as the deterministic threshold value for the extraction of water [6]. But this might lead to either the over- or under-estimation of the water extent, as the analysis is made for time-series data or for different water bodies from diverse geographical locations [6]. Also, a study on Otsu thresholding [15] showed that the threshold value obtained from the Otsu algorithm is equal the mean value of the average values of both classes. Therefore, this study tries to use this averaging method to improvise the deterministic threshold value for an automated approach and compare it with the threshold generated by the Otsu algorithm. Finally, a layer which pictures the dynamics of the surface water in the reservoir is also produced using the monthly surface water extent layers obtained through thresholding.

2. Data and Method

2.1. Study Area

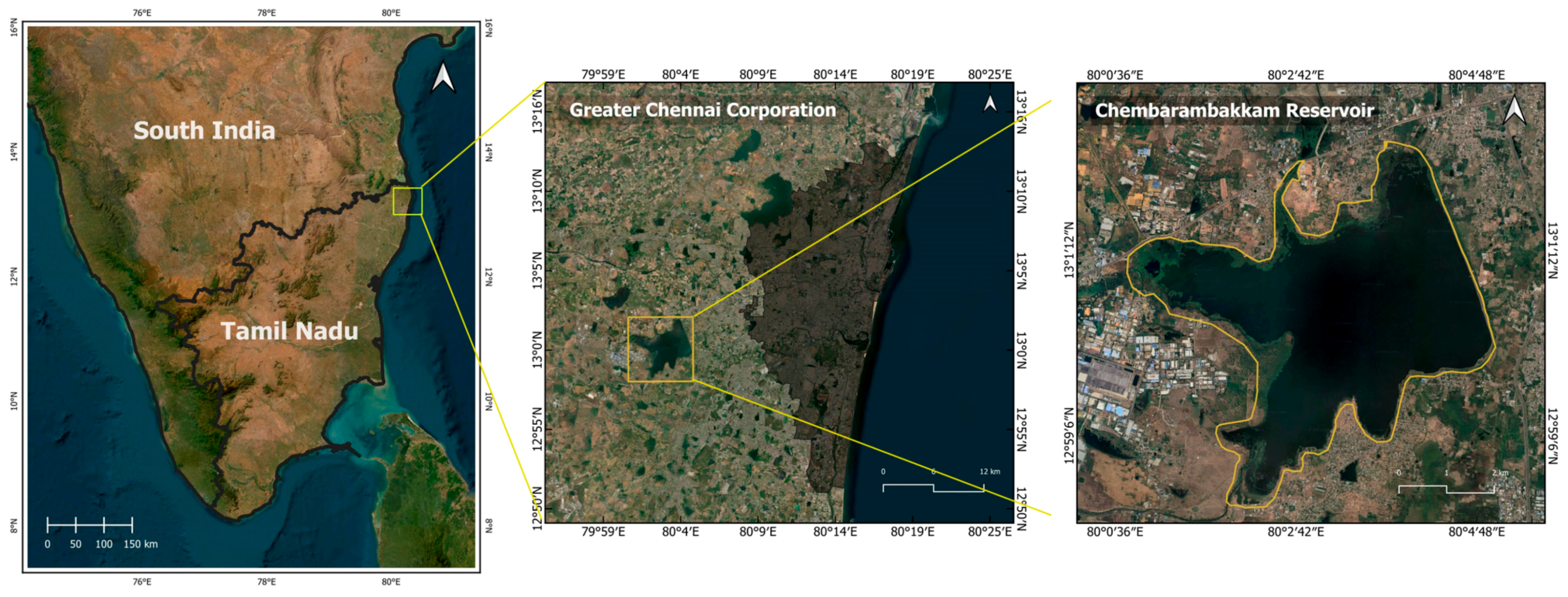

The Chembarampakkam reservoir (refer to Figure 1) is situated in the Adyar river watershed, which is one of the many watersheds in the metropolitan city of Chennai in Tamil Nadu. Chennai is one of the most populated cities in the world, and this reservoir plays a major role in meeting the city’s water needs, importantly potable water needs [16]. The untimely opening of this reservoir due to inadequate monitoring is one of the major reasons that led to flooding in the downstream, which in turn resulted in the death of almost 500 people during the 2015 Chennai floods [17]. This is the reason why this inland fresh water body was taken as a study area for this study.

2.2. Data, Platform and Pre-Processing

The study was carried out on the Google Earth Engine platform. The Sentinel-2 image collection of Level 2 was used to derive the indices. Initially, the dataset was filtered for cloud cover less than 40 percent. Then, monthly means were generated for the region of interest. The Normalized Difference Water Index (NDWI) and Normalized Difference Vegetation Index (NDVI) were then generated using the following Equations (1) and (2) [18,19]:

$$\mathrm{N}\mathrm{D}\mathrm{W}\mathrm{I}=({\mathrm{G}\mathrm{r}\mathrm{e}\mathrm{e}\mathrm{n}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}}-{\mathrm{N}\mathrm{I}\mathrm{R}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}})/({\mathrm{G}\mathrm{r}\mathrm{e}\mathrm{e}\mathrm{n}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}}+{\mathrm{N}\mathrm{I}\mathrm{R}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}})$$

(1)

$$\mathrm{N}\mathrm{D}\mathrm{V}\mathrm{I}=({\mathrm{N}\mathrm{I}\mathrm{R}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}}-{\mathrm{R}\mathrm{e}\mathrm{d}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}})/({\mathrm{N}\mathrm{I}\mathrm{R}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}}+{\mathrm{R}\mathrm{e}\mathrm{d}}_{\mathrm{b}\mathrm{a}\mathrm{n}\mathrm{d}})$$

(2)

2.3. Methodology

2.3.1. Improvised Determinant Thresholding

Usually, in hydrological studies performed in GEE, 0 has mostly been used as a deterministic threshold value to extract water extent [6]. However, for better extraction, threshold values can differ for different scenarios. In this study, the averaging technique discussed in [15] is iteratively used to arrive at an improved threshold value. Initially, 0 is set as a threshold for the indices, which range between −1 and 1, where T is set to 0 and T is the threshold value. Then, the following equation is used to calculate the new threshold:

$${\mathrm{T}}_{\mathrm{n}\mathrm{e}\mathrm{w}}=\frac{{(\mathrm{A}\mathrm{v}\mathrm{g}}_{\mathrm{C}1}+{\mathrm{A}\mathrm{v}\mathrm{g}}_{\mathrm{C}2})}{2}$$

(3)

where C₁ and C₂ represent segmented classes with T = 0 as a threshold. Then, iteratively, new thresholds are derived until T_old is much smaller than T_new (T_old << T_new), where T_old is the previously used threshold value.

2.3.2. Otsu Thresholding

In the Otsu method, a specific gray value of an image is considered as a threshold in such a way that the two segmented classes will have increased inter-class variance. The gray value t is obtained in such a way that the BSS values of the two classes are maximum [20], where BSS is the ‘Between Sum of Squares’ and is calculated as

$$\mathrm{B}\mathrm{S}\mathrm{S}={\sum }_{i=1}^n{({\overline{\mathrm{D}\mathrm{N}}}_{\mathrm{i}}-\overline{\mathrm{D}\mathrm{N}})}^2$$

(4)

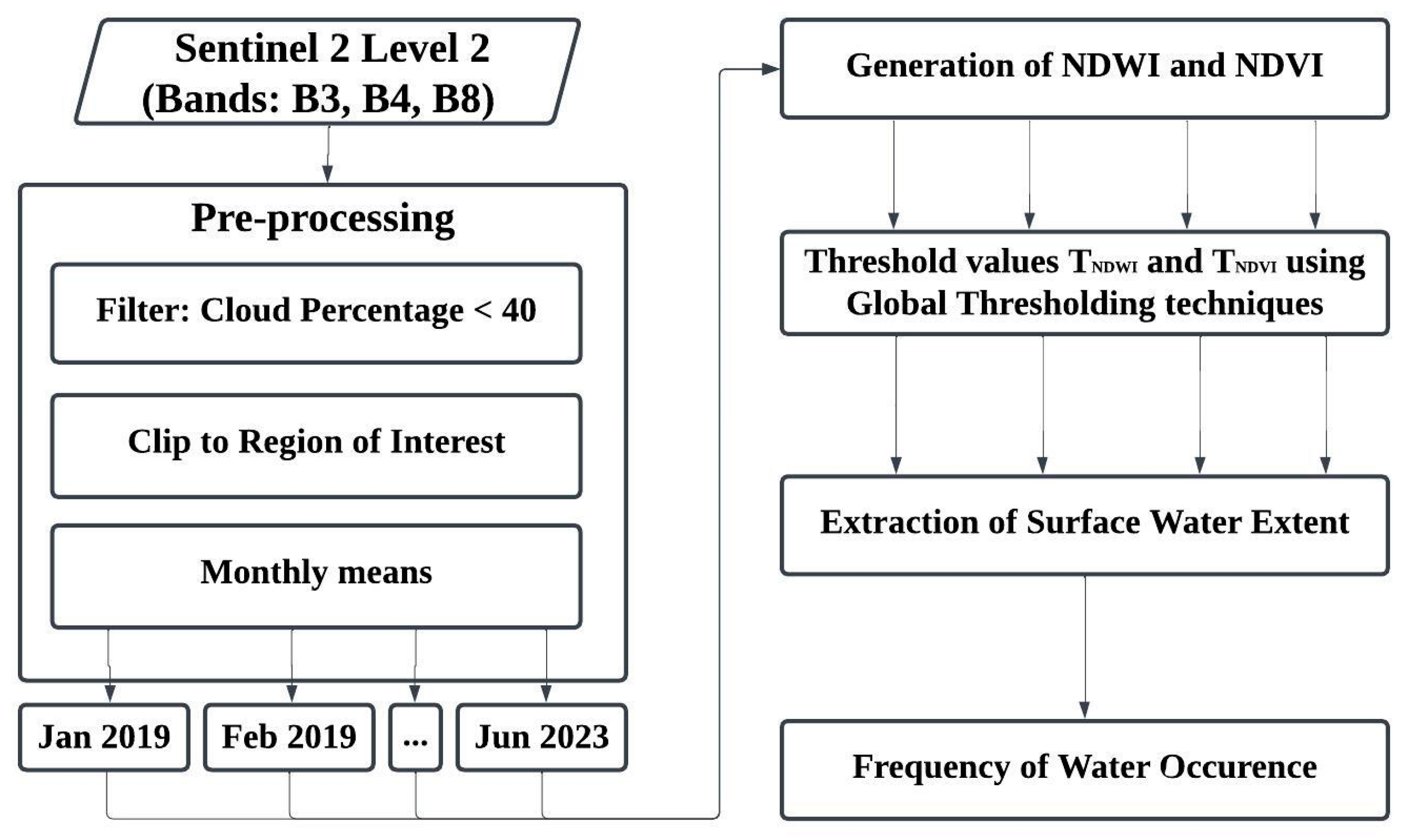

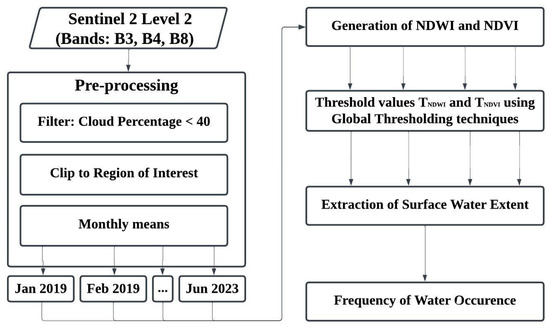

where $\mathrm{i}$ is the number of classes and n is 2 in this case. ${\overline{\mathrm{D}\mathrm{N}}}_{\mathrm{i}}$ is the mean value of Digital Numbers in the particular class $\mathrm{i}$, and $\overline{\mathrm{D}\mathrm{N}}$ is the mean value of the overall image. Figure 2 shows the overall methodological flowchart of the study.

2.3.3. Extraction of Surface Water Extent and Dynamism

Once the thresholds are estimated for both NDWI and NDVI, the surface extent of water is found such that NDWI > T_NDWI and NDVI < T_NDVI [8], where T_NDWI and T_NDVI are the thresholds of water and vegetation indices, respectively. In this way, the surface area where water is present and vegetation is not present is extracted.

To generate the water dynamics layer, the frequency of water occurrence in the surface area is estimated by dividing the number of months water was present in the pixel by the total number of months [8].

3. Results and Discussions

A total of 344 Sentinel 2 Level 2 images for the region of interest, from 2019 January to 2023 June, were collected and processed in the study. In GEE, the process took a matter of seconds and gave the final surface water dynamics layer.

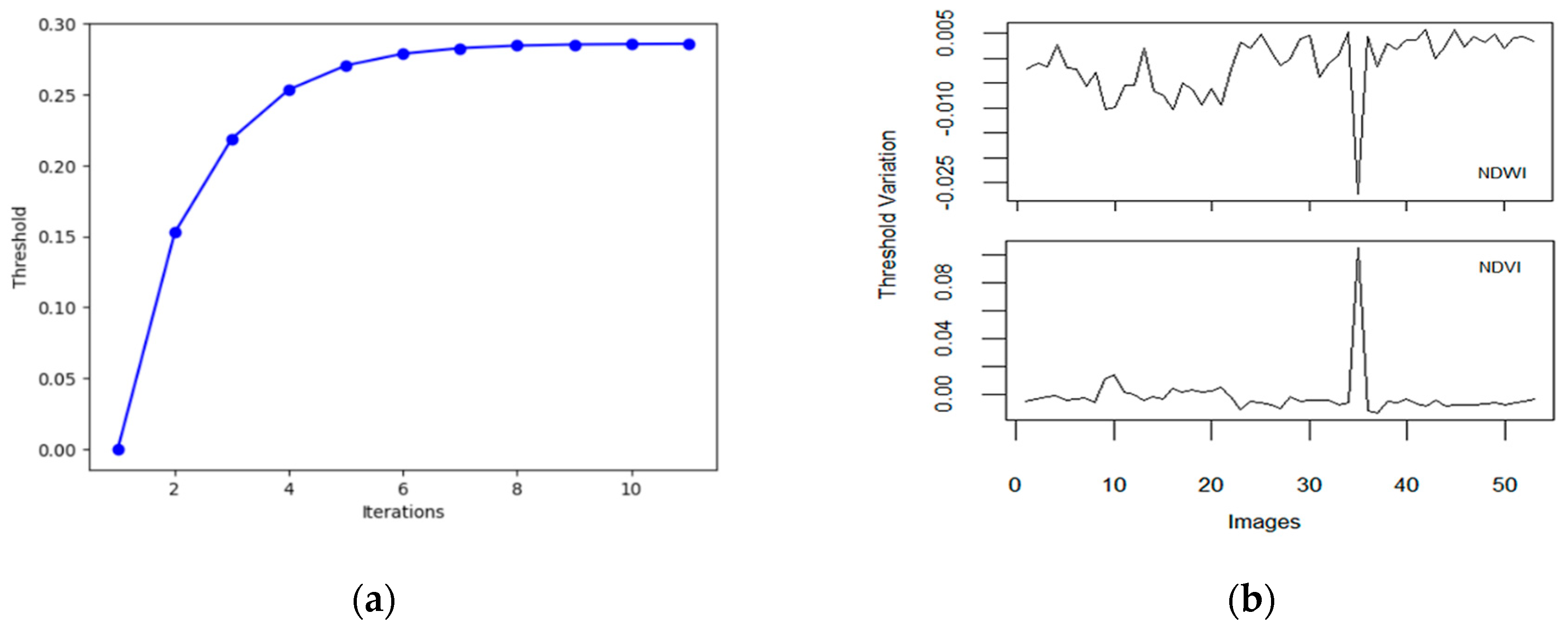

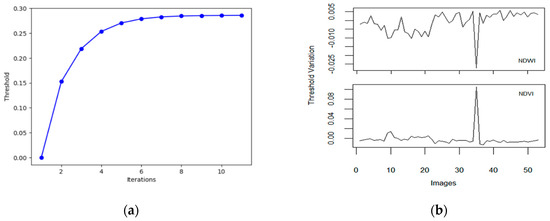

In the iteration process for deterministic thresholding, the threshold values reached negligible variations around the sixth iteration, as seen in Figure 3a. When the same function was repeated for different regions, it successfully worked for areas with significant water cover. But for areas with little or no water cover, the iteration could not perform the estimation of threshold value. When the threshold value generated using the iteration process was compared with the Otsu threshold value, it was found to be moreover similar with an outlier on just the 35th image of the collection. On average, the Otsu thresholds for NDWI and NDVI were 0.0015 and 0.00108 lower than the iterated thresholds, respectively (refer Figure 3b). This shows that this improvised deterministic thresholding approach can be also used in automatic thresholding, just as in Otsu approach. To understand the quality of both the thresholding approaches, it was compared with the classified image generated from a cloud-free day (14 June 2020) through supervised classification (Figure 4a). The classification was carried on with the Random Forest classifier with 96% accuracy. With visual interpretation, it was evident that both the thresholding techniques failed to classify floating vegetation as water. Since both the threshold images did not show much variation, the number of misclassified pixels was calculated and was found to be 8.31% and 8.24% for deterministic and Otsu thresholding, respectively. Though the difference in the threshold value of deterministic and Otsu was not so significant, Otsu was proved to perform better.

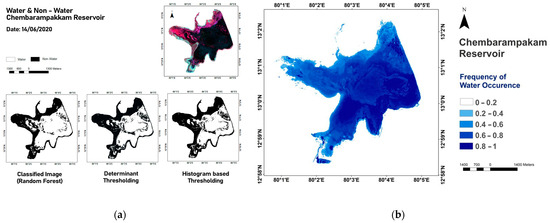

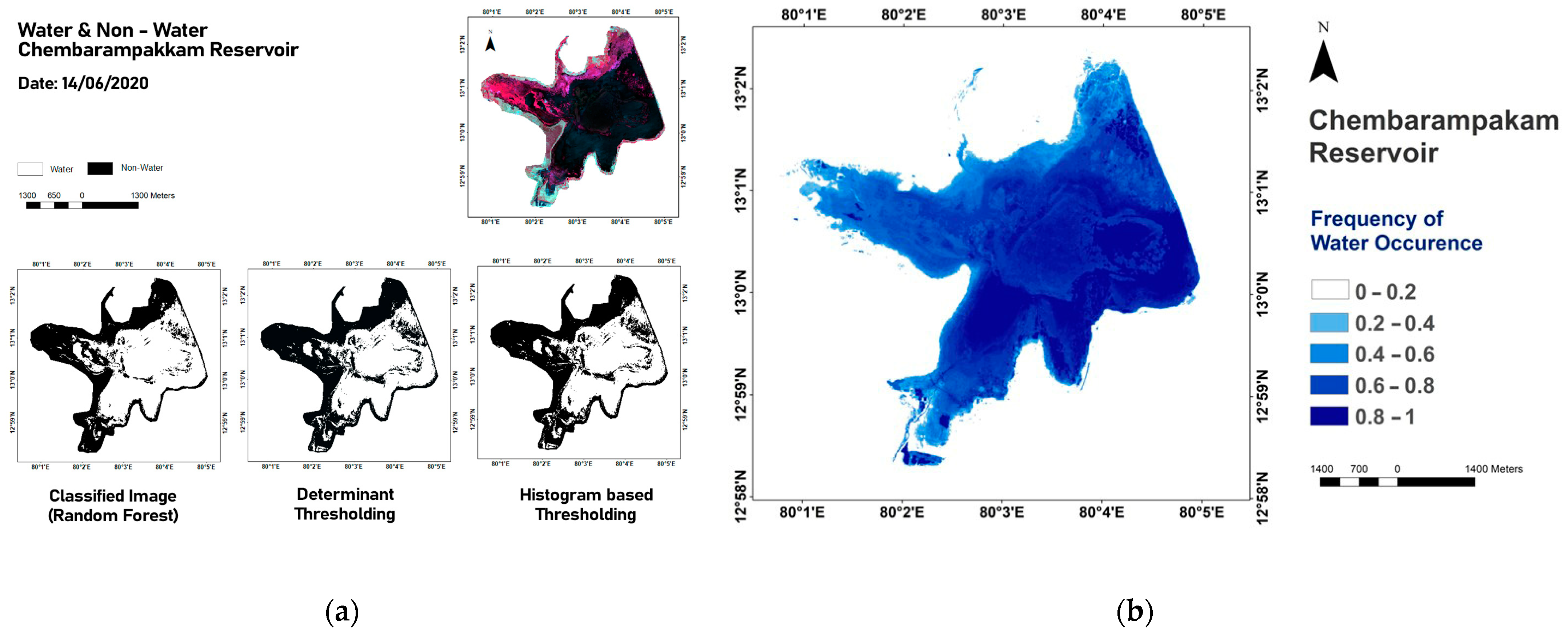

Finally, the surface dynamism layer (refer Figure 4b) gives a better understanding of the reservoir’s depth, the possible full extent it can reach and zones where the siltation can be removed to enhance the holding capacity of the reservoir.

4. Conclusions

In conclusion, this study has used two global thresholding techniques, an improved method of deterministic thresholding and Otsu thresholding, to automatically generate image-specific thresholds. From this study, it is evident that Google Earth Engine (GEE) allows us to perform surface dynamism analysis of water bodies from over several years with ease. This study also shows how iterating a mean of class averages can lead to improving threshold values which can be used for deterministic thresholding in surface water extraction. Also, it shows that the threshold values estimated for deterministic thresholding and Otsu threshold values are similar. It has been noted that Otsu slightly outperforms deterministic thresholding. The surface water dynamism layer gave a better understanding of the reservoir’s permanent and temporary water spread. Including indices that can distinguish floating vegetation or algae and Modified NDWI could improve the quality of this study. This study’s findings contribute to ongoing hydrological research that is aimed at proper water resource management.
