Investigation of Groundwater Resources Quality for Drinking Purposes Using GWQI and GIS: A Case Study of Ottawa City, Ontario, Canada ^†

Abstract

Evaluating groundwater quality for certain purposes requires accurate quantitative and qualitative management, accessibility to the study area, and knowledge of the governing environmental processes. Groundwater resources are used to supply drinking water consumption alongside surface water in most countries. This study aims to investigate the quality of groundwater resources in the city of Ottawa, located in Ontario, Canada, using the Schoeller diagram and the Canadian Groundwater Quality Index (GWQI) in a fuzzy environment. To determine the water quality, the qualitative groundwater parameters including Ca, Mg, Na, Cl, SO₄, HCO₃, NO₃, F, pH, TDS, TH, K, EC, and Alkalinity were considered in the Schoeller diagram and GWQI. Each parameter’s interpolated water quality map layer was prepared using the Kriging method in a GIS environment. The results of Schoeller’s diagram indicated that the range of drinking water quality was non-potable to inappropriate in more than 22% of the investigated groundwater resources. Moreover, the obtained results of the groundwater quality interpolation map layer based on the GWQI revealed that more than 70% of the groundwater resources were examined in the good and excellent range for drinking purposes. Finally, the obtained interpolated map layers of the Schoeller diagram and GWQI were integrated using GIS. Accordingly, the results indicate that the interpolation values of an integrated layer in the study area are well within the permissible limits, and the quality of the groundwater is suitable for drinking and other consumption purposes.

1. Introduction

Water is one of the substantial requirements in planning, developing, protecting, and controlling water resources. Improper and inefficient assessment and management of surface and groundwater could provide essential risks in the fields of human health and well-being, food security, industrial development, and the life of ecosystems [1,2,3,4]. Groundwater is considered one of the most important resources worldwide in the drinking and agriculture sectors. During the last few years, urbanization and population growth have led to an increase in the use of groundwater resources. Therefore, water quality evaluation is one of the significant problems in groundwater studies [5]. Variation in the quality of water resources is a great danger in usage by the agricultural, urban, and industrial sectors [6,7]. Several methods have been developed for water quality determination. Among these key methods to evaluate and manage groundwater resources for drinking purposes, the Schoeller diagram and the Water Quality Index (WQI) methods are the most common. In this study, to assess the water quality of groundwater, the Schoeller diagram, Canadian Groundwater Quality Index (GWQI), and Geographic Information System (GIS) were combined. Schoeller’s semi-logarithmic diagram is widely used to compare groundwater quality. This graph shows the concentration differences between water samples. It is classified based on several physio-chemical parameters to evaluate the quality of groundwater [8]. The GWQI method has high capability for groundwater quality assessment across the world. In the GWQI index based on GIS, several chemical parameters affecting the quality of groundwater are integrated. GIS is used for the interpolation and classification of water quality parameters. For this purpose, the kriging method was applied to interpolate each data layer of water quality parameters. Further, to reduce the uncertainties of the obtained results, interpolation map layers were converted to fuzzy set in GIS environment.

During recent years, multiple studies have been presented to evaluate water quality for drinking uses with the Schoeller diagram, water quality indices, and GIS software in different parts of the world [9,10]. In another study, NickPeyman and Mohammadzadeh, 2013, studied groundwater quality in the Mashhad plain aquifer by estimating the GQI index [11]. Soleimani et al., 2013, conducted a study entitled “Investigation of qualitative changes in water resources of east Koohsorkh using the GQI quality index in the GIS environment” [12]. Sadat-Noori et al., 2014, used a combination of the Water Quality Index (WQI) and GIS to determine the groundwater quality of the Saveh-Nobaran aquifer in Arak province, Iran. They used the kriging method in GIS for creating spatial distribution maps of pH, TDS, EC, TH, Cl, HCO, SO₄, Ca, Mg, Na, and K [13]. In another study, Alavi et al., 2016, assessed the water quality of Dez eastern in Iran for drinking and agricultural uses with Schoeller and Wilcox diagrams, and the zoning water quality in a GIS environment considering physical and chemical parameters. They used the kriging interpolation method in GIS [14]. Farhan et al., 2020, investigated the Canadian Water Quality Index (CCME WQI) for drinking and domestic use in Mosul, Iraq. This research examined ten sampling sites along the river to collect samples from 2008 to 2014. The results showed that the water quality of the Tigris River was between 3.66 and 7.93, which is in the good and moderately good category [15]. Pourkhosravani et al., 2021, tried to evaluate groundwater resources’ chemical quality for drinking and agricultural purposes using Schoeller and Wilcox diagrams in the Sirjan Plain of Iran. Their classification map of each effective parameter was prepared using IDW-based GIS [16]. Given the fact that a comprehensive study on chemical parameter variations of groundwater quality has not been carried out in the study area, this study aimed to investigate the variation in groundwater quality parameters for drinking purposes in Ottawa city using the interpolation of GWQI and the Schoeller diagram in a GIS environment.

2. Materials and Methods

2.1. Study Area

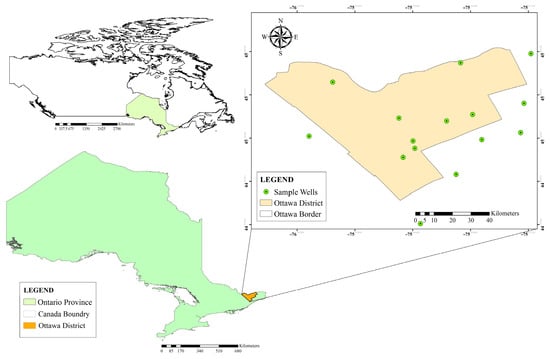

Ottawa city, with the area of 2790 km², is located in in the east of southern Ontario. This city is located at latitude 45°25′29″ N and longitude 75°41′42″ W, with an elevation of 70 m above sea level. The climate is semi-continental, with a warm, humid summer and a very cold winter. The temperature typically varies from −14 °C to 27 °C, while the mean precipitation is 920 mm. Rain falls throughout the year in Ottawa. The highest mean monthly rainfall in Ottawa is in July, with an average rainfall of 76 mm, while the lowest rainfall month is February, with an average rainfall of 12.7 mm. The study area involved different residential and industrial regions which supply the needed water from groundwater resources. Groundwater is one of the main sources of water in this area. There are lots of wells in the study area’s aquifers that have high potential as a source of drinking water. The location of the study area is illustrated in Figure 1.

2.2. Methodology

In this study, the available groundwater level and chemistry data of 15 sample wells distributed across Ottawa city were first collected and analyzed from the Provincial Groundwater Monitoring Network (PGMN) Program of Ontario Province on the Ministry of the Environment, Conservation and Parks website [17]. Long-term qualitative data were used during a 17-year statistical period from 2002 to 2019. In this phase, the important parameters were considered to include Ca, Mg, Na, Cl, SO₄, HCO₃, NO₃, F, pH, TDS, TH, K, EC, and alkalinity of groundwater quality.

In order to classify the water quality of groundwater and determine its type and characteristics, the GWQI index and Schoeller diagram method were used with the help of GIS software. Before that, the Schoeller diagram, a highly recommended method, was applied to investigate the quality of drinking water considering eight parameters including TDS, TH, Na, Cl, SO₄, HCO₃, Mg, and Ca. This diagram shows the concentration differences between the sample wells. It is drawn in six classes, including good, acceptable, average, inappropriate, completely inappropriate, and non-potable, based on several physio-chemical parameters to evaluate the quality of groundwater [8]. In the Schoeller diagram, an axis is considered separately for the parameters mentioned above, which determines drinking water quality [18].

Table 1. The classification of water quality using the Schoeller diagram method (mg/L).

Water Classification	TDS	TH	Na	Cl	SO4
Good	<500	<250	<115	<175	<145
Acceptable	500–1000	250–500	115–230	175–330	145–280
Average	1000–2000	500–1000	230–460	330–700	280–580
Inappropriate	200–4000	1000–2000	460–920	700–1400	580–1150
Completely Inappropriate	4000–8000	2000–4000	920–1840	1400–2800	1150–2240
Non-Potable	>8000	>4000	>1840	>2800	>2240

shows the classification of water quality using the Schoeller diagram method.

Next, The GWQI Index was utilized to determine the water quality of groundwater based on Ca, Mg, Na, Cl, SO₄, HCO₃, NO₃, F, pH, TDS, TH, K, EC, and alkalinity parameters. After the definition of the parameters, three factors to determine the GWQI must be calculated. The values of the three factors were calculated as follow [19]:

F₁ shows the percentage of failed parameters relative to all of the measured parameters:

$$F_1=\left(\frac{Numberoffailedparameters}{Totalnumberofparameters}\right)\times 100$$

(1)

F₂ demonstrates the percentage of failed tests:

$$F_2=\left(\frac{Numberoffailedtests}{Totalnumberofparameters}\right)\times 100$$

(2)

F₃ indicates the value whereby failed test values did not meet their guidelines. F₃ is calculated in three steps.

Step 1. The number of times an individual’s concentration exceeds the guideline is called an “excursion” and is expressed as follows. When the test value should not exceed the guideline:

$$excursio{n}_i=\left(\frac{Failedtestvalu{e}_i}{Objectiv{e}_i}\right)-1$$

(3)

For cases where the test value should not be less than the guidelines:

$$excursio{n}_i=\left(\frac{Objectiv{e}_i}{Failedtestvalu{e}_i}\right)-1$$

(4)

Step 2. The cumulative amount by which individual tests are out of compliance is calculated by summing the excursions of individual tests from their guidelines and dividing by the total number of tests. This parameter, called the normalized sum of excursions, or nse, is determined as follows:

$$nse=\frac{{\displaystyle \sum _{i=1}^{n}excursio{n}_i}}{Numberoftests}$$

(5)

Step 3. Then, F₃ is calculated by an asymptotic function that yields the normalized sum of excursions from instructions (nse) to a range between 0 and 100.

$$F_3=\left(\frac{nse}{0.01nse+0.01}\right)$$

(6)

Once the three factors have been obtained, the index itself can be calculated by summing the three factors as a vector and using the Pythagorean theorem. Therefore, the sum of squares of each factor is equal to the square of GWQI.

$$GWQI=100-\left(\frac{\sqrt{F_1^2+F_2^2+F_3^2}}{1.732}\right)$$

(7)

A divisor of 1.732 normalizes the resulting values to a range between 0 and 100, where 0 represents the worst water quality and 100 represent the best water quality.

Computed GWQIs were classified into five categories including excellent, good, fair, marginal, and poor for human consumption in

Table 2. The classification of water quality using the GWQI [19].

Rank	Water Quality Ranking System
Poor	0–44.9
Marginal	45–64.9
Fair	65–79.9
Good	80–94.9
Excellent	95–100

[19]. The outcome of the index includes a number between 0 (worst water quality) and 100 (best water quality) [20,21].

Afterward, a spatial classification map for each important parameter of the Schoeller diagram and GWQI Index method was prepared as a raster layer based on the kriging interpolation technique in GIS. It should be noted that, in order to reduce the uncertainty of all the classified raster parameters, each parameter layer was fuzzified based on the linear membership function in GIS [22,23,24]. Then, the final interpolation layers of the two methods (Schoeller and GWQI) were created by integrating fuzzy Raster layers as effective parameters using the fuzzy overlay tool. Finally, the classification map of the groundwater quality of the study area was generated by integrating the Schoeller and GWQI classified maps based on the overlaying method.

3. Results and Discussion

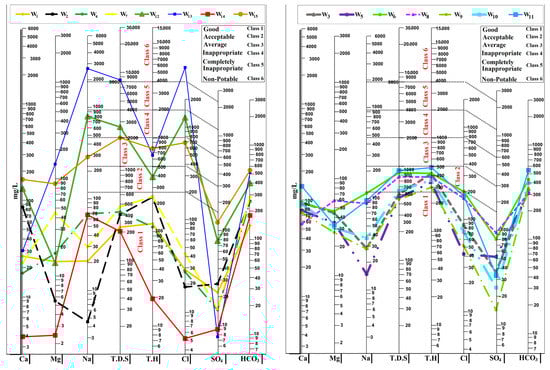

In this study, the water quality parameters of sample wells in the city of Ottawa for the drinking sector were studied using the Schoeller diagram and the GWQI Index. Therefore, based on Schoeller’s classification, the amounts of cations such as calcium (Ca), magnesium (Mg), sodium (Na), and anions such as chloride (Cl), sulfate (SO₄), bicarbonate (HCO₃), and two important parameters of total dissolved solids (TDS), and the total hardness (TH), were checked in the diagram, which is shown in Figure 2.

Regarding the discussion of limitations and practical implications in the current research, the groundwater quality in the urban area of Ottawa was explored. Using the approach implemented in this study, water quality could be analyzed concerning the environment, agriculture, and industry if more parameters were obtainable. However, due to the absence of pertinent environmental parameters such as BOD, COD, and DO, and industrial and agricultural parameters such as heavy metals including Fe, Cu, Zn, and As, and the time constraint involved in producing this article, only the drinking perspective was investigated concerning the quality of groundwater.

According to the diagrams (see Figure 2), the water quality of wells W₁, W₂, W₄, W₇, and W₁₄ was in the good range; wells W₃, W₅, W₆, W₈, W₉, W₁₀, and W₁₁ were in the acceptable range, and the rest of the wells were in the lower quality range. In general, it was concluded that about 71% of the parameter values were in the good range and 29% of the rest of the parameters were in other quality classes.

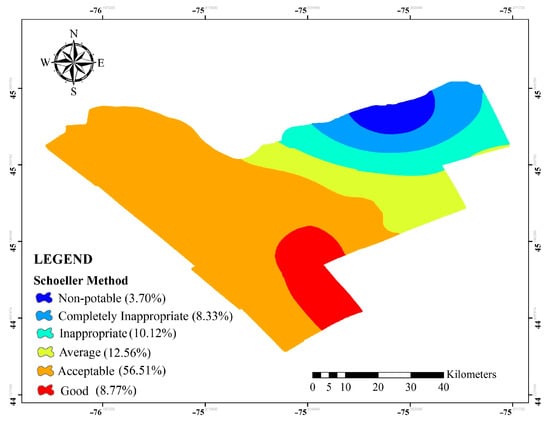

In the following, the values of each parameter of Schoeller’s diagram were interpolated based on the six classes of Schoeller’s classification in the ArcGIS software using the kriging method, and finally six classified maps were integrated with the Fuzzy Overlay tool in the form of the water quality classification map of Ottawa city (see Figure 3).

Based on to the classified map of Schoeller, the water quality in the classification for the Ottawa city area was in six categories, from good to non-potable. In the south, west, and north-west areas towards the center, the water quality was good and fair for drinking purposes, and from the central area towards the east and northeast, the water quality decreased. Based on the location of two wells, W₁₂ and W₁₃, it can be pointed out that saltwater infiltrated the groundwater resources of these areas, considering the high amount of Na and Cl ions and also the proximity of these two wells to the Ottawa River. According to Schoeller’s classification map, some water samples may have good drinking quality, while those ones can contain other harmful and toxic substances; therefore, to solve this problem more parameters were used in the GWQI Index. Hence, those parameters such as electrical conductivity (EC), pH, alkalinity (mg/L CaCO₃), Calcium (Ca), Sodium (Na), Magnesium (Mg), Potassium (K), Sulphate (SO₄), Chloride (Cl), Fluoride (F), and Nitrate (NO₃) were evaluated for the GWQI classification map.

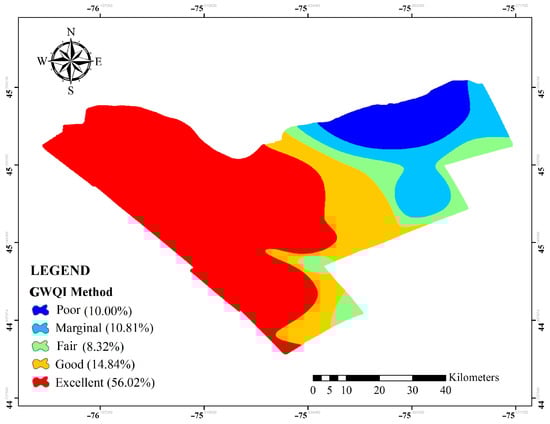

Considering Equations (1)–(7), the annual average values of GWQI, considering Table 2, were calculated in the range of values 33 to 100. Therefore, the water quality in most wells for drinking purposes was rated in the range of excellent to good. The GWQI values were interpolated in the ArcGIS environment using the kriging method, shown in Figure 4. According to Figure 4, the southwest, west, and northwest regions towards the center of the study area have excellent and good drinking water quality, and from the central region toward the southeast, east, and northeast, the water quality is decreased due to the increase of NaCl ions.

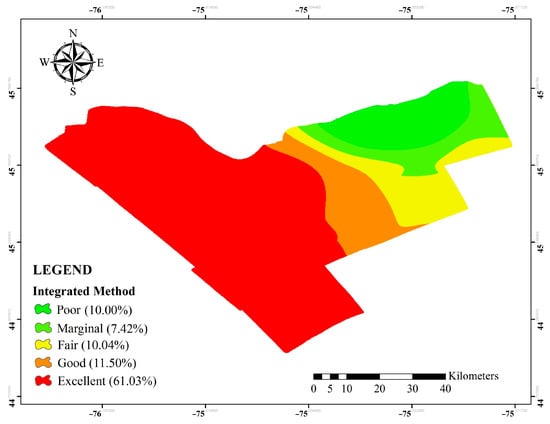

Finally, after preparing Schoeller and GWQI classification maps, these two classified maps overlapped with the Fuzzy Overlay tool in ArcGIS. Additionally, the overlaid map was categorized into five classes from Excellent to Poor (see Figure 5). Furthermore, by investigating the integrated classification map, it was found that the values of groundwater quality were in the excellent and good class range for the area of Ottawa city in the south, west, and the northwest regions towards the center, and also the water quality range decreased in the east and northeast regions.

4. Conclusions

In this study, the main aim was to investigate groundwater quality through the combination of the Schoeller diagram and the Canadian Groundwater Quality Index (GWQI). This study tried to evaluate and analyze the water quality in Ottawa city in Ontario, Canada, based on long-term qualitative data from 15 sample wells between 2002 and 2019. The classified water quality maps of each chemical parameter were prepared using the kriging method based on a fuzzy set in the GIS environment. The obtained results showed that, based on the Schoeller diagram, most of the studied wells were located in good to acceptable quality regions regarding drinking purposes. According to the Schoeller classification map of groundwater resources, the acceptable class, with 56.51% of the aquifer area, and the non-potable class, with 3.70% of the aquifer area, made up the highest and lowest portions of the aquifer, respectively. Moreover, according to the GWQI water quality classification map results, 79.18% of the wells were in the fair to excellent range, and 10% were in the poor range. Finally, the results of assessing the integrated Schoeller and GWQI water quality classification map used for drinking purposes showed that, based on the values of these two methods, the water quality in the central areas and near-west areas were categorized into excellent and good classes, and from the central regions to the east, the water quality had gradually decreased. Moreover, the transferability of the proposed method and results can be discussed in light of the obtained outcomes. Our approach integrated the GWQI index, Schoeller diagram, and GIS to develop a model that can be utilized for agricultural, industrial, and environmental purposes by including several chemical parameters. The GWQI index enabled us to expand the model to encompass other water quality diagrams, such as Wilcox and Piper. Moreover, our study’s reliability and transparency provide significant insights for researchers and decision-makers to analyze and make informed decisions about the quality of drinking water. These results show that the proposed method is transferable to more extensive case studies, providing valuable insights for various water quality applications.
