Drone-Based Ecohydraulic Signatures of Fully-Vegetated Ditches: Real-Scale Experimental Analysis †

by
Giuseppe Francesco Cesare Lama
1,2,*,
Mariano Crimaldi
2 and
Giovanni Battista Chirico
2
1
Department of Civil, Architectural, and Environmental Engineering (DICEA), University of Naples Federico II, 80125 Napoli, Italy
2
Water Resources Management and Biosystems Engineering Division, Department of Agricultural Sciences, University of Naples Federico II, 80055 Portici, Italy
*
Author to whom correspondence should be addressed.
†
Presented at the International Conference EWaS5, Naples, Italy, 12–15 July 2022.
Environ. Sci. Proc. 2022, 21(1), 24; https://doi.org/10.3390/environsciproc2022021024
Published: 20 October 2022
(This article belongs to the Proceedings of EWaS5 International Conference: “Water Security and Safety Management: Emerging Threats or New Challenges? Moving from Therapy and Restoration to Prognosis and Prevention”)
Browse Figures
Versions Notes

Abstract

:
The prediction of the ecohydraulic and ecohydrological structures of vegetated flows is extremely important; particularly because of the well-known Climate Change and Global Warming implications. This study aims at monitoring the real-scale Ecohydrodynamics of vegetated ditches hardly covered by riparian stands, through the analysis of their reflectance signature. A monitoring system composed of a cruising drone and a thermographic camera was employed in the present experimental study. Once the main average and turbulence traits were measured directly in the field, the correlation between the riparian plant’s Leaf Area Index (LAI) and their thermal properties was studied to assess the impact of drone-based thermometry methods and techniques on the predictions of the main real-scale flow trends of vegetated waterways.

1. Introduction

The real-scale analysis of the ecohydraulic patterns exhibited by vegetated water flows is highly affected by the presence of riparian patches [1,2,3]. Specifically, the ecohydrodynamic behavior of vegetation in rivers depends on its morphometrical and ecological traits [4,5,6,7,8]. In the last decade, the potential of drones in monitoring both natural and urban areas has improved considerably, thanks to their remote sensing capabilities, especially when dealing with vegetated water systems almost worldwide [9,10,11,12].
The present experimental research aims at evaluating the potential of image processing techniques of drone-based thermographic acquisition in assessing the actual eco-hydrodynamic traits of a vegetated ditch colonized by mature giant reed (Arundo donax L.) plants [13,14,15,16,17]. In the present study, the field-scale Leaf Area Index (LAI), representing the canopy biomass distribution, and drone-based temperature T (°C) were evaluated at ten 5 m wide experimental cross-sections identified along the examined vegetated ditch, located 3 m apart.

2. Materials and Methods

Study Site
As indicated in Figure 1, the experimental water body studied in the present research is a vegetated open channel located in Nola (Campania region, southern Italy) hardly covered by rigid riparian vegetation, consisting of giant reed plants.
The drone and the corresponding controller selected for this experimental ecohydraulic study are illustrated in Figure 2a and Figure 2b, respectively.
As shown in Figure 2a and Figure 2b, the drone and the thermographic camera selected for the present study are the DJI® M 600 pro hexacopter and TeleDYNE® FLiR VUE pro R devices, respectively.
In Table 1, the main technical features of the thermographic camera sensors selected for this work are detailed.

3. Results and Discussion

The map of experimental temperature values associated with the examined vegetated ditch is reported in Figure 3.
In Figure 4 is shown the linear correlation obtained between the experimental values of temperature T (°C) and ground-based Leaf Area Index (LAI) corresponding to ten randomly-distributed cross-sections monitored along the vegetated ditch.
The linear regression represented in Figure 4 is quantitatively represented by the following equation:
LAI = 0.03 T + 1.78.
The previous equation is characterized by a coefficient of determination R2 pair to 0.72, indicating a good level of correlation between T (°C) and LAI at ten cross-sections examined in this work. This outcome represents the first advance in the thermographic-based experimental analysis of the ecohydraulic flow dynamic behaviour of vegetated water flows.
The predictive performance of the experimental methodology adopted in the present study can be examined in more detail in terms of uncertainty analysis, by taking into account the most robust statistical models, widely employed in geoscience and hydraulic modeling research [18,19,20,21,22,23,24,25,26].

4. Conclusions

The main findings of this research represent a first advance in the cruising of experimental ecohydraulic research focused on the protection of natural resources along vegetated water streams at real scale [27,28,29,30,31,32,33,34].
Deep learning and artificial neural network applications [35,36,37,38,39,40,41] can be implemented in the processing of the ecohydraulic datasets retrieved in the present study to simulate the bio-mechanical behavior of the examined riparian plants over time in multiple hydrodynamic conditions [42,43,44,45,46,47,48].

Author Contributions

Conceptualization, G.F.C.L., M.C. and G.B.C.; methodology, G.F.C.L., M.C. and G.B.C.; validation, G.F.C.L., M.C. and G.B.C.; investigation, G.F.C.L., M.C. and G.B.C.; data curation, G.F.C.L., M.C. and G.B.C.; writing—original draft preparation; G.F.C.L., M.C. and G.B.C.; writing—review and editing G.F.C.L., M.C. and G.B.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors want to thank Eng. Martulio Beija-Platina for his relevant support during the ecohydraulic and plants surveys related to the full vegetated ditch examined here.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Batsukh, K.; Zlotnik, V.A.; Suyker, A.; Nasta, P. Prediction of Biome-Specific Potential Evapo-transpiration in Mongolia under a Scarcity of Weather Data. Water 2021, 13, 2470. [Google Scholar] [CrossRef]
  2. Lama, G.F.C.; Errico, A.; Francalanci, S.; Solari, L.; Chirico, G.B.; Preti, F. Hydraulic Modeling of Field Experiments in a Drainage Channel Under Different Riparian Vegetation Scenarios. In Innovative Biosystems Engineering for Sustainable Agriculture, Forestry and Food Production; Coppola, A., Di Renzo, G., Altieri, G., D’Antonio, P., Eds.; Springer: Cham, Switzerland, 2020; pp. 69–77. [Google Scholar] [CrossRef]
  3. Albertini, C.; Miglino, D.; Iacobellis, V.; De Paola, F.; Manfreda, S. Delineation of flood-prone areas in cliffed coastal regions through a procedure based on the geomorphic flood index. J. Flood Risk Manag. 2021, 15, e12766. [Google Scholar] [CrossRef]
  4. Errico, A.; Lama, G.F.C.; Francalanci, S.; Chirico, G.B.; Solari, L.; Preti, F. Flow dynamics and turbulence patterns in a drainage channel colonized by common reed (Phragmites australis) under different scenarios of vegetation management. Ecol. Eng. 2019, 133, 39–52. [Google Scholar] [CrossRef]
  5. De Paola, F.; Giugni, M.; Pugliese, F.; Romano, P. Optimal Design of LIDs in Urban Stormwater Systems Using a Harmony-Search Decision Support System. Water Resour. Manag. 2018, 32, 4933–4951. [Google Scholar] [CrossRef]
  6. Crimaldi, M.; Lama, G.F.C. Impacts of riparian plants biomass assessed by UAV-acquired multispectral images on the hydrodynamics of vegetated streams. In Proceedings of the 29th European Biomass Conference and Exhibition, Online, 26–29 April 2021; pp. 1157–1161. [Google Scholar] [CrossRef]
  7. Blöschl, G.; Hall, J.; Parajka, J.; Perdigão, R.A.P.; Merz, B.; Arheimer, B.; Aronica, G.T.; Bilibashi, A.; Bonacci, O.; Borga, M.; et al. Changing climate shifts timing of European floods. Science 2017, 357, 588–590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Lama, G.F.C.; Chirico, G.B. Effects of reed beds management on the hydrodynamic behaviour of vegetated open channels. In Proceedings of the 2020 IEEE International Workshop on Metrology for Agriculture and Forestry (MetroAgriFor), Trento, Italy, 4–6 November 2020; pp. 149–154. [Google Scholar] [CrossRef]
  9. Avino, A.; Manfreda, S.; Cimorelli, L.; Pianese, D. Trend of annual maximum rainfall in Campania region (Southern Italy). Hydrol. Process. 2021, 35, e14447. [Google Scholar] [CrossRef]
  10. Lama, G.F.C.; Crimaldi, M.; De Vivo, A.; Chirico, G.B.; Sarghini, F. Eco-hydrodynamic characterization of vegetated flows derived by UAV-based imagery. In Proceedings of the 2021 IEEE International Workshop on Metrology for Agriculture and Forestry (MetroAgriFor), Perugia, Italy, 3–5 November 2021; pp. 273–278. [Google Scholar] [CrossRef]
  11. Box, W.; Järvelä, J.; Västilä, K. Flow resistance of floodplain vegetation mixtures for modelling river flows. J. Hydrol. 2021, 601, 126593. [Google Scholar] [CrossRef]
  12. Xu, Y.-S.; Shen, S.-L.; Lai, Y.; Zhou, A.-N. Design of sponge city: Lessons learnt from an ancient drainage system in Ganzhou, China. J. Hydrol. 2018, 563, 900–908. [Google Scholar] [CrossRef]
  13. Lama, G.F.C.; Rillo Migliorini Giovannini, M.; Errico, A.; Mirzaei, S.; Chirico, G.B.; Preti, F. The impacts of Nature Based Solutions (NBS) on vegetated flows’ dynamics in urban areas. In Proceedings of the 2021 IEEE International Workshop on Metrology for Agriculture and Forestry (MetroAgriFor), Perugia, Italy, 3–5 November 2021; pp. 58–63. [Google Scholar] [CrossRef]
  14. Manfreda, S.; Miglino, D.; Albertini, C. Impact of detention dams on the probability distribution of floods. Hydrol. Earth Syst. Sci. Discuss. 2021, 25, 4231–4242. [Google Scholar] [CrossRef]
  15. Busico, G.; Alessandrino, L.; Mastrocicco, M. Denitrification in Intrinsic and Specific Groundwater Vulnerability Assessment: A Review. Appl. Sci. 2021, 11, 10657. [Google Scholar] [CrossRef]
  16. Bianco, F.; Monteverde, G.; Race, M.; Papirio, S.; Esposito, G. Comparing performances, costs and energy balance of ex situ remediation processes for PAH-contaminated marine sediments. Environ. Sci. Pollut. Res. 2020, 27, 19363–19374. [Google Scholar] [CrossRef] [PubMed]
  17. Lama, G.F.C.; Errico, A.; Pasquino, V.; Mirzaei, S.; Preti, F.; Chirico, G.B. Velocity Uncertainty Quantification based on Riparian Vegetation Indices in open channels colonized by Phragmites australis. J. Ecohydraulics 2021, 1–6. [Google Scholar] [CrossRef]
  18. Busico, G.; Colombani, N.; Fronzi, D.; Pellegrini, M.; Tazioli, A.; Mastrocicco, M. Evaluating SWAT model performance, considering different soils data input, to quantify actual and future runoff susceptibility in a highly urbanized basin. J. Environ. Manag. 2020, 266, 110625. [Google Scholar] [CrossRef] [PubMed]
  19. Cutugno, M.; Robustelli, U.; Pugliano, G. Low-Cost GNSS Software Receiver Performance Assessment. Geosciences 2020, 10, 79. [Google Scholar] [CrossRef] [Green Version]
  20. Hu, D.; Zhang, C.; Ma, B.; Liu, Z.; Yang, X.; Yang, L. The characteristics of rainfall runoff pollution and its driving factors in Northwest semiarid region of China—A case study of Xi’an. Sci. Total Environ. 2020, 726, 138384. [Google Scholar] [CrossRef] [PubMed]
  21. Tang, S.; Jiang, J.; Zheng, Y.; Hong, Y.; Chung, E.-S.; Shamseldin, A.Y.; Wei, Y.; Wang, X. Robustness analysis of storm water quality modelling with LID infrastructures from natural event-based field monitoring. Sci. Total Environ. 2021, 753, 142007. [Google Scholar] [CrossRef]
  22. Yilmaz, A.G.; Hossain, I.; Perera, B.J.C. Effect of climate change and variability on extreme rainfall intensity–frequency–duration relationships: A case study of Melbourne. Hydrol. Earth Syst. Sci. 2014, 18, 4065–4076. [Google Scholar] [CrossRef] [Green Version]
  23. Lama, G.F.C.; Errico, A.; Francalanci, S.; Solari, L.; Preti, F.; Chirico, G.B. Evaluation of Flow Resistance Models Based on Field Experiments in a Partly Vegetated Reclamation Channel. Geosciences 2020, 10, 47. [Google Scholar] [CrossRef] [Green Version]
  24. Varouchakis, E.A.; Guardiola-Albert, C.; Karatzas, G.P. Spatiotemporal geostatistical analysis of groundwater level in aquifer systems of complex hydrogeology. Water Resour. Res. 2022, 58, e2021WR029988. [Google Scholar] [CrossRef]
  25. Lama, G.F.C.; Crimaldi, M.; Pasquino, V.; Padulano, R.; Chirico, G.B. Bulk Drag Predictions of Riparian Arundo donax Stands through UAV-acquired Multispectral Images. Water 2021, 13, 1333. [Google Scholar] [CrossRef]
  26. Nguyen, T.T.; Ngo, H.H.; Guo, W.; Wang, X.C.; Ren, N.; Li, G.; Ding, J.; Liang, H. Implementation of a specific urban water management—Sponge City. Sci. Total Environ. 2018, 652, 147–162. [Google Scholar] [CrossRef] [PubMed]
  27. Lama, G.F.C.; Errico, A.; Francalanci, S.; Solari, L.; Preti, F.; Chirico, G.B. Comparative analysis of modeled and measured vegetative Chézy’s flow resistance coefficients in a drainage channel vegetated by dormant riparian reed. In Proceedings of the International IEEE Workshop on Metrology for Agriculture and Forestry, Portici, Italy, 24–26 October 2019; pp. 180–184. [Google Scholar] [CrossRef]
  28. Chang, W.; Constantinescu, G.; Tsai, W. On the flow and coherent structures generated by a circular array of rigid emerged cylinders placed in an open channel with flat and deformed bed. J. Fluid Mech. 2017, 831, 1–40. [Google Scholar] [CrossRef]
  29. Morani, M.C.; Carravetta, A.; Del Giudice, G.; McNabola, A.; Fecarotta, O. A Comparison of Energy Recovery by PATs against Direct Variable Speed Pumping in Water Distribution Networks. Fluids 2018, 3, 41. [Google Scholar] [CrossRef] [Green Version]
  30. Lama, G.F.C.; Rillo Migliorini Giovannini, M.; Errico, A.; Mirzaei, S.; Padulano, R.; Chirico, G.B.; Preti, F. Hydraulic Efficiency of Green-Blue Flood Control Scenarios for Vegetated Rivers: 1D and 2D Unsteady Simulations. Water 2021, 13, 2620. [Google Scholar] [CrossRef]
  31. Padulano, R.; Lama, G.F.C.; Rianna, G.; Santini, M.; Mancini, M.; Stojiljkovic, M. Future rainfall scenarios for the assessment of water availability in Italy. In Proceedings of the 2020 IEEE International Workshop on Metrology for Agriculture and Forestry (MetroAgriFor), Trento, Italy, 4–6 November 2020; pp. 241–246. [Google Scholar] [CrossRef]
  32. Tsai, C.W.; Huang, S.-H.; Hung, S.Y. Incorporating the memory effect of turbulence structures into suspended sediment transport modeling. Water Resour. Res. 2021, 57, e2020WR028475. [Google Scholar] [CrossRef]
  33. Lama, G.F.C.; Crimaldi, M. Assessing the role of Gap Fraction on the Leaf Area Index (LAI) estimations of riparian vegetation based on Fisheye lenses. In Proceedings of the 29th European Biomass Conference and Exhibition, Online, 26–29 April 2021; pp. 1172–1176. [Google Scholar] [CrossRef]
  34. Guillén Ludeña, S.; Cheng, Z.; Constantinescu, G.; Franca, M.J. Hydrodynamics of mountain-river confluences and its relationship to sediment transport. J. Geophys. Res. Earth Surf. 2017, 122, 901–924. [Google Scholar] [CrossRef]
  35. Severino, G.; Cuomo, S.; Sommella, A.; D’Urso, G. On the longitudinal dispersion in conservative transport Through heterogeneous porous formations at finite Peclet numbers. Water Resour. Res. 2017, 53, 8614–8625. [Google Scholar] [CrossRef]
  36. Sadeghifar, T.; Lama, G.F.C.; Sihag, P.; Bayram, A.; Kisi, O. Wave height predictions in complex sea flows through soft computing models: Case study of Persian gulf. Ocean Eng. 2022, 245, 110467. [Google Scholar] [CrossRef]
  37. Fallico, S.; De Bartolo, G.F.A.; Brunetti, G.; Severino, G. Use of fractal models to define the scaling behavior of the aquifers’ parameters at the mesoscale. Stoch. Environ. Res. Risk Assess. 2021, 35, 971–984. [Google Scholar] [CrossRef]
  38. Zha, X.; Luo, P.; Zhu, W.; Wang, S.; Lyu, J.; Zhou, M.; Huo, A.; Wang, Z. A bibliometric analysis of the research on Sponge City: Current situation and future development direction. Ecohydrology 2021, 14, e2328. [Google Scholar] [CrossRef]
  39. Lama, G.F.C.; Sadeghifar, T.; Azad, M.T.; Sihag, P.; Kisi, O. On the Indirect Estimation of Wind Wave Heights over the Southern Coasts of Caspian Sea: A Comparative Analysis. Water 2022, 4, 843. [Google Scholar] [CrossRef]
  40. Carravetta, A.; Fecarotta, O.; Martino, R.; Morani, M.C. Rheological Characterization of Non-Newtonian Mixtures by Pressure Pipe Tests. Fluids 2021, 6, 419. [Google Scholar] [CrossRef]
  41. Lama, G.F.C.; Crimaldi, M. Remote Sensing of Ecohydrological, Ecohydraulic, and Ecohydrodynamic Phenomena in Vegetated Waterways: The Role of Leaf Area Index (LAI). Biol. Life Sci. Forum 2021, 3, 54. [Google Scholar] [CrossRef]
  42. Stovin, V.R.; Sonnenwald, F.; Golzar, M.; Guymer, I. The Impact of Cylinder Diameter Distribution on Longitudinal and Transverse Dispersion within Random Cylinder Arrays. Water Resour. Res. 2021, e2021WR030396. [Google Scholar] [CrossRef]
  43. Hamidouche, S.; Calluaud, D.; Pineau, G.; Texier, A. Study of instantaneous flow behind a single fixed ripple. J. Hydro-Environ. Res. 2018, 19, 117–127. [Google Scholar] [CrossRef]
  44. Sharma, A. Velocity Distribution and the Moments of Turbulent Flow over a Sand-Gravel Mixture Bed. Water Resour. 2021, 49, 81–87. [Google Scholar] [CrossRef]
  45. Peruzzi, C.; Poggi, D.; Ridolfi, L.; Manes, C. On the scaling of large-scale structures in smooth-bed turbulent open-channel flows. J. Fluid Mech. 2020, 889, A1. [Google Scholar] [CrossRef]
  46. Cheng, Z.; Koken, M.; Constantinescu, G. Approximate methodology to account for effects of coherent structures on sediment entrainment in RANS simulations with a movable bed and applications to pier scour. Adv. Water Resour. 2018, 120, 65–82. [Google Scholar] [CrossRef]
  47. Peruzzi, C.; Vettori, D.; Poggi, D.; Blondeaux, P.; Ridolfi, L.; Manes, C. On the influence of collinear surface waves on turbulence in smooth-bed open-channel flows. J. Fluid Mech. 2021, 924, A6. [Google Scholar] [CrossRef]
  48. Khan, M.A.; Sharma, N.; Lama, G.F.C.; Hasan, M.; Garg, R.; Busico, G.; Alharbi, R.S. Three-Dimensional Hole Size (3DHS) Approach for Water Flow Turbulence Analysis over Emerging Sand Bars: Flume-Scale Experiments. Water 2022, 14, 1889. [Google Scholar] [CrossRef]
Environsciproc 21 00024 g001 550

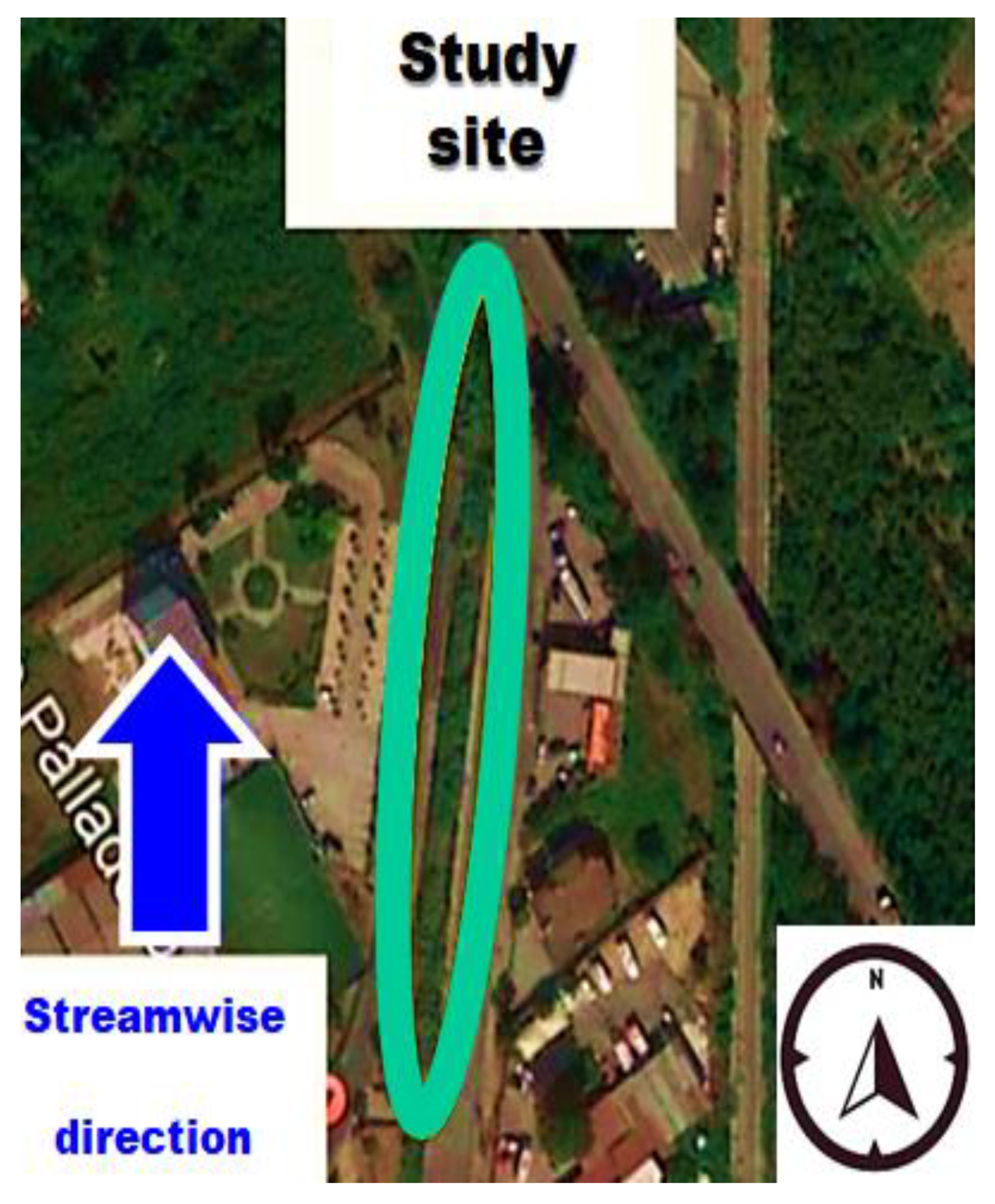

Figure 1. Detailed overview of the study ditch. The blue arrow shows the streamwise water direction in the examined vegetated stream.
Figure 1. Detailed overview of the study ditch. The blue arrow shows the streamwise water direction in the examined vegetated stream.
Environsciproc 21 00024 g001
Environsciproc 21 00024 g002 550

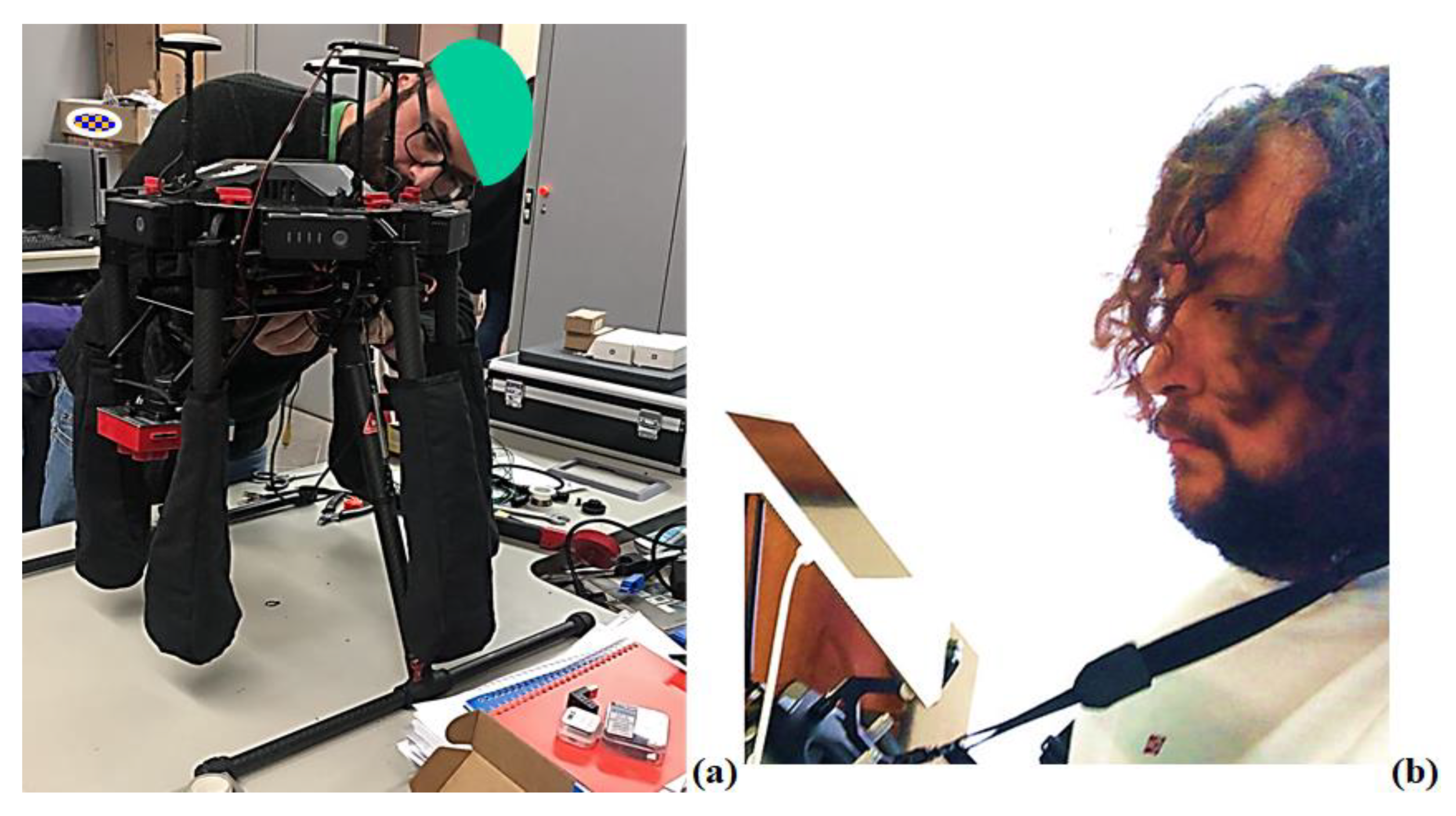

Figure 2. Views of (a) UAV + sensors system and (b) controller adopted in the present experimental research.
Figure 2. Views of (a) UAV + sensors system and (b) controller adopted in the present experimental research.
Environsciproc 21 00024 g002
Environsciproc 21 00024 g003 550

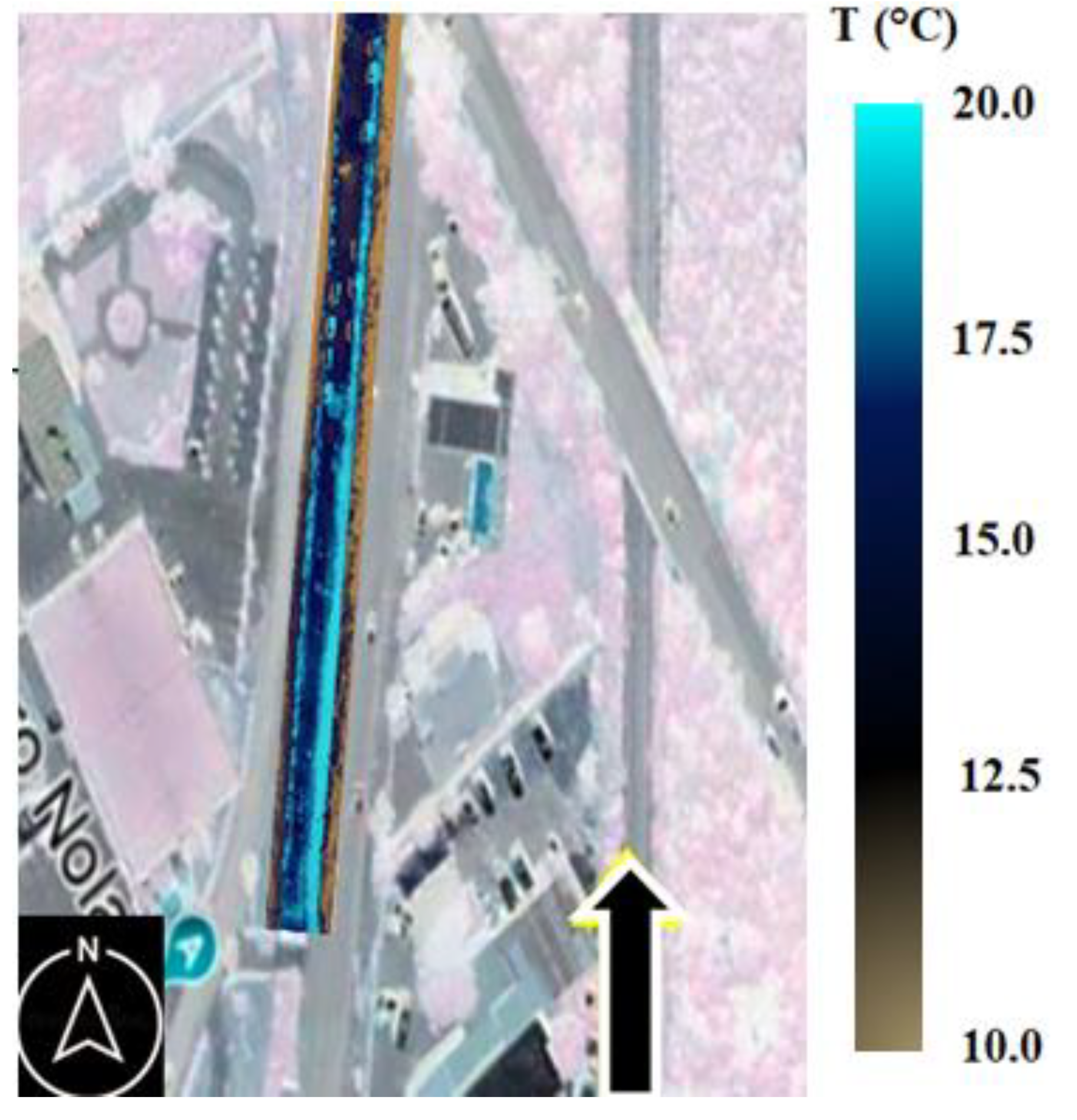

Figure 3. Temperature map of the examined vegetated ditch. The black arrow shows the streamwise water direction.
Figure 3. Temperature map of the examined vegetated ditch. The black arrow shows the streamwise water direction.
Environsciproc 21 00024 g003
Environsciproc 21 00024 g004 550

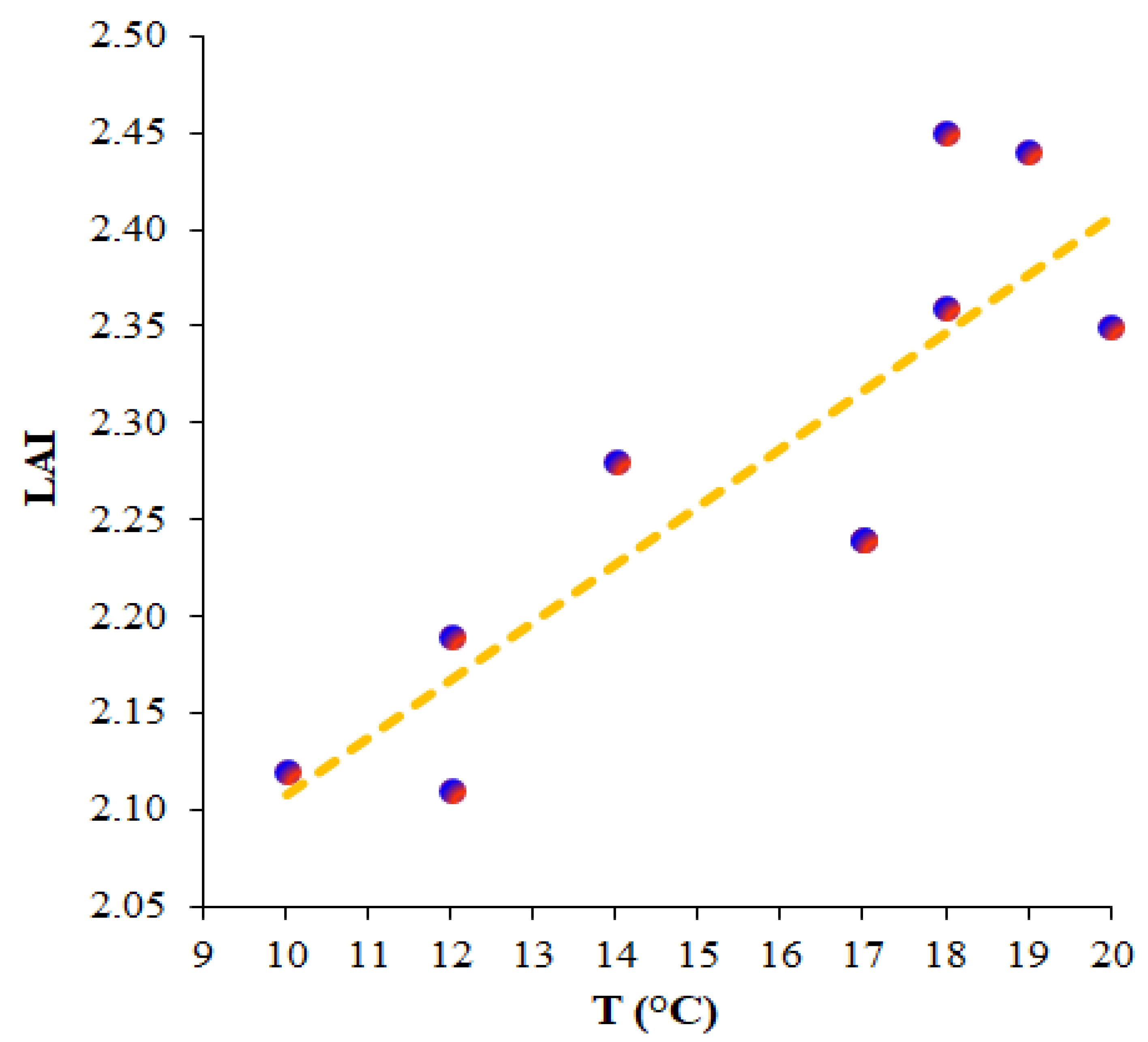

Figure 4. Temperature T (°C) vs. LAI scatter plot associated with the ten experimental cross-sections identified along the vegetated ditch examined in the present study.
Figure 4. Temperature T (°C) vs. LAI scatter plot associated with the ten experimental cross-sections identified along the vegetated ditch examined in the present study.
Environsciproc 21 00024 g004
Table
Table 1. Most relevant technical characteristics of the thermographic camera sensors employed in the present research.
Table 1. Most relevant technical characteristics of the thermographic camera sensors employed in the present research.
Technical CharacteristicsValues
Weight110 g
Focal length13 mm
Resolution
Accuracy
Band range
Thermal sensitivity		336 × 256
±0.5 °C
8.0 μm–12.0 μm
30 mK
Frequency20 Hz
