Article

Land Cover Change and Soil Carbon Regulating Ecosystem Services in the State of South Carolina, USA

1
Department of Forestry and Environmental Conservation, Clemson University, Clemson, SC 29634, USA
2
University Key Lab for Geomatics Technology and Optimized Resources Utilization, No. 15 Shangxiadian Road, Fuzhou 350002, China
3
College of Forestry, Agriculture, and Natural Resources, University of Arkansas at Monticello, Monticello, AR 71655, USA
4
Department of Environmental Engineering and Earth Sciences, Clemson University, Anderson, SC 29625, USA
5
Geography Department, Portland State University, Portland, OR 97202, USA
*
Author to whom correspondence should be addressed.
Earth 2021, 2(4), 674-695; https://doi.org/10.3390/earth2040040
Received: 10 June 2021 / Revised: 27 August 2021 / Accepted: 29 August 2021 / Published: 26 September 2021

Abstract

:
Integration of land cover change with soil information is important for valuation of soil carbon (C) regulating ecosystem services (ES) and disservices (ED) and for site-specific land management. The objective of this study was to assess the change in value of regulating ES from soil organic carbon (SOC), soil inorganic carbon (SIC), and total soil carbon (TSC) stocks, based on the concept of the avoided social cost of carbon dioxide (CO2) emissions for the state of South Carolina (SC) in the United States of America (U.S.A.) by soil order (Soil Taxonomy), land cover, and land cover change (National Land Cover Database, NLCD) using information from the State Soil Geographic (STATSGO) and Soil Survey Geographic Database (SSURGO) databases. Classified land cover data for 2001 and 2016 were downloaded from the Multi-Resolution Land Characteristics Consortium (MRLC) website. The total estimated monetary mid-point value for TSC in the state of South Carolina was $124.42B (i.e., $124.42 billion U.S. dollars, where B = billion = 109) with the following monetary distribution in 2016 and percent change in value between 2001 and 2016: barren land ($259.7M, −9%) (i.e., $259.7 million U.S. dollars, where M = million = 106), woody wetlands ($33.8B, −1%), shrub/scrub ($3.9B, +9%), mixed forest ($6.9B, +5%), deciduous forest ($10.6B, −7%), herbaceous ($4.8B, −5%), evergreen forest ($28.6B, +1%), emergent herbaceous wetlands ($6.9B, −3%), hay/pasture ($7.3B, −10%), cultivated crops ($9.9B, 0%), developed, open space ($7.0B, +5%), developed, medium intensity ($978M, +46%), developed, low intensity ($2.9B, +15%), and developed, high intensity ($318M, +39%). The percent change in monetary values was different from percent change in areas because different soil orders have different TSC contents. The percent changes (between 2001 and 2016) both in areas and monetary values varied by soil order and land cover with $1.1B in likely “realized” social cost of C mostly associated with Ultisols ($658.8M). The Midlands region of the state experienced the highest gains in the “high disturbance” classes and corresponding SC-CO2 with over $421M for TSC, $354.6M for SOC, and $66.4M for SIC. Among counties, Horry County ranked first with over $142.2M in SC-CO2 for TSC, followed by Lexington ($103.7M), Richland ($95.3M), Greenville ($81.4M), York ($77.5M), Charleston ($70.7M), Beaufort ($64.1M), Berkeley ($50.9M), Spartanburg ($50.0M), and Aiken ($43.0M) counties. Spatial and temporal analyses of land cover can identify critical locations of soil carbon regulating ecosystem services at risk.

1. Introduction

Ecosystem services (ES) are the benefits people obtain from nature, which fall into three categories: provisioning (e.g., food, etc.), regulation/maintenance (e.g., gas regulation, etc.), and cultural (e.g., recreation, etc.) [1,2]. Ecosystem disservices (ED) are damages, which can be of natural and/or anthropogenic origin [2]. Soil carbon is composed of soil organic (SOC) and soil inorganic carbon (SIC) and provides numerous ES (e.g., provisioning, regulating) [3,4,5]. For example, soil C sequestration is a regulating ES, which results in the removal of carbon dioxide (CO2) from the atmosphere and subsequent storage in the soil, thereby avoiding social costs of CO2 (SC-CO2) emissions [3,4]. Common ED associated with SOC and SIC is the release of carbon dioxide (CO2) from various uses (e.g., agriculture, urbanization, etc.) into the atmosphere, which manifests in realized social SC-CO2 [6,7]. Land cover change analysis is particularly useful in ES/ED assessments because it reveals “patterns of human activities over time and space as well as the capacities of different ecosystems to provide ES/ED under changing land use” [8,9,10].
Traditional ES land cover analysis focuses primarily on land cover changes without integration of specific soil types and their properties [9]. Integration of land cover analysis with soil types allows the identification of hotspots of ES/ED and its temporal changes (Figure 1) [11]. For example, Brown and Quinn (2018) [12] studied the ES change in Upstate South Carolina using the InVEST model [13] to estimate SOC change (among other variables). The InVEST model assumes fixed soil carbon values associated with land cover classes to assess change and does not leverage the available soil spatial data, which could have helped identify hotspots of ES/ED change and its underlying biophysical characteristics (Figure 1).
Previous research on soil C regulating ES in the state of South Carolina estimated the avoided social costs of carbon attributed to soil organic carbon (SOC, $107.14B), soil inorganic carbon (SIC, $17.22B), and total soil carbon (TSC, $124.36B) and was conducted at various scales using both biophysical (soil orders) and administrative accounts (state, region, county) [15]. That study used pedodiversity concepts (soil order) integrated with administrative units to report and rank estimates of avoided social costs of soil C, which provide practical information to design soil C management at various scales [15].
The present study hypothesizes that pedodiversity concepts overlayed with administrative units (e.g., state) and changes in land cover can be used to identify land cover patterns of soil carbon hotspots for sustainable management (Figure 1). The specific objectives of this study are to assess the value of TSC in the state of South Carolina (U.S.A.) by soil order, land cover class, and land cover change based on the social cost of carbon (SC–CO2) and avoided emissions provided by carbon sequestration, which the U.S. Environmental Protection Agency (EPA) has determined to be $46 per metric ton of CO2, applicable for the year 2025 based on 2007 U.S. dollars and an average discount rate of 3% [16]. This study provides monetary values of TSC for soil depth (0–200 cm) across the state and different land covers (i.e., barren land, woody wetlands, etc.) using State Soil Geographic (STATSGO) database, National Land Cover Database (NLCD), and information previously reported by Guo et al. (2006) [17].

2. Materials and Methods

2.1. Spatial Analysis

Classified land cover data for 2001 and 2016 were downloaded from the Multi-Resolution Land Characteristics Consortium (MRLC) website [18] (Table 1). Changes in land cover were calculated by comparing the 2001 and 2016 land cover maps using the raster calculator function in ArcMap 10.7 [19]. Land cover extent for each of the types of identified land cover (Table 2) was determined by converting the land cover maps to a vector format and then using the union tool with the vector land cover maps and the Soil Survey Geographic database (SSURGO) [20] data layer in ArcMap 10.7 and exporting the results to MS Excel for area analysis (Table 2). The spatial scale of the SSURGO and MRLC is appropriate for associating soil type with land cover change.

2.2. The Accounting Framework

The present study used both biophysical (science-based) and administrative/land cover (boundary-based) accounts to calculate monetary values for SOC, SIC, and TSC (Table 3 and Table 4).
The present study is based on SOC, SIC, and TSC (SOC + SIC) [17] estimates for the SOC, SIC, TSC storage (in Mg or metric tons) and contents (in kg m−2) in the contiguous U.S. from Guo et al. (2006) [17]. A monetary valuation for SOC, SIC, TSC was calculated using the social cost of carbon (SC-CO2) of $46 per metric ton of CO2, which is applicable for 2025 based on 2007 U.S. dollars and an average discount rate of 3% [16]. According to the EPA, the SC-CO2 is intended to be a comprehensive estimate of climate change damages. Still, it can underestimate the true damages and cost of CO2 emissions due to the exclusion of various important climate change impacts recognized in the literature [16]. Soil carbon (SC) storage and content estimates were converted to U.S. dollars and dollars per square meter in Microsoft Excel using the following equations, with a social cost of carbon of $46/Mg CO2 (a metric ton is equivalent to 1 megagram (Mg) or 1000 kilograms (kg)):
$ = ( SC Storage ,   Mg ) × 44   Mg   CO 2   12   Mg   TSC × $ 46 Mg   CO 2
$ m 2 = ( SC   Content , kg m 2 ) × 1   Mg 10 3   kg × 44   Mg   CO 2 12   Mg   TSC × $ 46 Mg   CO 2
Table 4 presents area-normalized content (kg m−2) and monetary values ($ m−2) of soil carbon, which were used to estimate TSC storage and TSC value by multiplying corresponding content (values) numbers by an area of a particular soil order within a county, region. For example, for the soil order of Entisols (based on SOC and SIC numbers from Guo et al. (2006) [17]), an area-normalized midpoint TSC content number of 12.8 kg∙m−2 in the upper 2 m of soil (Table 4) was used to calculate the total TSC storage in soil order by multiplying its area in particular county or region. Then, the reported area-normalized midpoint TSC content number of 12.8 kg∙m−2 in the upper 2 m (Table 4) was converted to monetary values ($ m−2) of TSC using a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]), which is $2.17 m−2 and was used to calculate the total monetary value of TSC storage.

3. Results

3.1. Land Cover Change in South Carolina

Land cover in the state of South Carolina is diverse (Figure 2) with the following distribution including open water (2016, in decreasing order): evergreen forest (23.85%); woody wetlands (19.37%); cultivated croplands (9.05%); deciduous forest (8.84%); hay/pasture (6.58%); open water (6.34%); developed, open space (6.12%); mixed forest (5.77%); herbaceous (3.99%); shrub/scrub (3.28%); developed, low intensity (2.70%); emergent herbaceous wetlands (2.61%); developed, medium intensity (0.92%); developed, high intensity (0.34%); and barren land (0.25%) (Figure 2). Land cover in South Carolina has undergone changes between 2001 and 2016, with a general trend of urbanization leading to losses in “low disturbance” land covers (e.g., deciduous forest) and gains in developed land cover classes (e.g., open, low, medium, and high intensity) (Table 5).

3.2. Land Cover Change and Soil Carbon Regulating Ecosystem Services in South Carolina

The total estimated mid-point monetary value for TSC in South Carolina in 2016 was $124.4B (i.e., $124.4 billion U.S. dollars, where B = billion = 109), with the following monetary distribution and percent change in value between 2001 and 2016: barren land ($259.7M, −9%) (i.e., $259.7 million U.S. dollars, where M = million = 106); woody wetlands ($33.8B, −1%); shrub/scrub ($3.9B, +9%); mixed forest ($6.9B, +5%); deciduous forest ($10.6B, −7%); herbaceous ($4.8B, −5%); evergreen forest ($28.6B, +1%); emergent herbaceous wetlands ($6.9B, −3%); hay/pasture ($7.3B, −10%); cultivated crops ($9.9B, 0%); developed, open space ($7.0B, +5%); developed, medium intensity ($978M, +46%); developed, low intensity ($2.9B, +15%); and developed, high intensity ($318M, +39%) (Table 6). For a particular land cover, the percent change in monetary value can be different from the percent change in area because different soil orders have different TSC contents. Most soil orders experienced losses in “low disturbance” land covers and gains in developed land cover classes with $1.1B in likely “realized” social cost of carbon. Spodosols experienced dramatic increases (% change) in the developed land covers (Table 7).
Integration of land cover change analysis with soil carbon regulating ecosystem services allows identification of “hotspots” of potential “realized” regulating ED due to land disturbance, which can be described by land cover classes (e.g., developed with various degrees of intensity: open, low, medium, and high). The area of soil type (e.g., soil order in this study, Figure 3) can be used to calculate the soil C regulating ES (e.g., the social cost of carbon, SC-CO2) using soil C contents for specific soil orders. There is no direct relationship between the area of the soil order and the social costs of soil C because different soil orders have different soil C contents (Figure 3a,b).
Land cover change (between 2001 and 2016) resulted in $1.1B in most likely “realized” SC-CO2 with the following distribution by soil order: Entisols: $173.6M, 15% from the total; Inceptisols: $54.3M, 5%; Histosols: $0.0, 0%; Alfisols: $151.2M, 13%; Mollisols: $4.2M, 1%; Spodosols: $91.1M, 8%; Ultisols: $658.8M, 58%) (Table 8). Most of the potential “realized” social costs of C were associated with Ultisols, a highly weathered soil covering the largest proportion of the state area (70%).

3.3. Land Cover Change and Soil Carbon Regulating Ecosystem Services by Soil Order, County, and Region

South Carolina experienced changes in land use/land cover (LULC) over the 15-year period from 2001 to 2016, and these changes varied by soil order, county, and region. Most regions and counties experienced area losses in “low disturbance” LULC classes and gains in the “high disturbance” LULC classes (Table 9), which resulted in potential “realized” social costs of carbon from SOC (Table 10 and Table 11), SIC (Table 12 and Table 13), and TSC (Table 14 and Table 15). The Midlands region of the state experienced the highest gains in the “high disturbance” LULC classes and corresponding potential “realized” SC-CO2 with over $421M for TSC, $354.6M for SOC, and $66.4M for SIC.
Among counties, Horry County ranked first with over $142.2M in potential “realized” SC-CO2 for TSC, followed by Lexington ($103.7M), Richland ($95.3M), Greenville ($81.4M), York ($77.5M), Charleston ($70.7M), Beaufort ($64.1M), Berkeley ($50.9M), Spartanburg ($50.0M), and Aiken ($43.0M) counties. Increases in “high disturbance” LULC classes are commonly associated with already existing urbanized areas in all regions, and several coastal counties. In addition to totals of potential “realized” SC-CO2 by county, this study also provides a breakdown of SC-CO2 by soil order for each county. This novel way to combine satellite based LULC change analysis with soil information can provide useful insight on the intersection between LULC change and soil resources. The benefits of this approach can be demonstrated using the results of this study, which shows that most of the potential “realized” SC-CO2 are associated with the soil order of Ultisols, which are highly leached and erodible soils. Previous research by Werts et al. (2013) [22] has shown that the development process can have additional social costs associated with this land conversion (e.g., erosion, water quality, and human social costs). Spodosols are present in many rapidly developing coastal areas of South Carolina but may not be suitable for development that includes septic systems because of their high saturated conductivity [23]. Several counties had development in agriculturally productive soils (Alfisols and Mollisols) which are commonly considered to be soil carbon hotspots with higher SC-CO2. In South Carolina, these agriculturally productive soils are relatively rare and represent less than 10% of the total state area, compared to Ultisols, which cover 70% of South Carolina [15]. Over time, loss of productive agricultural soils to development can reduce local food security. Future planning should consider different soil types to limit the social cost of development. For example, government protections of wetland soils (e.g., Histosols) have limited their development in South Carolina (Table 15).

4. Discussion

4.1. Determining “Hotspots” of Social Costs of C from Land Cover Change and Pedodiversity

Nationally, patterns of LULC are changing rapidly due to urbanization and agricultural expansion [9], with regional [24], state [25], and county [12] differences. Increasingly LULC change analysis is conducted in conjunction with the ES framework [12], with limited applications of soil ES/ED. The Southeastern United States and South Carolina are experiencing some of the highest urbanization rates and losses of ecosystem services [12,22]. Mikhailova et al. (2020) [15] examined soil C regulating ES in the state of South Carolina and reported the value of the social cost of carbon dioxide (SC-CO2) emissions by soil C type (SOC, SIC, TSC), soil order, region, and county in the context of “avoided” versus potential “realized” social costs of carbon. Although informative, that study lacked integration with LULC change analysis to indicate “hotspots” of potential “realized” social costs of C because of disturbance (change in LULC), especially in the “developed” LULC category. The present study integrates soil information with LULC change, which provides detailed information about SC-CO2 by LULC and soil type, as well as the LULC change by soil type. It is especially important because different soil types have different spatial distributions within the state and even association with a particular LULC (e.g., Histosols are commonly found in woody wetlands; emergent herbaceous wetlands), which can make them particularly sensitive to LULC changes and corresponding social costs. This study demonstrates that most of the soils have experienced losses in “low disturbance” LULC (e.g., woody wetlands, herbaceous) and gains in open, low, medium, and high intensity developed land cover classes with $1.1B in most likely “realized” social cost of C primarily associated with Ultisols ($658.8M). Ultisols are highly leached and highly erodible soils that occupy 70% of the area of South Carolina. It should be noted that both the state of South Carolina and Ultisols in particular, historically, experienced tremendous social costs associated with agricultural production in the form of high soil erosion [26], carbon loss, depletion of soil nutrients, and even “socioecological collapse that only state-initiated intervention” could address [27]. There is a legacy of various social costs associated with land and soil degradation in the state of South Carolina [27], which are only now being examined within the framework of ES/ED [12,15]. This legacy demonstrates a common trend with other places in the world, which involves maximizing provisioning ES at the expense of regulating ES and resulting in high social costs at the expense of environment and ordinary people [28,29].
The advantage of the present study is that it uses satellite-based remote sensing to accurately identify land cover and the areas with changing land cover [30], which is important because the land cover and land cover change are likely directly related to the level of disturbance [31]. Land cover maps derived from satellites allow the spatially explicit tracking of land cover and land cover change [32,33]. Many studies that examine the relationship of land cover change to ES rely on fixed estimates for soil carbon that are assumed for each land cover category, instead of relying on estimates from existing soil databases [12]. This study combines the spatial information from land cover maps with soil carbon estimates from soil databases to identify hotspots of disturbance (Figure 4). Because land cover maps are regularly updated [32], it is possible to use this framework to identify and monitor likely SC-CO2 hotspots over time and calculate cumulative costs associated with land cover change.
Future improvements to the study methodology would be to include actual field samples, which would be more accurate than soil order averages; however, the soil carbon content trends are likely the same between the different soil types [11]. Linking this type of study to land cover change models would help inform decision-makers about potential impacts caused by land development [28]. With the existing database of satellite images for at least the last 49 years [34], it will be possible to track land cover change and disturbance over time to estimate the impact of development and understand the future trajectory of disturbance.

4.2. Determining Potential for C Sequestration Using LULC and Pedodiversity

Recarbonization potential is dependent on both LULC and pedodiversity, which should be considered together for sustainable carbon management at various administrative levels (e.g., state, region, county, etc.) (Table 16). For example, Table 16 demonstrates LULC by soil order at the state level, which shows the inherent soil capacity (based on soil properties) for C sequestration and LULC covers (either natural, managed, or in combination). According to Table 16, most LULC in the state of South Carolina are dominated by the soil order of Ultisols, which have a low recarbonization potential because these soils are highly weathered with low nutrient holding capacity [35]. Cherkinsky et al. (2018) [36] reported that land use has remarkable effects on Ultisols and forest root systems at great depth, which can result in “sluggish regeneration rates of forest root systems” compared to aboveground regeneration.
Land covers and their changes are often associated with “human-dimension issues” [37], which have a direct impact on soil C. Clay et al. (2019) [38] reported that there is a significant potential for South Carolina forests to sequester C in the aboveground biomass, but soil C sequestration potential would be limited based on other studies for soils in the state [35,36]. Because most of the South Carolina forestland is in private ownership, forest landowners play an important role in decision making with regards to potential forest management practices aimed at C sequestration both in aboveground biomass and in the soil [39]. According to Richter et al. (1999) [40], soil C losses because of deforestation and cultivation are well-documented, but studies on “soil-carbon recovery after cultivation are limited.” Richter et al. (1999) [40] used data from a four-decade-long field study of C accumulation by pine ecosystems grown on previously cultivated soils at the Calhoun Experimental Forest in South Carolina (USA) and concluded that “despite high C inputs to the mineral soil, C sequestration was limited by rapid decomposition, facilitated by the coarse soil texture and low-activity clay mineralogy.”

4.3. Significance of Results for South Carolina

At present, state of South Carolina has no comprehensive state climate strategy [41]. However, in 2008 a special task force appointed by the South Carolina governor recommended more than 50 ways to stop rising greenhouse gas pollution from worsening global warming [42], which included policy recommendations for various economic sectors (e.g., tourism and recreation; agriculture and forestry, etc.). Our study here contributes important scientific findings and information that supports the final report of the special task force [42] in the following ways:
  • Inventory of South Carolina’s Greenhouse Gas Emissions. Current SC GHG inventories do not include soil and LULC analysis. This study quantified and valued the soil C regulating ES for SOC, SIC, and TSC for the state of South Carolina by soil type and LULC. According to the final report by the South Carolina Climate, Energy, and Commerce Committee [42]: “South Carolina’s gross emissions of GHGs grew by 39% between 1990 and 2005, twice the national average of 16%. South Carolina’s emissions growth was driven by the growth of its population and many other factors. In addition, the state’s emissions on a per-capita basis increased by about 15% between 1990 and 2005, while U.S. per-capita emissions declined slightly (2%) over this period due to many other factors. South Carolina’s gross GHG emissions are projected to rise fairly steeply to about 125 MMtCO2e by 2025, or 87% over 1990 levels.” Areas that developed in South Carolina over a 15-year time period were evaluated by the combination of soil type, LULC, and county to calculate the potential realized SC-CO2 from this land conversion. By identifying these potential SC-CO2 hotspots, future land conversions could be reduced to help lower future greenhouse gas emissions.
  • Agriculture, Forestry and Waste Management (AFW):
AFW-6a: Terrestrial Carbon Sequestration—Agriculture. This study provides spatial information about soil C stocks by soil type, LULC (including agricultural LULC), and associated SC-CO2 over time, which can be used to create a database to monitor the effectiveness of C sequestration using a cost-benefit analysis.
AFW-6bi: Terrestrial Carbon Sequestration—Forestry: Forest Management. This study provides spatial information about soil C stocks by soil type, LULC (including different forest LULC), and associated SC-CO2 over time, which can be used to create a database to monitor the effectiveness of C sequestration using a cost-benefit analysis.
AFW-6bii: Terrestrial Carbon Sequestration—Forestry: Afforestation/Reforestation. This study provides spatial information about soil C stocks by soil type, LULC (including different forest LULC) and associated SC-CO2 over time, which can be used to create a database to monitor the effectiveness of C sequestration using a cost-benefit analysis.
AFW-6biii: Terrestrial Carbon Sequestration—Forestry: Urban Forestry. This study provides spatial information about soil C stocks by soil type, LULC (including different forest, developed LULC), and associated SC-CO2 over time, which can be used to create a database to monitor the effectiveness of C sequestration using a cost-benefit analysis.
AFW-7a: Conservation and Restoration of Agriculture Lands for Enhanced Carbon Sequestration. This study provides information about soil C stocks by soil type, LULC (including agricultural LULC), and associated SC-CO2 over time, which can be used to create a database to monitor the effectiveness of C sequestration using a cost-benefit analysis.
AFW-7b: Conservation and Restoration of Forestlands for Enhanced Carbon Sequestration. This study provides information about soil C stocks by soil type, LULC (including different forest LULC), and associated SC-CO2 over time, which can be used to create a database to monitor the effectiveness of C sequestration using a cost-benefit analysis.
  • Transportation and Land Use (TLU):
TLU-4: Improve Development Patterns. This study quantifies SC-CO2 as “avoided” and “realized” cost, which can be used for cost-benefit analysis when evaluating the development plans.
  • Cross-Cutting (CC) Issues:
CC-1: Inventories and Forecasting. This study provides spatial information about soil C stocks by soil type, LULC, and associated SC-CO2 over time, which can be used in already existing inventories and forecasting efforts.
CC-2: GHG Reporting and Registry. This study reported spatial information about soil C stocks by soil type, LULC, and associated SC-CO2 over time, which can be used in GHG reporting and registry.
CC-3: State Government GHG Emissions. This study reported spatial information about soil C stocks by soil type, LULC, and associated SC-CO2 over time at the state level.
CC-4: Comprehensive Local Government Climate Actions Plans (Counties, Cities, etc.). This study reported spatial information about soil C stocks by soil type, LULC, and associated SC-CO2 overtime at the county level.
CC-5: Public Education and Outreach. Results from this study can be used for various educational (e.g., soil science courses, textbooks, etc.) and extension efforts (e.g., informal education not only with the agricultural communities but also with developers, etc.).
CC-6: Adaptation and Vulnerability. Spatial information about the SC-CO2 hotspots can be used to optimize economic opportunity while minimizing environmental impact.

5. Conclusions

This study examined the integration of soil diversity (pedodiversity) concepts (taxonomic) with land cover change analysis to value soil C regulating ES/ED in the state of South Carolina (U.S.A.) to be considered in territorial planning. Both pedodiversity and land cover information provide critical contexts (e.g., “portfolio-effect,” “distribution-effect,” “evenness-effect,” etc.) for analyzing, interpreting, and reporting ES/ED within the ES framework for sustainable management of soil carbon within the state. Soil carbon is either protected in the soil or subject to release to the atmosphere because of disturbance which depends on the land cover and land cover change. The percent change (between 2001 and 2016) both in areas and monetary values varied by soil order and land cover, with most soil orders experiencing losses in “low disturbance” land covers (e.g., woody wetlands, herbaceous) and gains in open, low, medium, and high intensity developed land cover classes with $1.1B in most likely “realized” social cost of carbon with the following distribution by soil order: Entisols: $173.6M, 15% from the total; Inceptisols: $54.3M, 5%; Histosols: $0.0, 0%; Alfisols: $151.2M, 13%; Mollisols: $4.2M, 1%; Spodosols: $91.1M, 8%; Ultisols: $658.8M, 58%). Most of the “realized” social costs of C were associated with Ultisols, a highly weathered soil covering the largest proportion of the state (70%). It is important to consider the social cost of soil C associated with land cover categories as well as their change in value over time (between 2001 and 2016) when determining if the soil carbon is likely stable or at risk. Considering the land covers with the largest social cost of soil C based on area and soil type, such as woody wetlands and evergreen forests, had very little change, −1% and +1% respectively. The total social cost of soil C for deciduous forest was reduced by 7%; similarly, hay/pasture was reduced by 10%, and barren land was reduced by 9%. Cultivated crops remained unchanged, while herbaceous land cover was reduced by 5%, and emergent herbaceous wetlands were reduced by 3%. Mixed forests increased by 5%, and shrub/scrub land increased by 9%. The developed categories increased between 2001 and 2016. Social cost soil C of developed open space increased by 5%, while developed low intensity increased by 15%. The social cost of soil C for developed medium intensity increased by 46% and developed high intensity increased by 39%. The percent change in monetary values was different from the percent change in areas because different soil orders have different TSC contents, which are dependent on the degree of soil weathering and development, with highly weathered soils having lower TSC compared to moderately weathered soils. The Midlands region experienced the highest gains in the “high disturbance” classes and corresponding SC-CO2 with over $421M for TSC, $354.6M for SOC, and $66.4M for SIC. Among counties, Horry County ranked first with over $142.2M in SC-CO2 for TSC, followed by Lexington ($103.7M), Richland ($95.3M), Greenville ($81.4M), York ($77.5M), Charleston ($70.7M), Beaufort ($64.1M), Berkeley ($50.9M), Spartanburg ($50.0M), and Aiken ($43.0M) counties. Administrative area of the state combined with pedodiversity and land cover change concepts can provide useful information to design cost-efficient policies to manage soil carbon regulating ES at the state level. Results of this study were linked with the proposed policy recommendations by South Carolina’s Climate, Energy, and Commerce Advisory Committee (CECAC).

Author Contributions

Conceptualization, E.A.M.; methodology, E.A.M., M.A.S., and L.L.; formal analysis, E.A.M.; writ-ing—original draft preparation, E.A.M.; writing—review and editing, E.A.M., C.J.P., G.C.P., and M.A.S.; visualization, L.L., H.A.Z., and Z.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We would like to thank the reviewers for their constructive comments and suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

Glossary

EDEcosystem disservices
ESEcosystem services
EPAEnvironmental Protection Agency
SC-CO2Social cost of carbon emissions
LULCLand cover classes
SDGsSustainable Development Goals
SOCSoil organic carbon
SICSoil inorganic carbon
SOMSoil organic matter
SSURGOSoil Survey Geographic Database
TSCTotal soil carbon
USDAUnited States Department of Agriculture
U.S.A.United States of America

References

  1. Pereira, P.; Bogunovic, I.; Muñoz-Rojas, M.; Brevik, E.C. Soil ecosystem services, sustainability, valuation and management. Curr. Opin. Environ. Sci. Health 2018, 5, 7–13. [Google Scholar] [CrossRef]
  2. Zhang, W.; Ricketts, T.H.; Kremen, C.; Carney, K.; Swinton, S.M. Ecosystem services and dis-services to agriculture. Ecol. Econ. 2007, 64, 253–260. [Google Scholar] [CrossRef][Green Version]
  3. Mikhailova, E.A.; Groshans, G.R.; Post, C.J.; Schlautman, M.A.; Post, G.C. Valuation of soil organic carbon stocks in the contiguous United States based on the avoided social cost of carbon emissions. Resources 2019, 8, 153. [Google Scholar] [CrossRef][Green Version]
  4. Groshans, G.R.; Mikhailova, E.A.; Post, C.J.; Schlautman, M.A.; Zhang, L. Determining the value of soil inorganic carbon stocks in the contiguous United States based on the avoided social cost of carbon emissions. Resources 2019, 8, 119. [Google Scholar] [CrossRef][Green Version]
  5. Groshans, G.R.; Mikhailova, E.A.; Post, C.J.; Schlautman, M.A.; Zurqani, H.A.; Zhang, L. Assessing the value of soil inorganic carbon for ecosystem services in the contiguous United States based on liming replacement costs. Land 2018, 7, 149. [Google Scholar] [CrossRef][Green Version]
  6. Houghton, R.A.; Nassikas, A.A. Global and regional fluxes of carbon from land use and land cover change 1850–2015. Glob. Biogeochem. Cycles 2017, 31, 456–472. [Google Scholar] [CrossRef]
  7. Zamanian, K.; Zhou, J.; Kuzyakov, Y. Soil carbonates: The unaccounted, irrecoverable carbon source. Geoderma 2021, 384, 114817. [Google Scholar] [CrossRef]
  8. Burkhard, B.; Kroll, F.; Nedkov, S.; Muller, F. Mapping ecosystem service supply, demand, and budgets. Ecol. Indic. 2012, 21, 17–29. [Google Scholar] [CrossRef]
  9. Sleeter, B.M.; Sohl, T.L.; Loveland, T.R.; Auch, R.F.; Acevedo, W.; Drummond, M.A.; Sayler, K.L.; Stehman, S.V. Land-cover change in the conterminous United States from 1973 to 2000. Glob. Environ. Chang. 2013, 23, 733–748. [Google Scholar] [CrossRef][Green Version]
  10. Zhang, F.; Xu, N.; Wang, C.; Wu, F.; Chu, X. Effects of land use and land cover change on carbon sequestration and adaptive management in Shanghai, China. Phys. Chem. Earth 2020, 120, 102948. [Google Scholar] [CrossRef]
  11. Mikhailova, E.A.; Post, C.J.; Schlautman, M.A.; Post, G.C.; Zurqani, H.A. Determining farm-scale site-specific monetary value of “soil carbon hotspots” based on avoided social costs of CO2 emissions. Cogent Environ. Sci. 2020, 6, 1817289. [Google Scholar] [CrossRef]
  12. Brown, M.G.; Quinn, J.E. Zoning does not improve the availability of ecosystem services in urban watersheds. A case study from Upstate South Carolina, USA. Ecosyst. Serv. 2018, 34, 254–265. [Google Scholar] [CrossRef]
  13. Nelson, E.; Ennaanay, D.; Wolny, S.; Olwero, N.; Vigerstol, K.; Penning-ton, D.; Mendoza, G.; Aukema, J.; Foster, J.; Forrest, J.; et al. InVEST 3.6.0 User’s Guide. The Natural Capital Project. 2018, Stanford University, University of Minnesota, The Nature Conservancy, and World Wildlife Fund. Available online: http://data.naturalcapitalproject.org/nightly-build/invest-usersguide/InVEST_3.6.0_Documentation.pdf (accessed on 12 December 2020).
  14. Bétard, F.; Peulvast, J. Geodiversity hotspots: Concept, method and cartographic application for geoconservation purposes at a regional scale. Environ. Manag. 2019, 63, 822–834. [Google Scholar] [CrossRef]
  15. Mikhailova, E.A.; Zurqani, H.A.; Post, C.J.; Schlautman, M.A.; Post, G.C.; Lin, L.; Hao, Z. Soil carbon regulating ecosystem services in the state of South Carolina. Land 2021, 10, 309. [Google Scholar] [CrossRef]
  16. EPA. The Social Cost of Carbon. EPA Fact Sheet. 2016. Available online: https://19january2017snapshot.epa.gov/climatechange/social-cost-carbon_.html (accessed on 15 March 2019).
  17. Guo, Y.; Amundson, R.; Gong, P.; Yu, Q. Quantity and spatial variability of soil carbon in the conterminous United States. Soil Sci. Soc. Am. J. 2006, 70, 590–600. [Google Scholar] [CrossRef][Green Version]
  18. Multi-Resolution Land Characteristics Consortium (MRLC). Available online: https://www.mrlc.gov/ (accessed on 1 March 2021).
  19. ESRI. ArcMap 10.7. Available online: https://support.esri.com/en/products/desktop/arcgis-desktop/arcmap/10-7-1 (accessed on 1 March 2021).
  20. Soil Survey Staff, Natural Resources Conservation Service, United States Department of Agriculture. Soil Survey Geographic (SSURGO) Database for South Carolina. Available online: https://www.nrcs.usda.gov/wps/portal/nrcs/detail/soils/survey/?cid=nrcs142p2_053627 (accessed on 1 March 2021).
  21. U.S. Geological Survey. The National Land Cover Database; Report, Series Number 2012–3020; U.S. Geological Survey: Reston, VA, USA, 2012.
  22. Werts, J.D.; Mikhailova, E.A.; Post, C.J.; Sharp, J.L. Sediment pollution assessment of abandoned residential developments using remote sensing and GIS. Pedosphere 2013, 23, 39–47. [Google Scholar] [CrossRef]
  23. Mechtensimer, S.; Toor, G.S. Septic systems contribution to phosphorus in shallow groundwater: Field-scale studies using conventional drainfield designs. PLoS ONE 2017, 12, e0170304. [Google Scholar] [CrossRef][Green Version]
  24. Sayler, K.L.; Acevedo, W.; Taylor, J.L. (Eds.) Status and Trends of Land Change in the Eastern United States—1973 to 2000: U.S. Geological Survey Professional Paper 1794–D; USGS Publications Warehouse: Reston, VA, USA, 2016; p. 195. [Google Scholar] [CrossRef][Green Version]
  25. Arnold, C.; Wilson, E.; Hurd, J.; Civco, D. 30 years of land cover change in Connecticut, USA: A case study of long-term research, dissemination of results, and their use in land use planning and natural resource conservation. Land 2020, 9, 255. [Google Scholar] [CrossRef]
  26. Galang, M.A.; Markewitz, D.; Morris, L.A.; Bussell, P. Land use change and gully erosion in the Piedmont region of South Carolina. J. Soil Water Conserv. 2007, 62, 122–129. [Google Scholar]
  27. Coughlan, M.R.; Nelson, D.R.; Lonneman, M.; Block, A.E. Historical land use dynamics in the highly degraded landscape of the Calhoun Critical Zone Observatory. Land 2017, 6, 32. [Google Scholar] [CrossRef][Green Version]
  28. Li, J.; Chen, H.; Zhang, C.; Pan, T. Variations in ecosystem service value in response to land use/land cover changes in Central Asia from 1995–2035. Peer J. 2019, 7, e7665. [Google Scholar] [CrossRef] [PubMed]
  29. Coupe, R.H.; Barlow, J.R.B.; Capel, P.D. Complexity of human and ecosystem interactions in an agricultural landscape. Environ. Dev. 2012, 4, 88–104. [Google Scholar] [CrossRef]
  30. Wickham, J.; Stehman, S.V.; Sorenson, D.G.; Gass, L.; Dewitz, J.A. Thematic accuracy assessment of the NLCD 2016 land cover for the conterminous United States. Remote Sens. Environ. 2021, 257, 112357. [Google Scholar] [CrossRef]
  31. Zhu, Z.; Zhang, J.; Yang, Z.; Aljaddani, A.H.; Cohen, W.B.; Qiu, S.; Zhou, C. Continuous monitoring of land disturbance based on Landsat time series. Remote Sens. Environ. 2020, 238, 111116. [Google Scholar] [CrossRef]
  32. Homer, C.; Dewitz, J.; Jin, S.; Xian, G.; Costello, C.; Danielson, P.; Gass, L.; Funk, M.; Wickham, J.; Stehman, S.; et al. Conterminous United States land cover change patterns 2001-2016 from the 2016 National Land Cover Database. ISPRS J. Photogramm. Remote Sens. 2020, 162, 184–199. [Google Scholar] [CrossRef]
  33. Mikhailova, E.A.; Lin, L.; Hao, Z.; Zurqani, H.A.; Post, C.J.; Schlautman, M.A.; Post, G.C. Vulnerability of soil carbon regulating ecosystem services due to land cover change in the state of New Hampshire, USA. Earth 2021, 2, 309. [Google Scholar] [CrossRef]
  34. Savage, S.L.; Lawrence, R.L.; Squires, J.R.; Holbrook, J.D.; Olson, L.E.; Braaten, J.D.; Cohen, W.B. Shifts in forest structure in Northwest Montana from 1972 to 2015 using the Landsat archive from multispectral scanner to operational land imager. Forests 2018, 9, 157. [Google Scholar] [CrossRef][Green Version]
  35. Richter, D.D.; Markewitz, D.; Wells, C.G.; Allen, H.L.; April, R.; Heine, P.R.; Urrego, B. Soil chemical change during three decades in an old-field Loblolly Pine (Pinus Taeda L.) ecosystem. Ecology 1994, 75, 1463–1473. [Google Scholar] [CrossRef]
  36. Cherkinsky, A.; Brecheisen, Z.; Richter, D. Carbon and oxygen isotope composition in soil carbon dioxide and free oxygen within deep Ultisols at the Calhoun CZO, South Carolina, USA. Radiocarbon 2018, 60, 1357–1366. [Google Scholar] [CrossRef]
  37. Lal, R. Soil carbon sequestration to mitigate climate change. Geoderma 2004, 123, 1–22. [Google Scholar] [CrossRef]
  38. Clay, L.; Motallebi, M.; Song, B. An analysis of common forest management practices for carbon sequestration in South Carolina. Forests 2019, 10, 949. [Google Scholar] [CrossRef][Green Version]
  39. Alhassan, M.; Motallebi, M.; Song, B. South Carolina forestland owner’s willingness to accept compensations for carbon sequestration. For. Ecosyst. 2019, 6, 16. [Google Scholar] [CrossRef][Green Version]
  40. Richter, D.D.; Markewitz, D.; Trumbore, S.E.; Wells, C.G. Rapid accumulation and turnover of soil carbon in a re-establishing forest. Nature 1999, 400, 56–58. [Google Scholar] [CrossRef][Green Version]
  41. Fretwell, S. As Heat Rises, SC Watches Quitely. Will State Suffer from Lack of Climate Action? The State 2020. Available online: https://www.thestate.com/news/local/environment/article239527278.html (accessed on 25 August 2021).
  42. South Carolina Climate, Energy, and Commerce Committee. Final Report. July 2008. Available online: http://uccrnna.org/wp-content/uploads/2017/06/South-Carolina_2008_Climate-Energy-Commerce-Committee-Final-Report.pdf (accessed on 25 August 2021).

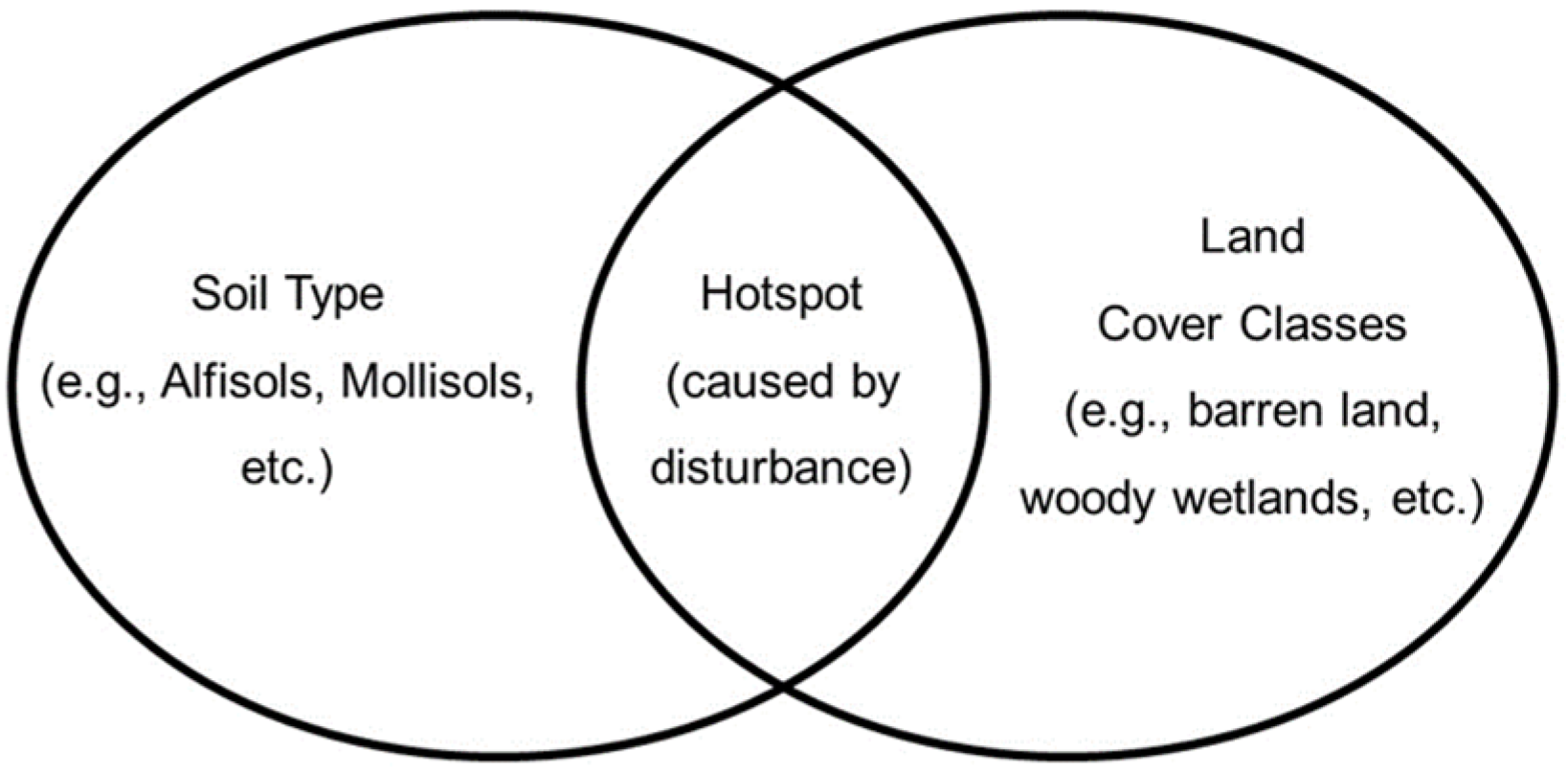

Figure 1. The soil “hotspot” concept—an intersection between soil type and land cover classes under natural or anthropogenic disturbance (adapted from Bétard and Peulvast, 2019 [14]).
Figure 1. The soil “hotspot” concept—an intersection between soil type and land cover classes under natural or anthropogenic disturbance (adapted from Bétard and Peulvast, 2019 [14]).
Earth 02 00040 g001

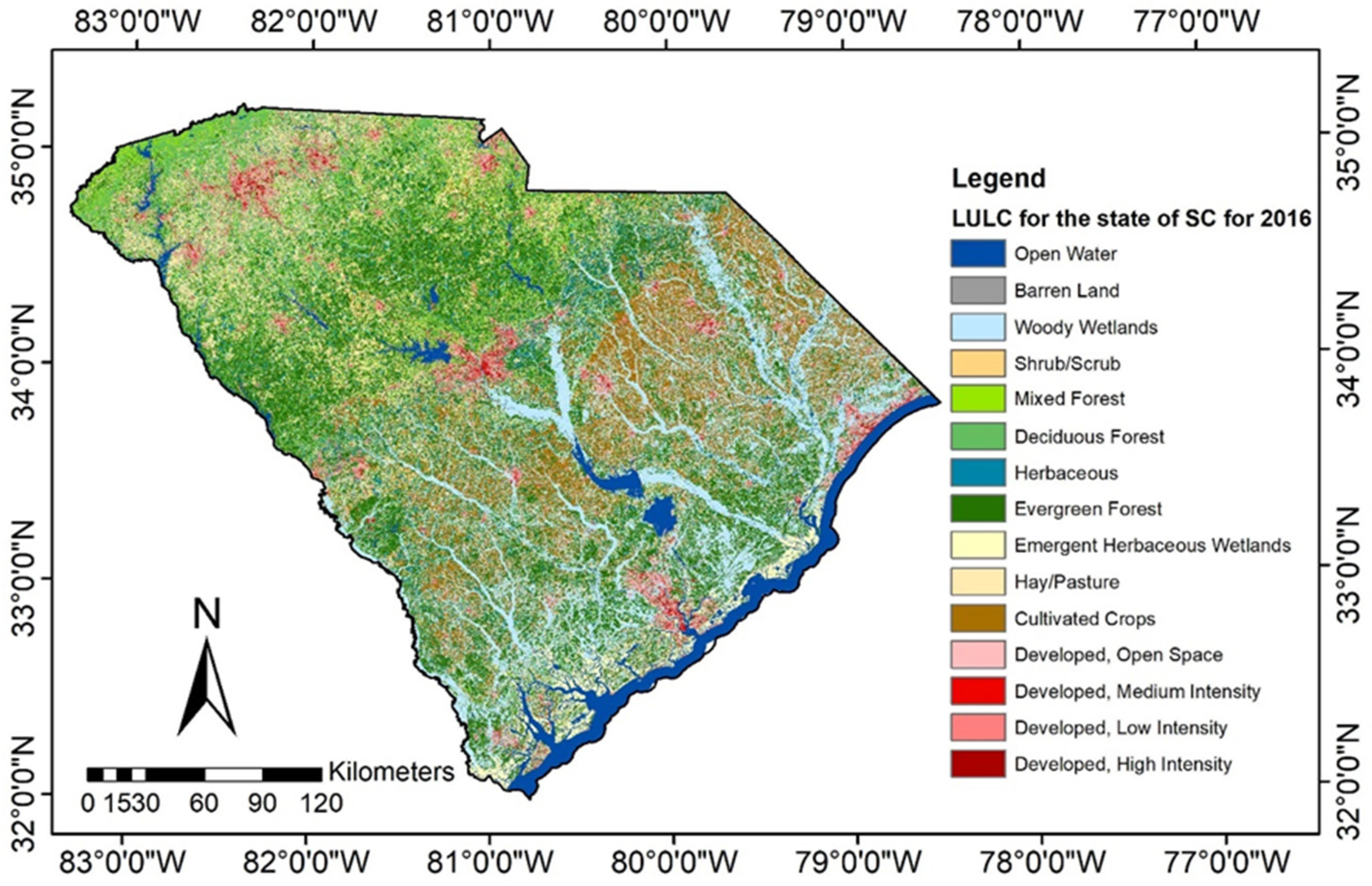

Figure 2. Land cover map (2016) of South Carolina (SC) (U.S.A.) (33.8361° N, 81.1637° W) (adapted from Multi-Resolution Land Characteristics Consortium [18]).
Figure 2. Land cover map (2016) of South Carolina (SC) (U.S.A.) (33.8361° N, 81.1637° W) (adapted from Multi-Resolution Land Characteristics Consortium [18]).
Earth 02 00040 g002

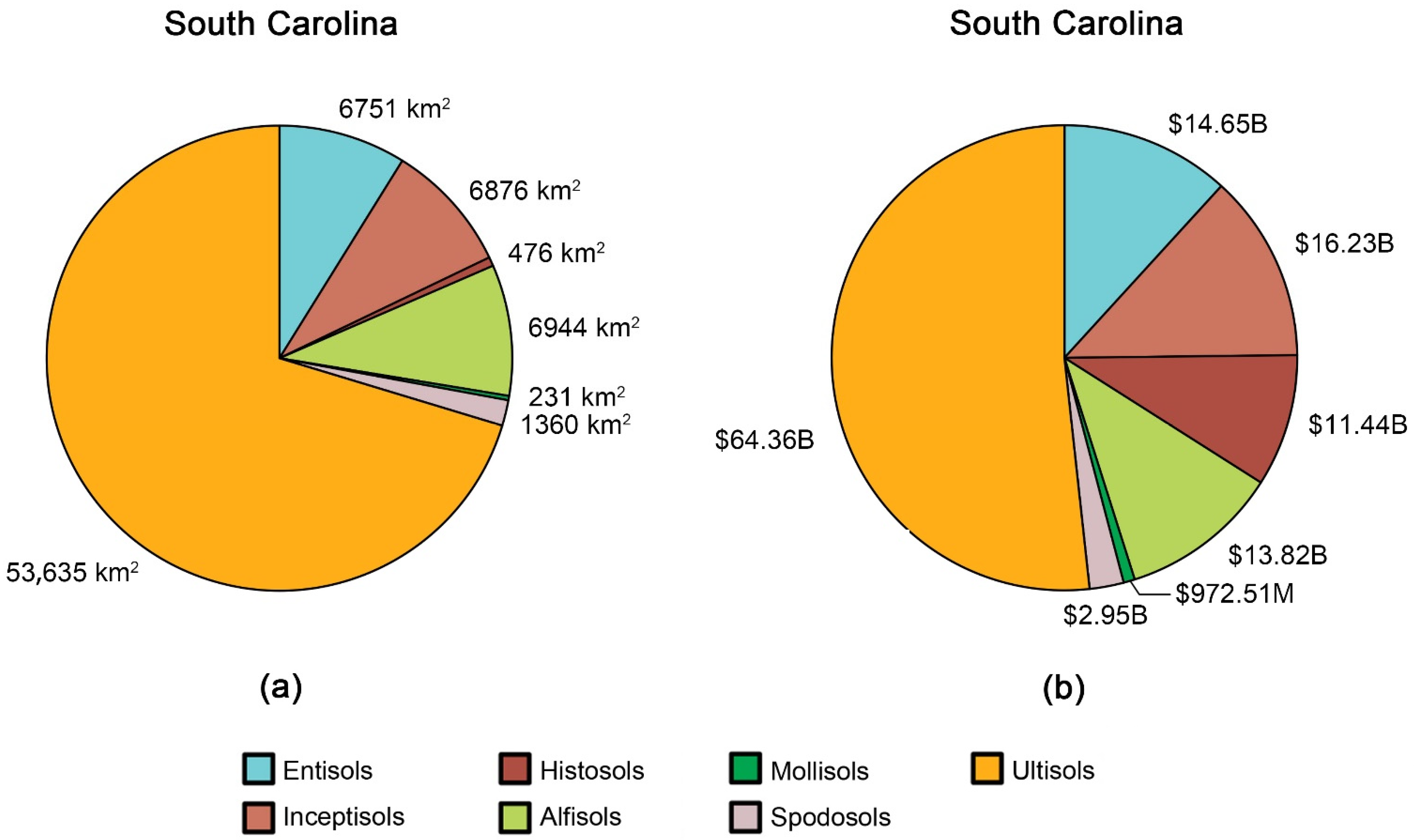

Figure 3. Soil distribution in the state of South Carolina (U.S.A.) (2016): (a) area of soil orders; (b) value ($) of soil carbon regulating ecosystem services based on total soil carbon (TSC) derived from numbers in the upper 2 m of the soil from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Figure 3. Soil distribution in the state of South Carolina (U.S.A.) (2016): (a) area of soil orders; (b) value ($) of soil carbon regulating ecosystem services based on total soil carbon (TSC) derived from numbers in the upper 2 m of the soil from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Earth 02 00040 g003

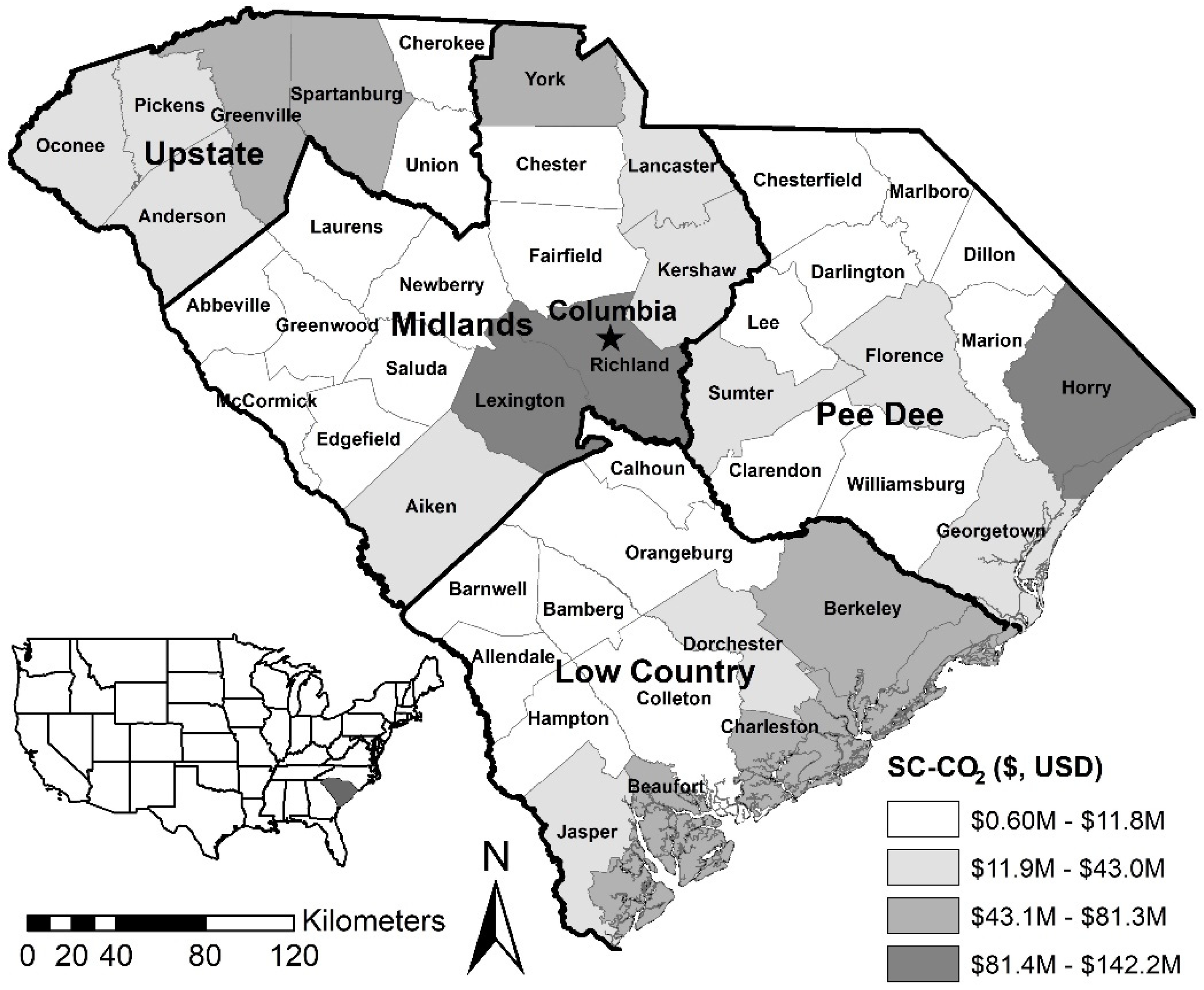

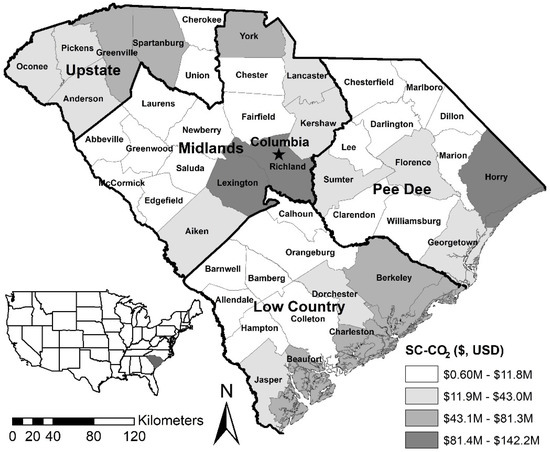

Figure 4. The total dollar value of mid-point total soil carbon (TSC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Figure 4. The total dollar value of mid-point total soil carbon (TSC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Earth 02 00040 g004
Table 1. Data sources and descriptions.
Table 1. Data sources and descriptions.
Data LayerSourceScale/Spatial Resolution (m)Date
National Land Cover Database (NLCD)Google Earth Engine (GEE) data provided by the U.S.
Geological Survey (USGS)
302001
2016
SoilSoil Survey Geographic
Database (SSURGO) provided by the National Agricultural
Library (NAL)
102016
Table 2. The classification system, which is used by National Land Cover Database (NLCD) (adapted from USGS, 2012 [21]).
Table 2. The classification system, which is used by National Land Cover Database (NLCD) (adapted from USGS, 2012 [21]).
NLCD Land Cover Classes (LULC)Definition
Open waterAll areas of open water, generally with less than 25% cover of vegetation or soil.
Barren landThin soil, sand, or rocks, include deserts, dry salt flats, beaches, sand dune, exposed rock, strip mines, and gravel pits.
Woody wetlandsForest or shrubland vegetation accounts for >20% of vegetative cover and the soil is periodically saturated with or covered with water.
Shrub/ScrubNatural or semi-natural woody vegetation with aerial stems, generally less than 6 m tall, with individuals or clumps not touching to interlocking.
Mixed forestA mixture of broadleaved deciduous and needle-leaved evergreen vegetation, each occupy at least 25% of the area.
Deciduous forest75% or more of the tree species shed foliage simultaneously in response to seasonal change.
HerbaceousPlants without persistent stem or shoots above ground and lacking definite firm structure.
Evergreen forest75% or more of the tree species maintain their leaves all year. Canopy is never without green foliage.
Emergent herbaceous
wetlands
>75% by herbaceous plants that are hydrophytic or water adapted.
Hay/pastureGrasses, legumes, or grass-legume mixtures planted for livestock grazing or the production of seed or hay crops.
Cultivated croplandsAreas used to produce crops, such as corn, soybeans, vegetables, tobacco, and cotton.
Developed, open spaceAreas with a mixture of some constructed materials, but mostly vegetation in the form of lawn grasses. Impervious surfaces account for less than 20% of total cover.
Developed, medium
intensity
Areas with a mixture of constructed materials and vegetation. Impervious surfaces account for 50% to 79% of the total cover. These areas most commonly include single-family housing units.
Developed, low intensityAreas with a mixture of constructed materials and vegetation, include single-family housing units.
Developed, high intensityPeople reside in high numbers, include apartment complexes and row houses.
Table 3. A conceptual overview of the accounting framework used in this study (adapted from Groshans et al., 2018 [5]).
Table 3. A conceptual overview of the accounting framework used in this study (adapted from Groshans et al., 2018 [5]).
STOCKSFLOWSVALUE
Biophysical Accounts
(Science-Based)
Administrative/Land Cover Accounts
(Boundary-Based)
Monetary Account(s)Benefit(s)/Damage(s)Total Value
Soil extent:Administrative/Land cover extent:Ecosystem good(s) and
service(s)/disservices:
Sector:Types of value:
Composite (total) stock: Total soil carbon (TSC) = Soil organic carbon (SOC) + Soil inorganic carbon (SIC)
Environment:The social cost of carbon (SC-CO2) and avoided emissions:
- Soil orders (Entisols, Inceptisols, Histosols, Alfisols, Mollisols, Spodosols, Ultisols)- State (South Carolina)
- Regions
- Counties
- Land cover classes (LULC)
- Regulating (e.g., carbon sequestration)- Sequestered carbon- $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16])
Table 4. Area-normalized content (kg m−2) and monetary values ($ m−2) of soil organic carbon (SOC), soil inorganic carbon (SIC), total soil carbon (TSC) by soil order based on numbers (midpoint soil organic carbon, soil inorganic carbon) in the upper 2-m of the soil from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Table 4. Area-normalized content (kg m−2) and monetary values ($ m−2) of soil organic carbon (SOC), soil inorganic carbon (SIC), total soil carbon (TSC) by soil order based on numbers (midpoint soil organic carbon, soil inorganic carbon) in the upper 2-m of the soil from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Soil OrderMinimum-Midpoint-Maximum ContentsMidpoint Values
SOC (kg m−2)SIC (kg m−2)TSC (kg m−2)SOC ($ m−2)SIC ($ m−2)TSC ($ m−2)
Slightly Weathered
Entisols1.8—8.0—15.81.9—4.8—8.43.7—12.8—24.21.350.822.17
Inceptisols2.8—8.9—17.42.5—5.1—8.45.3—14.0—25.81.500.862.36
Histosols63.9—140.1—243.90.6—2.4—5.064.5—142.5—248.923.620.4124.03
Moderately Weathered
Alfisols2.3—7.5—14.11.3—4.3—8.13.6—11.8—22.21.270.721.99
Mollisols5.9—13.5—22.84.9—11.5—19.710.8—25.0—42.52.281.934.21
Strongly Weathered
Spodosols2.9—12.3—25.50.2—0.6—1.13.1—12.9—26.62.070.102.17
Ultisols1.9—7.1—13.90.0—0.0—0.01.9—7.1—13.91.200.001.20
Note: TSC = SOC + SIC.
Table 5. Land cover change in South Carolina (U.S.A.) between 2001 and 2016 (based on Multi-Resolution Land Characteristics Consortium [18]).
Table 5. Land cover change in South Carolina (U.S.A.) between 2001 and 2016 (based on Multi-Resolution Land Characteristics Consortium [18]).
NLCD Land Cover Classes (LULC)2001 Area (km2)2016 Area (km2)Change (%)
Barren land176.71162.44−8
Woody wetlands15,944.4115,769.88−1
Shrub/Scrub2510.332702.75+8
Mixed forest4462.974717.34+6
Deciduous forest7797.417231.86−7
Herbaceous3297.113250.81−1
Evergreen forest19,590.2719,637.640
Emergent herbaceous wetlands2006.922037.10+2
Hay/Pasture6014.945415.81−10
Cultivated crops7475.677452.510
Developed, open space4671.204913.96+5
Developed, medium intensity464.39673.16+45
Developed, low intensity1826.462080.79+14
Developed, high intensity161.60225.32+39
Table 6. Soil carbon regulating ecosystem services and land cover change in the state of South Carolina (U.S.A.) between 2001 and 2016 based on total soil carbon (TSC) derived from numbers in the upper 2 m of the soil (by soil type) from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Table 6. Soil carbon regulating ecosystem services and land cover change in the state of South Carolina (U.S.A.) between 2001 and 2016 based on total soil carbon (TSC) derived from numbers in the upper 2 m of the soil (by soil type) from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
NLCD Land Cover Classes (LULC)2001 Mid. Value ($)2016 Mid. Value ($)Net Change ($)Change (%)
Barren land$284,320,000$259,710,000$24,610,000−9
Woody wetlands$34,199,940,000$33,808,480,000$391,460,000−1
Shrub/Scrub$3,612,540,000$3,922,480,000$309,940,000+9
Mixed forest$6,587,920,000$6,946,750,000$358,830,000+5
Deciduous forest$11,409,990,000$10,588,350,000$821,640,000−7
Herbaceous$5,054,090,000$4,800,100,000$253,990,000−5
Evergreen forest$28,470,170,000$28,641,620,000$171,450,000+1
Emergent herbaceous wetlands$7,110,200,000$6,930,830,000$179,370,000−3
Hay/Pasture$8,165,800,000$7,330,030,000$835,770,000−10
Cultivated crops$9,890,030,000$9,902,780,000$12,750,0000
Developed, open space$6,645,820,000$7,001,100,000$355,280,000+5
Developed, medium intensity$670,520,000$978,030,000$307,510,000+46
Developed, low intensity$2,610,130,000$2,991,170,000$381,040,000+15
Developed, high intensity$228,710,000$318,150,000$89,440,000+39
Note: Mid. = midpoint.
Table 7. Land cover change in the state of South Carolina (U.S.A.) between 2001 and 2016 based on soil order.
Table 7. Land cover change in the state of South Carolina (U.S.A.) between 2001 and 2016 based on soil order.
NLCD Land Cover Classes
(LULC)
Degree of Weathering and Soil Development
SlightModerateStrong
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
Area Change between 2001 and 2016 (%)
Barren land−10.16%−3.10%−15.52%−1.36%−14.12%−10.67%−8.01%
Woody wetlands0.48%−1.14%−1.45%−1.59%0.38%−2.11%−1.24%
Shrub/Scrub5.56%32.23%59.69%20.51%−53.78%−30.04%6.57%
Mixed forest−4.12%5.29%12.05%8.88%2.88%−1.86%5.96%
Deciduous forest−4.45%−6.06%−17.94%−10.67%0.95%18.30%−7.11%
Herbaceous−5.33%−8.21%−30.16%−27.77%−25.13%−27.32%4.46%
Evergreen forest−1.86%0.43%7.47%4.34%6.72%−0.71%−0.25%
Emergent herbaceous wetlands−1.20%12.41%−7.00%−4.76%−20.64%−3.28%28.35%
Hay/Pasture−11.31%−11.23%−45.01%−12.96%−36.19%−17.19%−9.47%
Cultivated crops3.74%1.33%5.13%10.99%42.90%−0.51%−0.66%
Developed, open space5.50%5.02%1.41%7.43%9.41%7.79%4.88%
Developed, medium intensity41.72%38.84%16.04%58.07%65.03%68.42%43.36%
Developed, low intensity17.24%11.30%3.24%20.49%19.75%31.88%12.38%
Developed, high intensity37.53%35.67%16.26%40.92%22.54%78.26%38.60%
Table 8. Soil carbon regulating ecosystem services and “developed” land cover change in the state of South Carolina (U.S.A.) between 2001 and 2016 based on total soil carbon (TSC) derived from numbers in the upper 2 m of the soil from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Table 8. Soil carbon regulating ecosystem services and “developed” land cover change in the state of South Carolina (U.S.A.) between 2001 and 2016 based on total soil carbon (TSC) derived from numbers in the upper 2 m of the soil from Guo et al., 2006 [17] and a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
NLCD Land Cover Classes
(LULC)
Degree of Weathering and Soil Development
SlightModerateStrong
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
SC-CO2 ($)
Developed, open space4.1 × 1072.1 × 10704.8 × 1074.2 × 1062.6 × 1072.1 × 108
Developed, medium intensity5.2 × 1071.4 × 10704.0 × 10702.4 × 1071.8 × 108
Developed, low intensity6.7 × 1071.7 × 10705.4 × 10703.5 × 1072.1 × 108
Developed, high intensity1.3 × 1072.4 × 10601.0 × 10706.5 × 1065.8 × 107
Totals ($1.1 × 109)1.7 × 1085.4 × 10701.5 × 1084.2 × 1069.1 × 1076.6 × 108
Table 9. Soil diversity (pedodiversity) and “developed” land cover (open space, low, medium, and high intensity) change from 2001 to 2016 by soil order (taxonomic pedodiversity), region, and county in the state of South Carolina (U.S.A.) based on Soil Survey Geographic (SSURGO) Database (2020) [20].
Table 9. Soil diversity (pedodiversity) and “developed” land cover (open space, low, medium, and high intensity) change from 2001 to 2016 by soil order (taxonomic pedodiversity), region, and county in the state of South Carolina (U.S.A.) based on Soil Survey Geographic (SSURGO) Database (2020) [20].
County
(Region)
Increase in Developed Area
(km2)
(Rank)
Degree of Weathering and Soil Development
Slightly WeatheredModerately WeatheredStrongly Weathered
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
Increase in Developed Area (km2) between 2001 and 2016 by Soil Order
Anderson30.0 (11)0.50000029.5
Cherokee7.3 (24)0.60.200.1006.4
Greenville65.5 (2)1.21.5000062.7
Oconee14.4 (16)0.30.2000013.9
Pickens12.4 (17)0.20.1000012.1
Spartanburg39.5 (6)0.41.600.50037
Union4.2 (28)0.1000.7003.4
(Upstate)173.3 (2)3.33.601.300165
Abbeville3.2 (32)0.00.000.6002.6
Aiken30.7 (10)5.20.700.40024.4
Chester3.7 (30)00.101.3002.3
Edgefield6.1 (25)0.70.300.1005.0
Fairfield4.2 (29)00.100.4003.7
Greenwood8.4 (22)00.202.3005.7
Kershaw11.9 (19)3.50.200.1008.1
Lancaster20.8 (12)0.31.000.40019.1
Laurens8.9 (21)0.1001007.8
Lexington65.4 (3)22.02.60100.139.7
Newberry4.6 (27)0000.2004.4
Richland63.4 (4)15.82.301.50043.8
Saluda3.1 (33)0000.2002.9
York51.6 (5)0.10.7018.60032.2
(Midlands)285.8 (1)47.78.2028.100.1201.7
Chesterfield2.9 (34)0.10.600002.2
Clarendon3.6 (31)0.10.100003.4
Darlington7.4 (23)0.40.700006.3
Dillon2.2 (35)0.3000001.9
Florence19.7 (14)0.20.6000018.9
Georgetown9.7 (20)1.81.502.601.02.8
Horry84.1 (1)6.33.2010.9023.640.1
Lee1.5 (41)0.2000001.3
Marion1.5 (42)0000001.5
Marlboro1.6 (40)00.100001.5
Sumter15.4 (15)00.3000015.1
Williamsburg1.9 (38)0.10.100001.7
(Pee Dee)151.5 (4)9.57.2013.5024.696.7
Allendale0.9 (44)0000000.9
Bamberg0.5 (46)0000000.5
Barnwell2.2 (36)0.3000001.9
Beaufort35.8 (9)9.70.800.90.39.514.6
Berkeley37.4 (8)1.30.303.601.630.6
Calhoun1.8 (39)0.10.100001.6
Charleston37.5 (7)5.52.1018.803.27.9
Colleton2.0 (37)0.20.10000.71.0
Dorchester20.8 (13)1.3007.700.111.7
Hampton0.6 (45)0000000.5
Jasper12.1 (18)0.9001.80.10.58.8
McCormick1.3 (43)0000.2001.1
Orangeburg5.8 (26)0.1000.1005.6
(Low Country)158.6 (3)19.43.4033.10.415.686.7
Totals769.179.922.4076.00.440.3550.1
Table 10. Mid-point soil organic carbon (SOC) storage for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on mid-point SOC content numbers in the upper 2 m of the soil based on data from Guo et al., 2006 [17].
Table 10. Mid-point soil organic carbon (SOC) storage for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on mid-point SOC content numbers in the upper 2 m of the soil based on data from Guo et al., 2006 [17].
County
(Region)
Total SOC
(kg)
Degree of Weathering and Soil Development
Slightly WeatheredModerately WeatheredStrongly Weathered
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
SOC (kg)
Anderson2.13 × 1084.00 × 106000002.09 × 108
Cherokee5.28 × 1074.80 × 1061.78 × 10607.50 × 105004.54 × 107
Greenville4.68 × 1089.60 × 1061.34 × 10700004.45 × 108
Oconee1.03 × 1082.40 × 1061.78 × 10600009.87 × 107
Pickens8.84 × 1071.60 × 1068.90 × 10500008.59 × 107
Spartanburg2.84 × 1083.20 × 1061.42 × 10703.75 × 106002.63 × 108
Union3.02 × 1078.00 × 105005.25 × 106002.41 × 107
(Upstate)1.24 × 1092.64 × 1073.20 × 10709.75 × 106001.17 × 109
Abbeville2.30 × 1070004.50 × 106001.85 × 107
Aiken2.24 × 1084.16 × 1076.23 × 10603.00 × 106001.73 × 108
Chester2.70 × 10708.90 × 10509.75 × 106001.63 × 107
Edgefield4.45 × 1075.60 × 1062.67 × 10607.50 × 105003.55 × 107
Fairfield3.02 × 10708.90 × 10503.00 × 106002.63 × 107
Greenwood5.95 × 10701.78 × 10601.73 × 107004.05 × 107
Kershaw8.80 × 1072.80 × 1071.78 × 10607.50 × 105005.75 × 107
Lancaster1.50 × 1082.40 × 1068.90 × 10603.00 × 106001.36 × 108
Laurens6.37 × 1078.00 × 105007.50 × 106005.54 × 107
Lexington4.90 × 1081.76 × 1082.31 × 10707.50 × 10601.23 × 1062.82 × 108
Newberry3.27 × 1070001.50 × 106003.12 × 107
Richland4.69 × 1081.26 × 1082.05 × 10701.13 × 107003.11 × 108
Saluda2.21 × 1070001.50 × 106002.06 × 107
York3.75 × 1088.00 × 1056.23 × 10601.40 × 108002.29 × 108
(Midlands)2.10 × 1093.82 × 1087.30 × 10702.11 × 10801.23 × 1061.43 × 109
Chesterfield2.18 × 1078.00 × 1055.34 × 10600001.56 × 107
Clarendon2.58 × 1078.00 × 1058.90 × 10500002.41 × 107
Darlington5.42 × 1073.20 × 1066.23 × 10600004.47 × 107
Dillon1.59 × 1072.40 × 106000001.35 × 107
Florence1.41 × 1081.60 × 1065.34 × 10600001.34 × 108
Georgetown7.94 × 1071.44 × 1071.34 × 10701.95 × 10701.23 × 1071.99 × 107
Horry7.36 × 1085.04 × 1072.85 × 10708.18 × 10702.90 × 1082.85 × 108
Lee1.08 × 1071.60 × 106000009.23 × 106
Marion1.07 × 1070000001.07 × 107
Marlboro1.15 × 10708.90 × 10500001.07 × 107
Sumter1.10 × 10802.67 × 10600001.07 × 108
Williamsburg1.38 × 1078.00 × 1058.90 × 10500001.21 × 107
(Pee Dee)1.23 × 1097.60 × 1076.41 × 10701.01 × 10803.03 × 1086.87 × 108
Allendale6.39 × 1060000006.39 × 106
Bamberg3.55 × 1060000003.55 × 106
Barnwell1.59 × 1072.40 × 106000001.35 × 107
Beaufort3.16 × 1087.76 × 1077.12 × 10606.75 × 1064.05 × 1061.17 × 1081.04 × 108
Berkeley2.77 × 1081.04 × 1072.67 × 10602.70 × 10701.97 × 1072.17 × 108
Calhoun1.31 × 1078.00 × 1058.90 × 10500001.14 × 107
Charleston2.99 × 1084.40 × 1071.87 × 10701.41 × 10803.94 × 1075.61 × 107
Colleton1.82 × 1071.60 × 1068.90 × 1050008.61 × 1067.10 × 106
Dorchester1.52 × 1081.04 × 107005.78 × 10701.23 × 1068.31 × 107
Hampton3.55 × 1060000003.55 × 106
Jasper9.07 × 1077.20 × 106001.35 × 1071.35 × 1066.15 × 1066.25 × 107
McCormick9.31 × 1060001.50 × 106007.81 × 106
Orangeburg4.13 × 1078.00 × 105007.50 × 105003.98 × 107
(Low Country)1.25 × 1091.55 × 1083.03 × 10702.48 × 1085.40 × 1061.92 × 1086.16 × 108
Totals5.82 × 1096.39 × 1081.99 × 10805.70 × 1085.40 × 1064.96 × 1083.91 × 109
Table 11. The total dollar value of mid-point soil organic carbon (SOC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Table 11. The total dollar value of mid-point soil organic carbon (SOC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
County
(Region)
Total
SC-CO2
($)
Degree of Weathering and Soil Development
Slightly WeatheredModerately WeatheredStrongly Weathered
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
SC-CO2 ($)
Anderson3.61 × 1076.75 × 105000003.54 × 107
Cherokee8.92 × 1068.10 × 1053.00 × 10501.27 × 105007.68 × 106
Greenville7.91 × 1071.62 × 1062.25 × 10600007.52 × 107
Oconee1.74 × 1074.05 × 1053.00 × 10500001.67 × 107
Pickens1.49 × 1072.70 × 1051.50 × 10500001.45 × 107
Spartanburg4.80 × 1075.40 × 1052.40 × 10606.35 × 105004.44 × 107
Union5.10 × 1061.35 × 105008.89 × 105004.08 × 106
(Upstate)2.10 × 1084.46 × 1065.40 × 10601.65 × 106001.98 × 108
Abbeville3.88 × 1060007.62 × 105003.12 × 106
Aiken3.79 × 1077.02 × 1061.05 × 10605.08 × 105002.93 × 107
Chester4.56 × 10601.50 × 10501.65 × 106002.76 × 106
Edgefield7.52 × 1069.45 × 1054.50 × 10501.27 × 105006.00 × 106
Fairfield5.10 × 10601.50 × 10505.08 × 105004.44 × 106
Greenwood1.01 × 10703.00 × 10502.92 × 106006.84 × 106
Kershaw1.49 × 1074.73 × 1063.00 × 10501.27 × 105009.72 × 106
Lancaster2.53 × 1074.05 × 1051.50 × 10605.08 × 105002.29 × 107
Laurens1.08 × 1071.35 × 105001.27 × 106009.36 × 106
Lexington8.27 × 1072.97 × 1073.90 × 10601.27 × 10602.07 × 1054.76 × 107
Newberry5.53 × 1060002.54 × 105005.28 × 106
Richland7.92 × 1072.13 × 1073.45 × 10601.91 × 106005.26 × 107
Saluda3.73 × 1060002.54 × 105003.48 × 106
York6.34 × 1071.35 × 1051.05 × 10602.36 × 107003.86 × 107
(Midlands)3.55 × 1086.44 × 1071.23 × 10703.57 × 10702.07 × 1052.42 × 108
Chesterfield3.68 × 1061.35 × 1059.00 × 10500002.64 × 106
Clarendon4.37 × 1061.35 × 1051.50 × 10500004.08 × 106
Darlington9.15 × 1065.40 × 1051.05 × 10600007.56 × 106
Dillon2.69 × 1064.05 × 105000002.28 × 106
Florence2.39 × 1072.70 × 1059.00 × 10500002.27 × 107
Georgetown1.34 × 1072.43 × 1062.25 × 10603.30 × 10602.07 × 1063.36 × 106
Horry1.24 × 1088.51 × 1064.80 × 10601.38 × 10704.89 × 1074.81 × 107
Lee1.83 × 1062.70 × 105000001.56 × 106
Marion1.80 × 1060000001.80 × 106
Marlboro1.95 × 10601.50 × 10500001.80 × 106
Sumter1.86 × 10704.50 × 10500001.81 × 107
Williamsburg2.33 × 1061.35 × 1051.50 × 10500002.04 × 106
(Pee Dee)2.08 × 1081.28 × 1071.08 × 10701.71 × 10705.09 × 1071.16 × 108
Allendale1.08 × 1060000001.08 × 106
Bamberg6.00 × 1050000006.00 × 105
Barnwell2.69 × 1064.05 × 105000002.28 × 106
Beaufort5.33 × 1071.31 × 1071.20 × 10601.14 × 1066.84 × 1051.97 × 1071.75 × 107
Berkeley4.68 × 1071.76 × 1064.50 × 10504.57 × 10603.31 × 1063.67 × 107
Calhoun2.21 × 1061.35 × 1051.50 × 10500001.92 × 106
Charleston5.06 × 1077.43 × 1063.15 × 10602.39 × 10706.62 × 1069.48 × 106
Colleton3.07 × 1062.70 × 1051.50 × 1050001.45 × 1061.20 × 106
Dorchester2.58 × 1071.76 × 106009.78 × 10602.07 × 1051.40 × 107
Hampton6.00 × 1050000006.00 × 105
Jasper1.53 × 1071.22 × 106002.29 × 1062.28 × 1051.04 × 1061.06 × 107
McCormick1.57 × 1060002.54 × 105001.32 × 106
Orangeburg6.98 × 1061.35 × 105001.27 × 105006.72 × 106
(Low Country)2.11 × 1082.62 × 1075.10 × 10604.20 × 1079.12 × 1053.23 × 1071.04 × 108
Totals9.82 × 1081.08 × 1083.36 × 10709.65 × 1079.12 × 1058.34 × 1076.60 × 108
Table 12. Mid-point soil inorganic carbon (SIC) storage for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on mid-point SIC content numbers in the upper 2 m of the soil based on data from Guo et al., 2006 [17].
Table 12. Mid-point soil inorganic carbon (SIC) storage for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on mid-point SIC content numbers in the upper 2 m of the soil based on data from Guo et al., 2006 [17].
County
(Region)
Total SIC
(kg)
Degree of Weathering and Soil Development
Slightly WeatheredModerately WeatheredStrongly Weathered
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
SIC (kg)
Anderson2.40 × 1062.40 × 106000000
Cherokee4.33 × 1062.88 × 1061.02 × 10604.30 × 105000
Greenville1.34 × 1075.76 × 1067.65 × 10600000
Oconee2.46 × 1061.44 × 1061.02 × 10600000
Pickens1.47 × 1069.60 × 1055.10 × 10500000
Spartanburg1.22 × 1071.92 × 1068.16 × 10602.15 × 106000
Union3.49 × 1064.80 × 105003.01 × 106000
(Upstate)3.98 × 1071.58 × 1071.84 × 10705.59 × 106000
Abbeville2.58 × 1060002.58 × 106000
Aiken3.03 × 1072.50 × 1073.57 × 10601.72 × 106000
Chester6.10 × 10605.10 × 10505.59 × 106000
Edgefield5.32 × 1063.36 × 1061.53 × 10604.30 × 105000
Fairfield2.23 × 10605.10 × 10501.72 × 106000
Greenwood1.09 × 10701.02 × 10609.89 × 106000
Kershaw1.83 × 1071.68 × 1071.02 × 10604.30 × 105000
Lancaster8.26 × 1061.44 × 1065.10 × 10601.72 × 106000
Laurens4.78 × 1064.80 × 105004.30 × 106000
Lexington1.23 × 1081.06 × 1081.33 × 10704.30 × 10606.00 × 1040
Newberry8.60 × 1050008.60 × 105000
Richland9.40 × 1077.58 × 1071.17 × 10706.45 × 106000
Saluda8.60 × 1050008.60 × 105000
York8.40 × 1074.80 × 1053.57 × 10608.00 × 107000
(Midlands)3.92 × 1082.29 × 1084.18 × 10701.21 × 10806.00 × 1040
Chesterfield3.54 × 1064.80 × 1053.06 × 10600000
Clarendon9.90 × 1054.80 × 1055.10 × 10500000
Darlington5.49 × 1061.92 × 1063.57 × 10600000
Dillon1.44 × 1061.44 × 106000000
Florence4.02 × 1069.60 × 1053.06 × 10600000
Georgetown2.81 × 1078.64 × 1067.65 × 10601.12 × 10706.00 × 1050
Horry1.08 × 1083.02 × 1071.63 × 10704.69 × 10701.42 × 1070
Lee9.60 × 1059.60 × 105000000
Marion00000000
Marlboro5.10 × 10505.10 × 10500000
Sumter1.53 × 10601.53 × 10600000
Williamsburg9.90 × 1054.80 × 1055.10 × 10500000
(Pee Dee)1.55 × 1084.56 × 1073.67 × 10705.81 × 10701.48 × 1070
Allendale00000000
Bamberg00000000
Barnwell1.44 × 1061.44 × 106000000
Beaufort6.37 × 1074.66 × 1074.08 × 10603.87 × 1063.45 × 1065.70 × 1060
Berkeley2.42 × 1076.24 × 1061.53 × 10601.55 × 10709.60 × 1050
Calhoun9.90 × 1054.80 × 1055.10 × 10500000
Charleston1.20 × 1082.64 × 1071.07 × 10708.08 × 10701.92 × 1060
Colleton1.89 × 1069.60 × 1055.10 × 1050004.20 × 1050
Dorchester3.94 × 1076.24 × 106003.31 × 10706.00 × 1040
Hampton00000000
Jasper1.35 × 1074.32 × 106007.74 × 1061.15 × 1063.00 × 1050
McCormick8.60 × 1050008.60 × 105000
Orangeburg9.10 × 1054.80 × 105004.30 × 105000
(Low Country)2.67 × 1089.31 × 1071.73 × 10701.42 × 1084.60 × 1069.36 × 1060
Totals8.53 × 1083.84 × 1081.14 × 10803.27 × 1084.60 × 1062.42 × 1070
Table 13. The total dollar value of mid-point soil inorganic carbon (SIC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Table 13. The total dollar value of mid-point soil inorganic carbon (SIC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
County
(Region)
Total
SC-CO2
($)
Degree of Weathering and Soil Development
Slightly WeatheredModerately WeatheredStrongly Weathered
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
SC-CO2 ($)
Anderson4.10 × 1054.10 × 105000000
Cherokee7.36 × 1054.92 × 1051.72 × 10507.20 × 104000
Greenville2.27 × 1069.84 × 1051.29 × 10600000
Oconee4.18 × 1052.46 × 1051.72 × 10500000
Pickens2.50 × 1051.64 × 1058.60 × 10400000
Spartanburg2.06 × 1063.28 × 1051.38 × 10603.60 × 105000
Union5.86 × 1058.20 × 104005.04 × 105000
(Upstate)6.74 × 1062.71 × 1063.10 × 10609.36 × 105000
Abbeville4.32 × 1050004.32 × 105000
Aiken5.15 × 1064.26 × 1066.02 × 10502.88 × 105000
Chester1.02 × 10608.60 × 10409.36 × 105000
Edgefield9.04 × 1055.74 × 1052.58 × 10507.20 × 104000
Fairfield3.74 × 10508.60 × 10402.88 × 105000
Greenwood1.83 × 10601.72 × 10501.66 × 106000
Kershaw3.11 × 1062.87 × 1061.72 × 10507.20 × 104000
Lancaster1.39 × 1062.46 × 1058.60 × 10502.88 × 105000
Laurens8.02 × 1058.20 × 104007.20 × 105000
Lexington2.10 × 1071.80 × 1072.24 × 10607.20 × 10501.00 × 1040
Newberry1.44 × 1050001.44 × 105000
Richland1.60 × 1071.30 × 1071.98 × 10601.08 × 106000
Saluda1.44 × 1050001.44 × 105000
York1.41 × 1078.20 × 1046.02 × 10501.34 × 107000
(Midlands)6.64 × 1073.91 × 1077.05 × 10602.02 × 10701.00 × 1040
Chesterfield5.98 × 1058.20 × 1045.16 × 10500000
Clarendon1.68 × 1058.20 × 1048.60 × 10400000
Darlington9.30 × 1053.28 × 1056.02 × 10500000
Dillon2.46 × 1052.46 × 105000000
Florence6.80 × 1051.64 × 1055.16 × 10500000
Georgetown4.74 × 1061.48 × 1061.29 × 10601.87 × 10601.00 × 1050
Horry1.81 × 1075.17 × 1062.75 × 10607.85 × 10602.36 × 1060
Lee1.64 × 1051.64 × 105000000
Marion00000000
Marlboro8.60 × 10408.60 × 10400000
Sumter2.58 × 10502.58 × 10500000
Williamsburg1.68 × 1058.20 × 1048.60 × 10400000
(Pee Dee)2.62 × 1077.79 × 1066.19 × 10609.72 × 10602.46 × 1060
Allendale00000000
Bamberg00000000
Barnwell2.46 × 1052.46 × 105000000
Beaufort1.08 × 1077.95 × 1066.88 × 10506.48 × 1055.79 × 1059.50 × 1050
Berkeley4.08 × 1061.07 × 1062.58 × 10502.59 × 10601.60 × 1050
Calhoun1.68 × 1058.20 × 1048.60 × 10400000
Charleston2.02 × 1074.51 × 1061.81 × 10601.35 × 10703.20 × 1050
Colleton3.20 × 1051.64 × 1058.60 × 1040007.00 × 1040
Dorchester6.62 × 1061.07 × 106005.54 × 10601.00 × 1040
Hampton00000000
Jasper2.28 × 1067.38 × 105001.30 × 1061.93 × 1055.00 × 1040
McCormick1.44 × 1050001.44 × 105000
Orangeburg1.54 × 1058.20 × 104007.20 × 104000
(Low Country)4.50 × 1071.59 × 1072.92 × 10602.38 × 1077.72 × 1051.56 × 1060
Totals1.44 × 1086.55 × 1071.93 × 10705.47 × 1077.72 × 1054.03 × 1060
Table 14. Mid-point total soil carbon (TSC) storage for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on mid-point SIC content numbers in the upper 2 m of the soil based on data from Guo et al., 2006 [17].
Table 14. Mid-point total soil carbon (TSC) storage for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on mid-point SIC content numbers in the upper 2 m of the soil based on data from Guo et al., 2006 [17].
County
(Region)
Total TSC
(kg)
Degree of Weathering and Soil Development
Slightly WeatheredModerately WeatheredStrongly Weathered
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
TSC (kg)
Anderson2.16 × 1086.40 × 106000002.09 × 108
Cherokee5.71 × 1077.68 × 1062.80 × 10601.18 × 106004.54 × 107
Greenville4.82 × 1081.54 × 1072.10 × 10700004.45 × 108
Oconee1.05 × 1083.84 × 1062.80 × 10600009.87 × 107
Pickens8.99 × 1072.56 × 1061.40 × 10600008.59 × 107
Spartanburg2.96 × 1085.12 × 1062.24 × 10705.90 × 106002.63 × 108
Union3.37 × 1071.28 × 106008.26 × 106002.41 × 107
(Upstate)1.28×1094.22×1075.04×10701.53×107001.17×109
Abbeville2.55 × 1070007.08 × 106001.85 × 107
Aiken2.54 × 1086.66 × 1079.80 × 10604.72 × 106001.73 × 108
Chester3.31 × 10701.40 × 10601.53 × 107001.63 × 107
Edgefield4.98 × 1078.96 × 1064.20 × 10601.18 × 106003.55 × 107
Fairfield3.24 × 10701.40 × 10604.72 × 106002.63 × 107
Greenwood7.04 × 10702.80 × 10602.71 × 107004.05 × 107
Kershaw1.06 × 1084.48 × 1072.80 × 10601.18 × 106005.75 × 107
Lancaster1.58 × 1083.84 × 1061.40 × 10704.72 × 106001.36 × 108
Laurens6.85 × 1071.28 × 106001.18 × 107005.54 × 107
Lexington6.13 × 1082.82 × 1083.64 × 10701.18 × 10701.29 × 1062.82 × 108
Newberry3.36 × 1070002.36 × 106003.12 × 107
Richland5.63 × 1082.02 × 1083.22 × 10701.77 × 107003.11 × 108
Saluda2.30 × 1070002.36 × 106002.06 × 107
York4.59 × 1081.28 × 1069.80 × 10602.19 × 108002.29 × 108
(Midlands)2.49×1096.11×1081.15 × 10803.32 × 10801.29 × 1061.43×109
Chesterfield2.53 × 1071.28 × 1068.40 × 10600001.56 × 107
Clarendon2.68 × 1071.28 × 1061.40 × 10600002.41 × 107
Darlington5.97 × 1075.12 × 1069.80 × 10600004.47 × 107
Dillon1.73 × 1073.84 × 106000001.35 × 107
Florence1.45 × 1082.56 × 1068.40 × 10600001.34 × 108
Georgetown1.08 × 1082.30 × 1072.10 × 10703.07 × 10701.29 × 1071.99 × 107
Horry8.43 × 1088.06 × 1074.48 × 10701.29 × 10803.04 × 1082.85 × 108
Lee1.18 × 1072.56 × 106000009.23 × 106
Marion1.07 × 1070000001.07 × 107
Marlboro1.21 × 10701.40 × 10600001.07 × 107
Sumter1.11 × 10804.20 × 10600001.07 × 108
Williamsburg1.48 × 1071.28 × 1061.40 × 10600001.21 × 107
(Pee Dee)1.39×1091.22 × 1081.01 × 10801.59 × 10803.17 × 1086.87 × 108
Allendale6.39 × 1060000006.39 × 106
Bamberg3.55 × 1060000003.55 × 106
Barnwell1.73 × 1073.84 × 106000001.35 × 107
Beaufort3.80 × 1081.24 × 1081.12 × 10701.06 × 1077.50 × 1061.23 × 1081.04 × 108
Berkeley3.01 × 1081.66 × 1074.20 × 10604.25 × 10702.06 × 1072.17 × 108
Calhoun1.40 × 1071.28 × 1061.40 × 10600001.14 × 107
Charleston4.19 × 1087.04 × 1072.94 × 10702.22 × 10804.13 × 1075.61 × 107
Colleton2.01 × 1072.56 × 1061.40 × 1060009.03 × 1067.10 × 106
Dorchester1.92 × 1081.66 × 107009.09 × 10701.29 × 1068.31 × 107
Hampton3.55 × 1060000003.55 × 106
Jasper1.04 × 1081.15 × 107002.12 × 1072.50 × 1066.45 × 1066.25 × 107
McCormick1.02 × 1070002.36 × 106007.81 × 106
Orangeburg4.22 × 1071.28 × 106001.18 × 106003.98 × 107
(Low Country)1.51×1092.48 × 1084.76×10703.91 × 1081.00×1072.01 × 1086.16 × 108
Totals6.67×1091.02×1093.14 × 10808.97 × 1081.00×1075.20 × 1083.91×109
Table 15. The total dollar value of mid-point total soil carbon (TSC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
Table 15. The total dollar value of mid-point total soil carbon (TSC) storage value for newly “developed” land covers (open space, low, medium, and high intensity) from 2001 to 2016 in the state of South Carolina (U.S.A.) based on a social cost of carbon (SC-CO2) of $46 per metric ton of CO2 (2007 U.S. dollars with an average discount rate of 3% [16]).
County
(Region)
Total
SC-CO2
($)
Degree of Weathering and Soil Development
Slightly WeatheredModerately WeatheredStrongly Weathered
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
SC-CO2 ($)
Anderson3.65 × 1071.09 × 106000003.54 × 107
Cherokee9.65 × 1061.30 × 1064.72 × 10501.99 × 105007.68 × 106
Greenville8.14 × 1072.60 × 1063.54 × 10600007.52 × 107
Oconee1.78 × 1076.51 × 1054.72 × 10500001.67 × 107
Pickens1.52 × 1074.34 × 1052.36 × 10500001.45 × 107
Spartanburg5.00 × 1078.68 × 1053.78 × 10609.95 × 105004.44 × 107
Union5.69 × 1062.17 × 105001.39 × 106004.08 × 106
(Upstate)2.16 × 1087.16 × 1068.50 × 10602.59 × 106001.98 × 108
Abbeville4.31 × 1060001.19 × 106003.12 × 106
Aiken4.30 × 1071.13 × 1071.65 × 10607.96 × 105002.93 × 107
Chester5.58 × 10602.36 × 10502.59 × 106002.76 × 106
Edgefield8.43 × 1061.52 × 1067.08 × 10501.99 × 105006.00 × 106
Fairfield5.47 × 10602.36 × 10507.96 × 105004.44 × 106
Greenwood1.19 × 10704.72 × 10504.58 × 106006.84 × 106
Kershaw1.80 × 1077.60 × 1064.72 × 10501.99 × 105009.72 × 106
Lancaster2.67 × 1076.51 × 1052.36 × 10607.96 × 105002.29 × 107
Laurens1.16 × 1072.17 × 105001.99 × 106009.36 × 106
Lexington1.04 × 1084.77 × 1076.14 × 10601.99 × 10602.17 × 1054.76 × 107
Newberry5.68 × 1060003.98 × 105005.28 × 106
Richland9.53 × 1073.43 × 1075.43 × 10602.99 × 106005.26 × 107
Saluda3.88 × 1060003.98 × 105003.48 × 106
York7.75 × 1072.17 × 1051.65 × 10603.70 × 107003.86 × 107
(Midlands)4.21 × 1081.04 × 1081.94×10705.59×10702.17 × 1052.42 × 108
Chesterfield4.27 × 1062.17 × 1051.42 × 10600002.64 × 106
Clarendon4.53 × 1062.17 × 1052.36 × 10500004.08 × 106
Darlington1.01 × 1078.68 × 1051.65 × 10600007.56 × 106
Dillon2.93 × 1066.51 × 105000002.28 × 106
Florence2.45 × 1074.34 × 1051.42 × 10600002.27 × 107
Georgetown1.82 × 1073.91 × 1063.54 × 10605.17 × 10602.17 × 1063.36 × 106
Horry1.42 × 1081.37 × 1077.55 × 10602.17 × 10705.12 × 1074.81 × 107
Lee1.99 × 1064.34 × 105000001.56 × 106
Marion1.80 × 1060000001.80 × 106
Marlboro2.04 × 10602.36 × 10500001.80 × 106
Sumter1.88 × 10707.08 × 10500001.81 × 107
Williamsburg2.49 × 1062.17 × 1052.36 × 10500002.04 × 106
(Pee Dee)2.34 × 1082.06×1071.70×10702.69×10705.34×1071.16 × 108
Allendale1.08 × 1060000001.08 × 106
Bamberg6.00 × 1050000006.00 × 105
Barnwell2.93 × 1066.51 × 105000002.28 × 106
Beaufort6.41 × 1072.10 × 1071.89 × 10601.79 × 1061.26 × 1062.06 × 1071.75 × 107
Berkeley5.09 × 1072.82 × 1067.08 × 10507.16 × 10603.47 × 1063.67 × 107
Calhoun2.37 × 1062.17 × 1052.36 × 10500001.92 × 106
Charleston7.07 × 1071.19 × 1074.96 × 10603.74 × 10706.94 × 1069.48 × 106
Colleton3.39 × 1064.34 × 1052.36 × 1050001.52 × 1061.20 × 106
Dorchester3.24 × 1072.82 × 106001.53 × 10702.17 × 1051.40 × 107
Hampton6.00 × 1050000006.00 × 105
Jasper1.76 × 1071.95 × 106003.58 × 1064.21 × 1051.09 × 1061.06 × 107
McCormick1.72 × 1060003.98 × 105001.32 × 106
Orangeburg7.14 × 1062.17 × 105001.99 × 105006.72 × 106
(Low Country)2.56 × 1084.21×1078.02 × 10606.59×1071.68 × 1063.39×1071.04 × 108
Totals1.13×1091.73 × 1085.29×10701.51 × 1081.68 × 1068.75×1076.60 × 108
Table 16. Land use/land cover (LULC) by soil order in the state of South Carolina (USA) in 2016.
Table 16. Land use/land cover (LULC) by soil order in the state of South Carolina (USA) in 2016.
NLCD Land Cover Classes
(LULC)
2016 Total
Area by LULC
(km2) (%)
Degree of Weathering and Soil Development
SlightModerateStrong
EntisolsInceptisolsHistosolsAlfisolsMollisolsSpodosolsUltisols
2016 Area by Soil Order (% from Total Area in Each LULC)
Barren land162.4 (0.2%)28.64.20.17.00.12.257.9
Woody wetlands15,769.9 (20.7%)9.425.11.98.51.12.751.3
Shrub/Scrub2702.8 (3.5%)10.14.00.18.70.01.275.8
Mixed forest4717.3 (6.2%)5.28.30.014.10.10.372.0
Deciduous forest7231.9 (9.5%)6.38.50.011.60.10.273.4
Herbaceous3250.8 (4.3%)12.04.50.28.00.01.074.3
Evergreen forest19,637.6 (25.7%)5.94.30.112.50.12.474.6
Emergent herbaceous wetlands2037.1 (2.7%)74.14.76.12.20.40.911.6
Hay/Pasture5415.8 (7.1%)4.43.30.08.00.00.583.8
Cultivated crops7452.5 (9.8%)3.63.30.21.10.01.090.8
Developed, open space4914.0 (6.4%)7.44.00.17.00.13.178.3
Developed, medium intensity673.2 (0.9%)12.32.80.08.00.04.073.0
Developed, low intensity2080.8 (2.7%)10.13.20.07.60.03.175.9
Developed, high intensity225.3 (0.3%)10.32.40.08.00.02.776.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mikhailova, E.A.; Lin, L.; Hao, Z.; Zurqani, H.A.; Post, C.J.; Schlautman, M.A.; Post, G.C. Land Cover Change and Soil Carbon Regulating Ecosystem Services in the State of South Carolina, USA. Earth 2021, 2, 674-695. https://doi.org/10.3390/earth2040040

AMA Style

Mikhailova EA, Lin L, Hao Z, Zurqani HA, Post CJ, Schlautman MA, Post GC. Land Cover Change and Soil Carbon Regulating Ecosystem Services in the State of South Carolina, USA. Earth. 2021; 2(4):674-695. https://doi.org/10.3390/earth2040040

Chicago/Turabian Style

Mikhailova, Elena A., Lili Lin, Zhenbang Hao, Hamdi A. Zurqani, Christopher J. Post, Mark A. Schlautman, and Gregory C. Post. 2021. "Land Cover Change and Soil Carbon Regulating Ecosystem Services in the State of South Carolina, USA" Earth 2, no. 4: 674-695. https://doi.org/10.3390/earth2040040

Article Metrics

Back to TopTop
