Disaggregating Longer-Term Trends from Seasonal Variations in Measured PV System Performance
Abstract
:1. Introduction
2. Solar PV Performance Monitoring
2.1. Seasonal Variations in PV Performance
2.2. Performance Ratio Corrected for Temperature (PRCorr)
3. Materials and Methods
4. Results
4.1. Data Collection and Preprocessing
4.2. Time Series
4.3. Wavelet Analysis
4.4. Performance Ratio
- di: difference between corrected and uncorrected PR (see Equation (6)).
- n: number of monitored data points.
- DF = n − 1: degree of freedom.
- TC.I: t-test at a particular confidence interval (C.I).
- S.E(dmean): standard error of the mean difference.
4.5. Statistical Analyses Using t-Distribution and Confidence Intervals
5. Discussion
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A

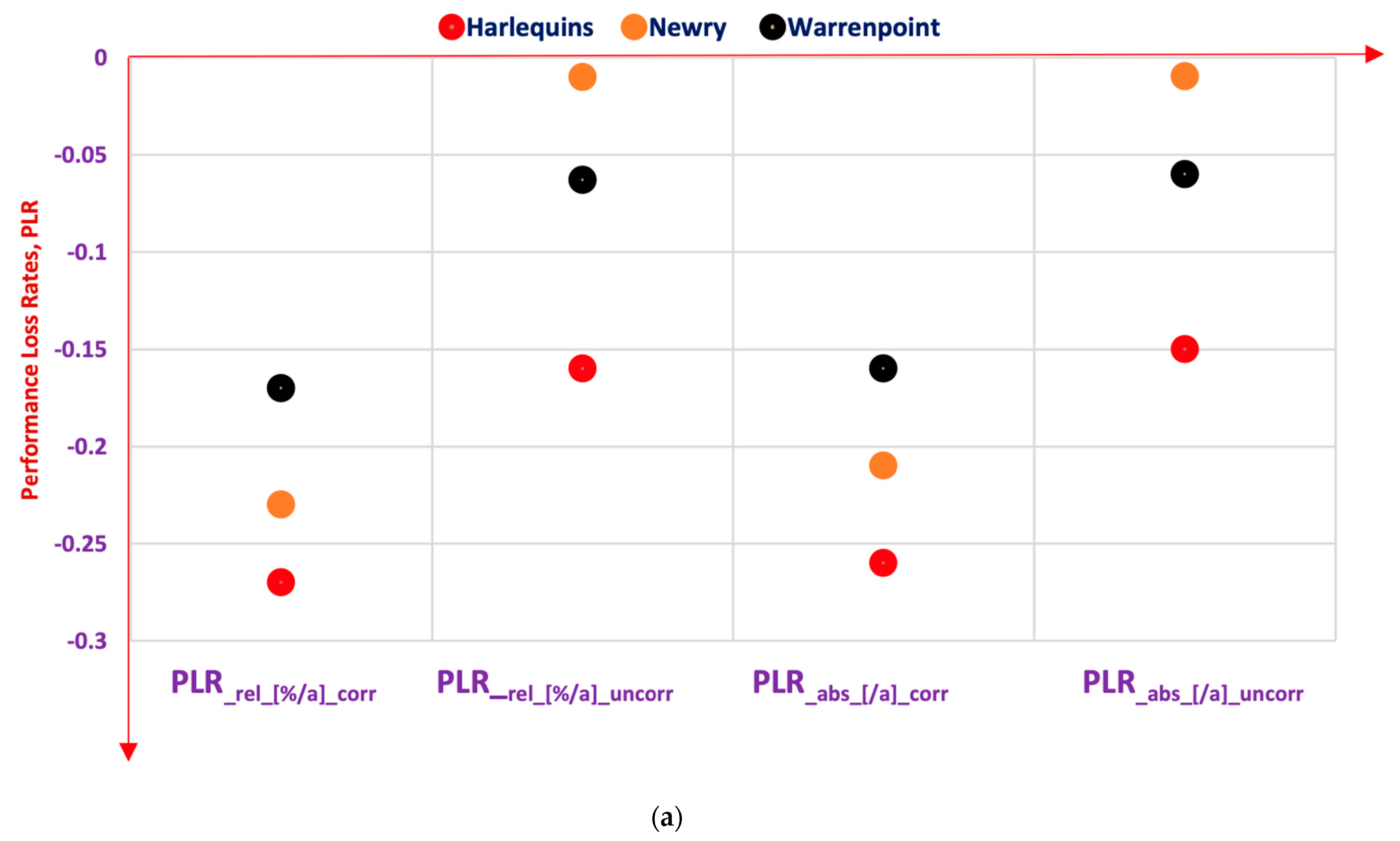

Harlequins | Observation | Newry | Observation | Warrenpoint | Observation | |||
---|---|---|---|---|---|---|---|---|
Arr. PLRrel (%/a) | Sys. PLRrel (%/a) | This means that PLRrel of the Harlequins array shows that solar panel generation will increase at the annual rate by −0.27%/a, which shows an improvement, while PLRrel of the Harlequins system shows that PV system generation will decrease at the annual rate of 0.018%/a. | Array PLRrel (%/a) | Sys. PLRrel (%/a) | There are improvements in both the Newry array and system. For this reason, both the PLRrel for the Newry array and system show that they will both increase at the annual rates by −0.23%/a and −0.00635%/a, respectively. | Arr. PLRrel (%/a) | Sys. PLRrel (%/a) | The PLRrel in Warrenpoint array shows that there is an improvement in the array. This means that solar panel generation will increase at an annual rate of −0.17%/a, while the PLRrel in the Warrenpoint system shows that PV system generation will decrease at the annual rate of 0.00514%/a. |
−0.27 | 0.018 | −0.23 | −0.00635 | −0.17 | 0.00514 |
Harlequins | Observation | Newry | Observation | Warrenpoint | Observation | |||
---|---|---|---|---|---|---|---|---|
Arr. PLRabs (/a) | Sys. PLRabs (/a) | The PLRabs of the Harlequins array show that solar panel generation will increase at the annual rate of −0.26/a, which shows an improvement, while the PLRabs of the Harlequins system shows that PV system generation will decrease at the annual rate of 0.017/a. | Arr. PLRabs (/a) | Sys. PLRabs (/a) | Both the Newry array and system show improvements. This means that their PLRabs will increase at the annual rates by −0.21/a and −0.006/a, respectively. | Arr. PLRabs (/a) | Sys. PLRabs (/a) | Warrenpoint array shows a PLRabs improvement while the Warrenpoint system shows a decrease in PLR abs. This shows that solar panel generation will increase at an annual rate of −0.16/a, while the Warrenpoint system shows that PV system generation will decrease at an annual rate of 0.0048/a. |
−0.26 | 0.017 | −0.21 | −0.006 | −0.16 | 0.0048 |
Harlequins | Observation | Newry | Observation | Warrenpoint | Observation | |||
---|---|---|---|---|---|---|---|---|
Arr. PLRrel (%/a) | Sys. PLRrel (%/a) | Both the Harlequins array and system showed an improvement at their PLRrel. This shows that solar panel and PV generations will increase at annual rates of −0.16%/a and −0.023%/a, respectively. It will be difficult to predict any PLRrel in the PV array and system due to the seasonal variation effect noticed in weather-uncorrected relative performance loss rates. To resolve this, the weather-uncorrected PLRrel are normalised with the average cell temperature. | Array PLRrel (%/a) | Sys. PLRrel (%/a) | There are improvements in the Newry array and system. For this reason, their PLRrel shows that both the Newry array and system will increase at the annual rates by −0.01%/a and −0.00104%/a, respectively. Just like the Harlequins array and system, it will be difficult to predict any PLRrel in the PV array and system due to the seasonal variation effect noticed in weather-uncorrected relative performance loss rates. To resolve this, the weather-uncorrected PLRrel are normalised with the average cell temperature. | Arr. PLRrel (%/a) | Sys. PLRrel (%/a) | There is an improvement in the Warrenpoint array and a decrease in the Warrenpoint system. This shows that solar panel generation will increase at an annual rate by −0.063%/a, while the Warrenpoint system shows that PV system generation will decrease at the annual rate of 0.00259%/a. |
−0.16 | −0.023 | −0.01 | −0.00104 | −0.063 | 0.00259 |
Harlequins | Observation | Newry | Observation | Warrenpoint | Observation | |||
---|---|---|---|---|---|---|---|---|
Arr. PLRabs (/a) | Sys. PLRabs (/a) | Both the Harlequins array and system show improvements in PLRabs. This show that solar panel and PV generations will increase at annual rates of −0.15/a and −0.022/a. Just like PLRrel in the Harlequins array and system, it will be difficult to predict any PLRrel in the PV array and system due to the seasonal variation effect noticed in weather-uncorrected relative performance loss rates. To resolve this, the weather-uncorrected PLRrel are normalised with the average cell temperature. | Arr. PLRabs (/a) | Sys. PLRabs (/a) | There are improvements in both the Newry array and system. This means that their PLRabs show that both the Newry array and system will increase at the annual rates by −0.0096/a and −0.0096/a, respectively. Just like the Newry array and system, it will be difficult to predict any PLRrel in the PV array and system due to the seasonal variation effect noticed in weather-uncorrected relative performance loss rates. To resolve this, the weather-uncorrected PLRrel are normalised with the average cell temperature. | Arr. PLRabs (/a) | Sys. PLRabs (/a) | Performance improvement is noticed in the Warrenpoint array and there is a decrease in performance in the Warrenpoint system. This means that solar panel generation will increase at an annual rate of −0.06/a, while the Warrenpoint system shows that PV system generation will decrease at the annual rate of 0.0024/a. |
−0.15 | −0.022 | −0.0096 | −0.0096 | −0.06 | 0.0024 |
References
- Okorieimoh, C. Long-Term Durability of Rooftop Grid-Connected Solar Photovoltaic Systems. Ph.D. Thesis, Technological University Dublin, Dublin, Ireland, 2022. Available online: https://arrow.tudublin.ie/engdoc/140/ (accessed on 8 April 2022).
- Lindig, S.; Theristis, M.; Moser, D. Best Practices for Photovoltaic Performance Loss Rate Calculations. Prog. Energy 2022, 4, 022003. [Google Scholar] [CrossRef]
- Dierauf, T.; Growitz, A.; Kurtz, S.; Becerra Cruz, J.L.; Riley, E.; Hansen, C. Weather-Corrected Performance Ratio; National Renewable Energy Laboratory NREL: Golden, CO, USA, 2013.
- Shravanth Vasisht, M.; Srinivasan, J.; Ramasesha, S.K. Performance of solar photovoltaic installations: Effect of seasonal variations. Sol. Energy 2016, 131, 39–46. [Google Scholar] [CrossRef]
- Sunnova. How Energy Use and Seasonal Changes Affect Your Solar Panel Output. 2022. Available online: https://www.sunnova.com/watts-up/home-solar-seasonality (accessed on 8 April 2022).
- Solar, I. Seasonal Variations in Solar Panel Performance. 2023. Available online: https://insolationenergy.in/seasonal-variations-in-solar-panel-performance/ (accessed on 14 February 2023).
- Okorieimoh, C.C.; Norton, B.; Conlon, M. The Effects of the Transient and Performance Loss Rates on PV Output Performance. In Proceedings of the International Conference on Innovations in Energy Engineering & Cleaner Production IEECP21, Silicon Valley, San Francisco, CA, USA, 29–30 July 2021. [Google Scholar]
- Aboagye, B.; Gyamfi, S.; Ofosu, E.A.; Djordjevic, S. Degradation analysis of installed solar photovoltaic (PV) modules under outdoor conditions in Ghana. Energy Rep. 2021, 7, 6921–6931. [Google Scholar] [CrossRef]
- Chandel, S.; Naik, M.N.; Sharma, V.; Chandel, R. Degradation analysis of 28-year field exposed mono-c-Si photovoltaic modules of a direct coupled solar water pumping system in western Himalayan region of India. Renew. Energy 2015, 78, 193–202. [Google Scholar] [CrossRef]
- Jordan, D.C.; Deline, C.; Kurtz, S.R.; Kimball, G.M.; Anderson, M. Robust PV Degradation Methodology and Application. IEEE J. Photovolt. 2018, 8, 525–531. [Google Scholar] [CrossRef]
- Köntges, M.; Kurtz, S.; Packard, C.E.; Jahn, U.; Berger, K.A.; Kato, K.; Friesen, T.; Liu, H.; Van Iseghem, M.; Wohlgemuth, J.; et al. Review of Failures of Photovoltaic Modules; IEA International Energy Agency: Paris, France, 2014. [Google Scholar]
- Duffie, J.A.; Beckman, W.A. Solar Engineering of Thermal Processes; John Wiley & Sons: Hoboken, NJ, USA, 2013. [Google Scholar]
- Skoplaki, E.; Palyvos, J. On the temperature dependence sof photovoltaic module electrical performance: A review of efficiency/power correlations. Sol. Energy 2009, 83, 614–624. [Google Scholar] [CrossRef]
- Lorenzo, E.; Zarza, E. Performance assessment of parabolic trough solar power plants. Sol. Energy 2003, 74, 217–232. [Google Scholar]
- King, D.L.; Boyson, W.E.; Kratochvil, J.A. Photovoltaic Array Performance Model. Sandia National Laboratories Report 2004 (SAND2004-3535). Available online: http://www.osti.gov/servlets/purl/919131-sca5ep/ (accessed on 1 August 2004).
- Kara, E.C.; Roberts, C.M.; Tabone, M.; Alvarez, L.; Callaway, D.S.; Stewart, E.M. Disaggregating solar generation from feeder-level measurements. Sustain. Energy Grids Netw. 2018, 13, 112–121. [Google Scholar] [CrossRef]
- Ayob, A. Solar PV Monitoring. Scholarly Community Encyclopedia. 2021. Available online: https://encyclopedia.pub/entry/13058 (accessed on 12 August 2021).
- Woyte, A.; Richter, M.; Moser, D.; Reich, N.; Green, M.; Mau, S.; Georg Beyer, H. Analytical Monitoring of Grid-Connected Photovoltaic Systems, Good Practices for Monitoring and Performance Analysis; International Energy Agency Photovoltaic Power Systems Programme (IEA PVPS): Bundestag, Germany, 2014. [Google Scholar]
- Mau, S.; Jahn, U. Performance Analysis of Grid-Connected PV Systems; IEA PVPS: Vienna, Austria, 2006. [Google Scholar]
- Tahri, F.; Tahri, A.; Oozeki, T. Performance evaluation of grid-connected photovoltaic systems based on two photovoltaic module technologies under tropical climate conditions. Energy Convers. Manag. 2018, 165, 244–252. [Google Scholar] [CrossRef]
- Hioki, A.T.; da Silva, V.R.G.R.; Junior, J.A.V.; Loures, E.d.F.R. Performance Analysis of Small Grid Connected Photovoltaic Systems. Braz. Arch. Biol. Technol. 2019, 62, 19190018. [Google Scholar] [CrossRef]
- Jahn, U.; Nasse, W. Operational performance of grid-connected PV systems on buildings in Germany. Prog. Photovolt. Res. Appl. 2004, 12, 441–448. [Google Scholar] [CrossRef]
- Stettler, S.; Toggweiler, P.; Wiemken, E.; Heydenreich, W.; de Keizer, A.C.; van Sark, W.; Feige, S.; Schneider, M.; Heilscher, G.; Lorenz, E. Failure detection routine for grid-connected PV systems as part of the PVSAT-2 project. In Proceedings of the 20th European Photovoltaic Solar Energy Conference, Barcelona, Spain, 6–10 June 2005. [Google Scholar]
- Drews, A.; De Keizer, A.C.; Beyer, H.G.; Lorenz, E.; Betcke, J.; Van Sark, W.; Heydenreich, W.; Wiemken, E.; Stettler, S.; Toggweiler, P. Monitoring and remote failure detection of grid-connected PV systems based on satellite observations. Sol. Energy 2007, 81, 548–564. [Google Scholar] [CrossRef]
- de Keizer, A.C.; van Sark, W.; Stettler, S.; Toggweiler, P.; Lorenz, E.; Drews, A.; Heinemann, D.; Heilscher, G.; Schneider, M.; Wiemken, E. PVSAT-2: Results of field test of the satellite-based PV system performance check. In Proceedings of the 21st European Photovoltaic Solar Energy Conference, Dresden, Germany, 4–8 September 2006. [Google Scholar]
- Carl Von Ossietzky Universitat Oldenburg. “PVSAT-2,” PVSAT-2: Weather Satellites Help Improving PV System Performance. 2009. Available online: https://studylib.net/doc/12028791/analytical-monitoring-of-grid-connected-photovoltaic-systems (accessed on 10 July 2009).
- Jiaying, Y.; Thomas, R.; Joachim, L. Seasonal variation of PV module performance in tropical regions. In Proceedings of the 38th IEEE Photovoltaic Specialists Conference, Austin, TX, USA, 3–8 June 2012. [Google Scholar]
- Carr, A.J.; Pryor, T.L. A comparison of the performance of different PV module types in temperate climates. Sol. Energy 2004, 76, 285–294. [Google Scholar] [CrossRef]
- Nakajima, A.; Ichikawa, M.; Kondo, M.; Yamamoto, K.; Yamagishi, H.; Tawada, Y. Spectral Effects of a Single-Junction Amorphous Silicon Solar Cell on Outdoor Performance. Jpn. J. Appl. Phys. 2004, 43, 2425. [Google Scholar] [CrossRef]
- Osterwald, C.; Anderberg, A.; Rummel, S.; Ottoson, L. Degradation analysis of weathered crystalline-silicon PV modules. In Proceedings of the Conference Record of the Twenty-Ninth IEEE Photovoltaic Specialists Conference, New Orleans, LA, USA, 19–24 May 2002. [Google Scholar]
- Tiwari, G.; Mishra, R.; Solanki, S. Photovoltaic modules and their applications: A review on thermal modelling. Appl. Energy 2011, 88, 2287–2304. [Google Scholar] [CrossRef]
- Magare, D.B.; Sastry, O.S.; Gupta, R.; Betts, T.R.; Gottschalg, R.; Kumar, A.; Bora, B.; Singh, Y.K. Effect of seasonal spectral variations on performance of three different photovoltaic technologies in India. Int. J. Energy Environ. Eng. 2016, 7, 93–103. [Google Scholar] [CrossRef]
- Quansah, D.A.; Adaramola, M.S. Assessment of early degradation and performance loss in five co-located solar photovoltaic module technologies installed in Ghana using performance ratio time-series regression. Renew. Energy 2019, 131, 900–910. [Google Scholar] [CrossRef]
- Theristis, M.; Livera, A.; Jones, C.B.; Makrides, G.; Georghiou, G.E.; Stein, J.S. Nonlinear Photovoltaic Degradation Rates: Modeling and Comparison Against Conventional Methods. IEEE J. Photovolt. 2020, 10, 1112–1118. [Google Scholar] [CrossRef]
- Chegaar, M.; Hamzaoui, A.; Namoda, A.; Petit, P.; Aillerie, M.; Herguth, A. Effect of Illumination Intensity on Solar Cells Parameters. Energy Procedia 2013, 36, 722–729. [Google Scholar] [CrossRef]
- Razak, A.; Irwan, Y.; Leow, W.; Irwanto, M.; Safwati, I.; Zhafarina, M. Investigation of the Effect Temperature on Photovoltaic (PV) Panel Output Performance. Int. J. Adv. Sci. Eng. Inf. Technol. 2016, 6, 682. [Google Scholar] [CrossRef]
- Stowell, D.; Kelly, J.; Tanner, D.; Taylor, J.; Jones, E.; Geddes, J.; Chalstrey, E. A harmonised, high-coverage, open dataset of solar photovoltaic installations in the UK. Sci. Data 2020, 7, 394. [Google Scholar] [CrossRef] [PubMed]
- Kani, S.A.P.; Wild, P.; Saha, T.K. Improving Predictability of Renewable Generation Through Optimal Battery Sizing. IEEE Trans. Sustain. Energy 2018, 11, 37–47. [Google Scholar] [CrossRef]
- Chiang, P.-H.; Chiluvuri, S.P.V.; Dey, S.; Nguyen, T.Q. Forecasting of Solar Photovoltaic System Power Generation Using Wavelet Decomposition and Bias-Compensated Random Forest. In Proceedings of the 9th IEEE Green Technology Conference, Denver, CO, USA, 29–31 March 2017; pp. 260–266. [Google Scholar]
- French, R.; Bruckman, L.; Moser, D.; Lindig, S.; Van Iseghem, M.; Müller, B.; Stein, J.; Richter, M.; Herz, M.; Sark, W.; et al. Assessment of Performance Loss Rate of PV Systems; International Energy Agency, Fraunhofer ISE: Freiburg, Germany, 2021. [Google Scholar]
- Okello, D.; Vorster, F.; van Dyk, E.E. Analysis of measured and simulated performance data of a 3.2 kWp grid-connected PV system in Port Elizabeth, South Africa. Energy Convers. Manag. 2015, 100, 10–15. [Google Scholar] [CrossRef]
- Ingenhoven, P.; Belluardo, G.; Moser, D. Comparison of Statistical and Deterministic Smoothing Methods to Reduce the Uncertainty of Performance Loss Rate Estimates. IEEE J. Photovolt. 2017, 8, 224–232. [Google Scholar] [CrossRef]
- Dhimish, M.; Alrashidi, A. Photovoltaic Degradation Rate Affected by Different Weather Conditions: A Case Study Based on PV Systems in the UK and Australia. Electronics 2020, 9, 650. [Google Scholar] [CrossRef]
- Veiga, A. Ultimate Guide to Utility-Scale PV System Losses; Rated Power: Madrid, Spain, 2022. [Google Scholar]
PV Array Location | |||
---|---|---|---|
Harlequins | Newry | Warrenpoint | |
Tilt and Azimuth Angles | Azimuth: −162°, Tilt: 12° for PV array 1 Azimuth: 12°, Tilt: 12° for PV array 2 | Azimuth: −31°, Tilt: 6° for PV array 1 Azimuth: 149°, Tilt: 6° for PV array 2 | Azimuth: −125°, Tilt: 7° for PV array 1 Azimuth: 55°, Tilt: 7° for PV array 2 |
Total PV Area | 312.36 m2 | 311.04 m2 | 268.8 m2 |
Solar Cell Technology | Polycrystalline silicon (p-Si) | - | - |
PV Module Manufacturer | Renesola | - | - |
Module Rating | 260 Wp at STC | - | - |
Number of Modules | 192 | - | - |
Installation Type | Rooftop | - | - |
PV Capacity | 49.92 kWp at STC | - | - |
Module type (s) | Renesola-JC260M-24/Bbv (260 W) | - | - |
Inverter | Sunny TriPower | - | - |
Inverter Capacity [AC] | 2 × 20 kW | - | - |
Year | Harlequins | Newry | Warrenpoint |
---|---|---|---|
Average cell Temperature, Tcell_avg (°C) | Average cell Temperature, Tcell_avg (°C) | Average cell Temperature, Tcell_avg (°C) | |
2017 | 37.87 | 37.21 | 37.09 |
2018 | 38.37 | 38.14 | 37.70 |
2019 | 39.95 | 37.14 | 36.09 |
2020 | 38.06 | 36.50 | 36.79 |
2021 | 39.98 | 39.76 | 39.68 |
Harlequins | Newry | Warrenpoint | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
−1.75 | 0.44 | −1.66 | 0.41 | −1.00 | 2.17 | −1.99 | 0.66 | −1.89 | 0.81 | −1.79 | 0.79 |
Harlequins | Newry | Warrenpoint | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
−1.04 | 3.91 | −1.06 | 3.57 | −1.26 | 1.00 | −1.17 | 0.94 | −1.91 | 1.56 | −1.79 | 1.46 |
tcritical at Level of Significance, α | tcal for Harlequins | tcal for Newry | tcal for Warrenpoint | |||
---|---|---|---|---|---|---|
Array | System | Array | System | Array | System | |
6.24 | −0.15 | −1.45 | 3.10 | 7.65 | 2.51 | |
6.24 | −0.15 | −1.45 | 3.10 | 7.65 | 2.51 | |
6.24 | −0.15 | −1.45 | 3.10 | 7.65 | 2.51 |
Harlequins | Newry | Warrenpoint | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
α | tcritical | dmean | S.E(dmean) | tcal | dmean | S.E(dmean) | tcal | dmean | S.E(dmean) | tcal | |||
0.05 | 2.00 | 1.91 | 4.85 | 0.63 | 3.04 | 1.70 | 4.74 | 0.61 | 2.80 | 1.85 | 4.67 | 0.60 | 3.06 |
0.10 | 1.67 | ||||||||||||
0.01 | 2.66 |
