Characterization of Annual Air Emissions Reported by Pulp and Paper Mills in Atlantic Canada

by
Gianina Giacosa
1,*,
Codey Barnett
2,
Daniel G. Rainham
3 and
Tony R. Walker
1
1
School for Resource and Environmental Studies, Dalhousie University, Halifax, NS B3H 4R2, Canada
2
Nova Scotia Department of Environment and Climate Change, Halifax, NS B3J 2P8, Canada
3
School of Health and Human Performance, Dalhousie University, Halifax, NS B3H 4R2, Canada
*
Author to whom correspondence should be addressed.
Pollutants 2022, 2(2), 135-155; https://doi.org/10.3390/pollutants2020011
Received: 10 February 2022 / Revised: 23 March 2022 / Accepted: 29 March 2022 / Published: 8 April 2022
(This article belongs to the Topic Air Pollution – An Interdisciplinary Approach to the Problem of Air Pollution and Improvement of Air Quality)
Browse Figures
Versions Notes

Abstract

:
The pulp and paper industry is a major contributor to water and air pollution globally. Pulp and paper processing is an intensive energy consuming process that produces multiple contaminants that pollute water, air, and affect ecological and human health. In Canada, the National Pollutant Release Inventory (NPRI) is used to assess the release of air pollutants into the atmosphere from industrial facilities (including pulp and paper mills) and provides a repository of annual emissions reported by individual facilities. This study compared annual air emissions of carbon monoxide, nitrogen oxides, total particulate matter (TPM), PM2.5, PM10, sulphur dioxide, and volatile organic compounds from nine different pulp and/or paper mills in Atlantic Canada from three provinces (Nova Scotia, New Brunswick, and Newfoundland and Labrador) between 2002 and 2019. Results revealed that annual releases were several orders of magnitude higher than federal reporting thresholds suggested by Environment and Climate Change Canada. Pulp mills emit higher pollutant loads than those producing paper. The highest exceedance of a reporting threshold was for particulate matter (PM2.5) at Northern Pulp in Nova Scotia. The emissions of PM2.5 were on average (over a 17-year period) about 100,000% above the reporting threshold of 0.3 tonnes per year.

1. Introduction

Combustion of fossil fuels and biofuels during energy intensive production processes emits pollutants into the atmosphere [1], which threatens human and ecological health [2,3,4,5]. However, atmospheric emissions from industrial facilities were once considered a symbol of economic growth, and their effects were not considered harmful until late in the last century [6]. In recent decades, stringent standards were developed around the world to protect human and environmental health [7,8]. In 1970, the Clean Air Act was established in the United States due to growing concerns over air pollution impacts. Even though current legislation in the United States has saved millions of lives, many premature deaths still occur because of breathing polluted air, principally in marginalized sectors such as poor Black or Latino communities [9]. In Canada, the Canadian Environmental Protection Act, 1999 provided legislative authority to protect human and environmental health but was highly criticized for its lack of scientific basis and is currently being amended [10,11,12]. In 2006, the Canadian government published a Notice of Intent to regulate air emissions, and one year later, the Clean Air Regulatory Agenda was published to establish a framework on emissions reduction targets and enforceable regulations [13].

1.1. Air Emission Regulation in Canada

In Canada, all companies and organizations that emit certain substances into air, water or land and meet specific threshold requirements must report annual emissions to the federal National Pollutant Release Inventory (NPRI) [14,15]. The NPRI is a registry of annual estimations of emissions and disposal to the environment and was created with the purpose of making pollution data accessible to the Canadian public [14,16]. Due to the threat that some of the releases may pose to human and environmental health, this information was then published on the Environment and Climate Change Canada (ECCC) website [17]. The creation of the NPRI program resulted in a decrease in overall emissions [15,18], although the toxicity of the releases did not decrease [15]. The decrease in overall emissions may have been a direct result of increased public awareness and public pressure, which is the intent of the NPRI program. However, there may have been other reasons, such as improvements in equipment and technology or improvements in industry practices and activities. ECCC requires that releases above reporting thresholds, shown in Table 1 for the period 2020 to 2021, must be reported to the NPRI program [19]. These thresholds are the lower limit trigger for reporting annual emissions; however, there are no regulations for exceedances.
Desirable concentrations of ambient air pollutants, including fine particles (PM2.5), ozone (O3), sulphur dioxide (SO2), and nitrogen dioxide (NO2), are specified in the Canadian Ambient Air Quality Standards (CAAQS), a national guideline that considers an averaging period to report the concentration of the pollutant in µg/m3 or ppb [20], not compatible with the units reported by NPRI. While there are few studies comparing thresholds in units of tonnes per year, a recent study relates 10-year NPRI industrial air emissions to childhood-onset asthma in Quebec characterizing ‘major emitters’ those industries, for which its PM2.5 or SO2 annual emissions exceeded 100 tonnes [5]. Emissions reported through the NPRI program and science-based estimation tools are combined to generate the Air Pollutant Emission Inventory (APEI), which reports air emissions for 17 pollutants since 1990 [21,22]. ECCC recommended thresholds for annual releases (in tonnes) only for total particulate matter (TPM) and SO2 in the Code of Practice for the Management of Air Emissions from Pulp and Paper Facilities (CPMAEPPF) [23]. These limits are divided into two categories for both pollutants depending on the processes occurring in the facilities (chemical or mechanical) and should be calculated by considering the annual production of each mill. For chemical facilities, emission limits are 2 kg and 4 kg/tonne of production for TPM and SO2, respectively; for mechanical facilities, those emission limits are 0.5 kg and 1.5 kg/tonne of production for TPM and SO2, respectively.

1.2. Pulp and Paper Mills and Air Pollution

Currently, mixtures of air pollutants are considered a management challenge due to the interaction between the chemical and physical components of substances that can increase potential toxicity of emissions [6,24]. While air pollutants exist naturally in the atmosphere from wildfires, volcanic eruptions and biological decomposition, these acid and particulate emissions are relatively small quantities on average and rarely pose threats to human or ecological health [4,25]. Anthropogenic emissions, mainly from industrial activities and fossil fuel combustion, produce the majority of hazardous air pollutants [2,6,24,25,26,27]. Pulp and paper (P&P) industries emit large amounts of atmospheric pollutants and greenhouse gases [1,28], although there are few studies that quantify the spectrum of emissions [29]. Numerous studies have been conducted on water pollution impacts from wastewater effluent due to P&P mills [8,30,31,32,33,34,35], but there have been comparatively few studies to evaluate the contribution of the industry to the concentrations of hazardous air emissions [36]. Air pollution from P&P mills is mainly caused by the production of various volatile sulfur compounds (from sulfite pulping process), odour emissions (from reduced sulfur), SO2, and nitrogen oxides (NOx) [37,38]. Stack emissions can also contain carbon monoxide (CO) [24]. Biomass combustion can increase the emissions of particulate matter (PM) and of gaseous and semi volatile organic compounds (VOCs) [24,29]. Exposure to these pollutants can affect human health, causing cancer or lung diseases [9,39,40], and may result in depression or psychological problems [2]. Exposure to particulates is associated with an increased risk of mortality from stroke, heart, or pulmonary disease, among others [6,41,42]. One method of reducing human health and environmental impacts of air pollutants is via continuous atmospheric monitoring of pollutant concentrations. Modeling exposures to these concentrations supports epidemiological studies to evaluate health risks and the development of management strategies and relevant health interventions [15,18].
In Canada, there are currently 102 pulp, paper, board, and/or tissue mills in operation or which have been temporarily closed [43]. However, few studies have quantified their compliance with emission standards based on our literature review. One of the most controversial mills in Atlantic Canada is the Northern Pulp mill in Pictou, Nova Scotia (NS), where locals have long been concerned about health issues and unpleasant odours [44]. While managers of the facility report the best practices with respect to regulatory compliance [45], environmental monitoring revealed emission exceedances and locals remain concerned about impacts to human health [29,46,47,48,49,50]. Currently, Nova Scotia does not legislate requirements for emitters to assess human health risks from emissions [50]. Hoffman et al. (2017) also revealed that sediment and water samples, specifically dioxins and furans and metals, from Boat Harbour (a tidal estuary designed to receive wastewater effluent from the mill) were above both the Canadian Sediment Quality Guidelines and Canadian Water Quality Guidelines [50]. However, ambient air pollution concentrations in nearby communities were below the Canadian Council of Minister of the Environment guideline limits. Hoffman et al. [49] found discordance between levels of pollution reported by the mill on NPRI, identifying Total Reduced Sulfurs (TRS) to be three times higher in comparison to other Canadian Kraft mills, revealing that the main pollutants from the NP mill were sulfur odours and PM.
The current limitations of air pollution monitoring (e.g., the NPRI is a self-reported estimated inventory) and the absence of upper air emissions thresholds entangles the identification of harmful releases into the environment. This study, focused on the air emissions from the P&P industry in Atlantic Canada, compares annual releases among different facilities, identifies the main limitations of the existent reporting tools, and recommends how to improve environmental and human protection regarding air quality. The analysis includes air emissions by nine pulp and/or paper mills for 17 years using publicly available data from NPRI [51] and for 30 years using data from the APEI inventory. The seven pollutants studied were CO, NOx, TPM, PM2.5, PM10, SO2, and VOCs, as these air pollutants are widely reported by industrial facilities as mandated by ECCC for the NPRI inventory and are known to increase risk to human health [14,17].

2. Materials and Methods

2.1. Data Collection

There are nine pulp and/or paper mills in Atlantic Canada and all of them report to NPRI, although only eight of them are currently in operation. Six are in New Brunswick (NB), two in Nova Scotia (NS), and one in Newfoundland and Labrador (NL); five out the nine facilities are pulp mills. Figure 1 shows the location of each facility in Atlantic Canada and the Appendix A presents background information about each one. Table 2 provides details of each facility as pulp mill (PU), paper mill (PA), or pulp and paper mill (PP). The NPRI ID identifies each facility that reports, and the North America Industry Classification System (NAICS) code classifies the type of processes and production associated with each facility. The two first digits of the NAICS indicate the sector; the third digit indicates the subsector; and the fourth and fifth digit indicate the industry group and the industry, respectively [52]. The sixth digit designates national industries (it is zero when there are no additional details) [52]. Pulp, paper, and paperboard mills are assigned the code 3221 [53]. A further classification including lower levels for those industries is presented in Table 2 where the following is the case: (i) 322112, indicates chemical pulp mills, (ii) 322121, indicates papermills producing paper except from newsprint, (iii) 322122, indicates papermills producing newsprint, and (iv) 322130, indicates paperboard mills.

2.2. Data Analysis

Pollutant release data were collected from the APEI inventory for the provinces of NS, NB, and NL between 1990 and 2019 and from the NPRI inventory for the nine mills from 2002 to 2019. The air pollutants analyzed were pollutants reported by the facilities: CO, NOx, TPM, PM2.5, PM10, SO2, and VOCs. Annual emissions reported in the NPRI were compared for each facility for each pollutant. Then, differences from the reporting threshold (DRT) for each pollutant in every mill were calculated using the following equation (Equation (1)):
DRT = ((NPRIreported − Threshold) × 100)/Threshold
where NPRIreported is each emission reported by the facility per annum and per pollutant. The threshold indicates the lower release that industries need to report to NPRI (it establishes the lower limit to report to NPRI) and the corresponding value for each pollutant is in Table 1. For the SO2 and PM2.5 thresholds suggested in CPMAEPPF, the specific annual recommended limits, ARL, were calculated with the following equation (Equation (2)):
ARL = emireq × prdann
where emireq is the base level emission requirements described in the previous section, and prdann is the annual capacity of the mill presented in Table 2. The difference in SO2 and PM2.5 CPMAEPPF ARL was calculated for each mill (Table 3). We compared emission trends in time for each site, as well as compliance with the reporting thresholds. A linear regression model was implemented to assess if there is significant change in the annual trends. The model was calculated with the emission as the dependent variable with the year as a predictor to obtain the p-value at a 95% confidence level. Emissions are considered statistically significant when the p-value is <0.05 for the individual site’s and <0.001 (rounding the confidence level to the multiple models, 0.05/63) when all sites and contaminants are considered.

3. Results

3.1. Air Emissions Reported by Province

Annual emissions of NOx, TPM, PM10, PM2.5, SO2, and VOCs registered in the APEI for each province show that the releases have decreased since 1990 (Figure 2). NB, the province with more than half of the pulp and paper mills in Atlantic Canada, leads in air emissions for almost all pollutants and the entire 30-year period. However, mills from NS reported more TPM, PM10, and PM2.5 emissions than NB between 2008 and 2015 (panels c, d, e). NL, with only one mill, maintained the lowest emissions among the three provinces for the entire period for all pollutants, except for TPM (which was higher than NS between 2002 and 2006) and for SO2 (which was of similar magnitude and sometimes above NS emissions since 2002).

3.2. Air Emissions Reported by Pollutant by Each Facility

Annual releases for all nine mills from 2002 to 2019 are shown in Figure 3 for the seven pollutants. Solid lines represent the pulp mills: NP in blue, Irving P & P (IP) in orange, Twin Rivers (ED) in green, Atholville (AT) in red, and Nackawic (NA) in purple; dotted lines represent the paper mills: Port Hawkesbury (HA) in brown, Lake Utopia (UT) in pink, and Irving Paper (IA) in grey; and dot-dashed lines represent the P&P mill, Corner Brook (CB) in yellow. The facility mean values are represented by the black dotted line. Figure 3a shows that, until 2007, NP was the major emitter of CO, which was above 3000 tonnes/year while all remaining mills were <2000 tonnes/year. Between 2008 and 2015, IP and ED were the major emitters with releases above 1700 tonnes/year. From 2016, the major emitters were NP and AT with emissions of more than 3000 tonnes/year and were significant at p = 0.005 (Table 4). UT and HA, both paper mills, emitted little across the period in comparison with the rest of the mills, although both were close to the threshold. CB, the P&P mill, also emitted little CO during the period in comparison to the others, but its emissions were above thresholds for the entire period and significant at p = 0.005. According to Figure 3b, the major emitter of NOx in the study period was ED with an average of 1238.8 tonnes/year for almost the entire period and significant at p = 0.001. IP was the second highest emitter for the entire period with an average of 975.7 tonnes/year.
The rest of the mills were below 600 tonnes/year for almost the entire period, except for NP in 2019, which emitted 954 tonnes. None of the mills emitted below the threshold in any reporting year. The major emitter of TPM in the period was NP (Figure 3c). Before 2015, NP emitted more than 1000 tonnes/year and some years even more than 2000 tonnes/year, while the other mills remained below 300 tonnes/year. From 2016 to 2019, NP emitted <400 tonnes/year (but still more than the remaining mills) with a slight increasing trend observed in the last 3 years.
Similar characteristics were observed for PM10 emissions in Figure 3d, as previously shown by Hoffman et al. [49]. From 2016 to 2019, all mills emitted <120 tonnes/year, except from NP, which emitted 127, 149, 172, and 240 tonnes, respectively, from 2016 to 2019. The releases of PM2.5, presented in Figure 3e, show that, from 2002 to 2015, NP was the major emitter (except in 2006 where AT emitted 390 tonnes and NP 325 tonnes) with a peak of 1689 tonnes in 2008. Mean emissions were 994.4 and 174.1 tonnes/year for the study period for NP and for all the mills, respectively. From 2016 to 2019, all mills emitted <110 tonnes/year. Sulphur oxides data reveal that from 2002 to 2007, IP was the major emitter that was consistently above 2500 tonnes/year (Figure 3f) with a maximum of 3665 tonnes in 2005. From 2008 to 2019, ED was the major emitter with ~1300 tonnes/year. The rest of the mills were below 1200 tonnes/year almost all the time but exceeded thresholds most of the time except for NP and CB, which were below the threshold five and two out of the seventeen years, respectively. Except for NP, all the mill’s emissions were significant at least at p = 0.001. Figure 3g shows VOC emissions. In 2002 and 2003, ED was the largest emitter with 601 and 596 tonnes, respectively, and in 2004, the emission was 1412 tonnes in AT. From 2005 to 2019, ED emitted between 400 and 650 tonnes/year and was the major VOC emitter. The rest of the VOC emissions remained <400 tonnes/year for all mills.

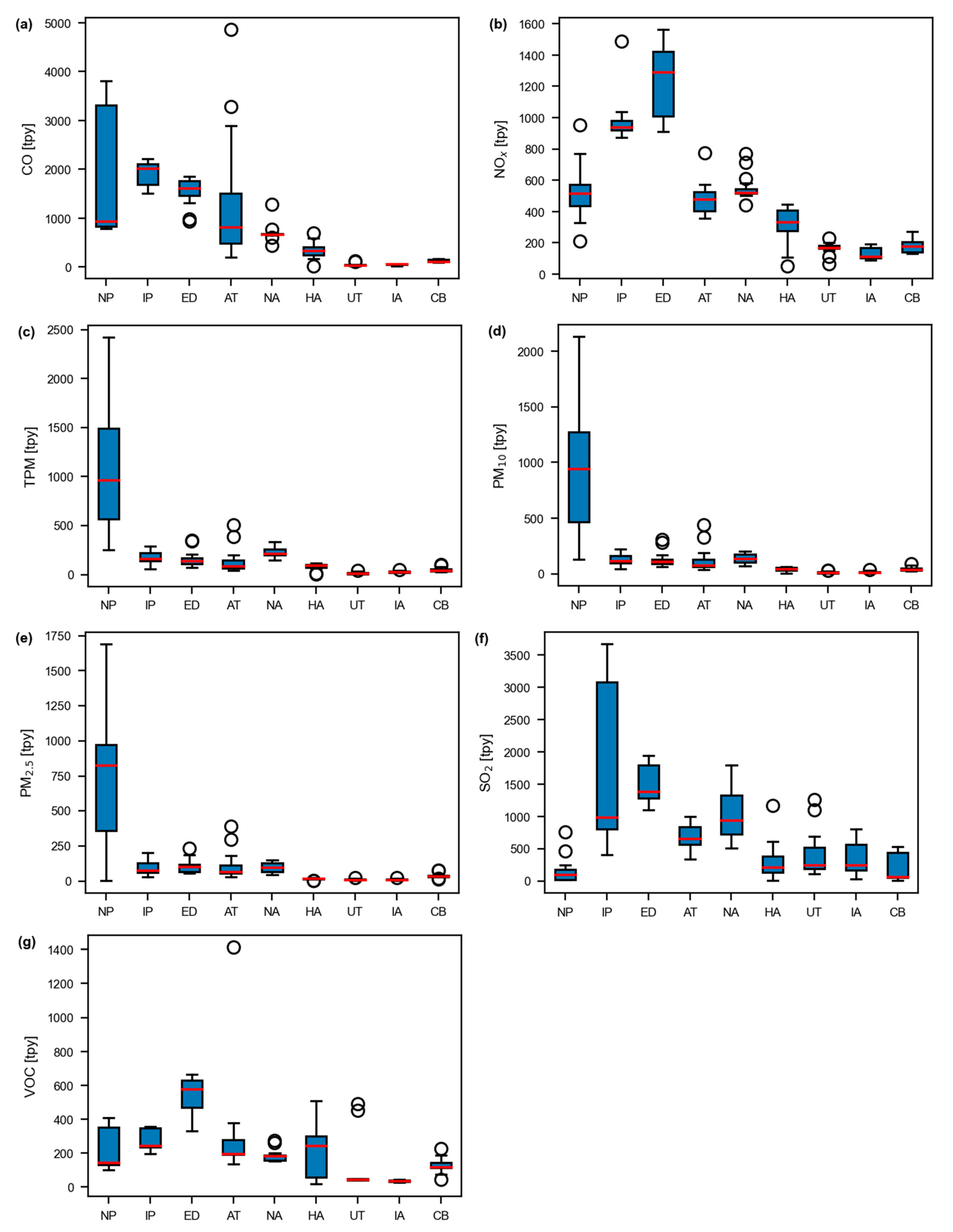

Figure 4 presents boxplots for all pollutants, where the red line represents the median, the extremes of the box represent the upper and the lower quartile, the whiskers the range of the data, and the empty circles the outliers. The mean releases and the standard deviation of each mill along with the mean releases of the major pollutants (considering the criteria in [5]) are presented in Table 5. The major spread for CO was in NP releases, even though the highest mean release was in IP and the major release was in AT. Releases of NOx had the highest spread and the highest mean in ED. For TPM, PM10, and PM2.5 the highest spread was in NP with 659.3, 567.8, and 457.7, respectively, vs. 119.4 to 5.0 tonnes in the other mills. The mean of TPM, PM10, and PM2.5 in NP is ~10 times higher for the three pollutants in comparison with the rest of the mills. It is interesting to note that the lowest release of TPM in NP is higher than the median release in the rest of the mills. The highest dispersion in SO2 releases was observed at IP, but the highest mean occurred in ED. The highest spread among all pollutants is observed in SO2. VOCs presented the highest spread and the highest release in AT, but the highest mean releases were in ED.

3.3. Comparison with Thresholds

Figure 5a shows the mean DRT (Table 1) observed for every pollutant and for the entire period for all sites. PM2.5 and PM10 were often orders of magnitude higher than thresholds, sometimes above 3000% and in some cases above 6000% prior to 2016. This decreased to <2000% after 2016. However, it is likely that this difference is heavily influenced by NP emissions, observed in Figure 3c,d. The dramatic reduction observed in 2017 at NP was likely due to a precipitator installation in 2016, which was intended to reduce PM emissions [29,45,47]. Other pollutants exhibited a more stable behavior, with values within 1000% of the reporting threshold for the study period. DRT for all mills for each year, averaged across all pollutants, is shown in Figure 5b. NP consistently reported higher thresholds for all pollutants, especially prior to 2017, which was as much as 100,000% above the reporting PM thresholds in some years. From 2017, NP emissions still exceeded reporting thresholds by ~20,000% on average across all pollutants. Those values are comparable to other pulp mills, which appear to release more pollutants compared to the three paper mills (HA, UT, and IA) and the P&P mill (CB), where releases were on average <10,000% above threshold values. Even though HA changed its operation from pulp to paper in 2012, it did not seem to have a substantial impact on overall pollutant releases. Figure 5c shows the DRT averaged over the period, discriminated by site and pollutant. Again, major pollutants were PM2.5 and PM10 at NP, which were 100,000% above thresholds for the entire period. For pulp mills, PM2.5 was the principal pollutant higher than the threshold, being ~4000% above, followed by PM10 at ~3000% over the threshold. At CB, PM2.5 and PM10 releases were ~2000% above threshold, showing that releases from these P&P mills were not as high as other pulp mills but were higher than paper mills. For other pollutants and mills, differences from thresholds were <1000%.
The difference from the ARL on the CPMAEPFF for TPM and SO2 is presented in Figure 6. For TPM, all mills emitted under the limit suggested (~70%) and with a low dispersion (~10%) for the entire period, except for NP. The TPM exceedance in NP was as high as ~300%, twice in the period, and only below ARL after 2016. NP had the highest mean exceedance of 99.1% and the highest standard deviation exceedance of 117.7% above ARL. In contrast, NP presented the lowest standard deviation of exceedance (16.7%) and the lowest mean exceedance (−85.7%) for SO2 emissions. IP and UT presented the highest annual exceedance of ~200% and ~350%, respectively, and both were at the beginning of the study period. The highest standard deviation exceedance was in UT with 116.4%, followed by IP with 87.6%. ED had a mean of exceedance 0.6% and a standard deviation exceedance of 18.6%, which indicated that ED was close to the exceedance limit during the entire study period. After 2008, most mills emitted below the CPMAEPPF ARL or were comparable.

4. Discussion

All mills in Atlantic Canada are located in or near urban areas (<5 km away, see Appendix A) and have air emissions well above NPRI reporting thresholds for a suite of pollutants, meaning that local populations (including mill workers) are regularly exposed to air pollutants emitted by mills regardless of prevailing winds. The intensity and duration of air pollutant exposure on populated centres distant from the mill depend on how frequently winds blow from the mill towards nearby towns, which cannot be determined by using only annual NPRI data. No P&P mill studied significantly reduced their mean annual air emissions (pollutant means) in the 17 years of analysis, as has been observed in other facilities [15,18]. The only exception (although still above reporting thresholds and higher than other pulp mill releases) was NP, which dramatically reduced PM emissions after installing a precipitator, which resulted in emissions of similar magnitude compared to other pulp mills in Atlantic Canada (Figure 5). Techniques to reduce emissions can be hard for industries to implement due to high costs [28] and the challenge of adequately planning the improvements, as they depend both on the source of energy used and technology for upgrades [38]. In this case, NP could effectively reduce PM emissions with the incorporation of a recovery boiler [29].
While the use of NPRI has increased in the last decade, in part because of its open access and the addition of new pollutants, its limitations may undermine its usefulness [14]. Among the limitations that prevent NPRI from being widely used are issues with its completeness, data quality, and inventory comprehensiveness [5,14,15,18]. Most NPRI users are interested in air emissions, geospatial analysis of emissions, and environmental monitoring [14]. Therefore, the completeness of the repository, where yearly releases are always included (regardless of whether they are below the NPRI lower threshold or not), is essential to generate a proper mapping of emissions and to compare how they evolve over time. Moreover, high-quality data where industries not only estimate but accurately report emissions, as well as enforced regulation, would allow better environmental assessments.
Reporting NPRI data alone is not enough to assure a decrease in pollutant emissions. Although NPRI annual release data are designed to protect human and environmental health, the releases are not regulated; therefore, the high emissions of potentially harmful pollutants are not reduced. Huge variations were observed in emission releases, with some reported just above NPRI release thresholds, whereas other emissions were reported >100,000% above the threshold (e.g., PM in NP). Reporting thresholds appear to have little to no influence on the adaptive management of P&P operations when PM emissions are 20, 1000, or even 50,000 times higher than the reporting threshold. This raise concerns over when releases pose potential threats to human or environmental health, as it is tremendously difficult to understand the contribution of these emissions to local or regional air quality and from there to understand human exposures. This information is not currently available, and a lower limit without a corresponding upper limit does not provide the protection intended for human and environmental health. Even when data to identify potential harmful releases are publicly available, if no action is taken to reduce high emissions, it is unlikely that the problem will be addressed. Air emissions from all facilities together, especially when they are in close proximity to each other, are an accumulative source of air pollutants that can induce potential harm to ecosystems and human health.
There is a lack of standardization in how emissions are reported, due to differences in units of measurement, different permissions depending on the jurisdiction, and on the characteristics of the industry [18,49]. Air releases for P&P mills on NPRI are reported in tonnes/year, so a comparison with CAAQS is not simple nor direct as more information is needed to convert the release in tonnes to an emission rate (i.e., ambient temperature, pressure, and gas flow [54]). Consequently, NPRI does not seem to be a tool that effectively informs industrial performance but is rather an accounting tool that is not linked to the enforcement of air quality standards or the enhancement of air quality for populations living in and around the mills. Considering that most of the time all mills exceeded the reporting thresholds, it would be helpful to compare how hazardous those releases are with the inclusion of an upper limit or threshold or change the unit of reporting to enable the comparison with other standards and countries. Moreover, it would be helpful to compare how much mills are emitting relative to their annual pulp or paper production. If it was possible to determine a ratio of production to release, such as tonnes of pulp produced as a function of emissions, it would be possible to identify an unsustainable or inefficient facility, which could be an indicator of outdated technology or poor management practices. Another issue of this reporting inventory is that the indicators are relatively crude measures of air pollution and do not provide insight into the toxicity of emissions. In addition, some meteorological conditions (such as inversions or the direction of the prevailing winds) or topographical features (such as a valley or hill) may increase the impact of air pollution, which could be accumulated not only by different sources but also by intrinsic characteristics of the location. Thus, exceeding a reporting threshold has an impact not only on the point location of the release but it also has the potential of affecting the surrounding environment (depending on the meteorological conditions and the topography) and of combining with other mill’s releases (which can increase the toxicity of emissions either by accumulation or because of chemical reactions).
In [5], the industries reporting NPRI within 2.5 km of children’s houses had mean annual releases of 31.8 tonnes for PM2.5 and 788.0 tonnes for SO2. When they only considered the ‘major emitters’ (annual releases above 100 tonnes), mean releases increased to 290 tonnes/year for PM2.5 and 1350 tonnes/year for SO2. Mean releases from all P&P mills in Atlantic Canada (Table 5) show that all PM2.5 releases in the P&P mills are four times higher in comparison to the findings of [5] and of similar a magnitude when only major emitters are considered. Conversely, SO2 mean releases from P&P in Atlantic Canada (Table 5) are similar to those reported in [5], but when we consider the major emitters, the industries in Quebec are almost twice as high as P&P mills in Atlantic Canada.
If the criteria of ‘major emitters’ were applied to this study, all pulp mills would exceed this threshold. Only UT and IA (both paper mills) would not be considered major emitters for most air pollutants, and CB and HA may fall in the major emitters category dependent on the pollutant and on the year considered. Pulp mills seem to pollute more than paper mills, and the P&P facility falls in the middle. This result is consistent with Tong et al. (2018) [36], who compared emissions from five mills in China and found that gaseous pollutants emitted from pulp mills are greater than those from paper mills. To reduce the pollution caused by pulping, they suggested recycling wastepaper. The threshold of 100 tonnes/year for PM2.5 and SO2 discussed in [5] was previously introduced by [55], although there is a lack of justification for using these criteria. Regardless, this threshold is used in this study to analyze P&P air emissions considering that there are no standards or regulations to compare with annual emissions in tonnes. This absence of regulation shows the need for a standard that could be used to inform how hazardous air emissions from different sources can be and to identify when action is needed to reduce the impact on human health and the environment.
When the releases are compared to the threshold suggested on CPMAPPF, the behaviors of pulp and paper mills do not follow a clear pattern. Instead, emissions depend on the total production of the facility more than on the type of process carried out in the mill. Even though the CPMAPPF threshold is more permissive for SO2 releases than for TPM, the mills are closer to the SO2 threshold and surpass it more frequently. In contrast, most of the mills emit TPM well below the limit, with NP being the exception exceeding the threshold with a mean of ~100% over the threshold during the entire period. The emission limits and best practices recommended in CPMAPPF are still voluntary. As chemical facilities produce more pollution than the mechanical facilities due to the nature of the processes, they are ‘allowed’ to emit more, i.e., four times more for TPM and almost three times more for SO2 emissions. However, the lack of enforcement can deter chemical facilities from adopting cleaner technologies, which can seem unfair to mechanical facilities that have a more stringent recommendation.
One strategy to regulate high emissions is applying fines or incentives. Incentives could include emission reductions through discounts on CO2 taxes or the ability to draw from specific funds for upgrading technology. Although historically fines have not been consistently imposed on facilities that exceed thresholds, they can be an effective tool when implemented properly [49]. It has been suggested that “fines must be higher than the cost to the most outdated mill of installing the technology necessary to reach compliance levels” [33] and that to “achieve emissions reductions, threats of monitoring and actual enforcement have proven to be most effective” [15]. Both suggestions support the idea of strongly disincentivize high emissions (if not voluntary) by making it impossible financially; it would be more affordable to update the equipment and the facility’s technology rather than paying fees for not complying with emission limits. Another important suggestion made by [33] is to increase the stringency on ‘hot spots’, sites where many mills are close to one another and were limiting each one independently may not be enough to protect human and environmental health. This type of regulation could be extremely important for some sites in Atlantic Canada where different industries are located close to each other and near populated centers. For example, in Saint John, New Brunswick, there are two P&P mills as well as a refinery within the city. Moreover, in the cities Nackawic-Madawaska, there are two P&P mills, one on either side of the Canada–United States border, located within 2 km of each other. As facilities are under different regulations, it seems that sometimes an exceedance in the emission rate regulation is not enforced [56].
In summary, the existence of limits in air emissions is confusing and too flexible. Industries that do not follow recommendations or that are high emitters are not punished in most of the cases. The lack of annual compliance standards reduces the utility of NPRI, as this single database is not enough to determine how industries are performing towards health environmental protection.

5. Conclusions

The air releases of CO, NOx, TPM, PM2.5, PM10, SO2, and VOCs were compared for the three provinces in Atlantic Canada with pulp and paper mills in a 30-years period (the longest period of APEI data available) and from the nine mills operating in Atlantic Canada from 2002 to 2019 (the longest period of NPRI data available). Annual releases were compared to reporting thresholds established by ECCC, but neither mills nor ECCC provide a precise quantity released to the atmosphere, as the reports are annual estimates. As NPRI reports in tonnes/year, a regulation or threshold in this unit of measure seems necessary to compare with industrial emissions, as NPRI has a lower threshold for report emissions but lacks an upper threshold to limit emissions. While the lower threshold is surpassed most of the time (often by thousands of times), the lack of an upper limit results in misinformation about when those releases are harmful and may be considered a threat to human and environmental health. The recommended emission limit in the code for best practices for P&P, CPMAPPF, is not always followed by the mills as it is not compulsory. Thus, even when there are inventories accessible to the population and recommendations for industries to follow, there is no enforcement nor penalty for the facilities that emit above the safe recommended limit. A more detailed analysis using other sources of data with an hourly measurement, such as the National Air Pollution Surveillance program from ECCC, would be valuable to determine how the pollutants are emitted throughout the year. As the only air pollutants that are regulated by federal legislation through CAAQS are O3, NO2, SO2, and PM2.5, a future analysis could only evaluate compliance with regulation for those parameters.

Author Contributions

Conceptualization and methodology, G.G. and T.R.W.; formal analysis, G.G.; writing—original draft preparation, G.G.; writing—review and editing, T.R.W., D.G.R. and C.B.; visualization, G.G.; supervision, T.R.W.; funding acquisition, G.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded through graduate scholarships by Agencia Nacional de Innovación e Investigación (ANII) and by the Canadian Standards Association (CSA).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All primary data can be found on the publicly accessible NPRI website at https://www.canada.ca/en/services/environment/pollution-waste-management/national-pollutant-release-inventory.html and on the publicly accessible APEI website at https://data-donnees.ec.gc.ca/data/substances/monitor/canada-s-air-pollutant-emissions-inventory/.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Appendix A.1. Pulp Mills

Appendix A.1.1. Northern Pulp

In New Glasgow, NS, a Kraft pulp mill operated from 1967 to 2020. The closure occurred on January 2020 due to a lack of Ministerial approval of the Environmental Assessment for a proposed new effluent treatment facility [57]. The mill operator claimed that they did not have enough time to compile an adequate environmental assessment prior to the closure, as the measures they initially proposed were not accepted by the provincial government [45,58]. Scott Paper first owned and operated the mill in 1967. In 1995, it was acquired for Kimberley-Clark and nine years later for Neenah Paper. In 2008, the mill was acquired by Northern Resources and was renamed Northern Pulp. Finally, it has been a property of Paper Excellence since 2011 [59,60]. Even though technology advances very quickly, the basis in elaborating paper have not changed significantly in the last century [61]. Before its closure, NP employed 330 fulltime workers and around 2000 indirect jobs across NS [62]. Annually, it produced 280,000 tonnes of Bleached softwood Kraft. On the north shore of the Pictou Harbour and 1 km away, NP is Pictou, a town of 3107 inhabitants [63]. Ten kilometres south of NP is New Glasgow, a town of 9471 people [63].

Appendix A.1.2. Irving Pulp & Paper Limited

Irving Pulp & Paper, a kraft pulp mill in Saint John, NB, is managed by Irving Ltd. [64]. The products are bleached softwood and hardwood kraft for premium tissue products. The mill opened in 1851 as The Cushing Sulphite Fibre Company, and in 1910, it became the Edward Partington Pulp and Paper Company. In 1932, the mill became Port Royal Pulp. Finally, 14 years later, in 1946, K.C. Irving purchased the mill, making some modernizations to increase the capacity of production [64]. The mill employs more than 330 workers and produces 335,000 tonnes per year. It is located near the Bay of Fundy within the city of Saint John of 69,895 inhabitants [63].

Appendix A.1.3. Twin Rivers

The pulp mill located in Edmundston, NB, built in 1916, has operated for more than 100 years. Twin Rivers was acquired in 2013 by Atlas Holdings and Blue Wolf Capital Partners. Apart from the pulp facility, the company owns a lumber mill in NB and three paper mills in the United States. The pulp mill in Edmundston produces bleached softwood sulphite and bleached groundwood pulp as well as 45 MK of biomass cogeneration of electricity sold to New Brunswick Power [65]. Its production capacity is 370,000 tonnes per year and employs more than 280 workers. The mill is located in the shore of the St John River in the city of Edmundston, of 16,437inhabitants [63]. Across the river and the United States–Canada border, a paper mill also operated by Twin Rivers company is installed in Madawaska, a city with a population estimated at 3735 for 2019 [66].

Appendix A.1.4. Nackawic and Atholville

Both pulp mills have operated in NB for around 19 years and are owned by AV Group NB, a company established in 1977. The cellulose pulp produced in both mills is used in the manufacture of textile. The final products are home and apparel textile made of viscose staple fibre as well as non-woven textiles [67]. The company manages 1.6 million acres of company-owned and Crown land. In total, they employed around 1200 people directly and many more indirectly [68]. The Nackawic mill is located at northeast in the town of Nackawic, which has a population of 962 [63]. The Atholville mill is on the shore of Atholville village, within the town of Campbellton with a population of 7047 [63].

Appendix A.2. Paper Mills

Appendix A.2.1. Port Hawkesbury Paper

Initiated in 1962 in NS as a sulphate pulp mill owned by Stora, it was sold to NewPage in 2007. After its closure four years later, it reopened as the property of Stern Partners and Wayne Nystrom as a paper mill in 2012 [69,70]. Located 2 km south of Port Hawkesbury, a town of 3210 inhabitants [63], it employs around 300 people directly and near 400 as contractors across the province and manages around 523,000 ha of public land. The mill can produce 400,000 tonnes of paper annually to be used in catalogs, magazines, retail inserts, and wrapping paper [71].

Appendix A.2.2. Lake Utopia Paper and Irving Pulp and Paper

Both paper mills are operated by Irving Ltd. Lake Utopia Paper in NB produces high-quality corrugated medium since 1972. Their product comprises around two-thirds of virgin hardwood fibre and one-third of recycled cardboard [72]. The final consumers for box packaging are food, beverage, agriculture, and electronic sector. Its annual capacity is 185,000 tonnes, and it employs around 140 workers directly. They designed a biomass boiler project and a new effluent treatment plant to improve environmental impact due to emissions [73]. Irving paper produces specialty grade papers for flyers and magazines. They also supply rotogravure for commercial printing [74]. Irving paper can produce 420,000 tonnes per year and has about 310 employees. Only 5 km away from Irving Paper, Irving Pulp and Paper is also located within the city near the shore of the Bay of Fundy, but on the west side of the St John River. Lake Utopia Paper is around 65 km east from Saint John city. The nearest towns are Pennfield, of 2222 inhabitants, around 5 km south of the mill and Saint George with a population of 2495 and around 7 km southeast of the mill [63].

Appendix A.3. Pulp and Paper Mill

Corner Brook Pulp & Paper Limited

In NL, paper began to be produced almost a century ago in 1923. After a couple of owners at the end of 1984, the Kruger organization acquired the mill, naming it as Corner Brook [75]. The company manages 1.4 ha of forest land but only half of it is a productive forest. They are constantly performing surveillance audits, have made some upgrades in the technology, and have a detailed environmental and commitment plan. Around 1750 workers are employed in the woodland department [76]. The mill is located in the north coast of the city Corner Brook, a city of 19,333 inhabitants [63].

References

  1. Ghosal, V.; Stephan, A.; Weiss, J.F. Decentralized environmental regulations and plant-level productivity. Bus. Strateg. Environ. 2019, 28, 998–1011. [Google Scholar] [CrossRef]
  2. Kelly, F.J.; Fussell, J.C. Air pollution and public health: Emerging hazards and improved understanding of risk. Environ. Geochem. Health 2015, 37, 631–649. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Stewart, M.J.; Hirtz, J.; Woodall, G.M.; Weitekamp, C.A.; Spence, K. A comparison of hourly with annual air pollutant emissions: Implications for estimating acute exposure and public health risk. J. Air Waste Manag. Assoc. 2019, 69, 848–856. [Google Scholar] [CrossRef] [PubMed]
  4. Strum, M.; Scheffe, R. National review of ambient air toxics observations. J. Air Waste Manag. Assoc. 2016, 66, 120–133. [Google Scholar] [CrossRef][Green Version]
  5. Buteau, S.; Doucet, M.; Tétreault, L.F.; Gamache, P.; Fournier, M.; Brand, A.; Kosatsky, T.; Smargiassi, A. A population-based birth cohort study of the association between childhood-onset asthma and exposure to industrial air pollutant emissions. Environ. Int. 2018, 121, 23–30. [Google Scholar] [CrossRef] [PubMed]
  6. Stanek, L.W.; Brown, J.S.; Stanek, J.; Gift, J.; Costa, D.L. Air pollution toxicology-a brief review of the role of the science in shaping the current understanding of air pollution health risks. Toxicol. Sci. 2011, 120, 8–27. [Google Scholar] [CrossRef] [PubMed]
  7. Coble, J.B.; Lees, P.S.J.; Matanoski, G. Time Trends in Exposure Measurements from OSHA Compliance Inspections of the Pulp and Paper Industry. Appl. Occup. Environ. Hyg. 2001, 16, 263–270. [Google Scholar] [CrossRef]
  8. Kamali, M.; Khodaparast, Z. Review on recent developments on pulp and paper mill wastewater treatment. Ecotoxicol. Environ. Saf. 2015, 114, 326–342. [Google Scholar] [CrossRef]
  9. Gardiner, B. This Landmark Law Saved Millions of Lives and Trillions of Dollars. Available online: https://www.nationalgeographic.com/environment/article/clean-air-act-saved-millions-of-lives-trillions-of-dollars (accessed on 22 June 2021).
  10. Greig, L.A.; Duinker, P.N. A proposal for further strengthening science in environmental impact assessment in Canada. Impact Assess. Proj. Apprais. 2011, 29, 159–165. [Google Scholar] [CrossRef][Green Version]
  11. Taylor, S. Liberals Propose Enshrining The Right to a Healthy Environment in Legislation. Available online: https://www.cbc.ca/news/politics/wilkinson-canadian-environment-protection-act-1.5985781 (accessed on 11 August 2021).
  12. Environment and Climate Change Canada Government of Canada Delivers on Commitment to Strengthen the Canadian Environmental Protection Act, 1999 and Recognizes a Right to a Healthy Environment Backgrounder. Available online: https://www.canada.ca/en/environment-climate-change/news/2021/04/government-of-canada-delivers-on-commitment-to-strengthen-the-canadian-environmental-protection-act-1999-and-recognizes-a-right-to-a-healthy-enviro.html (accessed on 10 August 2021).
  13. Minister of Environment Regulatory Framework for Air Emissions. Available online: https://www.ec.gc.ca/doc/media/m_124/toc_eng.htm (accessed on 27 July 2021).
  14. Berthiaume, A. Use of the National Pollutant Release Inventory in environmental research: A scoping review. Environ. Rev. 2021, 29, 329–339. [Google Scholar] [CrossRef]
  15. Johnston Edwards, S.; Walker, T.R. An overview of Canada’s National Pollutant Release Inventory program as a pollution control policy tool. J. Environ. Plan. Manag. 2020, 63, 1097–1113. [Google Scholar] [CrossRef]
  16. Environmental and Climate Change Canada Guide for Reporting to the National Pollutant Release Inventory 2020 and 2021. Available online: https://publications.gc.ca/collections/collection_2020/eccc/En81-1-2020-eng.pdf (accessed on 15 July 2021).
  17. Environment and Climate Change Canada National Pollutant Release Inventory (NPRI) Substance List. Available online: http://www.ec.gc.ca/inrp-npri/default.asp?lang=En&n=E2BFC2DB-1 (accessed on 28 June 2021).
  18. Taylor, S.; Edwards, S.J.; Walker, T.R. A toxicity-based analysis of Canada’s National Pollutant Release Inventory (NPRI): A case study in Nova Scotia. Environ. Sci. Pollut. Res. 2020, 27, 2238–2247. [Google Scholar] [CrossRef] [PubMed]
  19. Environment and Climate Change Canada Substance List by Threshold. Available online: https://www.canada.ca/en/environment-climate-change/services/national-pollutant-release-inventory/substances-list/threshold.html (accessed on 24 June 2021).
  20. Canadian Council of Ministers of the Environment Canada’s Air. Available online: https://www.ccme.ca/en/air-quality-report (accessed on 15 July 2021).
  21. Government of Canada Canada’s Air Pollutant Emissions Inventory. Available online: https://open.canada.ca/data/en/dataset/fa1c88a8-bf78-4fcb-9c1e-2a5534b92131 (accessed on 26 November 2021).
  22. Government of Canada Air Pollutant Emissions Inventory: Overview. Available online: https://www.canada.ca/en/environment-climate-change/services/pollutants/air-emissions-inventory-overview.html?utm_campaign=not-applicable&utm_medium=vanity-url&utm_source=canada-ca_apei (accessed on 20 December 2021).
  23. Environment and Climate Change Canada. Code of Practice for the Management of Air Emissions from Pulp and Paper Facilities; Public Inquiries Centre: Quebec, QC, Canada, 2018; ISBN 9780660265988.
  24. Nadadur, S.S.; Miller, C.A.; Hopke, P.K.; Gordon, T.; Vedal, S.; Vandenberg, J.J.; Costa, D.I. The complexities of air pollution regulation: The need for an integrated research and regulatory perspective. Toxicol. Sci. 2007, 100, 318–327. [Google Scholar] [CrossRef][Green Version]
  25. Muralikrishna, I.V.; Manickam, V. Air Pollution Control Technologies. In Environmental Management; Butterworth-Heinemann: Oxford, UK, 2017; pp. 337–397. [Google Scholar]
  26. Walker, T.R.; Crittenden, P.D.; Young, S.D.; Prystina, T. An assessment of pollution impacts due to the oil and gas industries in the Pechora basin, north-eastern European Russia. Ecol. Indic. 2006, 6, 369–387. [Google Scholar] [CrossRef]
  27. Walker, T.R.; Young, S.D.; Crittenden, P.D.; Zhang, H. Anthropogenic metal enrichment of snow and soil in north-eastern European Russia. Environ. Pollut. 2003, 121, 11–21. [Google Scholar] [CrossRef]
  28. Cheremisinoff, N.P.; Rosenfeld, P.E. Pollution prevention and best practices for the pulp and paper industry. In Handbook of Pollution Prevention and Cleaner Production; William Andrew: Norwich, NY, USA, 2010; pp. 261–291. [Google Scholar]
  29. Hoffman, E.; Guernsey, J.R.; Walker, T.R.; Kim, J.S.; Sherren, K.; Andreou, P. Pilot study investigating ambient air toxics emissions near a Canadian kraft pulp and paper facility in Pictou County, Nova Scotia. Environ. Sci. Pollut. Res. 2017, 24, 20685–20698. [Google Scholar] [CrossRef]
  30. Adesida, A.A. Concurrent Removal of Organic and Heavy Metal Contaminants in Wastewater: A Case Study on a Pulp Mill Effluent and Leachate; Dalhousie University: Halifax, NS, Canada, 2020. [Google Scholar]
  31. Hoffman, E.; Lyons, J.; Boxall, J.; Robertson, C.; Lake, C.B.; Walker, T.R. Spatiotemporal assessment (quarter century) of pulp mill metal(loid) contaminated sediment to inform remediation decisions. Environ. Monit. Assess. 2017, 189, 257. [Google Scholar] [CrossRef]
  32. Owens, J.W. The hazard assessment of pulp and paper effluents in the aquatic environment: A review. Environ. Technol. Chem. 1991, 10, 1511–1540. [Google Scholar] [CrossRef]
  33. Hocking, J. Regulation of discharge of organochlorines from pulp mills in Canada. Environ. Manag. 1991, 15, 195–204. [Google Scholar] [CrossRef]
  34. Couillard, C.M.; Williams, P.J.; Courtenay, S.C.; Rawn, G.P. Histopathological evaluation of Atlantic tomcod (Microgadus tomcod) collected at estuarine sites receiving pulp and paper mill effluent. Aquat. Toxicol. 1999, 44, 263–278. [Google Scholar] [CrossRef]
  35. McMaster, M.E.; Hewitt, L.M.; Parrott, J.L. A decade of research on the environmental impacts of pulp and paper mill effluents in Canada: Field studies and mechanistic research. J. Toxicol. Environ. Health-Part B Crit. Rev. 2006, 9, 319–339. [Google Scholar] [CrossRef] [PubMed]
  36. Tong, X.; Shen, W.; Chen, X.; Corriou, J.P. Qualitative and quantitative analysis of gaseous pollutants for cleaner production in pulp and paper mills. J. Clean. Prod. 2018, 198, 1066–1075. [Google Scholar] [CrossRef]
  37. Mandeep, G.G.K.; Liu, H.; Shukla, P. Pulp and paper industry–based pollutants, their health hazards and environmental risks. Curr. Opin. Environ. Sci. Health 2019, 12, 48–56. [Google Scholar] [CrossRef]
  38. Bhander, G.; Jozewicz, W. Analysis of emission reduction strategies for power boilers in the US pulp and paper industry. Energy Emiss. Control Technol. 2017, 5, 27–37. [Google Scholar] [CrossRef] [PubMed][Green Version]
  39. Soskolne, C.L.; Sieswerda, L.E. Cancer risk associated with pulp and paper mills: A review of occupational and community epidemiology. Chronic Dis. Can. 2010, 29, 86–100. [Google Scholar] [CrossRef]
  40. Torén, K.; Persson, B.; Wingren, G. Health effects of working in pulp and paper mills: Malignant diseases. Am. J. Ind. Med. 1996, 29, 123–130. [Google Scholar] [CrossRef]
  41. World Health Organization. Healthy Environments for Healthier Populations: Why Do They Matter, and What Can We Do? Available online: https://apps.who.int/iris/rest/bitstreams/1238182/retrieve (accessed on 27 July 2021).
  42. Krewski, D.; Rainham, D. Ambient air pollution and population health: Overview. J. Toxicol. Environ. Health-Part A Curr. Issues 2007, 70, 275–283. [Google Scholar] [CrossRef]
  43. Pulp and Paper Canada 2021 Pulp, Paper and Bioeconomy Map. Available online: https://www.pulpandpapercanada.com/wp-content/uploads/2021/06/PPC-MILL-MAP-2021.pdf (accessed on 12 July 2021).
  44. Henderson, J. Pictou County Residents Split on NP Mill. Available online: https://www.cbc.ca/news/canada/nova-scotia/pictou-county-residents-split-on-northern-pulp-mill-1.2852246 (accessed on 8 March 2021).
  45. Baarda, B. An Unrealistic Timeline, An Undefined Process: Setting the Record Straight on Northern Pulp. Available online: https://www.paperexcellence.com/post/an-unrealistic-timeline-an-undefined-process-setting-the-record-straight-on-northern-pulp (accessed on 8 March 2021).
  46. The Canadian Press Northern Pulp Emissions Coming Down, But Not Meeting Legal Limit yet: Firm. Available online: https://atlantic.ctvnews.ca/northern-pulp-emissions-coming-down-but-not-meeting-legal-limit-yet-firm-1.1951615 (accessed on 27 August 2021).
  47. McDonald, C. Precipitator Done, Northern Pulp Focuses on Power Boiler Emissions. Available online: https://www.pulpandpapercanada.com/precipitator-done-northern-pulp-focuses-on-power-boiler-emissions-1100000055/ (accessed on 8 March 2021).
  48. Hoffman, E.; Alimohammadi, M.; Lyons, J.; Davis, E.; Walker, T.R.; Lake, C.B. Characterization and spatial distribution of organic-contaminated sediment derived from historical industrial effluents. Environ. Monit. Assess. 2019, 191, 590. [Google Scholar] [CrossRef]
  49. Hoffman, E.; Bernier, M.; Blotnicky, B.; Golden, P.G.; Janes, J.; Kader, A.; Costa, R.K.-D.; Pettipas, S.; Vermeulen, S.; Walker, T.R. Assessment of public perception and environmental compliance at a pulp and paper facility: A Canadian case study. Environ. Monit. Assess. 2015, 187, 766. [Google Scholar] [CrossRef]
  50. Group Pictou Landing Native Women’s (c/o Sheila Francis Past President); Castleden, H.; Lewis, D.; Jamieson, R.; Gibson, M.; Rainham, D.; Russell, R.; Martin, D.; Hart, C. “Our Ancestors Are in Our Land, Water, and Air”: A Two-Eyed Seeing Approach to Researching Environmental Health Concerns with Pictou Landing First Nation; Canadian Institutes of Health Research (CIHR): Ottawa, ON, Canada, 2016.
  51. Environment and Climate Change Canada NPRI Data Search. Available online: https://pollution-waste.canada.ca/national-release-inventory/archives/index.cfm?lang=En (accessed on 24 June 2021).
  52. Statistics Canada NAICS Canada 2017 Version 2.0—Introduction. Available online: https://www.statcan.gc.ca/eng/subjects/standard/naics/2017v2/introduction (accessed on 14 May 2021).
  53. Statistics Canada 3221-Pulp, Paper and Paperboard Mills. Available online: https://www23.statcan.gc.ca/imdb/p3VD.pl?Function=getVD&TVD=380372&CVD=380375&CPV=3221&CST=01012017&CLV=1&MLV=5&D=1 (accessed on 14 May 2021).
  54. Environment and Climate Change Canada Reporting Pollutant Releases: Example Calculations, Chapter 6. Available online: https://www.canada.ca/en/environment-climate-change/services/national-pollutant-release-inventory/publications/reporting-example-calculations/chapter-6.html#n3 (accessed on 12 July 2021).
  55. Loyo-Berríos, N.I.; Irizarry, R.; Hennessey, J.G.; Tao, X.G.; Matanoski, G. Air pollution sources and childhood asthma attacks in Cataño, Puerto Rico. Am. J. Epidemiol. 2007, 165, 927–935. [Google Scholar] [CrossRef]
  56. Dionne, J.; Walker, T.R. Air pollution impacts from a pulp and paper mill facility located in adjacent communities, Edmundston, New Brunswick, Canada and Madawaska, Maine, United States. Environ. Monit Assess 2021, 5, 100245. [Google Scholar] [CrossRef]
  57. NSE Replacement Effluent Treatment Facility Project. Available online: https://novascotia.ca/nse/ea/Replacement_Effluent_Treatment_Facility_Project/ (accessed on 27 July 2021).
  58. Spicer, P. Give Northern Pulp a Chance to Succeed; Rural Jobs Hang in Balance. Available online: https://www.thechronicleherald.ca/opinion/opinion-give-northern-pulp-a-chance-to-succeed-rural-jobs-hang-in-balance-274382/ (accessed on 2 April 2021).
  59. Trombetta, M.; Moritiwon, S. A Chronological History of Boat Harbour, Nova Scotia. Available online: https://signalhfx.ca/a-chronological-history-of-boat-harbour-nova-scotia/ (accessed on 24 June 2021).
  60. The Mill The History (Timeline). Available online: https://themillfilm.ca/the-history/ (accessed on 24 June 2021).
  61. Bernard, J.T.; Hussain, J.; Sinha, M.M. Survival of the cleanest? Evidence from a plant-level analysis of pollutant emissions in Canadian pulp and paper industry, 2005–2013. Environ. Econ. Policy Stud. 2020, 22, 109–126. [Google Scholar] [CrossRef][Green Version]
  62. Paper Excellence Northern Pulp. Available online: https://paperexcellence.com/mill-location/northern-pulp/ (accessed on 1 April 2021).
  63. Statistics Canada. (Table). Statistics Canada Census Profile. Statistics Canada Catalogue No. 98-316-X2021001. Ottawa. Released. 2022. Available online: https://www12.statcan.gc.ca/census-recensement/2021/dp-pd/prof/index.cfm?Lang=E (accessed on 9 February 2022).
  64. Irving Pulp and Paper Celebrating the Completion of Phase 2. Available online: https://jdirving.com/uploadedFiles/Products_and_Services/Forestry_and_Forest_Products/Irving_Pulp_and_Paper/IrvingPulpPaper.pdf (accessed on 24 June 2021).
  65. Twin Rivers Paper Company Edmundston Pulp Mill. Available online: https://www.twinriverspaper.com/operations/edmundston-pulp-mill/ (accessed on 24 June 2021).
  66. United States Census Bureau Population Estimates: 1 April 2010 to 1 July 2019. Available online: https://www.census.gov/data/datasets/time-series/demo/popest/2010s-total-cities-and-towns.html (accessed on 12 July 2021).
  67. AV Group Our Fibre. Available online: https://av-group.ca/our-fibre/ (accessed on 23 June 2021).
  68. AV Group Our Company. Available online: https://av-group.ca/about-us/ (accessed on 23 June 2021).
  69. Boudrot, J. Port Hawkesbury Paper Lays-Out Future Plans. Available online: https://porthawkesburyreporter.com/port-hawkesbury-paper-lays-out-future-plans/ (accessed on 22 June 2021).
  70. CBC News NewPage Port Hawkesbury Mill to Be Sold. Available online: https://www.cbc.ca/news/canada/nova-scotia/newpage-port-hawkesbury-mill-to-be-sold-1.1004828 (accessed on 24 June 2021).
  71. Port Hawkesbury Paper Port Hawkesbury Paper Mill. Available online: https://www.porthawkesburypaper.com/documents/PH_Mill_Data_Sheet_11.2018.pdf (accessed on 25 June 2021).
  72. J.D. Irving Limited. Effluent Treatment Upgrade Environmental Impact Assessment; Lake Utopia Paper Mill: Utopia, NB, Canada, 2016. [Google Scholar]
  73. Lake Utopia Paper Corrugated Packaging for the World. Available online: https://jdirving.com/jd-irving-products-services-forestry-products-lake-utopia-paper.aspx (accessed on 24 June 2021).
  74. Irving Paper World First Technology, Brilliant Results. Available online: https://jdirving.com/jd-irving-products-services-forestry-products-irving-paper.aspx (accessed on 23 June 2021).
  75. Kruger Industrial Company Profile. Available online: https://cbppl.com/ (accessed on 23 June 2021).
  76. Corner Brook Pulp and Paper Ltd. Environmental Progress Report. Available online: https://cbppl.com/wp-content/uploads/2020/06/EPR-2019-web-version.pdf (accessed on 25 June 2021).
Pollutants 02 00011 g001 550
Figure 1. Location of mills and major populated centres. Pulp mills are represented with a circle, paper mills with a square, and the pulp and paper mill with a triangle.
Figure 1. Location of mills and major populated centres. Pulp mills are represented with a circle, paper mills with a square, and the pulp and paper mill with a triangle.
Pollutants 02 00011 g001
Pollutants 02 00011 g002a 550Pollutants 02 00011 g002b 550
Figure 2. Air emissions registered in the APEI for Nova Scotia, New Brunswick and Newfoundland, and Labrador for pollutants (a) CO, (b) NOx, (c) TPM, (d) PM10, (e) PM2.5, (f) SO2, and (g) VOC.
Figure 2. Air emissions registered in the APEI for Nova Scotia, New Brunswick and Newfoundland, and Labrador for pollutants (a) CO, (b) NOx, (c) TPM, (d) PM10, (e) PM2.5, (f) SO2, and (g) VOC.
Pollutants 02 00011 g002aPollutants 02 00011 g002b
Pollutants 02 00011 g003 550
Figure 3. Air pollutant emissions from 2002 to 2019 for each facility for pollutants (a) CO, (b) NOx, (c) TPM, (d) PM10, (e) PM2.5, (f) SO2, and (g) VOC.
Figure 3. Air pollutant emissions from 2002 to 2019 for each facility for pollutants (a) CO, (b) NOx, (c) TPM, (d) PM10, (e) PM2.5, (f) SO2, and (g) VOC.
Pollutants 02 00011 g003
Pollutants 02 00011 g004 550
Figure 4. Distribution of air pollutant emissions from 2002 to 2019 for each facility for the pollutants (a) CO, (b) NOx, (c) TPM, (d) PM10, (e) PM2.5, (f) SO2, and (g) VOC.
Figure 4. Distribution of air pollutant emissions from 2002 to 2019 for each facility for the pollutants (a) CO, (b) NOx, (c) TPM, (d) PM10, (e) PM2.5, (f) SO2, and (g) VOC.
Pollutants 02 00011 g004
Pollutants 02 00011 g005 550
Figure 5. Mean difference from reporting thresholds (DRT) over (a) the sites, (b) the pollutants, and (c) the entire period. White represents no data.
Figure 5. Mean difference from reporting thresholds (DRT) over (a) the sites, (b) the pollutants, and (c) the entire period. White represents no data.
Pollutants 02 00011 g005
Pollutants 02 00011 g006 550
Figure 6. Percentual difference from the ARL on the CPMAEPPF for (a) TPM and (b) SO2. Pulp mills are represented by a solid line and paper mills by a dotted line. The black dotted line represents the mean on all mills and the black slashed line represents when a release equals the threshold suggested by CPMAEPPF.
Figure 6. Percentual difference from the ARL on the CPMAEPPF for (a) TPM and (b) SO2. Pulp mills are represented by a solid line and paper mills by a dotted line. The black dotted line represents the mean on all mills and the black slashed line represents when a release equals the threshold suggested by CPMAEPPF.
Pollutants 02 00011 g006
Table
Table 1. NPRI reporting thresholds for 2020 to 2021 (retrieved from [17]).
Table 1. NPRI reporting thresholds for 2020 to 2021 (retrieved from [17]).
PollutantCONOxSO2TPMPM2.5PM10VOC
NPRI threshold (tonnes/year)202020200.30.510
Table
Table 2. Location of Atlantic Canadian pulp and/or paper mills and their characteristics. PA: Paper; PU: Pulp; PP: Pulp and Paper.
Table 2. Location of Atlantic Canadian pulp and/or paper mills and their characteristics. PA: Paper; PU: Pulp; PP: Pulp and Paper.
Mill LocationIDTypeProductProduction (tpy) 4EmployeesNPRI IDNAICS 6 Code
Northern Pulp
(−62.72°, 45.65°)		New Glasgow, NSNPPUKraft pulp280,000330 2815322112
Irving P & P Limited
(−66.09°, 45.26°)		Saint John, NBIPPUBleached kraft pulp335,000335 22604322112
Twin Rivers Paper
(−68.33°, 47.37°)		Edmundston, NBEDPUBleached pulp370,000280 21221322112
Atholville, AV Group
(−66.72°, 47.99°)		Atholville, NBATPUPulpND 1275 35008322112
Nackawic, AV Group
(−67.23°, 46.01°)		Nackawic, NBNAPUPulpND 1365 32181322112
Port Hawkesbury Paper
(−61.36°, 45.60°)		Hawkesbury, NSHAPAPaper400,000350 32221322122
Lake Utopia Paper
(−66.77°, 45.16°)		Utopia, NBUTPACorrugate medium 185,000140 21572322130
Irving Paper Limited
(−66.02°, 45.28°)		Saint John, NBIAPAPaper420,000310 23394322121
Corner Brook P & P
(−57.95°, 48.95°) 		Corner Brook, NLCBPPPulp and paper255,500304 24929322122
1 No Data. 2 Number of employees retrieved from individual mill websites. 3 Number of employees retrieved from ECCC website (National Release Inventory. Available online: https://www.canada.ca/en/environment-climate-change/services/national-pollutant-release-inventory/tools-resources-data/all-year-dashboard.html (accessed on 29 March 2022)). 4 Total annual capacity. Mills do not necessarily operate at maximum capacity every year.
Table
Table 3. Annual recommended limits (ARL) for TPM and SO2 releases according to the CPMAEPPF (retrieved from [54]).
Table 3. Annual recommended limits (ARL) for TPM and SO2 releases according to the CPMAEPPF (retrieved from [54]).
Tonnes Per YearNPIPEDATNAHAUTIACB
TPM560670740ND 1ND 120093210128
SO2112013401480ND 1ND 1600278630383
1 ND indicates no data. Annual capacity production in the mill was unavailable to calculate the annual threshold emission.
Table
Table 4. p-values for the NPRI annual trends.
Table 4. p-values for the NPRI annual trends.
p-Value 1CONOxTPMPM10PM2.5SO2VOC
Northern Pulp0.0370.5660.4100.2190.0950.7210.001
Irving P & P Limited0.0000.0740.0020.0030.0000.0000.000
Twin Rivers Paper0.0080.0000.8210.5960.9020.0020.601
Atholville, AV Group0.0170.1970.1050.1040.0980.0310.095
Nackawic, AV Group0.0980.0060.0060.9710.3880.0000.001
Port Hawkesbury Paper0.3330.4030.2790.3220.5170.0280.000
Lake Utopia Paper0.2080.6650.0440.1780.5100.0190.019
Irving Paper Limited0.0300.7280.1240.1910.3540.0150.017
Corner Brook P & P0.0130.1300.0910.1090.2340.0000.623
1 Significant values at p = 0.05 are in blue. Significant values at p = 0.001 are in red.
Table
Table 5. Mean and standard deviation (±) of air releases in each mill from 2002 to 2019.
Table 5. Mean and standard deviation (±) of air releases in each mill from 2002 to 2019.
Tonnes/YearCONOxTPMPM10PM2.5SO2VOC
Northern Pulp1985.8 ± 1292.7522.8 ± 166.01115 ± 659.3944.4 ± 567.8717.5 ± 457.7159.1 ± 186.9211.9 ± 114.0
Irving P & P Limited1927.1 ± 224.3975.7 ± 133.1179 ± 66.1129.9 ± 52.4100.2 ± 53.11628.8 ± 1173.5274.7 ± 61.3
Twin Rivers Paper1551.4 ± 263.01238.8 ± 213.5159.9 ± 74.8125.9 ± 64.0102.7 ± 48.01488.2 ± 276.0541.4 ± 102.3
Atholville, AV Group1256.9 ± 1208.3477.9 ± 96.7134.9 ± 119.4117.7 ± 103.3105.3 ± 93.3683.9 ± 185.6290.2 ± 280.1
Nackawic, AV Group698.9 ± 164.2551.8 ± 80.7226.8 ± 52.0137.8 ± 41.197.1 ± 32.11034.4 ± 406.4183.6 ± 35.4
Port Hawkesbury Paper342.9 ± 174.0312.2 ± 120.979.0 ± 35.838.2 ± 21.215.0 ± 6.9320.8 ± 311.3203.8 ± 148.3
Lake Utopia Paper49.6 ± 27.9167.9 ± 33.415.0 ± 9.912.0 ± 8.49.5 ± 5.2401.7 ± 323.191.7 ± 135.2
Irving Paper Limited56.1 ± 12.9131.3 ± 33.226.4 ± 8.814.7 ± 8.510.3 ± 5.0331.7 ± 245.736.9 ± 5.8
Corner Brook P & P 127.8 ± 27.1181.2 ± 41.949.6 ± 21.945.9 ± 17.637.3 ± 15.1206.2 ± 202.9127.1 ± 40.5
Mean 1888.5506.6220.6174.1132.8695.0217.9
Major emitters 21006.1510.2304.8325.6295.4746.1304.8
Percentage of major emissions 322.8%1.9%42.0%59.3%67.3%14.2%27.8%
1 Mean of all releases in each mill and in each pollutant. 2 Mean of all releases in each mill considering only those > 100 tonnes/year. 3 Percentage of all releases considering only those > 100 tonnes/year.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Giacosa, G.; Barnett, C.; Rainham, D.G.; Walker, T.R. Characterization of Annual Air Emissions Reported by Pulp and Paper Mills in Atlantic Canada. Pollutants 2022, 2, 135-155. https://doi.org/10.3390/pollutants2020011

AMA Style

Giacosa G, Barnett C, Rainham DG, Walker TR. Characterization of Annual Air Emissions Reported by Pulp and Paper Mills in Atlantic Canada. Pollutants. 2022; 2(2):135-155. https://doi.org/10.3390/pollutants2020011

Chicago/Turabian Style

Giacosa, Gianina, Codey Barnett, Daniel G. Rainham, and Tony R. Walker. 2022. "Characterization of Annual Air Emissions Reported by Pulp and Paper Mills in Atlantic Canada" Pollutants 2, no. 2: 135-155. https://doi.org/10.3390/pollutants2020011

Article Metrics

Back to TopTop
